ABB AF09, AF16, AF26, AF38, AF40 Accessories Catalog

...

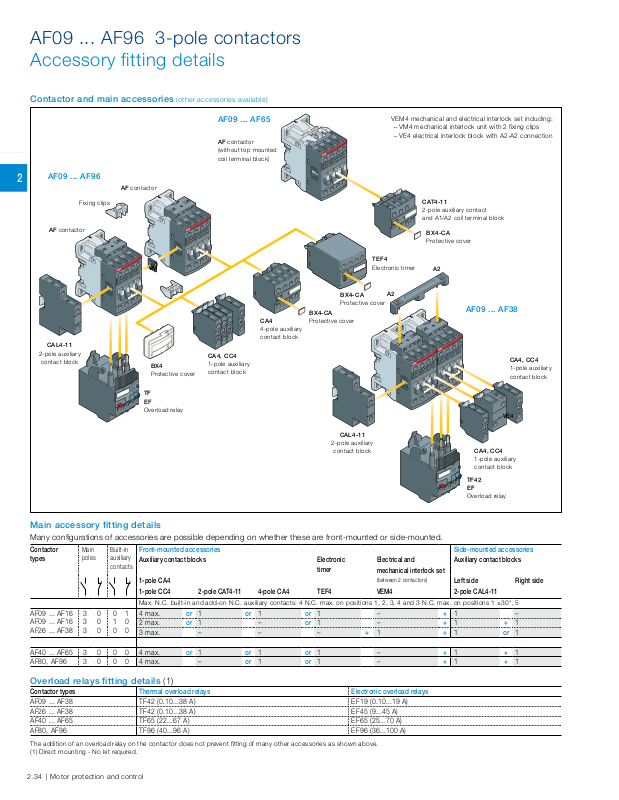

AF09 ... AF96 3-pole contactors

Accessory fitting details

Contactor and main accessories (other accessories available)

AF09 ... AF96

AF contactor

CAL4-11

2-pole auxiliary

contact block

Fixing clips

AF contactor

TF EF

Overload relay

BX4

Protective cover

AF09 ... AF65

AF contactor

(without top mounted coil terminal block)

CA4, CC4

1-pole auxiliary contact block

CA4

4-pole auxiliary contact block

BX4-CA

Protective cover

BX4-CA

Protective cover

VEM4 mechanical and electrical interlock set including:

– VM4 mechanical interlock unit with 2 ﬁxing clips – VE4 electrical interlock block with A2-A2 connection

CAT4-11

2-pole auxiliary contact and A1/A2 coil terminal block

BX4-CA

Protective cover

TEF4

Electronic timer

AF09 ... AF38

VE4

CA4, CC4

1-pole auxiliary contact block

CAL4-11

2-pole auxiliary

contact block

Main accessory fitting details

Many conﬁgurations of accessories are possible depending on whether these are front-mounted or side-mounted.

Main

Contactor types

poles

Built-in

Front-mounted accessories Side-mounted accessories

auxiliary

Auxiliary contact blocks Electronic

contacts

1-pole CA4

timer

Electrical and Auxiliary contact blocks mechanical interlock set

(between 2 contactors)

1-pole CC4 2-pole CAT4-11 4-pole CA4 TEF4 VEM4 2-pole CAL4-11

Max. N.C. built-in and add-on N.C. auxiliary contacts: 4 N.C. max. on positions 1, 2, 3, 4 and 3 N.C. max. on positions 1 ±30°, 5

AF09 ... AF16 AF09 ... AF16 AF26 ... AF38

AF40 ... AF65 3 0 0 0 4 max. AF80, AF96 3 0 0 0 4 max. –

4 max.

2 max.

3 max. – – –

1 –

Overload relays fitting details (1)

Contactor types

AF09 ... AF38 TF42 (0.10...38 A) EF19 (0.10...19 A) AF26 ... AF38 TF42 (0.10...38 A) EF45 (9...45 A) AF40 ... AF65 TF65 (22...67 A) EF65 (25...70 A) AF80, AF96 TF96 (40...96 A) EF96 (36...100 A)

The addition of an overload relay on the contactor does not prevent ﬁtting of many other accessories as shown above. (1) Direct mounting - No kit required.

Thermal overload relays Electronic overload relays

CA4, CC4

1-pole auxiliary contact block

TF42 EF

Overload relay

Left side Right side

1 –

2.34 | Motor protection and control Motor protection and control | 2.35

AF09 ... AF96 3-pole contactors

Accessory fitting details

For AF09 ... AF38 contactors + CE5 auxiliary contacts for severe industrial environments

Main accessory fitting details

Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.

Contactor types

3-pole contactors AF09 ... AF38

AF09 ... AF16 3 0 0 1 1 + 3 max. – + 1 – AF09 ... AF16

AF26 ... AF3833001000

AF09 ... AF16 3 0 0 1 1 + 3 max. – – – AF09 ... AF16

AF26 ... AF3833001000

4-pole contactors AF09 ... AF38

AF09, AF16 4 0 0 0 2 + 2 max. – – –

AF26, AF38 4 0 0 0 1 + 3 max. – + 1 –

AF09, AF16 AF26, AF38

AF09, AF16 4 0 0 0 1 + 3 max. – + 1 –

AF26, AF38 AF09, AF16 AF26, AF38

Main poles

Built-in auxiliary contacts

2 2 0 0 1 + 3 max. – + 1 –

Front-mounted accessories Side-mounted accessories

Auxiliary contact blocks Electronic timer

1-pole CA4 Left side Right side

1-pole CE5 1-pole CC4 VEM4 2-pole CAL4-11

Max. N.C. built-in and add-on N.C. auxiliary contacts (CA4, CC4, CAL4, VEM4): 2 max. with 1 CE5, none with 2 CE5 on positions 1, 2, 3, 4

2 + 2 max. – – – 1 + 3 max. – + 1 – 1 + 1 max. – + 1 + 1 1 + 2 max. + 1 + 1 –

1 + 3 max. – + 1 – 1 + 2 max. + 1 – –

1 + 3 max. – + 1 – 1 + 1 max. – + 1 + 1 1 + 2 max. + 1 + 1 –

1 + 2 max. + 1 – –

1 + 3 max. – – –

1 max. N.C. built-in and add-on N.C. auxiliary contacts (CA4, CC4, CAL4, VEM4) on positions 1 ±30°, 5

Max. add-on N.C. auxiliary contacts (CA4, CC4, CAL4, VEM4): 2 max. with 1 CE5, none with 2 CE5 on positions 1, 2, 3, 4

1 max. add-on N.C. auxiliary contacts (CA4, CC4, CAL4, VEM4) on positions 1, 2, 3, 4

1 max. add-on N.C. auxiliary contacts (CA4, CC4, CAL4, VEM4) on positions 1 ±30°, 5

No add-on N.C. auxiliary contacts on positions 1 ±30°, 5

mechanical interlock set

(between 2 contactors)

Auxiliary contact blocks

AF116 ... AF370 3-pole contactors

with 1 N.O. + 1 N.C. auxiliary contacts Accessory fitting details

Main accessories (other accessories available)

CAL19-11B

2-pole auxiliary contact block

Terminal enlargement

Mechanical interlock

AF contactor with bar connections

CAL19-11B

2-pole auxiliary contact block

Terminal shroud

AF contactor with built-in cable clamps

TF/TA

Thermal overload relay

Electronic overload relay

Main accessory fitting details

Main

Contactor types

AF116 ... AF370 3 0 1 1 1 x CAL19-11

AF116 ... AF370 3 0 1 1 –

(1) Total number of auxiliary contact blocks for the two contactors. (2) Interlock type, according to the contactor ratings (see "Accessories").

poles

Available auxiliary contacts

Side-mounted accessories

Auxiliary contact blocks

CAL19-11 CAL19-11B

2 x CAL19-11B –

2 x CAL19-11B (1)

Mechanical interlock units

(between two contactors)

VM... (2)

Overload relays fitting details (1)

Contactor types

AF116 ... AF140 TF140DU (66...142 A) EF146 (54...150 A) AF146 – EF146 (54...150 A) AF190, AF205 TA200DU (66...200 A) EF205 (63...210 A) AF265 ... AF370 – EF370 (115...380 A)

The addition of a thermal or electronic overload relay on the contactor does not prevent ﬁtting of many other accessories as shown in "Main accessory ﬁtting details" table. (1) Direct mounting - No kit required.

2.36 | Motor protection and control Motor protection and control | 2.37

Thermal overload relays Electronic overload relays

AF400 ... AF2650 3-pole contactors

with 1 N.O. + 1 N.C. auxiliary contacts Accessory fitting details

Main accessories (other accessories available)

Terminal enlargement

CAL18-11B

2-pole auxiliary contact block

Mechanical interlock

CAL18-11B

2-pole auxiliary contact block

Main accessory fitting details

Main

Contactor types

Contactors + auxiliary contact blocks

AF400 ... AF2650 3 0 1 1 1 x CAL18-11

Contactors with mechanical interlocking + auxiliary contact blocks

AF400 ... AF2650 3 0 1 1 2 x CAL18-11 (1)

poles

Available auxiliary contacts

Side-mounted accessories

Auxiliary contact blocks

CAL18-11 CAL18-11B (3)

2 x CAL18-11B –

4 x CAL18-11B (1)

AF contactor

Mechanical interlock units

(between two contactors)

VM...H (2)

Terminal shroud

(1) Total number of auxiliary contact blocks for the two contactors. (2) Interlock type, according to the contactor ratings (see "Accessories"). (3) The CEL18-.. auxiliary contact blocks can replace the CAL18-11 and CAL18-11B. Though, no auxiliary contact block can be mounted outside the CEL18-..

Overload relays fitting details

Contactor types

AF400, AF460 – E500DU (150...500 A) (4) AF580, AF750 – E800DU (250...800 A) (4) AF1350, AF1650 – E1250DU (375...1250 A) (4)

The addition of a thermal or electronic overload relay on the contactor does not prevent ﬁtting of many other accessories as shown in "Main accessory ﬁtting details" table. (4) Mounting kit required (see overload relay page.

Thermal overload relays Electronic overload relays

AF09 ... AF38 4-pole contactors

Accessory fitting details

Contactor and main accessories (other accessories available)

AF contactor

CAL4-11

2-pole auxiliary

contact block

Fixing clips

AF contactor

VM4

BX4

Protective cover

(without top mounted coil terminal block)

CA4, CC4

1-pole auxiliary contact block

CA4

4-pole auxiliary contact block

BX4-CA

Protective cover

BX4-CA

Protective cover

VEM4 mechanical and electrical interlock set including:

– VM4 mechanical interlock unit with 2 ﬁxing clips – VE4 electrical interlock block with A2-A2 connection

CAT4-11

2-pole auxiliary contact and A1/A2 coil terminal block

BX4-CA

Protective cover

TEF4

Electronic timer

CA4, CC4

1-pole auxiliary contact block

CAL4-11

2-pole auxiliary

contact block

CA4, CC4

1-pole auxiliary contact block

Main accessory fitting details

Many conﬁgurations of accessories are possible depending on whether these are front-mounted or side-mounted.

Main

Contactor types

AF09 ... AF16 4 0 0 0 4 max.

AF26 ... AF38 4 0 0 0 4 max.

AF09 ... AF16 AF26 ... AF3822220000

poles

Built-in

Front-mounted accessories Side-mounted accessories

auxiliary

Auxiliary contact blocks Electronic

contacts

1-pole CA4

timer

Electrical and Auxiliary contact blocks mechanical interlock set

(between 2 contactors)

1-pole CC4 2-pole CAT4-11 4-pole CA4 TEF4 VEM4 2-pole CAL4-11

Max. add-on N.C. auxiliary contacts: 4 N.C. max. on positions 1, 2, 3, 4 and 3 N.C. max. on positions 1 ±30°, 5

2 max.

1 –

3 max. – – –

1 –

Max. add-on N.C. auxiliary contacts: 3 N.C. max. on positions 1, 2, 3, 4 and 2 N.C. max. on positions 1 ±30°, 5

2 max.

1 –

3 max. – – –

4 max. 2 max.

1 –

Left side Right side

1 –

VE4

2.38 | Motor protection and control Motor protection and control | 2.39

NF 4-pole control relays

Accessory fitting details

Control relays and main accessories (other accessories available)

NF control relay

TEF4

Electronic timer

BX4-CA

Protective cover

CAL4-11

2-pole auxiliary

contact block

BX4

Protective cover

CA4, CC4

1-pole auxiliary contact block

CA4

4-pole auxiliary contact block

BX4-CA

Protective cover

Main accessory fitting details

Many conﬁgurations of accessories are possible depending on whether these are front-mounted or side-mounted.

Control relay types

NF 2321EE4 max.

NF 4 0 E 4 max.

Main poles

Front-mounted accessories Side-mounted accessories

Auxiliary contact blocks Electronic timer Auxiliary contact blocks

1-pole CA4 Left side Right side

1-pole CC4 4-pole CA4 TEF4 2-pole CAL4-11

Max. add-on N.C. auxiliary contacts: 3 N.C. max. on positions 1, 2, 3, 4 and 2 N.C. max. on positions 1 ±30°, 5

2 max. –

Max. add-on N.C. auxiliary contacts: 4 N.C. max. on positions 1, 2, 3, 4 and 3 N.C. max. on positions 1 ±30°, 5

2 max. –

1 –

For NF control relays + CE5 auxiliary contacts for severe industrial environments

Main accessory fitting details

Many conﬁgurations of accessories are possible depending on whether these are front-mounted or side-mounted.

Control relay types

Main poles

Front-mounted accessories Side-mounted accessories

Auxiliary contact blocks Auxiliary contact blocks

1-pole CA4 Left side Right side

1-pole CE5 1-pole CC4 2-pole CAL4-11

NF 2321E

NF 4 0 E 2 + 2 max. – – –

NF 2321E

NF 4 0 E 1 + 3 max. – + 1 –

1 + 3 max. – + 1 –

1 + 3 max. – + 1 – 1 + 1 max. – + 1 + 1

1 + 3 max. – – –

Max. add-on N.C. auxiliary contacts (CA4, CC4, CAL4): 1 max. with 1 CE5 on positions 1, 2, 3, 4

Max. add-on N.C. auxiliary contacts (CA4, CC4, CAL4): 2 max. with 1 CE5, none with 2 CE5 on positions 1, 2, 3, 4

Max. add-on N.C. auxiliary contacts (CA4, CC4): none with 1 CE5 on positions 1 ±30°, 5

Max. add-on N.C. auxiliary contacts (CA4, CC4, CAL4): 1 max. with 1 CE5 on positions 1 ±30°, 5

NF 8-pole control relays

Accessory fitting details

Control relays and main accessories (other accessories available)

2-pole CAL4-11

NF control relay

BX4-CA

Protective cover

Main accessory fitting details

Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.

Control relay types

NF 4

Main poles

5 6 7 8

Front-mounted accessories Side-mounted accessories

Auxiliary contact blocks Auxiliary contact blocks

1-pole CA4 Left side Right side

1-pole CC4 4-pole CA4 2-pole CAL4-11

– –

1 –

2.40 | Motor protection and control Motor protection and control | 2.41

Auxiliary contact blocks for AF09 ... AF96 contactors and NF control relays

Description

The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments.

Types of auxiliary contact blocks for front mounting:

– CA4 1 or 4-pole block, with instantaneous N.O., N.C. contacts

CA4-10

CAL4-11

– CC4 1-pole block, with N.O. leading contact or N.C. lagging contact – CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connection on

front face.

Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to the contactor or contactor relay type for compliance with the standard requirements (see "Terminal marking and positioning").

Types of auxiliary contact blocks for side mounting:

– CAL4 2-pole block, with instantaneous N.O. + N.C. contacts. For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected

against accidental direct contact and bear the corresponding function marking.

Ordering details (1)

For contactors Auxiliary contacts Catalog

number

Global reference code

Pkg qty

Weight (1 pce)

CA4-22E

CAT4-11E

Front-mounted instantaneous auxiliary contact blocks

AF09 ... AF96 4-pole NF

AF09 ... AF16..-30-10 2 2 – – CA4-22M 1SBN010140R1122 1 0.055

AF26 ... AF96..-30-00 AF09 ... AF38..-40-00 AF09 ... AF38..-22-00

AF26 ... AF96..-30-00 AF09 ... AF16..-40-00

AF09 ... AF16..-30-01 2 2 – – CA4-22U 1SBN010140R1322 1 0.055

4-pole NF 2 2 – – CA4-22N 1SBN010140R1222 1 0.055

NF..40E 0 4 – – CA4-04N 1SBN010140R1204 1 0.055

Front-mounted auxiliary contact blocks with N.O. leading contact and N.C. lagging contact

AF09 ... AF96 4-pole NF

Side-mounted instantaneous auxiliary contact blocks

AF09 ... AF96 NF

1 0 – – CA4-10 1SBN010110R1010 1 0.014 1 0 – – CA4-10-T 1SBN010110T1010 10 0.014 0 1 – – CA4-01 1SBN010110R1001 1 0.014 0 1 – – CA4-01-T 1SBN010110T1001 10 0.014

3 1 – – CA4-31M 1SBN010140R1131 1 0.055 1 3 – – CA4-13M 1SBN010140R1113 1 0.055 0 4 – – CA4-04M 1SBN010140R1104 1 0.055 2 2 – – CA4-22E 1SBN010140R1022 1 0.055 3 1 – – CA4-31E 1SBN010140R1031 1 0.055 4 0 – – CA4-40E 1SBN010140R1040 1 0.055 0 4 – – CA4-04E 1SBN010140R1004 1 0.055

3 1 – – CA4-31U 1SBN010140R1331 1 0.055 4 0 – – CA4-40U 1SBN010140R1340 1 0.055

3 1 – – CA4-31N 1SBN010140R1231 1 0.055 4 0 – – CA4-40N 1SBN010140R1240 1 0.055 1 3 – – CA4-13N 1SBN010140R1213 1 0.055

– – 1 0 CC4-10 1SBN010111R1010 1 0.014 – – 0 1 CC4-01 1SBN010111R1001 1 0.014

1 1 – – CAL4-11 1SBN010120R1011 1 0.040 1 1 – – CAL4-11-T 1SBN010120T1011 10 0.040

Front-mounted instantaneous auxiliary contact and A1/A2 coil terminal blocks

AF09 ... AF16..-30-10 1 1 – – CAT4-11M 1SBN010151R1111 1 0.040 AF26 ... AF65..-30-00

AF09 ... AF38..-40-00 AF09 ... AF38..-22-00

AF09 ... AF16..-30-01 1 1 – – CAT4-11U 1SBN010151R1311 1 0.040

(1) For each contactor or contactor relay type, refer to "Accessory ﬁtting details" table. Note: CAT4 not suitable for AF..Z contactors with DC control voltage 12…20 V DC.

1 1 – – CAT4-11E 1SBN010151R1011 1 0.040

+ 18 hidden pages
