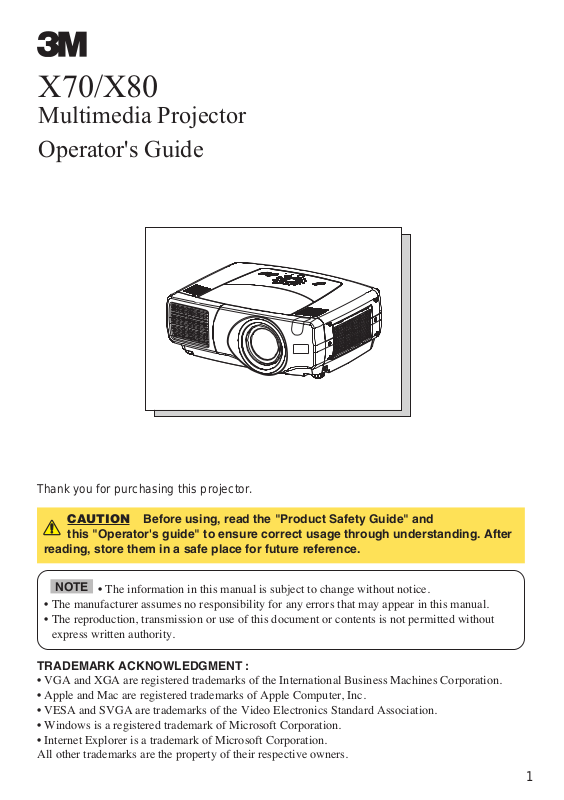

3M X80L, X80S, XD80U User Manual

1

Thank you for purchasing this projector.

TRADEMARK ACKNOWLEDGMENT :

• VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple and Mac are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• Internet Explorer is a trademark of Microsoft Corporation.
All other trademarks are the property of their respective owners.

CAUTION Before using, read the "Product Safety Guide" and
this "Operator's guide" to ensure correct usage through understanding. After

reading, store them in a safe place for future reference.

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.

NOTE

X70/X80

Multimedia Projector
Operator's Guide

2

Projector Features

Projector Features

Preparation

Preparation

●

Ultra High Brightness

Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly
efficient optical system.

●

Whisper Mode Equipped

Special mode is available for reducing projector noise to achieve quieter operation.

●

User Memory Function

This projector can memorize 4 settings by MY MEMORY function.

●

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing.

●

Keystone Distortion Correction

Quick correction of distorted images electrically.

●

Optical Lens Shift (X80 only)

The lens of this projector can be shifted vertically. When you want to finely adjust the picture position,
use the LENS SHIFT buttons.

This multimedia projector is used to project various computer signals as well as
NTSC/PAL/SECAM video signals onto a screen. Little space is required for
installation and large images can easily be realized.

Please see the “Quick Start Guide”. Your projector should come with the items
shown there. Contact your dealer anything is missing.

• Keep the original packing material for future reshipment. For moving the projector, be

sure to use the original packing material. Use special caution for the lens part.

NOTE

3

Contents

Contents

Projector Features

……………………………………

2

Preparation

……………………………………………………

2

Part Names

……………………………………………………

4

Projector ……………………………4
Control Buttons ……………………5
Remote control ……………………5

Setting Up

…………………………………………………………

6

Arrangement ………………………6
Adjusting The Projector’s
Elevator ……………………………7
Using The Lens shift Buttons (X80 only)

…7
Connecting Your Devices…………8
Connecting The Power Supply …11

Remote Control

…………………………………………

12

About The Laser Pointer ………12
Putting Batteries …………………12
Operating The
Remote Control …………………13
Using The Remote
ID Feature…………………………13
Using The Mouse/Keyboard
Control Function …………………14

Power ON/OFF

…………………………………………

15

Turning On The Power …………15
Turning Off The Power …………15

Operating

……………………………………………………

16

Selecting An Input Signal ………16
Selecting The Aspect Ratio ……17
Using The Automatic
Adjustment Feature………………17
Adjusting The Picture Position …18
Correcting The Keystone
Distortion …………………………18
Adjusting The Volume …………19
Muting The Sound ………………19
Temporarily Blanking
The Screen ………………………19
Freezing The Screen ……………20
Using The Magnify Feature ……20
Displaying The Child Window …21
Selecting An Audio Input ………21

Multifunctional Settings

……………………

22

Using The Menu Functions ……22
MAIN Menu ………………………23
PICTURE-1 Menu ………………24
PICTURE-2 Menu ………………26
INPUT Menu ……………………27
AUTO Menu ………………………29
SCREEN Menu …………………31
OPTION Menu ……………………33
NETWORK Menu ………………35

Network Setting Up

………………………………

36

Lamp

………………………………………………………………

37

Replacing The Lamp ……………38

Air Filter

…………………………………………………………

39

Caring For The Air Filter…………39

Other Care

……………………………………………………

40

Caring For The Inside Of
The Projector ……………………40
Caring For The Lens ……………40
Caring For The Cabinet And
Remote Control …………………40

Troubleshooting

……………………………………

41

Related Messages ………………41
Regarding The Indicator
Lamps ……………………………43
Phenomena That May Easily Be
Mistaken For Machine Defects …45

Specifications

…………………………………………

47

Accessories

………………………………………………

48

TECHNICAL

4

Part Names

Part Names

Projector

1 Elevator button
2 Elevator foot
3 Remote sensor
4 Lens cap
5 Lens

The picture is projected from
here.

6 Filter cover

An air filter is inside.

A rgb port
B M1-D port
C BNC port
D

audio in 1 port

E audio in 2 port
F control port
G network port
H audio in R/L port
I video in port
J S-video in port
K component port
L rgb out port
M audio out port

7 remote control port
8 dc out port
9 AC Inlet
0 Power switch

- Control buttons

See the following page.

Projector (Front/Right)

Projector (Rear/Left)

-

0

5

3

1

6

4

D
E

A

B

C

8

7

L

F

G

K

M

I

H

J

9

3

2

5

Part Names (continued)

Part Names (continued)

Remote Control

Control Buttons

ENTER

input

M1-D

rgb

BNC

S-video

standby/on

temp

video

component

lamp

keystone

search

reset

menu

focus zoom

1

e

w q

4

7

8

9

0

­=

2

5

6

t

y

u

3

r

X70 volume
X80

lens shift

Control Panel
on the Projector

Remote Control

i LASER INDICATOR
o VIDEO button
p RGB button
[ BLANK button
] ASPECT button
\ LASER button
a Cursor buttons / / /

( Mouse move pointer)

s ESC button

( Keyboard ESC key)

d ( Mouse right button)
f POSITION button
g AUTO button
h PinP button
j MAGNIFY buttons
k FREEZE button
l VOLUME button
; MUTE button
' ID CHANGE switch

1 STANDBY/ON button

4 LENS SHIFT buttons

(X70 : No buttons)

6 SEARCH button

q ZOOM buttons
w FOCUS buttons
e KEYSTONE button
r MENU button
t RESET button
y ENTER button

( Mouse left button)

u Cursor buttons

///
( Keyboard
Arrow keys / / / )

(Rear)

1 STANDBY/ON button

and STANDBY/ON indicator

2 TEMP indicator
3 LAMP indicator
4 X70 VOLUME buttons

4 X80 LENS SHIFT buttons

5 INPUT dial
6 SEARCH button
7 M1-D indicator
8 RGB indicator
9 BNC indicator
0 COMPONENT indicator

- S-VIDEO indicator
= VIDEO indicator
q ZOOM buttons
w FOCUS buttons
e KEYSTONE button
r MENU button
t RESET button
y ENTER button
u Cursor buttons / / /

y

i

1
q
4
w

u

r

s
f
h

j

k

e

LASER INDICATOR

STANDBY/ON

VIDEO

+

++

LENS SHIFT

FOCUS ZOOM

–––

ASPECT

BLANK

PREVIOUS

MOUSE

ESC MENU

POSITION

RESET AUTO

MAGNFY

PinP

ON

FREEZE MUTE

OFF

KEYSTONE

1 2 3

ID CHANGE

RGB

LASER

NEXT

VOLUME

SEARCH

o

p

[
\

]

a
d

t

g
l

;

6

'

6

Setting Up

Setting Up

Arrangement

WARNING • Before installation, make sure that the projector is turned off and the
power code is disconnected.

• Do not set up and move the projector, while it is hot.

• Install the projector in a suitable environment according to instructions of the “Product
Safety Guide” and this manual.

• The power outlet should be close to the projector and easily accessible.

Refer to the illustrations and tables below to determine the screen size and projection
distance. The values shown in the table are calculated for a full size screen. (±10%)

Reference for
the 4:3 aspect ratio

Reference for
the 16:9 aspect ratio

Screen Size

[inch (m)]

a [inch (m)] b [inch (cm)]

C

[inch (cm)]

Min. Max.

:

min

:

max

40 (1.0) 46(1.2) 71(1.8) 12(30) 24(61) 24(61)
60 (1.5) 71(1.8) 107(2.7) 18(46) 36(91) 36(91)
70 (1.8) 83(2.1) 126(3.2) 21(53) 42(107) 42(107)

80 (2.0) 95(2.4) 144(3.7) 24(61) 48(122) 48(122)
100 (2.5) 120(3.0) 181(4.6) 30(76) 60(152) 60(152)
120 (3.0) 144(3.7) 217(5.5) 36(91) 72(183) 72(183)
150 (3.8) 181(4.6) 272(6.9) 45(114) 90(229) 90(229)
200 (5.1) 243(6.2) 364(9.2) 60(152) 120(305) 120(305)
250 (6.4) 304(7.7)

455(11.6)

75(191) 150(381) 150(381)

300 (7.6) 366(9.3)

547(13.9)

90(229) 180(457) 180(457)

350 (8.9)

427(10.9) 638(16.2)

105(267)210(533) 210(533)

400 (10.2)

489(12.4) 730(18.5)

120(305)240(610) 240(610)

500 (12.7)

612(15.5) 913(23.2)

150(381)300(762) 300(762)

Screen Size

[inch (m)]

a [inch (m)] b [inch (cm)]

C

[inch (cm)]

Min. Max.

:

min

:

max

40 (1.0) 50(1.3) 77(2.0) 10(25) 23(58) 20(50)

60 (1.5) 77(2.0) 117(3.0) 15(37) 34(87) 29(75)

70 (1.8) 91(2.3) 137(3.5) 17(44) 40(102) 34(87)

80 (2.0) 104(2.6) 157(4.0) 20(50) 46(116) 39(100)
100 (2.5) 131(3.3) 197(5.0) 25(62) 57(145) 49(125)
120 (3.0) 158(4.0) 237(6.0) 29(75) 69(174) 59(149)
150 (3.8) 198(5.0) 297(7.5) 37(93) 86(218) 74(187)
200 (5.1) 265(6.7)

396(10.1)

49(125) 114(291) 98(249)

250 (6.4) 332(8.4)

496(12.6)

61(156) 143(363) 123(311)

300 (7.6)

399(10.1) 596(15.1)

74(187) 172(436) 147(374)

350 (8.9)

466(11.8) 696(17.7)

86(218) 200(508) 172(436)

400 (10.2)

533(13.5) 795(20.2)

98(249) 229(581) 196(498)

450 (11.4)

600(15.2) 895(22.7)

110(280)257(654) 221(560)

Lens center

Screen

Side View

Lens center

Screen

Side View

X70

X80

X80

X70

X80

X80

b

C

a

C

b

a

7

Setting Up (continued)

Setting Up (continued)

Adjusting The Projector's Elevator

Using The Lens Shift Buttons (X80 only)

• Generally, better quality of a picture is available when the lens shift is set

to the center.

NOTE

You can use the elevator feet to make adjustments if the surface on which you need to set
the projector is uneven or if you otherwise need to adjust the angle of projection. The
adjustment range of the elevator feet is 0 to 9 degrees.

WARNING • Do not touch about the lens and ventilation openings during use or
immediately after use to prevent a burn.

CAUTION

• To prevent damaging the projector and injuring yourself, always

hold the projector whenever using the elevator buttons to adjust the elevator feet.

Press and hold in the elevator buttons.

Raise or lower the projector to the desired height and
then release the elevator buttons.
When you release the elevator buttons, the elevator
feet will lock into position.

As necessary, you can also finely adjust the height of
the projector by twisting the elevator feet by hand.

Elevator buttons

Elevator feet

The lens of this projector can be shifted
vertically. When you want to finely adjust the
picture position, use the LENS SHIFT buttons
of the projector.

10:0

1:1

1

2

3

STANDBY/ON

VIDEO

LASER INDICATOR

RGB

BLANK ASPECT LASER

LENS SHIFT

+

–––

++

FOCUS ZOOM

Projector

LENS SHIFT buttons

Remote control

lens shift

(max)

(min)

8

Setting Up (continued)

Setting Up (continued)

Connecting Your Devices

WARNING • Whenever attempting to connect other devices to the projector, read
thoroughly the "Product Safety Guide", this manual and the manual of each device

to be connected. Incorrect connecting could result in fire or electrical shock.

CAUTION

• TURN OFF ALL DEVICES prior to connecting them to the projector.

Attempting to connect a live device to the projector may generate extremely loud
noises or other abnormalities that may result in malfunction and/or damage to the
device and/or projector.

ATTENTION

• Make sure that you connect devices to the correct port. Incorrect
connection may result in malfunction and/or damage to the device and/or projector.
Refer to the section “Technical” of this manual for the pin assignment of connectors and
RS-232C communication data.

• Some cables have to be used with core set. Use the accessory cable or a

designated-type cable for the connection. For cables that have a core only at one
end, connect the core to the projector.

• Secure the screws on the connectors and tighten.

• Whenever attempting to connect a laptop computer to the projector, be sure to

activate the laptop’s RGB external image output (set the laptop to CRT display or to
simultaneous LCD and CRT display). For details on how this is done, please refer to
the instruction manual of the corresponding laptop computer.

• Some computers may have multiple display screen modes. Use of some of

these modes may not be compatible with this projector.

• For some RGB input modes, the optional Mac adapter is necessary.

• When the image resolution is changed on a computer, depending on an input,

automatic adjust function may take some time and may not be completed. In this
case, you may not be able to see a check box to select “Yes/No” for the new
resolution on Windows. Then the resolution will go back to the original. It might be
recommended to use other CRT or TFT monitors to change the resolution.

NOTE

Plug-and-Play Capability

• Plug-and-Play is a system incorporated in the computer, its operating system and
peripheral equipment (i.e. display devices).

• This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by
connecting this projector to computers that are VESA DDC (display data channel)
compatible.

• Please take advantage of this function by connecting the accessory RGB cable to the
RGB port (DDC 1/2B compatible). Plug-and-Play may not work properly if any other
type of connection is attempted.

• Please use the standard drivers in your computer as this projector is a Plug-and-Play
monitor.

NOTE

9

Setting Up (continued)

Setting Up (continued)

Please refer to the following (for example) for connecting your devices. See the rear of the projector.
You can see the ports.

R/CR/PR G/Y B/CB/PB H V

Examples of connection with a computer

video inR-audio in-L

S-video in

BNC

rgb

audio in1

audio in2

rgb out

audio out

remote control

R/C

R/PR G/Y B/CB/PB HV

Y

control network

CR/PR

Ca/Pa

A

E

F G

remote control

video inR-audio in-L

S-video in

BNC

rgb

audio in1

audio in2

rgb out

audio out

G/Y H V

Y

control network

CR/PR

Ca/Pa

R/CR/PR B/CB/PB

B

D

remote control

video inR-audio in-L

S-video in

BNC

rgb

audio in1

audio in2

rgb out

audio out

R/C

R/PR G/Y B/CB/PB HV

Y

control network

CR/PR

Ca/Pa

C

D

Computer Projector

RGB out RGB cable rgb

Audio out Stereo Mini cable audio in 2

RS-232C port RS-232C cable control

Network port CAT-5 cable network

■ If using a M1-D input (to mouse control)

■ If using a BNC input

DVI port M1-D

USB port M1-D cable

Audio out Stereo Mini cable audio in 1

BNC cable

RGB out

R/C

R/PR

G/Y
B/CB/PB
H
V

C

D

B

G

F

E

A

D

Audio out Stereo Mini cable audio in 1

10

Setting Up (continued)

Setting Up (continued)

video inR-audio in-L

S-video in

BNC

rgb

audio in1

audio in2

rgb out

audio out

R/C

R/PR G/Y B/CB/PB HV

Y

control network

CR/PR

Ca/Pa

remote control

H I

remote control

video inR-audio in-L

S-video in

BNC

rgb

audio in1

audio in2

rgb out

audio out

R/C

R/PR G/Y B/CB/PB HV

Y

control network

CR/PR

Ca/Pa

H J

remote control

video inR-audio in-L

S-video in

BNC

rgb

audio in1

audio in2

rgb out

audio out

R/C

R/PR G/Y B/CB/PB HV

Y

control network

CR/PR

Ca/Pa

H

K

VCR/DVD Player Projector

■ If using a s-video signal

■ If using a component signal

R-audio in-L video in

R-audio in-L video in

component

S-video out S-video cable S -video in

J

CR/PR
CB/PB
Y

CR/PR out
CB/PB out

Y out

R-audio in-L video in

R-audio in
audio in-L

Audio out (R)

Audio out (L)

Audio out (R)

Audio out (L)

R-audio in
audio in-L

R-audio in
audio in-L
video in

Audio out (R)

Audio out (L)

Video out

H

H

K

H

remote control

video inR-audio in-L

S-video in

BNC

rgb

audio in1

audio in2

rgb out

audio out

R/C

R/PR G/Y B/CB/PB HV

Y

control network

CR/PR

Ca/Pa

HI

K

■ If using a SCART RGB input

R (CR/PR)
B (CB/PB)
G (Y)
R-audio in
audio in-L
video in

SCART
RGB out

SCART
adapter

K

I

H

I

Examples of connection with a VCR/DVD Player

component

R-audio in-L video in

11

Setting Up (continued)

Setting Up (continued)

remote control

video inR-audio in-L

S-video in

BNC

rgb

audio in1

audio in2

rgb out

audio out

R/C

R/PR G/Y B/CB/PB HV

Y

control network

CR/PR

Ca/Pa

L

remote control

video inR-audio in-L

S-video in

BNC

rgb

audio in1

audio in2

rgb out

audio out

R/C

R/PR G/Y B/CB/PB HV

Y

control network

CR/PR

Ca/Pa

M

Monitor Projector

RGB in RGB cable rgb out

Connecting to a monitor

Speaker Projector

Connecting to a speaker (with amplifier)

Audio in Stereo Mini cable audio out

M

L

WARNING •

Use extra caution when connecting the power cord as incorrect or faulty

connections may result in fire and/or electrical shock. Please adhere to the “Product Safety

Guide” and the following.

•

Only plug the power cord into outlets rated for use with the power cord’s specified voltage range.

•

Only use the power cord that came with the projector. If it is damaged, contact your dealer to
newly get correct one.

•

Never modify the power cord. Never attempt to defeat the ground connection of the three-pronged plug.

•

Make sure that you firmly connect the power cord to the projector and wall outlet.

1

Connect the connector of the power cord to
the AC inlet of the projector.

2

Firmly plug the power cord’s plug into the
outlet.

AC Inlet

Connector Plug

Outlet

Connecting The Power Supply

12

Remote Control

Remote Control

About The Laser Pointer

Putting Batteries

WARNING • The laser pointer of the remote control is used in place of a finger or
rod. Never look directly into the laser beam outlet or point the laser beam at other

people. The laser beam can cause vision problems.

CAUTION

• Use of controls or adjustments or performance of procedures other

than those specified herein may result in hazardous radiation exposure.

S

T

A

N

D

B

Y

/

O

N

V

ID

E

O

LASER INDICATOR

E

S

C

M

E

N

U

P

O

S

I

T

IO

N

R

E

S

E

T

A

U

T

O

K

E

Y

S

T

O

N

E

1

2

3

ID

C

H

A

N

G

E

S

E

A

R

C

H

O

N

O

F

F

F

R

E

E

Z

E

M

U

T

E

M

A

G

N

F

Y

P

in

P

V

O

L

U

M

E

R

G

B

B

LA

N

K

P

R

E

V

I

O

U

S

N

E

X

T

A

S

P

E

C

T

M

O

U

S

E

L

A

S

E

R

L

E

N

S

S

H

I

F

T

+

–––

++

F

O

C

U

S

Z

O

O

M

P S

C

レーザー光をのぞき込まないこと。
レーザー光を人に向けないこと。
子供に使わせないこと。
製造者：INTERLINK ELECTRONICS

This remote control has a laser pointer in place of a finger or rod. The laser beam works and the
LASER INDICATOR lights while the LASER button is pressed.

CAUTION • About the battery

• Keep a battery away from children and pets.

• Use only the battery specified: two AA batteries.

• Do not mix new battery with used one.

• Make sure the plus and minus terminals are correctly aligned when loading the

battery (as indicated in the remote control).

• Dispose of batteries in accord with environmental laws.

1

Remove the battery
cover.
Slide back and
remove the battery
cover in the direction
of the arrow.

Insert the batteries.
Align and insert the
two AA batteries
according to their plus
minus terminals (as
indicated in the remote
control).

Close the battery
cover.
Replace the battery
cover in the direction
of the arrow and snap
it back into place.

2

3

AVOID EXPOSURE-LASER

RADIATION IS EMITTED
FROM THIS APERTURE

CAUTION

LASER RADIATION

DO NOT STARE INTO BEAM

WAVE LENGTH: 640-660nm
MAX OUTPUT: 1mW
CLASS 2 LASER PRODUCT

Comples with 21 CFR, 1040.10 AND 1040.11
IEO60825-1:1993+A1:1997+A2:2001

LASER-STRAHLING
NICHT IN DEN STRAHL BLICKEN
LASER KLASSE 2
WAVE LENGTH:640-660nm MAX OUTPUT:1mW

レーザー光
ビームをのぞきこまないこと
クラス2レーザー製品 JISC6802（1998）
最大出力：1.0mW 波長：640−660nm

MODEL:H-IRC4

MANUFACTURER: B
MANUFACTURED

INTERLINK K.K.
1-10-7 HIGASHIKANDA CHIYODA-KU,TOKYO,JAPAN
101-0031

JANUARY,2003

MADE IN CHINA

13

Remote Control (continued)

Remote Control (continued)

Operating The Remote Control

CAUTION • Do not disassemble the remote control.

• Do not place the remote control near the projector’s lens, fan, or vents.

• Do not drop or otherwise expose the remote control to physical impact.

•

Do not get the remote control wet or place it on wet objects on it. Doing so may result in malfunction.

• Remove the batteries from the remote control and store them in a safe place if you
won't be using the remote control for an extended period.

• Replace the batteries whenever the remote control starts to malfunction.

•

When strong light, such as direct sunlight or light from an extremely close range (such as from an
inverter fluorescent lamp), hits the projector's remote sensor, the remote control may cease to function.
Adjust the direction of the projector to keep light from directly hitting the projector's remote sensor.

NOTE

•

The remote control works with the
projector’s remote sensor.

•

Front remote sensor is 3 meters with a 40
degree range (20 degrees to the left and
right of a remote sensor).
Rear remote sensor is 3 meters with a 40
degree range (20 degrees to the left and
right of a remote sensor).

•

Also a remote signal reflected in the screen etc.
may be available. If it is difficult to send a remote signal to the sensor directly, please try.

•

Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the
remote control in an area free from obstacles that could block the remote control’s output signal to the projector.

memo

You can use the remote control as a wired remote control, by connecting the REMOTE CONTROL

ports of the main unit and remote control via an audio cable (3.5 dia. stereo mini cable with plugs).

Set the ID number to the projector beforehand,
referring to the item “IR REMOTE ID” of the section
“OPTION Menu”.

memo

When the ALL is selected to the item “IR
REMOTE ID” of the OPTION menu, the projector is
controlled by a remote control irrespective of the
position of the ID CHANGE switch.

Slide the knob of the switch into the position of the
ID number of the projector you want to control.

Using The Remote ID Feature

This is the function to properly use when you use two or
three same type projectors at the same time. This function
should be used combining a setup of a projector.

ID CHANGE
switch

1

2

approximately
3 meters

20 degrees

20 degrees

approximately
3 meters

20 degrees

20 degrees

LASER INDICATOR

STANDBY/ON

VIDEO

+

++

LENS SHIFT

FOCUS ZOOM

–––

ASPECT

BLANK

PREVIOUS

MOUSE

ESC MENU

POSITION

RESET AUTO

MAGNFY

PinP

ON

FREEZE MUTE

OFF

KEYSTONE

1 2 3

ID CHANGE

RGB

LASER

NEXT

VOLUME

SEARCH

14

Remote Control (continued)

Remote Control (continued)

Using The Mouse/Keyboard Control Function

CAUTION • Before connecting, read the manuals of the device you will connect.

Mistaken use of the mouse/keyboard control could damage your equipment.

• Only connect to a PC or an USB Hub connected PC.

• Do not unplug the connector cables while the computer is operating.

Using the USB control feature, you can use the remote control as a simplified mouse or
keyboard of the computer.

Connect the M1-D port of the projector to the computer via the M1-D cable. Then
functions illustrated below will be enabled.

memo

The USB control can be used with
Windows 95 OSR 2.1 or higher. It may not be
possible to use the remote control, depending
on the computer’s configurations and mouse
drivers.

memo

The function can be used only for the

functions illustrated on the right.

memo

The projector would be enumerated as a
mouse and a keyboard of HID (Human
Interface Device) class devices, after
connecting cable.

Mouse move pointer

Keyboard

Arrow keys / / /

Mouse right button

Keyboard ESC key

(Front)

(Rear)

Mouse left button

LASER INDICATOR

STANDBY/ON

VIDEO

+

++

LENS SHIFT

FOCUS ZOOM

–––

ASPECT

BLANK

PREVIOUS

MOUSE

ESC MENU

POSITION

RESET AUTO

MAGNFY

PinP

ON

FREEZE MUTE

OFF

KEYSTONE

1 2 3

ID CHANGE

RGB

LASER

NEXT

VOLUME

SEARCH

STANDBY/ON

VIDEO

LASER INDICATOR

RGB

LENS SHIFT

+

–––

++

FOCUS ZOOM

STANDBY/ON

VIDEO

LASER INDICATOR

RGB

LENS SHIFT

+

–––

++

FOCUS ZOOM

15

Turning On The Power

WARNING • When the power is ON, a strong light is emitted. Do not look

into the lens or vents of the projector.

• Turn the power on/off in right order. Please power on the projector before

the connected devices. Power off the projector after the connected devices.

NOTE

Power ON/OFF

Power ON/OFF

Remove the lens cap.

2

Set the power switch to [ | ] (ON).
The standby/on indicator will light to solid orange.

standby/on button / indicator

LENS SHIFT

buttons

Power switch (ON position)

STANDBY/ON

button

3

Press the STANDBY/ON button.
The projector lamp will light up and the
standby/on indicator will begin blinking green.
When the power is completely on, the indicator
will stop blinking and light green.

4

Use the LENS SHIFT buttons to shift the
picture upward or downward. (X80 only)

memo

X70 does not have the lens shift function.
X70 has the volume buttons instead of the lens
shift buttons on the projector.

5

Select an input signal according to the
section “Selecting An Input Signal” of the
following page.

lens shift

Power switch (OFF position)

1

Press the STANDBY/ON button.
The message “Power off?” will appear on
the screen for approximately 5 seconds.

Attached the lens cap.

2

Press the STANDBY/ON button again while
“Power off?” the message is visible.
The projector lamp will go off, and the standby/on
indicator will begin blanking orange.
Then the standby/on indicator will stop blinking and
light to solid orange when the lamp cooling is
complete.

3

Switch the power switch to [O] (OFF).
The standby/on indicator will go off.

STANDBY/ON

button

standby/on button / indicator

Turning Off The Power

1

4

X80

standby/on

STANDBY/ON

LASER INDICATOR

STANDBY/ON

VIDEO

RGB

+

++

LENS SHIFT

FOCUS ZOOM

–––

BLANK ASPECT LASER

standby/on

STANDBY/ON
