3M™ Digital Projector

File Transfer Tool Guide Version 1.08

For Models: X62w/X64w/X90w/X95/X95i

Revision History

Revision Date

Page(s) Changed

Description of Change

4/2009

All pages

First edition released.

4/2010

All pages

2nd edition

Intended Use

The 3M™ Digital Projectors are designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and common line voltages (100V to 240V AC, 50/60 Hz).The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector, peripheral equipment and/or create a potentially unsafe operating condition.

3M Digital Projectors are designed to operate in a normal office environment.

100V - 240V AC, 50/60 Hz

16° to 29° C (60° to 85° F)

10-80% RH (without condensation)

0-1828m (0-6000 feet) above sea level

The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can effect the operation or performance of the projector.

The 3M logo and 3M are trademarks of the 3M Company. Other trademarks used herein are the properties of their respective owners.

Important Notice

All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.

Warranty and Limited Remedy

3M warrants that when the 3M Product is used according to 3M’s Intended Use Statement (www.3M.com/meetings), it will perform satisfactorily for the warranted durability period as stated in the applicable 3M Product Manual in effect at the time of purchase. The warranties stated in the applicable 3M Product Manuals are exclusive and are made in place of any and all express or implied warranties or conditions, including any implied warranty of merchantability or fitness for a particular purpose, or any industry practice or custom or trade usage. Failure to follow the instructions contained in the appropriate 3M Product Manual or to use the 3M Product in accordance with 3M’s Intended Use Statement will void all warranties and limited remedies.

EXCEPT AS SPECIFICALLY STATED IN THE APPLICABLE 3M PRODUCT MANUAL, 3M SHALL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, REVENUE OR BUSINESS) RESULTING FROM, OR IN ANY WAY RELATED TO PERFORMANCE, USE OR INABILITY TO USE ANY OF THE 3M PRODUCT.

This limitation applies regardless of the legal theory upon which damages are sought. If 3M Product is defective within the applicable warranty period, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M Product or to refund the purchase price of the 3M Product. All replaced parts or products become property of 3M. If the 3M Product is repaired, 3M will repair the defective part(s) with a new or used part(s). If the 3M Product is replaced, 3M will replace the product with the same or equivalent model and with a new or refurbished product. In the case of an approved warranty claim, the replacement 3M Product will carry only the remaining term of the original 3M Product’s warranty period as stated in the applicable 3M Product Manual.

For warranty service, you must provide proof of the date of the original purchase, otherwise the manufacturing code date will be used to establish the start date of the warranty. 3M Product Manuals include durability statements and may include limitations specific to the product(s) being used or its intended applications, which take precedence over any statement made here. Warranty terms, limitations and exclusions may differ outside the United States of America.

3M Mobile Interactive Solutions Division



6801 River Place Boulevard

Tel: 1-800-328-1371

Austin, Texas 78726-9000

© 3M 2010. All Rights Reserved

www.3m.com/meetings

78-6971-1512-5 [April 2010]





Contents



1

INTRODUCTION..........................................................................................................................................

3



1.1

OUTLINE.................................................................................................................................................

3



1.2

SYSTEM..................................................................................................................................................

3

2

INSTALLATION...........................................................................................................................................

4



2.1

SYSTEM REQUIREMENTS.........................................................................................................................

4



2.2

PROJECTOR FILE TRANSFER TOOL INSTALLATION....................................................................................

5

3

OPERATING INSTRUCTIONS ....................................................................................................................

7



3.1

CREATE LOGIN ACCOUNTS ......................................................................................................................

7



3.2

START APPLICATION ...............................................................................................................................

9



3.3

QUIT APPLICATION..................................................................................................................................

9



3.4

MAIN SCREEN.......................................................................................................................................

10



3.5

CONNECT TO THE PROJECTOR...............................................................................................................

11



3.6

TRANSFER FILE.....................................................................................................................................

14



3.7

CREATE FOLDER ..................................................................................................................................

15



3.8

DELETE FOLDER OR FILE .......................................................................................................................

15



3.9

ASSIGN A FILE TO MY IMAGE (OR E-SHOT) IMAGE...............................................................................

15



3.10

ABOUT THIS APPLICATION.....................................................................................................................

15

4

LIMITATIONS ............................................................................................................................................

16

Microsoft and Windows is the registered trademark of Microsoft Corporation in the US and other countries.

Pentium is the registered trademark of Intel Corporation in the US and other countries.

All other trademarks are the property of their respected owners.

Warning

This software is free. The manufacturer has no responsibility for any errors that may occur while using this software.

This software, or any product used with this software may not be used for any act which obstructs the Maintenance of the International Peace and Safety.

2

1 Introduction

1.1Outline

Projector File Transfer Tool allows you to transfer computer files to a storage media (SD memory card or USB flash drive) that connected to X62w, X64w, X90w, X95 or X95i through the network. The supported file formats are text, jpeg, ping and bitmap (txt, jpg, jpeg, png, bmp) and the file name have to be ASCII (expects \/:,;*?<>|).

An image number for MY IMAGE (or e-SHOT) feature is able to assign to the transferring file. The MY IMAGE (or e-SHOT) is available from [MIU] [MY IMAGE] (or [e-SHOT]) menu on the projector.

[Note]

The network configuration is required to transfer files from computer to projector. Please check the Users Manual-Network Functions for network configuration,

The storage media (SD memory card or USB flash memory) is required to use this feature. Please check the Users Manual-Network Function for compatible media.

Please check Users Manual-Operating Guide for MY IMAGE (or e-SHOT) feature.

1.2System

The following diagram shows a typical network diagram for the Projector Image Tool

LAN

Router

LAN

Wireless

LAN

LAN

Wireless

LAN

X62w / X64w / X90w / X95 / X95i

Use a UTP cable category 5 or higher for a Local Area Network cable.

3

2 Installation

2.1System Requirements

The following is the minimum system requirements of hardware and software to use the Projector File Transfer Tool.

(1)Operating System Windows 2000 Professional Windows XP Home Edition Windows XP Professional

Windows Vista Home Basic (32-bit) Windows Vista Home Premium (32-bit) Windows Vista Business (32-bit) Windows Vista Ultimate (32-bit)

(2)CPU

Pentium3 500MHz or higher

(3)Memory

128MB or higher

(4)Hard Disc

Minimum 3MB free space for installation.

(5)Wired LAN or Wireless LAN Required for transfer files,

(6)Storage Media (SD memory, USB Memory etc.) Required for store the file on the projector.

4

2.2Projector File Transfer Tool Installation

The installation process of Projector File Transfer Tool is as follows:

(1)Double click the file “InstForPJTransfer.exe”.

(2)Select the language (English, Japanese or Chinese [Simplified]) during the installation process. And then click [OK].

(3)Click [Next]

(4)Read “License Agreement” and select “I accept the terms of the license agreement” and click [Next] if you agree the license agreement. Otherwise, click [Cancel] and stop the installation.

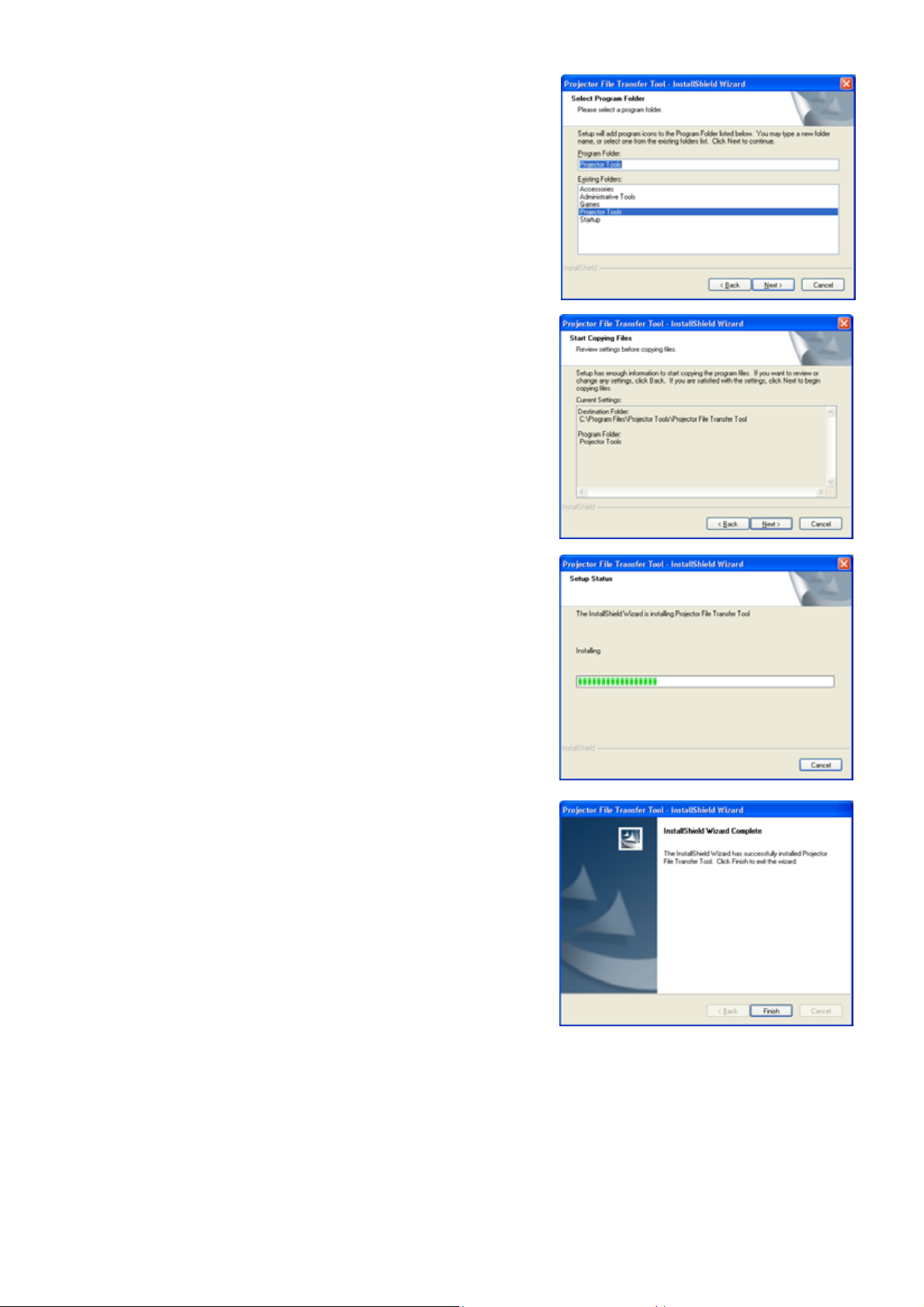

(5) Confirm the program folder, and then click [Next].

5
