X62w

Multimedia Projector

Operator's Guide

Thank you for purchasing this projector.

WARNING ►Before using this product, please read the "Product Safety Guide" and related manuals to ensure the proper use of this product. After reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

WARNING This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

CAUTION This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.

NOTE • The information in this manual is subject to change without notice.

The manufacturer assumes no responsibility for any errors that may appear in this manual.

The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

VGA and XGA are registered trademarks of International Business Machines Corporation.

Apple and Mac are registered trademarks of Apple Computer, Inc.

VESA and SVGA are trademarks of Video Electronics Standard Association.

Windows is a registered trademark of Microsoft Corporation.

All other trademarks are the properties of their respective owners.

1

Content

Content

About this manual. . . . . . . . . . 1 Content . . . . . . . . . . . . . . . . . . 2 Contents of package . . . . . . . 3

How to use the Slot cover lock . . . . .3

Projector features. . . . . . . . . . 4 Preparations . . . . . . . . . . . . . . 4

Fastening the lens cover . . . . . . . . . .4

Part names . . . . . . . . . . . . . . . 5

Projector . . . . . . . . . . . . . . . . . . . . . .5 Control buttons . . . . . . . . . . . . . . . . .7 Remote control . . . . . . . . . . . . . . . . .7

Setting up . . . . . . . . . . . . . . . . 8

Arrangement . . . . . . . . . . . . . . . . . . .9 Adjusting the projector's elevator . .10 Using the Security Bar. . . . . . . . . . .11 Connecting your devices . . . . . . . . .12 Connecting power supply . . . . . . . .15 Inserting an SD Card and USB Memory. .16

Remote control . . . . . . . . . . . 17

Putting batteries . . . . . . . . . . . . . . .17 Using the remote control . . . . . . . . .18

Power on/off . . . . . . . . . . . . . 19

Turning on the power. . . . . . . . . . . .19 Turning off the power. . . . . . . . . . . .19

Operating . . . . . . . . . . . . . . . 20

Adjusting the volume . . . . . . . . . . . .20 Temporarily muting the sound . . . . .20 Selecting an input signal . . . . . . . . .20 Searching an input signal . . . . . . . .21 Selecting an aspect ratio . . . . . . . . .21 Adjusting the zoom and focus . . . . .21 Using the automatic adjustment feature . .22 Adjusting the position . . . . . . . . . . .22 Correcting the keystone distortions .23 Using the magnify feature . . . . . . . .23 Freezing the screen. . . . . . . . . . . . .24 Temporarily blanking the screen . . .24 Operating the computer screen. . . .25

Multifunctional settings . . . . 26

Using the menu function . . . . . . . . .26

2

EASY Menu. . . . . . . . . . . . . . . . . . .27

Aspect, Auto keystone Execute, Keystone, Picture mode, Brightness, Contrast, Color, Tint, Sharpness, Whisper, Mirror, Reset, Filter time, Language, Go to advanced menu

PICTURE Menu. . . . . . . . . . . . . . . .29

Brightness, Contrast, Gamma, Color temp, Color, Tint, Sharpness, My memory

IMAGE Menu. . . . . . . . . . . . . . . . . .32

Aspect, Over scan, V. position, H. position, H. phase, H. size, Auto adjust execute

INPUT Menu . . . . . . . . . . . . . . . . . .34

Progressive, Video NR, Color space, Component, Video format, Frame lock, RGB in, Resolution

SETUP Menu. . . . . . . . . . . . . . . . . .37

Auto keystone Execute, Keystone, Whisper, Mirror, Volume, Audio

SCREEN Menu . . . . . . . . . . . . . . . .39

Language, Menu position, Blank, Start up, MyScreen, MyScreen lock, Message, Source name

OPTION Menu. . . . . . . . . . . . . . . . .42 Auto search, Auto keystone, Auto on, Auto off, Lamp time, Filter time,

My button, Service, Security

MIU Menu . . . . . . . . . . . . . . . . . . . .52 Live Mode, PC-LESS Presentation, Setup, e-SHOT, Information, Service

Maintenance . . . . . . . . . . . . . 57

Lamp . . . . . . . . . . . . . . . . . . . . . . . .57 Air filter . . . . . . . . . . . . . . . . . . . . . .59 Replacing Internal Clock battery . . .61 Other care . . . . . . . . . . . . . . . . . . . .62

Troubleshooting . . . . . . . . . . 63

Related messages. . . . . . . . . . . . . .63 Regarding the indicator lamps. . . . .64 Phenomena that may be easy to be mistaken for machine defects . . . . .66

Specifications . . . . . . . . . . . . 69

Technical (English only)

(Please see the end of this book, although only in English.)

Contents of package

Contents of package

Your projector should come with the items shown below. Contact immediately your dealer if anything is missing.

NOTE • Keep the original packing materials for future reshipment. For moving the projector, be sure to use the original packing materials. Use special caution for the lens part.





Power cord

VGA cable

USB cable

Projector

1 2

(US, UK, EUROPE)



















X62w

Remote control











(with two AA batteries)







Operator's Guide



RCA





RCA



Component cable

Video/Audio cable

Product Safety Guide











Quick Start Guide

Lens cover, Rivet and Strap







Warranty and

















Warranty Registration











WEEE Statement













Soft case

Wireless Network Card

Slot cover lock

How to use the Slot cover lock

Open the Slot cover lock, and insert it into the Locking slot.

Close the Slot cover lock slowly, and attach the Pad lock or Combination lock to the Slot cover lock.

3

Projector features / Preparations

Projector features

This projector is used to project various computer signals as well as NTSC/PAL/ SECAM, Component (SD, HD) video signals onto a screen. It requires just a little space for installation and gets a large image from short distance.

High Brightness

Newly developed 200W UHB (Ultra High Brightness) lamp gives you a higher brightness image on a screen. The image can be still kept as bright and clean enough for use in bright rooms.

Low Noise

WHISPER mode is available for reducing acoustic noise to realize quieter operation. It is perfect for use in low luminance rooms where low noise is more important than brightness.

Rich Connectivity

This projector has a variety of I/O ports. It can be easily connected to many signal sources like PC, DVD and so on. The rich connectivity provides you more options to make your presentation impressive.

Compact Body

Even with its many features, this projector is extremely compact and slim, which gives you more flexibility and usability to use it where you want.

Preparations

Fastening the lens cover

To avoid losing the lens cover, please fasten it the lens cap to the projector using the strap.



Strap ring



Strap

Bottom side

Strap hole





1. Fix the strap to the strap ring of the lens cover.

2. Put the strap into the groove on the rivet.

3. Push the rivet into the strap hole.

4

Part names

Part names

Projector

Ì

Lamp door ( 58) (Lamp unit is inside.)

Zoom ring (

21)

Focus ring (

21)

Vent



Lens (

19)



Control buttons ( 7)



Remote sensor (

18)



Speaker





Security bar (

11)



(Use for attaching a



commercial anti-theft



chain or wire.)





Elevator button ( 10)

Front-Right side

Elevator foot (

10)

Lens cover (

4)

Ì

Filter cover ( 59)

(Air filter and intake vent



are inside.)

OUT







USB

UDIOA











OUT











RGB



LAN



A

50.











V5











I/ODCX

CONTROL



IN2

RGB





IN1

IN2



IN1

UDIOAAUDIO

UA



RGB



CARD SD

IN3





VIDEO-S

VIDEOR



/PRC

B

/PBC



AUDIO

Y



Bottom side

WARNING ►During use or immediately after use, do not touch around the lamp and vents of the projector. (Ì) It could cause a burn.

5

Part names

Ports (See below.)

CB









SD C









/PB









ARD







CR/PR























RG

B IN1









VID

EO

AUD

AUX









AUDIO



IO IN1

DCI/O5V

0.





S-VID

EO



IN2



RGB IN2

5A

LAN





























CONTROL

RGB

OUT

















AUDIO

OUT















USB





















Rear-Left side





Power switch (

19)







AC inlet (

15)



AC

IN

Elevator button (

10)





Elevator foot (

10)





Vent

















AUDIO IN1 port (

13)



















(In the default setting, the AUDIO IN1 port is the audio

AUDIO IN3 L/R port (

14)







port for the RGB IN1 port, however, it is possible to









change the settings. 38)







(In the default setting, the























SD CARD slot (

13)

AUDIO IN3 L/R port is the audio















RGB IN1 port (

13)

This slot is used when

port for the VIDEO, S-VIDEO



and COMPONENT VIDEO











Restart switch (*) (

66)

utilizing SD CARD.

ports, however it is possible to

AUX I /O port (

13)



RGB IN2 port (

13)

change the settings.

38)













This port is used when





























utilizing USB Memory.





























COMPONENT













SD CARD

LAN



14)















AUX I/O





LAN port ( 13)



VIDEO ports (



AUDIO IN3















Y

R













Used for Ethernet



Y













AUDIO IN1







































input/output.















RGB IN1



RGB IN2 RGB OUT

AUDIO OUT







CB/PB



CB/PB























This port is used





L















CR/PR











AUDIO IN2

















CR/PR









K

CONTROL





when utilizing network



















USB









S-VIDEO













functions.



VIDEO port (

14)

VIDEO























































S-VIDEO port (

14)





















Ports



AUDIO OUT port





























13)























( 13)

13)

AUDIO IN2 port (















USB port (

13)

RGB OUT port (

(In the default setting, the AUDIO

















IN2 port is the audio port for



CONTROL port (

13)





the RGB IN2 port, however, it is







possible to change the settings. Kensington lock slot

38)

NOTE (*) About Restart switch: This projector is controlled by an internal microprocessor. Under certain exceptional circumstances, the projector may not operate correctly and the microprocessor will need to be reset. In such a case, please push the Restart switch by using a cocktail stick or similar, and before turning on again, make the projector cool down at least 10 minutes without operating. Only push the Restart switch in these exceptional instances.

6

Control buttons

Cursor buttons ▲,▼,◄,► ( 26)

STANDBY/ON button ( 19)

Part names

LAMP indicator (

64, 65)

TEMP indicator (

64, 65)

POWER indicator (

19)

INPUT button (

20)

NOTE • INPUT button is function as ENTER key when the projector is in the PC-LESS presentation mode. Use the RGB button or VIDEO button on remote control to change the input port. When the projector menu is displayed, you can change the input port by INPUT button.

Remote control

SEARCH button (

21)

RGB button (

20)



VIDEO button (

21)

ASPECT button (

21)

HOME button (

25)

MAGNIFY





ON button ( 23)



OFF button (

23)



END button (

25)



FREEZE button (

24)

POSITION button (

22)

ESC button (

25)



Battery cover ( 17) (on the back)







STANDBY/ON

VIDEO

RGB

SEARCH



ASPECT



AUTO

BLANK

MAGNIFY

HOME

PAGE UP

VOLUME

ON









END

PAGE DOWN

MUTE

OFF







FREEZE

MY BUTTON

KEYSTONE



1

2



POSITION





MENU



ENTER



ESC





RESET

STANDBY/ON button (

19)

AUTO button (

22)

BLANK button (

24)

PAGE UP button (

25)

VOLUME button (

20)

MUTE button (

20)

PAGE DOWN button (

25)

KEYSTONE button (

23)

MY BUTTON button (

43)

MENU button (

26)

Cursor buttons ▲,▼,◄,► ( 26)

ENTER button (

26)

RESET button (

26)

7

Setting up

Setting up

WARNING ►Place the projector in a stable position horizontally. A fall or a turnover could cause an injury and/or damage to the projector. Then using damaged projector could result in a fire and/or an electric shock.

Do not place the projector on an unstable, slant or vibrant surface such as a wobbly or inclined stand.

Do not place the projector in the side/front/rear-up position, except cleaning the air filter.

►Place the projector in a cool place, and pay attention enough to ventilation. The high temperature of the projector could cause a fire, a burn and/or malfunction to the projector.

Do not stop up, block and cover the projector's vents.

Keep a space of 30 cm or more between the sides and other objects such as walls.

Do not place the projector on a metallic thing or anything weak in heat.

Do not place the projector on a carpet, cushion or bedding.

Do not place the projector in direct sunlight or near a hot object such as a heater.

Put nothing about lens and vents of the projector. Put nothing on the projector.

Put nothing that is sucked or sticks to the bottom of projector. This projector

has some intake vents also on the bottom.

►Do not place the projector on the place that gets wet. Damping the projector or inserting liquid in the projector could cause a fire, an electric shock and/or malfunction to the projector.

Do not place the projector in a bathroom or the outdoors.

Put nothing containing the liquid near the projector.

CAUTION ►Avoid a smoky, humid or dusty place. Placing the projector in such place could cause a fire, an electric shock and/or malfunction to the projector.

• Do not place the projector near a humidifier, a smoking space or a kitchen. ►Adjust the position of the projector to prevent any strong light, like direct sunlight or inverter fluorescent lamp light, from hitting the projector’s remote sensor.

8

Setting up

Arrangement

Refer to the illustrations and tables below to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen: 1024×768

(a)The screen size (diagonal)

(b)Distance from the projector to the screen (±10%)

(c)The height of the screen (±10%)





























(b)











4:3





16:9







(c) up













































(a)





(a)









(c) down













































(a) Screen







4 : 3 screen













16 : 9 screen





(b) Projection distance

(c) Screen height

(b) Projection distance

(c) Screen height

size



[m (inch)]





[cm (inch)]





[m (inch)]





[cm (inch)]



[inch (m)]

















min.

max.

down

up

min.

max.

down

up





30

(0.8)

0.9

(34)

1.1

(41)

5

(2)

41

(16)

1.0

(38)

1.1

(45)

-1

(0)

39

(15)

40

(1.0)

1.2

(46)

1.4

(56)

6

(2)

55

(22)

1.3

(50)

1.5

(61)

-2

(-1)

51

(20)

50

(1.3)

1.5

(58)

1.8

(70)

8

(3)

69

(27)

1.6

(63)

1.9

(76)

-2

(-1)

64

(25)

60

(1.5)

1.8

(70)

2.1

(84)

9

(4)

82

(32)

1.9

(76)

2.3

(91)

-2

(-1)

77

(30)

70

(1.8)

2.1

(81)

2.5

(98)

11

(4)

96

(38)

2.3

(89)

2.7

(107)

-3

(-1)

90

(35)

80

(2.0)

2.4

(93)

2.8

(112)

12

(5)

110

(43)

2.6

(102)

3.1

(122)

-3

(-1)

103

(41)

90

(2.3)

2.7

(105)

3.2

(126)

14

(5)

123

(49)

2.9

(115)

3.5

(138)

-4

(-1)

116

(46)

100

(2.5)

3.0

(117)

3.6

(140)

15

(6)

137

(54)

3.2

(127)

3.9

(153)

-4

(-2)

129

(51)

120

(3.0)

3.6

(140)

4.3

(169)

18

(7)

165

(65)

3.9

(153)

4.7

(184)

-5

(-2)

154

(61)

150

(3.8)

4.5

(176)

5.4

(211)

23

(9)

206

(81)

4.9

(192)

5.8

(230)

-6

(-2)

193

(76)

200

(5.1)

6.0

(235)

7.2

(282)

30

(12)

274

(108)

6.5

(256)

7.8

(307)

-8

(-3)

257

(101)

250

(6.4)

7.5

(294)

9.0

(353)

38

(15)

343

(135)

8.1

(320)

9.8

(384)

-10

(-4)

322

(127)

300

(7.6)

9.0

(352)

10.8 (423)

46

(18)

411

(162)

9.8

(384)

11.7 (461)

-12

(-5)

386

(152)

9

Setting up

Adjusting the projector's elevator

CAUTION ►If you press the elevator button without holding the projector, the projector might crash down, overturn, smash your fingers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, always hold the projector whenever using the elevator buttons to adjust the elevator feet.

►Do not incline the projector rightward or leftward. Also do not incline it backward or forward exceeding 30 degrees. Exceeding these range could cause malfunction, and could shorten the lifetime of the consumables. ►Except for inclining by the elevator feet adjustment, place the projector horizontally.

You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees.

Elevator feet

Elevator button

1. After making sure that the projector is cool adequately, press and hold in the elevator buttons while holding the projector.

The elevator buttons and the elevator feet are on the both sides.

2. Raise or lower the projector to the desired height and release the elevator buttons.

When you release the elevator buttons, the elevator feet will lock into position.

3. If necessary, you can also finely adjust the height of the projector by twisting the elevator feet by hand.

10

Setting up

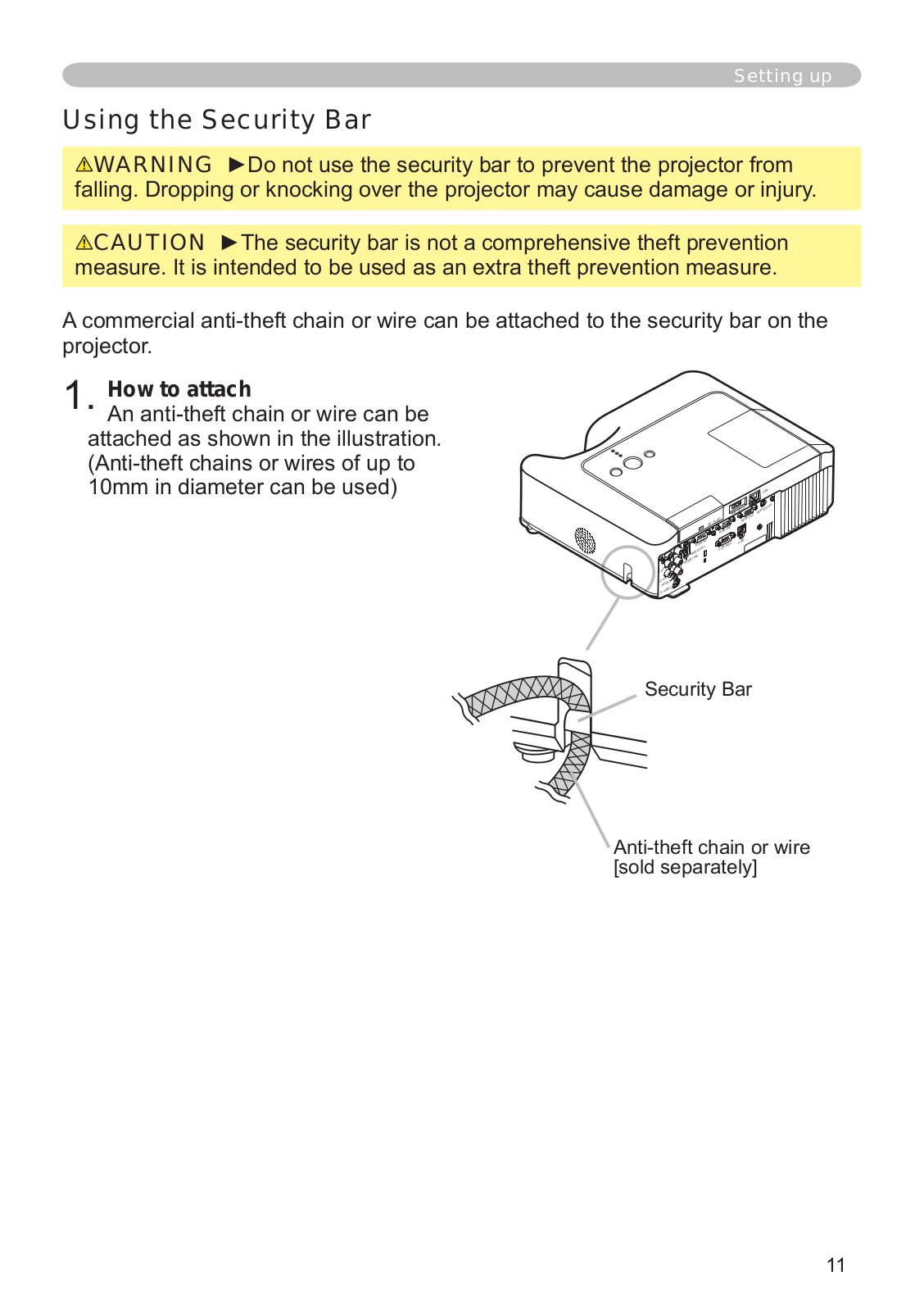

Using the Security Bar

WARNING ►Do not use the security bar to prevent the projector from falling. Dropping or knocking over the projector may cause damage or injury.

CAUTION ►The security bar is not a comprehensive theft prevention measure. It is intended to be used as an extra theft prevention measure.

A commercial anti-theft chain or wire can be attached to the security bar on the projector.

1. How to attach

An anti-theft chain or wire can be attached as shown in the illustration. (Anti-theft chains or wires of up to 10mm in diameter can be used)









I/O







AUX











OUT







CARD

RGB







SD









IN2









RGB







IN1

OL

USB





RGB





R

IN1

CONTR





Y

AUDIO







IN2









AUDIO







L







C /P







C

/P









VIDEO







S-VIDEO







LAN

OUT AUDIO

Security Bar

Anti-theft chain or wire [sold separately]

11

Setting up

Connecting your devices

CAUTION ►Turn off all devices prior to connecting them to the projector. Attempting to connect a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction and/or damage to the device and/or projector.

►Use the accessory cable or a designated-type cable for the connection. Some cables have to be used with core set. A too long cable may cause a certain picture degradation. Please consult with your dealer for details. For cables that have a core only at one end, connect the core to the projector.

►Make sure that you connect devices to the correct port. Incorrect connection may result in malfunction and/or damage to the device and/or projector.

NOTE • Whenever attempting to connect a laptop computer to the projector, be sure to activate the laptop’s RGB external image output (set the laptop to CRT display or to simultaneous LCD and CRT display). For details on how this is done, please refer to the instruction manual of the corresponding laptop computer.

Secure the screws on the connectors and tighten.

Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector.

For some RGB signal modes, the optional Mac adapter is necessary.

When the image resolution is changed on a computer, depending on an input, automatic adjustment function may take some time and may not be completed. In this case, you may not be able to see a check box to select “Yes/No” for the new resolution on Windows. Then the resolution will go back to the original.

It might be recommended to use other CRT or LCD monitors to change the resolution.

About Plug-and-Play capability

Plug-and-Play is a system composed of the computer, its operating system and peripheral equipment (i.e. display devices). This projector is compatible with VESA DDC 2B. Plug-and-Play can be achieved by connecting this projector to a computer is VESA DDC (display data channel) compatible.

Please take advantage of this function by connecting the accessory RGB cable to the RGB IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

Please use the standard drivers in your computer as this projector is a Plug- and-Play monitor.

12

Setting up

Examples of connection with a computer

* In the default setting, the AUDIO IN1 port is the audio port for the RGB IN1, and the AUDIO IN2 port is the audio

port for the RGB IN2 ports. To change the settings, refer to the AUDIO item in the SETUP menu. (

38)

RGB cable



USB cable

















SD CARD





LAN









AUX I/O







AUDIO IN3









Y

R











RGB IN1

RGB IN2

RGB OUT

AUDIO OUT



CB/PB

AUDIO IN1









L







RGB out Audio out RS-232C

USB CR/PR







AUDIO IN2









VIDEO

K



USB















S-VIDEO







Stereo mini

RS-232C cable







audio cable

















Stereo mini audio cable











SD CARD





LAN











RGB out







AUX I/O



Y

R











AUDIO IN3







RGB cable

CB/PB

L

CR/PR

VIDEO

S-VIDEO

RGB IN1

RGB OUT AUDIO OUT

AUDIO IN1



AUDIO IN2



K

CONTROL

USB

Connecting to a monitor (output) and a speaker with amplitier (output)

RGB in

Audio in

RGB cable

SD CARD

LAN





AUX I/O





AUDIO IN3







Y

R









RGB IN1

RGB IN2

RGB OUT

OUT

CB/PB

AUDIO IN1







L

















AUDIO IN2







CR/PR

K

CONTROL





VIDEO



USB











S-VIDEO







Stereo mini audio cable

Connecting to a Network and USB Memory

: Wireless Communication

Insert the Wireless Network Card (included)

USB

LAN MEMORY

LAN cable (CAT-5 cable)



SD CARD

LAN





AUX I/O



AUDIO IN3



Y

R







RGB IN1

RGB IN2

RGB OUT AUDIO OUT

CB/PB



AUDIO IN1







L











AUDIO IN2





CR/PR



K

CONTROL



VIDEO





USB









S-VIDEO







CAUTION ►For safety, do not connect LAN port to any network that

13

might have the excessive voltage.

Setting up

Examples of connection with a VCR/DVD player

* In the default setting, the AUDIO IN3 L/R port is the audio port for the VIDEO, S-VIDEO and COMPONENT VIDEO ports. To change the settings, refer to the AUDIO item in the SETUP menu. ( 38)

Audio/Video cable

Audio (R) out

Audio (L) out



AUDIO IN3





Y

R







RGB IN1

RGB IN2

RGB OUT AUDIO OUT

CB/PB

AUDIO IN1





L













AUDIO IN2





CR/PR



CONTROL



VIDEO

K



USB







S-VIDEO

Video out

Audio cable

Audio (R) out

Audio (L) out



AUDIO IN3





Y

R







RGB IN1

RGB IN2

RGB OUT AUDIO OUT

CB/PB

AUDIO IN1





L













AUDIO IN2





CR/PR



CONTROL



VIDEO

K



USB







S-VIDEO

S-Video out

S-Video cable









Component video out

Component video cable







Y





AUDIO IN3







CB/PB



Y

R











RGB IN1

RGB IN2

RGB OUT

AUDIO OUT





CB/PB

AUDIO IN1













L







CR/PR





AUDIO IN2









CR/PR



CONTROL









VIDEO

K



USB



Audio (R) out













S-VIDEO







Audio (L) out



Audio cable







SCART cable

G



B



R

SCART

Video

out





AUDIO IN3







Y

R









RGB IN1

RGB IN2

RGB OUT

AUDIO OUT

CB/PB

AUDIO IN1









L









AUDIO IN2







CR/PR

K

CONTROL





VIDEO



USB











S-VIDEO







14

Setting up

Connecting power supply

WARNING ►Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in fire and/or electrical shock.

Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.

Only plug the power cord into an outlet rated for use with the power cord's specified voltage range.

Never modify the power cord.

C/P

C /P

VIDEO S-VIDEO



SD

CARD





RGB

IN1

AUDIO

AUDIO IN2

IN1



AUX I/O RGB IN2

CONTROL

LAN

RGB OUT AUDIO O UT USB

AC inlet

IN

AC

Connector

of the power cord

1.

2.

Connect the connector of the power cord to the AC inlet of the projector.

Firmly plug the power cord's plug into the outlet.

15

Setting up

Inserting an SD Card and USB Memory

When using the projector with a wireless LAN please insert the included Wireless Network Card.

When using a commercial SD Memory card in order to view images insert the SD Memory card in the same manner.

And when using a commercial USB MEMORY in order to view images insert the USB MEMORY to the AUX I/O port. ( 13)

See User's Manual - Network Function for information on using either type of card.

1. Make sure the projector’s power switch is OFF.

2. Remove the SD card slot cover.

q Lift the cover slightly by the small indentation in the middle of the front of the cover using a finger nail or other means. w Pull the cover forward and remove it completely from the projector.

3. Insert the SD card.

Slowly insert the SD card completely into the SD card slot.

Make sure the angled corner of the SD card is facing the right side (AUX I/O port side) of the projector while inserting.

Indentation

AUX I/O Port

SD Card Slot

Angled corner

4. Replace the SD card slot cover.

Replace the cover by reversing the procedure used when removing the cover.

NOTE • When using the projector with a wired LAN, please remove the Wireless Network card.

When SD card or USB memory is removed, select one of the REMOVE Menu that is match with the media taken out, on Service Items on MIU Menu.

NOTE • The LED becomes downward in some USB Memory. Remove the USB Memory after the accessing is completely finished.

IMPORTANT NOTE • To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.

16

Remote control

Remote control

Putting batteries

WARNING ►Always handle the batteries with care and use them only as directed. Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire.

And also improper use may result in cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

Be sure to use only the batteries specified. Do not use batteries of different types at the same time. Do not mix a new battery with used one.

Make sure the plus and minus terminals are correctly aligned when loading a battery.

Keep a battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.

Do not short circuit or solder a battery.

Do not allow a battery in a fire or water. Keep batteries in a dark, cool and dry place.

If you observe a leakage of a battery, wipe out the flower and then replace a battery. If the liquid adheres to your body or clothes, rinse well with water immediately.

Obey the local laws on disposing the battery.

1. Remove the battery cover.

Slide back and remove the battery cover in the direction of the arrow.

2. Insert the batteries.

Align and insert the two AA batteries according to their plus and minus terminals as indicated in the remote control.

3. Close the battery cover.

Replace the battery cover in the direction of the arrow and snap it back into place.

17

Remote control

Using the remote control

CAUTION ►Be careful in handling the remote control.

Do not drop or expose the remote control to physical impact.

Do not get the remote control wet or place it on wet objects. It may result in malfunction.

Remove the batteries from the remote control and store them in a safe place if you won’t be using the remote control for an extended period.

Replace the batteries whenever the remote control starts malfunctioning.

When strong lights (such as direct sunlight) or light from an extremely close range (such as from an inverter fluorescent lamp), hit the projector’s remote sensor, the remote control may cause to function. Adjust the direction of the projector to keep the light from directly hitting the projector’s remote sensor.

The signal settings for the remote control transmitter and the projector's remote sensor can be changed. If the remote control does not function properly try changing the signal setting.

Changing the signal setting for the remote control transmitter

(1)Setting 1 (FREQ. : NORMAL)

Simultaneously press and hold the MUTE and RESET buttons for about 3 seconds. (2)Setting 2 (FREQ. : HIGH)

Simultaneously press and hold the MAGNIFY OFF and ESC buttons for about 3 seconds.

Setting 1 is the factory default setting.

When the batteries are removed from the remote control, user-specified settings are saved for about half a day. If the batteries are removed from the remote control for longer than half a day, the remote will reset to Setting 1.

Changing the signal setting for the projector's remote sensor

Switch between Setting 1 and 2 using the SERVICE/REMOTE FREQ. item found in OPTION MENU. ( 45)

If the remote control does not seem to function properly, try changing the settings for the remote control and the projector's remote sensor.

The remote control will not function properly if the remote control transmitter settings and the projector's remote sensor settings are not the same.

The remote control works with the projector’s remote sensor.

30º

approx. 3 meters

30º



The range of the remote sensor is 3 meters with a 60 degree range (30 degrees to the left and right of the remote sensor).

Also a remote signal reflected in the screen etc. may be available. If it is difficult to send a remote signal to the sensor directly, please try to use the reflected signal.

Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control’s output signal to the projector.

18

Power on/off

Power on/off

WARNING ►When the power is on, a strong light is emitted. Do not look into the lens of projector. Also do not peep at the inside of projector through a hole.

NOTE • Turn the power on/off in right order. Please power on the projector prior to the connected devices. Power off the projector later than the connected devices.

Turning on the power

Make sure that the power cord is firmly and

STANDBY/ON

1. correctly connected to the projector and the outlet.

button

Remove the lens cover, and set the power switch to



2. the ON position.



The power indicator will light up in steady orange. Then

1 2

wait several seconds because the buttons may not



function for these several seconds.



(1) When AUTO ON in the OPTION menu is set to TURN ON:( 42) The lamp will only be automatically turned on when the Power switch is turned on after the power was turned off by Power switch last time. Afterwards the POWER indicator will begin blinking in green. When the power is completely on, the indicator will stop blinking and light in green.

(2) When AUTO ON in the OPTION menu is set to TURN OFF please see step 3.

3. Press the STANDBY/ON button on the projector or the remote control.

To display the picture, select an input signal according to the section "Selecting an input signal" ( 20).

POWER indicator

POWER

(Steady orange)

POWER

(Blinking in green)

POWER

(Steady green)

Turning off the power

Please pay special attention to below two points when you do:

(1)Please do not turn the projector on again for at least 10 minute in this case. Neglect could shorten the lifetime of the lamp.

(2)During use or immediately after use, do not touch around the lamp and vents of the projector ( 5 Ì) It could cause a burn.

(3)Remove the SD memory or USB memory before turn off the power switch.

1. Press the STANDBY/ON button on the projector or the remote control.

The message "Power off?" will appear on the screen for about 5 seconds.

2. Press the STANDBY/ON button on the projector or the remote control again while the message appears.

The projector lamp will go off, and the POWER indicator will begin blinking in orange.

Power off?

POWER

(Blinking in orange)

POWER

Then the POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete.

3. Make sure that the power indicator lights in steady orange, and set the power switch to the OFF position. The POWER indicator will go

off. Attach the lens cover.

(Steady orange)

19

Operating

Operating

Adjusting the volume

1. Press the VOLUME button on the remote control.

A dialog will appear on the screen to aid you in adjusting the volume. 2. Use the cursor buttons ▲/▼ to adjust the volume.

To close the dialog and complete the operation, press the VOLUME button again. Even if you don’t do anything, the dialog will automatically disappear after a few seconds.

Temporarily muting the sound

1. Press the MUTE button on the remote control.

A dialog will appear on the screen indicating that you have muted the sound.

To restore the sound, press the MUTE or VOLUME button. Even if you don’t do anything, the dialog will automatically disappear after a few seconds.







STANDBY/ON

VIDEO

RGB

SEARCH



ASPECT



AUTO

BLANK

MAGNIFY

HOME

PAGE UP

VOLUME

ON









END

PAGE DOWN

MUTE

ASPECT



AUTO

BLANK

MAGNIFY

HOME

PAGE UP

VOLUME

ON









END

PAGE DOWN

MUTE

OFF







FREEZE

MY BUTTON

KEYSTONE

Selecting an input signal

1. Press the INPUT button on the projector.

Each time you press the button, the projector switches its input port as below.

RGB IN1

RGB IN2

MIU

VIDEO

S-VIDEO COMPONENT VIDEO

1. Press the RGB button on the remote control to select an input port for the RGB signal.

Each time you press the button, the projector switches its RGB input port as below.

RGB IN1 RGB IN2 MIU

STANDBY/ON

VIDEO RGB SEARCH

ASPECT

AUTO BLANK

If the RGB button is pushed (when switching from VIDEO to RGB signals) when TURN ON is selected for the AUTO SEARCH item in the OPTION menu the projector will check the RGB IN1 port first. If no input is detected at the port, the projector will check the RGB IN2 port.

20

Operating

Selecting an input signal (continued)

1. Press the VIDEO button on the remote control to select an input for video signal.

Each time you press the button, the projector switches its video input port as below.

COMPONENT VIDEO S-VIDEO VIDEO

STANDBY/ON

VIDEO RGB SEARCH

ASPECT

AUTO BLANK

If the VIDEO button is pushed (when switching from RGB to VIDEO signals) when TURN ON is selected for the AUTO SEARCH item in the OPTION menu the projector will check the COMPONENT VIDEO port first. If no input is detected at the port, projector will begin to check other ports in above order.

Searching an input signal

1. Press the SEARCH button on the remote control.



STANDBY/ON

VIDEO

RGB SEARCH

The projector will start to check its input ports in order to

ASPECT

AUTO BLANK





find any input signals.

When an input is found, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.

RGB IN 1 RGB IN 2 MIU COMPONENT VIDEO S-VIDEO VIDEO

Selecting an aspect ratio

1. Press the ASPECT button on the remote control.

Each time you press the button, the projector switches the mode for aspect ratio in turn.

For an RGB and MIU signal

NORMAL 4:3 16:9 SMALL

For a video signal, s-video signal or component video signal

4:3 16:9 14:9 SMALL

For a no signal

4:3 (fixed)







STANDBY/ON

VIDEO

RGB

SEARCH



ASPECT



AUTO

BLANK

MAGNIFY

HOME

PAGE UP

VOLUME

The NORMAL mode keeps the original aspect ratio of the signal.

Performing the automatic adjustment initializes the aspect ratio setting.

Adjusting the zoom and focus

Zoom ring

1. Use the zoom ring to adjust the screen size.

Focus ring



2. Use the focus ring to focus the picture.

21

AUTO BLANK
PAGE UP VOLUME

Operating

Using the automatic adjustment feature

1. Press the AUTO button on the remote control.

STANDBY/ON

VIDEO RGB SEARCH

For an RGB signal

ASPECT

The vertical position, the horizontal position, the horizontal

phase and the horizontal size will be automatically adjusted. MAGNIFY HOME

And the aspect ratio will be automatically set to default. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

For a video signal or s-video signal

The video format best suited for the respective input signal will be selected automatically.

This function is available only when the AUTO mode is selected to the VIDEO FORMAT item in the INPUT menu ( 35). For a component video signal, the signal type is identified automatically independently of this function.

For a video signal, s-video signal or component video signal

The vertical position, horizontal position and aspect ratio will be automatically set to default.

For a component video signal

The horizontal phase will be automatically set to default.

The automatic adjustment operation requires about 10 seconds. Also please note that it may not function correctly with some input.

Adjusting the position

1. Press the POSITION button on the remote control. The “POSITION” indication will appear on the screen.

2. Use the cursor buttons ▲/▼/◄/► to adjust the picture position.

OFF







FREEZE

MY BUTTON

KEYSTONE



1

2



POSITION





MENU

When you want to reset the operation, press the RESET button on the remote control during the operation.

To complete this operation, press the POSITION button again. Even if you don’t do anything, the dialog will automatically disappear after a few seconds.

When this function is performed at a video signal, a certain extra such as a line may appear outside a picture.

22











Operating

Correcting the keystone distortions











1.

Press the KEYSTONE button on the

-';5610'



MAGNIFY

HOME

PAGE UP

VOLUME









remote control. A dialog will appear on the

#761 ':'%76'



ON

END

PAGE DOWN

MUTE

screen to aid you in correcting the distortion.

/#07#.



OFF























Use the cursor buttons ▲/▼ to select





FREEZE

MY BUTTON

KEYSTONE









1

2



2. AUTO or MANUAL operation, and press the button ► to













perform the following.













1) AUTO executes automatic vertical keystone correction.

2) MANUAL displays a dialog for vertical keystone correction. Use the buttons ▲/▼ for adjustment.

To close the dialog and complete this operation, press the KEYSTONE button again. Even if you don’t do

anything, the dialog will automatically disappear after



-';5610'

a few seconds.



The adjustable range for correction will vary among inputs. For some input, this function may not work well.

When V:INVERT or H&V:INVERT is selected to the MIRROR item in the SETUP menu, if the projector screen is inclined or angled downward, the Auto Keystone function may not work correctly.

When the zoom adjustment is set to the TELE (telephoto focus), this correction may be excessive. This function should be used when the zoom adjustment is set to the WIDE (wide-angle focus) whenever possible.

When vertical degree is almost 0 degree, the automatic keystone distortion correction may not work.

When vertical degree is almost ±30 degree, the automatic keystone distortion correction may not work well.

● This function will be unavailable when Transition Detector is on ( 50).

Using the magnify feature

1. Press the ON button of MAGNIFY on the remote control. The “MAGNIFY” indication will appear on the screen

(although the indication will disappear in several seconds with no operation), and the projector will enter the MAGNIFY mode.

VIDEO

RGB

SEARCH



ASPECT



AUTO

BLANK

MAGNIFY

HOME

PAGE UP

VOLUME

ON









END

PAGE DOWN

MUTE

2. Use the cursor buttons ▲/▼ to adjust the zoom level.

To move the zoom area, press the POSITION button in the MAGNIFY mode, then use the cursor buttons ▲/▼/◄/► to move the area. And to finalize the zoom area, press the POSITION button again.

To exit the MAGNIFY mode and restore the screen to normal, press the OFF button of MAGNIFY on the remote control.

The projector automatically exits the MAGNIFY mode when the input signal is changed, or when the display condition is changed.

Although in the MAGNIFY mode, the keystone distortion condition may vary, it

will be restored when the projector exits the MAGNIFY mode.

23



39).

Operating

Freezing the screen

1. Press the FREEZE button on the remote control.

The “FREEZE” indication will appear on the screen, and the projector will enter the FREEZE mode.

To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

MAGNIFY

HOME

PAGE UP

VOLUME

ON









END

PAGE DOWN

MUTE

OFF







FREEZE

MY BUTTON

KEYSTONE

1 2

The projector automatically exits the FREEZE mode when the input signal changes, or when one of the projector’s buttons or the remote control buttons of STANDBY/ON, SEARCH, RGB, VIDEO, BLANK, AUTO, ASPECT, VOLUME, MUTE, KEYSTONE, POSITION, MENU, MAGNIFY and MY BUTTON is pressed.

If the projector continues projecting a still image for a long time, the LCD panel might possibly be printed. Do not leave the projector in the FREEZE mode for too long.

Temporarily blanking the screen

1. Press the BLANK button on the remote control.

The blank screen will be displayed instead of the screen of input signal. Please refer to the BLANK item in the SCREEN menu (







STANDBY/ON

VIDEO

RGB

SEARCH



ASPECT



AUTO

BLANK

MAGNIFY

HOME

PAGE UP

VOLUME

To exit the blank screen and return to the input signal screen, press the BLANK button again.

The projector automatically returns to the input signal screen when one of the projector’s buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to the control port.

24

Operating

Operating the computer screen

CAUTION ►Mistaken use of the mouse/keyboard control could damage your equipment.

While using this function, please connect only with a computer.

Before connecting, read the manuals of the computer you will connect.

NOTE • It may not be possible to control notebook PC, and other computers with built-in pointing device (e.g. track ball), using this remote control. In this case, before connecting go into BIOS (system setup) and select external mouse, and disable the pointing device. In addition, the mouse may not function if the computer does not have the needed utility program. See your computer’s hardware manual for details.

The USB control can be used with Windows 95 OSR 2.1 or higher. It may not be possible to use the remote control, depending on the computer’s configurations and mouse drivers.

The USB control can be used only for the functions listed below. You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).

This function is not available while the lamp is warming up (the POWER indicator

flashes green), and while adjusting the volume and display, correcting for trapezoidal distortion, zooming in on the screen, using the BLANK function, or displaying the menu screen.

USB mouse and keyboard control

1. Connect the projector’s USB port to the computer via the mouse cable.







STANDBY/ON

VIDEO

RGB

SEARCH



ASPECT



AUTO

BLANK

MAGNIFY

HOME

PAGE UP

VOLUME

ON









END

PAGE DOWN

MUTE

OFF







FREEZE

MY BUTTON

KEYSTONE



1

2



POSITION





MENU



ENTER



ESC





RESET

Available function

Remote control operation





Move pointer

Use ▲, ▼, ◄, ► buttons

Left click with mouse

Press ENTER button

Right click with mouse

Press RESET button

Press keyboard’s HOME key

Press HOME button

Press keyboard’s END key

Press END button

Press keyboard’s PAGE UP key

Press PAGE UP button

Press keyboard’s PAGE DOWN key

Press PAGE DOWN button

Press keyboard’s ESC key

Press ESC button

25

Multifunctional settings

Multifunctional settings

Using the menu function

This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, SCREEN, OPTION, MIU, and EASY MENU. EASY MENU consists of functions often used, and the other menus are classified into each purpose. Each of these menus is operated using the same methods. The basic operations of these menus are as follows.

MENU button ENTER button Cursor buttons

RESET button











STANDBY/ON





VIDEO

RGB

SEARCH







ASPECT



AUTO

BLANK

POSITION

MENU

MAGNIFY

HOME

PAGE UP

VOLUME





ON













END

PAGE DOWN

MUTE





OFF









ENTER

FREEZE

MY BUTTON

KEYSTONE





1

2







POSITION





MENU

ESC

RESET















ENTER







ESC





RESET

1. Press the MENU button on the remote control or one of the cursor buttons on the projector.

The Advanced MENU or EASY MENU will appear.

In the EASY MENU

2. If you want to change it to the Advanced MENU, select the "Go to Advanced Menu"

3. Use the cursor buttons ▲/▼ to select an item to operate.

4. Use the cursor buttons◄/► to operate the item.

In the Advanced MENU

2. Use the cursor buttons ▲/▼ to select a menu.

If you want to change it to the EASY MENU, select the EASY MENU.

Then press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to select an item. The display of the selected menu will be active.

/'07 =4)$ ?

5'.'%6









2+%674'

$4+)*60'55

+/#)'

%1064#56



+0276

)#//# &'(#7.6

5'672

%1.14 6'/2 /+&&.'

5%4''0

%1.14

126+10

6+06



/+7

5*#420'55

'#5; /'07

/; /'/14; 5#8'

'#5; /'07 =4)$ ?



#52'%6

#761 -';5610'

':'%76'





-';5610'



2+%674' /1&'

014/#.

$4+)*60'55





%1064#56



%1.14



6+06



5*#420'55



9*+52'4

014/#.

/+4414

014/#.

4'5'6



(+.6'4 6+/'

J

.#0)7#)'

'0).+5*

)Q VQ #FXCPEGF /GPW

3. Use the cursor buttons ▲/▼ to select an item to operate.

Then press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to progress. The operation menu of the selected item will appear.

4. Use the cursor buttons▲/▼ to operate the item.

When you want to reset the operation, press the RESET button on the remote control during the operation. Note that items whose functions are performed simultaneously with operation (ex. LANGUAGE, H PHASE, VOLUME etc.) cannot be reset.

In the advanced menu, when you want to return to the previous display, press the cursor button ◄ on the projector or remote control, or the ESC button on the remote control.

5. Press the MENU button on the remote control again to close the menu and complete this operation. Even if you don't do anything, the dialog will

automatically disappear after about 10 seconds.

Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.

26

EASY Menu

With the EASY MENU, items shown in the table below can be performed.

Select an item using the cursor buttons ▲/▼ on the projector or remote control. Then perform it referring to the following table.

EASY Menu

'#5; /'07 =4)$ ?



#52'%6

#761 -';5610'

':'%76'





-';5610'



2+%674' /1&'

014/#.

$4+)*60'55





%1064#56



%1.14



6+06



5*#420'55



9*+52'4

014/#.

/+4414

014/#.

4'5'6



(+.6'4 6+/'

J

.#0)7#)'

'0).+5*

)Q VQ #FXCPEGF /GPW

Item

Description









ASPECT

Using the buttons ◄/► switches the mode for aspect ratio.



See the ASPECT item in the IMAGE menu ( 32).







AUTO

Using the button ► executes the auto keystone function.

37).

KEYSTONE

See the AUTO KEYSTONE EXECUTE item in the SETUP menu (

EXECUTE

This function will be unavailable when Transition Detector is on (

50).

Using the buttons ◄/► corrects the keystone distortion.

KEYSTONE

See the item KEYSTONE of section SETUP menu. (

37)

50).



This function will be unavailable when Transition Detector is on (



Using the buttons ◄/► switches the mode of picture type. The





modes of picture type are combinations of a mode of GAMMA and



a mode of COLOR TEMP. Choose a suitable mode according to the



projected source.









NORMAL

CINEMA DYNAMIC







WHITEBOARD

BOARD(GREEN) BOARD(BLACK)





NORMAL: (COLOR TEMP = MID DEFAULT) + (GAMMA = #1 DEFAULT)



CINEMA: (COLOR TEMP = LOW DEFAULT) + (GAMMA = #2 DEFAULT)

PICTURE MODE

DYNAMIC: (COLOR TEMP = HIGH DEFAULT) + (GAMMA = #3 DEFAULT)

BOARD(BLACK): (COLOR TEMP = Hi-BRIGHT-1 DEFAULT) +





(GAMMA = #4 DEFAULT)







BOARD(GREEN): (COLOR TEMP = Hi-BRIGHT-2 DEFAULT) +





(GAMMA = #4 DEFAULT)







WHITEBOARD: (COLOR TEMP = MID DEFAULT) + (GAMMA = #5



DEFAULT)







• When the combination of GAMMA and COLOR TEMP differs





from pre-assigned modes above, the display on the menu for the



PICTURE MODE is “CUSTOM”. Please refer to the GAMMA (

29)



and COLOR TEMP ( 30) items in the PICTURE menu.





• When this function is performed, a certain extra such as a line may appear.

BRIGHTNESS

Using the buttons ◄/► adjusts the brightness.

29).



See the item BRIGHTNESS in the PICTURE menu (







27

EASY Menu

EASY Menu (continued)

Item

Description

















CONTRAST

Using the buttons ◄/► adjusts the contrast.



29).

See the CONTRAST item in the PICTURE menu (



COLOR

Using the buttons ◄/► adjusts the strength of whole color.

See the COLOR item in the PICTURE menu

(

30).



TINT

Using the buttons ◄/► adjusts the tint.

30).



See the TINT item in the PICTURE menu (









Using the buttons ◄/► adjusts the sharpness.





30).

SHARPNESS

See the SHARPNESS item in the PICTURE menu

(

• There may be some noise when an adjustment is made. This is





not a malfunction.







WHISPER

Using the buttons ◄/► turns off/on the whisper mode.

See the WHISPER item in the SETUP menu

(

37).





Using the buttons ◄/► switches the mode for mirror status.

MIRROR

See the MIRROR item in the SETUP menu (

38).



If Transition Detector is TURN ON and MIRROR status is changed,



Transition Detector Alarm ( 50) will be displayed when projector is



restarted after the power switch is turned off.









Performing this item resets all of the items of EASY MENU except

RESET

FILTER TIME and LANGUAGE.







A dialog is displayed for confirmation. Selecting RESET using the





button ▲ performs resetting.









Performing this item resets the filter timer which counts usage time



of the air filter.







FILTER TIME

A dialog is displayed for confirmation. Selecting RESET using the



button ▲ performs resetting.





43).



See the FILTER TIME item in the OPTION menu (



Using the buttons ◄/► selects the LANGUAGE item to toggle



the menu language. Refer to description of LANGUAGE in the

LANGUAGE

SCREEN menu ( 39).







~Note~

















When PC-LESS presentation or e-SHOT is being used, the



language is not likely to be changed correctly.





Go to

Select “Go to Advanced Menu” and press the button ► or the

ENTER button to use the menu of PICTURE, IMAGE, INPUT,

Advanced Menu

SETUP, SCREEN, OPTION or MIU.















28

PICTURE Menu

PICTURE Menu

With the PICTURE menu, the items shown in the table



/'07 =4)$ ?









5'.'%6



























below can be performed.









2+%674'



$4+)*60'55













+/#)'





%1064#56





Select an item using the cursor buttons ▲/▼ on the





+0276



)#//# &'(#7.6





5'672





%1.14 6'/2 /+&&.'

projector or remote control, and press the cursor button ►

5%4''0





%1.14



126+10





6+06





on the projector or remote control, or the ENTER button





/+7











5*#420'55







'#5; /'07



/; /'/14; 5#8'



on the remote control to execute the item. Then perform it

































referring to the following table.























































































Item







Description











































































BRIGHTNESS



Using the buttons ▲/▼ adjusts the brightness. :

Light



Dark







CONTRAST



Using the buttons ▲/▼ adjusts the contrast. :

Strong



Weak





Using the buttons ▲/▼ switches the GAMMA mode.

























#1 DEFAULT

#1 CUSTOM

#2 DEFAULT

#2 CUSTOM





#3 DEFAULT





#5 CUSTOM

#5 DEFAULT

#4 CUSTOM

#4 DEFAULT





#3 CUSTOM

















































To adjust CUSTOM











































Selecting a mode of CUSTOM and then









































pressing the button ► or the ENTER button

















ENTER :





































displays a dialog to aid you in adjusting the





1

2

3

4

5 6 7

8









mode.













































This function is useful when you want to

















































































change the brightness of particular tones.









































Choose an item using the buttons ◄/►, and

+0 +0 +0 +0

+0 +0 +0

+0

















GAMMA [CUSTOM 1]











adjust the level using the buttons ▲/▼.





















GAMMA









































You can display a test pattern for checking the effect of your





















adjustment by pressing the ENTER button.





































Each time you press the ENTER button, the pattern changes as











below.













































No pattern

Gray scale of 9 steps









































Ramp Gray scale of 15 steps





































The eight equalizing bars correspond to eight tone levels of the test





pattern except the darkest in the left end. If you want to adjust the





2nd tone from left end on the test pattern (Gray scale of 9 steps),





use the equalizing adjustment bar “1”. The darkest tone at the left





end of the test pattern cannot be controlled with any of equalizing





adjustment bar.











































• When this function is performed, a certain extra such as a line











may appear.









































29

PICTURE Menu

PICTURE Menu (continued)

Item







Description





















































Using the buttons ▲/▼ switches the mode of color temperature.









CUSTOM













































To adjust CUSTOM





























Selecting the CUSTOM and then pressing the











ENTER :









button ► or the ENTER button displays a dialog





















OFFSET



GAIN









to aid you in adjusting the OFFSET and/or GAIN

R G B

R G B































of the CUSTOM mode.



























OFFSET adjustments change the color intensity























COLOR TEMP



on the whole tones of the test pattern.

+0

+0 +0

+0 +0 +0











GAIN adjustments mainly affect color intensity



COLOR TEMP [CUSTOM-1]































on the brighter tones of the test pattern.



























Choose an item using the buttons ◄/►, and adjust the level using





the buttons ▲/▼.



























You can display a test pattern for checking the effect of your





adjustment by pressing the ENTER button.



























Each time you press the ENTER button, the pattern changes as





below.































No pattern

Gray scale of 9 steps



























Ramp Gray scale of 15 steps



























• When this function is performed, a certain extra such as a line





may appear.































Using the buttons ▲/▼ adjusts the strength of whole color.

COLOR



Strong

Weak

























• This item can be selected only for a video signal, s-video or









component video signal.



























Using the buttons ▲/▼ adjusts the tint.























TINT



Greenish

Reddish























• This item can be selected only for a video signal, s-video or





component video signal.

























Using the buttons ▲/▼ adjusts the sharpness.























SHARPNESS



Strong

Weak























• There may be some noise and/or the screen may flicker for a





moment when an adjustment is made. This is not a malfunction.

30

This projector has 4 numbered memories for adjustment data. Performing the LOAD1, LOAD2, LOAD3 or LOAD4 loads the data on the memory whose number corresponds to the command’s number, and adjusts the picture automatically depending on the data. Performing the SAVE1, SAVE2, SAVE3 or SAVE4 saves the current adjustment data on the memory whose number corresponds to the command’s number.
• The current adjustment data of the items in the PICTURE menu is stored.
• There may be some noise and/or the screen may flicker for a moment when data is loaded to memory. This is not a malfunction.
When the current settings are not saved to memory the following
dialog is displayed. 6GORQTCT[ EQPFKVKQP/'/14; 4GECNN UCXGF RCTCOGVGTU
3WKV
To load saved adjustment settings press the MY BUTTON button. When there are no saved adjustment settings the following dialog is displayed.
0Q UCXGF FCVC
~Note~
You have to assign the MY MEMORY function to the MY BUTTON





PICTURE Menu

PICTURE Menu (continued)







Item



Description

Selecting a mode of MY MEMORY using the buttons ▲/▼ and then pressing the button ► or the ENTER button performs each function.

LOAD1 LOAD2 LOAD3 LOAD4

SAVE4 SAVE3 SAVE2 SAVE1

MY MEMORY

( 43).

31

IMAGE Menu

IMAGE Menu

With the IMAGE menu, items shown in the table below can be performed.

Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item. Then perform it referring to the following table.

/'07 =4)$ ?

5'.'%6

2+%674'





#52'%6

+/#)'

18'4 5%#0

+0276

8 215+6+10

5'672

* 215+6+10

5%4''0

* 2*#5'

126+10

* 5+<'

/+7

#761 #&,756 ':'%76'

'#5; /'07





Item









Description







Using the buttons ▲/▼ switches the mode for aspect ratio.



For an RGB and MIU signal



NORMAL

4:3

16:9

SMALL

ASPECT

For a video signal, s-video signal or component video signal

4:3

16:9

14:9

SMALL





For a no signal







4:3 (fixed)









• The NORMAL mode keeps the original aspect ratio of the signal.



Using the buttons ▲/▼ adjusts the over-scan ratio.

OVER SCAN

Large (It reduces picture)

Small (It magnifies picture)

• This item can be selected only for a video, s-video and component signal.



• When this adjustment is too large, certain degradation may appear



at the frame area of the picture. In such a case, please adjust small.



Using the buttons ▲/▼ adjusts the vertical position.



Up

Down









• Over-adjusting the vertical position may cause noise to appear

V POSITION

on the screen. If this occurs please reset the vertical position to the

default setting. Pressing the RESET button when V POSITION is



selected will reset the V POSITION to the default setting.



For a video signal, s-video signal or component video signal



The adjustable range of V.POSITION depends on the OVERSCAN setting.



It is not possible to adjust when the OVERSCAN is set to 10.



Using the buttons ▲/▼ adjusts the horizontal position.



Left

Right









• Over-adjusting the horizontal position may cause noise to appear

H POSITION

on the screen. If this occurs please reset the horizontal position to

the default setting. Pressing the RESET button when H POSITION



is selected will reset the H POSITION to the default setting.



For a video signal, s-video signal or component video signal



The adjustable range of H.POSITION depends on the OVERSCAN setting.



It is not possible to adjust when the OVERSCAN is set to 10.



Using the buttons ▲/▼ adjusts the horizontal phase to eliminate flicker.

H PHASE

Right

Left







• This item can be selected only for an RGB signal or a component





video signal.







32

IMAGE Menu

IMAGE Menu (continued)

Item

Description







Using the buttons ▲/▼ adjusts the horizontal size.



Large Small

H SIZE

• This item can be selected only for an RGB signal.

• When this adjustment is excessive, the picture may not be





displayed correctly. In such a case, please reset the adjustment



by pressing the RESET button on the remote control during this



operation.



Selecting this item performs the automatic adjustment feature.



For an RGB signal



The vertical position, the horizontal position, the horizontal phase



and the horizontal size will be automatically set to default. And the



aspect ratio will be automatically selected.



Make sure that the application window is set to its maximum size



prior to attempting to use this feature. A dark picture may still be



incorrectly adjusted. Use a bright picture when adjusting.



For a video signal or s-video signal



The video format best suited for the respective input signal will be

AUTO ADJUST

selected automatically.

EXECUTE

This function is available only when the AUTO mode is selected to



the VIDEO FORMAT item in the INPUT menu. For a component



video signal, the signal type is identified automatically independently



of this function.



For a video signal, s-video signal or component video signal



The vertical position, horizontal position and aspect ratio will be



automatically set to default.



For a component video signal



The horizontal phase will be automatically set to default.



• The automatic adjustment operation requires about 10 seconds.



Also please note that it may not function correctly with some input.

33

INPUT Menu

INPUT Menu

With the INPUT menu, the items shown in the table below can be performed.

Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item. Then perform it referring to the following table.

/'07 =4)$ ?

5'.'%6

2+%674'





241)4'55+8' 68

+/#)'

8+&'1 04 /+&

+0276

%1.14 52#%' #761

5'672

%1/210'06 %1/210'06

5%4''0

8+&'1 (14/#6 #761

126+10

(4#/' .1%-

6740 10

/+7

4)$ +0



'#5; /'07

4'51.76+10



Item





Description







Using the buttons ▲/▼ switches the progress mode.



TV

FILM

TURN OFF



• This function is performed only for an interlaced signal of a VIDEO



input, an S-VIDEO input or COMPONENT VIDEO input of 525i (480i)

PROGRESSIVE

or 625i (576i) signal.

• When TV or FILM is selected, the screen image will be sharp.





FILM adapts to the 2-3 Pull-Down conversion system. But these



may cause a certain defect (for example, jagged line) of the picture



for a quick moving object. In such a case, please select TURN OFF,



even though the screen image may lose the sharpness.



Using the buttons ▲/▼ switches the noise reduction mode.



HIGH

MID

LOW

VIDEO NR

• This function performs only at a VIDEO input, an S-VIDEO or

COMPONENT VIDEO input of 525i(480i) or 625i(576i) signal.



• When this function is excessive, it may cause a certain degradation of the picture.

Using the buttons ▲/▼ switches the mode for color space.

AUTO RGB SMPTE240 REC709 REC601

• This item can be selected only for an RGB signal or a component COLOR SPACE video signal (except signals of SCART RGB from the component

video port).

The AUTO mode automatically selects the optimum mode.

The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.

34

INPUT Menu

INPUT Menu (continued)

Item





Description











Using the buttons ▲/▼ switches the function of COMPONENT



VIDEO port.













COMPONENT SCART RGB





COMPONENT

When the SCART RGB is selected, the COMPONENT VIDEO port



function as a port for a SCART RGB signal input and VIDEO port



function as a port for SCART RGB sync input. A SCART adapter



and SCART cable realize a SCART RGB input to the projector. For



details, contact your dealer.









Set the video format for the s-video port and video port.





(1) Use the ◄/► buttons to select the input port.

8+&'1 (14/#6



(2) Using the buttons ▲/▼ switches the mode



5 8+&'1

8+&'1









for video format.







#761









065%



AUTO

NTSC

PAL

SECAM



2#.





5'%#/

VIDEO FORMAT

N-PAL

M-PAL

NTSC4.43



065%



/ 2#.



• This item is performed only for a video signal



0 2#.









from the VIDEO port or the S-VIDEO port.





The AUTO mode automatically selects the optimum mode.

The AUTO operation may not work well for some signals. If the picture becomes unstable (ex. an irregular picture, a color lack), please select the mode depending on the input signal.



Using the buttons ▲/▼ turns the frame lock function on/off.



TURN ON TURN OFF



• This item performs only at a RGB signal with vertical frequency of

FRAME LOCK

50 to 60 Hz.

• When the TURN ON is selected, a moving picture is displayed





more smoothly.



• This function may cause a certain degradation of the picture. In



such a case, please select the TURN OFF.

Set the RGB input signal type for the RGB port.



(1) Use the ◄/► buttons to select the RGB

4)$



port to be set.

4)$





4)$ +0



RGB1 RGB2



5;0% 10 ) 10



(2) Use the ▲/▼ buttons to select the RGB

5;0% 10 ) 1((





RGB IN

input signal type.





SYNC ON G ON

SYNC ON G OFF







Selecting TURN ON turns on the SYNC ON G mode. The SYNC ON G mode allows reception of SYNC ON G.

In the SYNC ON G mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and turn SYNC ON G off, and then reconnect the signal.

35

INPUT Menu

INPUT Menu (continued)

Item



Description



























The resolution for the RGB1 and RGB2 input signals can be set on



this projector.

















(1) In the INPUT menu select RESOLUTION using the ▲/▼ buttons and



press the ► button.

















The RESOLUTION menu will be displayed.

4'51.76+10





(2) In the RESOLUTION menu select the









#761













56#0&





Z



resolution you wish to display using the ▲/▼





Z













buttons.











Z



Selecting AUTO will set a resolution

%7561/





Z



appropriate to the input signal.







RESOLUTION MENU



(3) Pressing the ► or Enter button when

















selecting a STANDARD resolution will















automatically adjust the horizontal and



INFORMATION



vertical positions, clock phase and horizontal





RGB1



size and automatically select an aspect ratio.



1280x 768@ 60



The INFORMATION dialog (

45) will be















displayed.















RESOLUTION

(4) To set a custom resolution use the ▲/▼

%7561/ 4'51.76+10



*2

buttons to select CUSTOM and the CUSTOM



*14< Z 8'46



RESOLUTION BOX will be displayed. Set



Z











the horizontal (HORZ) and vertical (VERT)











37+6

5'6





resolutions using the ▲/▼/◄/►

CUSTOM RESOLUTION



buttons. *1







BOX











(5) To save the setting place the cursor on the













INFORMATION



right-most digit and press the ► button.









RGB1



The horizontal and vertical positions,



992x 744@ 60



clock phase and horizontal size will be















automatically adjusted and an aspect ratio will

4'51.76+10





be automatically selected.







45) dialog has















After the INFORMATION(









#761













displayed for about 10 seconds the screen will

56#0&





Z







Z



return to the RESOLUTION menu displaying



















Z



the changed resolution.















%7561/





Z













(6) To revert back to the previous resolution















without saving changes place the cursor on















the left-most digit and press the ◄ button.















The screen will then return to the RESOLUTION menu displaying the



previous resolution.















*1 Not all resolutions are guaranteed.

*2 For some pictures, this function may not work well.

36

SETUP Menu

SETUP Menu

With the SETUP menu, the items shown in the table below can be performed.

Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item. Then perform it referring to the following table.

/'07 =4)$ ?

5'.'%6







2+%674'

#761 -';5610' ':'%76'

+/#)'

-';5610'

+0276

9*+52'4 014/#.

5'672

/+4414 014/#.

5%4''0

81.7/'

126+10

#7&+1



/+7





'#5; /'07





Item

Description











Selecting this item performs the Automatic keystone distortion





correction. Projector automatically corrects vertical keystone





distortion due to the (forward/backward) setup angle by itself.





• This function will be executed only once when selected in the





Menu. When the slant of the projector is changed, executes this





function again.





• When V:INVERT or H&V:INVERT is selected to the MIRROR item

AUTO

in the SETUP menu, if the projector screen is inclined or angled



downward, this function may not work correctly.



KEYSTONE



• When the zoom adjustment is set to the TELE (telephoto focus),

EXECUTE



this correction may be excessive. This function should be used





when the zoom adjustment is set to the WIDE (wide-angle focus)



whenever possible.





• When vertical degree is almost 0 degree, the automatic keystone



distortion correction may not work.





• When vertical degree is over ±30 degree, the automatic keystone



distortion correction may not work well.

50).



• This function will be unavailable when Transition Detector is on (



Using the buttons ▲/▼ corrects the keystone distortion.



KEYSTONE

Upper in the data Lower in the data



• The adjustable range of this function will vary with the type of input



signal. At some signals, this function may not work well.





• This function will be unavailable when Transition Detector is on (

50).



Using the buttons ▲/▼ turns off/on the whisper mode.



WHISPER

NORMAL WHISPER



• When the WHISPER is selected, acoustic noise and screen









brightness are reduced.



37

SETUP Menu

SETUP Menu (continued)

Item









Description



Using the buttons ▲/▼ switches the mode for mirror status.









































MIRROR NORMAL H:INVERT V:INVERT H&V:INVERT

If Transition Detector is TURN ON and MIRROR status is changed, Transition Detector Alarm ( 50) will be displayed when projector is restarted after the power switch is turned off.

VOLUME

Using the buttons ▲/▼ adjusts the volume.







High

Low





















Allocates the audio ports.

#7&+1







Choose a picture input port using the buttons

37+6











/



▲/▼ (1), then select the audio port to be

4)$







interlocked with the input port using the

4)$







%1/210'06





AUDIO

buttons ◄/► (2). When off is selected, all

/+7





8+&'1













5 8+&'1







audio ports do not work for the input port.









(1) RGB1

RGB2

MIU COMPONENT

S-VIDEO

VIDEO



(2) 1 2

3

M







M is abbreviation of MIU.

38

SCREEN Menu

SCREEN Menu

With the SCREEN menu, the items shown in the table below can be performed.

Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item. Then perform it referring to the following table.

/'07 =4)$ ?

5'.'%6







2+%674'

.#0)7#)' '0).+5*

+/#)'

/'07 215+6+10



+0276

$.#0- $.#%-

5'672

56#46 72 14+)+0#.

5%4''0

/[5ETGGP



126+10

/[5ETGGP .QEM 6740 1((

/+7

/'55#)' 6740 10

'#5; /'07

5174%' 0#/'







Item



Description







Using the buttons ▲/▼ switches the OSD (On Screen Display)



language.







ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO

LANGUAGE

NORSK NEDERLANDS PORTUGUÊS







SVENSKA





SUOMI POLSKI TÜRKÇE







Using the buttons ◄/►/▲/▼ adjusts the menu position.

MENU POSITION

To quit the operation, press the MENU button on the remote control



or keep no operation for about 10 seconds.



Using the buttons ▲/▼ switches the mode for the blank screen.



The blank screen is a screen for the temporarily blanking feature



( 24). It is displayed by pressing the BLANK button on the remote



control.







MyScreen ORIGINAL BLUE WHITE BLACK

BLANK

MyScreen is a screen you can register as a desired screen. The



ORIGINAL screen is the existing standard screen. BLUE, WHITE



and BLACK are non-patterned (plain) screens in each color.



• To avoid remaining as an afterimage, the MyScreen and the



ORIGINAL screens will change to the BLACK screen after several



minutes.







• For the MyScreen, please refer to the MyScreen item ( 40).









39

SCREEN Menu

SCREEN Menu (continued)

Item



Description







Using the buttons ▲/▼ switches the mode for the start-up screen.



The start-up screen is a screen displayed when no signal or an



unsuitable signal is detected.



MyScreen

ORIGINAL TURN OFF



MyScreen is a screen you can register as a desired screen.The



ORIGINAL screen is the existing standard screen. When TURN

START UP

OFF is selected, the BLACK screen is used.

• To avoid remaining as an afterimage, the MyScreen and the





ORIGINAL screens will change to the BLANK screen after several



minutes. If also the BLANK screen is the MyScreen or ORIGINAL, it



will change to the BLACK screen.



• For the MyScreen, please refer to the item MyScreen below. For



the BLANK screen, please refer to the BLANK item ( 39).



• This function will be unavailable and fixed to Myscreen when



MyScreen Password in the Security Menu is on.



This item functions for capturing the MyScreen of the blank screen



and the start-up screen. Please execute displaying the input



including the picture you want to capture.



1. Selecting this item displays a dialog titled “MyScreen”. It will ask



you if you start capturing the picture from the current screen.



Please wait for the target picture to be displayed, and press the



ENTER button on the remote control when the picture is displayed.



The picture will freeze and the frame for capturing appears.



To stop performing, press the RESET or ESC button on the



remote control.



2. Using the buttons ◄/►/▲/▼ adjusts the frame position. Please

MyScreen

move the frame to the position of the picture which you want to use.

The frame may not be able to be moved for some input signals.



To start registration, press the ENTER button on the remote control.



To restore the screen and return to the previous dialog, press the



RESET or ESC button on the remote control.



Registration takes several minutes. When the registration is



completed, the registered screen and the message “MyScreen



registration is finished.” are displayed for several seconds. If the



registration failed, the message “A capturing error has occurred.



Please try again.” is displayed.



• This function will be unavailable when MyScreen Password in the



Security Menu is on.



NOTE : The KEYSTONE cannot be adjusted while using the



MyScreen function.



Using the buttons ▲/▼ turns on/off the MyScreen lock function.



TURN ON

TURN OFF

MyScreen Lock

When the TURN ON is selected, the item MyScreen is locked. Use

this function for protecting the current MyScreen.





• This function will be unavailable when MyScreen Password in the



Security Menu is on.

40

SCREEN Menu

SCREEN Menu (continued)

Item

Description









Using the buttons ▲/▼ turns on/off the message function.



TURN ON TURN OFF





When the TURN ON is selected, the following message function works.



“AUTO IN PROGRESS” while automatically adjusting



”NO INPUT IS DETECTED”





”SYNC IS OUT OF RANGE”





"Searching….” while searching for the input



MESSAGE

”Detecting….” while an input signal is detected



The indication of the input signal displayed by changing



The indication of the aspect ration displayed by changing



The indication of the My Memory displayed by changing



The indication of the Picture Mode displayed by changing



The indication of "FREEZE" and "II" while freezing the screen by



pressing the FREEZE button.





• When the TURN OFF is selected, please remember if the picture



is freezing. Do not mistake freezing for a malfunction ( 24).



Each input port for this projector can have a name applied to it.



(1) Use the ▲/▼ buttons on the SCREEN

5174%' 0#/'



menu to select SOURCE NAME and press

4)$



the ► button. The SOURCE NAME menu

4)$ &'5-612 2%



will be displayed.

/+7 9+4'.'55



%1/210'06 &8&



(2) Use the ▲/▼ buttons on the SOURCE

5 8+&'1 %#/'4#



8+&'1 864



NAME menu to select the port to be named



SOURCE NAME MENU



and press the ► button. The SOURCE



NAME dialog will be displayed.

*Right side of the menu is blank



until a name is specified







(3) The current name will be displayed

0#/' 4)$

5'.'%6





on the first line. Use the ◄/►/▲/▼ and

4)$













ENTER or INPUT buttons to select and

1 2 3 4 5 6 7 8 9 : ; <





enter characters. The RESET button can

#$% & ' ( ) * + ,-. / 0





C D E F G H I J K L M N O P





be used to erase 1 character at a time. The

Q R S T U V W X Y Z [ \



SOURCE NAME





name can be a maximum of 16 characters.

A !







'5%37+6

'06'40':6





(4) To change an already inserted character,















0#/' 4)$



5'.'%6



press the ▲ button while the cursor is on the [A-N]

4 )$



















row to move the cursor to the name displayed on











# $% & ' ( ) * + ,-. / 0





1 2 3 4 5 6 7 8 9 : ; <





the first line and use the ◄/► buttons to select









C D E F G H I J K L M N O P



character to be changed. Once a character in the



Q R S T U V W X Y Z [ \













name is selected use the ▼ button to move the











A !











cursor back down to the character entry area to















'5%37+6

























select and enter characters as described above.







0#/' 4)$



5'.'%6





4 )$









(5) Select and press the ENTER or



















#$% & ' ( ) * + ,-. / 0





INPUT buttons when finished entering text.

1 2 3 4 5 6 7 8 9 : ; <













C D E F G H I J K L M N O P



To revert to the previous name without



Q R S T U V W X Y Z [ \

















saving changes press the ESC or ◄ button













A !























and the INPUT button simultaneously.





'5%37+6

'06'40':6

41

OPTION Menu

OPTION Menu

With the OPTION menu, the items shown in the table below can be performed.

Select an item using the cursor buttons ▲/▼ on the projector or remote control, and press the cursor button ► on the projector or remote control, or the ENTER button on the remote control to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it referring to the following table.

/'07 =4)$ ?

5'.'%6







2+%674'

#761 5'#4%* 6740 1((

+/#)'

#761 -';5610' 6740 1((

+0276

#761 10 6740 1((

5'672

#761 1(( OKP

5%4''0

.#/2 6+/' J

126+10

(+.6'4 6+/' J

/+7

/; $76610



'#5; /'07

5'48+%'





5'%74+6;



Item



Description









Using the buttons ▲/▼ turns on/off the automatic signal search function.



TURN ON

TURN OFF





When the TURN ON is selected, detecting no signal automatically cycles

AUTO SEARCH

through input ports in the following order. The search is started from the

current port. Then when an input is found, the projector will stop searching





and display the image.





RGB IN1 RGB IN2 MIU COMPONENT VIDEO S-VIDEO

VIDEO







Using the buttons ▲/▼ turns on/off the automatic keystone function.



TURN ON

TURN OFF





TURN ON : Automatic keystone distortion correction will be

AUTO

executed whenever changing the slant of the projector.



TURN OFF : This function is disabled. Please execute the AUTO

KEYSTONE

KEYSTONE EXECUTE in the SETUP Menu for automatic keystone



distortion correction.





When the projector is suspended from the ceiling this feature will



not function properly so select TURN OFF.





This function will be unavailable when Transition Detector is on ( 50).



Using the buttons ▲/▼ turns on/off the AUTO ON function.



TURN ON

TURN OFF





When set to TURN ON, the lamp will only be automatically turned on when



the Power switch is turned on after the power was turned off by Power



switch last time.







The lamp will not be automatically turned on when the Power switch is



turned on if the lamp was turned off with the following procedures.



• The lamp was turned off with a remote control, projector button, or



power turn off command.

43).

AUTO ON

• The lamp was turned off with an AUTO OFF function (



• The lamp was turned on by an AUTO ON function and was turned



off about 30 minutes after no signal had been detected.





When no input is detected after the power on and AUTO OFF time is set to 0,



the projector will be turned off after about 30 minutes passed.





When no input is detected after the power on and AUTO OFF time is set to



1 to 99, the projector will be turned off after the passed time reaches at the



set time.







If one of the projector's buttons or the remote control buttons is pressed



or one of the commands (except get commands) is transmitted from the



control port during the corresponding time, projector will not be turned off.

42

OPTION Menu

OPTION Menu (continued)

Item

Description



Using the buttons ▲/▼ adjusts the time to count down to



automatically turn the projector off.







Long (max. 99 minutes) Short (min. 0 minute = DISABLE)





AUTO OFF

AUTO OFF







ENABLE

DISABLE







1

0



AUTO OFF

When the time is set to 0, the projector is not turned off automatically.



When the time is set to 1 to 99, and when the passed time with no-



signal or an unsuitable signal reaches at the set time, the projector



lamp will be turned off.







If one of the projector's buttons or the remote control buttons is pressed



or one of the commands (except get commands) is transmitted to the



control port during the corresponding time, projector will not be turned off.



Please refer to the section “Turning off the power” (

19).



The lamp time is the time counted after the last resetting. It is



shown in the OPTION menu as the usage time of the lamp.



Pressing the RESET button on the remote control or the button ►



of the projector displays a dialog. To reset the lamp time, select the

LAMP TIME

RESET using the button ▲.







RESET

CANCEL







• Please reset the lamp time only when you have replaced the lamp,



for a suitable indication about the lamp.



57, 58).



• For the lamp replacement, see the section "Lamp" (



The filter time is the time counted after the last resetting. It is shown



in the OPTION menu as the usage time of the air filter.



Pressing the RESET button on the remote control or the button ► of the



projector displays a dialog. To reset the filter time, select the RESET using

FILTER TIME

the button ▲.

CANCEL







RESET







• Please reset the filter time only when you have cleaned or replaced



the air filter, for a suitable indication about the air filter.

59, 60).



• For the air filter cleaning, see the section "Air filter" (



Sets the assigned function for the MY BUTTON1 and 2 buttons on



the included remote control.







• RGB1: Sets port to RGB1.







• RGB2: Sets port to RGB2.







• MIU: Sets port to MIU.







• COMPONENT: Sets port to COMPONENT.





• S-VIDEO: Sets port to S-VIDEO.





MY BUTTON

• VIDEO: Sets port to VIDEO.

53).



• e-SHOT: Displays the e-SHOT menu (

45).



• INFORMATION: Displays INPUT INFORMATION (



• AUTO KEYSTONE EXECUTE: Performs automatic KEYSTONE



correction (

37).







• MY MEMORY: Loads MY MEMORY settings ( 31).

27).



• PICTURE MODE: Changes the PICTURE mode (



• FILTER RESET: Displays the filter time reset confirmation dialogue ( 43).



• VOLUME+: Sets the volume up.







• VOLUME-: Sets the volume down.





43

OPTION Menu

OPTION Menu (continued)

Item





Description







Selecting this item displays the SERVICE menu.



Select an item using the buttons ▲/▼, and press the button ► or



the ENTER button on the remote control to execute the item.



FAN SPEED

AUTO ADJUST

GHOST FILTER MESSAGE KEY LOCK



FACTORY RESET

INFORMATION REMOTE FREQ.



FAN SPEED





Using the buttons ▲/▼ switches the rotation speed of the cooling



fans. The HIGH is the mode for use at highlands etc. Note that the



projector is noisier when the HIGH is selected.



HIGH

NORMAL





AUTO ADJUST





Using the buttons ▲/▼ enables/disables the automatic adjustment.



When DISABLE is selected, the automatic adjustment feature is



disabled, although rough adjustment is automatically performed



depending on the basic setting.



ENABLE

DISABLE





• Depending on conditions, such as input image, signal cable to the



projector, environment around the projector, etc., the automatic adjustment



may not work correctly. In such a case, please choose DISABLE to



disable the automatic adjustment, and make adjustment manually.



GHOST





SERVICE

1. Select a color element of ghost using the buttons ◄/►.

2. Adjust the selected element using the buttons ▲/▼ to disappear ghost.

FILTER MESSAGE

Use the ▲/▼ button to set the timer for the interval to show the message for cleaning up the air filter.

50h 100h 200h 300h TURN OFF

After selecting “50h”, “100h”, “200h”, or “300h”, the message “REMINDER *** HRS PASSED AFTER THE LAST FILTER CHECK” will appear after the timer reaches the interval time set by the menu. ( 63) When the “TURN OFF” is chosen, the air filter cleaning message will not appear.

Please check and clean the air filter periodically, even if there is no message. If the air filter becomes to be blocked by dust or others, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.

It is recommended to choose “100h” in general. Please be careful with the operating environment of the projector and the condition of the air filter, especially when the “200h”, “300h” or “TURN OFF” is chosen.

KEY LOCK

Using the buttons ▲/▼ turns on/off the key lock feature. When TURN ON is selected, the buttons on the projector except the STANDBY/ON button are locked.

TURN ON TURN OFF

• Please use to avoid a mischief and touching accidentally. This function does not have any effect on the remote control.

44

OPTION Menu

OPTION Menu (continued)

Item

Description

REMOTE FREQ.

Use the ▲/▼ button to change the Projector's remote sensor setting ( 18).

1:NORMAL 2:HIGH

Items with a checkmark are on. The factory default setting is for both 1:NORMAL and 2:HIGH to be on. If the remote control does not function correctly set the this to either only 1 or only 2 as described in Remote Control Settings ( 18).

Neither can be turned off at the same time.

INFORMATION

Selecting this item displays a dialog titled “INPUT INFORMATION”. It shows the information about the current input.



INPUT-INFORMATION

INPUT-INFORMATION

INPUT-INFORMATION

SERVICE

RGB

S-VIDEO

COMPONENT

1024x768 @60Hz

SECAM

576i @50



FRAME LOCK

AUTO

SCART RGB

The “FRAME LOCK” message on the dialog means the frame lock function is working.

The “SCART RGB” message means the COMPONENT VIDEO port is working as a SCART RGB input port. Please refer to the

COMPONENT item in INPUT menu. ( 35)

• This item can't be selected for no signal and sync out.

FACTORY RESET

Selecting RESET using the button ▲ performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE and SECURITY are not reset.

RESET CANCEL

45

OPTION Menu

OPTION Menu (continued)

Item

Description



































This projector is equipped with security functions.

















User registration is required before using the security functions.



Please contact your local dealer.

















1. Using Security Features

















1.1 Inputting the PASSWORD

















1.1-1 Use the ▲/▼ buttons on the OPTION

















menu to select SECURITY and press the ►

















button. The ENTER PASSWORD box will be

















displayed. The factory default PASSWORD is

5'%74+6;









9047. This PASSWORD can be changed (1.2

'06'4 2#55914&









Changing the PASSWORD).















NOTE : It is strongly recommended the factory

















37+6

0':6









default PASSWORD to be changed as



ENTER PASSWORD



soon as possible.



BOX





























5'%74+6;











1.1-2 Use the ▲/▼/◄/► buttons to enter the

5'%74+6; 2#55914& %*#0)'









/[5ETGGP 2#55914& 6740 1((





registered PASSWORD. Move the cursor to

2+0 .1%- 6740 1((







64#05+6+10 &'6'%614 6740 1((







the right side of the ENTER PASSWORD























BOX and press the ► button to display the

















SECURITY menu. If an incorrect PASSWORD





















SECURITY MENU



is input the ENTER PASSWORD BOX will























be displayed again. If incorrect PASSWORD

















is input 3 times the projector will turn off.

















Afterwards the projector will turn off every time















SECURITY

an incorrect PASSWORD is input.



















5'%74+6;









1.2 Changing the PASSWORD

'06'4 0'9 2#55914&























1.2-1 Use the ▲/▼ buttons on the SECURITY menu





























to select SECURITY PASSWORD CHANGE

37+6

0':6























and press the ► button to display the ENTER

ENTER NEW PASSWORD



NEW PASSWORD BOX.

BOX











1.2-2 Use the ▲/▼/◄/► buttons to enter the new

















PASSWORD.

















1.2-3 Move the cursor to the right side of the

5'%74+6;









0'9 2#55914& #)#+0







ENTER NEW PASSWORD BOX and press













the ► button to display the NEW PASSWORD













%#0%'.

1-







AGAIN BOX, enter the same PASSWORD





NEW PASSWORD



again.











AGAIN BOX



1.2-4 Move the cursor to the right side of the NEW

















PASSWORD AGAIN BOX and press the ►

















button and the NOTE NEW PASSWORD BOX

5'%74+6;









will be displayed for about 20 seconds, please

016' 0'9 2#55914&























make note of the PASSWORD during this time.













Pressing the ENTER button on the remote















'06'4

':+6









control or INPUT button on the projector will





NOTE NEW



close the NOTE NEW PASSWORD BOX.





PASSWORD BOX



NOTE : Please do not forget your PASSWORD.

































46

OPTION Menu

OPTION Menu (continued)

Item

Description















1.3 If you have forgotten your PASSWORD







1.3-1 Follow the procedure in 1.1-1 to display the







ENTER PASSWORD BOX.







1.3-2 While the ENTER PASSWORD BOX is







displayed, press and hold the RESET button

5'%74+6; 2#55914&





+PSWKTKPI %QFG





on the remote control for about 3 seconds or











press and hold the INPUT and ► buttons on







Inquiring Code





the projector for about 3 seconds.



The 10 digit Inquiring Code will be displayed.

(PASSWORD)



NOTE: If there is no key input for about 55 seconds







while the Inquiring Code is displayed the menu will







close. If necessary repeat the process from 1.3-1.







1.3-3 Contact your dealer with the 10 digit Inquiring Code. Your PASSWORD



will be sent after your user registration information is confirmed.



2. Using the MyScreen PASSWORD Function







The MyScreen PASSWORD function can be used to prohibit access to the



MyScreen function and prevent the currently registered MyScreen image



from being overwritten.









SECURITY

2.1 Turning on the MyScreen PASSWORD



/[5ETGGP 2#55914&



Function





6740 10





2.1-1 Use the ▲/▼ buttons on the SECURITY





6740 1((





menu to select MyScreen PASSWORD and

MyScreen PASSWORD



press the ► button to display the MyScreen





on/off menu



PASSWORD on/off menu.















2.2 Setting the PASSWORD











2.2-1 Display the MyScreen on/off menu using the











procedure in 2.1-1.











2.2-2 Use the ▲/▼ buttons on the MyScreen



/[5ETGGP



'06'4 2#55914&





PASSWORD on/off menu to select TURN ON.









The ENTER PASSWORD BOX (small) will be











37+6

0':6





displayed.

ENTER PASSWORD



2.2-3 Use the ▲/▼/◄/► buttons to enter the



BOX (small)













PASSWORD. Move the cursor to the right



/[5ETGGP



side of the ENTER PASSWORD BOX

%*'%- 2#55914&





(small) and press the ► button to display the









CHECK PASSWORD BOX, enter the same











37+6

0':6





PASSWORD again.

CHECK PASSWORD





BOX





47

/[5ETGGP
%1/2.'6'
'06'4 ':+6
PASSWORD BOX

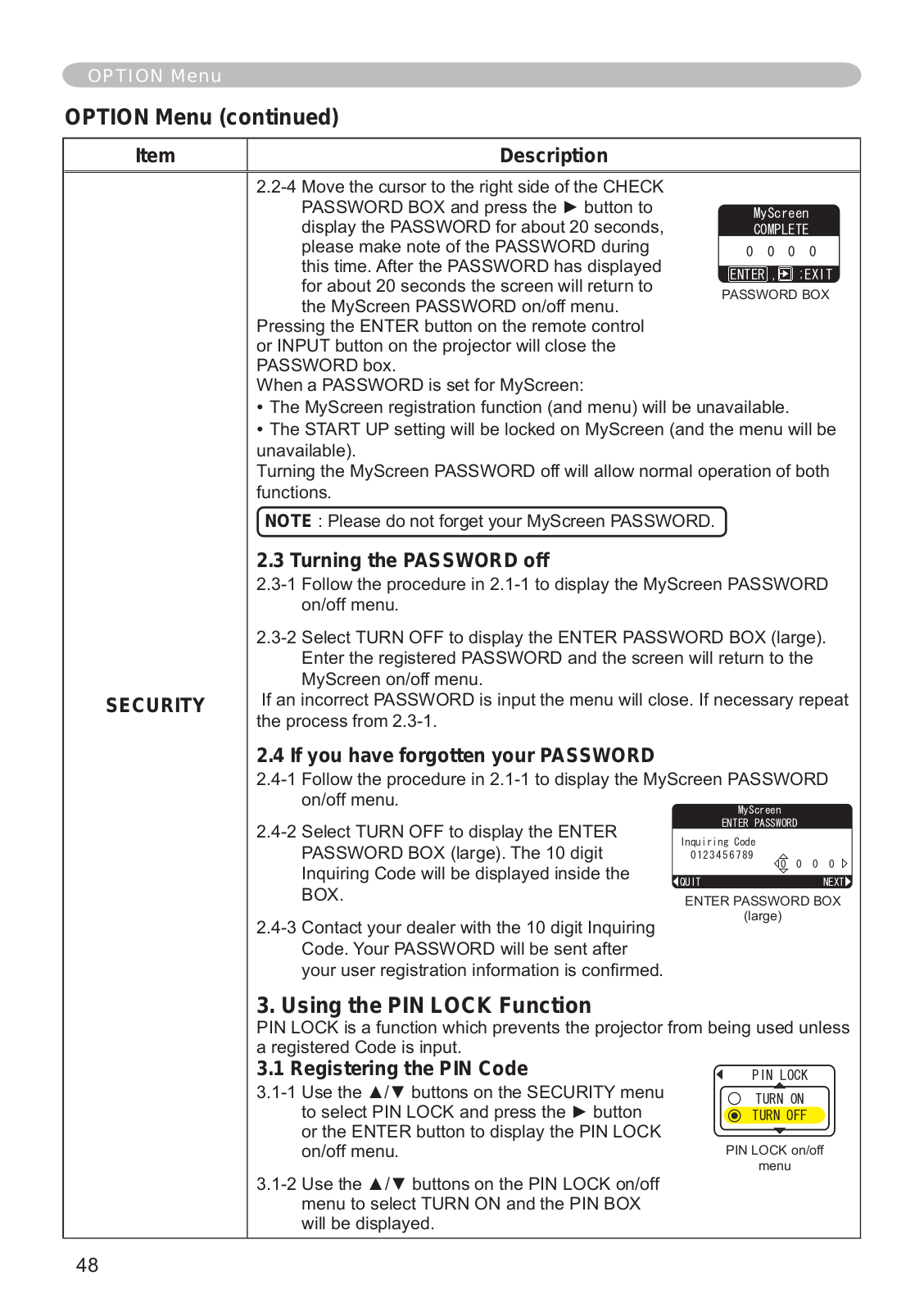

OPTION Menu

OPTION Menu (continued)

Item

Description

2.2-4 Move the cursor to the right side of the CHECK PASSWORD BOX and press the ► button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time. After the PASSWORD has displayed for about 20 seconds the screen will return to the MyScreen PASSWORD on/off menu.

Pressing the ENTER button on the remote control or INPUT button on the projector will close the PASSWORD box.

When a PASSWORD is set for MyScreen:

The MyScreen registration function (and menu) will be unavailable.

The START UP setting will be locked on MyScreen (and the menu will be unavailable).

Turning the MyScreen PASSWORD off will allow normal operation of both functions.

NOTE : Please do not forget your MyScreen PASSWORD.

2.3 Turning the PASSWORD off

2.3-1 Follow the procedure in 2.1-1 to display the MyScreen PASSWORD on/off menu.

2.3-2 Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered PASSWORD and the screen will return to the MyScreen on/off menu.

SECURITY If an incorrect PASSWORD is input the menu will close. If necessary repeat the process from 2.3-1.

2.4 If you have forgotten your PASSWORD

2.4-1 Follow the procedure in 2.1-1 to display the MyScreen PASSWORD on/off menu.



/[5ETGGP



2.4-2 Select TURN OFF to display the ENTER

'06'4 2#55914&



+PSWKTKPI %QFG



PASSWORD BOX (large). The 10 digit







Inquiring Code will be displayed inside the







37+6

0':6

BOX.

ENTER PASSWORD BOX

(large)

2.4-3 Contact your dealer with the 10 digit Inquiring Code. Your PASSWORD will be sent after your user registration information is confirmed.

3. Using the PIN LOCK Function

PIN LOCK is a function which prevents the projector from being used unless a registered Code is input.

3.1 Registering the PIN Code

2+0 .1%-

3.1-1

Use the ▲/▼ buttons on the SECURITY menu

6740 10



to select PIN LOCK and press the ► button

6740 1((



or the ENTER button to display the PIN LOCK





on/off menu.

PIN LOCK on/off

3.1-2

Use the ▲/▼ buttons on the PIN LOCK on/off

menu





menu to select TURN ON and the PIN BOX





will be displayed.



48

OPTION Menu

OPTION Menu (continued)

Item

Description



















3.1-3 Input a 4 part PIN Code using the ▲/▼/◄/►









/RGB and INPUT buttons.









2+0$1:







A CONFIRMATION BOX will appear. Reenter the

+PRWV 2+0 %QFG













same PIN Code. This will complete the PIN Code





4)

$





registration.

PIN BOX







NOTE: If there is no key input for about 55 seconds









while the PIN BOX or the CONFIRMATION BOX are









displayed the menu will close. If necessary repeat









2+0$1:







the process from 3.1-1.

%QPHKTOCVKQP







Afterwards, anytime the projector is restarted after







4)

$





the power switch is turned off the PIN BOX will be





CONFIRMATION BOX



displayed. Enter the registered PIN Code.



(PIN BOX)







The projector can be used after entering the









registered PIN Code. If an incorrect PIN Code is









input the PIN BOX will be displayed again.









If an incorrect PIN Code is input 3 times the projector will turn off. Afterwards



the projector will turn off every time an incorrect PIN Code is input. The







projector will also turn off if there is no key input for about 5 minutes while



the PIN BOX is displayed.









This function will activate only when the projector is started after the power

SECURITY

switch was turned off.







NOTE : Please do not forget your PIN Code.







3.2 Turning Off the PIN LOCK Function

3.2-1 Follow the procedure in 3.1-1 to display the PIN LOCK on/off menu. Use the ▲/▼ buttons to select TURN OFF and the PIN BOX will be displayed.

Enter the registered PIN Code to turn the PIN LOCK function off. If an incorrect PASSWORD is entered the menu will close.

3.3 If you have forgotten your PIN Code

3.3-1 While the PIN BOX is displayed, press and

2+0$1:

+PSWKTKPI %QFG

hold the RESET button for three seconds or



press and hold the INPUT and ► buttons for



Inquiring Code

three seconds. The 10 digit Inquiring Code will

(PIN Code)

be displayed.



NOTE: If there is no key input for about 5 minutes



while the Inquiring Code is displayed the projector



will turn off.



3.3-2 Contact your dealer with the 10 digit Inquiring Code. Your PASSWORD will be sent after your user registration information is confirmed.

49

OPTION Menu

OPTION Menu (continued)

Item

Description



4. Using the Transition Detector Function





While the Transition Detector function is ON, when power switch is started to



supply to the projector, it might react as below.





• Transition Detector alarm shown below might appear on screen, if the



projector has been moved or re-installed.





• Transition Detector alarm might appear on screen, if the MIRROR setting



has been changed.





• Keystone adjustment feature has been prohibited as long as the Transition



Detector function is ON.





4.1 Turning On the Transition Detector Function



4.1-1 Use the ▲/▼ buttons on the SECURITY menu to





select Transition Detector and press the ► or the

6TCPUKVKQP &GVGEVQT



ENTER button to display the Transition Detector

6740 10



on/off menu. Select TURN ON and the current

6740 1((



angle and mirror setting will be recorded.

Transition Detector



NOTE: This feature may not function properly if the projector



is not in a stable position when TURN ON is selected.

on/off menu







4.1-2 If this function is set to TURN ON when the

64#05+6+10 &'6'%614 10







vertical angle of the projector or mirror setting

6JG RTQLGEVQT JCU DGGP VTCPUHGTTGF



HTQO RTGXKQWUN[ KPUVCNNGF RQUKVKQP



at which the projector is turned on is different

2+0 $1:



+H [QW YKUJ VQ JCXG C USWCTG KOCIG



than the previously recorded the Transition

QP UETGGP CICKP



FKUCDNG 6TCPUKVKQP &GVGEVQT QP /GPW



Detector Alarm will be displayed and the

Transition Detector Alarm



projector will not display the input signal.



Set the Transition Detector off in the SECURITY menu to display the input



signal.



SECURITY

If the Transition Detector ALARM is displayed for about 5 minutes the lamp will turn off.



This function will activate only when the projector is started after the power



switch was turned off.





4.2 Setting the Transition Detector PASSWORD

4.2-1 Use the ▲/▼ buttons on the SECURITY menu to select Transition Detector and press the ► or the ENTER button to display the Transition Detector on/off menu.

4.2-2 Use the ▲/▼ buttons on the Transition Detector





6TCPUKVKQP &GVGEVQT

'06'4 2#55914&



on/off menu to select TURN ON. The ENTER

















PASSWORD BOX (small) will be displayed.















37+6

0':6



4.2-3 Use the ▲/▼/◄/► buttons to enter a PASSWORD.



ENTER PASSWORD

Move the cursor to the right side of the ENTER





BOX (small)

PASSWORD BOX (small) and press the ► button





6TCPUKVKQP &GVGEVQT

to display the CHECK PASSWORD BOX, enter the



%*'%- 2#55914&



same PASSWORD again.







4.2-4 Move the cursor to the right side of the CHECK











37+6

0':6













PASSWORD BOX and press the ► button to

CHECK PASSWORD

display the PASSWORD for about 20 seconds,





BOX









6TCPUKVKQP &GVGEVQT

please make note of the PASSWORD during





%1/2.'6'



this time. After the PASSWORD has displayed



















for about 20 seconds the screen will return to















'06'4

':+6



the Transition Detector on/off menu.













Pressing the ENTER button on the remote control or

PASSWORD BOX



the INPUT button on the projector will close the PASSWORD BOX. NOTE : Please do not forget your Transition Detector PASSWORD.

50

OPTION Menu

OPTION Menu (continued)

Item



Description







4.3 Setting the Transition Detector off

4.3-1

Follow the procedure in 4.1-1 to display the Transition Detector on/off





menu.

4.3-2

Select TURN OFF to display the ENTER PASSWORD BOX (large).





Enter the registered PASSWORD and the screen will return to the





Transition Detector on/off menu.



If an incorrect PASSWORD is input the menu will close. If necessary repeat



the process from 4.3-1.

SECURITY

4.4 If you have forgotten your PASSWORD





4.4-1 Follow the procedure in 4.1-1 to display the Transition Detector on/off





menu.







4.4-2 Select TURN OFF to display the ENTER

6TCPUKVKQP &GVGEVQT





PASSWORD BOX (large). The 10 digit

'06'4 2#55914&





+PSWKTKPI %QFG





Inquiring Code will be displayed inside the







BOX.











37+6

0':6



4.4-3 Contact your dealer with the 10 digit Inquiring

ENTER PASSWORD BOX



(large)





Code. Your PASSWORD will be sent after your







user registration information is confirmed.





51

MIU Menu

MIU Menu

Select [MIU] from the main menu to access the following functions.

/'07 =4)$ ?

5'.'%6

2+%674'

.+8' /1&'

+/#)'

2% .'55 24'5'06#6+10

+0276

5'672

5'672

G 5*16

5%4''0

+0(14/#6+10

126+10

5'48+%'

/+7



'#5; /'07



NOTE • The factory default setting for DHCP is “TURN OFF”. If your network has DHCP enabled , and need to set [IP ADDRESS], [SUBNET MASK] and [DEFAULT GATEWAY] automatically, please set [DHCP] to “TURN ON”.

( User’s Manual - Network Functions)

• If you are not utilizing SNTP ( User’s Manual - Network Functions), then you must set the DATE AND TIME during the initial installation. Please refer to the item DATE AND TIME on the following list.

NOTE Consult with your network administrator before connecting to an existing access point on your network. Incorrect network settings on this projector may cause unnecessary troubles on the network.

Item

Description















Display the screen appearing on the PC via Network.



Press the ► button or ENTER button to display the LIVE MODE

LIVE MODE

Menu.







See [LIVE MODE] in [User’s Manual – Network Functions] for



more information.







Make a presentation without a PC.







2% .'55 24'5'06#6+10





The data in the memory card are displayed.

6*7/$0#+.



PC-LESS

Press the ► button or ENTER button to display

5.+&' 5*19



&+4'%64;



PRESENTATION

the PC-LESS PRESENTATION Menu.

-'; %10(+)







&+52.#; 5+<'





See [PC-LESS PRESENTATION] in [User’s







Manual - Network Functions] for more information.





52

MIU Menu

MIU Menu (continued)

Item



Operation



e-SHOT display :







Use the ▲/▼ buttons to select an item and the ► or ENTER



buttons to display the image.






G 5*16






+/#)' &'/10564#6+10



+/#)'

24'5'06#6+10(+.'






+/#)'

&'/10564#6+10




+/#)' 6#$.'









File names of registered images are



displayed by 16 characters or less.



Example: DEMONSTRATION-01



Once an image is displayed, you can use



the ▲/▼ buttons to page through the



images. Use the ◄ or ESC buttons to



return to the menu.



+/#)'









Pressing the RESET button on the remote



control while an image is being displayed G 5*16



will display the RESET menu.

4'5'6 +/#)'

e-SHOT

01 ;'5'5% '06'4

The displayed image can be deleted from





the RESET menu using the ENTER button



on the remote control or the INPUT button



on the projector.







If you do not wish to delete the image use the ESC button on the



remote control or push the ◄ and INPUT buttons on the projector at



the same time.





~Note~

Items with no image stored cannot be selected.

Images can be changed using the ▲/▼ buttons while the image data downloads.

Insert the SD memory card or USB memory into the projector before you use the e-SHOT function.

Japanese file name is displayed correctly only when the projector's

language is set to Japanese.

• And, the characters other than alphanumeric character are not displayed correctly in Japanese mode. (Ç, ä etc.)



Change Network Settings.





/+7 5'672



Press the ► button or ENTER button to display the

&*%2 10



MIU SETUP Menu.

+2 #&&4'55



57$0'6 /#5-





&'(#7.6 )#6'9#;





6+/' &+(('4'0%'





' #0& 6+/'

SETUP

DHCP (Dynamic Host Configuration Protocol)

/1&'

'0%4;26+10



DHCP TURN ON/TURN OFF:

%*



52''&



Use the ▲/▼ buttons to turn DHCP on/off.

0'6914- /1&'



TURN ON TURN OFF





&*%2



Select TURN OFF when the network does not have

6740 1((





6740 10



DHCP enabled.



53

MIU Menu

MIU Menu (continued)

Item

Description





IP ADDRESS





Input the IP ADDRESS :





Use the ▲/▼/◄/► buttons to enter the IP





ADDRESS. This function is available as long

+2 #&&4'55



as DHCP is set to “TURN OFF”.





~Note~





IP ADDRESS is a number which identifies this projector on the



network. You cannot have two devices with the same IP ADDRESS



on the same network.





SUBNET MASK





Input the SUBNET MASK :





Use the buttons ▲/▼/◄/► to enter the same





SUBNET MASK of your PC. This function is

57$0'6 /#5-



available as long as DHCP is set to “TURN





OFF”.





DEFAULT GATEWAY





Input the DEFAULT GATEWAY :



SETUP

Use the ▲/▼/◄/► buttons to enter the



DEFAULT GATEWAY (a node on a computer





network that serves as an access point to

&'(#7.6 )#6'9#;



another network) address.





This function is available as long as DHCP is





set to “TURN OFF”.





TIME DIFFERENCE





Input the TIME DIFFERENCE :

6+/' &+(('4'0%'



Use the ▲/▼ buttons to enter the







TIME DIFFERENCE.





Set the same TIME DIFFERENCE as





that on your PC. If unsure, ask your





network administrator.





Use the ◄ button to return to the menu





after setting the TIME DIFFERENCE.





DATE AND TIME





Entering DATE AND TIME :





Use the ▲/▼/◄/► buttons to enter the



# #0& 6+/'



Year (last two digits), Month, Date, Hour and







Minute.



54

MIU Menu

MIU Menu (continued)

Item

Description



MODE





Select the communication connection control



method to use between the PC and projector.

/1&'

Match to your PC’s settings.

+0(4#5647%674'





#&*1%

Use the ▲/▼ buttons to select the MODE to be



used.





ADHOC

INFRASTRUCTURE





CH





























Select the channel when using a wireless LAN











connection.





















%*





(Channels 1 to 11 are available)



















*The available channels would be various















depending on a country. In addition, wireless













LAN card might be required due to the standard.











ENCRYPTION

















'0%4;26+10



























Select the encrypting method.











92# 25- #'5



Use the ▲/▼ buttons to select the encryption





92# 25- #'5







92# 25- 6-+2



method to be used.































9'2 DKV

























9'2 DKV



























1((



SETUP

WPA2-PSK(AES)

























WPA-PSK(AES) WPA-PSK(TKIP)

WEP 128bit

WEP 64bit

OFF



SPEED





























Use the ▲/▼ buttons to select the transfer rate.











AUTO

54

48

36

24

18

12

11

9

6

5.5

2

1

(Mbps)

The AUTO mode automatically selects the optimum rate.

Transfer rates may change due to the Network situation. Mbps : Megabits per second

NETWORK MODE



Select the Network mode.

0'6914- /1&'

Use the ▲/▼ buttons to select the Network mode.

9+4'&



9+4'.'55

WIRELESS WIRED

~Note~

Network mode will be initialized whenever the power is turned on with Power switch.

The Wireless will be enabled when Wireless Network card is installed.

The Wired will be enabled when Wireless Network card is not installed.

55

MIU Menu

MIU Menu (continued)

Item



Description



INFORMATION display :







Use the ► or ENTER buttons to view network information and confirm settings.



See [INFORMATION] in [User’s Manual] – Network Functions] for more information.



~Note~







• Only the first 16 characters of the projector name are displayed.



• Only the first 32 characters of the SSID are displayed.



• When the voltage level of battery for built in clock decreases, set time may



become incorrect even though accurate date and time are input.



Replace a battery through the following the instructions. ( 61)



• MAC wireless will not be displayed when NETWORK MODE is WIRED



even if wireless LAN SD card is mounted.



• IP ADDRESS, SUBNET MASK, DEFAULT GATEWAY displays "0.0.0.0" at



the following condition.





INFORMATION

(1) NETWORK MODE is WIRELESS and wireless LAN SD card is not

mounted.







(2) DHCP is ON and projector dose not get address from DHCP server.



/+7 +0(14/#6+10







0#/'





+2 #&&4'55

0'6914-/1&' 9+4'.'55



57$0'6/#5-

12'4#6+10 .+8'



&'(#7.6 )#6'9#;



75$/'/14;



6+/' &+(('4'0%' )/6



5& %#4& 9+4'.'55



' #0& 6+/'

52''& /



/1&' #&*1%



55+&



%*







'0%4;26+10 9'2 DKV

/#% '6*'40'6







/#% 9+4'.'55











MIU RESTART







Choose the RESTART and press the button ►.





SERVICE







REMOVE ALL







REMOVE SD CARD







REMOVE USB







MIU RESTART





Then use the button ▲ to execute.







MIU RESTART







EXECUTE







CANCEL





Network will be once cut off when choose restart.



If DHCP is selected on, IP address may be changed.

SERVICE

After selecting RESTART, Network menu may not be controlled approx. 20 seconds.

REMOVE MEDIA







Remove SD CARD and USB memory safely. Choose the media and press



the button ►.

SERVICE







REMOVE ALL







REMOVE SD CARD







REMOVE USB







MIU RESTART



Then use the button ▲ to execute.

REMOVE USB EXECUTE

CANCEL

~Note~

Make sure to execute this procedure before you remove the SD Card and USB Memory.

56

Maintenance

Maintenance

Lamp

WARNING

HIGH VOLTAGE



HIGH TEMPERATURE

HIGH PRESSURE



►The projector uses a high-pressure mercury glass lamp. The lamp can break

with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector’s vent holes.

About disposal of a lamp • This product contains a mercury lamp; do not

put it in a trash. Dispose of it in accordance with environmental laws. For lamp recycling, go to www.lamprecycle.org. (in the US)

For product disposal, contact your local government agency or www.eiae.org (in the US) or www.epsc.ca (in Canada).

For more information, call your dealer.

• If the lamp should break (it will make a loud bang when it does), unplug

the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the inside of the projector, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.

Disconnect • If the lamp should break (it will make a loud bang when it does),

the plug

ventilate the room well, and make sure not to breathe the gas that

from the

comes out of the projector vents, or get it in your eyes or mouth.

power

• Before replacing the lamp, turn the projector off and unplug the power

outlet

cord, then wait at least 45 minutes for the lamp to cool sufficiently.



Handling the lamp while hot can cause burns, as well as damaging the



lamp.



• Never unscrew except the appointed (marked by an arrow) screws.



• Do not open the lamp door while the projector is suspended from



the ceiling. This is dangerous, since if the lamp’s bulb has broken, the



shards will fall out when the cover is opened. In addition, working in



high places is dangerous, so ask your local dealer to have the lamp



replaced even if the bulb is not broken.



• Do not use the projector with the lamp door removed. To replace the



lamp, make sure that the screws are tightened firmly. Loose screws



could result in damage or injury.



• Use only the lamp of the specified type.



• If the lamp breaks soon after the first time it is used, it is possible



that there are electrical problems elsewhere besides the lamp. If this



happens, contact your local dealer or a service representative.



• Handle with care: jolting or scratching could cause the lamp bulb to burst during use.



• Using the lamp for long periods of time, could cause it dark, not to light



up or to burst. When the pictures appear dark, or when the color tone



is poor, please replace the lamp as soon as possible. Do not use old



(used) lamps; this is a cause of breakage.

57

Maintenance

Lamp (continued)

A lamp has a finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.

To prepare a new lamp, contact your dealer and tell the lamp type number.

Type number = 78-6969-9875-2

1. Turn the projector off, and unplug the power cord. Allow the lamp to cool for at least 45 minutes.

2. Prepare a new lamp.

If the projector is mounted on the ceiling, or if the lamp the dealer to replace the lamp.

In the case of replacement by yourself,

has broken, also ask

Lamp door

3. Loosen the lamp door screw (marked by arrow) and then slide the lamp door to the side to remove

it.

4. Loosen the 2 screws (marked by arrow) of the lamp, and slowly pick up the lamp by the handles.

5. Insert the new lamp, and retighten firmly the two screws that are loosened in the previous process

to lock it in place.

6. Slide the lamp door back in place and firmly fasten the lamp door a screw.

7. Turn the projector on and reset the lamp time using the LAMP TIME function in the OPTION

menu ( 43).

(1)Press the MENU button to display a menu. Only when the EASY MENU has appeared, please perform the next step (2).

(2)Point at the “Go to Advanced Menu …” in the menu using ▼/▲ button, then press the ► button.

(3)Point at the “OPTION” in the left column of the menu using ▼/▲ button, then press the ► button.

(4)Point at the ”LAMP TIME” using ▼/▲ button, then press the ► button. A dialog will appear.

(5)Press the ▲ button to select “RESET” on the dialog. It performs resetting the lamp time.

C/P

C /P

VIDEO S-VIDEO



SD











CARD









RGB

IN1

AUX I/O





AUDIO





AUDIO IN2

IN1

RGB IN2



LAN











CON



RGB

OUT





TROL













AUDIO OUT









USB



Screws

Handle

IN

AC

Screw



V

70 0W

E 28

AG

ER

LT

W

VO

PO

NOTE • Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.

58

Maintenance

Air filter

WARNING ►Before caring, make sure the power switch is off and the power cable is not plugged in, then allow the projector to cool sufficiently. The care in a high temperature state of the projector could cause an electric shock, a burn and/or malfunction to the projector.

►Use only the air filter of the specified type. Do not use the projector with the air filter and the filter cover removed. It could result in a fire and/or malfunction to the projector.

►The air filter should be cleaned periodically. If the air filter becomes clogged by dust or the like, internal temperatures rise and could cause a fire, a burn and/or malfunction to the projector.

NOTE • Please replace the air filter when it is damaged or too soiled, and also when you replace the lamp.

• Please reset the filter time only when you have cleaned or replaced the air filter, for a suitable indication about the air filter. ( 43)

• The projector may display the message such as “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising.

If the air filter becomes clogged by dust or the like, internal temperatures rise and could cause a fire, a burn and/or malfunction to the projector. When the indicators or a message prompts you to clean the air filter, clean the air filter as soon as possible.

Please check and clean the air filter periodically, even if there is no message. Please replace the air filter when it is damaged or too soiled. Preparation of a new air filter is recommended.

To prepare a new air filter, contact your dealer and tell the air filter type number.

Type number = 78-8118-9673-3

And also when you replace the lamp, please replace the air filter. An air filter of specified type will come together with a replacement lamp for this projector.

1. Turn the projector off, and unplug the power cord. Allow the lamp to cool for at

least 45 minutes.

2. When the projector is suspended from the ceiling, apply the vacuum cleaner to

and around the filter cover first, to prevent penetration of dust or the like.

3. While supporting the projector with one hand, use your other hand to pull the filter

cover forward in the direction of the arrow. Remove the air filter.

Handle

Filter cover

59

Maintenance

Air filter (continued)

4. Apply a vacuum cleaner to the air filter and the filter cover. Please replace the air

filter when it is damaged or too soiled.

5. Replace the air filter in its original position. Secure the air filter in place by

pressing each of the six locations. Make sure there is no dust or dirt remaining after the cover is in place. If any dust or dirt remains use a vacuum cleaner to remove it as when placing the filter cover on the air filter.

Reattach the filter cover to the projector by aligning the filter cover with the grooves on the projector. While holding the handle, push down on the filter cover until it locks firmly in place.

6. Turn the projector on and reset the filter time using the FILTER TIME function in the

OPTION menu ( 43).

Air filter’s knob

Air filter

mark

Filter cover



(1)Press the MENU button to display a menu. When the EASY MENU has appeared, please skip the next step (2).

(2)Point at the “OPTION” in the left column of the menu using ▼/▲ button, then press the ► button.

(3)Point at the “FILTER TIME” using ▼/▲ button, then press the ► button. A dialog will appear.

(4)Press the ▲ button to select “RESET” on the dialog. It performs resetting the filter time.

60

Maintenance

Replacing Internal Clock battery

Consumption of the battery makes the clock not to work correctly. When the clock is wrong or it has stopped, please replace the battery according to the following procedures.

WARNING ►Always handle the batteries with care and use them only as directed. Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire.

And also improper use may result in cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

Be sure to use only the batteries specified. Do not use batteries of different types at the same time. Do not mix a new battery with used one.

Make sure the plus and minus terminals are correctly aligned when loading a battery.

If the battery is placed in the battery holder upside-down, it may be hard to remove.

Keep a battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.

Do not short circuit or solder a battery.

Do not allow a battery in a fire or water. Keep batteries in a dark, cool and dry place.

If you observe a leakage of a battery, wipe out the flower and then replace a battery. If the liquid adheres to your body or clothes, rinse well with water immediately.

Obey the local laws on disposing the battery.

1.

Turn the projector off, and unplug the power cord. Allow the



projector to cool sufficiently.



2.

After making sure that the projector has cooled adequately,



slowly turn over the projector, so that the bottom is facing.



3.

Remove the battery cover.

Battery Cover

Turn the battery cover in the direction indicated “OPEN”



using such as coins. Then the battery cover will come up. While



removing the battery cover, pick its knob.

12'0

4.

Take the old battery out.

Knob



Press the metal claw of the battery holder. Then the battery

Metal claw

will come up. Remove the battery.



5.

Put a new battery in.



Replace battery with HITACHI MAXELL, Part No.CR2032



only. Use of another battery may present a risk of fire or



explosion.

“+” marking

Insert a new battery in the battery holder according to its minus terminal



as indicated in the battery holder, so that the side marked by + is



facing. And push the battery into the battery holder fully to fix.



6.

Close the battery cover.

%.15'



Replace the battery cover in place, then turn it in the



direction indicated “CLOSE” using such as coins, to fix.

If the battery is placed in the battery holder upside-down, follow the procedure below to remove and reload it properly.

1.Remove the battery cover as described in steps 1 through 3 above.

2.Turn the projector over again, so that the top of the projector is facing up.

3.While lifting the side of the projector closest to the lens, press the metal claw of the battery holder. The battery will fall out of the holder, so be careful not to lose it.

4.Turn the projector over once more, so that the bottom faces up, and reload the battery correctly.

NOTE • The internal clock’s time will be reset when the battery is removed. Please reconfigure the time via the menu or a web browser after replacing the battery.

(Please refer to 54 and User’s Manual-Network Functions: Date/Time Settings for more information.)

61

Maintenance

Other care

WARNING ►Before caring, make sure the power switch is off and the power cable is not plugged in, and then allow the projector to cool sufficiently. The care in a high temperature state of the projector could cause a burn and/or malfunction to the projector.

►Never try to care for the inside of the projector personally. Doing is so dangerous.

►Avoid wetting the projector or inserting liquids in the projector. It could result in a fire, an electric shock, and/or malfunction to the projector.

Do not put a container containing water, cleaner or chemicals near the projector.

Do not use aerosols or sprays.

CAUTION ►Please take right care of the projector according to the following. Incorrect care could cause not only an injury but adverse influence such as discoloration, peeling paint, etc.

►Do not use cleaner or chemicals other than those listed below. ►Do not polish or wipe with hard objects.

Inside of the projector

In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year.

Caring for the lens

If the lens is flawed, soiled or fogged, it could cause deterioration of display quality. Please take care of the lens, being cautious of handling.

1. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently.

2. After making sure that the projector is cool adequately, lightly wipe the lens with a commercially available lens-cleaning wipe. Do not touch the lens

directly with your hand.

Caring for the cabinet and remote control

Incorrect care could have adverse influence such as discoloration, peeling paint, etc.

1. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently.

2. After making sure that the projector is cool adequately, lightly wipe with gauze or a soft cloth.

If soiling is severe, dip soft cloth in water or a neutral cleaner diluted in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

62

Troubleshooting

Troubleshooting

Related messages

When the unit's power is on, messages such as those shown below may be displayed. When any such message is displayed on the screen, please follow the instructions described below. If the same message is displayed after the remedy, or if a message other than the following appears, please contact your dealer or service company.

Although these messages will be automatically disappeared around several minutes, it will be reappeared every time the power is turned on.

Message

Description





NO INPUT IS DETECTED

There is no input signal.

Please confirm the signal input connection, and the status





of the signal source.

SYNC IS OUT OF RANGE

The horizontal or vertical frequency of the input signal

is not within the specified range.



fH kHz fV Hz

Please confirm the specs for your projector or the signal



source specs.



The internal temperature is rising.



Please turn the power off, and allow the projector to cool



down at least 20 minutes. After having confirmed the



following items, please turn the power ON again.

CHECK THE AIR FLOW

• Is there blockage of the air passage aperture?



• Is the air filter dirty?



• Does the peripheral temperature exceed 35°C?



If the same indication is displayed after the remedy, please set



FAN SPEED of the SERVICE item in the OPTION menu to HIGH.

REMINDER

A note of precaution when cleaning the air filter.

*** HRS PASSED AFTER THE

Please immediately turn the power off, and clean or change

LAST FILTER CHECK.

the air filter referring to the “Air Filter” section of this manual

FILTER MAINTENANCE IS ESSENTIAL

( 59). After you have cleaned or changed the air filter,

TO REMOVE WARNING MESSAGE,

please be sure to reset the filter timer ( 43).

RESET FILTER TIMER.



SEE MANUAL FURTHER INFO.



63

Troubleshooting

Regarding the indicator lamps

Lighting and flashing of the POWER indicator, the LAMP indicator, and the TEMP indicator have the meanings as described in the table below. Please follow the instructions within the table. If the same indication is displayed after the remedy, or if an indication other than the following is displayed, please contact your dealer or service company.

POWER

LAMP

TEMP

Description

indicator

indicator

indicator











Lighting

Turned

Turned

The projector is in a standby state.

In Orange

off

off

Please refer to the section “Power On/Off”.

Blinking

Turned

Turned

The projector is warming up.

In Green

off

off

Please wait.

Lighting

Turned

Turned

The projector is in an on state.

In Green

off

off

Ordinary operations may be performed.

Blinking

Turned

Turned

The projector is cooling down.

In Orange

off

off

Please wait.







The projector is cooling down. A certain error

Blinking

(discre-

(discre-

has been detected.

In Red

tionary)

tionary)

Please wait until the POWER indicator finishes

blinking, and then perform the proper measure using













the item descriptions below.







The lamp does not light, and there is a







possibility that interior portion has become







heated.

Blinking





Please turn the power off, and allow the projector to





cool down at least 20 minutes. After the projector has

In Red

Lighting

Turned

sufficiently cooled down, please make confirmation of

or

In Red

off

the following items, and then turn the power on again.

Lighting





• Is there blockage of the air passage aperture?

In Red









• Is the air filter dirty?













• Does the peripheral temperature exceed 35°C?







If the same indication is displayed after the remedy,







please change the lamp referring to the section “Lamp”.







The lamp door has not been properly fixed.

Blinking





Please turn the power off, and allow the projector to





cool down at least 45 minutes. After the projector has

In Red



Turned

Blinking

sufficiently cooled down, please make confirmation of

or

In Red

off

the attachment state of the lamp door. After performing

Lighting





any needed maintenance, turn the power on again.

In Red









If the same indication is displayed after the remedy,













please contact your dealer or service company.

64

Troubleshooting

Regarding the indicator lamps (continued)

POWER

LAMP

TEMP

Description

indicator

indicator

indicator

















The cooling fan is not operating.

Blinking





Please turn the power off, and allow the projector to





cool down at least 20 minutes. After the projector has

In Red

Turned



Blinking

sufficiently cooled down, please make confirmation

or

off

In Red

that no foreign matter has become caught in the fan,

Lighting





etc., and then turn the power on again.

In Red









If the same indication is displayed after the remedy,













please contact your dealer or service company.







There is a possibility that the interior portion







has become heated.







Please turn the power off, and allow the projector to

Blinking





cool down at least 20 minutes. After the projector has





sufficiently cooled down, please make confirmation of

In Red

Turned

Lighting

the following items, and then turn the power on again.

or

off

In Red

• Is there blockage of the air passage aperture?

Lighting





• Is the air filter dirty?

In Red









• Does the peripheral temperature exceed 35°C?













If the same indication is displayed after the remedy,







please set FAN SPEED of the SERVICE item in the







OPTION menu to HIGH.







It is time to clean the air filter.



Simultaneous

Please immediately turn the power off, and clean or

Lighting

change the air filter referring to the section “Air Filter”.

In Green

blinking in Red

After cleaning or changing the air filter, please be sure







to reset the filter timer. After the remedy, reset the







power to ON.







There is a possibility that the interior portion

Lighting

Alternative

has become overcooled.

Please use the unit within the usage temperature

In Green

blinking in Red

parameters (5°C to 35°C). After the treatment, reset













the power to ON.

Blinking in





At least 1 “Power ON” schedule is saved to the

Green for

Turned

Turned

projector.

approx. 3

off

off

(Please refer to the User’s Manual-Network Functions:

seconds





Schedule Settings for more information.)

NOTE • When the interior portion has become overheated, for safety purposes, the power source is automatically turned off, and the indicator lamps may also be turned off. In such a case, press the “ ” (OFF) side of the power switch, and wait at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp door, and then turn the power on again.

65

Troubleshooting

Phenomena that may be easy to be mistaken for machine defects

WARNING ►Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer or service company.

1. Before requesting repair, please check in accordance with the following chart. This operation sometimes

resolves your problem.

If the situation cannot be corrected,

CB/PB

CR/PR

VIDEO S-VIDEO







SD

CARD









AUD

A

R

GB

IN1



UDIO





IO IN2

IN1



AUX



DC I/O5V

RGB

IN2

CONTROL

0.5A

LAN

RGB

OUT

AUDIO OUT

2. The projector’s microprocessor may need to

be reset. Please push the Restart switch by using a cocktail stick and the projector will restart.

USB

or similar

3.

Some setting may be wrong. Please use the FACTORY RESET function of the

SERVICE item in the OPTION menu ( 45) to reset all settings to factory default.

Then, if the problem is not removed after the remedy, please contact your dealer or service company.

Phenomenon

Cases not involving a machine defect

Reference

page













The electrical power cord is not plugged in.

15



Correctly connect the power cord.







The power switch is not set to the on position.

19



Set the power switch to [ | ] (On).







The main power source has been interrupted during



Power does not

operation such as by a power outage (blackout), etc.

19

Please turn the power off, and allow the projector to cool

come on.

down at least 2 minutes, then turn the power on again.









Either there is no lamp and/or lamp door, or either of





these has not been properly fixed.





Please turn the power off, and allow the projector to cool down

64, 65



at least 45 minutes. After the projector has sufficiently cooled







down, please make confirmation of the attachment state of the





lamp and lamp door, and then turn the power on again.





The signal cables are not correctly connected.

13, 14



Correctly connect the connection cables.





Neither sounds

Signal source does not correctly work.

nor pictures are

Correctly set up the signal source device by referring to the

outputted.

manual of the source device.





The input changeover settings are mismatched.

20, 21



Select the input signal, and correct the settings.





66

Troubleshooting

Phenomena that may be easy to be mistaken for machine defects (continued)

Phenomenon

Cases not involving a machine defect

Reference

page













The signal cables are not correctly connected.

13, 14



Correctly connect the audio cables.







The MUTE function is working.

20



Restore the sound pressing the MUTE or VOLUME button

Sound does not

on the remote control.



come out.

The volume is adjusted to an extremely low level.

20



Adjust the volume to a higher level using the menu function



or the remote control.





The AUDIO setting is not correct.

38



Correctly set the AUDIO item in the SETUP menu.







The lens cap is attached.

19



Remove the lens cover.







The signal cables are not correctly connected.

13, 14



Correctly connect the connection cables.







The brightness is adjusted to an extremely low level.

27

No pictures are

Adjust BRIGHTNESS to a higher level using the menu

function or the remote control.



displayed.



The computer cannot detect the projector as a plug









and play monitor.

12



Make sure that the computer can detect a plug and play







monitor using another plug and play monitor.





The BLANK screen is displayed.

24



Press the BLANK button on the remote control.





Video screen

The FREEZE function is working.

24

display freezes.

Press the FREEZE button to restore the screen to normal.





Color settings are not correctly adjusted.

28, 30,

Colors have a

Perform picture adjustments by changing the COLOR

fadedout

TEMP, COLOR, TINT and/or COLOR SPACE settings,

34

appearance, or

using the menu functions.



Color tone is

COLOR SPACE setting is not suitable.



poor.

Change the COLOR SPACE setting to AUTO, RGB,

34



SMPTE240, REC709 or REC601.



67

Troubleshooting

Phenomena that may be easy to be mistaken for machine defects (continued)

Phenomenon

Cases not involving a machine defect

Reference

page













The brightness and/or contrast are adjusted to an





extremely low level.

27, 28



Adjust BRIGHTNESS and/or CONTRAST settings to a







higher level using the menu function.



Pictures appear

The WHISPER function is working.



dark.

Select NORMAL for the WHISPER item in the SETUP

28, 37



menu.





The lamp is approaching the end of its product





lifetime.

57, 58



Replace the lamp.





Either the focus and/or horizontal phase settings are





not properly adjusted.

21, 32

Pictures appear

Adjust the focus using the focus ring, and/or H PHASE



blurry.

using the menu function.





The lens is dirty or misty.

62



Clean the lens referring to the section “Caring for the lens”.





NOTE • Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and it does not constitute or imply a machine defect.

68

Specifications

Specifications

NOTE • These specifications are subject to change without notice.





Item



Specification













Product name

Liquid crystal projector





Liquid



Panel size

1.6 cm (0.63 type)





Crystal

Drive system

TFT active matrix





panel















Pixels

786,432 pixels (1024 horizontal x 768 vertical)









Lens



Zoom lens F=1.7 ~ 1.9 f=18.9 ~ 22.6 mm



Lamp



200W UHB





Speaker



1W x 1







Power Supply

AC100-120V/3.5A, AC220-240V/1.5A



Power Consumption

330W







Temperature range

5 ~ 35°C (Operating)











306 (W) x 106 (H) x 249 (D) mm





Size



(Not including protruding parts)











• Please refer to the following figure.



Weight (mass)

3.3 kg













RGB input:

Video input:









RGB IN1 ..

D-sub 15pin mini x1

COMPONENT VIDEO







RGB IN2 ..

D-sub 15pin mini x1

(Y, CB/PB, CR/PR)...... RCA x3







RGB output:

S-Video ................

Mini DIN x1







RGB OUT..D-sub 15pin mini x1

Video ..........................

RCA x1

Ports



Audio input:

Communication port:



AUDIO 1

Stereo mini x1

CONTROL

D-sub 9pin x1













AUDIO 2 ...........

Stereo mini x1

USB ........................

USB(B) x1







AUDIO 3 .....................

RCA x2

LAN (Wired)..............

RJ-45 x1







Audio output:

LAN (Wireless) ....

SD Card Slot x1







AUDIO OUT Stereo mini x1....

Memory Port :













AUX I / O...... ..........

USB(A) x1

69

Specifications

Specifications (continued)





S-VIDEO

USB





VIDEO



CONTROL



CR/PR





AUDIOIN2







L

CB/PB





AUDIOIN1

RGBOUTAUDIOOUT

RGBIN2

RGBIN1







R

Y





AUDIOIN3



DC5V5A.0



AUXI/O

SDCARD

LAN



249 mm

IN AC



306 mm

106 mm

120 mm

70

Intended Use

Before operating this machine, please read this entire manual thoroughly. The 3MTM Multimedia Projectors are designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages.

The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition.

3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment.

16° to 29°C (60° to 85° F)

1080 %RH (without condensation)

0- 1828 m (0-6000 feet) above sea level

The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can affect the operation or performance of the projector.

Use of this product in adverse conditions will void the product warranty.

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we’re the only transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy reference and free product samples, call us toll-free in the continental United States and Canada, 24 hours a day, or visit our Internet Website.

3M Austin Center

3M Canada

3M Mexico, S.A. de C.V.

3M Europe



Building A145-5N-01

P.O. Box 5757

Apartado Postal 14-139

Boulevard de l’Oise



6801 River Place Blvd.

London, Ontario

Mexico, D.F. 07000

95006 Cerge Pontoise Cedex



Austin, TX 78726-9000

N6A 4T1

Mexico

France

Litho in China

















© 3M 2006









78-6970-9460-1 Rev. A
