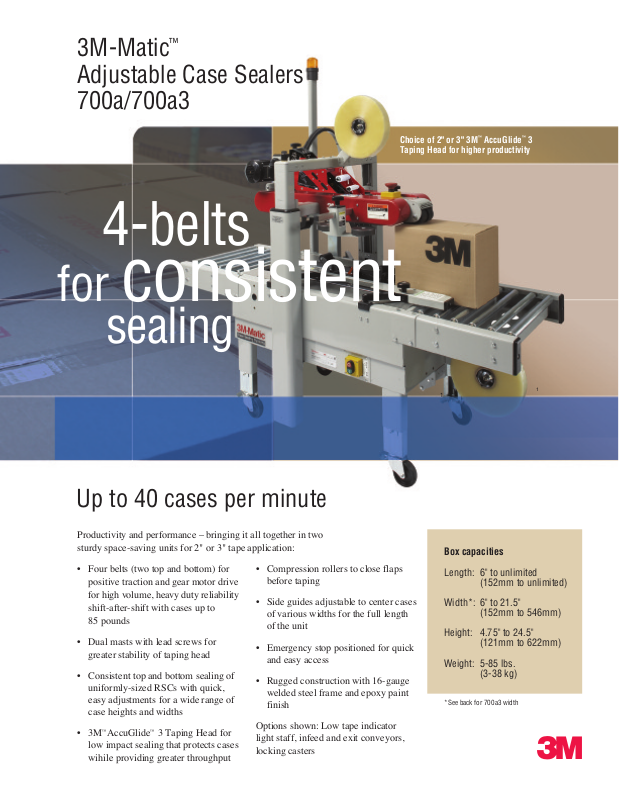

3M 700a3 User Manual
3M-Matic
™
Adjustable Case Sealers
700a/700a3
4-belts
for consistent
Choice of 2" or 3" 3M™AccuGlide™3
Taping Head for higher productivity
sealing
Up to 40 cases per minute
Productivity and performance – bringing it all together in two
sturdy space-saving units for 2" or 3" tape application:
• Four belts (two top and bottom) for
positive traction and gear motor drive
for high volume, heavy duty reliability
shift-after-shift with cases up to
85 pounds
• Dual masts with lead screws for
greater stability of taping head
• Consistent top and bottom sealing of
uniformly-sized RSCs with quick,
easy adjustments for a wide range of
case heights and widths
™
AccuGlide™3 Taping Head for
• 3M
low impact sealing that protects cases
wihile providing greater throughput
• Compression rollers to close flaps
before taping
• Side guides adjustable to center cases
of various widths for the full length
of the unit
• Emergency stop positioned for quick
and easy access
• Rugged construction with 16-gauge
welded steel frame and epoxy paint
finish
Options shown: Low tape indicator
light staff, infeed and exit conveyors,
locking casters
1
Box capacities
Length: 6" to unlimited
(152mm to unlimited)
Width*: 6" to 21.5"
(152mm to 546mm)
Height: 4.75" to 24.5"
(121mm to 622mm)
Weight: 5-85 lbs.
(3-38 kg)
*See back for 700a3 width
1
3
Specifications
3M-Matic™Case Sealer 700a 3M-Matic™Case Sealer 700a3 700a and 700a3 Footprint
L
Box Travel
Control Side
Rate Speed
A
A
B
Machine Tape Machine
Size Weight
2" Scotch®Box
Sealing Tapes
2
3" Scotch®Box
Sealing Tapes
3
Machine Dimensions Inches (mm)
W L H A* B C*** F
F F
W
A
A
C
H
Electrical Operating Drive Belt
Inches Lbs. Min Min
(mm) (kg) Max Max
Masts up Masts up**
700a 1.5-2 346 31 (787) 40.5 (1030) 53 (1346) 18 (457) 24 (610) 4 (102) 24.5 (622) 115V Up to 40 100 fpm
(36-48) (157.6) 86 (2184) 35 (889) 60Hz per minute (0.5 m/s)
90 (2290) 3.8A depending
700a3 2-3 348 440 watts on box
(48-72) (162) 8' cord length
* Optional infeed/exit conveyors ** 20 (510) min, 31 (787) max *** Optional casters
Use with clean dry boxes in dry, relatively clean environments at 40°F to 120°F (4.4°C to 48.9°C).
F
4
Machine
Box Capacities Inches (mm)
Weight
Length Width Height Height Range
Min Min Min Range w/ Lbs. (kg)
Max Max Max Masts Raised
700a 6 (150) 6 (150) 4.75 (120)* 6.5 (165) 5 (3)
Unlimited 21.5 (123.4) 24.5 (625) 28.5 (725) 85 (38)
700a3 6 (150) 7 (175) 4.75 (120) 6.5 (165) 5 (3)
Unlimited 21.5 (123.4) 24.5 (625) 28.5 (725) 85 (38)
Contact your 3M representative for special modifications that may be available for sizes not listed.
* 3.75" (90mm) with taping heads adjusted to apply 2" (50mm) tape leg lengths and mast stops relocated.
Note: This technical information and data should be considered representative or typical only and should not be used for specification purposes.
Note: The 3M-Matic™Adjustable Case Sealer
700a/a3 can accommodate most boxes within
the size range listed here.
However, if:
Box Length in Direction of Seal
Box Height
is less than .75
Boxes should be test run to ensure proper
machine performance.
5
