TM
TM
The Oxygen
The Oxygen
The OxygenThe Oxygen
Graphics Accelerator
Graphics Accelerator
Graphics AcceleratorGraphics Accelerator
TMTM
GVX420
GVX420
GVX420GVX420
User
User’’’’s Guide
UserUser
s Guide
s Guides Guide
3Dlabs,® Inc.
480 Potrero Avenue
Sunnyvale, CA 94086
408 - 530 - 4700
www.3dlabs.com
Copyright 2000 by 3Dlabs, Inc.
3Dlabs, GLINT and Permedia are registered trademarks, and Oxygen and PowerThreads are trademarks of
3Dlabs, Inc. or 3Dlabs Inc. Ltd. Pentium is a registered trademark of Intel. OpenGL is a registered trademark
of Silicon Graphics, Inc. Soft Engine is a trademark of Vibrant Graphics, Inc. AutoCAD is a registered
trademark of AutoDesk Inc. Colorific is a registered trademark of E-Color, Inc. Microsoft, Windows NT,
Windows 2000 are registered trademarks of the Microsoft Corporation. Athlon and 3DNow! are registered
trademarks of AMD. All other trademarks and registered trademarks are the property of their respective
holders.
Caution:
Changes or modifications to the Oxygen GVX420 graphics accelerator card not expressly approved
by 3Dlabs, Inc. voids the user’s warranty.
FCC Notice:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy. If product is not installed and used in accordance with the instruction manual, it may cause
harmful interference to radio communications; however, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Re-orient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
4. Consult 3Dlabs or an experienced radio/TV technician for assistance.
Compliance with FCC Rules requires that a shielded cable be used to connect to other equipment. This
device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this
device may not cause harmful interference, and 2) this device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus meets all the requirements of the Canadian Interference- Causing Equipment
Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le material
brouilleur du Canada.
3Dlabs, Inc. makes no representation that the use of its products in the manner described in this publication
will not infringe on existing or future patent rights, nor do descriptions contained in this publication imply
the granting of licenses to make, use, or sell equipment or software in accordance with the description.
Specifications Subject to Change With Notice
P/N 62-000004-001, Rev. A (Final)
ii
3Dlabs Oxygen GVX420 User's Guide
CCCC
Introduction.........................................................................................................................v
Welcome to 3Dlabs! ........................................................................................................vi
System Requirements ...................................................................................................ix
Software Partners ..............................................................................................................x
Chapter 1 - Installation ........................................................................................................1
Getting Ready...................................................................................................................2
Before You Start ........................................................................................................2
Installing Hardware ..........................................................................................................3
To remove an old card from your system...................................................................3
To install your Oxygen GVX420...............................................................................3
Installing Software ............................................................................................................5
To uninstall an old video driver.................................................................................6
To install the Oxygen Windows NT driver................................................................6
To install the Oxygen Windows 2000 driver .............................................................6
To uninstall the Oxygen GVX420 Windows NT or Windows 2000 drivers..............6
To install SoftEngine.................................................................................................7
To install Colorific ....................................................................................................7
Registering Oxygen GVX420............................................................................................8
ONTENTS
ONTENTS
ONTENTSONTENTS
Chapter 2 - Software Configuration .....................................................................................9
The Oxygen GVX420 Driver .........................................................................................10
The Task Bar - based Configuration Manager .............................................................10

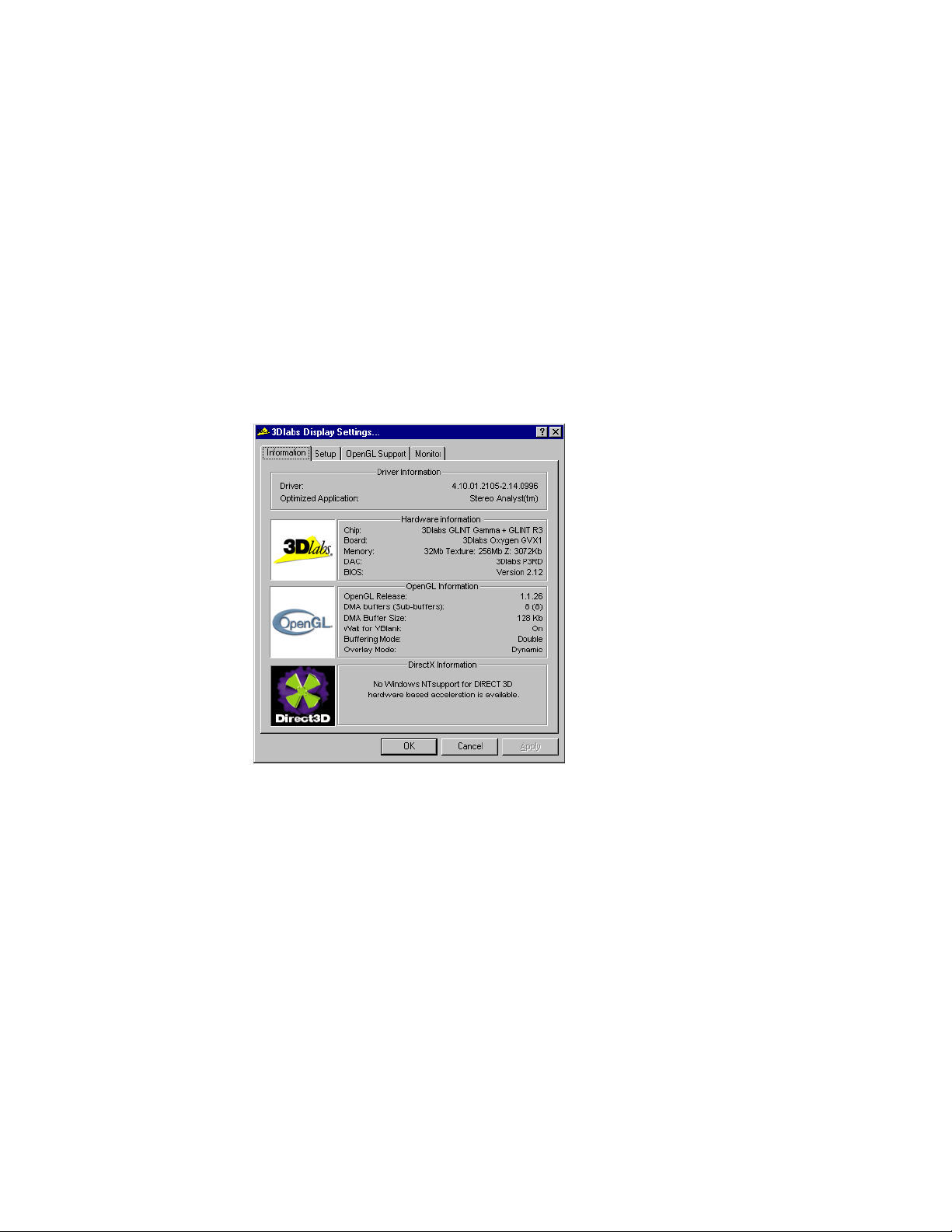

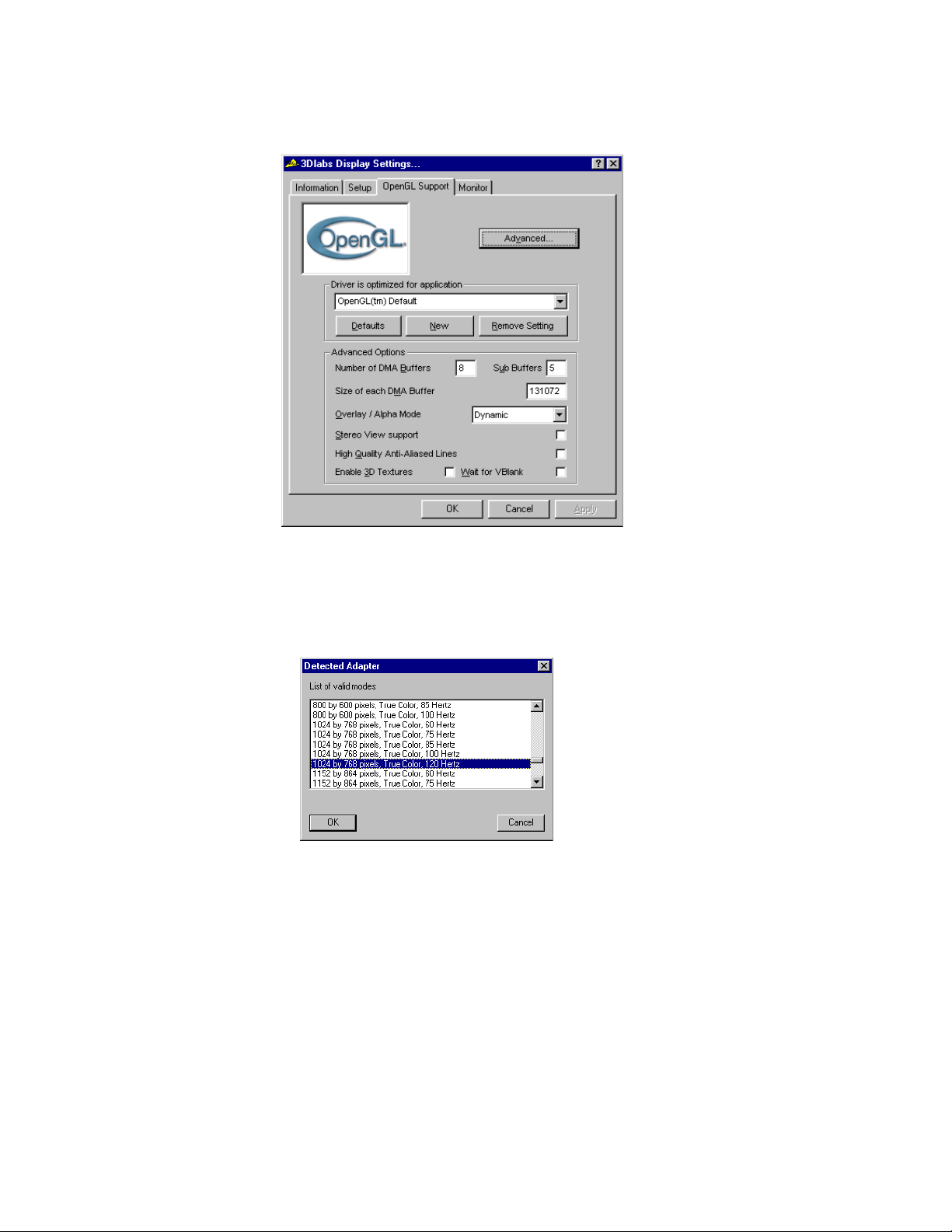

The Display Control Panel..........................................................................................11
Configuring Multiple Monitors ......................................................................................12
To configure a second monitor in Windows NT .....................................................12
To configure a second monitor in Windows 2000 ...................................................13
Configuring your Oxygen GVX420 Card for Stereo Viewing .........................................14
To set up and configure stereo viewing ....................................................................14
Chapter 3 - Troubleshooting ..............................................................................................17
Troubleshooting .............................................................................................................18
Monitors and Display Resolutions ..................................................................................18
Systems and Networks....................................................................................................18
Online Information ........................................................................................................19
3Dlabs Oxygen GVX420 User's Guide
iii
Appendix A - Specifications................................................................................................20
Oxygen GVX420 Specifications......................................................................................21
Monitor Resolutions .......................................................................................................21
Appendix B - Software License ...........................................................................................22
SOFTWARE LICENSE AGREEMENT........................................................................23
Software License and Restrictions................................................................................23
Limited Warranty ...........................................................................................................24
Limited Liability .........................................................................................................24
Restricted Rights Notice..............................................................................................24
Termination................................................................................................................24
General .......................................................................................................................25
Appendix C - Regulatory Statements ..................................................................................26
Declaration of Conformity..............................................................................................27
Appendix D - Glossary .......................................................................................................28
Terms and Definitions....................................................................................................29
Index..................................................................................................................................33
iv
3Dlabs Oxygen GVX420 User's Guide
NTRODUCTION
NTRODUCTION
IIII
NTRODUCTIONNTRODUCTION
Introduction
Welcome to 3Dlabs!
Welcome to 3Dlabs!
Welcome to 3Dlabs!Welcome to 3Dlabs!
Thank you for selecting the 3Dlabs® Oxygen™ GVX420 graphics accelerator card!
Oxygen GVX420 delivers high-end geometry and rasterization graphics acceleration on a single
AGP/AGP Pro card for the most demanding workstation professional. By integrating two 3Dlabs GLINT
R4 rasterizers, the new generation GLINT Gamma G2 geometry processor and 128MB of memory on a
single card, Oxygen GVX420 boosts the interactivity of huge models with a 256-bit memory bus.
Oxygen GVX420
vi
3Dlabs Oxygen GVX420 User's Guide
Introduction
Overview
Overview
OverviewOverview
Your Oxygen GVX420 card has the following features:
• Seamless Dual-head support
Oxygen GVX420 supports dual high-resolution displays under Windows NT 4.0 and Windows
2000 from a single card, seamlessly supporting a total multi-monitor true-color desktop size of up to

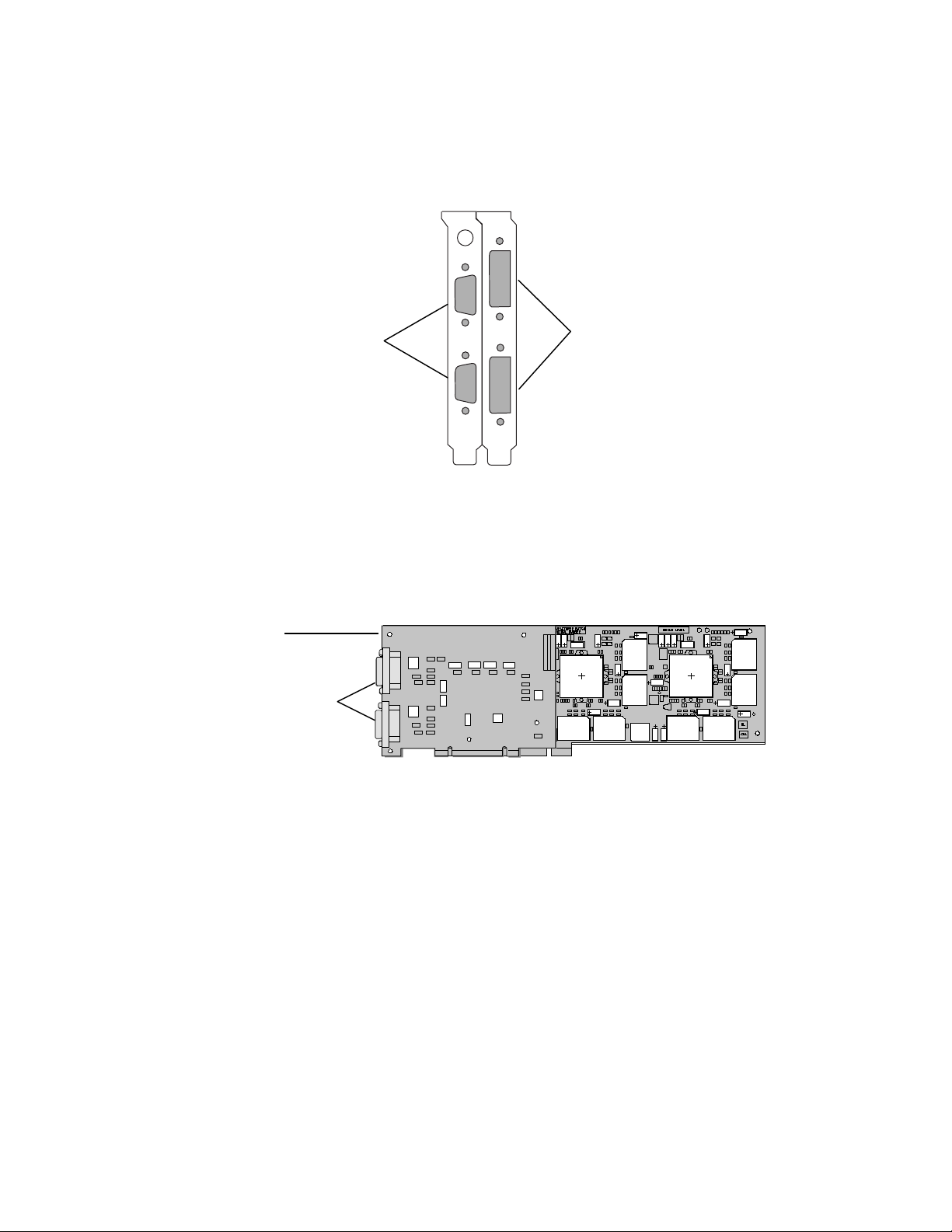

4096 x 1536. The two VGA connectors and two DVI connector allow you to connect either two
VGA monitors, two DFP monitors, or one VGA monitor and one DFP monitor.
• Dual GLINT R4 rasterization processors
The dual GLINT R4 processors doubles rasterization performance for sustained productivity with
more textures and higher resolution screens.
• GLINT Gamma G2 geometry processing
On-board hardware geometry acceleration boosts the interactivity of large models by up to three
times and offloads the CPU for increased application performance. The 5Gflop new generation
GLINT Gamma G2 processes 100% of the OpenGL geometry pipeline in silicon, including 16
simultaneous light sources.
• Virtual Textures
Oxygen GVX420 implements 3Dlabs unique full demand-paged virtual texture sub-system in
hardware, using on-board graphics memory to cache up to 256MB of textures stored in main system
memory. Oxygen GVX420 allows you to manipulate up to 256MB of textures, seamlessly from your
favorite applications.
• PowerThreads SSE OpenGL Drivers
3Dlabs’ new-generation PowerThreads SSE and 3DNow! OpenGL drivers are fully optimized for
Pentium III and Athlon processors to dynamically load balance the geometry and lighting load
between the GLINT Gamma hardware geometry processor and host CPU. PowerThreads SSE and
3DNow! give you the power of geometry hardware
plus
the additional power of Pentium III’s SSE-
instructions or Athlon's 3DNow! instructions for full performance scalability with faster host CPU’s.
• Dynamic load balancing
When the GLINT Gamma processor is busy, geometry and transform calculations are automatically
shared between the CPU and the GLINT Gamma.
• High-resolution Digital Flat Panel Output
The Oxygen GVX420 is pre-configured with a factory-installed daughter card that provides support
for digital flat panel displays through two Digital Video Interface (DVI) connectors. The daughter
card provides improved on-screen image quality at resolutions up to 1280 x 1024 on two monitors.
• Quad-buffered stereo
Left and right buffers are flipped simultaneously to preserve synchronization in your stereo 3D
images at resolutions up to 1280 x 1024.
• 128 MB memory
128 MB of SGRAM memory supports high-precision, high-performance acceleration.
• High-precision, high resolution display
Your Oxygen card has dual 300 MHz RAMDACs enabling flicker-free resolutions up to 2048 x
1536 on a single monitor or 4096 x 1536 with two monitors connected.
3Dlabs Oxygen GVX420 User's Guide
vii
Introduction
• 16, 24, and 32-bit linear Z-buffer
The Z-buffer provides the highest level of depth-precision, even at the highest resolutions.
• Full AGP support
Full AGP support ensures high-performance 3D acceleration through the advanced features of the
AGP/AGP Pro bus.
• SoftEngine AutoCAD support
SoftEngine enhances AutoCAD R12, R13, R14, and LT performance by up to four times on
Windows NT systems.
• Colorific screen-to-print color matching
Colorific simplifies color matching without sacrificing accuracy.
• Control Panel Application Configuration
3Dlabs’ advanced control panel and task-bar applet let you optimize your system configuration for
your favorite professional applications in just three mouse clicks.
viii
3Dlabs Oxygen GVX420 User's Guide
Introduction
System Requirements
System Requirements
System RequirementsSystem Requirements
Your system needs a minimum of the following features in order to support Oxygen GVX420:
• Intel Pentium II or AMD Athlon K6 or compatible, 166 MHz system
• Windows
®
NT 4.0 Service Pack 5.0 or later or Windows 2000 operating system.
• Minimum 64 MB RAM (Random Access Memory)
• 16 MB available hard drive space
• AGP/AGP Pro and adjacent PCI expansion slots
• VGA multisync monitor or DVI digital flat panel
3Dlabs Oxygen GVX420 User's Guide
ix
Introduction
Software Partners
Software Partners
Software PartnersSoftware Partners
Your Oxygen GVX420 card and drivers are designed to optimize the performance of a variety of software
applications, several of which are listed below. Many of these applications are also tuned to the Oxygen
GVX420 to further improve the performance that you will see when using the card, drivers, and application
together. For the most current information about applications support, testing, and certification status, please
visit www.3dlabs.com.
Software Application
Software Application Web Site Address
Software ApplicationSoftware Application
AutoCAD http://www.autodesk.com
Colorific http://www.colorific.com
3D Studio MAX http://www.ktx.com
Lightscape http://www.lightscape.com
LightWave 3D http://www.newtek.com
Maya http://www.aw.sgi.com
MicroStation http://www.bentley.com
Pro/ENGINEER http://www.ptc.com
SDRC I-DEAS http://www.sdrc.com
Softimage | 3D http://www.softimage.com
SolidWorks
Unigraphics
Web Site Address
Web Site AddressWeb Site Address
http://www.solidworks.com
http://www.ug.eds.com/
x
3Dlabs Oxygen GVX420 User's Guide
HAPTER
HAPTER
CCCC
HAPTER HAPTER
1 - I
1 - I
1 - I1 - I
NSTALLATION
NSTALLATION
NSTALLATIONNSTALLATION
Installation
Getting Ready
Getting Ready
Getting ReadyGetting Read y
To successfully use your new Oxygen GVX420 card, you must install the card and the accompanying driver
software. Whether you install your new card or the driver first depends on whether a video card is already
present in your system.
If there is a video card in your system:
driver. Once the new driver is loaded, remove the old card and install your Oxygen GVX420 card. The
instructions for uninstalling an old driver and installing the new driver begin on page 3.
If there is not a video card in your system:
section, below, then install the driver.
Once the basic installation is complete, you can choose to install the SoftEngine and Colorific enhancements
as described on page 7.
Note
: Be sure to register your new card using one of the options described on page 8.
Uninstall the drivers for the existing card, then install the Oxygen
Install your new card as described in the Installing Hardware
Before You Start
Take every possible precaution against static electricity as you prepare to install the card: static can
damage components. We have included an anti-static wrist strap for you to wear while installing the
hardware: you should also try to work in a static free area (such as on a tile floor rather than carpet).
You might even consider wearing special ESD, or at least rubber-soled, shoes.
Save any work in progress and exit any open applications. Always back up your system before you
install new hardware or software.
Have your anti-static strap and a Philips-head screwdriver ready.
2
3Dlabs Oxygen GVX420 User's Guide
Installation
Installing
Installing Hardware
InstallingInstalling
Your Oxygen GVX420 card is designed to work in an AGP or AGP Pro slot, and the adjacent PCI slot, in
your system. Check the documentation for your system to locate the AGP or AGP Pro expansion slot.
Hardware
Hardware Hardware
To remove an old card from your system
1. Make sure you have uninstalled any old drivers and installed the Oxygen driver in their place.
2. Turn off and unplug the power source for your system and each of its peripherals.
3. Unplug the monitor cable from the old card.
4. Remove the cover from your system.
5. Attach the anti-static strap to your wrist, and attach the other end to a bare, conductive (as opposed
to painted or sticker-covered) area of your system’s chassis.
6. Remove any screws securing the card to the chassis.
7. Lift the card out of the slot.
To install your Oxygen GVX420
1. Turn off and unplug the power source for your system and each of its peripherals, if you have not
already done so.
2. Remove the cover from your system so you can access an appropriate expansion slot. See your system
documentation for the AGP or AGP Pro slot location.
3Dlabs Oxygen GVX420 User's Guide
3
Installation
3. Locate the AGP or AGP Pro slot and remove its slot cover. The PCI slot adjacent to the AGP or
AGP Pro slot must be empty to make room for the daughter card.
4. Remove the slot cover from the PCI slot adjacent to the AGP or AGP Pro slot.
5. Attach the anti-static strap to your wrist, and attach the other end to a bare, conductive (as opposed
to painted or sticker-covered) area of your system’s chassis.
6. Remove the card from its anti-static packaging. Write down the serial number for registration and
future use.
7. Align the connector on the Oxygen GVX420 card over the AGP or AGP Pro slot and the connector
on the daughter card over the adjacent PCI slot before attempting to seat the cards.
Important!
See your system documentation for instructions on securing the card to the chassis.
Loose cards and connections can cause grounding and operating problems.
Installing Oxygen
GVX420 with
DVI daugher card
8. Remove the anti-static strap and replace the cover on your system.
4
3Dlabs Oxygen GVX420 User's Guide
Installation
9. Connect the video cable from your monitor to one of the VGA connectors on the base board or one
of the DVI connectors on the daughter card. Always connect your first or only monitor to a
connector marked "1" and then connect your second monitor (if used) to one of the connectors
marked "2".
VGA connectors
1
1
2
2
DVI connectors
10. If you want to attach a second monitor, connect the second monitor to either the VGA or DVI
connector marked "2". The Oxygen GVX420 card supports multi-monitor functionality on one
card. You can connect either two VGA monitors, two DFP monitors, or one VGA monitor and one
DFP monitor.
Stereo
connector
DVI connectors
for flat panel
displays
11. Plug in and start up your system, including peripherals, and log on to your operating system.
Installing Software
Installing Software
Installing SoftwareInstalling Software
Oxygen Product CD-ROM for the Oxygen GVX420
The
includes Oxygen PowerThreads video driver software,
which lets you set image quality and performance preferences for your card. It also includes the Soft Engine
AutoCAD accelerator and productivity tool package, and Colorific screen-to-print color matching software.
Installing Soft Engine on your AutoCAD equipped system will improve graphics performance by up to four
times, while Colorific painlessly ensures that what you see is what you print.
This section describes the two software installation processes for supported Windows operating systems.
3Dlabs Oxygen GVX420 User's Guide
5
Installation
To uninstall an old video driver
1. If there is an icon for the video card on the taskbar, desktop, or on the Control Panel, select the icon
and then check for an uninstall option. If an uninstall option exists, select the option and follow the
instructions. (To display the Control Panel, click the Start button, point to Settings, and click
Control Panel.)
2. If an uninstall option does not exist, click the Start button, point to Settings, and click Control
Panel.
3. Double-click the Add/Remove Programs icon.
4. Click the name of the video card driver you want to remove.
5. Click Add/Remove and follow the instructions.
To install the Oxygen Windows NT driver
1. Start up Windows NT. Log onto an account with administrator privileges.
2. Place the Oxygen Product CD-ROM in your CD-ROM drive. When the installation window opens,
choose the Oxygen driver installation.
3. Follow the instructions that appear on your screen. (Be sure to read the software license agreement.)
4. Restart your system at the prompt.
To install the Oxygen Windows 2000 driver
1. After installing the Oxygen GVX420, start up Windows 2000. The Hardware Wizard appears.
2. Click Cancel in all dialog boxes that appear regarding "Found New Hardware."
2. Place the Oxygen Product CD-ROM in your CD-ROM drive.
3. On the CD-ROM, locate the drivers directory and run setup.exe. The 3Dlabs Graphics Driver Setup
program begins and guides you through the driver installation process.
4. Click Yes each time you are asked for confirmation before installing a driver. The Oxygen GVX420
requires three drivers: one for the GLINT Gamma geometry accellerator, and one each for the two
GLINT R4 graphics accelerators.
5. Restart your system at the prompt.
To uninstall the Oxygen GVX420 Windows NT or Windows 2000 drivers
Administrator privleges are required to uninstall these drivers.
1. On the Start menu, point to Settings and then click Control Panel.
2. In the Control Panel, double-click the Add/Remove Programs icon.
3. Click the 3Dlabs Graphics driver to select it.
4. Click Add/Remove.
5. Follow the instructions to complete the removal of each driver.
6. Restart your system at the prompt.
6
3Dlabs Oxygen GVX420 User's Guide
Installation
To install SoftEngine
Soft Engine works exclusively with AutoDesk’s AutoCAD R12, R13, R14, and LT software. Install Soft
Engine if you use one of these AutoCAD programs. Do not install Soft Engine if you do not use one of
these AutoCAD programs; it will have no beneficial effect.
1. Place the Oxygen Product CD-ROM in your CD-ROM drive. When the installation window opens,
choose Install Soft Engine. A menu appears.
2. Select your AutoCAD product type to start the installation.
3. Follow the instructions that appear on your screen.
To install Colorific
1. Place the Oxygen Product CD-ROM in your CD-ROM drive. When the installation window opens,
choose the Colorific installation.
2. Follow the instructions that appear on your screen.
3Dlabs Oxygen GVX420 User's Guide
7
Installation
Registering Oxygen GVX420
Registering Oxygen GVX420
Registering Oxygen GVX420Registering Oxygen GVX420
When you register your Oxygen GVX420 card you:
•
Activate your warranty
•
Receive notification of software updates
•
Qualify for technical support
You can complete the registration card and return it to us in the mail, or register on-line once your hardware
and software installations are complete. (You must have Internet access to register on-line.)
1. Open your Internet browser.
2. Go to http://www.3dlabs.com/register
3. Fill out the registration form that appears on your screen, and click Submit when you are finished.
8
3Dlabs Oxygen GVX420 User's Guide
HAPTER
HAPTER
CCCC
HAPTER HAPTER
2 - S
2 - S
2 - S2 - S
OFTWARE
OFTWARE
OFTWARE OFTWARE
ONFIGURATION
ONFIGURATION
CCCC
ONFIGURATIONONFIGURATION
Software Configuration
The Oxygen GVX420 Driver
The Oxygen GVX420 Driver
The Oxygen GVX420 DriverThe Oxygen GVX420 Driver
The OxygenGVX420 driver software lets you optimize the working relationship between your card, your
system and your applications. The 3Dlabs Display Control Panel allows you to customize and create driver
settings. The Taskbar based Configuration Manager provides quick and convenient access to most of the
Display Control Panel features, and allows you to quickly switch between alternative driver settings.
The Task Bar
The Task Bar - based Configuration Manager
The Task BarThe Task Bar
When you install the Oxygen GVX420 card and software, the 3Dlabs logo appears in your system tray, also
called the task bar. Click the logo with your right mouse button to access the Display Configuration Manager
and its shortcuts to these configuration tools:
- based Configuration Manager
- based Configuration Manager - based Configuration Manager
Remove from System Tray
access the driver configuration options with the Display Control Panel.
About 3DL Display Manager
Go to 3Dlabs Website
connection.
Pop up the Display Panel
Display Driver Information
configuration.
Change Display Resolution
associated pop-up list of available refresh rates.
Select Optimized Application
the list to optimize card settings for your selected option. (The Display Control Panel allows you to
create new application settings.)
Help
provides help on the task bar configuration manager, the driver, and its settings.
lets you delete this task bar utility from your system. You will still be able to
displays version information for this configuration utility.
takes you directly to www.3dlabs.com through your existing Internet
reaches the 3Dlabs section on the display control panel.
provides quick access to information about your Oxygen card
brings up a pop-up list of supported resolutions. Each resolution has an
quickly accesses a list of supported applications. Click an application in
10
3Dlabs Oxygen GVX420 User's Guide
Software Configuration
The Display Contr ol Pan el
The Display Contr ol Pan el
The Display Contr ol Pan elThe Display Contr ol Pan el
You access the configuration tools through the Display Properties Control Panel. To display the Panel, click
the desktop with your right mouse button, and select Properties from the menu that appears.
When you first click the 3Dlabs tab in the Display Control Panel, this introductory page appears:
Note: This is only an example. Your own panel displays the
information specific to your board, BIOS, and driver version.
It provides software version and basic hardware specifications, and a point-of-entry to the full set of Oxygen
driver customization tools. To fine-tune your driver's behavior, click the Advanced button for access to these
panels:
Information
Setup
Direct3D (Windows 2000 only)
OpenGL Support
Monitor (Windows NT only)
The following sections describe each in detail.
(You also have easy access to Help by clicking the "?" icon in the top right corner of the control
panel, and then clicking the field in the panel about which you want information.)
3Dlabs Oxygen GVX420 User's Guide
11
Software Configuration
Configuring Multiple Monitors
Configuring Multiple Monitors
Configuring Multiple MonitorsConfiguring Multiple Monitors
If your operating system is Windows 2000, you can configure your system to support two monitors by
clicking the
Display Properties Control Panel.
Extend my Windows desktop onto this Monitor
checkbox on the Setup screen of the Windows 2000
To configure a second monitor in Windows NT
1. In the Display Properties Control Panel, click the Settings tab.
2. Click List All Modes.
3. In the List of Valid Modes, click a resolution and then click OK. Select a resolution that is twice the
width of your current resolution. For example, if your current resolution is 1024 x 768, select 2048 x
768, 75 Hertz for your new resolution.
12
3Dlabs Oxygen GVX420 User's Guide
Software Configuration
4. On the Display Properties Panel, click Test. This tests the new mode on the second monitor screen
for five seconds.
5. Click OK to test the new mode.
6. Click OK if you saw the test bitmap correctly.
7. Click OK or Apply to select the new mode.
8. In the Display Properties Control Panel, click OK. Your Oxygen GVX420 card is now configured
for dual monitor mode.
To configure a second monitor in Windows 2000
1. Open Display in the Control Panel.
2. In the Display Properties Control Panel, click the Settings tab. A dialog box appears displaying two
monitor icons.
3. Select the monitor icon labeled "2".
4. Click the checkbox next to the option
Extend my Windows desktop onto this Monitor
5. Click OK or Apply to accept the change.
3Dlabs Oxygen GVX420 User's Guide
.
13
Software Configuration
Configuring your Oxygen GVX420 Card for Stereo
Configuring your Oxygen GVX420 Card for Stereo Viewing
Configuring your Oxygen GVX420 Card for StereoConfiguring your Oxygen GVX420 Card for Stereo
The Oxygen GVX420 card supports 3D stereo viewing. This requires that the appropriate equipment such as
stereo glasses be connected to the 3-pin miniature DIN connector on the Oxygen GVX420 card. It is
recommended that you use a monitor with a screen refresh frequency of at least 100 Hertz.
In addition, it is recommended that you turn off fluorescent lighting before viewing stereo images to prevent a
possible headache.
Viewing
Viewing Viewing
To set up and configure stereo viewing
1. Connect the stereo hardware to the round, stereo connector on the Oxygen GVX420 card. See the
documentation that came with your stereo hardware.
2. In the Display Properties Control Panel, click the 3Dlabs tab.
3. In the 3Dlabs Display Properties screen, click Advanced.
Note: This is only an example. Your own panel displays the
information specific to your board, BIOS, and driver version.
4. Click the OpenGL Support tab.
14
3Dlabs Oxygen GVX420 User's Guide
Software Configuration
5. In the OpenGL Support screen, click Advanced.
6. Click the checkbox to the right of Stereo View Support to select it.
7. Click Apply and then click OK.
8. In the Display Settings Control Panel, click the Settings tab.
9. Click List All Modes.
10. Select a screen refresh frequency of 100 Hertz or higher and then click OK. If you are using a DDCtype monitor, modes with suitably high refresh rates should be available in the List of Valid Modes. If
no high refresh modes are listed, open the Display Properties Control Panel, click the 3Dlabs tab,
and then click the Monitor tab. Click DDC and check for stereo settings. If they still do not appear,
click VESA and check again. If necessary, restart your system.
3Dlabs Oxygen GVX420 User's Guide
15
Software Configuration
11. On the Display Properties Panel, click Test. This tests the new mode on the monitor screen for five
seconds.
12. Click OK to test the new mode.
13. Click OK if you saw the test bitmap correctly.
14. In the Display Properties Control Panel, click OK. Your Oxygen GVX420 card is now configured
for stereo viewing.
16
3Dlabs Oxygen GVX420 User's Guide
HAPTER
HAPTER
CCCC
HAPTER HAPTER
3 - T
3 - T
3 - T3 - T
ROUBLESHOOTING
ROUBLESHOOTING
ROUBLESHOOTINGROUBLESHOOTING
Troubleshooting
Troubleshooting
Troubleshooting
TroubleshootingTroubleshooting
If you have trouble using your Oxygen GVX420 card or a 3D application, you may find the answer to your
problem in the following sections. Always start your problem- solving efforts with the simplest solution and
work up to the more complex ones.
Monitors and Display Resolutions
Monitors and Display Resolutions
Monitors and Display ResolutionsMonitors and Display Resolutions
Question:
Question: My monitor is either blank, or the displayed image is distorted, scrambled or smaller than
Question:Question:
Solution: If the monitor is blank, be sure that your system and monitor are plugged in and turned on.
Solution: Make sure that your video cable is connected securely to the monitor
Solution: Your card might not be seated properly in the AGP or AGP Pro slot. Remove and reinstall
Question:
Question: The performance of and/or the available resolut
Question:Question:
Solution: The Oxygen driver may not have installed fully, or a file may have been corrupted. Try
Solution: You may have selected a display setting that is incompatible with accelerated 3D graphics
Solution: If the performance is different from what you expected, check to see that the correct
Solution: If the performance is different from what you expected, check to see that the
Question:
Question: When I restart my system, an
Question:Question:
Solution: Within a few seconds, the error messages should be replaced by a window that allows you to
My monitor is either blank, or the displayed image is distorted, scrambled or smaller than
My monitor is either blank, or the displayed image is distorted, scrambled or smaller thanMy monitor is either blank, or the displayed image is distorted, scrambled or smaller than
I expected.
I expected.
I expected.I expected.
Is the monitor’s power cord attached securely? Check each component’s documentation for
the location and use of power connectors and switches.
and
to the monitor
connector on your Oxygen card. See your monitor documentation and Chapter 1 Installation, in this document.
your card as described in Chapter 1 - Installation. Remember to use the anti-static wrist strap
when opening your system and handling the card.
The performance of and/or the available resolutions for my Oxygen card are not what I
The performance of and/or the available resolutThe performance of and/or the available resolut
expected.
expected.
expected.expected.
installing the driver again.
applications. See the Monitor Screen in your 3Dlabs display control panel for a list of
compatible resolutions.
application or setting has been selected in the Optimized Application Setting in the Taskbar
Based Configuration Manager.
setting has been set correctly in the Display Control Panel under Direct3D Support or
OpenGL Support.
When I restart my system, an ““““Invalid Display Settings
When I restart my system, an When I restart my system, an
followed by
followed by ““““The default display resolution has been temporarily used by the system.
followed by followed by
set a display resolution. Pick your preferred resolution from the list and you should get the
sharp results you expected.
The default display resolution has been temporarily used by the system.””””
The default display resolution has been temporarily used by the system.The default display resolution has been temporarily used by the system.
Invalid Display Settings”””” message appears on-screen,
Invalid Display SettingsInvalid Display Settings
ions for my Oxygen card are not what I
ions for my Oxygen card are not what Iions for my Oxygen card are not what I
Wait for VBlank
message appears on-screen,
message appears on-screen, message appears on-screen,
Systems and Netwo rks
Systems and Netwo rks
Systems and Netwo rksSystems and Netwo rks
Question:
Question: Since installing the Oxygen GVX420 card, the speakers are unable to produce sound.
Question:Question:
Solution: You may need to reinstall or update the drivers for your sound card.
Question:
Question: Since installing the Oxygen card, my system either hangs or crashes to a blue screen when
Question:Question:
Solution: Try to disable “VGA Palette Snoop.” Follow these steps.
18
Since installing the Oxygen GVX420 card, the speakers are unable to produce sound.
Since installing the Oxygen GVX420 card, the speakers are unable to produce sound.Since installing the Oxygen GVX420 card, the speakers are unable to produce sound.
Since installing the Oxygen card, my system either hangs or crashes to a blue screen when
Since installing the Oxygen card, my system either hangs or crashes to a blue screen whenSince installing the Oxygen card, my system either hangs or crashes to a blue screen when
I try to start up, or the system starts up but VGA graphics don
I try to start up, or the system starts up but VGA graphics don’’’’t display.
I try to start up, or the system starts up but VGA graphics donI try to start up, or the system starts up but VGA graphics don
1. Remove the Oxygen card and reinstall your old graphics card. See Chapter 1- Installation,
for instructions.
2. Restart your system and enter Setup at the on-screen prompt. The key command to
enter Setup can differ with each BIOS, so consult your system documentation if you do
not see the command displayed as the system boots.
3. Disable VGA Palette Snoop, again consulting your system documentation for its specific
location in your BIOS.
4. Choose Exit and Save Settings.
3Dlabs Oxygen GVX420 User's Guide
t display.
t display.t display.
Troubleshooting
5. Shut down, remove your old graphics card, and reinstall your Oxygen card.
6. Make sure that you are not using an old graphics board driver, and that you have
uninstalled any other graphics drivers — particularly those provided by other companies
using 3Dlabs chipsets.
7. Please see the Oxygen and Permedia System Integration Guide in the Troubleshooting
FAQ section at
http://www.3dlabs.com/support
8. You may need to update your system BIOS. See your system documentation for system
BIOS update information.
Question:
Question: IIII’’’’m experiencing network problems since I installed my Oxygen card.
Question:Question:
Solution: You may need to reinstall or update your Ethernet driver. See your system or Ethernet
Online Information
Online Information
Online InformationOnline Information
If you cannot find the problem you are experiencing, or the solution to a problem, listed in this chapter,
check the Troubleshooting FAQ list at http://www.3dlabs.com/support, or contact your Oxygen card vendor
for additional help.
m experiencing network problems since I installed my Oxygen card.
m experiencing network problems since I installed my Oxygen card.m experiencing network problems since I installed my Oxygen card.
adapter documentation for more information.
3Dlabs Oxygen GVX420 User's Guide
19
PPENDIX
PPENDIX
AAAA
PPENDIX PPENDIX
A - S
A - S
A - SA - S
PECIFICATIONS
PECIFICATIONS
PECIFICATIONSPECIFICATIONS
Specifications
Oxygen GVX420 Specifications
Oxygen GVX420 Specifications
Oxygen GVX420 SpecificationsOxygen GVX420 Specifications
Item
Item Specification
ItemItem
Card size Full-length ATX form factor, single slot
Power requirement 18.4 W @ 3v3, 8 W @ 5V
Geometry processing GLINT Gamma G2 with PowerThreads SSE
Rasterizer Dual GLINT R4 rasterization engines
RAMDAC frequency 300 MHz
Memory 128MB SGRAM
Monitor Resolutions
Monitor Resolutions
Monitor ResolutionsMonitor Resolutions
Oxygen GVX420 is capable of supporting monitor resolutions up to 2048 x 1536 with one monitor, or 4096
x 1536 with two monitors, in color depths of 8, 16 and 32 bits, and with refresh rates from 60Hz to 200Hz –
dependent on your system hardware, operating system, graphics driver version, and your monitor’s
capabilities.
Specification
SpecificationSpecification
AGP and AGP Pro compatible
3Dlabs Oxygen GVX420 User's Guide
21
PPENDIX
PPENDIX
AAAA
PPENDIX PPENDIX
B - S
B - S
B - SB - S
OFTWARE
OFTWARE
OFTWARE OFTWARE
ICENSE
ICENSE
LLLL
ICENSEICENSE
Software License
SOFTWARE LICENSE AGREEMENT
SOFTWARE LICENSE AGREEMENT
SOFTWARE LICENSE AGREEMENTSOFTWARE LICENSE AGREEMENT
THIS IS A LEGAL CONTRACT BETWEEN YOU, THE END USER, AND 3DLABS, INC. BY USING
THE SOFTWARE ACCOMPANYING THIS GUIDE OR PRE- INSTALLED ON YOUR SYSTEM,
YOU ARE ACCEPTING AND AGREEING TO BE BOUND BY THE TERMS OF THIS SOFTWARE
LICENSE AGREEMENT. IF YOU ARE NOT WILLING TO BE BOUND BY THE TERMS OF THIS
SOFTWARE LICENSE AGREEMENT, PROMPTLY RETURN THIS SOFTWARE LICENSE
AGREEMENT WITH THE UNOPENED SOFTWARE ENVELOPE, OXYGEN CARD AND ANY
OTHER ACCOMPANYING ITEMS AND 3DLAB PRODUCTS TOGETHER WITH YOUR RECEIPT
TO YOUR PLACE OF PURCHASE FOR A FULL REFUND.
Software License
Software License and Restrictions
Software LicenseSoftware License
The SOFTWARE delivered to you may embody and include, without limitation, certain software programs
in object code form (machine-readable but not human-readable form) and documentation. Use of the
SOFTWARE can result in the production of FEATURES that are human-readable, including, without
limitation, documentation, report formats, menus, audible prompts and tone sequences. Such SOFTWARE
and FEATURES constitute copyrighted property proprietary to 3Dlabs, Inc. or its licensors, and 3Dlabs, Inc.
or its licensors retain title to the SOFTWARE (excluding media on which recorded), FEATURES, all copies
thereof, and all intellectual property rights therein. No title to the SOFTWARE, FEATURES, any copies
thereof or any intellectual property rights therein, are transferred to you. You are hereby granted, for your
own internal use only, a nontransferable, nonexclusive, perpetual, revocable license to use one (1) copy of the
SOFTWARE and FEATURES on the computer on which the SOFTWARE was originally mounted or
installed. Except as specifically authorized by this AGREEMENT, you may not copy the SOFTWARE or
FEATURES for any purpose (except that you may make a use one (1) copy of the SOFTWARE solely for
backup purposes). You shall not, whether through the use of disassemblers or any other means whatsoever
(including, but not limited to, manual, mechanical or electrical means), reverse engineer, decompile,
disassemble, destroy, disable, derive rules of protocol embodied in the SOFTWARE or derive source code
from the SOFTWARE OR FEATURES, or attempt to permit any third party to do any of the foregoing.
Any attempt to do any of the foregoing shall be a material breach of this AGREEMENT and the license
granted herein, which shall immediately entitle 3Dlabs, Inc. to exercise any remedy that may exist at law or in
equity. You may not transfer, loan, rent, lease, distribute or grant any rights in the SOFTWARE,
FEATURES, copies thereof, or accompanying documentation in any form without the prior written consent
of 3Dlabs, Inc.
and Restrictions
and Restrictions and Restrictions
3Dlabs Oxygen GVX420 User's Guide
23
Software License
Limited Warranty
Limited Warranty
Limited WarrantyLimited Warranty
3Dlabs, Inc. warrants that the SOFTWARE AND FEATURES licensed to you under this AGREEMENT
will perform in accordance with 3Dlabs, Inc. published specifications for use on the same operating system as
used by you at the time of purchase of the SOFTWARE or the system on which the SOFTWARE is initially
mounted or installed (WARRANTY) for a period of ninety (90) days after the date of delivery to you as
evidenced by your receipt (WARRANTY PERIOD). If the SOFTWARE or FEATURES does not conform
during the WARRANTY PERIOD, you agree to provide written notice of such failure to 3Dlabs, Inc. and
3Dlabs, Inc. will, at its sole option, repair or replace the SOFTWARE. 3Dlabs, Inc. does not warrant that the
use of the SOFTWARE or FEATURES will be uninterrupted or error- free and hereby disclaims all liability
on account thereof. THE REMEDIES PROVIDED HEREIN ARE YOUR SOLE AND EXCLUSIVE
REMEDIES FOR BREACH OF WARRANTY. THIS WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OR
CONDITIONS OF MERCHANTABILITY, NONINFRINGEMENT AND FITNESS FOR A
PARTICULAR PURPOSE. SOME STATES OR COUNTRIES DO NOT ALLOW THE EXCLUSION
OF IMPLIED WARRANTIES OR CONDITIONS, SO THE ABOVE EXCLUSION MAY NOT APPLY
TO YOU.
Limited Liability
Limited Liability
Limited LiabilityLimited Liability
NOTWITHSTANDING ANY PROVISION IN THIS LICENSE TO THE CONTRARY, NEITHER
3DLABS, INC. NOR ITS LICENSORS OR SUPPLIERS WILL BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED, OR ANY
THEORY OF LIABILITY, WHETHER OR NOT 3DLABS, INC., ITS LICENSORS OR SUPPLIERS
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE OR LOSS. IN NO EVENT
SHALL 3DLABS, INC., ITS LICENSORS’ OR SUPPLIERS’ LIABILITY ARISING UNDER THIS
LICENSE EXCEED THE AMOUNT PAID BY YOU [FOR THE PRODUCT OR SOFTWARE]
GIVING RISE TO SUCH LIABILITY. THIS LIMITATION IS INTENDED TO LIMIT THE
LIABILITY OF 3DLABS, INC., ITS LICENSORS OR ITS SUPPLIERS AND SHALL APPLY
NOTWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF ANY LIMITED REMEDY.
SOME STATES OR COUNTRIES MAY NOT ALLOW THE FOREGOING LIMITATION, SO THE
FOREGOING MAY NOT APPLY TO YOU.
Restricted Rights Not ice
Restricted Rights Not ice
Restricted Rights Not iceRestricted Rights Not ice
Use, duplication or disclosure by the United States Government is subject to restrictions as set forth in
subparagraphs ©(1) and ©(2) of the Commercial Computer Software - Restricted Rights clause at FAR
Section 52.277-19 or ©(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS
Section 252.277-7013, as applicable. Unpublished - rights reserved under the copyright laws of the United
States. Contractor: 3Dlabs Inc., Ltd., 480 Potrero Avenue, Sunnyvale, California 94086.
Termination
Termination
TerminationTermination
You may terminate the license granted hereunder at any time by destroying all copies, [mergers or
modifications] of the SOFTWARE, FEATURES and accompanying materials. 3Dlabs, Inc. may immediately
terminate the license granted to you hereunder upon notice for failure to comply with the terms and
conditions of this AGREEMENT. Upon such termination, you agree to destroy all copies, mergers and
modifications of the SOFTWARE and FEATURES and accompanying documents. You agree that a breach
of this AGREEMENT will result in irreparable damages to 3Dlabs, Inc. This AGREEMENT is the entire
agreement between you and 3Dlabs, Inc. with respect to the use and licensing of the SOFTWARE provided
with this AGREEMENT, and supersedes all proposals, warranties, prior agreements or any other
communications between the parties relating to the subject matter hereof.
24
3Dlabs Oxygen GVX420 User's Guide
Software License
General
General
GeneralGeneral
This AGREEMENT will be governed by and construed in accordance with the laws of California without
regard to conflicts of law principles or the UN Convention on the Sale of Goods. If for any reason a court of
competent jurisdiction finds any provision of this AGREEMENT, or portion thereof, to be unenforceable,
that provision of the AGREEMENT shall be enforced to the maximum extent permissible so as to effect the
intent of the parties, and the remainder of this AGREEMENT shall continue in full force and effect. Should
you have any questions concerning this AGREEMENT, please write to: 3Dlabs, Inc., 480 Potrero Avenue,
Sunnyvale, California 94086.
3Dlabs Oxygen GVX420 User's Guide
25
PPENDIX
PPENDIX
AAAA
PPENDIX PPENDIX
C - R
C - R
C - RC - R
EGULATORY
EGULATORY
EGULATORY EGULATORY
TATEMENTS
TATEMENTS
SSSS
TATEMENTSTATEMENTS
Declaration of Conformity
Declaration of Conformity
Declaration of ConformityDeclaration of Conformity
declare under our sole responsibility that the product
to which this declaration relates are in conformance with the following standards:
following the provisions of the 89/336/EEC Directive.
San Jose, California, December 1999
Regulatory Statements
We, 3Dlabs, Incorporated,
480 Potrero Avenue
Sunnyvale, CA 94086
Phone 408-530-4700
Fax 408-530-4701
United States of America
3Dlabs Oxygen GVX420
EN 55024:1998, clause 4.2.1
EN 55024:1998, clause 4.2.2
EN 55024:1998, clause 4.2.3
EN 55024:1998, clause 4.2.3.2
EN 55024:1998, clause 4.2.6
EN 55022:1994, clause 5
EN 55022:1994, clause 6
IEC950:1991, 2
EN60950:1992
3Dlabs, Inc.
nd
Edition
Warning:
carried out which are not in accordance with the issued “instructions for use” or approved by 3Dlabs Inc. will nullify the CE
certification of this product and could lead to prosecution.
comply with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interferences that may cause undesired operation.
Any use of, installation practices, modifications or maintenance procedures
We, 3Dlabs, Incorporated,
480 Potrero Avenue
Sunnyvale, CA 94086
Phone 408-530-4700
Fax 408-530-4701
United States of America
declare under our sole responsibility that the products
3Dlabs Oxygen GVX420
3Dlabs Oxygen GVX420 User's Guide
27
PPENDIX
PPENDIX
AAAA
PPENDIX PPENDIX
D - G
D - G
D - GD - G
LOSSARY
LOSSARY
LOSSARYLOSSARY
Glossary
Terms and Definitions
Terms and Definitions
Terms and DefinitionsTerms and Definitions
AGP
AGP
AGPAGP
Advanced Graphics Port. A dedicated graphics bus that transfers data at significantly higher speeds than the
PCI bus.
Alpha Blending
Alpha Blending
Alpha BlendingAlpha Blending
This means to create transparent objects by allowing for the blending of pixels to simulate the transparency
characteristics of an object. With alpha information, an object can be designed from being totally transparent
to opaque.
Alpha Buffer
Alpha Buffer
Alpha BufferAlpha Buffer
A portion of the frame buffer used to define the transparency value of a pixel in the frame buffer. This data
can be used to blend the frame buffer pixel with the pixel to be drawn to create a composite pixel.
Anti-Aliasing
Anti-Aliasing
Anti-AliasingAnti-Aliasing
A technique employed to remove any jagged edges from an object to appear smooth. This is accomplished by
gradually modifying the hue and saturation of pixels.
API
API
APIAPI
Application Programming Interface. The API translates the instructions from the application program into
device commands that are specific to the screen’s display controller, the graphics board.
Atmospheric Effects
Atmospheric Effects
Atmospheric EffectsAtmospheric Effects
The effect derived from adding one or more layers around an object.
Bilinear Sampling
Bilinear Sampling
Bilinear SamplingBilinear Sampling
The process whereby texture mapping is done through filtering.
Bit Depth
Bit Depth
Bit DepthBit Depth
Bit depth is another way of expressing the numbers of colors available. A color bit depth of 8 is equivalent to
256 colors, a bit depth of 16 (15 bit of color plus a 1 bit overlay) yields 32768 colors, and a bit depth of 32
(24 bit RGB plus 8 bit of overlays) equals 16.7 million colors. The latter is often referred to as true color.
Clipping
Clipping
ClippingClipping
Removal of elements or sections not contained within the active viewing area.
CPU (Central Processing Unit)
CPU (Central Processing Unit)
CPU (Central Processing Unit)CPU (Central Processing Unit)
The part within a PC that executes programs in main memory.
DAC
DAC
DACDAC
Digital to Analog Converter.
Depth Cueing
Depth Cueing
Depth CueingDepth Cueing
A technique used to give the illusion of depth. With depth cueing, the part of an object that is farther away is
displayed with a lower intensity to give the effect of depth.
Digital Flat Panel Display
Digital Flat Panel Display
Digital Flat Panel DisplayDigital Flat Panel Display
A digital, flat-panel display uses a digital (instead of analog) cable connection to transfer data to the display
screen. This can eliminate some display artifacts. Flat panel displays occupy less desk space than conventional
monitors.
DirectX
DirectX
DirectXDirectX
Microsoft’s APIs developed to access various system hardware.
3Dlabs Oxygen GVX420 User's Guide
29
Glossary
Direct 3D
Direct 3D
Direct 3DDirect 3D
Microsoft’s API dedicated to 3D graphics, and a component of DirectX.
Dithering
Dithering
DitheringDithering
The process of converting an image with a certain bit depth to one with a lower bit depth. Dithering enables
the application to convert an image’s colors that it cannot display into two or more colors that closely
resemble the original. Dithering works because the mind is tricked by the pattern of colors into thinking it’s a
different color.
Double Buffering
Double Buffering
Double BufferingDouble Buffering
With double-buffering, images are rendered in the back buffer and then displayed on the screen once the
drawing is completed. This results in the smooth, flicker-free rotation and animation of 3D models and
scenes.
Driver
Driver
DriverDriver
A driver is a special interface program that is developed to perform the communication between the
application program, the device (i.e., graphics peripheral) and the operating system.
EVGA
EVGA
EVGAEVGA
Extended Video Graphics Array. EVGA runs at 1024 x 768.
Flat Shading
Flat Shading
Flat ShadingFlat Shading
The simplest method of shading. Each triangle is assigned one single color, resulting in a faceted appearance
of the surface.
Frame Buffer
Frame Buffer
Frame BufferFrame Buffer
A 24-bit, true-color frame buffer provides 8 bits for each red, green and blue primary display color. This
results in 16.8 million color combinations. A second, or double, buffer enables system to calculate pixels one
step ahead of the screen display for smooth, distortion free images.
Gamma
Gamma
GammaGamma
A curve representing both the contrast and brightness of an image. Changing the shape of the curve changes
the RGB color output. (Not to be confused with GLINT Gamma, the 3Dlabs geometry processing device.)
Geometry
Geometry
GeometryGeometry
The intermediate stage of the 3D pipeline, geometry determines the location of the object and the frame of
reference of the viewer in relation to the object.
Gouraud Shading
Gouraud Shading
Gouraud ShadingGouraud Shading
This method of shading, more complex than flat shading, shows subtle color changes across an object.
Gouraud Shading is accomplished by adding pixels in a graduated scale of colors.
Graphics Accelerator Card
Graphics Accelerator Card
Graphics Accelerator CardGraphics Accelerator Card
A graphics accelerator performs 3D functions in the hardware, thereby relieving the CPU of repetitive,
complex and intensive calls. This results in enhanced performance and speed.
Heidi
Heidi
HeidiHeidi
The API developed by Autodesk to work with its products, such as 3D Studio MAX and AutoCAD.
30
3Dlabs Oxygen GVX420 User's Guide
Glossary
MIP-Mapping (for texture processing)
MIP-Mapping (for texture processing)
MIP-Mapping (for texture processing)MIP-Mapping (for texture processing)
A feature that delivers photo-realistic images by wrapping 2D bitmaps around 3D objects closely matching
the texture to the object. MIP-Mapping allows different versions of a texture to be used for objects of
different sizes. It also enables faster performance as textures do not need to be scaled in real time.
Multiple Resolution Support
Multiple Resolution Support
Multiple Resolution SupportMultiple Resolution Support
The ability to support multiple resolutions on the screen.
OpenGL
OpenGL
OpenGLOpenGL
The industry standard library of advanced 3D graphics functions developed by Silicon Graphics, Inc.
Perspective Correction
Perspective Correction
Perspective CorrectionPerspective Correction
A function that allows an object to maintain its 3D textural features as it moves away from the viewer, into
the background.
Pipelining
Pipelining
PipeliningPipe lining
A basic hardware tool for accelerating processes.
Pixel
Pixel
PixelPixel
The smallest addressable element of a cathode ray tube display. More simply put, the individual dots that
make up the screen image.
Point Sampling
Point Sampling
Point SamplingPoint Sampling
The basic method of adding texture to an object. Point sampling does not include any filtering of textures.
RAMDAC
RAMDAC
RAMDACRAMDAC
The final component in the graphics subsystem that translates a digital image into an analog representation.
Rasterization
Rasterization
RasterizationRasterization
A method to fill in colors for all pixels bound by vertices.
Rendering
Rendering
RenderingRendering
The final and most rigorous stage in the 3D pipeline where an object undergoes shading, texturing, etc.
RISC
RISC
RISCRISC
Reduced Instruction Set Computing.
SDRAM
SDRAM
SDRAMSDRAM
Synchronous Dynamic Random Access Memory (SDRAM) is a cost-effective solution to improve bandwidth
to and from memory, resulting in increased graphics performance.
SGRAM
SGRAM
SGRAMSGRAM
Synchronous Graphics Random Access Memory allows data to be written in a single operation, rather than a
(slower) sequence of operations. It also handles background and foreground image fills effectively.
SDTP
SDTP
SDTPSDTP
Super Desktop Publishing. SDTP runs at 1600 x 1200.
Stencil Buffer
Stencil Buffer
Stencil BufferStencil Buffer
Similar to stipple masking, the stencil buffer assists with the creation of transparent effects.
Stipple masking
Stipple masking
Stipple maskingStipple masking
A technique that spatially creates transparent effects by rendering an object through various patterns.
3Dlabs Oxygen GVX420 User's Guide
31
Glossary
Streaming SIMD
Streaming SIMD
Streaming SIMDStreaming SIMD
An instruction set developed by Intel for Pentium III-processor based systems. Streaming SIMD can improve
3D vertice transformation and lighting, among other operations.
SVGA
SVGA
SVGASVGA
Super Video Graphics Array. SVGA runs at 800 x 600.
Tessellation
Tessellation
TessellationTessellation
The initial part of the 3D pipeline where the object is described by a set of triangles.
Texture Mapping
Texture Mapping
Texture MappingTexture Mapping
A technique that enables 2D graphic images to be “wrapped” around or “pasted” on to a 3D primitive.
Perspective correction and lighting calculations allow for added realism.
Transformation
Transformation
TransformationTransformation
The change in rotation, size, position, and perspective of an object in 3D space.
Transparency
Transparency
TransparencyTransparency
A function that refers to the rendering of transparent (non-opaque) objects. Transparency is generally
accomplished on a polygon rendering system using either screen-door transparency or alpha blending.
Vectors/second
Vectors/second
Vectors/secondVectors/second
Lines drawn per second.
VGA
VGA
VGAVGA
Video Graphics Array. VGA runs at 640 x 480.
VHR
VHR
VHRVHR
Very High Resolution. VHR runs at 1280 x 1024.
VRAM
VRAM
VRAMVRAM
Video Random Access Memory is an expensive, fast type of RAM that is used as display memory on high-end
graphics boards.
VRML
VRML
VRMLVRML
Virtual Reality Modeling Language.
Z-Buffer
Z-Buffer
Z-BufferZ-Buffer
Also known as the Depth Buffer, the Z-Buffer is a region of memory containing the depth component of a
pixel. Used, for example, to eliminate hidden surfaces from the image.
32
3Dlabs Oxygen GVX420 User's Guide
NDEX
NDEX
IIII
NDEXNDEX
Index
3D stereo viewing, 14
AGP, viii, ix, 3, 4, 18, 21
AGP bus, viii
API, 29, 30
BIOS, 18, 19
Colorific, viii
Configuration Manager, 10, 18
Control Panels, viii
Digital Flat Panel Output, vii
Direct3D, 11, 18
Display Control Panel, 10, 11, 12, 18
Display Properties, 12, 13, 14, 15, 16
Dual-head support, vii
DVI connectors, 5
Dynamic load balancing, vii
Gamma, vi, vii, 21, 30
geometry processing, vii
GLINT R3 rasterizers, vi
Glossary, 28
high resolution display, vii
Installing, 3
Oxygen RX210 with DVI daughter card, 3
Oxygen Windows NT driver, 6
Soft Engine, 7
software, 5
memory, vii
Monitor Resolutions, 21
Monitor Screen, 18
multi-monitor support, vii, 5
Multiple Monitors, 12
Online Information, 19
OpenGL, ii, vii, 11, 14, 15, 18, 31
partners, x
PowerThreads, vii
RAM, ix
rasterization processors, vii
registration, 8
Regulatory Statements, 26
SGRAM, vii, 21, 31
SoftEngine, viii, 2, 7
Software License, 22, 23
Specifications, vii, 21
Stereo, 14, 15
stereo, quad-buffered, vii
System Requirements, ix
Task Bar, 10
textures, vii, 31
Troubleshooting, 17, 18, 19
monitor resolutions, 18
systems and networks, 18
VESA, 15
Virtual Textures, vii
Warranty, 24
Windows 2000, vii, ix, 11
Windows NT, ii, vii, viii, 5, 6, 11, 12
Z-buffer, viii
34
3Dlabs Oxygen GVX420 User's Guide
Loading...
