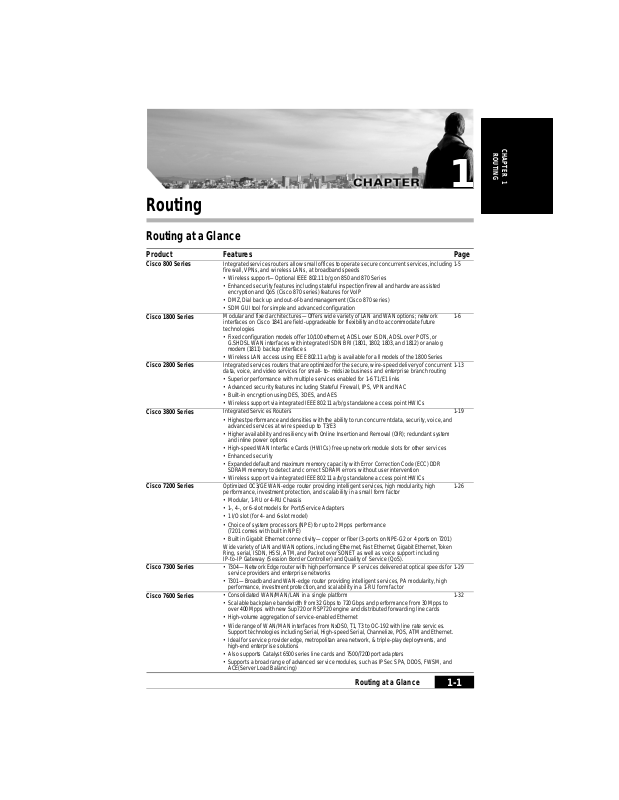

Page 1
CHAPTER 1
ROUTING
1
Routing
Routing at a Glance
Product Features Page
Cisco 800 Series
Cisco 1800 Series
Cisco 2800 Series
Cisco 3800 Series
Cisco 7200 Series
Cisco 7300 Series
Cisco 7600 Series
Integrated services routers allow small offices to operate secure concurrent services, including
firewall, VPNs, and wireless LANs, at broadband speeds
• Wireless support—Optional IEEE 802.11 b/g on 850 and 870 Series
• Enhanced security features including stateful inspection firewall and hardware assisted
encryption and QoS (Cisco 870 series) features for VoIP
• DMZ, Dial back up and out-of-band management (Cisco 870 series)
• SDM GUI tool for simple and advanced configuration
Modular and fixed architectures—Offers wide variety of LAN and WAN options; network
interfaces on Cisco 1841 are field-upgradeable for flexibility and to accommodate future
technologies
• Fixed configuration models offer 10/100 ethernet, ADSL over ISDN, ADSL over POTS, or
G.SHDSL WAN interfaces with integrated ISDN BRI (1801, 1802, 1803, and 1812) or analog
modem (1811) backup interfaces
• Wireless LAN access using IEEE 802.11 a/b/g is available for all models of the 1800 Series
Integrated services routers that are optimized for the secure, wire-speed delivery of concurrent
data, voice, and video services for small- to- midsize business and enterprise branch routing
• Superior performance with multiple services enabled for 1-6 T1/E1 links
• Advanced security features including Stateful Firewall, IPS, VPN and NAC
• Built-in encryption using DES, 3DES, and AES
• Wireless support via integrated IEEE 802.11 a/b/g standalone access point HWICs
Integrated Services Routers
• Highest performance and densities with the ability to run concurrent data, security, voice, and
advanced services at wire speed up to T3/E3
• Higher availability and resiliency with Online Insertion and Removal (OIR); redundant system
and inline power options
• High-speed WAN Interface Cards (HWICs) free up network module slots for other services
• Enhanced security
• Expanded default and maximum memory capacity with Error Correction Code (ECC) DDR
SDRAM memory to detect and correct SDRAM errors without user intervention
• Wireless support via integrated IEEE 802.11 a/b/g standalone access point HWICs
Optimized OC3/GE WAN-edge router providing intelligent services, high modularity, high
performance, investment protection, and scalability in a small form factor
• Modular, 1-RU or 4-RU Chassis
• 1-, 4-, or 6-slot models for Port/Service Adapters
• 1 I/O slot (for 4- and 6-slot model)
• Choice of system processors (NPE) for up to 2 Mpps performance
(7201 comes with built in NPE)
• Built in Gigabit Ethernet connectivity—copper or fiber (3-ports on NPE-G2 or 4 ports on 7201)
Wide variety of LAN and WAN options, including Ethernet, Fast Ethernet, Gigabit Ethernet, Token
Ring, serial, ISDN, HSSI, ATM, and Packet over SONET as well as voice support including
IP-to-IP Gateway (Session Border Controller) and Quality of Service (QoS).
• 7304—Network Edge router with high performance IP services delivered at optical speeds for
service providers and enterprise networks
• 7301—Broadband and WAN-edge router providing intelligent services, PA modularity, high
performance, investment protection, and scalability in a 1-RU form factor
• Consolidated WAN/MAN/LAN in a single platform
• Scalable backplane bandwidth from 32 Gbps to 720 Gbps and performance from 30 Mpps to
over 400 Mpps with new Sup720 or RSP720 engine and distributed forwarding line cards
• High-volume aggregation of service-enabled Ethernet
• Wide range of WAN/MAN interfaces from NxDS0, T1, T3 to OC-192 with line rate services.
Support technologies including Serial, High-speed Serial, Channelize, POS, ATM and Ethernet.
• Ideal for service provider edge, metropolitan area network, & triple-play deployments, and
high-end enterprise solutions
• Also supports Catalyst 6500 series line cards and 7500/7200 port adapters
• Supports a broad range of advanced service modules, such as IPSec SPA, DDOS, FWSM, and
ACE(Server Load Balancing)
Routing at a Glance
1-5
1-6
1-13
1-19
1-26
1-29
1-32
1-1
Page 2
Chapter 1
Product Features Page
Cisco 10700 Series
Cisco XR 12000/
12000 Series
Product Ordering
Web site
Service provider-class metro edge services router
• Optimized building block for the next generation metro Ethernet/IP access networks
• Equipped with either (24) 10/100 or 4 GbE and 8 FE ports for customer access and
OC-48c/STM-16c dynamic packet transport/resilient packet ring (DPT/RPR) technology or
Packet Over SONET (POS) for metro optical connectivity
• Supports IEEE 802.17 standard compliant RPR technology
Service provider-class multiservice-edge router to enable customer to transition toward a
converged IP Network Infrastructure
• Supports edge-optimized line cards maximizing the value of line-rate edge applications with
10G uplinks while sustaining line-rate performance
• Up to nine chassis options with new power supply and blower enhancements supporting a
portfolio of SPAs and SIPs
• Extensive portfolio of line cards and SPAs that support POS, ATM, Ethernet, DPT/RPR and
copper, channelized physical interfaces
• Service-related enhancements (L3VPN, L2VPN, QoS) that ensures traffic differentiation while
meeting the strictest customer service-level agreements
To place an order, visit the Cisco Ordering Web site: http://www.cisco.com/en/US/ordering/index.shtml
1-46
1-48
Cisco Routers Port Matrix
800 Series
1800 Series
2800 Series
3800 Series
7100 Series
7200/7301 Series
7304 Series
7600 Series
10700 Series
Fixed Ports Only X
Fixed & Modular Ports X X X X X X X X
Modular Ports Only X
LAN Ports
10-Mbps Ethernet X X X X
10-Mbps Ethernet (fiber) X X X
100-Mbps Ethernet X X X X X X X X
100-Mbps Ethernet (fiber) X X X X X X X
10/100-Mbps Ethernet X X X X X X X X X X
10/100 Mbps Switch Port X X X X X
Cable DOCSIS 2.0 X X X X
Token Ring X X X X
ATM X X X X
Gigabit Ethernet X
10 Gigabit Ethernet XX
Wireless LAN Access Point X X X X
5
XXXXXXX
1
Wireless LAN
Integrated Standaline Access Point X X X X
Wireless LAN Controller X X
WAN Ports
Sync Serial X X X X X X
Sync Serial w/ CSU X X X
ISDN BRI (S/T) X X X X X X
ISDN BRI (U) X X X X X
ISDN PRI/Ch T1 X X X X
ISDN PRI w/ CSU X X X
Async X X X
Analog/POTS X X
Integrated Modems X X X
Integrated Modem WICs X X X
HSSI XXXXX
DS3 X
1-2
Cisco Routers Port Matrix
2
XXXXX X
12000 Series
Page 3
Chapter 1
800 Series
1800 Series
2800 Series
3800 Series
7100 Series
7200/7301 Series
7304 Series
7600 Series
10700 Series
ATM OC-3 X X X X X
ATM OC-12 XX X
ATM X X X X X
ATM - T1/E1 X X X X X X
POS OC-x/STM-x XXXX X
DPT/RPR OC-12/STM-4 X
DPT/RPR OC-48/STM-16 XXX
DPT/RPR OC-192/STM-64 X
ADSL, ADSL 2+, G.SHDSL X X X X
ADSL over ISDN X X X X
G.SHDSL X X X X
IDSL X X X
DPT XX
Voice Over IP (VoIP)
Analog Voice Interfaces X X
Digital Voice Interfaces X X X X
ISDN BRI Digital Voice Interfaces X X
Integrated Switching
Integrated 4-port Switch X
Integrated 8-port Switch X
Integrated 4-port Switch HWIC X
Integrated 9-port Switch HWIC X X
Integrated 16-port Switching X
Integrated 24-port Switching X
Integrated 36-port Switching X
Integrated 48-port Switching X
Power over Ethernet (PoE) X X X X
2
3
XX
4
X
5
X
6
X
6
X
Content Acceleration
Content Engine X X X
Security VPN
IPS XXXXXX X
Hardware-based encryption X X X X
Encryption Advanced Integration
Modules
Encryption Service Adapter X
1. 7301 only
2. Except 1841
3. 1841 only
4. Cisco 2811, 2821, and 2851 only
5. Cisco 2821 and 2851 only
6. Cisco 2851 only
3
XX X
X
7
1
X
X
7. VAM2+ and VSA Supported
12000 Series
Cisco Routers Port Matrix
1-3
Page 4
Memory Information for Routers
Router Memory Type Slots
815
851, 857
871, 876, 877,
878
1800 Series
2800 Series
3800 Series
7100 Series
7200 Series
7301 Series
7304 NSE-100
7304 NPE-G100
7304 NSE-150
7600 Series
10700 Series
XR 12000/
12000 Series
1. Advanced IP Services image includes 28MB flash
Flash
DRAM
Flash
DRAM
Flash
DRAM
Flash
DRAM
DRAM (2801)
DRAM (2811)
DRAM (2821)
DRAM (2851)
Compact Flash (2801)
Compact Flash (2811)
Compact Flash (2821)
Compact Flash (2851)
Flash (External Compact Flash)
DDR SDRAM (ECC)
Flash (PCMCIA)
System SDRAM
Packet SDRAM
Flash for 7201
Flash (PCMCIA) (for IO
controller card; IO controller card
required for NPE-225, NPE-400)
Flash for NPE-G1
(Compact Flash)
Flash for NPE-G2
(Compact Flash)
DRAM (NPE-225)
DRAM (NPE-400)
DRAM (NPE-G1)
DRAM (NPE-G2)
DRAM for 7201
Flash (CFM)
DRAM
Flash (CFM)
DRAM
Flash (CFM)
DRAM
Flash (PCMCIA)
DRAM (Sup 2)
DRAM (MSFC2)
DRAM (PFC2)
DRAM (Sup720-3B)
DRAM (Sup720-3BXL)
Flash (Internal)
SDRAM RP
Packet Buffer
Flash (PCMCIA)
SDRAM (PRP-1)
SDRAM (PRP-2)
DRAM (Line Cards)
1
1
1
1
1
1
1
1
1
2
2
2
1
2
1
1
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1/2
Chapter 1
Default
Memory Max Memory Default Configuration (Notes)
32 MB 64 MB
20 MB
64 MB
24 MB or 28 MB
128 MB
32 MB
128 MB
128 MB
256 MB
256 MB
256 MB
64 MB
64 MB
64 MB
64 MB
64 MB
256 MB
48 MB
64 MB
64 MB
256 MB
64 MB
64 MB
256 MB
128 MB
256 MB
256 MB
1 GB
1 GB
64 MB
256 MB
256 MB
512 MB
256 MB
1 GB
2 GB
16 MB
128 MB
128 MB
128 MB
512 MB
1 GB
64 MB
512 MB
64 MB
48 MB
512 MB
1 GB
128-256 MB
128 MB
20 MB
64 MB
1
52 MB
256 MB
128 MB
384 MB
384 MB
768 MB
1 GB
1 GB
128 MB
256 MB
256 MB
256 MB
256 MB
1 GB
110 MB
256 MB
64 MB
256 MB
128 MB
256 MB
256 MB
256 MB
512 MB
1 GB
2 GB
2 GB
256 MB
1 GB
256 MB
512 MB
256 MB
1 GB
2 GB
512 MB
512 MB
512 MB
256 MB
512 MB
1 GB
64 MB
512 MB
64 MB
256 MB
1 GB
4 GB
256 MB - 1 GB
20 MB On board
64 MB On board
20MB On board + 4MB or 8MB* Mini Flash
128 MB On board + 128MB DIMM module
* Advanced IP Services image includes
28MB flash
External compact flash
128 MB on motherboard, plus one slot
Slot 0 = 128 MB, Slot 1 = Empty
Slot 0 = 256MB, Slot 1 = Empty
Slot 0 = 256MB, Slot 1 = Empty
Slot 0 = 256MB, Slot 1 = Empty
Single 64 MB Compact Flash default
Single 64 MB Compact Flash default
Single 64 MB Compact Flash default
Single 64 MB Compact Flash default
Single 64 MB Compact Flash default
Slot 0 = 256MB, Slot 1 = Empty
Slot 0 = 48 MB
Slot 0 = 64 MB
Maximum memory is configured with No
Option
Route Memory
Route Memory
1-4
Memory Information for Routers
Page 5
Chapter 1
Cisco 800 Series
The Cisco 800 series router provides enhanced network security,
wireless LAN, and proven
for small offices and telecommuters.
Internet or to a corporate LAN via one ADSL, ADSL over ISDN,
G.SHDSL,
Cable DOCSIS 2.0, or with an Ethernet WAN port
connected to an external broadband modem.
When to Sell
Sell This Product When a Customer Needs These Features
Cisco 800 Series
• Companies with Cisco IOS-based networks who want to add telecommuters or very small branch offices
• Service providers who offer value-added services to small offices
• VARs who are familiar with Cisco IOS software and want to profitably service small office customers
• Ethernet LAN ports and variety of WAN connectivity, including: ISDN BRI, ADSL, G.SHDSL
• Locations with advanced security and wireless LAN requirements
Key Features
• Fixed configuration support for several types of WAN connections
• Optional standalone IEEE 802.11 b/g wireless LAN access point for 850 and 870 Series
• Standard security with ACLs, PAT/NAT, PAP/CHAP, MS-CHAP, Lock and Key, and
Generic Routing Encapsulation (GRE) tunneling
• Enhanced security with stateful inspection firewall, IPSec encryption (3DES and AES
encryption on Cisco 850 and 870 Series). The Cisco 870 Series also includes security
features like IPS, 802.1x, Dynamic Multipoint VPN (DMVPN), EasyVPN, and URL
filtering
• Out-of-band management and dial backup with an external modem via aux/console port
on the 870 series routers
• Dial backup via integrated ISDN port on the 876
• X.25 over D-channel support on 876
• DMZ interface on all 870 routers. Optional external power injector for Power Over
Ethernet (PoE) on 870 routers
• Integrated 4-port 10/100 Ethernet Switch on Cisco 850 and 870 series
• Bandwidth optimization features such as compression, Bandwidth-on-Demand,
Dial-on-Demand, Always-On-Dynamic-ISDN (AODI), and X.25 over D channel
(Cisco 876)
reliability through Cisco IOS software,
It connects users to the
Specifications
Feature 851 857 871 876 877 878
Fixed LAN Port
Connections
Fixed WAN Port
Connections
Wireless LAN
Wireless Antenna
Maximum VPN
Tunnels
NAC
URL Filtering
Stateful Firewall
Inline IPS
4-port 10/100
Ethernet switch
1-port 10/100
Ethernet
IEEE 802.11 b/g
(“W” model)
Single fixed
antenna
5 5 10101010
No No Yes Yes Yes Yes
No No Yes Yes Yes Yes
Yes Yes Yes Yes Yes Yes
No No Yes Yes Yes Yes
4-port 10/100
Ethernet switch
1-port ADSL, ADSL
2/2+
IEEE 802.11 b/g
(“W” model)
Single fixed
antenna
4-port 10/100
Ethernet switch
1-port 10/100
Ethernet
IEEE 802.11 b/g
(“W” model)
Dual removable
antennas
4-port 10/100
Ethernet switch
1-port
ADSL-over-ISDN,
1-port ISDN S/T
(ADSL, ADSL 2/2+)
IEEE 802.11 b/g
(“W” model)
Dual removable
antennas
4-port 10/100
Ethernet switch
1-port ADSL over
POTS (ADSL, ADSL
2/2+)
IEEE 802.11 b/g
(“W” model)
Dual removable
antennas
4-port 10/100
Ethernet switch
1-port G.SHDSL
IEEE 802.11 b/g
(“W” model)
Dual removable
antennas
Cisco 800 Series
1-5
Page 6
Selected Part Numbers and Ordering Information
Cisco 800 Series Routers
CISCO815-VPN/K9 Cisco 815 ISR, NA DOSCIS Compliant, with Security
CISCO851-K9 Cisco 851 Ethernet to Ethernet Router
CISCO851W-G-A-K9 Cisco 851 Ethernet to Ethernet Wireless Router; Americas
CISCO851W-G-E-K9 Cisco 851 Ethernet to Ethernet Wireless Router; Europe
CISCO851W-G-J-K9 Cisco 851 Ethernet to Ethernet Wireless Router; Japan
CISCO857-K9 Cisco 857 ADSL Router
CISCO857W-G-A-K9 Cisco 857 ADSL Wireless Router; U.S. and Americas
CISCO857W-G-E-K9 Cisco 857 ADSL Wireless Router; Europe
CISCO871-K9 Cisco 871 Ethernet to Ethernet Router
CISCO871W-G-A-K9 Cisco 871 Ethernet to Ethernet Wireless Router; U.S./Americas
CISCO871W-G-E-K9 Cisco 871 Ethernet to Ethernet Wireless Router; Europe
CISCO871W-G-J-K9 Cisco 871 Ethernet to Ethernet Wireless Router; Japan
CISCO876-K9 Cisco 876 ADSL over ISDN Router
CISCO876W-G-E-K9 Cisco 876 ADSL over ISDN Wireless Router
CISCO877-K9 Cisco 877 ADSL Router
CISCO877W-G-A-K9 Cisco 877 ADSL Wireless Router: U.S./Americas
CISCO877W-G-E-K9 Cisco 877 ADSL Wireless Router; Europe
CISCO878-K9 Cisco 878 G.SHDSL Router
CISCO878W-G-A-K9 Cisco 878 G.SHDSL Wireless Router; U.S./Americas
CISCO878W-G-E-K9 Cisco 878 G.SHDSL Wireless Router; Europe
Cisco 800 Series Memory Options
MEM870-4F= Cisco 870 Series 4 MB Flash spare
MEM870-8F= Cisco 870 Series 8 MB Flash spare
MEM870-16F= Cisco 870 Series 16 MB Flash spare
MEM870-32F= Cisco 870 Series 32 MB Flash spare
MEM870-64D= Cisco 870 Series 64 MB SDRAM spare
MEM870-128D= Cisco 870 Series 128 MB SDRAM spare
MEM870-8F-IOSUPG Cisco 870 Series 8 MB Flash and IOS Bundle
Cisco 800 Series Accessories
800-ILPM-4 4 port 802.3af capable Inline power module for 800 Routers
PWR-850-870-WW1= Cisco 850/870 Series, AC Power Supply Spare
Cisco 800 Series Basic Maintenance
CON-SNT-PKG1 Cisco 800 Series SMARTnet Maintenance (8x5xNBD)
1. This is only a small subset of all parts available via URL listed under “For More Information.” Some parts have restricted
access or are not available through distribution channels.
1
1
Chapter 1
For More Information
See the Cisco 800 Series Web site: http://www.cisco.com/go/800
Cisco 1800 Series
Cisco 1800 Series integrated services routers are the next
evolution of the award-winning Cisco 1700 Series modular and
fixed access routers. The Cisco 1800 Series is designed for secure
data connectivity via frame relay, leased line, or broadband access, and wireless local area
networks. It features secure, fast, and high-quality delivery of multiple, concurrent servic es
for small-to-medium-sized businesses and small enterprise branch offices.
When to Sell
Sell This Product When a Customer Needs These Features
Cisco 1801, 1802, 1803
1-6
• Secure data access via broadband DSL
• Primary WAN access via ADSL over POTS (1801), ADSL over ISDN (1802), or G.SHDSL (1803)
• ADSL 2/2+ capability on 1801 and 1802
• Backup WAN interface using ISDN BRI
• Integrated 8-port managed 10/100 Ethernet switch
• Integrated IEEE 802.11 a/b/g wireless LAN (“W” models)
Cisco 1800 Series
Page 7
Chapter 1
Sell This Product When a Customer Needs These Features
Cisco 1811, 1812
Cisco 1841
• Secure data access at broadband rates
• Using 10/100 Ethernet as a WAN access connecting to external DSL or cable modem
• Backup WAN interface using V.92 analog modem (1811) or ISDN BRI (1812)
• Integrated 8-port managed 10/100 Ethernet switch
• Integrated IEEE 802.11 a/b/g wireless LAN (“W” models)
• Secure data access solution for customer environments up to T1/E1/xDSL WAN rates with services turned on
• Modularity for flexibility in WAN configurations
• Support for a broad array of WAN services
• Comprehensive security features
Key Features
• Available with IEEE 802.11 a/b/g wireless access point (Cisco 1801-1812 “W” models,
1841 HWIC-AP part number)
• Modular Cisco 1841 provides flexibility with internal AIM slot designated for higher
speed VPNs and future applications; Provides several slot types to add future connectivity
and services on an “integrate-as-you-grow” basis
• Integrated 8-port 10/100 Ethernet switch with PoE on fixed configuration Cisco
1801-1812. Optional 4-port switch HWIC on Cisco 1841
• Supports the latest Cisco IOS Software-based QoS bandwidth management features
• Advanced device management—using Cisco Router and SDM
• High-performance processor—Supports concurrent deployment of high-performance,
secure data services with headroom for future applications
• Integrated hardware-based encryption acceleration—Offers cryptography accelerator as
standard integrated hardware that can be enabled with an optional Cisco IOS Software for
3DES and AES encryption support
• Security performance enhanced feature set; Offers intrusion prevention system (IPS),
Network Admission Control (NAC), and firewall functions
• Allows LAN segmentation using Virtual LANs (VLANS)
• Integrated standard power supply—Easier router platform installation and management
Specifications
Feature Cisco 1841 Series
Form factor
Target Applications
Chassis
Wall-mountable
Rack-mountable
Dimensions (W x D)
Weight
DRAM
DRAM capacity
Flash memory
Flash memory capacity
Modular slots - total
Modular slots (WAN)
Modular slots (HWICs)
Modular slots (voice)
Desktop, 1-rack-unit (1-RU) height (4.75 cm high with rubber
feet)
Secure data with frame relay or leased line access (T1/E1) Secure data with broadband access and backup
Metal Metal
Yes Yes
Yes (optional 19-in rackmount kit is required) Yes (optional 19-in. rack-mount kit required)
13.5 x 10.8 in. (34.3 x 27.4 cm); Height without rubber feet: 1.73
in. (4.39 cm); Height with rubber feet: 1.87 in. (4.75 cm)
Maximum: 6.2 lb. (2.8 kg); with interface cards and modules;
Minimum: 6.0 lb. (2.7 kg) (no interface cards and modules)
Synchronous dual in-line memory module (DIMM) DRAM Synchronous dual in-line memory module
Default: 128 MB; Maximum: 384 MB Default: 128 MB; Maximum: 384 MB
External removable compact Flash External removable Compact Flash
Default: 32 MB; Maximum: 128 MB Default: 32 MB; Maximum: 128 MB
Two None
Two None
Two None
None: The Cisco 1841 does not support voice None: The Cisco 1800 Series does not support
Cisco 1800 Series
Fixed-Configuration Routers
Desktop, 1-rack-unit (1-RU) high (4.75-cm high
with rubber feet)
WAN
12.74 x 9.7 in. (32.36 x 24.64 cm); Height without
rubber feet: 1.75 in. (4.45 cm); Height with rubber
feet: 1.89 in. (4.80 cm)
Maximum: 6.1 lb. (2.8 kg)
(DIMM) SDRAM (1 DIMM slot)
voice
Cisco 1800 Series
1-7
Page 8
Feature Cisco 1841 Series
VoIP support
ADSL Port
G.SHDSL Port
G. SHDSL DSLAM
Interoperability
Onboard Ethernet ports
Integrated Ethernet Switch
Ports
Onboard USB ports
ISDN S/T BRI Port
V.92 Analog Modem Port
Console port
Auxiliary port
Onboard AIM slots
Packet-voice-DSP-module
(PVDM) slots on motherboard
Integrated H/W-based
encryption on motherboard
Encryption support in
software and hardware by
default
IPSec Tunnels
IPSec VPN Performance
Cisco IOS Firewall
Performance
Wireless LAN Hardware
Wireless LAN features
Data Rates Supported
Range
Voice-over-IP (VoIP) pass-through only Same as 1841
ADSL over POTS, ADSL over ISDN via WAN Interface Card One ADSL over POTS port on Cisco 1801. One
G.SHDSL 2- and 4-wire support via WAN Interface Card One G.SHDSL port on Cisco 1803 supports either
The WIC-1SHDSL-V3 in 2-wire mode is interoperable with
the following DSLAMs: Cisco 6000 Series IP DSL switches;
Alcatel ASAM 7300 (12- and 24-port line cards); ECI HiFocus
SAM 2401 (16-port Metalink-based line cards); Lucent
Stinger FS (32- and 48-port line cards); CopperEdge 200
DSLAM (24-port line cards); The WIC-1SHDSL-V3 in 4-wire
mode is interoperable with the following DSLAMs: Alcatel
ASAM 7300 (12- and 24-port line cards); CopperEdge 200
DSLAM (24-port line cards)
Two 10/100 10/100BASE-T ports for WAN connection
Optional via 4-port Ethernet switch HWIC, up to 15 VLANs Eight 10/100BASE-T fully managed switch ports
One (1.1) Two (USB 2.0) on Cisco 1811 and 1812 only. The
Optional via WAN Interface Card One ISDN S/T BRI port on Cisco 1801, 1802, 1803,
Optional via WAN Interface Card (1 or 2 ports) One analog modem port on Cisco 1811
One: up to 115.2 kbps One—up to 115.2 kbps
One: up to 115.2 kbps One—up to 115.2 kbps
One (internal) None
None: The Cisco 1841 does not support voice None: The Cisco 1800 Series does not support
Yes Yes
DES, 3DES, AES 128, AES 192, AES 256 DES, 3DES, AES 128, AES 192, AES 256
100 with on-board encryption, 800 with VPN AIM 50
40 Mbps 3DES @ 1400 byte packets 40 Mbps 3DES @ 1400 byte packets
100 Mbps @ 1400 byte packets 100 Mbps @ 1400 byte packets
Optional IEEE 802.11 a/b/g or IEEE 802.11 b/g via HWIC IEEE 802.11 a/b/g on wireless models
IEEE 802.11a/b/g; Automatic rate selection for
802.11a/11b/11g; Field-replaceable antennae; External
antenna; Antenna diversity; Wi-Fi Certified for
WPA-Personal and WPA-Enterprise; Default antenna
gain—2.2 dBi
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps; 802.11g: 1, 2, 5.5,
6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
Chapter 1
Cisco 1800 Series
Fixed-Configuration Routers
ADSL over ISDN on Cisco 1802. The Cisco 1801
supports ADSL over POTS standards G.992.1
G.DMT and ANSI T1.413 DMT Issue 2. The Cisco
1802 supports ADSL over ISDN standards ETSI
101-388, U-R2, and G.992.1 G.DMT. The Cisco 1801
is interoperable with the following DSLAMs:
Cisco 6130 and Cisco 6260 IP DSL switches;
Alcatel (ASAM 1000 and 7300); Lucent Stinger
(24- and 72-port line cards); ECI HiFocus (16- and
32-port line cards); The Cisco 1802 is
interoperable with the following DSLAMs: Cisco
6260; Alcatel (ASAM 1000 and 7300); Siemens
(XpressLink 2.0 and XpressLink 2.1); Lucent
Stinger (48-port line cards); ECI HiFocus (16- and
32-port line cards)
2-wire mode or 4-wire mode. The Cisco 1803
supports the same standards as the Cisco
G.SHDSL WIC and is based on ITU
Recommendation G.991.2 (accepted worldwide).
The Cisco 1803 in 2-wire mode is interoperable
with the following DSLAMs: Cisco 6000 Series IP
DSL switches; Alcatel ASAM 7300 (12- and
24-port line cards); ECI HiFocus SAM 2401
(16-port Metalink-based line cards); Lucent
Stinger FS (32- and 48-port line cards);
CopperEdge 200 DSLAM (24-port line cards); The
Cisco 1803 in 4-wire mode is interoperable with
the following DSLAMs: Alcatel ASAM 7300 (12and 24-port line cards); CopperEdge 200 DSLAM
(24-port line cards)
supporting DSL and cable modems and Ethernet
access services. (One port is available on Cisco
1801, 1802, and 1803. Two ports are available on
Cisco 1811 and
with 802.1Q VLAN and 802.3af PoE support. Up to
8 VLANs
Cisco 1801, 1802, and 1803 do not offer USB
support.
and 1812
voice
IEEE 802.11a/b/g; Automatic rate selection for
802.11a/11b/11g; Field-replaceable antennae;
External antenna; Antenna diversity; Wi-Fi
Certified for WPA-Personal and WP A-Enterprise;
Default antenna gain—2.2 dBi
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps;
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54
Mbps
Range—Indoor 1 Mbps at 320 ft.
1-8
Cisco 1800 Series
Page 9
Chapter 1
Feature Cisco 1841 Series
Wireless LAN Software
Features
Wireless LAN Security
Features
SSIDs
Wireless LAN
Management Features
Cisco IOS Software default
Cisco IOS Software default
User Support
Routing Protocols
Routed Protocols
QoS Protocols
Internal system power
supply
Power over Ethernet (PoE)
power supply
Redundant power supply
DC power support
AC input voltage
Frequency
AC input current
Output power
PoE Support
PoE Standards
External PoE Power Supply
System Power Dissipation
Operating temp
Operating humidity
Non operating Temp
Operating altitude
Noise level
Safety
EMI
IEEE 802.1X per-user, per -session mutual authentication with
a variety of extensible authentication protocol (EAP) types
including Cisco LEAP, Protected Extensible Authentication
Protocol (PEAP), and EAP-Transport Layer Security
(EAP-TLS). Preshared Key (PSK) Authentication; MAC
authentication/filter encryption; WPA T emporal Key Integrity
Protocol (TKIP) with support for per-packet key hashing,
message integrity check; Static and dynamic wired
equivalent privacy (WEP) keys of 40 bits and 128 bits;
Additional security features: IEEE 802.1X local
authentication; Configurable limit for the number of wireless
clients; Configurable RADIUS accounting for wireless clients
88
Supported by CiscoWorks 2000, CiscoView and Router, and
Security Device Management (SDM)
GUI-based network management for wireless interface is
provided
IP BASE -12.4(1) 12.3(8)YI
IP Base (security and broadband bundles have image
upgrades)
Up to 50 users (recommended) Up to 50 users (recommended)
BGP, EIGRP, OSPF, RIPv1, RIPv2 BGP, EIGRP, OSPF, RIPv1, RIPv2
IPv4, IPv6 unicast and multicast (Internetwork Packet
Exchange [IPX], IBM SNA, AppleTalk supported with opt ional
Advanced Enterprise Services Feature Set)
Weighted Fair Queuing (WFQ), Class-Based WFQ (CBWFQ),
Weighted Random Early Detection (WRED), Committed
Access Rate (CAR), Resource Reservation Protocol (RSVP),
Network-Based Application Recognition
Yes Yes
None None
No No
No No
100 to 240 VAC 100 to 240 VAC
50 to 60 Hz 50 to 60 Hz
1.5A maximum 1.5A maximum
50W (maximum) 50W (maximum)
Not supported Supported on 10/100 Ethernet switch ports with
None IEEE 802.3af, Cisco Prestandard PoE
None 80W external power supply
153 BTU/hr. 153 BTU/hr.
32 to 104×F (0 to 40×C) 32º to 104ºF (0º to 40ºC)
10 to 85% non condensing operating; 5 to 95% non
condensing, non operating
-4 to 149ºF (-25 to 65ºC) -4º to 149ºF (-25 to 65ºC)
10,000 feet (3000 meters) @ 77ºF (25ºC) 10,000 ft. (3000m) at 77ºF (25ºC)
Normal operating temperature: <78º F/25.6ºC: 34 dBA;
>78ºF/25.6ºC through; 104ºF/40ºC
UL60950-1; CAN/CSA 60950-1; AS 3260; EN60950-1 UL 60950; CAN/CSA C22.2 No. 60950; IEC 60950-1;
EN 55022, 1998, class A; CISPR22, 1997, class A; CFR47, Part
15, Subpart B, 1995, class A; EN61000-3-2 Harmonic Current
Emission (only for equipment >75W but <16A); EN61000-3-3
Voltage Fluctuation and Flicker (only for equipment £16A)
Cisco 1800 Series
Fixed-Configuration Routers
Maximize throughput or maximize range option;
Software-configurable transmit power; Support
for Wi-Fi Multimedia (WMM); Quality of Service
(QoS) for WLANs
IEEE 802.1X per-user, per-session mutual
authentication with a variety of extensible
authentication protocol (EAP) types including
Cisco LEAP , P rotected Extensible Authentication
Protocol (PEAP), and EAP-Transport Layer
Security (EAP-TLS). Preshared Key (PSK)
Authentication; MAC authentication/filter
encryption; WPA T emporal Key Integrity Protocol
(TKIP) with support for per-packet key hashing,
message integrity check; Static and dynamic
wired equivalent privacy (WEP) keys of 40 bits
and 128 bits; Additional security features: IEEE
802.1X local authentication; Configurable limit for
the number of wireless clients; Configurable
RADIUS accounting for wireless clients
Supported by CiscoWorks 2000, CiscoView and
Router, and Security Device Management (SDM)
GUI-based network management for wireless
interface is provided
Advanced IP services (without voice services)
except Cisco 1801 and 1802 which also come
with Cisco IOS IP Broadband
IPv4, IPv6 unicast and multicast (Internetwork
Packet Exchange [IPX], IBM SNA, AppleTalk
supported with optional Advanced Enterprise
Services Feature Set)
Weighted Fair Queuing (WFQ), Class-Based WFQ
(CBWFQ), Weighted Random Early Detection
(WRED), Committed Access Rate (CAR),
Resource Reservation Protocol (RSVP),
Network-Based Application Recognition
optional PoE kit
10 to 85 percent non condensing operating; 5 to
95 percent non condensing, non operating
<80ºF (27ºC): 34 dBA; >80ºF (27ºC) through <104ºF
(40ºC): 36 dBA; >104ºF (40ºC): 42 dBA
EN 60950-1; AS/NZS 60950
CFR 47 Part 15, Class A; ICES-003 Class A;
EN55022 Class A; CISPR22 Class A; AS/NZS 3548;
lass A; VCCI Class A; EN 300386; EN61000-3-2;
EN61000-3-3
Cisco 1800 Series
1-9
Page 10
Chapter 1
Cisco 1800 Series
Feature Cisco 1841 Series
Immunity
Network homologation
Selected Part Numbers and Ordering Information
Cisco 1800 Series (Modular) Integrated Services Routers
CISCO1841 Modular Router w/2xFE, 2 WAN slots, 32 FL/128 DR
CISCO1841-T1 1841 bundle w/WIC-1DSU-T1-V2, IP Base, 32FL/128DR
Cisco 1800 Series (Fixed) Integrated Services Routers
CISCO1801 ADSL/POTS router w/IOS IP Broadband
CISCO1801/K9 ADSL/POTS Router with Firewall/IPS and IPSEC 3DES
CISCO1801-M ADSL over POTS Annex M Router
CISCO1801-M/K9 ADSL over POTS Annex M Router
CISCO1802 ADSL/POTS router w/IOS IP Broadband
CISCO1802/K9 ADSL/ISDN Router with Firewall/IPS and IPSEC 3DES
CISCO1803/K9 G.SHDSL Router with Firewall/IPS and IPSEC
CISCO1811/K9 Dual Ethernet Security Router with V.92 Modem Backup
CISCO1812/K9 Dual Ethernet Security Router with ISDN S/T Backup
Cisco 1800 Series (Fixed Wireless) Integrated Services Router
CISCO1801W-AG-B/K9 ADSL/POTS Router with 802.11a+g China Compliant and Security
CISCO1801W-AG-C/K9 ADSL/POTS Router with 802.11a+g China Compliant and Security
CISCO1801W-AG-E/K9 ADSL/POTS Router with 802.11a+g ETSI Compliant and Security
CISCO1801W-AG-N/K9 ADSL/POTS Router with 802.11a+g Australia/NZ Compliant and Security
CISCO1802W-AG-E/K9 ADSL/ISDN Router with 802.11a+g ETSI Compliant and Security
CISCO1803W-AG-B/K9 G.SHDSL Router with 802.11a+g FCC Compliant and Security
CISCO1803W-AG-E/K9 G.SHDSL Router with 802.11a+g ETSI Compliant and Security
CISCO1811W-AG-B/K9 Security Router with 802.11a+g FCC Compliant and Analog B/U
CISCO1811W-AG-C/K9 Security Router with 802.11a+g China Compliant and Analog B/U
CISCO1811W-AG-N/K9 Security Router with 802.11a+g Australia/NZ Compliant and Analog B/U
CISCO1812W-AG-C/K9 Security Router with 802.11a+g China Compliant and ISDN S/T
CISCO1812W-AG-E/K9 Security Router with 802.11a+g ETSI Compliant and ISDN S/T
Cisco 1800 Series (modular) Security bundles
CISCO1841-SEC/K9 1841 Security Bundle,Adv.Security,64FL/256DR
CISCO1841-HSEC/K9 1841 Security bundle w/AIM-VPN,Adv.IP Svcs,64FL/256DR
CISCO1841-T1SEC/K9 1841 Security Bundle w/ WIC-1DSU-T1-V2, Adv.Sec.,64FL,256DR
Cisco 1800 Series (modular) Broadband bundles
CISCO1841-ADSL 1841 ADSLoPOTS Bdle, IP Broadband,32FL/128DR
CISCO1841-ADSL-DG 1841 ADSLoPOTS w/dying gasp Bundle, IP Broadband, 32FL/128DR
CISCO1841-ADSLI 1841 ADSLoISDN Bundle, IP Broadband, 32FL/128DR
CISCO1841-SHDSL-V3 1841 G.shdsl 4-wire Bundle, includes WIC-1SHDSL-V3,IP Broadband, 32 MB flash/128 MB DRAM
CISCO1841-ADSL2 1841 bundle, HWIC-1ADSL, IP BB, 32F/128D
CISPR24, 1997 ITE-Immunity characteristics, Limits and
methods of measurement; EN 55024,1998 ITE-Immunity
characteristics, Limits and methods of measurement;
EN50082-1, 1997 Electromagnetic compatibility Generic
immunity standard, Part 1 EN 300 386, 1997
Telecommunications network equipment EMC requirements;
The requirements are covered by the following standards:
IEC 61000-4-2:1995 Immunity to Electrostatic Discharges; IEC
61000-4-3:1995 Immunity to Radio Frequency
Electromagnetic Fields; IEC 61000-4-4:1995 Immunity to
Electrical Fast Transients; IEC 61000-4-5:1995 Immunity to
Power Line Transients (Surges); IEC 61000-4-6:1996 Immunity
to Radio Frequency Induced Conducted Disturbances; IEC
61000-4-11:1995 Immunity to Voltage Dips, Voltage Variations,
and Short Voltage Interruptions
USA: TIA-968-A, T1.TRQ.6-2001; Canada: CS-03; European
Union: RTTE Directive 5/99; Argentina: CTR 21; Australia:
AS/ACIF S002, S003, S016, S031, 3043; Brazil: 225-540-788,
CTR3, 225-100-717 Edition 3, NET 001/92 1990; China:
ITU-G.992.1, ITU-G.992.1, ITU-G.991.2, CTR3, ITU I.431 1993;
Hong Kong: HKTA 2033, HKTA 2033, HKTA 2014, HKTA 2017
Issue 3 2003, HKTA 2011 Issue 1, HKTA 2011 Issue 2, HKTA
2013 Issue 1; India: I_DCA_18_02_Jun_99-199, S/ISN-01/02
Issue 1999 S/ISN-02 1 1998, IR/PRI-01/02 Issue 1 1998,
S/INT-2W/02 MAY 2001, S/INT-2W/02 MAY 2001; Israel: U.S.
approval accepted; Japan: Technical condition (DoC
acceptance in process); Korea: U.S. approval accepted;
Mexico: U.S. approval accepted; New Zealand: PTC 270/272,
CTR 3, ACA 016 Revision 4 1997, PTC 200; Singapore: IDA TS
ADSL1 Issue 1, IDA TS ADSL 2, IDA TS HDSL, IDA TS ISDN 1
Issue 1 1999, IDA TS ISDN 3 Issue 1 1999, IDA TS PSTN 1
Issue 4, IDA TS PSTN 1 Issue 4, IDA TS PSTN 1 Issue 4; South
Africa: U.S. approval accepted; Taiwan: U.S. approval
accepted
1
1
Fixed-Configuration Routers
EN300386; EN55024(CISPR24); EN61000-4-2;
EN61000-4-3; EN41000-4-4; EN41000-4-5;
EN41000-4-6; EN41000-4-8; EN41000-4-11;
EN50082-1; EN61000-6-2; ITU-T K.21
Telecom compliance standards depend upon
country and interface type. Interfaces comply
with FCC Part 68, CS-03, JATE Technical
Conditions, European Directive 99/5/EC, and
relevant Technical Basis for Regulation (TBRs).
For specific information, refer to the data sheet
for the specific interface card. Homologation
requirements vary by country and interface type.
For specific country information, refer to the
online approvals database. Cisco 1801, 1802,
1803, and 1812 ISDN BRI S/T: TIA-968-A; IC CS-03
Part VI; JATE Technical Requirements; TBR3;
S031
1-10
Cisco 1800 Series
Page 11
Chapter 1
CISCO1841-ADSL2-B 1841 bundle, HWIC-ADSL-B/ST,IP BB,32F/128D
CISCO1841-2SHDSL 1841 2-pair G.SHDSL bundle, HWIC-2SHDSL, IP Base, 64F/128D
CISCO1841-4SHDSL 1841 4-pair G.SHDSL bundle, HWIC-4SHDSL, IP Base, 64F/128D
Cisco 1841 WAN Interface Cards
WIC-1T 1-Port Serial WAN Interface Card
WIC-2T 2-Port Serial WAN Interface Card
WIC-2A/S 2-Port Async/Sync Serial WAN Interface Card
WIC-1AM One-port Analog Modem WAN Interface Card
WIC-2AM Two-port Analog Modem WAN Interface Card
WIC-1DSU-56K4 1-port 4-WIRE 56/64 KBPS WAN INTERFACE CARD
WIC-1ADSL 1-port ADSL WAN Interface Card
WIC-1ADSL-DG 1-port ADSLoPOTS WIC with Dying Gasp
WIC-1ADSL-I-DG 1-port ADSLoISDN Wan Interface Card
WIC-1SHDSL-V3 1-Port G.SHDSL WIC with 2- and 4-wire support
WIC-1B-S/T-V3 1-Port ISDN WAN Interface Card (dial and leased line)
WIC-1B-U-V2 1-Port ISDN BRI NT-1 WIC
WIC-BLANK-PANEL= Blank WAN Interface Card Panel
WIC-1DSU-T1-V2 Updated 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card
Cisco 1841 High Speed WAN Interface Cards
HWIC-1ADSL 1-port ADSLoPOTS HWIC
HWIC-1ADSLI 1-port ADSLoISDN HWIC
HWIC-ADSL-B/ST 2-port HWIC w/ 1-port ADSLoPOTS and 1-port ISDN BRI-S/T
HWIC-ADSLI-B/ST 2-port HWIC w/ 1-port ADSLoISDN and 1-port ISDN BRI-S/T
HWIC-4ESW 4-port 10/100 Ethernet switch interface card
HWIC-4A/S 4-Port Async/Sync Serial HWIC
HWIC-8A/S-232 8-Port Async/Sync Serial HWIC, EIA-232
HWIC-8A 8-Port Async HWIC
Cisco 1841 Wireless WAN HWIC
HWIC-3G-GSM 3G WirelessWAN HWIC supporting GPRS/EDGE/UMTS/HSDPA (Global SKU)
HWIC-3G-CDMA-V 3G WirelessWAN HWIC supporting 1xRTT, EVDO Rev A/Rel 0 (Verizon SKU)
HWIC-3G-CDMA-S 3G WirelessWAN HWIC supporting 1xRTT, EVDO Rev A/Rel 0 (Sprint SKU)
Cisco 1841 Wireless HWICs and Accessories
HWIC-AP-G-A Cisco 802.11 B/G Access Point High Speed Wan Interface Card for the Americas (FCC configuration)
HWIC-AP-G-E Cisco 802.11 B/G Access Point High Speed Wan Interface Card for Europe (ETSI configuration)
HWIC-AP-G-J Cisco 802.11 B/G Access Point High Speed Wan Interface Card for Japan (TELEC configuration)
HWIC-AP-AG-A Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for the Americas (FCC configuration)
HWIC-AP-AG-E Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for Europe (ETSI configuration)
HWIC-AP-AG-J Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for Japan (TELEC configuration)
AIR-ANT4941 2.2 dBi Cisco Aironet 2.4 GHz Swivel mount dipole
AIR-ANT5959 2 dBi Cisco Aironet 2.4 GHz Diversity omni-directional ceiling mount patch
AIR-ANT1728 5.2dBi Cisco Aironet 2.4 GHz Omni-directional ceiling mount
AIR-ANTM2050D-R (2.2 dBi Cisco 2.4 Ghz and 5.0 dBi 5 GHz) Dual band Swivel mount dipole antenna
AIR-ANTM5560P-R (5.5 dBi Cisco 2.4 Ghz and 6.0 dBi 5 GHz) Dual band Wall-mount patch antenna
AIR-ANTM4050V-R (4.0 dBi Cisco 2.4 Ghz and 5.0 dBi 5 GHz) Dual band Diversity Ceiling-mount omnidirectional antenna
AIR-CAB020LL-R 20-ft. (6m) low-loss cable with RP-TNC connectors
AIR-CAB050LL-R 50-ft. (15m) low-loss cable with RP-TNC connectors
AIR-CAB100ULL-R 100 ft. (30m) ultra-low-loss cable with RP-TNC connectors
AIR-CAB150ULL-R 150-ft. (46m) ultra-low-loss cable with RP-TNC connector
Cisco 1841 Multiflex Voice/WAN Interface Cards
VWIC-1MFT-E1 1-Port RJ-48 Multiflex Trunk - E1
VWIC-2MFT-E1 2-Port RJ-48 Multiflex Trunk - E1
VWIC-2MFT-E1-DI 2-Port RJ-48 Multiflex Trunk - E1 With Drop and Insert
VWIC-1MFT-T1 1-Port RJ-48 Multiflex Trunk - T1
VWIC-2MFT-T1 2-Port RJ-48 Multiflex Trunk - T1
VWIC-2MFT-T1-DI 2-Port RJ-48 Multiflex Trunk - T1 With Drop and Insert
VWIC-1MFT-G703 1-Port RJ-48 Multiflex Trunk - G.703
VWIC-2MFT-G703 2-Port RJ-48 Multiflex Trunk - G.703
VWIC2-1MFT-T1/E1 1-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - T1/E1
VWIC2-2MFT-T1/E1 2-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - T1/E1
VWIC2-1MFT-G703 1-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - G.703
VWIC2-2MFT-G703 2-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - G.703
Cisco 1841 Advanced Integration Modules
AIM-VPN/BPII-PLUS DES/3DES/AES VPN Encryption/Compression
AIM-VPN/SSL-1 DES/3DES/AES/SSL VPN Encryption/Compression
Cisco 1800 Series
1-11
Page 12
Chapter 1
Cisco 1800 Series Flash Memory Options
MEM1800-32CF= 32MB Cisco 1800 Compact Flash spare
MEM1800-64CF= 64MB Cisco 1800 Compact Flash Memory spare
MEM1800-128CF= 128MB Cisco 1800 Compact Flash Memory spare
MEM1800-32U64CF 32 to 64MB Cisco 1800 Compact Flash factory upgrade
MEM1800-64U128CF 64 to 128 MB Cisco 1800 Compact Flash factory upgrade
MEM1800-32U128CF 32 to 128 MB Cisco 1800 Compact Flash factory upgrade
Cisco 1800 Series USB Memory Options
MEMUSB-64FT= 64MB USB Flash Token for Cisco 1800/2800/3800 series spare
MEMUSB-128FT= 128MB USB Flash Token for Cisco 1800/2800/3800 series spare
MEMUSB-256FT= 256MB USB Flash Token for Cisco 1800/2800/3800 series spare
Cisco 1800 Series DRAM Memory Options
MEM1841-64D= 64MB SODIMM DRAM for Cisco 1841 spare
MEM1841-128D= 128MB SODIMM DRAM for the Cisco 1841 spare
MEM1841-256D= 256MB SODIMM DRAM for the Cisco 1841 spare
MEM1841-128U192D 128 to 192MB SODIMM DRAM factory upgrade for the Cisco 1841
MEM1841-128U256D 128 to 256MB SODIMM DRAM factory upgrade for the Cisco 1841
MEM1841-128U384D 128 to 384MB SODIMM DRAM factory upgrade for the Cisco 1841
MEM1841-256U384D 256 to 384MB SODIMM DRAM factory upgrade for the Cisco 1841
Cisco 1800 Series Spares and Accessories
PWR-184X-AC= Cisco 184X AC standard power supply spare
ACS-184X= Accessory Kit for Cisco 184X spare
ACS-1841-RM-19= Rackmount kit for 1841 spare
SW-CONFIG-1800-001 Configuration of software via CCO for 1800 series
CX-CUSTOM-BUILD Please complete this P.O. via CX Tool
Cisco 1800 Series (modular) Software CD Feature Packs
CD18-AISK9= CISCO 1841 ADVANCED IP SERVICES Feature Pack spare
CD18-ASK9= CISCO 1841 ADVANCED SECURITY Feature Pack spare
CD18-AESK9= CISCO 1841 ADVANCED ENTERPRISE SERVICES Feature Pack spare
CD18-BB= CISCO 1841 IP Broadband Feature Pack spare
CD18-EB= CISCO 1841 ENTERPRISE BASE Feature Pack spare
CD18-ESK9= CISCO 1841 ENTERPRISE SERVICES Feature Pack spare
CD18-IPB= CISCO 1841 IP BASE Feature Pack spare
CD18-SPSK9= CISCO 1841 SP SERVICES Feature Pack spare
184-SW-SPARECD Cisco 184X Series Software Spare CD
Cisco 1800 Series IOS Upgrade Licenses
FL18-AISK9-AESK9= Cisco 1841 Adv IP Ser to Adv Ent Ser Upgrade SW feature lic spare
FL18-ASK9-AISK9= Cisco 1841 Adv Sec to Adv IP Ser Upgrade SW feature lic spare
FL18-EB-ESK9= Cisco 1841 Ent Base to Ent Ser Upgrade SW feature lic spare
FL18-ESK9-AESK9= Cisco 1841 Ent Ser to Adv Ent Ser Upgrade SW feature lic spare
FL18-SPSK9-AISK9= Cisco 1841 SP Ser to Adv IP Ser Upgrade SW feature lic spare
FL18-SPSK9-ESK9= Cisco 1841 SP Ser to Ent Ser Upgrade SW feature lic spare
FL18-IPB-ASK9= Cisco 1800 IP BASE to Adv Sec Upgrade SW feature lic spare
FL18-IPB-EB= Cisco 1800 IP BASE to Ent Base Upgrade SW feature lic spare
FL18-CB= Corvil Bandwidth Feature License for 1800 Series spare
Cisco 1800 (Fixed) Series DRAM Memory Options
MEM180X-128U256D 128 to 256MB SODIMM DRAM factory upgrade for the Cisco 180X
MEM181X-128U256D 128 to 256MB SODIMM DRAM factory upgrade for the Cisco 181X
MEM180X-128D= 128MB SODIMM DRAM for the Cisco 1841 spare
MEM181X-128D= 128MB SODIMM DRAM for the Cisco 181X spare
Cisco 1800 (Fixed) Series PoE Options
POE-180X= 802.3af PoE Module, 80W Power Supply and Cable spare
POE-181X= 802.3af PoE Module, 80W Power Supply and Cable spare
Cisco 1800 (Fixed) Series Rack Mount Kit
ACS-1800-RM-19= 19 inch Rack Mount Kit for Cisco 180X / 181X spare
Cisco 1800 (fixed & mod)-802.11 a/g Antennae Options-Spares
AIR-ANTM2050D-R= 2.2dBi/2.4Ghz,5.0dBi/5GHz DualBand Dipole Antenna spare
AIR-ANTM4050V-R= 4.0dBi/2.4Ghz,5.0 dBi/5GHz Dual Band Ceiling Mount Antenna spare
AIR-ANTM5560P-R= 5.5 dBi/2.4Ghz,6.0 dBi/5GHz Dual Band Wall Mount Antenna spare
1. This is only a small subset of all parts available via URL listed under “For More Information.” Some parts have restricted
access or are not available through distribution channels. Resellers: For latest part number and pricing info, see the
Distribution Product Reference Guide at: http://www.cisco.com/dprg (limited country availability).
For More Information
See the Cisco 1800 Series Web site: http://www.cisco.com/go/ISR
1-12
Cisco 1800 Series
Page 13
Chapter 1
Cisco 2800 Series
The Cisco 2800 Series Integrated Services Routers offer
performance improvements, increased security and voice
performance, new embedded service options, and increased slot performance and density . It
maintains support for most existing interface cards and modules available for the Cisco
1700 Series and Cisco 2600 Series routers. Comprised of four platforms: the Cisco 2801,
the Cisco 2811, the Cisco 2821, and the Cisco 2851 router, the Cisco 2800 Series features
the ability to deliver multiple high-quality simultaneous services at wire speed at up to
multiple T1/E1/xDSL connections. Wireless LAN Controller Modules are a component of
the Cisco Unified Wireless Network.
When to Sell
Sell This Product When a Customer Needs These Features
Cisco 2800
Key Features
• Modular architecture—A wide variety of LAN and WAN options are available. Network
interfaces can be upgraded in the field to accommodate future technologies; Several types
of slots are available to add connectivity and services in the future on an
“integrate-as-you-grow” basis
• Embedded security hardware acceleration—embedded hardware cryptography
accelerators, which when combined with an optional Cisco IOS Software upgrade help
enable WAN link security and VPN services
• Integrated dual Fast Ethernet or Gigabit Ethernet ports—Provides two 10/100 Ethernet
ports on the Cisco 2801 and Cisco 2811 and two 10/100/1000 Ethernet ports on the Cisco
2821 and Cisco 2851
• HWIC slots with enhanced functions including wireless LAN access points; Dual AIM
slots; Packet voice DSP module (PVDM) slots on motherboard
• IP Telephony solutions enable an all-in-one VoIP solution with Cisco Call Manager
Express, telephony interfaces, and Cisco Unity Express for voice mail and auto-attendant
functions
• On board hardware-based encryption for DES, 3DES, AES, and onboard slots for
PVDMs, and they all include high-speed Ethernet interfaces
• Support for an optional dedicated security AIM
• EzVPN eases administration and management of point-to-point VPNs by pushing new
security policies from a single headend to remote sites
• DSP modules deliver support for analog and digital voice, conferencing, tran scoding, and
secure Real-Time Transport Protocol (RTP) applications
• Network Admission Control (NAC)—A Cisco Self-Defending Network initiative seeks to
dramatically improve the ability of networks to identify, prevent, and adapt to threats by
allowing network access only to compliant and trusted endpoint devices
• Optional integrated power supply for distribution of PoE
• Real-time clock support
• Customer needs a solution that has a lower total cost of ownership compared to multiple separate devices
• Performance and densities for concurrent data, security, voice, and advanced services up to multiple T1/E1/xDSL
connections
• VPN connections, or plan to migrate to them over time
• Integrated security services which enable network device protection, threat defense, secure connectivity, and
endpoint protection and control
• Secure integrated call processing, voice mail, flexible telephony interfaces, redundancy for centralized call
processing, or robust DSP support, including local conferencing and transcoding
• Wireless support via integrated IEEE 802.11 a/b/g standalone access point HWICs
• Integrated Layer 2 switching capability in densities from 4 port to 48 port and the ability to utilize Cisco StackWise
connectivity.
Cisco 2800 Series
1-13
Page 14
Competitive Products
• Juniper: J Series
• 3Com: SuperStack II NETBuilder SI and Pathbuilder S400, 5000 & 6000
Series
• Intel/Shiva: LanRover Family
• Motorola: Vanguard 645x/643x
Specifications
Chapter 1
• Nortel/Bay: Advanced Remote Node (ARN), Passport 4400 series
• Tasman: 2004, 1400
• Huawei: AR2800
Feature Cisco 2801 Cisco 2811 Cisco 2821 Cisco 2851
Fixed USB 1.1 ports
Onboard LAN ports
Onboard AIM (internal)
slot
Interface card slots
Network-module slot
Extension Voice
Module Slot
PVDM (DSP) slots on
motherboard
Integrated
hardware-based
encryption
Optional PoE
Console port
(up to 115.2 kbps)
Auxiliary port
(up to 115.2 kbps)
Minimum Cisco IOS
Software release
Rack mounting
Wall mounting
AC input voltage
AC input frequency
AC input current
AC input surge current
AC-IP max in-line
power distribution
AC-IP input current
AC-IP input surge
current
DC input voltage
DC input current
Power dissipation— AC
without PoE support
Power dissipation— AC
with PoE-IP phones
Power dissipation— DC
Redundant Power
Support (RPS)
Recommended RPS unit
1 2 Same As Cisco 2811 Same As Cisco 2811
2 - 10/100 Same As Cisco 2801 2 - 10/100/1000 Same As Cisco 2821
2 Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
4 slots; 2 slots support HWIC,
WIC, VIC, or VWIC type
modules
1 slot supports WIC, VIC, or
VWIC type modules
1 slot supports VIC or VWIC
type modules
No 1 slot, supports NM and NME
0 Same As Cisco 2801 1 Same As Cisco 2821
2 Same As Cisco 2801 3 Same As Cisco 2821
Yes Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
Yes, requires AC-IP system
power supply
1 Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
1 Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
12.3(8)T4 Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
Yes, 19-inch Yes, 19- and 23-in. options Same As Cisco 2811 Same As Cisco 2811
No Yes Same As Cisco 2801 Same As Cisco 2801
100 to 240 VAC Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
47-63 Hz Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
2A (110V); 1A (230V) Same As Cisco 2801 3A (110V); 2A (230V) Same As Cisco 2821
50A maximum, one cycle
(-48V power included)
120W 160W 240W 360W
4A (110V); 2A (230V) Same As Cisco 2801 8A (110V); 4A (230V) Same As Cisco 2821
50A maximum, one cycle
(–48V power included)
No DC Power Option
available
No DC Power Option
available
150W (511 BTU/hr.) 170W (580 BTU/hr.) 280W (955 BTU/hr.) Same As Cisco 2821
180W (612 BTU/hr.) 160W (546 BTU/hr.) 240W (819 BTU/hr.) Same As Cisco 2821
Not applicable 180W (614 BTU/hr.) 300W (1024 BTU/hr.) Same As Cisco 2821
No External only, connector for
No RPS option Cisco RPS-675 Redundant
4 slots, each slot can support HWIC, WIC, VIC, or VWIC type modules
type modules
Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
24 to 60 VDC, autorunning
positive or negative
8A (24V)
3A (60V)
Startup current 5A<10 ms
RPS provided by default
Power System
1 slot, supports NM, NME
and NME-X type modules
Same As Cisco 2811 Same As Cisco 2811
12A (24V)
5A (60V)
Startup current 50A<10 ms
Same As Cisco 2811 Same As Cisco 2811
Same As Cisco 2811 Same As Cisco 2811
1 slot, supports NM, NME,
NME-X, and NME-XD type
modules
Same As Cisco 2821
1-14
Cisco 2800 Series
Page 15
Chapter 1
Feature Cisco 2801 Cisco 2811 Cisco 2821 Cisco 2851
Operating temp
Operating humidity
Non operating temp
Dimensions
(H x W x D)
Rack height
Weight (configured)
Noise level (min/max)
Safety
Immunity
EMC
TELCOM
Selected Part Numbers and Ordering Information
Cisco 2800 Series Router
CISCO2801 Integrated services router with AC power, 2FE, 4 Interface Card Slots, 2 PVDM slots, 2 AIMs, and Cisco IOS IP
CISCO2801-AC-IP Integrated services router with AC power including Inline power distribution capability, 2FE, 4 Interface Card
CISCO2811 Integrated services router with AC power, 2FE, 1 NME, 4 HWICs, 2 PVDM slots, 2 AIMs, and Cisco IOS IP Base
CISCO2811-16TS Cisco 2811 With HWIC-16A Terminal Server Bundle
CISCO2811-AC-IP Integrated services router with AC power including Inline power distribution capability, 2FE, 1 NME, 4 HWICs, 2
CISCO2811-DC Integrated services router with DC power, 2FE, 1 NME, 4 HWICs, 2 PVDM slots, 2 AIMs, and Cisco IOS IP Base
CISCO2821 Integrated services router with AC power, 2GE, 1 NME-X, 1 EVM, 4 HWICs, 2 PVDM slots, 2 AIMs, and Cisco IOS
CISCO2821-AC-IP Integrated services router with AC power including inline power distribution capability, 2GE, 1 NME-X, 1 EVM, 4
CISCO2821-DC Integrated services router with DC power, 2GE, 1 NME-X, 1 EVM, 4 HWICs, 3 PVDM slots, 2 AIMs, and Cisco IOS
CISCO2851 Dual Gigabit Ethernet integrated services router with AC power, 2GE, 1 NME-XD, 1 EVM, 4 HWICs, 3 PVDM slots,
CISCO2851-AC-IP Integrated services router with AC power including inline power distribution capability, 2GE, 1 NME-XD, 1 EVM, 4
CISCO2851-DC Integrated services router with DC power, 2GE, 1 NME-XD, 1 EVM, 4 HWICs, 3 PVDM slots, 2 AIMs, and Cisco IOS
Cisco 2800 Series Security Bundles
CISCO2801-SEC/K9 2801 Security Bundle,Adv Security,64F/256D
CISCO2801-HSEC/K9 2801 Bundle w/AIM-VPN/SSL-2,Adv. IP Serv,10 SSL lic,64F/256D
CISCO2811-SEC/K9 2811 Security Bundle,Adv Security,64F/256D
CISCO2811-HSEC/K9 2811 Bundle w/AIM-VPN/SSL-2,Adv. IP Serv,10 SSL lic,64F/256D
CISCO2821-SEC/K9 2821 Security Bundle,Adv Security,64F/256D
CISCO2821-HSEC/K9 2821 Bundle w/AIM-VPN/SSL-2,Adv. IP Serv,10 SSL lic,64F/256D
CISCO2851-SEC/K9 2851 Security Bundle,Adv Security,64F/256D
CISCO2851-HSEC/K9 2851 Bundle w/AIM-VPN/SSL-2,Adv. IP Serv,10 SSL lic,64F/256D
Cisco 2800 Series Voice Bundles
CISCO2801-V/K9 2801 Voice Bundle,PVDM2-8,SP Serv,64F/256D
CISCO2801-CCME/K9 2801 Voice Bundle w/ PVDM2-8,FL-CCME-24, SP Serv,64F/256D
CISCO2801-SRST/K9 2801 Voice Bundle w/ PVDM2-8,FL-SRST-24,SP Serv,64F/256D
CISCO2811-V/K9 2811 Voice Bundle,PVDM2-16,SP Serv,64F/256D
CISCO2811-CCME/K9 2811 Voice Bundle w/ PVDM2-16,FL-CCME-36,SP Serv,64F/256D
CISCO2811-SRST/K9 2811 Voice Bundle w/ PVDM2-16,FL-SRST-36,SP Serv,64F/256D
CISCO2821-V/K9 2821 Voice Bundle,PVDM2-32,SP Serv,64F/256D
32 to 104ºF; (0 to 40ºC) Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
10 to 85% non condensing 5 to 95%, non condensing Same As Cisco 2811 Same As Cisco 2811
N/A –4 to 149°F (–20 to 65°C) Same As Cisco 2811 Same As Cisco 2811
1.72 x 17.5 x 16.5 in.
(43.7 x 445 x 419 mm.)
1 rack unit (1-RU) 1 rack unit (1-RU) 2-RU Same As Cisco 2821
13.7 lb. (6.2 kg) 14 lb. (6.4 kg) 25 lb. (11.4 kg) Same As Cisco 2821
39 dBA for normal operating
temperature (<90°F/32.2°C)
53.5 dBA (@ maximum fan
speed)
UL 60950
CAN/CSA C22.2 No. 60950
IEC 60950
EN 60950-1
AS/NZS 60950
EN300386
EN55024/CISPR24
EN50082-1
EN61000-6-2
FCC Part 15; ICES-003 Class A; EN55022 Class A; CISPR22 Class A; AS/NZS 3548 Class A; VCCI Class A
EN 300386; EN61000-3-3; EN61000-3-2
Telecom compliance standards depend upon country and interface type. Interfaces comply with FCC Part 68, CS-03,
JATE Technical Conditions, European Directive 99/5/EC and relevant TBRs. See the datasheet for the specific
interface card.
1.75 x 17.25 x 16.4 in.
(44.5 x 438.2 x 416.6 mm.)
47 dBA for normal operating
temperature (<90°F/32.2°C)
57 dBA (@ maximum fan
speed)
Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
Same As Cisco 2801 Same As Cisco 2801 Same As Cisco 2801
3.5 x 17.25 x 16.4 in.
(88.9 x 438.2 x 416.6 mm.)
44 dBA for normal operating temperature (<90°F/32.2°C)
53 dBA (@ maximum fan speed)
Same As Cisco 2821
1
1
Base Software
Slots, 2 PVDM slots, 2 AIMs, and Cisco IOS IP Base Software
Software
PVDM slots, 2 AIMs, and Cisco IOS IP Base Software
Software
IP Base Software
HWICs, 3 PVDM slots, 2 AIMs, and Cisco IOS IP Base Software
IP Base Software
2 AIMs, and Cisco IOS IP Base Software
HWICs, 3 PVDM slots, 2 AIMs, and Cisco IOS IP Base Software
IP Base Software
Cisco 2800 Series
1-15
Page 16
CISCO2821-CCME/K9 2821 Voice Bundle w/ PVDM2-32,FL-CCME-48,SP Serv,64F/256D
CISCO2821-SRST/K9 2821 Voice Bundle w/ PVDM2-32,FL-SRST-48,SP Serv,64F/256D
CISCO2851-V/K9 2851 Voice Bundle,PVDM2-48,SP Serv,64F/256D
CISCO2851-CCME/K9 2851 Voice Bundle w/ PVDM2-48,FL-CCME-96,SP Serv,64F/256D
CISCO2851-SRST/K9 2851 Voice Bundle w/ PVDM2-48,FL-SRST-96,SP Serv,64F/256D
Cisco 2800 Series Secure Voice Bundles
C2801-VSEC-CCME/K9 2801 VSEC Bundle w/PVDM2-8,FL-CCME-24,Adv IP Serv,64F/256D
C2801-VSEC-SRST/K9 2801 VSEC Bundle w/PVDM2-8,FL-SRST-24,Adv IP Serv,64F/256D
C2811-VSEC-CCME/K9 2811 VSEC Bundle w/PVDM2-16,FL-CCME-36,Adv IP Serv,64F/256D
C2811-VSEC-SRST/K9 2811 VSEC Bundle w/PVDM2-16,FL-SRST-36,Adv IP Serv,64F/256D
C2821-VSEC-CCME/K9 2821 VSEC Bundle w/PVDM2-32,FL-CCME-48,Adv IP Serv,64F/256D
C2821-VSEC-SRST/K9 2821 VSEC Bundle w/PVDM2-32,FL-SRST-48,Adv IP Serv,64F/256D
C2851-VSEC-CCME/K9 2851 VSEC Bundle w/PVDM2-48,FL-CCME-96,Adv IP Serv,64F/256D
C2851-VSEC-SRST/K9 2851 VSEC Bundle w/PVDM2-48,FL-SRST-96,Adv IP Serv,64F/256D
C2801-VSEC/K9 2801 Voice Security Bundle,PVDM2-8,Adv IP Serv,64F/256D
C2811-VSEC/K9 2811 Voice Security Bundle,PVDM2-16,Adv IP Serv,64F/256D
C2821-VSEC/K9 2821 Voice Security Bundle,PVDM2-32,Adv IP Serv,64F/256D
C2851-VSEC/K9 2851 Voice Security Bundle,PVDM2-48,Adv IP Serv,64F/256D
CISCO2801-V3PN/K9 2801 V3PN bdl,AIM-VPN,PVDM2-8,FL-CCME-24,Adv IPServ,64F/256D
CISCO2811-V3PN/K9 2811 V3PN bdle w/AIM-VPN,PVDM2-16,CCME-36,AdvIPServ,64F/256D
CISCO2821-V3PN/K9 2821 V3PN bdle w/AIM-VPN,PVDM2-32,CCME-48,AdvIPServ,64F/256D
CISCO2851-V3PN/K9 2851 V3PN bdle w/AIM-VPN,PVDM2-48,CCME-72,AdvIPServ,64F/256D
CISCO-FIPS-KIT= Tamper Proof for 80/18/28/38/72/73 Routers and ASA
C2821-BIAB-24/K9 CISCO2821-AC-IP,24-port switch,AIM-CUE,PVDM2-32,AISK9
Cisco 2851/2800 WAN Optimization Bundles
CISCO2821-AA/K9 Cisco 2821 Basic Wan Optimization Bundle
C2811-WAE-302/K9 2811, NME-WAE-302-K9,WAAS Trans,IPBase,64F/256D
CISCO2811-WAE/K9 2811, NME-WAE-502-K9,WAAS Trans,IPBase,64F/256D
CISCO2821-WAE/K9 2821, NME-WAE-502/K9,WAAS Trans,IPBase,128F/256D
CISCO2851-WAE/K9 2851, NME-WAE-502-K9,WAAS Trans,IPBase,128F/256D
CISCO2821-SAA/K9 Cisco 2821 Secure Wan Optimization Bundle
CISCO2851-AA/K9 Cisco 2851 Basic Wan Optimization Bundle
CISCO2851-SAA/K9 Cisco 2851 Secure Wan Optimization Bundle
Ethernet Switching Network Modules
NME-16ES-1G 16-port EtherSwitch Service Mod 10/100T + 1 GE,IP Base
NME-16ES-1G-P 16-port EtherSwitch Service Mod 10/100T POE + 1 GE,IP Base
NME-X-23ES-1G 23-port EtherSwitch Service Mod 10/100T + 1 GE POE, IP Base
NME-X-23ES-1G-P 23-port EtherSwitch Service Mod 10/100T POE + 1 GE POE, IP Base
NM-16ESW 16-port 10/100 Cisco EtherSwitchÆ Network Module
NM-16ESW-1GIG 16-port 10/100 Cisco EtherSwitch Network Module with 1 Gigabit Ethernet (1000BASE-T) port
NM-16ESW-PWR 16-port 10/100 Cisco EtherSwitch Network Module with in-line power support
NM-16ESW-PWR-1GIG 16-port 10/100 Cisco EtherSwitch Network Module with in-line power and Gigabit Ethernet
NME-XD-24ES-1S-P 24-port EtherSwitch Service Mod 10/100 w/ POE + 1 SFP + Stackwise interfaces
NME-XD-48ES-2S-P 48-port EtherSwitch Service Mod 10/100 w/ POE + 2 SFP
Serial Connectivity Network Modules
NM-1T3/E3 1-port clear-channel T3/E3 network module
NM-1HSSI 1-port High-Speed Serial Interface (HSSI) network module
NM-4A/S 4-port asynchronous/synchronous serial network module
NM-8A/S 8-port asynchronous/synchronous serial network module
NM-16A/S 16-port asynchronous/synchronous serial network nodule
NM-16A 16-port asynchronous serial network module
NM-32A 32-port asynchronous serial network module
Channelized T1/E1 and ISDN Network Modules
NM-1CE1T1-PRI 1-port Channelized E1/T1/ISDN PRI network module
NM-2CE1T1-PRI 2-port Channelized E1/T1/ISDN PRI network module
NM-4B-S/T 4-port ISDN BRI network module (S/T interface)
NM-4B-U 4-port ISDN BRI network module with integrated Network Termination 1 (NT1) (U interface)
NM-8B-S/T 8-port ISDN BRI network module (S/T interface)
NM-8B-U 8-port ISDN BRI network module with integrated NT1 (U interface)
ATM Network Modules
NM-1A-T3 1-port DS-3 ATM network module
NM-1A-E3 1-port E3 ATM network module
Analog Dialup and Remote Access Network Modules
NM-8AM-V2 8-port analog modem network module with v.92
NM-16AM-V2 16-port analog modem network module with v.92
Chapter 1
1-16
Cisco 2800 Series
Page 17
Chapter 1
Voice Network Modules and Accessories
NM-HD-1V 1-slot IP Communications voice and fax network module
NM-HD-2V 2-slot IP Communications voice and fax network module
NM-HD-2VE 2-slot IP Communications enhanced voice and fax network module
NM-HDA-4FXS High-density analog voice and fax network module with 4 FXS slots
NM-HDV2 IP Communications high-density voice and fax network module
NM-HDV2-1T1/E1 1-port T1/E1 IP Communications high-density voice and fax network module
NM-HDV2-2T1/E1 2-port T1/E1 IP Communications high-density voice and fax network module
NM-HDV= High-density voice and fax network module (single VIC slot)
Application Network Modules
NME-WAE-302-K9 WAAS Network Module For 2800, 3800 ISR - 512 MB RAM, 80GB HDD
NME-WAE-502-K9 WAAS Network Module For 2800, 3800 ISR - 1GB RAM, 120GB HDD
NM-CE-BP-40G-K9 Cisco Content Engine Network Module, basic performance, 40-GB IDE hard disk
NM-CE-BP-80G-K9 Cisco Content Engine Network Module, basic performance, 80-GB IDE hard disk
NM-CIDS-K9 Cisco IDS Network Module
NM-CUE Cisco Unity Express Voice-Mail Network Module; price includes 12-mailbox license
NM-CUE-EC Cisco Unity Express Network Module Enhanced Capacity; price includes 12-mailbox license
NM-NAM Cisco series Network Analysis Module Enhanced Network Module
NME-NAM-80S Cisco Branch Routers Series Network Analysis Module
NM-AON-K9 Cisco 2800/3800 Series AON Enhanced Network Module
NM-AIR-WLC6-K9 6-AP WLAN Controller NM for Cisco 2800 and 3800 Series
NME-AIR-WLC8-K9 8-AP WLAN Controller NM for Cisco 2800 and 3800 Series
NME-AIR-WLC12-K9 12-AP WLAN Controller NM for Cisco 2800 and 3800 Series
Wireless LAN Controller Modules
NM-AIR-WLC6-K9 WLAN Controller Module for up to 6 lightweight access points 2800/3800 ISR
NME-AIR-WLC8-K9 WLAN Controller Module for up to 8 lightweight access points 2800/3800 ISR
NME-AIR-WLC12-K9 WLAN Controller Module for up to 12 lightweight access points 2800/3800 ISR
Circuit Emulation Service over IP (CESoIP) Network Modules
NM-CEM-4SER 4-port serial CESoIP network module
NM-CEM-4T1E1 4-port T1/E1 CESoIP network module
Extension Voice Modules
EVM-HD-8FXS/DID High-density voice and fax extension module - 8 FXS or DID
Ethernet Switching HWICs
HWIC-4ESW 4-port single-wide 10/100BASE-T Ethernet switch HWIC
HWIC-D-9ESW 9-port double-wide 10/100BASE-T Ethernet switch HWIC
HWIC-4ESW-POE 4-port Ethernet switch HWIC, PoE capable
HWIC-D-9-ESW-POE 9-port Ethernet switch HWIC, PoE capable
Ethernet HWICs
HWIC-1FE 1-port 10/100 Routed Port HWIC
HWIC-1GE-SFP GigE High Speed WIC With One SFP Slot
Wireless LAN HWICs and Accessories
HWIC-3G-GSM 3GWWAN HWIC-HSDPA/UMTS/EDGE/GPRS-850/900/1800/1900/2100MHz
HWIC-3G-CDMA-V 3G WWAN HWIC-EVDO Rev A/Rel 0/1xRTT-800/1900MHz
HWIC-3G-CDMA-S 3G WWAN HWIC-EVDO Rev A/Rel 0/1xRTT-800/1900MHz
HWIC-AP-G-A Cisco 802.11 B/G Access Point High Speed Wan Interface Card for the Americas (FCC configuration)
HWIC-AP-G-E Cisco 802.11 B/G Access Point High Speed Wan Interface Card for Europe (ETSI configuration)
HWIC-AP-G-J Cisco 802.11 B/G Access Point High Speed Wan Interface Card for Japan (TELEC configuration)
HWIC-AP-AG-B Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for the Americas (FCC configuration)
HWIC-AP-AG-E Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for Europe (ETSI configuration)
HWIC-AP-AG-P Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for Japan (TELEC 5 GHz)
HWIC-AP-AG-N Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for Japan (5Ghz Australia/NZ)
AIR-ANT4941 2.2 dBi Cisco Aironet 2.4 GHz Swivel mount dipole
AIR-ANT5959 2 dBi Cisco Aironet 2.4 GHz Diversity omni-directional ceiling mount patch
AIR-ANT1728 5.2dBi Cisco Aironet 2.4 GHz Omni-directional ceiling mount
AIR-ANTM2050D-R (2.2 dBi Cisco 2.4 Ghz and 5.0 dBi 5 GHz) Dual band Swivel mount dipole antenna
AIR-ANTM5560P-R (5.5 dBi Cisco 2.4 Ghz and 6.0 dBi 5 GHz) Dual band Wall-mount patch antenna
AIR-ANTM4050V-R (4.0 dBi Cisco 2.4 Ghz and 5.0 dBi 5 GHz) Dual band Diversity Ceiling-mount omnidirectional antenna
AIR-CAB020LL-R 20-ft. (6m) low-loss cable with RP-TNC connectors
AIR-CAB050LL-R 50-ft. (15m) low-loss cable with RP-TNC connectors
AIR-CAB100ULL-R 100 ft. (30m) ultra-low-loss cable with RP-TNC connectors
AIR-CAB150ULL-R 150-ft. (46m) ultra-low-loss cable with RP-TNC connector
NM-1VSAT-GILAT Cisco IP VSAT Satellite WAN Network Module
Wireless WAN HWIC
HWIC-3G-GSM 3G WirelessWAN HWIC supporting GPRS/EDGE/UMTS/HSDPA (Global SKU)
HWIC-3G-CDMA-V 3G WirelessWAN HWIC supporting 1xRTT, EVDO Rev A/Rel 0 (Verizon SKU)
HWIC-3G-CDMA-S 3G WirelessWAN HWIC supporting 1xRTT, EVDO Rev A/Rel 0 (Sprint SKU)
Cisco 2800 Series
1-17
Page 18
Serial WICs and HWICs
HWIC-4T 4-Port Serial HWIC
HWIC-4A/S 4-Port Async/Sync Serial HWIC
HWIC-8A/S-232 8-Port Async/Sync Serial HWIC, EIA-232
HWIC-8A 8-Por t Async HWIC
HWIC-16A 16-Port Async HWIC
WIC-1T 1-port high-speed serial WIC
WIC-2T 2-port high-speed serial WIC
WIC-2A/S 2-port asynchronous/synchronous serial WIC
CSU/DSU WICs
WIC-1DSU-T1-V2 1-port T1/Fractional-T1 DSU/CSU WIC
WIC-1DSU-56K4 1-port 4-wire 56-/64-kbps CSU/DSU WIC
ISDN BRI WICs and HWICs
WIC-1B-U-V2 1-port ISDN BRI with integrated NT1 (U interface)
WIC-1B-S/T-V3 1-port ISDN BRI with S/T interface
HWIC-ADSL-B/ST HWIC w/ADSLoPOTS and ISDN BRI ports
HWIC-ADSLI-B/ST HWIC w/ADSLoISDN and ISDN BRI ports
DSL WICs and HWICs
WIC-1ADSL 1-port asymmetric DSL (ADSL) over basic-telephone-service WIC
WIC-1ADSL-DG 1-port ADSL over basic telephone service with dying-gasp WIC
WIC-1ADSL-I-DG 1-port ADSL over ISDN with dying-gasp WIC
HWIC-1ADSL 1-port ADSLoPOTS HWIC
HWIC-1ADSLI 1-port ADSLoISDN HWIC
HWIC-ADSL-B/ST HWIC w/ADSLoPOTS and ISDN BRI ports
HWIC-ADSLI-B/ST HWIC w/ADSLoISDN and ISDN BRI ports
HWIC-1ADSL-M 1 port ADSLoPOTS HWIC with Annex M mode capability
WIC-1SHDSL-V3 1-port G.shdsl WIC (two or four wire)
HWIC-2SHDSL 2-pair G.SHDSL HWIC
HWIC-4SHDSL 4-pair G.SHDSL HWIC w IMA
HWIC-CABLE-D-2 1-Port DOCSIS 2.0 Cable Modem HWIC
HWIC-CABLE-E/J-2 1-Port Euro DOCSIS 2.0 Cable HWIC
Analog Modem WICs
WIC-1AM-V2 1-port analog modem WIC
WIC-2AM-V2 2-port analog modem WIC
T1, E1, and G.703 Multiflex Trunk Voice Cards and WICs
VWIC2-1MFT-T1/E1= 1-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - T1/E1 spare
VWIC2-2MFT-T1/E1= 2-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - T1/E1 spare
VWIC2-1MFT-G703= 1-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - G.703 spare
VWIC2-2MFT-G703= 2-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - G.703 spare
EC-MFT-32= 32-Channel Multiflex Trunk Dedicated ECAN Module
EC-MFT-64= 64-Channel Multiflex Trunk Dedicated ECAN Module
VWIC-1MFT-T1 1-port RJ-48 multiflex trunk - T1
VWIC-2MFT-T1 2-port RJ-48 multiflex trunk - T1
VWIC-2MFT-T1-DI 2-port RJ-48 multiflex trunk - T1 with drop and insert
VWIC-1MFT-E1 1-port RJ-48 multiflex trunk - E1
VWIC-2MFT-E1 2-Port RJ-48 multiflex trunk - E1
VWIC-2MFT-E1-DI 2-Port RJ-48 multiflex trunk - E1 with drop and insert
VWIC-1MFT-G703 1-port RJ-48 multiflex trunk - G.703
VWIC-2MFT-G703 2-port RJ-48 multiflex trunk - G.703
VWIC-2T1/E1-RAN 2-Port RJ-48 T1/E1 Protection Switching RAN/ITP/SLT WIC
VICs
VIC-2DID 2-port DID voice and fax interface card
VIC-4FXS/DID 4-port FXS or DID VIC
VIC2-2FXS 2-port VIC - FXS
VIC2-2FXO 2-port VIC - FXO (universal)
VIC2-4FXO 4-port VIC - FXO (universal)
VIC2-2E/M 2-port VIC - E&M
VIC2-2BRI-NT/TE 2-port VIC card - BRI (NT and TE)
AIMs
AIM-ATM High-performance ATM SAR AIM
AIM-ATM-4T1= AIM-ATM with 2 VWIC-2MFT-T1 spare
AIM-ATM-4E1 AIM- ATM with 2 VWIC-2MFT-E1
AIM-CUE Cisco Unity Express Voice-Mail AIM
AIM-VPN/EPII-PLUS Enhanced-performance DES, 3DES, AES, and compression VPN encryption AIM
AIM-VPN/SSL-2 DES/3DES/AES/SSL VPN Encryption/Compression
Chapter 1
1-18
Cisco 2800 Series
Page 19
Chapter 1
PVDM Support on Motherboard Slots
PVDM2-8 8-channel fax and voice DSP module
PVDM2-16 16-channel fax and voice DSP module
PVDM2-32 32-channel fax and voice DSP module
PVDM2-48 48-channel fax and voice DSP module
PVDM2-64 64-channel fax and voice DSP module
PVDM2-12DM 12 Port Digital Modem Module
PVDM2-24DM 24 Port Digital Modem Module
PVDM2-36DM 36 Port Digital Modem Module
1. This is only a small subset of all parts available via URL listed under “For More Information”. Some parts have restricted
access or are not available through distribution channels. Resellers: For latest part number and pricing info, see the
Distribution Product Reference Guide at: http://www.cisco.com/dprg (limited country availability).
For More Information
See the Cisco 2800 Series Web site: http://www.cisco.com/go/2800
Cisco 3800 Series
The Cisco 3800 Series is the flagship platform in a portfolio of
next-generation routers that integrate advanced technologies, adaptive
services, wireless support, and secure enterprise communications.
These new routers offer the performance and reliable packet delivery necessary to efficiently
deliver mission-critical network capabilities, including real-time applications such as VoIP,
business video, and collaborative communications. Arch itectural enhancements include embedd ed
security processing, significant platform performance and memory improvements, and new
high-density interface type s.
Unified Wireless Network.
When to Sell
Sell this Product When a Customer Needs These Features
Cisco 3825
Cisco 3845
• Medium- to large-sized branch offices and businesses with the ability to support concurrent data, security, voice,
and advanced services at wire speed up to ½ T3/E3 rates
• Two onboard 10/100/1000, 4 HWIC slots and one SFP port
• Low density (up to 88 ports), integrated 10/100 switching; up to 360W Cisco Inline Power or PoE
• Integrated onboard security acceleration for IPSec for improved IPSec performance and an integral part of Cisco
Self Defending Network, which enable network device protection, threat defense, secure connectivity, and
endpoint protection and control
• Up to four Integrated PVDMs slots, industry-leading call processing and autoattendant solutions, and high-density
voice cards and modules that speed IP Communications and give customers a choice of telephony interface
devices
Same features as above plus:
• Medium- to large-sized branch offices and businesses providing the highest performance and densities for
concurrent data, security, voice, and advanced services with the ability to run at wire-speed up to T3/E3
• 4 Enhanced Network Module slots
• Up to 112 ports integrated 10/100 switching; up to 360W redundant Cisco in-line power or PoE
• Higher availability and resiliency, such as redundant system and inline power, online insertion and removable (OIR)
components, and field replaceable components such as the cpu motherboard and fan assembly
Wireless LAN Controller Modules are a component of the Cisco
Key Features
• Cisco IOS Software Firewall—Stateful, application-based filtering (context-based access
control); Per-user authentication and authorization; Real-time alerts; Transparent
firewall; IPv6 firewall
• VPN—Data Encryption Standard (DES), Triple DES (3DES), and Advanced Encryption
Standard (AES) 128, 192, and 256 cryptology support; Embedded hardware-based VPN
acceleration on the motherboard; Support for optional higher-performance AIM-based
security acceleration with Layer 3 compression; Support for up to 1800 tunnels with VPN
Module; Cisco Easy VPN remote and server support; DMVPN
• Multiprotocol Label Switching (MPLS) VPN support—Specific provider edge
capabilities; Virtual routing and forwarding (VRF) firewall and VRF IPSec
• Onboard USB 1.1 port(s)—Future support for secure token and Flash memory
Cisco 3800 Series
1-19
Page 20
Chapter 1
• IPS—More than 700 IPS signatures supported in Cisco IOS Software, with the ability to
load and enable selected IPS signatures; More than 1000 IPS signatures with optional
high-performance IDS Network Module
• URL filtering—Onboard with an optional content-engine network module; Local URL
filtering in Cisco IOS Software based on external server
• Cisco Router and SDM—Comes standard on all Cisco 3800 Series routers
• IP phone support—Optional integrated power supply with inline power; 802.3af
support—360W of inline power
• Analog voice support—Up to 88 FXS and 56 FXO ports; Digital voice support—Up to
720 calls; Packet voice digital signal processor (DSP) module (PVDM) slots on
motherboard—4 PVDM slots on motherboard; Local conferencing and transcoding;
• Cisco CME—Up to 240 phones; SRST—Up to 720 phones
• Voice mail—Up to a 120 mailboxes using Cisco Unity Express network module
• Voice interfaces—FXS, FXO, Direct Inward Dial (DID), E&M, Centralized Automated
Message Accounting (CAMA), BRI, T1, E1, J1, Primary Rate Interface (PRI), Q.SIG,
channel associated signaling (CAS)
Specifications
Feature Cisco 3825 Cisco 3845
Network Module Slots
Advanced Integration Module (AIM) Slots
High speed WAN Interface Card (HWIC) Slots
10/100/1000 GE Ports
Small Form Pluggable (SFP) ports
Onboard PVDM slots
WAN Network Modules
ATM AIM Modules
Voice/Fax Network Modules
WAN Interface Card (WIC) Modules
Multiflex Voice/WAN Interface Cards
Voice Interface Card (VIC) Modules
Modem Modules
EtherSwitch Modules
Performance with Services
VPN/Security Advanced Integration Modules
(AIM)
Content Engine Network Modules
Flash Memory (External)
DRAM Memory
Power Supply
Dimensions (H x W x D)
Selected Part Numbers and Ordering Information
Cisco 3800 Series Integrated Services Routers
CISCO3825 Cisco 3825 Integrated Services Router with 2 Gigabit Ethernet, 1 SFP, 2 NME, 4 HWIC, 2 AIM, Cisco IOS IP Base
CISCO3825-AC-IP Cisco 3825 Integrated Services Router with 2 Gigabit Ethernet, 1 SFP, 2 NME, 4 HWIC, 2 AIM, Cisco IOS IP Base
CISCO3825-DC Cisco 3825 Integrated Services Router with 2 Gigabit Ethernet, 1 SFP, 2 NME, 4 HWIC, 2 AIM, Cisco IOS IP Base
CISCO3845 Cisco 3845 Integrated Services Router with 2 Gigabit Ethernet, 1 SFP, 4 NME, 4 HWIC, 2 AIM, Cisco IOS IP Base
CISCO3845-AC-IP Cisco 3845 Integrated Services Router with 2 Gigabit Ethernet, 1 SFP, 4 NME, 4 HWIC, 2 AIM, Cisco IOS IP Base
CISCO3845-DC Cisco 3845 Integrated Services Router with 2 Gigabit Ethernet, 1 SFP, 2 NME, 4 HWIC, 2 AIM, Cisco IOS IP Base
software, and AC power
software, AC Power, and PoE
software, and DC power
software, and AC power
software, AC Power, and PoE
software, and DC power
24
2 Same As Cisco 3825
4 Same As Cisco 3825
2 Same As Cisco 3825
1 Same As Cisco 3825
4 Same As Cisco 3825
Yes Same As Cisco 3825
Yes Same As Cisco 3825
Yes Same As Cisco 3825
Yes Same As Cisco 3825
Yes Same As Cisco 3825
Yes Same As Cisco 3825
Yes Same As Cisco 3825
Yes, HWIC and Network Modules Same As Cisco 3825
Up to 14 T1/E1ís Up to T3
Yes, AIM-VPN/EPII-PLUS Yes, AIM-VPN/EPII-PLUS
Yes Same As Cisco 3825
64 MB (default) -256 MB (optional) Same As Cisco 3825
256 MB (default) - 1024 MB (max) Same As Cisco 3825
AC, AC +POE, DC, external redundant AC AC, DC, internal redundant AC + POE
3.5 x 17.1 x 14.7 in. 5.25 x 17.25 x 16 in.
1
1
1-20
Cisco 3800 Series
Page 21
Chapter 1
Cisco 3800 Series WAN Optimization Bundles
CISCO3825-AA/K9 Cisco 3825 WAN Optimization Bundle, NM-CE-BP-80G-K9, AIM-COMPR4, IP Base, 64MB Flash, 256MB DRAM
CISCO3825-SAA/K9 Cisco 3825 WAN Optimization Bundle, NM-CE-BP-80G-K9, AIM-COMPR4, AIM-VPN/EPII-PLUS, IP Base, 64MB Flash,
CISCO3845-AA/K9 Cisco 3845 WAN Optimization Bundle, NM-CE-BP-80G-K9, AIM-COMPR4, IP Base, 64MB Flash, 256MB DRAM
CISCO3845-SAA/K9 Cisco 3845 WAN Optimization Bundle, NM-CE-BP-80G-K9, AIM-COMPR4, AIM-VPN/HPII-PLUS, IP Base, 64MB Flash,
Cisco 3800 Series Secure Voice Bundles
CISCO3845-V3PN/K9 Cisco 3845 V3PN Bundle with IOS Advanced IP Services, PVDM2-64, AIM-VPN/HPII-PLUS, FL-CCME (240 users), 64
CISCO3825-V3PN/K9 Cisco 3825 V3PN Bundle with IOS Advanced IP Services, PVDM2-64, AIM-VPN/EPII-PLUS, FL-CCME (168 users), 128
C3845-VSEC/K9 3845 Voice Security Bundle, PVDM2-64,Adv IP Services, 128MB Flash/512MB DRAM
C3825-VSEC/K9 3825 Voice Security Bundle, PVDM2-64,Adv IP Services, 128MB Flash/512MB DRAM
C3845-VSEC-CCME/K9 3845 VSEC Bundle, PVDM2-64, FL-CCME-240, Adv IP Services, 128MB Flash/512MB DRAM
C3825-VSEC-CCME/K9 3825 VSEC Bundle, PVDM2-64, FL-CCME-168, Adv IP Services, 128MB Flash/512MB DRAM
C3845-VSEC-SRST/K9 3845 VSEC Bundle, PVDM2-64, FL-SRST-240, Adv IP Services,128MB Flash/512MB DRAM
C3825-VSEC-SRST/K9 3825 VSEC Bundle, PVDM2-64, FL-SRST-168, Adv IP Services, 128MB Flash/512MB DRAM
C3825-BIAB-24/K9 CISCO3825-AC-IP, 24-port EtherSwitch, AIM CUE, PVDM2-64, CCME-SMALL, SCUE-LIC-25CME, Adv IP Services,
C3845-BIAB-24/K9 CISCO3845-AC-IP, 24-port EtherSwitch, NM CUE, PVDM2-64, CCME-SMALL, SCUE-LIC-25CME, Adv IP Services,
C3845-BIAB-48/K9 CISCO3845-AC-IP, 48-port EtherSwitch, NM CUE, PVDM2-64, CCME-MEDIUM, SCUE-LIC-50CME, Adv IP Services,
Cisco 3800 Series Security Bundles
CISCO3845-SEC/K9 Cisco 3845 Security Bundle with IOS Advanced Security, 64MB Flash/256 MB DRAM
CISCO3845-HSEC/K9 Cisco 3845 Security Bundle with IOS Advanced IP Services, AIM-VPN/HPII Plus, 128MB Flash/512 MB DRAM
CISCO3825-SEC/K9 Cisco 3825 Security Bundle with IOS Advanced Security, 64MB Flash/256MB DRAM
CISCO3825-HSEC/K9 Cisco 3825 Security Bundle with IOS Advanced IP Services, AIM-VPN/EPII Plus, 128MB Flash/512 MB DRAM
Cisco 3800 Series Voice Bundles
CISCO3845-V/K9 Cisco 3845 Voice Bundle with IOS SP Services, PVDM2-64, 64 MB Flash/256 MB DRAM
CISCO3845-SRST/K9 Cisco 3845 Voice Bundle with IOS SP Services, PVDM2-64, FL-SRST (240 users), 64 MB Flash/256 MB DRAM
CISCO3845-CCME/K9 Cisco 3845 Voice Bundle with IOS SP Services, PVDM2-64, FL-CCME (240 users), 64 MB Flash/256 MB DRAM
CISCO3825-V/K9 Cisco 3825 Voice Bundle with IOS SP Services, PVDM2-64, 64 MB Flash/256 MB DRAM
CISCO3825-SRST/K9 Cisco 3825 Voice Bundle with IOS SP Services, PVDM2-64, FL-SRST (168 users), 64 MB Flash/256 MB DRAM
CISCO3825-CCME/K9 Cisco 3825 Voice Bundle with IOS SP Services, PVDM2-64, FL-CCME (168 users), 64 MB Flash/256 MB DRAM
Cisco 3800 Series WAAS Optimization Bundles
CISCO3825-WAE/K9 3825, NME-WAE-502/K9,WAAS Trans,IPBase,128F/512D
CISCO3845-WAE/K9 3845, NME-WAE-502/K9,WAAS Trans,IPBase,128F/512D
Ethernet Switching Network Modules
NME-16ES-1G-P= EtherSwitch Service Mod 16 10/100T POE + 1 GE,IP Base
NME-X-23ES-1G-P= EtherSwitch Service Mod 23 10/100T POE + 1 GE POE, IP Base
NM-16ESW 16-port 10/100 Cisco EtherSwitchý Network Module
NM-16ESW-1GIG 16-port 10/100 Cisco EtherSwitch Network Module with 1 Gigabit Ethernet (1000BASE-T) port
NM-16ESW-PWR 16-port 10/100 Cisco EtherSwitch Network Module with in-line power support
NM-16ESW-PWR-1GIG 16-port 10/100 Cisco EtherSwitch Network Module with in-line power and Gigabit Ethernet
NMD-36ESW 36-port 10/100 Cisco EtherSwitch High-Density Services Module (HDSM)
NMD-36ESW-2GIG 36-port 10/100 Cisco EtherSwitch HDSM with 1 Gigabit Ethernet (1000BASE-T) port
NMD-36ESW-PWR 36-port 10/100 Cisco EtherSwitch HDSM with in-line power support
NMD-36ESW-PWR-2G 36-port 10/100 Cisco EtherSwitch HDSM with in-line power and Gigabit Ethernet
NME-XD-24ES-1S-P 24 10/100 w/ POE + 1 SFP + Stackwise interfaces
NME-XD-48ES-2S-P 48 10/100 w/ POE + 2 SFP
Serial Connectivity Network Modules
NM-1T3/E3 1-port clear-channel T3/E3 network module
NM-1HSSI 1-port High-Speed Serial Interface (HSSI) network module
NM-4A/S 4-port asynchronous/synchronous serial network module
NM-8A/S 8-port asynchronous/synchronous serial network module
NM-16A/S 16-port asynchronous/synchronous serial network nodule
NM-16A 16-port asynchronous serial network module
NM-32A 32-port asynchronous serial network module
NM-4T 4-Port Serial Network Module
Channelized T1/E1 and ISDN Network Modules
NM-1CE1T1-PRI 1-port Channelized E1/T1/ISDN PRI network module
NM-2CE1T1-PRI 2-port Channelized E1/T1/ISDN PRI network module
NM-4B-S/T 4-port ISDN BRI network module (S/T interface)
NM-4B-U 4-port ISDN BRI network module with integrated Network Termination 1 (NT1) (U interface)
NM-8B-S/T 8-port ISDN BRI network module (S/T interface)
NM-8B-U 8-port ISDN BRI network module with integrated NT1 (U interface)
256MB DRAM
256MB DRAM
MB Flash/256 MB DRAM
MB Flash/512 MB DRAM
128MB Flash/512MB DRAM
128MB Flash/512MB DRAM
128MB Flash/512MB DRAM
Cisco 3800 Series
1-21
Page 22
ATM Network Modules and Transceiver Modules
NM-1A-T3 1 -port DS-3 ATM network module
NM-1A-E3 1-port E3 ATM network module
NM-1A-OC3-POM ATM OC3 module with single POM (SFP) slot
SFP-OC3-MM OC3/STM1 SFP, Multi-mode fiber
SFP-OC3-IR1 OC3/STM1 SFP, Single-mode fiber, Intermediate Reach
SFP-OC3-LR1 OC3/STM1 SFP, Single-mode fiber, Long Reach (40km)
Analog Dialup and Remote Access Network Modules
NM-8AM-V2 8-port analog modem network module with v.92
NM-16AM-V2 16-port analog modem network module with v.92
Digital Modem and Remote Access Network Modules
NM-6DM 6 Port Digital Modem Network Module
NM-12DM 12 Port Digital Modem Network Module
NM-18DM 18 Port Digital Modem Network Module
NM-24DM 24 Port Digital Modem Network Module
NM-30DM 30 Port Digital Modem Network Module
MICA-6MOD= 6 Port Digital Modem Module, Spare
LAN/WAN Mixed Media Network Modules
NM-1FE1R2W 1 10/100 Ethernet 1 4/16 Token-Ring 2 WAN Card Slot NM
NM-1FE2W-V2 1 10/100 Ethernet with 2 WAN Card Slot Network Module
NM-1FE2W-V2 2 10/100 Ethernet with 2 WAN Card Slot Network Module
NM-1GE 1 Port Gigabit Ethernet Network Module
Voice Network Modules and Accessories
NM-HD-1V 1-slot IP Communications voice and fax network module
NM-HD-2V 2-slot IP Communications voice and fax network module
NM-HD-2VE 2-slot IP Communications enhanced voice and fax network module
NM-HDA-4FXS High-density analog voice and fax network module with 4 FXS slots
NM-HDV2 IP Communications high-density voice and fax network module
NM-HDV2-1T1/E1 1-port T1/E1 IP Communications high-density voice and fax network module
NM-HDV2-2T1/E1 2-port T1/E1 IP Communications high-density voice and fax network module
NM-HDV= High-density voice and fax network module (single VIC slot)
NM-HDV-1T1-12 1-port 12-channel T1 voice and fax network module
NM-HDV-1T1-24 1-port 24-channel T1 voice and fax network module
NM-HDV-1T1-24E Single-port 24-enhanced-channel T1 voice and fax network module
NM-HDV-2T1-48 2-port 48-channel T1 voice and fax network module
NM-HDV-1E1-12 1-port 12-channel E1 voice and fax network module
NM-HDV-1E1-30 1-port 30-channel E1 voice and fax network module
NM-HDV-1E1-30E 1-port 30-enhanced-channel E1 voice and fax network module
NM-HDV-2E1-60 2-port 60-channel E1 voice and fax network module
NM-HDV-1J1-30 1-port 30-channel J1 high-density voice network module
NM-HDV-1J1-30E 1-port 30-enhanced-channel J1 high-density voice network module
NM-HDV-FARM-C36 36-port transcoding and conferencing DSP farm
NM-HDV-FARM-C54 54-port transcoding and conferencing DSP farm
NM-HDV-FARM-C90 90-port transcoding and conferencing DSP farm
Application Network Modules
NME-WAE-302/K9 WAAS ISR NME (ONLY TRANSPORT SUPPORTED) 512MB RAM, 80GB HDD
NME-WAE-502/K9 WAAS Network Module For 2800, 3800 ISR - 1GB RAM, 120GB HDD
NM-CE-BP-40G-K9 Cisco Content Engine Network Module, basic performance, 40-GB IDE hard disk
NM-CE-BP-80G-K9 Cisco Content Engine Network Module, basic performance, 80-GB IDE hard disk
NM-CIDS-K9 Cisco IDS Network Module
NM-CUE Cisco Unity Express Voice-Mail Network Module; price includes 12-mailbox license
NM-CUE-EC Cisco Unity Express Network Module Enhanced Capacity; price includes 12-mailbox license
NM-NAM Cisco series Network Analysis Module Network Module
NM-AON-K9 Cisco 2600/2800/3700/3800 Series AON Network Module
NM-AIR-WLC6-K9 WLAN controller Network Module for 28/38xx ISR
Wireless LAN Controller Modules
NM-AIR-WLC6-K9 WLAN Controller Module for up to 6 lightweight access points 2800/3800 ISR
NME-AIR-WLC8-K9 WLAN Controller Module for up to 8 lightweight access points 2800/3800 ISR
NME-AIR-WLC12-K9 WLAN Controller Module for up to 12 lightweight access points 2800/3800 ISR
Circuit Emulation Service over IP (CESoIP) Network Modules
NM-CEM-4SER 4-port serial CESoIP network module
NM-CEM-4T1E1 4-port T1/E1 CESoIP network module
Extension Voice Modules
EVM-HD-8FXS/DID High-density voice and fax extension module - 8 FXS or DID
Chapter 1
1-22
Cisco 3800 Series
Page 23
Chapter 1
Ethernet Switching HWICs
HWIC-4ESW 4-port single-wide 10/100BASE-T Ethernet switch HWIC
HWIC-D-9ESW 9-port double-wide 10/100BASE-T Ethernet switch HWIC
HWIC-4ESW-POE 4-port Ethernet switch HWIC, PoE capable
HWIC-D-9-ESW-POE 9-port Ethernet switch HWIC, PoE capable
Gigabit Ethernet HWICs
HWIC-1GE-SFP GigE High Speed WIC With One SFP Slot
Wireless WAN HWICs and Accessories
HWIC-3G-CDMA-S 3G WWAN HWIC-EVDO Rev A/Rel 0/1xRTT-800/1900MHz
HWIC-CDMA-CDMA-V 3G WWAN HWIC-EVDO Rev A/Rel 0/1xRTT-800/1900MHz
HWIC-3G-GSM 3GWWAN HWIC-HSDPA/UMTS/EDGE/GPRS-850/900/1800/1900/2100MHz
HWIC-AP-G-A Cisco 802.11 B/G Access Point High Speed Wan Interface Card for the Americas (FCC configuration)
HWIC-AP-G-E Cisco 802.11 B/G Access Point High Speed Wan Interface Card for Europe (ETSI configuration)
HWIC-AP-G-J Cisco 802.11 B/G Access Point High Speed Wan Interface Card for Japan (TELEC configuration)
HWIC-AP-AG-A Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for the Americas (FCC configuration)
HWIC-AP-AG-E Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for Europe (ETSI configuration)
HWIC-AP-AG-J Cisco 802.11 A/B/G Access Point High Speed Wan Interface Card for Japan (TELEC configuration)
AIR-ANT4941 2.2 dBi Cisco Aironet 2.4 GHz Swivel mount dipole
AIR-ANT5959 2 dBi Cisco Aironet 2.4 GHz Diversity omni-directional ceiling mount patch
AIR-ANT1728 5.2dBi Cisco Aironet 2.4 GHz Omni-directional ceiling mount
AIR-ANTM2050D-R (2.2 dBi Cisco 2.4 Ghz and 5.0 dBi 5 GHz) Dual band Swivel mount dipole antenna
AIR-ANTM5560P-R (5.5 dBi Cisco 2.4 Ghz and 6.0 dBi 5 GHz) Dual band Wall-mount patch antenna
AIR-ANTM4050V-R (4.0 dBi Cisco 2.4 Ghz and 5.0 dBi 5 GHz) Dual band Diversity Ceiling-mount omnidirectional antenna
AIR-CAB020LL-R 20-ft. (6m) low-loss cable with RP-TNC connectors
AIR-CAB050LL-R 50-ft. (15m) low-loss cable with RP-TNC connectors
AIR-CAB100ULL-R 100 ft. (30m) ultra-low-loss cable with RP-TNC connectors
AIR-CAB150ULL-R 150-ft. (46m) ultra-low-loss cable with RP-TNC connector
Serial WICs and HWICs
HWIC-4T 4-Port Serial HWIC
HWIC-4A/S 4-Port Async/Sync Serial HWIC
HWIC-8A/S-232 8-Port Async/Sync Serial HWIC, EIA-232
HWIC-8A 8-Port Async HWIC
HWIC-16A 16-Port Async HWIC
WIC-1T 1-port high-speed serial WIC
WIC-2T 2-port high-speed serial WIC
WIC-2A/S 2-port asynchronous/synchronous serial WIC
CSU/DSU WICs
WIC-1DSU-T1-V2 1-port T1/Fractional-T1 DSU/CSU WIC
WIC-1DSU-56K4 1-port 4-wire 56-/64-kbps CSU/DSU WIC
ISDN BRI WICs
WIC-1B-U-V2 1-port ISDN BRI with integrated NT1 (U interface)
WIC-1B-S/T-V3 1-port ISDN BRI with S/T interface
DSL and Cable WICs and HWICs
WIC-1ADSL 1-port asymmetric DSL (ADSL) over basic-telephone-service WIC
WIC-1ADSL-DG 1-port ADSL over basic telephone service with dying-gasp WIC
WIC-1ADSL-I-DG 1-port ADSL over ISDN with dying-gasp WIC
HWIC-1ADSL 1-port ADSLoPOTS HWIC
HWIC-1ADSLI 1-port ADSLoISDN HWIC
WIC-1SHDSL-V3 1-port G.shdsl WIC (two or four wire)
HWIC-2SHDSL 2 -pair G.SHDSL HWIC
HWIC-4SHDSL 4-pair G.SHDSL HWIC w IMA
HWIC-CABLE-D-2 1-Port DOCSIS 2.0 Cable HWIC
HWIC-CABLE-E/J-2 1-Port Euro DOCSIS 2.0 Cable HWIC
Analog Modem WICs
WIC-1AM 1-port analog modem WIC
WIC-2AM 2-port analog modem WIC
Cisco 3800 Series
1-23
Page 24
Chapter 1
T1, E1, and G.703 Multiflex Trunk Voice Cards and WICs
VWIC2-1MFT-T1/E1= 1-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - T1/E1 spare
VWIC2-2MFT-T1/E1= 2-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - T1/E1 spare
VWIC2-1MFT-G703= 1-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - G.703 spare
VWIC2-2MFT-G703= 2-Port 2nd Gen Multiflex Trunk Voice/WAN Int. Card - G.703 spare
EC-MFT-32= 32-Channel Multiflex Trunk Dedicated ECAN Module spare
EC-MFT-64= 64-Channel Multiflex Trunk Dedicated ECAN Module spare
VWIC-1MFT-T1 1-port RJ-48 multiflex trunk - T1
VWIC-2MFT-T1 2-port RJ-48 multiflex trunk - T1
VWIC-2MFT-T1-DI 2-port RJ-48 multiflex trunk - T1 with drop and insert
VWIC-1MFT-E1 1-port RJ-48 multiflex trunk - E1
VWIC-1MFT-G703 1-port RJ-48 multiflex trunk - G.703
VWIC-2MFT-E1 2-port RJ-48 multiflex trunk - E1
VWIC-2MFT-E1-DI 2-port RJ-48 multiflex trunk - E1 with drop and insert
VWIC-2MFT-G703 2-port RJ-48 multiflex trunk - G.703
VICs
VIC-2DID 2-port DID voice and fax interface card
VIC-1J1 1-port digital VIC (J1) for Japan
VIC-4FXS/DID 4-port FXS or DID VIC
VIC2-2FXS 2-port VIC - FXS
VIC2-2FXO 2-port VIC - FXO (universal)
VIC2-4FXO 4-port VIC - FXO (universal)
VIC2-2E/M 2-port VIC - E&M
VIC2-2BRI-NT/TE 2-port VIC card - BRI (NT and TE)
AIMs
AIM-ATM High-performance ATM SAR AIM
AIM-ATM-1T1= High Performance ATM AIM/T1 Bundle AIM-ATM spare
AIM-ATM-1E1= High Performance ATM AIM/E1 Bundle AIM-ATM spare
AIM-ATM-4T1= AIM-ATM with 2 VWIC-2MFT-T1 spare
AIM-ATM-4E1 AIM- ATM with 2 VWIC-2MFT-E1
AIM-COMPR4 Data-compression AIM
AIM-CUE Cisco Unity Express Voice-Mail AIM
AIM-VPN/EPII-PLUS Enhanced-performance DES, 3DES, AES, and compression VPN encryption AIM
AIM-VPN/SSL-3 DES/3DES/AES/SSL VPN Encryption/Compression
PVDM Support on Motherboard Slots
PVDM2-8 8-channel fax and voice DSP module
PVDM2-16 16-channel fax and voice DSP module
PVDM2-32 32-channel fax and voice DSP module
PVDM2-48 48-channel fax and voice DSP module
PVDM2-64 64-channel fax and voice DSP module
1. This is only a small subset of all parts available via URL listed under “For More Information.” Some parts have restricted
access or are not available through distribution channels. Resellers: For latest part number and pricing info, see the
Distribution Product Reference Guide at: http://www.cisco.com/dprg (limited country availability).
For More Information
See the Cisco 3800 Series Web site: http://www.cisco.com/go/3800
1-24
Cisco 3800 Series
Page 25
Chapter 1
Cisco 7000 Series Port Adapter Compatibility Matrix
7304
Carrier
Port Adapter 7201 7204VXR 7206VXR 7301
ATM Port Adapters
PA-A3-8T1IMA
8-port ATM inverse Mux T1 port adapter
PA-A3-8E1IMA: 8-port ATM inverse Mux E1 (120
ohm) port adapter
PA-A3-OC3-MM/SMI/SML: 1-port ATM-enhanced
OC-3c/STM1 multimode intermediate and long range
port adapter
PA-A3-T3/E3: 1-port ATM-enhanced DS3 port
adapter
PA-A6-OC3MM/SMI/SML: 1-port ATM OC-3
multimode, intermediate and long range port adapter
PA-A6-T3 or E3: 1-port ATM DS3 (E3) port adapter ••••• Support in
Ethernet Port Adapters
PA-2FE-TX/FX: 2-port Fast Ethernet 100Base-TX/FX
port adapter
PA-4E: 4-port Ethernet 10Base-T port adapter – ••••–
PA-8E: 8-port Ethernet 10Base-T port adapter •••••–
PA-GE: Gigabit Ethernet port adapter •••–•–
Serial Port Adapters
PA-4E1G/75: 4-port E1 G.703 serial port adapter (120
ohm/balanced)
PA-4E1G/120: 4-port E1 G.703 serial port adapter (120
ohm/balanced)
PA-4T+: 4-port serial port adapter, enhanced •••••• (Native)
PA-8T-XXX: 8-port serial, 232, V.35, X.21 port adapter– ••••• (Native)
High-speed Serial Port Adapters
PA-H: 1-port HSSI port adapter •••••• (Native)
PA-2H: 2-port HSSI port adapter •••••• (Native)
PA-E3: 1-port E3 serial port adapter with E3 DSU •••••• (Native)
PA-2E3: 2-port E3 serial port adapter with E3 DSUs •••••• (Native)
PA-T3+: 1-port T3 serial port adapter, enhanced •••••• (Native)
PA-2T3+: 2-port T3 serial port adapter, enhanced – ••••• (Native)
Multichannel Serial Port Adapters
PA-4B-U –•••––
PA-8B-S/T: 8-port BRI port adapter, S/T interface – •••––
PA-MC-2T(1): 2-port multichannel T1 port adapter
with integrated CSU/DSUs
PA-MC-4T(1): 4-port multichannel T1 port adapter
with integrated CSU/DSUs
PA-MC-8TE1+: 8-port multichannel T1/E1 8PRI port
adapter
PA-MC-2E1/120: 2-port multichannel E1 port adapter
with G.703 120 ohm interface
PA-MC-E3: 1-port multichannel E3 port adapter ••••••
••••••
••••••
•••••• (Native)
•••••• (Native)
••••• Support in
••••••
•••••–
••••••
•••••–
••••••
••••••
••••••
Card 7600
12.2(31)SB
12.2(31)SB
•
•
Cisco 7000 Series Port Adapter Compatibility Matrix
1-25
Page 26
Chapter 1
7304
Carrier
Port Adapter 7201 7204VXR 7206VXR 7301
PA-MC-T3: 1-port multichannel T3 port adapter ••••••
PA-MC-2T3+: 2-port multichannel T3 port adapter ••••••
PA-MC-STM-1MM: 1-port multichannel STM-1
multimode port adapter
PA-MC-STM-1SMI: 1-port multichannel STM-1
single mode port adapter
PA-MCX-2TE(1): 2-port MIX-enabled multichannel
T1/E1 with CSU/DSU
PA-MCX-4TE(1): 4-port MIX-enabled multichannel
T1/E1 with CSU/DSU
PA-MCX-8TE(1): 8-port MIX-enabled multichannel
T1/E1 with CSU/DSU
SONET Port Adapters
PA-POS-2OC3: 2-port OC-3/STM1 POS port adapter ••••••
PA-POS-1OC3: 1 Port Packet/SONET OC3/STM1 port
adapter
Other Port Adapters and Service Adapters
PA-4C-E: 1-port-enhanced ESCON channel port
adapter
C7200-VSA: VPN Services Adapter for the Cisco 7200– •••––
SA-VAM2+: VPN acceleration module 2+ • (12.4 (6th
PA-VXC-2TE1+: 2-port T1/E1 high-capacity
enhanced-voice PA
PA-VXB-2TE1+: 2-port T1/E1 moderate-capacity
enhanced-voice PA
PA-VXA-1TE1-24+: 1-port T1/E1 digital voice port
adapter with 24 channels
PA-VXA-1TE1-30+: 1-port T1/E1 digital voice port
adapter with 30 channels
PA-4R-DTR: 4-port dedicated T oken Ring, 4/16 Mbps,
HDX/FDX
••••••
••••••
•••–––
•••–––
•••–––
••••••
–•• –––
release)T
–•••––
–•••––
–•• –––
–•• –––
–•• –––
•• –––
Card 7600
Cisco 7200 Series
The Cisco 7200 Series routers—Cisco 7201, Cisco 7204VXR, and Cisco
7206VXR—deliver an exceptional price to performance ratio, versatility ,
and feature-richness in a compact form factor. The Cisco 7200 is an
optimized integrated services aggregation OC3/GE edge router ideal as a
W AN aggregator for the Serv ice Provider (small POP) or enterprise edge,
an enterprise WAN gateway, a high-end managed CPE, for IBM data
center connectivity or as a small core router. With the hardware supported IPsec encryption
module as well as robust firewall and VRF aware IPSec/NAT support, the Cisco 7200 series
is ideal for integrated security service. The Cisco 7200 series also supports Gatekeeper and
IP-to-IP Gateway functionality. Modularity combined with a low initial price point
guarantees both investment protection and maximum return on investment, allowing the
customer to upgrade and/or redeploy their Cisco 7200 series as their network needs change.
1-26
Cisco 7200 Series
Page 27
Chapter 1
When to Sell
Sell This Product When a Customer Needs These Features
Cisco 7201
Cisco 7204VXR
Cisco 7206VXR
• 1-slot chassis
• Built-in NPE-G2 with up to 2 Mpps
• WAN Services aggregation (e.g. MPLS PE traffic segmentation)
• Integrated Edge Services (e.g. Integrated Security)
• IP-to-IP Gateway - highest capacity of call support in Cisco router portfolio
• MIX-enabled bus for data/voice/video applications
• 4-slot chassis
• Modular processor: 225 kpps, 400 kpps, 1 Mpps, or 2 Mpps (NPE-225, NPE-400, NPE-G1, NPE-G2)
• 1.8 Gbps backplane (with NPE-G2)
• WAN Services aggregation (e.g. MPLS PE traffic segmentation)
• Integrated Edge Services (e.g. Integrated Security)
• IP-to-IP Gateway - highest capacity of call support in Cisco router portfolio
• MIX-enabled bus for data/voice/video applications
• 6-slot chassis
• Modular processor: 400 kpps, 1 Mpps, or 2 Mpps (NPE-400, NPE-G1, NPE-G2)
• 1.8 Gbps backplane (with NPE-G2)
• WAN Services aggregation (e.g. MPLS PE traffic segmentation)
• IP-to-IP Gateway - highest capacity of call support in Cisco router portfolio
• MIX-enabled bus for data/voice/video applications
Key Features
• Compact Form Factor—Up to six port adapters in a fully modular 3-RU form factor;
seven port adapters with a port adapter jacket card; choice of a 1-slot, 1-RU chassis with
2 Mpps of power built in
• Modularity—A choice of 1-, 4-, and 6-slot chassis, a selection of processors providing up
to 2 Mpps, an extensive range of LAN and WAN interfaces with up to 48 ports per chassis,
and single or dual power supplies; Chassis expandable to an additional slot by utilizing
I/O Slot as a port/service adapter slot through the use of the port adapter jacket card
• Exceptional Value—Offers superior price to performance ratio supporting high-speed
media and high-density configurations with up to 2 million packets per second processing
at a competitive price point
• Feature Rich—Full support for Cisco IOS® software and enhancements for
high-performance network services; offers industry-leading network services, including:
MPLS, Route Reflector, broadband aggregation, Intelligent Services Gateway, QoS,
Service Management router, IBM data center , Sto rage Area Network application, security ,
and voice/video/data support, Gatekeeper and IP-to-IP Gateway (Session Border
Controller) support
• Connectivity/Flexibility—Provides high port density and an extensive range of LAN and
WAN media
• Common port adapters—Port adapters are shared with the Cisco 7300 and 7600 series
(with FlexWAN Module), which simplifies sparing and protects customer investment in
interfaces
Competitive Products
• Juniper: M7i, M10i • Redback: SMS-1800, SmartEdge 100
Specifications
Feature Cisco 7201 Cisco 7204VXR Cisco 7206VXR
Fixed Ports
Expansion Slots
WAN Port Adapters
4 GEs 0 0
1 4 (5 with port adapter jacket
DS0 to OC-3 DS0 to OC-3 Same as 7204VXR
card1 utilizing the I/O slot)
6 (7 with port adapter jacket
card1 utilizing the I/O slot)
Cisco 7200 Series
1-27
Page 28
Chapter 1
Feature Cisco 7201 Cisco 7204VXR Cisco 7206VXR
Forwarding Rate
Backplane Capacity
Flash (Compact) Memory
Flash (PCMCIA) Memory
(I/O Controller Card required for NPE-225,
NPE-400)
System DRAM Memory
Minimum Cisco IOS Release
Internal Power Supply
Redundant Power Supply
Chassis Height
Rack Mountable
Dimensions (H x W x D)
1. Jacket Card part number: C7200-JC-PA
Selected Part Numbers and Ordering Information
Cisco 7200 Series Chassis
CISCO7201 CISCO 7201 router, with built-in dual power supplies, NPE-G2, and IP Software
CISCO7204VXR Cisco 7204VXR, 4-slot chassis, 1 AC Supply w/IP Software
CISCO7206VXR Cisco 7206VXR, 6-slot chassis, 1 AC Supply w/IP Software
Cisco 7200 Series Processors
NPE-G2= Cisco 7200 Network Processing Engine NPE-G2 including 1 GB default DRAM and 256 MB default flash memory,
NPE-G1= Cisco 7200 Network Processing Engine NPE-G1 including 256 MB default DRAM and 64 MB default flash
NPE-400= Cisco 7200 Network Processing Engine NPE-400 including 256 MB default DRAM and 64 MB default flash
Cisco 7200 Series Input/Output Controller
C7200-I/O-2FE/E= Cisco 7200 Input/Output Controller with Dual 10/100 Ethernet, Spare
C7200-I/O-GE+E= Cisco 7200 Input/Output Controller with GE and Ethernet, Spare
C7200-I/O= Cisco 7200 Input/Output Controller, Spare
Cisco 7201 Memory
MEM-7201-1GB= Cisco 7201 Series 1GB Memory Spare
MEM-7201-2GB= Cisco 7201 Series 2GB Memory Spare
MEM-7201-FLD256= Cisco 7201 Compact Flash Disk, 256 MB Spare
Cisco 7200 Memory: NPE-G2
MEM-NPE-G2-2GB= 2 GB memory module for the Cisco 7200 Network Processing Engine NPE-G2, Spare
MEM-NPE-G2-FLD256= 256 MB Compact Flash for the Cisco 7200 Network Processing Engine NPE-G2, Spare
Cisco 7200 Processor Memory: NPE-G1
MEM-NPE-G1-256MB= Two 128MB memory modules (256MB total) for the Cisco 7200 Network Processing Engine NPE-G1, Spare
MEM-NPE-G1-512MB= Two 256MB memory modules (512MB total) for the Cisco 7200 Network Processing Engine NPE-G1, Spare
MEM-NPE-G1-1GB= Two 512MB memory modules (1GB total) for the Cisco 7200 Network Processing Engine NPE-G1, Spare
MEM-NPE-G1-FLD64= 64MB Compact Flash Disk for the Cisco 7200 Network Processing Engine NPE-G1, Spare
MEM-NPE-G1-FLD128= 128MB Compact Flash Disk for the Cisco 7200 Network Processing Engine NPE-G1, Spare
MEM-NPE-G1-FLD256= 256MB Compact Flash Disk for the Cisco 7200 Network Processing Engine NPE-G1, Spare
1
Up to 2 Mpps Up to 1 Mpps Same as 7204VXR
N/A 1.8 Gbps (with NPE-G2) Same as 7204VXR
256 MB (default and max.) For NPE-G2: 256 MB (default and
N/A 64 MB (expandable to 128 MB) Same as 7204VXR
1 GB (default); 2 GB (max.) NPE-G2: 1 GB (default); 2 GB
12.4(4)XD7
12.2(31)SB4
Dual AC or Dual DC – By default AC or DC, dual option Same as 7204VXR
Yes, Dual AC or DC by default Yes, for AC or DC Same as 7204VXR
1-RU 3-RU Same as 7204VXR
Yes Yes, up to 16 per rack Same as 7204VXR
1.75 x 19 x 16.9 in. 5.25 x 16.8 x 17 in. Same as 7204VXR
max.)
For NPE-G1: 64 MB (expandable
to 256 MB)
(max.)
NPE-G1: 256 MB (default); 1 GB
(max.)
NPE-225: 128 MB (default); 256
MB (max.)
NPE-400: 256 MB (default); 512
MB (max.)
NPE-G2: 12.4(4)XD (based on
2nd release of 12.4T), fifth
release of 12.4T (and later),
fourth release of 12.2SB (and
later), first release of 12.5
mainline (and later)
NPE-G1: 12.2(4)BW, 12.2(15)B,
12.2(14)S, 12.2(14)SU, 12.2(15)T,
12.1(14)E, 12.3(1), 12.3(2)T,
12.0(28)S, 12.3(1a)B (and later)
NPE-400: 12.0(14)S, 12.1(3)E,
12.1(5)T, 12.2(1)T, 12.2(1) (and
later)
NPE-225: 12.0(5)XE6, 12.0(7)XE1,
12.0(9)S, 12.1(1) (and later)
1
Spare
memory, Spare
memory, Spare
Same as 7204VXR
Same as 7204VXR
Same as 7204VXR
1-28
Cisco 7200 Series
Page 29
Chapter 1
Cisco 7200 Memory: NPE-400
MEM-NPE-400-256MB= 256MB Memory for NPE-400 in 7200 Series, Spare
MEM-NPE-400-512MB= 512MB Memory for NPE-400 in 7200 Series, Spare
Cisco 7200 Memory: NPE-225
MEM-SD-NPE-128MB= 128MB Memory Upgrade Kit for NPE-300/NPE-225/NPE-175, Spare
Cisco 7200 NPE Bundles
7206VXR/NPE-G2 7206VXR with NPE-G2 includes 3GigE/FE/E Ports and IP SW
7206VXR/NPE-G1 7206VXR with NPE-G1 includes 3GigE/FE/E Ports and IP SW
C7206VXR/400/GE 7206VXR with NPE-400 and GE+E I/O controller
C7206VXR/400/2FE 7206VXR with NPE-400 and I/O Controller with 2 FE/E Ports
Cisco 7200 MPLS/IPv6 Bundles
7206-IPV6/ADSVC/K9 Cisco 7206VXR IPv6/Adv. Ent. Services with NPE-G2
Cisco 7200 Security Bundles
7206VXRG2/VSAVPNK9 7206VXR Chassis, NPE-G2, C7200-VSA Security Module, 256 MB Flash, 1GB DRAM, IOS ADVANCED SECURITY ,
7206VXRG2/2+VPNK9 7206VXR Chassis, NPE-G2, SA-VAM2+ Security Module, Port Adapter Jacket Card, 256 MB Flash, 1 GB DRAM,
7206VXRG1/2+VPNK9 7206VXR, NPE-G1, SA-VAM2+, AC pwr, 512 sys mem, SDM
7206VXR400/2+VPNK9 7206VXR, NPE-400, SA-VAM2+, AC pwr, 512 sys mem, SDM
Cisco 7200 Voice Bundles
C7206VXR/VOICE/400 7206VXR w/ NPE-400, Voice PA (PA-VXC-2TE1+), I/O contlr w/ 2FE
Cisco 7200 Broadband Bundles
CISCO7206-BB Cisco 7206 Broadband Bundle NPE-G1 includes 3GigE/FE/E Ports
Cisco 7200 CPE Bundle
7204VXR/CPE 7204VXR w/ NPE-225, 2 FE I/O, choice of specified WAN PA
Cisco 7200 Channel Bundles
CISCO7204VXR-CH Cisco 7204VXR, 4-slot chassis, 1 AC Supply w/ IP Software
CISCO7206VXR-CH Cisco 7206VXR, 6-slot chassis, 1 AC Supply w/ IP Software
Cisco 7200 Series Accessories
RCKMNT-7201= Rack Mount kit for Cisco 7201 Spare
ACS-7200-RMK= Cisco 7200 Rackmount Kit and Cable Management Bracket
IO-CONTROLR-BLANK= 7200 IO Controller Blank for use with NPE-G1 or NPE-G2
MAS-7200-CBLMGMT = Cisco NPE-G1/NPE-G2 Cable Management Bracket
MAS-7200PSCOVER= Cisco 7200 Redundant Power Supply Cover
MAS-72KBLANK= Cisco 7200 Series Blank Card Carrier
MAS-72KSLOTDIV= Cisco 7200 Series Port Adapter Divider (Spare)
PKG-7200= Cisco 7200 Spare System Packaging Material
C7200-PKG-JC= 7200VXR Jacket Card Packaging,Spare
1. This is only a small subset of all parts available via URL listed under “For More Information.” Some parts have restricted
access or are not available through distribution channels.
SDM
IOS ADVANCED SECURITY, SDM
For More Information
See the Cisco 7200 Series Web site: http://www.cisco.com/go/7200
Cisco 7300 Series
The Cisco 7300 Series Routers are optimized for flexible, high
performance IP/MPLS services at the network-, WAN-, and
Broadband-edge, where service providers and enterprises link
together. The Cisco 7304 Series Router is ideally applied as a
high-end CPE or as an Internet Gateway router. Designed for
network high availability and multi-protocol support, it supports the broad set of existing
Cisco 7000 Series Port Adapters with the Cisco 7304 Port Adapter Carrier Card while also
supporting the new Shared Port Adapters with the Cisco 7304 Multiservice Carrier Card
(MSC). The Cisco 7301 Series Router is targeted at principal application areas within a
Service provider network in a compact single rack form factor coupled with a broad set of
interfaces and Cisco IOS software features. It packs high performance of up to 1 Mpps in a
space and power efficient form factor that includes a single 7000 Series port adapter slot,
and 3 on-board Gigabit Ethernet (copper or optical)/Fast Ethernet ports.
Cisco 7300 Series
1-29
Page 30
Chapter 1
When to Sell
Sell This Product When a Customer Needs These Features
Cisco 7301
Cisco 7304
• Compact, power efficient 1-RU form factor
• Three times the performance increase over the Cisco 7401
• Single 7000 Series Port Adapter Slot
• Highly modular price and performance optimized platform, rich in IP services
• High performance connectivity—DS-1 through OC48/STM16 with 3.5 Mpps performance
• Built-in Gigabit Ethernet connectivity
• Support for Shared Port Adapters
• Multiprotocol routing: IP, IPX, AppleTalk, DLSw
• Compact size, high availability and optimal cooling
Key Features
• Cisco 7301—Offers up to 1 Mpps processing performance
– Pluggable Gigabit Ethernet optics (SFPs); 3 fixed 10/100/1000-Mbps ports (RJ-45 or
SFP optics) directly on the processor
– Full Cisco IOS feature support
– Up to 1GB of available DRAM; Up to 256MB of removable compact flash memory
– Front-back airflow and single sided management
• Cisco 7304—Compact modular form factor with 4-RU with four port adapter slots per
chassis
– Targeted toward Broadband aggregation, IPv6 gateway, Managed services,
Switching-customer edge (MPLS-CE), Cost-effective route reflector, Enterprise
network, Secure Internet gateway, Large-branch-office router, and
Network-appliance router principal application areas within a Service provider
networks
– Comes with a choice of 3 route processors: NSE-100, NSE-150 and NPE-G100;
NSE-100 and NSE-150 offer PXF-based performance
– Hardware-accelerated services such as Cisco Express Forwarding (CEF), NetFlow v8,
and Turbo ACL
– Offers up to 3.5 Mpps performance for PXF-accelerated services with the NSE-100,
NSE-150 Network Services Forwarding Engine
– T wo Gigabit Ethernet ports per NSE-100; Four On-board Gigabit Ethernet Interfaces per
NSE-150; Three Gigabit Ethernet Interfaces per NPE-G100 and offers up to 1Mpps
performance
– System redundancy—optional dual processors and dual AC or DC power supplies
increases network availability
– NSE-150 engine offers unmatched price/performance: Parallel Express Forwarding
(PXF) technology delivers hardware-accelerated network services with up to 3.5-Mpps
forwarding rate; Improved performance and scalability with 800-MHz microprocessor
and 2Gb main memory; High platform port density with up to 4 onboard Gigabit Ethernet
ports
Competitive Products
• Cisco 7301—Juniper: ERX310, ERX700; Redback: SE100Cisco • Cisco 7304—Juniper: M7i, M10i, ERX1400; Huawei: N20-2/4/8;
1-30
Cisco 7300 Series
Redback: SE400
Page 31
Chapter 1
Specifications
Feature Cisco 7301 Cisco 7304
Fixed Ports
Expansion Slots
WAN Interface Range
Forwarding Rate
Backplane Capacity
Flash PCMCIA Memory
System DRAM Memory
Min Cisco IOS Release
Internal Power Supply
RPS Support
Chassis Height
Rack Mountable
Dimensions (H x W x D)
Selected Part Numbers and Ordering Information
Cisco 7304 System
CISCO7304= Cisco 7300, 4-slot chassis
CISCO7304-CH Channel bundle: chassis, NSE-100,PWR-AC,MEM512,CFM-254,IOS,FAN
CISCO7304-G100 4-slot chassis, NPE-G100, 1 Power Supply
CISCO7304-G100-CH Channel bundle:chassis,G100,PWR-AC,MEM-1GB,CFM-256,IOS,FAN
CISCO7304-NSE-150 4-slot chassis, NSE-150, 1 Power Supply, 2GB Memory
CISCO7304CH-NSE150 Channel bundle:chassis,NSE-150,PWR-AC, IOS IP PLUS,FAN
Cisco 7304 Processors
7300-NSE-100= Cisco 7304 NSE-100 w/512MB SDRAM, 256MB Flash, (2)GE (Spare)
7300-NSE-100/2 Redundant Cisco 7304 NSE-100
7304-NPE-G100= Cisco 7304 NPE-G100 w/1GB SDRAM, 256MB Flash, (3)GE/FE/E
7304-NPE-G100/2 Redundant 7304 NPE-G100 w/1GB SDRAM, 256MB Flash, (3)GE/FE/E
7300-NSE-150/2 Redundant Cisco 7304 NSE-150 w/2GB SDRAM, 256MB Flsh, (4)GE
7300-NSE-150 Cisco 7304 NSE-150 w/2GB SDRAM, 256MB Flsh, (4)GE
7300-NSE-150= Cisco 7304 NSE-150 w/2GB SDRAM, 256MB Flsh, (4)GE
Cisco 7304 Power Supplies
7300-PWR-DC= Cisco 7304 DC Power Supply Spare
7300-PWR-AC= Cisco 7304 AC Power Supply Spare
7300-PWR/2-DC Cisco 7304 Redundant DC Power Supply Option
7300-PWR/2-AC Cisco 7304 Redundant AC Power Supply Option
Cisco 7304 Memory Options
7300-MEM-512= 512MB SDRAM for 7304 NSE-100, spare
7304-MEM-G100-1GB= 1GB SDRAM for NPE-G100, spare
Cisco 7304 Series Compact Flash Options
7304-I/O-CFM-256M= Cisco 7304 Compact Flash Memory, 256MB
Cisco 7304 Line Cards
7300-1OC48POS-SMI= 1-port OC48 POS line card for Cisco 7304 w/ Single-mode IR
7300-2OC3ATM-MM= 2-port OC3 ATM line card for Cisco 7304 w/ Multi-mode
7300-2OC3ATM-SMI= 2-port OC3 ATM line card for Cisco 7304 w/ Single-mode IR
SPA-4FE-7304= 4-port 10/100 Fast Ethernet Shared Port Adapter
SPA-2GE-7304= 2-port Half-Height Gigabit Ethernet Shared Port Adapter
7300-1OC12ATM= 1xOC12 ATM Line Card
Cisco 7304 Carrier Cards
7300-CC-PA= 7304 Carrier Card for 7200 Series Port Adapters
7304-MSC-100= Cisco 7304 SPA Modular Services Carrier Card
ATTEN-KIT-PA= Port Adapter Attenuator Kit, 75 ohm, 3 to 20db
Three Gigabit Ethernet ports NSE-100: 2 Gigabit Ethernet Ports
14
DS-1 to OC-3 DS-1 to OC-48
Up to 1 Mpps NSE-100: Up to 3.5 Mpps
1.2 Gbps 16 Gbps
64 MB (expandable to 256 MB) NSE-100: 256 MB
256 MB (expandable to 1 GB) NSE-100: 512 MB
12.2(11)YZ NSE-100: 12.2(28)SB
AC or DC Same as 7301
Yes, for AC or DC Same as 7301
1-RU 4-RU
Yes, up to 40 per rack Yes, up to 11 per rack
1.73 x 17.3 x 13.87 in. (4.39 x 43.94 x 35.23 cm.) 7 x 17.2 x 20.5 in. (17.78 x 43.69 x 52.07 cm.)
NPE-G100: 3 Gigabit Ethernet Ports
NSE-150: 4 Gigabit Ethernet Ports
NSE-150: Up to 3.5Mpps
NPE-G100: Up to 1 Mpps
NPE-G100: 256 MB
NSE-150: 256MB
NPE-G100: 1 GB
NSE-150: 2 GB
NPE-G100: 12.2(28)SB
NSE-150: 12.2(31)SB2
1
Cisco 7300 Series
1-31
Page 32
Cisco 7304 Accessories
7300-HALFSLOTBLNK= Cisco 7304 Half-slot Blank card, spare
7300-4RU/RCKBRKT= Cisco 7304 Chassis Rackmount Bracket Spare
7300-CNTR-SPTUM= Cisco 7304 Center Septum Spare
Cisco 7304 Cables
CAB-SC= MT-RJ to SC Duplex Single Mode Converter Cable
Cisco 7301 System
CISCO7301= Cisco 7301 chassis, 256MB memory, A/C power,64MB Flash
CISCO7301-BB Cisco7301,512MB Mem,16K license,64MB Flash, A/C power, IP/IOS
CISCO7301-BB-8K 7301, 256M SDRAM, 8K Sub Broadband Feature License
CISCO7301BB-1G 7301, 1 G Mem,64MB Fl, AC Pwr, IP IOS, up to 16k sub BBA lic
CISCO7301BB-8K-1G 7301,1 G Mem, 64MB Fl, AC Pwr, IP IOS, up to 8k sub BBA lic
CISCO7301/ITP/BUN ITP Signaling Gateway Bundle
CISCO7301-2AC= Cisco 7301 Chassis with Dual AC Power Supply-Spare
CISCO7301-2DC48= Cisco 7301 Chassis with Dual DC 48 Power Supply Spare
CISCO7301/2+VPNK9 7301, VAM2+, AC pwr, 512 sys mem, SDM
Cisco 7301 Power Supplies
PWR-7301-AC Cisco 7301 AC Power Supply Option
PWR-7301/2-AC Cisco 7301 Dual AC Power Supply Option
PWR-7301/2-DC48 Cisco 7301 Dual DC48 Power Supply Option
Cisco 7301 Memory Options
MEM-7301-1GB= 1GB memory upgrade for 7301-Spare
MEM-7301-512MB= 512MB memory upgrade for 7301-Spare
MEM-7301-256MB= 256MB memory upgrade for Cisco 7301-Spare
Cisco 7301 Series Compact Flash Options
MEM-7301-FLD64= Compact Disk Flash for 7301,64MB option-Spare
MEM-7301-FLD128= Compact Disk Flash for 7301, 128MB option-Spare
MEM-7301-FLD256= Compact Disk Flash for 7301, 256MB Option-Spare
Cisco 7301 Accessories
RCKMNT-7301= Rack mount kits for 7301
For More Information
See the Cisco 7300 Series Web site: http://www.cisco.com/go/7300
Chapter 1
Cisco 7600 Series
The Cisco 7600 Series combines optical WAN/MAN networking and
high-volume Ethernet aggregation with a focus on the delivery of
high-touch services for the IP and MPLS edge. It combines Layer 2 and
Layer 3 networking capabilities with a high-bandwidth, high-performance architecture
including hardware-based forwarding of MPLS, IPv4, & IPv6. Cisco 7600 series form
factors include the Cisco 7604, 7606, 7609, and 7613. Each router can deliver DS0 to
OC-192 WAN and nx10-Mbps Ethernet to nx10-Gigabit Ethernet connectivity into service
provider edge, metropolitan-area and enterprise networks for a variety of triple-play and
aggregation solutions.
When to Sell
Sell This Product When a Customer Needs These Features
Cisco 7603-S
Cisco 7604
Cisco 7606
Cisco 7606-S
Cisco 7609
Cisco 7609-S
Cisco 7613
1. Bandwidth & forwarding rate numbers assume Sup720 Engine
1-32
• 3 slot (horizontal) chassis; 240 Gbps backplane bandwidth1; 30 Mpps forwarding rate1; NEBs Compliant
• 4 slot (horizontal) chassis; 320 Gbps backplane bandwidth1; 30 Mpps forwarding rate1; NEBs Compliant
• 6 slot (horizontal) chassis; 480 Gbps backplane bandwidth1; 30 Mpps forwarding rate1; NEBs Compliant
• 6 slot (horizontal) chassis; 480 Gbps backplane bandwidth1; 30 Mpps forwarding rate1; NEBs Compliant
• 9 slot (vertical) chassis; 720 Gbps backplane bandwidth1; 30 Mpps forwarding rate1; NEBs Compliant
• 9 slot (vertical) chassis; 720 Gbps backplane bandwidth 1; 30 Mpps forwarding rate 1; NEBs Compliant
• 13 slot (horizontal) chassis; 720 Gbps backplane bandwidth1; 30 Mpps forwarding rate1; NEBs Compliant
Cisco 7600 Series
Page 33
Chapter 1
Key Features
• Up to 30 Mpps central or up to 400 Mpps distributed forwarding with hardware
accelerated IPv4, IPv6, & MPLS
• Modular and scalable from 32 Gbps to 720 Gbps switch fabric
• One of the widest, most complete ranges of WAN interfaces in the industry, with DS0 to
OC-192 connectivity
• Leveraging the Enhanced FlexWAN Module, 7x00 port adapters are shared with the Cisco
7200, 7300, 7400, and 7500 which simplifies sparing and protects customer investment
in interfaces
• Support Catalyst 6500 LAN interfaces, offering nx10 Mbps Ethernet to 10 Gbps
Competitive Products
• Alcatel: 7450, 7750 • Juniper: M10i, M20, M40e, M320
Specifications
Feature Cisco 7603-S Cisco 76 04
Fixed Ports
Expansion Slots
WAN Interface
Range
Processor
Forwarding Rate
Backplane Capacity
Flash PCMCIA
Memory
System DRAM
Memory
Internal Power
Supply
RPS Support
Chassis Height
Rack Mountable
Dimensions
(H x W x D)
SFP & 10/100/1000
(Sup720)
3 (horizontal) 4 (horizontal) 6 (horizontal) 9 (vertical) 13 (horizontal)
DS0 to OC-192 DS0 to OC-192 Same as Cisco 7603-S Same as Cisco 7603-S Same as Cisco 7603-S
Supervisor720-3B,
Supervisor720-3BXL,
Supervisor 32,
RSP720-3C-GE,
RSP720-3CXL-GE
Up to 30 Mpps Up to 30 Mpps Same as Cisco 7603-S Same as Cisco 7603-S Same as Cisco 7603-S
240 Gbps 320 Gbps 480 Gbps 720 Gbps 720 Gbps
up to 512MB Same as Cisco 7603-S Same as Cisco 7603-S Same as Cisco 7603-S Same as Cisco 7603-S
512MB on Sup720-3B,
1G on Sup720-3BXL, 2G
on RSP720-3CXL
DC AC or DC Same as Cisco 7604 Same as Cisco 7604 Same as Cisco 7604
Yes Yes Same as Cisco 7603-S Same as Cisco 7603-S Same as Cisco 7603-S
4-RU 5-RU 7-RU 20-RU 18-RU
Yes, up to 11 per rack Yes, up to 9 per rack Yes, up to 6 per rack Yes, up to 2 per rack Yes, up to 2 per rack
7 x 17.37 x 20.3 in. 8.75 x 17.5 x 21.75 in. 12.25 x 17.37 x 21.75 in. 36.75 x 17.2 x 20.7 in. 33.3 x 17.2 x 18.1 in.
SFP & 10/100/1000
(Sup720)
Supervisor720-3B
Supervisor720-3BXL
Supervisor 32
Same as Cisco 7603-S Same as Cisco 7603-S Same as Cisco 7603-S Same as Cisco 7603-S
Selected Part Numbers and Ordering Information
Cisco 7609 Systems
7609-RSP720C-P Cisco 7609 Chassis,9-slot,RSP720-3C,PS
7609-RSP720C-R Cisco 7609 Chassis,9-slot,Redundant System,2RSP720-3C,2PS
7609-RSP720CXL-P Cisco 7609 Chassis,9-slot,RSP720-3CXL,PS
7609-RSP720CXL-R Cisco 7609 Chassis,9-slot,Redundant System,2RSP720-3CXL,2PS
7609S-RSP720C-P Cisco 7609S Chassis,9-slot,RSP720-3C,PS
7609S-RSP720C-R Cisco 7609S Chassis,9-slot,Redundant System,2RSP720-3C,2PS
7609S-RSP720CXL-P Cisco 7609S Chassis,9-slot,RSP720-3CXL,PS
7609S-RSP720CXL-R Cisco 7609S Chassis,9-slot,Redundant System,2RSP720-3CXL,2PS
7609S-S32-10G-B-P Cisco 7609S Chassis,9-slot,SUP32-2X10GE-3B,PS
7609S-S32-10G-B-R Cisco 7609S Chassis,9-slot,Redundant SUP32-2X10GE-3B,PS
7609S-S32-8G-B-P Cisco 7609S Chassis,9-slot,SUP32-8GE-3B,PS
7609S-S32-8G-B-R Cisco 7609S Chassis,9-slot,Redundant SUP32-8GE-3B,PS
7609S-SUP720B-P Cisco 7609S Chassis,9-slot,SUP720-3B,PS
7609S-SUP720B-R Cisco 7609S Chassis,9-slot,Redundant System,2SUP720-3B,2PS
7609S-SUP720BXL-P Cisco 7609S Chassis,9-slot,SUP720-3BXL,PS
7609S-SUP720BXL-R Cisco 7609S Chassis,9-slot,Redundant System,2SUP720-3BXL,2PS
CISCO7609 Cisco 7609 Chassis
1
Cisco 7606-S
Same as Cisco 7603-S Same as Cisco 7603-S Same as Cisco 7603-S
Same as Cisco 7603-S Same as Cisco 7603-S Same as Cisco 7603-S
1
Cisco 7606
Cisco 7609
Cisco 7609-S Cisco 7613
Cisco 7600 Series
1-33
Page 34
CISCO7609-S Cisco 7609-S Chassis
CISCO7609-S= Cisco 7609-S Chassis
CISCO7609/EHA1 Bundle:Cisco Enhanced Home Agent R1 for 7609 (300k Sessions)
CISCO7609= Cisco 7609 Chassis Spare
7609-S323B-8G-P Cisco 7609 Chassis, 9-slot, SUP32-8GE-3B, PS
7609-S323B-8G-R Cisco 7609 Chassis, 9-slot, Redundant SUP32-8GE-3B and PS
7609-S323B-10G-P Cisco 7609 Chassis, 9-slot, SUP32-2X10GE-3BB, PS
7609-S323B-10G-R Cisco 7609 Chassis, 9-slot, Redundant SUP32-2X10GE-3B and PS
7609-SUP720XL-PS Cisco 7609 9-slot, SUP720-3BXL and PS
7609-2SUP720XL-2PS Cisco 7609 9-slot, Redundant System, 2 SUP720-3BXL and 2 PS
7609-SUP7203B-PS Cisco 7609 Chassis, 9-slot, SUP7203B, Power Supply
7609-2SUP7203B-2PS Cisco 7609 Chassis, 9-slot, 2 SUP7203B, 2 Power Supply
7609-VPN+-K9 Cisco 7609 IPSec VPN System Bundle
Cisco 7606 Systems
7606-RSP720C-P Cisco 7606 Chassis,6-slot,RSP720-3C,PS
7606-RSP720C-R Cisco 7606 Chassis,6-slot,Redundant System,2RSP720-3C,2PS
7606-RSP720CXL-P Cisco 7606 Chassis,6-slot,RSP720-3CXL,PS
7606-RSP720CXL-R Cisco 7606 Chassis,6-slot,Redundant System,2RSP720-3CXL,2PS
CISCO7606 Cisco 7606 Chassis
7606-S323B-8G-P Cisco 7606 Chassis, 6-slot, SUP32-8GE-3B, PS
7606-S323B-8G-R Cisco 7606 Chassis, 6-slot, Redundant SUP32-8GE-3B and PS
7606-S323B-10G-P Cisco 7606 Chassis, 6-slot, SUP32-2X10GE-3B, PS
7606-S323B-10G-R Cisco 7606 Chassis, 6-slot, Redundant SUP32-2X10GE-3B and PS
7606-SUP720XL-PS Cisco 7606 6-slot, SUP720-3BXL and PS
7606-2SUP720XL-2PS Cisco 7606 6-slot, Redundant System, 2 SUP720-3BXL and 2 PS
7606-SUP7203B-PS Cisco 7606 Chassis, 6-slot, SUP7203B, Power Supply
7606-2SUP7203B-2PS Cisco 7606 Chassis, 6-slot, 2 SUP7203B, 2 Power Supply
CISCO7606= 7606 chassis spare
CISCO7606-CHASS Cisco 7606 Chassis
7606-VPN+-K9 Cisco 7606 IPSec VPN System Bundle
Cisco 7604 Systems
CISCO7604 Cisco 7604 Chassis
7604-RSP720C-P Cisco 7604 Chassis,4-slot,RSP720-3C,PS
7604-RSP720C-R Cisco 7604 Chassis,4-slot,Redundant System,2RSP720-3C,2PS
7604-RSP720CXL-P Cisco 7604 Chassis,4-slot,RSP720-3CXL,PS
7604-RSP720CXL-R Cisco 7604 Chassis,4-slot,Redundant System,2RSP720-3CXL,2PS
CISCO7604= Cisco 7604 Chassis Spare
7604-S323B-8G-P Cisco 7604 Chassis, 4-slot, SUP32-8GE-3B, PS
7604-S323B-8G-R Cisco 7604 Chassis, 4-slot, Redundant SUP32-8GE-3B and PS
7604-S323B-10G-P Cisco 7604 Chassis, 4-slot, SUP32-2X10GE-3B, PS
7604-S323B-10G-R Cisco 7604 Chassis, 4-slot, Redundant SUP32-2X10GE-3B and PS
7604-SUP7203B-PS Cisco 7604 Chassis, 4-slot, SUP720-3B, PS
7604-2SUP7203B-2PS Cisco 7604 Chassis, 4-slot, 2 SUP720-3B, 2 PS
7604-SUP720XL-PS Cisco 7604 chassis, 4-slot, SUP720-3BXL, PS
7604-2SUP720XL-2PS Cisco 7604 Chassis, 4-slot, 2SUP720-3BXL, 2 PS
7604-VPN+-K9 Cisco 7604 IPSec VPN System Bundle
Cisco 7603 Systems
7603S-S32-10G-B-P Cisco 7603S Chassis,3-slot,SUP32-2X10GE-3B,PS
7603S-S32-8G-B-P Cisco 7603S Chassis,3-slot,SUP32-8GE-3B,PS
CISCO7603-S Cisco 7603-S Chassis
CISCO7603-S= Cisco 7603-S Chassis Spare
Cisco 7613 Systems
7613-RSP720C-P Cisco 7613 Chassis,13-slot,RSP720-3C,PS
7613-RSP720C-R Cisco 7613 Chassis,13-slot,Redundant System,2RSP720-3C,2PS
7613-RSP720CXL-P Cisco 7613 Chassis,13-slot,RSP720-3CXL,PS
7613-RSP720CXL-R Cisco 7613 Chassis,13-slot,Redundant System,2RSP720-3CXL,2PS
CISCO7613 Cisco 7613 Chassis
CISCO7613/EHA1 Bundle:Cisco Enhanced Home Agent R1 for 7613 (600k Sessions)
CISCO7613= Spare CISCO7613 Chassis, equipped with High-speed FAN2
7613-S323B-8G-P Cisco 7613 Chassis, 13-slot, SUP32-8GE-3B, PS
7613-S323B-8G-R Cisco 7613 Chassis, 13-slot, Redundant SUP32-8GE-3B and PS
7613-S323B-10G-P Cisco 7613 Chassis, 13-slot, SUP32-2X10GE-3B, PS
7613-S323B-10G-R Cisco7613 Chassis,13-slot, Redundant SUP32-2X10GE-3B and PS
7613-SUP720XL-PS Cisco 7613 13-slot, SUP720-3BXL and PS
7613-2SUP720XL-2PS Cisco 7613 13-slot, Redundant System, 2 SUP720-3BXL and 2 PS
7613-SUP7203B-PS Cisco 7613 Chassis, 13-slot, SUP7203B, Power Supply
7613-2SUP7203B-2PS Cisco 7613 Chassis, 13-slot, 2 SUP7203B, 2 Power Supply
7613-VPN+-K9 Cisco 7613 IPSec VPN System Bundle
Cisco 7600 Ethernet Services Modules
1-34
Cisco 7600 Series
Chapter 1
Page 35
Chapter 1
7600-ES20-GE3C 7600 ES20 Line Card, 20xGE SFP with DFC 3C
7600-ES20-GE3C= 7600 ES20 Line Card, 20xGE SFP with DFC 3C
7600-ES20-GE3CXL 7600 ES20 Line Card, 20xGE SFP with DFC 3CXL
7600-ES20-GE3CXL= 7600 ES20 Line Card, 20xGE SFP with DFC 3CXL
7600-ES20-10G3C 7600 ES20 Line Card, 2x10GE XFP with DFC 3C
7600-ES20-10G3C= 7600 ES20 Line Card, 2x10GE XFP with DFC 3C
7600-ES20-10G3CXL= 7600 ES20 Line Card, 2x10GE XFP with DFC 3CXL
7600-ES20-10G3CXL 7600 ES20 Line Card, 2x10GE XFP with DFC 3CXL
Cisco 7600 Shared Port Adapters and SPA Interface
7600-SIP-200 Cisco 7600 Series SPA Interface Processor-200
SPA-24CHT1-CE-ATM 24 Port Channelized T1/E1/J1 ATM and Circuit Emulation SPA
SPA-1CHOC3-CE-ATM= 1 Port Channelized OC3/STM-1 ATM and Circuit Emulation SPA
7600-SIP-200= Cisco 7600 Series SPA Interface Processor-200
SPA-24CHT1-CE-ATM= 24 Port Channelized T1/E1/J1 ATM and Circuit Emulation SPA
7600-SIP-400 Cisco 7600 Series SPA Interface Processor-400
7600-SIP-400= Cisco 7600 Series SPA Interface Processor-400
7600-SIP-600 Cisco 7600 Series SPA Interface Processor-600
7600-SIP-600= Cisco 7600 Series SPA Interface Processor-600
7600-SSC-400 Cisco 7600 / Catalyst 6500 Services SPA Carrier Card
7600-SSC-400= Cisco 7600 / Catalyst 6500 Services SPA Carrier Card
SPA-2XOC3-ATM 2-port OC-3c/STM-1 ATM Shared Port Adapter
SPA-2XOC3-ATM= 2-port OC-3c/STM-1 ATM Shared Port Adapter
SPA-2XOC3-POS 2-port OC3/STM1 POS Shared Port Adapters
SPA-2XOC3-POS= 2-port OC3/STM1 POS Shared Port Adapters
SPA-4XOC3-ATM 4-port OC-3c/STM-1 ATM Shared Port Adapter
SPA-4XOC3-ATM= 4-port OC-3c/STM-1 ATM Shared Port Adapter
SPA-1XCHSTM1/OC3 1-port Channelized STM-1/OC-3c to DS0 Shared Port Adapter
SPA-1XCHSTM1/OC3= 1-port Channelized STM-1/OC-3c to DS0 Shared Port Adapter
SPA-1XOC12-POS 1-port OC12/STM4 POS Shared Port Adapters
SPA-1XOC12-POS= 1-port OC12/STM4 POS Shared Port Adapters
SPA-1XOC12-ATM 1-port OC-12c/STM-4 ATM Shared Port Adapter
SPA-1XOC12-ATM= 1-port OC-12c/STM-4 ATM Shared Port Adapter
SPA-1XOC48POS/RPR 1-port OC48/STM16 POS/RPR Shared Port Adapters
SPA-1XOC48POS/RPR= 1-port OC48/STM16 POS/RPR Shared Port Adapters
SPA-2XOC48POS/RPR 2-port OC48/STM16 POS/RPR Shared Port Adapters
SPA-2XOC48POS/RPR= 2-port OC48/STM16 POS/RPR Shared Port Adapters
SPA-2X1GE-V2 Cisco 2-Port Gigabit Ethernet Shared Port Adapter
SPA-2X1GE-V2= Cisco 2-Port Gigabit Ethernet Shared Port Adapter
SPA-2XT3/E3 2-port Clear Channel T3/E3 Shared Port Adapter
SPA-2XT3/E3= 2-port Clear Channel T3/E3 Shared Port Adapter
SPA-4XT3/E3 4-port Clear Channel T3/E3 Shared Port Adapter
SPA-4XT3/E3= 4-port Clear Channel T3/E3 Shared Port Adapter
SPA-4X1FE-TX-V2 Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter
SPA-4X1FE-TX-V2= Cisco 4-Port Fast Ethernet (TX) Shared Port Adapter
SPA-2XCT3/DS0 2-port Channelized T3 to DS0 Shared Port Adapter
SPA-2XCT3/DS0= 2-port Channelized T3 to DS0 Shared Port Adapter
SPA-4XCT3/DS0 4-port Channelized T3 to DS0 Shared Port Adapter
SPA-4XCT3/DS0= 4-port Channelized T3 to DS0 Shared Port Adapter
SPA-4XOC48POS/RPR 4-port OC48/STM16 POS/RPR Shared Port Adapters
SPA-4XOC48POS/RPR= 4-port OC48/STM16 POS/RPR Shared Port Adapters
SPA-1XOC48-ATM Cisco 1-port OC-48c/STM-16 ATM Shared Port Adapter
SPA-1XOC48-ATM= Cisco 1-port OC-48c/STM-16 ATM Shared Port Adapter
SPA-1XTENGE-XFP 1-port 10Gigabit Ethernet Shared Port Adapter XFP based
SPA-1XTENGE-XFP= 1-port 10Gigabit Ethernet Shared Port Adapter XFP based
SPA-2X1GE Cisco 2-port Gigabit Ethernet Shared Port Adapter
SPA-2X1GE= Cisco 2-port Gigabit Ethernet Shared Port Adapter
SPA-5X1GE 5-port Gigabit Ethernet Shared Port Adapter
SPA-5X1GE= 5-port Gigabit Ethernet Shared Port Adapter
SPA-5X1GE-V2 Cisco 5-Port Gigabit Ethernet Shared Port Adapter
SPA-5X1GE-V2= Cisco 5-Port Gigabit Ethernet Shared Port Adapter
SPA-8XCHT1/E1 8-port Channelized T1/E1 to DS0 Shared Port Adapter
SPA-8XCHT1/E1= 8-port Channelized T1/E1 to DS0 Shared Port Adapter
SPA-8X1FE-TX-V2 Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter
SPA-8X1FE-TX-V2= Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter
SPA-10X1GE 10-port Gigabit Ethernet Shared Port Adapter
SPA-10X1GE= 10-port Gigabit Ethernet Shared Port Adapter
SPA-IPSEC-2G Cisco 7600 / Catalyst 6500 IPSec VPN SPA - DES/3DES/AES
SPA-IPSEC-2G= Cisco 7600 / Catalyst 6500 IPSec VPN SPA - DES/3DES/AES
SPA-BLANK Blank Cover for regular SPA
Cisco 7600 Series
1-35
Page 36
SPA-BLANK= Blank Cover for regular SPA
SPA-OC192POS-LR 1-port OC192/STM64 POS/RPR SMLR Optics
SPA-OC192POS-LR= 1-port OC192/STM64 POS/RPR SMLR Optics
SPA-OC192POS-VSR 1-port OC192/STM64 POS/RPR VSR Optics
SPA-OC192POS-VSR= 1-port OC192/STM64 POS/RPR VSR Optics
SPA-OC192POS-XFP 1-port OC192/STM64 POS/RPR XFP Optics
SPA-OC192POS-XFP= 1-port OC192/STM64 POS/RPR XFP Optics
SFP-OC48-IR1 OC-48c/STM-16c
SFP-OC48-LR2 OC-48c/STM-16c SFP, Long Reach (80km)
SFP-OC48-SR OC-48c/STM-16c SFP, Short Reach
Cisco 7600 Common Equipment
RSP720-3C-GE= Cisco 7600 Route Switch Processor 720Gbps fabric, PFC3C, GE
RSP720-3CXL-GE= Cisco 7600 Route Switch Processor 72Gbps fabric, PFC3CXL, GE
WS-SUP32-GE-3B Catalyst 6500 Supervisor 32 with 8 GE uplinks and PFC3B
WS-SUP32-GE-3B= Catalyst 6500 Supervisor 32 with 8 GE uplinks and PFC3B
WS-SUP32-10GE-3B Cat 6500 Supervisor 32 with 2 ports 10GbE and PFC3B
WS-SUP32-10GE-3B= Cat 6500 Supervisor 32 with 2 ports 10GbE and PFC3B
WS-SUP720-3B Catalyst 6500/Cisco 7600 Supervisor 720 Fabric MSFC3 PFC3B
WS-SUP720-3B= Catalyst 6500/Cisco 7600 Supervisor 720 Fabric MSFC3 PFC3B
WS-SUP720-3BXL Catalyst 6500/Cisco 7600 Supervisor 720 Fabric MSFC3 PFC3BXL
WS-SUP720-3BXL= Catalyst 6500/Cisco 7600 Supervisor 720 Fabric MSFC3 PFC3BXL
WS-F6700-DFC3BXL Catalyst 6500 Dist Fwd Card- 3BXL, for WS-X67xx
WS-F6700-DFC3BXL= Catalyst 6500 Dist Fwd Card- 3BXL, for WS-X67xx
WS-F6700-DFC3B Catalyst 6500 Dist Fwd Card, 256K Routes for WS-X67xx
WS-F6700-DFC3B= Catalyst 6500 Dist Fwd Card, 256K+ Routes for WS-X67xx
WS-F6K-DFC3B Catalyst 6500 Dist Fwd Card-3B for 65xx, 6816 modules
WS-F6K-DFC3B= Catalyst 6500 Dist Fwd Card-3B for 65xx, 6816 modules
WS-F6K-DFC3BXL Catalyst 6500 Dist Fwd Card-3BXL for 65xx, 6816 modules
WS-F6K-DFC3BXL= Catalyst 6500 Dist Fwd Card-3BXL for 65xx, 6816 modules
WS-F6K-PFC3B Catalyst 6500 Sup720 Policy Feature Card-3B
WS-F6K-PFC3B= Catalyst 6500 Sup720 Policy Feature Card-3B
WS-F6K-PFC3BXL= Sup720 PFC-3BXL Plus 2x1Gig Mem
WS-F6700-DFC3C Catalyst 6500 Dist Fwd Card for WS-X67xx modules
WS-F6700-DFC3CXL Catalyst 6500 Dist Fwd Card- 3CXL, for WS-X67xx
Cisco 7600 Optical Services Modules (OSMs)
OSM-1CHOC12/T1-SI 1-port CHOC-12/CHSTM-4 (SM-IR), to DS0 and T1/E1, w/4GE
OSM-1CHOC12/T1-SI= 1-port CHOC-12/CHSTM-4 OSM IR, to DS0 and T1/E1, w/4GE
OSM-12CT3/T1 12-port Channelized DS-3 to DS-1/DS-0
OSM-12CT3/T1= 12-port Channelized DS-3 to DS-1/DS-0
OSM-1CHOC12/T3-SI 1-port CHOC-12/CHSTM-4 OSM, to T3/E3, SM-IR, with 4 GE
OSM-1CHOC12/T3-SI= 1-port CHOC-12/CHSTM-4 OSM, to T3/E3, SM-IR, with 4 GE
OSM-2OC48/1DPT-SS 2-port OC-48/STM-16 POS/DPT OSM, SM-SR, with 4 GE
OSM-2OC48/1DPT-SS= 2-port OC-48/STM-16 POS/DPT OSM, SM-SR, with 4 GE
OSM-2OC48/1DPT-SI 2-port OC-48/STM-16 POS/DPT OSM, SM-IR, with 4 GE
OSM-2OC48/1DPT-SI= 2-port OC-48/STM-16 POS/DPT OSM, SM-IR, with 4 GE
OSM-2OC48/1DPT-SL 2-port OC-48/STM-16 POS/DPT OSM, SM-LR, with 4 GE
OSM-2OC48/1DPT-SL= 2-port OC-48/STM-16 POS/DPT OSM, SM-LR, with 4 GE
OSM-1OC48-POS-SS+ Enhanced 1-port OC-48/STM-16 SONET/SDH OSM, SM-SR, w/ 4 GE
OSM-1OC48-POS-SS+= Enhanced 1-port OC-48/STM-16 SONET/SDH OSM, SM-SR, w/ 4 GE
OSM-1OC48-POS-SI+ Enhanced 1-port OC-48/STM-16 SONET/SDH OSM, SM-IR, w/ 4 GE
OSM-1OC48-POS-SI+= Enhanced 1-port OC-48/STM-16 SONET/SDH OSM, SM-IR, w/ 4 GE
OSM-1OC48-POS-SL+ Enhanced 1-port OC-48/STM-16 SONET/SDH OSM, SM-LR, w/ 4 GE
OSM-1OC48-POS-SL+= Enhanced 1-port OC-48/STM-16 SONET/SDH OSM, SM-LR, w/ 4 GE
OSM-2+4GE-WAN+ Enhanced OSM with 4 GE WAN ports and 2 GE LAN ports
OSM-2+4GE-WAN+= Enhanced OSM with 4 GE WAN ports and 2 GE LAN ports, Spare
OSM-2+4GE-5PACK+ 5 Pack of OSM-2+4GE-WAN+
Cisco 7600 FlexWAN Module*
PA-POS-1OC3-2PAK= Packet over Sonet OC3 2 PACK Bundle
WS-X6582-2PA Cisco7600/Catalyst6500 Enhanced FlexWAN, Fabric-enabled
WS-X6582-2PA= Cisco7600/Catalyst6500 Enhanced FlexWAN, Fabric-enabled
PA-4T+ 4 Port Serial Port Adapter, Enhanced
PA-4T+= 4-Port Serial Port Adapter, Enhanced
PA-8T - V35 8-Port Serial, V.35 Port Adapter
PA-8T - V35= 8-Port Serial, V.35 Port Adapter
PA-8T -232 8-Port Serial, 232 Port Adapter
PA-8T -232= 8-Port Serial, 232 Port Adapter
PA-8T - X21 8-Port Serial, X.21 Port Adapter
PA-8T - X21= 8-Port Serial, X.21 Port Adapter
PA-H 1-Port HSSI Port Adapter
1-36
Cisco 7600 Series
Chapter 1
Page 37
Chapter 1
PA-H= 1-Port HSSI Port Adapter, Spare
PA-H= 1-Port HSSI Port Adapter, Spare
PA-2H 2-Port HSSI Port Adapter
PA-2H= 2-Port HSSI Port Adapter, Spare
PA-2H= 2-Port HSSI Port Adapter, Spare
PA-A3-8E1IMA 8-port ATM Inverse Mux E1 (120 Ohm) Port Adapter
PA-A3-8E1IMA= 8-port ATM Inverse Mux E1 (120 Ohm) Port Adapter, Spare
PA-A3-8T1IMA 8-port ATM Inverse Mux T1 Port Adapter
PA-A3-8T1IMA= 8-port ATM Inverse Mux T1 Port Adapter, Spare
PA-A6-OC3MM 1 Port Enh ATM OC3c/STM1 Multimode Port Adapter
PA-A6-OC3MM= 1 Port Enh ATM OC3c/STM1 Multimode Port Adapter
PA-A6-OC3SML 1 Port Enh ATM OC3c/STM1 Singlemode(LR)Port Adapter
PA-A6-OC3SML= 1 Port Enh ATM OC3c/STM1 Singlemode(LR)Port Adapter
PA-A6-T3 1Port Enh ATM DS3 Port Adapter
PA-A6-T3= 1Port Enh ATM DS3 Port Adapter
PA-A6-E3 1Port Enh ATM E3 Port Adapter
PA-A6-E3= 1Port Enh ATM E3 Port Adapter
PA-E3 1 Port E3 Serial Port Adapter with E3 DSU
PA-E3= 1 Port E3 Serial Port Adapter with E3 DSU
PA-2E3 2 Port E3 Serial Port Adapter with E3 DSUs
PA-2E3= 2 Port E3 Serial Port Adapter with E3 DSUs
PA-T3+ 1 Port T3 Serial Port Adapter Enhanced
PA-T3+= 1 Port T3 Serial Port Adapter Enhanced
PA-2T3+ 2 Port T3 Serial Port Adapter Enhanced
PA-2T3+= 2 Port T3 Serial Port Adapter Enhanced, Spare
PA-MC-E3 1 port Multi-Channel E3 port adapter
PA-MC-E3= 1 port Multi-Channel E3 port adapter
PA-MC-T3 1 port multichannel T3 port adapter
PA-MC-T3= 1 port multichannel T3 port adapter
PA-MC-2E1/120 2 port multichannel E1 port adapter with G.703 120ohm interf
PA-MC-2E1/120= 2 port multichannel E1 port adapter with G.703 120ohm interf
PA-MC-2T3+ 2 port multichannel T3 port adapter
PA-MC-2T3+= 2 port multichannel T3 port adapter
PA-MC-2T1 2 port multichannel T1 port adapter with integrated CSU/DSUs
PA-MC-2T1= 2 port multichannel T1 port adapter with integrated CSU/DSUs
PA-MC-4T1 4 port multichannel T1 port adapter with integrated CSU/DSUs
PA-MC-4T1= 4 port multichannel T1 port adapter with integrated CSU/DSUs
PA-POS-1OC3 1 Port Packet/SONET OC3c/STM1 Port Adapter
PA-POS-1OC3= 1 Port Packet/SONET OC3c/STM1 Port Adapter
PA-POS-2OC3 2 Port Packet/SONET OC3c/STM1 Port Adapter
PA-POS-2OC3= 2 Port Packet/SONET OC3c/STM1 Port Adapter
PA-MC-STM-1MM 1 port multichannel STM-1multimode port adapter
PA-MC-STM-1MM= 1 port multichannel STM-1multimode port adapter
PA-MC-STM-1SMI 1 port multichannel STM-1 single mode port adapter
PA-MC-STM-1SMI= 1 port multichannel STM-1 single mode port adapter
PA-MC-8TE1+ 8 port multichannel T1/E1 8PRI port adapter
PA-MC-8TE1+= 8 port multichannel T1/E1 8PRI port adapter
Cisco 7600 Ethernet Modules
WS-X6548V-GE-TX Catalyst 6500 48-port fab-enabled 10/100/1000 inline pwr mod
WS-X6548V-GE-TX= Catalyst 6500 48-port fab-enabled 10/100/1000 inline pwr mod
WS-X6548-GE-TX Catalyst 6500 48-port fabric-enabled 10/100/1000 Module
WS-X6548-GE-TX= Catalyst 6500 48-port fabric-enabled 10/100/1000 Module
WS-X6548-GE-45AF Cat 6500 PoE 802.3af 10/100/1000 48-port(RJ45)CEF256 card
WS-X6548-GE-45AF= Cat 6500 PoE 802.3af 10/100/1000 48-port(RJ45)CEF256 card
WS-X6524-100FX-MM Catalyst 6500 24-port 100FX, MT-RJ, fabric-enabled
WS-X6524-100FX-MM= Catalyst 6500 24-port 100FX, MT-RJ, fabric-enabled
WS-X6408A-GBIC Catalyst 6000 8-port GE, Enhanced QoS (Req. GBICs)
WS-X6408A-GBIC= Catalyst 6000 8-port GE, Enhanced QoS (Req. GBICs)
WS-X6196-RJ-21 Catalyst 6500 96-Port 10/100 Upgradable - PoE 802.3af
WS-X6196-RJ-21= Catalyst 6500 96-Port 10/100 Upgradable - PoE 802.3af
WS-X6196-21AF Cat6500 96-Port, PoE 802.3af 10/100 - RJ-21
WS-X6196-21AF= Cat6500 96-Port, PoE 802.3af 10/100 - RJ-21
WS-X6148X2-RJ-45 Cat6500 96-Port 10/100 (RJ45), Upgradable to PoE 802.3af
WS-X6148X2-RJ-45= Cat6500 96-Port 10/100 (RJ45), Upgradable to PoE 802.3af
WS-X6148X2-45AF Cat6500 PoE 802.3af 10/100, 96-Port ( RJ-45) line card
WS-X6148X2-45AF= Cat6500 PoE 802.3af 10/100, 96-Port ( RJ-45) line card
WS-X6148V-GE-TX Catalyst 6500 48-port 10/100/1000 Inline Power Module, RJ-45
WS-X6148V-GE-TX= Catalyst 6500 48-port 10/100/1000 Inline Power Module, RJ-45
WS-X6148-RJ45V Catalyst 6500 48-port 10/100 Inline Power, RJ-45
Cisco 7600 Series
1-37
Page 38
WS-X6148-RJ45V= Catalyst 6500 48-port 10/100 Inline Power, RJ-45
WS-X6148-RJ-45 Catalyst 6500 48-Port 10/100, Upgradable to Voice, RJ-45
WS-X6148-RJ-45= Catalyst 6500 48-Port 10/100, Upgradable to Voice, RJ-45
WS-X6148-RJ21V Catalyst 6500 48-port 10/100 Inline Power Module, RJ-21
WS-X6148-RJ21V= Catalyst 6500 48-port 10/100 Inline Power Module, RJ-21
WS-X6148-RJ-21 Catalyst 6500 48-Port 10/100 Upgradable to Voice, RJ-21
WS-X6148-RJ-21= Catalyst 6500 48-Port 10/100 Upgradable to Voice, RJ-21
WS-X6148-GE-TX Catalyst 6500 48-port 10/100/1000 GE Mod., RJ-45
WS-X6148-GE-TX= Catalyst 6500 48-port 10/100/1000 GE Mod., RJ-45
WS-X6148-GE-45AF Cat6500 PoE 802.3af 10/100/1000, 48 port(RJ45)line card
WS-X6148-GE-45AF= Cat6500 PoE 802.3af 10/100/1000, 48 port (RJ45) line card
WS-X6148-FE-SFP Catalyst 6500 48 port 100Base-X module (require SFP)
WS-X6148-FE-SFP= Catalyst 6500 48 port 100Base-X module (require SFP)
WS-X6148A-RJ-45 Catalyst 6500 48-Port 10/100 w/TDR, Upgradable - PoE 802.3af
WS-X6148A-RJ-45= Catalyst 6500 48-Port 10/100 w/TDR, Upgradable - PoE 802.3af
WS-X6148A-GE-TX Catalyst 6500 48-port 10/100/1000 w/Jumbo Frame, RJ-45
WS-X6148A-GE-TX= Catalyst 6500 48-port 10/100/1000 w/Jumbo Frame, RJ-45
WS-X6148A-GE-45AF Catalyst 6500 48-Port PoE 802.3af 10/100/1000, w/Jumbo Frame
WS-X6148A-GE-45AF= Catalyst 6500 48-Port PoE 802.3af 10/100/1000, w/Jumbo Frame
WS-X6148A-45AF Catalyst 6500 48-Port PoE 802.3af 10/100,card w/TDR
WS-X6148A-45AF= Catalyst 6500 48-Port PoE 802.3af 10/100,card w/TDR
WS-X6148-45AF Catalyst 6500 PoE 802.3af 10/100, 48 port(RJ45) line card
WS-X6148-45AF= Catalyst 6500 PoE 802.3af 10/100, 48 port(RJ45) line card
WS-X6148-21AF Cat6500 PoE 802.3af 10/100, 48 port (RJ21) line card
WS-X6148-21AF= Cat6500 PoE 802.3af 10/100, 48 port (RJ21) line card
WS-F6K-DFC Dist Fwd Card for 65xx, 6816 Modules used with SUP2
WS-F6K-DFC= Dist Fwd Card for 65xx, 6816 Modules used with SUP2
WS-X6516A-GBIC Catalyst 6500 16-port GigE Mod, fabric-enabled (Req. GBICs)
WS-X6516A-GBIC= Catalyst 6500 16-port GigE Mod, fabric-enabled (Req. GBICs)
WS-X6816-GBIC Cat6500 16-port GigE mod, 2 fab I/F, (Req GBICs, DFC/DFC3)
WS-X6816-GBIC= Cat6500 16-port GigE mod, 2 fab I/F, (Req GBICs, DFC/DFC3)
WS-X6548-RJ-21 Catalyst 6500 48-port 10/100, RJ-21, fabric-enabled
WS-X6548-RJ-21= Catalyst 6500 48-port 10/100, RJ-21, fabric-enabled
WS-X6548-RJ-45 Catalyst 6500 48-port 10/100, RJ-45, x-bar
WS-X6548-RJ-45= Catalyst 6500 48-port 10/100, RJ-45, x-bar
WS-X6516-GE-TX Catalyst 6500 16-port 10/100/1000 GE Module, Cross-Bar
WS-X6516-GE-TX= Catalyst 6500 16-port 10/100/1000 GE Module, Cross-Bar,spare
WS-X6748-GE-TX Cat6500 48-port 10/100/1000 GE Mod: fabric enabled, RJ-45
WS-X6748-GE-TX= Cat6500 48-port 10/100/1000 GE Mod: fabric enabled, RJ-45
WS-X6724-SFP Catalyst 6500 24-port GigE Mod: fabric-enabled (Req. SFPs)
WS-X6724-SFP= Catalyst 6500 24-port GigE Mod: fabric-enabled (Req. SFPs)
WS-X6748-SFP Catalyst 6500 48-port GigE Mod: fabric-enabled (Req. SFPs)
WS-X6748-SFP= Catalyst 6500 48-port CEF720 GigE Module (Req. SFPs)
WS-X6704-10GE Cat6500 4-port 10 Gigabit Ethernet Module (req. XENPAKs)
WS-X6704-10GE= Cat6500 4-port 10 Gigabit Ethernet Module (req. XENPAKs)
Cisco 7600 Services Modules
SPA-IPSEC-2G Cisco 7600 / Catalyst 6500 IPSec VPN SPA - DES/3DES/AES
SPA-IPSEC-2G= Cisco 7600 / Catalyst 6500 IPSec VPN SPA - DES/3DES/AES
SPA-IPSEC-SSC400-1 Cisco 6500/7600 IPSec VPN SPA Bundle 1 (system only)
SPA-IPSEC-SSC400-2 Cisco 6500/7600 IPSec VPN SPA Bundle 2 (system only)
WS-SVC-ADM-1-K9 Catalyst 6500 Cisco Anomaly Detection Module
WS-SVC-ADM-1-K9= Catalyst 6500 Cisco Anomaly Detection Module
WS-SVC-AGM-1-K9 Catalyst 6500 Cisco Anomaly Guard Module
WS-SVC-AGM-1-K9= Catalyst 6500 Cisco Anomaly Guard Module
WS-SVC-CMM COMMUNICATION MEDIA MODULE
WS-SVC-CMM-24FXS 24-Port FXS Interface Port Adapter
WS-SVC-CMM-24FXS= 24-Port FXS Interface Port Adapter
WS-SVC-CMM-6E1 6-PORT E1 INTERFACE PORT ADAPTER
WS-SVC-CMM-6E1= 6-PORT E1 INTERFACE PORT ADAPTER
WS-SVC-CMM-6T1 6-PORT T1 INTERFACE PORT ADAPTER
WS-SVC-CMM-6T1= 6-PORT T1 INTERFACE PORT ADAPTER
WS-SVC-CMM-ACT Adhoc Conferencing and Transcoding PA
WS-SVC-CMM-ACT= Adhoc Conferencing and Transcoding PA
WS-SVC-CMM-BLANK CMM module Blank Panel Cover
WS-SVC-CMM-BLANK= CMM module Blank Panel Cover
WS-SVC-CMM= COMMUNICATION MEDIA MODULE
WS-SVC-IDS2-BUN-K9 600M IDSM-2 Mod for Cat
WS-SVC-IDS2BUNK9= 600M IDSM-2 Mod Spare
WS-SVC-FWM-1-K9 Firewall blade for 6500 and 7600, VFW License Separate
Chapter 1
1-38
Cisco 7600 Series
Page 39
Chapter 1
WS-SVC-FWM-1-K9= Firewall blade for 6500 and 7600, VFW License Separate
WS-SVC-NAM-1 Catalyst 6500 Network Analysis Module-1
WS-SVC-NAM-1= Catalyst 6500 Network Analysis Module-1
WS-SVC-NAM-2 Catalyst 6500 Network Analysis Module-2
WS-SVC-NAM-2= Catalyst 6500 Network Analysis Module
WS-SVC-PSD-1 Persistent Storage Device
WS-SVC-PSD-1= Persistent Storage Device
WS-X6066-SLB-APC Catalyst 6000 Content Switching Module
WS-X6066-SLB-APC= Catalyst 6500/7600 Content Switching Module
WS-X6066-SLB-S-K9 Content Switching Module with SSL daughter card
WS-X6066-SLB-S-K9= Content Switching Module with SSL daughter card
WS-SVC-SSL-1-K9 SSL Module for Catalyst 6500
WS-SVC-SSL-1-K9= SSL Module for Catalyst 6500
WS-SVC-SSL-CSM-K9= Catalyst 6500 SSL and CSM Bundle
WS-SVC-MWAM-1 Multi-Processor WAN Application Module
WS-SVC-MWAM-1= Multi-Processor WAN Application Module
WS-SVC-CSG-1 Content Services Gateway
WS-SVC-CSG-1= Content Services Gateway
WS-SVC-WEBVPN-K9 SSL VPN Module for Catalyst 6500
WS-SVC-WEBVPN-K9= SSL VPN Module for Catalyst 6500
SC-ADM-4.0-K9 Cisco Traffic Anomaly Detector Module MVP-OS R4.0 Software
SC-SBC-NAP-CSG1-1 No App Image For WS-SVC-CSG-1=
Cisco 7600 GBICs, Optics and Xenpaks
WS-G5484 1000BASE-SX Short Wavelength GBIC (Multimode only)
WS-G5484= 1000BASE-SX Short Wavelength GBIC (Multimode only)
WS-G5486 1000BASE-LX/LH long haul GBIC (singlemode or multimode)
WS-G5486= 1000BASE-LX/LH long haul GBIC (singlemode or multimode)
WS-G5487 1000Base-ZX extended reach GBIC(singlemode)
WS-G5487= 1000Base-ZX extended reach GBIC(singlemode)
CWDM-GBIC-1470= 1000BASE-CWDM 1470 nm GBIC (single mode only)
CWDM-GBIC-1490= 1000BASE-CWDM 1490 nm GBIC (single mode only)
CWDM-GBIC-1510= 1000BASE-CWDM 1510 nm GBIC (single mode only)
CWDM-GBIC-1530= 1000BASE-CWDM 1530 nm GBIC (single mode only)
CWDM-GBIC-1550= 1000BASE-CWDM 1550 nm GBIC (single mode only)
CWDM-GBIC-1570= 1000BASE-CWDM 1570 nm GBIC (single mode only)
CWDM-GBIC-1590= 1000BASE-CWDM 1590 nm GBIC (single mode only)
CWDM-GBIC-1610= 1000BASE-CWDM 1610 nm GBIC (single mode only)
CWDM-MUX8A= 8-channels CWDM MUX/DEMUX Module
CWDM-OADM1-1470= Dual single channel OADM Module ( 1470nm)
CWDM-OADM1-1490= Dual single channel OADM Module ( 1490nm)
CWDM-OADM1-1510= Dual single channel OADM Module ( 1510nm)
CWDM-OADM1-1530= Dual single channel OADM Module ( 1530nm)
CWDM-OADM1-1550= Dual single channel OADM Module ( 1550nm)
CWDM-OADM1-1570= Dual single channel OADM Module ( 1570nm)
CWDM-OADM1-1590= Dual single channel OADM Module ( 1590nm)
CWDM-OADM1-1610= Dual single channel OADM Module ( 1610nm)
CWDM-OADM4-1= 4-channels CWDM OADM Module ( 1470, 1490, 1510, 1530)
CWDM-OADM4-2= 4-channels CWDM OADM Module ( 1550, 1570, 1590, 16100)
WDM-1300-1550-S= 1300nm/1550nm WDM splitter cable
CWDM-CHASSIS-2= 2 Slot Chassis for CWDM Mux Plug in Modules
XENPAK-10GB-CX4 Cisco 10GBASE-CX4 XENPAK Module
XENPAK-10GB-LR 10GBASE-LR XENPAK Module
XENPAK-10GB-LR= 10GBASE-LR XENPAK module
XENPAK-10GB-LX4 10GBASE-LX4 XENPAK Module
XENPAK-10GB-LX4= 10GBASE-LX4 XENPAK Module
XENPAK-10GB-SR 10GBASE-SR XENPAK Module
XENPAK-10GB-SR= 10GBASE-SR XENPAK Module
XENPAK-10GB-ZR 10GBASE-ZR XENPAK Module
XENPAK-10GB-ZR= 10GBASE-ZR XENPAK Module
GLC-LH-SM GE SFP, LC connector LX/LH transceiver
GLC-LH-SM= GE SFP,LC connector LX/LH transceiver
GLC-SX-MM GE SFP, LC connector SX transceiver
GLC-SX-MM= GE SFP, LC connector SX transceiver
GLC-SX-MM24 24 GLC-SX-MM SFP
GLC-ZX-SM 1000BASE-ZX SFP
GLC-ZX-SM= 1000BASE-ZX SFP
GLC-T 1000BASE-T SFP
GLC-T= 1000BASE-T SFP
GLC-T24 24 GLC-T SFP
Cisco 7600 Series
1-39
Page 40
SFP-GE-L 1000BASE-LX/LH SFP (DOM)
SFP-GE-L= 1000BASE-LX/LH SFP (DOM)
SFP-GE-S 1000BASE-SX SFP (DOM)
SFP-GE-S= 1000BASE-SX SFP (DOM)
SFP-GE-Z 1000BASE-ZX Gigabit Ethernet SFP (DOM)
SFP-GE-Z= 1000BASE-ZX Gigabit Ethernet SFP (DOM)
SFP-OC3-IR1 OC3/STM1 SFP, Single-mode fiber, Intermediate Reach
SFP-OC3-IR1= OC3/STM1 SFP, Single-mode fiber, Intermediate Reach
SFP-OC3-LR1 OC3/STM1 SFP, Single-mode fiber, Long Reach (40km)
SFP-OC3-LR1= OC3/STM1 SFP, Single-mode fiber, Long Reach (40km)
SFP-OC3-LR2 OC3/STM1 SFP, Single-mode fiber, Long Reach (80km)
SFP-OC3-LR2= OC3/STM1 SFP, Single-mode fiber, Long Reach (80km)
SFP-OC12-IR1 OC-12/ STM-4 SFP, Intermediate Reach (15km)
SFP-OC12-IR1= OC-12/ STM-4 SFP, Intermediate Reach (15km)
SFP-OC12-LR1 OC-12/ STM-4 SFP, Long Reach (40km)
SFP-OC12-LR1= OC-12/ STM-4 SFP, Long Reach (40km)
SFP-OC12-LR2 OC-12/ STM-4 SFP, Long Reach (80km)
SFP-OC12-LR2= OC-12/ STM-4 SFP, Long Reach (80km)
SFP-OC48-IR1 OC-48c/STM-16c
SFP-OC48-IR1= OC-48c/STM-16c
SFP-OC48-SR OC-48c/STM-16c SFP, Short Reach
SFP-OC48-SR= OC-48c/STM-16c SFP, Short Reach
XFP-10GLR-OC192SR Multirate XFP module for 10GBASE-LR and OC192 SR-1
XFP-10GLR-OC192SR= Multirate XFP module for 10GBASE-LR and OC192 SR-1
XFP-10GZR-OC192LR 10GBASE-ZR and OC192 LR2 XFP Module
XENPAK-10GB-LW 10GBASE-LW XENPAK Module
XENPAK-10GB-LW= 10GBASE-LW XENPAK Module
Cisco 7600 Spares and Accessories
12-MINISMB/BNC-M 12 pair (12Tx/12Rcv) 10ft. Mini-SMB to BNC-Male
CABLE-24T1E1J1 Cable for 24 Port CH T1/E1/J1 ATM and Circuit Emulation SPA
CABLE-24T1E1J1= Cable for 24 Port CH T1/E1/J1 ATM and Circuit Emulation SPA
12-MINISMB/BNC-F 12 pair (12Tx/12Rcv) 10 ft. Mini-SMB to BNC female
12-MINISMB/OPEN 12 pair (12Tx/12Rcv) 25 meter Mini-SMB to Open-Ended cable
MINISMB/BNC-M= One Pair (1Tx/1Rcv) 10ft. Mini-SMB to BNC-Male
MINISMB/BNC-F= One Pair (1Tx/1Rcv) Mini-SMB to BNC-Female Cables
MINISMB/OPEN= One Pair (1Tx/1Rcv) 25 meter Mini-SMB to Open ended cable
CVPN6500FIPS/KIT= Kit (instructions, labels, shield) to config 6500 for FIPS
DC-LUGS-4= DC power supply lugs for #4 AWG wire size
DC-LUGS-6= DC power supply lugs for #6 AWG wire size
CAB-AC15A-90L-US 15A AC Pwr Cord, left-angle (United States) (bundle option)
CAB-AC15A-90L-US= Spare 15A AC Pwr Cord, left-angle (US)
CAB-AC10A-90L-UK 10A AC Pwr Cord, left-angle (United Kingdom) (bundle option)
CAB-AC10A-90L-UK= Spare 10A AC Pwr Cord, left-angle (UK)
CAB-AC10A-90L-IT 10a AC Pwr Cord, left-angle (Italy) (bundle option)
CAB-AC10A-90L-IT= Spare 10A AC Pwr Cord, left-angle (Italy)
CAB-AC10A-90L-EU 10A AC Pwr Cord, left-angle (Europe) (bundle option)
CAB-AC10A-90L-EU= Spare 10A AC Pwr Cord, left-angle (Europe)
CAB-AC16A-CH 16A AC Power Cord For China
CAB-AC16A-CH= 16A AC Power Cord For China
CAB-AC10A-90L-AU 10A AC Pwr Cord, left-angle (Australia) (bundle option)
CAB-AC10A-90L-AU= Spare 10A AC Pwr Cord, left-angle (Australia)
FAN-MOD-6HS High Speed Fan Module for CISCO7606 Chassis
FAN-MOD-6HS= High Speed Fan Module for CISCO7606 Chassis
FAN-MOD-09= Fan Mod CISCO7609 (2 required) / Cat6509-NEB-A (1 required)
WS-C6K-13SLT-FAN2= High Speed Fan Tray, Spare, for Catalyst 6513 / Cisco 7613
KIT-MNTG-CG-6= Mounting Kit and Cable Guide For CISCO7606
KIT-MNTG-CG-4= Mounting Kit and Cable Guide For CISCO 7604 and 6504-E
KIT-MNTG-09= Mounting Kit For CISCO7609/Cat6509-NEB-A chassis
PWR-1500-DC 7603S 1500W DC Power Supply
PWR-1500-DC= 7603S 1500W DC Power Supply
PWR-1900-AC/6 1900W AC Power Supply for CISCO7606
PWR-1900-AC/6= 1900W AC Power Supply for C7606
PWR-1900-AC/6/2 Redundant 1900W AC Pwr Sup CISCO7606
PWR-1900-DC 1900W DC Power Supply for Cisco7606
PWR-1900-DC/2 Redun.1900W DC Power Supply for Cisco7606
PWR-1900-DC= 1900W DC Power Supply for Cisco7606
WS-CDC-2500W Catalyst 6000 2500W DC Power Supply
WS-CDC-2500W= Catalyst 6000 2500W DC Power Supply, Spare
WS-CAC-3000W Catalyst 6500 3000W AC power supply
Chapter 1
1-40
Cisco 7600 Series
Page 41
Chapter 1
WS-CAC-3000W= Catalyst 6500 3000W AC power supply (spare)
WS-CAC-4000W-INT 4000W AC PowerSupply, International (cable included)
WS-CAC-4000W-INT= 4000W AC PowerSupply, International (cable included)
WS-CAC-4000W-US 4000Watt AC Power Supply for US (cable attached)
WS-CAC-4000W-US= 4000Watt AC Power Supply for US (cable attached)
WS-CAC-6000W Cat6500 6000W AC Power Supply
WS-CAC-6000W= Cat6500 6000W AC Power Supply
PEM-DC DC Power Entry Module Cisco7606
PEM-DC= Spare DC Power Entry Module for Cisco7606
PEM-DC/2 Redun. DC Power Entry Module for Cisco7606
PEM-03S-CVR Power Entry Module Blank Cover for 7603-S
PEM-03S-CVR= Power Entry Module Blank Cover for 7603-S
PEM-20A-AC Power Entry Module for CISCO7606 (1900W Pwr Sup)
PEM-20A-AC= Power Entry Module CISCO7606
PEM-20A-AC/2 Redun. AC Power Entry Module for CISCO7606 (1900W PS)
PEM-1500W-DC/03S 7603S Power Entry Module
PEM-1500W-DC/03S= 7603S Power Entry Module
7606-PEM-CVR Cisco 7606 PEM Cover
CAB-GSR16-US= Cisco 12016 GSR AC Power Supply Cord, US Spare
CAB-GSR16-EU= Cisco 12016 GSR AC Power Supply Cord, Europe Spare
CAB-AC-C6K-TWLK Power Cord, 250Vac 16A, twist lock NEMA L6-20 plug, US
CAB-AC-C6K-TWLK= Power Cord, 250Vac 16A, twist lock NEMA L6-20 plug, US
CAB-AC-2500W-EU Power Cord, 250Vac 16A, Europe
CAB-AC-2500W-EU= Power Cord, 250Vac 16A, Europe
CAB-AC-2500W-INT= Power Cord, 250Vac 16A, INTL
CAB-AC-2500W-ISRL Power Cord,250VAC,16A,Israel
CAB-AC-2500W-ISRL= Power Cord,250VAC,16A,Israel
WS-C6509-NEB-FAN2 Catalyst 6509-NEB High Speed Fan Tray
WS-C6509-NEB-RACK= Catalyst C6509-NEB chassis Rack Mount and Cable Org., Spare
WS-C6K-VTT= Catalyst 6000 VTT Module, Spare
WS-C6K-VTT-E= Catalyst 6500 E-series VTT Modules
CAB-AC16A-90L-IN= 16A AC right angle pwr cord -International
CLK-7600= Spare Clock card for CISCO7603, CISCO7606 or CISCO7609 (FRU)
WS-X6K-SLOT-CVR= Catalyst 6000 Blank Line Card Slot Cover
WS-X6K-SLOT-CVR-E= Catalyst 6500 Enhanced chassis line card slot cover
CABLETRAY-09= Cable Tray Assembly for CISCO7609/Cat6509-NEB-A
PWR-03S-CVR Power Supply Blank Cover for 7603-S
PWR-03S-CVR= 7603S Power Supply Blank Cover
1900W-DC 1900 W DC Option for 7606 Bundle
2700W-AC 2700 W AC Power Supply for 7604
2700W-AC/6 2700 W AC Power Supply for 7606
2700W-DC/6 2700 W DC Power Supply for 7606
PWR-2700-AC 2700W AC power supply for CISCO7606
PWR-2700-AC= 2700W AC power supply for CISCO7606
4000W-AC-INT 4000W AC PowerSupply, International (cable attached)
4000W-DC 4000W DC PS for 7609/7613Chassis -Not orderable as spare
PWR-4000-DC 4000W DC PS for CISCO7609-S/CISCO7609/13, Cat6509/13 chassis
PWR-4000-DC= 4000W DC Pwr Supply for CISCO7609/13 and Cat 6509/13
CVR-4000DC-TERM= Terminal Cover Kit for PWR-4000-DC
FLTRASSM-09= Filter cage assm CISCO7609/WS-C6509-NEB-A, no filter inserts
FLTRINSERTS-09= Set -five (5) replacement Filter inserts for FLTRASSM-09=
INTAKEPNL-09= air intake panel (rqd for 7609/6509-NEB-A air filter)
PWR-2700-DC 2700W DC power supply for CISCO7606
PWR-2700-DC= 2700W DC power supply for CISCO7606
2700W-DC 2700 W DC Power Supply for 7604
3000W-AC 3000W AC Power Supply (select cable)
CVPN7600FIPS/KIT= Kit (instructions, labels, shield) to config 7600 for FIPS
7600-SLOT-CVR Cisco 7600 Line Card Slot Cover
7600-SLOT-CVR= Cisco 7600 Line Card Slot Cover
PWR-2700-AC/4 2700W AC Power Supply for Cisco 7604/6504-E
PWR-2700-AC/4= 2700W AC Power Supply for Cisco 7604/6504-E
PWR-2700-DC/4 2700W DC Power Supply for Cisco 7604/6504-E
PWR-2700-DC/4= 2700W DC Power Supply for Cisco 7604/6504-E
FAN-MOD-4HS= High-Speed Fan Module for Cisco 7604/6504-E Chassis
7600-SIP-200 Cisco 7600 Series SPA Interface Processor-200
7600-SIP-200= Cisco 7600 Series SPA Interface Processor-200
6000W-AC 6000 W AC Power Supply for Cisco 7609/7613
6000W-DC 6000W DC Power Supply for 7609/7609-S/7613
PWR-6000-DC 6000W DC Power Suply for Cisco7609/7609S/7613
Cisco 7600 Series
1-41
Page 42
PWR-6000-DC= 6000W DC Power Suply for Cisco7609/7609S/7613
FAN-MOD-9SHS= High Speed Fan Module for CISCO7609-S Chassis
THERM-7609S= Thermistor Module for 7609-S
INTAKEPNL-09S= Air intake panel (rqd for 7609-S)
PWR-09S-CVR= 7609S Power Supply Blank Cover
Cisco 7600 Memory Options
MEM-RSP720-CF512M C7600 RSP720 Compact Flash memory
MEM-S2-256MB= Catalyst 6500 256MB DRAM on the Supervisor (SUP2), Spare
MEM-S2-512MB Catalyst 6500 512MB DRAM on the Supervisor (SUP2 or SUP720)
MEM-S2-512MB= Catalyst 6500 512MB DRAM on the Supervisor(SUP2 or 720)Spare
MEM-MSFC2-512MB Catalyst 6500 512MB DRAM on the MSFC2 or SUP720 MSFC3
MEM-MSFC2-512MB= Catalyst 6500 512MB DRAM on the MSFC2 or SUP720 MSFC3, Spare
MEM-OSM-64M= 64MB ECC Memory for Optical Services Modules
MEM-OSM-128M 128 MB ECC Memory for Optical Services Modules
MEM-OSM-128M= 128 MB ECC Memory for Optical Services Modules
MEM-OSM-256M 256 MB ECC Memory for Optical Services Modules
MEM-OSM-256M= 256 MB ECC Memory for Optical Services Modules
MEM-OSM-512M 512 MB ECC Memory for Optical Services Modules
MEM-OSM-512M= 512 MB ECC Memory for Optical Services Modules
MEM-C6K-WAN-64M FlexWAN Module Memory for Cisco 7600/Cat 6500, 64MB
MEM-C6K-WAN-128M= FlexWAN Module Memory for Cisco 7600/Cat 6500, 128MB, Spare
MEM-DFC-128MB Catalyst 6500 128MB DRAM for DFC
MEM-DFC-128MB= Catalyst 6500 128MB DRAM for DFC, Spare
MEM-DFC-256MB Catalyst 6500 256MB DRAM for DFC
MEM-DFC-256MB= Catalyst 6500 256MB DRAM for DFC, Spare
MEM-DFC-512MB Catalyst 6500 512MB DRAM for DFC
MEM-DFC-512MB= Catalyst 6500 512MB DRAM for DFC, Spare
MEM-C6K-ATA-1-64M= Cat6500 Sup2, ATA Type1 Flash Mem Card, 64MB Spare
MEM-C6K-FLC16M= Cat6500 Sup1/Sup1A/Sup2, PCMCIA Flash Mem Card, 16MB Spare
MEM-C6K-FLC24M= Cat6500 Sup1/Sup1A/Sup2, PCMCIA Flash Mem Card, 24MB Spare
MEM-C6K-CPTFL128M Cat6500 Sup720/Sup32 Compact Flash Mem 128MB
MEM-C6K-CPTFL128M= Cat6500 Sup720/Sup32 Compact Flash Mem 128MB
MEM-C6K-CPTFL256M Cat6500 Sup720/Sup32 Compact Flash Mem 256MB
MEM-C6K-CPTFL256M= Cat6500 Sup720/Sup32 Compact Flash Mem 256MB
MEM-C6K-CPTFL512M Catalyst 6500 Sup720/Sup32 Compact Flash Mem 512MB
MEM-C6K-CPTFL512M= Catalyst 6500 Sup720/Sup32 Compact Flash Mem 512MB
MEM-CC-WAN-512M Two 512 MB Memory modules for the two Enhanced FlexWAN Bays
MEM-CC-WAN-512M= 512MB memory for Enhanced FlexWAN Module
MEM-CC-WAN-256M 256 MB Memory for Enhanced FlexWAN Module
MEM-CC-WAN-256M= 256 MB Memory Module for Enhanced FlexWAN Module
MEM-SIP-200-512M 512MB Memory for 7600 SIP-200
MEM-SIP-200-512M= 512MB Memory for 7600 SIP-200
MEM-SIP-200-1G 1 GB Memory for 7600 SIP-200
MEM-SIP-200-1G= 1 GB Memory for 7600 SIP-200
MEM-MWAM-512MB MWAM 512MB Memory Option
MEM-MWAM-1GB MWAM 1GB Memory Option
MEM-RSP720-CF256M C7600 RSP720 Compact Flash Memory
MEM-RSP720-2G C7600 RSP 720 1G to 2G Memory Upgrade
Cisco 7600 Series Software for Supervisor 720
S763AEK9-12218SXF Cisco 7600-SUP720 IOS ADVANCED ENTERPRISE SERVICES SSH
S763AIK9-12218SXF Cisco 7600-SUP720 IOS ADVANCED IP SERVICES SSH
S763AIK9-12233SRA Cisco 7600-SUP720 IOS ADVANCED IP SERVICES SSH
S763ISK9-12218SXF Cisco 7600-SUP720 IOS IP SERVICES SSH
S763IS-12218SXF Cisco 7600-SUP720 IOS IP SERVICES
S763ISK9-12233SRA Cisco 7600-SUP720 IOS IP SERVICES SSH
S763IS-12233SRA Cisco 7600-SUP720 IOS IP SERVICES
S763AEK9-12233SRA Cisco 7600-SUP720 IOS ADVANCED ENTERPRISE SERVICES SSH
S763AESK9-12218SXE Cisco 7600-SUP720 IOS ADVANCED ENTERPRISE SERVICES SSH
S763AISK9-12218SXE Cisco 7600-SUP720 IOS ADVANCED IP SERVICES SSH
S763IPSK9-12218SXE Cisco 7600-SUP720 IOS IP SERVICES SSH
S763AK9H-12218SXD Cisco 7600-SUP720 IOS ENT FW W/MPLS/IPV6/SSH/3DES
S763Z-12218SXD Cisco 7600-SUP720 IOS IP
S763ZK9-12218SXD Cisco 7600-SUP720 IOS IP W/SSH/3DES
S763ZK9M-12218SXD Cisco 7600-SUP720 IOS ADV IP W/MPLS/IPV6/SSH/3DES
S763AK9H-12217SXB Cisco 7600-SUP720 IOS ENT FW W/MPLS/IPV6/SSH/3DES
S763AK9H-12217SXB= Cisco 7600-SUP720 IOS ENT FW W/MPLS/IPV6/SSH/3DES
S763Z-12217SXB Cisco 7600-SUP720 IOS IP
S763Z-12217SXB= Cisco 7600-SUP720 IOS IP
S763ZK9-12217SXB Cisco 7600-SUP720 IOS IP W/SSH/3DES
1-42
Cisco 7600 Series
Chapter 1
Page 43
Chapter 1
S763ZK9-12217SXB= Cisco 7600-SUP720 IOS IP W/SSH/3DES
S763ZK9M-12217SXB Cisco 7600-SUP720 IOS ADV IP W/MPLS/IPV6/SSH/3DES
S763ZK9M-12217SXB= Cisco 7600-SUP720 IOS ADV IP W/MPLS/IPV6/SSH/3DES
7600-SW-SPARECD Cisco 7600 Series Software Spare CD
Cisco 7600 Series Software for Supervisor 32
S7632AEK9-12233SRB Cisco 7600-SUP32 IOS ADVANCED ENTERPRISE SERVICES SSH
S7632AIK9-12233SRB Cisco 7600-SUP32 IOS ADVANCED IP SERVICES SSH
S7632IS-12233SRB Cisco 7600-SUP32 IOS IP SERVICES
S7632ISK9-12233SRB Cisco 7600-SUP32 IOS IP SERVICES SSH
S763AEK9-12233SRB Cisco 7600-SUP720 IOS ADVANCED ENTERPRISE SERVICES SSH
S763AIK9-12233SRB Cisco 7600-SUP720 IOS ADVANCED IP SERVICES SSH
S763IS-12233SRB Cisco 7600-SUP720 IOS IP SERVICES
S763ISK9-12233SRB Cisco 7600-SUP720 IOS IP SERVICES SSH
S764AEK9-12233SRB Cisco 7600-RSP720 IOS ADVANCED ENTERPRISE SERVICES SSH
S764AIK9-12233SRB Cisco 7600-RSP720 IOS ADVANCED IP SERVICES SSH
S764IS-12233SRB Cisco 7600-RSP720 IOS IP SERVICES
S764ISK9-12233SRB Cisco 7600-RSP720 IOS IP SERVICES SSH
S7632AEK9-12218SXF Cisco 7600-SUP32 IOS ADVANCED ENTERPRISE SERVICES SSH
S7632AIK9-12218SXF Cisco 7600-SUP32 IOS ADVANCED IP SERVICES SSH
S7632ISK9-12218SXF Cisco 7600-SUP32 IOS IP SERVICES SSH
S7632IS-12218SXF Cisco 7600-SUP32 IOS IP SERVICES
S7632AEK9-12233SRA Cisco 7600-SUP32 IOS ADVANCED ENTERPRISE SERVICES SSH
S7632AIK9-12233SRA Cisco 7600-SUP32 IOS ADVANCED IP SERVICES SSH
S7632IS-12233SRA Cisco 7600-SUP32 IOS IP SERVICES
S7632ISK9-12233SRA Cisco 7600-SUP32 IOS IP SERVICES SSH
Cisco 7600 Series Software for Supervisor 2
S76IPV-12412 Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPV-12412= Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPVK9-12412 Cisco 7600-CMM IOS IP VOICE
S76IPVK9-12412= Cisco 7600-CMM IOS IP VOICE
S76VGK9-12412 Cisco 7600-CMM IOS IP VOICE BASE
S76VGK9-12412= Cisco 7600-CMM IOS IP VOICE BASE
S76IPV-12410 Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPV-12410= Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPVK9-12410 Cisco 7600-CMM IOS IP VOICE
S76IPVK9-12410= Cisco 7600-CMM IOS IP VOICE
S76VGK9-12410 Cisco 7600-CMM IOS IP VOICE BASE
S76VGK9-12410= Cisco 7600-CMM IOS IP VOICE BASE
S76VGMS-12410 Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGMS-12410= Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGMS-12412 Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGMS-12412= Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S763AEK9-12218SXF Cisco 7600-SUP720 IOS ADVANCED ENTERPRISE SERVICES SSH
S763AIK9-12218SXF Cisco 7600-SUP720 IOS ADVANCED IP SERVICES SSH
S763ISK9-12218SXF Cisco 7600-SUP720 IOS IP SERVICES SSH
S763IS-12218SXF Cisco 7600-SUP720 IOS IP SERVICES
S762AK9H-12217SXB= Cisco 7600-SUP2/MSFC2 IOS ENT FW W/MPLS/IPV6/SSH/3DES
S762Z-12217SXB= Cisco 7600-SUP2/MSFC2 IOS IP
S762ZK9-12217SXB= Cisco 7600-SUP2/MSFC2 IOS IP W/SSH/3DES
S762ZK9M-12217SXB= Cisco 7600-SUP2/MSFC2 IOS ADV IP W/MPLS/IPV6/SSH/3DES + BGP
S76AK2-12126E Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE W/VIP SSH 3DES
S76AK2-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE W/VIP SSH 3DES
S76AK2H-12126E Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE WITH FW/VIP 3DES
S76AK2H-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE WITH FW/VIP 3DES
S76AV-12126E Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE W/VIP
S76AV-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE W/VIP
S76AVH-12126E Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE WITH FW/VIP
S76AVH-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE WITH FW/VIP
S76BV-12126E Cisco 7600-SUP2/MSFC2 Ser IOS DESKTOP W/VIP
S76BV-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS DESKTOP W/VIP
S76DV-12126E Cisco 7600-SUP2/MSFC2 Ser IOS IP/IPX W/VIP
S76DV-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS IP/IPX W/VIP
S76ZK2-12126E Cisco 7600-SUP2/MSFC2 Ser IOS SP W/VIP SSH 3DES
S76ZK2-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS SP W/VIP SSH 3DES
S76ZK2H-12126E Cisco 7600-SUP2/MSFC2 Ser IOS SP WITH FW/VIP 3DES
S76ZK2H-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS SP WITH FW/VIP 3DES
S76ZV-12126E Cisco 7600-SUP2/MSFC2 Ser IOS SERVICE PROVIDER W/VIP
S76ZV-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS SERVICE PROVIDER W/VIP
S76ZVH-12126E Cisco 7600-SUP2/MSFC2 Ser IOS SP WITH FW/VIP
Cisco 7600 Series
1-43
Page 44
S76ZVH-12126E= Cisco 7600-SUP2/MSFC2 Ser IOS SP WITH FW/VIP
S6S22ALK2-12113E Catalyst 6000 SUP2/MSFC2 IOS ENTERPRISE SSH 3DES LAN ONLY
S6S22ALV-12113E Catalyst 6000 SUP2/MSFC2 IOS ENTERPRISE LAN ONLY
S6S22DV-12113E Catalyst 6000 SUP2/MSFC2 IOS IP/IPX W/VIP
S6S22ZLV-12113E Catalyst 6000 SUP2/MSFC2 IOS SERVICE PROVIDER LAN ONLY
S762IPS-12218SXE Cisco 7600-SUP2 IOS IP SERVICES
S762IPSK9-12218SXE Cisco 7600-SUP2 IOS IP SERVICES SSH
7600-SW-SPARECD Cisco 7600 Series Software Spare CD
S76AK2-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE W/VIP SSH 3DES
S76AK2H-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE WITH FW/VIP 3DES
S76AV-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE W/VIP
S76AVH-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS ENTERPRISE WITH FW/VIP
S76BV-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS DESKTOP W/VIP
S76DV-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS IP/IPX W/VIP
S76ZK2-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS SP W/VIP SSH 3DES
S76ZK2H-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS SP WITH FW/VIP 3DES
S76ZV-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS SERVICE PROVIDER W/VIP
S76ZVH-12127E= Cisco 7600-SUP2/MSFC2 Ser IOS SP WITH FW/VIP
S76IPV-12407= Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPVK9-12407= Cisco 7600-CMM IOS IP VOICE
S76VGK9-12407= Cisco 7600-CMM IOS IP VOICE BASE
S76VGMS-12407= Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76ITPK9-12218IXA Cisco 7600 Series IOS IP TRANSFER POINT (ITP)
S76ITPK9-12218IXB Cisco 7600 Series IOS IP TRANSFER POINT (ITP)
S76VGK9-12409T Cisco 7600-CMM IOS IP VOICE BASE
S76VGMS-12409T Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGMS-12409T= Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76IPV-12409T Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPV-12409T= Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPV-12411T Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPV-12411T= Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPVK9-12409T Cisco 7600-CMM IOS IP VOICE
S76IPVK9-12409T= Cisco 7600-CMM IOS IP VOICE
S76IPVK9-12411T Cisco 7600-CMM IOS IP VOICE
S76IPVK9-12411T= Cisco 7600-CMM IOS IP VOICE
S76IPV-12408 Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPV-12408= Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPVK9-12408 Cisco 7600-CMM IOS IP VOICE
S76IPVK9-12408= Cisco 7600-CMM IOS IP VOICE
S76VGK9-12408 Cisco 7600-CMM IOS IP VOICE BASE
S76VGK9-12408= Cisco 7600-CMM IOS IP VOICE BASE
S76VGK9-12407 Cisco 7600-CMM IOS IP VOICE BASE
S76VGMS-12408 Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGMS-12408= Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGMS-12407 Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76IPV-12407 Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPVK9-12407 Cisco 7600-CMM IOS IP VOICE
S76IPV-12406T Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPV-12406T= Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPVK9-12406T Cisco 7600-CMM IOS IP VOICE
S76IPVK9-12406T= Cisco 7600-CMM IOS IP VOICE
S76VGK9-12411T Cisco 7600-CMM IOS IP VOICE BASE
S76VGK9-12411T= Cisco 7600-CMM IOS IP VOICE BASE
S76VGMS-12411T Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGMS-12411T= Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGK9-12406T Cisco 7600-CMM IOS IP VOICE BASE
S76VGK9-12406T= Cisco 7600-CMM IOS IP VOICE BASE
S76VGMS-12406T Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGMS-12406T= Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76IPV-12405 Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPV-12405= Cisco 7600-CMM IOS IP VOICE W/O CRYPTO
S76IPVK9-12405 Cisco 7600-CMM IOS IP VOICE
S76IPVK9-12405= Cisco 7600-CMM IOS IP VOICE
S76VGK9-12405 Cisco 7600-CMM IOS IP VOICE BASE
S76VGK9-12405= Cisco 7600-CMM IOS IP VOICE BASE
S76VGMS-12405 Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76VGMS-12405= Cisco 7600-CMM IOS IP VOICE BASE WITHOUT CRYPTO
S76ITPK9-12218IXC Cisco 7600 Series IOS IP TRANSFER POINT (ITP)
Chapter 1
1-44
Cisco 7600 Series
Page 45
Chapter 1
Cisco 7600 Services Module Software
SC-SVC-SSL-1.1-K9 Software for SSL Module for Catalyst 6500
SC-SVC-FWM-3.1-K9 Firewall Module Software 3.1 for 6500 and 7600, 2 free VFW
SC-SVC-FWM-2.2-K9 Firewall Module Software 2.2 for 6500, 2 free VFW
SC-SVC-FWM-2.2-K9= Firewall Module Software 2.2 for 6500, 2 free VFW
SC-SVC-FWM-1.4-K9 Firewall Module Software 1.1(4) for Catalyst 6500
SC-SVC-IDSM-5.0-K9 IPSv5.0 for IDSM-2
SC6K-4.1.1-CSM CSM 4.1(1) Software Release
SC6K-4.1.4-CSM CSM 4.1(4) Software Release
SC6K-4.1.5-CSM CSM 4.1(5) Software Release
SC6K-4.1.7-CSM CSM 4.2(1) Software Release
SC6K-4.2.2-CSM CSM 4.2.2 Software Release
SC6K-3.2.2-CSM CSM 3.2(2) Software Release
SC6K-3.2.1-CSM CSM 3.2.1 Software Release
SC6K-3.1.6-CSM CSM 3.1(6) Software Release
SC6K-3.1.10-CSM CSM 3.1.10 Software Release
SC-SVC-CSG-B-5.0 CSG R5 SW For Basic Billing Support
SC-SVC-CSG-B-5.0= CSG R5 SW For Basic Billing Support
SC-SVC-CSG-B-6.0 CSG R6 SW For Basic Billing Support
SC-SVC-CSG-B-6.0= CSG R6 SW For Basic Billing Support
SC-SVC-CSG-B-7.0 CSG R7 SW Basic L3/L4 and Noncommercial Billing Support
SC-SVC-CSG-B-7.0= CSG R7 SW Basic L3/L4 and Noncommercial Billing Support
SC-SVC-CSG-EP-7.0 CSG R7 SW Enhanced Premium Billing Support
SC-SVC-CSG-EP-7.0= CSG R7 SW Enhanced Premium Billing Support
SC-SVC-CSG-P-5.0= CSG R5 SW For Premium Billing Supporty
SC-SVC-CSG-P-6.0 CSG R6 SW For Premium Billing Support
SC-SVC-CSG-P-6.0= CSG R6 SW For Premium Billing Support
SC-SVC-CSG-P-7.0 CSG R7 SW Premium L7 Billing and Filtering Support
SC-SVC-CSG-P-7.0= CSG R7 SW Premium L7 Billing and Filtering Support
SC-SVC-CSG-U-5.0= CSG R5 SW Upgrade (B to P)
SC-SVC-CSG-U-6.0= CSG R6 SW Upgrade (B to P)
SC-SVC-CSG-UB-5.0= CSG R5 SW Upgrade from R4 - B
SC-SVC-CSG-UB-6.0= CSG R6 SW Upgrade from R5 - B
SC-SVC-CSG-UB-7.0= CSG R7 SW Upgrade from R6 - Basic
SC-SVC-CSG-UE-7.0= CSG R7 SW Upgrade from R6 - Premium to Enhanced Premium
SC-SVC-CSG-UP-5.0= CSG R5 SW Upgrade from R4 - P
SC-SVC-CSG-UP-6.0= CSG R6 SW Upgrade from R5 - P
SC-SVC-IDSM-5.1-K9 IPSv5.1 for IDSM-2
Cisco 7600 Feature Licenses
FL-CSG-5K= Cisco CSG 7604/Sup32 Bundle - 5K Subscriber RTU
FL-MWHA-5K= Cisco MW Home Agent 7604/Sup32 Bundle - 5K Subscriber RTU
FL-PDSN-5K= Cisco PDSN 7604/Sup32 Bundle - 5K Subscriber RTU
76-ES20-ADVIP-LIC ES20 Adv License: With MVPN, IPv6, 6VPE, and L3 IP/MPLS VPN.
76-ES20-ADVIP-LIC= ES20 Adv License: With MVPN, IPv6, 6VPE, and L3 IP/MPLS VPN.
76-ES20-BASIC-LIC ES20 Basic License: No MVPN, IPv6, 6VPE, and L3 IP/MPLS VPN.
FR-BRE-7600 Bridged Routed Encapsulation License on Cisco 7600
FR-C6FW Catalyst 6000 family IOS Firewall Feature Set
FR-C6FW= Catalyst 6000 family IOS Firewall Feature Set
FR-IRC6 Catalyst 6000 Family InterDomain Routing Feature License
FR-IRC6= Catalyst 6000 Family InterDomain Routing Feature License
FR76-MPLS-IPV6= Cisco 7600 MPLS/IPv6 Upgrade License
FR-IOSSLB Catalyst 6000 Supervisor IOS SLB Feature License
FR-IOSSLB= Catalyst 6000 Supervisor IOS SLB Feature License
FR-SVC-FWM-VC-T1 Catalyst 6500 and 7600 virtual FW licensing for 20 VF
FR-SVC-FWM-VC-T1= Catalyst 6500 and 7600 virtual FW licensing for 20 VF
FR-SVC-FWM-VC-T2 Catalyst 6500 and 7600 virtual FW licensing for 50 VF
FR-SVC-FWM-VC-T2= Catalyst 6500 and 7600 virtual FW licensing for 50 VF
FR-SVC-FWM-VC-T3 Catalyst 6500 and 7600 virtual FW licensing for 100 VF
FR-SVC-FWM-VC-T3= Catalyst 6500 and 7600 virtual FW licensing for 100 VF
FR-SVC-FWM-UPGR1= Catalyst 6500 and 7600 virtual FW upgrade from 20 to 50
FR-SVC-FWM-UPGR2= Catalyst 6500 and 7600 virtual FW upgrade from 50 to 100
SC6K-4.2.1-CSM CSM 4.2(1) Software Release
SC6K-3.2.3-CSM CSM 3.2.3 Software Release
SC6K-3.1.8-CSM CSM 3.1(8) SOFTWARE RELEASE
FL-CSG-BASIC-50K CSG 50K User License F/ Basic Billing Support
FL-CSG-BASIC-NL CSG No Limit User License F/ Basic Billing Support
FL-CSG-BASIC-UPG= Upgrade - FL-CSG-BASIC-50K To FL-CSG-BASIC-NL
FL-CSG-PREM-50K CSG 50K User License F/ Premium Billing Support
FL-CSG-PREM-NL CSG No Limit User License F/ Premium Billing Support
Cisco 7600 Series
1-45
Page 46
Chapter 1
FL-CSG-BASIC-50K= CSG 50K User License F/ Basic Billing Support
FL-CSG-BASIC-NL= CSG No Limit User License F/ Basic Billing Support
FL-CSG-PREM-NL= CSG No Limit User License F/ Premium Billing Support
FL-CSG-PREM-NLB= CSG No Limit 2 Unit License F/ Premium Billing Support
FL-CSG-PREM-UPG= Upgrade - FL-CSG-PREM-50K To FL-CSG-PREM-NL
FL-CSG-UPG-50K= Upgrade - FL-CSG-BASIC-50K To FL-CSG-PREM-50K
FL-CSG-UPG-NL= Upgrade - FL-CSG-BASIC-NL To FL-CSG-PREM-NL
FR-ITP-7600-MLR Advanced multi-layer routing license
FR-ITP-7600-MLR= Advanced multi-layer routing license
FR-ITP-7600-MVAR Mult-variant and/or multi-NI conversion license
FR-ITP-7600-MVAR= Mult-variant and/or multi-NI conversion license
FR-ITP-ATMHSL-EFW ATM-based SS7 HSL license per eFW bay
FR-ITP-ATMHSL-EFW= ATM-based SS7 HSL license per eFW bay
FR-ITP-M2PA-EFW enhanced FlexWAN per bay M2PA license
FR-ITP-M2PA-EFW= enhanced FlexWAN per bay M2PA license
FR-ITP-M3UA-EFW enhanced FlexWAN per bay M3UA license
FR-ITP-M3UA-EFW= enhanced FlexWAN per bay M3UA license
FR-ITP-SUA-EFW enhanced FlexWAN per bay SUA license
FR-ITP-SUA-EFW= enhanced FlexWAN per bay SUA license
Cisco 7600 Network Management
EMS-7600-31KIT-DK9 Cisco 7600 Internet Router Mgr v3.1 DEMO Media Kit
EMS-CIRM--3.2D CEMF Element Manager for Cisco 7600 Router - Demo Lic
EMS-CIRM--KIT-3.2 CEMF Element Manager for Cisco 7600 Router - Media Kit
EMS-CIRM-3.2 CEMF Element Manager for Cisco 7600 Router - RTU
EMS-CIRM-3.2U CEMF Element Manager for Cisco 7600 Router-Upg from V3.1
1. This is only a small subset of all parts available via URL listed under “For More Information.” Some parts have restricted
access or are not available through distribution channels.
For More Information
See the Cisco 7600 Series Web site: http://www.cisco.com/go/7600
Cisco 10700 Series
The Cisco 10700 series includes the Cisco 10720 Internet Router is a high-performance
router and a principle building block in the metro IP network. It enables service providers
to offer innovative and differentiated IP services to their customers at optical speeds.
When to Sell
Sell This Product When a Customer Needs These Features
Cisco 10700 Series
• High-performance IP services as part of their business strategy by extending IP further out into the network
• Simple, scalable, reliable features of DPT technology while maximizing fiber usage
• Any customer already using DPT technology in their network, most likely with DPT cards on the 12000 Internet
Router
• Metro Ethernet Services such as L2 and L3 VPN with FE/GE hand off to the Customer and 50ms restoration over
dark fiber using DPT
• IEEE 802.17-standard-compliant RPR technology
Key Features
• Support for IP, MPLS and L2TPv3 features at 2MPPS; L2 VPN—L2TPv3 and EoMPLS;
L3 VPN MPLS VPN and MPLS VPN over IP
• Security—ACLs, uRPF, Control Plane Policing and BFD
• SRP or 802.17 RPR with <50 ms restoration time
• Multicast support including PIM SM, PIM DM, MBGP; QoS—Modular QoS CLI, 8
queues per port
• Ethernet—MDI-MDI-X support, 10/100 speed auto-negotiation, HDX-FDX negotiation
and time delay reflectometry (TDR) for 10/100BaseTX
• Hot Standby Routing Protocol (HSRP)/Multiple Hot Standby Routing Protocol (MHSRP)
• Optical receive power monitoring support on OC-48/STM-16 Interface and GE
• Management information bases (MIBs)—SNMP, SRP, SONET, Etherlike, OSPF
1-46
Cisco 10700 Series
Page 47
Chapter 1
• Suitable for other applications—Internet data center applications, intra-POP aggregation,
cable multisystem operator (MSO) internetworking, and VoIP aggregation
Specifications
Feature Cisco 10700 Series
Security Features
Management
Physical Interfaces
Dimensions (H x W x D)
Selected Part Numbers and Ordering Information
Cisco 10700 Series
CISCO10720-AC-A Cisco 10720 Internet Router with dual AC power supply
CISCO10720-DC-A Cisco 10720 Internet Router with dual DC Power Supply
10720-FE-TX 24-port 10/100 Ethernet Access ModuleRJ45 connectors
10720-GE-FE-TX-B 4-port 100Mbps SFP GE with 8-ports of 10/100 Ethernet TX-RJ45
SFP-GE-S GE SFP - Short Reach 550M LC connectors
SFP-GE-L GE SFP - Intermediate Reach 10KM LC connectors
CWDM-SFP-1470 Longwave 1470 nm laser, single mode - Gray
CWDM-SFP-1490 Longwave 1490 nm laser, single mode - Violet
CWDM-SFP-1510 Longwave 1510 nm laser, single mode - Blue
CWDM-SFP-1530 Longwave 1530 nm laser, single mode - Green
CWDM-SFP-1550 Longwave 1550 nm laser, single mode - Yellow
CWDM-SFP-1570 Longwave 1570 nm laser, single mode - Orange
CWDM-SFP-1590 Longwave 1590 nm laser, single mode - Red
CWDM-SFP-1610 Longwave 1610 nm laser, single mode - Brown
SFP-GE-T GE SFP - 1000BaseT
10720-LR2-LC-POS OC-48c/STM-16c SRP Long Reach 2 (80km) Uplink Module-LC connectors
10720-MEM-512= 512MB RP Memory
10720-RPR-SFP OC-48c/STM-16c RPR/SRP Uplink Module supporting SFPs
SFP-OC48-SR OC-48c/STM-16c Short Reach (2KM) pluggable SFP
SFP-OC48-IR1 OC-48c/STM-16c Intermediate Reach1 (15KM) pluggable SFP
SFP-OC48-LR2 OC-48c/STM-16c Long Reach2 (80KM) pluggable SFP
1. This is only a small subset of all parts available via URL listed under “For More Information.” Some parts have restricted
access or are not available through distribution channels.
Including AAA, RADIUS authentication, TACACS+, and encrypted passwords
Cisco IOS CLI; TACACS+ and RADIUS; Configuration and administration features including Telnet and Cisco
Discovery Protocol (CDP); Serial (aux) and console ports for local and remote administration; Remote software
download via TFTP and RCP; IP over DCC for remote management of the Cisco ONS 15104 OC-48/STM-16 Optical
Regenerator, where applicable
Uplink Modules: 2-port single-mode OC-48c/STM16c DPT (SR 2 km (1.2 miles), IR 15 km (9.3 miles), LR1 40km (24
miles) and LR2 80km (50miles)
Interface Modules—The Cisco 10720 Internet Router has two dedicated slots for interface modules—modules are
not interchangeable or hot swappable:
• Upper slot is dedicated for DPT or POS Uplink module equipped with two physical ports of OC-48c/STM16c that
provide an aggregate bandwidth of approximately 5 Gbps. The cards are available in two four versions of optics,
short reach (SR) and intermediate reach (IR), Long Reach1 (LR1) and Long Reach2 (LR2) with two small form-factor
OC-48 ports with LC connectors.
• A third option for the upper slot is the CON-AUX module, which is a depopulated uplink card equipped with
Console and Auxiliary ports only; this allows the configuration of the 10720 as an “Ethernet Router” allowing the
use of one or more of the Ethernet ports in the lower slot for network connectivity
• New Uplink module that supports 2XOC48/STM16 RPR/DPT with pluggable optics. This is Cisco’s first IEEE
802.17-compliant RPR module. This module can be optionally configured in SRP mode, thus making it backward
compatible with existing DPT deployments
• Lower slot is dedicated for 24-port Fast Ethernet module—available in TX (100 m reach), FX-MM (2 km reach) or
FX-SM (15 km reach). The TX module is equipped with RJ-45 connectors while the FX-SM and FX-MM modules
are equipped with MT-RJ connectors.
• Also available is a combination 4 Gigabit Ethernet with Small Form Factor Plug-able (SFP) Optics available in SX
550m, LH 10km, ZH 70km and Copper plus an additional 8 Ports of Fast Ethernet 10/100 TX Copper ports.
3.5 x 17.25 x 18.25 in. (8.9 x 43.81 x 46.35 cm)
1
1
For More Information
See the Cisco 10720 Internet Router Web site: http://www.cisco.com/go/10700
Cisco 10700 Series
1-47
Page 48
Chapter 1
Cisco XR 12000 and 12000 Series
The Cisco XR 12000 Series and Cisco 12000 Series routers compose a
portfolio of intelligent routing solutions that scale from 2.5G to n x10
Gbps capacity per slot, enabling carrier-class IP/MPLS networks and
accelerating the evolution to IP Next-Generation Networks.
Key Features
• Delivers up to 1.28 Tbps switching capacity with wire-speed feature performance,
scalability, and graceful hardware and software upgrade paths
• Offers full forward compatibility for all line cards and portfolio of SPAs and SIPs.
• Scales to the edge, supporting backbone- or edge-optimized line cards in the same chassis
• Maximizes the value of line-rate edge applications with 10G uplinks.
• IP QoS and congestion control implementation—Enables real-time services such as VoIP
and video; Priority based congestion control, dedicated low latency queuing, and virtual
output queuing eliminates head of line blocking and maintain packet sequence integrity
under all conditions
• Non-service impacting online insertion and removal (OIR) of components (including
switch fabric cards) and front accessibility reduce downtime and simplify maintenance
• Offers Cisco NSF and Cisco Stateful Switchover (SSO) elimin ate single points of failure,
help maintain system performance, and prevent service interruption; packet forwarding
remains uninterrupted before, during and after a route processor switchover.
Competitive Products
• Juniper: T640, T320, M320 • Avici: Stackable Switch Router (SSR)
Specifications
Cisco XR 12000/
Cisco XR 12000/
Feature
Slot Capacity
Aggregate Switching
Capacity
Full-Duplex Throughput
Per
Dimensions (H x W x D)
Weight
Chassis Per Rack
Software Components (Per
Base System)
Compatibility
Protocols
Connectivity
1. With AC input power shelf or DC input power shelf, front covers installed
2. Including chassis rack-mount flanges
3. Including cable-management system and front cover
4. Chassis only, including power shelf for 16-slot chassis
5. Chassis fully configured, using all card slots, AC or DC power shelf for 16-slot chassis, and AC or DC input power supplies
1-48
12000
16 slots 10 slots 6 slots 4 slots
12016: 80 Gbps; 12416: 320
Gbps; 12816: 1280 Gbps
12016: 2.5 Gbps/slot
12416: 10 Gbps/slot
12816: 40 Gbps/slot
71.5 x 17.25 x 22.0 in
(181.6 x 184.21 x 55.9 cm)
72.5 x 18.75 x 24.0 in.
(43.8 x 47.6 x 61.0 cm)
140 lb. (64 kg)4; 390 lb. (177
5
kg)
1248
Cisco IOS XR or Cisco IOS Software Operating System; Cisco Express Forwarding for distributed packet
forwarding
12800: Line cards that support 2.5-, 10-, or 20-Gbps capability; 12400: Line cards that support 2.5- or 10-Gbps
capability; 12000: Line cards that support 2.5-Gbps capability
IPv4, MPLS, BGPv4, IS-IS, OSPFv2.0, RIPv2, IGMP, DVMRP, and PIM DX/SX
Packet over SONET/SDH (POS), Ethernet, ATM, copper (DS-3/E3), Channelized (CT3, ChOC-3/CHSTM1,
ChOC-12/CHSTM4, ChOC-48/CHSTM16); see Cisco IOS XR Software release notes for specific connectivity
support on the Cisco XR 12000 Series
Cisco XR 12000 and 12000 Series
12000 Series 10-Slot
Chassis
12010: 50 Gbps; 12410: 200
Gbps; 12810: 800 Gbps
12010: 2.5 Gbps/slot
12410: 10 Gbps/slot
12810: 40 Gbps/slot
37.5 x 19 x 22.0 in.
(95.25 x 48.26 x 55.9 cm);
2
24.0 in. (61.0 cm)
3
125 lb. (57 kg)4; 275 lb. (125
5
kg)
Cisco XR 12000/
12000 Series 6-Slot
Chassis
12006: 30 Gbps; 12406: 120
Gbps
12006: 2.5 Gbps/slot
12406: 10 Gbps/slot
18.5 in. (47.0 cm)
width: 17.3 in. (43.9 cm)
3
18.9 in. (48.0 cm)
depth: 28.0 in. (71.1 cm)
140 lb. (64 kg)4; 205 lb. (94
kg)
5
Cisco XR 12000/
12000 Series 4-Slot
Chassis
12404: 80 Gbps
12404: 10 Gbps/slot
8.75 in. (22.23 cm)
width: 17.38 in. (44.15 cm)
2
18.9 in. (48.01 cm)
depth: 27.5 in. (69.85 cm)
73 lb. (33.18 kg)4; 103 lb.
(46.82 kg)
2
5
Page 49
Chapter 1
Selected Part Numbers and Ordering Information
Cisco XR 12000 16-Slot Systems
XR-12416/320-AC Cisco XR 12000 16-slot Chassis with 3 AC power supplies, 320-Gbps fabric (2 CSC and 3 SFC cards), 2
XR-12416/320-AC4 Cisco XR 12000 16-slot Chassis with 4 AC power supplies, 320-Gbps fabric (2 CSC and 3 SFC cards), 2
XR-12416/320-DC Cisco XR 12000 16-slot Chassis with 4 DC power supplies, 320-Gbps fabric (2 CSC and 3 SFC cards), 2
Cisco 12000 16-Slot Systems
GSR16/80-AC-8R Cisco 12000 16-slot Chassis with 3 AC power supplies, 80-Gbps fabric (2 CSC and 3 SFC cards), 2 blowers, 2
GSR16/320-AC Cisco 12000 16-slot Chassis with 3 AC power supplies, 320-Gbps fabric (2 CSC and 3 SFC cards), 2 blowers, 2
12816/1280-AC3 Cisco 12000 16-slot Chassis with 3 AC power supplies, 1280-Gbps fabric (2 CSC and 3 SFC cards), 2 blowers, 2 alarms,
GSR16/80-AC4-8R Cisco 12000 16-slot Chassis with 4 AC power supplies, 80-Gbps fabric (2 CSC and 3 SFC cards), 2 blowers, 2
GSR16/320-AC4 Cisco 12000 16-slot Chassis with 4 AC power supplies, 320-Gbps fabric (2 CSC and 3 SFC cards), 2 blowers, 2
12816/1280-AC4 Cisco 12000 16-slot Chassis with 4 AC power supplies, 1280-Gbps fabric (2 CSC and 3 SFC cards), 2 blowers, 2 alarms,
GSR16/80-DC-8R Cisco 12000 16-slot Chassis with 4 DC power supplies, 80-Gbps fabric (2 CSC and 3 SFC cards), 2 blowers, 2
GSR16/320-DC Cisco 12000 16-slot Chassis with 4 DC power supplies, 320-Gbps fabric (2 CSC and 3 SFC cards), 2 blowers, 2
12816/1280-DC Cisco 12000 16-slot Chassis with 4 DC power supplies, 1280-Gbps fabric (2 CSC and 3 SFC cards), 2 blowers, 2 alarms,
Cisco XR 12000 10-Slot Systems
XR-12410/200-AC Cisco XR 12000 10-slot Chassis with 2 AC power supplies, 200-Gbps fabric (2 CSC and 5 SFC cards), 1
XR-12410/200-DC Cisco XR 12000 10-slot Chassis with 2 DC power supplies, 200-Gbps fabric (2 CSC and 5 SFC cards), 1
Cisco 12000 10-Slot Systems
12010-AC Cisco 12000 10-slot Chassis with 2 AC power supplies, 50-Gbps fabric (2 CSC and 5 SFC cards), 1 blower, 2
12010-DC Cisco 12000 10-slot Chassis with 2 DC power supplies, 50-Gbps fabric (2 CSC and 5 SFC cards), 1 blower, 2
GSR10/200-AC Cisco 12000 10-slot Chassis with 2 AC power supplies, 200-Gbps fabric (2 CSC and 5 SFC cards), 1 blower, 2
GSR10/200-DC Cisco 12000 10-slot Chassis with 2 DC power supplies, 200-Gbps fabric (2 CSC and 5 SFC cards), 1 blower, 2
12810/800-AC Cisco 12000 10-slot Chassis with 2 AC power supplies, 800-Gbps fabric (2 CSC and 5 SFC cards), 1 blower, 2
12810/800-DC Cisco 12000 10-slot Chassis with 2 DC power supplies, 800-Gbps fabric (2 CSC and 5 SFC cards), 1 blower, 2
Cisco XR 12000 6-Slot Systems
XR-12406/120-AC Cisco XR 12000 6-slot Chassis with 1 AC power supply, 120-Gbps fabric (1 CSC and 3 SFC cards), 1 blower, 2
XR-12406/120-DC Cisco XR 12000 6-slot Chassis with 1 DC power supply, 120-Gbps fabric (1 CSC and 3 SFC cards), 1 blower, 2
Cisco 12000 6-Slot Systems
12006-AC Cisco 12000 6-slot Chassis with 2 AC power supplies, 30-Gbps fabric (2 CSC and 3 SFC cards), 1 blower, 2
12006-DC Cisco 12000 6-slot Chassis with 2 DC power supplies, 30-Gbps fabric (2 CSC and 3 SFC cards), 1 blower, 2
GSR6/120-AC Cisco 12000 6-slot Chassis with 1 AC power supply, 120-Gbps fabric (1 CSC and 3 SFC cards), 1 blower, 2
GSR6/120-DC Cisco 12000 6-slot Chassis with 1 DC power supply, 120-Gbps fabric (1 CSC and 3 SFC cards), 1 blower, 2
Cisco XR 12000 4-Slot Systems
XR-12404/80-AC Cisco XR 12000 4-slot Chassis with 2 AC power supply, 80-Gbps fabric (consolidated switch fabric, clock scheduler, and
XR-12404/80-DC Cisco XR 12000 4-slot Chassis with 2 DC power supply, 80-Gbps fabric (consolidated switch fabric, clock scheduler, and
Cisco 12000 4-Slot Systems
GSR4/80-AC Cisco 12000 4-slot Chassis with 2 AC power supply, 80-Gbps fabric (consolidated switch fabric, clock scheduler, and
GSR4/80-DC Cisco 12000 4-slot Chassis with 2 DC power supply, 80-Gbps fabric (consolidated switch fabric, clock scheduler, and
Cisco 12000 Series Line Cards
12DS3-SMB DS3 line card, 12 ports
12E3-SMB E3 line card, 12 ports
16OC3X/POS-I-LC-B 16 PORT OC3 WITH EXTENDED FEATURES RELEASE B
16OC3X/POS-M-MJ-B GSR 16-port OC3/POS MM Eng3 release B
1X10GE-ER-SC Cisco 12000 1-Port 10GE Card, 1550nm serial, 40km, SC
1X10GE-LR-SC Cisco 12000 1-Port 10GE Card, 1310nm serial, 10km, SC
2CHOC3/STM1-IR-SC Channelized OC3/STM1 -> DS1/E1, 2 ports Intermediate Reach
2OC192/POS-IR-SC Cisco Two-port OC192c/STM64c POS Line Card 1550nm IR, SC
2OC192/POS-SR-SC Cisco Two-port OC192c/STM64c POS Line Card 1310 nm SR, SC
2OC192/POS-VSR Cisco Two-port OC192c/STM64c POS Line Card 850nm VSR, MTP
4CHOC12/DS3-I-SCB 4 PORT CHANNELIZED OC12 B
4GE-SFP-LC 4 port-GE line card for Cisco 12000
4OC12X/ATM-IR-SC 4-port OC12/STM4 ATM SM-IR ISE LC with SC connector
4OC12X/ATM-MM-SC 4-port OC12/STM4 ATM MM ISE LC with SC connector
4OC12X/POS-I-SC-B 4 PORT OC12 POS B
4OC12X/POS-M-SC-B 4-port OC12/POS Eng3 Multi-mode
4OC12X/SRP-IR-LC 4 port OC-12c/STM-4c SRP ISE Line Card, 1310nm IR, LC
4OC12X/SRP-XR-LC 4 port OC-12c/STM-4c SRP ISE Line Card, 1550nm XR, LC
4OC3X/ATM-IR-SC 4-port OC3/STM1 ATM SM-IR ISE LC with SC connector
4OC3X/ATM-MM-SC 4-port OC3/STM1 ATM MM ISE LC with SC connector
4OC3X/POS-IR-LC-B GSR 4-port OC3/POS IR Eng3 release B
4OC3X/POS-LR-LC-B GSR 4-port OC3/POS LR Eng3 release B
4OC3X/POS-MM-MJ-B GSR 4-port OC3/POS MM Eng3 release B
4OC48E/POS-LR-SC Edge 4 Port OC-48c/STM-16c SONET/SDH LR with SC
4OC48E/POS-SR-SC Edge 4 Port OC-48c/STM-16c SONET/SDH SR with SC
4OC48/SRP-SFP 4 Port OC48c/STM16c SRP Linecard, SFP Optics
6CT3-SMB Channelized T3 for the GSR
6DS3-SMB-B 6DS3-SMB-B w/ ECC
6E3-SMB E3 line card, 6 ports
1
and 1 PRP-1
and 1 PRP-1
and 1 PRP-1
alarm card), 1 blower, and 1 PRP-2
alarm card), 1 blower, and 1 PRP-2
alarm card), 1 blower, and 1 PRP-1
alarm card), 1 blower, and 1 PRP-1
1
Cisco XR 12000 and 12000 Series
1-49
Page 50
Chapter 1
8FE-FX-SC-B GSR 8-port 100baseFX, SC connector, version B
8FE-TX-RJ45-B 8-port 100baseTX, RJ45 connector type, version B
8OC3X/POS-IR-LC-B GSR 8-port OC3/POS IR Eng3 release B
8OC3X/POS-MM-MJ-B GSR 8-port OC3/POS MM Eng3 release B
CHOC12/DS1-IR-SC GSR12000 Channelized OC12/STM4 to DS1 (Engine3 based)
CHOC48/DS3-SR-SC 1 port Channelized OC-48 to DS3
EPA-3GE-SX/LH-LC Cisco 12000 3-Port GE Port Adapter for EPA-GE/FE-BBRD
EPA-GE/FE-BBRD Cisco 12000 Modular GE Baseboard w/ 1GE and 3 EPA Slots
LC-1OC12/ATM-MM 1 port OC12/STM4 ATM Line Card, Multi-Mode
LC-1OC12/ATM-SM 1 port OC12/STM4 ATM Line Card, Single-Mode
LC-1OC12/POS-MM 1 port OC12/STM4 Packet Over SONET/SDH Line Card, Multi-Mode
LC-1OC12/POS-SM 1port OC12/STM4 Packet Over SONET/SDH Line Card, Single-Mode
OC192E/POS-IR-SC 1 Port OC192c/STM64c POS Edge Card, 1550nm IR, SC
OC192E/POS-LR-SC OC192/STM64 Packet over Sonet Long Reach with SC
OC192E/POS-SR-SC 1 Port OC192c/STM64c POS Edge Card, 1310nm SR, SC
OC192E/POS-VSR 1 Port OC192c/STM64c POS Edge Card, VSR Optics
OC192/SRP-IR-PR Two OC192/SRP-IR-SC Linecards With One CBL-SRP-OC192 Cable
OC192/SRP-IR-SC 1 Port OC192c/STM64c SRP Linecard, 1550nm IR, SC
OC192/SRP-SR-PR Two OC192/SRP-SR -SC Linecards With One CBL-SRP-OC192 Cable
OC192/SRP-SR-SC 1 Port OC192c/STM64c SRP Linecard, 1310nm SR, SC
OC192/SRP-VSR 1 Port OC192c/STM64c SRP Linecard, 850nm VSR, MTP
OC192/SRP-VSR-PR Two OC192/SRP-VSR Linecards With One CBL-SRP-OC192 Cable
OC48/SRP-LR-B-PR Two OC48/SRP-LR-SC-B Line Cards with MATE Cable
OC48/SRP-LR-SC-B= OC48 SRP Rev-B Line Card, Single Mode, Long Reach
OC48/SRP-SR-B-PR Two OC48/SRP-SR-SC-B Line Cards with MATE Cable, GSR
OC48/SRP-SR-SC-B= OC48 SRP Rev-B Line Card, Single Mode, Short Reach, GSR
OC48X/POS-LR-SC CONCATENATED OC48 WITH EXTENDED FEATURES LONG REACH
OC48X/POS-SR-SC 1 port OC48 POS Extended features
12000-SIP-400 Cisco 12000 Series SPA Interface Processor-400
12000-SIP-400= Cisco 12000 Series SPA Interface Processor-400, spare
1. Some parts have restricted access or are not available through distribution channels.
For More Information
See the Cisco XR 12000 and 12000 Series Web site: http://www.cisco.com/go/12000
1-50
Cisco XR 12000 and 12000 Series
Page 51
Chapter 1
1-51
Cisco XR 12000 and 12000 Series
Page 52
Chapter 1
1-52
Cisco XR 12000 and 12000 Series
Loading...
