Product No. |
FEX831FS4 |
||||
|
|
|
|
|
|
Market |
North America |
||||
|
|
|
|
|
|
Color |
white |
||||
|
|
|
|
|
|
Volts |
120/240 |
|
|
||
|
|
|
|
|
|

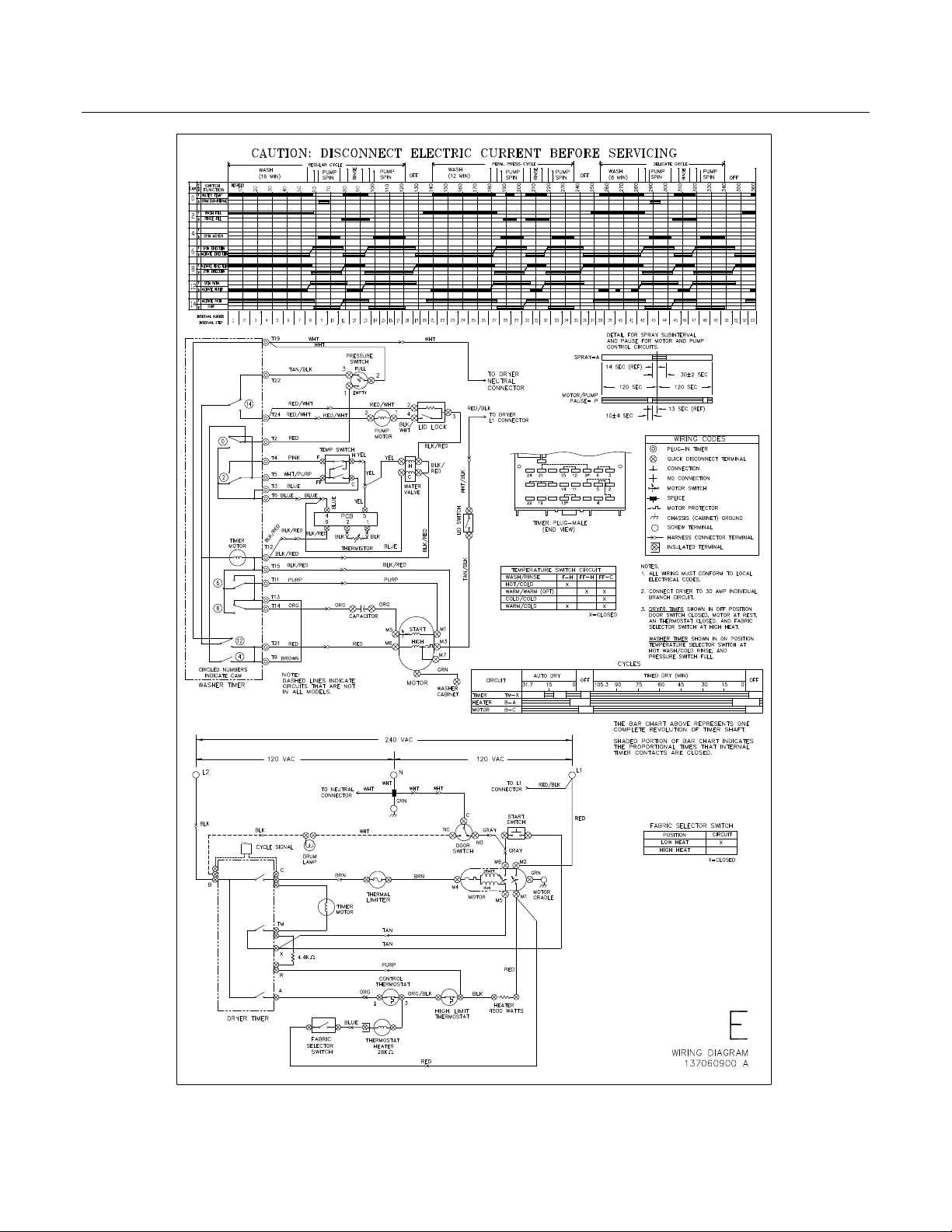

Wiring Diagram |
137060900 |
||||
|
|
|
|
|
|
Owner's Guide |
134809600 |
||||
|
|
|
|
|
|
Installation Instructions |
134897500 |
||||
|
|
|
|
|
|
Energy Guide |
134810000 |
||||

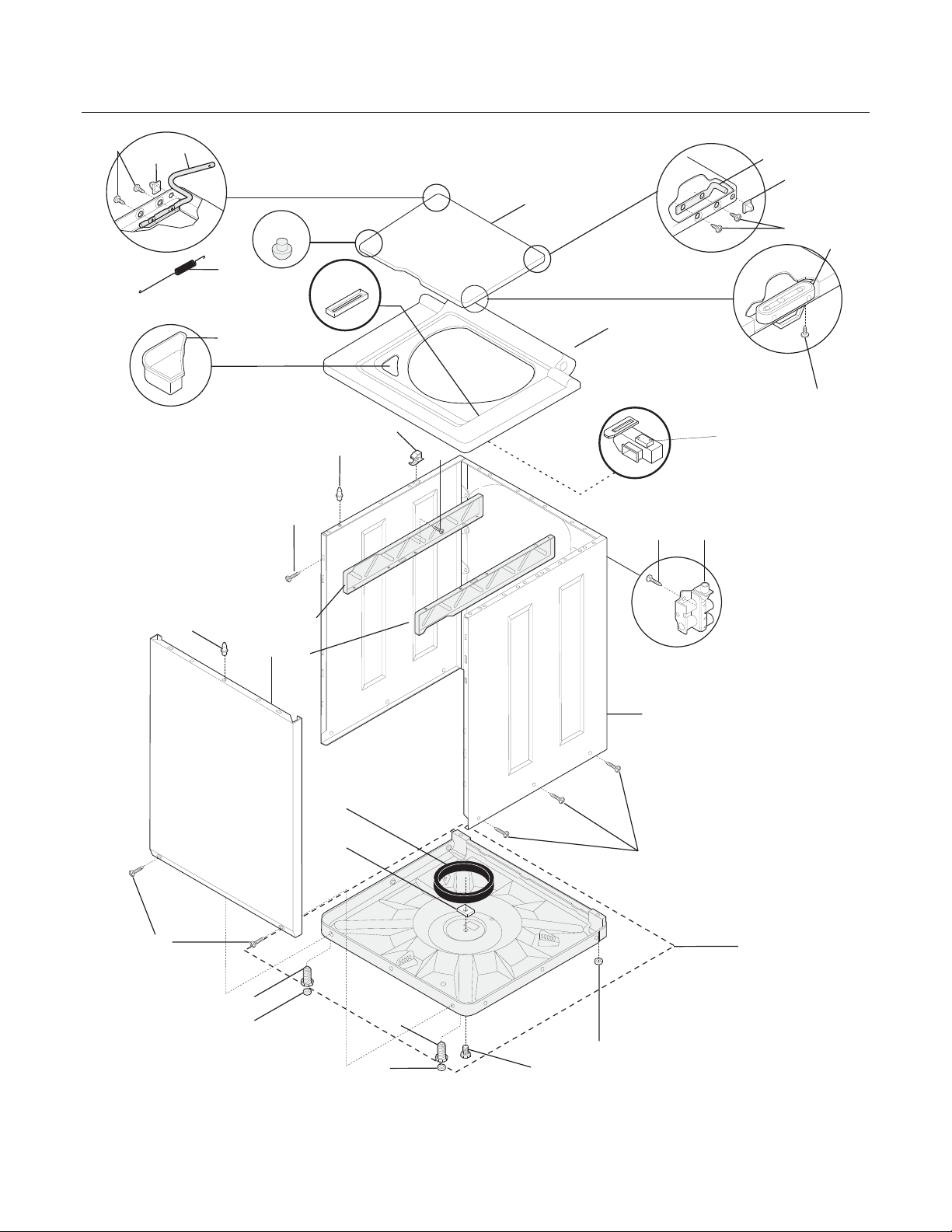

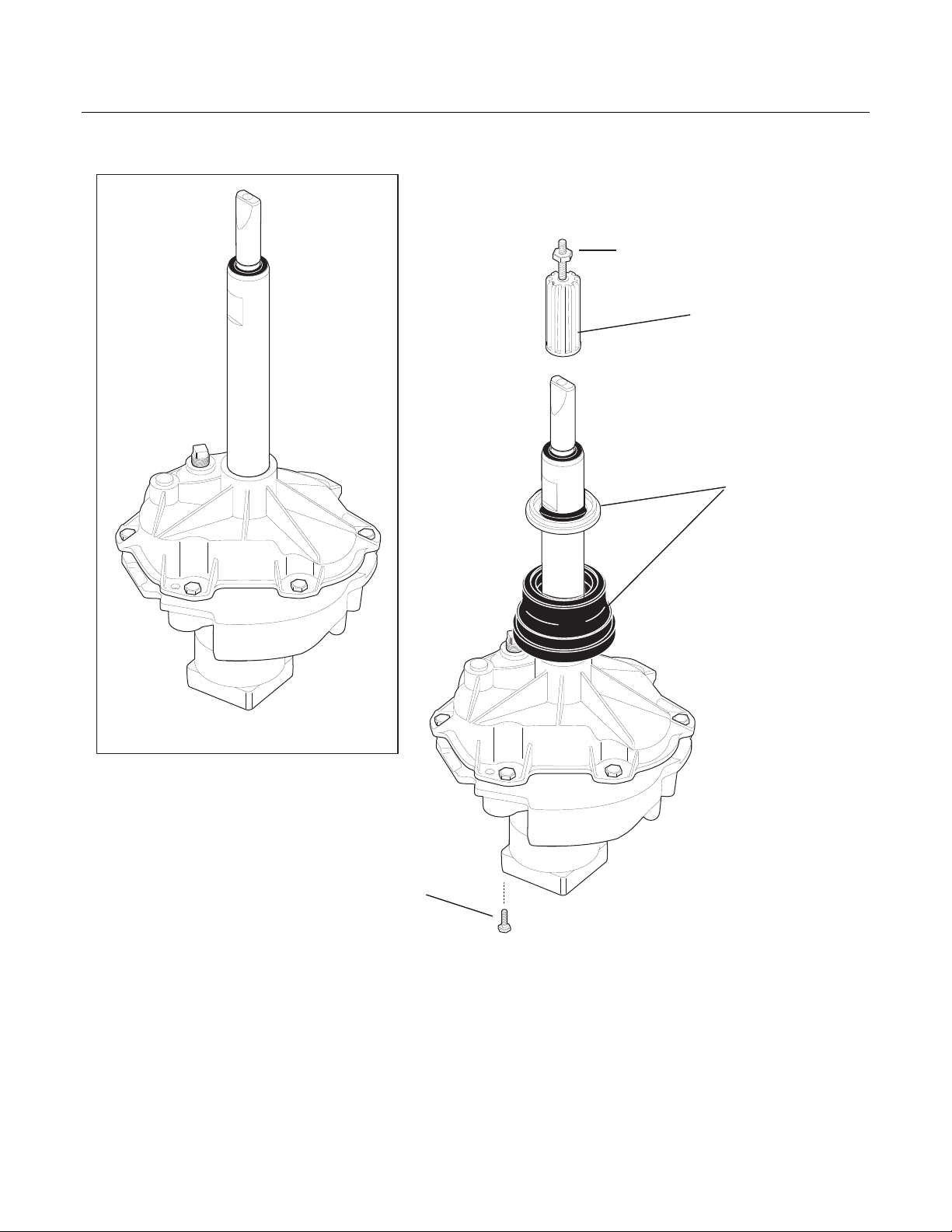

LAUNDRY CENTER

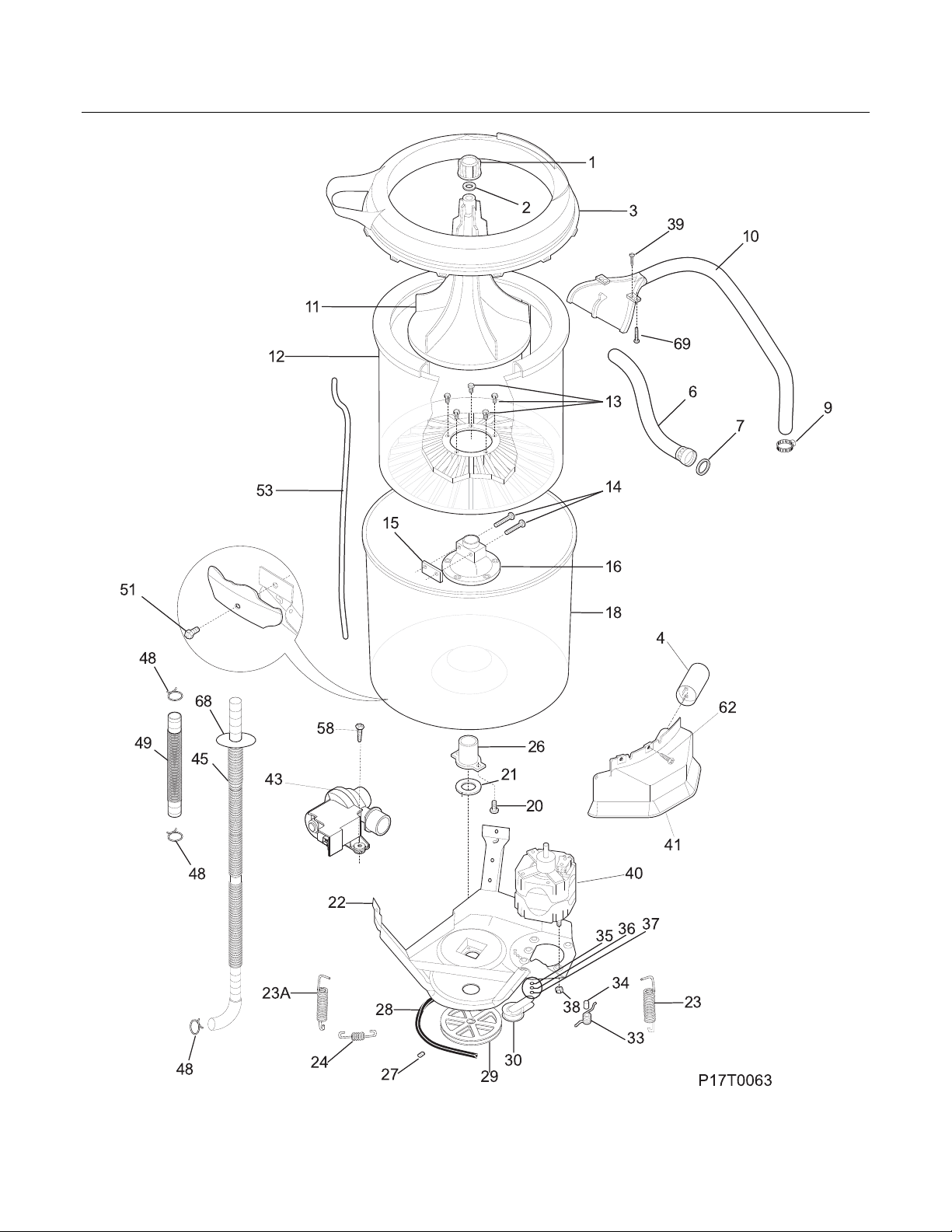

P17L0008.eps P17U0071.eps P17B0072.eps P17c0094.eps P17R0026.eps P17T0063.eps
P17M0016.eps 137060900.eps WITH ELECTRIC
DRYER
Electrolux Major Appliances |
|
North & Latin America |
Model No. |
P.O. BOX 212378 |
|
AUGUSTA, GA 30917 |
FEX831F |
|
|
|
Publication No. |
|
5995548996 |
|
09/08/13 |
|
(EN/SERVICE/WTC) |
|
361 |
|
Copyright © 2009 Electrolux Home Products, Inc. |
|
All rights reserved. |
Publication No: 5995548996 |
FEX831FS4 |
UPPER CABINET/DRUM HEATER
1 |
62 |
|
|
|
64 |
3
65
18
20
|
24 |
|
62 |
|
22 |
25 |
23 |
|
20
26 |
28 |
|
27
54
39
47
31
42 |
41 |
44 |
|
49 |
|
|
|
|
35 |
36 |
4 |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
5 |
6 |
80 |
|
|
|
|
|
|
|
80 |
|
|
|
|
|
33 |
|
|
|
|
|
|
12 |
|
|
|
80 |
13 |
|
|
80 |
|
|
|
|
|
|
|
|
|
|
|
|
9 |
32 |
|
|
|
80 |
|
|
|
|
|
11 |
|
|
14 |
|
|
|
|
15
17
18
21
38
30 29
29
48
46
50
42
P17U0071
08/09 |
2 |
FEX831FS4 |
Publication No: 5995548996 |
UPPER CABINET/DRUM HEATER
POS. NO |
PART NO. |
DESCRIPTION |
1 |
131084710 |
Panel, white, left side |
3 |
131883301 |
Panel, top |
4 |
134799902 |
Panel, rear, steel, galvanized |
5 |
5303281019 |
Ball, grounding |
6 |
5303281020 |
Clip, ball, steel, flat nut |
9 |
3204249 |
Panel, motor access, rear |
113204250 Cover, terminal block
12131825900 Bearing, drum support
13131724300 Bracket, bearing support
14131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive
15 # |
131475300 |
Heater Assy, w/housing |
173204254 Baffle, heater shield
18131477000 Screw, 10-16AB x 0.375
20 |
131963900 |
Glide, drum |
21134122532 Drum, dryer, galvanized stl., service kit
22131636237 Panel, front, white
22* |
131870700 |
Plug, light hole |
23 |
134134700 |
Seal, felt, lower |
24134036400 Seal, felt, upper
25131658800 Door Catch, upper
26 # |
131843100 |
Switch, door |
27 |
131359600 |
Lint Trap |
28 |
134440000 |
Clip, guide |
29 |
131382300 |
Screw, quadrex head, 10-14 x 1.00, vane mtg., special |
30 |
5303201200 |
Vane, straight |
31131202300 Screw, 10-16AB x 0.625
32137088620 Shaft, drum support, ballhitch
33 # |
3204267 |
Thermostat, safety |
35 |
131892100 |
Screw, 6-20B x 0.230 |
36 # |
134120900 |
Thermal Limiter |
38131084810 Panel, white, right side
39131084402 Panel, access, white, front
41134222900 Hinge, dryer door
42131209600 Screw, flat head, 8-18AB x 0.44, cr/sq drive
44 |
131129900 |
Gasket, door seal |
46131789400 Handle, door, white
47131579103 Panel, inner door, white
48131789303 Panel, outer door, white
49 |
5303211430 |
Door Strike |
50 |
134535300 |
Insulator, heat shield, outer door |
54 # |
134846300 |
Wiring Harness, door switch |
62 |
131258400 |
Screw, 10-16AB x 0.500 |
64 # |
131891010 |
Control Board, temperature, ATC |
64*# |
134805600 |
Wiring Harness, ATC jumper |
65 |
131894600 |
Housing, temp cont board |
80 |
134547800 |
Screw, 10-16AB x 0.375 |
# Functional Parts |
3 |
08/09 |
* Non-Illustrated Parts |
|
|
Publication No: 5995548996 |
|
|
FEX831FS4 |
|
MOTOR/BLOWER/BELT |
||
1 |
|
|
|
|
16 |
|
27 |
|
|
|
|
|
15 |
|
25 |
4 |
|
|
|
16 |
|
|
|
|
|
23 |
|
|
|
|
|
6 |
13 |
28 |
80 |
10A |
|
|
|
|
|
80 |
|
|
|
|
|
|
12 |
|
|
10 |
|
|
|
9 |
|
|
22 |
|
|
|
18 |
|
|
|
19 |
|
80 |
|
|
|
|
|
80 |
7 |
|
|
33 |
|
|
|
|
38 |
|
80 |
|
80 |
43 |
|
|
|
39 |
|
80 |
|
80 |
44 |
|
|
|
|
|
42 |
|
|
43 |
26 |
|
80 |
|
|
48
50
80
P17B0072
08/09 |
4 |
FEX831FS4 |
Publication No: 5995548996 |
MOTOR/BLOWER/BELT
POS. NO |
PART NO. |
DESCRIPTION |
1 |
131295200 |
Seal, air duct |
4 |
131362400 |
Fastener, push-in |
6 |
134086300 |
Duct, air |
7 |
3204490 |
Seal, housing, to air duct |
9 |
5303304824 |
Clamp |
10 |
137215200 |
Housing, blower, front, with seal |
10A |
137134100 |
Housing, blower, rear |
12 |
131476300 |
Blower Wheel |
13 |
134608400 |
Ground Strap, thermostat |
15 # |
131298300 |
Thermostat, temp control |
16 |
131243700 |
Screw, pan head, 8-18AB x 0.375 |
18131413600 Cradle, motor mount, with idler stud
19134613501 Panel, motor cradle mt, upper
22 |
3205241 |
Spring, idler |
23 |
131863100 |
Idler Arm Assy, with pulley |
23*# |
134101400 |
Terminal Block, main |
25 # |
134503900 |
Belt, dryer drive |
265303212870 Block, support, bottom panel
27134242400 Clamp, motor mtg.
28 # |
134196600 |
Motor, dryer drive, with pulley |
33 |
131731400 |
Shield, access area, cover |
383204320 Elbow, exhaust duct
39131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive
425304439185 Bracket, marriage, interior
43131751500 Screw, hex head, 12-24T 0.63
443204326 Bracket, L mounting, cabinet rear, external
48 |
131731310 |
Panel, dryer, bottom rear |
50 |
3204329 |
Cover, safety, lower front |
80 |
134547800 |
Screw, 10-16AB x 0.375 |
# Functional Parts |
5 |
08/09 |
* Non-Illustrated Parts |
|
|
