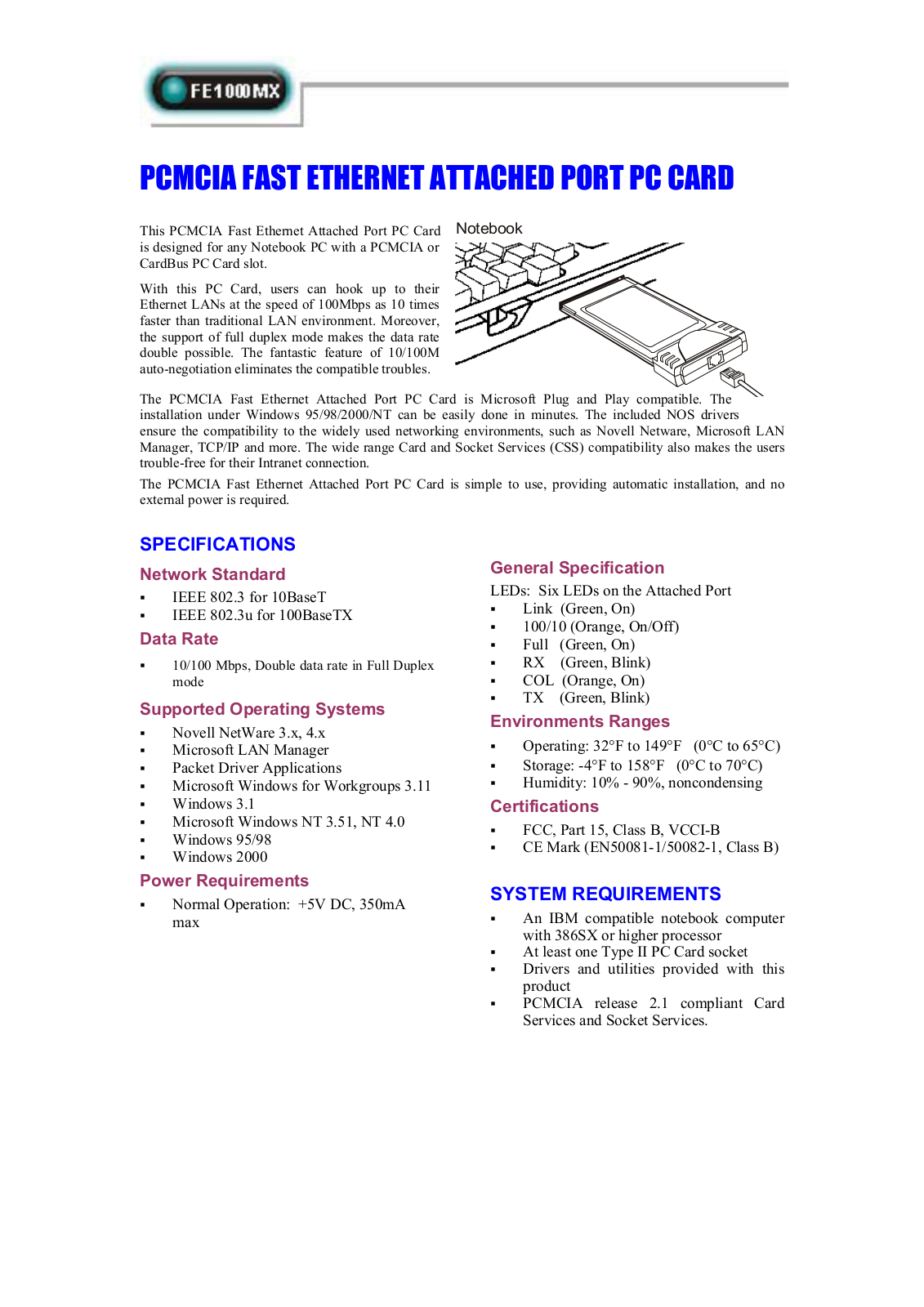

PCMCIA FAST ETHERNET ATTACHED PORT PC CARD

This PCMCIA Fast Ethernet Attached Port PC Card Notebook is designed for any Notebook PC with a PCMCIA or

CardBus PC Card slot.

With this PC Card, users can hook up to their Ethernet LANs at the speed of 100Mbps as 10 times

faster than traditional LAN environment. Moreover,

the support of full duplex mode makes the data rate double possible. The fantastic feature of 10/100M

auto-negotiationeliminates the compatible troubles.

The PCMCIA Fast Ethernet Attached Port PC Card is Microsoft Plug and Play compatible. The installation under Windows 95/98/2000/NT can be easily done in minutes. The included NOS drivers

ensure the compatibility to the widely used networking environments, such as Novell Netware, Microsoft LAN Manager, TCP/IP and more. The wide range Card and Socket Services (CSS) compatibility also makes the users trouble-freefor their Intranet connection.

The PCMCIA Fast Ethernet Attached Port PC Card is simple to use, providing automatic installation, and no external power is required.

SPECIFICATIONS

Network Standard

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseTX

Data Rate

10/100 Mbps, Double data rate in Full Duplex mode

Supported Operating Systems

Novell NetWare 3.x, 4.x

Microsoft LAN Manager

Packet Driver Applications

Microsoft Windows for Workgroups 3.11 Windows 3.1

Microsoft Windows NT 3.51, NT 4.0 Windows 95/98

Windows 2000

Power Requirements

Normal Operation: +5V DC, 350mA max

General Specification

LEDs: Six LEDs on the Attached Port Link (Green, On)

100/10 (Orange, On/Off) Full (Green, On)

RX (Green, Blink)

COL (Orange, On)

TX (Green, Blink)

Environments Ranges

Operating: 32°F to 149°F (0°C to 65°C) Storage:-4°Fto 158°F (0°C to 70°C) Humidity: 10% - 90%, noncondensing

Certifications

FCC, Part 15, Class B, VCCI-B

CE Mark (EN50081-1/50082-1,Class B)

SYSTEM REQUIREMENTS

An IBM compatible notebook computer with 386SX or higher processor

At least one Type II PC Card socket Drivers and utilities provided with this product

PCMCIA release 2.1 compliant Card Services and Socket Services.
