ZyXEL Communications P320W Users manual

P-320W

802.11g Wireless Firewall Router

User’s Guide

Version 1.00

11/2005

Edition 1

P-320W User’s Guide

Copyright

Copyright © 2005 by ZyXEL Communications Corporation.

The contents of this publication may not be reproduced in any part or as a whole, transcribed,
stored in a retrieval system, translated into any language, or transmitted in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or
otherwise, without the prior written permission of ZyXEL Communications Corporation.

Published by ZyXEL Communications Corporation. All rights reserved.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or
software described herein. Neither does it convey any license under its patent rights nor the
patent rights of others. ZyXEL further reserves the right to make changes in any products
described herein without notice. This publication is subject to change without notice.

Trademarks

ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL
Communications, Inc. Other trademarks mentioned in this publication are used for
identification purposes only and may be properties of their respective owners.

Copyright 3

P-320W User’s Guide

Federal Communications

Commission (FCC) Interference

Statement

This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause
undesired operations.

This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.

If this equipment does cause harmful interference to radio/television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution

1 To comply with FCC RF exposure compliance requirements, a separation distance of at

least 20 cm must be maintained between the antenna of this device and all persons.

2 This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Notice 1

Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

4 Federal Communications Commission (FCC) Interference Statement

P-320W User’s Guide

Certifications

1 Go to www.zyxel.com

2 Select your product from the drop-down list box on the ZyXEL home page to go to that

product's page.

3 Select the certification you wish to view from this page.

Federal Communications Commission (FCC) Interference Statement 5

P-320W User’s Guide

For your safety, be sure to read and follow all warning notices and instructions.

• To reduce the risk of fire, use only No. 26 AWG (American Wire Gauge) or larger
telecommunication line cord.

• Do NOT open the device or unit. Opening or removing covers can expose you to
dangerous high voltage points or other risks. ONLY qualified service personnel can
service the device. Please contact your vendor for further information.

• Use ONLY the dedicated power supply for your device. Connect the power cord or
power adaptor to the right supply voltage (110V AC in North America or 230V AC in
Europe).

• Do NOT use the device if the power supply is damaged as it might cause electrocution.

• If the power supply is damaged, remove it from the power outlet.

• Do NOT attempt to repair the power supply. Contact your local vendor to order a new
power supply.

• Place connecting cables carefully so that no one will step on them or stumble over them.
Do NOT allow anything to rest on the power cord and do NOT locate the product where
anyone can walk on the power cord.

• If you wall mount your device, make sure that no electrical, gas or water pipes will be
damaged.

• Do NOT install nor use your device during a thunderstorm. There may be a remote risk of
electric shock from lightning.

• Do NOT expose your device to dampness, dust or corrosive liquids.

• Do NOT use this product near water, for example, in a wet basement or near a swimming
pool.

• Make sure to connect the cables to the correct ports.

• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your
device.

• Do NOT store things on the device.

• Connect ONLY suitable accessories to the device.

Safety Warnings

6 Safety Warnings

P-320W User’s Guide

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects
in materials or workmanship for a period of up to two years from the date of purchase. During
the warranty period, and upon proof of purchase, should the product have indications of failure
due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the
defective products or components without charge for either parts or labor, and to whatever
extent it shall deem necessary to restore the product or components to proper operating
condition. Any replacement will consist of a new or re-manufactured functionally equivalent
product of equal value, and will be solely at the discretion of ZyXEL. This warranty shall not
apply if the product is modified, misused, tampered with, damaged by an act of God, or
subjected to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the
purchaser. This warranty is in lieu of all other warranties, express or implied, including any
implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in
no event be held liable for indirect or consequential damages of any kind of character to the
purchaser.

To obtain the services of this warranty, contact ZyXEL's Service Center for your Return
Material Authorization number (RMA). Products must be returned Postage Prepaid. It is
recommended that the unit be insured when shipped. Any returned products without proof of
purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of
ZyXEL) and the customer will be billed for parts and labor. All repaired or replaced products
will be shipped by ZyXEL to the corresponding return address, Postage Paid. This warranty
gives you specific legal rights, and you may also have other rights that vary from country to
country.

ZyXEL Limited Warranty 7

P-320W User’s Guide

Please have the following information ready when you contact customer support.

• Product model and serial number.

• Warranty Information.

• Date that you received your device.

• Brief description of the problem and the steps you took to solve it.

Customer Support

METHOD

LOCATION

CORPORATE
HEADQUARTERS
(WORLDWIDE)

CZECH REPUBLIC

DENMARK

FINLAND

FRANCE

GERMANY

HUNGARY

KAZAKHSTAN

NORTH AMERICA

NORWAY

SUPPORT E-MAIL TELEPHONE

SALES E-MAIL FAX FTP SITE

[e-mail] [phone] www.zyxel.com

[e-mail] [phone] ftp.zyxel.com

[e-mail] [phone] www.zyxel.cz ZyXEL Communications

[e-mail] [phone]

[e-mail] [phone] www.zyxel.dk ZyXEL Communications A/S

[e-mail] [phone]

[e-mail] [phone] www.zyxel.fi ZyXEL Communications Oy

[e-mail] [phone]

[e-mail] [phone] www.zyxel.fr ZyXEL France

[phone]

[e-mail] [phone] www.zyxel.de ZyXEL Deutschland GmbH.

[e-mail] [phone]

[e-mail] [phone] www.zyxel.hu ZyXEL Hungary

[e-mail] [phone]

http://zyxel.kz/support [phone] www.zyxel.kz ZyXEL Kazakhstan

[e-mail] [phone]

[e-mail] 1-800-255-4101

[phone]

[e-mail] [phone] ftp.us.zyxel.com

[e-mail] [phone] www.zyxel.no ZyXEL Communications A/S

[e-mail] [phone]

A

WEB SITE

www.europe.zyxel.com

ftp.europe.zyxel.com

www.us.zyxel.com ZyXEL Communications Inc.

REGULAR MAIL

ZyXEL Communications Corp.
6 Innovation Road II

Science Park
Hsinchu 300
Ta iw a n

Czech s.r.o.
Modranská 621
143 01 Praha 4 - Modrany
Ceská Republika

Columbusvej
2860 Soeborg
Denmark

Malminkaari 10
00700 Helsinki
Finland

1 rue des Vergers
Bat. 1 / C
69760 Limonest
France

Adenauerstr. 20/A2 D-52146
Wuerselen
Germany

48, Zoldlomb Str.
H-1025, Budapest
Hungary

43, Dostyk ave.,Office 414
Dostyk Business Centre
050010, Almaty
Republic of Kazakhstan

1130 N. Miller St.
Anaheim
CA 92806-2001
U.S.A.

Nils Hansens vei 13
0667 Oslo
Norway

8 Customer Support

P-320W User’s Guide

METHOD

LOCATION

POLAND

RUSSIA

SPAIN

SWEDEN

UKRAINE

UNITED KINGDOM

A. “+” is the (prefix) number you enter to make an international telephone call.

SUPPORT E-MAIL TELEPHONE

SALES E-MAIL FAX FTP SITE

[e-mail] [phone] www.pl.zyxel.com ZyXEL Communications

[phone]

http://zyxel.ru/support [phone] www.zyxel.ru ZyXEL Russia

[e-mail] [phone]

[e-mail] [phone] www.zyxel.es ZyXEL Communications

[e-mail] [phone]

[e-mail] [phone] www.zyxel.se ZyXEL Communications A/S

[e-mail] [phone]

[e-mail] [phone] www.ua.zyxel.com ZyXEL Ukraine

[e-mail] [phone]

[e-mail] [phone]

08707 555779 (UK only)

[e-mail] [phone] ftp.zyxel.co.uk

A

WEB SITE

REGULAR MAIL

ul.Emilli Plater 53
00-113 Warszawa
Poland

Ostrovityanova 37a Str.
Moscow, 117279
Russia

Alejandro Villegas 33
1º, 28043 Madrid
Spain

Sjöporten 4, 41764 Göteborg
Sweden

13, Pimonenko Str.
Kiev, 04050
Ukraine

www.zyxel.co.uk ZyXEL Communications UK

Ltd.,11 The Courtyard,
Eastern Road, Bracknell,
Berkshire, RG12 2XB,
United Kingdom (UK)

Customer Support 9

P-320W User’s Guide

10 Customer Support

P-320W User’s Guide

Table of Contents

Copyright ..................................................................................................................3

Federal Communications Commission (FCC) Interference Statement ............... 4

Safety Warnings ....................................................................................................... 6

ZyXEL Limited Warranty.......................................................................................... 7

Customer Support.................................................................................................... 8

Table of Contents ................................................................................................... 11

Preface ....................................................................................................................25

Chapter 1

Getting to Know Your Prestige ............................................................................. 27

1.1 Prestige Overview ..............................................................................................27

1.2 Prestige Features ...............................................................................................27

1.2.1 Physical Features .....................................................................................27

1.2.2 Non-Physical Features .............................................................................28

1.2.3 Wireless Features .....................................................................................30

1.3 Applications for the Prestige ..............................................................................31

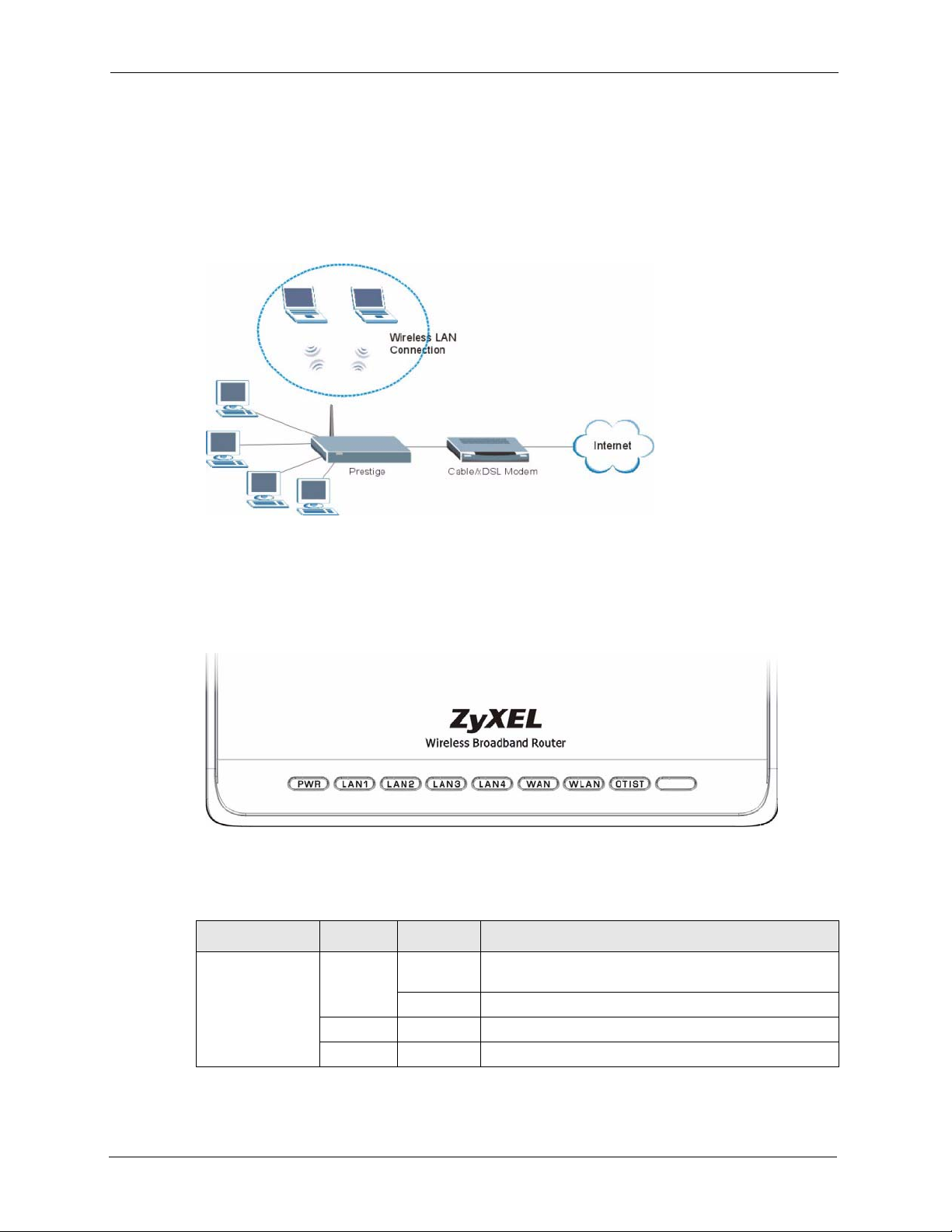

1.3.1 Secure Broadband Internet Access via Cable or DSL Modem .................31

1.3.2 Wireless LAN Application .........................................................................32

1.3.3 Front Panel LEDs .....................................................................................32

Chapter 2

Introducing the Web Configurator........................................................................ 35

2.1 Web Configurator Overview ...............................................................................35

2.2 Accessing the Prestige Web Configurator .........................................................35

2.3 Resetting the Prestige ........................................................................................37

2.3.1 Procedure To Use The Reset Button ........................................................37

2.4 Navigating the Prestige Web Configurator .........................................................37

2.4.1 Navigation Panel .......................................................................................39

2.4.2 Summary: DHCP Table..............................................................................41

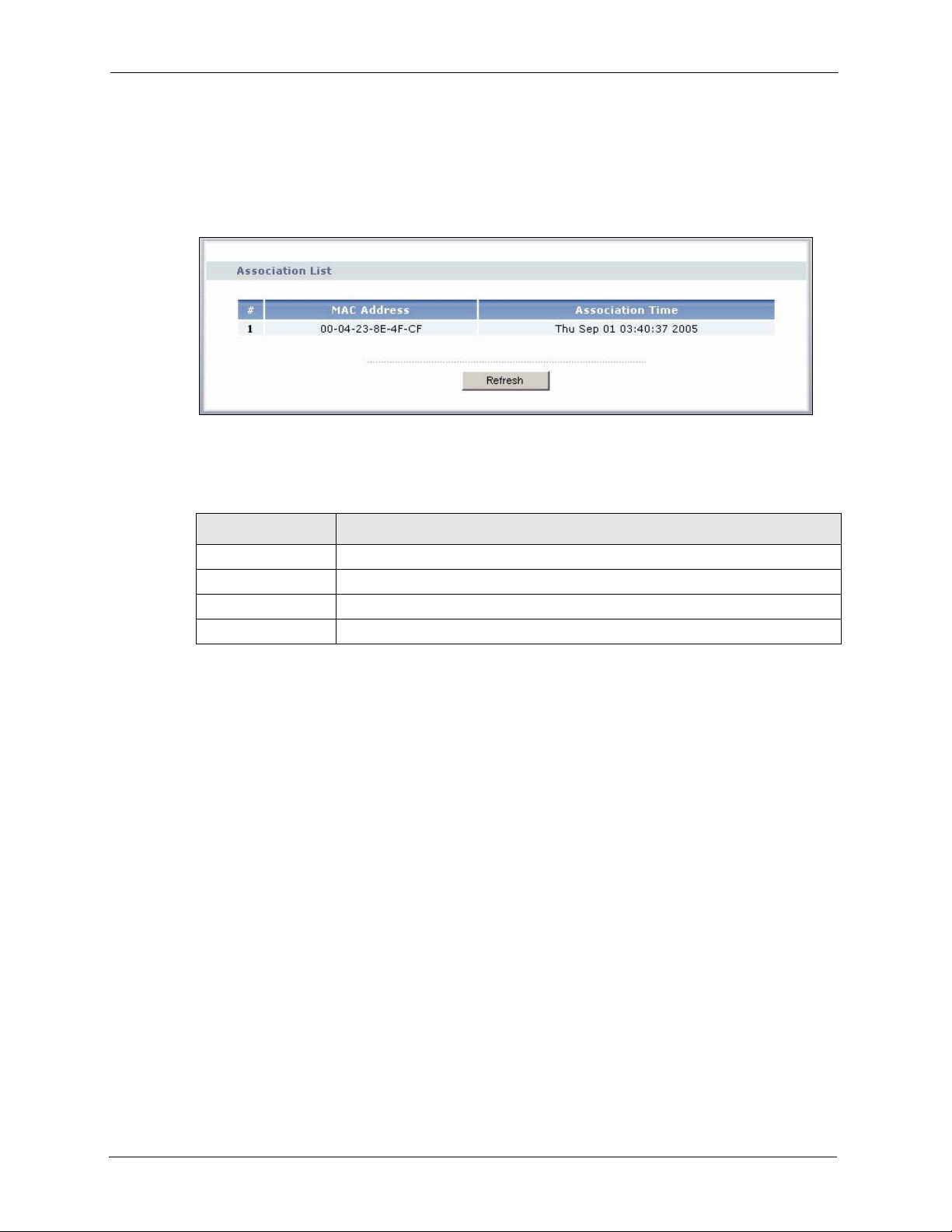

2.4.3 Summary: Association List ........................................................................42

2.4.4 Summary: Packet Statistics .......................................................................42

Chapter 3

Connection Wizard................................................................................................. 45

3.1 Wizard Setup ......................................................................................................45

Table of Contents 11

P-320W User’s Guide

Chapter 4

Wireless LAN .......................................................................................................... 61

3.2 Connection Wizard: STEP 1: System Information .............................................46

3.2.1 System Name ...........................................................................................46

3.2.2 Domain Name ...........................................................................................46

3.3 Connection Wizard: STEP 2: Wireless LAN .......................................................47

3.3.1 Basic(WEP) Security .................................................................................49

3.3.2 Extend(WPA-PSK) Security.......................................................................50

3.3.3 OTIST ........................................................................................................51

3.4 Connection Wizard: STEP 3: Internet Configuration ..........................................52

3.4.1 Ethernet Connection Type ........................................................................53

3.4.2 PPPoE Connection Type ..........................................................................53

3.4.3 PPTP Connection Type ............................................................................55

3.4.4 Your IP Address .........................................................................................56

3.4.5 WAN MAC Address ...................................................................................57

3.4.6 Connection Wizard Complete ....................................................................58

4.1 Introduction ........................................................................................................61

4.2 Wireless Security Overview ...............................................................................61

4.2.1 Encryption .................................................................................................61

4.2.2 Authentication ...........................................................................................61

4.2.3 Restricted Access .....................................................................................62

4.2.4 Hide Prestige Identity ................................................................................62

4.2.5 Using OTIST .............................................................................................62

4.3 Configuring Wireless LAN on the Prestige .........................................................62

4.4 General Wireless LAN Screen ..........................................................................63

4.4.1 No Security ...............................................................................................64

4.4.2 WEP Encryption ........................................................................................65

4.4.3 Introduction to WPA .................................................................................67

4.4.4 WPA-PSK Application Example ................................................................67

4.4.5 WPA-PSK Authentication Screen .............................................................68

4.4.6 WPA with RADIUS Application Example ..................................................69

4.4.7 Wireless Client WPA Supplicants .............................................................69

4.4.8 WPA Authentication Screen ......................................................................69

4.4.9 IEEE 802.1x Overview ..............................................................................70

4.4.10 IEEE 802.1x and Dynamic WEP Key Exchange Screen ........................71

4.5 OTIST .................................................................................................................72

4.5.1 Enabling OTIST ........................................................................................72

4.5.1.1 AP ...................................................................................................72

4.5.1.2 Wireless Client ................................................................................74

4.5.2 Starting OTIST ..........................................................................................75

4.5.3 Notes on OTIST ........................................................................................75

4.6 MAC Filter ..........................................................................................................76

12 Table of Contents

P-320W User’s Guide

4.7 Wireless LAN Advanced Screen ........................................................................78

Chapter 5

WAN......................................................................................................................... 81

5.1 WAN IP Address Assignment .............................................................................81

5.2 IP Address and Subnet Mask .............................................................................81

5.3 DNS Server Address Assignment ......................................................................82

5.4 TCP/IP Priority (Metric) ......................................................................................82

5.5 WAN MAC Address ............................................................................................83

5.6 Internet Connection ............................................................................................83

5.6.1 Ethernet Encapsulation .............................................................................83

5.6.2 PPPoE Encapsulation ...............................................................................85

5.6.3 PPTP Encapsulation .................................................................................87

5.7 Advanced WAN Screen ......................................................................................89

5.8 Traffic Redirect ...................................................................................................90

5.9 Traffic Redirect Screen .......................................................................................90

Chapter 6

LAN..........................................................................................................................93

6.1 LAN Overview ....................................................................................................93

6.1.1 IP Pool Setup ............................................................................................93

6.1.2 System DNS Servers ................................................................................93

6.2 LAN TCP/IP ........................................................................................................93

6.2.1 Factory LAN Defaults ................................................................................93

6.2.2 IP Address and Subnet Mask ...................................................................94

6.3 IP Screen ...........................................................................................................94

Chapter 7

DHCP Server........................................................................................................... 95

7.1 DHCP .................................................................................................................95

7.2 DHCP Screen .....................................................................................................95

7.3 Static DHCP Screen ...........................................................................................96

7.4 Client List Screen ...............................................................................................97

Chapter 8

Network Address Translation (NAT).....................................................................99

8.1 NAT Overview ....................................................................................................99

8.1.1 NAT Definitions .........................................................................................99

8.1.2 What NAT Does ......................................................................................100

8.1.3 How NAT Works .....................................................................................100

8.1.4 NAT Application ......................................................................................101

8.1.5 Default Server IP Address ......................................................................101

8.1.6 Port Forwarding: Services and Port Numbers ........................................102

Table of Contents 13

P-320W User’s Guide

Chapter 9

Firewall..................................................................................................................109

8.1.7 Configuring Servers Behind SUA (Example) ..........................................103

8.2 General NAT Screen ........................................................................................103

8.3 Port Forwarding Screen ...................................................................................104

8.3.1 Rule Setup Screen...................................................................................105

8.4 Trigger Port Forwarding ...................................................................................106

8.4.1 Trigger Port Forwarding Example ...........................................................106

8.4.2 Two Points To Remember About Trigger Ports .......................................107

8.5 Trigger Port Forwarding Screen .......................................................................107

9.1 Introduction to Firewall .....................................................................................109

9.1.1 What is a Firewall? .................................................................................109

9.1.2 Stateful Inspection Firewall. ....................................................................109

9.1.3 About the Prestige Firewall .....................................................................109

9.1.4 Guidelines For Enhancing Security With Your Firewall ..........................110

9.2 General Firewall Screen ...................................................................................110

9.3 Services Screen .............................................................................................. 111

9.3.1 Services ..................................................................................................113

Chapter 10

Static Route Screens ........................................................................................... 115

10.1 Static Route Overview ....................................................................................115

10.2 IP Static Route Screen ................................................................................... 115

10.2.1 Static Route Setup Screen.....................................................................116

Chapter 11

Remote Management Screens ............................................................................ 119

11.1 Remote Management Overview ..................................................................... 119

11.1.1 Remote Management Limitations .........................................................119

11.1.2 Remote Management and NAT ............................................................119

11.1.3 System Timeout ...................................................................................120

11.2 WWW Screen .................................................................................................120

11.3 SNMP .............................................................................................................121

11.3.1 Supported MIBs ....................................................................................122

11.3.2 SNMP Traps ..........................................................................................122

11.4 SNMP Screen .................................................................................................122

11.5 Security Screen ..............................................................................................123

Chapter 12

UPnP...................................................................................................................... 125

12.1 Universal Plug and Play Overview ................................................................125

12.1.1 How Do I Know If I'm Using UPnP? ......................................................125

14 Table of Contents

P-320W User’s Guide

12.1.2 NAT Traversal .......................................................................................125

12.1.3 Cautions with UPnP ..............................................................................125

12.2 UPnP and ZyXEL ...........................................................................................126

12.3 UPnP Screen .................................................................................................126

12.4 Installing UPnP in Windows Example ............................................................127

12.4.1 Installing UPnP in Windows Me ............................................................127

12.4.2 Installing UPnP in Windows XP ............................................................128

12.5 Using UPnP in Windows XP Example ..........................................................129

12.5.1 Auto-discover Your UPnP-enabled Network Device .............................130

12.5.2 Web Configurator Easy Access ............................................................133

Chapter 13

System .................................................................................................................. 135

13.1 System Overview ...........................................................................................135

13.2 General Screen ..............................................................................................135

13.3 Dynamic DNS .................................................................................................136

13.3.1 DynDNS Wildcard .................................................................................136

13.4 Dynamic DNS Screen ....................................................................................137

13.5 Time Setting Screen .......................................................................................137

Chapter 14

Logs....................................................................................................................... 141

14.1 View Log .......................................................................................................141

14.2 Log Settings ...................................................................................................142

Chapter 15

Tools ...................................................................................................................... 145

15.1 Firmware Upload Screen ...............................................................................145

15.2 Configuration Screen .....................................................................................146

15.2.1 Backup Configuration ...........................................................................147

15.2.2 Restore Configuration ...........................................................................147

15.2.3 Back to Factory Defaults .......................................................................148

15.3 Restart Screen ...............................................................................................148

Chapter 16

Troubleshooting ...................................................................................................151

16.1 Problems Starting Up the Prestige .................................................................151

16.2 Problems with the LAN ...................................................................................151

16.3 Problems with the WAN .................................................................................152

16.4 Problems with the Password ..........................................................................152

16.5 Problems with Remote Management .............................................................153

16.6 Problems Accessing the Prestige ..................................................................153

16.6.1 Pop-up Windows, JavaScripts and Java Permissions ..........................154

Table of Contents 15

P-320W User’s Guide

Appendix A

Product Specifications ........................................................................................ 163

Appendix B

IP Subnetting ........................................................................................................ 165

Appendix C

Setting up Your Computer’s IP Address............................................................ 173

Appendix D

PPPoE ................................................................................................................... 189

Appendix E

PPTP......................................................................................................................191

16.6.1.1 Internet Explorer Pop-up Blockers ..............................................154

16.6.1.2 JavaScripts ..................................................................................157

16.6.1.3 Java Permissions ........................................................................159

16.6.2 ActiveX Controls in Internet Explorer ....................................................161

Appendix F

Wireless LANs ...................................................................................................... 195

Appendix G

Antenna Selection and Positioning Recommendation..................................... 209

16 Table of Contents

P-320W User’s Guide

List of Figures

Figure 1 Secure Internet Access via Cable, DSL or Wireless Modem ................................ 31

Figure 2 Internet Access Application Example .................................................................... 32

Figure 3 Front Panel ...........................................................................................................32

Figure 4 Login ..................................................................................................................... 36

Figure 5 Language Selection .............................................................................................. 36

Figure 6 Change Password Screen .................................................................................... 36

Figure 7 Select the Mode .................................................................................................... 37

Figure 8 Web Configurator Status Screen .......................................................................... 38

Figure 9 Summary: DHCP Table ......................................................................................... 41

Figure 10 Summary: Association List .................................................................................. 42

Figure 11 Summary: Packet Statistics ................................................................................. 43

Figure 12 Select a Mode ..................................................................................................... 45

Figure 13 Welcome to the Connection Wizard .................................................................... 46

Figure 14 Connection Wizard: STEP 1: System Information .............................................. 47

Figure 15 Connection Wizard: STEP 2: Wireless LAN ....................................................... 48

Figure 16 Basic(WEP) Security ........................................................................................... 49

Figure 17 Extend(WPA-PSK) Security ................................................................................ 50

Figure 18 OTIST ................................................................................................................. 51

Figure 19 Connection Wizard: STEP 3: WAN Connection Type. ........................................ 52

Figure 20 Ethernet Connection Type .................................................................................. 53

Figure 21 PPPoE Connection Type .................................................................................... 54

Figure 22 PPTP Connection Type ....................................................................................... 55

Figure 23 Your IP Address .................................................................................................. 56

Figure 24 WAN MAC Address ............................................................................................. 58

Figure 25 Connection Wizard Complete ............................................................................. 59

Figure 26 Connection Wizard: Congratulation .................................................................... 59

Figure 27 Wireless: General .............................................................................................. 63

Figure 28 Wireless: No Security .......................................................................................... 65

Figure 29 Wireless: Static WEP Encryption ........................................................................ 66

Figure 30 WPA-PSK Authentication .................................................................................... 68

Figure 31 Wireless: WPA-PSK ............................................................................................ 68

Figure 32 WPA with RADIUS Application Example ............................................................ 69

Figure 33 Wireless: WPA .................................................................................................... 70

Figure 34 Wireless: 802.1x and Dynamic WEP .................................................................. 71

Figure 35 Wireless: OTIST .................................................................................................. 73

Figure 36 Example Wireless Client OTIST Screen ............................................................. 74

17

P-320W User’s Guide

Figure 37 Security Key ........................................................................................................ 75

Figure 38 OTIST in Progress (AP) ...................................................................................... 75

Figure 39 OTIST in Progress (Client) .................................................................................. 75

Figure 40 No AP with OTIST Found ........................................................................... 75

Figure 41 Start OTIST? ....................................................................................................... 76

Figure 42 Wireless: MAC Address Filter ............................................................................. 77

Figure 43 Wireless: Advanced ............................................................................................ 78

Figure 44 WAN: Ethernet Encapsulation ............................................................................. 84

Figure 45 WAN: PPPoE Encapsulation ............................................................................... 86

Figure 46 PPTP Encapsulation ........................................................................................... 88

Figure 47 Advanced ............................................................................................................ 90

Figure 48 Traffic Redirect WAN Setup ................................................................................ 90

Figure 49 WAN: Traffic Redirect .......................................................................................... 91

Figure 50 LAN IP ................................................................................................................. 94

Figure 51 General ............................................................................................................... 95

Figure 52 Static DHCP ........................................................................................................ 97

Figure 53 Client List ............................................................................................................ 98

Figure 54 How NAT Works .................................................................................................. 101

Figure 55 NAT Application With IP Alias ............................................................................. 101

Figure 56 Multiple Servers Behind NAT Example ............................................................... 103

Figure 57 NAT: General ....................................................................................................... 103

Figure 58 Port Forwarding .................................................................................................. 104

Figure 59 NAT: Port Forwarding: Rule Setup ...................................................................... 105

Figure 60 Trigger Port Forwarding Process: Example ........................................................ 107

Figure 61 NAT: Trigger Port ................................................................................................. 108

Figure 62 Firewall: General ................................................................................................. 110

Figure 63 Firewall: Services ................................................................................................ 111

Figure 64 Example of Static Routing Topology ................................................................... 115

Figure 65 IP Static Route .................................................................................................... 116

Figure 66 Static Route Setup .............................................................................................. 117

Figure 67 WWW Remote Management .............................................................................. 120

Figure 68 SNMP Management Model ................................................................................. 121

Figure 69 SNMP Remote Management .............................................................................. 123

Figure 70 Security Remote Management ........................................................................... 124

Figure 71 Configuring UPnP ............................................................................................... 126

Figure 72 Add/Remove Programs: Windows Setup: Communication ................................. 127

Figure 73 Add/Remove Programs: Windows Setup: Communication: Components .......... 128

Figure 74 Network Connections .......................................................................................... 128

Figure 75 Windows Optional Networking Components Wizard .......................................... 129

Figure 76 Networking Services ........................................................................................... 129

Figure 77 Network Connections .......................................................................................... 130

Figure 78 Internet Connection Properties .......................................................................... 131

Figure 79 Internet Connection Properties: Advanced Settings ........................................... 131

18

P-320W User’s Guide

Figure 80 Internet Connection Properties: Advanced Settings: Add ................................... 132

Figure 81 System Tray Icon ................................................................................................ 132

Figure 82 Internet Connection Status .................................................................................. 132

Figure 83 Network Connections .......................................................................................... 133

Figure 84 Network Connections: My Network Places ......................................................... 134

Figure 85 Network Connections: My Network Places: Properties: Example ....................... 134

Figure 86 System General ................................................................................................. 135

Figure 87 Dynamic DNS ..................................................................................................... 137

Figure 88 Time Setting ........................................................................................................ 138

Figure 89 View Log .............................................................................................................141

Figure 90 Log Settings ........................................................................................................ 143

Figure 91 Maintenance Firmware Upload ........................................................................... 145

Figure 92 Upload Warning .................................................................................................. 146

Figure 93 Network Temporarily Disconnected .................................................................... 146

Figure 94 Upload Error Message ........................................................................................ 146

Figure 95 Configuration ....................................................................................................... 147

Figure 96 Configuration Restore Successful ....................................................................... 148

Figure 97 Temporarily Disconnected ................................................................................... 148

Figure 98 Configuration Restore Error ................................................................................ 148

Figure 99 System Restart ................................................................................................... 149

Figure 100 Pop-up Blocker ................................................................................................. 154

Figure 101 Internet Options ............................................................................................... 155

Figure 102 Internet Options ................................................................................................ 156

Figure 103 Pop-up Blocker Settings ................................................................................... 157

Figure 104 Internet Options ................................................................................................ 158

Figure 105 Security Settings - Java Scripting ..................................................................... 159

Figure 106 Security Settings - Java .................................................................................... 160

Figure 107 Java (Sun) ......................................................................................................... 160

Figure 108 Internet Options Security .................................................................................. 161

Figure 109 Security Setting ActiveX Controls ..................................................................... 162

Figure 110 WIndows 95/98/Me: Network: Configuration ..................................................... 174

Figure 111 Windows 95/98/Me: TCP/IP Properties: IP Address ......................................... 175

Figure 112 Windows 95/98/Me: TCP/IP Properties: DNS Configuration ............................. 176

Figure 113 Windows XP: Start Menu .................................................................................. 177

Figure 114 Windows XP: Control Panel .............................................................................. 177

Figure 115 Windows XP: Control Panel: Network Connections: Properties ....................... 178

Figure 116 Windows XP: Local Area Connection Properties .............................................. 178

Figure 117 Windows XP: Internet Protocol (TCP/IP) Properties ......................................... 179

Figure 118 Windows XP: Advanced TCP/IP Properties ...................................................... 180

Figure 119 Windows XP: Internet Protocol (TCP/IP) Properties ......................................... 181

Figure 120 Macintosh OS 8/9: Apple Menu ........................................................................ 182

Figure 121 Macintosh OS 8/9: TCP/IP ................................................................................ 182

Figure 122 Macintosh OS X: Apple Menu ........................................................................... 183

19

P-320W User’s Guide

Figure 123 Macintosh OS X: Network ................................................................................. 184

Figure 124 Red Hat 9.0: KDE: Network Configuration: Devices ........................................ 185

Figure 125 Red Hat 9.0: KDE: Ethernet Device: General ................................................. 185

Figure 126 Red Hat 9.0: KDE: Network Configuration: DNS ............................................. 186

Figure 127 Red Hat 9.0: KDE: Network Configuration: Activate ....................................... 186

Figure 128 Red Hat 9.0: Dynamic IP Address Setting in ifconfig-eth0 .............................. 187

Figure 129 Red Hat 9.0: Static IP Address Setting in ifconfig-eth0 .................................. 187

Figure 130 Red Hat 9.0: DNS Settings in resolv.conf ...................................................... 187

Figure 131 Red Hat 9.0: Restart Ethernet Card ................................................................ 188

Figure 132 Red Hat 9.0: Checking TCP/IP Properties ...................................................... 188

Figure 133 Single-Computer per Router Hardware Configuration ...................................... 190

Figure 134 ZyWALL as a PPPoE Client .............................................................................. 190

Figure 135 Transport PPP frames over Ethernet ............................................................... 191

Figure 136 PPTP Protocol Overview .................................................................................. 192

Figure 137 Example Message Exchange between Computer and an ANT ........................ 193

Figure 138 Peer-to-Peer Communication in an Ad-hoc Network ........................................ 195

Figure 139 Basic Service Set .............................................................................................. 196

Figure 140 Infrastructure WLAN ......................................................................................... 197

Figure 141 RTS/CTS ........................................................................................................... 198

Figure 142 EAP Authentication ........................................................................................... 201

Figure 143 WEP Authentication Steps ................................................................................ 204

Figure 144 Roaming Example ............................................................................................. 207

20

P-320W User’s Guide

List of Tables

Table 1 Front Panel LEDs .................................................................................................. 32

Table 2 Status Screen Icon Key ......................................................................................... 38

Table 3 Web Configurator Status Screen ........................................................................... 38

Table 4 Screens Summary ................................................................................................. 39

Table 5 Summary: DHCP Table ......................................................................................... 41

Table 6 Summary: Wireless Association List ..................................................................... 42

Table 7 Summary: Packet Statistics ................................................................................... 43

Table 8 Connection Wizard: STEP 1: System Information ................................................. 47

Table 9 Connection Wizard: STEP 2: Wireless LAN ......................................................... 48

Table 10 Basic(WEP) Security ........................................................................................... 49

Table 11 Extend(WPA-PSK) Security ................................................................................. 51

Table 12 OTIST .................................................................................................................. 52

Table 13 Connection Wizard: STEP 3: WAN Connection Type .......................................... 53

Table 14 PPPoE Connection Type ..................................................................................... 54

Table 15 PPTP Connection Type ....................................................................................... 55

Table 16 Your IP Address ................................................................................................... 57

Table 17 Example of Network Properties for LAN Servers with Fixed IP Addresses ......... 57

Table 18 WAN MAC Address ............................................................................................. 58

Table 19 ZyAIR Wireless Security Levels .......................................................................... 63

Table 20 Wireless: General ................................................................................................ 64

Table 21 Wireless No Security ........................................................................................... 65

Table 22 Wireless: Static WEP Encryption ......................................................................... 66

Table 23 Wireless: WPA-PSK ............................................................................................ 68

Table 24 Wireless: WPA ..................................................................................................... 70

Table 25 Wireless: 802.1x and Dynamic WEP ................................................................... 71

Table 26 Wireless: OTIST .................................................................................................. 73

Table 27 MAC Address Filter ............................................................................................. 77

Table 28 Wireless: Advanced ............................................................................................. 78

Table 29 Private IP Address Ranges ................................................................................. 81

Table 30 Example of Network Properties for LAN Servers with Fixed IP Addresses ......... 83

Table 31 WAN: Ethernet Encapsulation ............................................................................. 84

Table 32 WAN: PPPoE Encapsulation ............................................................................... 86

Table 33 PPTP Encapsulation ............................................................................................ 88

Table 34 Advanced .............................................................................................................90

Table 35 Traffic Redirect .................................................................................................... 91

Table 36 LAN IP ................................................................................................................. 94

21

P-320W User’s Guide

Table 37 General ................................................................................................................ 96

Table 38 Static DHCP ......................................................................................................... 97

Table 39 Client List ............................................................................................................. 98

Table 40 NAT Definitions .................................................................................................... 100

Table 41 Services and Port Numbers ................................................................................. 102

Table 42 NAT: General ....................................................................................................... 103

Table 43 NAT: Port Forwarding .......................................................................................... 105

Table 44 NAT: Port Forwarding: Rule Setup ....................................................................... 106

Table 45 NAT: Trigger Port ................................................................................................. 108

Table 46 Firewall: General ................................................................................................. 111

Table 47 Firewall: Services ................................................................................................ 112

Table 48 Commonly Used Services ................................................................................... 113

Table 49 IP Static Route ..................................................................................................... 116

Table 50 Static Route Setup ............................................................................................... 117

Table 51 WWW Remote Management ............................................................................... 120

Table 52 SNMP Traps ........................................................................................................ 122

Table 53 SNMP Remote Management ............................................................................... 123

Table 54 Security Remote Management ............................................................................ 124

Table 55 Configuring UPnP ................................................................................................ 126

Table 56 System General ................................................................................................... 136

Table 57 Dynamic DNS ...................................................................................................... 137

Table 58 Time Setting ........................................................................................................ 138

Table 59 View Log .............................................................................................................. 142

Table 60 Log Settings .........................................................................................................143

Table 61 Maintenance Firmware Upload ............................................................................ 145

Table 62 Maintenance: Restore Configuration ................................................................... 147

Table 63 Troubleshooting Starting Up Your Prestige .......................................................... 151

Table 64 Troubleshooting the LAN ..................................................................................... 151

Table 65 Troubleshooting the WAN .................................................................................... 152

Table 66 Troubleshooting the Password ............................................................................ 152

Table 67 Troubleshooting Telnet ........................................................................................ 153

Table 68 Troubleshooting Accessing the Prestige ............................................................. 153

Table 69 Device .................................................................................................................. 163

Table 70 Firmware .............................................................................................................. 163

Table 71 Classes of IP Addresses ..................................................................................... 165

Table 72 Allowed IP Address Range By Class ................................................................... 166

Table 73 “Natural” Masks .................................................................................................. 166

Table 74 Alternative Subnet Mask Notation ....................................................................... 167

Table 75 Two Subnets Example ......................................................................................... 167

Table 76 Subnet 1 .............................................................................................................. 168

Table 77 Subnet 2 .............................................................................................................. 168

Table 78 Subnet 1 .............................................................................................................. 169

Table 79 Subnet 2 .............................................................................................................. 169

22

P-320W User’s Guide

Table 80 Subnet 3 .............................................................................................................. 169

Table 81 Subnet 4 .............................................................................................................. 170

Table 82 Eight Subnets ...................................................................................................... 170

Table 83 Class C Subnet Planning ..................................................................................... 170

Table 84 Class B Subnet Planning ..................................................................................... 171

Table 85 IEEE802.11g ........................................................................................................ 199

Table 86 Comparison of EAP Authentication Types ........................................................... 205

Table 87 Wireless Security Relational Matrix ..................................................................... 206

23

P-320W User’s Guide

24

P-320W User’s Guide

Preface

Congratulations on your purchase of the P-320W, 802.11g Wireless Firewall Router. This
manual is designed to guide you through the configuration of your Prestige for its various
applications.

This manual may refer to the P-320W, 802.11g Wireless Firewall Router as the Prestige.

Note: Register your product online to receive e-mail notices of firmware upgrades and

information at
American products.

About This User's Guide

This User’s Guide is designed to guide you through the configuration of your Prestige using
the web configurator.

Related Documentation

www.zyxel.com for global products, or at www.us.zyxel.com for North

• Supporting Disk

Refer to the included CD for support documents.

• Quick Start Guide

The Quick Start Guide is designed to help you get up and running right away. They
contain connection information and instructions on getting started.

• Web Configurator Online Help

Embedded web help for descriptions of individual screens and supplementary
information.

• ZyXEL Glossary and Web Site

Please refer to www.zyxel.com for an online glossary of networking terms and additional
support documentation.

User Guide Feedback

Help us help you! E-mail all User Guide-related comments, questions or suggestions for
improvement to [e-mail] or send regular mail to The Technical Writing
Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park,
Hsinchu, 300, Taiwan. Thank you!

Syntax Conventions

• “Enter” means for you to type one or more characters. “Select” or “Choose” means for
you to use one predefined choices.

• Mouse action sequences are denoted using a comma. For example, “In Windows, click
Start, Settings and then Control Panel” means first click the Start button, then point
your mouse pointer to Settings and then click Control Panel.

Preface 25

P-320W User’s Guide

• “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”.

Graphics Icons Key

Prestige Computer Notebook computer

Server DSLAM Firewall

Modem Switch Router

26 Preface

Getting to Know Your Prestige

This chapter introduces the main features and applications of the Prestige.

1.1 Prestige Overview

The Prestige is the ideal secure wireless firewall router for all data passing between the
Internet and LAN’s.

The Prestige provides NAT, port forwarding, firewall, DHCP server and many other powerful
features. The Prestige has an embedded mini-PCI module for 802.11g Wireless LAN
connectivity.

P-320W User’s Guide

CHAPTER 1

The embedded web configurator is easy to operate.

Note: Only use firmware for your Prestige’s specific model.

1.2 Prestige Features

The following sections describe Prestige features.

1.2.1 Physical Features

10/100 Mbps Auto-negotiating Ethernet/Fast Ethernet Interface(s)

This auto-negotiation feature allows the Prestige to detect the speed of incoming transmissions
and adjust appropriately without manual intervention. It allows data transfer of either 10 Mbps
or 100 Mbps in either half-duplex or full-duplex mode depending on your Ethernet network.

Auto-negotiation allows data transfer of 100 Mbps in full-duplex mode

Auto-crossover 10/100 Mbps Ethernet Interface(s)

These interfaces automatically adjust to either a crossover or straight-through Ethernet cable.

4-Port Switch

A combination of switch and router makes your Prestige a cost-effective and viable network
solution. You can add up to four computers to the Prestige without the cost of a hub. Add more
than four computers to your LAN by using a hub.

Chapter 1 Getting to Know Your Prestige 27

P-320W User’s Guide

Reset Button

The Prestige reset button is built into the rear panel. Use this button to restore the factory
default password to 1234; IP address to 192.168.1.1, subnet mask to 255.255.255.0 and DHCP
server enabled with a pool of 32 IP addresses starting at 192.168.1.33.

1.2.2 Non-Physical Features

Firewall

The Prestige is a stateful inspection firewall with DoS (Denial of Service) protection. By
default, when the firewall is activated, all incoming traffic from the WAN to the LAN is
blocked unless it is initiated from the LAN. The Prestige firewall supports TCP/UDP
inspection, DoS detection and prevention, real time alerts, reports and logs.

Packet Filtering

The packet filtering mechanism blocks unwanted traffic from entering/leaving your network.

Time and Date

The Prestige allows you to get the current time and date from an external server when you turn
on your Prestige. You can also set the time manually.

Universal Plug and Play (UPnP)

Using the standard TCP/IP protocol, the Prestige and other UPnP enabled devices can
dynamically join a network, obtain an IP address and convey its capabilities to other devices
on the network.

PPPoE

PPPoE facilitates the interaction of a host with an Internet modem to achieve access to high­speed data networks via a familiar "dial-up networking" user interface.

PPTP Encapsulation

Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables secure transfer of
data from a remote client to a private server, creating a Virtual Private Network (VPN) using a
TCP/IP-based network.

PPTP supports on-demand, multi-protocol and virtual private networking over public
networks, such as the Internet. The Prestige supports one PPTP server connection at any given
time.

28 Chapter 1 Getting to Know Your Prestige

P-320W User’s Guide

Dynamic DNS Support

With Dynamic DNS (Domain Name System) support, you can have a static hostname alias for
a dynamic IP address, allowing the host to be more easily accessible from various locations on
the Internet. You must register for this service with a Dynamic DNS service provider.

IP Multicast

Deliver IP packets to a specific group of hosts using IP multicast. IGMP (Internet Group
Management Protocol) is the protocol used to support multicast groups. The latest version is
version 2 (see RFC 2236); the Prestige supports both versions 1 and 2.

SNMP

SNMP (Simple Network Management Protocol) is a protocol used for exchanging
management information between network devices. SNMP is a member of the TCP/IP
protocol suite. Your Prestige supports SNMP agent functionality, which allows a manager
station to manage and monitor the Prestige through the network. The Prestige supports SNMP
version one (SNMPv1) and version two (SNMPv2).

Network Address Translation (NAT)

Network Address Translation (NAT) allows the translation of an Internet protocol address
used within one network (for example a private IP address used in a local network) to a
different IP address known within another network (for example a public IP address used on
the Internet).

Traffic Redirect

Traffic Redirect forwards WAN traffic to a backup gateway on the LAN when the Prestige
cannot connect to the Internet, thus acting as an auxiliary backup when your regular WAN
connection fails.

Port Forwarding

Use this feature to forward incoming service requests to a server on your local network. You
may enter a single port number or a range of port numbers to be forwarded, and the local IP
address of the desired server.

DHCP (Dynamic Host Configuration Protocol)

DHCP (Dynamic Host Configuration Protocol) allows the individual client computers to
obtain the TCP/IP configuration at start-up from a centralized DHCP server. The Prestige has
built-in DHCP server capability, enabled by default, which means it can assign IP addresses,
an IP default gateway and DNS servers to all systems that support the DHCP client.

Chapter 1 Getting to Know Your Prestige 29

P-320W User’s Guide

Full Network Management

The embedded web configurator is an all-platform web-based utility that allows you to easily
access the Prestige’s management settings and configure the firewall. Most functions of the
Prestige are also software configurable via the SMT (System Management Terminal)
interface. The SMT is a menu-driven interface that you can access over a telnet connection.

RoadRunner Support

In addition to standard cable modem services, the Prestige supports Time Warner’s
RoadRunner Service.

Logging and Tracing

• Built-in message logging and packet tracing.

• Firewall logs.

• Content filtering logs.

Upgrade Prestige Firmware via LAN

The firmware of the Prestige can be upgraded via the LAN (refer to Maintenance- F/W Upload
Screen).

Embedded FTP and TFTP Servers

The Prestige’s embedded FTP and TFTP Servers enable fast firmware upgrades as well as
configuration file backups and restoration.

1.2.3 Wireless Features

Wireless LAN

The Prestige supports the IEEE 802.11g standard, which is fully compatible with the IEEE

802.11b standard, meaning that you can have both IEEE 802.11b and IEEE 802.11g wireless
clients in the same wireless network.

Note: The Prestige may be prone to RF (Radio Frequency) interference from other

2.4 GHz devices such as microwave ovens, wireless phones, Bluetooth
enabled devices, and other wireless LANs.

Wi-Fi Protected Access

Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i security specification standard.
Key differences between WPA and WEP are user authentication and improved data
encryption.

30 Chapter 1 Getting to Know Your Prestige

P-320W User’s Guide

Antenna

The Prestige is equipped with a 2dBi fixed antenna to provide clear radio signal between the
wireless stations and the access points.

Wireless LAN MAC Address Filtering

Your Prestige can check the MAC addresses of wireless stations against a list of allowed or
denied MAC addresses.

WEP Encryption

WEP (Wired Equivalent Privacy) encrypts data frames before transmitting over the wireless
network to help keep network communications private.

OTIST (One Touch Intelligent Security Technology)

OTIST allows your Prestige to assign its ESSID and security settings (WEP or WPA-PSK) to
the ZyXEL wireless adapters that support OTIST and are within transmission range. The
ZyXEL wireless adapters must also have OTIST enabled.

Association List

With the association list, you can see the list of the wireless stations that are currently using the
Prestige to access your wired network.

1.3 Applications for the Prestige

Here are some examples of what you can do with your Prestige.

1.3.1 Secure Broadband Internet Access via Cable or DSL Modem

You can connect a cable modem, DSL or wireless modem to the Prestige for broadband
Internet access via an Ethernet or a wireless port on the modem. The Prestige guarantees not
only high speed Internet access, but secure internal network protection and traffic management
as well.

Figure 1 Secure Internet Access via Cable, DSL or Wireless Modem

Chapter 1 Getting to Know Your Prestige 31

P-320W User’s Guide

1.3.2 Wireless LAN Application

Add a wireless LAN to your existing network without expensive network cables. Wireless
stations can move freely anywhere in the coverage area and use resources on the wired
network.

Figure 2 Internet Access Application Example

1.3.3 Front Panel LEDs

Figure 3 Front Panel

The following table describes the LEDs.

Table 1 Front Panel LEDs

LED COLOR STATUS DESCRIPTION

PWR Green On The Prestige is receiving power and functioning

Red On Power to the Prestige is too low.

None Off The Prestige is not receiving power.

properly.

Blinking The Prestige is performing testing.

32 Chapter 1 Getting to Know Your Prestige

P-320W User’s Guide

Table 1 Front Panel LEDs (continued)

LED COLOR STATUS DESCRIPTION

LAN 1-4 Green On The Prestige has a successful 10Mb Ethernet

connection.

Blinking The Prestige is sending/receiving data.

Amber On The Prestige has a successful 100Mb Ethernet

connection.

Blinking The Prestige is sending/receiving data.

None Off The LAN is not connected.

WAN Green On The Prestige has a successful 10Mb WAN connection.

Blinking The Prestige is sending/receiving data.

Amber On The Prestige has a successful 100Mb Ethernet

connection.

Blinking The Prestige is sending/receiving data.

None Off The WAN connection is not ready, or has failed.

WLAN Green On The Prestige is ready, but is not sending/receiving data

through the wireless LAN.

Blinking The Prestige is sending/receiving data through the

wireless LAN.

None Off The wireless LAN is not ready or has failed.

OTIST Green Blinking OTIST is in progress

On OTIST is activated and the wireless security settings are

given to a wireless client. The LED remains on unless
the WLAN settings are changed.

None Off OTIST is not activated or WLAN settings are manually

configured after OTIST is successful.

Chapter 1 Getting to Know Your Prestige 33

P-320W User’s Guide

34 Chapter 1 Getting to Know Your Prestige

Introducing the Web

This chapter describes how to access the Prestige web configurator and provides an overview
of its screens.

2.1 Web Configurator Overview

The web configurator is an HTML-based management interface that allows easy Prestige
setup and management via Internet browser. Use Internet Explorer 6.0 and later or Netscape
Navigator 7.0 and later versions. The recommended screen resolution is 1024 by 768 pixels.

P-320W User’s Guide

CHAPTER 2

Configurator

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device. Web pop-up blocking is enabled by
default in Windows XP SP (Service Pack) 2.

• JavaScripts (enabled by default).

• Java permissions (enabled by default).

See the Troubleshooting chapter to see how to make sure these functions are allowed in
Internet Explorer.

2.2 Accessing the Prestige Web Configurator

1 Make sure your Prestige hardware is properly connected and prepare your computer/

computer network to connect to the Prestige (refer to the Quick Start Guide).

2 Launch your web browser.

3 Type "192.168.1.1" as the URL.

4 Type "1234" (default) as the password and click Login. In some versions, the default

password appears automatically - if this is the case, click Login.

Chapter 2 Introducing the Web Configurator 35

P-320W User’s Guide

Figure 4 Login

5 Select your language. click Apply.

Figure 5 Language Selection

6 You should see a screen asking you to change your password (highly recommended) as

shown next. Type a new password (and retype it to confirm) and click Apply or click
Ignore.

Figure 6 Change Password Screen

36 Chapter 2 Introducing the Web Configurator

P-320W User’s Guide

7 Click Go to Wizard setup to do initial configuration withs the wizard, click Go to

Advanced setup to configure advanced features, or click Exit to log out of the web

configurator.

Figure 7 Select the Mode

Note: The management session automatically times out when the time period set in

the Administrator Inactivity Timer field expires (default five minutes). Simply
log back into the Prestige if this happens to you.

2.3 Resetting the Prestige

If you forget your password or cannot access the web configurator, you will need to use the
RESET button at the back of the Prestige to reload the factory-default configuration file. This
means that you will lose all configurations that you had previously and the password will be
reset to “1234”.

2.3.1 Procedure To Use The Reset Button

1 Make sure the PWR LED is on (not blinking).

2 Press the RESET button for ten seconds or until the PWR LED begins to blink and then

release it. When the PWR LED begins to blink, the defaults have been restored and the
Prestige restarts.

2.4 Navigating the Prestige Web Configurator

The following summarizes how to navigate the web configurator from the Status screen.

Chapter 2 Introducing the Web Configurator 37

P-320W User’s Guide

Figure 8 Web Configurator Status Screen

The following table describes the icons shown in the Status screen.

Table 2 Status Screen Icon Key

ICON DESCRIPTION

Select a language from the drop-down list box to have the the web
configurator display in that language.

Click this icon to open a web help page relevent to the screen you are
currently configuring.

Click this icon to open the setup wizard. The Prestige has a connection
wizard and a bandwidth management wizard.

Click this icon to view copyright and a link for related product information.

Click this icon at any time to exit the web configurator.

Select a number of seconds or None from the drop-down list box to refresh
all screen statistics automatically at the end of every time interval or to not
refresh the screen statistics.

Click this button to refresh the status screen statistics.

The following table describes the labels shown in the Status screen.

Table 3 Web Configurator Status Screen

LABEL DESCRIPTION

Device Information

System Name This is the System Name you enter in the Maintenance, System, General

screen. It is for identification purposes.

Firmware Version This is the firmware version and the date created.

38 Chapter 2 Introducing the Web Configurator

P-320W User’s Guide

Table 3 Web Configurator Status Screen

LABEL DESCRIPTION

WAN Information

- WAN Type This shows the encapsulation method (and service type) the Prestige is using.

- IP Address This shows the WAN port’s IP address.

- IP Subnet Mask This shows the WAN port’s subnet mask.

- Gateway This shows the gateway IP address.

- DNS This shows the IP address(es) of the DNS server(s).

LAN Information

- IP Address This shows the LAN port’s IP address.

- IP Subnet Mask This shows the LAN port’s subnet mask.

- DHCP This shows whether the Prestige acts as a DHCP server (Enabled) or not
(Disabled).

WLAN Information

- Name(SSID) This shows a descriptive name used to identify the Prestige in the wireless
LAN.

- Channel This shows the channel number which the Prestige uses over the wireless

- Security Mode This shows the level of wireless security the Prestige is using.

System Status

System Uptime This is the total time the Prestige has been on.

Current Date/Time This field displays your Prestige’s present date and time along with the

Summary

DHCP Table Use this screen to view current DHCP client information.

Association List Use this screen to view the wireless stations that are currently associated to

Stat istics Use this screen to view port status and packet specific statistics.

LAN.

difference from the Greenwich Mean Time (GMT) zone. The difference from
GMT is based on the time zone. It is also adjusted for Daylight Saving Time if
you set the Prestige to use it.

the Prestige.

2.4.1 Navigation Panel

After you enter the password, use the sub-menus on the navigation panel to configure Prestige
features. The navigation

The following table describes the sub-menus.

Table 4 Screens Summary

LINK TAB FUNCTION

Status This screen shows the Prestige’s general device and system status

information. Use this screen to access the wizard, and summary statistics
tables.

Network

Chapter 2 Introducing the Web Configurator 39

P-320W User’s Guide

Table 4 Screens Summary

LINK TAB FUNCTION

Wireless LAN General Use this screen to configure wireless LAN.

OTIST This screen allows you to assign wireless clients the Prestige’s wireless

MAC Filter Use the MAC filter screen to configure the Prestige to block access to

Advanced This screen allows you to configure other advanced WLAN properties.

WAN Internet

Connection

Advanced Use this screen to configure DNS servers.

Traffic Redirect Use this screen to configure your traffic redirect properties and parameters.

LAN IP Use this screen to configure LAN settings.

DHCP Server General Use this screen to enable the Prestige’s DHCP server and to have DNS

Static DHCP Use this screen to assign IP addresses on the LAN to specific individual

Client List Use this screen to view current DHCP client information and to always

NAT General Use this screen to enable NAT.

Port Forwarding Use this screen to configure servers behind the Prestige.

Trigger Port Use this screen to change your Prestige’s port triggering settings.

Security

Firewall General Use this screen to activate/deactivate the firewall.

Services This screen shows a summary of the firewall rules, and allows you to edit/

Management

Static Route Static Route

Rules

Remote MGMT WWW Use this screen to configure through which interface(s) and from which IP

SNMP Use this screen to configure your Prestige’s settings for Simple Network

Security Use this screen to change your anti-probing settings.

UPnP General Use this screen to enable UPnP on the Prestige.

Maintenance

System General This screen contains administrative.

Dynamic DNS Use this screen to set up dynamic DNS.

Time Setting Use this screen to change your Prestige’s time and date.

Logs View Log Use this screen to view the logs for the categories that you selected.

Log Settings Use this screen to change your Prestige’s log settings.

security settings.

devices or block the devices from accessing the Prestige.

This screen allows you to configure ISP parameters, WAN IP address
assignment and the WAN MAC address.

servers assigned by the DHCP server.

computers based on their MAC addresses.

assign an IP address to a MAC address (and host name).

add a firewall rule.

Use this screen to configure IP static routes.

address(es) users can use HTTP to manage the Prestige.

Management Protocol management.

40 Chapter 2 Introducing the Web Configurator

Table 4 Screens Summary

LINK TAB FUNCTION

Tools Firmware Use this screen to upload firmware to your Prestige.

Configuration Use this screen to backup and restore the configuration or reset the factory

defaults to your Prestige.

Restart This screen allows you to reboot the Prestige without turning the power off.

2.4.2 Summary: DHCP Table

DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual
clients to obtain TCP/IP configuration at start-up from a server. You can configure the Prestige
as a DHCP server or disable it. When configured as a server, the Prestige provides the TCP/IP
configuration for the clients. If DHCP service is disabled, you must have another DHCP server
on your LAN, or else the computer must be manually configured.

Click the DHCP Table (Detail) hyperlink in the Status screen. Read-only information here
relates to your DHCP status. The DHCP table shows current DHCP client information
(including IP Address, Host Name and MAC Address) of all network clients using the
Prestige’s DHCP server.

P-320W User’s Guide

Figure 9 Summary: DHCP Table

The following table describes the labels in this screen.

Table 5 Summary: DHCP Table

LABEL DESCRIPTION

# This is the index number of the host computer.

IP Address This field displays the IP address relative to the # field listed above.

Host Name This field displays the computer host name.

MAC Address This field shows the MAC address of the computer with the name in the Host Name

field.
Every Ethernet device has a unique MAC (Media Access Control) address. The MAC

address is assigned at the factory and consists of six pairs of hexadecimal characters,
for example, 00:A0:C5:00:00:02.

Refresh Click Refresh to renew the screen.

Chapter 2 Introducing the Web Configurator 41

P-320W User’s Guide

2.4.3 Summary: Association List

Click the Association List (Detail) hyperlink in the Status screen. View the wireless stations
that are currently associated to the Prestige in the Association List screen.

Figure 10 Summary: Association List

The following table describes the labels in this screen.

Table 6 Summary: Wireless Association List

LABEL DESCRIPTION

# This is the index number of an associated wireless station.

MAC Address This field displays the MAC address of an associated wireless station.

Association Time This field displays the time a wireless station first associated with the Prestige.

Refresh Click Refresh to redisplay the current screen.

2.4.4 Summary: Packet Statistics

Click the Statistics (Detail) hyperlink in the Status screen. Read-only information here
includes packet specific statistics. Also provided are "system up time" and "poll interval(s)".
The Poll Interval(s) field is configurable.

42 Chapter 2 Introducing the Web Configurator

Figure 11 Summary: Packet Statistics

The following table describes the labels in this screen.

Table 7 Summary: Packet Statistics

P-320W User’s Guide

LABEL DESCRIPTION

Port This is the WAN, LAN or WLAN port.

TxPkts This is the number of transmitted packets on this port.

RxPkts This is the number of received packets on this port.

System Up Time This is the total time the Prestige has been on.

Poll Interval(s) Enter the time interval for refreshing statistics in this field.

Set Interval Click this button to apply the new poll interval you entered in the Poll Interval(s)

field.

Stop Click Stop to stop refreshing statistics, click Stop.

Chapter 2 Introducing the Web Configurator 43

P-320W User’s Guide

44 Chapter 2 Introducing the Web Configurator

This chapter provides information on the Wizard setup screens in the web configurator.

3.1 Wizard Setup

The web configurator’s Wizard setup helps you configure your device to access the Internet.
Refer to your ISP (Internet Service Provider) checklist in the Quick Start Guide to know what
to enter in each field. Leave a field blank if you don’t have that information.

1 After you access the Prestige web configurator, click the Go to Wizard setup hyperlink.

You can click the Go to Advanced setup hyperlink to skip this wizard setup and
configure advanced features.

P-320W User’s Guide

CHAPTER 3

Connection Wizard

Figure 12 Select a Mode

2 Read the on-screen information and click Next.

Chapter 3 Connection Wizard 45

P-320W User’s Guide

Figure 13 Welcome to the Connection Wizard

3.2 Connection Wizard: STEP 1: System Information

System Information contains administrative and system-related information.

3.2.1 System Name

System Name is for identification purposes. However, because some ISPs check this name
you should enter your computer's "Computer Name".

• In Windows 95/98 click Start, Settings, Control Panel, Network. Click the
Identification tab, note the entry for the Computer Name field and enter it as the System
Name.

• In Windows 2000, click Start, Settings and Control Panel and then double-click
System. Click the Network Identification tab and then the Properties button. Note the
entry for the Computer name field and enter it as the System Name.

• In Windows XP, click Start, My Computer, View system information and then click
the Computer Name tab. Note the entry in the Full computer name field and enter it as
the Prestige System Name.

3.2.2 Domain Name

The Domain Name entry is what is propagated to the DHCP clients on the LAN. If you leave
this blank, the domain name obtained by DHCP from the ISP is used. While you must enter
the host name (System Name) on each individual computer, the domain name can be assigned
from the Prestige via DHCP.

Click Next to configure the Prestige for Internet access.

46 Chapter 3 Connection Wizard

Figure 14 Connection Wizard: STEP 1: System Information

P-320W User’s Guide

The following table describes the labels in this screen.

Table 8 Connection Wizard: STEP 1: System Information

LABEL DESCRIPTION

System Name System Name is a unique name to identify the Prestige in an Ethernet network. Enter a

descriptive name. This name can be up to 30 alphanumeric characters long. Spaces
are not allowed, but dashes "-" and underscores "_" are accepted.

Domain Name Type the domain name (if you know it) here. If you leave this field blank, the ISP may

assign a domain name via DHCP. The domain name entered by you is given priority
over the ISP assigned domain name.

Back Click Back to display the previous screen.

Next Click Next to proceed to the next screen.

Exit Click Exit to close the wizard screen without saving.

3.3 Connection Wizard: STEP 2: Wireless LAN

Set up your wireless LAN using the following screen.

Chapter 3 Connection Wizard 47

P-320W User’s Guide

Figure 15 Connection Wizard: STEP 2: Wireless LAN

The following table describes the labels in this screen.

Table 9 Connection Wizard: STEP 2: Wireless LAN

LABEL DESCRIPTION

Name(SSID) Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless

LAN.
If you change this field on the Prestige, make sure all wireless stations use the same

SSID in order to access the network.

Channel
Selection

Security Select a Security level from the drop-down list box.

Back Click Back to display the previous screen.

Next Click Next to proceed to the next screen.

Exit Click Exit to close the wizard screen without saving.

The range of radio frequencies used by IEEE 802.11b/g wireless devices is called a
channel. Select a channel ID that is not already in use by a neighboring device.

Choose Auto (WPA-PSK with self-generated key) to use WPA-PSK security with a
default Pre-Shared Key and only if your wireless clients support WPA-PSK. If you
choose this option, skip directly to

Choose None to have no wireless LAN security configured. If you do not enable any
wireless security on your Prestige, your network is accessible to any wireless
networking device that is within range. If you choose this option, skip directly to section

3.3.3.

Choose Basic (WEP) security if you want to configure WEP Encryption parameters. If
you choose this option, go directly to

Choose Extend (WPA-PSK with customized key) security to configure a Pre-Shared
Key. Choose this option only if your wireless clients support WPA-PSK or WPA2-PSK
respectively. If you choose this option, skip directly to

Section 3.3.3 on page 51.

Section 3.3.1 on page 49.

Section 3.3.2 on page 50.

48 Chapter 3 Connection Wizard

Note: The wireless stations and Prestige must use the same SSID, channel ID and

WEP encryption key (if WEP is enabled), WPA-PSK (if WPA-PSK is enabled)
for wireless communication.

3.3.1 Basic(WEP) Security

Choose Basic(WEP) to setup WEP Encryption parameters.

Figure 16 Basic(WEP) Security

P-320W User’s Guide

The following table describes the labels in this screen.

Table 10 Basic(WEP) Security

LABEL DESCRIPTION

Passphrase Type a Passphrase (up to 32 printable characters) and click Generate. The Prestige

Generate After you enter the passphrase, click Generate to have the Prestige generates four

Clear Click Clear to discard the passphrase you configured in the Passphrase field and the

WEP
Encryption

Chapter 3 Connection Wizard 49

automatically generates four different WEP keys.

different WEP keys automatically.

WEP key(s) generated automatically or maually configured.

Select 64-bit WEP or 128-bit WEP to allow data encryption.

ASCII Select this option in order to enter ASCII characters as the WEP keys.

HEX Select this option to enter hexadecimal characters as the WEP keys.

The preceding “0x” is entered automatically.

P-320W User’s Guide

Table 10 Basic(WEP) Security

LABEL DESCRIPTION

Key 1 to Key 4 The WEP keys are used to encrypt data. Both the Prestige and the wireless stations

must use the same WEP key for data transmission.
If you chose 64-bit WEP, then enter any 5 ASCII characters or 10 hexadecimal

characters ("0-9", "A-F").
If you chose 128-bit WEP, then enter 13 ASCII characters or 26 hexadecimal

characters ("0-9", "A-F").
You must configure at least one key, only one key can be activated at any one time.

The default key is key 1.

Back Click Back to display the previous screen.

Next Click Next to proceed to the next screen.

Exit Click Exit to close the wizard screen without saving.

3.3.2 Extend(WPA-PSK) Security

Choose Extend(WPA-PSK) security in the Wireless LAN setup screen to set up a Pre-
Shared Key.

Figure 17 Extend(WPA-PSK) Security

50 Chapter 3 Connection Wizard
