MAX-306M1 Series
Models: MAX-306M1 (2.5 GHz) and MAX-316M1 (3.5 GHz)
WiMAX MIMO Outdoor
Simple CPE
Default Login Details
IP Address: http://192.168.1.1
User Name: admin
Password: 1234
www.zyxel.com
Firmware Version 3.70
Edition 1, 12/2009
www.zyxel.com
Copyright © 2009
ZyXEL Communications Corporation
About This User's Guide
About This User's Guide
Intended Audience
This manual is intended for people who want to configure the ZyXEL WiMAX
Modem using the web configurator. You s hould hav e at l east a basic knowledge of
TCP/IP networking concepts and topology.
Note: This book covers the following models: MAX-306M1 and MAX-316M1.
Related Documentation
•Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. It
contains information on setting up your network and configuring for Internet
access.
• Web Configurator Online Help
Embedded web help for descriptions of individual screens and supplementary
information.
• Support Disc
Refer to the included CD for support documents.
• ZyXEL Web Site
Please refer to www.zyxel.com
product certifications.
for additional support documentation and
User’s Guide Feedback
Help us help you. Send all User’s Guide-related comments, questions or
suggestions for improvement to the following address, or use e-mail instead.
Thank you!
The Technical Writing Team,
ZyXEL Communications Corp.,
6 Innovation Road II,
Science-Based Industrial Park,
Hsinchu, 300, Taiwan.
User’s Guide
E-mail: techwriters@zyxel.com.tw
3
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this User’s Guide.
Warnings tell you about things that could harm you or your
WiMAX Modem.
Note: Notes tell you other important information (for example, other things you may
need to configure or helpful tips) or recommendations.
Syntax Conventions
• The product(s) described in this book may be referred to as the “WiMAX
Modem”, the “device”, the “system” or the “product” in this User’s Guide.
Document Conventions
• Product labels, screen names, field labels and field choices are all in bold font.
• A key stroke is denoted by square brackets and uppercase text, for example,
[ENTER] means the “enter” or “ret urn” key on your keyboard.
• “Enter” means for you to type one or more characters and then press the
[ENTER] key. “Select” or “choose” means for you to use one of the predefined
choices.
• A right angle bracket ( > ) within a screen name denotes a mouse click. For
example, TOOLS > Logs > Log Settings means you first click Tools in the
navigation panel, then the Logs sub menu and finally the Log Settings tab to
get to that screen.
• Units of measurement may denote the “metric” value or the “scientific” value.
For example, “k” for kilo may denote “1000” or “1024”, “M” for mega may
denote “1000000” or “1048576” and so on.
• “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other
words”.
4
User’s Guide
Document Conventions
Icons Used in Figures
Figures in this User’s Guide may use the following generic icons. The WiMAX
Modem icon is not an exact representation of your WiMAX Modem.\
Table 1 Common Icons
WiMAX Access Point Computer Wireless Signal
Notebook Server WiMAX Base Station
Telephone Switch Router
Internet Cloud Internet/WiMAX
Cloud
User’s Guide
5
Safety Warnings
• Do NOT use this product near water, for example, in a wet basement or near a
swimming pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a
remote risk of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• Do NOT open the device or unit. Opening or removing co vers can expose y ou to
dangerous high voltage points or other risks. ONLY qualified service personnel
should service or disassemble this device. Please contact your vendor for further
information.
Safety Warnings
For your safety, be sure to read and follow all warning notices and
instructions.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble
over them.
• Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power adaptor or cord for your device. Connect it to
the right supply voltage (for example, 110V AC in North America or 230V AC in
Europe).
• Do NOT remove the plug and connect it to a power outlet by itself; always
attach the plug to the power adaptor first before connecting it to a power outlet.
• Do NOT allow anything to rest on the power adaptor or cord and do NOT place
the product where anyone can walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it might
cause electrocution.
• If the power adaptor or cord is damaged, remove it from the device and the
power source.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor
to order a new one.Do not use the device outside, and make sure all the
connections are indoors. There is a remote risk of electric shock from lightning.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm
your device.Use only No. 26 AWG (American Wire Gauge) or larger
telecommunication li ne cord.
6
• Antenna Warning! This device meets ETSI and FCC certification requirements
when using the included antenna(s). Only use the included antenna(s).
• If you wal l mount your device, m ake sure that no electrical lines, gas or water
pipes will be damaged.
User’s Guide
Safety Warnings
• Make sure that the cable system is grounded so as to provide some protection
against voltage surges.
Your product is marked with this symbol, which is known as the WEEE mark.
WEEE stands for Waste Electronics and Electrical Equipment. It means that used
electrical and electronic products should not be mixed with general waste. Used
electrical and electronic equipment should be treated separately.
User’s Guide
7
Safety Warnings
8
User’s Guide
Contents Overview
Contents Overview
Introduction and Wizards ......................................................................................................29
Getting Started ........................................................................................................................... 31
Introducing the Web Configurator .............................................................................................. 35
Internet Connection Wizard....................................................................................................... 41
VoIP Connection Wizard ............................................................................................................ 47
Tutorials ..................................................................................................................................... 51
Basic Screens ........................................................................................................................63
The Setup Screens .................................................................................................................... 65
Advanced Screens .................................................................................................................71
The LAN Configuration Screens ................................................................................................ 73
The WAN Configuration Screens ............................................................................................... 85
The VPN Transport Screens ......................................................................................................97
The NAT Configuration Screens .............................................................................................. 109
The System Configuration Screens ..........................................................................................119
Voice Screens .......................................................................................................................129
The Service Configuration Screens ......................................................................................... 131
The Phone Screens ................................................................................................................. 149
The Phone Book Screens ........................................................................................................ 159
Tools & Status Screens .......................................................................................................165
The Certificates Screens .........................................................................................................167
The Firewall Screens ............................................................................................................... 189
Content Filter ...................................... ... ... ... .... ... ... ... .............................................. ... ..............199
The Remote Management Screens ......................................................................................... 203
QoS ......................................................................................................................................... 215
The Logs Screens ................................................................................................................... 219
The Status Screen ................................................................................................................... 235
Troubleshooting and Specifications ..................................................................................247
Troubleshooting ..................................................... .................................................................. 249
Product Specifications ............................................................................................................. 257
Appendices and Index .........................................................................................................265
User’s Guide
9
Contents Overview
10
User’s Guide
Table of Contents
Table of Contents
About This User's Guide..........................................................................................................3
Document Conventions............................................................................................................4
Safety Warnings ........................................................................................................................6
Contents Overview ...................................................................................................................9
Table of Contents....................................................................................................................11
List of Figures.........................................................................................................................19
List of Tables...........................................................................................................................25
Part I: Introduction and Wizards........................................................... 29
Chapter 1
Getting Started........................................................................................................................31

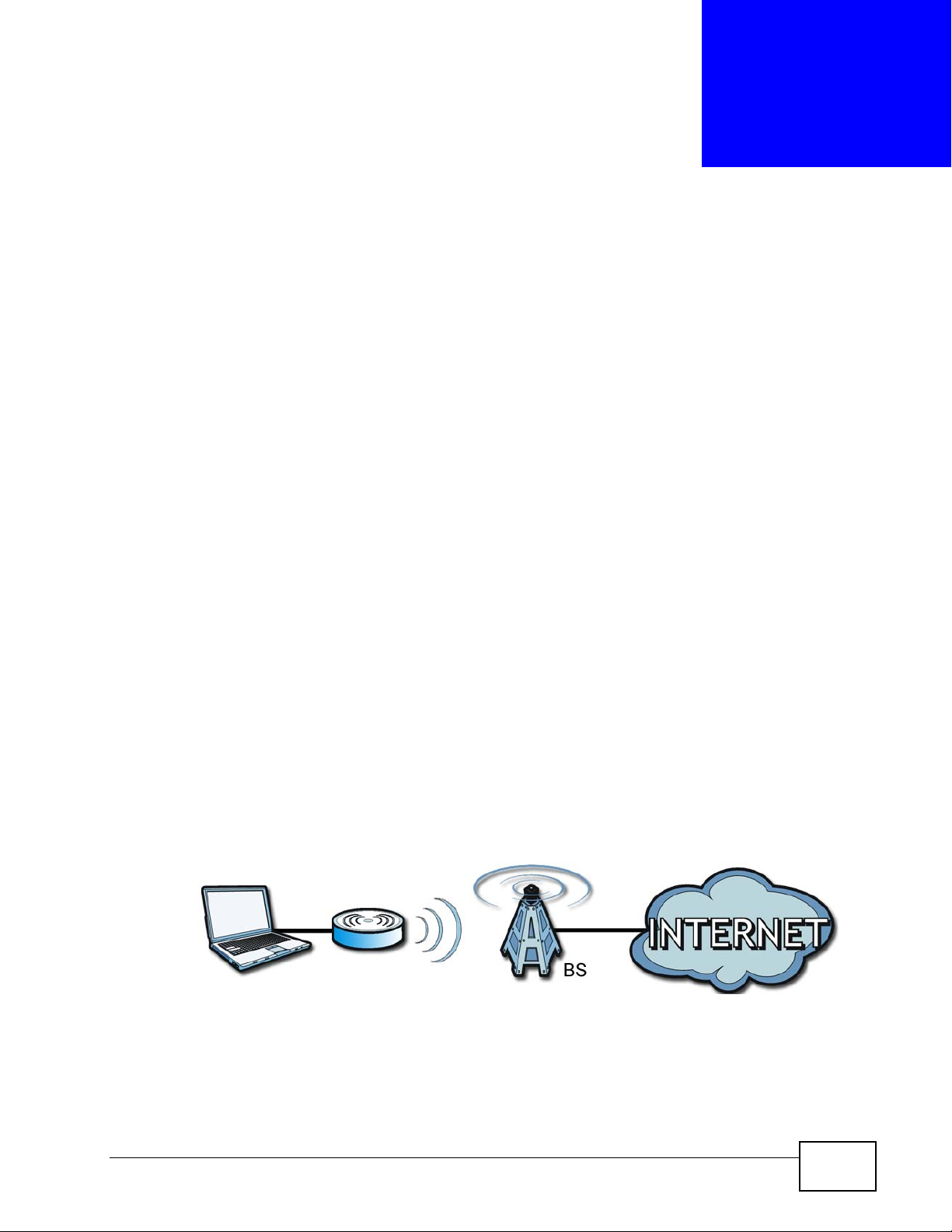

1.1 About Your WiMAX Modem .................................................................................................31
1.1.1 WiMAX Internet Access .............................................................................................31
1.1.2 Make Calls via Internet Telephony Service Provider .................................................. 32
1.2 WiMAX Modem Hardware ................................................................................................... 33
1.2.1 LEDs ................................................ ... ... ... .... ... ... ............................................. ... ....... 33
1.3 Good Habits for Managing the Device ................................................................................. 34
Chapter 2
Introducing the Web Configurator ........................................................................................35
2.1 Overview ............. ............................................. ... .... ... ... ... .... ................................................ 35
2.1.1 Accessing the Web Configurator ................................................................................ 35
2.2 The Main Screen ................................................................................................................. 38
Chapter 3
Internet Connection Wizard...................................................................................................41
3.1 Overview ............. ............................................. ... .... ... ... ... .... ................................................ 41
User’s Guide
3.1.1 Welcome to the ZyXEL Setup Wizard ........................................................................41
3.1.2 System Information ................ ... ... .... ............................................. ... ... .... ... ... ... ... .... ... 42
3.1.3 Authentication Settings .............................................................................................. 43
3.1.4 IP Address ........................... ... ... ............................................. .... ... ... ... .... ... ................ 45
3.1.5 Setup Complete ......................................................... ............................................. ... 46
11
Table of Contents
Chapter 4
VoIP Connection Wizard.........................................................................................................47
4.1 Overview ............. ............................................. ... .... ... ... ... .... ................................................ 47
4.2 Welcome to the ZyXEL Setup Wizard ................................................................................. 47
4.2.1 First Voice Account Settings ........ .... ... ............................................. ... .... ... ... ... ... .......48
4.2.2 Setup Complete ......................................................... ............................................. ... 50
Chapter 5
Tutorials...................................................................................................................................51
5.1 Overview ............. ............................................. ... .... ... ... ... .... ................................................ 51
5.2 Setting Up a Small Network ... .... ... ... ... ... .... ... ... ............................................. .... ... ... ... ... .... ...51
5.2.1 Connecting Your Small Network to the Internet .........................................................53
5.2.2 Changing Service Providers .......................... ............. ............ .......... ............. ............. 53
5.2.3 Blocking Web Access During Specific Hours ............................................................. 55
5.2.4 Blocking Web Sites by Keyword ................................................................................57

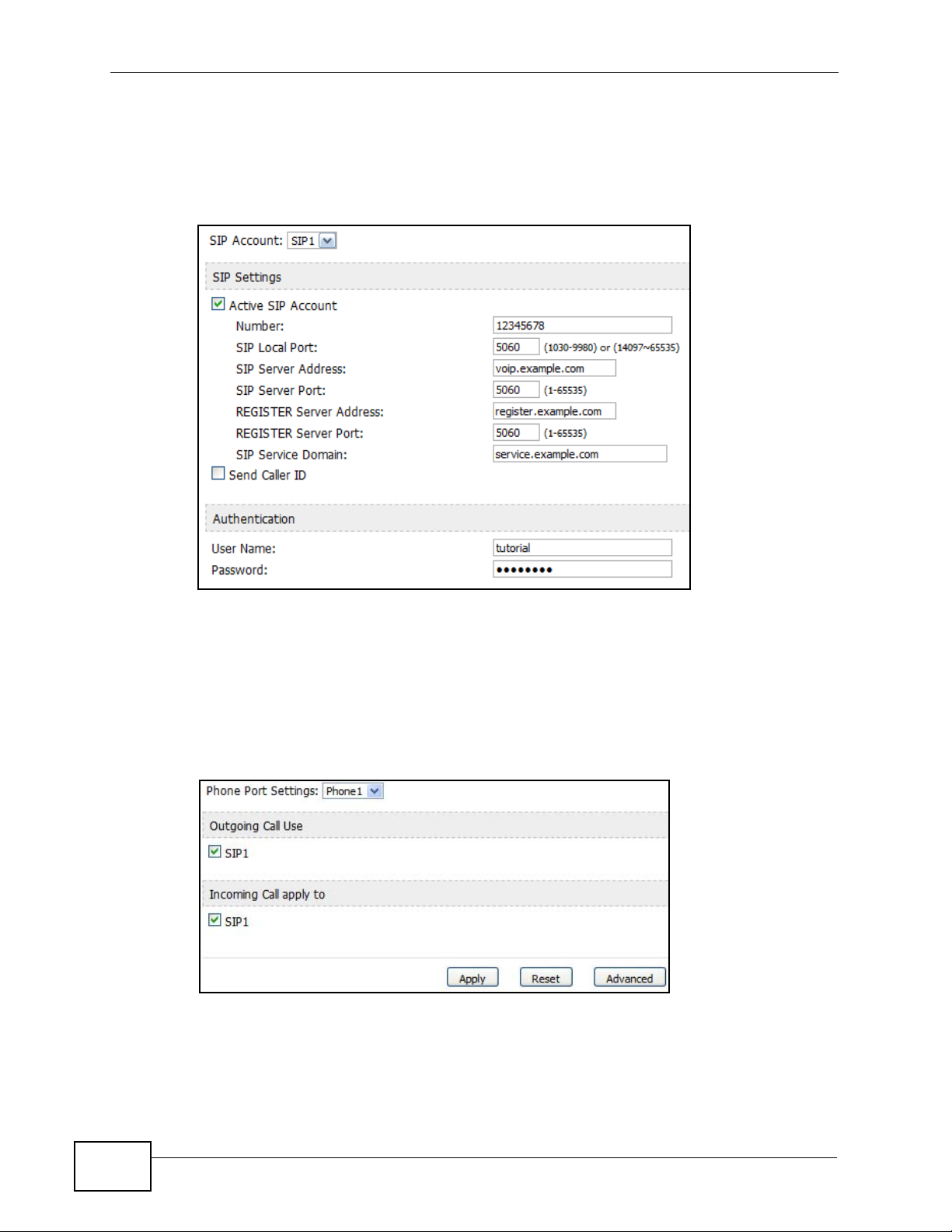

5.3 Configuring Your Internet Phone ..................................................... .... ... ... ... .... ... ... ... ... .......59

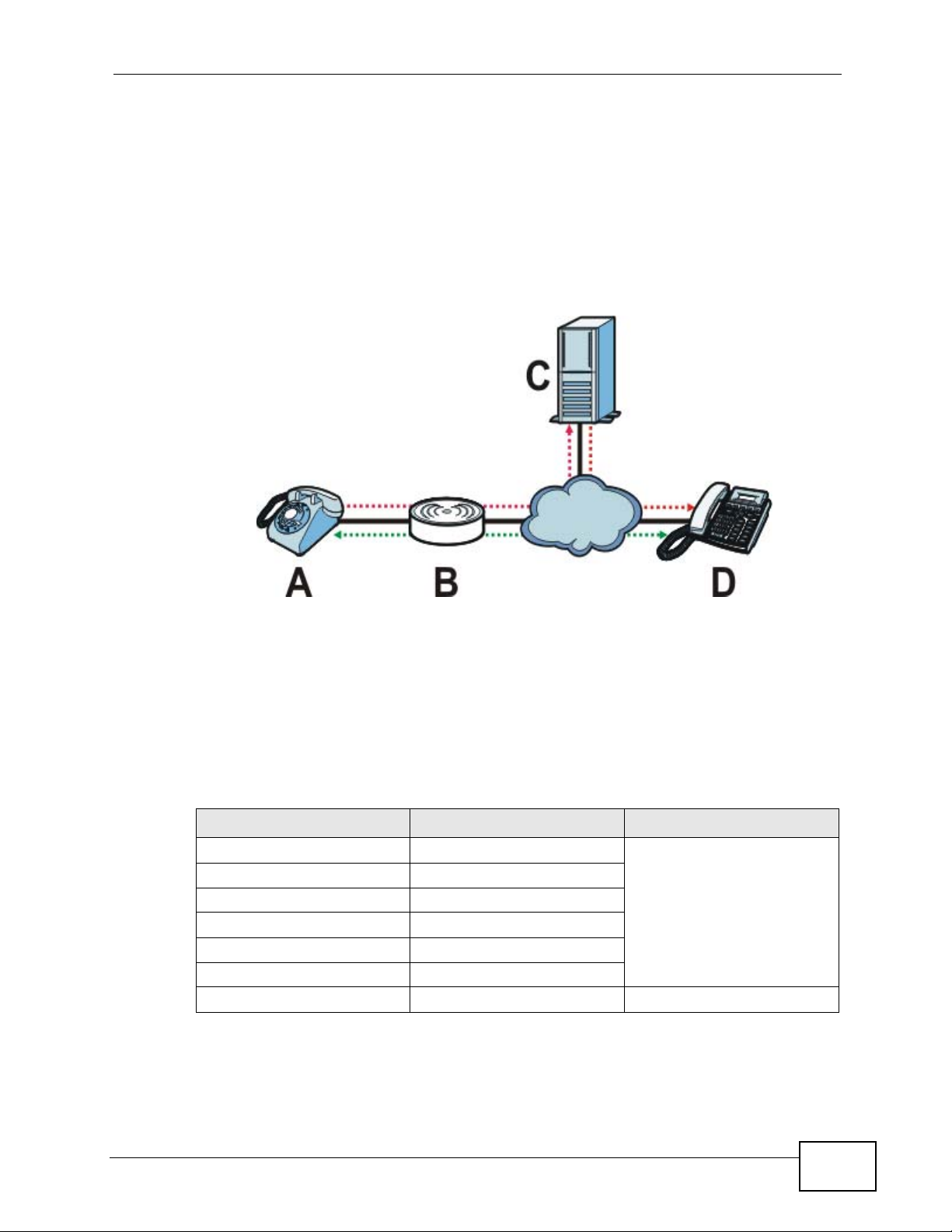

5.3.1 Placing an Internet Phone Call .................. .... ... ............................................. ... ... .... ... 61
5.4 Remotely Managing Your WiMAX Modem ................................................ ... .... ... ... ... ... .... ... 62
Part II: Basic Screens............................................................................ 63
Chapter 6
The Setup Screens..................................................................................................................65
6.1 Overview ............. ............................................. ... .... ... ... ... .... ................................................ 65
6.1.1 What You Can Do in This Chapter ............................................................................. 65
6.1.2 What You Need to Know ..................................... ... .... ... ... ... ... .... ... ... .......................... 65
6.1.3 Before You Begin ......... .... ... ... ... ... .............................................................................. 66
6.2 Set IP Address .............. ............................................. ... ... .... ... ... ... ....................................... 66
6.3 DHCP Client ....... ... ............................................. .... ... ... ... .... ... ............................................. 67
6.4 Time Setting .................................................. ... ... .... ... ... ... .... ... ... .......................................... 68
6.4.1 Pre-Defined NTP Time Servers List .............................. ... ... ... .... ................................ 69
6.4.2 Resetting the Time . ... ... .... ... ... ... ............................................. .... ... ... ... .... ... ................ 70
Part III: Advanced Screens.................................................................... 71
Chapter 7
The LAN Configuration Screens............................................................................................73
12
7.1 Overview ............. ............................................. ... .... ... ... ... .... ................................................ 73
7.1.1 What You Can Do in This Chapter ............................................................................. 73
User’s Guide
Table of Contents
7.1.2 What You Need to Know ..................................... ... .... ... ... ... ... .... ... ... .......................... 73

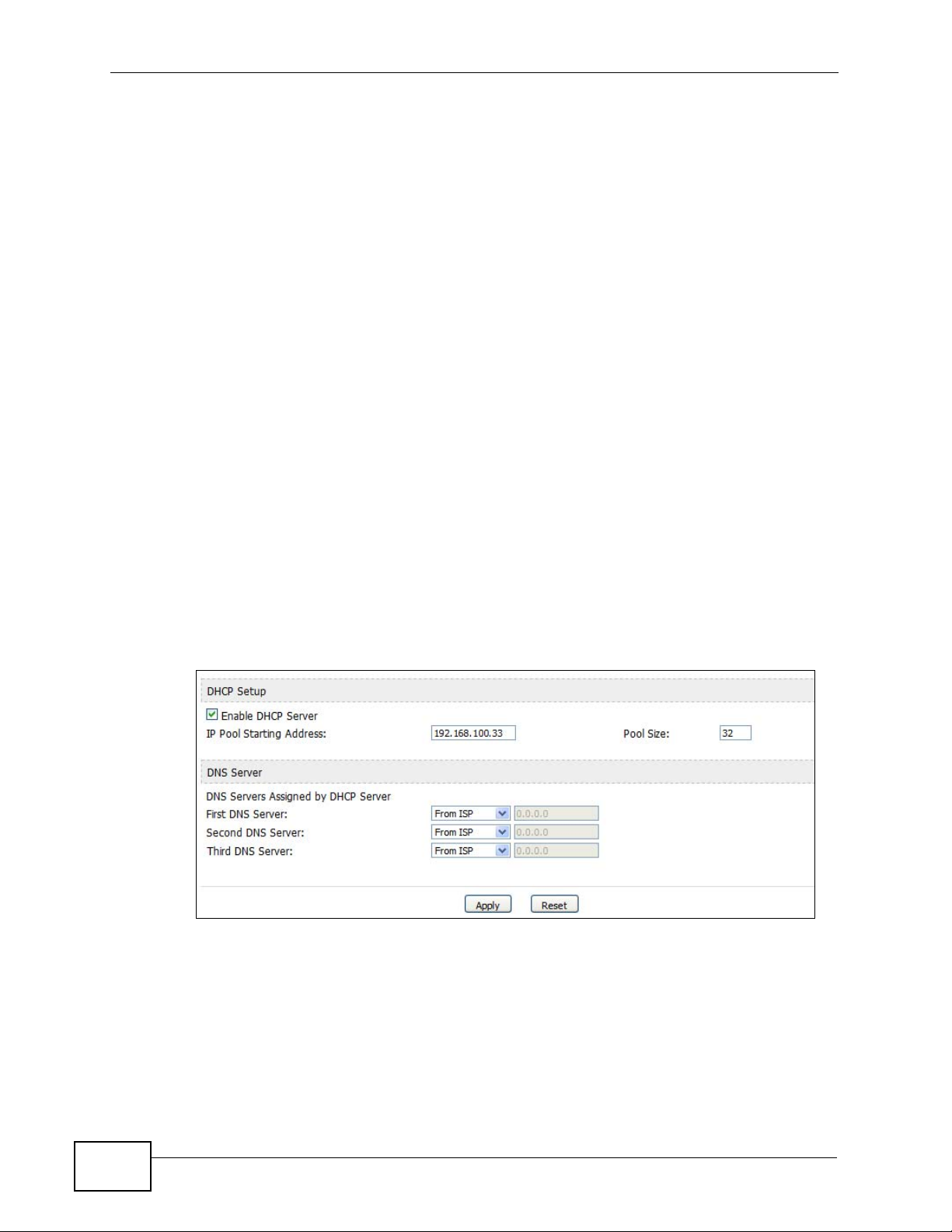

7.2 DHCP Setup ....................................... ... .... ... ............................................. ... .... ... ... ... .......... 74
7.3 Static DHCP ..................................... ... ... .... ............................................. ... ... .... ... ................76
7.4 IP Static Route ..................................................................................................................... 77
7.4.1 IP Static Route Setup ................................................................................................. 78
7.5 Other Settings ........ ............................................. .... ... ... ... .................................................... 79
7.6 Technical Ref erence ........... ... .... ............................................. ... ... ... .... ... ... ... .... ... ... .............80
7.6.1 IP Address and Subnet Mask ..................................................................................... 80
7.6.2 DHCP Setup ..................... ... ... ... ... .... ... ... ... .............................................. ... ... ... ... .... ...81
7.6.3 LAN TCP/IP .................. .... ... ... ............................................. ... .... ... ............................. 81
7.6.4 DNS Server Address ................................. .... ... ... ... ............................................. .... ... 82

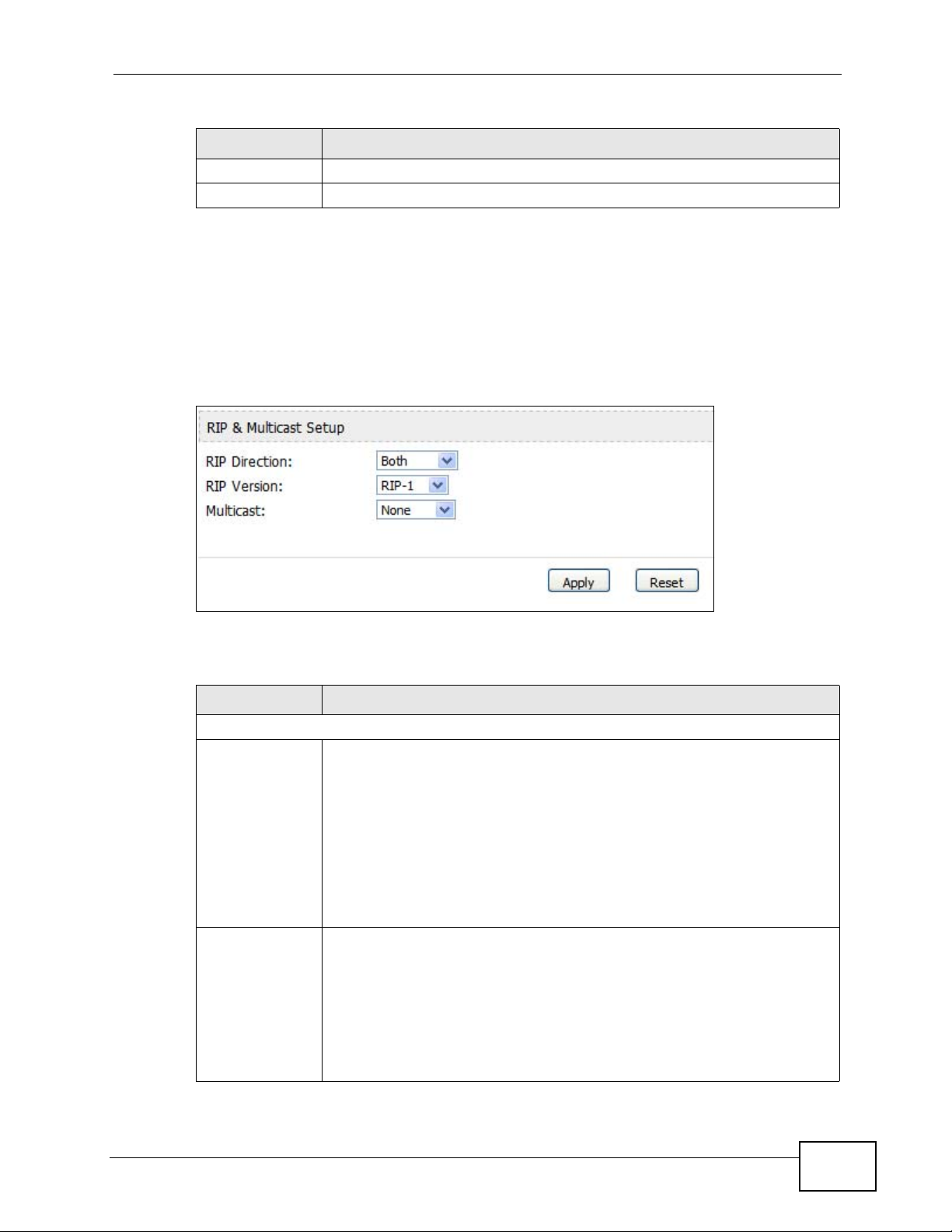

7.6.5 RIP Setup ............................................................................... .... ... ... ... .... ... ... .............82
7.6.6 Multicast . ... ... ... .............................................. ... ... ... ............................................. ....... 83
Chapter 8
The WAN Configuration Screens...........................................................................................85
8.1 Overview ............. ............................................. ... .... ... ... ... .... ................................................ 85
8.1.1 What You Can Do in This Chapter ............................................................................. 85
8.1.2 What You Need to Know ..................................... ... .... ... ... ... ... .... ... ... .......................... 85
8.2 Internet Connection ......... ... ... .... ... ... ... ................................................................................. 88
8.3 WiMAX Configuration ......... ... .... ... ... ... ... .... ... ... ... ................................................. ... ... ..........90

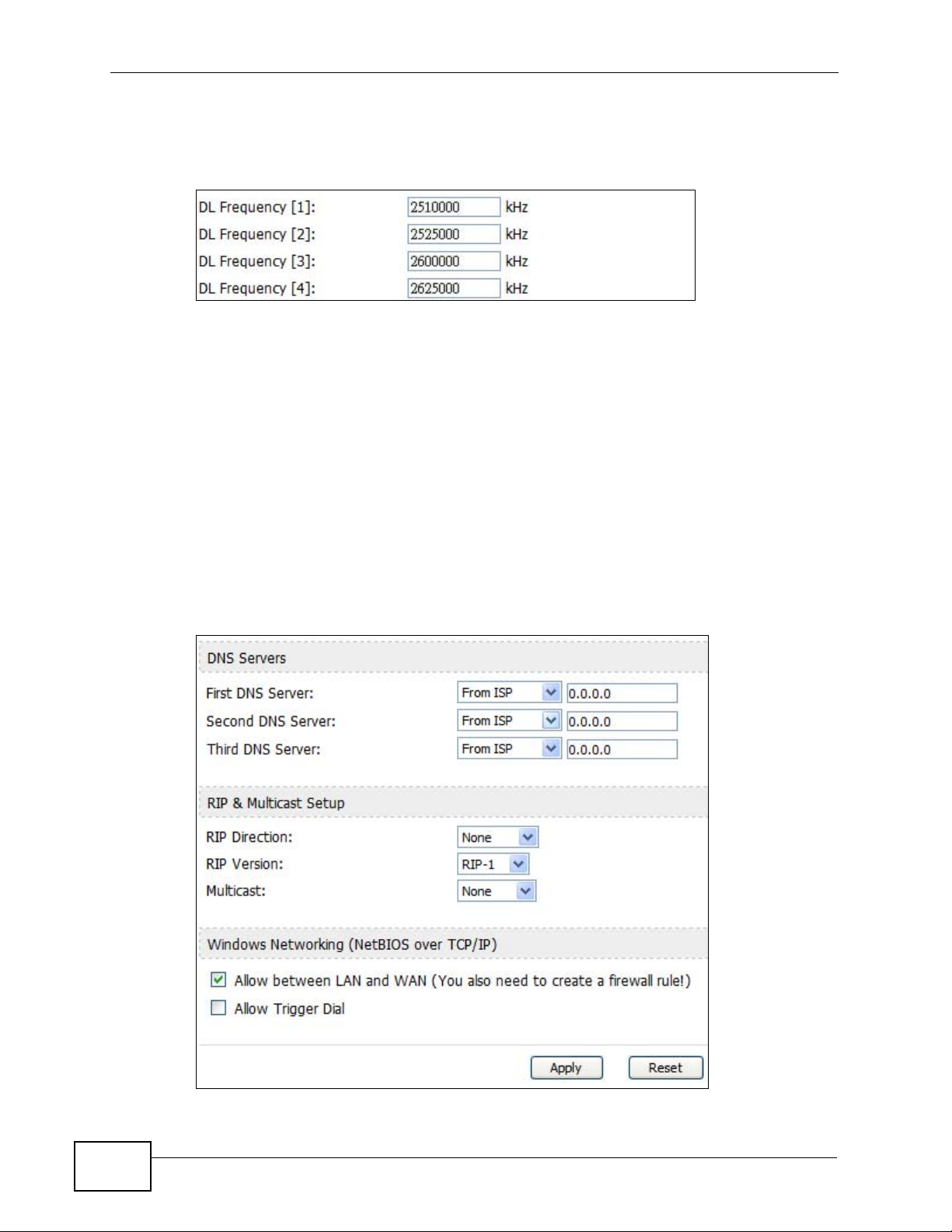

8.3.1 Frequency Ranges ..................................................................................................... 92

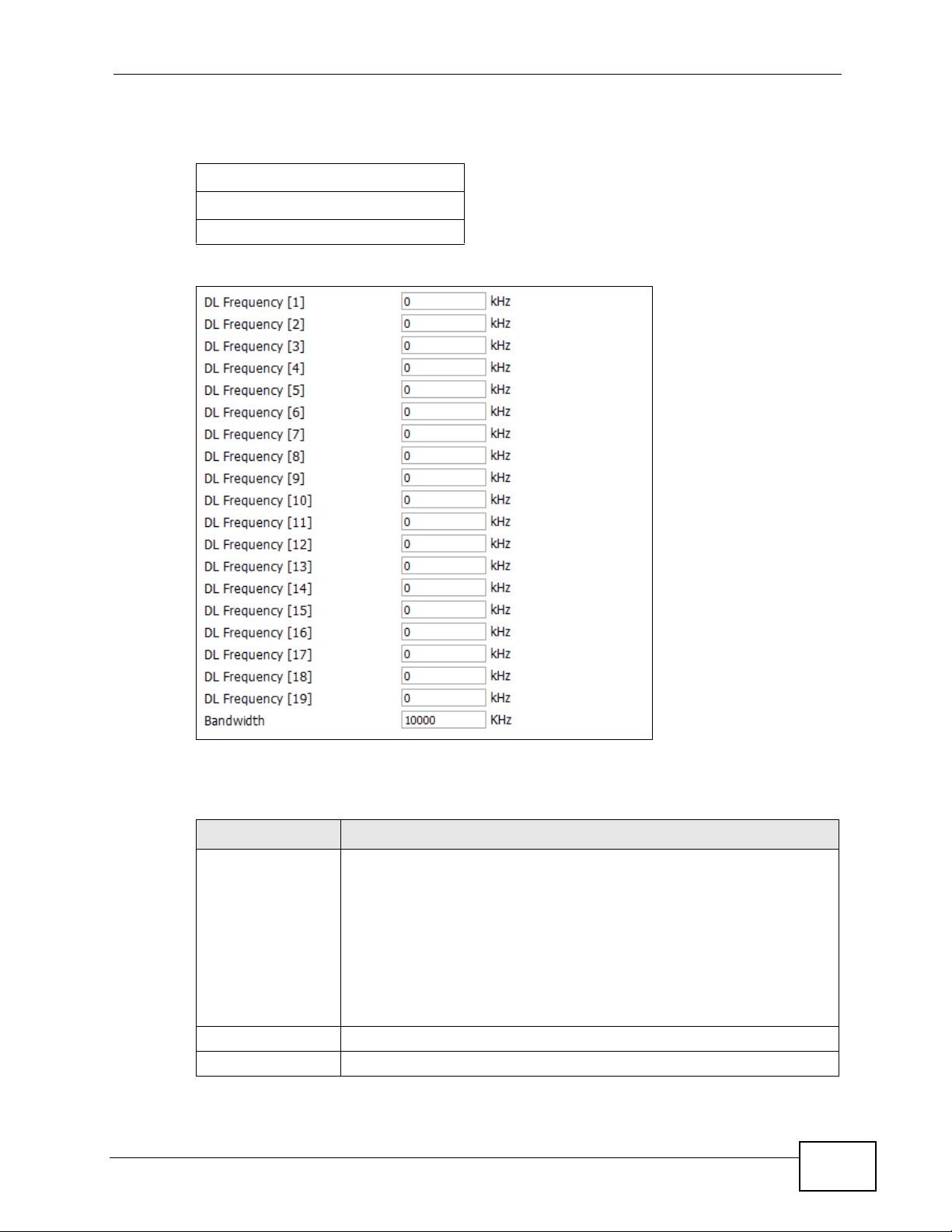

8.3.2 Configuring Frequency Settings .................................................................................92
8.3.3 Using the WiMAX Frequency Screen ......................................................................... 93
8.4 Advanced ............ ............................................. ... .... ... ... .......................................................94
Chapter 9
The VPN Transport Screens...................................................................................................97
9.1 Overview ............. ............................................. ... .... ... ... ... .... ................................................ 97
9.1.1 What You Can Do in This Chapter ............................................................................. 97
9.1.2 What You Need to Know ..................................... ... .... ... ... ... ... .... ... ... .......................... 98
9.1.3 Before You Begin ......... .... ... ... ... ... .............................................................................. 99
9.2 General ............................ ... ... .... ... ... ... ............................................. .... ... ... ... .... ... ................99
9.3 Customer Interface ............................................................................................................ 100
9.3.1 Multi-Protocol Label Switching ................................................................................. 100
9.3.2 Generic Routing Encapsulation ................................................................................ 101
9.3.3 Customer Interface Options ..................................................................................... 102
9.3.4 Customer Interface Setup ........................................................................................ 103
9.4 Ethernet Pseudowire .......... ... .... ... ... ... ... .... ... ... ................................................. ... ... ...........104
9.4.1 Ethernet Pseudowire Setup ................................................... .... ... ........................... 106
9.5 Statistics ................................................................. ... ... ... .................................................. 107
Chapter 10
The NAT Configuration Screens..........................................................................................109
User’s Guide
13
Table of Contents
10.1 Overview .......................................................................................................................... 109
10.1.1 What You Can Do in This Chapter ......................................................................... 109
10.2 General ............................................................................................................................ 109
10.3 Port Forwarding ...............................................................................................................110
10.3.1 Port Forwarding Options .........................................................................................111
10.3.2 Port Forwarding Rule Setup ....................................................................................113
10.4 Trigger Port .......................................................................................................................114
10.4.1 Trigger Port Forwarding Example ...........................................................................115
10.5 ALG ..................................................................................................................................116
Chapter 11
The System Configuration Screens....................................................................................119
11.1 Overview ...........................................................................................................................119
11.1.1 What You Can Do in This Chapter ..........................................................................119
11.1.2 What You Need to Know .........................................................................................119
11.2 General ........................................................................................................................... 121
11.3 Dynamic DNS ..................................................................................................................122
11.4 Firmware .......................................................................................................................... 124
11.4.1 The Firmware Upload Process ............................................................................... 125
11.5 Configuration .................................................................................................................... 126
11.5.1 The Restore Configuration Process ............................................................... ... .... . 127
11.6 Restart ............................................................................................................................. 127
11.6.1 The Restart Process ...............................................................................................128
Part IV: Voice Screens......................................................................... 129
Chapter 12
The Service Configuration Screens....................................................................................131
12.1 Overview .......................................................................................................................... 131
12.1.1 What You Can Do in This Chapter ......................................................................... 131
12.1.2 What You Need to Know ........................................................................................ 131
12.1.3 Before you Begin .................................. .......... .......... ......... .......... .......... ......... ....... . 133
12.2 SIP Settings ..................................................................................................................... 133
12.2.1 Advanced SIP Settings .......................................................................................... 135
12.3 QoS ................................................................................................................................. 142
12.4 Technical Reference ........................................................................................................143
12.4.1 SIP Call Progression ..............................................................................................143
12.4.2 SIP Client Server .................................................................................................... 144
12.4.3 SIP User Agent ...................................................................................................... 144
12.4.4 SIP Proxy Server ..................... .......... .......... ......... .......... .......... ......... ....... ......... ..... 144
12.4.5 SIP Redirect Server ............................................................................................... 145
14
User’s Guide
Table of Contents
12.4.6 NAT and SIP .......................................................................................................... 146
12.4.7 DiffServ .................................................................................................................. 146
12.4.8 DSCP and Per-Hop Behavior ................................................................................. 147
Chapter 13
The Phone Screens...............................................................................................................149
13.1 Overview .......................................................................................................................... 149
13.1.1 What You Can Do in This Chapter ......................................................................... 149
13.1.2 What You Need to Know ........................................................................................ 149
13.2 Analog Phone .................................................................................................................. 150
13.2.1 Advanced Analog Phone Setup ............................................................................. 151
13.3 Common .......................................................................................................................... 152
13.4 Region ............................................................................................................................. 153
13.5 Technical Reference ........................................................................................................154
13.5.1 The Flash Key ........................................................................................................ 154
13.5.2 Europe Type Supplementary Phone Services ....................................................... 154
13.5.3 USA Type Supplementary Services .......................................................................156
Chapter 14
The Phone Book Screens.....................................................................................................159
14.1 Overview .......................................................................................................................... 159
14.1.1 What You Can Do in This Chapter ......................................................................... 159
14.1.2 What You Need to Know ........................................................................................ 159
14.2 Incoming Call Policy ........................................................................................................ 160

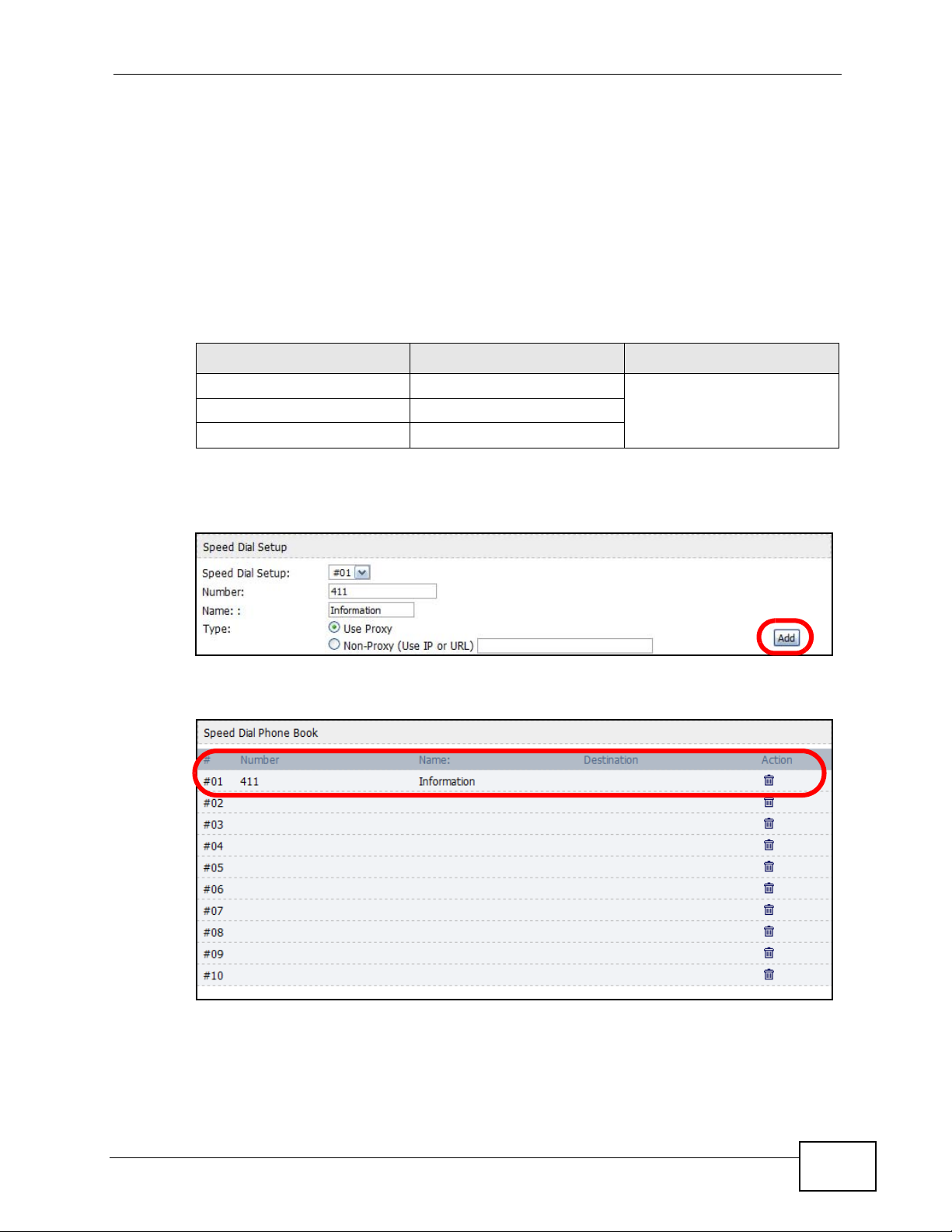

14.3 Speed Dial ....................................................................................................................... 162
Part V: Tools & Status Screens........................................................... 165
Chapter 15
The Certificates Screens......................................................................................................167
15.1 Overview .......................................................................................................................... 167
15.1.1 What You Can Do in This Chapter ......................................................................... 167
15.1.2 What You Need to Know ........................................................................................ 167
15.2 My Certificates ................................................................................................................. 168
15.2.1 My Certificates Create .................... ............. ............. ............ ............. .......... ........... 170
15.2.2 My Certificate Edit ...... .... ... ... ... ... .... ... ..................................................................... 174
15.2.3 My Certificate Import ............................................................................................177
15.3 Trusted CAs ..................................................................................................................... 178
15.3.1 Trusted CA Edit ..................................................................................................... 180
15.3.2 Trusted CA Import ................................................................................................. 183
15.4 Technical Reference ........................................................................................................183
User’s Guide
15
Table of Contents
15.4.1 Certificate Authorities ............................................................................................. 184
15.4.2 Verifying a Certificate .............................................................................................186
Chapter 16
The Firewall Screens............................................................................................................189
16.1 Overview .......................................................................................................................... 189
16.1.1 What You Can Do in This Chapter ......................................................................... 189
16.1.2 What You Need to Know ........................................................................................ 189
16.2 Firewall Setting ................................................................................................................ 190
16.2.1 Firewall Rule Directions ......................................................................................... 190
16.2.2 Triangle Route ........................................................................................................ 191
16.2.3 General Options .....................................................................................................192
16.3 Services ........................................................................................................................... 193
16.4 Technical Reference ........................................................................................................194
16.4.1 Stateful Inspection Firewall. ................................................................................... 194
16.4.2 Guidelines For Enhancing Security With Your Firewall .......................................... 195
16.4.3 The “Triangle Route” Problem ........................................... ................................ ..... 195
Chapter 17
Content Filter.........................................................................................................................199
17.1 Overview .......................................................................................................................... 199
17.1.1 What You Can Do in This Chapter ......................................................................... 199
17.2 Filter ................................................................................................................................. 200
17.3 Schedule .......................................................................................................................... 202
Chapter 18
The Remote Management Screens .....................................................................................203
18.1 Overview .......................................................................................................................... 203
18.1.1 What You Can Do in This Chapter ......................................................................... 203
18.1.2 What You Need to Know ........................................................................................ 204

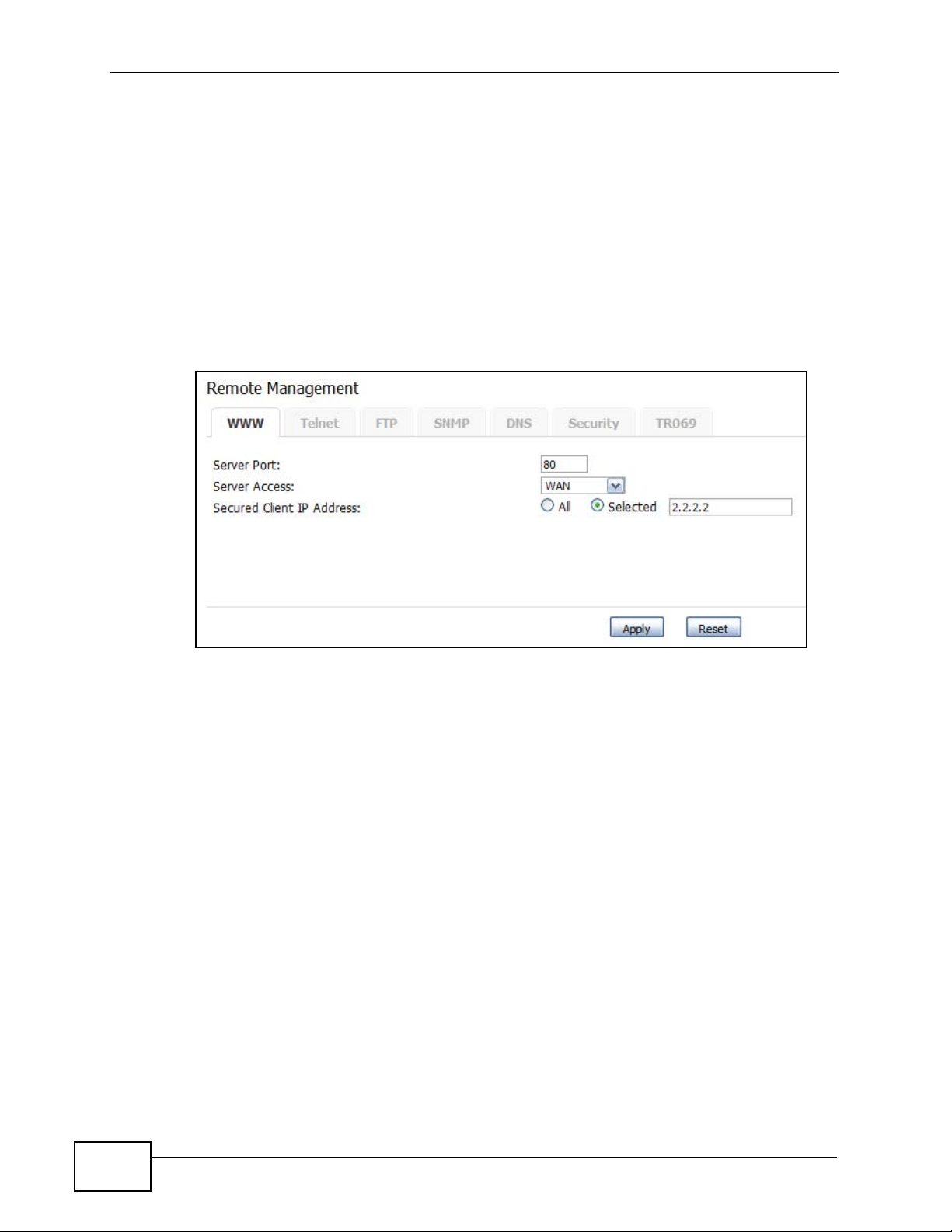

18.2 WWW .............................................................................................................................. 205
18.3 Telnet ............................................................................................................................... 206
18.4 FTP .................................................................................................................................. 206
18.5 SNMP .............................................................................................................................. 207
18.5.1 SNMP Traps ........................................................................................................... 208
18.5.2 SNMP Options .......................................................................................................209
18.6 DNS .................................................................................................................................210
18.7 Security .............................................................................................................................211
18.8 TR0-69 .............................................................................................................................212
Chapter 19
QoS.........................................................................................................................................215
19.1 Overview .......................................................................................................................... 215
16
User’s Guide
Table of Contents
19.2 General ............................................................................................................................215
19.3 Class Setup ..................................................................................................................... 216
19.3.1 Class Configuration ................................................................................................ 217
Chapter 20
The Logs Screens.................................................................................................................219
20.1 Overview .......................................................................................................................... 219
20.1.1 What You Can Do in This Chapter ......................................................................... 219
20.1.2 What You Need to Know ........................................................................................ 219
20.2 View Logs ........................................................................................................................ 221
20.3 Log Settings ..................................................................................................................... 223
20.4 Log Message Descriptions .............................................................................................. 225
Chapter 21
The Status Screen.................................................................................................................235
21.1 Overview .......................................................................................................................... 235
21.2 Status Screen .................................................................................................................. 235
21.2.1 Packet Statistics ..................................................................................................... 239
21.2.2 WiMAX Site Information ......................................................................................... 241
21.2.3 DHCP Table ........................................................................................................... 242
21.2.4 VoIP Statistics ........................................................................................................ 243
21.2.5 WiMAX Profile ........................................................................................................ 245
Part VI: Troubleshooting and Specifications .................................... 247
Chapter 22
Troubleshooting....................................................................................................................249
22.1 Power, Hardware Connections, and LEDs .................................... .... ... ... ... ..................... 249
22.2 WiMAX Modem Access and Login .................................................................................. 250
22.3 Internet Access ................................................................................................................ 252
22.4 Phone Calls and VoIP ......................................................................................................253
22.5 Reset the WiMAX Modem to Its Factory Defaults ........................................................... 254
22.5.1 Pop-up Windows, JavaScripts and Java Permissions ........................................... 255
Chapter 23
Product Specifications.........................................................................................................257
Part VII: Appendices and Index.......................................................... 265
Appendix A WiMAX Security................................................................................................267
User’s Guide
17
Table of Contents
Appendix B Setting Up Your Computer’s IP Address...........................................................271
Appendix C Pop-up Windows, JavaScripts and Java Permissions......................................299
Appendix D IP Addresses and Subnetting...........................................................................309
Appendix E Importing Certificates........................................................................................321
Appendix F SIP Passthrough...............................................................................................353
Appendix G Common Services............................................................................................355
Appendix H Legal Information..............................................................................................359
Appendix I Customer Support..............................................................................................363
Index.......................................................................................................................................371
18
User’s Guide
List of Figures
List of Figures
Figure 1 Mobile Station and Base Station ........................ ... ... .... ... ............................................. ... .......... 31
Figure 2 WiMAX Modem’s VoIP Features - Peer-to-Peer Calls ............................................................. 32
Figure 3 WiMAX Modem’s VoIP Features - Calls via VoIP Service Provider ......................................... 32
Figure 4 The WiMAX Modem’s LEDs ..................................................................................................... 33
Figure 5 Main Screen ............................................................................................................................. 38
Figure 6 Select a Mode .......................................................................................................................... 41
Figure 7 Internet Connection Wizard > System Information ...................... ................................... .......... 42
Figure 8 Internet Connection Wizard > Authentication Settings Screen ................................................. 43
Figure 9 Internet Connection Wizard > IP Address ................................................................................ 45
Figure 10 Internet Connection Wizard > Complete ................................................................................46
Figure 11 Select a Mode ......................................................................................................................... 47
Figure 12 VoIP Connection > First Voice Account Settings ............................. .................................... ... 48
Figure 13 VoIP Connection > SIP Registration Test ............................................................................... 49
Figure 14 VoIP Connection > SIP Registration Fail ......................................................... ....................... 50
Figure 15 VoIP Connection > Finish ...................................................................................................... 50
Figure 16 Phone Call Example . ... .... ................................................ ... .... ... ... ... ... .... ... ... ... .... ... ................ 59
Figure 17 SETUP > Set IP Address ....................................................................................................... 66
Figure 18 SETUP > DHCP Client ........................................................................................................... 67
Figure 19 SETUP > Time Setting ...........................................................................................................68
Figure 20 ADVANCED > LAN Configuration > DHCP Setup ................................................................. 74
Figure 21 ADVANCED > LAN Configuration > Static DHCP .................................................................. 76
Figure 22 Advanced> LAN Configuration > IP Static Route ................................................................... 77
Figure 23 Advanced> LAN Configuration > IP Static Route Setup ......................................................... 78
Figure 24 ADVANCED > LAN Configuration > Other Settings ............................................................... 79
Figure 25 WiMax: Mobile Station ............................................................................................................86
Figure 26 WiMAX: Multiple Mobile Stations ............................................... ... ... ... .... ... ... .......................... 86
Figure 27 Using an AAA Server ............................................................................................................. 87
Figure 28 ADVANCED > WAN Configuration > Internet Connection ..................................................... 88
Figure 29 ADVANCED > WAN Configuration >WiMAX Configuration ................................................ 91
Figure 30 Frequency Ranges ................................................................................................................. 92
Figure 31 Completing the WiMAX Frequency Screen ............................................................................ 94
Figure 32 ADVANCED > WAN Configuration > Advanced ................................................................ 94
Figure 33 VPN Transport Example ......................................................................................................... 97
Figure 34 Identifying Users ..................................................................................................................... 98
Figure 35 ADVANCED > VPN Transport > General ............................................................................... 99
Figure 36 Pseudowire Mapping ............................................................................................................ 100
Figure 37 VPLS Tunneling .................................................................................................................... 101
Figure 38 ADVANCED > VPN Transport > Customer Interface ........................................................... 102
User’s Guide
19
List of Figures
Figure 39 ADVANCED > VPN Transport > Customer Interface Setup ............................................ 103
Figure 40 Ethernet Pseudowire Settings Example .............................................................................. 105
Figure 41 Advance > VPN Transport > Ethernet Pseudowire .............................................................. 105
Figure 42 ADVANCED > VPN Transport > Ethernet Pseudowire Setup ........................................... . 106
Figure 43 ADVANCED > VPN Transport > Statistics ............................................................................ 107
Figure 44 ADVANCED > NAT Configuration > General ....................................................................... 109
Figure 45 Multiple Servers Behind NAT Example .................................................................................111
Figure 46 ADVANCED > NAT Configuration > Port Forwarding ...... ............. ............. ............. ............. ..111
Figure 47 ADVANCED > NAT Configuration > Port Forwarding > Rule Setup ......................................113
Figure 48 ADVANCED > NAT Configuration > Trigger Port ..................................................................114
Figure 49 Trigger Port Forwarding Example ..........................................................................................115
Figure 50 ADVANCED > NAT Configuration > ALG ..............................................................................117
Figure 51 ADVANCED > System Configuration > General .................................................................. 121
Figure 52 ADVANCED > System Configuration > Dynamic DNS ......................................................... 123
Figure 53 ADVANCED > System Configuration > Firmware ................................................................ 124
Figure 54 ADVANCED > System Configuration > Configuration ..................................................... ..... 126
Figure 55 ADVANCED > System Configuration > Restart ......................................................... ...... ..... 127
Figure 56 VOICE > Service Configuration > SIP Setting ...................................................................... 133
Figure 57 STUN Example .....................................................................................................................135
Figure 58 VOICE > Service Configuration > SIP Settings > Advanced ................................................ 137
Figure 59 VOICE > Service Configuration > QoS ................................................................................ 142
Figure 60 SIP User Agent ............................. ... ... ... ... .... ... ... ................................................. ................. 144
Figure 61 SIP Proxy Server .......................................... ... ... ................................................. ................. 145
Figure 62 SIP Redirect Server ......................... ... ... ... .... ... ... ... .... ... ... ... .................................................. 146
Figure 63 DiffServ: Differentiated Service Field .................................................................................... 147
Figure 64 VOICE > Phone > Analog Phone .........................................................................................150
Figure 65 VOICE > Phone > Analog Phone > Advanced ....................... .............................................. 151
Figure 66 VOICE > Phone > Common ................................................................................................. 152
Figure 67 VOICE > Phone > Region .................................................................................................... 153
Figure 68 VOICE > Phone Book > Incoming Call Policy ...................................................................... 160
Figure 69 VOICE > Phone Book > Speed Dial ..................................................................................... 162
Figure 70 TOOLS > Certificates > My Certificates ............................................................................168
Figure 71 TOOLS > Certificates > My Certificates > Create ................................................................ 170
Figure 72 TOOLS > Certificates > My Certificates > Edit ............... ................................................ .... . 174
Figure 73 TOOLS > Certificates > My Certificates > Import ............ ... ............................................. .... . 177
Figure 74 TOOLS > Certificates > Trusted CAs ...................................................................................178
Figure 75 TOOLS > Certificates > Trusted CAs > Edit ...................................................................... 180
Figure 76 TOOLS > Certificates > Trusted CAs > Import .....................................................................183
Figure 77 Remote Host Certificates ..................................................................................................... 186
Figure 78 Certificate Details ................................................................................................................ 187
Figure 79 Firewall Rule Directions ........................................................................................................ 190
Figure 80 Ideal Firewall Setup .............................................................................................................. 191
Figure 81 TOOLS > Firewall > General ................................................................................................ 192
20
User’s Guide
List of Figures
Figure 82 TOOLS > Firewall > Service Setting ....................................................................................193
Figure 83 “Triangle Route” Problem .....................................................................................................196
Figure 84 IP Alias ................................................................................................................................. 197
Figure 85 TOOLS > Content Filter > Filter ........................................................................................... 200
Figure 86 TOOLS > Content Filter > Schedule ....................................................................................202
Figure 87 TOOLS > Remote Management > WWW ............................................................................ 205
Figure 88 TOOLS > Remote Management > Telnet .............................................................................206
Figure 89 TOOLS > Remote Management > FTP ................................................................................ 206
Figure 90 SNMP Management Model ..................................................................................................207
Figure 91 TOOLS > Remote Management > SNMP ............................................................................209
Figure 92 TOOLS > Remote Management > DNS ............................................................................... 210
Figure 93 TOOLS > Remote Management > Security ..........................................................................211
Figure 94 TR-069 Example .................................................................................................................. 212
Figure 95 TOOLS > Remote Management > TR069 ............................................................................ 213
Figure 96 QoS > General ..................................................................................................................... 215
Figure 97 QoS > Class Setup ............................................................................................................... 216
Figure 98 QoS > Class Setup > Class Configuration ........................................................................... 217
Figure 99 TOOLS > Logs > View Logs ................................................................................................. 221
Figure 100 TOOLS > Logs > Log Settings ........................................................................................... 223
Figure 101 Status ................................................................................................................................. 235
Figure 102 Packet Statistics ................................................................................................................. 239
Figure 103 WiMAX Site Information ....................................................................................................241
Figure 104 DHCP Table ........................................................................................................................ 242
Figure 105 VoIP Statistics ..................................................................................................................... 243
Figure 106 WiMAX Profile ................................................................................................................... 245
Figure 107 Windows XP: Start Menu .................................................................................................... 272
Figure 108 Windows XP: Control Panel ............................................................................................... 272
Figure 109 Windows XP: Control Panel > Network Connections > Properties ......................... ... ... .... . 273
Figure 110 Windows XP: Local Area Connection Properties ............................................................... 273
Figure 111 Windows XP: Internet Protocol (TCP/IP) Properties ............................................. ... ... ... .... . 274
Figure 112 Windows Vista: Start Menu ................................................................................................. 275
Figure 113 Windows Vista: Control Panel ............................................................................................ 275
Figure 114 Windows Vista: Network And Internet ................................................................................ 275
Figure 115 Windows Vista: Network and Sharing Center ............................................. ........................ 276
Figure 116 Windows Vista: Network and Sharing Center ............................................. ........................ 276
Figure 117 Windows Vista: Local Area Connection Properties ............................................................ 277
Figure 118 Windows Vista: Internet Protocol Version 4 (TCP/IPv4) Properties .................................... 278
Figure 119 Mac OS X 10.4: Apple Menu .............................................................................................. 279
Figure 120 Mac OS X 10.4: System Preferences ................................................................................. 279
Figure 121 Mac OS X 10.4: Network Preferences ...............................................................................280
Figure 122 Mac OS X 10.4: Network Preferences > TCP/IP Tab. ........................................................ 280
Figure 123 Mac OS X 10.4: Network Preferences > Ethernet ................ ................................... ........... 281
Figure 124 Mac OS X 10.4: Network Utility .......................................................................................... 282
User’s Guide
21
List of Figures
Figure 125 Mac OS X 10.5: Apple Menu .............................................................................................. 283
Figure 126 Mac OS X 10.5: Systems Preferences ............................................................................... 283
Figure 127 Mac OS X 10.5: Network Preferences > Ethernet ................ ................................... ........... 284
Figure 128 Mac OS X 10.5: Network Preferences > Ethernet ................ ................................... ........... 285
Figure 129 Mac OS X 10.5: Network Utility .......................................................................................... 286
Figure 130 Ubuntu 8: System > Administration Menu .......................................................................... 287
Figure 131 Ubuntu 8: Network Settings > Connections ...................... .... ............................................. . 287
Figure 132 Ubuntu 8: Administrator Account Authentication ................................................................ 288
Figure 133 Ubuntu 8: Network Settings > Connections ...................... .... ............................................. . 288
Figure 134 Ubuntu 8: Network Settings > Properties ........................................................................... 289
Figure 135 Ubuntu 8: Network Settings > DNS ...................................................................................290
Figure 136 Ubuntu 8: Network Tools .................................................................................................... 291
Figure 137 openSUSE 10.3: K Menu > Computer Menu ..................................................................... 292
Figure 138 openSUSE 10.3: K Menu > Computer Menu ..................................................................... 293
Figure 139 openSUSE 10.3: YaST Control Center .............................................................................. 293
Figure 140 openSUSE 10.3: Network Settings .................................................................................... 294
Figure 141 openSUSE 10.3: Network Card Setup ............................................................................... 295
Figure 142 openSUSE 10.3: Network Settings .................................................................................... 296
Figure 143 openSUSE 10.3: KNetwork Manager ................................................................................. 297
Figure 144 openSUSE: Connection Status - KNetwork Manager ........................................................ 297
Figure 145 Pop-up Blocker ................................................................................................................... 299
Figure 146 Internet Options: Privacy .................................................................................................... 300
Figure 147 Internet Options: Privacy .................................................................................................... 301
Figure 148 Pop-up Blocker Settings ..................................................................................................... 302
Figure 149 Internet Options: Security ................................................................................................... 303
Figure 150 Security Settings - Java Scripting ....................................................................................... 304
Figure 151 Security Settings - Java ......................................................................................................305
Figure 152 Java (Sun) .......................................................................................................................... 306
Figure 153 Mozilla Firefox: TOOLS > Options .............................. ............................................. ... ... ..... 306
Figure 154 Mozilla Firefox Content Security ......................................................................................... 307
Figure 155 Network Number and Host ID ............................................................................................310
Figure 156 Subnetting Example: Before Subnetting ....................................... ... .... ... ... ... ..................... 313
Figure 157 Subnetting Example: After Subnetting ....................................... ... ... .... ... ... ... ..................... 314
Figure 158 Conflicting Computer IP Addresses Example .................................................................... 319
Figure 159 Conflicting Computer IP Addresses Example .................................................................... 319
Figure 160 Conflicting Computer and Router IP Addresses Example ..................................................320
Figure 161 Internet Explorer 7: Certification Error ................................................................................322
Figure 162 Internet Explorer 7: Certification Error ................................................................................322
Figure 163 Internet Explorer 7: Certificate Error ........................ ................ ................ ................ ........... 323
Figure 164 Internet Explorer 7: Certificate ............................................................................................ 323
Figure 165 Internet Explorer 7: Certificate Import Wizard ....................................................................324
Figure 166 Internet Explorer 7: Certificate Import Wizard ....................................................................324
Figure 167 Internet Explorer 7: Certificate Import Wizard ....................................................................325
22
User’s Guide
List of Figures
Figure 168 Internet Explorer 7: Select Certificate Store ............................... ... .....................................325
Figure 169 Internet Explorer 7: Certificate Import Wizard ....................................................................326
Figure 170 Internet Explorer 7: Security Warning ............................................ .......... ...... .......... ........... 326
Figure 171 Internet Explorer 7: Certificate Import Wizard ....................................................................327
Figure 172 Internet Explorer 7: Website Identification .................................. ............................. ........... 327
Figure 173 Internet Explorer 7: Public Key Certificate File ........................... ... ... .... ... ........................... 328
Figure 174 Internet Explorer 7: Open File - Security Warning ... ... ... ... .... ... ... ........................................ 328
Figure 175 Internet Explorer 7: Tools Menu ......................................................................................... 329
Figure 176 Internet Explorer 7: Internet Options .................................................................................. 329
Figure 177 Internet Explorer 7: Certificates .......................................................................................... 330
Figure 178 Internet Explorer 7: Certificates .......................................................................................... 330
Figure 179 Internet Explorer 7: Root Certificate Store .......................................................................... 330
Figure 180 Firefox 2: Website Certified by an Unknown Authority ....................................................... 332
Figure 181 Firefox 2: Page Info ............................................................................................................ 333
Figure 182 Firefox 2: Tools Menu ......................................................................................................... 334
Figure 183 Firefox 2: Options ............................................................................................................... 334
Figure 184 Firefox 2: Certificate Manager ...........................................................................................335
Figure 185 Firefox 2: Select File ........................... ................ ................. ................ ..............................335
Figure 186 Firefox 2: Tools Menu ......................................................................................................... 336
Figure 187 Firefox 2: Options ............................................................................................................... 336
Figure 188 Firefox 2: Certificate Manager ...........................................................................................337
Figure 189 Firefox 2: Delete Web Site Certificates ..............................................................................337
Figure 190 Opera 9: Certificate signer not found ................................................................................. 338
Figure 191 Opera 9: Security information .............................................................................................339
Figure 192 Opera 9: Tools Menu ..........................................................................................................340
Figure 193 Opera 9: Preferences ......................................................................................................... 341
Figure 194 Opera 9: Certificate manager ............................................................................................ 342
Figure 195 Opera 9: Import certificate ................................................................................................. 342
Figure 196 Opera 9: Install authority certificate ........................ ........................................................... 343
Figure 197 Opera 9: Install authority certificate ........................ ........................................................... 343
Figure 198 Opera 9: Tools Menu ..........................................................................................................344
Figure 199 Opera 9: Preferences ......................................................................................................... 344
Figure 200 Opera 9: Certificate manager ............................................................................................ 345
Figure 201 Konqueror 3.5: Server Authentication ................................................................................346
Figure 202 Konqueror 3.5: Server Authentication ................................................................................346
Figure 203 Konqueror 3.5: KDE SSL Information ................................................................................ 347
Figure 204 Konqueror 3.5: Public Key Certificate File ..................... ... .... ... ... ... ... .... ... ... ... .... ... ... ... ... .....348
Figure 205 Konqueror 3.5: Certificate Import Result ............................................................................348
Figure 206 Konqueror 3.5: Kleopatra ................................................................................................... 348
Figure 207 Konqueror 3.5: Settings Menu ............................................................................................ 350
Figure 208 Konqueror 3.5: Configure ................................................................................................... 350
User’s Guide
23
List of Figures
24
User’s Guide
List of Tables
List of Tables
Table 1 Common Icons ............................................................................................................................ 5
Table 2 The WiMAX Modem .................................................................................................................. 33
Table 3 Main > Icons ............................................................................................................................. 38
Table 4 Main .......................................................................................................................................... 39
Table 5 Internet Connection Wizard > System Information .. .... ... ... ... .... ............................................. ... 42
Table 6 Internet Connection Wizard > Authentication Settings Screen ................................................. 43
Table 7 Internet Connection Wizard > IP Address .......................................... ....................................... 45
Table 8 VoIP Connection > First Voice Account Settings ...................................................................... 48
Table 9 SETUP > Set IP Address .......................................................................................................... 67
Table 10 SETUP > DHCP Client ............................................................................................................ 67
Table 11 SETUP > Time Setting ............................................................................................................68
Table 12 Pre-defined NTP Time Servers ...............................................................................................70
Table 13 ADVANCED > LAN Configuration > DHCP Setup ........................ ... ... .................................... 75
Table 14 ADVANCED > LAN Configuration > Static DHCP ................................................................... 76
Table 15 Advanced> LAN Configuration > IP Static Route .................................................................... 77
Table 16 Advanced> LAN Configuration > IP Static Route .................................................................... 77
Table 17 Advanced> LAN Configuration > IP Static Route > Edit ......................................................... 78
Table 18 ADVANCED > LAN Configuration > Other Settings ................................................................ 79
Table 19 ADVANCED > WAN Configuration > Internet Connection > ISP Parameters for Internet Access
88
Table 20 Radio Frequency Conversion ................................................................................................. 91
Table 21 ADVANCED > WAN Configuration >WiMAX Configuration .................................................... 91
Table 22 DL Frequency Example Settings ............................................................................................ 93
Table 23 ADVANCED > WAN Configuration > Advanced ..................................................................... 95
Table 24 ADVANCED > VPN Transport > General ................................................................................ 99
Table 25 Advanced> VPN Transport > Customer Interface ................................................................. 102
Table 26 ADVANCED > VPN Transport > Customer Interface ............................................................ 102
Table 27 ADVANCED > VPN Transport > Customer Interface Setup .................................................104
Table 28 Advanced> VPN Transport > Ethernet Psuedowire ..............................................................105
Table 29 ADVANCED > VPN Transport > Ethernet Pseudowire ........... ... ... ... ... .... ... ... ........................ 105
Table 30 ADVANCED > VPN Transport > Ethernet Pseudowire Setup ....................... ... .... ... ... ... ... .... . 106
Table 31 ADVANCED > VPN Transport > Statistics ............................................................................107
Table 32 ADVANCED > NAT Configuration > General .........................................................................110
Table 33 Advanced> NAT Configuration > Port Forwarding .................................................................112
Table 34 ADVANCED > NAT Configuration > Port Forwarding ............................................................112
Table 35 ADVANCED > NAT Configuration > Port Forwarding > Rule Setup ......................................113
Table 36 ADVANCED > NAT Configuration > Trigger Port ...................................................................114
Table 37 ADVANCED > NAT Configuration > ALG ...............................................................................117
User’s Guide
25
List of Tables
Table 38 ADVANCED > System Configuration > General ................................................................... 121
Table 39 ADVANCED > System Configuration > Dynamic DNS ......................................................... 123
Table 40 ADVANCED > System Configuration > Firmware ................................................................. 125
Table 41 ADVANCED > System Configuration > Configuration ..........................................................126
Table 42 ADVANCED > System Configuration > Restart ....................................................................127
Table 43 VOICE > Service Configuration > SIP Setting ......................................................................134
Table 44 VOICE > Service Configuration > SIP Settings > Advanced ................................................ 137
Table 45 Custom Tones Details ............................................ .... ... ... ... .... ... ........................................... 140
Table 46 VOICE > Service Configuration > Qo S .................. .... ... ... ... .... ... ... ... ..................................... 142
Table 47 SIP Call Progression .............. ... .... ... ... ... ... .... ... ... ... .... ...........................................................143
Table 48 VOICE > Phone > Analog Phone ..........................................................................................151
Table 49 VOICE > Phone > Analog Phone > Advanced ...................................................................... 152
Table 50 VOICE > Phone > Common ... ... .... ... ... ... ... .... ... ... ... .... ................................................ ... ... ..... 153
Table 51 VOICE > Phone > Region ................ ... ... ... .... ... ... ... .... ... ................................................ ........ 153
Table 52 European Type Flash Key Commands ................................................................................. 154
Table 53 USA Type Flash Key Commands ......................................................................................... 156
Table 54 VOICE > Phone Book > Incoming Call Policy ....................................................................... 160
Table 55 VOICE > Phone Book > Speed Dial Setup ........................................................................... 162
Table 56 VOICE > Phone Book > Speed Dial ......................................................................................163
Table 57 TOOLS > Certificates > My Certificates ................................................................................ 168
Table 58 TOOLS > Certificates > My Certificates ................................................................................ 168
Table 59 TOOLS > Certificates > My Certificates > Create ................................................................. 171
Table 60 TOOLS > Certificates > My Certificates > Edit ...................................................................... 174
Table 61 TOOLS > Certificates > My Certificates > Import ..................................................................177
Table 62 TOOLS > Certificates > Trusted CAs .................................................................................... 178
Table 63 TOOLS > Certificates > Trusted CAs .................................................................................... 178
Table 64 TOOLS > Certificates > Trusted CAs > Edit .......................................................................... 180
Table 65 TOOLS > Certificates > Trusted CAs Import ......................................................................... 183
Table 66 TOOLS > Firewall > General ................................................................................................192
Table 67 TOOLS > Firewall > Service Setting ..................................................................................... 193
Table 68 TOOLS > Content Filter > Filter ............................................................................................201
Table 69 TOOLS > Content Filter > Schedule ..................................................................................... 202
Table 70 Remote Management ........................................................................................................... 203
Table 71 TOOLS > Remote Management > WWW .............................................................................205
Table 72 TOOLS > Remote Management > Telnet ............................................................................. 206
Table 73 TOOLS > Remote Management > FTP ................................................................................ 207
Table 74 SNMP Traps .......................................................................................................................... 208
Table 75 TOOLS > Remote Management > SNMP ............................................................................. 209
Table 76 TOOLS > Remote Management > DNS ............................................................................... 210
Table 77 TOOLS > Remote Management > Security ...........................................................................211
Table 78 TOOLS > Remote Management > TR069 ............................................................................ 213
Table 79 TOOLS > QoS > General ...................................................................................................... 215
Table 80 QoS Class Setup ..................................................................................................................216
26
User’s Guide
List of Tables
Table 81 QoS Class Setup ..................................................................................................................217
Table 82 Syslog Logs .......................................................................................................................... 220
Table 83 RFC-2408 ISAKMP Payload Types ...................................................................................... 220
Table 84 TOOLS > Logs > View Logs ................................................................................................. 221
Table 85 TOOLS > Logs > Log Settings .............................................................................................. 224
Table 86 System Error Logs ................................................................................................................ 225
Table 87 System Maintenance Logs .................................................................................................... 225
Table 88 Access Control Logs .............................................................................................................226
Table 89 TCP Reset Logs .................................................................................................................... 227
Table 90 Packet Filter Logs ................................................................................................................. 227
Table 91 ICMP Logs ............................................................................................................................ 228
Table 92 PPP Logs .............................................................................................................................. 228
Table 93 UPnP Logs ............................................................................................................................ 228
Table 94 Content Filtering Logs ........................................................................................................... 229
Table 95 Attack Logs ......................................................... ... .... ... ........................................................229
Table 96 Remote Management Logs ................................................................................................... 230
Table 97 ICMP Notes ...................................... ... ... ... .... ... ..................................................................... 231
Table 98 SIP Logs .......................... ... ... ... .... ... ... ... ............................................. .... ... ... ... .....................232
Table 99 RTP Logs .............................................................................................................................. 232
Table 100 FSM Logs: Caller Side ........................................................................................................ 233
Table 101 FSM Logs: Callee Side ....................................................................................................... 233
Table 102 Lifeline Logs ........................................................................................................................ 233
Table 103 Status .................................................................................................................................. 236
Table 104 Packet Statistics .................................................................................................................. 240
Table 105 WiMAX Site Information ...................................................................................................... 241
Table 106 DHCP Table ........................................................................................................................242
Table 107 VoIP Statistics ..................................................................................................................... 243
Table 108 The WiMAX Profile Screen ................................................................................................. 245
Table 109 Environmental and Hardware Specifications ...................................................................... 257
Table 110 Radio Specifications ............................................................................................................257
Table 111 Firmware Specifications .......................................................................................................258
Table 112 Standards Supported .......................................................................................................... 259
Table 113 Voice Features .................................................................................................................... 261
Table 114 Star (*) and Pound (#) Code Support .................................................................................. 262
Table 115 IP Address Network Number and Host ID Example ............................................................ 310
Table 116 Subnet Masks ......................................................................................................................311
Table 117 Maximum Host Numbers ......................................................................................................311
Table 118 Alternative Subnet Mask Notation ....................................................................................... 312
Table 119 Subnet 1 .............................................................................................................................. 315
Table 120 Subnet 2 ..............................................................................................................................315
Table 121 Subnet 3 ..............................................................................................................................315
Table 122 Subnet 4 ..............................................................................................................................315
Table 123 Eight Subnets ...................................................................................................................... 316
User’s Guide
27
List of Tables
Table 124 24-bit Network Number Subnet Planning ............................................................................ 316
Table 125 16-bit Network Number Subnet Planning ............................................................................ 317
Table 126 Commonly Used Services ........................................ ... ... ... .... ... ........................................... 355
28
User’s Guide
PART I
Introduction and
Wizards
Getting Started (31)
Introducing the Web Configurator (35)
Internet Connection Wizard (41)
VoIP Connection Wizard (47)
29
30
CHAPTER 1
Getting Started
1.1 About Your WiMAX Modem
The WiMAX Modem allows you to access the Internet by connecting to a WiMAX
wireless network. You can use a traditional analog telephone to make Internet
calls using the WiMAX Modem’s Voice over IP (VoIP) communication capabilities.
You can configure firewall and content filtering as well as a host of other features.
The web browser-based Graphical User Interface (GUI), also known as the web
configurator, provides easy management.
See Chapter 23 on page 257 for a complete list of features for your model.
1.1.1 WiMAX Internet Access
Connect your computer or network to the WiMAX Modem for WiMAX Internet
access. See the Quick Start Guide for instructions on hardware connection.
In a wireless metropolitan area network (MAN), the WiMAX Modem connects to a
WiMAX base station (BS) for Internet access.
The following diagram shows a notebook computer equipped with the WiMAX
Modem connecting to the Internet through a WiMAX base station (marked BS).
Figure 1 Mobile Station and Base Station
When the firewall is on, all inc o m ing traffic from the Internet to your network is
blocked unless it is initiated from your network.
User’s Guide
31
Chapter 1 Getting Started
Use content filtering to block access to web sites with URLs containing keywords
that you specify. You can define time periods and days during which content
filtering is enabled and include or exclude particular computers on your network
from content filtering. For example, you could bloc k access to certain web sites for
the kids.
1.1.2 Make Calls via Internet Telephony Service Provider
In a home or small office environment, you can use the WiMAX Modem to make
and receive the following types of VoIP telephone calls:
• Peer-to-Peer calls - Use the WiMAX Modem to make a call directly to the
recipient’s IP address without using a SIP proxy server.
Figure 2 WiMAX Modem’s VoIP Features - Peer-to-Peer Calls
• Calls via a VoIP service provider - The WiMAX Modem sends your call to a VoIP
service provider’s SIP server which forwards your calls to either VoIP or PSTN
phones.
Figure 3 WiMAX Modem’s VoIP Features - Calls via VoIP Service Provider
32
User’s Guide
1.2 WiMAX Modem Hardware
Follow the instructions in the Quick Start Guide to make hardware connections.
1.2.1 LEDs
The following figure shows the LEDs (lights) on the WiMAX Modem.
Figure 4 The WiMAX Modem’s LEDs
Chapter 1 Getting Started
STRENGTH
INDICATORS
ACTIVITY
INDICATOR
The following table describes your WiMAX Modem’s LEDs (from right to left).
Table 2 The WiMAX Modem
LED STATE DESCRIPTION
Power (IDU
only)
Strength
Indicator
Off The WiMAX Modem is not receiving power.
Green The WiMAX Modem is receiving power and
functioning correctly.
The Strength Indicator LEDs display the Received Signal Strength
Indication (RSSI) of the wireless (WiMAX) connection.
5 Signal LEDs The signal strength is greater than or equal to -59.
4 Signal LEDs The signal strength is between -69 and -60
3 Signal LEDs The signal strength is between -79 dBm and -70.
2 Signal LEDs The signal strength is between -89 and -80 dBm.
1 Signal LED The signal strength is between -90 and -95 dBm.
0 Signal LEDs There is no WiMAX connection.
User’s Guide
33
Chapter 1 Getting Started
Table 2 The WiMAX Modem
LED STATE DESCRIPTION
Activity
Indicator
Off The WiMAX Modem is not ready.
Green The WiMAX Modem is connected to the network.
Blinking The WiMAX Modem system is booting up or the
WiMAX Modem is seeking a viable signal.
1.3 Good Habits for Managing the Device
Do the following things regularly to make the WiMAX Modem more secure and to
manage the WiMAX Modem more effectively.
• Change the password. Use a password that’s not easy to guess and that
consists of different types of characters, such as numbers and letters.
• Write down the password and put it in a safe place.
• Back up the configuration (and make sure you know how to restore it).
Restoring an earlier working configuration may be useful if the WiMAX Modem
becomes unstable or even crashes. If you forget yo ur password, you will have to
reset the WiMAX Modem to its factory default settings. If you backed up an
earlier configuration file, you would not have to totally re-configure the WiMAX
Modem. You could simply restore your last configuration.
34
User’s Guide
CHAPTER 2
Introducing the Web
Configurator
2.1 Overview
The web configurator is an HTML-based management interface that allows easy
device set up and management via any web browser that supports: HTML 4.0,
CSS 2.0, and JavaScript 1.5, and higher. The recommended screen resolution for
using the web configurator is 1024 by 768 pixels and 16-bit color, or higher.
In order to use the web configurator you need to allow:
• Web browser pop-up windows from y our device. Web pop-up blocking is
enabled by default in many operating systems and web browsers.
• JavaScript (enabled by default in most web browsers).
• Java permissions (enabled by default in most web browsers).
See the Appendix C on page 299 for more information on configuring your web
browser.
2.1.1 Accessing the Web Configurator
1 Make sure your WiMAX Modem hardware is properly connected (refer to th e Quick
Start Guide for more information).
2 Launch your web browser.
3 Enter "192.168.1.1" as the URL.
User’s Guide
35
Chapter 2 Introducing the Web Configurator
4 A password screen displays. The default password (“1234”) displays in non-
readable characters. If you haven’t changed the password yet, you can just click
Login. Click Cancel to revert to the default password in the password field. If you
have changed the password, enter your password and click Login.
5 The following screen displays if you have not yet changed your password. It is
highly recommended you change the default password. Enter a new password,
retype it to confirm and click Apply; alternatively click Ignore to proceed to the
main menu if you do not want to change the password now.
36
User’s Guide
Chapter 2 Introducing the Web Configurator
6 A screen displays to let you choose to go to the Wizard or the Advanced screens.
•Click Go to Wizard setup if you are logging in for the first time or if you
want to make basic changes. The wizard selection screen appears after you
click it. See Chapter 3 on page 41 for more information.
•Click Go to Advanced setup if you want to configure features that are not
available in the wizards. The main screen appears after you click it. See
Chapter 6 on page 65 for more information
Note: For security reasons, the WiMAX Modem automatically logs you out if you do
not use the Web Configurator for five minutes. If this happens, log in again.
User’s Guide
37
Chapter 2 Introducing the Web Configurator
2.2 The Main Screen
When you first log into the web configurator and by-pass the wizard, the Main
screen appears. Here you can view a summary of your WiMAX Modem connection
status. This is also the default “home” page for the ZyXEL web configurator and it
contains conveniently-placed shortcuts to all of the other screens.
Note: Some features in the web configurator may not be available depe ndin g on you r
firmware version and/or configuration.
Figure 5 Main Screen
38
The following table describes the icons in this screen.
Table 3 Main > Icons
ICON DESCRIPTION
MAIN
Click to return to the Main screen.
SETUP
Click to go the Setup screen, where you can configure LAN, DHCP
and SNTP settings.
ADVANCED
Click to go to the Advanced screen, where you can configure features
like Port Forwarding and Triggering, WAN settings and so on.
User’s Guide

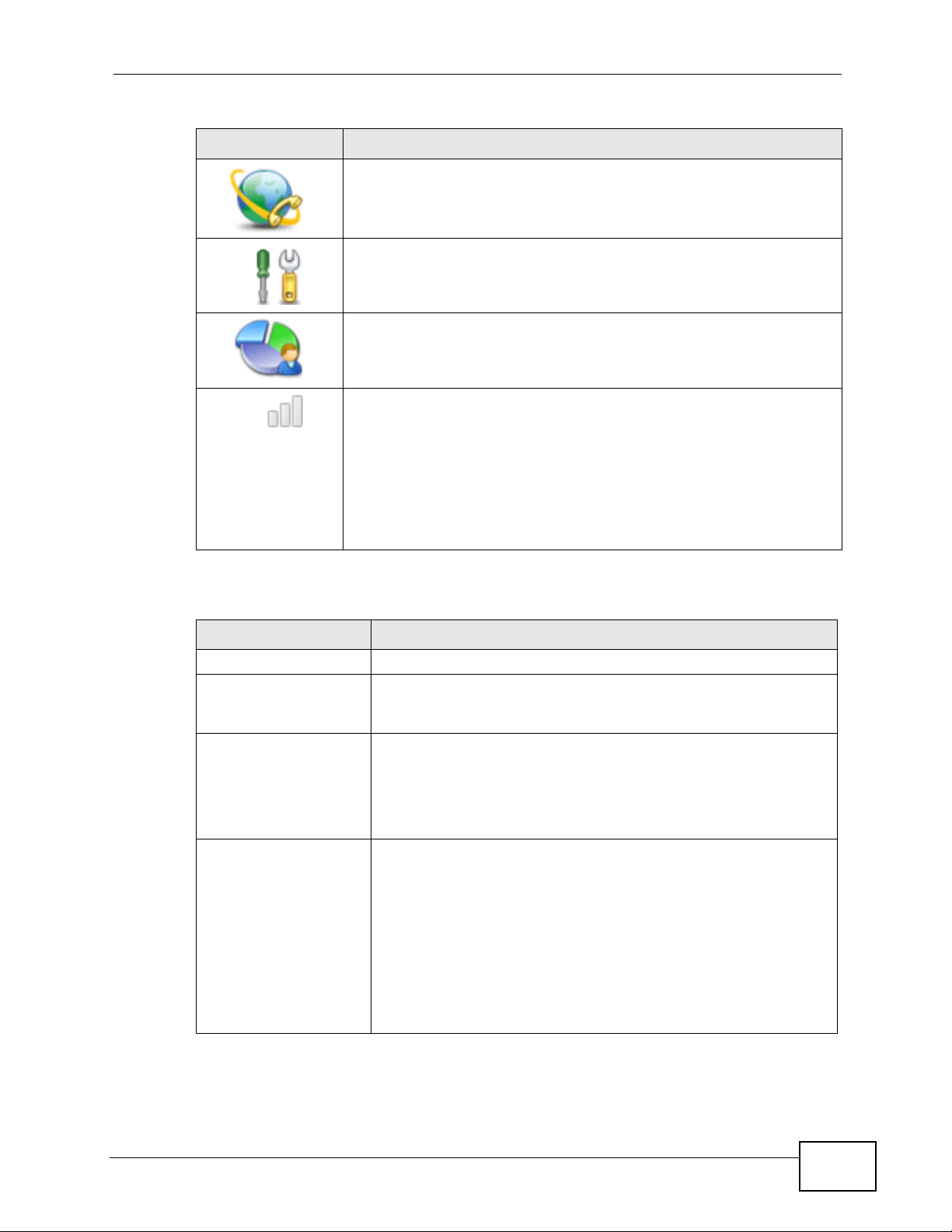

Table 3 Main > Icons (continued)
ICON DESCRIPTION
VOICE
Click to go to the Voice screen, where you can configure your voice
service and phone settings.
TOOLS
Click to go the Tools screen, where you can configure your firewall,
QoS, and content filter, among other things.
STATUS
Click to go to the Status screen, where you can view status and
statistical information for all connections and interfaces.
Strength Indicator
Displays a visual representation of the quality of your WiMAX
connection.
• Disconnected - Zero bars
• Poor reception - One bar
• Good reception - Two bars
• Excellent reception - Three bars
Chapter 2 Introducing the Web Configurator
The following table describes the labels in this screen.
Table 4 Main
LABEL DESCRIPTION
Help Click to open the web configurator’s online help.
Wizard Click to run the Internet Connection and VoIP Connection Setup
Wizard. All of the settings that you can configure in this wizard
are also available in these web configurator screens.
Logout Click to log out of the web configurator.
Note: This does not log you off the WiMAX network, it simply
logs you out of the WiMAX Modem’s browser-based
configuration interface.
WiMAX Connection
Status
This field indicates the current status of your WiMAX connection.
Status messages are as follows:
• Connected - Indicates that the WiMAX Modem is connected
to the WiMAX network. Use the Strength Indicator icon to
determine the quality of your network connection.
• Disconnected - Indicates that the WiMAX Modem is not
connected to the WiMAX network.
• DL_SYN - Indicates a download synchronization is in
progress. This means the firmware is checking with the
server for any updates or settings alterations.
User’s Guide
39
Chapter 2 Introducing the Web Configurator
Table 4 Main (continued)
LABEL DESCRIPTION
Software Version This field indicates the version number of the WiMAX Modem’s
firmware. The version number takes the form of:
Version(Build),release status (candidate) | Version Release
Date.
For example: V3.70(BCC.0)c4 | 07/08/2009 indicates that the
firmware is 3.70, build BCC.0, candidate 4, released on July 08,
2009.
Version Date This field indicates the exact date and time the current firmware
was compiled.
System Uptime This field indicates how long the WiMAX Modem has been on.
This resets every time you shut the device down or restart it.
WiMAX Uptime This field indicates how long the WiMAX Modem has been
connected to the WiMAX network. This resets every time you
disconnect from the WiMAX network, shut the device down, or
restart it.
Voice This field indicates the number and receiver status of a voice
account configured on this device.
40
User’s Guide
CHAPTER 3
Internet Connection Wizard
3.1 Overview
This chapter provides information on the ZyXEL Setup Wizard screens. The wizard
guides you through several steps where you can configure your Internet and V oIP
settings.
3.1.1 Welcome to the ZyXEL Setup Wizard
This is the welcome screen for the ZyXEL Setup Wizard. You can choose to either
configure your Internet connection or your VoIP connection.
The Internet Connection Wizard screens are described in detail in the following
sections.
Figure 6 Select a Mode
User’s Guide
41
Chapter 3 Internet Connection Wizard
3.1.2 System Information
This Internet Connection Wizard screen allows you to configure your WiMAX
Modem’s system information. The settings here correspond to the ADVANCED >
System Configuration > General screen (see Section 11.2 on page 121 for
more).
Figure 7 Internet Connection Wizard > System Information
The following table describes the labels in this screen.
Table 5 Internet Connection Wizard > System Information
LABEL DESCRIPTION
System
Name
Domain
Name
Back Click to display the previous screen.
Next Click to proceed to the next screen.
Close Click to close the wizard without saving.
System Name is a unique name to identify the WiMAX Modem in an
Ethernet network. Enter a descriptive name. This name can be up to 30
alphanumeric characters long. Spaces are not allowed, but dashes "-" and
underscores "_" are accepted.
Type the domain name (if you know it) here. If you leave this field blank,
the ISP may assign a domain name via DHCP. The domain name entered
by you is given priority over the ISP assigned domain name.
42
User’s Guide
3.1.3 Authentication Settings
This Internet Connection Wizard screen allows you to configure your Internet
access settings. The settings here correspond to the ADVANCED > WAN
Configuration > Internet Connection screen (see Section 8.2 on page 88 for
more information).
Figure 8 Internet Connection Wizard > Authentication Settings Screen
Chapter 3 Internet Connection Wizard
The following table describes the labels in this screen.
Table 6 Internet Connection Wizard > Authentication Settings Screen
LABEL DESCRIPTION
Authentication
User Name Use this field to enter the username associated with your
Internet access account. You can enter up to 61 printable
ASCII characters.
Password Use this field to enter the password associated with your
Internet access account. You can enter up to 47 printable
ASCII characters.
User’s Guide
43
Chapter 3 Internet Connection Wizard
Table 6 Internet Connection Wizard > Authentication Settings Screen (continued)
LABEL DESCRIPTION
Anonymous Identity Enter the anonymous identity provided by your Internet
PKM This field displays the Privacy Key Management version
Authentication This field displays the user authentication method.
Service Provider. Anonymous identity (also known as outer
identity) is used with EAP-TTLS encryption. The anonymous
identity is used to route your authentication request to the
correct authentication server, and does not reveal your real
user name. Yo ur real user name and password are encrypted
in the TLS tunnel, and only the anonymous identity can be
seen.
Leave this field blank if your ISP did not give you an
anonymous identity to use.
number. PKM provides security between the WiMAX Modem
and the base station. At the time of writing, the WiMAX
Modem supports PKMv2 only. See the WiMAX security
appendix for more information.
Authentication is the process of confirming the identity of a
mobile station (by means of a username and password, for
example).
Check with your service provider if you are unsure of the
correct setting for your account.
Choose from the following user authentication methods:
• TTLS (Tunnelled Transport Layer Security)
• TLS (Transport Layer Security)
Note: Not all WiMAX Modems support TLS
authentication. Check with your service provider
for details.
TTLS Inner EAP This field displays the type of secondary authentication
method. Once a secure EAP-TTLS connection is established,
the inner EAP is the protocol used to exchange security
information between the mobile station, the base station and
the AAA server to authenticate the mobile station. See the
WiMAX security appendix for more details. The WiMAX
Modem supports the following inner authentication types:
• CHAP (Challenge Handshake Authentication Protocol)
• MSCHAP (Microsoft CHAP)
• MSCHAPV2 (Microsoft CHAP version 2)
• PAP (Password Authentication Protocol)
Certificate This is the security certificate the WiMAX Modem uses to
authenticate the AAA server. Use the TOOLS > Certificates
> Trusted CA screen to import certificates to the WiMAX
Modem.
Back Click to display the previous screen.
Next Click to proceed to the next screen.
Close Click to close the wizard without saving.
44
User’s Guide
3.1.4 IP Address
This Internet Connection Wizard screen allows you to configure your IP address.
The settings here correspond to the SETUP > Set IP Address screen (see
Section 6.2 on page 66).
A fixed IP address is a static IP that your ISP gives you. An automatic (dynamic)
IP address is not fixed; the ISP assigns you a different one each time yo u connect
to the Internet.
Figure 9 Internet Connection Wizard > IP Address
Chapter 3 Internet Connection Wizard
User’s Guide
The following table describes the labels in this screen.
Table 7 Internet Connection Wizard > IP Address
LABEL DESCRIPTION
IP Address
My computer or device
gets its IP address
automatically from the
network (Default)
Use Fixed IP Address A static IP address is a fixed IP that your ISP gives you.
Back Click to display the previous screen.
Next
Close
Select this if you have a dynamic IP address. A dynamic IP
address is not fixed; the ISP assigns you a different one
each time you connect to the Internet.
Click to proceed to the next screen.
Click to close the wizard screen without saving.
45
Chapter 3 Internet Connection Wizard
3.1.5 Setup Complete
Click Close to complete and save the Internet Connection Wi zard settings.
Figure 10 Internet Connection Wizard > Complete
Launch your web browser and navigate to www.zyxel.com. If everything was
configured properly, the web page should display. You can now surf the Internet!
Refer to the rest of this guide for more detailed information on the complete range
of WiMAX Modem features available in the more advanced web configurator.
Note: If you cannot access the Internet, open the web configurator again to confirm
that the Internet settings you configured in the wizard setup are correct.
46
User’s Guide
CHAPTER 4
VoIP Connection Wizard
4.1 Overview
This chapter shows you how to use the wizard to set up your voice account(s).
The WiMAX Modem has Voice ov er IP (V oIP) communication capabi lities that allow
you to use a traditional analog telephone to make Internet calls. Y ou can configur e
the WiMAX Modem to use up to two SIP based VoIP accounts.
4.2 Welcome to the ZyXEL Setup Wizard
This is the welcome screen for the ZyXEL Setup Wizard. You can choose to either
configure your Internet connection or your VoIP connection.
The VoIP Connection Wizard screens are described in detail in the following
sections.
Figure 11 Select a Mode
User’s Guide
47
Chapter 4 VoIP Connection Wizard
4.2.1 First Voice Account Settings
This VoIP Connection Wizard screen allows you to configure your voice account.
The settings here correspond to the VOICE > Service Configuration > SIP
Setting screen (see Section 12.2 on page 133 for more information).
Figure 12 VoIP Connection > First Voice Account Settings
The following table describes the labels in this screen
Table 8 VoIP Connection > First Voice Account Settings
LABEL DESCRIPTION
SIP Number Enter your SIP number in this field (use the number or text that
comes before the @ symbol in a SIP account like 1234@VoIP-
provider.com). You can use up to 127 ASCII characters.
SIP Server Address Type the IP address or domain name of the SIP server in this
field. It doesn’t matter whether the SIP server is a proxy,
redirect or register server. You can use up to 95 ASCII
characters.
SIP Service Domain Enter the SIP service domain name in this field (the domain
name that comes after the @ symbol in a SIP account like
1234@VoIP-provider.com
Extended set characters.
User Name This is the user name for registering this SIP account with the
SIP register server. Type the user name exactly as it was given
to you. You can use up to 95 ASCII characters.
Password Type the password associated with the user name above. You
can use up to 95 ASCII Extended set characters.
Back Click to return to the previous screen.
). You can use up to 127 ASCII
48
User’s Guide
Chapter 4 VoIP Connection Wizard
Table 8 VoIP Connection > First Voice Account Settings (continued)
LABEL DESCRIPTION
Apply Click to complete the wizard setup and save your configuration.
Close Click to close the wizard without saving your settings.
After you enter your voice account settings and click Apply, the WiMAX Modem
attempts to register your SIP account with the SIP server.
Figure 13 VoIP Connection > SIP Registration Test
This screen displays if SIP account registration fails. Check your WiMAX
connection using the WiMAX Link and Strength Indicator LEDs on the front of
the WiMAX Modem, then wait a few seconds and click Register Again. If your
User’s Guide
49
Chapter 4 VoIP Connection Wizard
Internet connection was already working, you can click Back and try re-entering
your SIP account settings.
Figure 14 VoIP Connection > SIP Registration Fail
4.2.2 Setup Complete
Click Close to complete and save the VoIP Connection settings.
Figure 15 VoIP Connection > Finish
50
This screen displays if your SIP account registration was successful.
User’s Guide
CHAPTER 5
Tutorials
5.1 Overview
This chapter shows you how to configure some of the WiMAX Modem’s features.
Note: Be sure to read Introducing the Web Configurator on page 35 before working
through the tutorials presented here. For field descriptions of individual screens,
see the related technical reference in this User's Guide.
5.2 Setting Up a Small Network
This tutorial shows you how to set up a small network in your office or home.
Goal: Connect three computers to your WiMAX Modem to form a small network.
User’s Guide
51
Chapter 5 Tutorials
Required: The following table provides a summary of the information you will
need to complete the tasks in this tutorial.
INFORMATION VALUE SEE ALSO
LAN IP Address 192.168.100.1 Chapter 6 on page 65
Starting IP Address 192.168.100.33 Chapter 7 on page 73
Pool Size 32
DNS Servers From ISP
1 In the Web Configurator, open the SETUP > Set IP Address screen and set the
IP Address to 192.168.100.1. Use the default IP Subnet Mask of 255.255.255.0.
2 Open the ADVANCED > LAN Configuration > DHCP Setup screen.
3 Select Enable DHCP Server, then enter 192.168.100.34 as your IP Pool
Starting Address and 32 for your Pool Size.
4 In the DNS Server section, set the First, Second and Third DNS Server fields
to From ISP in order to use the DNS servers linked to your ISP.
5 Click Apply to save your DHCP settings.
52
User’s Guide
Chapter 5 Tutorials
6 Next, go to the ADVANCED > NAT Configuration > General screen and select
the Enable Network Address Translation option.
7 Click Apply to save your settings.
8 Connect your computers to the WiMAX Modem’s Ethernet ports and you’re all set!
Note: You may need to configure the computers on your LAN to automatically obtain
IP addresses. For information on how to do this, see Appendix B on page 271.
5.2.1 Connecting Your Small Network to the Internet
Once your network is configured and hooked up, you will want to connect it to the
Internet next. To do this, just run the Internet Connection Wizard (Chapter 3
on page 41), which walks you through the process.
5.2.2 Changing Service Providers
This tutorial shows you how to import a new security certificate, which allows your
device to communicate with the company’s network servers. This is necessary if
you ever change Internet Service Providers and your WiMAX Modem is still
compatible with the new network. (In some cases it may not be.)
Goal: Import a new security certificate into the WiMAX Modem.
See Also: Chapter 15 on page 167.
1 In the Web Configurator, open the TOOLS > Certificates > My Certificates
screen and click the Import button.
User’s Guide
53
Chapter 5 Tutorials
2 In the Import Certificate screen, click Browse and locate the security certificate
that was provided by your new ISP.
3 Next, go to the ADVANCED > WAN Configuration screen and configure your
new Internet access settings based on the information provided by your ISP.
54
Note: You can also use the Internet Connection Wizard to configure these settings.
4 From the Certificates menu, select the security certificate that you just imported.
5 Click Apply to save your settings. You should now be able to connect to the
Internet through your new service provider!
User’s Guide
5.2.3 Blocking Web Access During Specific Hours
If your WiMAX Modem is in a home or office environment you may decide that you
want to block web access and video chat during a specific block of hours, such as
during your daughter’s designated study hours.
Goal: Configure the WiMAX Modem’s firewall to block web and video chat access
on weekdays between the hours of 3:30 PM and 8:30 PM.’
See Also: Chapter 16 on page 189.
1 Open the TOOLS > Firewall > Services to screen.
Chapter 5 Tutorials
2 Select Enable Services Blocking.
User’s Guide
55
Chapter 5 Tutorials
3 Under Available Services, select HTTP(TCP:80) then click the Add button.
Repeat this for CU-SEEME(TCP/UDP:7648,24032).
This blocks all web and video chat traffic, while leaving other ports open for other
types of traffic, such as ports 25 and 587 for e-mail and port 21 for FTP.
The Blocked Services window updates accordingly.
4 Next, configure the Schedule to Block area with the days and hours for blocking
web access to your employees.
In this example, the five weekly work days are selected as well as the standard
work hours of 3:30 PM to 8:30 PM (or 20:30 in 24-hour format).
5 Finally, click Apply to save your settings.
56
User’s Guide
5.2.4 Blocking Web Sites by Keyword
You can further refine web access by specifying keywords that appear in a URL
and blocking them. This allows you to control the content you do allow to pass
through the WiMAX Modem. For example, once your daughter’s designated study
hours end, you allow web access and video chat but want to restrict certain sites.
Goal: Restrict websites with the words “poker”, “sex”, and “beer” in their URLs.
See Also: Chapter 17 on page 199.
1 Open the TOOLS > Content Filter > Filter screen.
Chapter 5 Tutorials
2 Select Enable URL Keyword Blocking.
User’s Guide
57
Chapter 5 Tutorials
3 Enter the first Keyword then click Add. Repeat for additional keywords.
As you enter them, the keywords appear in the Keyword List.
4 (Optional) If you want to allow websites with these keywords for a specific
computer in your household, such as the computer in the master bedroom, then
add that computer’s IP address to the Trusted IP Address field.
5 Click Apply to save these settings.
6 Next, open the TOOLS > Content Filter > Schedule screen.
7 To keep things simple, set the Days to Block to Everyday and the Time of Day
to Block to All Day.
8 Click Apply to save these settings.
58
User’s Guide
5.3 Configuring Your Internet Phone
This tutorial shows you how to configure the WiMAX Modem’s VoIP settings when
you connect an analog phone to place Internet phone calls.
Goals: Connect an analog phone to the WiMAX Modem then configure your
Internet phone settings.
Figure 16 Phone Call Example
Chapter 5 Tutorials
In this example, your analog phone (A) connects to the WiMAX Modem (B). When
you dial a SIP number, the WiMAX Modem first connects to your account’s SIP
server (C) and presents your SIP account login credentials. The SIP server then
connects to the other party (D) using the SIP number you just dialed; if he or she
accepts, the phone conversation begins.
Required: The following table provides a summary of the information you will
need to complete the tasks in this tutorial.
INFORMATION VALUE SEE ALSO
Number 12345678 Chapter 12 on page 131
SIP Server Address voip.example.com
REGISTER Server Address register.example.com
SIP Service Domain service.example.com
User Name tutorial
Password abcdefg
Incoming / Outgoing Calls SIP1
Chapter 13 on page 149
User’s Guide
59
Chapter 5 Tutorials
1 Connect an analog phone to your WiMAX Modem, as described in the included
Quick Start Guide.
2 Open the VOICE > Service Configuration > SIP Setting screen, then enter
the required information as presented above.
Tip: Unless otherwise told by a SIP service provider, you can often leave the Port
settings at their default values.
3 Click Apply to save your changes.
4 Next, click VOICE > Phone > Analog Phone. This is where you will configure
your phone settings to bind your SIP settings to the connected phone.
Select a phone from the Phone Port Settings list, then select whether you want
to use the SIP account settings for outgoing calls, incoming calls, or both.
Click Apply to save your settings and you can begin placing Internet phone calls!
Go to the next section for further instructions.
60
User’s Guide
5.3.1 Placing an Internet Phone Call
Because you’re using an analog phone, you can’t just enter another party’s SIP
number and dial straight away. The reason is there is no way to enter certain SIPspecific characters on your analog phone’s keypad in a way that the WiMAX
Modem will recognize. As such, you must first configure a ‘speed dial’ entry in the
WiMAX Modem’s internal phone book.
Required: The following table provides a summary of the information you will
need to complete the tasks in this tutorial.
INFORMATION VALUE SEE ALSO
Speed Dial Setup #01 Chapter 14 on page 159
Number 411
Name Information
1 Open the VOICE > Phone Book > Speed Dial screen, then enter the required
information as presented above.
Chapter 5 Tutorials
2 Click Add to save the number to your speed dial list in position #1.
3 Now whenever you want to dial local Information, pick up the handset on your
phone and dial ‘1’.
User’s Guide
61
Chapter 5 Tutorials
5.4 Remotely Managing Your WiMAX Modem
The remote management feature allows you to log into the device over the
Internet and configure its settings from a second trusted location.
Goal: Set up the WiMAX Modem to allow management requests from the
(demonstration) IP address 2.2.2.2.
See Also: Chapter 18 on page 203.
1 Open the TOOLS > Remote Management > WWW screen.
2 Leave the Server Port setting as ‘80’, in order to allow computers back at the
WiMAX Modem’s location to continue to access the Internet.
3 From the Server Access menu, select WAN. This allows remote management
connections only from the Internet.
4 Finally, in the Secured Client IP Address field enter 2.2.2.2 as the IP address
from which you will be connecting to the WiMAX Modem. Any other attempts by
computer on the Internet to connect will be rejected because their IP addresses
won’t match the one specified here .
5 Click Apply to save your changes.
62
User’s Guide
PART II
Basic Screens
The Main Screen (38)
The Setup Screens (65)
63
64
CHAPTER 6
The Setup Screens
6.1 Overview
Use these screens to configure or view LAN, DHCP Client and WAN settings.
6.1.1 What You Can Do in This Chapter
•The Set IP Address screen (Section 6.2 on page 66) lets you configure the
WiMAX Modem’s IP address and subnet mask.
•The DHCP Client screen (Section 6.3 on page 67) to view connection
information for clients configured by the WiMAX Modem’s internal DHCP server.
•The Time Setting screen (Section 6.4 on page 68) lets you configure your
WiMAX Modem’s time and date keeping settings.
6.1.2 What You Need to Know
The following terms and concepts may help as you read through this chapter.
LAN
A Local Area Network, or a shared communication system to which many
computers are attached. A LAN, as its name implies, is limited to a local area such
as a home or office environment. LANs have different topologies, the most
common being the linear bus and the star configuration.
IP Address
IP addresses identify individual devices on a network. Every networking device
(including computers, servers, routers, printers, etc.) needs an IP address to
communicate across the network. These networking devices are also known as
hosts.
Subnet Mask
The subnet mask specifies the network number portion of an IP address. Your
device will compute the subnet mask automatically based on the IP Address that
User’s Guide
65
Chapter 6 The Setup Screens
you entered. Y ou do not need to change the computer subnet mask unless you are
instructed to do so.
Daytime
A network protocol used by devices for debugging and time measurement. A
computer can use this protocol to set its internal clock but only if it knows in which
order the year, month, and day are returned by the server. Not all servers use the
same format.
Time
A network protocol for retrieving the current time from a server. The computer
issuing the command compares the time on its clock to the information returned
by the server, adjusts itself automatically for time zone differences, then
calculates the difference and corrects itself if there has been any temporal drift.
NTP
NTP stands for Network Time Protocol. It is employed by devices connected to the
Internet in order to obtain a precise time setting from an official time server.
These time servers are accurate to within 200 microseconds.
6.1.3 Before You Begin
• Make sure that you have made all the appropriate hardware connections to the
WiMAX Modem, as described in the Quick Start Guide.
• Make sure that you have logg ed in to the web confi gurator at least one time and
changed your password from the de fau lt , as de s cr ib ed in the Quick Start Guide.
6.2 Set IP Address
Click the SETUP icon in the navigation bar to set up the WiMAX Modem’s IP
address and subnet mask. This screen displays this screen by default. If you are in
any other sub-screen you can simply choose Set IP Address from the navigation
menu on the left to open it again.
Figure 17 SETUP > Set IP Address
66
User’s Guide
The following table describes the labels in this screen.
Table 9 SETUP > Set IP Address
LABEL DESCRIPTION
IP Address Enter the IP address of the WiMAX Modem on the LAN.
IP Subnet Mask Enter the subnet mask of the LAN.
Apply
Clear Click to restore your previously saved settings.
6.3 DHCP Client
Chapter 6 The Setup Screens
Note: This field is the IP address you use to access the
WiMAX Modem on the LAN. If the web configurator is
running on a computer on the LAN, you lose access to
it as soon as you change this field and click Apply.
You can access the web configurator again by typing
the new IP address in the browser.
Click to save your changes.
Click the SETUP > DHCP Client to view connection information for all clients that
have been configured by the WiMAX Modem’s internal DHCP server.
Figure 18 SETUP > DHCP Client
The following table describes the labels in this screen.
Table 10 SETUP > DHCP Client
LABEL DESCRIPTION
# This indicates the number of the item in this list.
IP Address This indicates the IP address of a connected client device.
Host Name
MAC Address This indicates the MAC address of a connected client device.
This indicates the host name of a connected client device. If the
device is computer, then the host name is the computer name.
User’s Guide
67
Chapter 6 The Setup Screens
Table 10 SETUP > DHCP Client (continued)
LABEL DESCRIPTION
Reserve This indicates whether the IP address for the connected client
Apply Click to save your changes.
Refresh Click to refresh the information in the screen.
6.4 Time Setting
Click SETUP > Time Setting to set the date, time, and time zone for the WiMAX
Modem.
device is reserved. When the DHCP server issues IP addresses,
reserved IPs are assigned to specific client devices.
If the IP address is reserved, the client device identified by its
MAC address will always receive this IP address from the DHCP
server.
Figure 19 SETUP > Time Setting
68
The following table describes the labels in this screen.
Table 11 SETUP > Time Setting
LABEL DESCRIPTION
Current Time and Date
Current Time Displays the current time according to the WiMAX Modem.
User’s Guide
Chapter 6 The Setup Screens
Table 11 SETUP > Time Setting (continued)
LABEL DESCRIPTION
Current Date Displays the current time according to the WiMAX Modem.
Time and Date Setup
Manual
New Time
New Date Enter the new date in this field, and click Apply.
Get from Time Server
Time Protocol Select the time service protocol that your time server
Time Server
Address
Time Zone Setup
Time Zone Select the time zone at your location.
Daylight Savings Select this if your location uses daylight savings time. Daylight
Start Date Enter which hour on which day of which week of which month
End Date Enter which hour on the which day of which week of which
Apply
Reset
Select this if you want to specify the current date and time in the
fields below.
Enter the new time in this field, and click Apply.
Select this if you want to use a time server to update the current
date and time in the WiMAX Modem.
uses.Check with your ISP or network administrator, or use trialand-error to find a protocol that works.
Daytime (RFC 867) - This format is day/month/year/time
zone.
Time (RFC 868) - This format displays a 4-byte integer giving
the total number of seconds since 1970/1/1 at 0:0:0.
NTP (RFC 1305) - This format is similar to Time (RFC 868).
Enter the IP address or URL of your time server . Check with your
ISP or network administrator if you are unsure of this
information.
savings is a period from late spring to early fall when many
places set their clocks ahead of normal local time by one hour to
give more daytime light in the evening.
daylight-savings time starts.
month daylight-savings time ends.
Click to save your changes.
Click to restore your previously saved settings.
6.4.1 Pre-Defined NTP Time Servers List
The WiMAX Modem uses a pre-defined list of NTP time servers if you do not
specify a time server or it cannot synchronize with the time server you specified.
It can use this list regardless of the time protocol you select.
When the WiMAX Modem uses the list, it randomly selects one server and tries to
synchronize with it. If the synchronization fails, then it goes through the rest of
User’s Guide
69
Chapter 6 The Setup Screens
the list in order until either it is successful or all the pre-defined NTP time servers
have been tried.
Table 12 Pre-defined NTP Time Servers
ntp1.cs.wisc.edu
ntp1.gbg.netnod.se
ntp2.cs.wisc.edu
tock.usno.navy.mil
ntp3.cs.wisc.edu
ntp.cs.strath.ac.uk
ntp1.sp.se
time1.stupi.se
tick.stdtime.gov.tw
tock.stdtime.gov.tw
time.stdtime.gov.tw
6.4.2 Resetting the Time
The WiMAX Modem automatically resets the time in the following circumstances:
• When the device starts up, such as when you press the Power button.
• When you click Apply in the SETUP > Time Setting screen.
• Once every 24-hours after starting up.
70
User’s Guide
PART III
Advanced Screens
The LAN Configuration Screens (73)
The WAN Configuration Screens (85)
The NAT Configuration Screens (109)
The System Configuration Screens (119)
71
72
CHAPTER 7
The LAN Configuration Screens
7.1 Overview
Use the ADVANCED > LAN Configuration screens to set up the WiMAX Modem
on the LAN. You can configure DHCP services and control how the WiMAX Modem
sends routing information using RIP.
A Local Area Network (LAN) is a shared communication system to which many
computers are attached. A LAN is usually a computer network limited to the
immediate area, such as the same building or floor of a building.
7.1.1 What You Can Do in This Chapter
•The DHCP Setup screen (Section 7.2 on page 74) lets you enable, disable, and
configure the DHCP server in the WiMAX Modem.
•The Static DHCP screen (Section 7.3 on page 76) lets you assign specific IP
addresses to specific computers on the LAN.
•The IP Static Route screen (Section 7.4 on page 77) lets you examine the
static routes configured in the WiMAX Modem.
•The Other Settings screen (Section 7.5 on page 79) lets you control the
routing information that is sent and received by each subnet assign specific IP
addresses to specific computers on the LAN.
7.1.2 What You Need to Know
The following terms and concepts may help as you read through this chapter.
IP Address
IP addresses identify individual devices on a network. Every networking device
(including computers, servers, routers, printers, etc.) needs an IP address to
communicate across the network. These networking devices are also known as
hosts.
User’s Guide
73
Chapter 7 The LAN Configuration Screens
Subnet Masks
Subnet masks determine the maximum number of possible hosts on a network.
You can also use subnet masks to divide one network into multiple sub-networks.
DNS
DNS (Domain Name System) is for mapping a domain name to its corresponding
IP address and vice versa. The DNS server is extremely important because
without it, you must know the IP address of a networking device before you can
access it.
DHCP
A DHCP (Dynamic Host Configuration Protocol) server can assign your WiMAX
Modem an IP address, subnet mask, DNS and other routing information when it’s
turned on.
7.2 DHCP Setup
Click ADVANCED > LAN Configuration > DHCP Setup to enable, disable, and
configure the DHCP server in the WiMAX Modem.
Figure 20 ADVANCED > LAN Configuration > DHCP Setup
74
User’s Guide
Chapter 7 The LAN Configuration Screens
The following table describes the labels in this screen.
Table 13 ADVANCED > LAN Configuration > DHCP Setup
LABEL DESCRIPTION
DHCP Setup
Enable DHCP
Server
IP Pool Starting
Address
Pool Size Enter the number of IP addresses to allocate. This number must be at
DNS Server
First, Second
and Third DNS
Server
Select this if you want the WiMAX Modem to be the DHCP server on the
LAN. As a DHCP server, the WiMAX Modem assigns IP addresses to
DHCP clients on the LAN and provides the subnet mask and DNS server
information.
Enter the IP address from which the WiMAX Modem begins allocating IP
addresses, if you have not specified an IP address for this computer in
ADVANCED > LAN Configuration > Static DHCP.
least one and is limited by a subnet mask of 255.255.255.0 (regardless
of the subnet the WiMAX Modem is in). For example, if the IP Pool
Start Address is 10.10.10.10, the WiMAX Modem can allocate up to
10.10.10.254, or 245 IP addresses.
Specify the IP addresses of a maximum of three DNS servers that the
network can use. The WiMAX Modem provides these IP addresses to
DHCP clients. You can specify these IP addresses two ways.
From ISP - provide the DNS servers provided by the ISP on the WAN
port.
User Defined - enter a static IP address.
DNS Relay - this setting will relay DNS information from the DNS
server obtained by the WiMAX Modem.
None - no DNS service will be provided by the WiMAX Modem.
Apply
Reset Click to restore your previously saved settings.
Click to save your changes.
User’s Guide
75
Chapter 7 The LAN Configuration Screens
7.3 Static DHCP
Click ADVANCED > LAN Configuration > Static DHCP to assign specific IP
addresses to specific computers on the LAN.
Note: This screen has no effect if the DHCP server is not enabled. You can enable it
in ADVANCED > LAN Configuration > DHCP Setup.
Figure 21 ADVANCED > LAN Configuration > Static DHCP
The following table describes the labels in this screen.
Table 14 ADVANCED > LAN Configuration > Static DHCP
LABEL DESCRIPTION
# The number of the item in this list.
MAC Address
IP Address Enter the IP address you want the WiMAX Modem to assign to the
Apply Click to save your changes.
Reset Click to restore your previously saved settings.
Enter the MAC address of the computer to which you want the WiMAX
Modem to assign the same IP address.
computer.
76
User’s Guide
7.4 IP Static Route
Click ADVANCED > LAN Configuration > IP Static Route to look at the static
routes configured in the WiMAX Modem.
Note: The first static route is the default route and cannot be modified or deleted.
Figure 22 Advanced> LAN Configuration > IP Static Route
The following table describes the icons in this screen.
Chapter 7 The LAN Configuration Screens
Table 15 Advanced> LAN Configuration > IP Static Route
ICON DESCRIPTION
Edit
Click to edit this item.
Delete
Click to delete this item.
The following table describes the labels in this screen.
Table 16 Advanced> LAN Configuration > IP Static Route
LABEL DESCRIPTION
# The number of the item in this list.
Name This field displays the name that describes the static route.
Active
Destination
Gateway This field displays the IP address of the gateway to which the WiMAX
This field shows whether this static route is active (Yes) or not (No).
This field displays the destination IP address(es) that this static route
affects.
Modem should send packets for the specified Destination. The
gateway is a router or a switch on the same network segment as the
device's LAN or WAN port. The gateway helps forward packets to their
destinations.
User’s Guide
77
Chapter 7 The LAN Configuration Screens
7.4.1 IP Static Route Setup
Click an Edit icon in ADVANCED > LAN Configuration > IP Static Route to
edit a static route in the WiMAX Modem.
Figure 23 Advanced> LAN Configuration > IP Static Route Setup
The following table describes the labels in this screen.
Table 17 Advanced> LAN Configuration > IP Static Route > Edit
LABEL DESCRIPTION
Route Name Enter the name of the static route.
Active Select this if you want the static route to be used. Clear this if you do
not want the static route to be used.
Private Select this if you do not want the WiMAX Modem to tell other routers
about this static route. For example, you might select this if the static
route is in your LAN. Clear this if you want the WiMAX Modem to tell
other routers about this static route.
Destination IP
Address
IP Subnet Mask
Gateway IP
Address
Metric
Enter one of the destination IP addresses that this static route affects.
Enter the subnet mask that defines the range of destination IP
addresses that this static route affects. If this static route affects only
one IP address, enter 255.255.255.255.
Enter the IP address of the gateway to which the WiMAX Modem should
send packets for the specified Destination. The gateway is a router or
a switch on the same network segment as the device's LAN or WAN
port. The gateway helps forward packets to their destinations.
Usually, you should keep the default value. This field is related to RIP.
The metric represents the "cost of transmission". A router determines
the best route for transmission by choosing a path with the lowest
"cost". The smaller the metric, the lower the "cost". RIP uses hop count
as the measurement of cost, where 1 is for a directly-connected
network. The metric must be 1-15; if you use a value higher than 15,
the routers assume the link is down.
78
User’s Guide
Table 17 Advanced> LAN Configuration > IP Static Route > Edit (continued)
LABEL DESCRIPTION
Apply Click to save your changes.
Cancel Click to return to the previous screen without saving your changes.
7.5 Other Settings
Click ADVANCED > LAN Configuration > Other Settings to set the RIP and
Multicast options.
Figure 24 ADVANCED > LAN Configuration > Other Settings
Chapter 7 The LAN Configuration Screens
The following table describes the labels in this screen.
Table 18 ADVANCED > LAN Configuration > Other Settings
LABEL DESCRIPTION
RIP & Multicast Setup
RIP Direction Use this field to control how much routing information the WiMAX
Modem sends and receives on the subnet.
• None - The WiMAX Modem does not send or receive routing
information on the subnet.
• Both - The WiMAX Modem sends and receives routing information
on the subnet.
• In Only - The WiMAX Modem only receives routing information on
the subnet.
• Out Only - The WiMAX Modem only sends routing information on
the subnet.
RIP Version
Select which version of RIP the WiMAX Modem uses when it sends or
receives information on the subnet.
• RIP-1 - The WiMAX Modem uses RIPv1 to exchange routing
information.
• RIP-2B - The WiMAX Modem broadcasts RIPv2 to exchange routing
information.
• RIP-2M - The WiMAX Modem multicasts RIPv2 to exchange routing
information.
User’s Guide
79
Chapter 7 The LAN Configuration Screens
Table 18 ADVANCED > LAN Configuration > Other Settings (continued)
LABEL DESCRIPTION
Multicast You do not have to enable multicasting to use RIP-2M. (See RIP
Version.)
Select which version of IGMP the WiMAX Modem uses to support
multicasting on the LAN. Multicasting sends packets to some computers
on the LAN and is an alternative to unicasting (sending packets to one
computer) and broadcasting (sending packets to every computer).
• None - The WiMAX Modem does not support multicasting.
• IGMP-v1 - The WiMAX Modem supports IGMP version 1.
• IGMP-v2 - The WiMAX Modem supports IGMP version 2.
Multicasting can improve overall network performance. However, it
requires extra processing and generates more network traffic. In
addition, other computers on the LAN have to support the same version
of IGMP.
Apply
Reset
Click to save your changes.
Click to restore your previously saved settings.
7.6 Technical Reference
The following section contains additional technical information about the WiMAX
Modem features described in this chapter.
7.6.1 IP Address and Subnet Mask
Similar to the way houses on a street share a common street name, computers on
a LAN share one common network number.
Where you obtain your network number depends on your particular situation. If
the ISP or your network administrator assigns you a block of registered IP
addresses, follow their instructions in selecting the IP addresses and the subnet
mask.
If the ISP did not explicitly give you an IP network number, then most likely you
have a single user account and the ISP will assign you a dynamic IP address when
the connection is established. If this is the case, it is recommended that you select
a network number from 192.168.0.0 to 192.168.255.0 and you must enable the
Network Address Translation (NAT) feature of the WiMAX Modem. The Internet
Assigned Number Authority (IANA) reserved this block of addresses sp ecifically for
private use; please do not use any other number unless you are told otherwise.
Let's say you select 192.168.1.0 as the network number; which covers 254
individual addresses, from 192.168.1.1 to 192.168.1.254 (zero and 255 are
reserved). In other words, the first three numbers specify the network number
while the last number identifies an individual computer on that network.
80
User’s Guide
Once you have decided on the network number , pick an IP address that is easy to
remember, for instance, 192.168.1.1, for your WiMAX Modem, but make sure that
no other device on your network is using that IP address.
The subnet mask specifies the network number portion of an IP address. Your
WiMAX Modem will compute the subnet mask automatically based on the IP
address that you entered. You don't need to change the subnet mask computed
by the WiMAX Modem unless you are instructed to do otherwise.
7.6.2 DHCP Setup
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows
individual clients to obtain TCP/IP configuration at start-up from a server. You can
configure the WiMAX Modem as a DHCP server or disable it. When configured as a
server, the WiMAX Modem provides the TCP/IP configuration for the clients. If
DHCP service is disabled, you must have another DHCP server on your LAN, or
else each computer must be manually configured.
Chapter 7 The LAN Configuration Screens
The WiMAX Modem is pre-configured with a pool of IP addresses for the DHCP
clients (DHCP Pool). See the product specif ic a t i o ns in the appendices. Do not
assign static IP addresses from the DHCP pool to your LAN computers.
These parameters should work for the majority of installations. If your ISP gives
you explicit DNS server address(es), see Section 7.3 on page 76.
7.6.3 LAN TCP/IP
The WiMAX Modem has built-in DHCP server capability that assigns IP addresses
and DNS servers to systems that support DHCP client capability.
The LAN parameters of the WiMAX Modem are preset in the factory with the
following values:
• IP address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits)
• DHCP server enabled with 32 client IP addresses starting from 192.168.1.33.
These parameters should work for the majority of installations. If your ISP gives
you explicit DNS server address(es), see Section 7.3 on page 76.
User’s Guide
81
Chapter 7 The LAN Configuration Screens
7.6.4 DNS Server Address
DNS (Domain Name System) is for mapping a domain name to its corresponding
IP address and vice versa. The DNS server is extremely important because
without it, you must know the IP address of a machine before you can access it.
The DNS server addresses that you enter in the DHCP setup are passed to the
client machines along with the assigned IP address and subnet mask.
There are two ways that an ISP disseminates the DNS server addresses. The first
is for an ISP to tell a customer the DNS server addresses, usually in the form of an
information sheet, when s/he signs up. If your ISP gives you the DNS server
addresses, enter them in the DNS Server fields in DHCP Setup, otherwise, leave
them blank.
Some ISPs choose to pass the DNS servers using the DNS server extensions of
PPP IPCP (IP Control Protocol) after the connection is up. If your ISP did not give
you explicit DNS servers, chances are the DNS serv ers are conv eyed through IPCP
negotiation. The WiMAX Modem supports the IPCP DNS server extensions through
the DNS proxy feature.
If the Primary and Secondary DNS Server fields in the LAN Setup screen are
not specified, for instance, left as 0.0.0.0, the WiMAX Modem tells the DHCP
clients that it itself is the DNS server. When a computer sends a DNS query to the
WiMAX Modem, the WiMAX Modem forwards the query to the real DNS server
learned through IPCP and relays the response back to the computer.
Please note that DNS proxy works only when the ISP uses the IPCP DNS server
extensions. It does not mean you can leave the DNS servers out of the DHCP
setup under all circumstances. If your ISP gives you explicit DNS servers, make
sure that you enter their IP addresses in the LAN Setup screen. This way, the
WiMAX Modem can pass the DNS servers to the computers and the computers can
query the DNS server directly without the WiMAX Modem’s intervention.
7.6.5 RIP Setup
RIP (Routing Information Protocol) allows a router to exchange routing
information with other routers. The RIP Direction field controls the sending and
receiving of RIP packets. When set to:
• Both - the WiMAX Modem will broadcast its routing table periodically and
incorporate the RIP information that it receives.
82
• In Only - the WiMAX Modem will not send any RIP packets but will accept all
RIP packets received.
• Out Only - the WiMAX Modem will send out RIP packets but will not accept any
RIP packets received.
User’s Guide
• None - the WiMAX Modem will not send any RIP packets and will ignore any RIP
packets received.
The Version field controls the format and the broadcasting method of the RIP
packets that the WiMAX Modem sends (it recog nizes both formats when
receiving). RIP-1 is universally supported; but RIP-2 carries more information.
RIP-1 is probably adequate for most networks, unless you have an unusual
network topology.
Both RIP-2B and RIP-2M sends the routing data in RIP-2 format; the difference
being that RIP-2B uses subnet broadcasting while RIP-2M uses multicasting.
7.6.6 Multicast
Traditionally, IP packets are transmitted in one of either two ways - Unicast (1
sender - 1 recipient) or Broadcast (1 sender - everybody on the network).
Multicast delivers IP packets to a group of hosts on the network - not everybody
and not just 1.
Chapter 7 The LAN Configuration Screens
IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to
establish membership in a Multicast group - it is not used to carry user data. IGMP
version 2 (RFC 2236) is an improvement over version 1 (RFC 1112) but IGMP
version 1 is still in wide use. If you would like to read more detailed information
about interoperability between IGMP version 2 and version 1, please see sections
4 and 5 of RFC 2236. The class D IP address is used to identify host groups and
can be in the range 224.0.0.0 to 239.255.255.255. The address 224.0.0.0 is not
assigned to any group and is used by IP multicast computers. The address
224.0.0.1 is used for query messages and is assigned to the permanent group of
all IP hosts (including gateways). All host s must join t he 224.0.0.1 group in order
to participate in IGMP. The address 224.0.0.2 is assigned to the multicast routers
group.
The WiMAX Modem supports both IGMP version 1 (IGMP-v1) and IGMP version 2
(IGMP-v2). At start up, the WiMAX Modem queries all directly connected
networks to gather group membership. After that, the WiMAX Modem periodically
updates this information. IP multicasting can be enabled/disabled on the WiMAX
Modem LAN and/or WAN interfaces in the web configurator (LAN; WAN). Select
None to disable IP multicasting on these interfaces.
User’s Guide
83
Chapter 7 The LAN Configuration Screens
84
User’s Guide
CHAPTER 8
The WAN Configuration Screens
8.1 Overview
Use the ADVANCED > WAN Configuration screens to set up your WiMAX
Modem’s Wide Area Network (WAN) or Internet features.
A Wide Area Network (or WAN) links geographically dispersed locations to other
networks or the Internet. A WAN configuration can include switched and
permanent telephone circuits, terrestrial radio systems and satellite systems.
8.1.1 What You Can Do in This Chapter
•The Internet Connection screen (Section 8. 2 on page 88) lets yo u set up your
WiMAX Modem’s Internet settings.
•The WiMAX Configuration screen (Section 8.3 on page 90) lets set up the
frequencies used by your WiMAX Modem.
•The Advanced screen (Section 8.4 on page 94) lets configure your DNS server,
RIP, Multicast and Windows Networking settings.
8.1.2 What You Need to Know
The following terms and concepts may help as you read through this chapter.
WiMAX
WiMAX (Worldwide Interoperability for Microwave Access) is the IEEE 802.16
wireless networking standard, which provides high-bandwidth, wide-range
wireless service across wireless Metropolitan Area Networks (MANs). ZyXEL is a
member of the WiMAX Forum, the industry group dedicated to promoting and
certifying interoperability of wireless broadband products.
In a wireless MAN, a wireless-equipped computer is known either as a mobile
station (MS) or a subscriber station (SS). Mobile stations use the IEEE 802.16e
standard and are able to maintain connectivity while switching their connection
from one base station to another base station (handover) while subscriber
stations use other standards that do not have this capability (IEEE 802.16-2004,
User’s Guide
85
Chapter 8 The WAN Configuration Screens
for example). The following figure shows an MS-equipped notebook computer
MS1 moving from base station BS1’s coverage area and connecting to BS2.
Figure 25 WiMax: Mobile Station
WiMAX technology uses radio signals (around 2 to 10 GHz) to connect subscriber
stations and mobile stations to local base stations. Numerous subscriber stations
and mobile stations connect to the network through a singl e base station ( BS), as
in the following figure.
Figure 26 WiMAX: Multiple Mobile Stations
A base station's coverage area can extend over many hundreds of meters, even
under poor conditions. A base station provides network access to subscriber
stations and mobile stations, and communicates with other base stations.
The radio frequency and bandwidth of the link between t he WiMAX Modem and the
base station are controlled by the base station. The WiMAX Modem follows the
base station’s configur ation.
86
User’s Guide
Chapter 8 The WAN Configuration Screens
Authentication
When authenticating a user, the base station uses a third-party RADIUS or
Diameter server known as an AAA (Authentication, Authorizat ion and Ac counting)
server to authenticate the mobile or subscriber stations.
The following figure shows a base station using an AAA server to authenticate
mobile station MS, allowing it to access the Internet.
Figure 27 Using an AAA Server
In this figure, the dashed arrow shows the PKM (Privacy Key Management)
secured connection between the mobile station and the base station, and the solid
arrow shows the EAP secured connection between the mobile station, the base
station and the AAA server. See the WiMAX security appendix for more details.
User’s Guide
87
Chapter 8 The WAN Configuration Screens
8.2 Internet Connection
Click ADVANCED > WAN Configuration to set up your WiMAX Modem’s Internet
settings.
Note: Not all WiMAX Modem models have all the fields shown here.
Figure 28 ADVANCED > WAN Configuration > Internet Connection
The following table describes the labels in this screen.
Table 19 ADVANCED > WAN Configuration > Internet Connection > ISP
Parameters for Internet Access
LABEL DESCRIPTION
ISP Parameters for Internet Access
User Name Use this field to enter the username associated with your Internet
access account. You can enter up to 61 printable ASCII characters.
Password Use this field to enter the password associated with your Internet
access account. You can enter up to 47 printable ASCII characters.
Anonymous
Identity
Enter the anonymous identity provided by your Internet Service
Provider. Anonymous identity (also known as outer identity) is used
with EAP-TT LS encryption. The anonymous identity is used to route
your authentication request to the correct authentication server,
and does not reveal your real user name. Your real user name and
password are encrypted in the TLS tunnel, and only the anonymous
identity can be seen.
Leave this field blank if your ISP did not give you an anonymous
identity to use.
88
User’s Guide
Chapter 8 The WAN Configuration Screens
Table 19 ADVANCED > WAN Configuration > Internet Connection > ISP
Parameters for Internet Access (continued)
LABEL DESCRIPTION
PKM This field displays the Privacy Key Management version number.
PKM provides security between the WiMAX Modem and the base
station. At the time of writing, the WiMAX Modem supports PKMv2
only. See the WiMAX security appendix for more information.
Authentication This field displays the user authentication method. Authentication is
the process of confirming the identity of a mobile station (by means
of a username and password, for example).
Check with your service provider if you are unsure of the correct
setting for your account.
Choose from the following user authentication methods:
• TTLS (Tunnelled Transport Layer Security)
• TLS (Transport Layer Security)
Note: Not all WiMAX Modems support TLS authentication.
Check with your service provider for details.
TTLS Inner EAP This field displays the type of secondary authentication method.
Once a secure EAP-TTLS connection is established, the inner EAP is
the protocol used to exchange security information between the
mobile station, the base station and the AAA server to authenticate
the mobile station. See the WiMAX security appendix for more
details.
This field is available only when TTLS is selected in the
Authentication field.
The WiMAX Modem supports the following inner authentication
types:
• CHAP (Challenge Handshake Authentication Protocol)
• MSCHAP (Microsoft CHAP)
• MSCHAPV2 (Microsoft CHAP version 2)
• PAP (Password Authentication Protocol)
Auth Mode Select the authentication mode from the drop-down list box.
This field is not ava i l a ble in al l W i MA X Mo d e ms . Ch e c k wit h y o u r
service provider for details.
The WiMAX Modem supports the following authentication modes:
•User Only
• Device Only with Cert
• Certs and User Authentication
Certificate This is the security certificate the WiMAX Modem uses to
authenticate the AAA server. Use the TOOLS > > Trusted CAs
screen to import certificates to the WiMAX Modem.
WAN IP Address Assignment
User’s Guide
89
Chapter 8 The WAN Configuration Screens
Table 19 ADVANCED > WAN Configuration > Internet Connection > ISP
Parameters for Internet Access (continued)
LABEL DESCRIPTION
Get
automatically
from ISP
(Default)
Use Fixed IP
Address
IP Subnet Mask Enter a subnet mask in dotted decimal notation.
Gateway IP
Address
Apply Click to save your changes.
Reset Click to restore your previously saved settings.
Select this if you have a dynamic IP address. A dynamic IP address
is not fixed; the ISP assigns you a different one each time you
connect to the Internet.
A static IP address is a fixed IP that your ISP gives you. Type your
ISP assigned IP address in the IP Address field below.
Refer to the appendices to calculate a subnet mask If you are
implementing subnetting.
Specify a gateway IP address (supplied by your ISP).
8.3 WiMAX Configuration
Click ADVANCED > WAN Configuration > WiMAX Configuration to set up the
frequencies used by your WiMAX Modem.
In a WiMAX network, a mobile or subscriber station must use a radio frequency
supported by the base station to communicate. When the WiMAX Modem looks for
a connection to a base station, it can search a range of frequencies .
90
User’s Guide
Chapter 8 The WAN Configuration Screens
Radio frequency is measured in Hertz (Hz).
Table 20 Radio Frequency Conversion
1 kHz = 1000 Hz
1 MHz = 1000 kHz (1000000 Hz)
1 GHz = 1000 MHz (1000000 kHz)
Figure 29 ADVANCED > WAN Configuration >WiMAX Configuration
User’s Guide
The following table describes the labels in this screen.
Table 21 ADVANCED > WAN Configuration >WiMAX Configuration
LABEL DESCRIPTION
DL Frequency /
Bandwidth
These fields show the downlink frequency settings in kilohertz (kHz).
Enter values in these fields to have the WiMAX Modem scan these
frequencies for available channels in ascending numerical order.
Note: The Bandwidth field is not user-configurable; when the
WiMAX Modem finds a WiMAX connection, its frequency
is displayed in this field.
Contact your service provider for details of supported frequencies.
Apply Click to save your changes.
Reset Click to restore your previously saved settings.
91
Chapter 8 The WAN Configuration Screens
8.3.1 Frequency Ranges
The following figure shows the WiMAX Modem searching a range of frequencies to
find a connection to a base station.
Figure 30 Frequency Ranges
In this figure, A is the WiMAX frequency range. “WiMAX frequency r ange” refers to
the entire range of frequencies the WiMAX Modem is ca pable of using to transmit
and receive (see the Product Specifications appendix for details).
In the figure, B shows the operator frequency range. This is the range of
frequencies within the WiMAX frequency range supported by your operator
(service provider).
The operator range is subdivided into bandwidth steps. In the figure, each C is a
bandwidth step.
The arrow D shows the WiMAX Modem searching for a connection.
Have the WiMAX Modem search only certain frequencies by configuring the
downlink frequencies. Your operator can give you information on the supported
frequencies.
The downlink frequencies are points of the frequency range your WiMAX Modem
searches for an available connection. Use the Site Survey screen to set these
bands. You can set the downlink frequencies anywhere within the WiMAX
frequency range. In this example, the downlink frequencies have been set to
search all of the operator range for a connection.
8.3.2 Configuring Frequency Settings
92
You need to set the WiMAX Modem to scan one or more specific radio frequencies
to find an available connection to a WiMAX base station.
Use the WiMAX Frequency screen to define the radio frequencies to be searched
for available wireless connections. See Section 8.3.3 on page 93 for an example of
using the WiMAX Frequency screen.
User’s Guide
Chapter 8 The WAN Configuration Screens
Note: It may take several minutes for the WiMAX Modem to find a connection.
• The WiMAX Modem searches the DL Frequency settings in ascending numerical
order, from [1] to [9].
Note: The Bandwidth field is no t user-configurable; when the WiMAX Modem finds a
WiMAX connection, its frequency is displayed in this field.
• If you enter a 0 in a DL Frequency field, the WiMAX Modem immediately
moves on to the next DL Frequency field.
• When the WiMAX Modem connects to a base station, the values in this screen
are automatically set to the base station’s frequency. The next time the WiMAX
Modem searches for a connection, it searches only this frequency. If you want
the WiMAX Modem to search other frequencies , e nt er th em in the DL
Frequency fields.
The following table describes some examples of DL Frequency settings.
Table 22 DL Frequency Example Settings
EXAMPLE 1 EXAMPLE 2
Bandwidth: 2500000 2500000
DL Frequency
[1]:
DL Frequency [2] 0 2600000
DL Frequency
[3]:
DL Frequency
[4]:
2550000 2550000
00
00
The WiMAX Modem
searches at 2500000
kHz, and then searches
at 2550000 kHz if it has
not found a connection.
The WiMAX Modem
searches at 2500000 kHz
and then at 2550000 kHz if
it has not found an
available connection. If it
still does not find an
available connection, it
searches at 2600000 kHz.
8.3.3 Using the WiMAX Frequency Screen
In this example, your Internet service provider has given you a list of supported
frequencies: 2.51, 2.525, 2.6, and 2.625.
1 In the DL Frequency [1] field, enter 2510000 (2510000 kilohertz (kHz) is equal
to 2.51 gigahertz).
2 In the DL Frequency [2] field, enter 2525000.
3 In the DL Frequency [3] field, enter 2600000.
User’s Guide
93
Chapter 8 The WAN Configuration Screens
4 In the DL Frequency [4] field, enter 2625000.
Leave the rest of the DL Frequency fields at zero. The screen appears as follows.
Figure 31 Completing the WiMAX Frequency Screen
5 Click Apply. The WiMAX Modem stores your settings.
When the WiMAX Modem searches for available frequencies, it scans all
frequencies from DL Frequency [1] to DL Frequency [4]. When it finds an
available connection, the fields in this screen will be automatically set to use that
frequency.
8.4 Advanced
Click ADVANCED > WAN Configuration > Advanced to configure your DNS
server, RIP, Multicast and Windows Networking settings.
Figure 32 ADVANCED > WAN Configuration > Advanced
94
User’s Guide
Chapter 8 The WAN Configuration Screens
The following table describes the labels in this screen.
Table 23 ADVANCED > WAN Configuration > Advanced
LABEL DESCRIPTION
DNS Servers
First, Second and
Third DNS Server
RIP & Multicast Setup
RIP Direction Select the RIP direction from None, Both, In Only and Out Only.
RIP Version Select the RIP version from RIP-1, RIP-2B and RIP-2M.
Multicast IGMP (Internet Group Multicast Protocol) is a network-layer
Windows Networking (NetBIOS over TCP/IP)
Allow between LAN
and WAN
Select Obtained from ISP if your ISP dynamically assigns DNS
server information (and the WiMAX Modem's WAN IP address). Use
the drop-down list box to select a DNS server IP address that the
ISP assigns in the field to the right.
Select UserDefined if you have the IP address of a DNS server.
Enter the DNS server's IP address in the field to the right. If you
chose UserDefined, but leave the IP address set to 0.0.0.0,
UserDefined changes to None after you click Apply. If you set a
second choice to UserDefined, and enter the same IP address, the
second UserDefined changes to None after you click Apply.
Select None if you do not want to configure DNS servers. You must
have another DHCP server on your LAN, or else the computers
must have their DNS server addresses manually configured. If you
do not configure a DNS server, you must know the IP address of a
computer in order to access it.
protocol used to establish membership in a multicast group. The
WiMAX Modem supports both IGMP version 1 (IGMP-v1) and
IGMP-v2. Select None to disable it.
Select this check box to forward NetBIOS packets from the LAN to
the WAN and from the WAN to the LAN. If your firewall is enabled
with the default policy set to block WAN to LAN traffic, you also
need to enable the default WAN to LAN firewall rule that forwards
NetBIOS traffic.
User’s Guide
Clear this check box to block all NetBIOS packets going from the
LAN to the WAN and from the WAN to the LAN.
Allow Trigger Dial Select this option to allow NetBIOS packets to initiate calls.
Apply Click to save your changes.
Reset Click to restore your previously saved settings.
95
Chapter 8 The WAN Configuration Screens
96
User’s Guide
CHAPTER 9
The VPN Transport Screens
9.1 Overview
This chapter describes the ADVANCED > VPN Transport screens, where you can
configure the WiMAX Modem to allow traffic from multiple users to pass through
the WiMAX network to the service provider’s router. Each user has his own
personal connection to the service provider, even though there is only a single
WiMAX connection. This allows the service provider to identify which user traffic
comes from.
VPN stands for “Virtual Private Network”. There are many types of VPN; the type
used by the WiMAX Modem is known as Virtual Private LAN Service, or VPLS.
Note: Unlike some other types of VPN (such as IPSec VPNs) VPLS VPNs do not use
authentication or encryption to secure the data they carry.
The following figure shows two users (A and B), connecting to the WiMAX Modem
(Z) through a switch (S). Each user has his own connection over the WiMAX
network to the service provider’s router (R).
Figure 33 VPN Transport Example
A
B
Note: The services available may vary, depending upon the service provider.
SZ R
9.1.1 What You Can Do in This Chapter
•The General screen (Section 9.2 on page 99) lets you turn VPN tr ansport on or
off, and to set the VPN transport endpoint (your service provider’s router).
WiMAX
User’s Guide
•The Customer Interface screen (Section 9.3 on page 100) lets you specify
which users can use which WiMAX network links.
97
Chapter 9 The VPN Transport Screens
•The Ethernet Pseudowire screen (Section 9.4 on page 104) lets you configure
the links over the WiMAX network between the WiMAX Modem and the service
provider’s router.
•The Statistics screen (Section 9.5 on page 107) lets you view performance
information about the VPN transport connections.
9.1.2 What You Need to Know
The following terms and concepts may help as you read through this chapter.
Identifying Users
For the WiMAX Modem’s VPN Tr ansport feat ure to work, it must be able to identify
users on the LAN. It does this by exa m ining VLAN (Virtual Local Area N et w ork )
tags.
These tags must be added to the data packets by a switch on the LAN. In the
following example, two users (A and B) are connected to a switch (C). A and B
are connected to different ports on the switch (port 1 and port 2). A and B send
untagged packets to the switch. The switch adds tags to packets depending on the
physical port on which they arrive. P ack ets arriving on port 1 are giv en a VLAN ID
(VLAN IDentifier) of 1, and packets arriving on port 2 are given a VLAN ID of 2.
When the packets reach the WiMAX Modem (D), their source is identified by
examining their VLAN tags.
Figure 34 Identifying Users
PORT 1 VLAN 1
A
PORT 2 VLAN 2
B
PORT 1
PORT 2
C
1
2
D
98
User’s Guide
9.1.3 Before You Begin
Before you start configuring your WiMAX Modem to use VPN transport, ensure that
you have the following from the service provider:
• The IP address or domain name of the service provider’s edge router.
• Virtual circuit (VC) labels for each Ethernet Pseudowire you want to create.
• Also make sure that you know the VLAN IDs (Virtual LAN IDentifiers) of the
VLANs on your LAN.
9.2 General
Click ADVANCED > VPN Transport to turn VPN transport on or off and to set the
VPN transport endpoint (your service provider’s router).
Figure 35 ADVANCED > VPN Transport > General
Chapter 9 The VPN Transport Screens
The following table describes the labels in this screen.
Table 24 ADVANCED > VPN Transport > General
LABEL DESCRIPTION
L2/L3 VPN Transport General Setup
Transport L2/L3
VPN...
Remote G RE
Tunnel End
Apply Click to save your changes.
Reset Click to restore your previously saved settings.
Select this to turn the VPN transport feature on. Deselect it to turn the
VPN transport feature off.
Enter the domain name or IP address of your service provider’s router.
User’s Guide
99
Chapter 9 The VPN Transport Screens
9.3 Customer Interface
Customer interfaces connect data comi ng from your computers to Ethernet
pseudowires, according to the data’s VLAN (Virtual Local Area Network)
information. One customer interface is for traffic that has no tag; this is the
default interface (rule 0) which cannot be deleted in the GUI. All other custom er
interfaces are identified by their VLAN ID.
Once the WiMAX Modem has examined a frame’s VLAN tag, it is able to assign the
frame to a specified path. This is done using a customer interface. The customer
interface is simply a set of information that takes frames from a VLAN and put
them on an Ethernet pseudowire, and vice versa.
In this example, the WiMAX Modem takes frames tagged with two different VLAN
IDs (10 and 20) and using the customer interfa ce s, as si g ns them to specific
pseudowires (PW1 and PW2).
Figure 36 Pseudowire Mapping
VLAN 10 PW1
VLAN 20 PW2
PW1
10
The WiMAX Modem has a default customer interface configured for frames that
arrive at the WiMAX Modem without VLAN tags.
20
PW2
9.3.1 Multi-Protocol Label Switching
The WiMAX Modem uses MPLS VPNs to create virtual private LANs. MPLS stands
for Multi-Protocol Label Switching, and is a packet-switching technology that
allows packets with different VLAN tags to be transported on different paths
(known as LSPs, or Label Switched Paths). Each packet is identified by its VLAN
tag and sent to a specific LSP for transport over the WiMAX network.
1
WiMAX
2
R
100
Each LSP has a defined start-point and end-point. Since MPLS creates monodirectional paths (traffic flows in only one direction), each Ethernet pseudowire
uses two LSPs so that traffic can flow both ways. One LSP carries upstream traffic,
and the other carries downstream traffic.
