ZyAIR G-3000
802.11g Business Access Point/Bridge/Repeater
Quick Start Guide
Version 3.50
1/2005
ZyAIR G-3000 Quick Start Guide
Table of Contents
1 Introducing the ZyAIR ................................................................................................................ 4
2 Hardware Connections .............................................................................................................. 4
2.1 Side Panel and Connections ................................................................................................. 4
2.2 The LED Display.................................................................................................................... 5
3 Set Up Your Computer’s IP Address......................................................................................... 8
3.1 Windows 2000/NT/XP ........................................................................................................... 8
3.2 Checking/Updating Your Computer’s IP Address................................................................ 10
3.3 Testing the Connection to the ZyAIR................................................................................... 10
4 Configure the ZyAIR..................................................................................................................11
4.1 Accessing the ZyAIR via the Web Configurator ...................................................................11
4.2 Common Screen Command Buttons................................................................................... 13

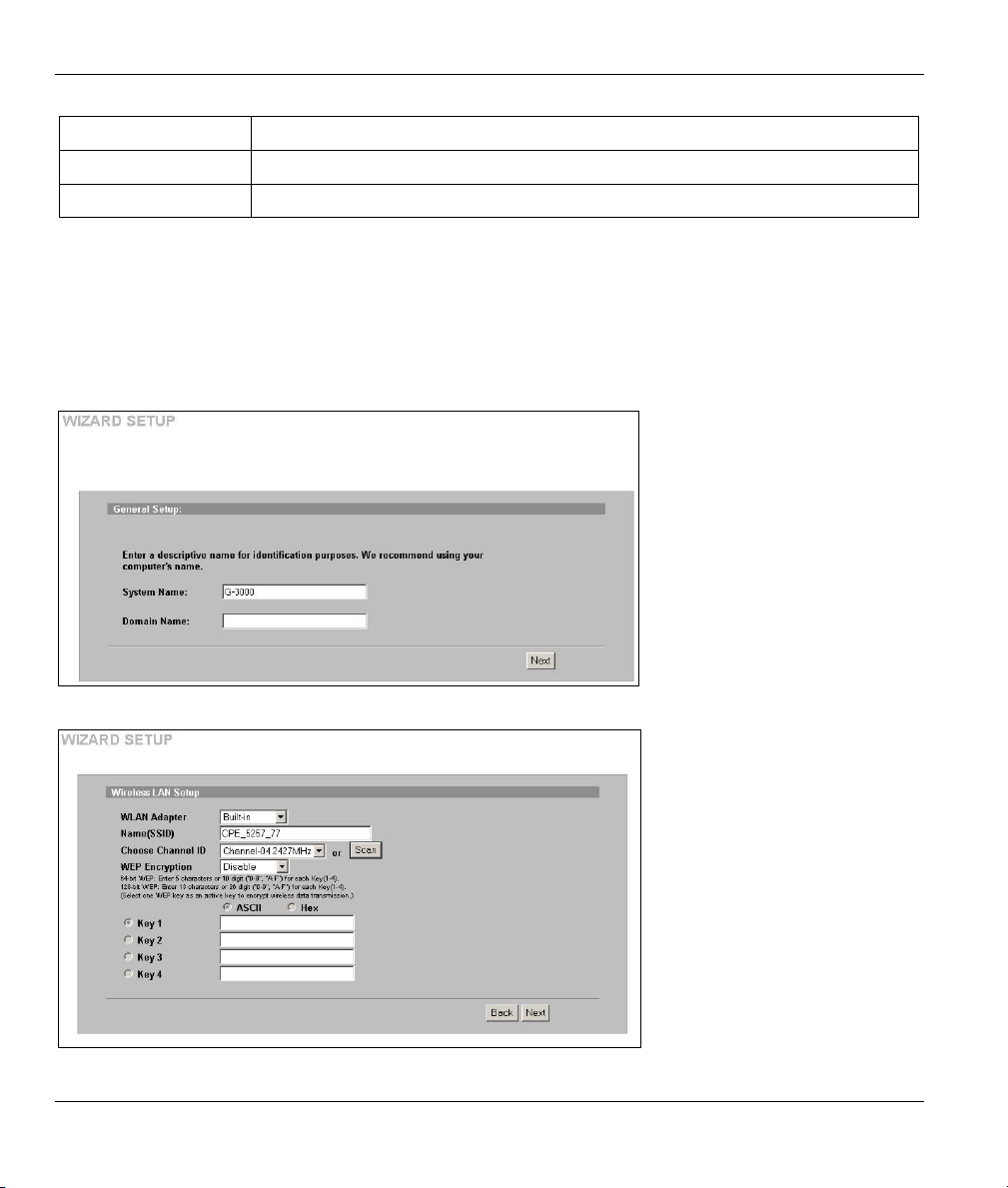

5 Configuring the ZyAIR Using the Wizard ............................................................................... 14
6 Hardware Installation ............................................................................................................... 17
6.1 Attaching Antennas.............................................................................................................. 17
6.2 Hardware Mounting Installation........................................................................................... 17
7 Troubleshooting ....................................................................................................................... 20
3
ZyAIR G-3000 Quick Start Guide
1 Introducing the ZyAIR
The ZyAIR G-3000 is a wireless access point with two WLAN interfaces that are compliant with both IEEE802.11g and IEEE802.11b standards. It is suitable for wireless connections to the wired network in small office environments and businesses. The key features of the ZyAIR are the dual WLAN interface, internal RADIUS server, PoE (Power over Ethernet), wireless security, and WDS (Wireless Distribution System). See your User’s Guide for more details on all ZyAIR features. To view a product’s certification(s):
1. Go to www.zyxel.com
2. Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.
3. Select the certification you wish to view from this page.
.
2 Hardware Connections
2.1 Side Panel and Connections
Figure 1 ZyAIR Side Panel and Connections
4
ZyAIR G-3000 Quick Start Guide
LABEL DESCRIPTION
CONSOLE Only connect this port if you want to configure the ZyAIR using the SMT (System
Management Terminal) via console port; see your User’s Guide for details.
Connect PS/2 end of the console cable to the console port of the ZyAIR and the other end to a serial port (COM1, COM2 or other COM port) on your computer. Your computer should have a terminal emulation communications program (such as HyperTerminal) set to VT100 terminal emulation, no parity, 8 data bits, 1 stop bit, no flow control and 9600 bps port speed.
ETHERNET Use an Ethernet cable to connect a computer (with an Ethernet card) or switch to the
ETHERNET port. The port is auto-negotiating (can connect at 10 or 100Mbps) and auto­crossover (automatically adjusts to the type of Ethernet cable you use (straight-through or crossover)).
RESET You only need to use this button if you’ve forgotten the ZyAIR’s password. It returns the
ZyAIR to the factory defaults (password is 1234 and LAN IP address 192.168.1.2). Refer to the User’s Guide.
POWER 12VDC
Connect the end of the included power adaptor to this power socket. You only need to connect the external power adaptor if you are not using PoE. If you simultaneously use both PoE and the external power adaptor, the ZyAIR will draw power from the PoE connection only.
Use only the included power adaptor.
EXTENSION CARD SLOT
This slot allows you to add an IEEE802.11g or IEEE802.11b WLAN card adaptor. You must have a WLAN card inserted before you can configure it.
The ZyAIR also contains a built-in wireless card.
2.2 The LED Display
When the power is connected the PWR, ZyAIR, SYS, WLAN LEDs turn on in that order. The ETHN LED turns on, if the ETHERNET port is properly connected. See the ZyAIR Front Panel LED Description table for more information.
5
ZyAIR G-3000 Quick Start Guide
Figure 2 ZyAIR Front Panel
6
ZyAIR G-3000 Quick Start Guide
Table 1 ZyAIR Front Panel LED Description
LED COLOR STATUS DESCRIPTION
BDG/RPT
ZyAIR Blue
WLAN
ETHN
SYS
PWR
Red
Green
Off Neither of the WLAN interfaces is communicating successfully with
Green
Off The Ethernet connection is not ready, or has failed.
Orange
Off The ZyAIR is not receiving power.
Orange On The ZyAIR is receiving low power.
Off The ZyAIR is not receiving power.
Green On The ZyAIR is receiving power.
Red On The ZyAIR is receiving power over the Ethernet cable.
Blinking
Off
On
Off
Blinking (Breathing)
On The ZyAIR is ready, but is not sending/receiving data.
Off The LED has been disabled in the web configurator or SMT.
On Both or one of the WLAN interfaces is communicating successfully
Blinking TX/RX packets are being sent through the ZyAIR.
On The ZyAIR has a successful 10Mbps Ethernet connection. Green
Blinking The ZyAIR is sending/receiving data.
On The ZyAIR has a successful 100Mbps Ethernet connection.
Blinking The ZyAIR is sending/receiving data.
On The ZyAIR is receiving power. Green
Blinking The ZyAIR is receiving power but is not ready.
The ZyAIR is not ready or is rebooting in AP+Bridge or Bridge/Repeater mode.
The ZyAIR has a successful reboot in AP+Bridge or Bridge/Repeater mode.
The ZyAIR is set up as an AP+Bridge or Bridge/Repeater.
The ZyAIR is set up as an Access Point.
ZyAIR is sending/receiving data through the wireless LAN.
another device.
with another device.
