GLC1320G-55

Fiber-based, Gigabit Ethernet Line Card

Version 4.02 Edition 1, 6/2013

User’s Guide

www.zyxel.com

IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE.

Screenshots and graphics in this book may differ slightly from your product due to differences in your product firmware or your computer operating system. Every effort has been made to ensure that the information in this manual is accurate.

Contents Overview

Introducing the GLC1320G-55 ..................................................................................................................7

Product Specifications .............................................................................................................................15

Troubleshooting ......................................................................................................................................19

GLC1320G-55 User’s Guide

Contents Overview

GLC1320G-55 User’s Guide

Table of Contents

Contents Overview ..................................................................................................................3

Table of Contents .....................................................................................................................5

Chapter 1

Introducing the GLC1320G-55.................................................................................................7

1.1 GLC1320G-55 Overview .................................. ... ... ... .... ... ... ... .... ...................................... ... ...7

1.2 Features ....... ... ....................................... ... ... .... ...................................... .... ... .........................7

1.3 Front Panel ...................................... ... ... ....................................... ... ... .................................12

1.4 Ports and LEDs ............................................ .... ... ....................................... ... ... ....................13

1.4.1 Ports ....................................................... ...................................... .... ..........................13

1.4.2 LEDs ............... ... ... .... ... ... ... .... ...................................... ..............................................13

Chapter 2

Product Specifications...........................................................................................................15

2.1 Product Specifications ...................... ... ... ... ... .... ... ... ... ....................................... ... .... ... ..........15

2.2 Firmware Naming Conventions ............................................................................................17

2.3 Console Cable Pin Assignments ..........................................................................................17

Chapter 3

Troubleshooting......................................................................................................................19

3.1 Power and LEDs ..................................................................................................................19

3.2 Data Transmission .................... ... .... ... ....................................... ... ... ... ... .... ... .......................20

3.3 Local Server ........... ... ....................................... ... ... ....................................... ... ... .................20

3.4 Management and Configuration ...........................................................................................21

3.4.1 Uploading the Default Configuration File via Boot Commands ................. .... ... ... ... ... .21

3.4.2 Uploading the Firmware via Boot Commands ............................................................22

Appendix A Legal Information................................................................................................25

Index ........................................................................................................................................29

GLC1320G-55 User’s Guide

Table of Contents

GLC1320G-55 User’s Guide

Introducing the GLC1320G-55

1.1 GLC1320G-55 Overview

The GLC1320G-55 is a Gigabit Ethernet Line Card with 20 SFP slot connector slots for fiber-based SFP (mini-GBIC) transceivers (16 for SFP transceiver and 4 for CSFP/SFP). It connects through fiber-optic cables to other Ethernet switches that support fiber connections (like the FSG1100HN, GS2200-8 or FMG3024/3025) located at the subscriber’s premises.

Figure 1 GLC1320G-55 Overview

CHAPTER 1

The GLC1320G-55 supports various SFP transceivers to satisfy a wide range of loop length requirements (see Table 3 on page 15 for details).

The GLC1320G-55 lets you easily implement high-speed optical FTTH (Fiber To The Home) or FTTB (Fiber To The Building) networks. The GLC1320G-55’s 1000 Mbps symmetric bandwidth persubscriber is perfect for offering IP-based triple play (voice, video, and Internet) services

The GLC1320G-55 aggregates layer-2 traffic from Ethernet subscribers to the IES system. The GLC1320G-55’s Ethernet QoS, security, and multicast features make it easy to deploy, provide subscribers with differentiated classes of service, and add new services.

Refer to the directions and safety warnings in the IES User's Guide to install the line card in the IES.

See the MSC User’s Guide for detailed information on configuring the line card.

1.2 Features

Here is a partial list of the GLC1320G-55’s features.

CSFP/SFP Slots

Install CSFP or SFP transceivers to connect to Ethernet switches. The Compact SFP (CSFP) transceivers consist of two bidirectional channels inside a conventional SFP form factor.

GLC1320G-55 User’s Guide 7

Chapter 1 Introducing the GLC1320G-55

SFP Slots

Install SFP (Small Form-factor Pluggable) transceivers to connect to Ethernet switches.

Discovery and Dependency Mapping Inventory (DDMI)

Discovery and Dependency Mapping Inventory (DDMI) reads the transceiver temperature and voltage.

SFP/CSFP Tx Manual Power Disable

Manually disables the transfer (Tx) power of individual transceivers.

Subnet Based VLAN

Subnet based VLAN allows you to group traffic into logical VLANs based on the source IP subnet you specify . When a fr ame is received on a port, the GL C1320G-55 checks if a tag is added already and the IP subnet it came from. The untagged packets from the same IP subnet are then placed in the same subnet based VLAN. One advantage of using subnet based VLANs is that priority can be assigned to traffic from the same IP subnet.

xVLAN

xVLAN changes the VLAN IDs (VIDs) of subscriber traffic before sending it to the service provider’s network. It also changes the VIDs of traffic from the service provider’s network before sending it to the subscriber. This lets you use unique VLANs for each subscriber but still deploy all the CPE devices with the same VLAN configuration.

Upstream Broadcast Storm Control

Broadcast storm control lets you set limits for how many broadcast, multicast and destination lookup failure (DLF) packets a port receives per second from the subscriber.

Downstream Broadcast VLAN Control

Downstream broadcast VLAN control allows you to block downstream broadcast packets from being sent to specified VLANs on specified ports. This helps to reduce downstream bandwidth requirements on a subscriber line.

MAC Count Limit

You can limit the number of MAC addresses that may be dynamically learned on a port. You may enable/disable the MAC count filter on individual ports.

Rate Limiting

Rate limiting on the subscriber ports allows service providers to offer tiered service in increments of 64 Kbps. This service differentiation is not only to fulfill the needs of different customers, but also to provide a network infrastructure that combines guaranteed performance and flexibility in service provisioning.

GLC1320G-55 User’s Guide

Chapter 1 Introducing the GLC1320G-55

Loop Guard

Loop guard protects against network loops on the edge of you network.

Double Tag Mode (DT)

For untagged packets, DT adds outer VLAN tag and inner VLAN tags. For tagged packets, DT adds an outer VLAN tag.

System Monitoring

• System status (link status, rates, statistics counters)

• Temperatures, voltage reports and alarms.

Configurable Alarms

The system allows you to customize the priority levels of individual alarms and the alarm severity threshold for recording alarms on an individual slot(s).

Alarm LED

An ALM (alarm) LED lights when the GLC1320G-55 is overheated, the voltage readings are outside the tolerance levels, a fan fails, or another alarm with a severity level of MAJOR or CRITICAL occurs.

IEEE 802.1Q Tagged VLAN

Your GLC1320G-55 uses the IEEE 802.1Q Tagged VLAN (Virtual Local Area Network), which allows it to deliver tagged/untagged frames to and from its ports. The IES supports up to 4094 individual VLANs.

Multicast VLAN

Multicast VLAN is designed for applications (such as Media-on-Demand (MoD)) using multicast traffic across an Ethernet ring-based service provider network. Multicast VLAN allows one single multicast VLAN to be shared among different subscriber VLANs on the network. This improves bandwidth utilization by reducing multicast traffic in the subscriber VLANs and simplifies multicast group management.

IEEE 802.1x Port-based Authentication

The GLC1320G-55 supports the IEEE 802.1x standard for centralized user authentication and accounting management through an optional network authentication (RADIUS) server.

Port Isolation

The GLC1320G-55's port isolation feature allows each port to communicate with the uplink port but not communicate with each other. This option is the most limiting but also the most secure.

GLC1320G-55 User’s Guide

Chapter 1 Introducing the GLC1320G-55

Isolation (per-VLAN)

Use isolation to block the subscribers in a specific VLAN from sending traffic directly to each other.

Packet Filter

The GLC1320G-55 supports packet filtering based on protocol. You can configure the GLC1320G-55 to accept all packets, accept PPPoE packets only or block any combination of the following protocols: IP, ARP, DHCP, EAPOL, PPPoE, NetBios or IGMP.

MAC (Media Access Control) Filters

Use the MAC filter to filter incoming frames based on MAC (Media Access Control) address(es) or the OUI (Organizational Unit Identifier) that you specify. You may enable/disable the MAC filter on specific ports. You may specify up to ten MAC addresses per port.

MAC (Media Access Control) Count Limit

You can limit the number of MAC addresses that may be dynamically learned on a port. You may enable/disable the MAC count limit on individual ports.

IGMP Snooping

The GLC1320G-55 supports IGMP snooping enabling group multicast traffic to be only forwarded to ports that are members of that group; thus allowing you to significantly reduce multicast traffic passing through your GLC1320G-55.

IGMP Filter

The IGMP filter defines multicast groups a port can join. You can create IGMP filter profiles which allow access to a multicast group, then assign the IGMP filter to a specific subscriber slot.

Multicast Group Limit

You can limit the number of IGMP multicast groups a subscriber on a port can join. You may enable/ disable the multicast group limit on individual ports.

Discarding of IGMP Query Messages

The GLC1320G-55 discards IGMP query messages received from subscriber ports. This prevents subscribers from hosting IGMP multicast servers.

IGMP Statistics

The GLC1320G-55 records the number of active users in an IGMP multicast channel (multicast group). The GLC1320G-55 also records IGMP message statistics on a per port basis to ease management and troubleshooting.

GLC1320G-55 User’s Guide

Chapter 1 Introducing the GLC1320G-55

IGMP Message Rate Limiting

The GLC1320G-55 can limit how many IGMP message packets a subscriber can send per second. This prevents subscribers from flooding the multicast server.

Static Multicast

Use static multicast to allow incoming frames based on multicast MAC address(es) that you specify. This feature can be used in conjunction with IGMP snooping to allow multicast MAC address(es) that are not learned by IGMP snooping. You can use static multicast to pass routing protocols, such as RIP and OSPF.

Multicast Bandwidth Control

The GLC1320G-55 supports static bandwidth control for multicast traffic. Bandwidth limits can be assigned to multicast channels. During IGMP snooping, the system checks the total bandwidth usage to see if it exceeds the specified limit. If the specified limits are reached, the system restricts the joining of multicast groups.

DHCP Relay

DHCP (Dynamic Host Configuration Protocol RFC 2131 and RFC 2132) allows individual computers to obtain TCP/IP configuration at start-up from a server. You can configure the system as a DHCP relay agent to have another DHCP server provide TCP/IP configuration for the clients. In addition, you can set the system to forward client DHCP requests to specific DHCP servers based on the VLAN ID. You can also specify up to two DHCP servers for each VLAN to provide failover protection.

DHCP Relay Option82

The system supports DHCP relay agent82 (RFC 3046) that adds additional information to client DHCP requests that the MSC relays to a DHCP server. It also supports adding the sub-option 2 (Remote ID) with additional information.

DHCP Snooping

DHCP snooping allows the system to identify packets with DHCP server assigned IP address(es) and block access of devices using unknown IP addresses on a subscriber port. You can also manually add static IP addresses to the DHCP snooping table.

System Error Logging

The system error log will record error logs locally to the management switch card memory.

Remote Firmware Upgrade

You can use FTP or SFTP to perform configuration backup/restore and firmware upgrade from a remote location.

GLC1320G-55 User’s Guide

Chapter 1 Introducing the GLC1320G-55

Anti-IP Address Spoofing

With DHCP snooping, the GLC1320G-55 records which IP addresses are assigned on each port. The GLC1320G-55 drops packets from a device using a different IP address.

Anti-MAC Address Spoofing

The GLC1320G-55 checks to make sure the MAC addresses of the devices connected to the subscriber ports are not the same as MAC addresses of devices connected to the Ethernet network. This protects the network from disruptions of service caused by subscriber devices spoofing the MAC address of ISP servers.

PPPoE Intermediate Agent Information

Similar to DHCP relay option82, you can set the system to insert line information into client PPPoE Active Discovery Initialization (PADI), PPPoE Activ e Discovery R equest (P ADR), and upstream PPP oE Active Discovery Terminate (PADT) packets. This allows a PPPoE termination server to identify and authenticate a PPPoE client.

T ransparent LAN Service (TLS)

Use TLS (also known as VLAN stacking) to add an outer VLAN tag to the inner IEEE 802.1Q tagged frames that enter the network. By tagging the tagged frames (“double-tagged” frames), the service provider can manage up to 4,094 VLAN groups with each group containing up to 4,094 customer VLANs. This allows a service provider to provide different services based on specific VLANs, for many different customers.

Classifier and Policy

You can create an ACL profile and map it to individual ports to define actions to be performed on traffic that matches the ACL profile. The ACL profile specifies criteria such as the IP address, port number, or protocol type, and so on.

Console Port

Use the console port for debugging and troubleshooting.

1.3 Front Panel

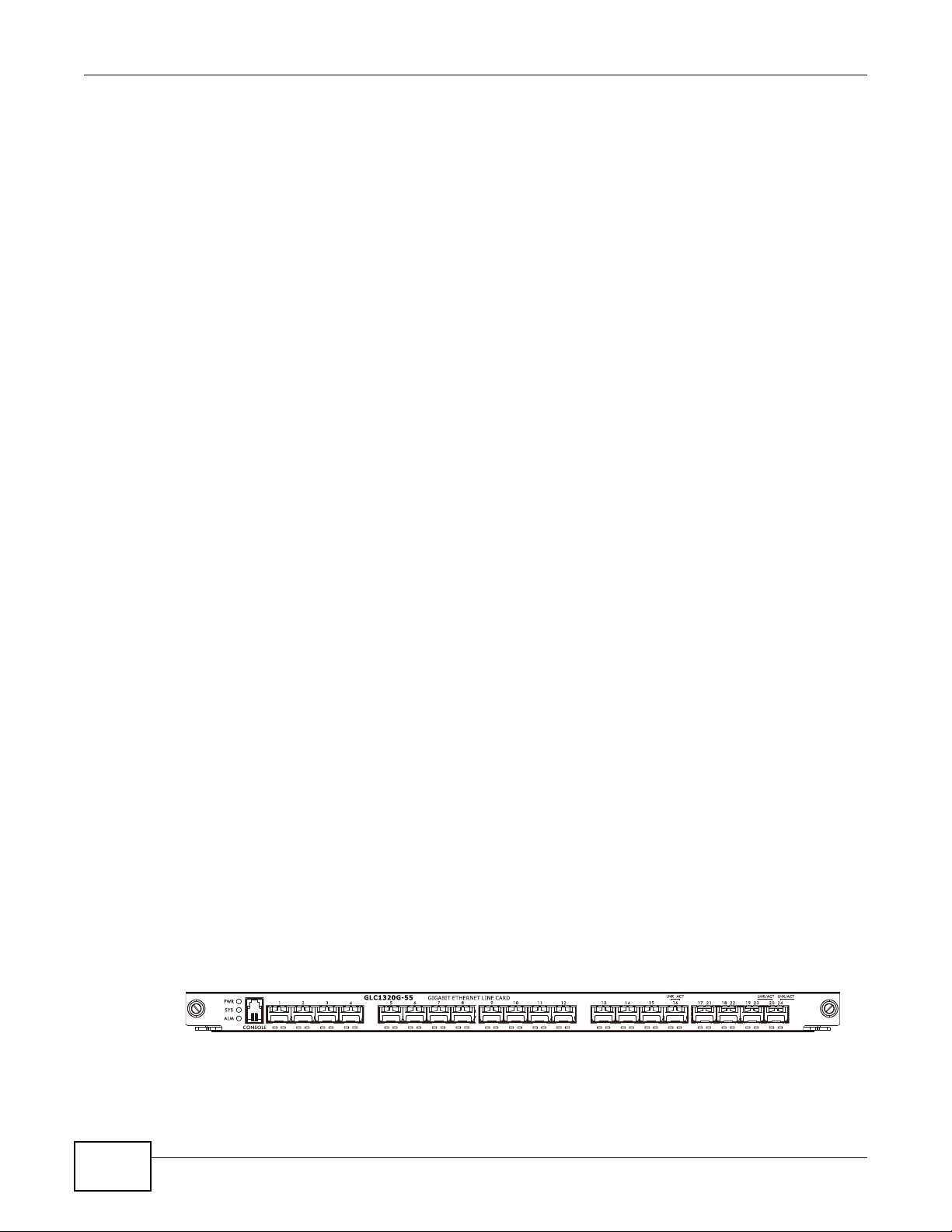

The figure below shows the front panel of the GLC1320G-55.

Figure 2 Front Panel

GLC1320G-55 User’s Guide

1.4 Ports and LEDs

These are the details of the front panel ports and LEDs.

1.4.1 Ports

The following table describes the port labels on the front panel.

Table 1 Front Panel Ports

LABEL DESCRIPTION

CONSOLE For troubleshooting purposes, this mini RJ-11port connects to a computer

when the line card is not manageable from the MSC. 1-16 These are slots for SFP transceivers. 17/21-20/24 These are slots for CSFP/SFP transceivers.

1.4.2 LEDs

The following table describes the LED indicators on the front panel of the GLC1320G-55.

Chapter 1 Introducing the GLC1320G-55

Table 2 LED Descriptions

LED COLOR STATUS DESCRIPTION

PWR Green On The line card is turned on.

Off The line card is off.

SYS Green Blinking The line card is rebooting and performing self-diagnostic

tests. On The line card is on and functioning properly. Off The power is off or the line card is malfunctioning.

ALM Red On There is a hardware failure or an alarm.

Off The line card is functioning normally.

LNK 1-16 Green On A Ethernet link is up.

Off The Ethernet link is down.

ACT 1-16 Green Blinking The Ethernet link is transmitting/receiving Ethernet traffic.

Off The Ethernet link is down.

LNK/ACT 17-24

Green On A Ethernet link is up.

Blinking The Ethernet link is transmitting/receiving Ethernet traffic. Off The Ethernet link is down.

GLC1320G-55 User’s Guide

Chapter 1 Introducing the GLC1320G-55

GLC1320G-55 User’s Guide

This chapter gives details about the line card hardware and features.

2.1 Product Specifications

Table 3 Device Specifications

Dimensions 390.6 mm (W) x 231.0 mm (D) x 24 mm (H) Device Weight 865g Interfaces • 16 SFP, 4 CSFP/SFP

• One mini RJ11 console port for local management MAC Address Table Up to 4 K entries Max. Number of IGMP

Filter Profiles Operating Temperature -40º C ~ 65º C Storage Temp erature -40º C ~ 70º C Operating Humidity 10% ~ 90% RH (non-condensing) Storage Humidity 10% ~ 95% RH (non-condensing) Power Consumption 40 W Compatible SFP

Transceivers

128

100BASE-FX (MMF with link span up to 2km) 100BASE-LX (SMF with link span up to 20km) 1000BASE-SX (MMF with link span up to 550m)

CHAPTER 2

Product Specifications

1000BASE-LX (SMF with link span up to 20km) 1000BASE-LHX (SMF with link span up to 40km)

Compatible CSFP Transceivers

GLC1320G-55 User’s Guide 15

1000BASE-BX10-U (SMF with link span up to 20km) 1000BASE-BX10-D (SMF with link span up to 20km)

Chapter 2 Product Specificatio n s

Table 3 Device Specifications

Certifications RoHS & WEEE compliant·

Other Features • Anti-IP Address Spoofing

ETSI 300-019 · Safety

EN60950-1 CSA60950-1 UL60950-1 IEC60950-1

EMC

FCC Part 15 Class A EN55022 Class A N55024 Class A ETSI 300 386 Class A

• Anti-MAC Address Spoofing

• MAC Filtering

• MAC Count Limiting

• Hardware-based Multicasting

•Multicast Group Limit

•IGMP Message Rate Limiting

• IEEE 802.1Q VLAN Tagging

• IEEE 802.1p CoS with Priority Queuing

• IGMP v1 & v 2 Snooping

•DHCP Relay Option82

• DHCP Snooping

• IEEE 802.1x Port-based Authentication

• ACL profile

• Upstream Broadcast Storm Control

• Downstream Broadcast VLAN Control

•MAC Count Limit

•Rate Limiting

• Loop Guard

• Subnet Based VLAN

•xVLAN

This table lists the standards the GLC1320G-55 supports.

Table 4 Supported Standards

STANDARD DESCRIPTION

RFC 867 RFC 868 RFC 1305

RFC 1112 RFC 2236 RFC 3376

Daytime protocol Time protocol Network Time Protocol (NTP)

Internet Group Management Protocol (IGMP) IGMP v2 IGMP v3

GLC1320G-55 User’s Guide

Chapter 2 Product Specifications

Table 4 Supported Standards (continued)

STANDARD DESCRIPTION

RFC 1213 RFC 1573 RFC 1757 RFC 2662 RFC 2674 RFC 2863 RFC 3440 RFC 3635 RFC 3636

RFC 1483 Multiprotocol Encapsulation over ATM Adaptation Layer 5 RFC 2131

RFC 2132 RFC 3046

RFC 2138 RFC 2139

RFC 2486 Extensible Authentication Protocol (EAP) RFC 2684 LLC and VC MUX Bridging IEEE 802.1d Transparent Bridging IEEE 802.1p Layer 2 Traffic Prioritization IEEE 802.1Q Virtual Local Area Network (VLAN) IEEE 802.1x Network Authentication

Simple Network Management Protocol (SNMP)

Dynamic Host Configuration Protocol (DHCP)

Remote Authentication Dial In User Service (RADIUS)

2.2 Firmware Naming Conventions

A firmware version includes the model code and release number as shown in the following example.

Firmware Version: V4.02(UHP.0)

"UHP" is the model code.

"0" is this firmware's release number. This varies as new firmware is released. Your firmware's release number may not match what is displayed in this User's Guide.

2.3 Console Cable Pin Assignments

The following diagram and chart show the pin assignments of the console cable.

GLC1320G-55 User’s Guide

Chapter 2 Product Specificatio n s

Figure 3 Console Cable Mini RJ-11 Male Connector

Table 5 Console Cable Connector Pin Assignments

MINI RJ-11 MALE

Pin 2: TXD Pin 3: RXD Pin 4: GND

GLC1320G-55 User’s Guide

This chapter offers some suggestions to solve problems you might encounter. The potential problems are divided into the following categories.

• Power and LEDs

• Data Transmission

• Local Server

• Management and Configuration

3.1 Power and LEDs

CHAPTER 3

Troubleshooting

The SYS or PWR LED does not turn on.

Table 6 SYS LED Troubleshooting

STEPS CORRECTIVE ACTION

1 Make sure the power wires are properly connected to the power supply and the power

2 Make sure the power wires are connected properly. 3 Make sure the line card is properly installed. 4 The LED itself or the unit may be faulty; contact your vendor.

The ALM LED is on.

The ALM (alarm) LED lights when the line card is overheated or the voltage readings are outside the tolerance levels.

Table 7 ALM LED Troubleshooting

STEPS CORRECTIVE ACTION

1Use the sys monitor status command to verify the cause of the alarm. See step 2

supply is operating normally. Make sure you are using the correct power source (refer to the IES User’s Guide).

if the unit is overheated, and step 3 if the voltages are out of the allowed ranges.

GLC1320G-55 User’s Guide 19

Chapter 3 Troubleshooting

Table 7 ALM LED Troubleshooting

STEPS CORRECTIVE ACTION

2 Ensure that the IES is installed in a well- vent ilated area and that normal oper ation of the

fans is not inhibited. Keep the bottom, top and all sides clear of obstructions and away from the exhaust of other equipment.

3 If the voltage levels are outside the allowed range, take a screen shot of the

monitor status command display and contact your vendor.

3.2 Data Transmission

The link is up, but data cannot be transmitted.

Table 8 Data Transmission Troubleshooting

STEPS CORRECTIVE ACTION

1 Check the line card’s port isolation settings.

If the subscriber is having problems with video or other high-bandwidth services, make

sure the line card’s port’s data rates are set high enough. 2 Check the VLAN configuration. 3 Ping the MSC from a computer at the subscriber’s location.

If you cannot ping, connect a Ethernet switch to a subscriber slot (th at is known to

work).

If the Ethernet switch works with a different subscriber slot, there may be a problem with

the transceiver in the original SFP slot or the configuration for the SFP slot.

If using a different slot does not work, try a different Ethernet switch with the original

slot.

sys

3.3 Local Server

The computer behind an Ethernet switch cannot access a local server connected to the line card.

GLC1320G-55 User’s Guide

Table 9 Local Server Troubleshooting

STEPS CORRECTIVE ACTION

1Refer to Section 3.2 on page 20 to make sure that the subscriber is able to transmit to

the line card. 2 Make sure the computer behind the Ethernet switch has the correct gateway IP address

configured. 3 Check the VLAN configuration (refer to the MSC User’s Guide). 4 Check the cable and connections between the line card and the local server. 5 Try to access another local server.

If data can be transmitted to a different local server, the local server that could not be

accessed may have a problem.

3.4 Management and Configuration

Chapter 3 Troubleshooting

The line card is not manageable.

The line card always uses the default configuration. Any changes you made to the line card are stored on the MSC. By default, the MSC is allowed to manage every line card. Use the command on the MSC to see a line card’s connection status. If you still cannot manage the line card from the MSC, the line card’s configuration file may be damaged or the firmware may be old, you may need to restore the default configuration file or upload new firmware using the line card’s console port.

Note: The MSC resets the line card after a period of inactivity on the line card. This may

damage the line card if you are uploading the default configuration file or new firmware to the line card. Use the lcman disable <slot> command on the MSC to prevent the MSC from managing the line card. After you upload the file successfully, use the lcman enable <slot> command on the MSC to allow the MSC to manage the line card again. Refer to the MSC User’s Guide for details about commands.

3.4.1 Uploading the Default Configuration File via Boot Commands

Obtain the default configuration file, unzip it and save it in a folder. Use a console cable to connect a computer with terminal emulation software to the line card’s console port. Pull out the line card and push it back in, you will see the initial screen. When you see the message

enter Debug Mode within 3 seconds

press any key to enter debug mode.

Press any key to

lcman show

To upload the configuration file, do the following:

1 Type atlc after the Enter Debug Mode message.

2 Wait for the Starting XMODEM upload message before activating XMODEM upload on your

terminal.

GLC1320G-55 User’s Guide

Chapter 3 Troubleshooting

Type the configuration file's location, or click Browse to search for it.

Choose the 1K Xmodem protocol.

Then click Send.

3 This is an example Xmodem configuration upload using HyperTerminal. Click Transfer, then Send

File to display the following screen.

Figure 4 Example Xmodem Upload

4 After a successful configuration file upload, type atgo to restart the line card.

Bootbase Version: V1.00 | 03/23/2005 16:10:06 FLASH: AMD 32M Hardware Version: Serial Number: RAM: Size = 133120 Kbytes

ZyNOS Version: V3.50(ABE.0)b3 | 05/11/2005 11:56:26

Press any key to enter debug mode within 3 seconds.

...........

Enter Debug Mode

atlc

Starting XMODEM upload (CRC mode)....

CCCC Total 393216 bytes received.

Erasing...

...........................................................................

.....OK

atgo

3.4.2 Uploading the Firmware via Boot Commands

Usually you should use FTP with the MSC to upload the line card’s firmware. If you cannot manage the line card from the MSC, use the following procedure to upload firmware to the line card.

1 Obtain the firmware file, unzip it and save it in a folder on your computer.

GLC1320G-55 User’s Guide

Chapter 3 Troubleshooting

Type the firmware file's location, or click Browse to search for it.

Choose the 1K Xmodem protocol.

Then click Send.

2 Connect your computer to the console port and use terminal emulation software configured to the

following parameters:

• VT100 terminal emulation • 9600 bps

• No parity, 8 data bits, 1 stop bit • No flow control

3 Pull out the line card and push it back in to restart it and begin a session.

4 When you see the

press a key to enter debug mode.

5 Type

6 Change the configuration of your terminal emulation software to use 115200 bps and reconnect to

7 Type

8 Wait for the

9 This is an example Xmodem configuration upload using HyperTerminal. Click Transfer, then Send

atba5 after the Enter Debug Mode message (this changes the console port speed to

115200 bps).

the line card.

atur after the Enter Debug Mode message.

terminal.

File to display the following screen. Figure 5 Example Xmodem Upload

Press any key to enter Debug Mode within 3 seconds message,

Starting XMODEM upload message before activating XMODEM upload on your

GLC1320G-55 User’s Guide

Chapter 3 Troubleshooting

10 After a successful firmware upload, the line card restarts. The console port speed automatically

changes back to 9600 bps when the line card restarts.

Bootbase Version: V1.00 | 03/23/2005 16:10:06 FLASH: AMD 32M Hardware Version: Serial Number: RAM: Size = 133120 Kbytes

ZyNOS Version: V3.50(ABE.0)b3 | 05/11/2005 11:56:26

Press any key to enter debug mode within 3 seconds.

...........

Enter Debug Mode

atba5

Now, console speed will be changed to 115200 bps

atur

Starting XMODEM upload (CRC mode)....

CCCCCCCC Total 2003968 bytes received.

Erasing...............................

...........................................................................

.........

OK System Reboot... Console speed will be changed to 9600 bps

GLC1320G-55 User’s Guide

APPENDIX A

Legal Information

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.

Certifications

Federal Communications Commission (FCC) Interference Statement

This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operations.

FCC Warning

This device has been tested and found to comply with the limits for a Class A digital switch, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this device in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CE Mark Warning:

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

GLC1320G-55 User’s Guide 25

Appendix A Legal Information

Taiwanese BSMI (Bureau of Standards, Metrology and Inspection) A Warning:

Notices

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Viewing Certifications

1 Go to http://www.zyxel.com.

2 Select your product on the ZyXEL home page to go to that product's page.

3 Select the certification you wish to view from this page.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warr anty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.

To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http://www.zyxel.com/web/ support_warranty_info.php.

GLC1320G-55 User’s Guide

Registration

Safety Warnings

• Do NOT use this product near water, for example, in a wet basement or near a swimming pool.

• Do NOT expose your device to dampness, dust or corrosive liquids.

• Do NOT store things on the device.

• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.

• Connect ONLY suitable accessories to the device.

• Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information.

• Make sure to connect the cables to the correct ports.

• Place connecting cables carefully so that no one will step on them or stumble over them.

• Always disconnect all cables from this device before servicing or disassembling.

• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.

• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.

• Warning! To avoid risk of electric shock, remove only one card at a time and do not place fingers or objects inside the chassis. Cover empty slots with slot covers.

Appendix A Legal Information

For your safety, be sure to read and follow all warning notices and instructions.

"PRODUCT COMPLIES WITH 21 CFR 1040.10 AND 1040.11"

"PRODUIT CONFORME SELON 21CFR 1040.10 ET 1040.11".

CLASS 1 LASER PRODUCT

APPAREIL À LASER DE CLASSE 1

This product is recyclable. Dispose of it properly.

GLC1320G-55 User’s Guide

Appendix A Legal Information

GLC1320G-55 User’s Guide

Index

ALM LED 19

bandwidth control 11

certifications 25, 26

notices 26

viewing 26 classifier 12 console port 12, 23 copyright 25

features 7 filter protocols 10 filter, packet 10 front panel 12

IEEE 802.1Q Tagged VL AN 9 IEEE 802.1x Port-based Authentication 9 isolation 9, 10

LEDs 13 LNK LED 13 lockout 21 log 11

DHCP 11 DHCP (Dynamic Host Configuration Protocol) 11 DHCP Relay Option82 11 DHCP snooping 11 disclaimer 25 double-tagged frames 12

error log 11

FCC interference statement 25

MAC count filter 10 MAC count limit 8 MAC filter 10 multicast bandwidth control 11 multicast group limit 10 Multicast VLAN 9 MVLAN 9

packet filter 10 policy 12 port isolation 9 product registration 27

GLC1320G-55 User’s Guide 29

Index

profile

VDSL 8 protocol filter 10 PWR LED 19

recovering the firmware 22 registration

product 27 related documentation 2

standards, supported 16 static multicast 11 switch lockout 21 SYS LED 19 system error log 11

warranty 26

note 26

XMODEM upload 21, 23 xVLAN 8

Telco-50 connector pin assignments 17 terminal emulation 23 Transparent LAN Service (TLS) 12

USER Telco-50 connectors 17

VDSL profile 8 VLAN 20 VLAN Stacking 12 VLAN stacking 12 VT100 23

GLC1320G-55 User’s Guide30

ZyXEL Communications fiber-based, gigabit ethernet line card User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents Overview

Table of Contents

Introducing the GLC1320G-55

1.1 GLC1320G-55 Overview

1.2 Features

1.3 Front Panel

1.4 Ports and LEDs

1.4.1 Ports

1.4.2 LEDs

2.1 Product Specifications

Product Specifications

2.2 Firmware Naming Conventions

2.3 Console Cable Pin Assignments

3.1 Power and LEDs

Troubleshooting

3.2 Data Transmission

3.3 Local Server

3.4 Management and Configuration

3.4.1 Uploading the Default Configuration File via Boot Commands

3.4.2 Uploading the Firmware via Boot Commands

Legal Information

Index
