Default Login Details
User’s Guide
ZyWALL ATP Series
LAN Port IP Address https://192.168.1.1 User Name admin Password 1234
Version 4.35 Edition 4, 11/2019
Copyright © 2019 Zyxel Communications Corporation
IMPORTANT! READ CAREFULLY BEFORE USE. KEEP THIS GUIDE FOR FUTURE REFERENCE.
This is a User’s Guide for a series of products. Not all products support all firmware features. Screenshots and graphics in this book may differ slightly from your product due to differences in product features or web configurator brand style. Every effort has been made to ensure that the information in this manual is accurate.
Note: The version number on the cover page refers to the Zyxel Device’s latest firmware
version to which this User’s Guide applies.
Related Documentation
•Quick Start Guide The Quick Start Guide shows how to connect the Zyxel Device and access the Web Configurator
wizards. (See the wizard real time help for information on configuring each screen.) It also contains a connection diagram and package contents list.
•CLI Reference Guide The CLI Reference Guide explains how to use the Command-Line Interface (CLI) to configure the
Zyxel Device.
Note: It is recommended you use the Web Configurator to configure the Zyxel Device.
• Web Configurator Online Help Click the help icon in any screen for help in configuring that screen and supplementary information.
•More Information Go to support.zyxel.com to find other information on
Zyxel Device.
ZyWALL ATP Series User’s Guide
2
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this guide.
Warnings tell you about things that could harm you or your device.
Note: Notes tell you other important information (for example, other things you may need to
configure or helpful tips) or recommendations.
Syntax Conventions
• All models in this series may be referred to as the “Zyxel Device” in this guide.
• Product labels, screen names, field labels and field choices are all in bold font.
• A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Configuration >
Network > Interface > Ethernet means you first click Configuration in the navigation panel, then Network, then the Interface sub menu and finally the Ethernet tab to get to that screen.
Icons Used in Figures
Figures in this user guide may use the following generic icons. The Zyxel Device icon is not an exact representation of your device.
Zyxel Device Generic Router Wireless Router / Access Point
Switch Firewall Server
Internet Network Cloud Smartphone
USB Dongle
ZyWALL ATP Series User’s Guide
3
Contents Overview
Contents Overview
Introduction ........................................................................................................................................... 24
Initial Setup Wizard ............................................................................................................................... 48
Hardware, Interfaces and Zones ........................................................................................................ 67
Quick Setup Wizards ............................................................................................................................. 75
Dashboard .......................................................................................................................................... 109
Monitor ................................................................................................................................................. 119
Licensing .............................................................................................................................................. 186
Wireless ................................................................................................................................................. 192
Interfaces ............................................................................................................................................. 213
Routing ................................................................................................................................................. 310
DDNS ................................................................................................................................................... 337
NAT ....................................................................................................................................................... 343
Redirect Service .................................................................................................................................. 351
ALG ....................................................................................................................................................... 357
UPnP ..................................................................................................................................................... 364
IP/MAC Binding ................................................................................................................................... 379
Layer 2 Isolation .................................................................................................................................. 384
DNS Inbound LB .................................................................................................................................. 388
IPnP ....................................................................................................................................................... 394
IPSec VPN ............................................................................................................................................ 396
SSL VPN ................................................................................................................................................ 432
L2TP VPN .............................................................................................................................................. 438
BWM (Bandwidth Management) ..................................................................................................444
Web Authentication .......................................................................................................................... 460
Security Policy ..................................................................................................................................... 489
Application Patrol ............................................................................................................................... 515
Content Filter ....................................................................................................................................... 524
Anti-Malware ....................................................................................................................................... 543
Reputation Filter .................................................................................................................................. 556
IDP ........................................................................................................................................................ 566
Sandboxing ......................................................................................................................................... 584
Email Security ...................................................................................................................................... 588
SSL Inspection ...................................................................................................................................... 599
IP Exception ......................................................................................................................................... 611
Object .................................................................................................................................................. 614
Device HA ........................................................................................................................................... 717
Cloud CNM ........................................................................................................................................ 724
System .................................................................................................................................................. 732
Log and Report ................................................................................................................................... 793
ZyWALL ATP Series User’s Guide
4
Contents Overview
File Manager ....................................................................................................................................... 806
Diagnostics ......................................................................................................................................... 821
Packet Flow Explore ........................................................................................................................... 842
Shutdown ............................................................................................................................................. 849
Troubleshooting .................................................................................................................................. 851
ZyWALL ATP Series User’s Guide
5
Table of Contents
Table of Contents
Document Conventions ............................................ ............................................ .... ... .... ...................3
Contents Overview .............................................................................................................................4
Table of Contents.................................................................................................................................6
Part I: User’s Guide.......................................................................................... 23
Chapter 1
Introduction ........................................................................................................................................24
1.1 Overview ......................................................................................................................................... 24
1.2 Registration at myZyxel .................................................................................................................. 24
1.2.1 Grace Period ......................................................................................................................... 25
1.2.2 Applications ........................................................................................................................... 25
1.3 Management Overview ................................................................................................................ 28
1.4 Web Configurator ........................................................................................................................... 29
1.4.1 Web Configurator Access .................................................................................................... 29
1.4.2 Web Configurator Screens Overview ................................................................................. 32
1.4.3 Navigation Panel .................................................................................................................. 37
1.4.4 Tables and Lists ...................................................................................................................... 44
Chapter 2
Initial Setup Wizard.............................................................................................................................48
2.1 Initial Setup Wizard Screens .......................................................................................................... 48
2.1.1 Internet Access Setup - WAN Interface ............................................................................. 48
2.1.2 Internet Access: Ethernet .................................................................................................... 49
2.1.3 Internet Access: PPPoE ......................................................................................................... 50
2.1.4 Internet Access: PPTP ........................................................................................................... 52
2.1.5 Internet Access: L2TP ............................................................................................................ 54
2.1.6 Internet Access Setup - Second WAN Interface ............................................................... 56
2.1.7 Internet Access: Congratulations ....................................................................................... 57
2.1.8 Date and Time Settings ........................................................................................................ 58
2.1.9 Register Device ..................................................................................................................... 58
2.1.10 Activate Service .................................................................................................................. 60
2.1.11 Service Settings .................................................................................................................... 61
2.1.12 Service Settings: SecuReporter ..........................................................................................62
2.1.13 Wireless Settings: AP Controller ......................................................................................... 64
2.1.14 Wireless Settings: SSID & Security ...................................................................................... 64
ZyWALL ATP Series User’s Guide
6
Table of Contents
2.1.15 Remote Management ......................................................................................................65
Chapter 3
Hardware, Interfaces and Zones......................................................................................................67
3.1 Hardware Overview ....................................................................................................................... 67
3.1.1 Front Panels ............................................................................................................................ 67
3.1.2 Rear Panels ............................................................................................................................ 69
3.2 Mounting ......................................................................................................................................... 70
3.2.1 Rack-mounting ...................................................................................................................... 70
3.2.2 Wall-mounting ....................................................................................................................... 71
3.3 Default Zones, Interfaces, and Ports ............................................................................................ 73
3.4 Stopping the Zyxel Device ............................................................................................................ 74
Chapter 4
Quick Setup Wizards..........................................................................................................................75
4.1 Quick Setup Overview ................................................................................................................... 75
4.2 WAN Interface Quick Setup .......................................................................................................... 76

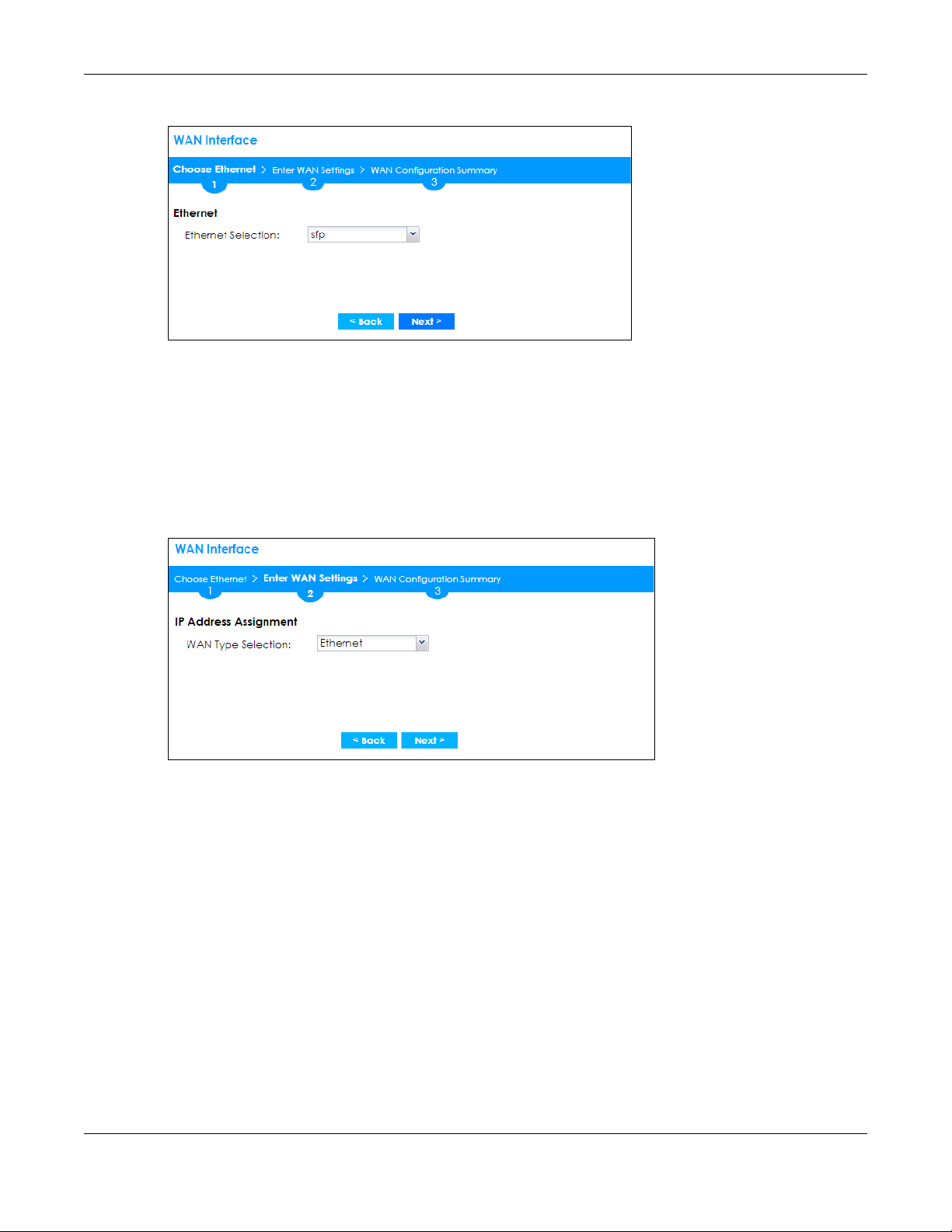

4.2.1 Choose an Ethernet Interface .............................................................................................76
4.2.2 Select WAN Type ................................................................................................................... 77

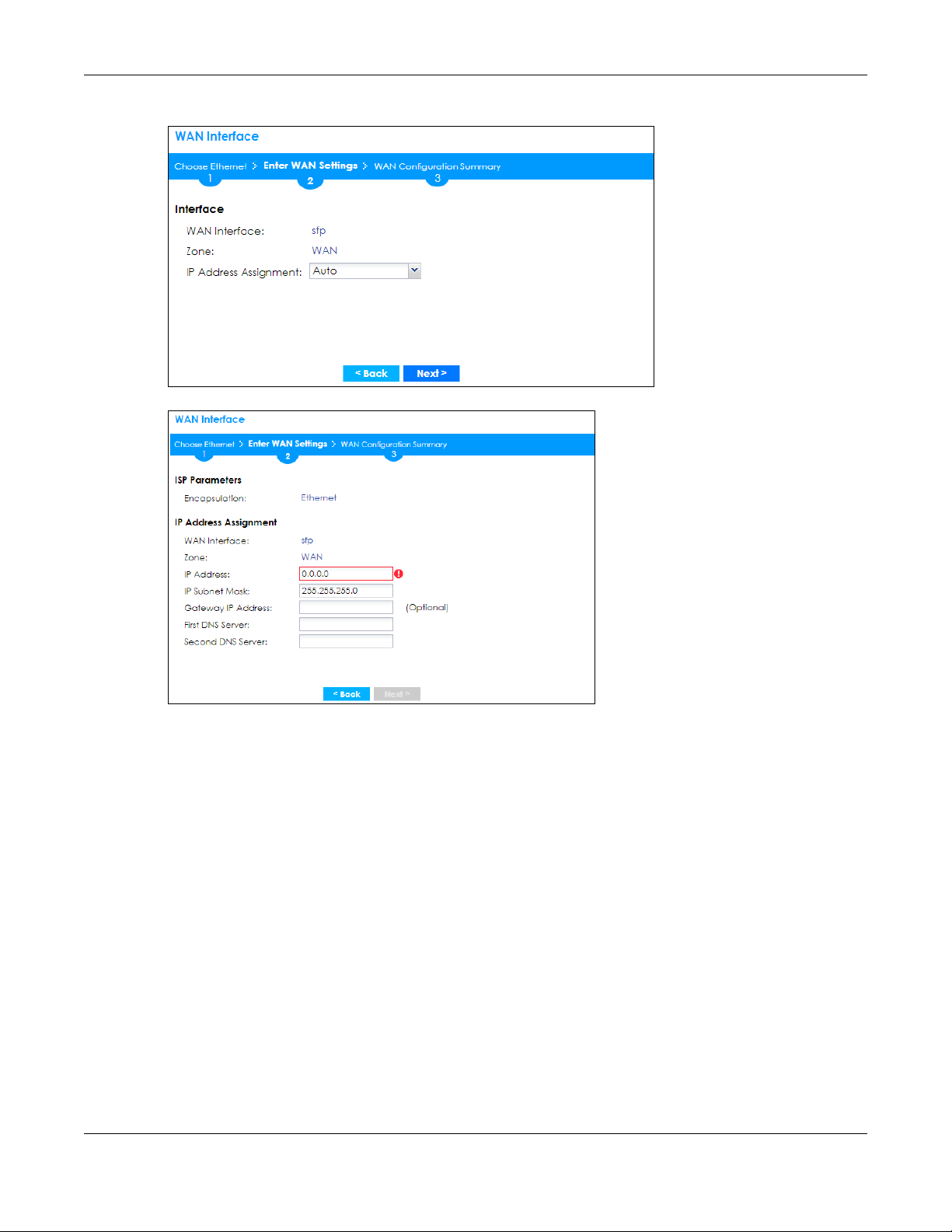

4.2.3 Configure WAN IP Settings ................................................................................................... 77
4.2.4 ISP and WAN and ISP Connection Settings ........................................................................ 78
4.2.5 Quick Setup Interface Wizard: Summary ........................................................................... 81
4.3 VPN Setup Wizard ........................................................................................................................... 82
4.3.1 Welcome ................................................................................................................................ 82
4.3.2 VPN Setup Wizard: Wizard Type .......................................................................................... 83
4.3.3 VPN Express Wizard - Scenario ............................................................................................ 84
4.3.4 VPN Express Wizard - Configuration ................................................................................... 85
4.3.5 VPN Express Wizard - Summary ........................................................................................... 85

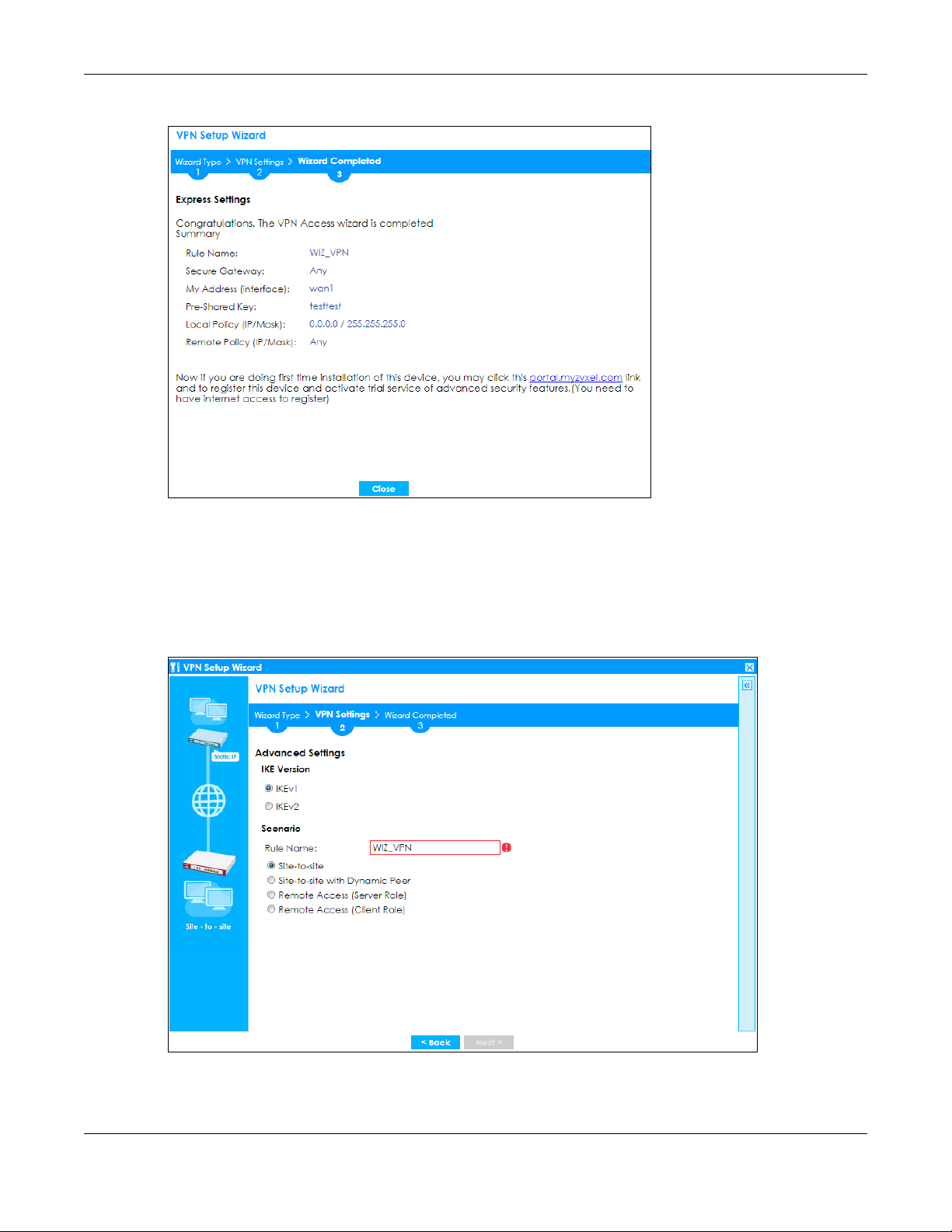

4.3.6 VPN Express Wizard - Finish .................................................................................................. 86
4.3.7 VPN Advanced Wizard - Scenario ..................................................................................... 87

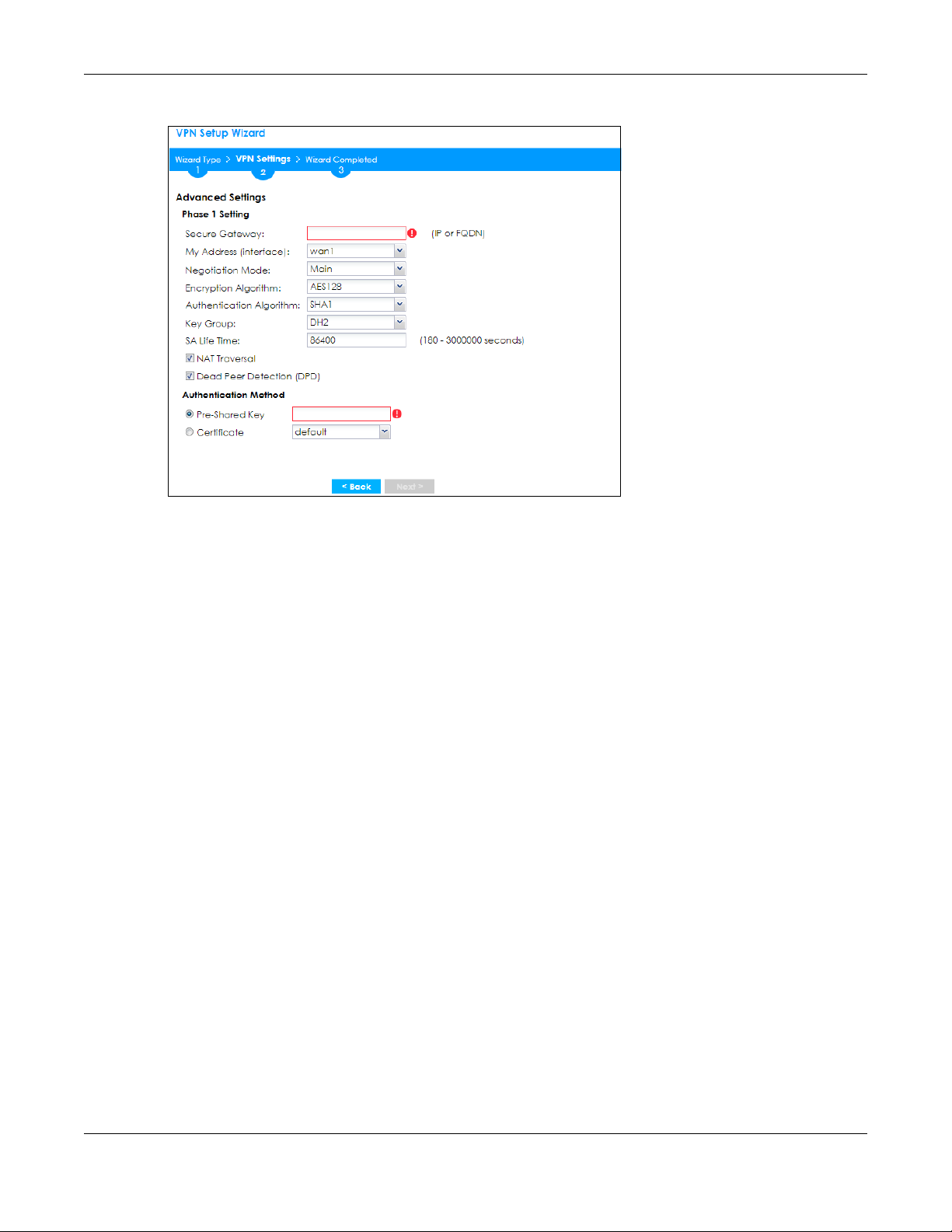

4.3.8 VPN Advanced Wizard - Phase 1 Settings ........................................................................ 88
4.3.9 VPN Advanced Wizard - Phase 2 ....................................................................................... 90

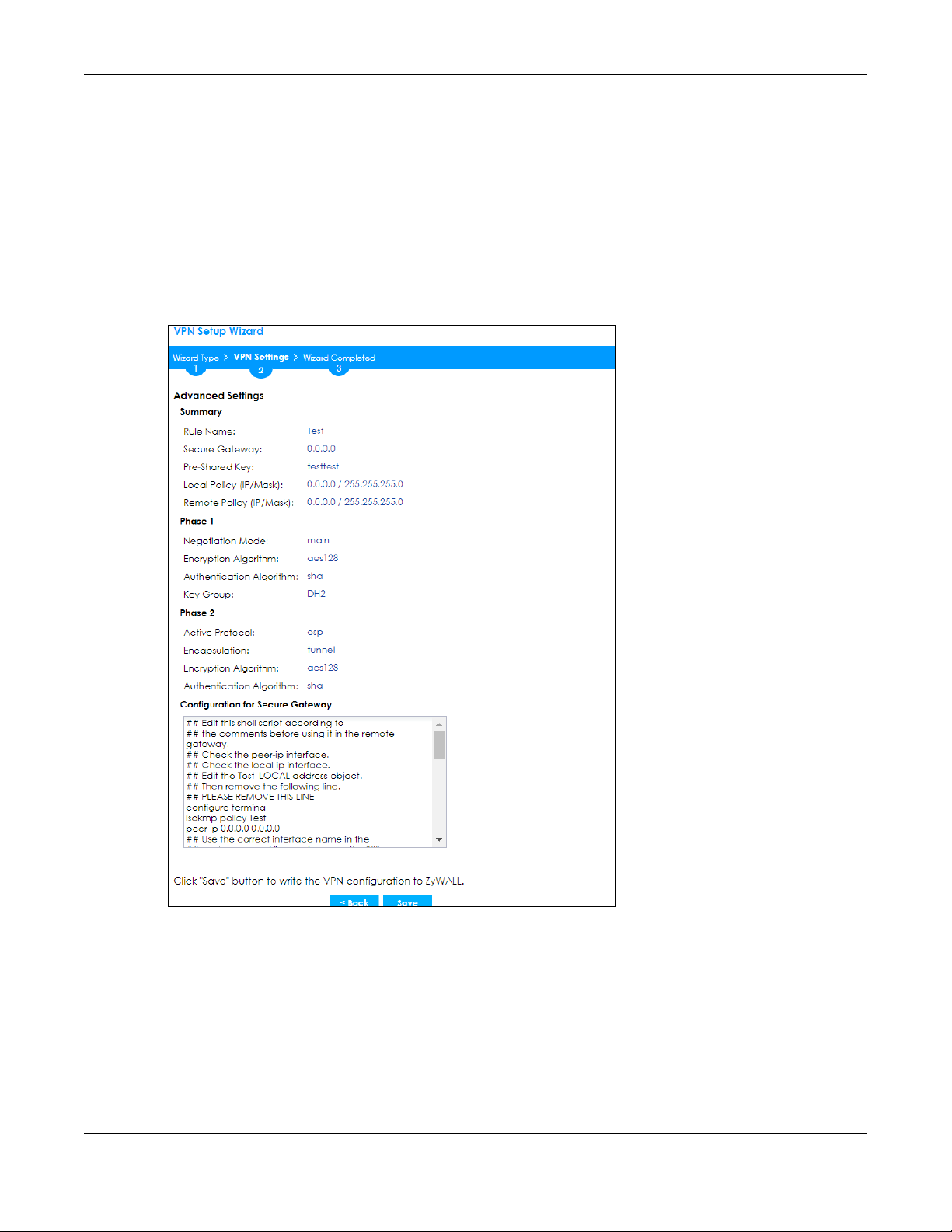

4.3.10 VPN Advanced Wizard - Summary .................................................................................. 91
4.3.11 VPN Advanced Wizard - Finish ......................................................................................... 93
4.4 VPN Settings for Configuration Provisioning Wizard: Wizard Type ............................................. 94
4.4.1 Configuration Provisioning Express Wizard - VPN Settings ............................................... 94
4.4.2 Configuration Provisioning VPN Express Wizard - Configuration .................................... 95
4.4.3 VPN Settings for Configuration Provisioning Express Wizard - Summary ........................ 96
4.4.4 VPN Settings for Configuration Provisioning Express Wizard - Finish ................................ 97
4.4.5 VPN Settings for Configuration Provisioning Advanced Wizard - Scenario ................... 98
4.4.6 VPN Settings for Configuration Provisioning Advanced Wizard - Phase 1 Settings ...... 99
4.4.7 VPN Settings for Configuration Provisioning Advanced Wizard - Phase 2 .................. 101
4.4.8 VPN Settings for Configuration Provisioning Advanced Wizard - Summary ................ 101
ZyWALL ATP Series User’s Guide
7
Table of Contents
4.4.9 VPN Settings for Configuration Provisioning Advanced Wizard- Finish ........................ 104
4.5 VPN Settings for L2TP VPN Settings Wizard ................................................................................. 104
4.5.1 L2TP VPN Settings ................................................................................................................ 105
4.5.2 L2TP VPN Settings ................................................................................................................ 106
4.5.3 VPN Settings for L2TP VPN Setting Wizard - Summary .................................................... 106
4.5.4 VPN Settings for L2TP VPN Setting Wizard Completed ................................................... 108
Chapter 5
Dashboard........................................................................................................................................109
5.1 Overview ....................................................................................................................................... 109
5.1.1 What You Can Do in this Chapter ..................................................................................... 109
5.2 The General Screen ..................................................................................................................... 109
5.2.1 Device Information Screen ................................................................................................111
5.2.2 System Status Screen .......................................................................................................... 112
5.2.3 Tx/Rx Statistics ...................................................................................................................... 112
5.2.4 The Latest Logs Screen ....................................................................................................... 113
5.2.5 System Resources Screen ................................................................................................... 113
5.2.6 DHCP Table Screen ............................................................................................................. 114
5.2.7 Number of Login Users Screen ........................................................................................... 115
5.2.8 Current Login User ............................................................................................................... 116
5.2.9 VPN Status ............................................................................................................................ 116
5.2.10 SSL VPN Status .................................................................................................................... 116
5.3 The Advanced Threat Protection Screen .................................................................................. 117
Part II: Technical Reference.........................................................................118
Chapter 6
Monitor..............................................................................................................................................119
6.1 Overview ....................................................................................................................................... 119
6.1.1 What You Can Do in this Chapter ..................................................................................... 119
6.2 The Port Statistics Screen ............................................................................................................ 121
6.2.1 The Port Statistics Graph Screen ....................................................................................... 122
6.3 Interface Status Screen ................................................................................................................ 123
6.4 The Traffic Statistics Screen .......................................................................................................... 127
6.5 The Session Monitor Screen ........................................................................................................ 129
6.6 The Login Users Screen ................................................................................................................ 131
6.7 IGMP Statistics ............................................................................................................................... 133
6.8 The DDNS Status Screen ............................................................................................................... 134
6.9 IP/MAC Binding ............................................................................................................................. 134
6.10 Cellular Status Screen ................................................................................................................ 135
6.10.1 More Information .............................................................................................................. 138
ZyWALL ATP Series User’s Guide
8
Table of Contents
6.11 The UPnP Port Status Screen ..................................................................................................... 139
6.12 USB Storage Screen .................................................................................................................... 140
6.13 Ethernet Neighbor Screen ........................................................................................................ 141
6.14 FQDN Object Screen ................................................................................................................ 142
6.15 AP Information: AP List ............................................................................................................... 144
6.15.1 AP List: More Information ................................................................................................ 146
6.15.2 AP List: Config AP ............................................................................................................. 149
6.16 AP Information: Radio List .......................................................................................................... 151
6.16.1 Radio List: More Information ............................................................................................153
6.17 AP Information: Top N APs ........................................................................................................ 154
6.18 AP Information: Single AP .......................................................................................................... 156
6.19 ZyMesh ......................................................................................................................................... 157
6.20 SSID Info ....................................................................................................................................... 158
6.21 Station Info: Station List .............................................................................................................. 158
6.22 Station Info: Top N Stations ........................................................................................................ 159
6.23 Station Info: Single Station ......................................................................................................... 160
6.24 Detected Device ....................................................................................................................... 161
6.25 The IPSec Screen ........................................................................................................................ 162
6.26 The SSL Screen ............................................................................................................................. 164
6.27 The L2TP over IPSec Screen ....................................................................................................... 164
6.28 The Content Filter Screen .......................................................................................................... 165
6.29 The App Patrol Screen ............................................................................................................... 167
6.30 The Anti-Malware Screen .......................................................................................................... 168
6.31 The Reputation Filter Screen ...................................................................................................... 170
6.32 The IDP Screen ............................................................................................................................ 172
6.33 The Email Security Screens ......................................................................................................... 174
6.33.1 Email Security Summary ................................................................................................... 174
6.33.2 The Email Security Status Screen ..................................................................................... 176
6.34 The Sandboxing Screen ............................................................................................................. 178
6.35 The SSL Inspection Screens ........................................................................................................ 179
6.35.1 Certificate Cache List ....................................................................................................... 180
6.36 Log Screens ................................................................................................................................. 181
6.36.1 View Log ............................................................................................................................ 181
6.36.2 View AP Log ....................................................................................................................... 183
Chapter 7
Licensing...........................................................................................................................................186
7.1 Registration Overview .................................................................................................................. 186
7.1.1 What you Need to Know ....................................................................................................186
7.1.2 Registration Screen ............................................................................................................. 187
7.1.3 Service Screen ..................................................................................................................... 187
7.2 Signature Update ......................................................................................................................... 189
7.2.1 What you Need to Know ....................................................................................................189
ZyWALL ATP Series User’s Guide
9
Table of Contents
7.2.2 The Signature Screen .......................................................................................................... 190
7.2.3 Auto Update ........................................................................................................................ 190
Chapter 8
Wireless.............................................................................................................................................192
8.1 Overview ....................................................................................................................................... 192
8.1.1 What You Can Do in this Chapter ..................................................................................... 192
8.2 Controller Screen ......................................................................................................................... 192
8.3 AP Management Screens ........................................................................................................... 193
8.3.1 Mgnt. AP List ....................................................................................................................... 193
8.3.2 AP Policy .............................................................................................................................. 197
8.3.3 AP Group ............................................................................................................................. 198
8.3.4 Firmware ............................................................................................................................... 204
8.4 Rogue AP ....................................................................................................................................... 205
8.4.1 Add/Edit Rogue/Friendly List .............................................................................................. 207
8.5 Auto Healing ................................................................................................................................. 208
8.6 RTLS Overview ............................................................................................................................... 209
8.6.1 What You Can Do in this Chapter ..................................................................................... 209
8.6.2 Before You Begin ................................................................................................................. 209
8.6.3 Configuring RTLS .................................................................................................................. 210
8.7 Technical Reference .................................................................................................................... 211
8.7.1 Dynamic Channel Selection .............................................................................................. 211
8.7.2 Load Balancing ................................................................................................................... 212
Chapter 9
Interfaces..........................................................................................................................................213
9.1 Interface Overview ...................................................................................................................... 213
9.1.1 What You Can Do in this Chapter ..................................................................................... 213
9.1.2 What You Need to Know ................................................................................................... 213
9.1.3 What You Need to Do First ................................................................................................. 218
9.2 Port Role ......................................................................................................................................... 218
9.3 Port Configuration ........................................................................................................................ 219
9.4 Ethernet Summary Screen ........................................................................................................... 220
9.4.1 Ethernet Edit ........................................................................................................................ 222
9.4.2 Proxy ARP ............................................................................................................................. 238
9.4.3 Virtual Interfaces ................................................................................................................ 239
9.4.4 References ........................................................................................................................... 240
9.4.5 Add/Edit DHCPv6 Request/Release Options ................................................................... 241
9.4.6 Add/Edit DHCP Extended Options ................................................................................... 242
9.5 PPP Interfaces ............................................................................................................................... 243
9.5.1 PPP Interface Summary ...................................................................................................... 244
9.5.2 PPP Interface Add or Edit .................................................................................................. 245
9.6 Cellular Configuration Screen ..................................................................................................... 250
ZyWALL ATP Series User’s Guide
10
Table of Contents
9.6.1 Cellular Choose Slot ........................................................................................................... 253
9.6.2 Add / Edit Cellular Configuration ...................................................................................... 253
9.7 Tunnel Interfaces .......................................................................................................................... 259
9.7.1 Configuring a Tunnel .......................................................................................................... 261
9.7.2 Tunnel Add or Edit Screen .................................................................................................. 262
9.8 VLAN Interfaces ........................................................................................................................... 266
9.8.1 VLAN Summary Screen ....................................................................................................... 267
9.8.2 VLAN Add/Edit ................................................................................................................... 268
9.9 Bridge Interfaces .......................................................................................................................... 279
9.9.1 Bridge Summary .................................................................................................................. 281
9.9.2 Bridge Add/Edit .................................................................................................................. 282
9.10 VTI ................................................................................................................................................. 293
9.10.1 Restrictions for IPSec Virtual Tunnel Interface ................................................................ 293
9.10.2 VTI Screen .......................................................................................................................... 294
9.10.3 VTI Add/Edit ....................................................................................................................... 294
9.11 Trunk Overview ........................................................................................................................... 298
9.11.1 What You Need to Know ................................................................................................. 298
9.12 The Trunk Summary Screen ........................................................................................................ 301
9.12.1 Configuring a User-Defined Trunk ................................................................................... 302
9.12.2 Configuring the System Default Trunk ............................................................................ 304
9.13 Interface Technical Reference ................................................................................................. 305
Chapter 10
Routing..............................................................................................................................................310
10.1 Policy and Static Routes Overview ........................................................................................... 310
10.1.1 What You Can Do in this Chapter ................................................................................... 310
10.1.2 What You Need to Know ................................................................................................ 311
10.2 Policy Route Screen ................................................................................................................... 312
10.2.1 Policy Route Edit Screen .................................................................................................. 314
10.3 IP Static Route Screen ................................................................................................................ 319
10.3.1 Static Route Add/Edit Screen .......................................................................................... 319
10.4 Policy Routing Technical Reference ........................................................................................321
10.5 Routing Protocols Overview ..................................................................................................... 321
10.5.1 What You Need to Know ................................................................................................. 322
10.6 The RIP Screen ............................................................................................................................. 322
10.7 The OSPF Screen ......................................................................................................................... 324
10.7.1 Configuring the OSPF Screen .......................................................................................... 327
10.7.2 OSPF Area Add/Edit Screen ........................................................................................... 328
10.7.3 Virtual Link Add/Edit Screen ...........................................................................................330
10.8 BGP (Border Gateway Protocol) .............................................................................................. 331
10.8.1 Allow BGP Packets to Enter the Zyxel Device ................................................................ 332
10.8.2 Configuring the BGP Screen ............................................................................................ 332
10.8.3 The BGP Neighbors Screen .............................................................................................. 334
ZyWALL ATP Series User’s Guide
11
Table of Contents
10.8.4 Example Scenario ............................................................................................................. 335
Chapter 11
DDNS ................................................................................................................................................337
11.1 DDNS Overview ........................................................................................................................... 337
11.1.1 What You Can Do in this Chapter ................................................................................... 337
11.1.2 What You Need to Know ................................................................................................. 337
11.2 The DDNS Screen ........................................................................................................................ 338
11.2.1 The Dynamic DNS Add/Edit Screen ................................................................................ 339
Chapter 12
NAT....................................................................................................................................................343
12.1 NAT Overview ............................................................................................................................. 343
12.1.1 What You Can Do in this Chapter ................................................................................... 343
12.1.2 What You Need to Know ................................................................................................. 343
12.2 The NAT Screen ........................................................................................................................... 344
12.2.1 The NAT Add/Edit Screen .................................................................................................346
12.3 NAT Technical Reference .......................................................................................................... 349
Chapter 13
Redirect Service...............................................................................................................................351
13.1 Overview ..................................................................................................................................... 351
13.1.1 HTTP Redirect ..................................................................................................................... 351
13.1.2 SMTP Redirect .................................................................................................................... 351
13.1.3 What You Can Do in this Chapter ................................................................................... 352
13.1.4 What You Need to Know ................................................................................................. 352
13.2 The Redirect Service Screen ..................................................................................................... 354
13.2.1 The Redirect Service Edit Screen ..................................................................................... 355
Chapter 14
ALG....................................................................................................................................................357
14.1 ALG Overview ............................................................................................................................. 357
14.1.1 What You Need to Know ................................................................................................. 357
14.1.2 Before You Begin ............................................................................................................... 360
14.2 The ALG Screen .......................................................................................................................... 360
14.3 ALG Technical Reference ......................................................................................................... 362
Chapter 15
UPnP...................................................................................................................................................364
15.1 UPnP and NAT-PMP Overview ................................................................................................... 364
15.2 What You Need to Know ........................................................................................................... 364
15.2.1 NAT Traversal ..................................................................................................................... 364
15.2.2 Cautions with UPnP and NAT-PMP .................................................................................. 365
ZyWALL ATP Series User’s Guide
12
Table of Contents
15.3 UPnP Screen ................................................................................................................................ 365
15.4 Technical Reference .................................................................................................................. 366
15.4.1 Turning on UPnP in Windows 7 Example ......................................................................... 366
15.4.2 Turn on UPnP in Windows 10 Example ............................................................................ 370
15.4.3 Auto-discover Your UPnP-enabled Network Device .................................................... 372
15.4.4 Web Configurator Easy Access in Windows 7 ............................................................... 375
15.4.5 Web Configurator Easy Access in Windows 10 ............................................................. 377
Chapter 16
IP/MAC Binding................................................................................................................................379
16.1 IP/MAC Binding Overview ......................................................................................................... 379
16.1.1 What You Can Do in this Chapter ................................................................................... 379
16.1.2 What You Need to Know ................................................................................................. 379
16.2 IP/MAC Binding Summary ......................................................................................................... 380
16.2.1 IP/MAC Binding Edit .......................................................................................................... 381
16.2.2 Static DHCP Edit ................................................................................................................ 382
16.3 IP/MAC Binding Exempt List ....................................................................................................... 383
Chapter 17
Layer 2 Isolation...............................................................................................................................384
17.1 Overview ..................................................................................................................................... 384
17.1.1 What You Can Do in this Chapter ................................................................................... 384
17.2 Layer-2 Isolation General Screen ............................................................................................. 384
17.3 White List Screen ......................................................................................................................... 385
17.3.1 Add/Edit White List Rule ................................................................................................... 386
Chapter 18
DNS Inbound LB................................................................................................................................388
18.1 DNS Inbound Load Balancing Overview ................................................................................. 388
18.1.1 What You Can Do in this Chapter ................................................................................... 388
18.2 The DNS Inbound LB Screen ...................................................................................................... 389
18.2.1 The DNS Inbound LB Add/Edit Screen ............................................................................ 390
18.2.2 The DNS Inbound LB Add/Edit Member Screen ............................................................ 392
Chapter 19
IPnP....................................................................................................................................................394
19.1 IPnP Overview ............................................................................................................................ 394
19.1.1 What You Can Do in this Chapter ................................................................................... 394
19.2 IPnP Screen .................................................................................................................................. 395
Chapter 20
IPSec VPN .........................................................................................................................................396
20.1 Virtual Private Networks (VPN) Overview ................................................................................. 396
ZyWALL ATP Series User’s Guide
13
Table of Contents
20.1.1 What You Can Do in this Chapter ................................................................................... 398
20.1.2 What You Need to Know ................................................................................................. 398
20.1.3 Before You Begin ............................................................................................................... 401
20.2 The VPN Connection Screen ..................................................................................................... 401
20.2.1 The VPN Connection Add/Edit Screen .......................................................................... 403
20.3 The VPN Gateway Screen ......................................................................................................... 410
20.3.1 The VPN Gateway Add/Edit Screen ............................................................................... 411
20.4 VPN Concentrator ..................................................................................................................... 418
20.4.1 VPN Concentrator Requirements and Suggestions ...................................................... 418
20.4.2 VPN Concentrator Screen ............................................................................................... 419
20.4.3 The VPN Concentrator Add/Edit Screen ........................................................................ 419
20.5 Zyxel Device IPSec VPN Client Configuration Provisioning .................................................... 420
20.6 IPSec VPN Background Information ......................................................................................... 422
Chapter 21
SSL VPN..............................................................................................................................................432
21.1 Overview ..................................................................................................................................... 432
21.1.1 What You Can Do in this Chapter ................................................................................... 432
21.1.2 What You Need to Know ................................................................................................. 432
21.2 The SSL Access Privilege Screen ................................................................................................ 433
21.2.1 The SSL Access Privilege Policy Add/Edit Screen ......................................................... 434
21.3 The SSL Global Setting Screen ................................................................................................... 436
Chapter 22
L2TP VPN..................................... ... .... .... ............................................ ... .... .........................................438
22.1 Overview ..................................................................................................................................... 438
22.1.1 What You Can Do in this Chapter ................................................................................... 438
22.1.2 What You Need to Know ................................................................................................. 438
22.2 L2TP VPN Screen ......................................................................................................................... 439
22.2.1 Example: L2TP and Zyxel Device Behind a NAT Router ................................................ 441
Chapter 23
BWM (Bandwidth Management) .................................................................................................444
23.1 Overview ..................................................................................................................................... 444
23.1.1 What You Can Do in this Chapter ................................................................................... 444
23.1.2 What You Need to Know ................................................................................................ 444
23.2 The Bandwidth Management Configuration .......................................................................... 448
23.2.1 The Bandwidth Management Add/Edit Screen ............................................................ 451
Chapter 24
Web Authentication ........................................................................................................................460
24.1 Web Auth Overview ................................................................................................................... 460
24.1.1 What You Can Do in this Chapter ................................................................................... 460
ZyWALL ATP Series User’s Guide
14
Table of Contents
24.1.2 What You Need to Know ................................................................................................. 461
24.2 Web Authentication General Screen ...................................................................................... 461
24.2.1 User-aware Access Control Example ............................................................................. 466
24.2.2 Authentication Type Screen ............................................................................................ 472
24.2.3 Custom Web Portal / User Agreement File Screen ....................................................... 476
24.3 SSO Overview .............................................................................................................................. 477
24.4 SSO - Zyxel Device Configuration ............................................................................................. 479
24.4.1 Configuration Overview ................................................................................................... 479
24.4.2 Configure the Zyxel Device to Communicate with SSO .............................................. 479
24.4.3 Enable Web Authentication ............................................................................................ 480
24.4.4 Create a Security Policy ................................................................................................... 482
24.4.5 Configure User Information ..............................................................................................483
24.4.6 Configure an Authentication Method ........................................................................... 484
24.4.7 Configure Active Directory ..............................................................................................485
24.5 SSO Agent Configuration .......................................................................................................... 486
Chapter 25
Security Policy..................................................................................................................................489
25.1 Overview ..................................................................................................................................... 489
25.2 One Security ................................................................................................................................ 490
25.3 What You Can Do in this Chapter ............................................................................................ 493
25.3.1 What You Need to Know ................................................................................................. 493
25.4 The Security Policy Screen ......................................................................................................... 495
25.4.1 Configuring the Security Policy Control Screen ............................................................ 496
25.4.2 The Security Policy Control Add/Edit Screen ................................................................. 500
25.5 Anomaly Detection and Prevention Overview ...................................................................... 501
25.5.1 The Anomaly Detection and Prevention General Screen ........................................... 502
25.5.2 Creating New ADP Profiles ..............................................................................................503
25.5.3 Traffic Anomaly Profiles ................................................................................................... 504
25.5.4 Protocol Anomaly Profiles ................................................................................................ 507
25.6 The Session Control Screen ........................................................................................................ 510
25.6.1 The Session Control Add/Edit Screen .............................................................................. 511
25.7 Security Policy Example Applications ......................................................................................512
Chapter 26
Application Patrol............................................................................................................................515
26.1 Overview ..................................................................................................................................... 515
26.1.1 What You Can Do in this Chapter ................................................................................... 515
26.1.2 What You Need to Know ................................................................................................ 515
26.2 Application Patrol Profile ........................................................................................................... 516
26.2.1 Apply to a Security Policy ................................................................................................ 517
26.2.2 The Application Patrol Profile Add/Edit Screen - My Application ............................... 520
26.2.3 The Application Patrol Profile Add/Edit Screen - Query Result .................................... 521
ZyWALL ATP Series User’s Guide
15
Table of Contents
Chapter 27
Content Filter ....................................................................................................................................524
27.1 Overview ..................................................................................................................................... 524
27.1.1 What You Can Do in this Chapter ................................................................................... 524
27.1.2 What You Need to Know ................................................................................................. 524
27.1.3 Before You Begin ............................................................................................................... 526
27.2 Content Filter Profile Screen ...................................................................................................... 526
27.2.1 Apply to a Security Policy ................................................................................................ 527
27.2.2 Content Filter Add Profile Category Service .................................................................. 530
27.2.3 Content Filter Add Filter Profile Custom Service ........................................................... 536
27.3 Content Filter Trusted Web Sites Screen ................................................................................. 539
27.4 Content Filter Forbidden Web Sites Screen ............................................................................ 540
27.5 Content Filter Technical Reference ......................................................................................... 541
Chapter 28
Anti-Malware....................................................................................................................................543
28.1 Overview ..................................................................................................................................... 543
28.1.1 What You Can Do in this Chapter ................................................................................... 547
28.2 Anti-Malware Screen ................................................................................................................. 548
28.3 The Black List Screen .................................................................................................................. 551
28.4 The White List Screen .................................................................................................................. 552
28.5 Anti-Malware Signature Searching ........................................................................................... 553
28.6 Anti-Malware Technical Reference ......................................................................................... 554
Chapter 29
Reputation Filter ...............................................................................................................................556
29.1 Overview ..................................................................................................................................... 556
29.1.1 What You Need to Know ................................................................................................. 556
29.1.2 What You Can Do in this Chapter ................................................................................... 556
29.2 IP Reputation Screen .................................................................................................................. 556
29.2.1 IP Reputation White List Screen ....................................................................................... 559
29.2.2 IP Reputation Black List Screen ........................................................................................ 560
29.3 Botnet Filter Screen ..................................................................................................................... 561
29.3.1 Botnet Filter White List Screen .......................................................................................... 564
29.3.2 Botnet Filter Black List Screen ........................................................................................... 565
Chapter 30
IDP .....................................................................................................................................................566
30.1 Overview ..................................................................................................................................... 566
30.1.1 What You Can Do in this Chapter ................................................................................... 566
30.1.2 What You Need To Know ................................................................................................. 566
30.1.3 Before You Begin ............................................................................................................... 566
30.2 The IDP Screen ............................................................................................................................ 566
ZyWALL ATP Series User’s Guide
16
Table of Contents
30.2.1 Query Example .................................................................................................................. 571
30.3 IDP Custom Signatures .............................................................................................................. 572
30.3.1 Add / Edit Custom Signatures ......................................................................................... 573
30.3.2 Custom Signature Example ............................................................................................. 577
30.3.3 Applying Custom Signatures ............................................................................................ 579
30.3.4 Verifying Custom Signatures ............................................................................................ 580
30.4 The White List Screen ................................................................................................................. 580
30.5 IDP Technical Reference ........................................................................................................... 581
Chapter 31
Sandboxing ......................................................................................................................................584
31.1 Overview ..................................................................................................................................... 584
31.1.1 What You Need to Know ................................................................................................. 585
31.2 Sandboxing Screen .................................................................................................................... 585
Chapter 32
Email Security...................................................................................................................................588
32.1 Overview ..................................................................................................................................... 588
32.1.1 What You Can Do in this Chapter ................................................................................... 588
32.1.2 What You Need to Know ................................................................................................. 588
32.2 Before You Begin ........................................................................................................................ 589
32.3 The Email Security Screen .......................................................................................................... 590
32.4 The Black List / White List Screen ............................................................................................... 593
32.4.1 The Black or White List Add/Edit Screen ......................................................................... 594
32.4.2 Regular Expressions in Black or White List Entries ........................................................... 595
32.5 Email Security Technical Reference ......................................................................................... 595
Chapter 33
SSL Inspection...................................................................................................................................599
33.1 Overview ..................................................................................................................................... 599
33.1.1 What You Can Do in this Chapter ................................................................................... 599
33.1.2 What You Need To Know ................................................................................................. 599
33.1.3 Before You Begin ............................................................................................................... 600
33.2 The SSL Inspection Profile Screen .............................................................................................. 600
33.2.1 Apply to a Security Policy ................................................................................................ 601
33.2.2 Add / Edit SSL Inspection Profiles .................................................................................... 604
33.3 Exclude List Screen .................................................................................................................... 605
33.4 Certificate Update Screen ....................................................................................................... 607
33.5 Install a CA Certificate in a Browser ......................................................................................... 608
Chapter 34
IP Exception......................................................................................................................................611
34.1 Overview ..................................................................................................................................... 611
ZyWALL ATP Series User’s Guide
17
Table of Contents
34.2 The IP Exception Screen ............................................................................................................ 611
34.2.1 The IP Exception Add/Edit Screen ................................................................................. 612
Chapter 35
Object...............................................................................................................................................614
35.1 Zones Overview .......................................................................................................................... 614
35.1.1 What You Need to Know ................................................................................................. 614
35.1.2 The Zone Screen ................................................................................................................ 615
35.2 User/Group Overview ................................................................................................................ 617
35.2.1 What You Need To Know ................................................................................................. 617
35.2.2 User/Group User Summary Screen .................................................................................. 619
35.2.3 User/Group Group Summary Screen .............................................................................. 624
35.2.4 User/Group Setting Screen ............................................................................................. 625
35.2.5 User/Group MAC Address Summary Screen ................................................................ 630
35.2.6 User /Group Technical Reference .................................................................................. 632
35.3 AP Profile Overview .................................................................................................................... 632
35.3.1 Radio Screen ..................................................................................................................... 633
35.3.2 SSID Screen ....................................................................................................................... 639
35.4 MON Profile ................................................................................................................................ 648
35.4.1 Overview ............................................................................................................................ 648
35.4.2 Configuring MON Profile ................................................................................................. 649
35.4.3 Add/Edit MON Profile ....................................................................................................... 650
35.4.4 Technical Reference ........................................................................................................ 651
35.5 ZyMesh Overview ....................................................................................................................... 652
35.5.1 ZyMesh Profile .................................................................................................................... 654
35.5.2 Add/Edit ZyMesh Profile ................................................................................................... 655
35.6 Address/Geo IP Overview ......................................................................................................... 655
35.6.1 What You Need To Know ................................................................................................. 656
35.6.2 Address Summary Screen ................................................................................................ 656
35.6.3 Address Group Summary Screen .................................................................................... 660
35.6.4 Geo IP Summary Screen .................................................................................................. 662
35.7 Service Overview ........................................................................................................................ 665
35.7.1 What You Need to Know ................................................................................................. 665
35.7.2 The Service Summary Screen .......................................................................................... 666
35.7.3 The Service Group Summary Screen ............................................................................. 668
35.8 Schedule Overview ................................................................................................................... 670
35.8.1 What You Need to Know ................................................................................................. 670
35.8.2 The Schedule Screen ........................................................................................................ 670
35.8.3 The Schedule Group Screen ............................................................................................ 673
35.9 AAA Server Overview ............................................................................................................... 675
35.9.1 Directory Service (AD/LDAP) ........................................................................................... 676
35.9.2 RADIUS Server .................................................................................................................... 676
35.9.3 ASAS .................................................................................................................................... 676
ZyWALL ATP Series User’s Guide
18
Table of Contents
35.9.4 What You Need To Know ................................................................................................. 677
35.9.5 Active Directory or LDAP Server Summary ..................................................................... 678
35.9.6 RADIUS Server Summary ...................................................................................................682
35.10 Auth. Method Overview ........................................................................................................ 685
35.10.1 Before You Begin ............................................................................................................. 685
35.10.2 Example: Selecting a VPN Authentication Method ................................................... 685
35.10.3 Authentication Method Objects ................................................................................... 686
35.10.4 Two-Factor Authentication VPN Access ...................................................................... 688
35.10.5 Two-Factor Authentication Admin Access .................................................................. 691
35.11 Certificate Overview ............................................................................................................... 693
35.11.1 What You Need to Know ............................................................................................... 693
35.11.2 Verifying a Certificate .................................................................................................... 695
35.11.3 The My Certificates Screen ............................................................................................ 696
35.11.4 The Trusted Certificates Screen .................................................................................... 705
35.11.5 Certificates Technical Reference ................................................................................. 710
35.12 ISP Account Overview ............................................................................................................ 710
35.12.1 ISP Account Summary ....................................................................................................710
35.13 DHCPv6 Overview .................................................................................................................... 713
35.13.1 The DHCPv6 Request Screen ......................................................................................... 713
35.13.2 The DHCPv6 Lease Screen ............................................................................................. 715
Chapter 36
Device HA.........................................................................................................................................717
36.1 Device HA Overview .................................................................................................................. 717
36.1.1 What You Can Do in These Screens ................................................................................ 717
36.2 Device HA Status ........................................................................................................................ 717
36.3 Device HA Pro ............................................................................................................................. 719
36.3.1 Deploying Device HA Pro ................................................................................................ 720
36.3.2 Configuring Device HA Pro .............................................................................................. 720
36.4 View Log ...................................................................................................................................... 722
Chapter 37
Cloud CNM......................................................................................................................................724
37.1 Cloud CNM Overview ................................................................................................................ 724
37.1.1 What You Can Do in this Chapter ................................................................................... 724
37.2 Cloud CNM SecuManager ....................................................................................................... 724
37.3 Cloud CNM SecuReporter ......................................................................................................... 727
Chapter 38
System...............................................................................................................................................732
38.1 Overview ..................................................................................................................................... 732
38.1.1 What You Can Do in this Chapter ................................................................................... 732
38.2 Host Name ................................................................................................................................... 733
ZyWALL ATP Series User’s Guide
19
Table of Contents
38.3 USB Storage ................................................................................................................................. 733
38.4 Date and Time ............................................................................................................................ 734
38.4.1 Pre-defined NTP Time Servers List ..................................................................................... 737
38.4.2 Time Server Synchronization ............................................................................................ 737
38.5 Console Port Speed ................................................................................................................... 738
38.6 DNS Overview ............................................................................................................................. 739
38.6.1 DNS Server Address Assignment ...................................................................................... 739
38.6.2 Configuring the DNS Screen ............................................................................................ 739
38.6.3 (IPv6) Address Record ...................................................................................................... 743
38.6.4 PTR Record ......................................................................................................................... 743
38.6.5 Adding an (IPv6) Address/PTR Record .......................................................................... 743
38.6.6 CNAME Record ................................................................................................................. 744
38.6.7 Adding a CNAME Record ................................................................................................ 744
38.6.8 Domain Zone Forwarder ................................................................................................. 745
38.6.9 Adding a Domain Zone Forwarder ................................................................................. 745
38.6.10 MX Record ...................................................................................................................... 746
38.6.11 Adding a MX Record ...................................................................................................... 746
38.6.12 Security Option Control .................................................................................................. 747
38.6.13 Editing a Security Option Control .................................................................................. 747
38.6.14 Adding a DNS Service Control Rule .............................................................................. 748
38.7 WWW Overview .......................................................................................................................... 749
38.7.1 Service Access Limitations ............................................................................................... 749
38.7.2 System Timeout .................................................................................................................. 749
38.7.3 HTTPS ................................................................................................................................... 749
38.7.4 Configuring WWW Service Control ................................................................................. 750
38.7.5 Service Control Rules ........................................................................................................ 753
38.7.6 Customizing the WWW Login Page ................................................................................ 754
38.7.7 HTTPS Example ................................................................................................................... 759
38.8 SSH ............................................................................................................................................. 766
38.8.1 How SSH Works .................................................................................................................. 767
38.8.2 SSH Implementation on the Zyxel Device ...................................................................... 768
38.8.3 Requirements for Using SSH ..............................................................................................768
38.8.4 Configuring SSH ................................................................................................................. 768
38.8.5 Service Control Rules ........................................................................................................ 769
38.8.6 Secure Telnet Using SSH Examples .................................................................................. 770
38.9 Telnet ........................................................................................................................................... 771
38.9.1 Configuring Telnet ............................................................................................................. 771
38.9.2 Service Control Rules ........................................................................................................ 773
38.10 FTP .............................................................................................................................................. 773
38.10.1 Configuring FTP ................................................................................................................ 773
38.10.2 Service Control Rules ...................................................................................................... 775
38.11 SNMP ......................................................................................................................................... 775
38.11.1 SNMPv3 and Security ...................................................................................................... 776
ZyWALL ATP Series User’s Guide
20
Table of Contents
38.11.2 Supported MIBs ............................................................................................................... 777
38.11.3 SNMP Traps ....................................................................................................................... 777
38.11.4 Configuring SNMP ........................................................................................................... 777
38.11.5 Add SNMPv3 User ............................................................................................................ 780
38.11.6 Service Control Rules ...................................................................................................... 780
38.12 Authentication Server .............................................................................................................. 781
38.12.1 Add/Edit Trusted RADIUS Client .................................................................................... 783
38.13 Notification > Mail Server ......................................................................................................... 783
38.14 Notification > SMS ..................................................................................................................... 785
38.15 Language Screen ..................................................................................................................... 786
38.16 IPv6 Screen ................................................................................................................................ 787
38.17 Zyxel One Network (ZON) Utility ............................................................................................. 787
38.17.1 Requirements ................................................................................................................... 788
38.17.2 Run the ZON Utility ........................................................................................................... 788
38.17.3 Zyxel One Network (ZON) System Screen .................................................................... 792
Chapter 39
Log and Report....... .... ... ............................................. ... .... ............................................ ...................793
39.1 Overview ..................................................................................................................................... 793
39.1.1 What You Can Do In this Chapter .................................................................................. 793
39.2 Email Daily Report ....................................................................................................................... 793
39.3 Log Setting Screens ................................................................................................................... 795
39.3.1 Log Setting Summary ........................................................................................................ 795
39.3.2 Edit System Log Settings .................................................................................................. 796
39.3.3 Edit Log on USB Storage Setting ..................................................................................... 800
39.3.4 Edit Remote Server Log Settings ..................................................................................... 801
39.3.5 Log Category Settings Screen ......................................................................................... 803
Chapter 40
File Manager ....................................................................................................................................806
40.1 Overview ..................................................................................................................................... 806
40.1.1 What You Can Do in this Chapter ................................................................................... 806
40.1.2 What you Need to Know .................................................................................................. 806
40.2 The Configuration File Screen ................................................................................................... 808
40.3 Firmware Management ........................................................................................................... 812
40.3.1 Cloud Helper ..................................................................................................................... 812
40.3.2 The Firmware Management Screen ............................................................................... 815
40.3.3 Firmware Upgrade via USB Stick ...................................................................................... 818
40.4 The Shell Script Screen .............................................................................................................. 818
Chapter 41
Diagnostics ......................................................................................................................................821
41.1 Overview ..................................................................................................................................... 821
ZyWALL ATP Series User’s Guide
21
Table of Contents
41.1.1 What You Can Do in this Chapter ................................................................................... 821
41.2 The Diagnostics Screens ............................................................................................................ 821
41.2.1 The Diagnostics Collect Screen ....................................................................................... 822
41.2.2 The Diagnostics Collect on AP Screen ........................................................................... 823
41.2.3 The Diagnostics Files Screen ............................................................................................824
41.3 The Packet Capture Screen ...................................................................................................... 825
41.3.1 The Packet Capture on AP Screen ................................................................................. 828
41.3.2 The Packet Capture Files Screen .................................................................................... 831
41.4 The CPU / Memory Status Screen ............................................................................................. 832
41.5 The System Log Screen .............................................................................................................. 834
41.6 The Remote Assistance Screen ................................................................................................. 834
41.7 The Network Tool Screen ........................................................................................................... 836
41.8 The Routing Traces Screen ........................................................................................................ 838
41.9 The Wireless Frame Capture Screen ........................................................................................839
41.9.1 The Wireless Frame Capture Files Screen ...................................................................... 841
Chapter 42
Packet Flow Explore ........................................................................................................................842
42.1 Overview ..................................................................................................................................... 842
42.1.1 What You Can Do in this Chapter ................................................................................... 842
42.2 The Routing Status Screen ......................................................................................................... 842
42.3 The SNAT Status Screen .............................................................................................................. 846
Chapter 43
Shutdown..........................................................................................................................................849
43.1 Overview ..................................................................................................................................... 849
43.1.1 What You Need To Know ................................................................................................. 849
43.2 The Shutdown Screen ................................................................................................................ 849
Part III: Appendices and Troubleshooting..................................................850
Chapter 44
Troubleshooting................................................................................................................................851
44.1 Resetting the Zyxel Device ........................................................................................................ 864
44.2 Getting More Troubleshooting Help .........................................................................................865
Appendix A Customer Support ..................................................................................................... 866
Appendix B Product Features........................................................................................................ 872
Appendix C Legal Information ...................................................................................................... 875
Index.................................................................................................................................................883
ZyWALL ATP Series User’s Guide
22
PART I
User’s Guide
23
1.1 Overview
Zyxel Device refers to these models as outlined below.
• ATP100
• ATP100W
• ATP200
• ATP500
• ATP700
• ATP800
Most screen shots in this guide come from the ATP200.
CHAPTER 1
Introduction
Note the following differences between the device models:
• ATP500 and ATP800 support Device HA Pro.
• Some interface names vary by model - see Table 14 on page 73 and Table 15 on page 73 for default port / interface name mapping. See Table 17 on page 73 for default interface / zone mapping.
See the product’s datasheet for detailed information on a specific model.
1.2 Registration at myZyxel
myZyxel is Zyxel’s online services center where you can register your Zyxel Device and manage subscription services available for your Zyxel Device (see Configuration > Licensing > Registration > Service for services available for your Zyxel Device).
• For Zyxel Devices that already have firmware version 4.25 or later, you have to register your Zyxel Device and activate the corresponding service at myZyxel (through your Zyxel Device).
• For Zyxel Devices upgrading to firmware version 4.25 or later, you may skip registering your Zyxel Device and activating the corresponding service at myZyxel (through your Zyxel Device). However, it is highly recommended to at least register your Zyxel Device. At the time of writing, the Firmware Upgrade license providing Cloud Helper new firmware notifications, is free when you register your Zyxel Device.
Note: You need to create a myZyxel account at http://portal.myZyxel.com before you can
register your device and activate the services at myZyxel.
You may need your Zyxel Device’s serial number and LAN MAC address to register it at myZyxel. See the label at the back of the Zyxel Device’s for details.
ZyWALL ATP Series User’s Guide
24
Figure 1 myZyxel Login
1.2.1 Grace Period
Chapter 1 Introduction
SecuReporter and service licenses have a 15-day grace period after a license expires. Services will continue to work in this period during which you will receive notifications to renew your license(s). New license(s) are valid for 1 year from the date of purchase.
1.2.2 Applications
These are some Zyxel Device application scenarios.
Security Router
Security includes a Stateful Packet Inspection (SPI) firewall.
Figure 2 Applications: Security Router Applications: Security Router
ZyWALL ATP Series User’s Guide
25
Chapter 1 Introduction
IPv6 Routing
The Zyxel Device supports IPv6 Ethernet, PPP, VLAN, and bridge routing. You may also create IPv6 policy routes and IPv6 objects. The Zyxel Device can also route IPv6 packets through IPv4 networks using different tunneling methods.
Figure 3 Applications: IPv6 Routing
VPN Connectivity
Set up VPN tunnels with other companies, branch offices, telecommuters, and business travelers to provide secure access to your network. AS is an Authentication Server in the below figure.
Figure 4 Applications: VPN Connectivity
SSL VPN Network Access
SSL VPN lets remote users use their web browsers for a very easy-to-use VPN solution. A user just browses to the Zyxel Device’s web address and enters his user name and password to securely connect to the Zyxel Device’s network. Here full tunnel mode creates a virtual connection for a remote user and gives him a private IP address in the same subnet as the local network so he can access network resources in the same way as if he were part of the internal network.
ZyWALL ATP Series User’s Guide
26
Chapter 1 Introduction
Web Mail File Share
Web-based Application
https://
Application Server
Non-Web
LAN (192.168.1.X)
Figure 5 SSL VPN With Full Tunnel Mode
User-Aware Access Control
Set up security policies to restrict access to sensitive information and shared resources based on the user who is trying to access it. In the following figure user A can access both the Internet and an internal file server. User B has a lower level of access and can only access the Internet. User C is not even logged in, so and cannot access either the Internet or the file server.
Figure 6 Applications: User-Aware Access Control
Load Balancing
Set up multiple connections to the Internet on the same port, or different ports, including cellular interfaces. In either case, you can balance the traffic loads between them.
Figure 7 Applications: Multiple WAN Interfaces
ZyWALL ATP Series User’s Guide
27
Chapter 1 Introduction
1.3 Management Overview
You can manage the Zyxel Device in the following ways.
Web Configurator
The Web Configurator allows easy Zyxel Device setup and management using an Internet browser. This User’s Guide provides information about the Web Configurator.
Figure 8 Managing the Zyxel Device: Web Configurator
Command-Line Interface (CLI)
The CLI allows you to use text-based commands to configure the Zyxel Device. Access it using remote management (for example, SSH or Telnet) or via the physical or Web Configurator console port. See the Command Reference Guide for CLI details. The default settings for the console port are:
Table 1 Console Port Default Settings
SETTING VALUE
Speed 115200 bps
Data Bits 8
Parity None
Stop Bit 1
Flow Control Off
FTP
Use File Transfer Protocol for firmware upgrades and configuration backup/restore.
SNMP
The device can be monitored and/or managed by an SNMP manager. See Section 38.11 on page 775.
ZyWALL ATP Series User’s Guide
28
Chapter 1 Introduction
CloudCNM
Use the CloudCNM screen (see Section 38.15 on page 786) to enable and configure management of the Zyxel Device by a Central Network Management system.
Management Authentication
Managers must be authenticated with a username and password, using one of:
•Local
• An external RADIUS server
• An external LDAP server
• Certificates
Zyxel Device authentication
1.4 Web Configurator
In order to use the Web Configurator, you must:
• Use one of the following web browser versions or later:
• Internet Explorer 10.x, 11.x
• Chrome latest version (45 or above)
• Firefox latest version (45 or above)
• Safari latest version (9.0 or above)
• Allow pop-up windows (blocked by default in some browsers)
• Enable JavaScripts, Java permissions, and cookies
The recommended screen resolution is 1024 x 768 pixels.
Note: Screenshots and graphics in this book may differ slightly from your product due to
differences in product features or web configurator brand style. Most screen shots in this guide come from the USG110 and USG60W.
1.4.1 Web Configurator Access
1 Make sure your Zyxel Device hardware is properly connected. See the Quick Start Guide.
2 In your browser go to http://192.168.1.1. By default, the Zyxel Device automatically routes this request to
its HTTPS server, and it is recommended to keep this setting. The Login screen appears.
ZyWALL ATP Series User’s Guide
29
Chapter 1 Introduction
3 Type the user name (default: “admin”) and password (default: “1234”).
4 Click Login. After you log in for the first time using the default user name and password, you must
change the default admin password in the Update Admin Info screen. Enter a new password of from 1 to 64 characters.
In Configuration > Object > User/Group > Setting, you can enable Password Complexity to require a new password to consist of at least 8 characters and at most 64, where at least 1 character must be a number, at least 1 a lower case letter, at least 1 an upper case letter and at least 1 a special character from the keyboard, such as !@#$%^&*()_+. You can also require periodic changing of the password in that screen by configuring Password must changed every (days).
Make a note of your new password, enter it in the following screen, then click Apply.
5 A Terms of Use screen displays. Read the statement, then click Acknowledge to proceed.
Note: If you are using an Internet Explorer browser, the Terms of Use will be downloaded
automatically.
ZyWALL ATP Series User’s Guide
30
Chapter 1 Introduction
6 The Network Risk Warning screen displays any unregistered or disabled security services. If your Zyxel
Device is not registered, you will see a prompt to register it. Select how often to display the screen and click OK.
ZyWALL ATP Series User’s Guide
31
Chapter 1 Introduction
If you select Never and you later want to bring this screen back, use these commands (note the space before the underscore).
Router> enable Router# Router# configure terminal Router(config)# Router(config)# service-register _setremind after-10-days after-180-days after-30-days every-time never Router(config)# service-register _setremind every-time Router(config)#
See the Command Line Interface (CLI) Reference Guide (RG) for details on all supported commands.
7 Follow the directions in the Update Admin Info screen. If you change the default password, the Login
screen appears after you click Apply. If you click Ignore, the Installation Setup Wizard opens if the ZyWALL is using its default configuration; otherwise the dashboard appears.
1.4.2 Web Configurator Screens Overview
The Web Configurator screen is divided into these parts:
• A - title bar
• B - navigation panel
• C - main window
ZyWALL ATP Series User’s Guide
32
Chapter 1 Introduction
A
C
B
Title Bar
Figure 9 Title Bar
The title bar icons in the upper right corner provide the following functions.
Table 2 Title Bar: Web Configurator Icons
LABEL DESCRIPTION
SecuReporter Click this to open the SecuReporter portal page.
This icon shows when the Zyxel Device is added to an organization.
Web Console Click this to open one or multiple console windows from which you can run command line
interface (CLI) commands. You will be prompted to enter your user name and password. See the Command Reference Guide for information about the commands.
Logging in to the Zyxel Device with HTTPS, so you can open one or multiple console windows.
CLI Click this to open a popup window that displays the CLI commands sent by the Web
Configurator to the Zyxel Device.
Reference Click this to check which configuration items reference an object.
Site Map Click this to see an overview of links to the Web Configurator screens.
Forum Go to https://businessforum.zyxel.com for product discussions.
Help Click this to open the help page for the current screen.
ZyWALL ATP Series User’s Guide
33
Chapter 1 Introduction
Table 2 Title Bar: Web Configurator Icons (continued)
LABEL DESCRIPTION
About Click this to display basic information about the Zyxel Device.
Logout Click this to log out of the Web Configurator.
About
Click About to display basic information about the Zyxel Device.
Figure 10 About
Table 3 About
LABEL DESCRIPTION
Current Version This shows the firmware version of the Zyxel Device.
Released Date This shows the date (yyyy-mm-dd) and time (hh:mm:ss) when the firmware is released.
OK Click this to close the screen.
Site Map
Click Site MAP to see an overview of links to the Web Configurator screens. Click a screen’s link to go to that screen.
ZyWALL ATP Series User’s Guide
34
Figure 11 Site Map
Chapter 1 Introduction
Web Console
Click Web Console to open one or multiple console windows from which you can run CLI commands. You will be prompted to enter your user name and password. See the Command Reference Guide for information about the commands. Logging in to the Zyxel Device with HTTPS, so you can open one or multiple console windows.
Figure 12 Web Console Window
Reference
Click Reference to open the Reference screen. Select the type of object and the individual object and click Refresh to show which configuration settings reference the object.
ZyWALL ATP Series User’s Guide
35
Chapter 1 Introduction
Figure 13 Reference
The fields vary with the type of object. This table describes labels that can appear in this screen.
Table 4 Reference
LABEL DESCRIPTION
Type Select an object type to see the services.
Name This identifies the object for which the configuration settings that use it are displayed. Click the
# This field is a sequential value, and it is not associated with any entry.
Service This is the type of setting that references the selected object. Click a service’s name to display the
Priority If it is applicable, this field lists the referencing configuration item’s position in its list, otherwise N/A
Name This field identifies the configuration item that references the object.
Description If the referencing configuration item has a description configured, it displays here.
Refresh Click this to update the information in this screen. Cancel Click Cancel to close the screen.
object’s name to display the object’s configuration screen in the main window.
service’s configuration screen in the main window.
displays.
CLI Messages
Click CLI to look at the CLI commands sent by the Web Configurator. Open the pop-up window and then click some menus in the web configurator to display the corresponding commands.
ZyWALL ATP Series User’s Guide
36
Figure 14 CLI Messages
1.4.3 Navigation Panel
Use the navigation panel menu items to open status and configuration screens. Click the arrow in the middle of the right edge of the navigation panel to hide the panel or drag to resize it. The following sections introduce the Zyxel Device’s navigation panel menus and their screens.
Figure 15 Navigation Panel
Chapter 1 Introduction
Dashboard
The dashboard displays general device information, system status, system resource usage, licensed service status, and interface status in widgets that you can re-arrange to suit your needs. See the Web Help for details on the dashboard.
ZyWALL ATP Series User’s Guide
37
Chapter 1 Introduction
Monitor Menu
The monitor menu screens display status and statistics information.
Table 5 Monitor Menu Screens Summary
FOLDER OR LINK TAB FUNCTION
System Status
Port Statistics Port Statistics Displays packet statistics for each physical port.
Interface Status Interface
Summary
Traffic Statistics Traffic
Statistics
Session Monitor Session
Login Users Login Users Lists the users currently logged into the Zyxel Device.
IGMP Statistics IGMP
DDNS Status DDNS Status Displays the status of the Zyxel Device’s DDNS domain names.
IP/MAC Binding IP/MAC
Cellular Status Cellular
UPnP Port Status Port Statistics Displays details about UPnP connections going through the Zyxel Device.
USB Storage Storage
Ethernet Neighbor
FQDN Object FQDN
Wireless
AP Information AP List Lists APs managed by the Zyxel Device.
ZyMesh ZyMesh Link
SSID Info SSID Info Display information about the SSID’s wireless clients.
Station Info Station List Lists wireless clients associated with the APs managed by the Zyxel Device.
Detected Device
VPN Monitor
IPSec IPSec Displays and manages the active IPSec SAs.
Monitor
Statistics
Binding
Status
Information
Ethernet Neighbor
Object
Radio List Lists wireless details of APs managed by the Zyxel Device.
Top N APs Lists managed APs with the most wireless traffic usage and most associated
Single AP Lists APs wireless traffic usage and associated wireless stations for a managed
Info
Top N Stations
Single Station
Detected Device
Displays general interface information and packet statistics.
Collect and display traffic statistics.
Displays the status of all current sessions.
Collect and display IGMP statistics.
Lists the devices that have received an IP address from Zyxel Device interfaces using IP/MAC binding.
Displays details about the Zyxel Device’s mobile broadband connection status.
Displays details about USB device connected to the Zyxel Device.
View and manage the Zyxel Device’s neighboring devices via Smart Connect (Layer Link Discovery Protocol (LLDP)). Use the Zyxel One Network (ZON) utility to view and manage the Zyxel Device’s neighboring devices via the Zyxel Discovery Protocol (ZDP).
Displays FQDN (Fully Qualified Domain Name) object cache lists used in DNS queries.
wireless stations.
AP.
Display statistics about ZyMesh wireless connections between managed APs.
Lists wireless stations with the most wireless traffic usage.
Lists wireless traffic usage for an associated wireless station.
Display information about suspected rogue APs.
ZyWALL ATP Series User’s Guide
38
Chapter 1 Introduction
Table 5 Monitor Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
SSL SSL Lists users currently logged into the VPN SSL client portal. You can also log out
individual users and delete related session information.
L2TP over IPSec L2TP over
IPSec
Security Statistics
Content Filter Summary Collect and display content filter statistics
App Patrol Summary Displays application patrol statistics.
Anti-Malware Summary Collect and display statistics on the malware that the Zyxel Device has
IDP Summary Collect and display statistics on the intrusions that the Zyxel Device has
Email Security Summary Collect and display spam statistics.
Status Displays how many mail sessions the ZyWALL is currently checking and DNSBL
Botnet Filter Summary Displays the IP addresses and URLs that are blocked by the Zyxel Device.
Sandboxing Summary Displays the sandboxing statistics.
SSL Inspection Report Collect and display SSL Inspection statistics.
Certificate Cache List
Log View Log Lists log entries.
View AP Log Lists AP log entries.
Displays details about current L2TP sessions.
detected.
detected.
(Domain Name Service-based spam Black List) statistics.
Displays traffic to destination servers using certificates.
Configuration Menu
Use the configuration menu screens to configure the Zyxel Device’s features.
Table 6 Configuration Menu Screens Summary
FOLDER OR LINK TAB FUNCTION
Quick Setup Quickly configure WAN interfaces or VPN connections.
Licensing
Registration Registration Register the device and activate trial services.
Service View the licensed service status and upgrade licensed services.
Signature Update
Wireless
Controller Configuration Configure manual or automatic controller registration.
AP Management
Rogue AP Rogue/Friendly AP
Signature Update signatures immediately or by a schedule.
Mgnt AP List Edit or remove entries in the lists of APs managed by the Zyxel Device.
AP Policy Configure the AP controller’s IP address on the managed APs and
determine the action the managed APs take if the current AP controller fails.
AP Group Create groups of APs, define their radio, VLAN, port and load
balancing settings.
Firmware Update the firmware on APs connected to your Zyxel Device.
Configure how the Zyxel Device monitors rogue APs.
List
ZyWALL ATP Series User’s Guide
39
Chapter 1 Introduction
Table 6 Configuration Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
Auto Healing Auto Healing Enable auto healing to extend the wireless service coverage area of
the managed APs when one of the APs fails.
RTLS Real Time Location
System
Network
Interface Port Role Use this screen to set the Zyxel Device’s flexible ports such as LAN, OPT,
Ethernet Manage Ethernet interfaces and virtual Ethernet interfaces.
PPP Create and manage PPPoE and PPTP interfaces.
Cellular Configure a cellular Internet connection for an installed mobile
Tunnel Configure tunneling between IPv4 and IPv6 networks.
VLAN Create and manage VLAN interfaces and virtual VLAN interfaces.
Bridge Create and manage bridges and virtual bridge interfaces.
VTI Configure IP address assignment and interface parameters for VTI
Trunk Create and manage trunks (groups of interfaces) for load balancing.
Routing Policy Route Create and manage routing policies.
Static Route Create and manage IP static routing information.
RIP Configure device-level RIP settings.
OSPF Configure device-level OSPF settings, including areas and virtual links.
BGP Configure exchange of Border Gateway Protocol (BGP) information
DDNS DDNS Define and manage the Zyxel Device’s DDNS domain names.
NAT NAT Set up and manage port forwarding rules.
Redirect Service
ALG ALG Configure SIP, H.323, and FTP pass-through settings.
UPnP UPnP Configure interfaces that allow UPnP and NAT-PMP connections.
IP/MAC Binding Summary Configure IP to MAC address bindings for devices connected to each
Layer 2 Isolation General Enable layer-2 isolation on the Zyxel Device and the internal
DNS Inbound LB DNS Load Balancing Configure DNS Load Balancing.
IPnP IPnP Enable IPnP on the Zyxel Device and the internal interface(s).
VPN
IPSec VPN VPN Connection Configure IPSec tunnels.
Redirect Service Set up and manage HTTP and SMTP redirection rules.
Exempt List Configure ranges of IP addresses to which the Zyxel Device does not
White List Enable and configure the white list.
VPN Gateway Configure IKE tunnels.
Concentrator Combine IPSec VPN connections into a single secure network
Configuration Provisioning
Use the managed APs as part of an Ekahau RTLS to track the location of Ekahau Wi-Fi tags.
WLAN, or DMZ.
broadband card.
(Virtual Tunnel Interface).
over an IPSec tunnel.
supported interface.
apply IP/MAC binding.
interface(s).
Set who can retrieve VPN rule settings from the Zyxel Device using the Zyxel Device IPSec VPN Client.
ZyWALL ATP Series User’s Guide
40
Chapter 1 Introduction
Table 6 Configuration Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
SSL VPN Access Privilege Configure SSL VPN access rights for users and groups.
Global Setting Configure the Zyxel Device’s SSL VPN settings that apply to all
connections.
L2TP VPN L2TP VPN Configure L2TP over IPSec tunnels.
BWM BWM Enable and configure bandwidth management rules.
Web Authentication
Security Policy
Policy Control Policy Create and manage level-3 traffic rules and apply Security Service
ADP General Display and manage ADP bindings.
Session Control Session Control Limit the number of concurrent client NAT/security policy sessions.
Security Service
AppPatrol Profile Manage different types of traffic in this screen. Create App Patrol
Content Filter Profile Create and manage the detailed filtering rules for content filtering
Anti-Malware Anti-Malware Enable, specify actions to take when encountering malware or
Reputation Filter
IDP IDP Enable and configure IDP settings. Create, import, or export custom
Sandboxing Sandboxing Enable sandboxing, and specify the actions the Zyxel Device takes
Botnet Filter Botnet Filter Enable botnet filtering and specify the actions.
Web Authentication
General/
Authentication
Type/Custom Web
Portal File/Custom
User Agreement File
SSO Configure the Zyxel Device to work with a Single Sign On agent.
Profile Create and manage ADP profiles.
Trusted Web Sites Create a list of allowed web sites that bypass content filtering policies.
Forbidden Web Sites Create a list of web sites to block regardless of content filtering
Signature Search for particular signatures to get more information about them.
IP Reputation
General/White List/
Black List
Botnet Filter
General/White List/
Black List
Define a web portal and exempt services from authentication.
profiles.
template(s) of settings to apply to a traffic flow using a security policy.
profiles and then apply to a traffic flow using a security policy.
policies.
compressed files, and set up a black list to identify files with malware file patterns and a white list to identify files that should not be checked for malware.
Enable IP reputation and specify what action the Zyxel Device takes when any IP address with bad reputation is detected.
You can also set up a white list to identify which IPv4 addresses should be allowed, and a black list to identify which IPv4 addresses should be blocked.
Enable botnet filtering and specify what action the Zyxel Device takes when any suspicious activity is detected.
You can also set up a white list to identify which IPv4 addresses and/or URLs should be allowed, and a black list to identify which IPv4 addresses and/or URLs should be blocked.
signatures.
when malicious or suspicious files are detected.
ZyWALL ATP Series User’s Guide
41
Chapter 1 Introduction
Table 6 Configuration Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
Email Security Email Security Turn email security on or off and manage email security policies.
Create email security template(s) of settings to apply to a traffic flow using a security policy.
Black/White List Set up a black list to identify spam and a white list to identify
SSL Inspection Profile Decrypt HTTPS traffic for Security Service inspection. Create SSL
Exclude List Configure services to be excluded from SSL Inspection.
Certificate Update Use this screen to update the latest certificates of servers using SSL
IP Exception IP Exception Use this screen to view the IP exception list for the anti-malware and
Object
Zone Zone Configure zone template(s) used to define various policies.
User/Group User Create and manage users.
Group Create and manage groups of users.
Setting Manage default settings for all users, general settings for user sessions,
MAC Address Configure the MAC addresses of wireless clients for MAC
AP Profile Radio Create template(s) of radio settings to apply to policies as an object.
SSID Create template(s) of wireless settings to apply to radio profiles or
MON Profile MON Profile Create and manage rogue AP monitoring files that can be
ZyMesh Profile ZyMesh Profile Create and manage ZyMesh files that can be associated with
Address/Geo IP Address Create and manage host, range, and network (subnet) addresses.
Address Group Create and manage groups of addresses to apply to policies as a
Geo IP Update the database of country-to-IP address mappings and
Service Service Create and manage TCP and UDP services.
Service Group Create and manage groups of services to apply to policies as a single
Schedule Schedule Create one-time and recurring schedules.
Schedule Group Create and manage groups of schedules to apply to policies as a
AAA Server Active Directory Configure the Active Directory settings.
LDAP Configure the LDAP settings.
RADIUS Configure the RADIUS settings.
legitimate email.
Inspection template(s) of settings to apply to a traffic flow using a security policy.
connections to the Zyxel Device network.
IDP (Intrusion, Detection, and Prevention) features.
The Zyxel Device won’t intercept nor inspect the incoming packets that match the rules in the IP exception list for the anti-malware and/ or IDP (Intrusion, Detection, and Prevention) features.
and rules to force user authentication.
authentication using the local user database.
policies as an object.
associated with different APs.
different APs.
single objects.
manually configure country-to-IP address mappings for geographic address objects that can be used in security policies.
object.
single object.
ZyWALL ATP Series User’s Guide
42
Chapter 1 Introduction
Table 6 Configuration Menu Screens Summary (continued)
FOLDER OR LINK TAB FUNCTION
Auth. Method Authentication
Method
Certificate My Certificates Create and manage the Zyxel Device’s certificates.
Trusted Certificates Import and manage certificates from trusted sources.
DHCPv6 Request Configure IPv6 DHCP request type and interface information.
Lease Configure IPv6 DHCP lease type and interface information.
Cloud CNM SecuManager Enable and configure management of the Zyxel Device by a Central
SecuReporter Enable SecuReporter logging and access the SecuReporter security
System
Host Name Host Name Configure the system and domain name for the Zyxel Device.
USB Storage Settings Configure the settings for the connected USB devices.
Date/Time Date/Time Configure the current date, time, and time zone in the Zyxel Device.
Console Speed Console Speed Set the console speed.
DNS DNS Configure the DNS server and address records for the Zyxel Device.
WWW Service Control Configure HTTP, HTTPS, and general authentication.
Login Page Configure how the login and access user screens look.
SSH SSH Configure SSH server and SSH service settings.
TELNET TELNET Configure telnet server settings for the Zyxel Device.
FTP FTP Configure FTP server settings.
SNMP SNMP Configure SNMP communities and services.
Auth. Server Auth. Server Configure the Zyxel Device to act as a RADIUS server.
Notification Mail Server Configure a mail server with authentication to send reports and
Language Language Select the Web Configurator language.
IPv6 IPv6 Enable IPv6 globally on the Zyxel Device here.
ZON ZON Use the Zyxel One Network (ZON) utility to view and manage the Zyxel
Log & Report
Email Daily Report
Log Settings Log Settings Configure the system log, email logs, and remote syslog servers.
Email Daily Report Configure where and how to send daily reports and what reports to
Create and manage ways of authenticating users.
Network Management system.
analytics portal that collects and analyzes logs from your Zyxel Device in order to identify anomalies, alert on potential internal / external threats, and report on network usage.
password expiration notification emails.
Device’s neighboring devices via the Zyxel Discovery Protocol (ZDP).
send.
ZyWALL ATP Series User’s Guide
43
Chapter 1 Introduction
Maintenance Menu
Use the maintenance menu screens to manage configuration and firmware files, run diagnostics, and reboot or shut down the Zyxel Device.
Table 7 Maintenance Menu Screens Summary
FOLDER OR LINK
File Manager
Diagnostics Diagnostics
Packet Flow Explore
Shutdown Shutdown Turn off the Zyxel Device.
TAB FUNCTION
Configuration File Manage and upload configuration files for the Zyxel Device.
Firmware Management
Shell Script Manage and run shell script files for the Zyxel Device.
Collect
Collect on AP
Packet Capture Capture packets for analysis.
CPU/Memory Status
System Log Connect a USB device to the Zyxel Device and archive the Zyxel Device system
Remote Assistance Configure and schedule external access to the Zyxel Device for
Network Tool Identify problems with the connections. You can use Ping or Traceroute to help
Routing Traces Configure traceroute to identify where packets are dropped for
Wireless Frame Capture
Routing Status Check how the Zyxel Device determines where to route a packet.
SNAT Status View a clear picture on how the Zyxel Device converts a packet’s source IP
View the current firmware version and upload firmware. Reboot with your choice of firmware.
Collect diagnostic information.
Files
View CPU and memory usage statistics.
logs to it here.
troubleshooting.
you identify problems.
troubleshooting.
Capture wireless frames from APs for analysis.
address and check the related settings.
1.4.4 Tables and Lists
Web Configurator tables and lists are flexible with several options for how to display their entries.
Click a column heading to sort the table’s entries according to that column’s criteria.
ZyWALL ATP Series User’s Guide
44
Chapter 1 Introduction
Figure 16 Sorting Table Entries by a Column’s Criteria
Click the down arrow next to a column heading for more options about how to display the entries. The options available vary depending on the type of fields in the column. Here are some examples of what you can do:
• Sort in ascending or descending (reverse) alphabetical order
• Select which columns to display
•Group entries by field
•Show entries in groups
• Filter by mathematical operators (<, >, or =) or searching for text
Figure 17 Common Table Column Options
Select a column heading cell’s right border and drag to re-size the column.
Figure 18 Resizing a Table Column
Select a column heading and drag and drop it to change the column order. A green check mark displays next to the column’s title when you drag the column to a valid new location.
ZyWALL ATP Series User’s Guide
45
Chapter 1 Introduction
Figure 19 Moving Columns
Use the icons and fields at the bottom of the table to navigate to different pages of entries and control how many entries display at a time.
Figure 20 Navigating Pages of Table Entries
The tables have icons for working with table entries. You can often use the [Shift] or [Ctrl] key to select multiple entries to remove, activate, or deactivate.
Figure 21 Common Table Icons
Here are descriptions for the most common table icons.
Table 8 Common Table Icons
LABEL DESCRIPTION
Add Click this to create a new entry. For features where the entry’s position in the numbered list is
Edit Double-click an entry or select it and click Edit to open a screen where you can modify the entry’s
Remove To remove an entry, select it and click Remove. The Zyxel Device confirms you want to remove it
Activate To turn on an entry, select it and click Activate. Inactivate To turn off an entry, select it and click Inactivate. Connect To connect an entry, select it and click Connect. Disconnect To disconnect an entry, select it and click Disconnect. References Select an entry and click References to check which settings use the entry. Move To change an entry’s position in a numbered list, select it and click Move to display a field to type a
important (features where the Zyxel Device applies the table’s entries in order like the security policy for example), you can select an entry and click Add to create a new entry after the selected entry.
settings. In some tables you can just click a table entry and edit it directly in the table. For those types of tables small red triangles display for table entries with changes that you have not yet applied.
before doing so.
number for where you want to put that entry and press [ENTER] to move the entry to the number that you typed. For example, if you type 6, the entry you are moving becomes number 6 and the previous entry 6 (if there is one) gets pushed up (or down) one.
ZyWALL ATP Series User’s Guide
46
Chapter 1 Introduction
Working with Lists
When a list of available entries displays next to a list of selected entries, you can often just double-click an entry to move it from one list to the other. In some lists you can also use the [Shift] or [Ctrl] key to select multiple entries, and then use the arrow button to move them to the other list.
Figure 22 Working with Lists
ZyWALL ATP Series User’s Guide
47
Initial Setup Wizard
2.1 Initial Setup Wizard Screens
When you log into the Web Configurator for the first time or when you reset the Zyxel Device to its default configuration, the Initial Setup Wizard screen displays. This wizard helps you configure Internet connection settings and activate subscription services.
Note: For Zyxel Devices that already have firmware version 4.25 or later, you have to register
your Zyxel Device and activate the corresponding service at myZyxel (through your Zyxel Device).
This chapter provides information on configuring the Web Configurator's Initial Setup Wizard. See the feature-specific chapters in this User’s Guide for background information.
• Click the double arrow in the upper right corner to display or hide the help.
• Click Logout to exit the In itial Setup Wizard or click Next to continue the wizard. Click Finish at the end of the wizard to complete the wizard.
Figure 23 Initial Setup Wizard
CHAPTER 2
2.1.1 Internet Access Setup - WAN Interface
Use this screen to set how many WAN interfaces to configure and the first WAN interface’s type of encapsulation and method of IP address assignment.
ZyWALL ATP Series User’s Guide
48
Chapter 2 Initial Setup Wizard
The screens vary depending on the encapsulation type. Refer to information provided by your ISP to know what to enter in each field.
Note: Enter the Internet access information exactly as your ISP gave it to you. Leave a field
blank if you don’t have that information.
• I have two ISPs: Select this option to configure two Internet connections. Leave it cleared to configure just one. This option appears when you are configuring the first WAN interface.
• Encapsulation: Choose the Ethernet option when the WAN port is used as a regular Ethernet. Choose PPPoE, PPTP or L2TP for a dial-up connection according to the information from your ISP.
• WAN Interface: This is the interface you are configuring for Internet access.
• Zone: This is the security zone to which this interface and Internet connection belong.
• IP Address Assignment: Select Auto if your ISP did not assign you a fixed IP address. Select Static if the ISP assigned a fixed IP address.
Figure 24 Internet Access
2.1.2 Internet Access: Ethernet
This screen is read-only if you set the previous screen’s IP Address Assignment field to Auto. If you set the previous screen’s IP Address Assignment field to Static, use this screen to configure your IP address settings.
• Encapsulation: This displays the type of Internet connection you are configuring.
• First WAN Interface: This is the number of the interface that will connect with your ISP.
• Zone: This is the security zone to which this interface and Internet connection will belong.
• IP Address: Enter your (static) public IP address. Auto displays if you selected Auto as the IP Address Assignment in the previous screen.
The following fields display if you selected static IP address assignment.
• IP Subnet Mask: Enter the subnet mask for this WAN connection's IP address.
ZyWALL ATP Series User’s Guide
49
• Gateway IP Address: Enter the IP address of the router through which this WAN connection will send traffic (the default gateway).
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP address(es). The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want to configure DNS servers.
2.1.2.1 Possible Errors
• Check that your cable connection is coming from the correct interface you’re using for the WAN connection on the Zyxel Device.
• Check that the interface is connected to the device you’re using for Internet access such as a broadband router and that the router is turned on. The LED of the interface you’re using for the WAN connection on the Zyxel Device should be orange.
• If your Zyxel Device was not able to obtain an IP address, check that your Internet access information uses DHCP as the WAN connection type. If it fails again, check with your Internet service provider or administrator for correct WAN settings.
• If your Zyxel Device was not able to use the IP address entered, check that you were given an IP address, subnet mask and gateway address as part of your Internet access information. Re-enter your IP address, subnet mask and gateway IP address exactly as given. If it fails again, check with your Internet service provider or administrator for correct IP address, subnet mask and gateway address and other WAN settings.
Figure 25 Internet Access: Ethernet Encapsulation
Chapter 2 Initial Setup Wizard
2.1.3 Internet Access: PPPoE
2.1.3.1 ISP Parameters
• Type the PPPoE Service Name from your service provider. PPPoE uses a service name to identify and reach the PPPoE server. You can use alphanumeric and -_@$./ characters, and it can be up to 64 characters long.
• Authentication Type - Select an authentication protocol for outgoing connection requests. Options are:
• Chap/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by the remote node.
ZyWALL ATP Series User’s Guide
50
Chapter 2 Initial Setup Wizard
• Chap - Your Zyxel Device accepts CHAP only.
• PAP - Your Zyxel Device accepts PAP only.
• MSCHAP - Your Zyxel Device accepts MSCHAP only.
• MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
• Type the User Name given to you by your ISP. You can use alphanumeric and -_@$./ characters, and it can be up to 31 characters long.
•Type the Password associated with the user name. Use up to 64 ASCII characters except the [] and ?. This field can be blank.
•Select Nailed-Up if you do not want the connection to time out. Otherwise, type the Idle Timeout in seconds that elapses before the router automatically disconnects from the PPPoE server.
2.1.3.2 WAN IP Address Assignments
• WAN Interface: This is the name of the interface that will connect with your ISP.
• Zone: This is the security zone to which this interface and Internet connection will belong.
• IP Address: Enter your (static) public IP address. Auto displays if you selected Auto as the IP Address Assignment in the previous screen.
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP address(es). The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a machine in order to access it.
2.1.3.3 Possible Errors
• Check that you’re using the correct PPPoE Service Name and Authentication Type.
• Make sure that your Internet access information uses PPPoE as the WAN connection type. Re-enter your PPPoE user name and password exactly as given. If it fails again, check with your Internet service provider or administrator for correct WAN settings and user credentials.
• If you were given an IP address and DNS server information as part of your Internet access information, re-enter them exactly as given. If it fails again, check with your Internet service provider or administrator for correct IP address, subnet mask and gateway address and other WAN settings.
ZyWALL ATP Series User’s Guide
51
Chapter 2 Initial Setup Wizard
Figure 26 Internet Access: PPPoE Encapsulation
2.1.4 Internet Access: PPTP
2.1.4.1 ISP Parameters
• Authentication Type - Select an authentication protocol for outgoing calls. Options are:
• Chap/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by the remote node.
• Chap - Your Zyxel Device accepts CHAP only.
• PAP - Your Zyxel Device accepts PAP only.
• MSCHAP - Your Zyxel Device accepts MSCHAP only.
• MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
• Type the User Name given to you by your ISP. You can use alphanumeric and -_@$./ characters, and it can be up to 31 characters long.
•Type the Password associated with the user name. Use up to 64 ASCII characters except the [] and ?. This field can be blank. Re-type your password in the next field to confirm it.
•Select Nailed-Up if you do not want the connection to time out. Otherwise, type the Idle Timeout in seconds that elapses before the router automatically disconnects from the PPTP server.
2.1.4.2 PPTP Configuration
• Base Interface: This identifies the Ethernet interface you configure to connect with a modem or router.
•Type a Base IP Address (static) assigned to you by your ISP.
• Type the IP Subnet Mask assigned to you by your ISP (if given).
• Gateway IP Address: Enter the IP address of the router through which this WAN connection will send traffic (the default gateway).
• Server IP: Type the IP address of the PPTP server.
ZyWALL ATP Series User’s Guide
52
Chapter 2 Initial Setup Wizard
•Type a Connection ID or connection name. It must follow the “c:id” and “n:name” format. For example, C:12 or N:My ISP. This field is optional and depends on the requirements of your broadband modem or router. You can use alphanumeric and -_: characters, and it can be up to 31 characters long.
2.1.4.3 WAN IP Address Assignments
• First WAN Interface: This is the connection type on the interface you are configuring to connect with your ISP.
• Zone This is the security zone to which this interface and Internet connection will belong.
• IP Address: Enter your (static) public IP address. Auto displays if you selected Auto as the IP Address Assignment in the previous screen.
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP address(es). The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want to configure DNS servers.
2.1.4.4 Possible Errors
• Check that you’re using the correct PPPT Service IP, Base IP Address, IP Subnet Mask, Gateway IP Address, Connection ID and Authentication Type.
• Make sure that your Internet access information uses PPTP as the WAN connection type. Re-enter your PPTP user name and password exactly as given. If it fails again, check with your Internet service provider or administrator for correct WAN settings and user credentials.
• If you were given an IP address and DNS server information as part of your Internet access information, re-enter them exactly as given. If it fails again, check with your Internet service provider or administrator for correct IP address, subnet mask and gateway address and other WAN settings.
ZyWALL ATP Series User’s Guide
53
Chapter 2 Initial Setup Wizard
Figure 27 Internet Access: PPTP Encapsulation
2.1.5 Internet Access: L2TP
2.1.5.1 ISP Parameters
• Authentication Type - Select an authentication protocol for outgoing connection requests. Options are:
• Chap/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by the remote node.
• Chap - Your Zyxel Device accepts CHAP only.
• PAP - Your Zyxel Device accepts PAP only.
• MSCHAP - Your Zyxel Device accepts MSCHAP only.
• MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
• Type the User Name given to you by your ISP. You can use alphanumeric and -_@$./ characters, and it can be up to 31 characters long.
•Type the Password associated with the user name. Use up to 64 ASCII characters except the [] and ?. This field can be blank.
•Select Nailed-Up if you do not want the connection to time out. Otherwise, type the Idle Timeout in seconds that elapses before the router automatically disconnects from the PPPoE server.
2.1.5.2 L2TP Configuration
• Base Interface: This identifies the Ethernet interface you configure to connect with a modem or router.
•Type a Base IP Address (static) assigned to you by your ISP.
ZyWALL ATP Series User’s Guide
54
Chapter 2 Initial Setup Wizard
• IP Subnet Mask: Enter the subnet mask for this WAN connection's IP address.
• Gateway IP Address: Enter the IP address of the router through which this WAN connection will send traffic (the default gateway).
• Server IP: Type the IP address of the L2TP server.
2.1.5.3 WAN IP Address Assignments
• WAN Interface: This is the name of the interface that will connect with your ISP.
• Zone: This is the security zone to which this interface and Internet connection will belong.
• IP Address: Enter your (static) public IP address. Auto displays if you selected Auto as the IP Address Assignment in the previous screen.
• First / Second DNS Server: These fields display if you selected static IP address assignment. The Domain Name System (DNS) maps a domain name to an IP address and vice versa. Enter a DNS server's IP address(es). The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it. The Zyxel Device uses these (in the order you specify here) to resolve domain names for VPN, DDNS and the time server. Leave the field as 0.0.0.0 if you do not want to configure DNS servers.
2.1.5.4 Possible Errors
• Check that you’re using the correct L2PT Server IP, Subnet Mask, Gateway IP Address, IP Subnet Mask and Authentication Type.
• Make sure that your Internet access information uses L2TP as the WAN connection type. Re-enter your L2TP user name and password exactly as given. If it fails again, check with your Internet service provider or administrator for correct WAN settings and user credentials.
• If you were given an IP address and DNS server information as part of your Internet access information, re-enter them exactly as given. If it fails again, check with your Internet service provider or administrator for correct IP address, subnet mask and gateway address and other WAN settings.
ZyWALL ATP Series User’s Guide
55
Chapter 2 Initial Setup Wizard
Figure 28 Internet Access: L2TP Encapsulation
2.1.6 Internet Access Setup - Second WAN Interface
If you selected I have two ISPs, after you configure the First WAN Interface, you can configure the Second WAN Interface. The screens for configuring the second WAN interface are similar to the first (see
Section 2.1.1 on page 48).
ZyWALL ATP Series User’s Guide
56
Chapter 2 Initial Setup Wizard
Figure 29 Internet Access: Step 3: Second WAN Interface
2.1.7 Internet Access: Congratulations
You have set up your Zyxel Device to access the Internet. A screen displays with your settings. Click Connection Test to check that you can access the Internet. If you cannot, click Back and confirm that you entered the settings correctly. If you have, check that you got the correct settings from your ISP or network administrator.
Figure 30 Internet Access: Summary
ZyWALL ATP Series User’s Guide
57
2.1.8 Date and Time Settings
It’s important to have correct date and time values in the logs. The Zyxel Device can automatically update the time and date by detecting your time zone and whether Daylight Savings is in effect in that time zone.
If your Zyxel Device cannot get the correct date and time, it may not able to connect to a time server. Check that the Zyxel Device has Internet access, then click Sync. Now.
Figure 31 Date and Time Settings
Chapter 2 Initial Setup Wizard
2.1.9 Register Device
Click the Register button in this screen to register your device at portal.myzyxel.com.
Note: The Zyxel Device must be connected to the Internet in order to register.
ZyWALL ATP Series User’s Guide
58
Figure 32 Register Device
Chapter 2 Initial Setup Wizard
You may need the Zyxel Device’s serial number and LAN MAC address to register it at myZyxel if you have not already done so. Refer to the label at the back of the Zyxel Device’s for details.
Figure 33 myZyxel Login
Click Refresh or use the Configuration > Licensing > Registration screen to update your Zyxel Device registration status.
ZyWALL ATP Series User’s Guide
59
Figure 34 Registered Device
2.1.10 Activate Service
Chapter 2 Initial Setup Wizard
After you register your Zyxel Device, you can register for the services supported by your model. See
Subscription Services Available on page 186 for more information on the subscription services for the two
types of security packs.
Here are the services available for the Zyxel Device:
• Web Security (to access a database that can block websites by category)
• Application Security (to use signature for Application Patrol inspection and signatures to recognize unsolicited commercial or junk email suspected of being sent by spammers.)
• Malware Blocker (to detect malware patterns in files)
• Intrusion Prevention (to use signatures for Intrusion Detection and Prevention attacks)
• Geo Enforcer (to access a database of country-to-IP address mappings)
• Sandboxing (to specify the actions the Zyxel Device takes when malicious or suspicious files are detected)
• Reputation Filter (to recognize packets coming from IPv4 address with bad reputation)
• SecuReporter (to collect and analyze logs from your Zyxel Device in order to identify anomalies, alert on potential internal / external threats, and report on network usage)
• Managed AP Service (to manage more APs than the default for your Zyxel Device when the AP controller is enabled)
Click Refresh and wait a few moments for the registration information to update in this screen. If the page does not refresh, make sure the Internet connection is working and click Refresh again. To check your Internet connection, try to access the Internet from a computer connected to a LAN port on the Zyxel Device. If you cannot, then check your Internet access settings on the Zyxel Device.
ZyWALL ATP Series User’s Guide
60
Figure 35 Activate Service
Figure 36 Activated Service
Chapter 2 Initial Setup Wizard
2.1.11 Service Settings
You can enable or disable the following features in this screen. This screen varies depending on the security pack that you purchase. See Subscription Services Available on page 186 for more information on the subscription services for the two types of security packs.
• Botnet Filter: Use this feature to detect and block connection attempts to or from the C&C server or known botnet IP addresses.
• Anti-Malware: Use this feature to protect your connected network from malware infection.
ZyWALL ATP Series User’s Guide
61
Chapter 2 Initial Setup Wizard
• IDP: Use this feature to detect malicious or suspicious packets and respond instantaneously.
• IP Reputation: Use this feature to recognize and filter packets coming from IPv4 address with bad reputation.
• Sandboxing: Use this feature to provide a safe environment to separate running programs from your network and host devices.
• Content Filter: Use this feature to control access to specific web sites or web content.
• App Patrol: Use this feature to manage the use of various applications on the network.
• Email Security: Use this feature to mark or discard spam (unsolicited commercial or junk email).
• SecuReporter: Use this feature to collect and analyze logs from your Zyxel Device in order to identify anomalies, alert on potential internal / external threats, and report on network usage.
Select the I have read SecuReporter GDPR and agree policy check box to have SecuReporter collect and analyze logs from this Zyxel Device. This check box won’t appear again if you have already selected this before.
Figure 37 Service Settings
2.1.12 Service Settings: SecuReporter
Use this screen to add the Zyxel Device to a new or existing organization, and choose the level of data protection for traffic going through this Zyxel Device.
• Server Status: This is the connection status between the Zyxel Device and the SecuReporter server. This field shows Connected when the Zyxel Device can synchronize with the SecuReporter server. This field shows Timeout when the Zyxel Device can’t synchronize with the SecuReporter server. This field shows Fail when the connection between the Zyxel Device and the SecuReporter server is down.
• Device Name: Enter the name of the Zyxel Device. This Zyxel Device will be added to a new or existing organization.
• Organization: This field appears if you haven’t created an organization in the SecuReporter server. Type a name of up to 255 characters and description to create a new organization.
• Select from existing organization: Select an existing organization from the drop-down list box to add the Zyxel Device to the selected organization.
ZyWALL ATP Series User’s Guide
62
Chapter 2 Initial Setup Wizard
• Create new organization: Type a name of up to 255 characters and description to create a new organization.
• Partially Anonymous: Select this and personal data, such as user names, MAC addresses, email addresses, and host names, will be replaced with artificial identifiers in downloaded logs.
• Fully Anonymous: Select this and personal data, such as user names, MAC addresses, email addresses, and host names, will be replaced with anonymized information in downloaded logs.
• Non-Anonymous: Select this and personal data, such as user names, MAC addresses, email addresses, and host names, will be identifiable in downloaded logs.
Figure 38 SecuReporter Settings
The following screen appears when the Zyxel Device is already added in an organization.
Figure 39 SecuReporter Settings
ZyWALL ATP Series User’s Guide
63
Chapter 2 Initial Setup Wizard
2.1.13 Wireless Settings: AP Controller
The Zyxel Device can act as an AP Controller that can manage APs in the same network as the Zyxel Device. Select Yes if you want your Zyxel Device to manage APs in your network; otherwise select No.
Figure 40 Wireless Settings: AP Controller
2.1.14 Wireless Settings: SSID & Security
Configure SSID and wireless security in this screen.
SSID Setting
• SSID - Enter a descriptive name of up to 32 printable characters for the wireless LAN.
• Security Mode - Select Pre-Shared Key to add security on this wireless network. Otherwise, select None to allow any wireless client to associate this network without authentication.
• Pre-Shared Key - Enter a pre-shared key of between 8 and 63 case-sensitive ASCII characters (including spaces and symbols) or 64 hexadecimal characters.
• Hidden SSID - Select this option if you want to hide the SSID in the outgoing beacon frame. A wireless client then cannot obtain the SSID through scanning using a site survey tool.
• Enable Intra-BSS Traffic Blocking - Select this option if you want to prevent crossover traffic from within the same SSID. Wireless clients can still access the wired network but cannot communicate with each other.
For Built-in Wireless AP Only
Bridged to: Zyxel Devices with W in the model name have a built-in AP. Select an interface to bridge with
the built-in AP wireless network. Devices connected to this interface will then be in the same broadcast domain as devices in the AP wireless network.
ZyWALL ATP Series User’s Guide
64
Chapter 2 Initial Setup Wizard
Figure 41 Wireless Settings: SSID & Security
2.1.15 Remote Management
Select this to allow access to the Zyxel Device using HTTP or HTTPS from the Internet.
Figure 42 Remote Management
HTTPS is added to the Default_Allow_WAN_to_ZyWALL rule in Object > Service > Service Group screen
when you enable Remote Management.
ZyWALL ATP Series User’s Guide
65
Chapter 2 Initial Setup Wizard
Figure 43 Object > Service > Service Group - HTTPS
ZyWALL ATP Series User’s Guide
66
CHAPTER 3
Hardware, Interfaces and
Zones
3.1 Hardware Overview
This section describes the front and rear panels for each model.
The following table summarizes the port features of the Zyxel Device by model.
Table 9 ATP Series Comparison Table
ATP MODELS ATP100/ATP100W ATP200 ATP500 ATP700/ATP800
USB 3.0 Ports 1 2 2 2
1 Gbps SFP interface 1 1 1 2
10/100/1000 Mbps Ethernet WAN Ports 1 2 - -
10/100/1000 Mbps Ethernet Ports 4 4 7 12
Console Port 1111
3.1.1 Front Panels
The LED indicators are located on the front panel.
Figure 44 ATP100 Front Panel
Figure 45 ATP100W Front Panel
Figure 46 ATP200 Front Panel
ZyWALL ATP Series User’s Guide
67
Chapter 3 Hardware, Interfaces and Zones
Figure 47 ATP500 Front Panel
Figure 48 ATP700 / ATP800 Front Panel
The following table describes the front panel LEDs.
Table 10 LED Descriptions
LED COLOR STATUS DESCRIPTION
PWR Off The Zyxel Device is turned off.
Green On The Zyxel Device is turned on.
Red On There is a hardware component failure. Shut down the device, wait for a few
minutes and then restart the device. If the LED turns red again, then please contact your vendor.
SYS Green Off The Zyxel Device is not ready or has failed.
On The Zyxel Device is ready and running.
Blinking The Zyxel Device is booting.
Red On The Zyxel Device has an error or has failed.
2.4G Green Off The 2.4G wireless interface is off.
On The 2.4G wireless interface is ready.
Blinking The 2.4G wireless connection is active.
5G Green Off The 5G wireless interface is off.
On The 5G wireless interface is ready.
Blinking The 5G wireless connection is active.
P1 (SFP)
LINK Yellow Off There is no connection on this port.
On This port has a successful 1000 Mbps link.
Green Off There is no connection on this port.
On This port has a successful 100 Mbps link.
ACT Green Off There is no traffic on this port.
Blinking The Zyxel Device is sending or receiving packets on this port at 100/1000 Mbps.
P2, P3... (WAN/ LAN/ DMZ)
Yellow Off There is no connection on this port.
On This port has a successful 1000 Mbps link.
Blinking The Zyxel Device is sending or receiving packets on this port at 1000 Mbps.
Green Off There is no connection on this port.
On This port has a successful 10/100 Mbps link.
Blinking The Zyxel Device is sending or receiving packets on this port at 10/100 Mbps.
ZyWALL ATP Series User’s Guide
68
Chapter 3 Hardware, Interfaces and Zones
The following table describes the ports on the front panel.
Table 11 Front Panel Ports
LABEL DESCRIPTION
RESET Press the button in for about 5 seconds (or until the SYS LED starts to blink), then release it to
CONSOLE You can use the console port to manage the Zyxel Device using CLI commands. You will be
USB Connect a storage device for system logs (see Maintenance > Diagnostics > System Log) and
P2-P7 (ATP200)
P2-P8 (ATP500)
return the Zyxel Device to the factory defaults (password is 1234, LAN IP address 192.168.1.1 etc.)
prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI.
When configuring using the console port, you need a computer equipped with communications software configured to the following parameters:
• Speed 115200 bps
• Data Bits 8
•Parity None
•Stop Bit 1
• Flow Control Off
storage (see Configuration > System > USB Storage).
These are 1G RJ-45 Ethernet ports.
P1-P12 (ATP700/ ATP800)
3.1.2 Rear Panels
The connection ports are located on the rear panel.
Figure 49 ATP100 Rear Panel
Figure 50 ATP100W Rear Panel
Figure 51 ATP200 Rear Panel
ZyWALL ATP Series User’s Guide
69
Chapter 3 Hardware, Interfaces and Zones
Figure 52 ATP500 Rear Panel
Figure 53 ATP700 / ATP800 Rear Panel
Note: Make sure you connect the Zyxel Device's power cord to a socket-outlet with an
earthing connection or its equivalent.
The following table describes the items on the rear panel.
Table 12 Rear Panel Items
LABEL DESCRIPTION
Console You can use the console port to manage the Zyxel Device using CLI commands. You will be
prompted to enter your user name and password. See the Command Reference Guide for more information about the CLI.
Power Use the included power cord to connect the power socket to a power outlet. Turn the power
Lock Attach a lock-and-cable from the Kensington lock (the small, metal-reinforced, oval hole) to a
Fan The fans are for cooling the Zyxel Device. Make sure they are not obstructed to allow maximum
Note: Use an 8-wire Ethernet cable to run your Gigabit Ethernet connection at 1000 Mbps.
Using a 4-wire Ethernet cable limits your connection to 100 Mbps. Note that the connection speed also depends on what the Ethernet device at the other end can support.
3.2 Mounting
The Zyxel Device can be mounted in a rack.
When configuring using the console port, you need a computer equipped with communications software configured to the following parameters:
• Speed 115200 bps
• Data Bits 8
•Parity None
•Stop Bit 1
• Flow Control Off
switch on if your Zyxel Device has a power switch.
permanent object, such as a pole, to secure the Zyxel Device in place.
ventilation.
3.2.1 Rack-mounting
Use the following steps to mount the Zyxel Device on an EIA standard size, 19-inch rack or in a wiring closet with other equipment using a rack-mounting kit. Make sure the rack will safely support the combined weight of all the equipment it contains and that the position of the ZyWALL does not make
ZyWALL ATP Series User’s Guide
70
Chapter 3 Hardware, Interfaces and Zones
the rack unstable or top-heavy. Take all necessary precautions to anchor the rack securely before installing the unit.
Note: Leave 10 cm of clearance at the sides and 20 cm in the rear.
Use a #2 Phillips screwdriver to install the screws.
Note: Failure to use the proper screws may damage the unit.
1 Align one bracket with the holes on one side of the Zyxel Device and secure it with the included bracket
screws (smaller than the rack-mounting screws).
2 Attach the other bracket in a similar fashion.
3 After attaching both mounting brackets, position the Zyxel Device in the rack and match up the bracket
holes with the rack holes. Secure the Zyxel Device to the rack with the rack-mounting screws.
3.2.2 Wall-mounting
Do the following to attach your Zyxel Device to a wall. Only the devices listed in Table 13 on page 71
can be wall mounted.
The following table lists the distance “X” between mounting holes for each model:
Table 13 Distance “X” between mounting holes
MODEL NAME DISTANCE “X”
ATP100 174mm (6.85”)
ATP100W 174mm (6.85”)
ATP200 206mm (8.11”)
ZyWALL ATP Series User’s Guide
71
Chapter 3 Hardware, Interfaces and Zones
1 Drill into a wall two holes 3 mm ~ 4 mm (0.12" ~ 0.16") wide, 20 mm ~ 30 mm (0.79” ~ 1.18”) deep and a
distance X (see the preceding table) apart. Place two screw anchors in the holes.
Figure 54 Wall mounting screw specifications
2 Screw two screws with 6 mm ~ 8 mm (0.24" ~ 0.31") wide heads into the screw anchors. Do not screw the
screws all the way in to the wall; leave a small gap between the head of the screw and the wall.
The gap must be big enough for the screw heads to slide into the screw slots and the connection cables to run down the back of the Zyxel Device.
Note: Make sure the screws are securely fixed to the wall and strong enough to hold the
weight of the Zyxel Device with the connection cables.
3 Use the holes on the bottom of the Zyxel Device to hang the Zyxel Device on the screws.
Wall-mount the Zyxel Device horizontally. The Zyxel Device's side panels with ventilation slots should not be facing up or down as this position is less safe.
Figure 55 Wall Mounting
ZyWALL ATP Series User’s Guide
72
Chapter 3 Hardware, Interfaces and Zones
3.3 Default Zones, Interfaces, and Ports
The default configurations for zones, interfaces, and ports are as follows. References to interfaces may be generic rather than the specific name used in your model. For example, this guide may use “the WAN interface” rather than “wan1” or “wan2”, “ge2” or” ge3”.
An OPT (optional) Ethernet port can be configured as an additional WAN port, LAN, WLAN, or DMZ port.
The following table shows the default physical port and interface mapping for each model at the time of writing.
Table 14 Default Physical Port - Interface Mapping
PORT / INTERFACE P1 P2 P3 P4 P5 P6 P7 P8
• ATP100/ATP100W sfp wan lan1 lan1 lan1 opt
• ATP200 sfp wan wan lan1 lan1 lan1 lan1
• ATP500 ge1 ge2 ge3 ge4 ge5 ge6 ge7 ge8
Table 15 Default Physical Port - Interface Mapping - ATP700 / ATP800
PORT / INTERFACE
ATP800 ge1 ge2 ge3 ge4 ge5 ge6 ge7 ge8 ge9 ge10 ge11 ge12 ge13 ge14
P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14
The following table shows the default interface and zone mapping for each model at the time of writing.
Table 16 Default Zone - Interface Mapping
ZONE / INTERFACE SFP WAN LAN1 LAN2 DMZ OPT
• ATP100/ATP100W
sfp_ppp WAN1_PPP LAN1 LAN2 DMZ opt_ppp
Table 17 Default Zone - Interface Mapping
NO
ZONE / INTERFACE WAN LAN1 LAN2 DMZ OPT
DEFAULT
ZONE
• ATP200
WAN1
WAN1_PPP
WAN2
WAN2_PPP
LAN1 LAN2 DMZ SFP
SFP_PPP
GE7
GE7_PPP
GE8
GE8_PPP
Table 18 Default Zone - Interface Mapping
ZONE / INTERFACE WAN LAN DMZ OPT NO DEFAULT ZONE
• ATP500
• ATP700
• ATP800
GE2
GE2_PPP
GE3
GE3_PPP
GE1
GE1_PPP
GE2
GE2_PPP
GE4
GE5
GE3
GE4
GE6 GE1
GE1_PPP
GE5 GE13
GE13_PPP
GE14
GE14_PPP
GE7
GE7_PPP
GE8
GE8_PPP
GE6~GE12
GE6_PPP~GE12_PPP
ZyWALL ATP Series User’s Guide
73
Chapter 3 Hardware, Interfaces and Zones
3.4 Stopping the Zyxel Device
Always use Maintenance > Shutdown > Shutdown or the shutdown command before you turn off the Zyxel Device or remove the power. Not doing so can cause the firmware to become corrupt.
ZyWALL ATP Series User’s Guide
74
Quick Setup Wizards
4.1 Quick Setup Overview
The Web Configurator's quick setup wizards help you configure Internet and VPN connection settings. This chapter provides information on configuring the quick setup screens in the Web Configurator. See the feature-specific chapters in this User’s Guide for background information.
In the Web Configurator, click Quick Setup to open the first Quick Setup screen.
Figure 56 Quick Setup
CHAPTER 4
• WAN Interface
Click this link to open a wizard to set up a WAN (Internet) connection. This wizard creates matching ISP account settings in the Zyxel Device if you use PPPoE or PPTP. See Section 4.2 on page 76.
• VPN Setup
Use VPN Setup to configure a VPN (Virtual Private Network) rule for a secure connection to another computer or network. Use VPN Settings for Configuration Provisioning to set up a VPN rule that can be retrieved with the Zyxel Device IPSec VPN Client. You only need to enter a user name, password and the IP address of the Zyxel Device in the IPSec VPN Client to get all VPN settings automatically from the Zyxel Device. See Section 4.3 on page 82.Use VPN Settings for L2TP VPN Settings to configure the L2TP VPN for clients.
ZyWALL ATP Series User’s Guide
75
Chapter 4 Quick Setup Wizards
• Wizard Help If the help does not automatically display when you run the wizard, click the arrow to display it.
4.2 WAN Interface Quick Setup
Click WAN Interface in the main Quick Setup screen to open the WAN Interface Quick Setup Wizard Welcome screen. Use these screens to configure an interface to connect to the Internet. Click Next.
Figure 57 WAN Interface Quick Setup Wizard
4.2.1 Choose an Ethernet Interface
Select a WAN interface (names vary by model) that you want to configure for a WAN connection and click Next.
ZyWALL ATP Series User’s Guide
76
Figure 58 Choose an Ethernet Interface
4.2.2 Select WAN Type
WAN Type Selection: Select the type of encapsulation this connection is to use. Choose Ethernet when
the WAN port is used as a regular Ethernet.
Otherwise, choose PPPoE, PPTP or L2TP for a dial-up connection according to the information from your ISP.
Chapter 4 Quick Setup Wizards
Figure 59 WAN Interface Setup: Step 2
The screens vary depending on what encapsulation type you use. Refer to information provided by your ISP to know what to enter in each field. Leave a field blank if you don’t have that information.
Note: Enter the Internet access information exactly as your ISP gave it to you.
4.2.3 Configure WAN IP Settings
Use this screen to select whether the interface should use a fixed or dynamic IP address.
ZyWALL ATP Series User’s Guide
77
Chapter 4 Quick Setup Wizards
Figure 60 WAN Interface Setup: Step 2 Ethernet Dynamic IP
Figure 61 WAN Interface Setup: Step 2 Ethernet Static IP
• WAN Interface: This is the interface you are configuring for Internet access.
• Zone: This is the security zone to which this interface and Internet connection belong.
• IP Address Assignment: Select Auto If your ISP did not assign you a fixed IP address. Select Static if you have a fixed IP address and enter the IP address, subnet mask, gateway IP address (optional) and DNS server IP address(es).
4.2.4 ISP and WAN and ISP Connection Settings
Use this screen to configure the ISP and WAN interface settings. This screen is read-only if you select Ethernet and set the IP Address Assignment to Auto. If you set the IP Address Assignment to static and/or select PPTP or PPPoE, enter the Internet access information exactly as your ISP gave it to you.
Note: Enter the Internet access information exactly as your ISP gave it to you.
ZyWALL ATP Series User’s Guide
78
Chapter 4 Quick Setup Wizards
Figure 62 WAN and ISP Connection Settings: (PPTP)
Figure 63 WAN and ISP Connection Settings: (PPPoE)
ZyWALL ATP Series User’s Guide
79
Chapter 4 Quick Setup Wizards
Figure 64 WAN and ISP Connection Settings: (L2TP)
• ISP Parameter: This section appears if the interface uses a PPPoE or PPTP Internet connection.
• Encapsulation: This displays the type of Internet connection you are configuring.
• Service Name: Type the PPPoE service name if you were given one by your ISP.
• Authentication Type: Use the drop-down list box to select an authentication protocol for outgoing calls. Options are:
• CHAP/PAP - Your Zyxel Device accepts either CHAP or PAP when requested by this remote node.
• CHAP - Your Zyxel Device accepts CHAP only.
• PAP - Your Zyxel Device accepts PAP only.
• MSCHAP - Your Zyxel Device accepts MSCHAP only.
• MSCHAP-V2 - Your Zyxel Device accepts MSCHAP-V2 only.
• User Name: Type the user name given to you by your ISP. You can use alphanumeric and -_ characters, and it can be up to 31 characters long.
• Password: Type the password associated with the user name above. Use up to 64 ASCII characters except the [] and ?. This field can be blank.
• Retype to Confirm: Type your password again for confirmation.
• Nailed-Up: Select Nailed-Up if you do not want the connection to time out.
• Idle Timeout: Type the time in seconds that elapses before the router automatically disconnects from the PPPoE server. 0 means no timeout.
• PPTP Configuration: This section only appears if the interface uses a PPTP Internet connection.
• Base Interface: This displays the identity of the Ethernet interface you configure to connect with a modem or router.
• Base IP Address: Type the (static) IP address assigned to you by your ISP.
@$./
ZyWALL ATP Series User’s Guide
80
Chapter 4 Quick Setup Wizards
• IP Subnet Mask: Type the subnet mask assigned to you by your ISP (if given).
• Gateway IP Address: For PPTP or L2TP, type the gateway IP address if you were given one by your ISP.
• Server IP: Type the IP address of the PPTP server.
• Connection ID: Enter the connection ID or connection name in this field. It must follow the "c:id" and "n:name" format. For example, C:12 or N:My ISP. This field is optional and depends on the requirements of your DSL modem. You can use alphanumeric and -_ 31 characters long.
IP Address Assignment
• WAN Interface: This displays the identity of the interface you configure to connect with your ISP.
• Zone: This field displays to which security zone this interface and Internet connection will belong.
• IP Address: This field is read-only when the WAN interface uses a dynamic IP address. If your WAN interface uses a static IP address, enter it in this field.
• IP Subnet Mask: If your WAN interface uses Ethernet encapsulation with a static IP address, enter the subnet mask in this field.
• Gateway IP Address: Type the IP address of the Ethernet device connected to this WAN port.
• First DNS Server / Second DNS Server: These fields only display for an interface with a static IP address. Enter the DNS server IP address(es) in the field(s) to the right. Leave the field as 0.0.0.0 if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a machine in order to access it.
: characters, and it can be up to
4.2.5 Quick Setup Interface Wizard: Summary
This screen displays an example WAN interface’s settings.
Figure 65 Interface Wizard: Summary WAN
• Encapsulation: This displays what encapsulation this interface uses to connect to the Internet.
ZyWALL ATP Series User’s Guide
81
Chapter 4 Quick Setup Wizards
• Service Name: This field only appears for a PPPoE interface. It displays the PPPoE service name specified in the ISP account.
• Server IP: This field only appears for a PPTP interface. It displays the IP address of the PPTP server.
• User Name: This is the user name given to you by your ISP.
• Nailed-Up: If No displays the connection will not time out. Yes means the Zyxel Device uses the idle timeout.
• Idle Timeout: This is how many seconds the connection can be idle before the router automatically disconnects from the PPPoE server. 0 means no timeout.
• Connection ID: If you specified a connection ID, it displays here.
• WAN Interface: This identifies the interface you configure to connect with your ISP.
• Zone: This field displays to which security zone this interface and Internet connection will belong.
• IP Address Assignment: This field displays whether the WAN IP address is static or dynamic (Auto).
• IP Address: This field displays the current IP address of the Zyxel Device WAN interface selected in this wizard.
• IP Subnet Mask: This field displays the subnet mask of the Zyxel Device WAN interface selected in this wizard.
• Gateway IP Address: This field displays the IP address of the Ethernet device connected to this WAN port.
• First DNS Server /Second DNS Server: If the IP Address Assignment is Static, these fields display the DNS server IP address(es).
4.3 VPN Setup Wizard
Click VPN Setup in the main Quick Setup screen to open the VPN Setup Wizard Welcome screen.
Figure 66 VPN Setup Wizard
4.3.1 Welcome
Use wizards to create Virtual Private Network (VPN) rules. After you complete the wizard, the Phase 1 rule settings appear in the Configuration > VPN > IPSec VPN > VPN Gateway screen and the Phase 2 rule settings appear in the Configuration > VPN > IPSec VPN > VPN Connection screen.
• VPN Settings configures a VPN tunnel for a secure connection to another computer or network.
ZyWALL ATP Series User’s Guide
82
Chapter 4 Quick Setup Wizards
• VPN Settings for Configuration Provisioning sets up a VPN rule the Zyxel Device IPSec VPN Client can retrieve. Just enter a user name, password and the IP address of the Zyxel Device in the IPSec VPN Client to get the VPN settings automatically from the Zyxel Device.
• VPN Settings for L2TP VPN Settings sets up a L2TP VPN rule that the Zyxel Device IPSec L2TP VPN client can retrieve.
Figure 67 VPN Setup Wizard Welcome
4.3.2 VPN Setup Wizard: Wizard Type
Choose Express to create a VPN rule with the default phase 1 and phase 2 settings to connect to another ZLD-based Zyxel Device using a pre-shared key.
Choose Advanced to change the default settings and/or use certificates instead of a pre-shared key to create a VPN rule to connect to another IPSec device.
Figure 68 VPN Setup Wizard: Wizard Type
ZyWALL ATP Series User’s Guide
83
Chapter 4 Quick Setup Wizards
4.3.3 VPN Express Wizard - Scenario
Click the Express radio button as shown in Figure 68 on page 83 to display the following screen.
Figure 69 VPN Express Wizard: Scenario
IKE (Internet Key Exchange) Version: IKEv1 and IKEv2
IKE (Internet Key Exchange) is a protocol used in security associations to send data securely. IKE uses certificates or pre-shared keys for authentication and a Diffie–Hellman key exchange to set up a shared session secret from which encryption keys are derived.
IKEv2 supports Extended Authentication Protocol (EAP) authentication, and IKEv1 supports X-Auth. EAP is important when connecting to existing enterprise authentication systems.
Scenario
Rule Name: Type the name used to identify this VPN connection (and VPN gateway). You may use 1-31
alphanumeric characters, underscores (_), or dashes (-), but the first character cannot be a number. This value is case-sensitive.
Select the scenario that best describes your intended VPN connection. The figure on the left of the screen changes to match the scenario you select.
• Site-to-site - The remote IPSec device has a static IP address or a domain name. This Zyxel Device can initiate the VPN tunnel.
• Site-to-site with Dynamic Peer - The remote IPSec device has a dynamic IP address. Only the remote IPSec device can initiate the VPN tunnel.
• Remote Access (Server Role) - Allow incoming connections from IPSec VPN clients. The clients have dynamic IP addresses and are also known as dial-in users. Only the clients can initiate the VPN tunnel.
ZyWALL ATP Series User’s Guide
84
Chapter 4 Quick Setup Wizards
• Remote Access (Client Role) - Connect to an IPSec server. This Zyxel Device is the client (dial-in user) and can initiate the VPN tunnel.
4.3.4 VPN Express Wizard - Configuration
Figure 70 VPN Express Wizard: Configuration
• My Address (interface): Select an interface from the drop-down list box to use on your Zyxel Device.
• Secure Gateway: Any displays in this field if it is not configurable for the chosen scenario. Otherwise, enter the WAN IP address or domain name of the remote IPSec device (secure gateway) to identify the remote IPSec router by its IP address or a domain name. Use 0.0.0.0 if the remote IPSec router has a dynamic WAN IP address.
• Pre-Shared Key: Type the password. Both ends of the VPN tunnel must use the same password. Use 8 to 31 case-sensitive ASCII characters or 8 to 31 pairs of hexadecimal (“0-9”, “A-F”) characters. Proceed a hexadecimal key with “0x”. You will receive a PYLD_MALFORMED (payload malformed) packet if the same pre-shared key is not used on both ends.
• Local Policy (IP/Mask): Type the IP address of a computer on your network that can use the tunnel. You can also specify a subnet. This must match the remote IP address configured on the remote IPSec device.
• Remote Policy (IP/Mask): Any displays in this field if it is not configurable for the chosen scenario. Otherwise, type the IP address of a computer behind the remote IPSec device. You can also specify a subnet. This must match the local IP address configured on the remote IPSec device.
4.3.5 VPN Express Wizard - Summary
This screen provides a read-only summary of the VPN tunnel’s configuration and commands that you can copy and paste into another ZLD-based Zyxel Device’s command line interface to configure it.
ZyWALL ATP Series User’s Guide
85
Chapter 4 Quick Setup Wizards
Figure 71 VPN Express Wizard: Summary
• Rule Name: Identifies the VPN gateway policy.
• Secure Gateway: IP address or domain name of the remote IPSec device. If this field displays Any, only the remote IPSec device can initiate the VPN connection.
• Pre-Shared Key: VPN tunnel password. It identifies a communicating party during a phase 1 IKE negotiation.
• Local Policy: IP address and subnet mask of the computers on the network behind your Zyxel Device that can use the tunnel.
• Remote Policy: IP address and subnet mask of the computers on the network behind the remote IPSec device that can use the tunnel. If this field displays Any, only the remote IPSec device can initiate the VPN connection.
• Copy and paste the Configuration for Secure Gateway commands into another ZLD-based Zyxel Device’s command line interface to configure it to serve as the other end of this VPN tunnel. You can also use a text editor to save these commands as a shell script file with a “.zysh” filename extension. Use the file manager to run the script in order to configure the VPN connection. See the commands reference guide for details on the commands displayed in this list.
4.3.6 VPN Express Wizard - Finish
Now the rule is configured on the Zyxel Device. The Phase 1 rule settings appear in the VPN > IPSec VPN > VPN Gateway screen and the Phase 2 rule settings appear in the VPN > IPSec VPN > VPN Connection
screen.
ZyWALL ATP Series User’s Guide
86
Chapter 4 Quick Setup Wizards
Figure 72 VPN Express Wizard: Finish
Click Close to exit the wizard.
4.3.7 VPN Advanced Wizard - Scenario
Click the Advanced radio button as shown in Figure 68 on page 83 to display the following screen.
Figure 73 VPN Advanced Wizard: Scenario
ZyWALL ATP Series User’s Guide
87
Chapter 4 Quick Setup Wizards
IKE (Internet Key Exchange) Version: IKEv1 and IKEv2
IKE (Internet Key Exchange) is a protocol used in security associations to send data securely. IKE uses certificates or pre-shared keys for authentication and a Diffie–Hellman key exchange to set up a shared session secret from which encryption keys are derived.
IKEv2 supports Extended Authentication Protocol (EAP) authentication, and IKEv1 supports X-Auth. EAP is important when connecting to existing enterprise authentication systems.
Scenario
Rule Name: Type the name used to identify this VPN connection (and VPN gateway). You may use 1-31
alphanumeric characters, underscores (_), or dashes (-), but the first character cannot be a number. This value is case-sensitive.
Select the scenario that best describes your intended VPN connection. The figure on the left of the screen changes to match the scenario you select.
• Site-to-site - The remote IPSec device has a static IP address or a domain name. This Zyxel Device can initiate the VPN tunnel.
• Site-to-site with Dynamic Peer - The remote IPSec device has a dynamic IP address. Only the remote IPSec device can initiate the VPN tunnel.
• Remote Access (Server Role) - Allow incoming connections from IPSec VPN clients. The clients have dynamic IP addresses and are also known as dial-in users. Only the clients can initiate the VPN tunnel.
• Remote Access (Client Role) - Connect to an IPSec server. This Zyxel Device is the client (dial-in user) and can initiate the VPN tunnel.
4.3.8 VPN Advanced Wizard - Phase 1 Settings
There are two phases to every IKE (Internet Key Exchange) negotiation – phase 1 (Authentication) and phase 2 (Key Exchange). A phase 1 exchange establishes an IKE SA (Security Association).
ZyWALL ATP Series User’s Guide
88
Chapter 4 Quick Setup Wizards
Figure 74 VPN Advanced Wizard: Phase 1 Settings
• Secure Gateway: Any displays in this field if it is not configurable for the chosen scenario. Otherwise, enter the WAN IP address or domain name of the remote IPSec device (secure gateway) to identify the remote IPSec device by its IP address or a domain name. Use 0.0.0.0 if the remote IPSec device has a dynamic WAN IP address.
• My Address (interface): Select an interface from the drop-down list box to use on your Zyxel Device.
• Negotiation Mode: This displays Main or Aggressive:
• Main encrypts the ZyWALL/USG’s and remote IPSec router’s identities but takes more time to
establish the IKE SA
• Aggressive is faster but does not encrypt the identities.
The ZyWALL/USG and the remote IPSec router must use the same negotiation mode. Multiple SAs connecting through a secure gateway must have the same negotiation mode.
• Encryption Algorithm: 3DES and AES use encryption. The longer the key, the higher the security (this may affect throughput). Both sender and receiver must use the same secret key, which can be used to encrypt and decrypt the message or to generate and verify a message authentication code. The DES encryption algorithm uses a 56-bit key. Triple DES (3DES) is a variation on DES that uses a 168-bit key. As a result, 3DES is more secure than DES. It also requires more processing power, resulting in increased latency and decreased throughput. AES128 uses a 128-bit key and is faster than 3DES. AES192 uses a 192-bit key, and AES256 uses a 256-bit key.
• Authentication Algorithm: MD5 gives minimal security and SHA512 gives the highest security. MD5 (Message Digest 5) and SHA (Secure Hash Algorithm) are hash algorithms used to authenticate packet data. The stronger the algorithm the slower it is.
• Key Group: DH5 is more secure than DH1 or DH2 (although it may affect throughput). DH1 (default) refers to Diffie-Hellman Group 1 a 768 bit random number. DH2 refers to Diffie-Hellman Group 2 a 1024 bit (1Kb) random number. DH5 refers to Diffie-Hellman Group 5 a 1536 bit random number.
• SA Life Time: Set how often the Zyxel Device renegotiates the IKE SA. A short SA life time increases security, but renegotiation temporarily disconnects the VPN tunnel.
• NAT Traversal: Select this if the VPN tunnel must pass through NAT (there is a NAT router between the IPSec devices).
ZyWALL ATP Series User’s Guide
89
Chapter 4 Quick Setup Wizards
Note: The remote IPSec device must also have NAT traversal enabled. See the help in the
main IPSec VPN screens for more information.
• Dead Peer Detection (DPD) has the Zyxel Device make sure the remote IPSec device is there before transmitting data through the IKE SA. If there has been no traffic for at least 15 seconds, the Zyxel Device sends a message to the remote IPSec device. If it responds, the Zyxel Device transmits the data. If it does not respond, the Zyxel Device shuts down the IKE SA.
• Authentication Method: Select Pre-Shared Key to use a password or Certificate to use one of the Zyxel Device’s certificates.
4.3.9 VPN Advanced Wizard - Phase 2
Phase 2 in an IKE uses the SA that was established in phase 1 to negotiate SAs for IPSec.
Figure 75 VPN Advanced Wizard: Phase 2 Settings
• Active Protocol: ESP is compatible with NAT, AH is not.
• Encapsulation: Tunnel is compatible with NAT, Transport is not.
• Encryption Algorithm: 3DES and AES use encryption. The longer the AES key, the higher the security (this may affect throughput). Null uses no encryption.
• Authentication Algorithm: MD5 gives minimal security and SHA512 gives the highest security. MD5 (Message Digest 5) and SHA (Secure Hash Algorithm) are hash algorithms used to authenticate packet data. The stronger the algorithm the slower it is.
• SA Life Time: Set how often the Zyxel Device renegotiates the IKE SA. A short SA life time increases security, but renegotiation temporarily disconnects the VPN tunnel.
• Perfect Forward Secrecy (PFS): Disabling PFS allows faster IPSec setup, but is less secure. Select DH1, DH2 or DH5 to enable PFS. DH5 is more secure than DH1 or DH2 (although it may affect throughput). DH1 refers to Diffie-Hellman Group 1 a 768 bit random number. DH2 refers to Diffie-Hellman Group 2 a 1024 bit (1Kb) random number. DH5 refers to Diffie-Hellman Group 5 a 1536 bit random number (more secure, yet slower).
• Local Policy (IP/Mask): Type the IP address of a computer on your network. You can also specify a subnet. This must match the remote IP address configured on the remote IPSec device.
ZyWALL ATP Series User’s Guide
90
Chapter 4 Quick Setup Wizards
• Remote Policy (IP/Mask): Type the IP address of a computer behind the remote IPSec device. You can also specify a subnet. This must match the local IP address configured on the remote IPSec device.
• Nailed-Up: This displays for the site-to-site and remote access client role scenarios. Select this to have the Zyxel Device automatically renegotiate the IPSec SA when the SA life time expires.
4.3.10 VPN Advanced Wizard - Summary
This is a read-only summary of the VPN tunnel settings.
Figure 76 VPN Advanced Wizard: Summary
• Rule Name: Identifies the VPN connection (and the VPN gateway).
• Secure Gateway: IP address or domain name of the remote IPSec device.
• Pre-Shared Key: VPN tunnel password.
• Certificate: The certificate the Zyxel Device uses to identify itself when setting up the VPN tunnel.
• Local Policy: IP address and subnet mask of the computers on the network behind your Zyxel Device that can use the tunnel.
• Remote Policy: IP address and subnet mask of the computers on the network behind the remote IPSec device that can use the tunnel.
ZyWALL ATP Series User’s Guide
91
Chapter 4 Quick Setup Wizards
Phase 1
• Negotiation Mode: This displays Main or Aggressive:
• Main encrypts the ZyWALL/USG’s and remote IPSec router’s identities but takes more time to
establish the IKE SA
• Aggressive is faster but does not encrypt the identities.
The ZyWALL/USG and the remote IPSec router must use the same negotiation mode. Multiple SAs connecting through a secure gateway must have the same negotiation mode.
• Encryption Algorithm: This displays the encryption method used. The longer the key, the higher the security, the lower the throughput (possibly).
• DES uses a 56-bit key.
• 3DES uses a 168-bit key.
• AES128 uses a 128-bit key
• AES192 uses a 192-bit key
• AES256 uses a 256-bit key.
• Authentication Algorithm: This displays the authentication algorithm used. The stronger the algorithm, the slower it is.
• MD5 gives minimal security.
• SHA1 gives higher security
• SHA256 gives the highest security.
• Key Group: This displays the Diffie-Hellman (DH) key group used. DH5 is more secure than DH1 or DH2 (although it may affect throughput).
• DH1 uses a 768 bit random number.
• DH2 uses a 1024 bit (1Kb) random number.
• DH5 uses a 1536 bit random number.
Phase 2
• Active Protocol: This displays ESP (compatible with NAT) or AH.
• Encapsulation: This displays Tunnel (compatible with NAT) or Transport.
• Encryption Algorithm: This displays the encryption method used. The longer the key, the higher the security, the lower the throughput (possibly).
• DES uses a 56-bit key.
• 3DES uses a 168-bit key.
•
AES128 uses a 128-bit key
• AES192 uses a 192-bit key
• AES256 uses a 256-bit key.
• Null uses no encryption.
• Authentication Algorithm: This displays the authentication algorithm used. The stronger the algorithm, the slower it is.
• MD5 gives minimal security.
• SHA1 gives higher security
• SHA256 gives the highest security.
ZyWALL ATP Series User’s Guide
92
Chapter 4 Quick Setup Wizards
Copy and paste the Configuration for Remote Gateway commands into another ZLD-based Zyxel Device’s command line interface.
Click Save to save the VPN rule.
4.3.11 VPN Advanced Wizard - Finish
Now the rule is configured on the Zyxel Device. The Phase 1 rule settings appear in the VPN > IPSec VPN > VPN Gateway screen and the Phase 2 rule settings appear in the VPN > IPSec VPN > VPN Connection
screen.
Figure 77 VPN Wizard: Finish
Click Close to exit the wizard.
ZyWALL ATP Series User’s Guide
93
Chapter 4 Quick Setup Wizards
4.4 VPN Settings for Configuration Provisioning Wizard: Wizard Type
Use VPN Settings for Configuration Provisioning to set up a VPN rule that can be retrieved with the Zyxel
Device IPSec VPN Client.
VPN rules for the Zyxel Device IPSec VPN Client have certain restrictions. They must not contain the following settings:
• AH active protocol
• NULL encryption
• SHA512 authentication
• A subnet or range remote policy
Choose Express to create a VPN rule with the default phase 1 and phase 2 settings and to use a pre- shared key.
Choose Advanced to change the default settings and/or use certificates instead of a pre-shared key in the VPN rule.
Figure 78 VPN Settings for Configuration Provisioning Express Wizard: Wizard Type
4.4.1 Configuration Provisioning Express Wizard - VPN Settings
Click the Express radio button as shown in the previous screen to display the following screen.
ZyWALL ATP Series User’s Guide
94
Chapter 4 Quick Setup Wizards
Figure 79 VPN for Configuration Provisioning Express Wizard: Settings Scenario
• IKE (Internet Key Exchange) is a protocol used in security associations to send data securely. IKE uses certificates or pre-shared keys for authentication and a Diffie–Hellman key exchange to set up a shared session secret from which encryption keys are derived.
• IKEv2 supports Extended Authentication Protocol (EAP) authentication, and IKEv1 supports X-Auth. EAP is important when connecting to existing enterprise authentication systems.
• Rule Name: Type the name used to identify this VPN connection (and VPN gateway). You may use 1­31 alphanumeric characters, underscores (_), or dashes (-), but the first character cannot be a number. This value is case-sensitive.
• Application Scenario: Only the Remote Access (Server Role) is allowed in this wizard. It allows incoming connections from the Zyxel Device IPSec VPN Client.
4.4.2 Configuration Provisioning VPN Express Wizard - Configuration
Click Next to continue the wizard.
ZyWALL ATP Series User’s Guide
95
Chapter 4 Quick Setup Wizards
Figure 80 VPN for Configuration Provisioning Express Wizard: Configuration
• My Address (interface): Select an interface from the drop-down list box to use on your Zyxel Device.
• Secure Gateway: Any displays in this field because it is not configurable in this wizard. It allows incoming connections from the Zyxel Device IPSec VPN Client.
• Pre-Shared Key: Type the password. Both ends of the VPN tunnel must use the same password. Use 8 to 31 case-sensitive ASCII characters or 8 to 31 pairs of hexadecimal (“0-9”, “A-F”) characters. Proceed a hexadecimal key with “0x”. You will receive a PYLD_MALFORMED (payload malformed) packet if the same pre-shared key is not used on both ends.
• Local Policy (IP/Mask): Type the IP address of a computer on your network. You can also specify a subnet. This must match the remote IP address configured on the remote IPSec device.
• Remote Policy (IP/Mask): Any displays in this field because it is not configurable in this wizard.
4.4.3 VPN Settings for Configuration Provisioning Express Wizard - Summary
This screen has a read-only summary of the VPN tunnel’s configuration and commands you can copy and paste into another ZLD-based Zyxel Device’s command line interface to configure it.
ZyWALL ATP Series User’s Guide
96
Chapter 4 Quick Setup Wizards
Figure 81 VPN for Configuration Provisioning Express Wizard: Summary
• Rule Name: Identifies the VPN gateway policy.
• Secure Gateway: Any displays in this field because it is not configurable in this wizard. It allows incoming connections from the Zyxel Device IPSec VPN Client.
• Pre-Shared Key: VPN tunnel password. It identifies a communicating party during a phase 1 IKE negotiation.
• Local Policy: (Static) IP address and subnet mask of the computers on the network behind your Zyxel Device that can be accessed using the tunnel.
• Remote Policy: Any displays in this field because it is not configurable in this wizard.
• The Configuration for Secure Gateway displays the configuration that the Zyxel Device IPSec VPN Client will get from the Zyxel Device.
• Click Save to save the VPN rule.
4.4.4 VPN Settings for Configuration Provisioning Express Wizard - Finish
Now the rule is configured on the Zyxel Device. The Phase 1 rule settings appear in the Configuration > VPN > IPSec VPN > VPN Gateway screen and the Phase 2 rule settings appear in the Configuration > VPN > IPSec VPN > VPN Connection screen. Enter the IP address of the Zyxel Device in the Zyxel Device IPSec
VPN Client to get all these VPN settings automatically from the Zyxel Device.
ZyWALL ATP Series User’s Guide
97
Chapter 4 Quick Setup Wizards
Figure 82 VPN for Configuration Provisioning Express Wizard: Finish
Click Close to exit the wizard.
4.4.5 VPN Settings for Configuration Provisioning Advanced Wizard ­Scenario
Click the Advanced radio button as shown in the screen shown in Figure 78 on page 94 to display the following screen.
ZyWALL ATP Series User’s Guide
98
Chapter 4 Quick Setup Wizards
Figure 83 VPN for Configuration Provisioning Advanced Wizard: Scenario Settings
• IKE (Internet Key Exchange) is a protocol used in security associations to send data securely. IKE uses certificates or pre-shared keys for authentication and a Diffie–Hellman key exchange to set up a shared session secret from which encryption keys are derived.
• IKEv2 supports Extended Authentication Protocol (EAP) authentication, and IKEv1 supports X-Auth. EAP is important when connecting to existing enterprise authentication systems.
• Rule Name: Type the name used to identify this VPN connection (and VPN gateway). You may use 1­31 alphanumeric characters, underscores (_), or dashes (-), but the first character cannot be a number. This value is case-sensitive.
• Application Scenario: Only the Remote Access (Server Role) is allowed in this wizard. It allows incoming connections from the Zyxel Device IPSec VPN Client.
Click Next to continue the wizard.
4.4.6 VPN Settings for Configuration Provisioning Advanced Wizard - Phase 1 Settings
There are two phases to every IKE (Internet Key Exchange) negotiation – phase 1 (Authentication) and phase 2 (Key Exchange). A phase 1 exchange establishes an IKE SA (Security Association).
ZyWALL ATP Series User’s Guide
99
Chapter 4 Quick Setup Wizards
Figure 84 VPN for Configuration Provisioning Advanced Wizard: Phase 1 Settings
• Secure Gateway: Any displays in this field because it is not configurable in this wizard. It allows incoming connections from the Zyxel Device IPSec VPN Client.
• My Address (interface): Select an interface from the drop-down list box to use on your Zyxel Device.
• Negotiation Mode: This displays Main or Aggressive:
• Main encrypts the ZyWALL/USG’s and remote IPSec router’s identities but takes more time to
establish the IKE SA
• Aggressive is faster but does not encrypt the identities.
The ZyWALL/USG and the remote IPSec router must use the same negotiation mode. Multiple SAs connecting through a secure gateway must have the same negotiation mode.
• Encryption Algorithm: 3DES and AES use encryption. The longer the key, the higher the security (this may affect throughput). Both sender and receiver must know the same secret key, which can be used to encrypt and decrypt the message or to generate and verify a message authentication code. The DES encryption algorithm uses a 56-bit key. Triple DES (3DES) is a variation on DES that uses a 168­bit key. As a result, 3DES is more secure than DES. It also requires more processing power, resulting in increased latency and decreased throughput. AES128 uses a 128-bit key and is faster than 3DES. AES192 uses a 192-bit key and AES256 uses a 256-bit key.
• Authentication Algorithm: MD5 (Message Digest 5) and SHA (Secure Hash Algorithm) are hash algorithms used to authenticate packet data. MD5 gives minimal security. SHA1 gives higher security and SHA256 gives the highest security. The stronger the algorithm, the slower it is.
• Key Group: DH5 is more secure than DH1 or DH2 (although it may affect throughput). DH1 (default) refers to Diffie-Hellman Group 1 a 768 bit random number. DH2 refers to Diffie-Hellman Group 2 a 1024 bit (1Kb) random number. DH5 refers to Diffie-Hellman Group 5 a 1536 bit random number.
• SA Life Time: Set how often the Zyxel Device renegotiates the IKE SA. A short SA life time increases security, but renegotiation temporarily disconnects the VPN tunnel.
• Authentication Method: Select Pre-Shared Key to use a password or Certificate to use one of the Zyxel Device’s certificates.
ZyWALL ATP Series User’s Guide
100
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
