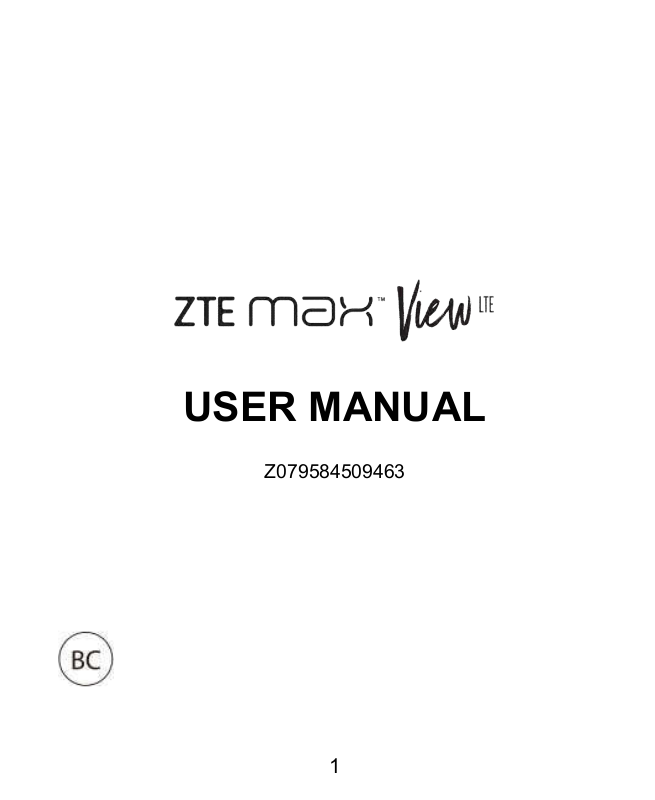

USER MANUAL
Z079584509463
1
About This Manual
Thank you for choosing this ZTE mobile device. In order to keep your device in its best condition, please read this manual and keep it for future reference.
Copyright © 2017 ZTE CORPORATION
All rights reserved.
No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice. This manual has been designed with the utmost care to ensure the accuracy of its content. However, all statements, information and recommendations contained therein do not constitute a warranty of any kind, either expressed or implied. Please refer to chapter For Your Safety to be sure to use your phone properly and safely.
We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.zteusa.com) for more information on self-service and supported product models. Information on the website takes precedence.
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software.
2
Images and screenshots used in this manual may differ from the actual product. Content in this manual may differ from the actual product or software.
Trademarks
ZTE, MAX_VIEW_LTE, and the ZTE logos are trademarks of ZTE Corporation.
LTE is a trademark of ETSI.
Android is a trademark of Google LLC.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
The microSDXC™ logo is a trademark of SD-3C, LLC. Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Used with permission.
Other trademarks and trade names are those of their respective owners.
Edition Time: November 2017
3
Table of Contents |
|
Getting Started ....................................................... |
10 |
Installing a Nano-SIM Card and a microSDXC™ Card (Not |
|
Included) ......................................................................... |
10 |
Charging the Battery........................................................ |
11 |
Extending the Battery Life................................................ |
13 |
Powering Your Phone On/Off ........................................... |
14 |
Setting Up Your Phone for the First Time.......................... |
14 |
Locking/Unlocking the Screen and Keys .......................... |
14 |
Using the Touch Screen................................................... |
16 |
Getting to Know Your Phone ............................................ |
18 |
Getting to Know the Home Screen ................................... |
21 |
Personalizing.......................................................... |
24 |
Changing the System Language ...................................... |
24 |
Setting the Date and Time................................................ |
24 |
Changing the Ringtone and Notification Sound ................ |
25 |
Turning System Sounds On/Off........................................ |
26 |
Adjusting Volumes ........................................................... |
26 |
Switching to Silent or Vibration Mode ............................... |
26 |
Using Do Not Disturb Mode ............................................. |
27 |
Applying New Wallpapers ................................................ |
28 |
Setting the Theme ........................................................... |
29 |
Setting the Home Screen Transition Effect ....................... |
29 |
Changing Screen Brightness ........................................... |
29 |
4
Protecting Your Phone With Screen Locks........................ |
30 |
Using Your Fingerprint...................................................... |
31 |
Protecting Your Phone With Screen Pinning ..................... |
33 |
Knowing the Basics............................................... |
35 |
Monitoring the Phone Status ............................................ |
35 |
Managing Notifications..................................................... |
36 |
Managing Shortcuts and Widgets ..................................... |
40 |
Organizing With Folders................................................... |
41 |
Rearranging the Primary Shortcuts................................... |
41 |
Entering Text.................................................................... |
42 |
Editing Text ...................................................................... |
46 |
Opening and Switching Apps............................................ |
47 |
Using Two Apps in Split-Screen Mode .............................. |
48 |
Uninstalling or Disabling an App ....................................... |
49 |
Connecting to Networks and Devices.................. |
50 |
Connecting to Mobile Networks ........................................ |
50 |
Connecting to Wi-Fi.......................................................... |
52 |
Connecting to Bluetooth Devices...................................... |
55 |
Connecting to Your Computer via USB ............................. |
58 |
Using the microSDXC Card as Portable or Phone Storage59 |
|
Sharing Your Mobile Data Connection .............................. |
63 |
Connecting to Virtual Private Networks............................. |
65 |
Phone Calls ............................................................ |
67 |
Placing and Ending Calls ................................................. |
67 |
5
Answering or Rejecting Calls ........................................... |
68 |
Working With the Call History........................................... |
69 |
Calling Your Contacts....................................................... |
71 |
Checking Voicemail ......................................................... |
72 |
Using Options During a Call............................................. |
72 |
Managing Multi-party Calls............................................... |
73 |
Adjusting Your Call Settings ............................................. |
74 |
Contacts.................................................................. |
81 |
Checking Contact Details................................................. |
81 |
Adding a New Contact ..................................................... |
81 |
Setting Up Your Own Profile............................................. |
82 |
Importing, Exporting, and Sharing Contacts ..................... |
82 |
Working With Favorite Contacts ....................................... |
84 |
Working With Groups....................................................... |
85 |
Searching for a Contact ................................................... |
87 |
Editing Contacts............................................................... |
87 |
Accounts................................................................. |
90 |
Adding or Removing Accounts ......................................... |
90 |
Configuring Account Sync................................................ |
91 |
Email ....................................................................... |
93 |
Setting Up the First Email Account ................................... |
93 |
Checking Your Emails...................................................... |
93 |
Writing and Sending an Email .......................................... |
94 |
Responding to an Email................................................... |
94 |
6
Adding and Editing Email Accounts .................................. |
96 |
Changing General Email Settings..................................... |
96 |
Messages ............................................................... |
98 |
Opening the Messages Screen ........................................ |
98 |
Sending a Message ......................................................... |
98 |
Replying to a Message................................................... |
100 |
Forwarding a Message................................................... |
100 |
Deleting Messages or Threads....................................... |
100 |
Changing Message Settings........................................... |
101 |
Browser ................................................................ |
102 |
Opening the Browser ..................................................... |
102 |
Setting the Home Page .................................................. |
102 |
Using Multiple Browser Windows.................................... |
103 |
Downloading Files.......................................................... |
103 |
Changing Browser Settings ............................................ |
104 |
Camera ................................................................. |
105 |
Capturing a Photo .......................................................... |
105 |
Using Portrait Camera Mode .......................................... |
107 |
Using Bokeh Camera Mode ........................................... |
108 |
Using Other Camera Modes........................................... |
108 |
Recording a Video.......................................................... |
109 |
Customizing Camera and Video Settings........................ |
110 |
Gallery .................................................................. |
112 |
Opening Gallery............................................................. |
112 |
7
Working With Albums..................................................... |
112 |
Working With Pictures.................................................... |
113 |
Retouching Your Pictures............................................... |
115 |
Making a GIF or a Collage ............................................. |
116 |
Playing Videos............................................................... |
118 |
Music..................................................................... |
119 |
Viewing Your Music Library ............................................ |
119 |
Setting a Song as the Default Ringtone.......................... |
119 |
Playing Music ................................................................ |
120 |
Managing Playlists......................................................... |
123 |
Video Player ......................................................... |
124 |
Opening the Video Library ............................................. |
124 |
Playing and Controlling Videos ...................................... |
124 |
Managing Video Files .................................................... |
126 |
Sound Recorder................................................... |
128 |
Recording a Voice Memo............................................... |
128 |
Playing a Voice Memo ................................................... |
128 |
More Apps............................................................. |
129 |
Calculator ...................................................................... |
129 |
Clock ............................................................................. |
129 |
Dolby Audio ................................................................... |
130 |
Downloads..................................................................... |
131 |
File Manager ................................................................. |
131 |
Wi-Fi Utility .................................................................... |
132 |
8
Google Apps .................................................................. |
132 |
Settings ................................................................ |
134 |
Wireless & Networks ...................................................... |
134 |
Device ........................................................................... |
137 |
Personal ........................................................................ |
141 |
System........................................................................... |
147 |
Upgrading the Phone Software .......................... |
148 |
Troubleshooting................................................... |
149 |
For Your Safety .................................................... |
154 |
General Safety............................................................... |
154 |
Radio Frequency (RF) Energy........................................ |
155 |
FCC Regulations............................................................ |
157 |
Hearing Aid Compatibility (HAC) Regulations for Mobile |
|
Phones .......................................................................... |
159 |
CTIA Requirements........................................................ |
161 |
Distraction...................................................................... |
162 |
Product Handling ........................................................... |
163 |
Electrical Safety ............................................................. |
167 |
Radio Frequency Interference ........................................ |
168 |
Explosive Environments ................................................. |
169 |
Specifications ...................................................... |
171 |
9 |
|
Getting Started
Installing a Nano-SIM Card and a microSDXC™ Card (Not Included)
Power off your phone before installing or removing the nano-SIM card or the microSDXC card. Unmount the microSDXC card before removing it (see Connecting to Networks and Devices – Using the microSDXC Card as Portable or Phone Storage).
WARNING! To avoid damage to the phone, do not use any other kind of SIM card or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider.
1.Insert the tip of the tray eject tool into the hole next to the card tray and pull the tray out.
10
2.Place the nano-SIM card and the microSDXC card on the tray, as shown.
3.Carefully slide the tray back into place.
microSDXC card
nano-SIM card
Charging the Battery
Your phone’s battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible.
Do not change the built-in rechargeable battery in your phone by yourself. The battery can only be changed by ZTE or a ZTE authorized service provider.
WARNINGS!
Use only ZTE-approved chargers and USB Type-C™ cables. The use of unapproved accessories could damage your phone or cause the battery to explode.
11
Do not remove the back cover. The battery is not removable. Removal may cause fire or explosion.
NOTE: Use the USB Type-C charger that comes in-box with your phone to charge the battery. It’s specially built to support Qualcomm® Quick Charge™ 2.0.
1. Connect the adapter to the charging port.
2.Connect the charger to a standard AC wall outlet. If the phone is on, you’ll see a charging icon, such as or
, appear in the Status Bar.
3.Disconnect the charger when the battery is fully charged.
NOTE: If the battery is extremely low, you may be unable to
12
power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact customer service if you still cannot power on the phone after prolonged charging.
This device contains a non-removable battery. Attempting to remove will void your warranty and could cause serious injury. Do not damage, alter, or try to remove the battery.
Extending the Battery Life
Active applications, screen brightness levels, Bluetooth and Wi-Fi usage and GPS functionality can drain your battery. You can follow the helpful tips below to conserve your battery power:
Use the Battery saver feature in Settings.
Reduce the screen backlight time.
Lower the screen brightness.
Turn auto-sync, Wi-Fi, and Bluetooth off when not in use.
Disable the GPS function when not in use. Most applications using this function will periodically query the GPS satellites for your current location; each query drains your battery.
13
Powering Your Phone On/Off
Press and hold the Power/Lock Key to turn on your phone.
To turn it off, press and hold the Power/Lock Key to open the options menu. Tap Power off > OK.
NOTE: If the phone freezes or takes too long to respond, press
and hold the Power/Lock Key for about 10 seconds to restart the phone.
Setting Up Your Phone for the First Time
When you first power on your phone after you purchase it or reset it to factory settings (see Settings – Personal – Backup & Reset), you will need to set it up before using it.
1.Tap the language field to select the language you want, and tap LET'S GO.
2.Follow the prompts to set up your Wi-Fi connection, Google account, Google services, and other options.
NOTE: Users with low vision can tap Vision Settings on the initial setup screen to customize accessibility features.
Locking/Unlocking the Screen and
Keys
Your phone allows you to quickly lock the screen and keys (put
14
the phone into Sleep mode) when not in use and also to turn the screen back on and unlock it when you need it.
Locking the Screen and Keys
To quickly turn the screen off and lock the keys, press the
Power/Lock Key.
NOTE: To save battery power, the phone automatically turns off the screen after a certain period of time when you leave it idle. You will still be able to receive messages and calls while the phone screen is off.
Unlocking the Screen and Keys
1.Press the Power/Lock Key to turn the screen on.
2.Press and hold an empty area of the screen to unlock the phone, or
Press and hold to use Google voice commands.
Press and hold to open the camera.
Double-tap a notification to open the related app.
NOTE: If you have set a fingerprint, an unlock pattern, a PIN, or a password for your phone (see Personalizing – Protecting Your Phone With Screen Locks or Using Your Fingerprint), you’ll need to press your finger against the fingerprint sensor, draw the pattern, or enter the PIN/password to unlock your screen.
15
Using the Touch Screen
Your phone’s touch screen lets you control actions through a variety of touch gestures.
Tap – When you want to type using the on-screen keyboard, select on-screen items (such as application and settings icons), or press on-screen buttons, simply tap them with your finger.
Press and Hold – To open the available options for an item (for example, a message or link in a web page), press and hold the item.
Swipe or Slide – To swipe or slide means to quickly drag your finger vertically or horizontally across the screen.
Drag – To drag, press and hold your finger with some pressure before you start to move your finger. While dragging, do not release your finger until you have reached the target position.
Pinch – In some apps (such as Maps, web browser, and Gallery), you can zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in).
Rotate the Screen – For most screens, you can automatically change the screen orientation from portrait to landscape by turning the phone sideways.
16
NOTES:
The Auto-rotate feature needs to be enabled for the screen
orientation to automatically change. Tap the Home Key >
> Settings > Display > When device is rotated > Rotate the contents of the screen.
You can also access the screen rotation control by sliding down the Status Bar twice and tapping Auto-rotate or
Portrait.
17
Getting to Know Your Phone
Microphone
Earpiece
Nano-SIM/ microSDXC Card Tray
Home Key
Back Key*
Main
Microphone
Proximity & Light
Sensor
Indicator Light
Front Camera
Recent Apps
Key*
Speaker
18
|
3.5mm |
|
|
Headset |
|
|
Jack |
|
Dual-Lens |
Dual Flash |
|
Camera |
||
Volume UP Key |
|
|
Volume Down Key |
Fingerprint |
|
Sensor |
||
Power/Lock |
||
|
||
Key |
|
Charging/USB
Type-C™ Port
* You can switch the positions of the Back Key and Recent Apps
Key. Tap the Home Key > > Settings > Navigation key and select one option.
19
Key Functions
Key
Description
Power/Lock Press and hold to turn Airplane mode on or off, Key restart, or power off.
Press to change your phone to Sleep mode. Press to wake up your phone.
Home Key
Recent Apps
Key
Back Key
Volume Up
Key/Volume
Down Key
Tap to return to the home screen from any application or screen.
Press and hold to access Google Assistant.
Tap to see recently used applications. Double-tap to switch to the most recent application.
Press and hold while using an app to activate split-screen mode (see Knowing the Basics – Using Two Apps in Split-Screen Mode).
Tap to go to the previous screen.
Press or hold to turn the volume up or down.
20
Getting to Know the Home Screen
The home screen is the starting point for your phone’s applications, functions, and menus. You can customize your home screen by adding application icons, shortcuts, folders, widgets, and more.
Status &
Notifications
Widget
Wallpaper
Shortcut |
Folder |
Primary
Shortcuts
Navigation Bar
Extended Home Screen Panels
Your home screen is extendable, providing more space for shortcuts, widgets, and more. Simply swipe left or right on the
21
home screen to see the extended panels. You can add or remove home screen panels, or adjust their order.
To add a new home screen panel:
1.Press and hold an empty area of the home screen.
2.Tap Widgets.
3.Slide the home screen thumbnails left or right and tap .
4.Drag a widget to the new home screen.
To delete a home screen panel:
1.Press and hold an empty area of the home screen.
2.Tap Home.
3.Swipe left or right to view the home screen thumbnails. Tap
on the top right corner of a thumbnail.
4.Tap OK. The items on the panel will also be removed.
NOTES:
A home screen panel cannot be left empty. If the icon, widget, or folder is the only item on the current home screen panel, the panel will be deleted as you remove the item.
When there are only three home screen panels, you cannot delete any of them.
To move a home screen panel:
1.Press and hold an empty area of the home screen.
2.Tap Home.
3.Swipe left or right to view the home screen thumbnails. Press
22
and hold a thumbnail and drag it left or right to the place you need.
NOTE: Tap at the bottom of a home screen thumbnail to set it as the main home screen.
23
Personalizing
Changing the System Language
1.Tap the Home Key > > Settings > Language & input > Languages.
2.If the language you need is not shown in the list, tap Add a language and select the one you want.
3.Press and hold next to the language you want to use, and drag it to the top of the list.
NOTE: To remove languages from the list, tap > Remove and select the languages you want to delete.
Setting the Date and Time
1.Tap the Home Key > > Settings > Date & time.
2.Set the date, time, time zone, and time format.
To adjust the date and time automatically, tap to turn on
Automatic date & time.
To adjust the date and time manually, tap to turn off
Automatic date & time and tap Set date / Set time to change the date and time.
To adjust the time zone automatically, tap to turn on
Automatic time zone.
24
To adjust the time zone manually, tap to turn off
Automatic time zone and tap Select time zone to set the correct time zone.
To adjust the time format, tap to turn on Use 24-hour format.
Changing the Ringtone and Notification
Sound
You can quickly customize the default ringtone for incoming calls and the default notification sound.
1.Tap the Home Key > > Settings > Sound.
2.Tap Phone ringtone or Default notification ringtone.
3.Scroll through the list and select the ringtone you’d like to use.
4.Tap OK.
NOTES:
Many applications have their own notification sound settings.
See Contacts – Editing Contacts – Setting a Ringtone for a Contact for how to assign a special ringtone to an individual contact.
When selecting ringtones or sounds, tap the Music or Recording tab to select an audio file saved on the phone or the microSDXC card.
25
Turning System Sounds On/Off
1.Tap the Home Key > > Settings > Sound > Other sounds.
2.Tap Dial pad tones, Screen locking sounds, Charging sounds, Touch sounds, Vibrate on tap, or Power up tone to turn each option on or off.
-or -
Tap Emergency tone and choose an option for emergency tone.
Adjusting Volumes
1.Tap the Home Key > > Settings > Sound.
2.Drag the sliders below Media volume, Alarm volume, Ring volume and Notification volume to adjust the volume for each type of audio.
NOTE: You can adjust the media volume when a media application is in use by pressing the Volume Key. If no media application is active, press the Volume Key to adjust the ringtone volume (or the earpiece volume during a call), or tap and drag a volume slider to adjust other types of volume.
Switching to Silent or Vibration Mode
You can set the phone to silent or vibration mode by using one of the following methods.
26
Press the Volume Key when no media application is active to show the volume management window. Drag the slider to the left or keep pressing the Volume Down Key to switch the phone to vibration mode. Press the key again in vibration mode to switch the phone to silent mode.
Swipe down from the top of the screen to open the Notification Panel, and drag the panel downward. Slide left and tap Sound, Vibrate, or Silent to switch the phone to vibration or silent mode or turn on the sound (see Knowing the Basics – Managing Notifications – Using Quick Settings).
Tap the Home Key > > Settings > Sound > Notification mode and select Vibrate or Mute to switch to vibration or silent mode.
NOTE: In addition to silent mode and vibration, you can also allow priority apps to send out notifications when you switch the phone to priority interruption mode.
Using Do Not Disturb Mode
You can limit interruptions with Do not disturb mode. This mode silences your phone so that it doesn’t make sounds or vibrate when you don’t want it to.
Turning on Do not disturb mode
1.Tap the Home key > > Settings > Sound > Do not disturb.
2.Tap Do not disturb and choose an option:
Tap Never to disable the feature.
27
Tap Always to immediately enable the feature.
Tap Scheduled to enable the feature for a selected time period. Under Set schedule, tap Days, Start time, and End time to make selections.
3.If you select Always or Scheduled, tap Disturb rules and choose an option:
Tap Priority only to allow only notifications that you have marked as priority. Set these under Priority interruptions.
Tap Alarms only to allow only alarms.
Tap Total silence to block all notifications.
NOTES:
To set a Do not disturb exception for a specific app, Tap the
Home Key > > Settings > Notifications. Select the app you want, and then tap to enable Override Do Not Disturb to allow its notifications in Priority only mode.
You can also enable Do not disturb mode from the Quick Settings menu. Swipe down twice to open Quick Settings, and then tap Do not disturb. Adjust the settings and tap DONE when ready or MORE SETTINGS for the full menu.
To quickly turn off Do not disturb mode, press the Volume Key and tap END NOW.
Applying New Wallpapers
You can set the wallpaper for the home screen or lock screen.
1.Press and hold an empty place on the home screen.
2.Tap Wallpapers.
28
3.Swipe left or right on the wallpaper panel to select a wallpaper, or tap GALLERY to choose the image you want to use as the wallpaper.
NOTES:
Alternatively, you can tap the Home Key > > Settings > Display > Wallpaper to pick an image from Gallery, Photos, Wallpapers, or an animation from Live Wallpapers.
Some cropping may be needed for Gallery and Photos images.
Setting the Theme
1.Press and hold an empty place on the home screen.
2.Tap Themes.
3.Tap a theme to select it.
Setting the Home Screen Transition
Effect
1.Press and hold an empty place on the home screen.
2.Tap Home.
3.Tap an effect and the phone will demonstrate how it works. When you have found one you like, tap the Home Key to exit.
Changing Screen Brightness
1. Tap the Home Key > > Settings > Display >
29
Brightness level.
2. Drag the slider to manually adjust the screen brightness.
NOTE: With the proximity and light sensor, your phone can automatically adjust the screen brightness for available light. Tap Adaptive brightness in the Display settings screen to turn the feature on or off.
Protecting Your Phone With Screen
Locks
You can protect your phone by creating a screen lock. When it is enabled, you can press and hold a blank area on the lock screen, and then draw a pattern or enter a numeric PIN or a password to unlock the phone’s screen and keys.
1.Tap the Home Key > > Settings > Security.
2.Tap Screen lock.
3.Tap None, Long press, Pattern, PIN, or Password.
Tap None to disable screen lock protection.
Tap Long press to enable screen lock and allow unlocking with a “press and hold” gesture. You can unlock the screen by pressing and holding a blank area on the lock screen.
Tap Pattern to create a pattern that you must draw to unlock the screen.
Tap PIN or Password to set a numeric PIN or a password that you must enter to unlock the screen.
30
