ZTE Z331 (AT&T) User Manual

Contents

Getting Started ............................................................................................................................................1

Removing the Back Cover ..................................................................................................................1

Battery .........................................................................................................................................................1

SIM and Memory Cards ......................................................................................................................3

Charging Your Phone ...........................................................................................................................5

Powering Phone On/Off ..................................................................................................................... 7

Getting to Know Your Phone ............................................................................................................8

Key Functions ..........................................................................................................................................9

Idle Mode .................................................................................................................................................. 11

Indicators and Icons ...........................................................................................................................11

Main Menu ............................................................................................................................................... 13

Entering Text ..............................................................................................................................................15

Changing Input Mode ........................................................................................................................15

Entering Letters ....................................................................................................................................16

Entering Numbers...............................................................................................................................16

Entering Symbols ................................................................................................................................16

Calls.................................................................................................................................................................. 17

Making a Voice Call .............................................................................................................................17

Using the Address Book ...................................................................................................................17

Using Call Options ............................................................................................................................... 17

Receiving Calls ......................................................................................................................................18

Adjusting the Volume ........................................................................................................................18

Using Call History ................................................................................................................................. 18

iContents

Messages ......................................................................................................................................................19

Type of Messages ................................................................................................................................ 19

SMS and MMS ........................................................................................................................................19

Instant Messaging ................................................................................................................................ 21

Voice Mail ...............................................................................................................................................24

Message Folders ................................................................................................................................. 24

Using Message Options ................................................................................................................... 25

Message Settings ................................................................................................................................ 25

Using Message Templates .............................................................................................................26

Mobile Email ............................................................................................................................................... 27

Address Book ............................................................................................................................................29

AT&T Address Book ..........................................................................................................................29

Adding Contact ...................................................................................................................................29

Searching Contact .............................................................................................................................30

Setting Speed Dial ..............................................................................................................................30

Making a Speed Dial ..........................................................................................................................30

Using Address Book Entry Options ............................................................................................31

Bluetooth .....................................................................................................................................................32

Enabling Bluetooth ............................................................................................................................32

My Devices ............................................................................................................................................. 32

Sending Data ........................................................................................................................................33

Receiving Data .....................................................................................................................................33

Mobile Web ................................................................................................................................................. 34

Using the att.net Homepage.........................................................................................................34

Visiting a Website ...............................................................................................................................34

ii Contents

Tools ...............................................................................................................................................................36

Alarm ........................................................................................................................................................36

Calendar .................................................................................................................................................36

Calculator ............................................................................................................................................... 37

Tip Calculator .......................................................................................................................................38

Stopwatch..............................................................................................................................................38

World Time ............................................................................................................................................ 38

Currency Conversion .......................................................................................................................39

Recent Calls ..........................................................................................................................................39

Entertainment ......................................................................................................................................... 40

Pictures ....................................................................................................................................................41

Video .........................................................................................................................................................41

Music ........................................................................................................................................................42

Voice Recorder ....................................................................................................................................44

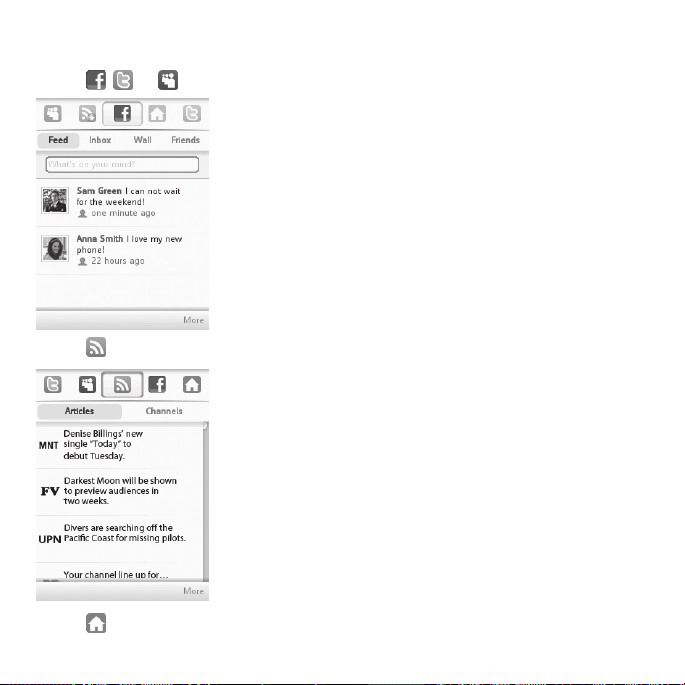

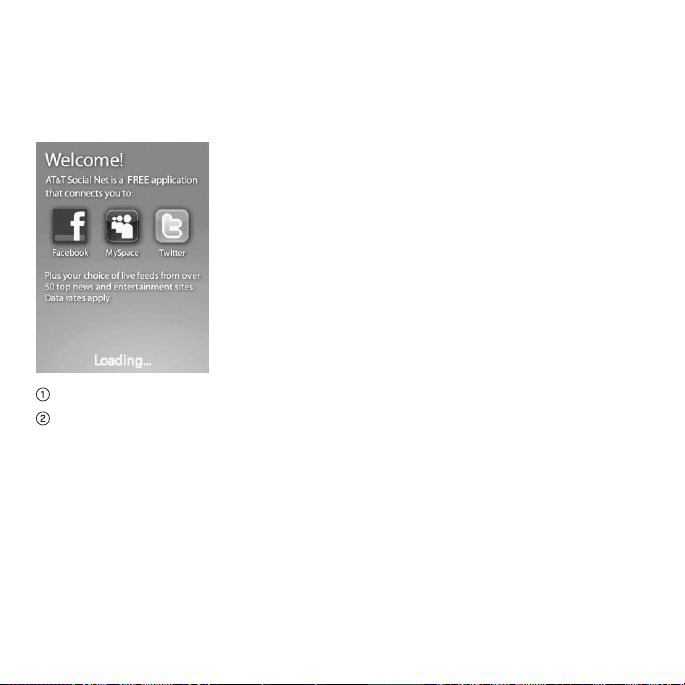

Social Networking - AT&T Social Net ...........................................................................................45

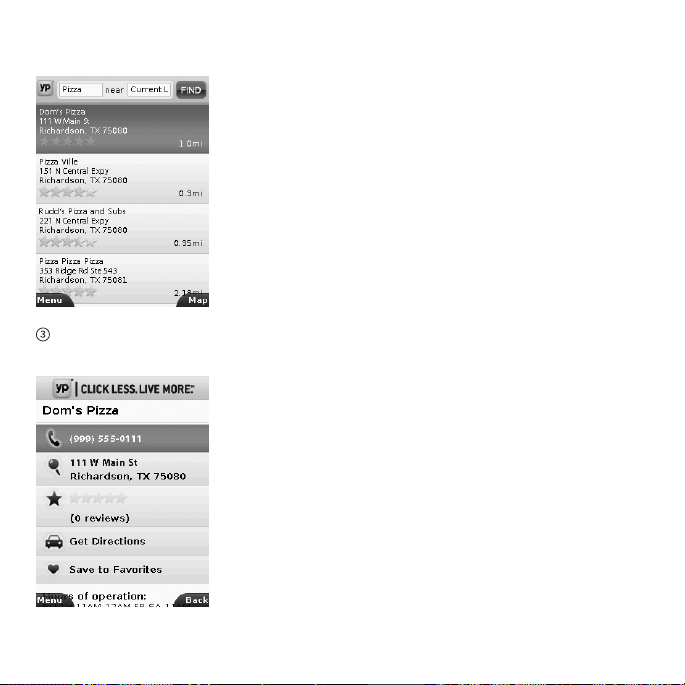

Yellow Pages - YPmobile® ...................................................................................................................48

AT&T GPS.....................................................................................................................................................50

Settings ......................................................................................................................................................... 54

Sound Proﬁle Settings......................................................................................................................54

Phone Settings ....................................................................................................................................54

Display Settings ...................................................................................................................................55

Connection Settings .........................................................................................................................56

Call Settings...........................................................................................................................................56

Security Settings ................................................................................................................................. 57

Flight Mode ............................................................................................................................................59

iiiContents

Accessibility .............................................................................................................................................. 60

TTY Mode .............................................................................................................................................. 60

HAC (Hearing Aid Compatibility) Mode ................................................................................. 60

Care and Maintenance .........................................................................................................................61

General Care .........................................................................................................................................61

General Guidelines ............................................................................................................................ 63

CTIA Requirements...........................................................................................................................64

Aircraft Safety ......................................................................................................................................65

Hospital Safety ....................................................................................................................................65

Road Safety ...........................................................................................................................................66

Vehicles Equipped with an Airbag..............................................................................................66

Third Party Equipment ....................................................................................................................67

Declaration of Conformity ............................................................................................................67

Disposing of Your Phone ................................................................................................................67

Emergency Service ...........................................................................................................................68

Privacy Information ...........................................................................................................................69

Turn on the HAC Setting .................................................................................................................69

Copyright Notice ................................................................................................................................69

Troubleshooting and FAQs ...............................................................................................................70

Speciﬁcations ...........................................................................................................................................74

FCC Compliance .....................................................................................................................................75

Radio Frequency (RF) Energy ..........................................................................................................76

Notes .............................................................................................................................................................. 78

iv Contents

Getting Started

Notes: In this User Manual, “press a key” means to press the key and release it,

while “hold a key” means to press the key for at least two seconds and then release it.

Removing the Back Cover

Hold the Power/End Key to turn off the phone. Lift the bottom of the back cover from the notch and remove the back cover as

shown below.

Battery

Installing the Battery

Notes:

• The phone automatically turns off if the battery power is too low.

• If you are not going to use the battery for a long time, remove it from the phone and store it in a cool dry place.

1Getting Started

Hold the Power/End Key to turn off the phone. Remove the back cover of your phone. Carefully insert the battery with the contacts located against the metal springs. Push down the battery until it clicks into place.

Replace the cover on the back of the phone.

Caution: Make sure the cover is lined up before pressing it into place. Do not force it. Doing so will damage the back cover.

Removing the Battery

Hold the Power/End Key to turn off the phone. Remove the back cover of your phone. Lift the end of the battery near the bottom of the phone to remove it.

2 Getting Started

SIM and Memory Cards

Inserting the SIM (Subscriber Identiﬁcation Module) Card

You can obtain a SIM card from your service provider when you sign on as a subscriber.

Caution:

• Do not bend or scratch your SIM card. Keep the card away from electricity and magnetism.

• Don’t touch the metal surface of the SIM card. Doing so could cause information on the card to be lost or destroyed.

• Disconnect the charger and other accessories from your phone and remove the battery before inserting and removing your SIM card.

Hold the Power/End Key to turn off the phone. Remove the back cover of your phone. Hold the SIM card with the metal contacts facing downward and the cut corner

at the upper right. Insert the card into the card holder and push it until it clicks into position.

Replace the cover on the back of your phone.

3Getting Started

Removing the SIM Card

Hold the Power/End Key to turn off the phone. Remove the back cover of your phone. Gently remove the SIM card from the card holder.

Inserting the Memory Card

The memory card gives your phone a very large memory capacity. This allows you to save multimedia data, including images, photos, MP3 audio ﬁles, and ringtones. You can also use this memory card to store other ﬁles.

Tip: Your phone can support a memory card with the capacity up to 8 GB.

Hold the Power/End Key to power off the phone. Remove the back cover and battery. Push the cover of the memory card slot in designated direction and lift it up. Carefully place the memory card into the memory card slot and lock the cover

as shown below.

Reinsert the battery, replace the back cover, and turn the phone on.

4 Getting Started

Caution: Only use approved memory cards for this device. Any use of unapproved memory cards might cause loss of data or damage to your phone.

Removing the Memory Card

Hold the Power/End Key to power off the phone. Remove the back cover and battery. Push in the designated direction and lift the cover of the memory card slot. Carefully remove the memory card.

Charging Your Phone

Your phone uses a rechargeable battery. When you ﬁrst unpack the phone, the battery is not fully charged, but there might be enough power to turn on the phone. You can use the provided charger to charge the phone battery.

Open the USB port cover. Insert the charger’s USB adapter into the USB port.

Plug the charger into a standard AC wall outlet. When the battery is fully charged, unplug the charger and disconnect it from

the phone.

5Getting Started

Notes:

• The phone automatically switches off if the battery power is too low.

• Make sure the charger’s connector is inserted correctly. Do not force the connector into the port.

• The battery will remain fully charged for 3 to 4 hours.

• Only use the charger provided by the original provider. Using an unapproved charger might be dangerous and violate the authorization and warranty rules of the phone.

• If the phone is used too often when the battery is low or not used for a long time, the screen may not display the charge indicator until the battery has been continuously charged for 10 to 40 minutes.

• To get the maximum performance out of your battery, it is recommended that you completely charge the battery before using the phone for the ﬁrst time. A new battery’s full performance is only reached after three complete charge and discharge cycles have been ﬁnished.

• Charging is only possible within a temperature range of 32°F to 113°F.

6 Getting Started

Powering Phone On/Off

Note: Do not turn your phone on in areas in which wireless phone use is not permitted, or when it could cause interference or danger.

Hold the Power/End Key to turn your phone on or off.

Tips:

• When prompted, enter your PIN (Personal Identiﬁcation Number) code or handset code and press the OK Key.

• The PIN code is the password provided by your network service provider. You cannot use the SIM card without it.

• When the PIN code or handset code is accepted, the phone automatically searches for the network. After a few seconds, your phone displays idle mode.

7Getting Started

Getting to Know Your Phone

Earpiece

Internal Display

Back Cover

Left Soft Key

Speaker

Note: For more information on your device, visit

att.com/Z331

*Customizable

8 Getting Started

4-Way Navigation Key *

OK Key

Right Soft Key

Send Key

Power/End Key

Microphone

Clear & Back/ Calendar Key

Speakerphone Key

Task Key

Voicemail Key

Vibrate Mode Key

Camera Lens

External Display

Key Functions

Key Description

OK Key From idle mode: Press to open att.net.

In lists and menus: Press to start an application/function.

4-Way Navigation Key

Left Soft Key/ Right Soft Key

From idle mode: Used to activate preset functions. In lists, messages, and menus: Used to scroll up, down, left,

and right.

The bottom line of the display shows the options that can be selected using the Left and Right Soft Keys. The options change depending on the application/function being used.

Micro USB Charging Port

Volume Up/ Down Keys

Camera Key

9Getting Started

Key Description

Send Key Press to dial or answer calls.

From idle mode: Press to show a list of all calls.

Power/End Key

Volume Key Adjust the volume of the phone.

Camera Key Press to activate the camera.

Task Key Shortcut to start Task Manager application in all scenarios.

Speaker Key Press to activate the speakerphone while on a call.

Clear & Back Key/Calendar Key

Number Keys Press the number keys to enter a phone number.

* Key Press to enter *.

# Key Press to enter #.

Hold to turn the phone on/off. Press to end a call. Press to reject an incoming call. Press to cancel dialing. Press to return to idle mode.

Press to delete the character on the left of the cursor when entering text or numbers. Hold to delete all characters during text entry. Press to return to the previous page when navigating menus or browsing the internet.

From idle mode: Press to view the calendar.

From idle mode: Hold to lock the keypad. In an editing screen: Press to enter punctuation and symbols.

In an editing screen: Press to change the input method. From idle mode: Hold to activate meeting mode with vibration.

10 Getting Started

Idle Mode

After powering on the phone, when the name of the network is displayed on the screen, the phone is in idle mode and ready for use. The display has 4 areas:

Indicators and Icons area

Time and Date area

Text and Graphics area

Soft key function indicators

Indicators and Icons

Indicator What it means

Signal strength

3G network

EDGE network

GSM network

Indicator What it means

New SMS

New MMS

New Email

New voicemail

11Getting Started

Indicators and Icons (continued)

Indicator What it means

12 Getting Started

Mute and vibrate

Headset mode

GPRS attach

Bluetooth on

All calls divert

Battery status

Missed call

Indicator What it means

Roaming

HSDPA mode

The message memory is full

Vibrate and ringing

Headset and vibrate mode

GPRS in use

Alarm

Main Menu

From idle screen, press the Right Soft Key for Menu to access the main menu.

Icon What it means Description

AT&T GPS Contains GPS applications like AT&T Navigator

Messaging Send and read SMS or MMS messages

Email & IM Mobile Email and Instant Messaging

Mobile Web Access the web with att.net

13Getting Started

Main Menu Icons (continued)

Icon What it means Description

14 Getting Started

AppCenter Online App store

YPMobile Yellow pages

AT&T Music Mobile music experience

Address Book Add and edit contacts

myAT&T

Social Net

My Stuff

Settings Set up and personalize your phone

Access billing, usage, and feature information and manage your account

Access social networks like Facebook,® MySpace™, and more

Contains applications and tools such as Alarm, Calendar, and more

Entering Text

Changing Input Mode

You can enter text into your phone using the following input methods: ZiAbc, abc, Abc, ABC, and number input. You can also switch the language between English and Spanish.

Current Text Mode

When you are in a ﬁeld that allows characters to be entered, the text input mode indicator is shown in the upper right corner of the display.

Changing Input Mode or Language

Press the # Key and select an input method or language.

Using Predictive Text (ZiAbc)

The predictive text method is based on a built-in dictionary and generates words from the combination of letters pressed.

Press each key once that corresponds to the letter you want to enter. The

letters are shown on the display as they are entered. The list of candidate words changes as each key is pressed.

When the candidate words are displayed, use the 4-Way Navigation Key to

highlight a candidate word and then press the OK Key to Select. Press the 0 Key to insert a space, or press the * Key to select symbols. Press the Clear & Back Key to delete the letter to the left of the cursor. Hold the

Clear & Back Key to delete all entered text to the left of the cursor.

15Entering Text

Entering Letters

Press a number key (2 through 9) multiple times until the preferred letter is shown on the screen. Press once to enter the ﬁrst letter on the keypad, press twice quickly to enter the second letter, and so on.

• Press the 0 Key to add a space.

• Hold the 0 Key to enter 0.

Notes:

• When using “Abc” mode, only the ﬁrst letter will be capitalized.

• After entering the ﬁrst capital letter, the input mode will be changed to “abc” automatically.

Entering Numbers

Press the # Key and select 123. The input method icon ( ) is shown on the display. You can enter numbers directly using the number keys.

Tip: When using the number input, you need to switch to other text input methods if you want to input a space by pressing the 0 Key.

Entering Symbols

Press the * Key. Use the 4-Way Navigation Key to select a symbol. Press the OK Key.

16 Entering Text

Calls

Making a Voice Call

From idle mode, enter a phone number. Press the Send Key to call the number.

Using the Address Book

From idle mode, select Menu > Address Book. Highlight a contact and press the Send Key to call the contact.

Using Call Options

During a call, you can press the Left Soft Key for more options. The options vary depending on the functions you are currently using.

Hold/Unhold: Put the current call on hold or retrieve the call. End call: End the current call. Record: Record the current call. Press the OK Key to stop recording. DTMF off/on: Enable or disable the sending of the DTMF tones. Message: Switch to the Messaging menu during a call. Contacts: Switch to the Address Book menu during a call. Browser: Browse the Internet during a call.

17Calls

Receiving Calls

When a voice call comes in, press the Send Key or the OK Key to answer the call.

Tip: If you have connected a headset to the phone, you can press the button on

the headset to answer the call.

Adjusting the Volume

During a call, press the Volume Keys to adjust the earpiece or speaker volume.

Using Call History

From idle mode, press the Send Key to check the All calls log.

18 Calls

Messages

Type of Messages

Your phone provides the following message types:

• Text Messages (SMS)

• Multimedia (Picture) Messages (MMS)

• Instant Messaging (IMs)

The Short Message Service (SMS) lets you send and receive text messages to and from other mobile phones and email addresses. To use this feature, you may need to subscribe to your service provider’s message service.

The Multimedia Messaging Service (MMS) lets you send and receive multimedia messages (such as picture messages) to and from other mobile phones and email addresses. To use this feature, you may need to subscribe to your service provider’s multimedia message service.

AT&T Instant Messaging lets you chat in real time using your favorite instant messaging provider, such as AIM Live™ Messenger.

SMS and MMS

Sending a New SMS Message

Select Menu > Messaging > Create message, and press the OK Key for Select. Enter the recipient’s number or press the OK Key for Contacts to choose the

recipient’s from your address book.

Press down on the 4-Way Navigation Key to move to the text ﬁeld. Enter a message. Press the Left Soft Key > Template/My words to insert preset

messages.

Press the OK Key for Send to send the message.

, Yahoo!® Messenger, or Windows

19Messages

Sending a New MMS Message

Select Menu > Messaging > Create message, and press the OK Key for Select. Enter the recipient’s number or press the OK Key for Contacts to choose the

recipient’s from your address book.

Press down on the 4-Way Navigation Key to move to the text ﬁeld. Enter a message. Press the Left Soft Key > Insert to insert a picture, audio, or

video ﬁle.

Press the OK Key for Send to send the message.

Notes:

• To save an unﬁnished message, press the Left Soft Key for Options and select Save to save it to the Drafts folder.

• Messages in Outbox and Drafts folder can be edited and sent.

Viewing a Message

The or envelope icon will appear on the information bar to identify you that you have received a new message.

From idle mode, select Menu > Messaging > Inbox to check your messages.

20 Messages

Instant Messaging

The AT&T instant messaging service can enable you to chat in real time using your favorite instant messaging provider, such as AIM, Yahoo! Messenger, or Windows Live Messenger.

By using this service, you can stay connected with your wireless phone.

From idle mode, select Menu > Email & IM > IM. Select the name of your instant messaging provider, and then select OK.

The remaining steps will vary slightly for each provider.

21Messages

Select the Screen Name ﬁeld and then enter your screen name/email/ID. Select the Password ﬁeld and enter your password.

22 Messages

Use the 4-Way Navigation Key to move down and press the OK Key for Sign In.

Tip: You can choose to mark the checkbox before Save Password and Auto Sign in; and next time when the AT&T instant messaging is launched, you will automatically sign in to your messenger account.

After sign in, select the name of a contact who is currently online. Enter your message, and then press Send.

23Messages

Voice Mail

Voice Mail Settings

From idle mode, select Menu > Messaging > Settings > Voicemail number to check the voicemail number. Your voicemail phone number is preset by your service provider. You do not need to set it manually.

Receiving a Voice Mail

When the system sends you a message notifying you that there is a new voicemail, from idle mode, hold the 1 Key to access the voicemail service.

Note: Contact your service provider for more information on using the voicemail service.

Message Folders

The Inbox folder contains all of your received messages. In this folder you can view your received messages and reply to them or forward messages to another recipient.

The Outbox folder contains all messages that were not sent during the last attempt. In this folder you can edit or resend your messages.

The Sent folder contains messages that were sent successfully. From this folder you can edit or forward messages to another recipient.

The Drafts folder contains drafts and unﬁnished messages. In this folder you can complete or resend your messages.

24 Messages

Notes:

• You cannot receive new messages if the message memory is full.

• The total amount of space available for saving messages is determined by the space available on the phone and SIM card.

Using Message Options

While viewing the contents of the Inbox, press the Left Soft Key to access the following options, which apply to the highlighted text message:

• Reply: Reply to the message.

• Call Sender: Call back the originator of the message.

• Save number: Save the originator’s number to your Address Book.

• Delete: Delete this message.

• Lock/Unlock: When the message is locked, you will not be able to delete it.

• Forward: Forward this message.

• Sort: Select to sort the messages by time or read/unread.

Message Settings

From idle mode, select Menu > Messaging > Settings to change the MMS/SMS/ Template settings.

MMS Settings (Multi. msg. setting)

Retrieval Settings: You have two choices:

• Automatic: Retrieve the new multimedia message automatically without selecting the notiﬁcation message and receiving.

• Manual: Retrieve the new multimedia message manually.

25Messages

Time per page: Set the play time of each page. Anonymous Msg.: You can choose to accept or reject anonymous messages. Connections: Please consult the service operator for detailed information. PUSH Message: You can accept or reject PUSH messages.

SMS Settings (Text msg. setting)

SMS center number: Service center number given to you by your service provider.

Template Setting

The phone has 10 templates for SMS/MMS, and you can edit them.

Using Message Templates

From idle mode, select Menu > Messaging > Create message. Move to the Text ﬁeld and select Options > Template. Select a template and press the OK Key to insert the template.

26 Messages

Mobile Email

Carry your email inbox in your pocket! With Mobile Email 3.0, you can access numerous providers, including AT&T,® AOL,® Yahoo!, Gmail™, AIM, Windows Live, and others.

In idle mode, select Menu > Email & IM > Mobile Email. Select the name of your email provider. The steps that follow will vary

depending on your provider.

When you select Other Providers, you may be asked to accept terms of

service and/or to select your email domain. Follow the on-screen instructions.

Enter your email address and password.

27Mobile Email

Press the OK Key for Sign In. After successful login, you will be able to view all the emails in your inbox. Select

an email and press Read to read it; press Options for more operation.

28 Mobile Email

Address Book

You can store contacts with a variety of phone and fax numbers and additional address details.

The phone can store up to 500 items. The capacity of the phone book on your SIM card depends on the type of SIM card provided by your service provider. The saved location is identiﬁed by the icon shown before the contacts.

AT&T Address Book

AT&T Address Book automatically synchronizes your contacts between your phone and online address book. This means that you can easily restore contact information if you ever upgrade, damage, or lose your phone.

To Activate AT&T Address Book:

Follow the prompts that are shown the ﬁrst time you open the address book on your phone, or manually activate from your contact list via Options > Settings >

AT&T Address Book. Manage Your Contacts Online: Visit http://att.com/addressbook.

• Add or edit contacts

• Import contacts from other address books

• Add contacts from Yellowpages.com

• Find maps and directions for contacts

• Send text messages to contacts or groups

Adding Contact

Select Menu > Address Book > Left Soft Key for Options > Add new contact

and press the OK Key for Select.

Enter the information of contact, such as name, number, and so on. Press the Left Soft Key for Options > Save to save the new contact.

29Address Book

Searching Contact

Select Menu > Address Book to view all the contacts on your phone. Enter a letter, and then the phone will show all the contacts starting with such

a letter.

eg: To search “John”, press the 5 Key once for ‘j’. All names starting with ‘J’ or ‘j’

are displayed.

Reﬁne the search by entering a subsequent letter that can occur anywhere in

the name.

eg: ‘Jn’ will ﬁnd ‘John’ and ‘Julian’, but not ‘James’.

Setting Speed Dial

From idle mode, press Menu > Address Book. Use the 4-Way Navigation Key to select a contact, press the Left Soft Key for

Options and select Set as speed dial. Press the Up Key or Down Key to select an empty slot. Press the OK Key for Assign to ﬁnish. Press the Right Soft Key for Exit to return to the previous menu. Or press the

Power/End Key to return to the idle screen.

Making a Speed Dial

Note: The 1 Key is reserved for the Voicemail number.

From idle mode, press and hold the corresponding number key (2 through 9) in

the speed dial list to make the call. Press the Power/End Key to end the call.

30 Address Book

Using Address Book Entry Options

From idle mode, select Menu > Address Book. Scroll to the desired contact and press the Left Soft Key for more options:

Call: Call the highlighted contact. Send message: Send SMS or MMS messages to this contact. Edit Map: Map your contacts through phone numbers and addresses listed

within your address book.

Add to group: Add this contact to a group: Family, Friends, or Work. Edit contact: Edit this contact information. Delete contact: Delete this contact. Share contact info: Send this contact as a business card via MMS message. Add new contact: Create a new contact. Add new group: Create a new group. Set as speed dial: Set speed dial for this contact.

Settings:

• AT&T Address Book: Access the AT&T service to synchronize your contacts

between your phone and online address book.

• SIM management: Copy contacts to or from the SIM card, or delete contacts

from the SIM card.

• Delete multiple: Delete a batch of contacts.

• Speed dial: View and edit the speed dial list.

• Name display: Choose the way a name is displayed, which can be First & Last

or Last & First.

• Contact list: Choose to Display all, Contacts, or Yellow Cards only.

• About: View the information of your AT&T Address Book.

31Address Book

Bluetooth

Your phone includes support for Bluetooth, which can be used to connect your phone to a wireless headset. You can also use it to transfer ﬁles between your phone and other Bluetooth devices, such as another phone or a laptop. Not all applications or devices can be supported because Bluetooth is an open forum and different manufacturers have different standards and implementation.

Enabling Bluetooth

By default Bluetooth is disabled on your phone. If you enable Bluetooth and turn off the phone, Bluetooth will be disabled. When you turn the phone on, Bluetooth will automatically be enabled.

From idle mode, select Menu > Settings > Connections > Bluetooth. Press the OK Key to set Bluetooth to On. Go down to Discoverable and press the OK Key to set it to On. Go down to My Bluetooth Info and enter the phone name. Press the OK Key to save the settings.

Note: Set Discoverable to On to allow your phone to be found by other compatible devices.

My Devices

From idle mode, select Menu > Settings > Connections > Bluetooth >

My devices.

Press the OK Key to search for available Bluetooth devices. Highlight a device from the list and press the OK Key. To connect to the device, enter the passkey when prompted and press the

Left Soft Key for Pair.

32 Bluetooth

There are two options for Bluetooth connection:

• Automatic: Set another Bluetooth device that is connecting to your phone as an

authorized device.

• Always Ask: Set another Bluetooth device that is connecting to your phone as

an unauthorized device that must ask before connecting.

Tip: Some devices don’t connect to another Bluetooth device automatically. You need to highlight the device name in the My devices list and press the OK Key to connect with it.

Sending Data

Before sending data, please conﬁrm the following two items:

• Bluetooth function is enabled.

• The paired device is visible, paired, and connected.

Select your desired ﬁle, and select Left Soft Key for Options > Send >

Via Bluetooth. Select the aim device from the device list, and press the OK Key to send the ﬁle.

Receiving Data

Enable Bluetooth function. If the paired device tries to send a ﬁle to your phone, one popup dialogue will

appear in your screen. Press the Left Soft Key for Yes to accept the incoming ﬁle, or press the

Right Soft Key for No to reject the incoming ﬁle.

33Bluetooth

Mobile Web

Browse the web directly from your mobile phone. Check the weather, visit your favorite websites, and enjoy access to the Internet on the go. From idle mode, select Menu > Mobile Web.

Using the att.net Homepage

The att.net homepage features three tabs, which you can access by scrolling left or right with the 4-Way Navigation Key:

• Web: Enter a web address; search the Internet with Yahoo!; use, add, or

manage shortcuts; view social networks; ﬁnd movie information and buy tickets; and access your account.

• Local: Set your location, search locally, see maps and trafﬁc, ﬁnd movie show-

times, get local information, check the weather, and see local news updates.

• Popular: Get the latest updates on news, ﬁnance, sports, entertainment, and

more; use email, instant messaging, and social networking.

Visiting a Website

From the att.net homepage, press down on the 4-Way Navigation Key to

highlight the address bar and press the OK Key. Enter a web address and press the OK Key. To access a link on a website, scroll to it using the 4-Way Navigation Key and

press the OK Key.

34 Mobile Web

Mobile Web options:

• Home: Return to the att.net homepage.

• Go to URL: Enter a new web address.

• Go to Search: Enter search terms.

• History: View your web browsing history.

• Go to Bookmarks: Access your list of favorite sites.

• Add to Bookmarks: Add a site to your list of favorites.

• Reload: Reload the current page.

• Find in Page: Search the page for a term.

• Settings: Adjust browser settings.

• Help: Find help and answers to frequently asked questions.

• Exit: Exit the web browser.

35Mobile Web

Tools

Alarm

This feature allows you to set an alarm to ring at a speciﬁc time.

From idle mode, select Menu > My Stuff > Tools > Alarm. Press the OK Key for Edit and conﬁgure the alarm as required using the Alarm

Setup Screen:

Alarm Time Set as required

Alarm Type Daily, Workday, Weekly, Once

Snooze Off, 5, 10, 15, 30 minutes

Ringtone On/Off

Ringtone Type ATT tone.mid, select Edit to change

Alarm Remark

Tip: Even if the phone is turned off, the alarm will automatically turn the phone back on so that it can ring.

Calendar

With this feature, you can use the calendar, set appointments, and view events.

From idle mode, select Menu > My Stuff > Tools > Calendar. Press the Left Soft Key for Options to access the following:

• New: Add a meeting, memo, or anniversary.

• Week view: View the schedule of the current week.

Optional

36 Tools

• Go to date: Enter a date and view the scheduled events of that day.

• Delete entry: You can choose to delete entries On this day, Before date, or

All entries.

• Settings: You can set the Calendar alarm tone, Default view, and Week

starts on.

• Memory Info: Shows the current memory usage.

Calculator

With this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions; addition, subtraction, multiplication, and division.

From idle mode, select Menu > My Stuff > Tools > Calculator. Enter the ﬁrst number using the Number Keys. Enter the operation for your calculation by pressing up, down, left, or right on

the 4-Way Navigation Key. Enter the second number. Press the OK Key for Equal to view the result.

Tips:

Press the Clear & Back Key to clear digits and results. Press the * Key to toggle the number between positive and negative. Press the # Key to enter a decimal point.

37Tools

Tip Calculator

With this feature, it will be easy to calculate the tip or determine how much each person should pay in your group.

From idle mode, select Menu > My Stuff > Tools > Tip Calculator. Enter the total bill by using the Number Keys. Type the tip amount (in percentage) you would like to leave. If the cost is shared by more than one person, please enter the number of the

people into the Split ﬁeld. The amount you need to pay will be displayed at the bottom of the calculator.

Stopwatch

With this feature, you can measure time and take split times or lap times, for example, in different sports.

From idle mode, select Menu > My Stuff > Tools > Stopwatch. Select Start to start timing. Select Stop to stop the timing during the operation and view the duration

of time. Select Contin. to continue timing. Select Reset to reset the stopwatch.

World Time

With this feature, you can check the current local time and date for major cities around the world.

From idle mode, select Menu > My Stuff > Tools > World time. Press left or right on the 4-Way Navigation Key to view the time of desired city.

38 Tools

Press the Left Soft Key to save the selected city time as the time setting on

your phone. Press the Right Soft Key to exit.

Currency Conversion

This feature allows you to convert foreign currency to domestic currency. From idle mode, select Menu > My Stuff > Tools > Currency conversion.

• Exchange rate: Enter a currency exchange rate.

• Foreign amount: Enter the amount of foreign currency to be converted.

• Local amount: The conversion result displays.

Tip: Press the Left Soft Key to enter a decimal.

Recent Calls

With this feature, you can check the call log and call duration. From idle mode, select Menu > My Stuff > Tools > Recent Calls.

• Recent Calls: You can check All calls, Missed calls, Received calls, and Dialed

calls logs.

• Options > Call duration: You can check the Last call duration and All calls duration. You can also clear all the call duration timers by pressing the OK Key for Clear. To reset the timers you will need to enter the phone’s lock code. The default lock code is 0000.

Note: All calls information can also be accessed by pressing the Send Key while in idle mode.

39Tools

Entertainment

Your phone allows you to use a camera, video camera, and voice recorder to take photos, shoot video clips, record voice memos, and more.

Pictures

Your phone includes a photo management function. Photos in the phone’s memory or on the external memory card can be browsed, transmitted, set as wallpaper, moved, renamed, copied, and deleted.

Caution: The preloaded photos on the phone cannot be transmitted or deleted.

Taking a Photo

Your phone has an integrated digital camera, which allows you to capture images.

From idle mode, select Menu > My Stuff > Tools > Camera. Or from idle mode,

hold the Camera Key to start the camera.

Aim the camera lens at a subject. Press the OK Key to take the photo; press it again to save.

Viewing Pictures

You can use the following method to view the photos:

From idle mode, select Menu > My Stuff > Pictures > My pictures. Highlight a photo and press the OK Key for Open.

Video

Your phone allows you to record, store, and play video ﬁles.

Recording a Video

You can use the video camera to record video clips.

40 Entertainment

From idle mode, select Menu > My Stuff > Tools > Camera. Press right on the 4-Way Navigation Key to switch to video camera mode. Press the OK Key to start recording. Press the OK Key to pause. Press the OK Key for Continue to resume recording. Press the Right Soft Key for Stop to stop recording. Press the OK Key for Save.

Playing Videos

You can use the following method to play a video.

From idle mode, select Menu > My Stuff > Video > My Videos. Highlight a video and press the OK Key to play it.

Music

When you have audio ﬁles stored in your phone, you can create a playlist. This allows you to set the order in which the audio ﬁles are played.

Playing an Individual Music File

You can use the steps below to play a sound ﬁle.

From idle mode, select Menu > My Stuff > Audio > My Audio. Highlight a sound ﬁle and press the OK Key to play it.

AT&T Music

The AT&T Music application centers on three key music experiences: Play, Discover, and Shop. It includes a free-of-charge music player to play your music ﬁles and create playlists, as well as additional radio, song purchase, and lyric and song match functionality to enhance your music experience on the phone.

41Entertainment

Starting AT&T Music

From idle mode, select Menu > AT&T Music. Accept the terms and conditions of service. The screen then displays a warning that this feature uses large amounts of data

and recommends subscribing to an unlimited data plan. Select Continue.

Select Let’s Go! to take a quick tour of AT&T Music. Select Next as each

screen displays.

Notes: The ﬁrst time you launch AT&T Music, the device plays an introductory tutorial. Some activities within AT&T Music require a monthly subscription for access. A free 3-day trial of all AT&T Music services is included upon ﬁrst use. After the trial, you may subscribe or continue accessing the free local music player and Shop features.

Play Screen

Allows you to play the music you own via the My Library feature and to listen to streaming music from Genre and Personal radio stations.

Play screen options:

• My Favorites: Allows you to access shortcuts to favorite artists, albums, songs, and radio stations.

• My Library: Allows you to access all the music on your phone. Create or manage playlists and ﬁnd music by artist, album, song, or genre.

• Genre Radio: Allows you to access pre-programmed stations ranging from today’s hits to deep cuts for the music enthusiast.

• Personal Radio: An easy-to-use personal listening experience started by entering an artist, song, or genre that customized to your tastes by song ratings.

• Settings & Support: Contextual settings for AT&T Music and help and support in the Play section.

42 Entertainment

Discover Screen

Provides the ability to search the AT&T Music song catalog for songs by favorite artists. Song Match enables users to quickly ﬁnd the name and artist of a song by holding their phone up to a song playing on the radio, TV, or jukebox, and Lyric Match allows lookup of artist/song information based on song lyrics.

Discover screen options:

• Search Shop: Allows you to search for songs and albums available from AT&T Music.

• Song Match: Allows you to identify nearly any song by holding your phone up to the music and recording a short clip.

• Lyric Match: Allows you to look up songs by only entering a few words.

• View Match History: Allows you to see all of the songs you matched via Song and Lyric Match.

• Settings & Support: Contextual settings for AT&T Music and help and support in the Discover section.

Shop Screen

Shop is a full music catalog where users can search for their favorite songs and artists and preview, buy, and play songs or albums directly from their AT&T mobile phone. Fast, easy access to music is also available by browsing top songs, new releases, featured artists, and genres.

Shop screen options:

• Top Downloads: Allows you to access the most downloaded music.

• New Arrivals: Allows you to access new music that was not previously available.

• Featured Artists: Allows you to access music of the presently featured artists.

• View Genres: Allows you to view the different music genres that you may select from.

43Entertainment

• Purchase History: Allows you to see a history of all of your purchases.

• Settings & Support: Contextual settings for AT&T Music and help and support in the Shop section.

Voice Recorder

This function allows you to record a voice memo. You can also set the voice memo as a ringtone.

From idle mode, select Menu > My Stuff > Tools > Voice recorder. Select Start to start recording your voice memo. Select Pause to pause the recording. Select Contin. to resume recording. Select Stop to stop recording. Press the OK Key for Save.

44 Entertainment

Social Networking – AT&T Social Net

Keep on top of your world with AT&T Social Net, which allows you to access the latest news as well as popular social networks—including Facebook, Twitter™, and MySpace— all in one place.

From the idle screen, select Menu > Social Net. To accept data charges if asked, select Continue. To accept the End User

License Agreement, select Accept.

45Social Networking – AT&T Social Net

Select the social network of your choice from the top row.

Enter your login and password. Select Sign in. And now you are able to access

your social network.

46 Social Networking – AT&T Social Net

Select , , or to quickly update your status.

Select for the latest news and information.

Select for a snapshot of all of your status update.

47Social Networking – AT&T Social Net

Yellow Pages - YPmobile

YPmobile enables users to search for local information and share results with their online network of friends.

Map based search and quick access to recently viewed business and events give YPmobile users more convenient ways to ﬁnd what they need. Integration with Facebook and Twitter adds to the application’s sharing capabilities by letting users broadcast their newly discovered local hot spots.

In idle mode, select Menu > YPmobile. Once connected, enter the key words (eg. “Pizza”) you want to search and

press FIND to browse content.

48 Yellow Pages - YPmobile

Select an item from the search result to view details, where you can choose to

make a phone call, or directly move to that place.

49Yellow Pages - YPmobile

AT&T GPS

AT&T GPS is a location-based service that can provide GPS navigation with turnby-turn voice directions and trafﬁc updates, keep track of family members, ﬁnd local gas stations and movie theaters, calculate calories burned during exercise, and more, all on your mobile phone.

AT&T Navigator

AT&T Navigator provides voice-guided and visual turn-by-turn GPS driving directions with automatic reroute, full-color maps, and real-time trafﬁc alerts all on your phone.

From idle mode, select Menu > AT&T GPS > AT&T Navigator. Read the warning and press the Left Soft Key for Agree. If this is the ﬁrst time you have accessed AT&T Navigator, you will be prompted

to take a feature tour.

Select a navigation option and press the OK Key. Follow the prompts to type or speak your destination.

50 AT&T GPS

AT&T Family Map

AT&T Family Map gives you peace of mind by being able to conveniently locate a family member’s wireless phone on a map from your mobile phone or PC.

Before accessing this application you must ﬁrst sign-up at http://familymap. wireless.att.com. Subscription may be required.

From idle mode, select Menu > AT&T GPS > AT&T Family Map. Use the 4-Way Navigation Key to enter your phone number and password,

then select Sign In using the OK Key.

51AT&T GPS

Maps

AT&T Maps allows you to view your current location and map out additional locations. You can also enter addresses and ﬁnd current businesses located near your current location.

Get Directions

From idle mode, select Menu > AT&T GPS > Maps. Your location will appear

on the screen.

Press the Left Soft Key > Options > Get Directions and select using the

OK Key.

Enter your Start location and End location and select Get using the OK Key.

You can reverse your trip based on your previously settings or select the fastest route from this page.

52 AT&T GPS

WHERE

WHERE offers you weather, news, gas prices, and the ability to search for other local information based on your current location.

From idle mode, select Menu > AT&T GPS > WHERE. The phone will store the previous location entered. Conﬁrm this location or

enter a new location.

Use the 4-Way Navigation Key to scroll to the icon of your choice, or simply

enter a key word into the search ﬁeld and press the OK Key.

AllSport GPS™

AllSport GPS turns your phone into a full-featured GPS trainer for biking, running, walking and other sports activities.

When accessing this application for the ﬁrst time you must register and login to your account.

From idle mode, select Menu > AT&T GPS > AllSport GPS. From the landing page, select the activity you want to record or select More

Options to view your Weekly log or change your settings.

53AT&T GPS

Settings

Sound Proﬁle Settings

You can set and edit an appropriate proﬁle depending on your current environment.

From idle mode, select Menu > Settings > Sound Proﬁles. Select a proﬁle and press the Left Soft Key for Edit.

• Select Voice call ringtone to set the voice call ringtone.

• Select Ring volume to set the volume of the ringtone.

• Select Ring type to set the ring type.

• Select Message tone to set the notiﬁcation ringtone for an incoming

message.

• Select Keypad tone to enable or disable keypad tone.

• Select Warning tone to turn the warning tone on or off.

• Select Power on/off sound to turn on/off the sound that plays while powering

on/off the phone.

• Select Earpiece volume to set the volume in the earpiece.

Phone Settings

From idle mode, select Menu > Settings > Phone.

• Select Language to set the current display language.

• Select Time and date to set the date, time, and time style.

• Select Missed calls alert to enable or disable the notiﬁcation for missed calls. Choose for the alert to repeat every 5 minutes, 10 minutes, 15 minutes, or 30 minutes.

• Select Shortcut keys to assign a 4-Way Navigation Key as a shortcut for a function, such as the calendar.

54 Settings

• Select Own phone number to display your phone number in idle mode to remind you which SIM card you are using.

• Select Download location to choose phone or memory card to save ﬁles while downloading.

• Select TTY setting to enable the TTY function. Please refer to Accessibility > TTY Mode.

• Select T-coil setting to enable you to hear the phone audio through a hearing aid with a telecoil. Please refer to Accessibility > HAC Mode.

• Select Master Reset to reset the phone to the default factory settings.

• Select Master Clear to clear all user data and reset the phone to the default factory settings.

Display Settings

From idle mode, select Menu > Settings > Display.

• Select Wallpaper and select a photo saved in Pictures or Other ﬁles. This will be used as wallpaper, which is shown in idle mode.

• Select Theme to switch between the default and green theme.

• Select Backlight duration to adjust the backlight duration.

• Select Main menu view to set the main menu to be displayed as List or Grid.

• Select Brightness to adjust the screen brightness.

• Select Keypad light to adjust how long the backlight for the keypad remains on.

• Select Owner name to enter the owner name. This is displayed in idle mode.

• Select Greeting to enter a text greeting to be shown on the display when the phone is turned on.

55Settings

Connection Settings

From idle mode, select Menu > Settings > Connections.

• Select Bluetooth to set up your phone as a Bluetooth device.

• Select Access point settings to add to, edit, or view the access point list.

• Select Modem setting to edit modem name, APN, and enable authentication.

• Select Proﬁle connect to create or edit the connection data for a service provider.

• Select PC connection to choose the connection method between your computer and the phone.

Call Settings

From idle mode, select Menu > Settings > Calls.

Call forwarding

Call forwarding allows you to divert your incoming calls to another phone number. Contact your service provider for more information and availability.

Call Waiting

If a call comes in when you are already on a call, you are notiﬁed with a call waiting tone. The phone shows the number/name of the waiting call. Contact your service provider for more information.

Send My Number

This function allows you to send or hide your phone number when making calls. You can also select Set by network. The network then chooses whether to show/ hide the phone number. This function requires network support.

56 Settings

Answer mode

• Flip open: This function allows you to answer an incoming call by directly opening the ﬂip, but without pressing the Send Key or OK Key.

• Any key: This function allows you to answer an incoming call by pressing any key on the keypad, without limitation to the Send Key or OK Key.

Security Settings

Phone Password

A password can protect your phone and help avoid illegal use. If your phone is password protected, you will have to enter the correct password when the phone is turned on.

• For a new phone, the protection function is not activated by default, and the default password is 0000.

• From idle mode, select Menu > Settings > Security > Activate security codes > Phone lock code to start or stop password protection.

• From idle mode, select Menu > Settings > Security > Change security > Phone lock code to change the phone’s password. It is suggested that you change the password to something you will easily remember.

Notes:

Please remember the password you set. Without it your phone cannot be used normally and you will need to contact your service provider to unlock it.

Contact your service provider for more information.

57Settings

PIN Codes

A PIN code is the personal identiﬁcation code used by the SIM card. Its purpose is to avoid illegal use of your SIM card. The correct PIN code should be entered when the new phone is ﬁrst turned on, otherwise the phone will only be able to make emergency calls.

• For a new card, the default code is supplied by the service provider.

• From idle mode, select Menu > Settings > Security > Activate security codes > PIN code to enable or disable the PIN code.

• From idle mode, select Menu > Settings > Security > Change security > PIN code to change the PIN code.

• If you enter the wrong PIN code three times in a row, the phone will lock the SIM card and prompt you to enter a PUK code to unlock it.

Notes:

If you change the PIN code, please remember the new number. PIN2 is needed for some settings. Use the same procedure as for the PIN code.

PUK Codes

A PUK code is the unlock code for the SIM card. When the SIM card is locked, you have to enter the correct PUK code and then enter the new PIN code. The SIM card can then be used normally.

• A PUK code may be supplied with a new card. Contact your service provider for more information.

• A PUK code can only be entered 10 times in a row. If you enter the wrong PUK code more than 10 times, the SIM card will be locked indeﬁnitely.

Note: If a PUK code is supplied with the new card, please store it safely.

58 Settings

Fixed Dial Numbers

If you enable ﬁxed dial numbers, you cannot dial phone numbers that are not in the FDN list.

FDN List

Allows you to create a list of ﬁxed dial numbers.

Airplane Mode

From idle mode, select Menu > Settings > Airplane mode to switch on/off airplane mode.

59Settings

Accessibility

TTY Mode

Your handset is a TTY-compatible device. Simply connect the TTY equipment to the headset jack.

From idle mode, select Menu > Settings > Phone > TTY setting. Select one of the following options and press the OK Key for Select.

• Full: Users who cannot talk or hear may use this setting to send and receive

text messages through TTY equipment.

• Read & talk: Users who can talk, but cannot hear, may use this setting to talk

through the phone and receive responses via text messages.

• Write & hear: Users who can hear, but cannot talk, may use this setting to

listen to the other party and respond via text messages.

• Off: Users who can hear and speak may use this setting to disable

TTY support.

HAC (Hearing Aid Compatibility) Mode

This phone supports HAC (Hearing Aid Compatibility) function. When you turn on the Hearing Aid Mode and use a hearing aid with a telecoil to answer the phone, it will help you hear more clearly while speaking on the phone. For more detailed information on HAC, please refer to Care and Maintenance > Turn on the HAC Setting.

From idle mode, select Menu > Settings > Phone > T-coil setting. Select On or Off and press the OK Key for Select to conﬁrm.

Your Z331 has been tested for hearing aid device compatibility and has an M3/T4 rating.

60 Accessibility

Care and Maintenance

General Care

Your handset contains delicate electronic circuitry, magnets and battery systems. You should treat it with care and give particular attention to the following points:

• Do not allow the handset, battery or accessories to come into contact with liquids or moisture at any time. Do not immerse the handset in any liquid.

• Do not place the handset alongside computer disks, credit cards, travel cards and other magnetic media. The information contained on disks or cards may be affected by the handset.

• Do not place anything in the folded handset.

• Do not paint the handset.

• Do not leave the handset or the battery in places where the temperature could exceed 140°F (60°C), e.g. on a car dashboard or a windowsill, behind glass in direct sunlight, etc.

• Do not remove the handset’s battery while the handset is switched on.

• Take care not to allow metal objects, such as coins or key rings to contact or short-circuit the battery terminals.

• Do not dispose of battery packs in a ﬁre. The handset’s Li-ION batteries may be safely disposed of at a Li-ION recycling point.

• Do not put the handset’s battery in your mouth, as battery electrolytes may be toxic if swallowed.

• Do not attempt to dismantle the handset or any of its accessories.

• This equipment is ﬁtted with an internal battery; take it to a qualiﬁed service engineer when the replacement of the battery is required.

• There is a risk of explosion if the battery is replaced with an incorrect battery type. Dispose of the used battery in accordance with the manufacturer’s instructions.

61Care and Maintenance

• Do not put a battery into a microwave oven, dryer, or high-pressure container.

• Do not contact battery directly to an electric outlet or cigarette lighter charger. Use only approved charger units.

• Do not pierce battery with a sharp object such as a needle.

• When the battery is thrown away, be sure it is non-conducting by applying vinyl tape to the (+) and (-) terminals.

• Do not disassemble or modify the battery.

• Do not drop, throw, or subject the handset to rough treatment.

• Stop using the battery if abnormal heat, odor, discoloration, deformation, or abnormal condition is detected during use, charge, or storage.

• In the unlikely event of a battery leak, keep the battery discharge away from your eyes or skin. If the leakage does come into contact with the eyes or skin, please ﬂush thoroughly in clean water and consult with a doctor.

• Do not use a damaged or deformed battery.

• Do not solder a battery directly.

• Remove the battery whose life cycle has expired from equipment immediately.

• The earpiece may become warm during normal use. Also, the handset itself may become warm while the battery is being charged.

• When a handset is in vibration mode, the vibration can sometimes cause the handset to move.

• Be careful not to place the handset near heat sources (such as a heater) or too close to the edge of the table.

• Use a damp or anti-static cloth to clean the handset. Do not use an ordinary dry cloth or electrostatic cloth. Do not use chemical or abrasive cleaners as these could damage the casing.

62 Care and Maintenance

• Third party equipment: The use of third party equipment, cables or accessories, not made or authorized by manufacturer, may invalidate the warranty of your handset and also adversely affect the phone’s safety/operation.

• Remember to make backup copies of all important data on your handset.

• Remember to recycle: the cardboard packing supplied with this handset is ideal for recycling.

Caution: Explosion may occur if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

General Guidelines

• In some countries national law unapproved private copying of copyrighted material. Please check the national legislation of the applicable country concerning the use of such material.

• Many jurisdictions have laws and regulations about taking pictures in public or private areas and regarding the processing and further use of such pictures. The manufacturer encourages its customers to obey all laws and to respect the personal rights of others.

• Please check roaming agreement availability with your service provider.

• The use of mobile phones is not allowed in some radiation sensitive areas, such as hospitals, research centers and airplanes. The user is responsible to poweroff the device. If there is any uncertainty, you should remove the battery from the handset.

• Observe any signs that indicate powering off your handsets, such as those near gas stations, or explosives and power off the handset/device immediately.

• If you have a heart condition, be careful with the settings of call vibration or tone volume.

• Do not allow children to play with the handset, charger or batteries.

63Care and Maintenance

• Do not use the handset where blasting is in progress.

• Do not try to make a call or conversation while the temperature of charging battery is above 122°F (50°C).

• Take care not to put your handset in the back pocket of your trousers or skirt and then sit on it. Also, do not put your phone at the bottom of bag where it may subject to excessive weight or pressure. Doing so may damage the LCD and camera lens and cause them to malfunction.

• The operation of some medical electronic devices, such as hearing aids and pacemakers, may be affected if a handset is used next to them. Observe any caution signs and the manufacturer’s recommendations.

• Do not leave the handset discharged or without a battery for a long time, otherwise some data may be erased.

• Your phone contains metal, which may cause you an itch, a rash or eczema depending on your physical condition.

CTIA Requirements

• Do not disassemble or open crush, bend or deform, puncture or shred.

• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to ﬁre, explosion or other hazard.

• Only use the battery for the system for which it is speciﬁed.

• Only use the battery with a charging system that has been qualiﬁed with the system per this standard. Use of an unqualiﬁed battery or charger may present a risk of ﬁre, explosion, leakage, or other hazard.

• Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.

64 Care and Maintenance

• Replace the battery only with another battery that has been qualiﬁed with the system per this standard, IEEE-Std-1725-2006. Use of an unqualiﬁed battery may present a risk of ﬁre, explosion, leakage or other hazard.

• Promptly dispose of used batteries in accordance with local regulations.

• Battery usage by children should be supervised.

• Avoid dropping the phone or battery. If the device or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.

• Improper battery use may result in a ﬁre, explosion or other hazards.

For those host devices that utilize a USB port as a charging source, the host device’s user manual shall include a statement that the phone shall only be connected to CTIA certiﬁed adapters, products that bear the USB-IF logo or products that have completed the USB-IF compliance program.

Aircraft Safety

• Power off your phone before the airplane takes off. In order to protect the airplane’s communication system from the interference, it is prohibited to mobile phone in ﬂight. If you want to use your mobile phone before the takes off, you should get aircrew’s permission according to safety regulations.

• If the mobile phone has the function of automatic timing power-on, please check your alarm setting to ensure that your phone will not be automatically powered on during the ﬂight.

Hospital Safety

• Switch off your phone and remove the battery in areas where the use of handsets is prohibited.

• Follow the instructions given by the respective medical facility regarding the use of handsets on their premises.

use the

airplane

65Care and Maintenance

Road Safety

• You must exercise proper control of your vehicle at all times. Give your full attention to driving.

• Observe all of the recommendations contained in your local trafﬁc safety documentation.

• Pull off the road and park before making or answering a call, if driving conditions require so.

• Check if local laws and/or regulations restrict the use of handsets while driving.

• You MUST NOT stop on the hard shoulder of a motorway to answer or make a call, except in an emergency.

• Switch off your handset at a refueling point, such as a gas station, even if you are not refueling your own car.

• Do not store or carry ﬂammable or explosive materials in the same compartment as the handset.

• Electronic vehicle systems, such as anti-lock brakes, speed control and fuel injection systems are not normally affected by radio transmissions. The manufacturer of such equipment can advise if it is adequately shielded from radio transmissions. If you suspect vehicle problems caused by radio transmissions, consult your dealer and do not switch on the handset until it has been checked by qualiﬁed approved installers.

Vehicles Equipped with an Airbag(s)

An airbag inﬂates with great force. Do not place objects, including either installed or portable wireless equipment, in the area over the airbag or in the airbag deployment area. If in-vehicle wireless equipment is improperly installed and the airbag inﬂates, serious injury could result.

66 Care and Maintenance

Third Party Equipment

The use of third party equipment, cables or accessories, not made or authorized by the manufacturer, may invalidate the warranty of your handset and also adversely affect the handset’s operation. For example, use only the manufacturer’s cable supplied with the AC charger.

Declaration of Conformity

We declare under our sole responsibility that the product(s) detailed in this manual, and in combination with our accessories, conform to the essential requirements of European Union Directive 1999/5/EC Radio and Telecommunications Terminal Equipment Directive requirements 3.1(a), 3.1(b), 3.2.

Disposing of Your Phone

The symbol on the equipment indicates that it must be the object of “separate collection”.

Therefore, the customer has to contact local authorities to determine the proper disposal methods for that municipality or deliver it to the retailer in exchange for newly purchased equipment.

The separate collection of garbage and the successive operations of treatment, recovery and waste help in the production of equipment made with recycled material and limits the hazardous effects on the atmosphere and health caused by improper management of garbage.

The illicit disposal of the product by the customer involves the application of the administrative endorsements of which to article 254 and following of the D.Lgs. 152, April 3rd 2006.

67Care and Maintenance

According to the article, the 13, D.Lgs. 25th July 2005, n. 151 “Performance of the Directives 2002/95/CE, 2002/96/CE and 2003/108/CE, relative to the reduction of the use of dangerous substances in the equipment electronic electrical workers and, let alone to the disposal of the refusals.”

Emergency Service

Note: Emergency service numbers vary by country. It helps you get emergency service from the operator.

To make an emergency call in any country:

Ensure that your handset is on and in service. Press the Power/End Key as many times as needed to clear the display and

ready the device for calls.

Enter the local emergency number for your current location, for example, 911. Press the Send Key to dial the number. Follow the instructions you receive and

do not end the call until told to do so.

When the (U)SIM card is not inserted or when the dial lock function is on, press the Right Soft Key for SOS and then enter the ofﬁcial emergency number for your present location. Press the Send Key or OK Key for Call to dial the number.

Notes:

Tell the operator which service you require: Police, Ambulance, Fire Brigade, Coast Guard or Mountain Rescue Service. Tell them where you are and remain stationary to maintain contact if possible.

Due to the nature of the cellular system, the connection of emergency calls cannot be guaranteed. You should never rely solely on any wireless device for essential communications like medical emergencies.

68 Care and Maintenance

Privacy Information

Camera usage and photo/audio/video recordings carried out with the phone can offend the conﬁdentiality of the subjects. The user therefore is held to respect legislation in matters of conﬁdentiality and remains the only responsible subject in the case of eventual violations of the enforced norm.

Turn on the HAC Setting

When the HAC setting is on, your phone sends the audio from your phone calls to the telecoil rather than to the microphone of your hearing aid. You are likely to hear calls much better because volume is increased and background noise and feedback are diminished. The HAC setting improves only the calls you listen to through the earpiece. It does not affect calls heard on the speakerphone or a headset. It’s better to turn off the Bluetooth function when the HAC setting is on. HAC requires extra battery power, so watch your battery consumption when it’s turned on.

Caution: Do not turn on the HAC setting unless you use a hearing aid with a telecoil. Using this setting without a hearing aid or with a hearing aid without a telecoil may be harmful to your hearing.

The video/audio recordings you make/download are protected by copyright laws. They are for personal use only and must not otherwise be used without the permission of the copyright owner.

69Care and Maintenance

Troubleshooting and FAQs

If you encounter problems while using the phone, or if it performs erratically, you can consult the information in the chart below. If your particular problem cannot be resolved using the information in the chart, contact your service provider.

Problem Possible Causes Possible Solution

Poor reception The network signal is too weak

Echo or noise

at your current location, for example, in a basement or near a tall building, because wireless transmissions cannot effectively reach it.

The network is busy at the current time (for example, during peak times, there may be too much network trafﬁc to handle additional calls).

You are too far away from a base station for your service provider.

Poor network trunk quality on the part of your service provider.

Poor local telephone line quality.

Move to a location where the network signal can be properly received.

Avoid using the phone at such times, or try again after waiting a short time.

You can request a service area map from your service provider.

Press the Power/End Key and dial again. You may be switched to a better-quality network trunk or phone line.

70 Troubleshooting and FAQs

Problem Possible Causes Possible Solution

Unable to select certain features

Battery will not charge

You cannot switch your phone on

(U)SIM card error

Your service provider does not support these features, or you have not applied for services that provide these features.

The battery or battery charger is damaged.

The phone’s temperature is below 32°F (0°C) or higher than 113°F (45°C).

Poor contact between the battery and charger.

Battery power has been depleted.

(U)SIM card malfunction or damage.

(U)SIM card inserted improperly.

Debris on the (U)SIM card contacts.

Contact your service provider.

Contact the dealer.

Adjust the battery charging environment to avoid temperature extremes.

Check all connectors to make sure all connections have been properly made.

Recharge the phone’s battery.

Take the (U)SIM card to your service provider for testing.

Insert the (U)SIM card properly.

Use a soft, dry cloth to clean the (U)SIM card contacts.

71Troubleshooting and FAQs

Problem Possible Causes Possible Solution

Shortened standby time

Unable to connect to the network

The standby time is related to your service provider system conﬁguration. The same phone used with different service providers’ systems will not provide exactly the same length of standby time.

The battery is depleted. In high-temperature environments, battery life will be shortened.

If you are not able to connect to the network, the phone will continue to send out signals as it attempts to locate a base station. Doing so consumes battery power and will consequently shorten standby time.

(U)SIM card invalid.

You are not within the network’s service area.

Poor signal.

If you are located in an area where signaling is weak, temporarily switch off the phone.

Use a new battery.

Change your location to one where the network is accessible, or temporarily turn off your phone.

Contact your service provider.

Check the service area with your service provider.

Move to an open space, or if you are inside a building, move closer to a window.

72 Troubleshooting and FAQs

Problem Possible Causes Possible Solution

PIN code is blocked

You have entered an incorrect PIN code three consecutive times.

Contact your service provider. If the service provider provides the (U)SIM card’s PUK code, use the PUK code to unlock the (U)SIM card.

Unable to enter information

The phone book’s memory is already full.

Delete unnecessary data from

the Directory. into the phone book

73Troubleshooting and FAQs

Speciﬁcations

Handset speciﬁcations are shown in the following table.

Handset Standards WCDMA 2100 MHz HSDPA

GSM 900MHz, 1800MHz and 1900MHz

Dimensions (H×W×D)

Weight

Display

Front camera

Back camera

Extended memory

Battery

Performance

Continuous idle time

Continuous talk time

Charge time

Note: The phone’s talk time and idle time are based on ideal working environments. The use of extended backlighting, browser, and network conditions can reduce battery life and talk/idle time.

Approximately 3.86” (H) × 2.03” (W) × 0.67” (D)

Approximately 3.9 oz. (including battery)

2.4” 262K TFT color screen

0.3 megapixel camera

3.0 megapixel camera

8 GB microSD™ card

900 mAh hours, Lithium ion (Li-ION)

BMP/JPG/GIF image; 3GP/MP4 video; MP3/AMR/ WAV/ACC/ACC+ audio; Capture image: up to 1536x2048, 24b; Capture video: up to 176x144; USB 1.1; JAVA MIDP 2.0; MMS Video and Picture, Email, Calendar, Speakerphone, Voice Recorder, Bluetooth; FM

Up to 8 days and 8 hours

About 3 hours

Approximately 3 hours

74 Speciﬁcations

FCC Compliance

This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and This device must accept any interference received, including interference that

may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

75FCC Compliance

Radio Frequency (RF) Energy

• This model device meets the government’s requirements for exposure to radio waves.

• This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

• The exposure standard for wireless devices employs a unit of measurement known as the Speciﬁc Absorption Rate or SAR. The SAR limit set by the FCC is

1.6W/kg.*

• Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certiﬁed power level in all tested frequency bands. Although the SAR is determined at the highest certiﬁed power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

• The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is 0.622 W/kg and when worn on the body, as described in this user guide, is 0.667 W/kg (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements.)

• While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirement.

* In the United States and Canada, the SAR limit for mobile phones used by the public

is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

76 Radio Frequency (RF) Energy

• The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device is on ﬁle with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on:

• FCC ID: Q78-Z331.

• For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and positions the handset a minimum of 1.5 cm from the body. Use of other enhancements may not ensure compliance with FCC RF exposure guideline.

77Radio Frequency (RF) Energy

Notes

78 Notes

ZTE Z331 (AT&T) User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
