AboutThisManual

Purpose

ThismanualdescribeshowtoinstalltheZXSDRR8119PicoRemoteRadioUnit.

IntendedAudience

lInstallationengineers
lDevicesupervisionengineers
lMaintenanceengineers

WhatIsinThisManual

Thismanualcontainsthefollowingchapters.

Chapter1,Installation

Interfaces

Chapter2,Installingthe

ZXSDRR8119

Chapter3,InstallingaCableDescribeshowtoinstallcables.

Describestheinterfacesinvolvedininstallation.

DescribeshowtoinstalltheZXSDRR81 19.

Conventions

Thismanualusesthefollowingconventions.

Caution:indicatesapotentiallyhazardoussituation.Failuretocomply

canresultinmoderateinjury,equipmentdamage,orinterruptionof

minorservices.

Note:providesadditionalinformationaboutatopic.

I

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Thispageintentionallyleftblank.

II

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Chapter1

InstallationInterfaces

Figure1-1showstheexternalinterfacesoftheZXSDRR8119.

Figure1-1ExternalInstallationInterfaces

1.U-shapegroove2.ETHinterface3.ANTinterface

Foradescriptionoftheinterfaces,refertoT able1-1.

Table1-1InterfaceDescriptions

No.ExternalInterfacesDescription

1U-shapegroovesMountstheZXSDRR8119toinstallationcomponents.

2ETHinterfaceRJ45networkinterface,supportsthePoEfunction,usedforthe

ZXSDRR8119toconnecttotheETHinterfaceofthePbridge(a

remoteconvergenceunit)throughanEthernetcable.

3ANTinterfaceInterfacecompletewithexternalantennaconnection

1-1

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ZXSDRR8119HardwareInstallation

Thispageintentionallyleftblank.

1-2

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Chapter2

InstallingtheZXSDRR8119

ForinstallationmodesavailablefortheZXSDRR8119,refertoT able2-1.

Table2-1ZXSDRR8119InstallationMode

InstallationTypeInstallationMode

InstallingtheZXSDRR8119againstapole2.1InstallingtheDeviceonaPole

InstallingtheZXSDRR81 19againstawall2.2InstallingtheDeviceonaConcreteWall

2.3InstallingtheDeviceonaConcreteCeiling InstallingtheZXSDRR8119againsta

ceiling

Caution!

2.4InstallingaRemovableCeiling

Thedevicedoesnotneedtobegrounded.

TableofContents

InstallingtheDeviceonaPole...................................................................................2-1

InstallingtheDeviceonaConcreteWall.....................................................................2-4

InstallingtheDeviceonaConcreteCeiling.................................................................

InstallingaRemovableCeiling.................................................................................

2.1InstallingtheDeviceonaPole

ThisproceduredescribeshowtoinstalltheZXSDRR8119againstaverticalpole.The
diameterofapoleis8to30mm.

Fortheinstallationcomponents,refertothefollowingtable.

ComponentQuantityOverview

Two-pointhangingplate1

2-8

2-11

2-1

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ZXSDRR8119HardwareInstallation

ComponentQuantityOverview

Poleholder2

Verticalpolexture1

M5×25countersunkscrew2

Wingnutandwasher2

Slide-proofrubbermat2

Steps

1.Wraptheslide-proofrubbermataroundthepole,seeFigure2-1.

2-2

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Chapter2InstallingtheZXSDRR8119

Figure2-1WrappingtheSlide-ProofRubberMatAroundthePole

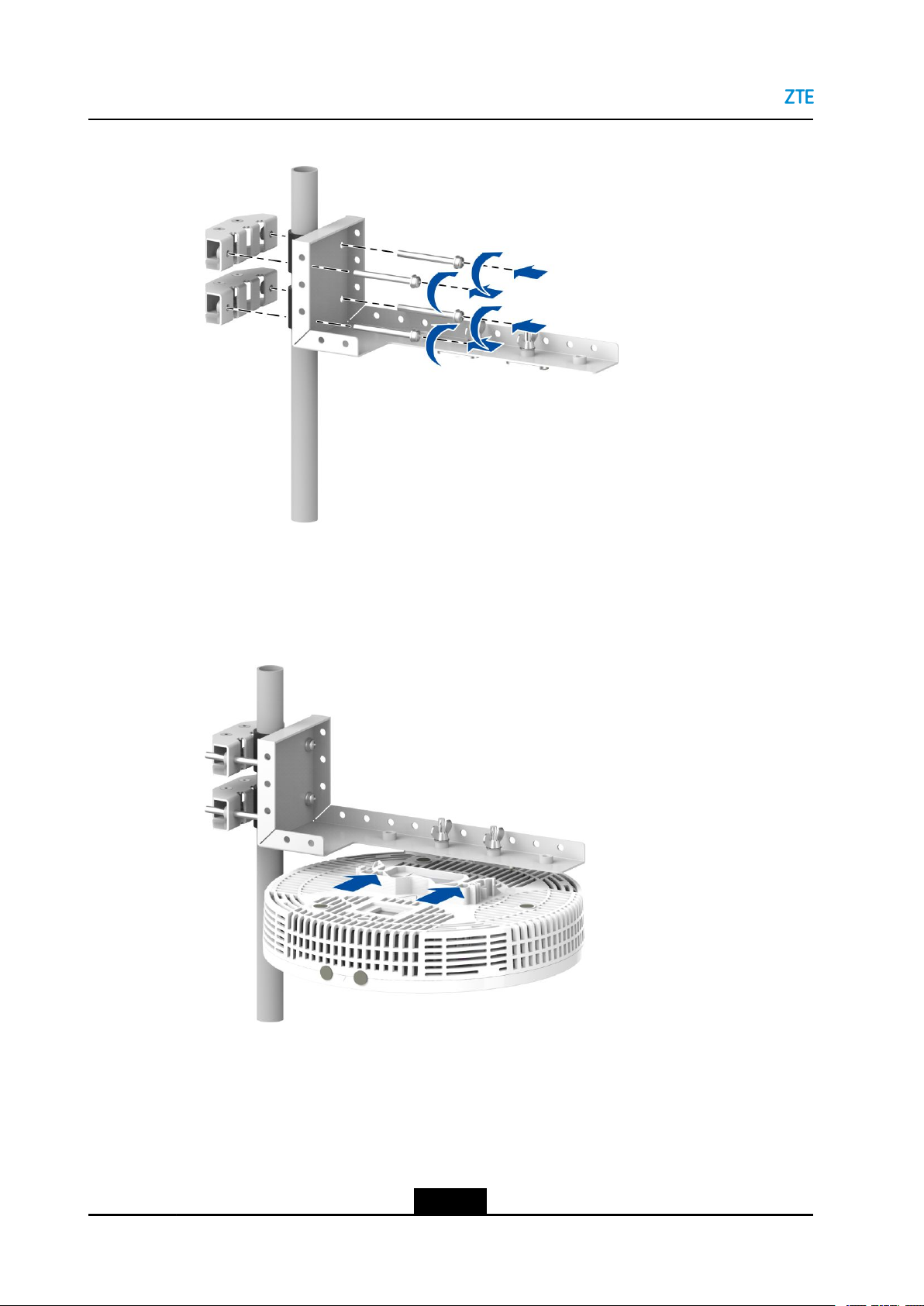

2.Securethetwo-pointmountingplatetotheL-shapedbracketwithtwo
countersunk-headscrews(M5×25)andtwowingnutsandwashers,seeFigure2-2.

Figure2-2SecuringtheTwo-PointMountingPlatetotheL-shapedBracket

3.InstalltheL-shapedbracketandthePoleholderonthepoleandtightenthescrews,
seeFigure2-3.

2-3

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ZXSDRR8119HardwareInstallation

Figure2-3SecuringthePoleBrackettothePole

4.AlignthetwoU-shapegroovesoftheZXSDRR8119withthetworivetsonthetwo-point
hangingboardandpushtheZXSDRR8119totheendtoxitonthetwo-pointhanging
plate,seeFigure2-4.

Figure2-4MountingtheZXSDRR8119

–EndofSteps–

2.2InstallingtheDeviceonaConcreteWall

ThisproceduredescribeshowtoinstalltheZXSDRR8119againstawall.

2-4

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Context

Fortheinstallationcomponents,refertothefollowingtable.

ComponentQuantityOverview

Two-pointhangingplate1

L-shapedbracket1

Wingnutandwasher2

Chapter2InstallingtheZXSDRR8119

M5×25countersunkscrew2

ST4.2×32countersunk

self-tappingscrews

φ6×30Expansionpipe3

3

Steps

1.Securethetwo-pointmountingplatetothehorizontalmountingbracketwithtwo
countersunk-headscrews(M5×25)andtwowingnutsandwashers,seeFigure2-5.

2-5

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ZXSDRR8119HardwareInstallation

Figure2-5SecuringtheTwo-PointMountingPlatetotheL—shapedBracket

2.Onthewall,marklocationsfordrillingholesbasedontheholepositionsofthe
L-shapedbracket,anddrillfourholesatthemarkswithanelectricdrill.Theholes
mustbeatleast55mmdeep,seeFigure2-6.

Figure2-6DrillingHoles

3.Hammertheexpansiontubesintotheholeswitharubberhammer,seeFigure2-7.

2-6

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Chapter2InstallingtheZXSDRR8119

Figure2-7InstallingtheExpansionTubes

4.SecuretheL-shapedbrackettothewallwithfourcountersunk-headself-tapping
screws(ST4.2×32),seeFigure2-8.

Figure2-8SecuringtheL-shapedBrackettotheWall

5.AlignthetwoU-shapegroovesoftheZXSDRR8119withthetworivetsonthetwo-point
hangingplate,andpushtheZXSDRR81 19totheendtoxitonthetwo-pointhanging
plate,seeFigure2-9.

2-7

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ZXSDRR8119HardwareInstallation

Figure2-9MountingtheZXSDRR8119

–EndofSteps–

2.3InstallingtheDeviceonaConcreteCeiling

WheninstallingtheZXSDRR8119againstacementceiling,ensurethatthedistance
betweentheplasticshelltopoftheZXSDRR8119andtheceilingisnotlessthan40mm.
Thisrequirementcanbemetthroughthewall-mountxturebetweentheZXSDRR8119
andthecementceiling.

Note:

Fornon-cementceilings,forexample,irremovableplasterboardceilingandPVCboard
ceiling,youmustxawoodenbarontheceiling.Forhowtoinstallthewoodenbar,refer
to“Figure2-15”.Itisnotallowedtoxthetwo-pointhangingboardtotheceilingbyusing
self-tappingscrews.

Context

Fortheinstallationcomponents,refertothefollowingtable.

ComponentQuantityOverview

Two-pointhangingplate1

2-8

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ComponentQuantityOverview

Wall-mountxture1

Chapter2InstallingtheZXSDRR8119

ST4.2×19countersunk

self-tappingscrews

ST4.2×32countersunk

self-tappingscrews

φ6×30Expansionpipe3

2

3

Steps

1.Drillholesintheceiling.

a.Makemarksonthecementceilinginaccordancewiththeholesofthewall-mount

xturetodeterminethelocationsoftheholestobedrilled.

b.Useanelectrichammerdrilltomakethreeholesinthecementceilingin

accordancewiththemarksmadeonthecementceiling.Theholesmustbeat
least35mmdeep.

Note:

Aftertheholesaredrilled,clearthedustbyusingadustcollector.

2.Hammerexpansionpipesintotheholesintheceilingbyusingarubberhammer,see

Figure2-10.

2-9

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ZXSDRR8119HardwareInstallation

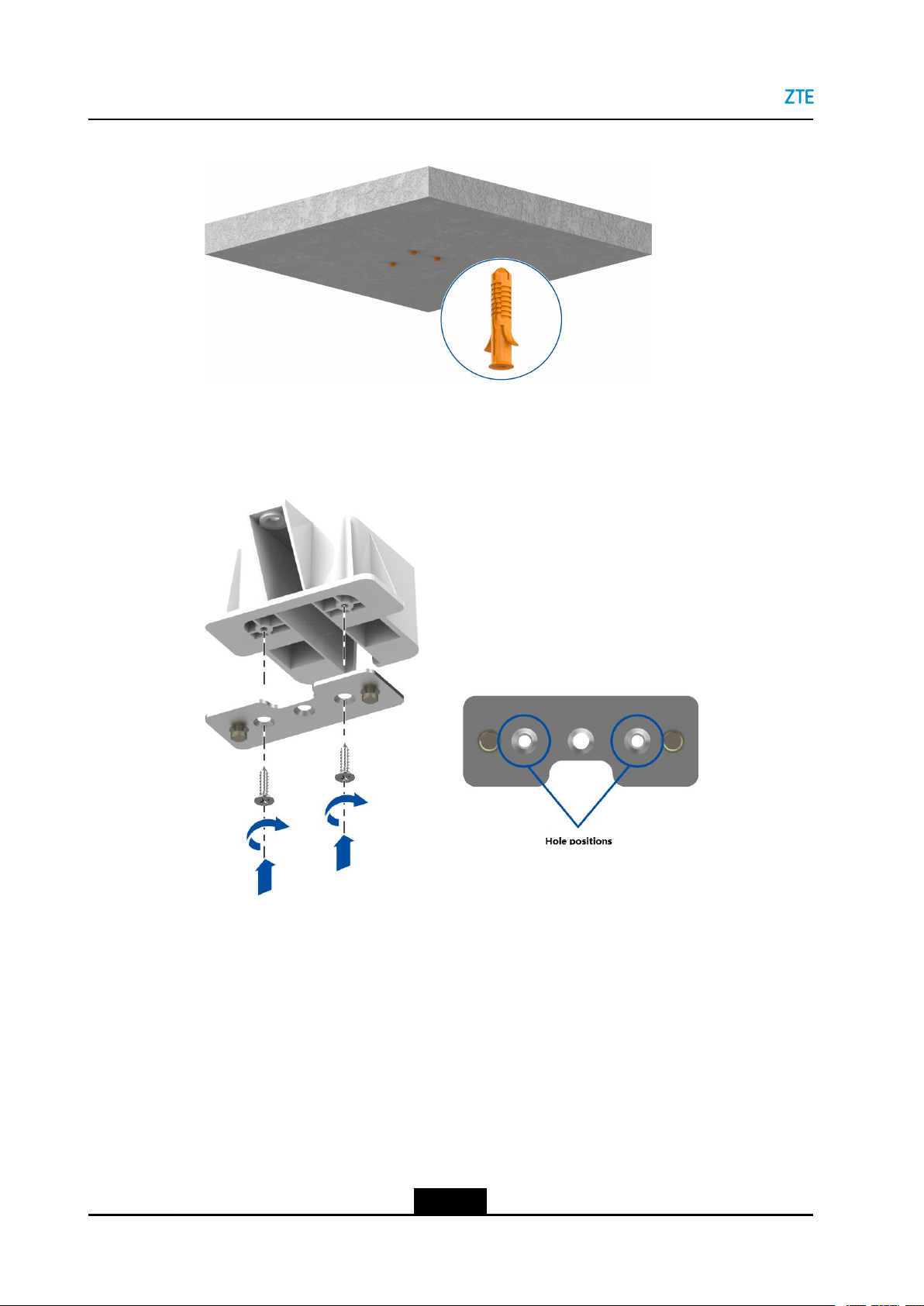

Figure2-10InstallingExpansionPipes

3.Usetwocountersunkself-tappingscrews(ST4.2×19)toxthetwo-pointhanging
boardtothewall-mountxture,seeFigure2-1 1.

Figure2-11FixingT wo-PointHangingPlatetotheWall-MountFixture

4.UsethreeST4.2×32countersunkself-tappingscrewstoxthewall-mountxtureto
theexpansionpipesontheceiling(torque:2.4N×m),seeFigure2-12.

2-10

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Figure2-12FixingtheWall-MountFixturetotheCeiling

Chapter2InstallingtheZXSDRR8119

5.AlignthetwoU-shapegroovesoftheZXSDRR8119withthetworivetsonthetwo-point
hangingplate,andpushtheZXSDRR81 19totheendtoxitonthetwo-pointhanging
plate,seeFigure2-13.

Figure2-13MountingtheZXSDRR8119

–EndofSteps–

2.4InstallingaRemovableCeiling

ThisproceduredescribeshowtoinstalltheZXSDRR8119againstaremovableceiling
board.

2-11

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ZXSDRR8119HardwareInstallation

Context

Fortheinstallationcomponents,refertothefollowingtable.

ComponentQuantityOverview

Two-pointhangingboard1

L-shapedbracket1

M5×25countersunk-head

screw

Wingnutandwasher2

2

Steps

1.Removetheceiling,markthepositionsfordrillingholesonthewallbasedthehole
positionsoftheL-shapedbracket,seeFigure2-14.

2-12

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Chapter2InstallingtheZXSDRR8119

Figure2-14MarkingHoles

2.Ontheremovedceiling,drilltwomountingholesandonenetworkcablehole,
seeFigure2-15.

Figure2-15HoleTemplateoftheRemovableCeilingBoard

1.Installationholeofthe

networkcable

2.Installationholeof
thetwo-pointhanging
board

Caution!

Thenetworkcableholemustbedrilledinaccordancewiththesizespeciedonthe
holetemplate.Iftheholesizeissmallerthanthatofthetemplatehole,thenetwork
cablewillbestuckwhentheZXSDRR8119isdismounted.

2-13

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ZXSDRR8119HardwareInstallation

3.Securethetwo-pointmountingplateandtheL-shapedbrackettotheceilingwithtwo
countersunk-headscrews(M5×25)andtwowingnutsandwashers,seeFigure2-16.

Figure2-16SecuringtheBracket

4.AlignthetwoU-shapegroovesoftheZXSDRR8119withthetworivetsonthetwo-point
hangingplate,andpushtheZXSDRR81 19totheendtoxitonthetwo-pointhanging
plate,seeFigure2-17.

Figure2-17MountingtheZXSDRR8119

5.Installtheceilingboardtotheoriginallocation.

–EndofSteps–

2-14

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Chapter3

InstallingaCable

ACA T5eUTPcableisusedastheEthernetcable.Forthecableoverview,seeFigure3-1.

Figure3-1CA T5eEthernetCable

Prerequisite

TheEthernetcableisaslongasneeded.

Caution!

lDonotuseSTPEthernetcables.
lThemaximumlengthofanEthernetcablefromtheZXSDRR81 19tothePbridge

shouldbelessthan100m.

Steps

1.ConnectoneendoftheEthernetcabletotheETHinterfaceoftheZXSDRR8119,see

Figure3-2.

3-1

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

ZXSDRR8119HardwareInstallation

Figure3-2ConnectingtheEthernetCable

2.ConnecttheotherendoftheEthernetcabletotheEthernetelectricalinterfaceofthe
Pbridge,whichisaremoteconvergenceunit.

Note:

Bindthecablewithcabletiesorderly,reserveanequaldistancebetweeneverytwo
cableties,withapropertensionandtowardsthesamedirection.Cutupextraties
smoothlyandcleanly.

3.Rootandbindthecable.

4.StickalabelonthecoveroftheZXSDRR8119andwriteinformationonthelabelto
indicatetheportandPbridgethattheZXSDRR8119isconnected.

Forexample,PB1-PORT1indicatesthattheZXSDRR8119isconnectedtotherst
portontherstPbridge.

–EndofSteps–

3-2

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Figures

Figure1-1ExternalInstallationInterfaces.................................................................1-1

Figure2-1WrappingtheSlide-ProofRubberMatAroundthePole............................

Figure2-2SecuringtheTwo-PointMountingPlatetotheL-shapedBracket.............2-3

Figure2-3SecuringthePoleBrackettothePole......................................................2-4

Figure2-4MountingtheZXSDRR8119....................................................................2-4

Figure2-5SecuringtheTwo-PointMountingPlatetotheL—shapedBracket...........2-6

Figure2-6DrillingHoles...........................................................................................2-6

Figure2-7InstallingtheExpansionTubes.................................................................2-7

Figure2-8SecuringtheL-shapedBrackettotheWall...............................................

Figure2-9MountingtheZXSDRR8119....................................................................2-8

Figure2-10InstallingExpansionPipes...................................................................2-10

Figure2-11FixingTwo-PointHangingPlatetotheWall-MountFixture....................2-10

Figure2-12FixingtheWall-MountFixturetotheCeiling.........................................2-11

Figure2-13MountingtheZXSDRR8119................................................................2-11

Figure2-14MarkingHoles......................................................................................

Figure2-15HoleTemplateoftheRemovableCeilingBoard...................................2-13

Figure2-16SecuringtheBracket............................................................................2-14

2-13

2-3

2-7

Figure2-17MountingtheZXSDRR8119................................................................2-14

Figure3-1CAT5eEthernetCable.............................................................................3-1

Figure3-2ConnectingtheEthernetCable................................................................3-2

I

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Thispageintentionallyleftblank.

Figures

II

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Tables

Table1-1InterfaceDescriptions................................................................................1-1

Table2-1ZXSDRR8119InstallationMode...............................................................

2-1

III

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Thispageintentionallyleftblank.

Tables

IV

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential

Glossary

PoE

V

SJ-20150805085318-002|2016-08-18(R1.3)ZTEProprietaryandCondential
