N861CA
User Manual
192 pgs1.17 Mb0

ZTE N861CA User Manual

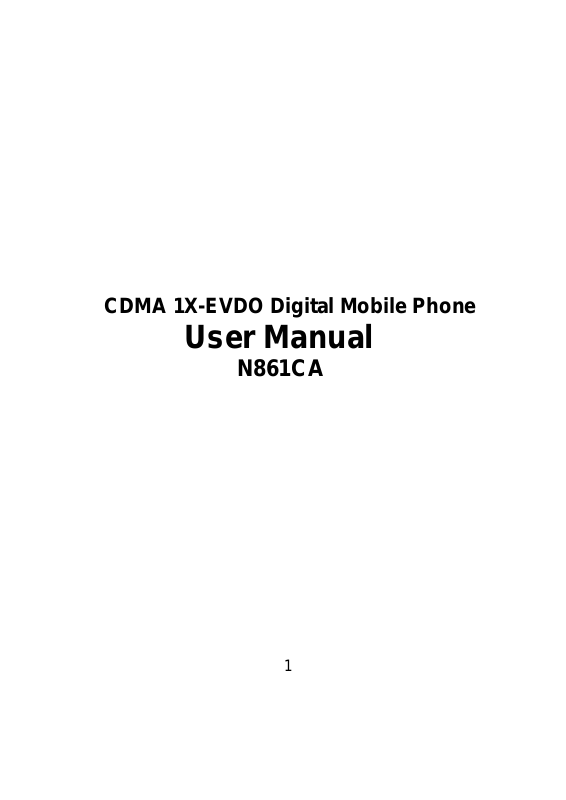

CDMA 1X-EVDO Digital Mobile Phone
User Manual
N861CA
1
Table of Contents
TIP: If you don't see it in the headings listed in the table of
contents, try the Index on page xxx.
Getting Started .......................................................10
Knowing the Keys .............................................................. 13
Installing the microSD Card and Battery............................ 13
Charging the Battery.......................................................... 15
Extending the Battery Life ................................................. 17
Powering On/Off ................................................................ 17
Activating Your Phone ....................................................... 17
Locking/Unlocking the Screen and Keys ........................... 18
Using the Touch Screen .................................................... 19
Getting to Know the Home Screen .................................... 20
Personalizing..........................................................22
Changing the System Language ....................................... 22
Setting the Date and Time Format ..................................... 22
Changing Ringtone and Notification Sound ....................... 22
Adjusting Volumes ............................................................. 23
Applying New Wallpapers .................................................. 24
Changing Screen Brightness ............................................. 24
Protecting Your Phone With Screen Locks ........................ 25
Protecting Your Phone With Encryption ............................. 26
Knowing the Basics ...............................................28
2
Monitoring the Phone Status .............................................. 28
Managing Shortcuts and Widgets ...................................... 31
Organizing With Folders .................................................... 32
Rearranging the Favorites Tray ......................................... 33
Entering Text ...................................................................... 33
Editing Text ........................................................................ 42
Opening and Switching apps ............................................. 43
Connecting to Networks and Devices .................. 44
Connecting to Mobile Networks ......................................... 44
Connecting to Wi-Fi ........................................................... 45
Using Wi-Fi Direct .............................................................. 48
Connecting to Bluetooth Devices ....................................... 49
Connecting to Your Computer via USB .............................. 52
Sharing Your Mobile Data Connection ............................... 53
Connecting to Virtual Private Networks.............................. 56
Phone Calls ............................................................ 58
Placing and Ending Calls ................................................... 58
Answering or Rejecting Calls ............................................. 59
Working With the Call Log ................................................. 59
Calling Your Contacts......................................................... 61
Managing Multi-party Calls ................................................ 62
Checking Voicemail ........................................................... 64
Using Visual Voicemail....................................................... 64
3
Adjusting Your Call Settings .............................................. 67
People .....................................................................73
Opening Your Contact List ................................................. 73
Adding a New Contact ....................................................... 73
Setting Up Your Own Profile .............................................. 74
Importing, Exporting, and Sharing Contacts ...................... 74
Working With Favorite Contacts ........................................ 76
Working With Groups ........................................................ 77
Searching for a Contact ..................................................... 79
Editing Contacts ................................................................ 79
Accounts.................................................................83
Adding or Removing Accounts........................................... 83
Configuring Account Sync ................................................. 84
Email .......................................................................86
Set Up the First Email Account .......................................... 86
Responding to an Email .................................................... 87
Adding Signature to Your Emails ....................................... 89
Adding and Editing Email Accounts ................................... 90
Changing General Email Settings ..................................... 91
GmailTM ...................................................................92
Switching Accounts............................................................ 92
Writing and Sending a Message ........................................ 93
4
Adding Signature to Your Gmail Messages ....................... 93
Replying to or Forwarding a Message ............................... 94
Working With Received Attachments ................................. 94
Searching for Messages .................................................... 95
Working With Labels .......................................................... 95
Changing Gmail Settings ................................................... 97
Messaging .............................................................. 98
Opening the Messaging Screen......................................... 98
Sending a Text Message.................................................... 98
Sending a Multimedia Message ......................................... 99
Replying to a Message .................................................... 100
Forwarding a Message .................................................... 100
Viewing Details About a Message .................................... 101
Deleting Messages or Threads ........................................ 101
Changing Message Settings ............................................ 102
Calendar ............................................................... 103
Viewing Your Calendars and Events ................................ 103
Creating an Event ............................................................ 105
Editing or Deleting an Event ............................................ 105
Changing Calendar Settings ............................................ 106
Google Talk .......................................................... 107
Signing into See Your Friends.......................................... 107
Adding a Friend ............................................................... 107
Changing Your Online Status ........................................... 108
Chatting With Friends ...................................................... 108
5
Changing Google Talk Settings ....................................... 110
Google+ ................................................................ 111
Organizing Your Contacts .................................................111
Getting Updates ...............................................................111
Chatting With Contacts .................................................... 112
Checking Photos ............................................................. 112
Checking and Managing Your Profile .............................. 113
Browser ................................................................ 114
Opening the Browser ....................................................... 114
Working With an Opened Page ....................................... 116
Downloading Files ........................................................... 118
Using Bookmarks ............................................................ 118
Changing Browser Settings ............................................. 120
Maps, Navigation, Places, and Latitude .............121
Activating Location Services ............................................ 121
Getting Your Location ...................................................... 121
Searching for a Location.................................................. 122
Getting Directions to Your Destination ............................. 122
Searching for Local Places .............................................. 123
Sharing Location ............................................................. 124
Google Search, Voice Search, and Voice Actions
...............................................................................126
Searching With Text ......................................................... 126
Searching by Speaking .................................................... 126
6
Using Voice Actions ......................................................... 127
Changing Search and Voice Search Settings .................. 127
Camera ................................................................. 128
Capturing a Photo ............................................................ 128
Customize Camera Settings ............................................ 129
Recording a Video ........................................................... 130
Customizing Camcorder Settings .................................... 132
Gallery .................................................................. 133
Opening Gallery ............................................................... 133
Working With Albums ....................................................... 133
Working With Videos........................................................ 136
Music .................................................................... 138
Copying Music Files to Your Phone ................................. 138
Viewing Your Music Library .............................................. 138
Playing Music................................................................... 140
Managing Playlists ........................................................... 141
Play Music ............................................................ 143
Playing Your Music .......................................................... 143
Managing Playlists ........................................................... 145
Video Player ......................................................... 147
Opening the Video Library ............................................... 147
Playing Videos ................................................................. 147
Managing Video Files ...................................................... 148
7
Sound Recorder ...................................................149
Recording a Voice Memo ................................................ 149
Playing a Voice Memo ..................................................... 149
More Apps.............................................................151
Alarm ............................................................................... 151
Calculator ........................................................................ 152
File Manager ................................................................... 152
News and Weather .......................................................... 152
Note pad .......................................................................... 153
Play Books ...................................................................... 153
Task Manager .................................................................. 154
Timer ............................................................................... 154
YouTube .......................................................................... 155
Play Store .............................................................156
Browsing and Searching for Apps.................................... 156
Downloading and Installing Apps ..................................... 156
Managing Your Downloads .............................................. 157
Settings .................................................................158
Wireless and Networks .................................................... 158
Device ............................................................................. 160
Personal .......................................................................... 162
System ............................................................................ 166
For Your Safety.....................................................167
8
General Safety ................................................................. 167
Radio Frequency (RF) Energy ......................................... 168
IC Notice……………………………………………………… 170 IC Radiation Exposure Statement…………………………..171
FCC Compliance ............................................................. .172
Using Your Phone With a Hearing Aid Device.................. 174
Turning on the HAC Setting ............................................. 175
Distraction ........................................................................ 176
Product Handling ............................................................. 177
Electrical Safety ............................................................... 183
Radio Frequency Interference ......................................... 183
Explosive Environments................................................... 185
Consumer Limited Warranty ............................... 187
9
Getting Started
Thanks for choosing the ZTE Warp SequentTM. Please read this guide carefully and keep it for future reference.
The pictures and icons presented in this guide are meant for illustrative purposes only and may not accurately represent the actual pictures and icons found on the phone. Your phone contains the most up to date information.
WARNING! Please refer to the "For Your Safety" section on page xxx to learn about information that will help you safely use your phone. Failure to read and follow the important "For Your Safety" information in this phone guide may result in serious bodily injury, death, or property damage.
10
Y
our Phone at a Glance
Earpiece
LED Indicator
Power Key
Front Camera
Touchscreen
Back Key
Menu Key
Home Key
11
Back Camera
Flash Lamp
Headset Jack
Volume Keys
Battery Cover
Speaker
Charger/ USB Jack
12
Knowing the Keys
Key
Power Key
Home Key
Menu Key Back Key
Function
Press and hold to turn on or off Silent, Vibration or Flight mode, or to power off. Press to switch your phone to Sleep mode.
Press to wake up your phone.
Touch to return to the Home Screen from any application or screen. Touch and hold to see recently used
applications.
Touch to get the options for the current screen. Touch to go to the previous screen.
Volume Keys
Press or hold to turn the volume up or down.
Installing the microSD Card and Battery
Switch off your phone before installing or replacing the battery. The microSD card can be installed and removed while the phone is turned on. Unmount the microSD card before removing it.
13
1. Remove the back cover.
2. Hold your microSD card with the metal contacts facing down and slide it in.
NOTE: microSD logo Association.
is a trademark of the SD Card
14
3. Insert the battery by aligning the gold contacts on the battery with the gold contacts in the battery compartment. Gently push down on the battery until it clicks into place.
WARNING! Do not handle a damaged or leaking Li-Ion battery as you can be burned.
4. Press the cover gently back into place until you hear a click.
Charging the Battery
When you first get your new phone you’ll need to charge the battery.
NOTE: Although the battery comes partially charged, it is recommended you fully charge the battery before using your device for the first time.
1. Connect the adapter to the charger jack. Ensure that the adapter is inserted with the correct orientation. Do not force
15
the connector into the charger jack.
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged. WARNING! Use only ZTE-approved batteries and chargers with
your device. The failure to use a ZTE-approved battery and charger may increase the risk that your device will overheat, catch fire or explode, resulting in serious bodily injury, death or property damage.
How much charge have you got?
If the battery is low, there will be a pop-up message on the screen and the LED indicator will be red. As you charge your phone, the screen will tell you the exact battery level each time you wake up your phone.
If the phone is on, you’ll see this charging icon the status bar.
/ appears on
16
Extending the Battery Life
Active applications, screen brightness levels, Bluetooth and Wi-Fi usage and GPS functionality can drain your battery. You can follow the helpful tips below to conserve your battery power:
Reduce the screen backlight time.
Lower the screen brightness.
Turn Bluetooth off when not in use.
Turn Wi-Fi off when not in use.
Disable the GPS function when not in use. Most applications using this function will periodically query the GPS satellites for your current location; each query drains your battery.
When taking pictures, do not use a flash unless you have to.
Powering On/Off
Make sure the battery is charged.
Press and hold the Power Key to turn on your phone.
To turn it off, press and hold the Power Key to open the options menu. Touch Power off and then touch OK.
Activating Your Phone
To activate your new phone, please refer to the “Activation Kit” documentation included in your original device packaging.
17
For additional support information visit us at: www.boostmobile.com
– or – Call Boost Customer Care at 1-888-BOOST-4U
(1-888-266-7848).
Locking/Unlocking the Screen and Keys
Your phone allows you to quickly lock the screen and keys when not in use and to turn the screen back on and unlock it when you need it.
To lock the screen and keys: To quickly turn the screen off and lock the keys, press the Power
Key. NOTE: To save battery power, the phone automatically turns off
the screen after a certain period of time when you leave it idle. You will still be able to receive messages and calls while the phone screen is off.
To unlock the screen and keys:
1. Press the Power Key to turn the screen on.
2. Touch and hold
-or-
at the center of the screen.
You can drag
towards any direction to access the
18
application shortcuts. Touch an application or function icon to unlock the screen and open the application or enable the function quickly.
NOTE: If you have set an unlock pattern, PIN or password for your phone (see chapter Personalizing – Protecting Your Phone
With Screen Locks), you’ll need to draw the pattern or enter the
PIN/password to unlock your screen.
Using the Touch Screen
Your phone’s touch screen lets you control actions through a variety of touch gestures.
Touch When you want to type using the onscreen keyboard, select
items onscreen such as application and settings icons, or press onscreen buttons, simply touch them with your finger.
Touch and Hold To open the available options for an item (for example, a
message or link in a Web page), touch and hold the item.
Swipe or Slide To swipe or slide means to quickly drag your finger vertically
or horizontally across the screen.
Drag To drag, press and hold your finger with some pressure
before you start to move your finger. While dragging, do not release your finger until you have reached the target position.
19
Pinch In some apps (such as Maps, Browser, and Gallery), you can
zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in).
Rotate the screen For most screens, you can automatically change the screen
orientation from portrait to landscape by turning the phone sideways.
Getting to Know the Home Screen
The home screen is the starting point for your phone’s applications, functions, and menus. You can customize your home screen by adding application icons, shortcuts, folders, widgets, and more.
20
Status & Notifications
Shortcut
Google Search
Wallpaper
All apps
Phone
People
Mobile ID
Messaging
Extended Home Screens
Your home screen extends beyond the initial screen, providing more space to add icons, widgets, and more. Simply swipe left or right on the screen to see the extended Home Screens.
21
Personalizing
Changing the System Language
1.
2.
Touch the Home Key > Menu Key > System settings >
Language & input > Language.
Select the language you need.
Setting the Date and Time Format
1.
2.
3.
Touch the Home Key > Menu Key > System settings >
Date & time.
Clear the Automatic time zone check boxes if you want to set the time zone by yourself.
Tick the Use 24-hour format check box to change the time format, or touch Select date format to choose the one you prefer.
Changing Ringtone and Notification Sound
You can customize the ringtone for incoming calls and default notification sound.
1. Touch the Home Key > Menu Key > System settings >
Sound.
22
2. Touch Phone ringtone or Default notification.
3. Scroll through the ringtone list and select the ringtone you want to use.
4. Touch OK. NOTE: To adjust the ringtone for an individual caller, go to that
person's contact card in the People app, touch the Menu Key >
Set ringtone for that card.
Adjusting Volumes
1.
2.
3. TIP: You can adjust the media volume when a media application
is in use by pressing the Volume Keys. If no media application is active, press the Volume Keys to adjust ringtone volume (or the earpiece volume during a call).
To enable the silent or vibration mode:
You can set the phone to the silent or vibration mode by using one of the following methods.
Touch the Home Key > Menu Key > System settings >
Sound > Volumes.
Adjust the volume for music, video, games, and other media, the ringtone and notification volume, and the alarm volume.
Touch OK to save.
Press and hold the Power Key and then touch the silent mode, touch
touch
to disable the silent mode.
to enable the vibration mode, or
23
to enable
Press the Volume Keys down when no media application is active. When theicon appears in the status bar, the phone is set to the vibration mode. When theicon appears in the status bar, the phone is in the silent mode. Touch the Home Key > Menu Key > System settings > Sound > Silent mode, and touch Off, Vibrate or Mute.
Applying New Wallpapers
You can set the wallpaper for the Home Screen.
1. Touch the Home Key > Menu Key > Wallpaper.
2. Select a wallpaper source and choose the image or animation you want to use as the wallpaper. Some cropping may be needed for Gallery images.
Changing Screen Brightness
1. Touch the Home Key > Menu Key > System settings > Display > Brightness.
2. Tick the Automatic brightness check box to make the phone adjust the screen brightness automatically, or clear the check box to adjust the brightness manually.
3. Touch OK.
24
Protecting Your Phone With Screen Locks
You can protect your phone by creating a screen lock. When enabled, you need to draw a pattern or enter a numeric PIN or password to unlock the phone’s screen and keys.
1. Touch the Home Key > Menu Key > System settings >
Security.
2. Touch Screen lock.
3. Touch Face Unlock, Pattern, PIN or Password.
If you touch Face Unlock, you’re guided to set up face unlock. Face Unlock lets you unlock your phone by looking at it. This is the least secure lock option.
If you touch Pattern, you’re guided to create a pattern you must draw to unlock the screen. The first time you do this, a short tutorial about creating an unlock pattern appears. Then you’re prompted to draw and redraw your own pattern.
The next time you turn on your phone or wake up the screen, you must look at your phone, draw your unlock pattern or enter your PIN or password to unlock it.
IMPORTANT: Screen lock options are listed in the approximate order of the strength of their security, starting with None and
If you touch PIN or Password, you’re prompted to set a numeric PIN or a password you must enter to unlock your screen.
25
Long press, which provide no security. Face Unlock provides minimal security, although it can be more convenient than the stronger options.
Protecting Your Phone With Encryption
You can encrypt all the data on your phone: Google Accounts, application data, music and other media, downloaded information, and so on. If you do, you must enter a numeric PIN or password each time you power on your phone.
WARNING! Encryption is irreversible. The only way to revert to an unencrypted phone is to perform a factory data reset, which erases all your data.
Encryption provides additional protection in case your phone is stolen, and may be required or recommended in some organizations. Consult your system administrator before turning it on. In many cases the PIN or password you set for encryption is controlled by the system administrator.
Before turning on encryption, prepare as follows:
1. Set a lock screen PIN or password.
2. Charge the battery.
3. Keep the phone connected to the charger.
4. Schedule an hour or more for the encryption process: you must not interrupt it or you will lose some or all of your data.
When you're ready to turn on encryption:
1. Touch the Home Key > Menu Key > System settings >
Security > Encrypt phone.
26
2. Read the information about encryption carefully. The Encrypt phone button is dimmed if your battery's not
charged or your phone's not plugged in. If you change your mind about encrypting your phone, touch
the Back Key. WARNING! If you interrupt the encryption process, you will
lose data.
3. Touch Encrypt phone.
4. Enter your lock screen PIN or password and touch Next.
5. Touch Encrypt phone again.
The encryption process starts. Encryption can take an hour or more, during which time your phone may restart several times.
When encryption is complete, you're prompted to enter your PIN or password.
Subsequently, you must enter your PIN or password each time you power on your phone, to decrypt it.
27
Knowing the Basics
Monitoring the Phone Status
The status bar at the top of the home screen provides phone and service status information on the right side. You can monitor the phone status by checking the following status icons.
3G connected
Flight mode
Battery flat
Battery low
Battery partially drained
Battery full
/
Battery charging
Wired headset connected
No signal
Signal strength
Mobile data in use
Ringer off
Vibrate mode
Speaker on
Phone microphone off
Bluetooth on
Alarm set
TTY mode on
Connected to a Wi-Fi network
Wi-Fi in use
28
Managing Notifications
Notification Icons
The status bar at the top of the home screen provides notification alerts on the left. You can view the following notification icons.
New SMS
New MMS
New Email
New Gmail message
New Google Talk instant message
Problem with SMS/MMS delivery
Missed call
microSD card unmounted
microSD card removed
Upcoming event
New Wi-Fi network detected
Downloading data
Sending data
Wi-Fi direct is on
Call in progress
USB connected
/
Song is playing
GPS on
Updates available
29
Open/Close the Notification Panel
Notifications report the arrival of new messages, calendar events, and alarms, as well as ongoing events, such as when you are playing music. You can open the notification panel to view the details of notifications.
To open the notification panel, swipe your finger down from the top of the screen.
To close the notification panel, swipe your finger up from the bottom of the screen or touch the Back Key.
Respond to or Remove a Notification
In the notification panel, you can respond to a notification or remove the notifications.
To respond to a notification, just touch it. To remove a notification, swipe it left or right.
To remove all notifications, touch in the top right corner.
Most apps that send notifications, such as Gmail and Google Talk, have notification settings that you can adjust.
TIP: In the notification panel, touchat the top of notifications list to get to the Settings menu quickly.
30
Loading...
+ 162 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
