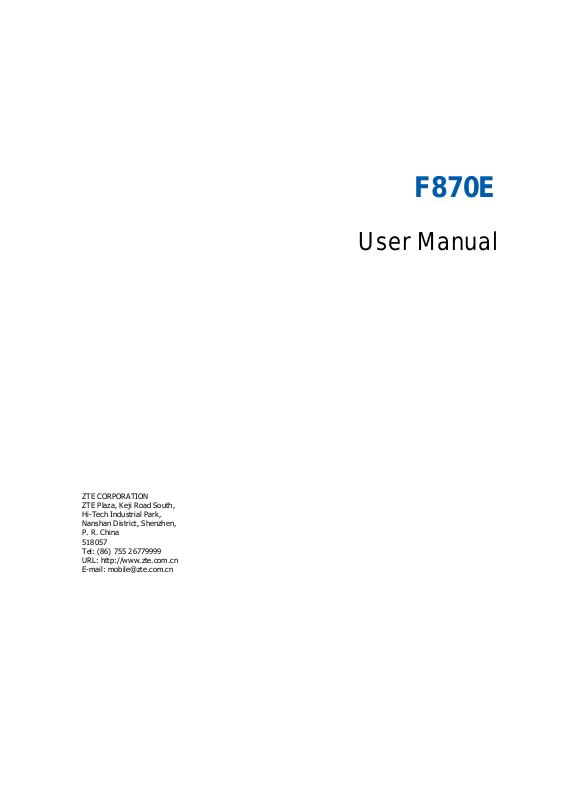

ZTE F870E User Manual
F870E
User Manual
ZTE CORPORATION
ZTE Plaza, Keji Road South,
Hi-Tech Industrial Park,
Nanshan District, Shenzhen,
P. R. China
518057
Tel: (86) 755 26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2008 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : R1.0
Edition Time : 20091030
Manual No. :
Contents
Confidential and Proprietary Information of ZTE CORPORATION 1
C h a p t e r 1
For Your Safety
General Care
Your handset contains delicate electronic circuitry, magnets and battery systems. You should treat it with
care and give particular attention to the following points:
• Do not allow the handset, battery or accessories to come into contact with liquids or moisture at any time.
Do not immerse the handset in any liquid.
• Do not place the handset alongside computer disks, credit cards, travel cards and other magnetic media.
The information contained on disks or cards may be affected by the handset.
• Do not paint the handset.
• Do not leave the handset or the battery in places where the temperature could exceed 60°C, e.g. on a car
dashboard or a windowsill, behind glass in direct sunlight, etc.
• Do not remove the handset‟s battery while the handset is switched on.
• Take care not to allow metal objects, such as coins or key rings to contact or short-circuit the battery
terminals.
• Do not dispose of battery in a fire. The handset‟s Li-ION batteries may be safely disposed of at a Li-ION
recycling point. Follow local requirements for recycling.
• Do not put the handset‟s battery in your mouth, as battery electrolytes may be poisonous if swallowed.
• Do not attempt to dismantle the handset or any of its accessories.
• Do not put a battery into a microwave oven, dryer, or high-pressure container.
• Do not contact battery directly to an electric outlet or cigarette lighter charger. Use only approved
charger units.
• Do not pierce battery with a sharp object such as a needle.
• Do not disassemble or modify the battery.
• Do not use a damaged or deformed battery.
• Do not drop, throw, or subject the handset to rough treatment.
• Do not solder the battery directly.
• Stop using the battery if abnormal heat, odor, discoloration, deformation, or abnormal condition is
detected during use, charge, or storage.
• Remove the battery whose life cycle has expired from equipment immediately.
• This equipment is fitted with an internal battery. Take it to a qualified service engineer when the
replacement of the battery is required.
• The earpiece may become warm during normal use. Also, the handset itself may become warm while the
battery is being charged.
• When a handset is in vibration mode, the vibration can sometimes cause the handset to move.
• Be careful not to place the handset near heat sources (such as a heater) or too close to the edge of the
table.
• Power off your phone before you clean it. Use a damp or anti-static cloth to clean the handset. Do not
use an ordinary dry cloth or electrostatic cloth. Do not use chemical or abrasive cleaners as these could
damage the casing.
F870E User Manual
2 Confidential and Proprietary Information of ZTE CORPORATION
• Remember to make backup copies of all important data on your handset.
• Remember to recycle: the cardboard packing supplied with this handset is ideal for recycling.
Warning:
In the unlikely event of a battery leak, take care to keep the battery discharge away from your eyes
or skin. If the leakage does come into contact with the eyes or skin, please flush thoroughly in clean
water and consult with a doctor.
Aircraft Safety
• Power off your phone before the airplane takes off. In order to protect airplane‟s communication system
from interference, it is prohibited to use mobile phone in flight. If you want to use mobile phone before
the airplane takes off, you should get aircrew‟s permission according to safety regulations.
• If the mobile phone has the function of automatic timing power-on, please check your alarm setting to
ensure that your phone will not be automatically powered on during the flight.
Hospital Safety
• Power off your phone and remove the battery in areas where the use of handsets is prohibited.
• Follow the instructions given by the respective medical facility regarding the use of handsets on their
premises.
General Guidelines
• In some countries, national law prohibits private copying of copyrighted material. Please check the
national legislation of the applicable country concerning the use of such material.
• Many jurisdictions have laws and regulations about taking pictures in public or private areas and
regarding the processing and further use of such pictures. The manufacturer encourages its customers to
obey all laws and to respect the personal rights of others.
• Please check roaming agreement availability with your service provider.
• The use of mobile phones is not allowed in some radiation sensitive areas, such as hospitals, research
centers and airplanes. The user is responsible to power-off the device. If there is any uncertainty, you
should remove the battery from the handset.
• Observe any signs that indicate powering off handsets, such as those near gas stations, or explosives, and
power off the handset/device immediately.
• If you have a heart condition, be careful with the settings of call vibration or tone volume.
• Do not allow children to play with the handset, charger or batteries.
• Do not use the handset where blasting is in progress.
• Do not try to make a call or conversation while the temperature of charging battery is above 50°C.
• Take care not to put your handset in the back pocket of your trousers or skirt and then sit on it. Also, do
not put your phone at the bottom of bag where it may subject to excessive weight or pressure. Doing so
may damage the LCD and camera lens and cause them malfunction.
• The operation of some medical electronic devices, such as hearing aids and pacemakers, may be affected
if a handset is used next to them. Observe any caution signs and the manufacturer‟s recommendations.
• Do not leave the handset discharged or without a battery for a long time, otherwise some data may be
erased.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 3
• Your phone contains metal, which may cause you an itch, a rash or eczema depending on your physical
condition.
Road Safety
• You must exercise proper control of your vehicle at all times. Give your full attention to driving.
• Observe all of the recommendations contained in your local traffic safety documentation.
• Pull off the road and park before making or answering a call, if driving conditions require so. Check if
local laws and/or regulations restrict the use of handsets while driving.
• You MUST NOT stop on the hard shoulder of a motorway to answer or make a call, except in an
emergency.
• Power off your handset at a refueling point, such as a gas station, even if you are not refueling your own
car.
• Do not store or carry flammable or explosive materials in the same compartment as the handset.
• Electronic systems in vehicle, such as anti-lock brakes, speed control and fuel injection systems are not
normally affected by radio transmissions. The manufacturer of such equipment can advise if it is
adequately shielded from radio transmissions. If you suspect vehicle problems caused by radio
transmissions, consult your dealer and do not power on the handset until it has been checked by a
qualified technician.
Vehicles Equipped with an Airbag
An airbag inflates with great force. Do not place objects, including either installed or portable wireless
equipment, in the area over the airbag or in the airbag deployment area. If in-vehicle wireless equipment
is improperly installed and the airbag inflates, serious injury could result.
Third Party Equipment
The use of third party equipment or accessories, not made or authorized by ZTE, may invalidate the
warranty of your handset and also adversely affect the phone‟s safety/operation.
Radio Frequency (RF) Energy
Your handset is a low-power radio transmitter and receiver. When powered on, it intermittently receives
and transmits radio frequency (RF) energy (radio waves). The transmit power level is optimized for the
best performance, and automatically reduces in the areas with better reception.
Exposure to radio frequency energy
Radio wave exposure and Specific Absorption Rate (SAR) information:
• The handset is designed to comply with safely, requirements for exposure to radio waves. This
requirement is based on scientific guidelines that include safety margins designed to assure the safety of
all persons, regardless of age and health.
• The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption
Rate, or SAR. Tests for SAR are conducted using a standardized method with the phone transmitting at
its highest certified power level in all used frequency bands.
• While there may be differences between the SAR levels of various ZTE phone models, they are all
designed to meet the relevant guidelines for exposure to radio waves.
F870E User Manual
4 Confidential and Proprietary Information of ZTE CORPORATION
• The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection
(ICNIRP), is 2.0 W/kg averaged over ten (10) grams of tissue.
• The highest SAR value for this model phone tested for use at the ear is W/kg (10g).
Emergency Services
To make an emergency call in any country:
1. Ensure that your handset is on and in service.
2. Press End Key as many times as needed to clear the display and ready the device for calls.
3. Enter the official emergency number for your present location, for example, 112 (the international
emergency number).
4. Press Send Key to dial the number. Follow instructions received and do not end the call until told to do
so.
When the (U)SIM card is not inserted, tap SOS and then enter the official emergency number for your
present location. Press Send Key or tap to dial the number. Or you can tap to power on the phone,
and then make the emergency call like any other ordinary call.
Notes:
• Tell the operator which service you require: Police, Ambulance, Fire Brigade, Coastguard or
Mountain Rescue Service. Tell them where you are and remain stationary to maintain contact if
possible.
• Due to the nature of the cellular system, the connection of emergency calls cannot be guaranteed.
You should never rely solely on any wireless device for essential communications like medical
emergencies.
Information on Privacy
Camera usage and photo/audio/video recordings carried out with the handset can offend the
confidentiality of the subjects. The user therefore is held to respect legislation in confidentiality matter
and remains the only responsible subject in case of eventual violations of the enforced norm.
Copyright Notice
The video/audio recordings you make/download are protected by copyright laws. They are for personal
use only and must not be otherwise used without the permission of the copyright owner.
Confidential and Proprietary Information of ZTE CORPORATION 5
C h a p t e r 2
Getting Started
Overview
Thank you for purchasing F870E GSM/GPRS Mobile Phone.
You F870E mobile phone operates in Global System for Mobile Communications (GSM) or 2G, and
General Packet Radio Service (GPRS) or 2.5G networks and achieves seamless handover between these
networks. Empowered by the modern technology, F870E helps you realize high speed connectivity on the
go. In addition, the touchscreen design and accelerometer make F870E a phone easy to maneuver and
ideal for enjoying multimedia entertainment.
Front View
Back View
F870E User Manual
6 Confidential and Proprietary Information of ZTE CORPORATION
Key Definition
Menu Key
• Shortcut to the main menu.
• Hold to lock the screen.
Message Key
• Shortcut to SMS in idle mode.
Yes Key
• Press to make or answer calls.
• In idle mode: Press to enter dial interface.
No/Power Key
• Press to end a call.
• Press to reject an incoming call.
• Hold to turn the phone on/off.
• Press to return to idle mode.
Navigation Keys
Up Key
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 7
• Scroll up.
• Shortcut to Messenger in idle mode.
Down Key
• Scroll down.
• Shortcut to All contacts in idle mode.
Left Key
• Roll the cursor left.
• Shortcut to Vodafone MTV Music website.
Right Key
• Roll the cursor right.
• Shortcut to Vodafone Pass MTV website.
OK Key — Confirm selections.
Volume Keys
• Adjust the earpiece volume during a call.
• Adjust the volume when playing audio or video.
• Mute the ringtone.
Camera Key
• Take photos and videos.
• Hold to activate the camera and take a photo in idle mode.
Starting Up
Installing the (U)SIM Card
You can obtain a (U)SIM card from a mobile communication service provider when you sign on as a
subscriber.
1. Press and hold End Key to power off the phone.
2. Remove the back cover of the phone.

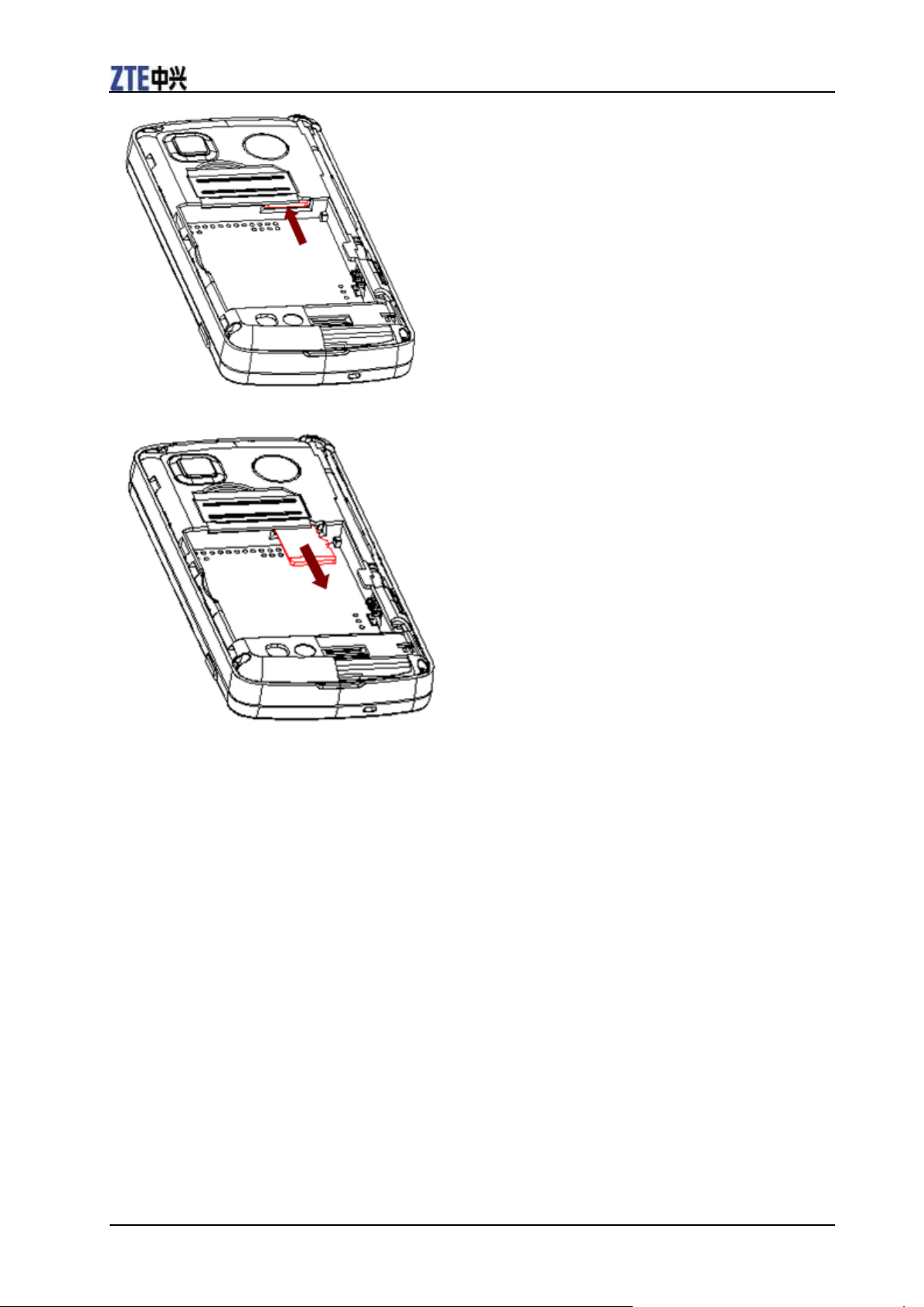

i. User one fingernail to hook the bottom right corner of the back cover, as shown in the following
picture.
F870E User Manual
8 Confidential and Proprietary Information of ZTE CORPORATION
ii. Lift the cover up, from the bottom of the phone to the top.

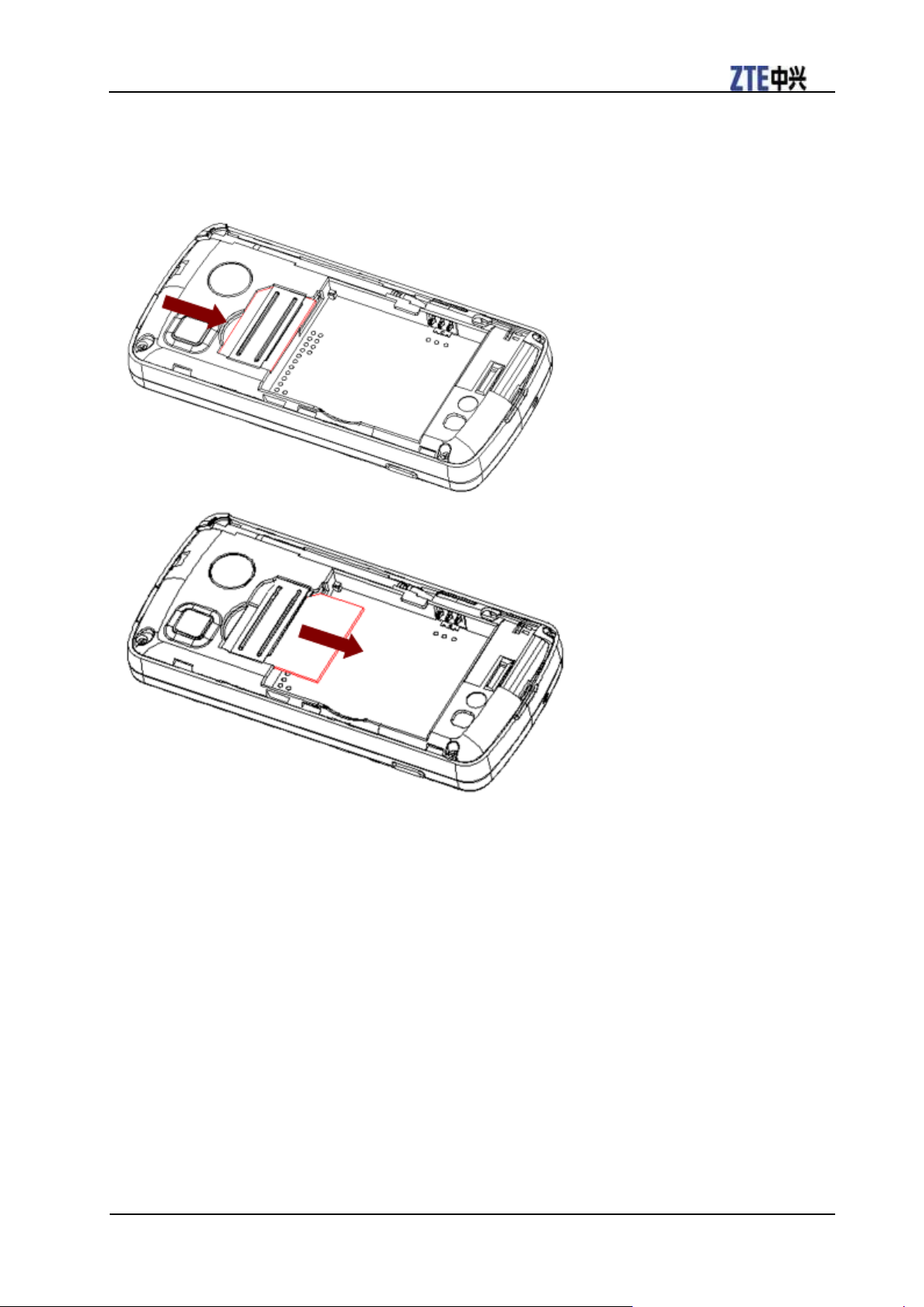

3. Remove the battery. See Getting Started-Starting Up-Removing the battery.
4. Insert the (U)SIM card into the card holder with its metal contacts facing the phone, as shown in the
following picture.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 9
Notes:
A (U)SIM card can be easily damaged if its metal contacts become scratched. Therefore, take
special care when holding or inserting it.
Disconnect the charger and other accessories from the phone before inserting or removing the
(U)SIM card.
When inserting the (U)SIM card, make sure that the metal contacts face to the phone and the
cut corner is at the top left, as shown on your phone.
Inserting the Memory Card
The memory card gives your phone a larger memory capacity. You can save more multimedia files and
use it to store any other files.
Notes:
Your phone can support a memory card with capacity up to 8GB.
1. Power off the phone and remove its back cover and battery. See Getting Started-Starting Up-Installing
the (U)SIM card.
2. Hold the memory card by the edges and carefully insert it into the memory card slot with the cut edge
oriented as shown in the picture.
F870E User Manual
10 Confidential and Proprietary Information of ZTE CORPORATION
3. Push the card until it clicks into position.
Installing the Battery
The in-box lithium ion battery can be immediately used after unpacking. A new battery will have the best
performance after 3 full charge/discharge cycles.
1. Power off the phone and remove the back cover. See Getting Started-Starting Up-Installing the (U)SIM
card.
2. Insert the battery with the contacts located against the gold springs.
3. Push down the battery until it clicks into place.
F870E User Manual
Confidential and Proprietary Information of ZTE CORPORATION 11
Notes:
The phone automatically switches off if the battery voltage is too low.
When not using the battery for a long period, remove it from the phone and store it in a cool dry
place.
Removing the Battery
1. Make sure the phone is powered off.
2. Use a fingernail to hook the edge of the battery, as shown in the picture.
3. Lift the battery up to remove it.
F870E User Manual
12 Confidential and Proprietary Information of ZTE CORPORATION
Charging the Battery
Your phone is powered by a rechargeable battery. The battery is not fully charged when unpacked, but
there may be enough power to power your phone on. Please use up the power completely before
recharging the battery for the first time.
1. Insert the charger's USB adapter into the USB jack of the phone. See the following picture.
2. Connect the charger to a standard AC wall outlet.
3. Remove the charger from both the wall outlet and the phone once the charging is completed.
Caution:
Charging is only possible within the temperature range of 0℃ to 45℃.
It takes 2~3 hours to fully charge the battery.
Loading...
