Page 1
Operation Manual
© 2021 ZOOM CORPORATION
Reproduction or reprinting of this manual in whole or in part
by any means without permission is prohibited.
Page 2
Safety and usage precautions
Safety and usage precautions
SAFETY PRECAUTIONS
In this operation manual, symbols are used
to highlight warnings and cautions that you
must read to prevent accidents. The meanings of these symbols are as follows.
Something that could cause serious
injury or death
Warning
Something that could cause injury
or damage to the equipment
Caution
Other symbols used
An action that is mandatory
An action that is prohibited
Warnings
Operation using an AC adapter
Use only a ZOOM AD-17 AC adapter
with this unit.
Do not do anything that could exceed
the ratings of outlets and other electrical
wiring equipment. Do not use with power other than AC 100V.
Before using the equipment in a foreign
country or other region with a power
voltage other than AC100V, always consult with a shop that carries ZOOM products and use the appropriate AC adapter.
Operation using batteries
Use 2 ordinary 1.5-volt AA batteries (alka-
line or nickel-metal hydride).
Read battery warning labels carefully.
Always close the battery compartment
cover when using the unit.
Alterations
Do not open the case or modify the
product.
Precautions
Product handling
Do not drop, bump or apply excessive
force to the unit.
Be careful not to allow foreign objects or
liquids to enter the unit.
Operating environment
Do not use in extremely high or low
temperatures.
Do not use near heaters, stoves and oth-
er heat sources.
Do not use in very high humidity or
where it could be splashed by water.
Do not use in places with frequent
vibrations.
Do not use in places with much dust or
sand.
AC adapter handling
When disconnecting the power plug
from an outlet, always hold the plug
when pulling.
Disconnect the power plug from the out-
let during lightning storms and when not
using the unit for a long time.
Battery handling
Install the batteries with the correct
+/− orientation.
Use a specified battery type. Do not mix
new and old batteries or different brands
or types at the same time.
When not using the unit for an extended
period of time, remove the batteries.
If a battery leak should occur, wipe the
battery compartment and the battery
terminals carefully to remove all residue.
Mics
Before connecting a mic, always turn the
power off. Do not use excessive force
when connecting it.
Connection cables and input/output jacks
Always turn the power OFF for all equip-
ment before connecting any cables.
Always disconnect all connection cables
and the AC adapter before moving the
unit.
Volume
Do not use at a loud volume for a long
time.
Usage Precautions
Interference with other electrical equipment
In consideration of safety, the has
been designed to minimize its emission of
electromagnetic waves and to suppress
interference from external electromagnetic
waves. However, equipment that is very
susceptible to interference or that emits
powerful electromagnetic waves could result
in interference if placed nearby. If this occurs,
place the
apart.
With any type of electronic device that uses
digital control, including the
magnetic interference could cause malfunction, corrupt or destroy data and result in other unexpected trouble. Always use caution.
Cleaning
Use a soft cloth to clean the exterior of the
unit if it becomes dirty. If necessary, use a
damp cloth that has been wrung out well.
Never use abrasive cleansers, wax or solvents such as alcohol, benzene or paint
thinner.
Breakdown and malfunction
If the unit becomes broken or malfunctions,
immediately disconnect the AC adapter,
turn the power OFF and disconnect other
cables. Contact the store where you bought
the unit or ZOOM service with the following
information: product model, serial number
and the other device farther
, electro-
and the specific breakdown or malfunction
symptoms, along with your name, address
and telephone number.
Copyrights
Windows®, Windows® 8, Windows® 7
◎
and Windows Vista® are trademarks or registered trademarks of Microsoft Corporation.
Macintosh, Mac OS and iPad are trade-
◎
marks or registered trademarks of Apple Inc.
The SD and SDHC logos are trademarks.
◎
The use of MPEG Layer-3 audio compres-
◎
sion technology is licensed from Fraunhofer
IIS and Sisvel SpA.
All other product names, trademarks and
◎
company names in this document are the
property of their respective owners.
Note: All trademarks and registered trademarks in this document are for identification
purposes only and are not intended to infringe on the copyrights of their respective
owners.
Recording for any purpose other than personal use from copyrighted sources, including
CDs, records, tapes, live performances, video
works and broadcasts, without permission of
the copyright holder is prohibited by law.
Zoom Corporation will not assume any
responsibility related to infringements of
copyrights.
02
Page 3
Introduction

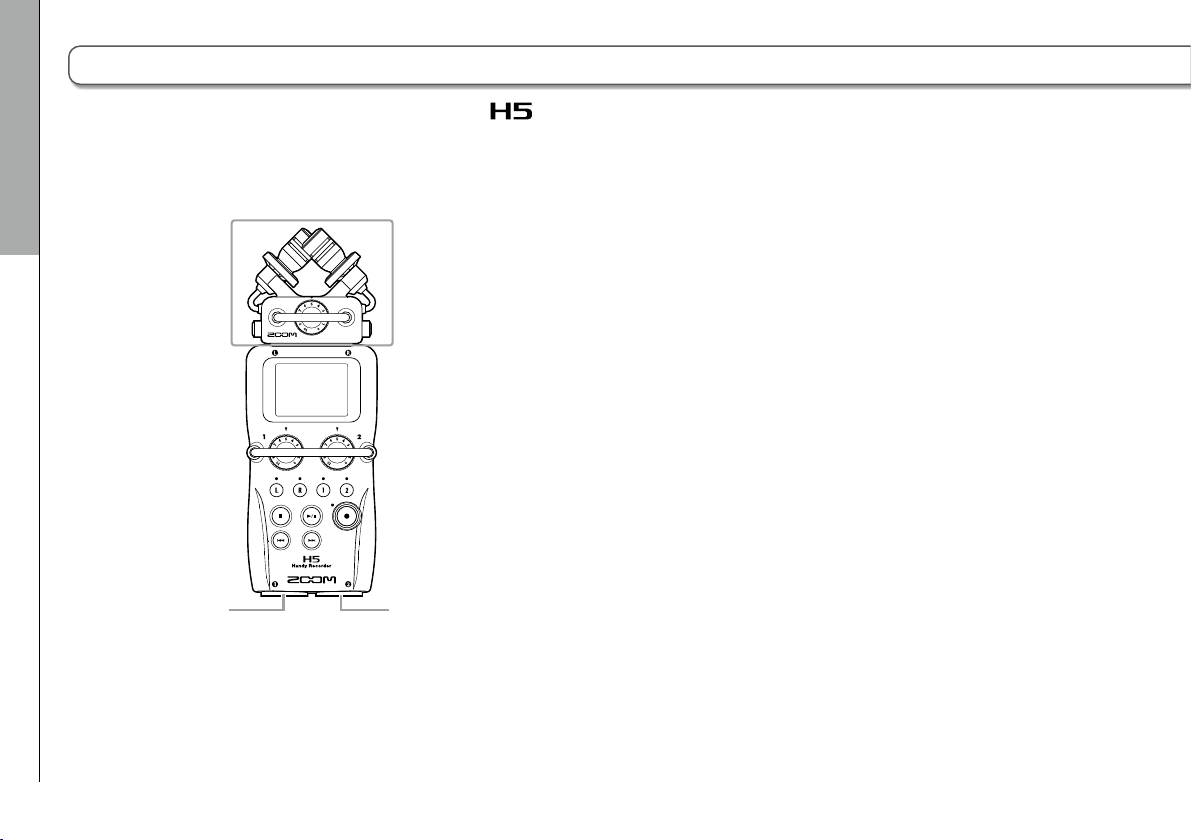

H5 Handy Recorder
Thank you very much for purchasing a ZOOM Handy
Recorder. The
Stereo mics can be changed according to use
●
An XY mic that can record sound images with depth is
included. You can switch mics according to the situation as
you would switch lenses on an SLR camera.
Record up to 4 tracks at once
●
In addition to the swappable stereo mic (L/R inputs), the
main unit has 2 XLR/TRS inputs (Inputs 1/2).
Use these to simultaneously record a maximum of 4 tracks,
including ambiance, narration, an overall sound image and
the voices of multiple performers, for example.
Advanced recording features
●
The XY mic uses a shock mount structure to minimize
•
external vibration noise. In addition, it can handle sound
pressure input of up to 140 dBSPL, allowing it to capture
sounds that previous recorders could not handle. With
this capability, it can make stereo recordings with excel-
lent separation.
Using the L/R inputs, you can simultaneously record a
•
backup file with a recording level that is 12 dB less than
the regular recording. You can use this backup recording
if an unexpected loud noise should cause the regular
recording to distort, for example.
All input volume (gain) levels can be adjusted quickly by
•
hand using dedicated knobs.
has the following features.
Useful operation features
●
SDHC cards (up to 32GB) can be used as recording
•
media.
In addition to the standard headphones output, a line
•
output jack is built-in. This allows you to send the audio
signal to a video camera or other device while monitoring with headphones.

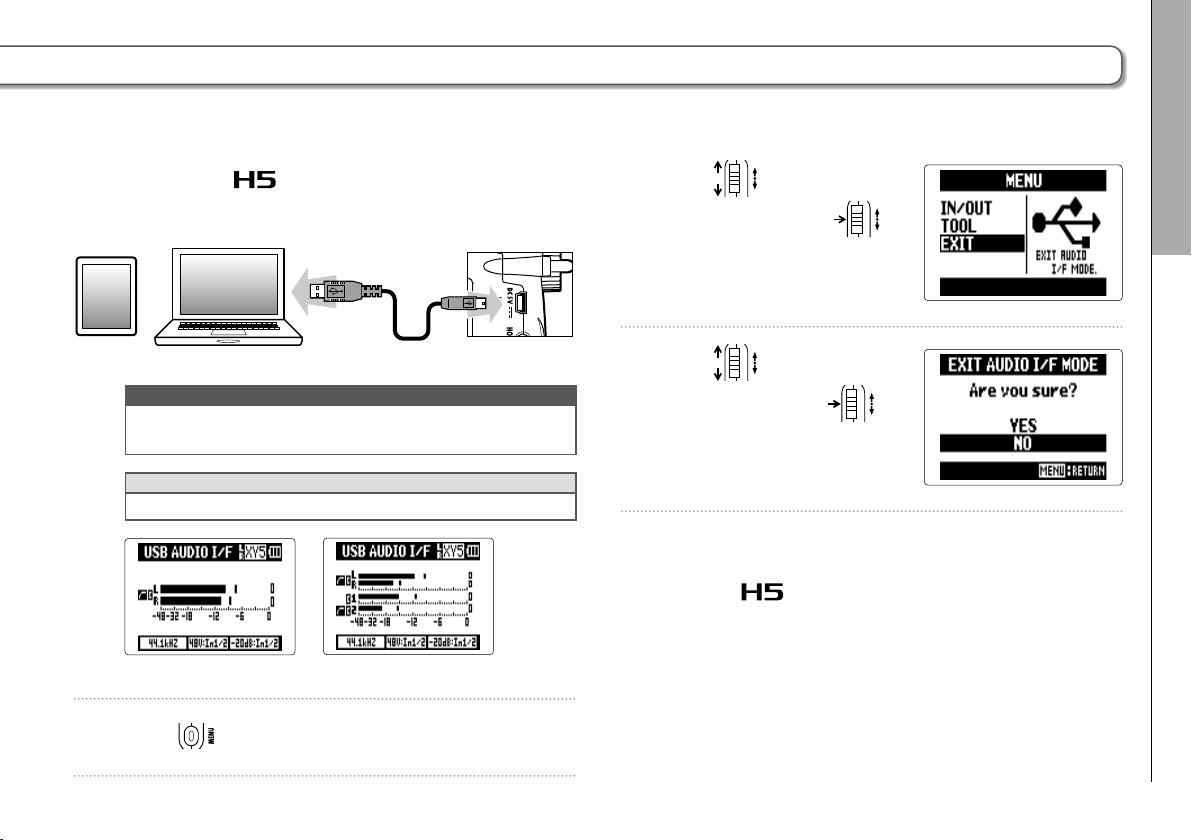

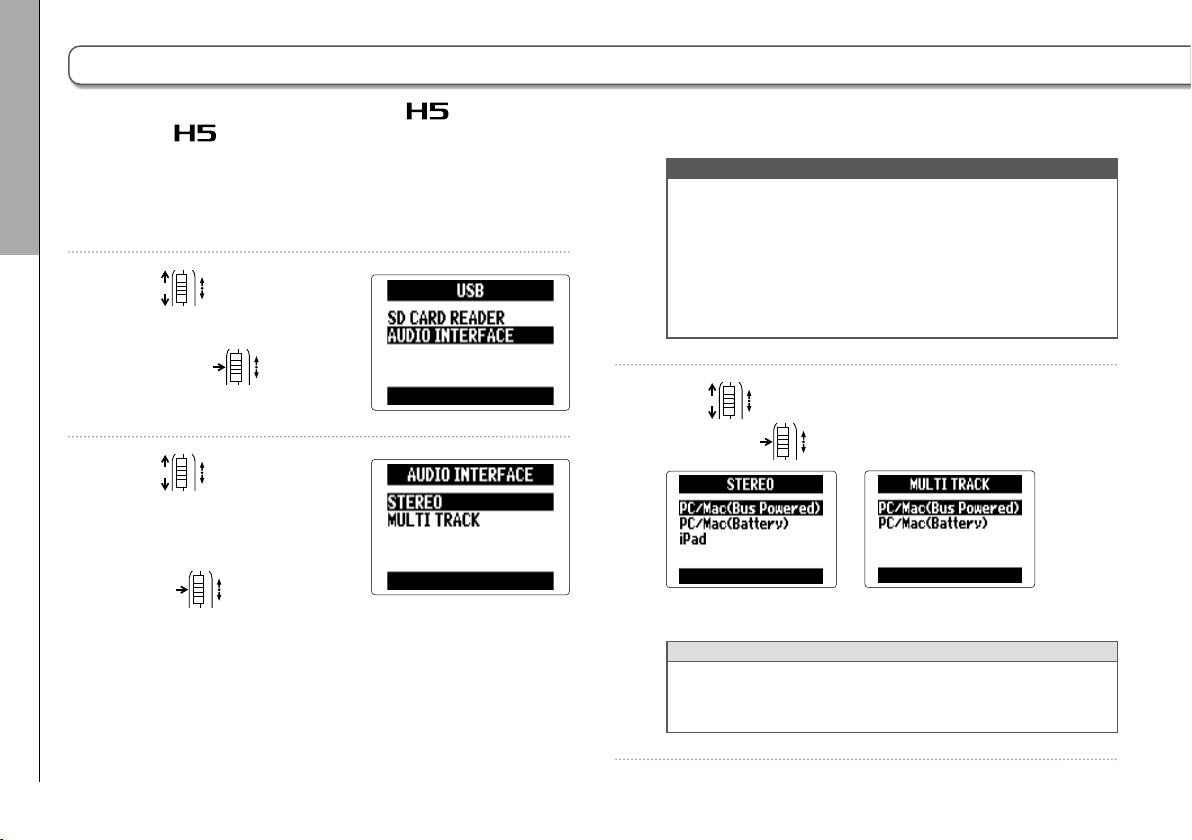

When connected by USB, in addition to use as a card
•
reader or conventional 2 IN/2 OUT audio interface, it can
also be used as a 4 IN/2 OUT interface (driver required
for Windows).

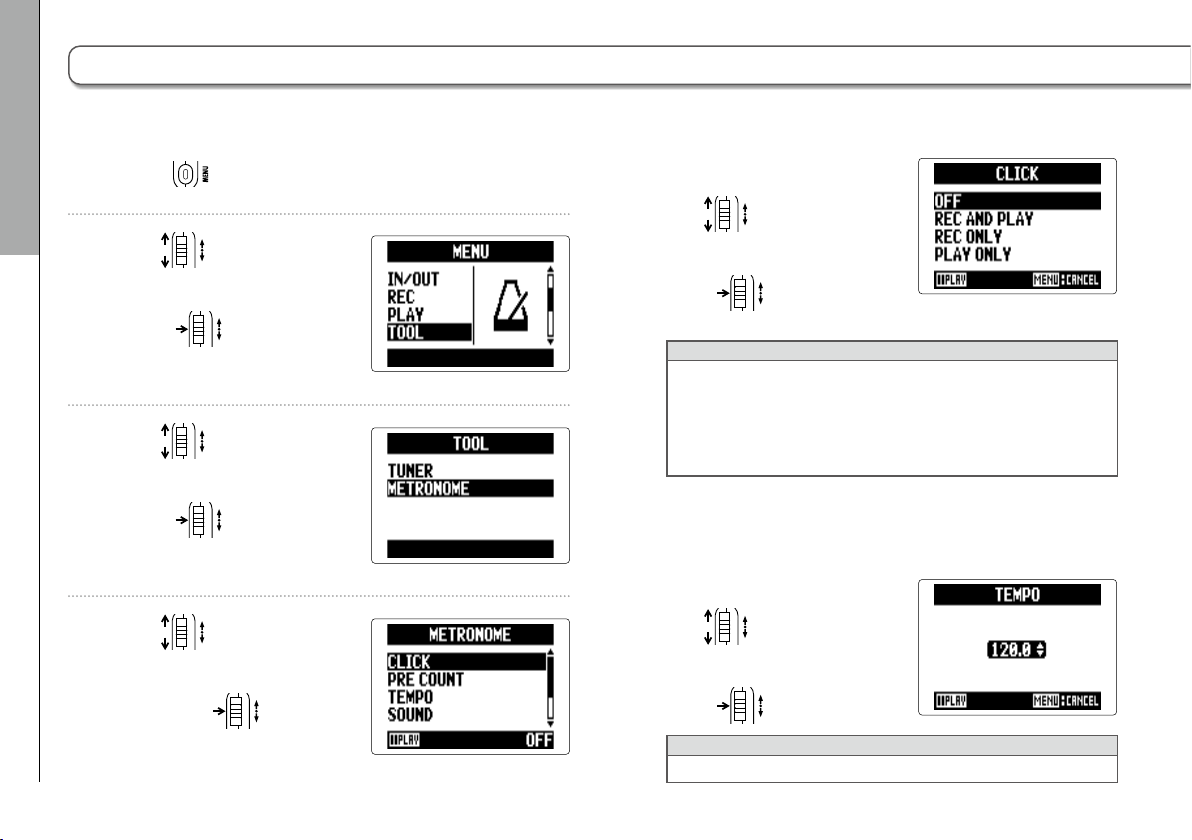

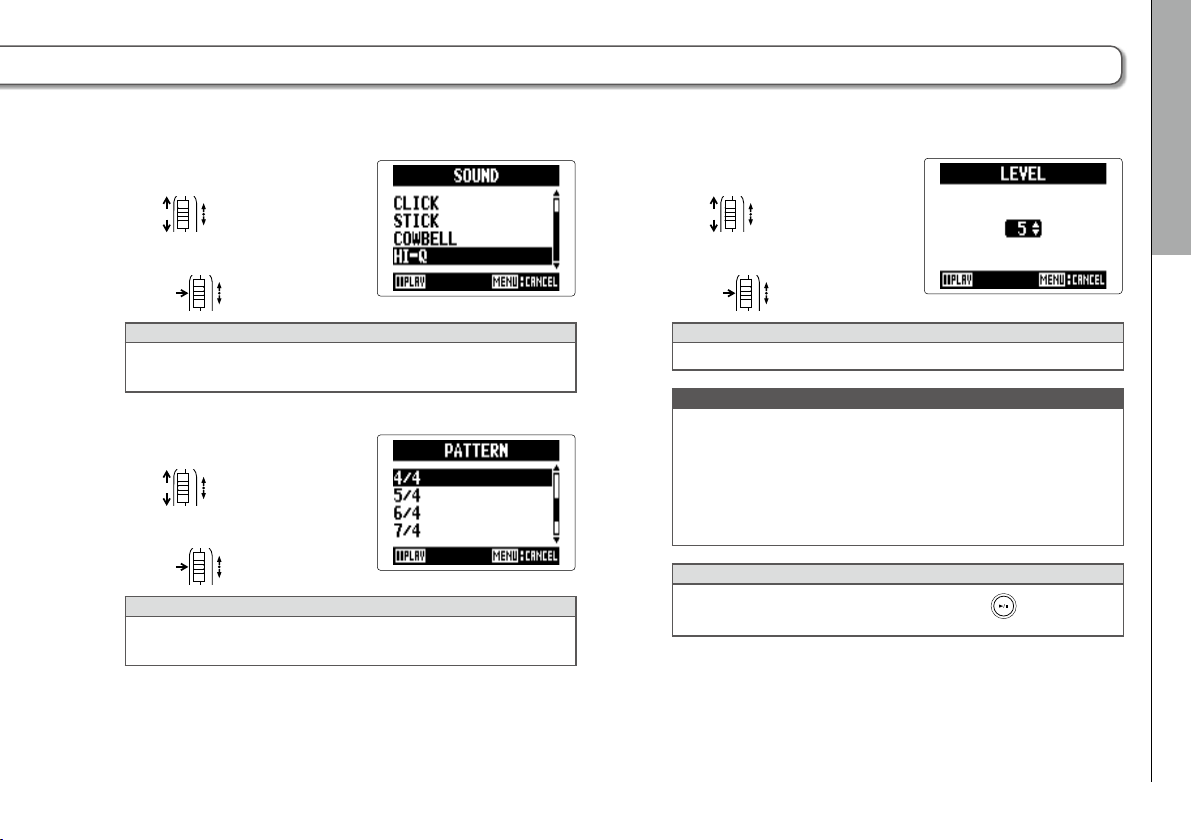

Of course, a tuner, a metronome and playback speed
•
and pitch adjustment functions are included among the
useful features shared with other H series recorders. A
remote control (wired) is also available.
Please read this manual carefully to fully understand the
functions of the
for many years.
After reading this manual, please keep it with the warranty
in a safe place.
so that you can make the most of it
Introduction
03
Page 4
Contents
Safety and usage precautions ...................................02
Introduction ................................................................03
Contents ......................................................................04

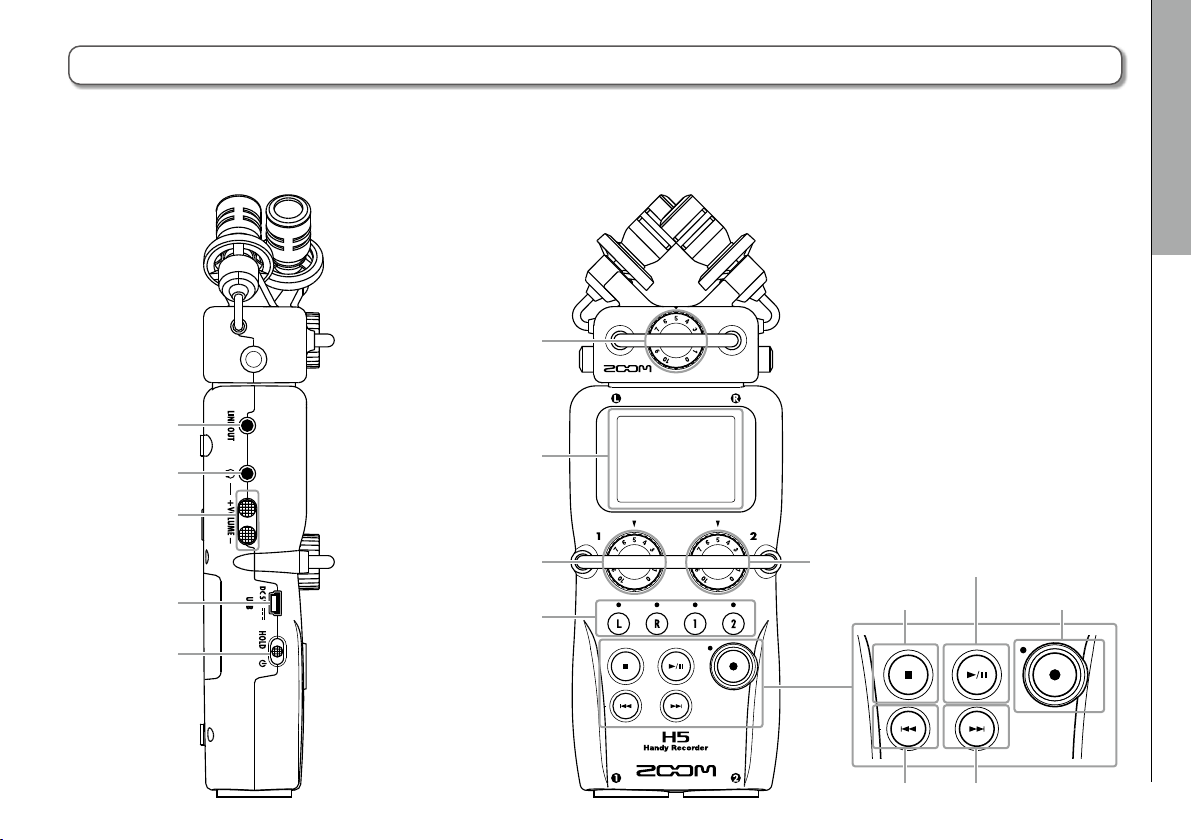

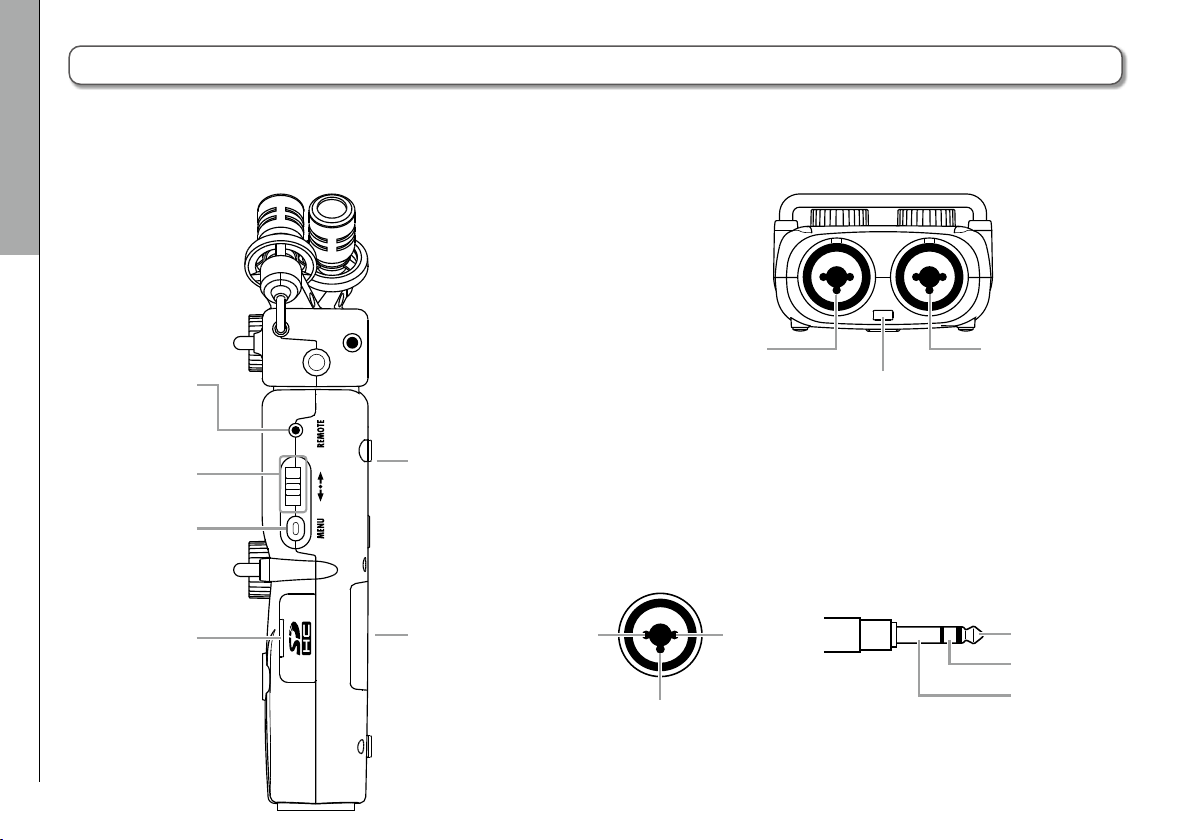

Names of parts ...........................................................05

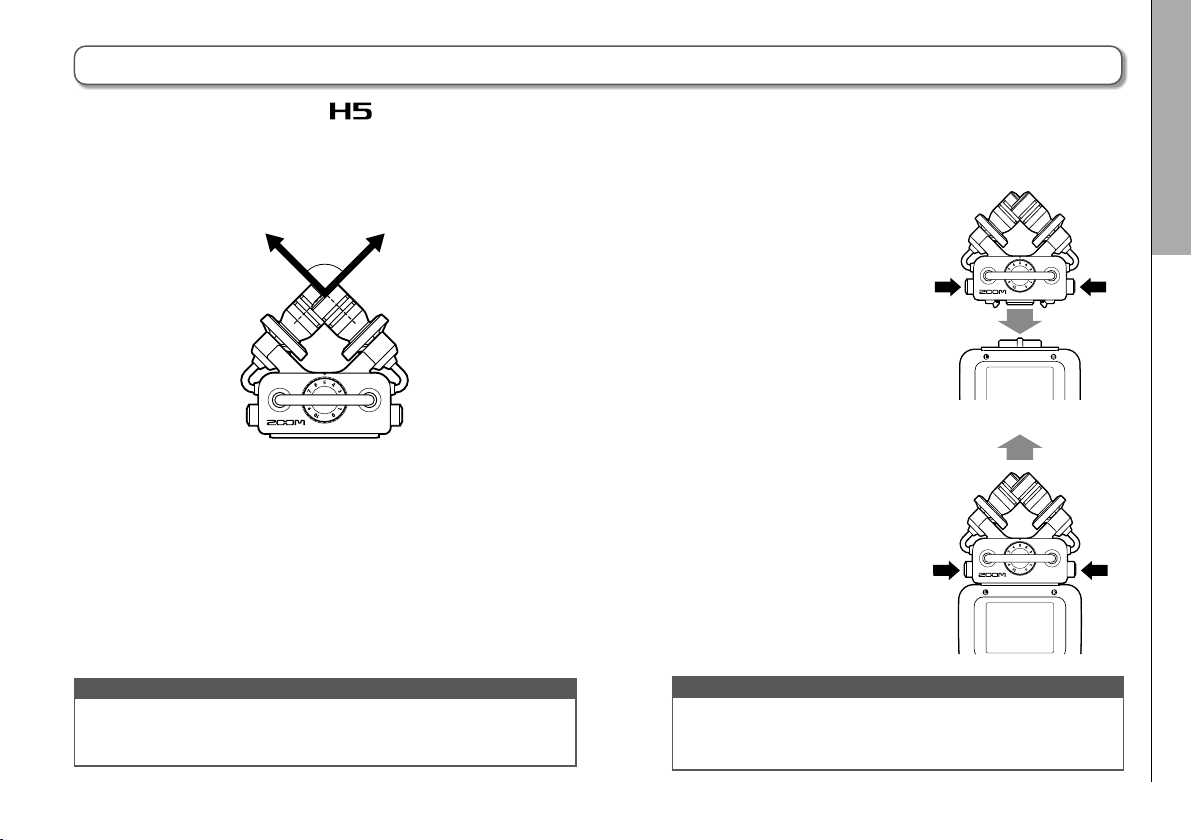

Mic overview ..............................................................07
XY mic ......................................................................07
Connecting mics .....................................................07
Disconnecting mics .................................................07
Connecting mics/other devices to Inputs 1/2 ...........08
Contents
Connecting mics .....................................................08
Connecting instruments and other devices ..........08

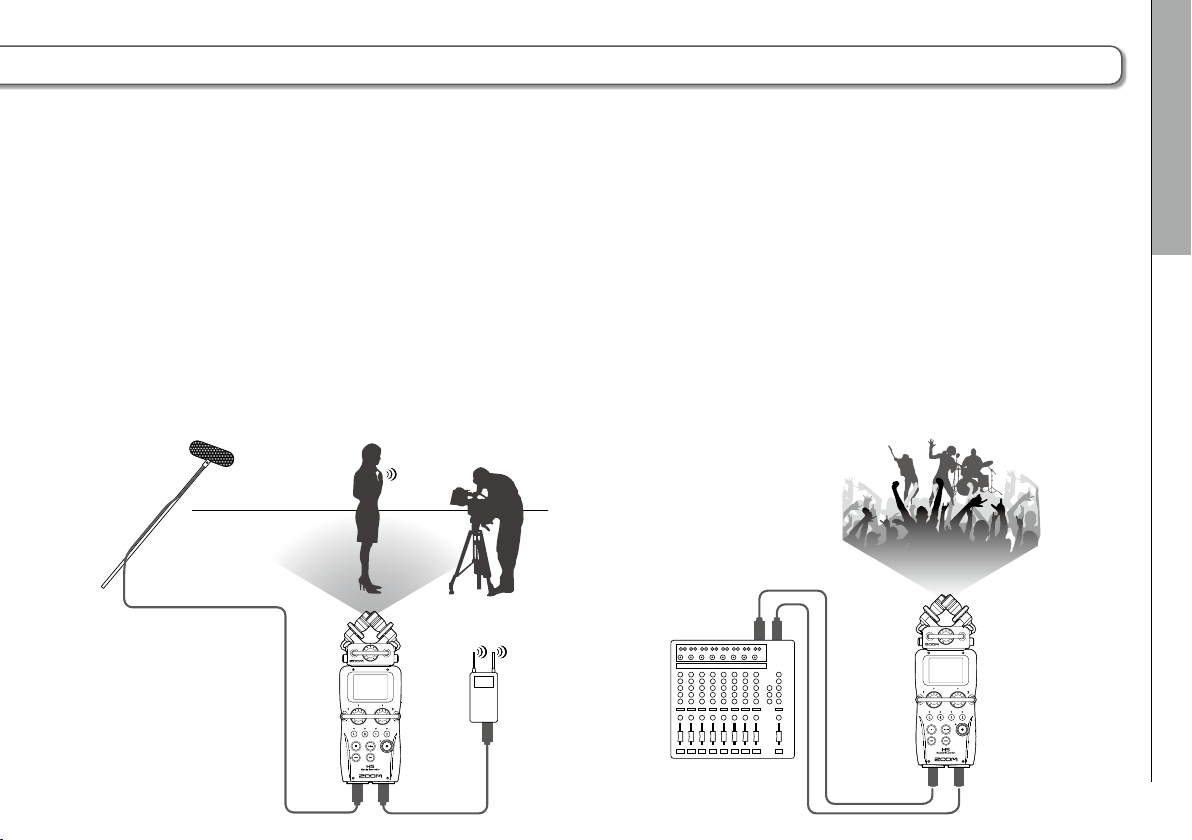

Connection examples .............................................09

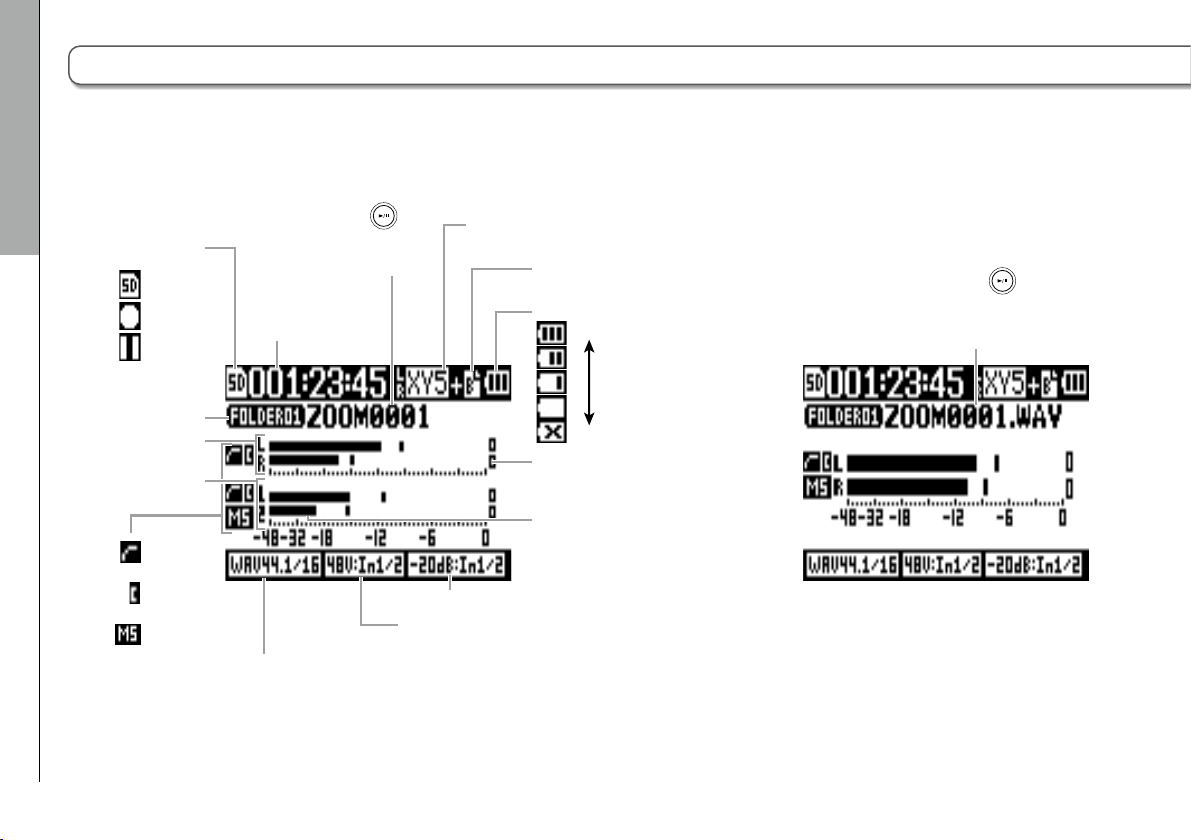

Display overview ........................................................10
Home/Recording Screen .........................................10

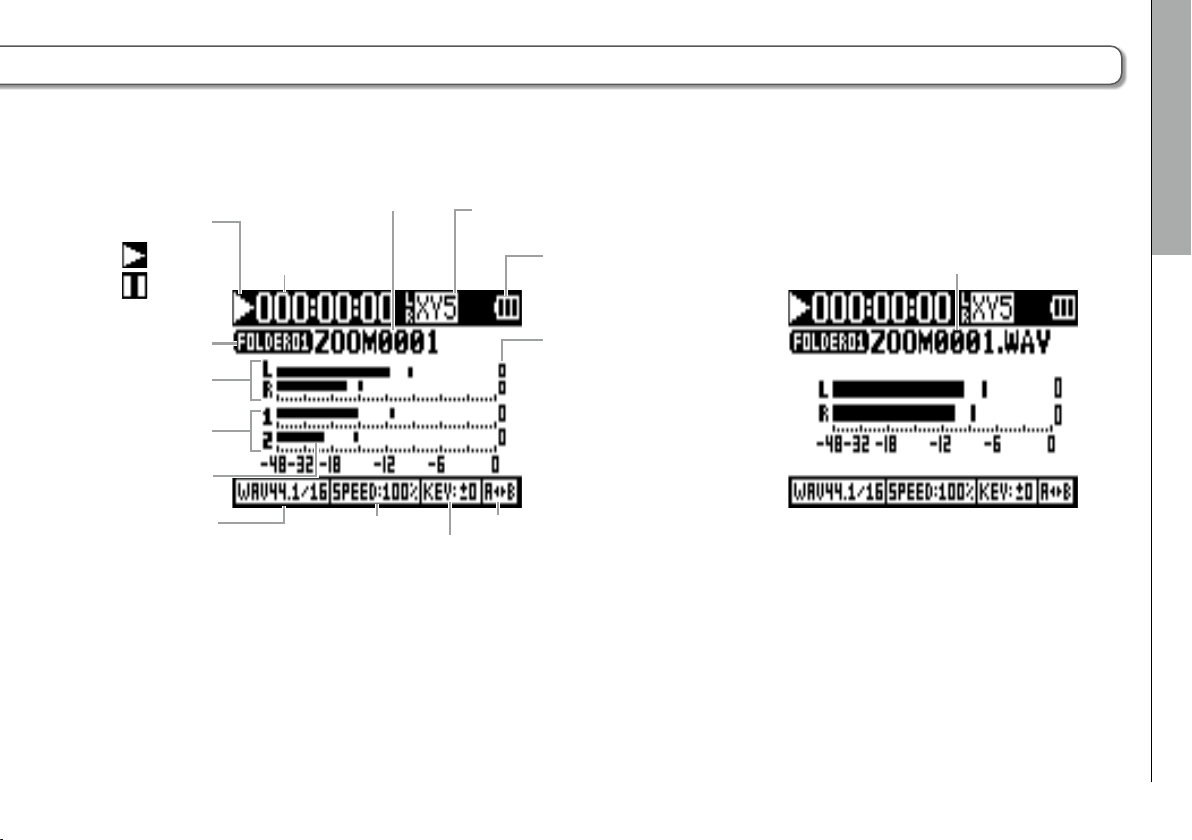

Playback Screen ......................................................11
Preparations

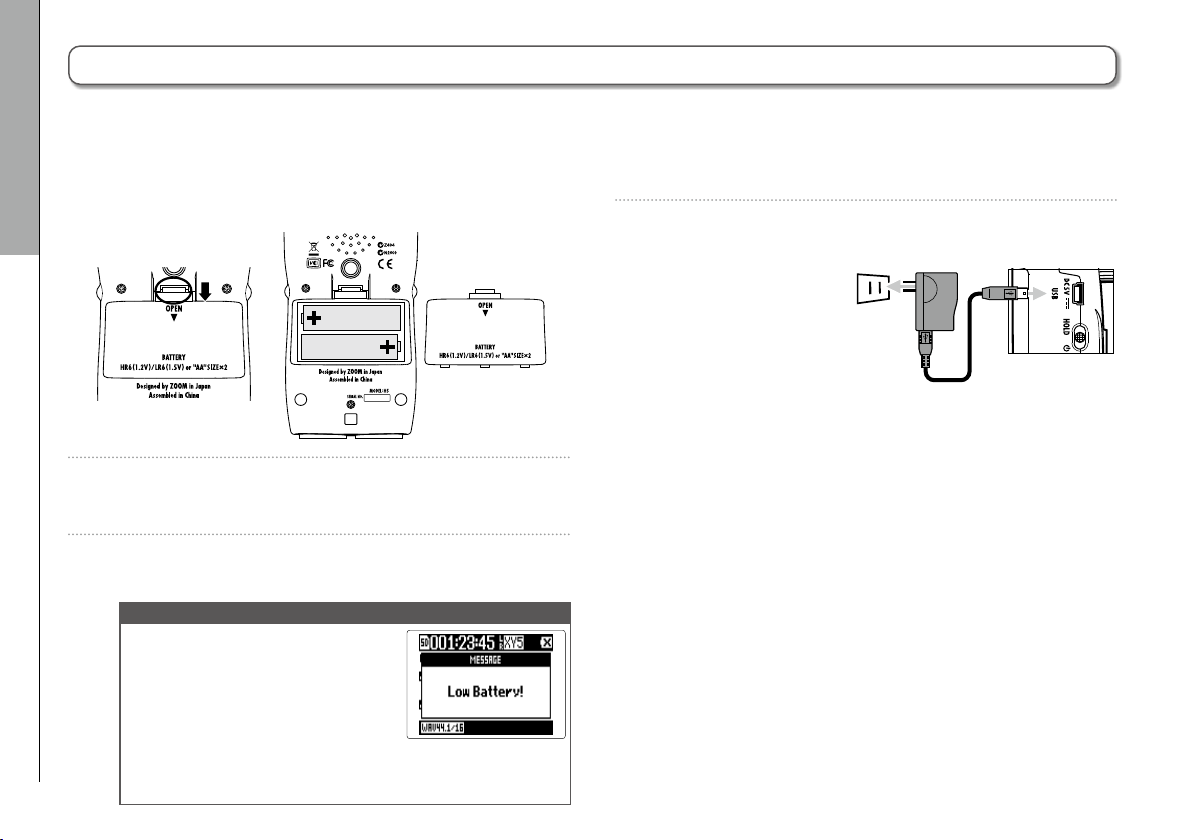

Supplying power ........................................................12
Using batteries ........................................................12
Using an AC adapter ...............................................12

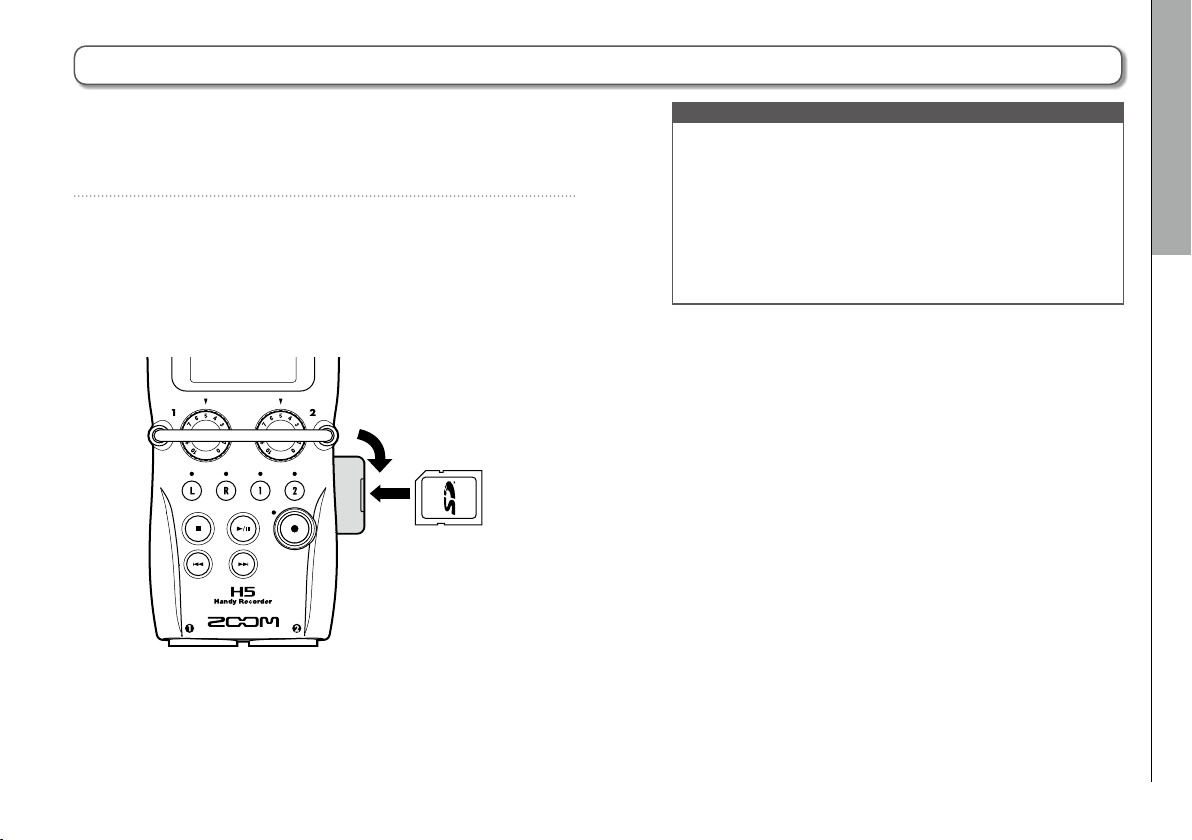

Loading an SD card ....................................................13

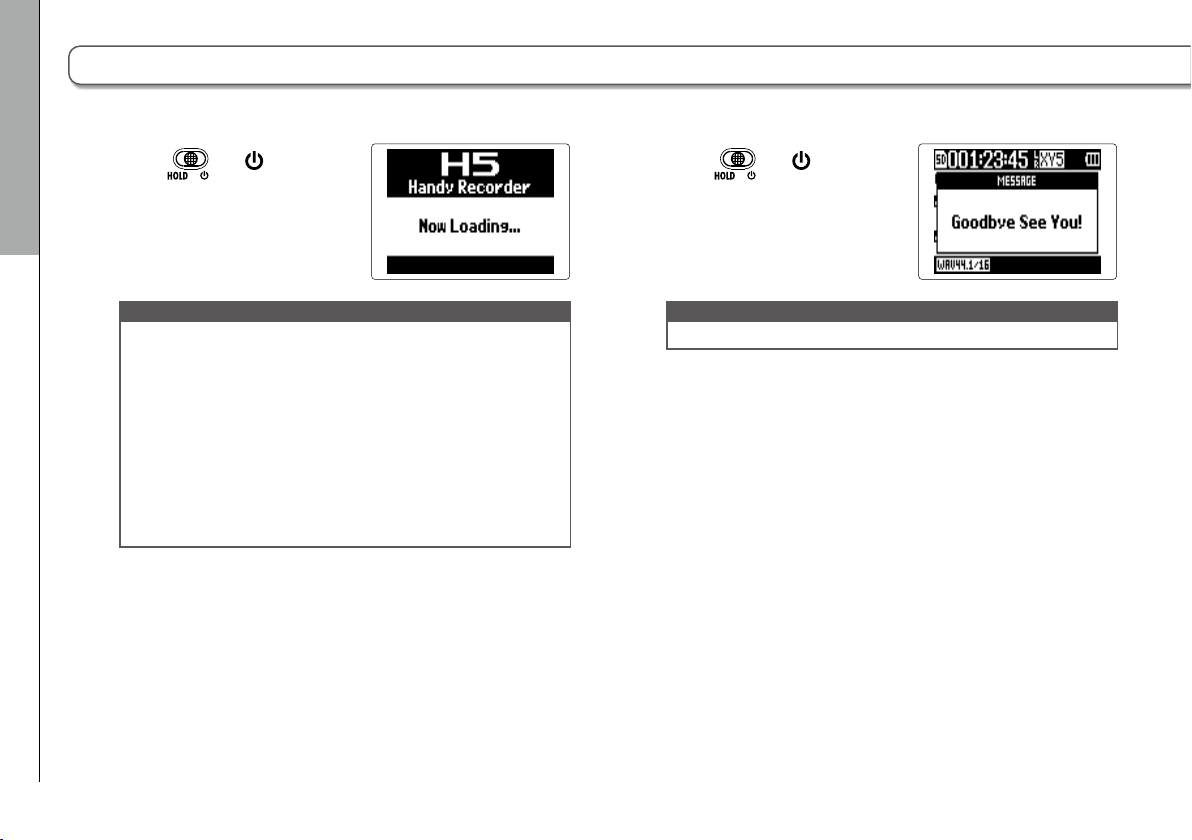

Turning the power on and off ...................................14
Turning the power on .............................................14
Turning the power off .............................................14

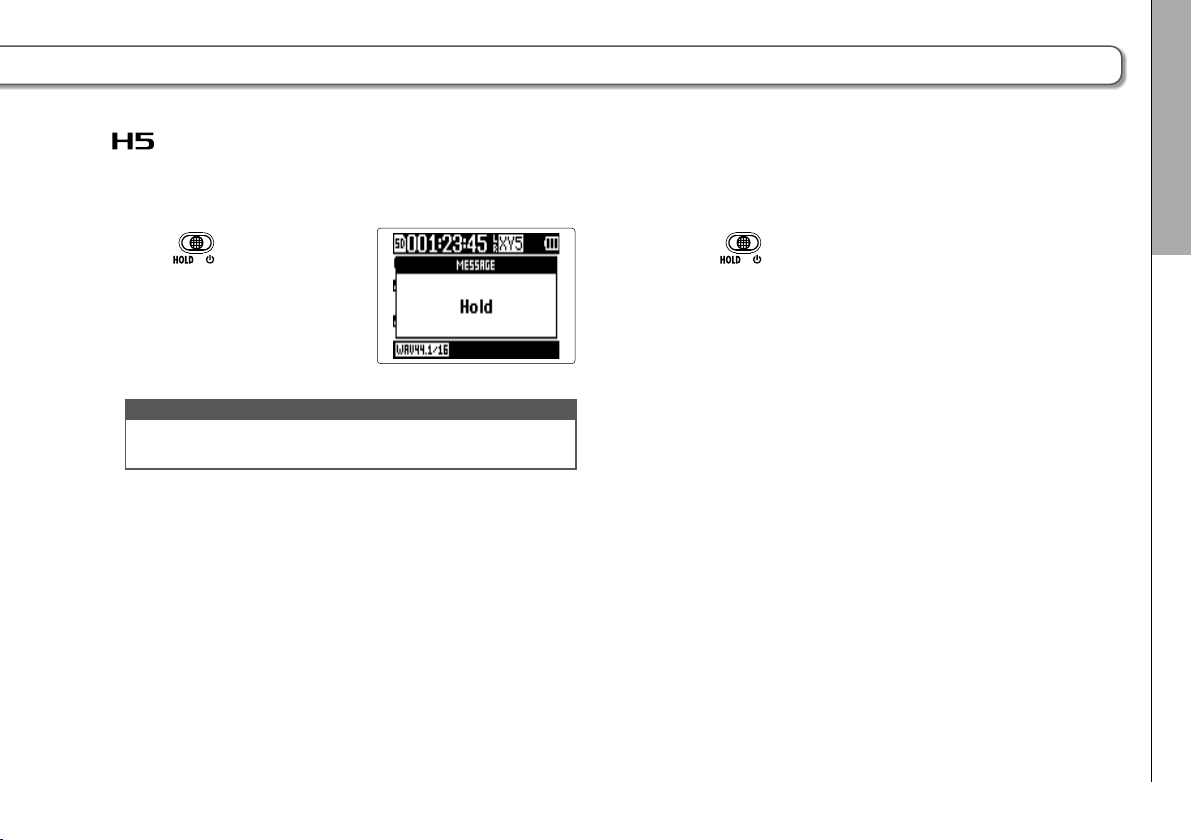

Using the hold function ..........................................15

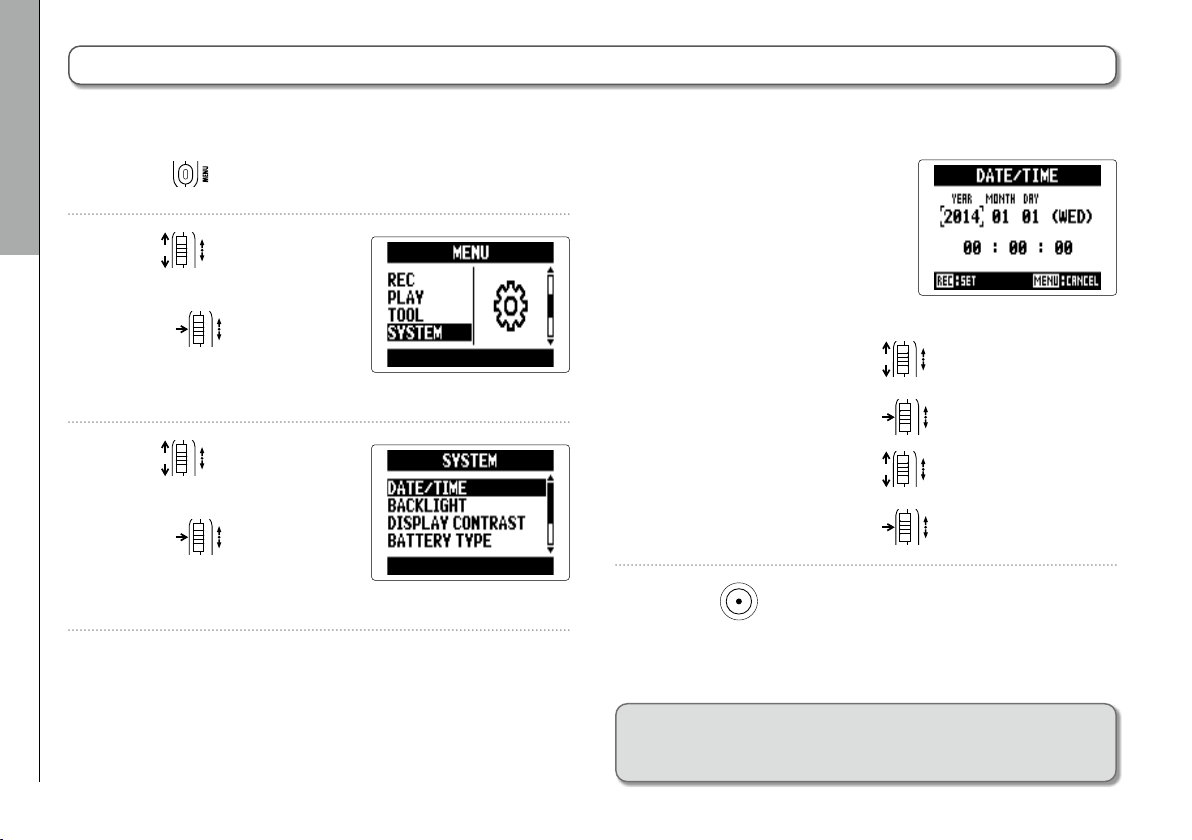

Setting the date and time ..........................................16

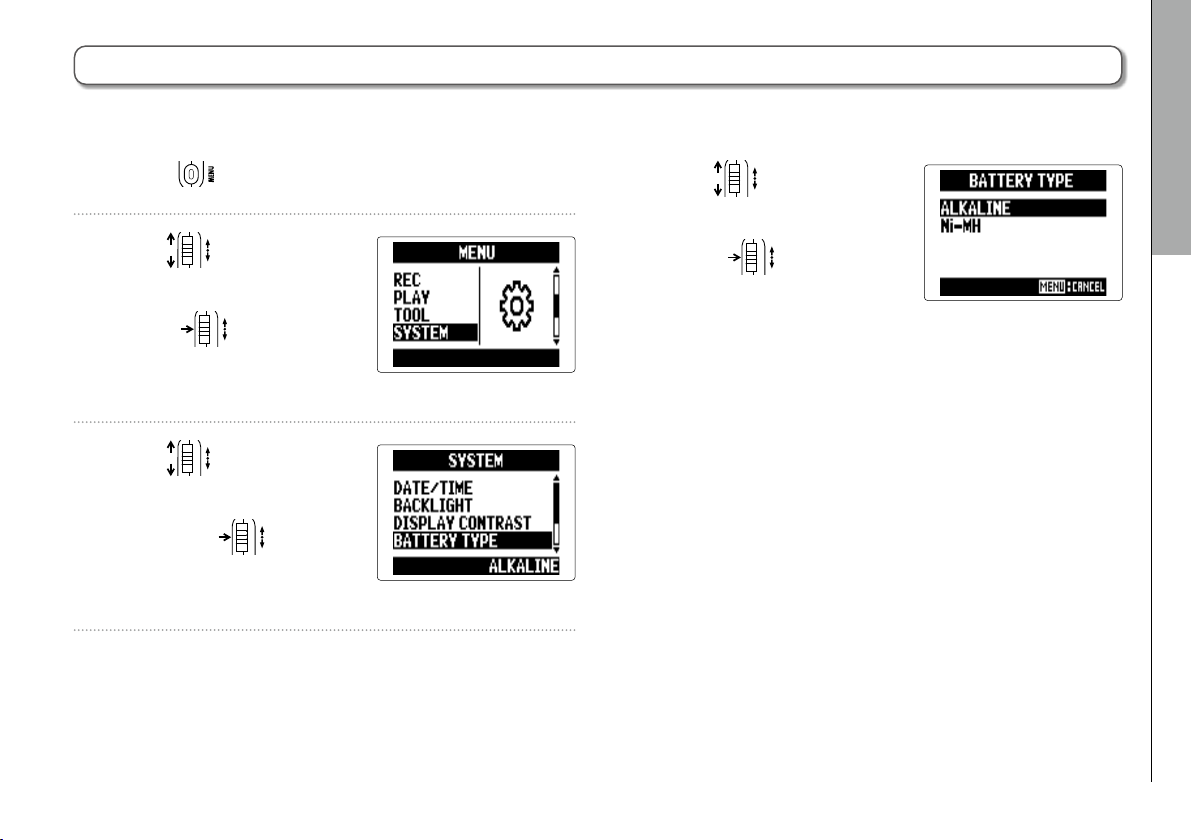

Setting the type of battery used ................................17
Recording
Recording process .....................................................18

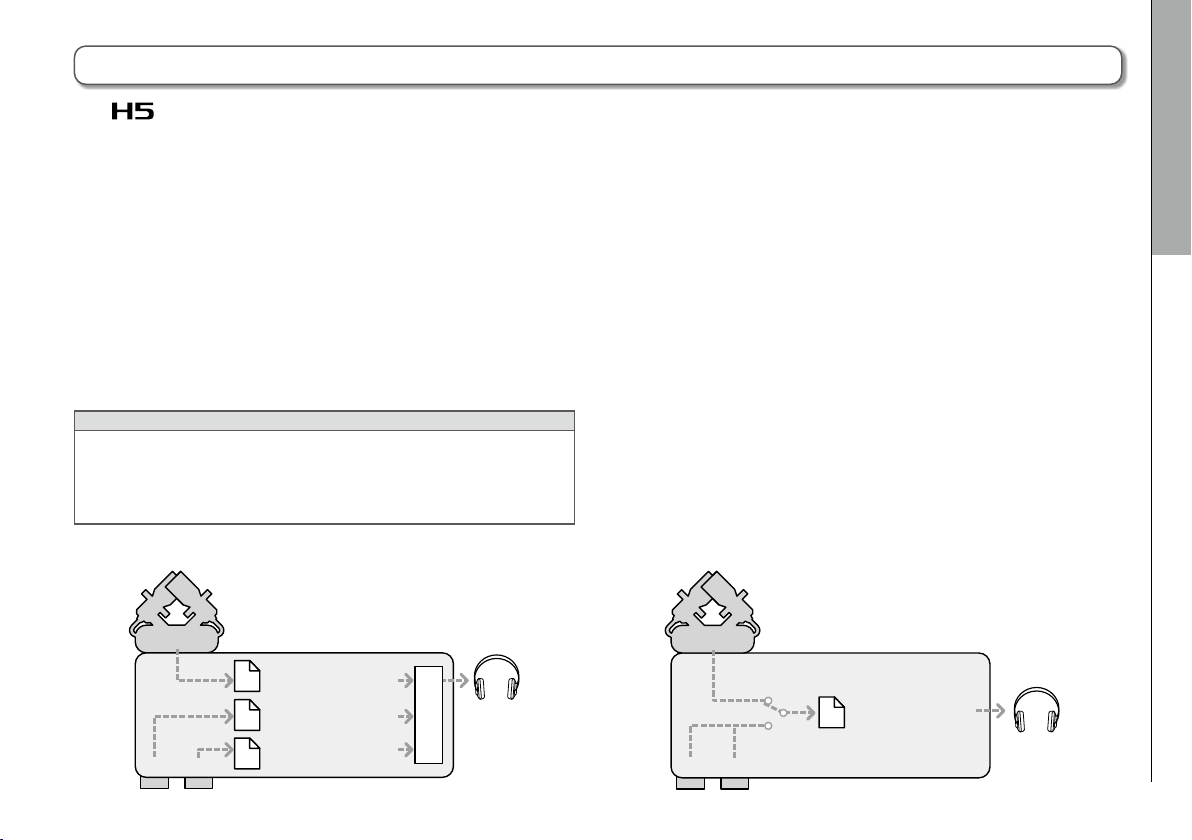

Recording mode overview ........................................19
MULTI FILE mode ....................................................19
STEREO FILE mode .................................................19

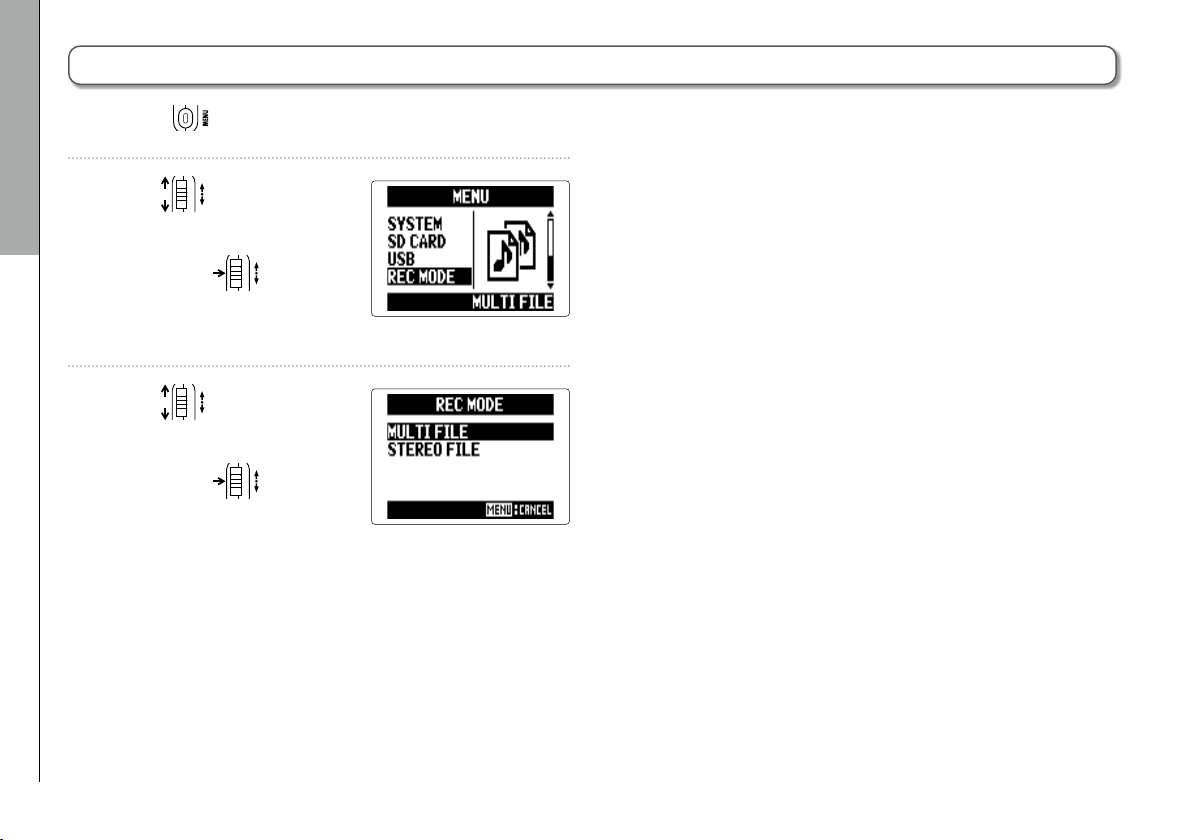

Selecting the recording mode ...................................20

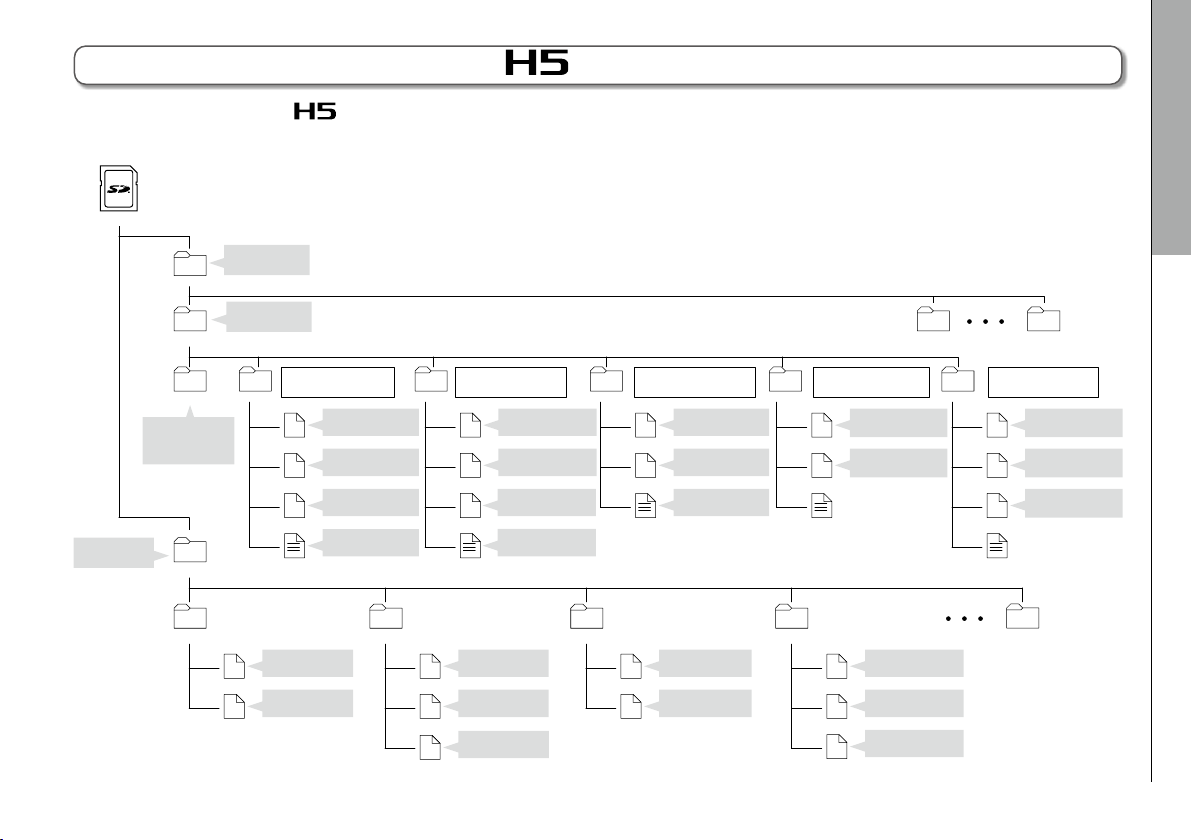

Folder and file structure on the H5 ............................21

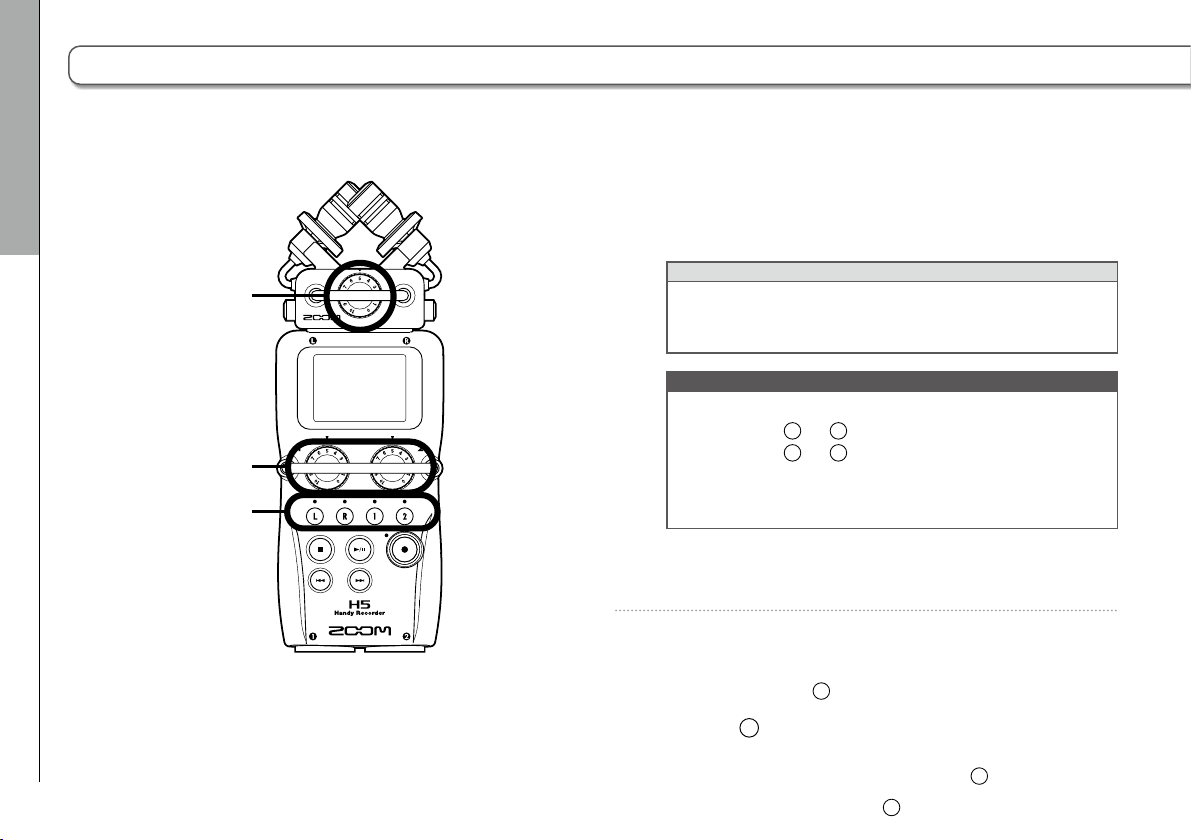

Selecting inputs and adjusting levels .......................22

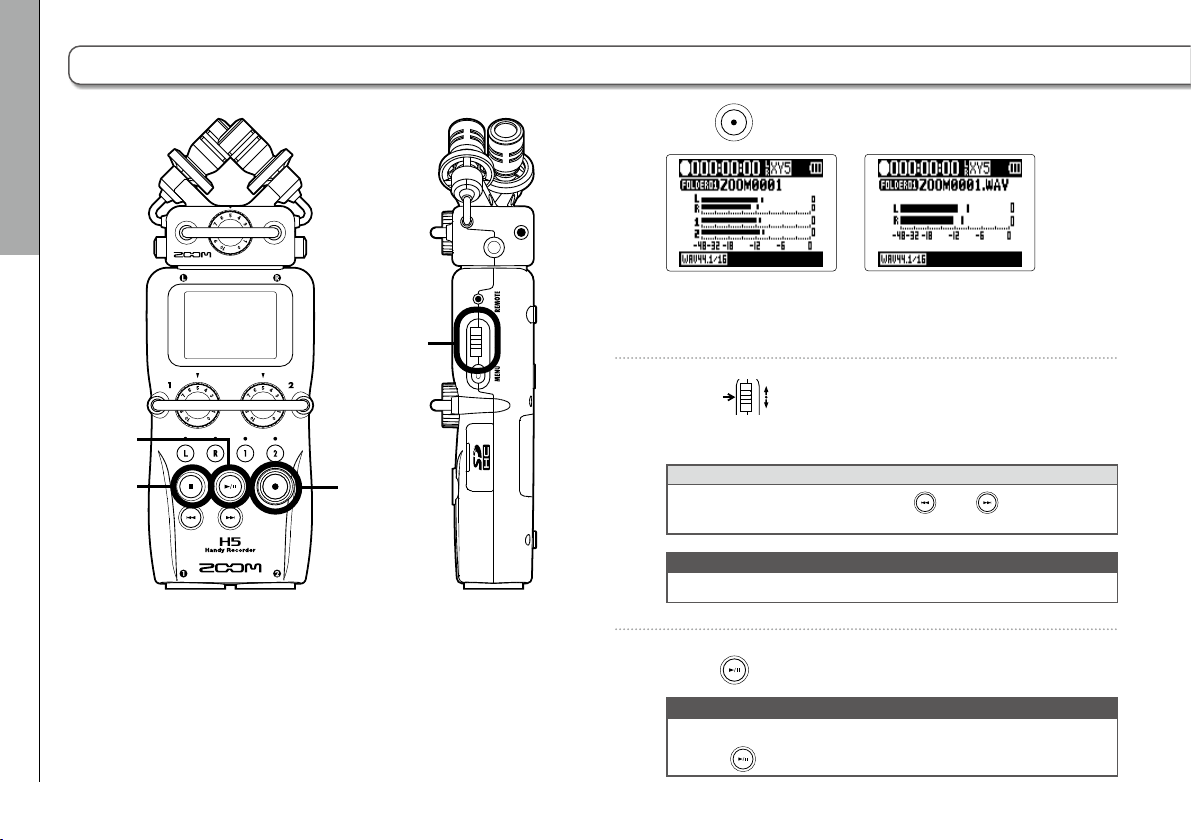

Recording ....................................................................24

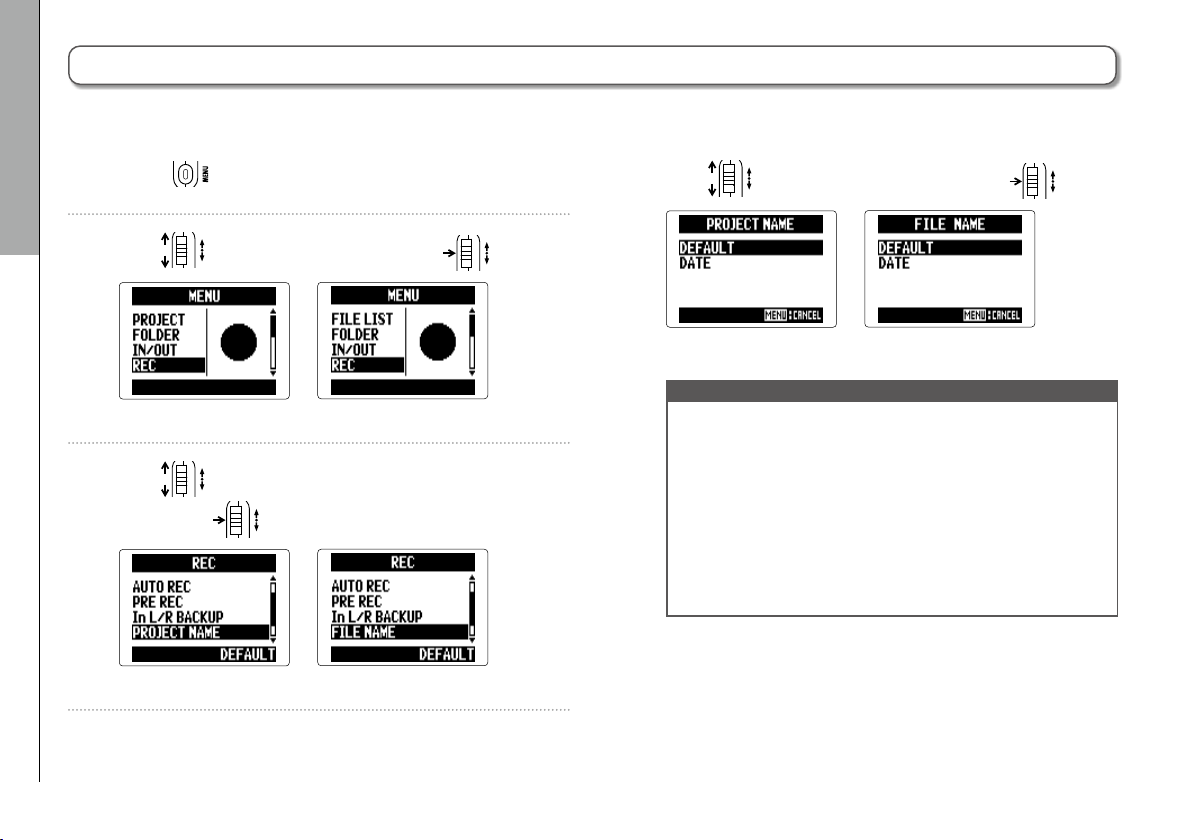

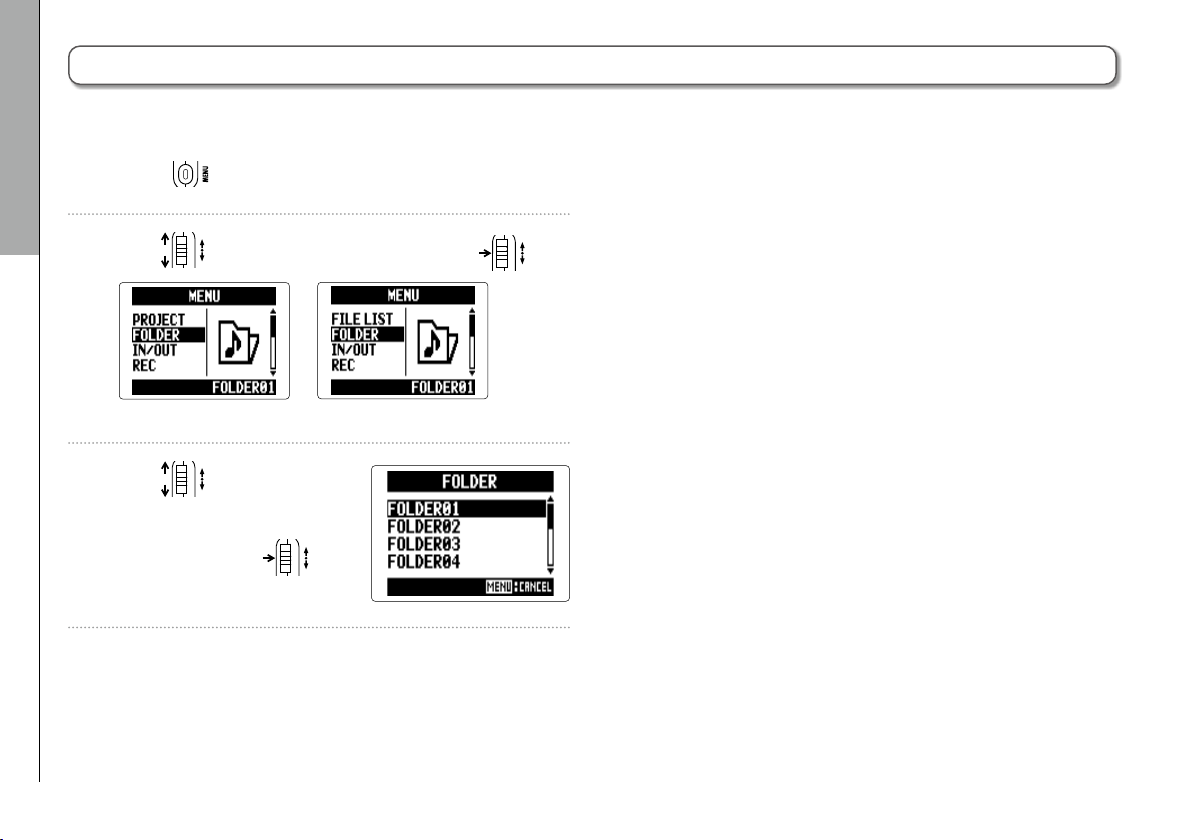

Setting where projects/files are saved .....................26

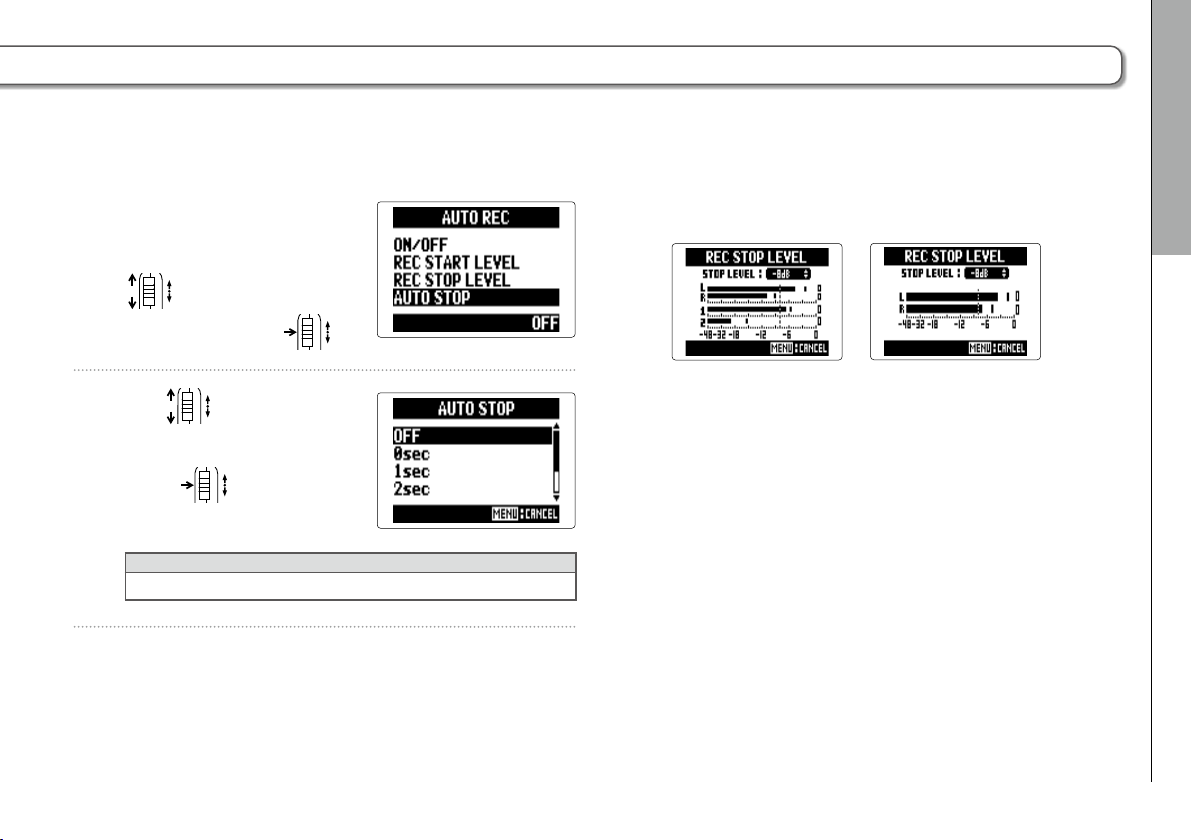

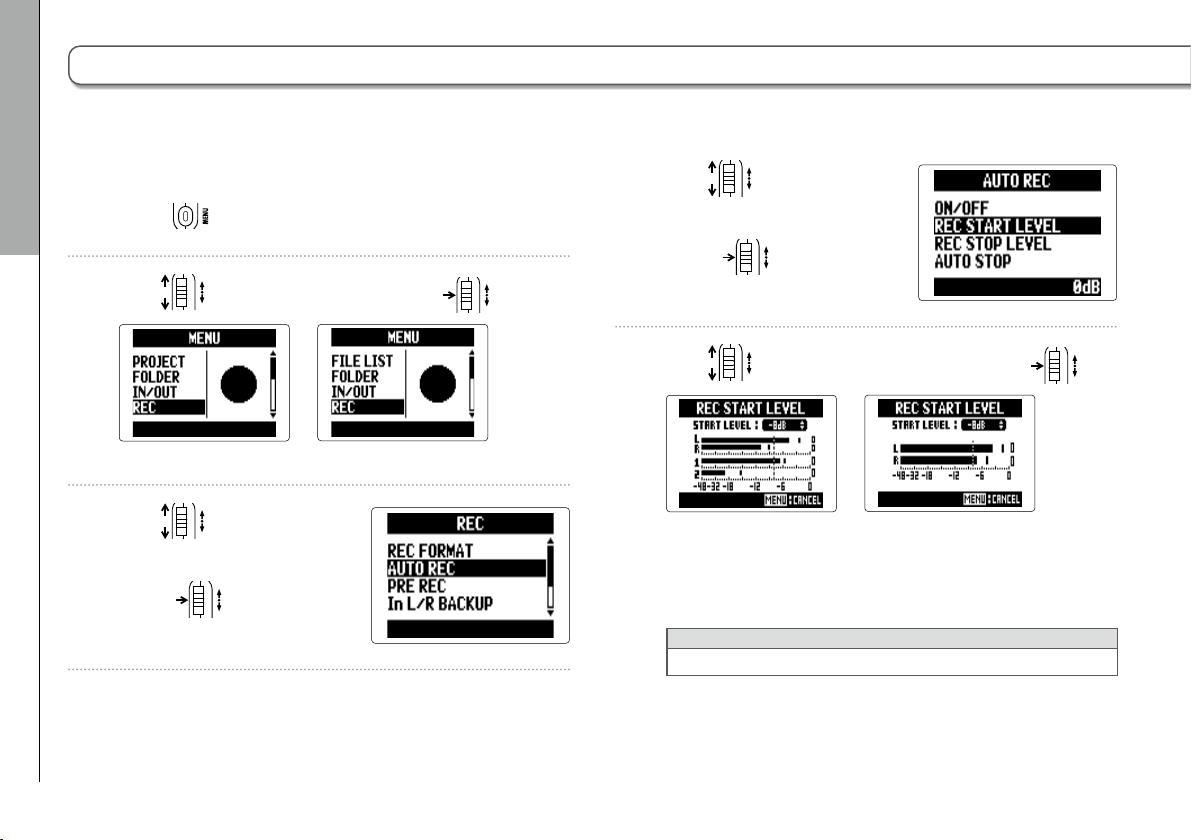

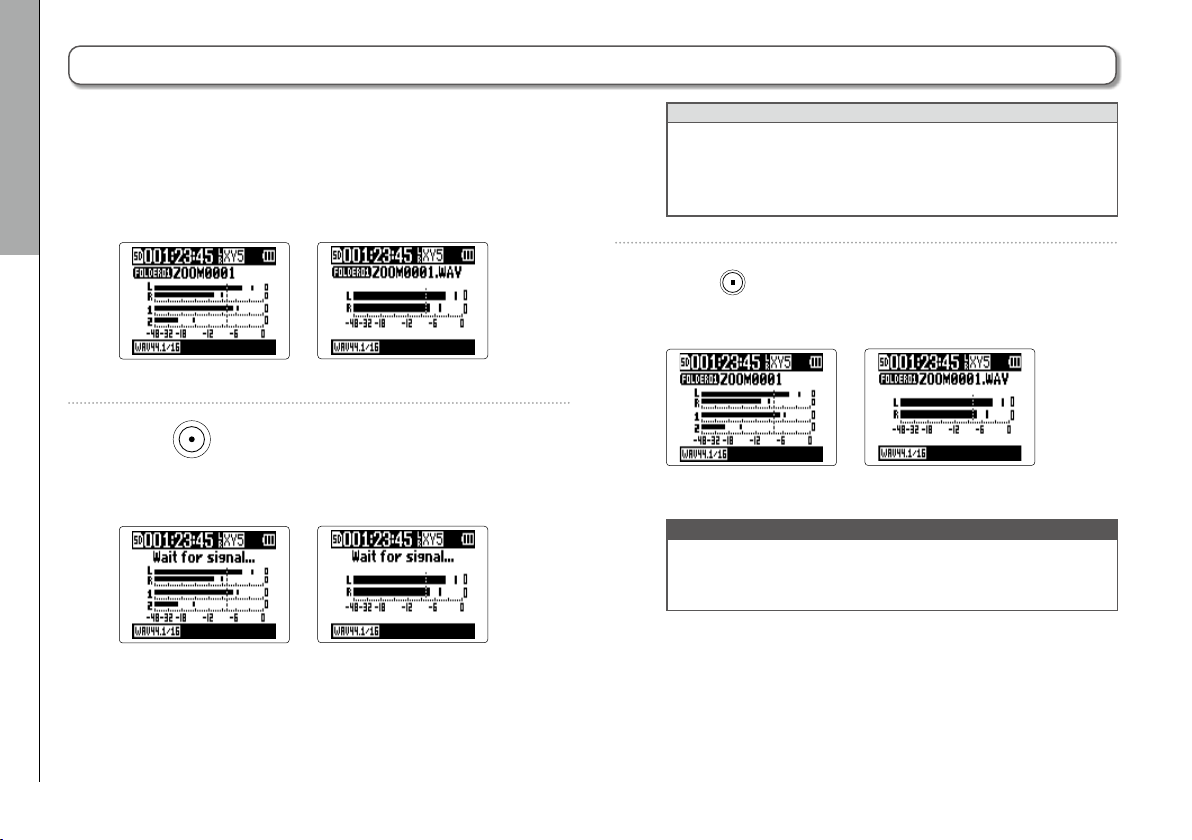

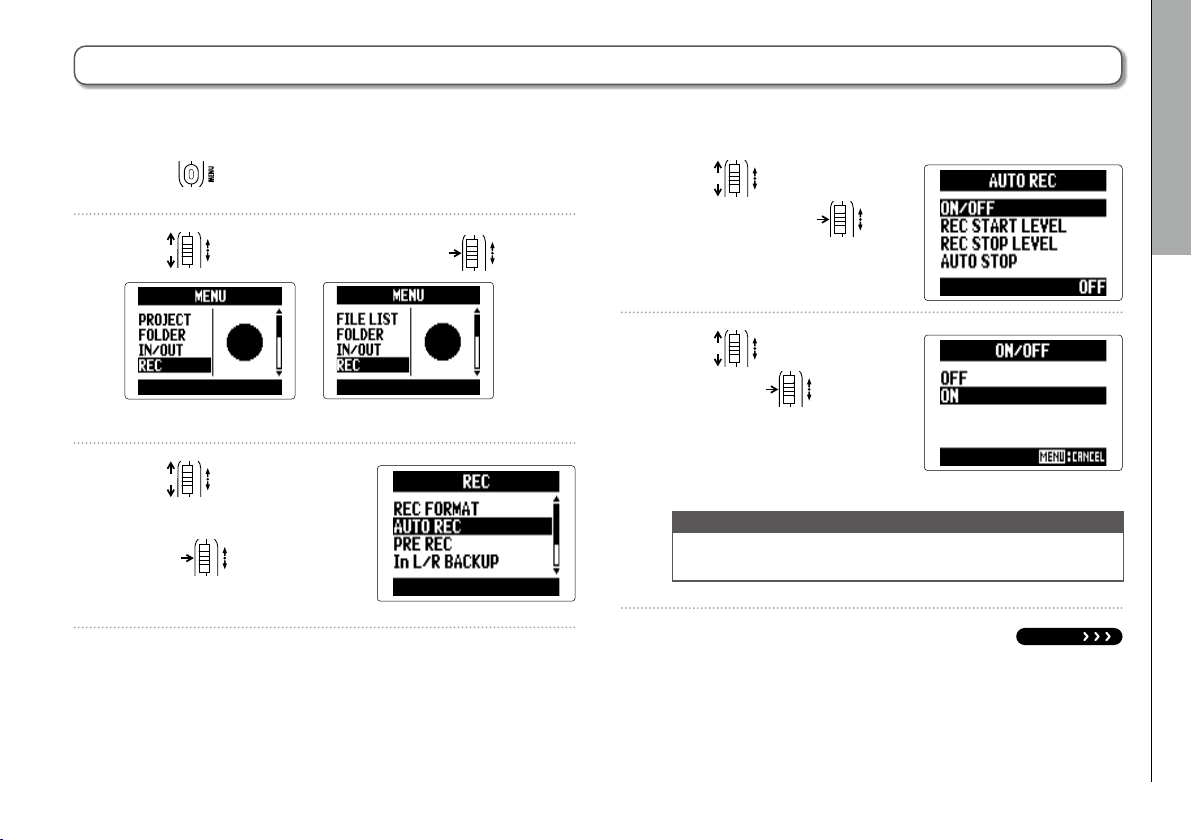

Recording automatically ............................................27
......................................................... 12
.............................................................. 18

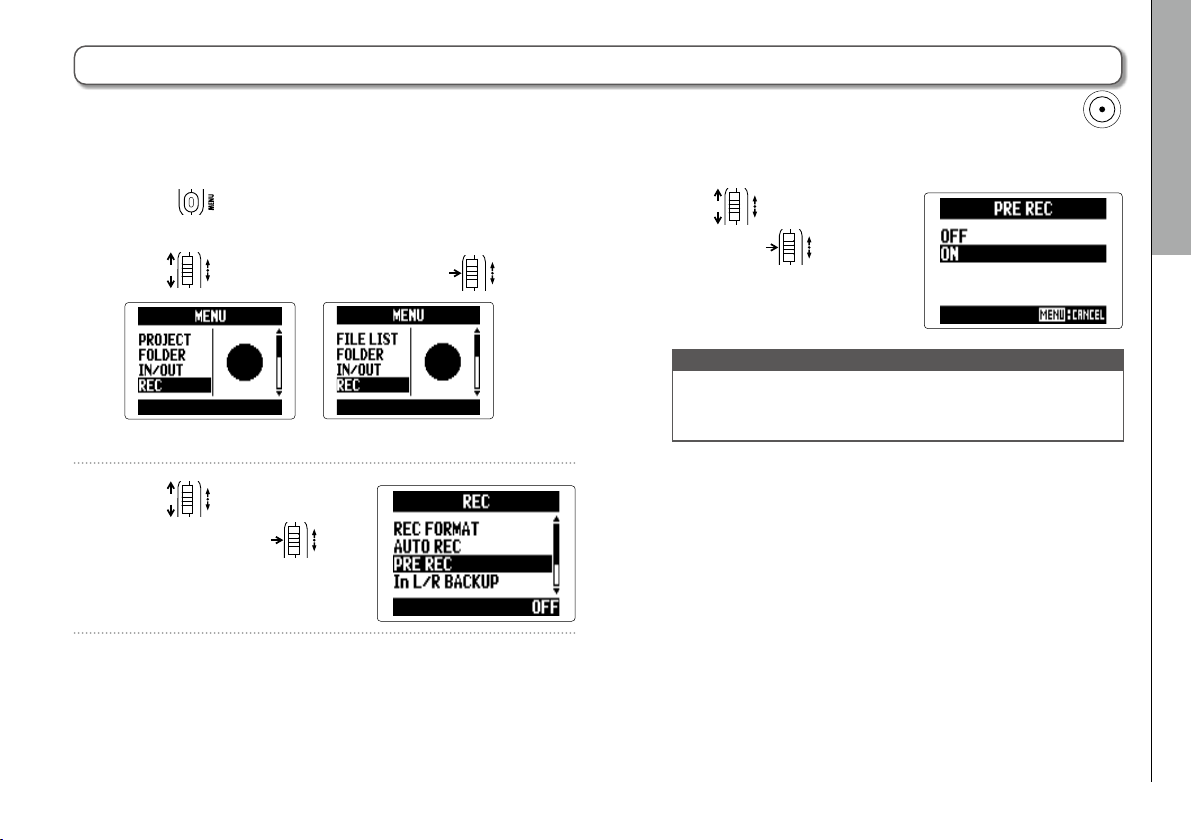

Pre-recording ..............................................................29

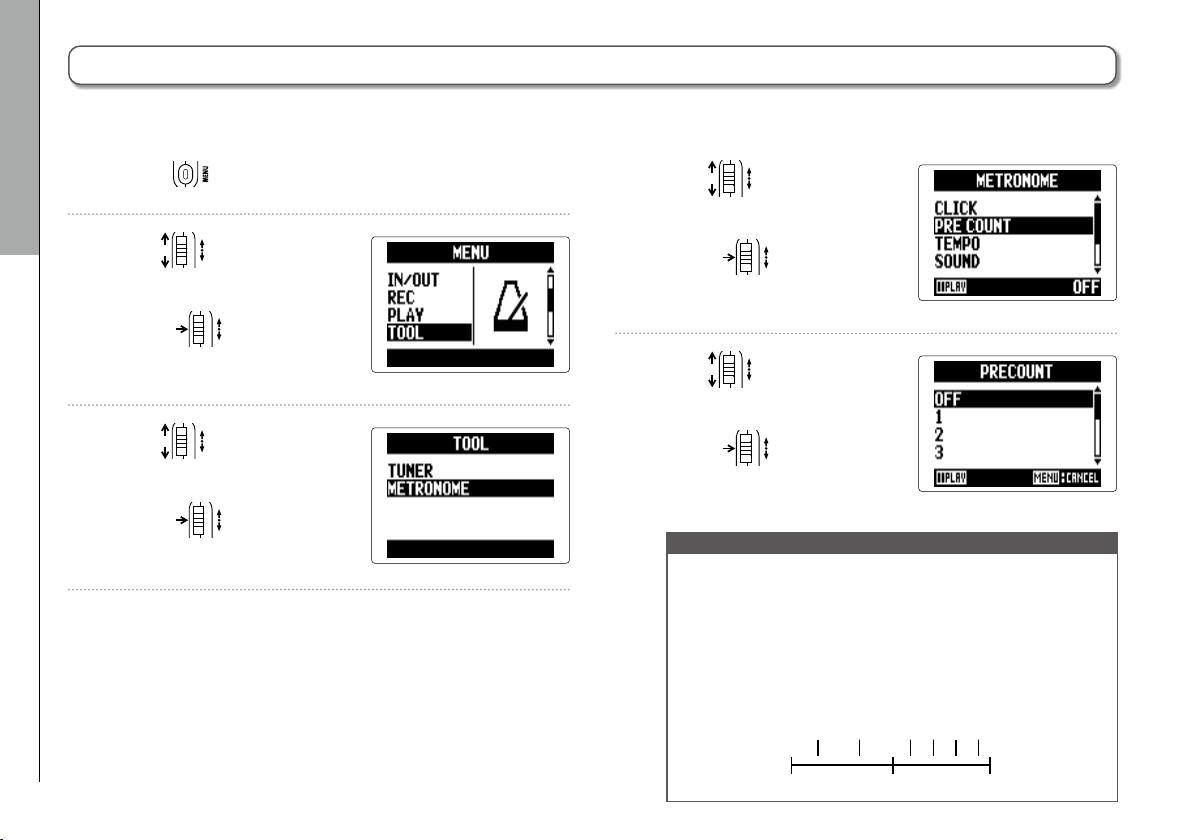

Counting in before recording ....................................30

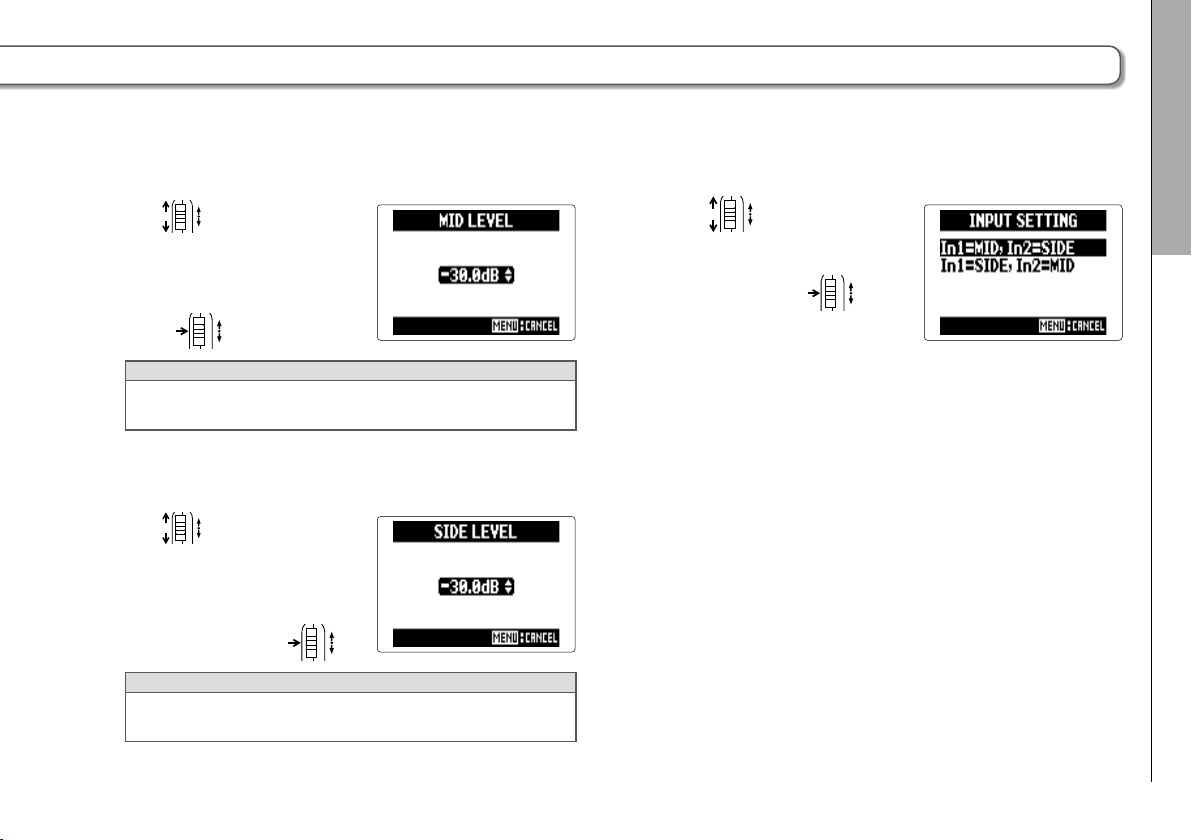

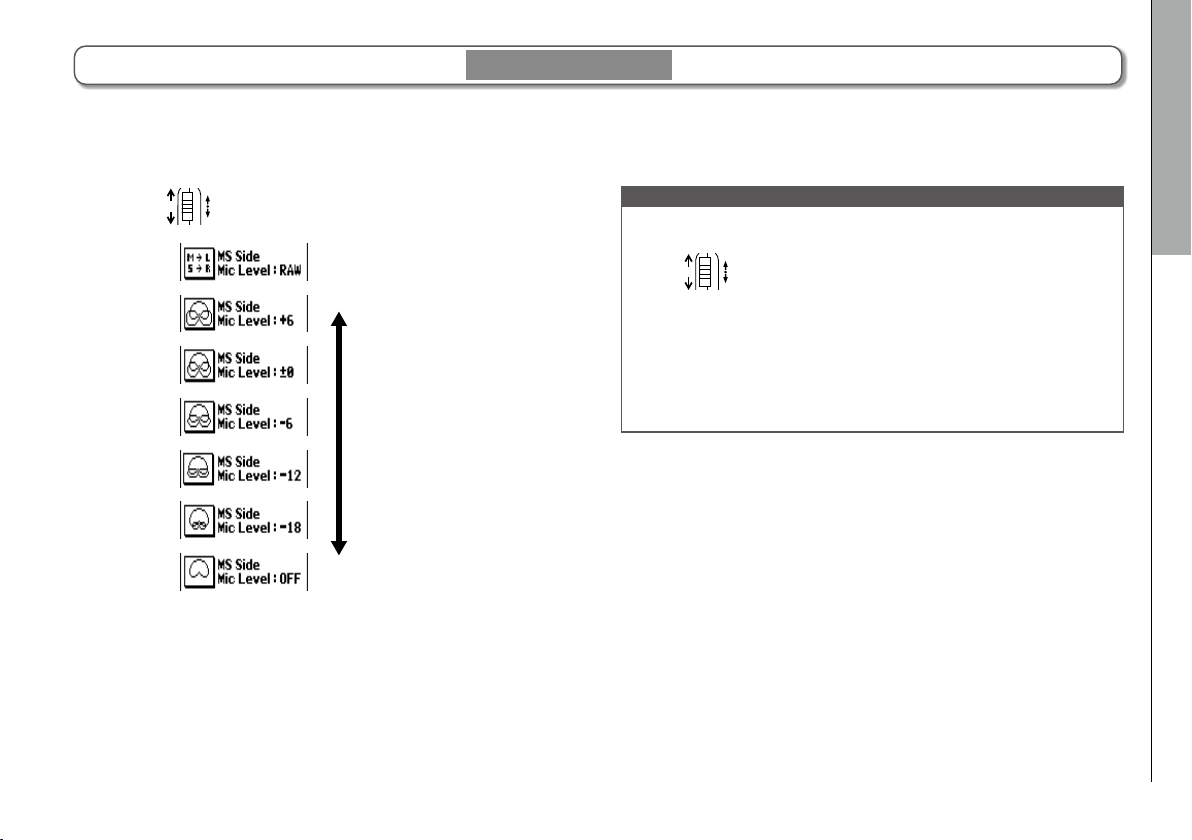

Adjusting the side mic level .....................................31

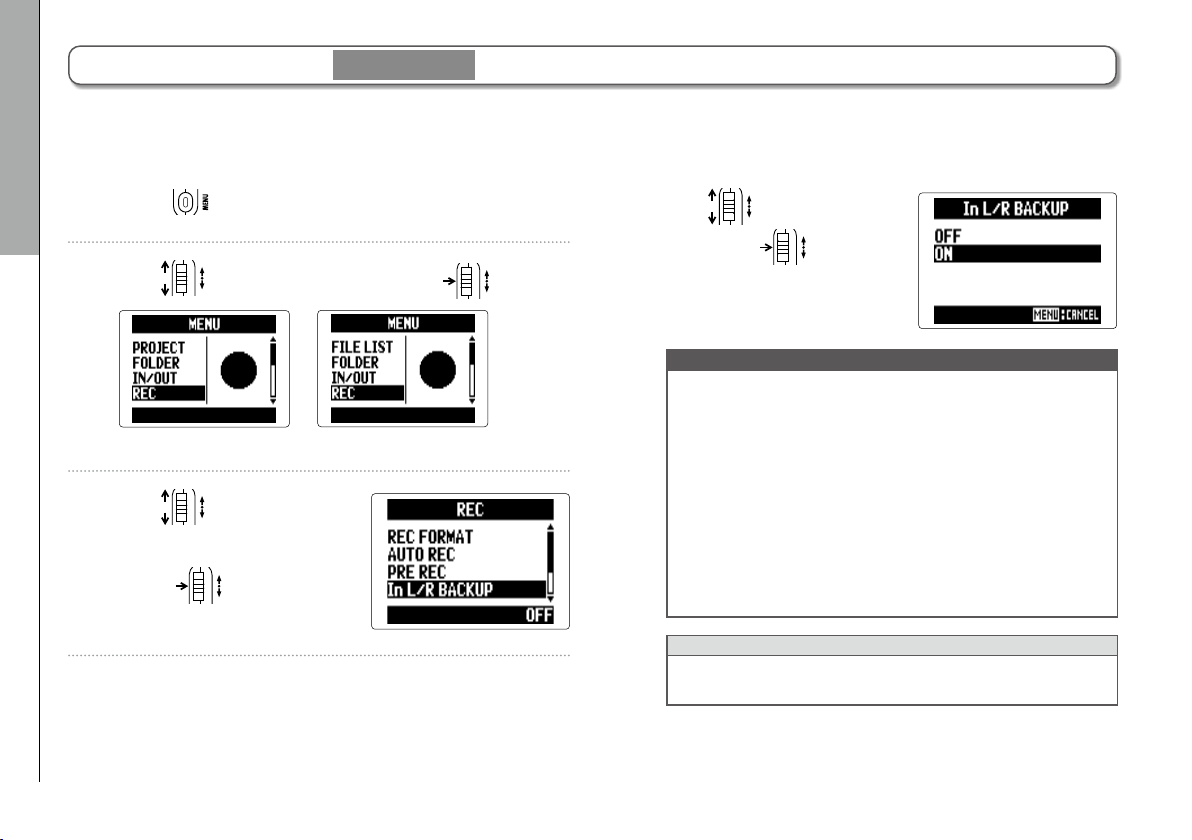

Backup recording .......................................................32

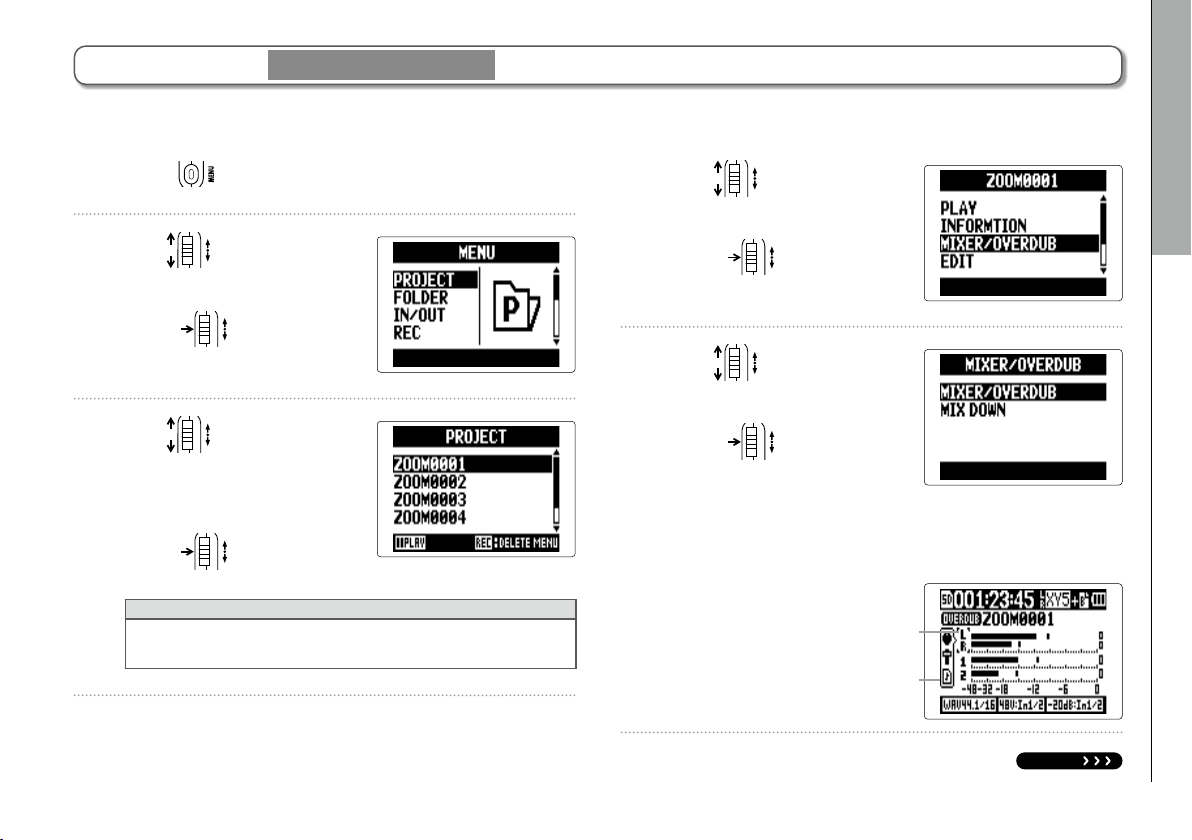

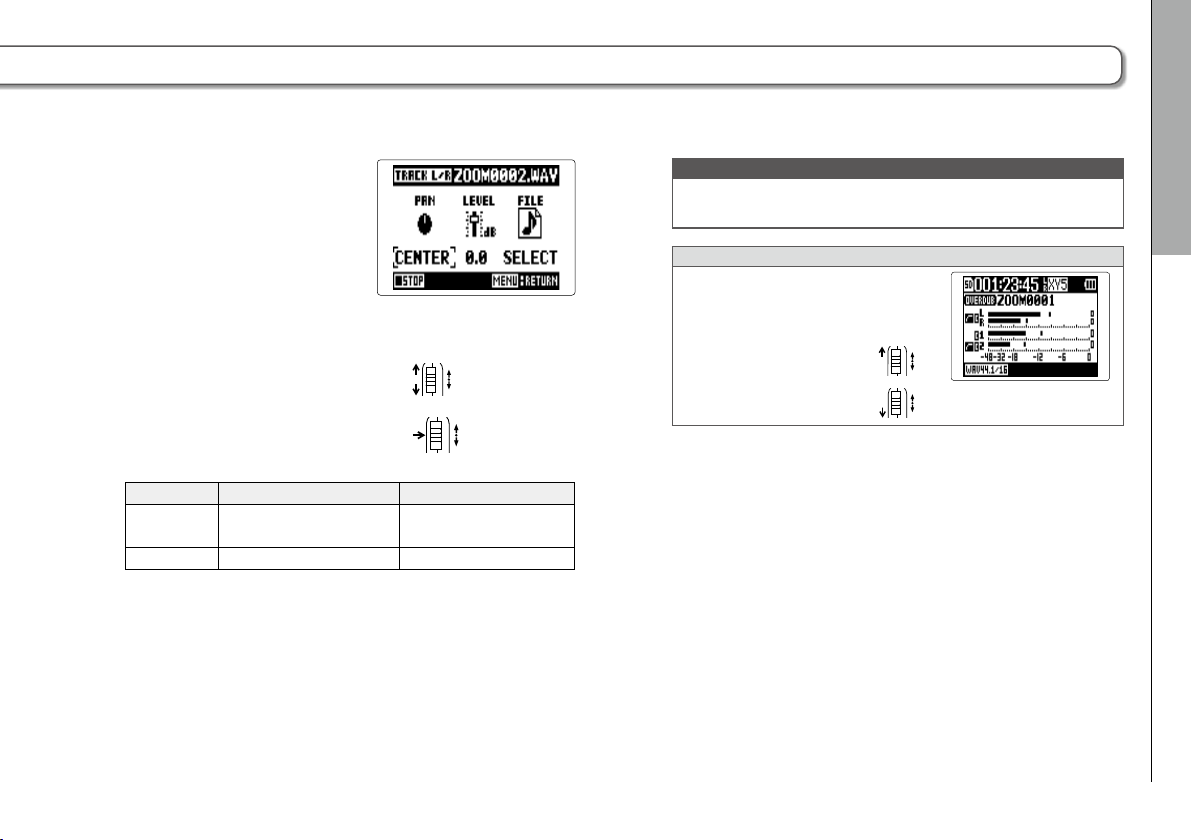

Overdubbing ...............................................................33
Playback
Checking/editing projects/files

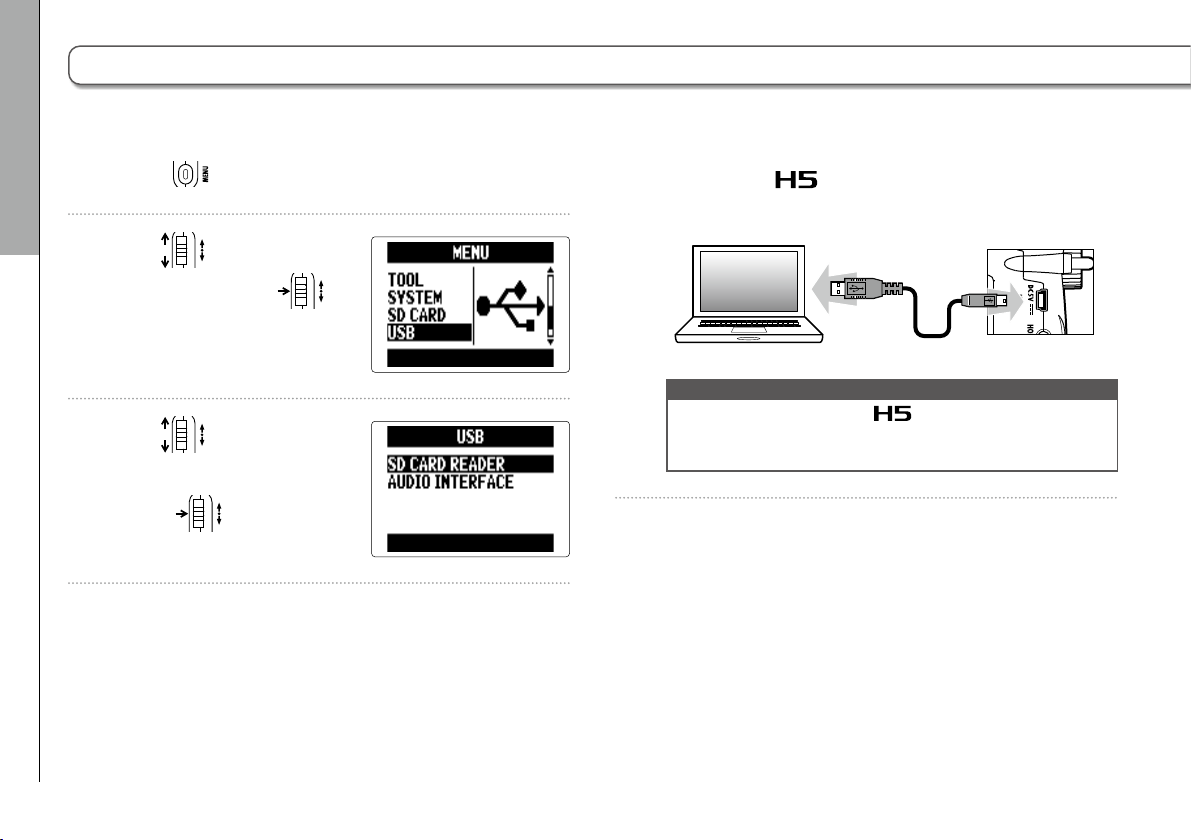

USB functions
Tools
................................................................ 38

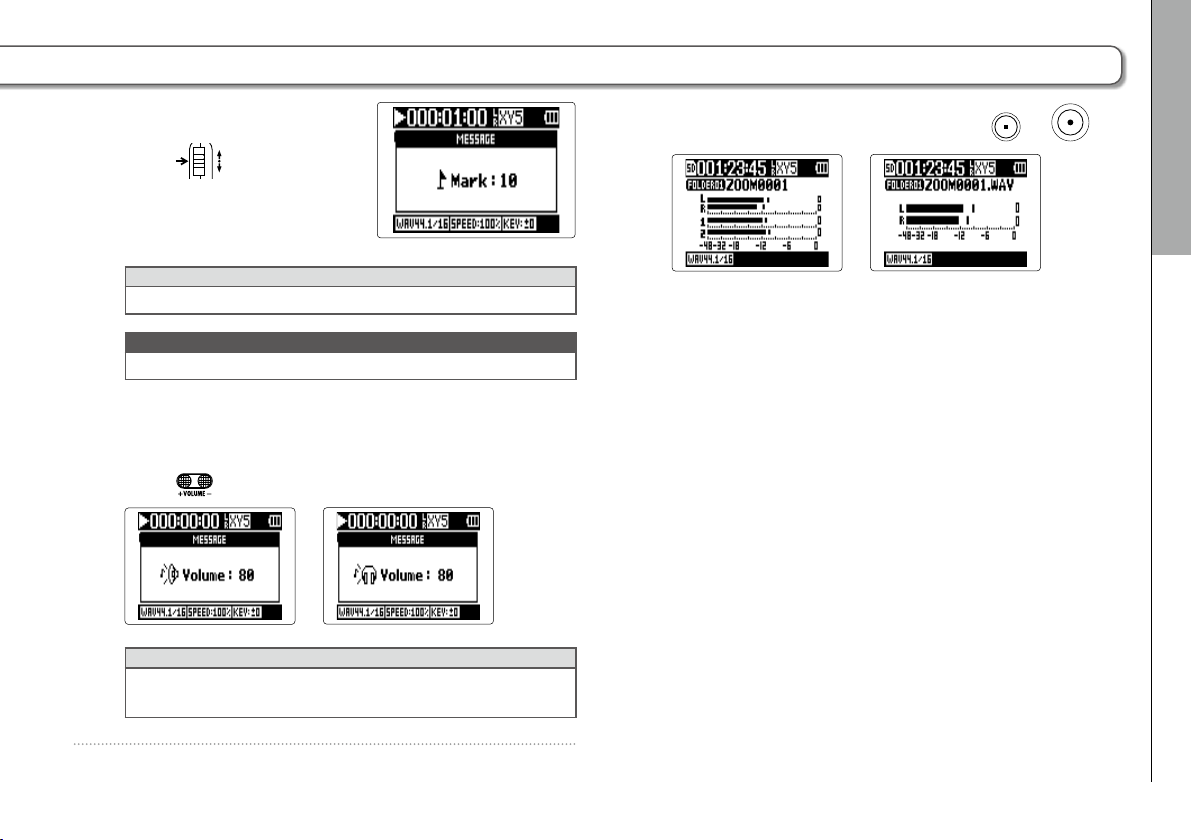

Basic playback ............................................................38
Selecting playback project/files from lists ................40

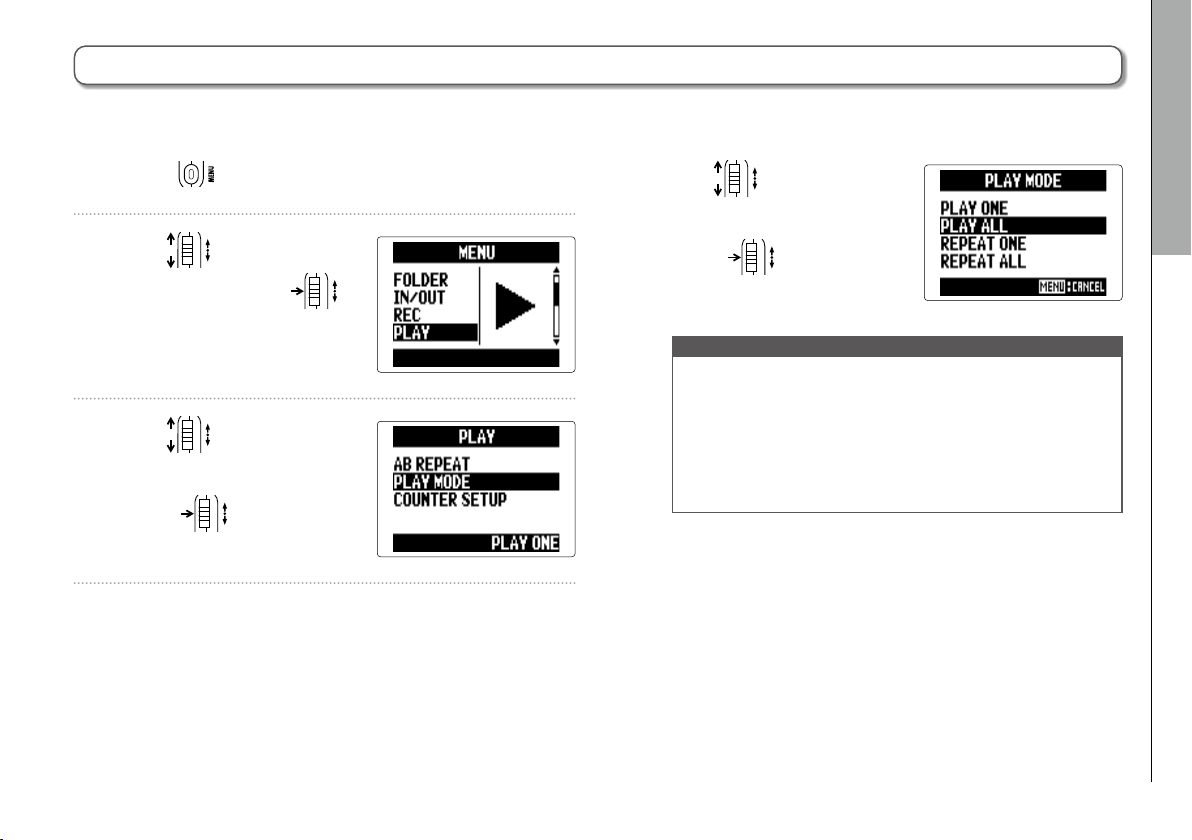

Changing the playback mode ....................................41

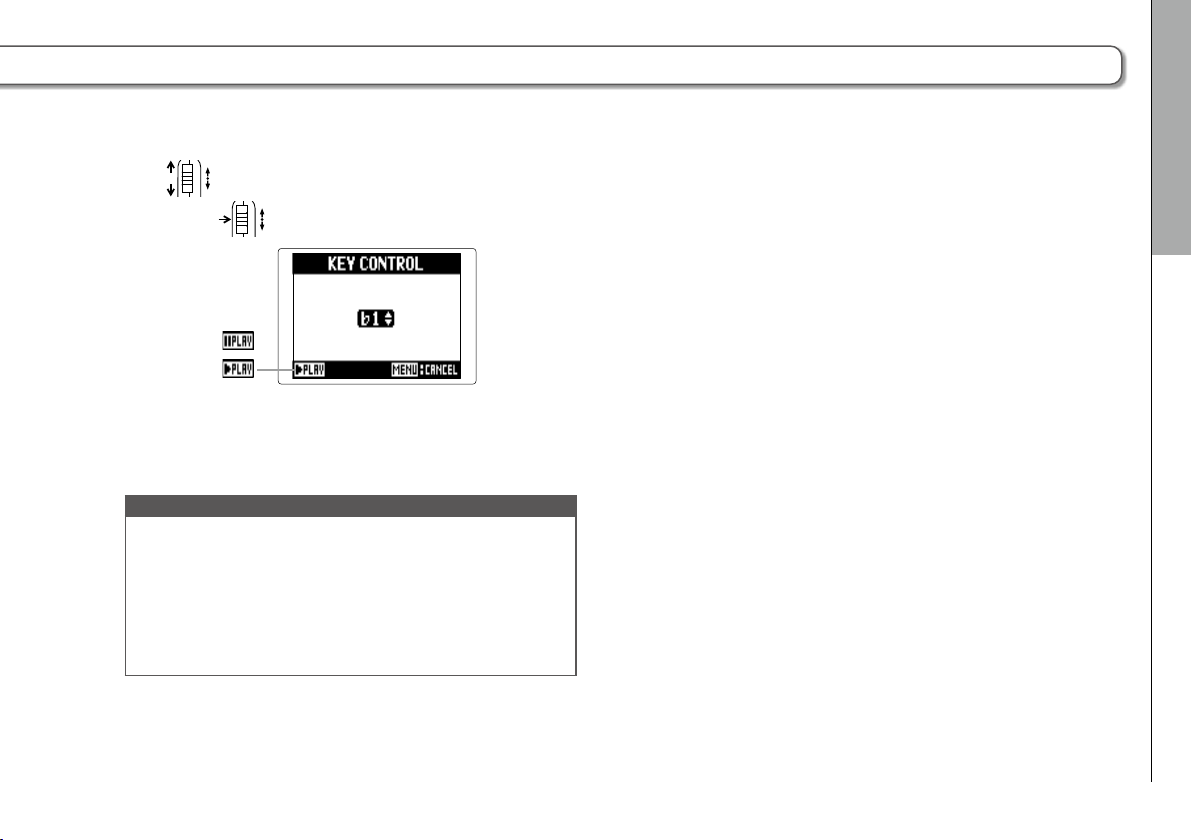

Changing the playback pitch (key) ............................42

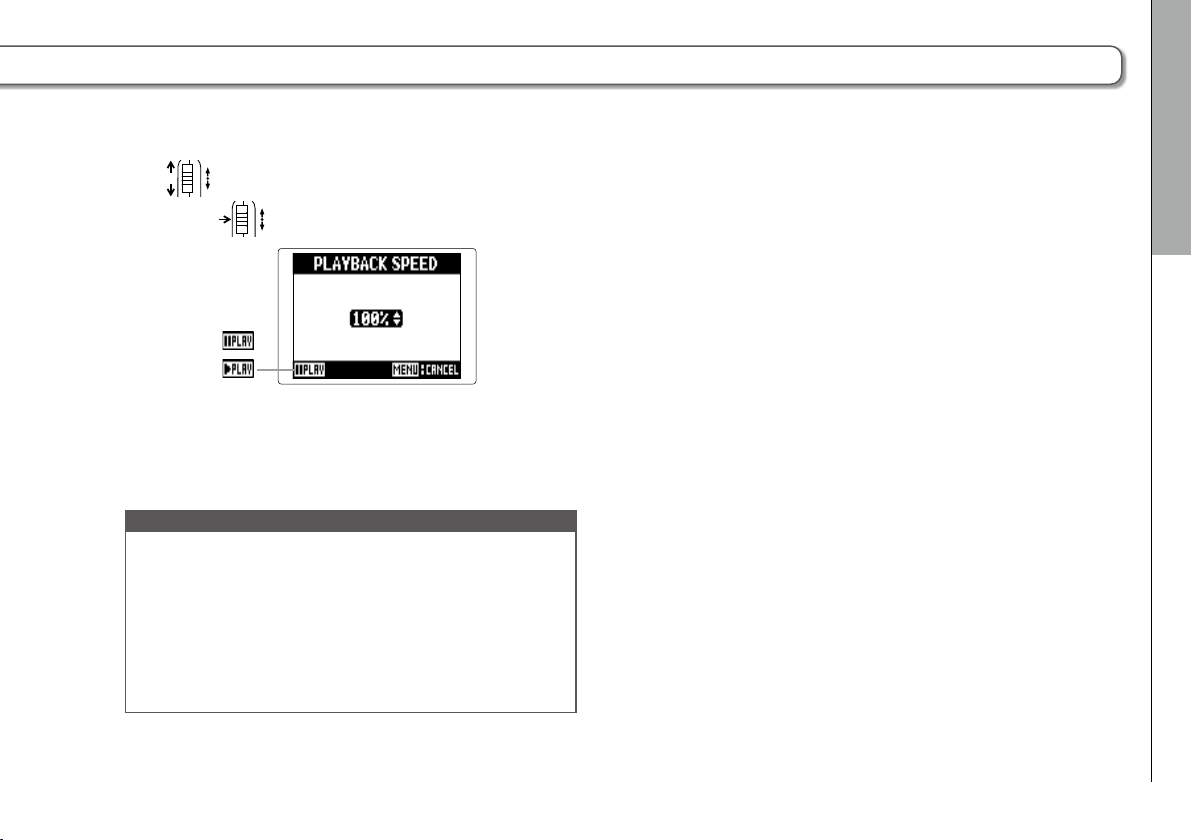

Changing the playback speed ...................................44

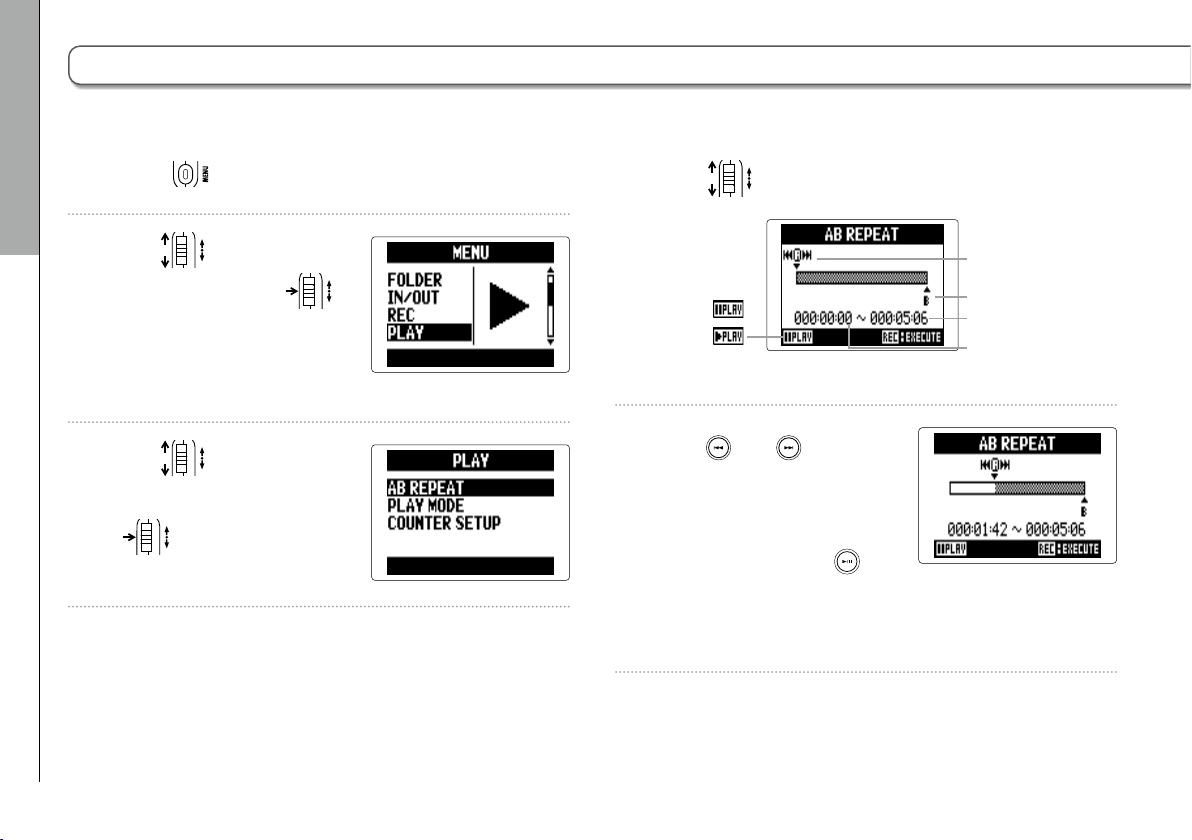

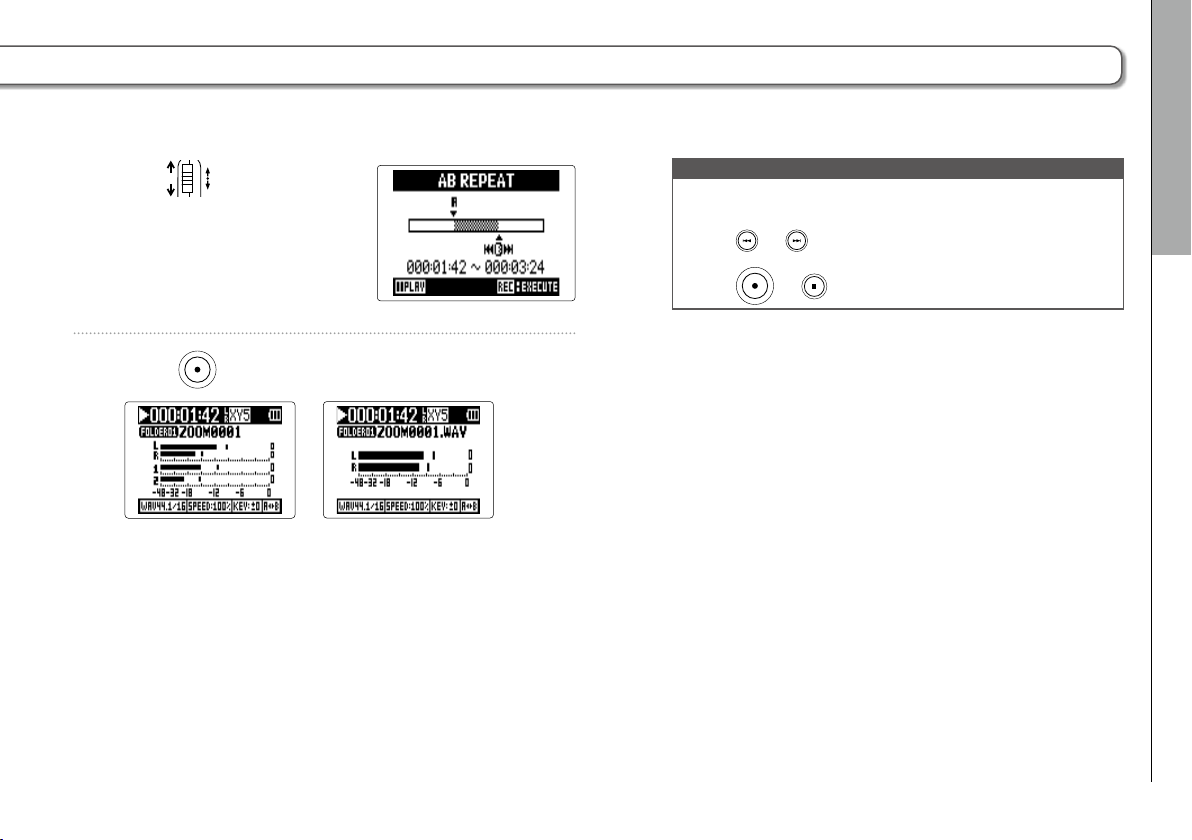

Repeat playback of a set interval (AB repeat) ..........46
Mixing projects ...........................................................48
.......................... 50

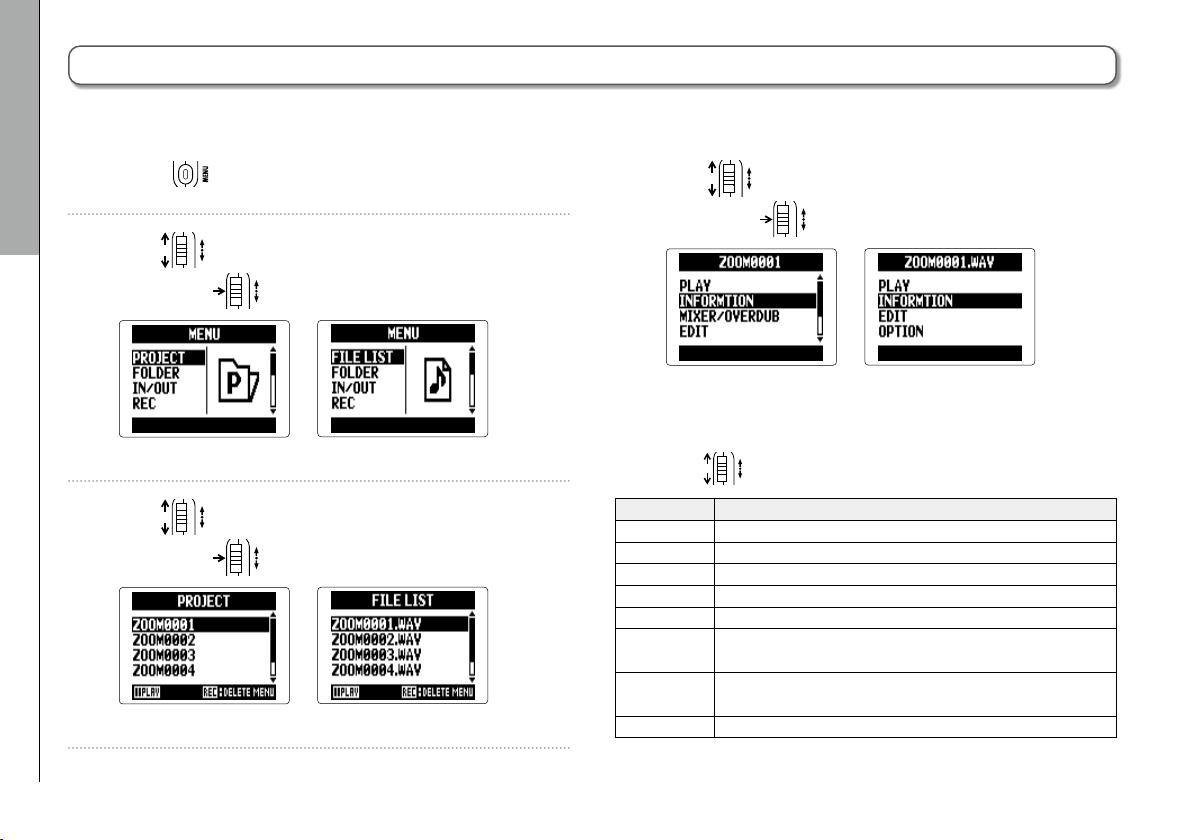

Checking project/file information ..............................50

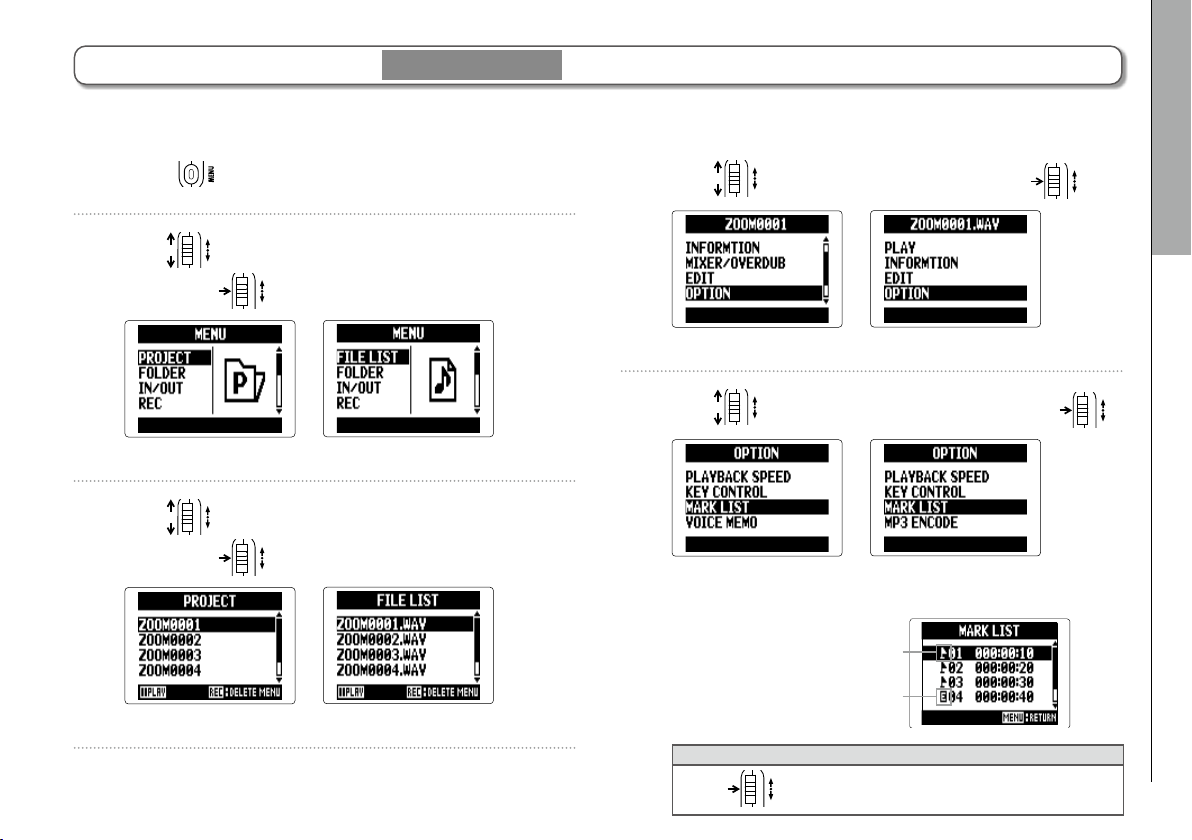

Checking track marks .................................................51

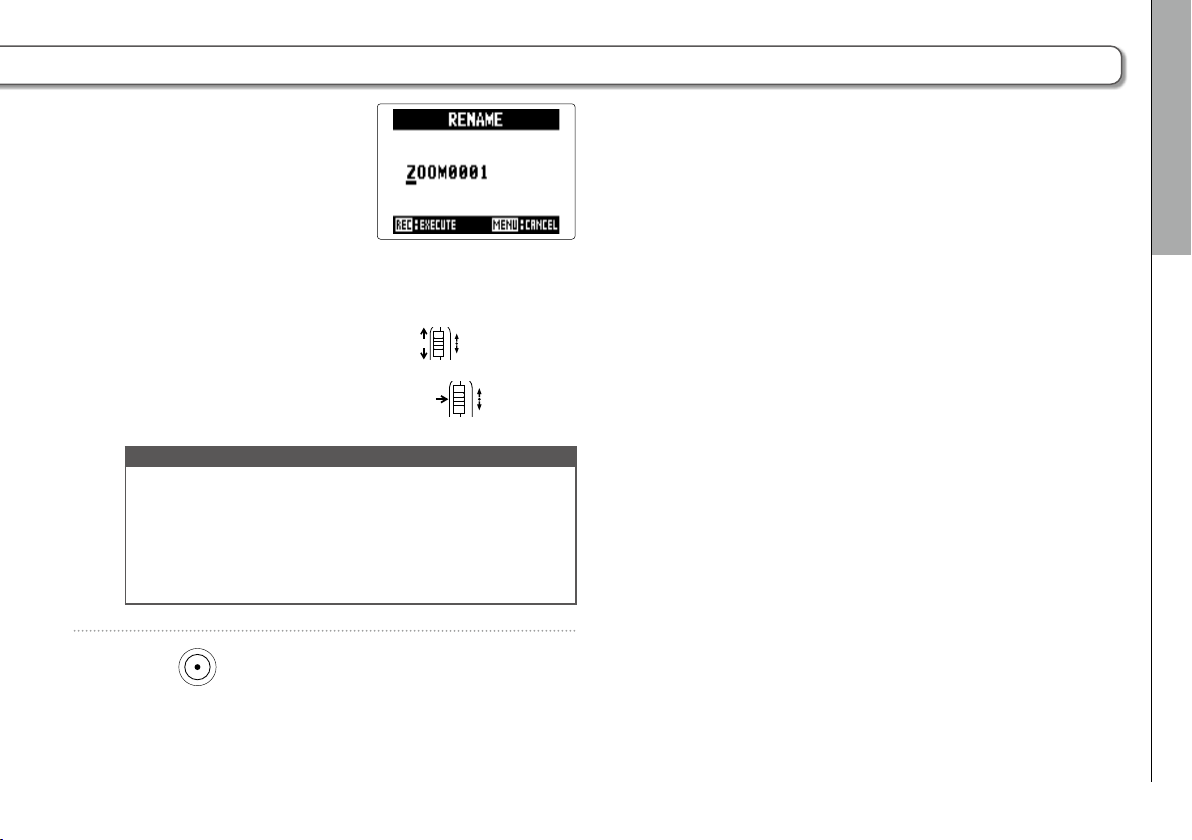

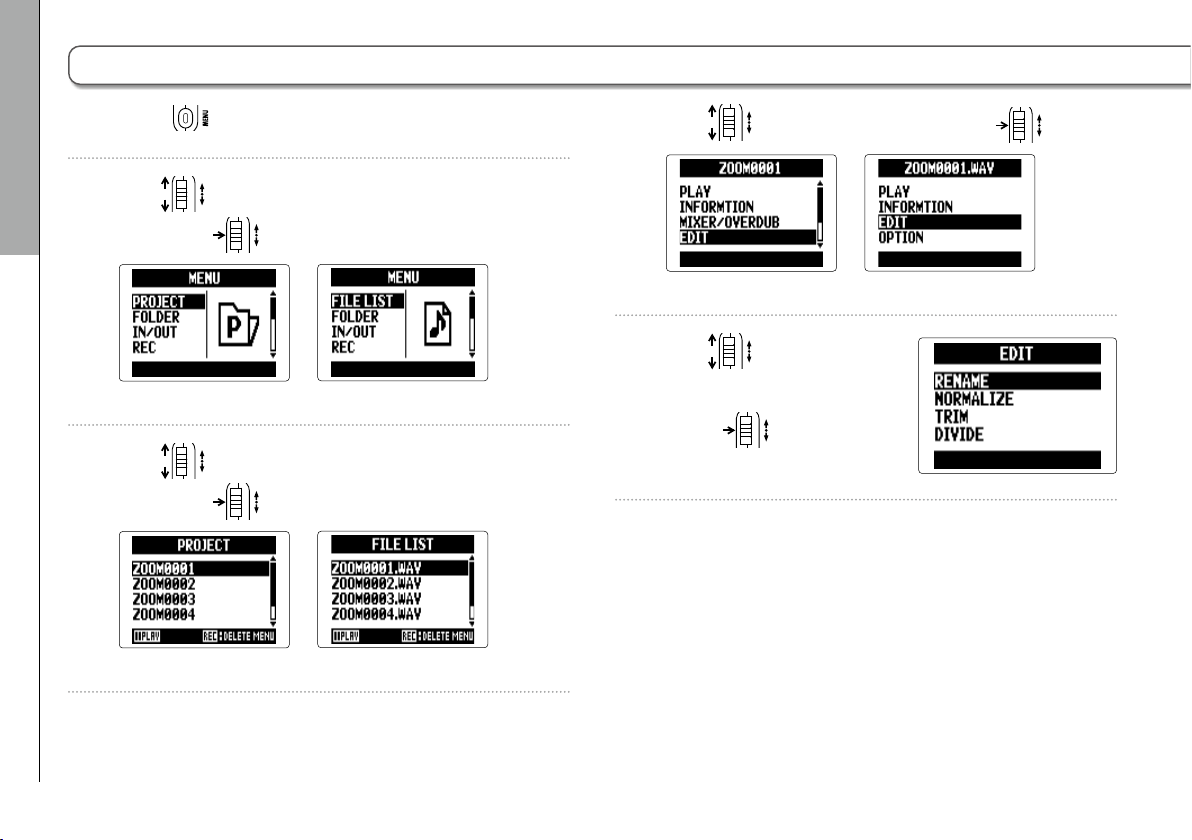

Changing project/file names .....................................52

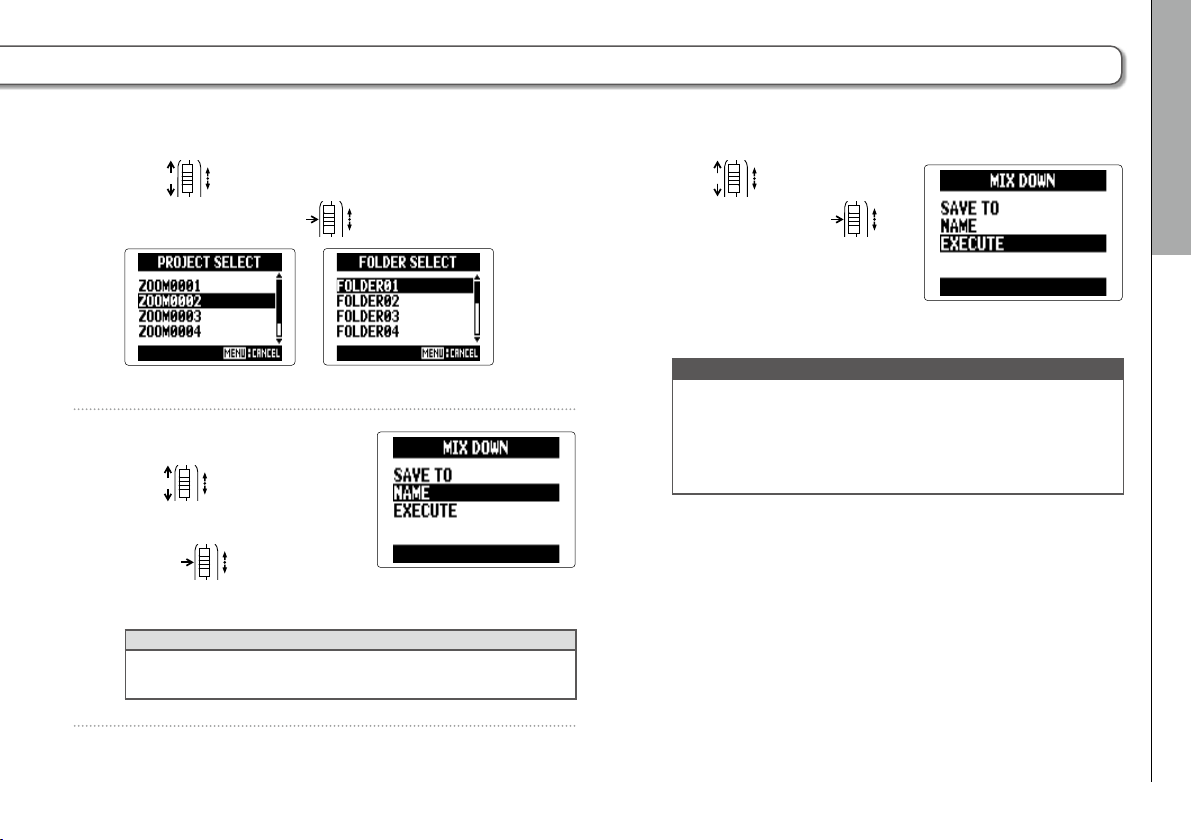

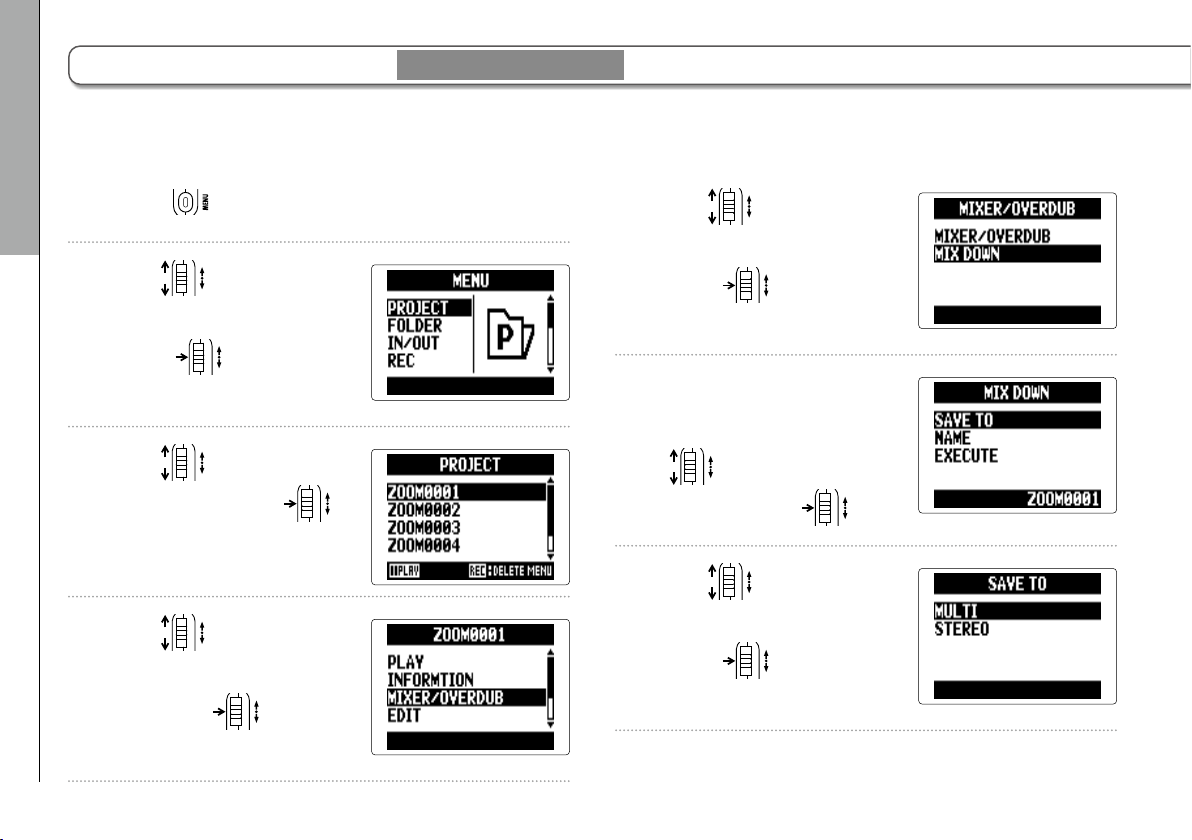

Mixing down a project ...............................................54

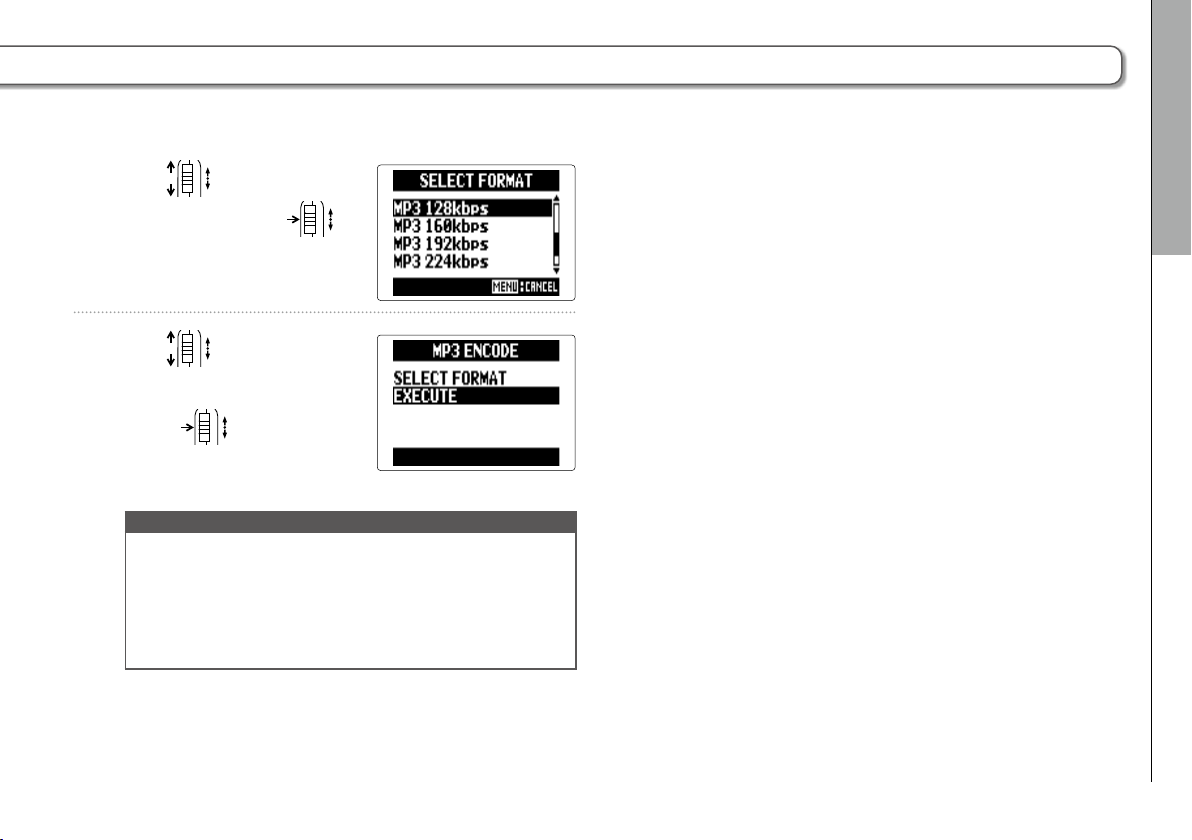

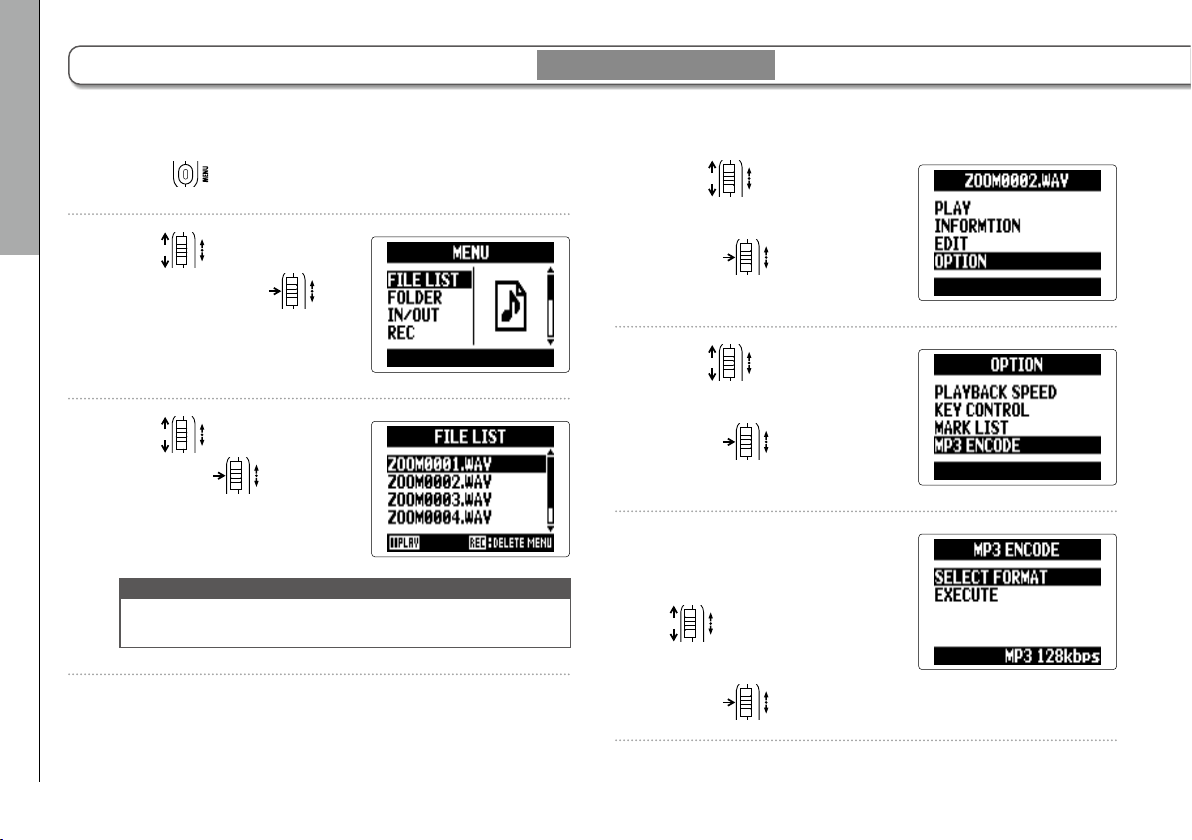

Converting WAV files to MP3 files ............................56

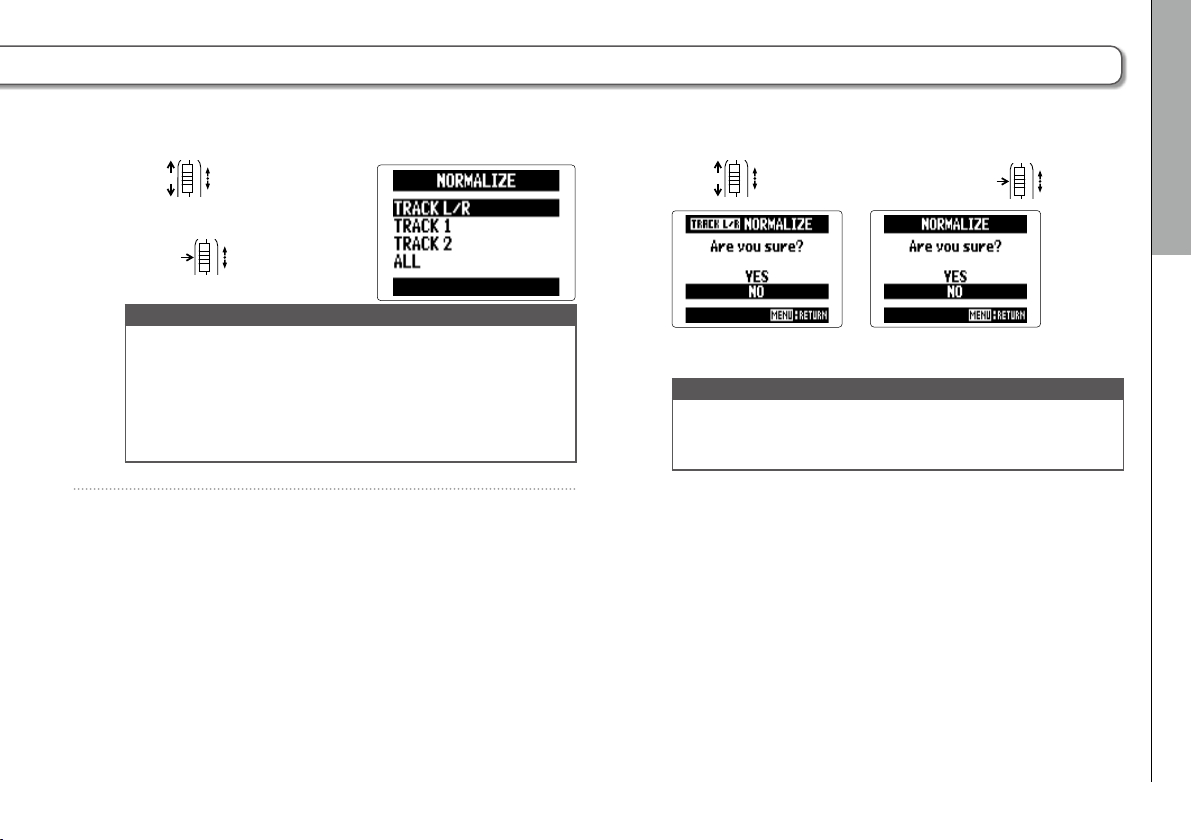

Normalizing ................................................................58

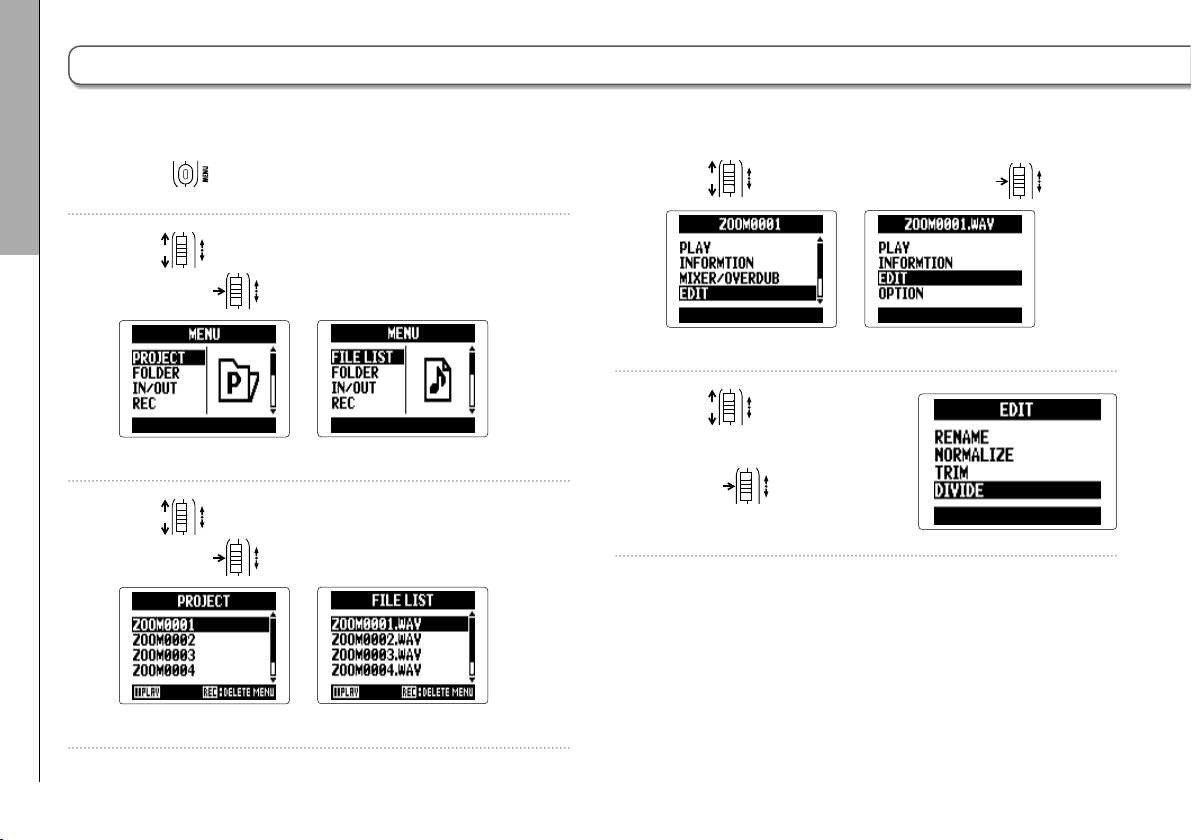

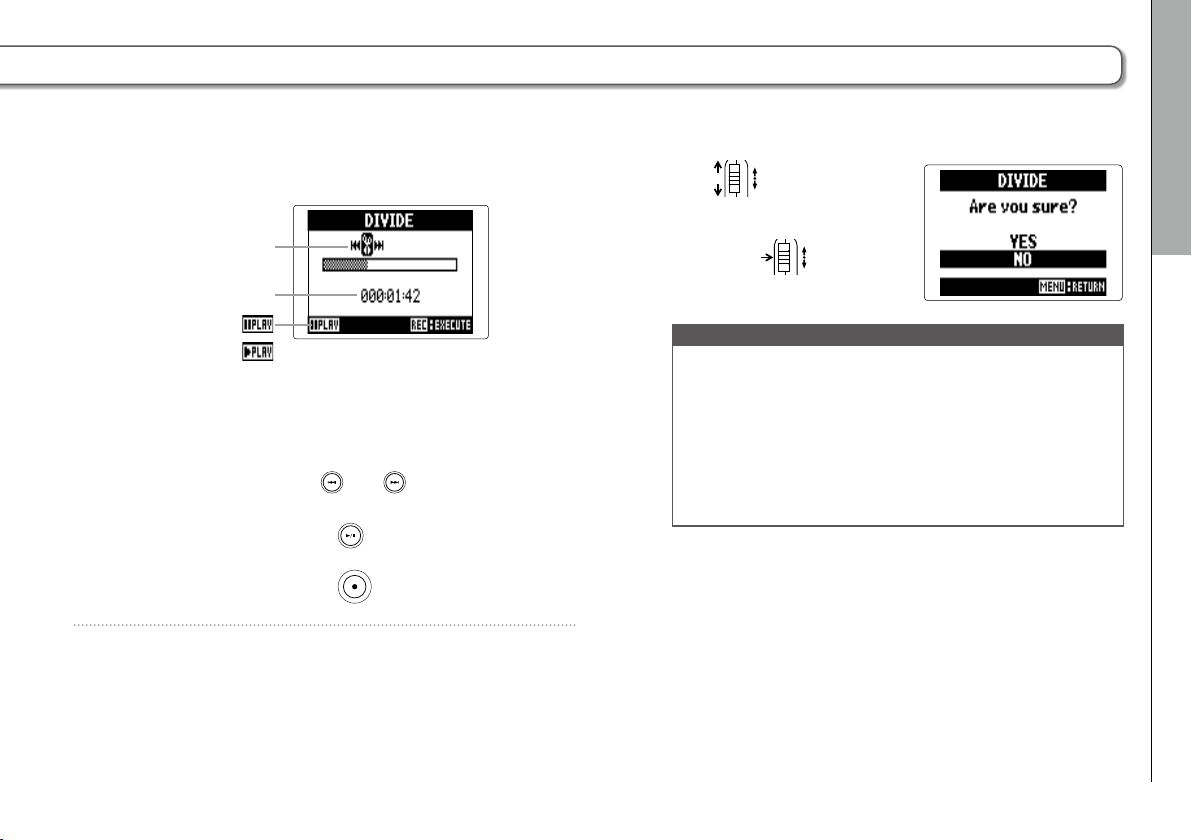

Dividing projects/files ................................................60

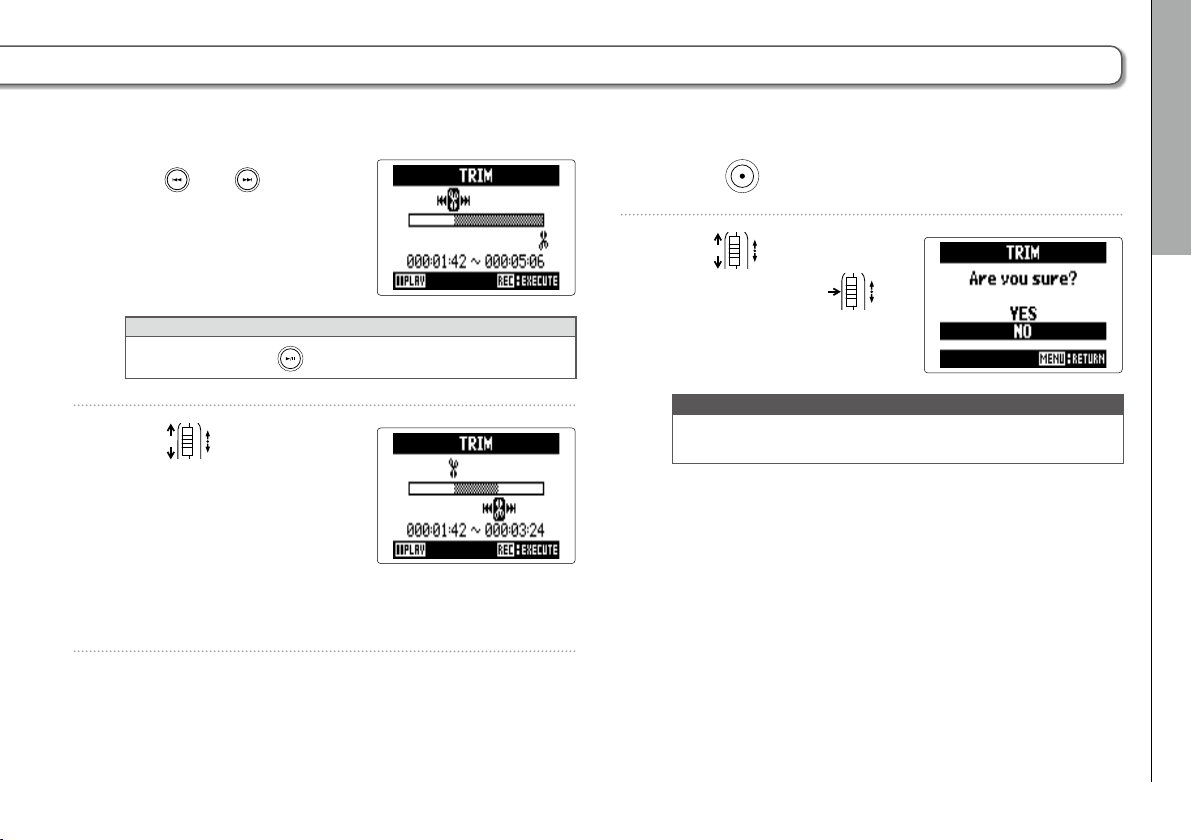

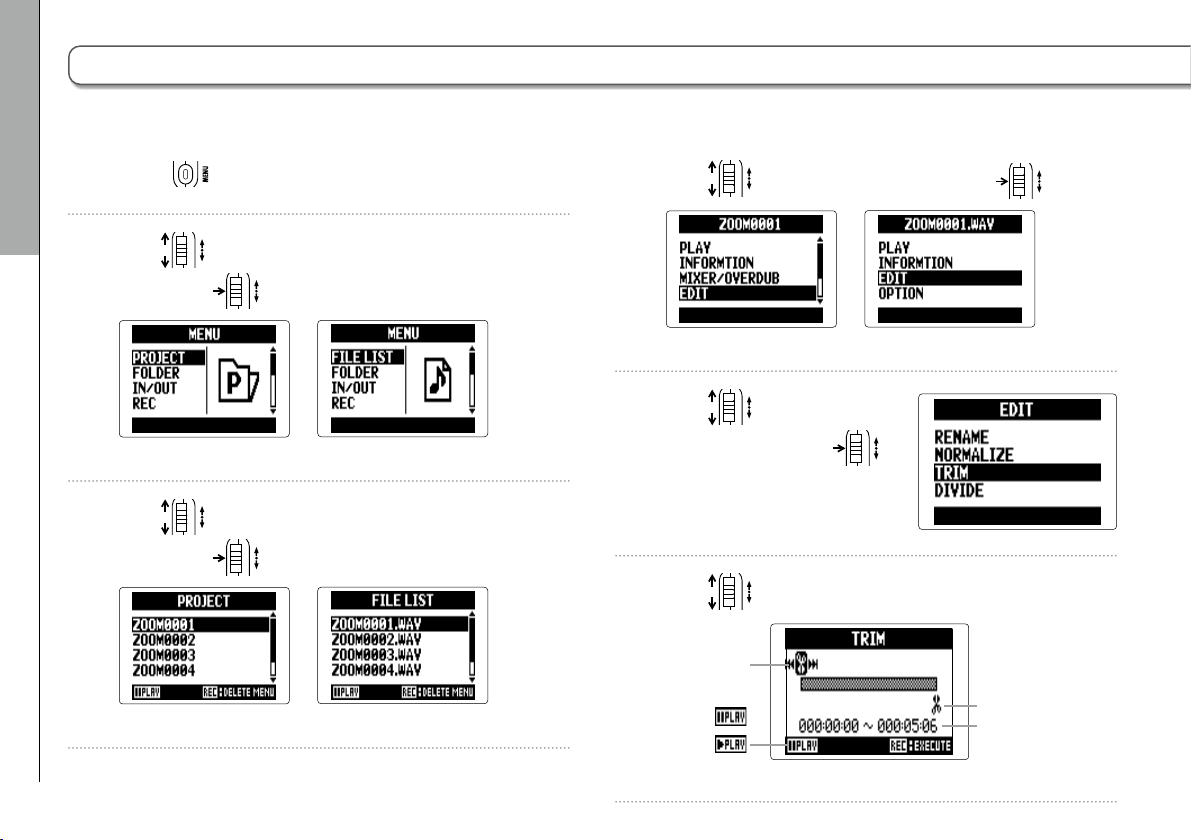

Trimming project beginnings and ends ...................62

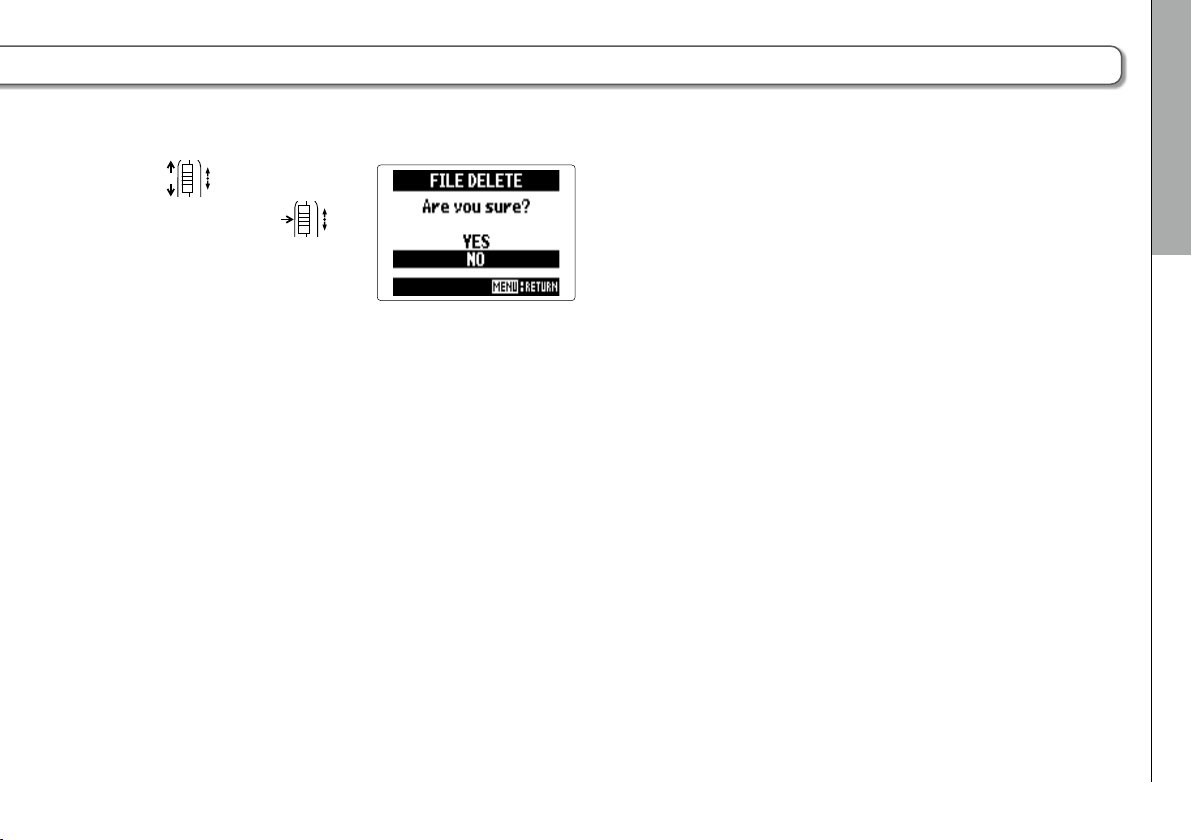

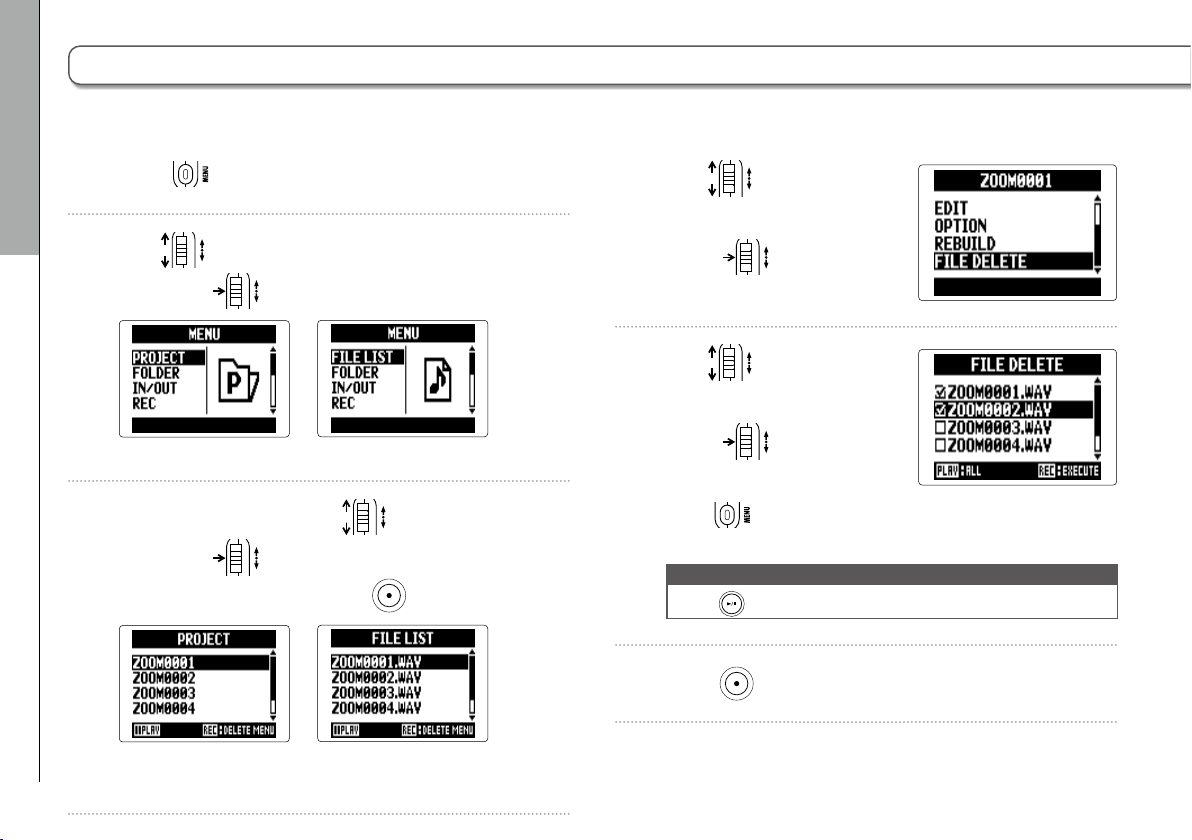

Deleting multiple files ...............................................64

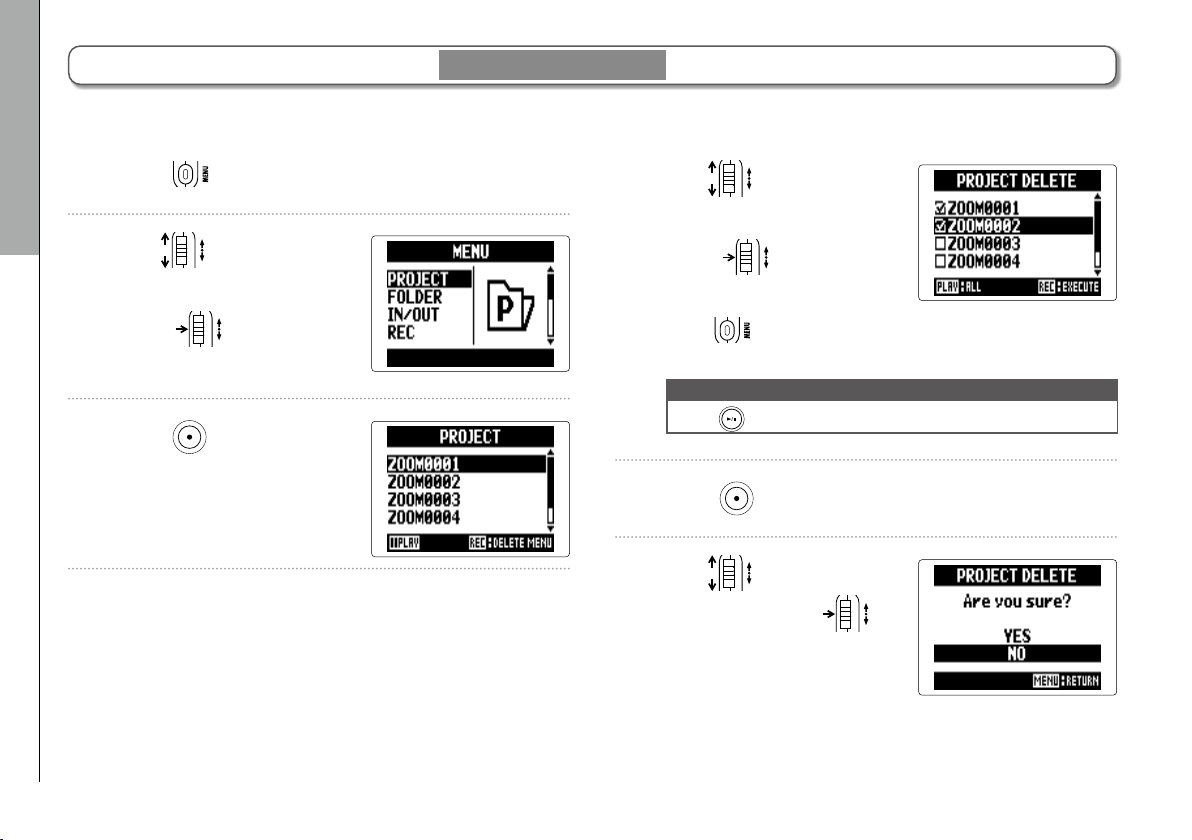

Deleting multiple projects .........................................66

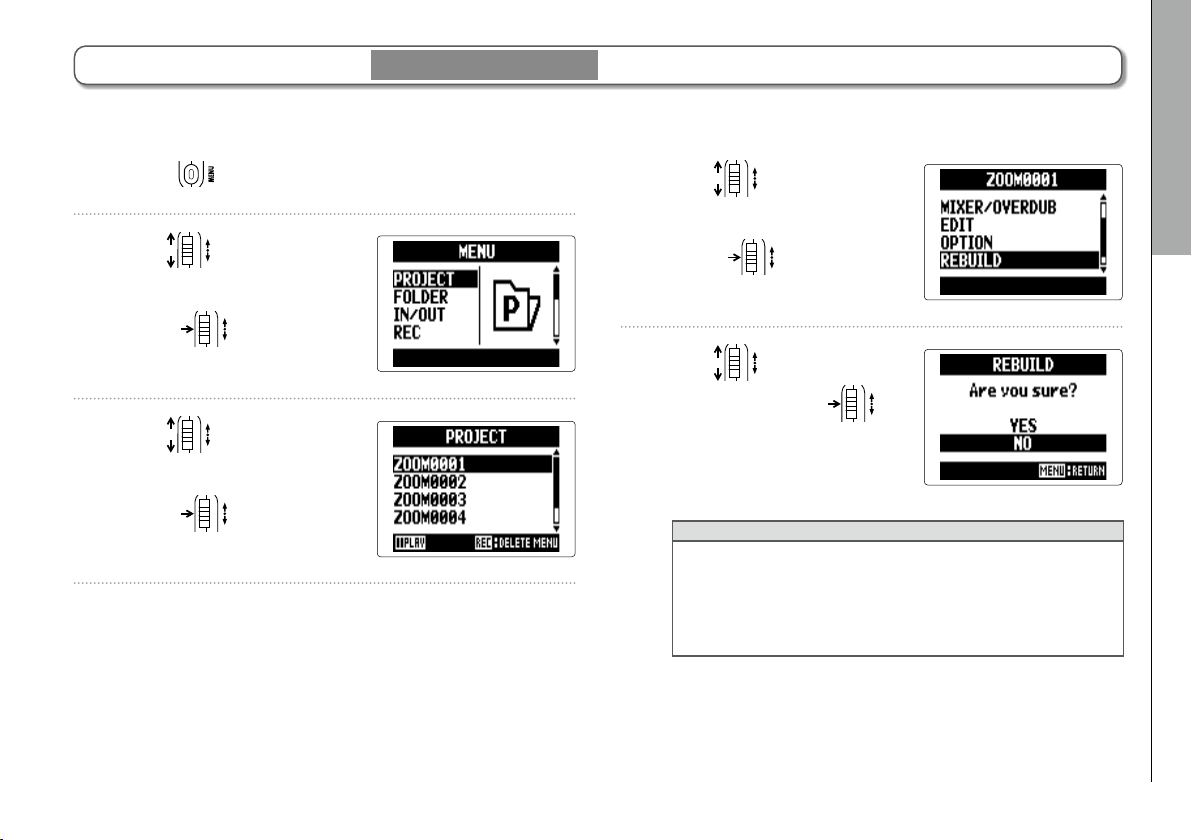

Rebuilding a project ...................................................67

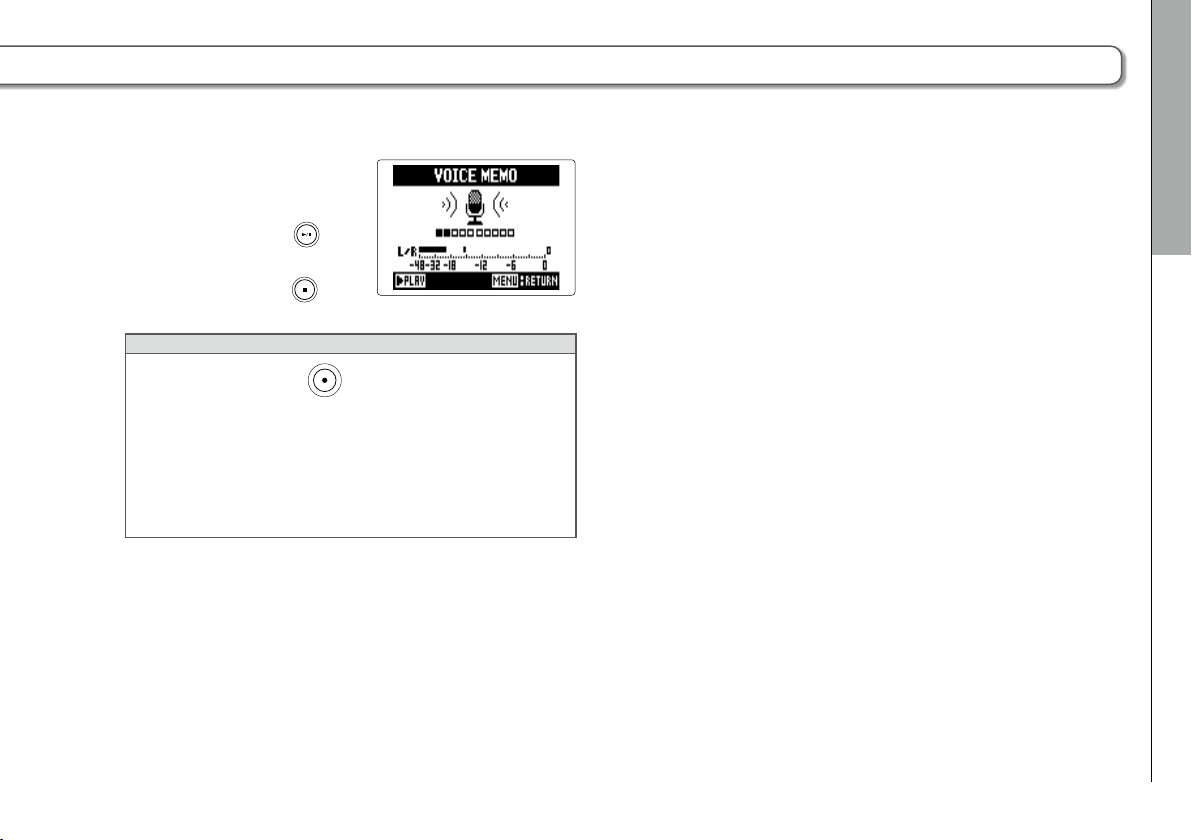

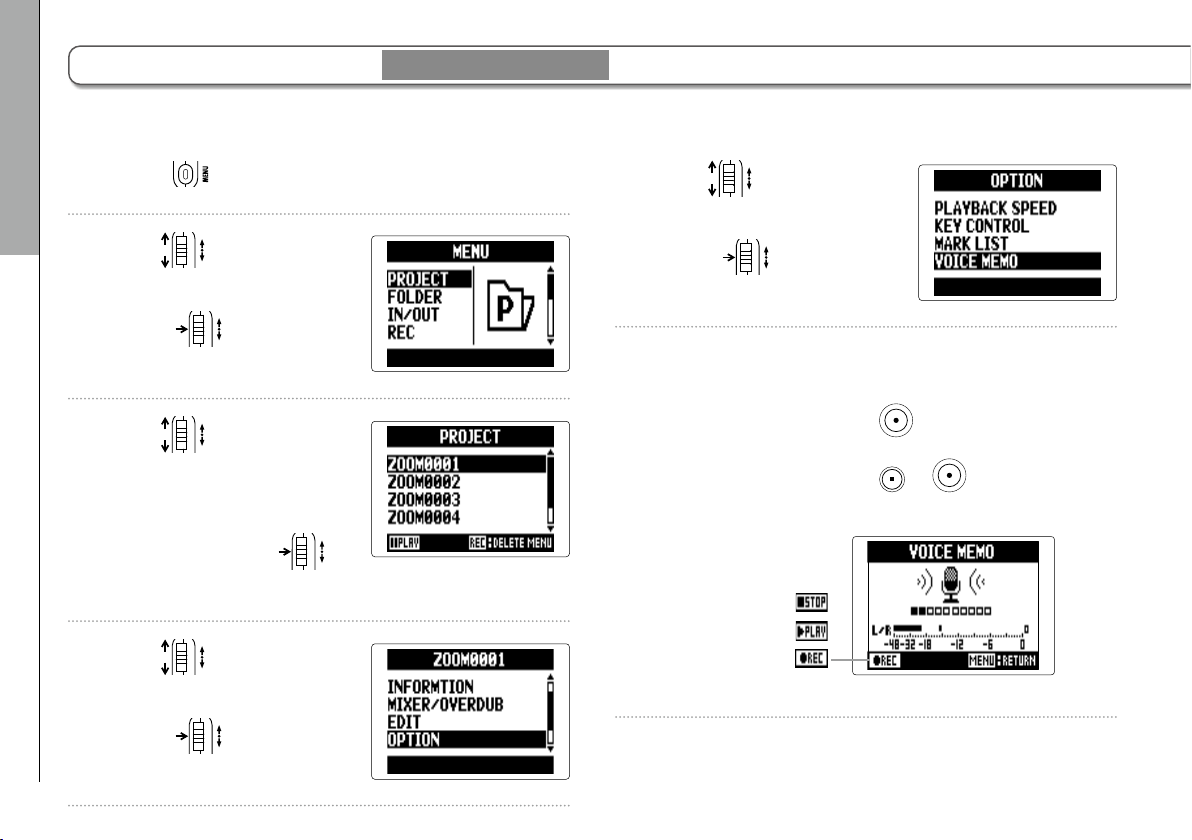

Adding voice memos .................................................68
...................................................... 70
Data exchange with computers (card reader)..........70
Using as an audio interface .......................................72
Audio interface settings .............................................74

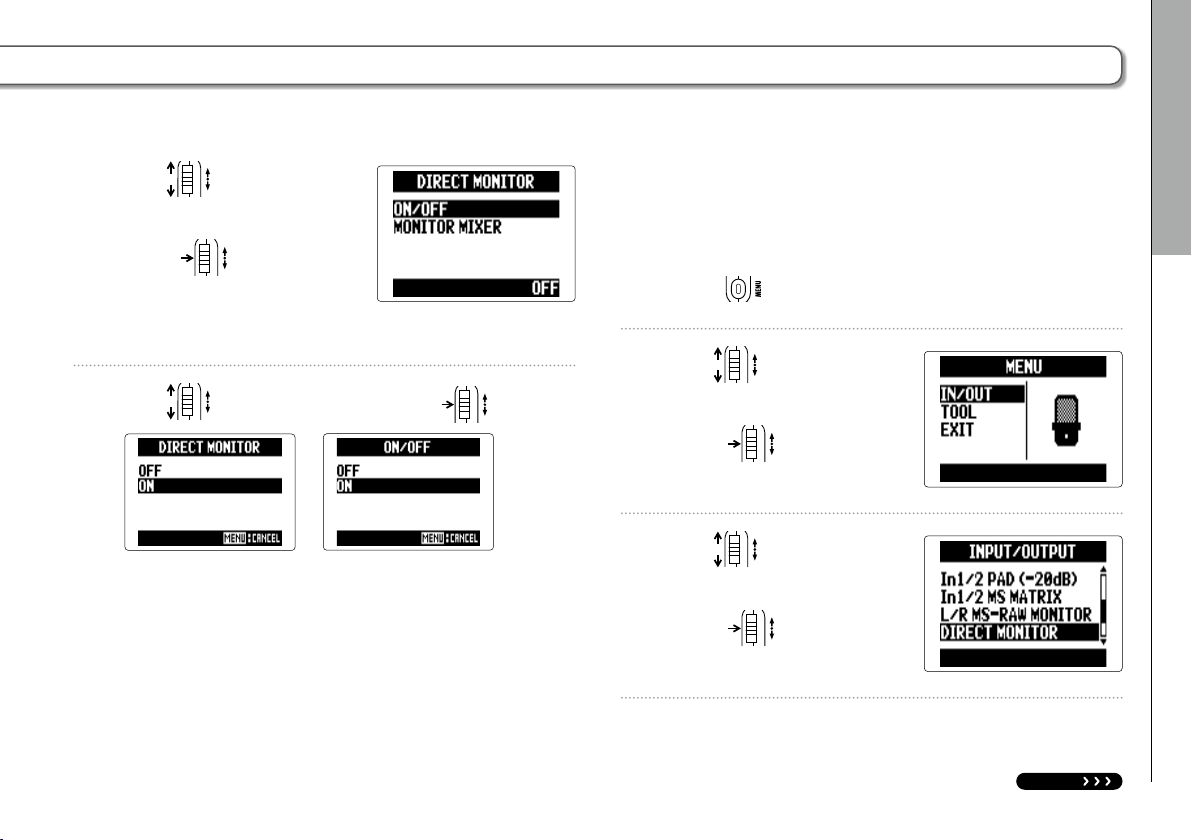

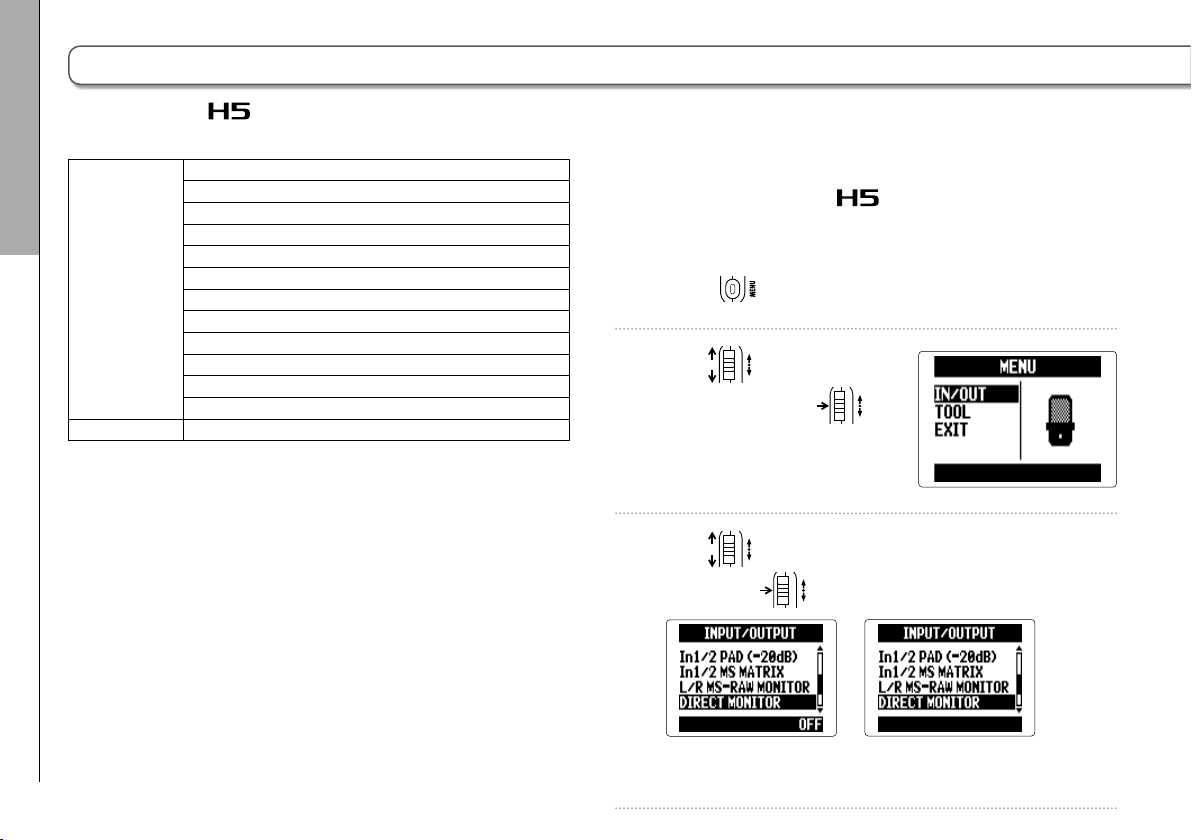

Making direct monitoring settings ........................74

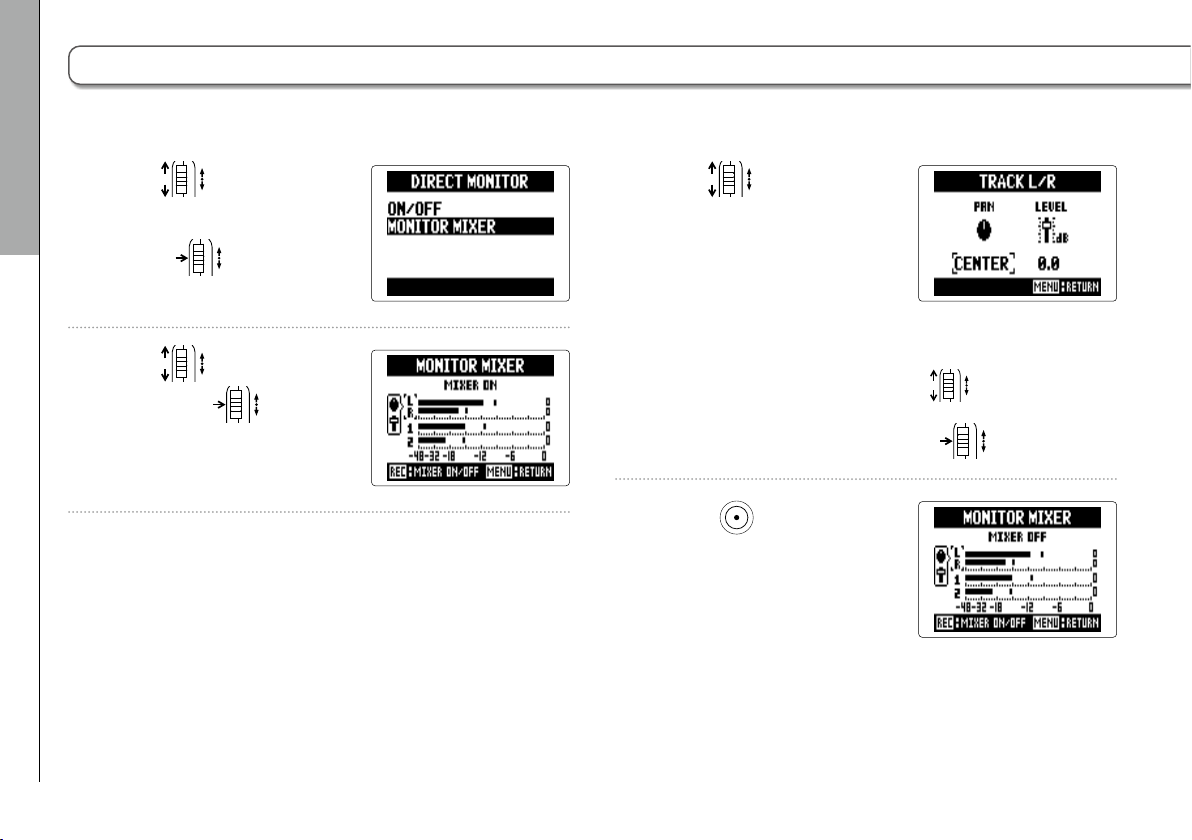

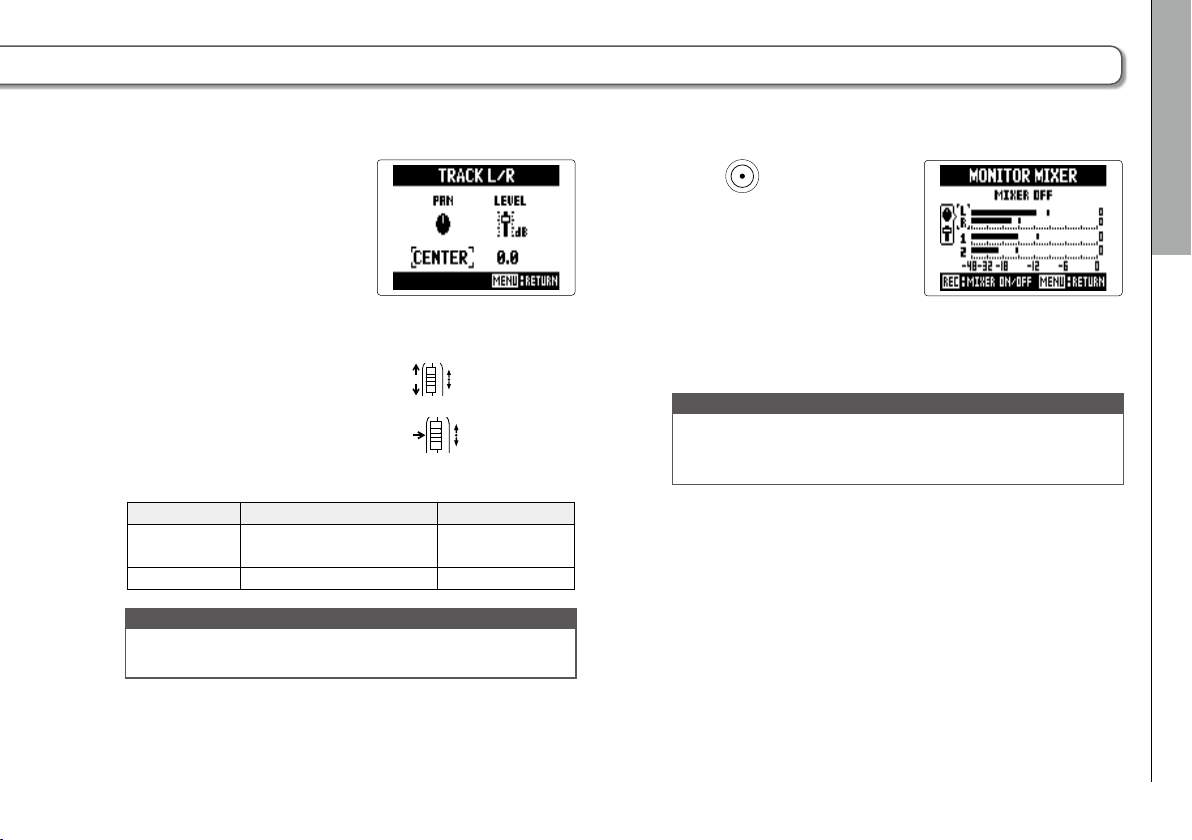

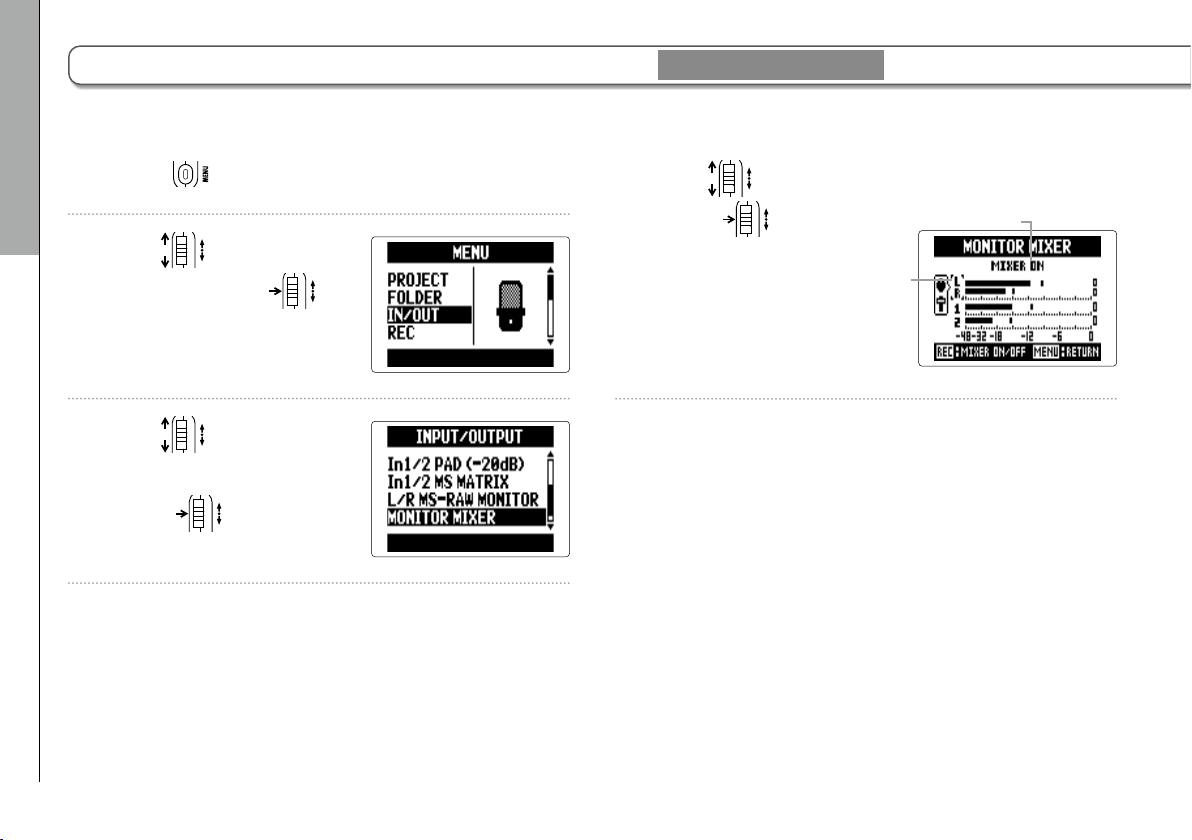

Monitor signal mixing (MULTI TRACK only) .........75

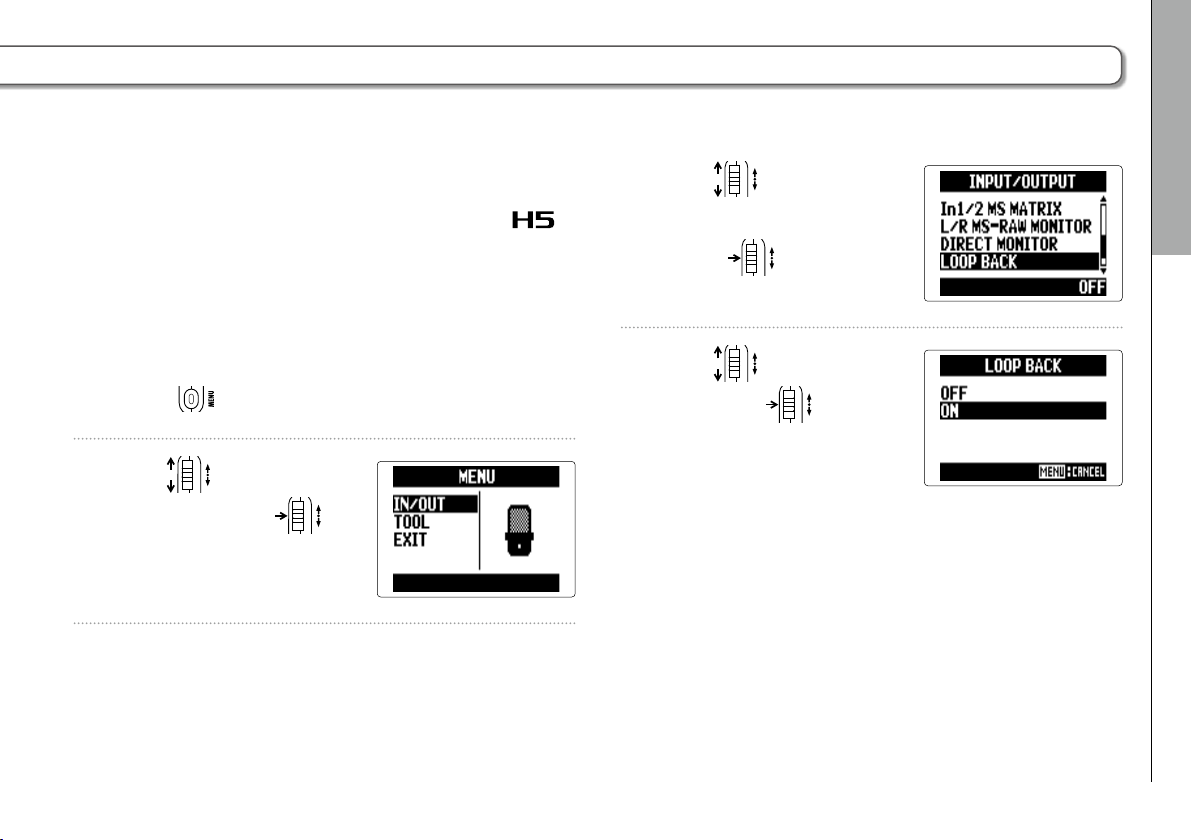

Using Loop Back (STEREO only) ............................77
...................................................................... 78

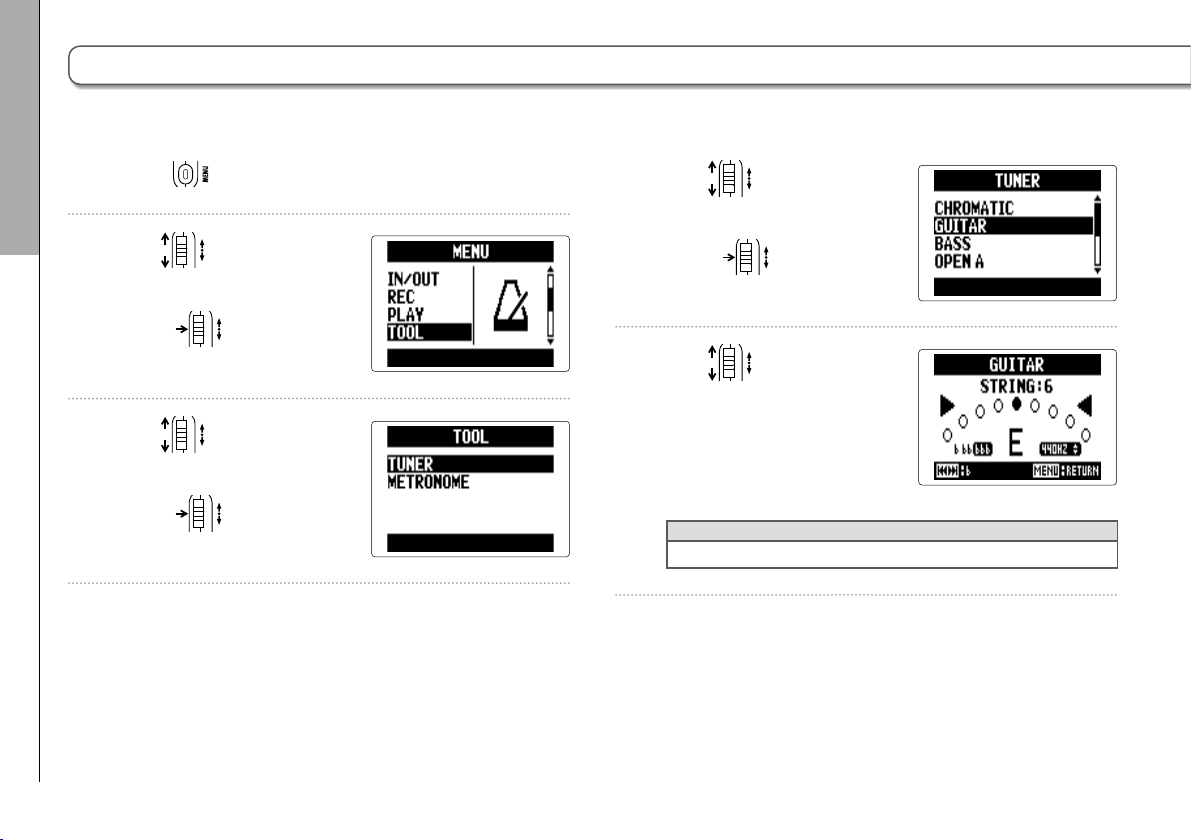

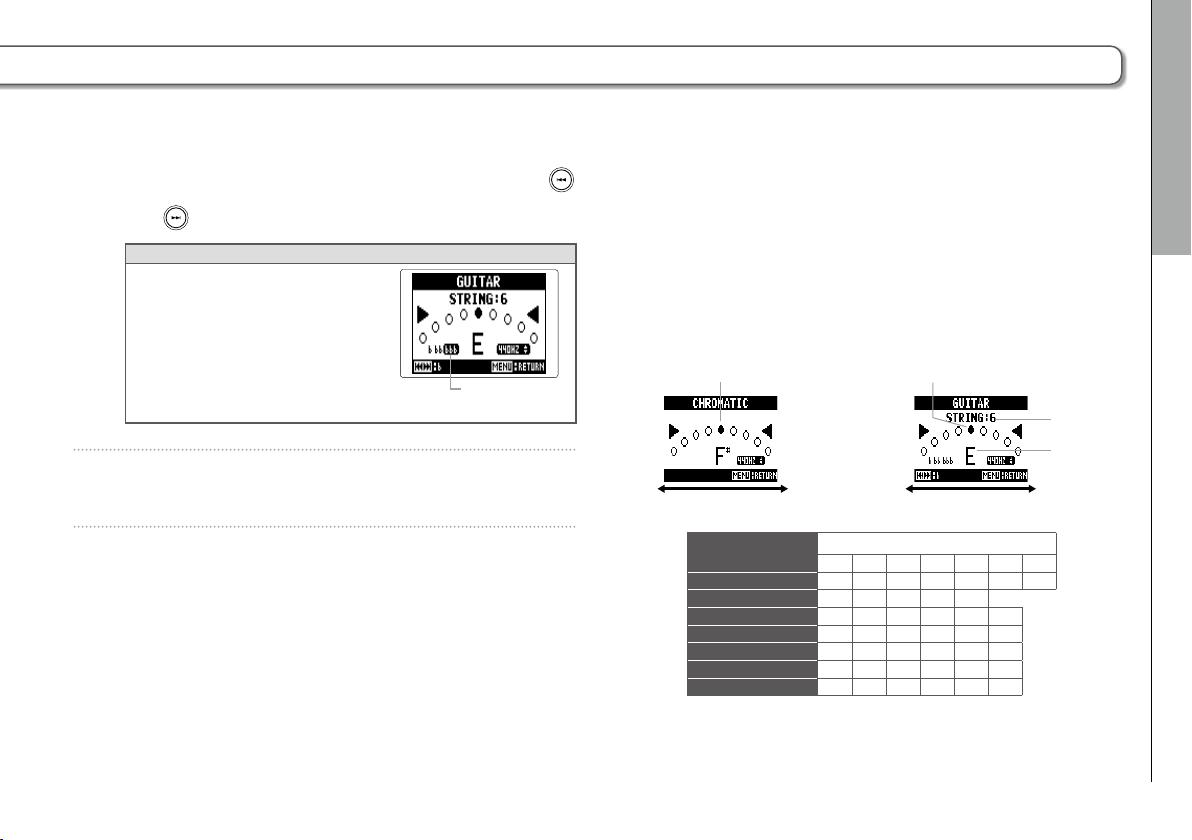

Using the tuner ...........................................................78
Using the metronome ................................................80
Adjusting the input signal monitoring mix ..............82

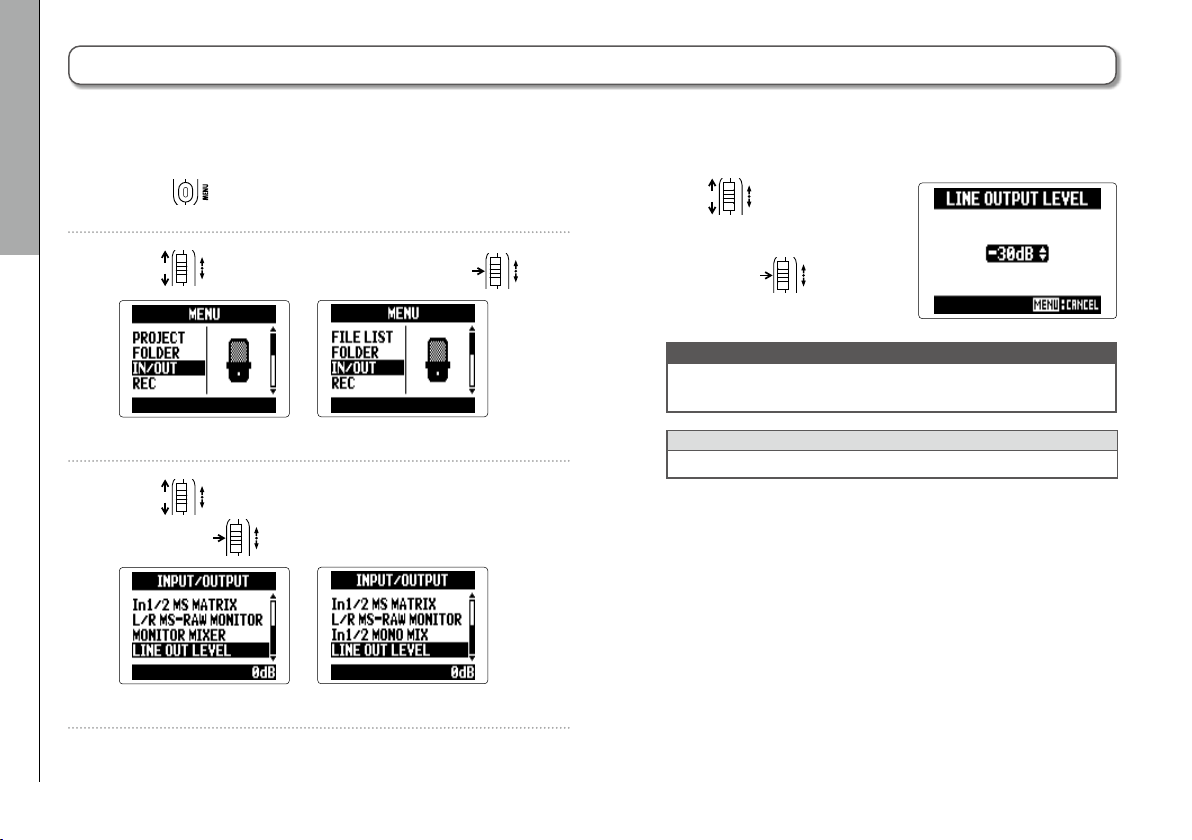

Lowering the line output level ..................................84

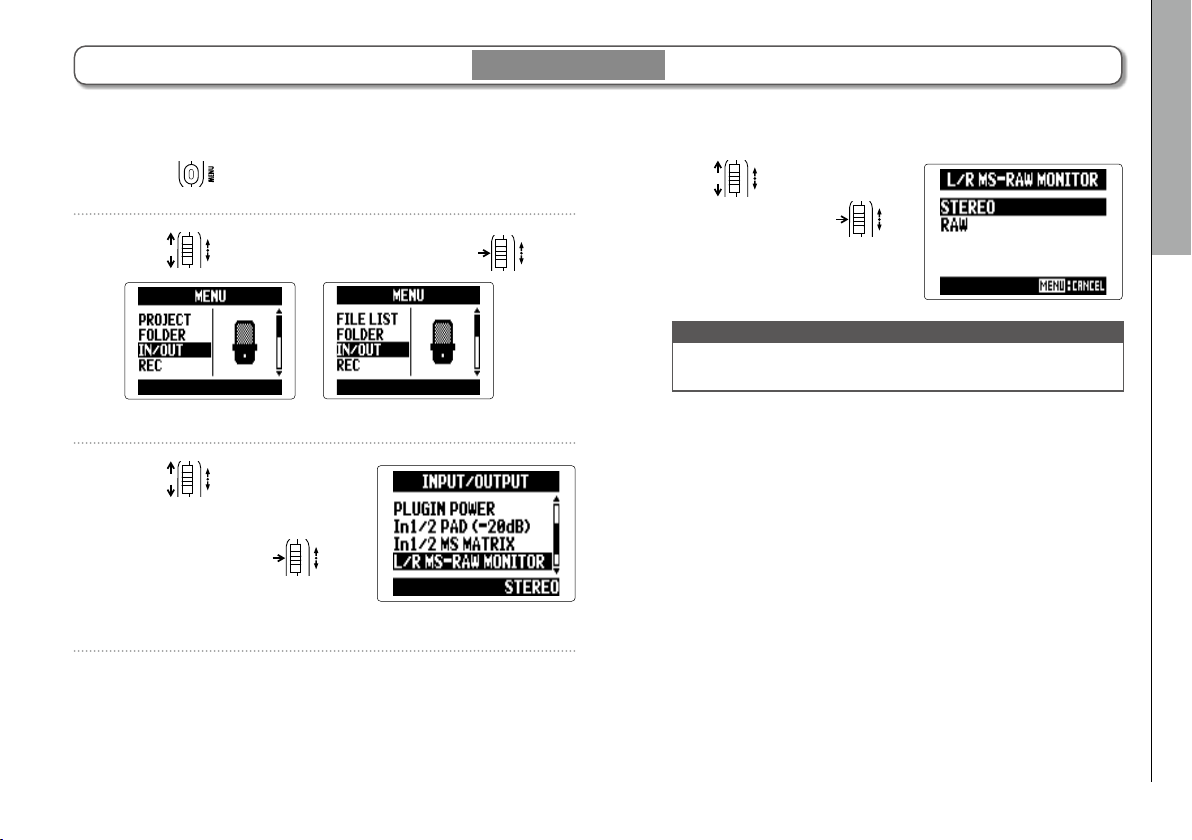

Monitoring MS-RAW signals .....................................85

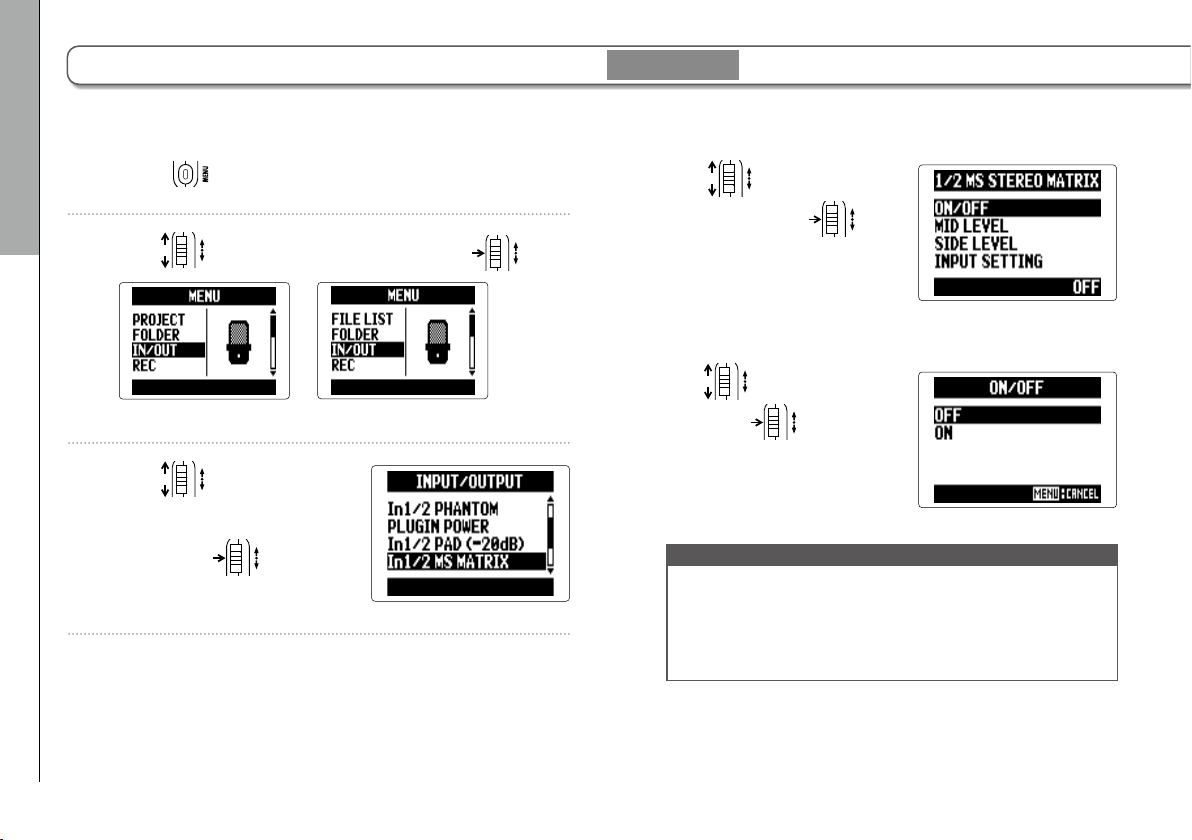

Converting input MS signals to stereo .....................86

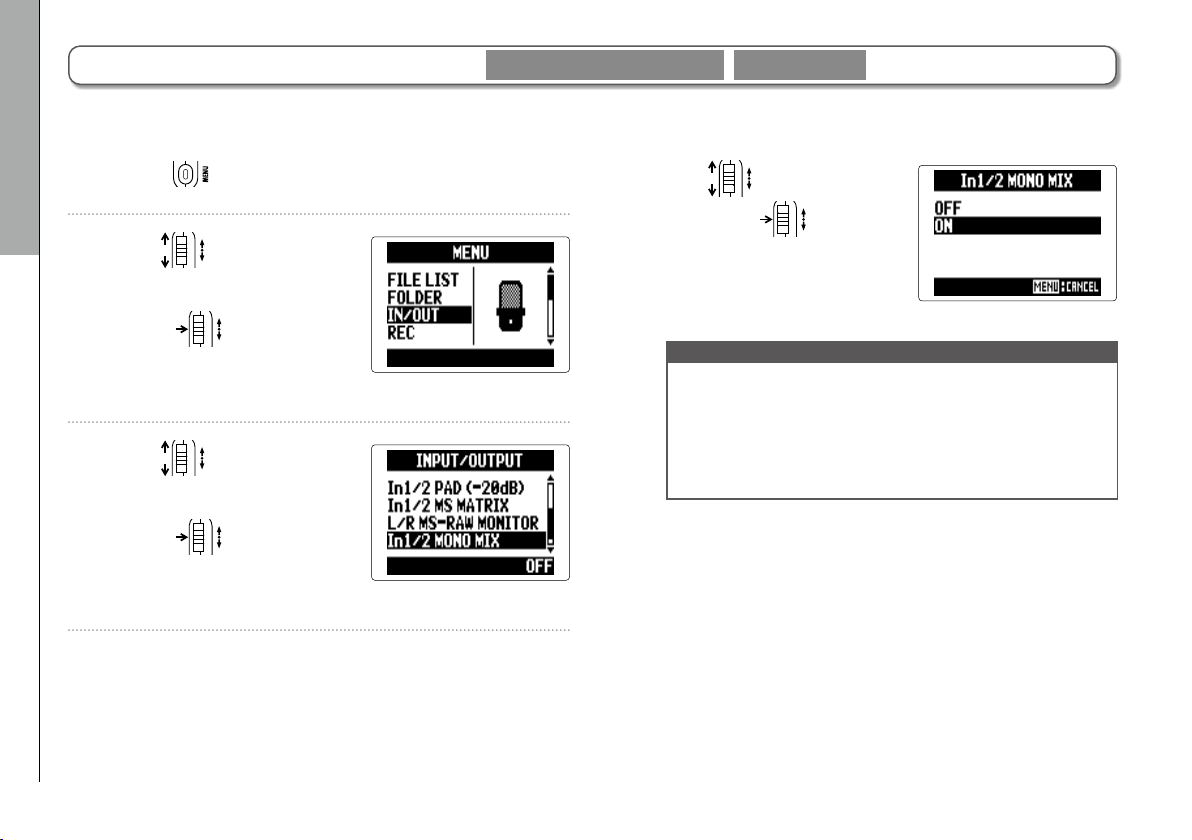

Mixing input signals to mono ...................................88

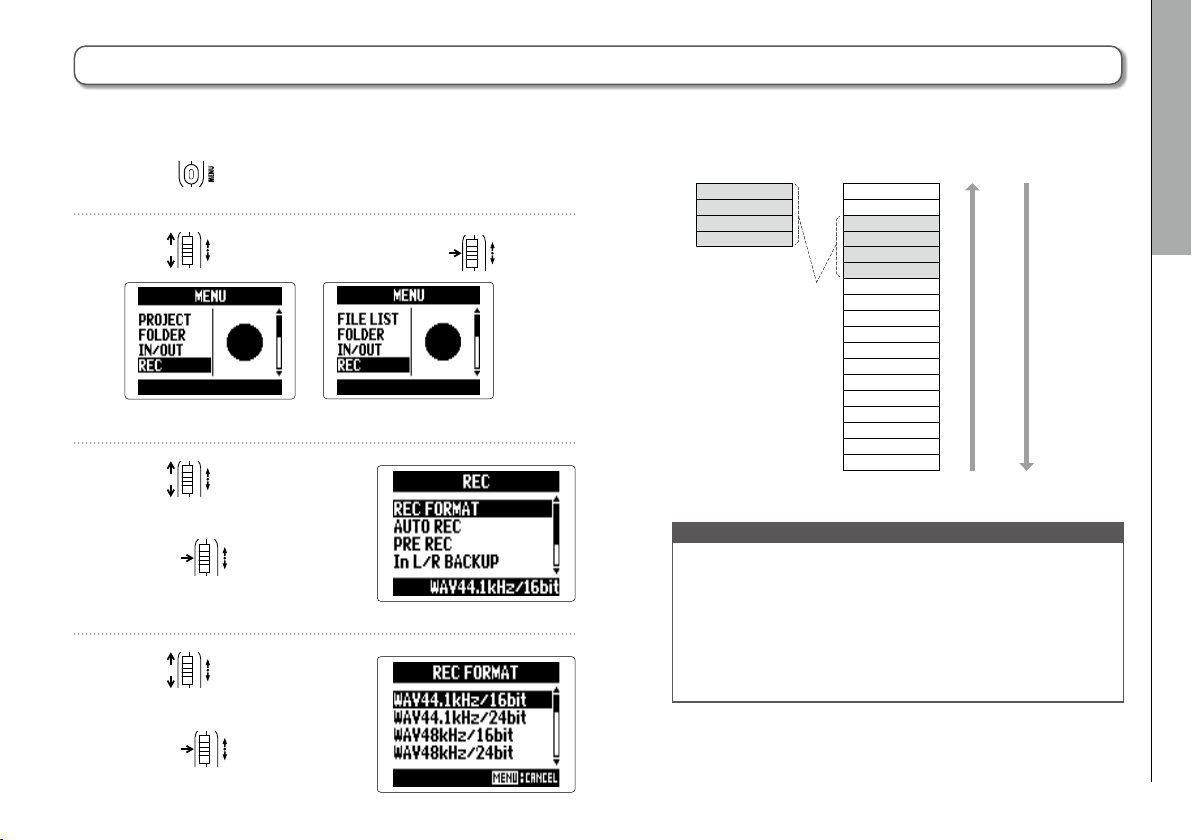

Setting the recording format .....................................89
Changing automatic recording settings ...................90
Setting the automatic recording start level...........90
Setting automatic stopping ....................................91
Setting how projects/files are named .......................92
Other settings

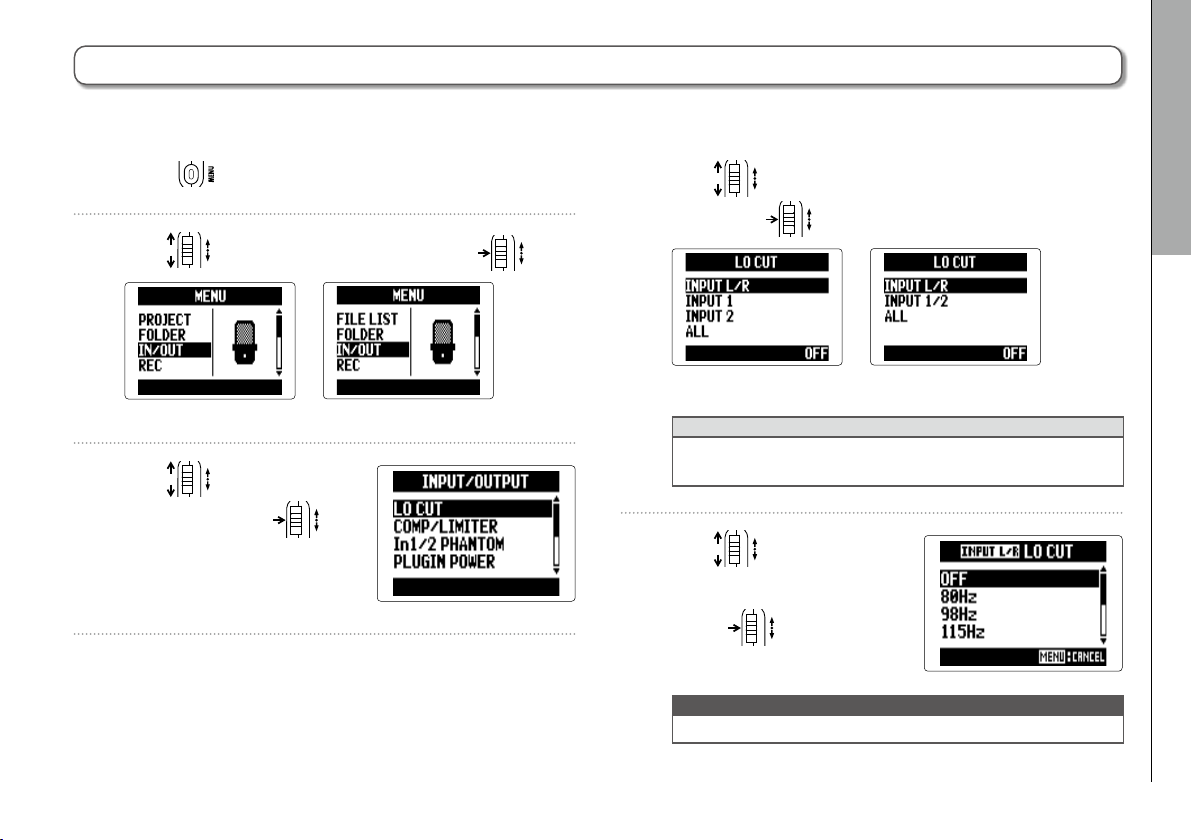

Reducing noise (low cut filter) ..................................93

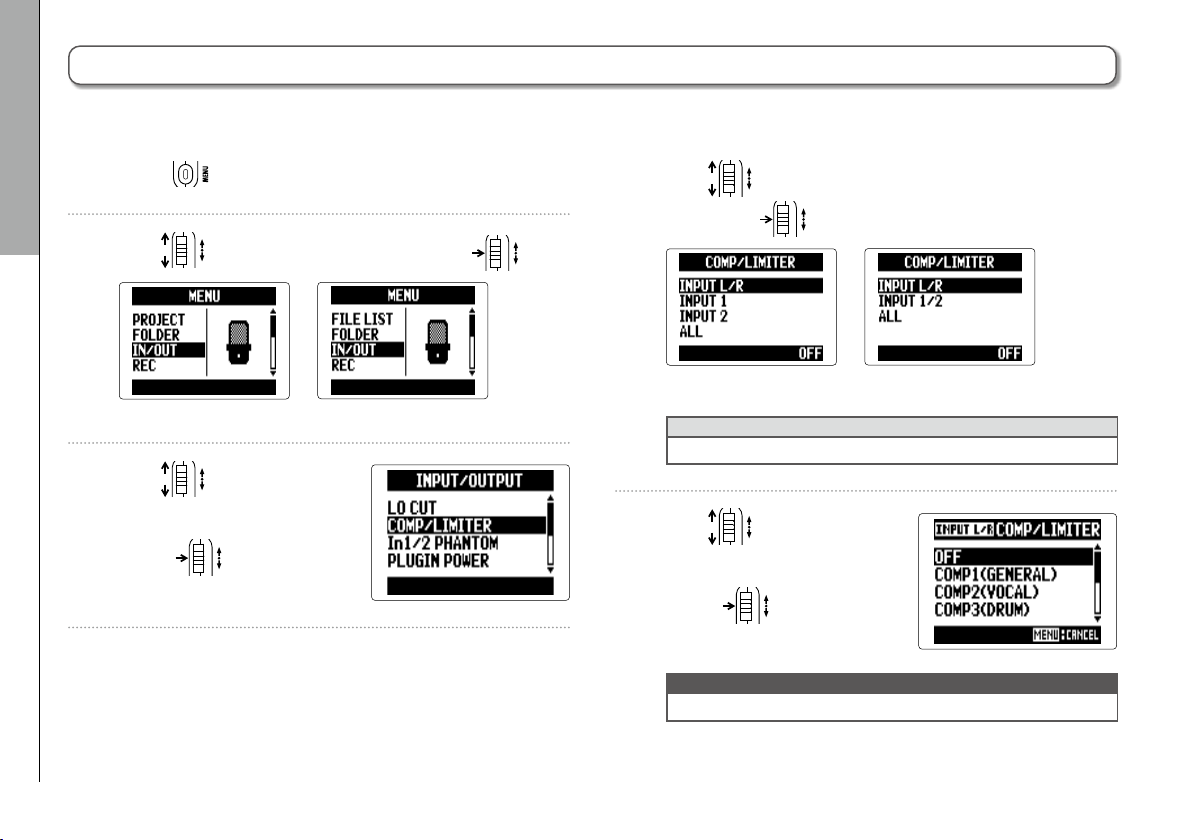

Adjusting the input level (compressor/limiter) ........94

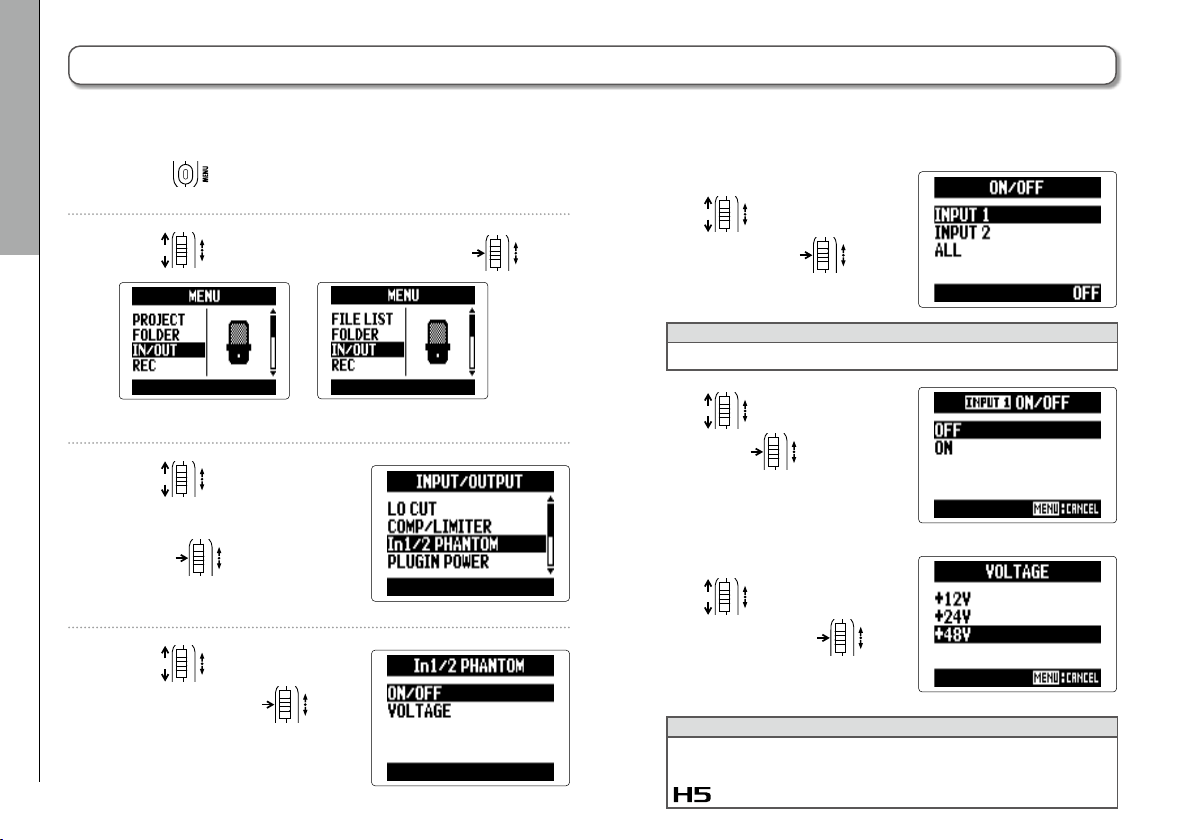

Changing the phantom power setting......................96

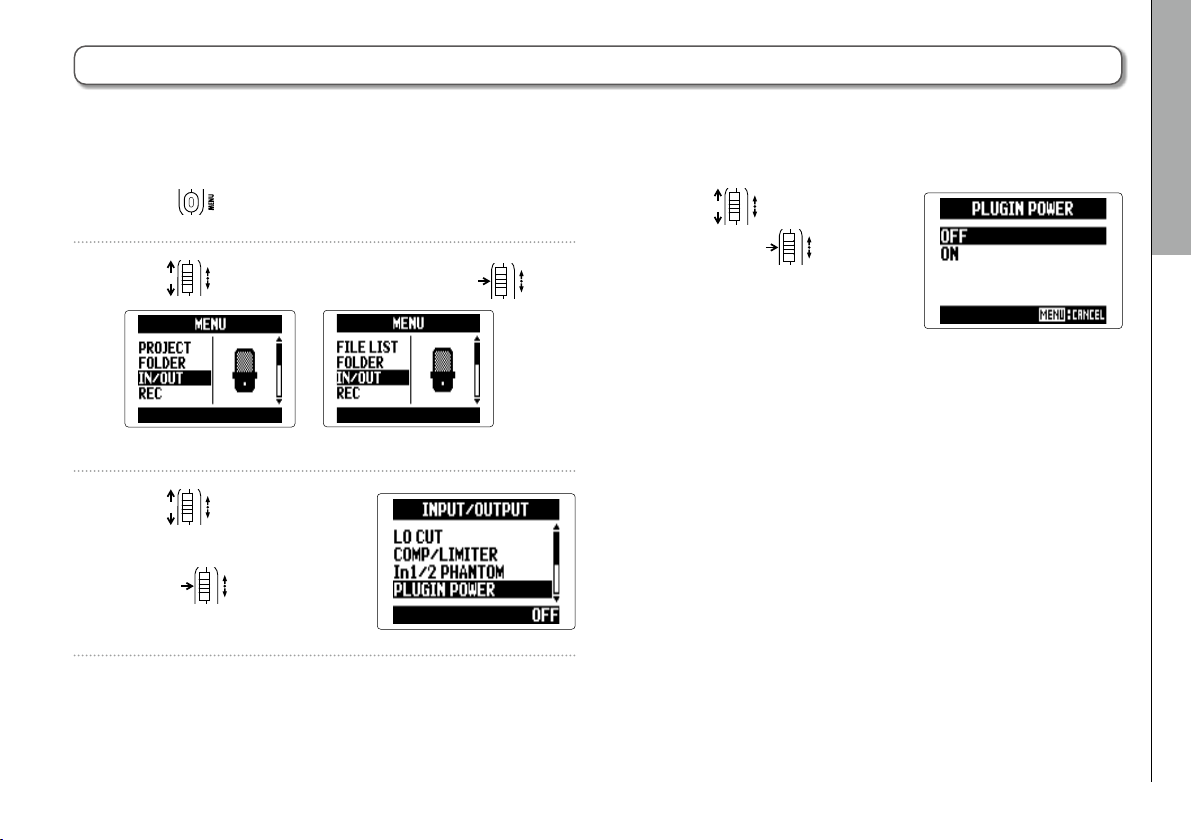

Using plug-in power ..................................................97

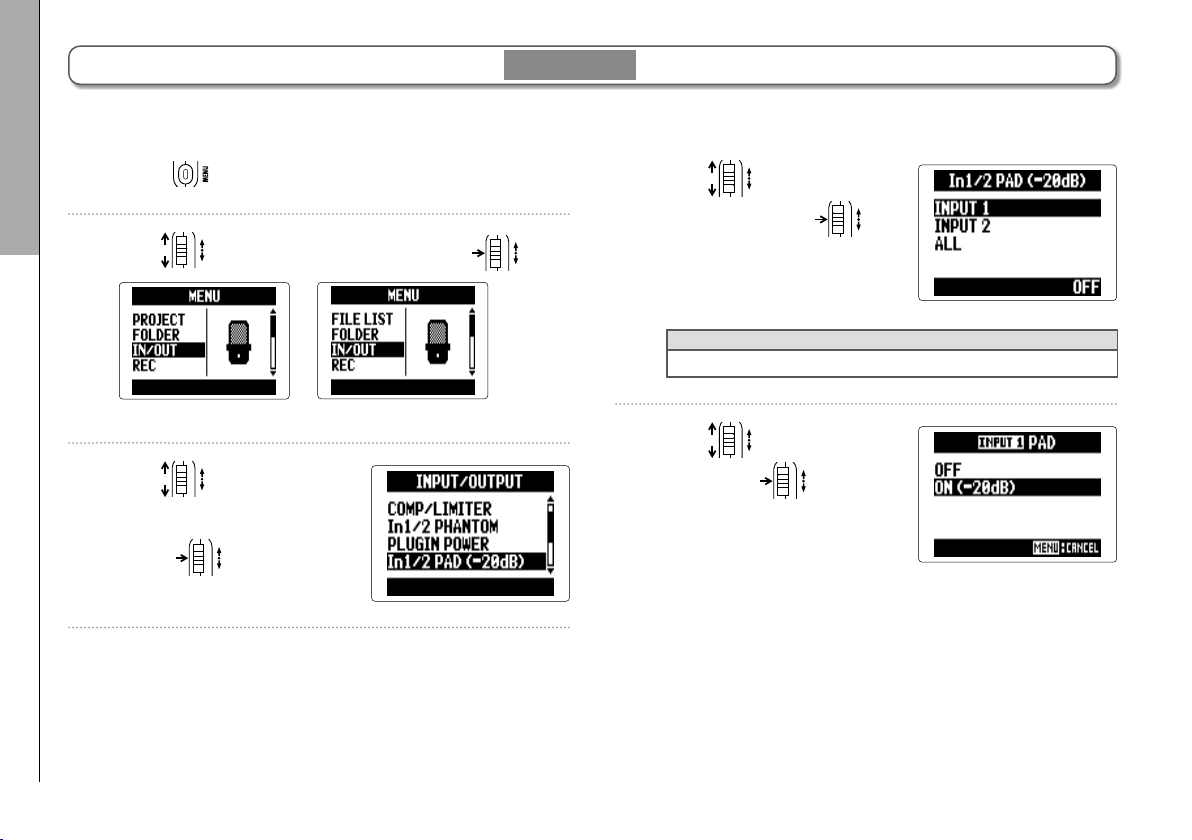

Reducing the input signal level .................................98

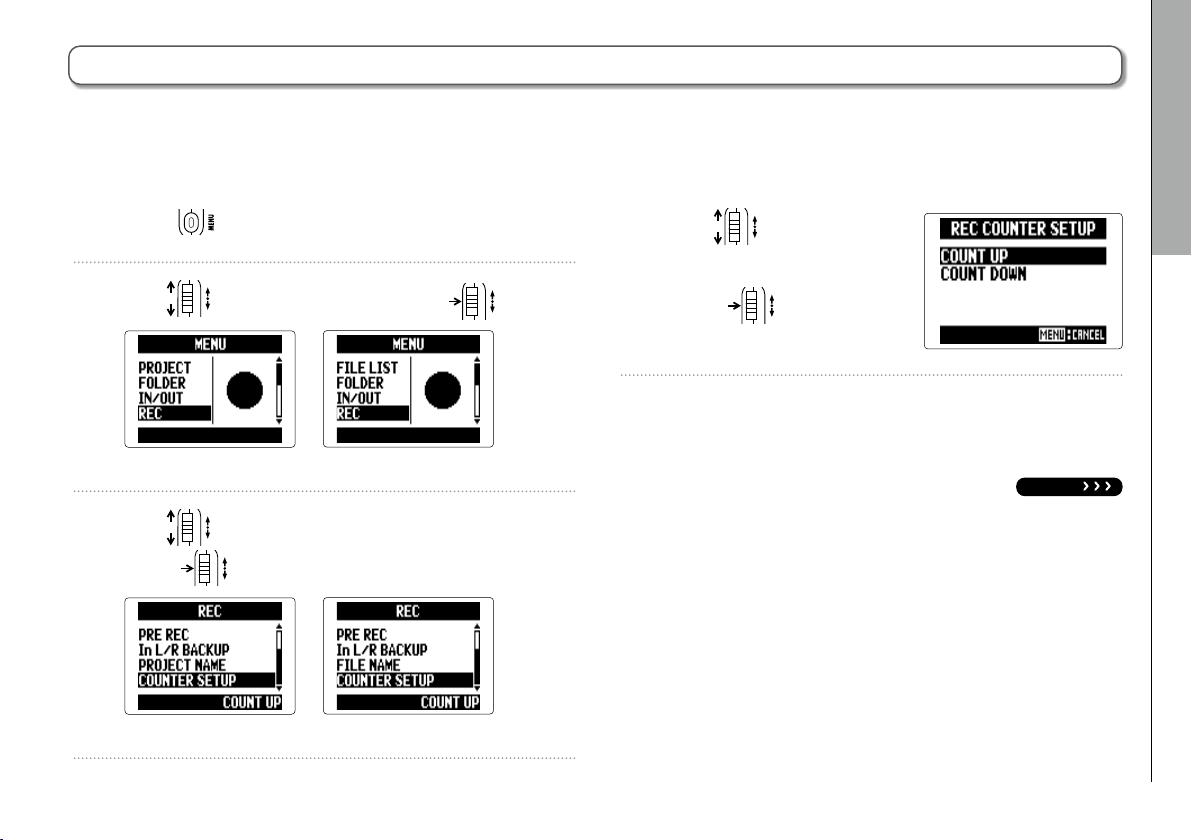

Setting the counter .....................................................99
Set how time is shown during recording ..............99

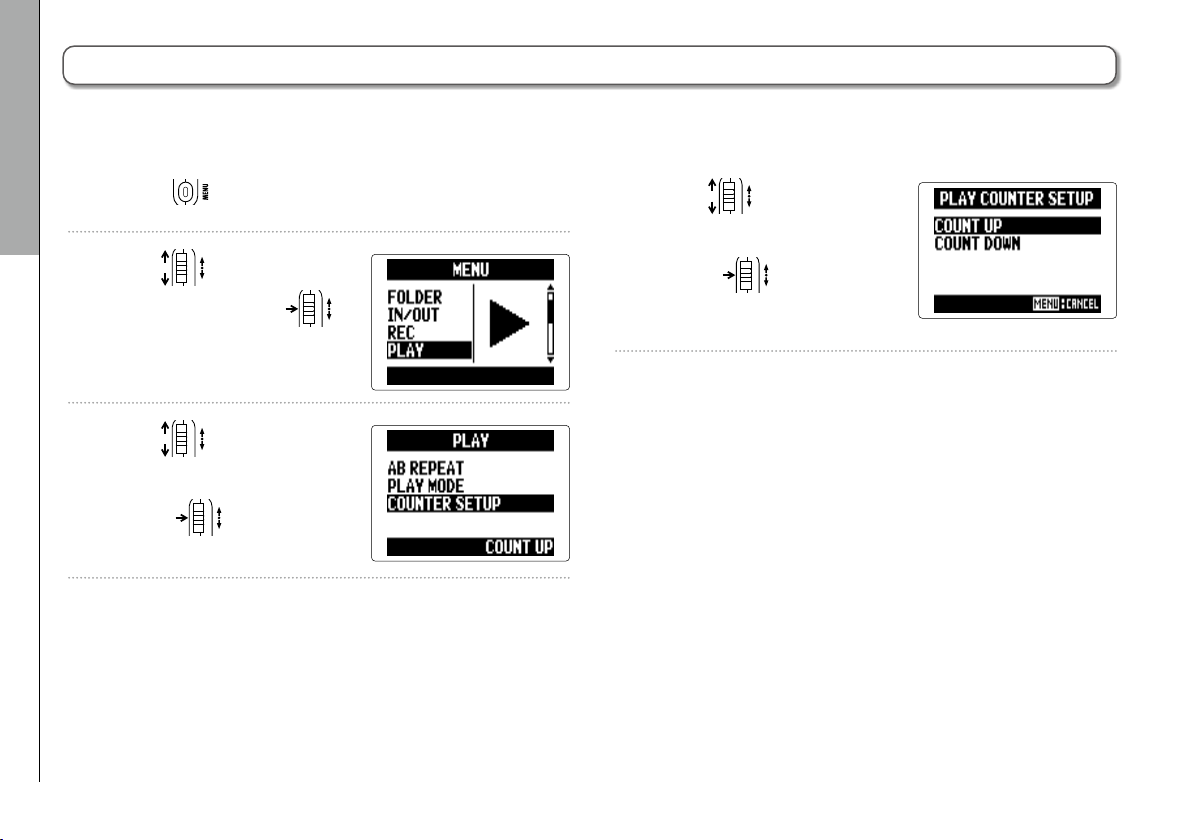

Set how time is shown during playback .............100
Changing the display backlight setting ..................101
Adjusting the display contrast ................................102
Checking the firmware versions .............................103
Restoring the default settings .................................104
Checking SD card open space .................................105
Formatting SD cards ................................................106
Testing SD card performance ..................................107
Conducting a quick test ........................................107
Conducting a full test ............................................108
Other functions
Updating the firmware ............................................ 110
Using SD cards from older H series recorders .......111
Using a remote control ............................................ 11 2
Appendices
Troubleshooting .......................................................11 3
Specifications ........................................................... 114
...................................................... 93
...................................................11 0
..........................................................11 3
04
Page 5
Left Front
Input volume L/R
Input volume 1
VOLUME button
PHONE jack
LINE OUT jack
POWER/HOLD
switch
USB port
Track buttons & indicators
(L, R, 1, 2)
Input volume 2
XY mic
STOP button
Display
PLAY/PAUSE button
Back
button
Forward
button
REC button &
indicator
H5 Handy Recorder
Names of parts
Names of parts
05
Page 6
Names of parts (continued)
Right/Back Bottom
Names of parts
REMOTE jack
Scroll button
Up/down: Select
menu items
Press: Confirm
menu selection
MENU button
Press:
Open menu,
Return to last screen
SD card slot
MIC/LINE input jack
(supports plug-in power)
Speaker (back)
Battery cover (back)
XLR TRS
3
Input 1
12
1: GND
2: HOT
3: COLD
Input 2
Strap attachment hole
TIP: HOT
RING: COLD
SLEEVE: GND
06
Page 7
Mic overview
H5 Handy Recorder
The XY mic included with the can be swapped according to your need with another input capsule.
XY mic
This has two crossing directional mics.
L R
90°
Connecting mics
While pressing the
buttons on the sides of
the mic, connect it to the
main unit, inserting it
completely.
Disconnecting mics
While pressing the
Features
Shock mount structure minimizes external vibration
•
noise.
Mic can handle sound pressure input of up to 140 dBSPL,
•
allowing it to capture sounds that previous recorders
could not.
Three-dimensional sound with natural depth and width.
•
NOTE
The XY mic has a MIC/LINE input jack that can be used to connect an external mic or line-level device. This jack can also provide plug-in power to mics that use it. (→P. 97)
buttons on the sides of
the mic, pull it out of the
main unit.
NOTE
When disconnecting a mic, do not use too much force.
•
Doing so could damage the mic or the main unit.
Recording will stop if a mic is removed during recording.
•
Mic overview
07
Page 8
Connecting mics/other devices to Inputs 1/2
In addition to the L/R inputs from the XY mic, the also has Inputs 1/2. These can be used together to record up to 4
tracks at the same time.
You can connect mics, instruments and other devices to Inputs 1/2.
Connecting instruments and other devices
Connecting mics/other devices to Inputs 1/2
L/R inputs
Input 1 Input 2
Connect keyboards and mixers directly to the Input 1/2 TRS
jacks.
Direct input of passive guitars and basses is not supported.
Connect these instruments through a mixer or effects
device.
Turn the PAD function ON when connecting a mixer or
other device with a standard output level of +4dB.
(→ P. 98)
Connecting mics
Connect dynamic mics and condenser mics to the Input 1/2
XLR jacks.
Phantom power (+12V/+24V/+48V) can be supplied to condenser mics. (→ P. 96)
08
Page 9
H5 Handy Recorder
Connection examples
Recording is possible in a variety of situations, such as the
following.
While filming
• L/R input mic: Main subject
• Shotgun/lapel mics connected to Inputs 1/2: Performer
Shotgun mic
Lapel mic
L/R
Lapel mic
1 2
Concert recording
• L/R input mic: Performance on stage
• Inputs 1/2: Line outputs from mixer
PA mixer
1 2
Connecting mics/other devices to Inputs 1/2
L/R
09
Page 10
Display overview
Home/Recording Screen
MULTI FILE Mode STEREO FILE Mode
Display overview
Status icon
Stopped
Recording
Paused
After pressing
name of project playing
(when recording, name of
recorded project)
Counter (remaining
recordable time)
(→ P. 99)
Name of input capsule
connected to L/R inputs
Backup recording
ON (→ P. 32)
Battery charge indicator
Full
After pressing
name of file playing
(when recording, name of
recorded project)
10
Folder name
Track L/R
Track 1/2
LO CUT
(→ P. 93)
COMP/
LIMITER
(→ P. 94)
MS STEREO
MATRIX
(→ P. 86)
PAD and inputs affected (→ P. 98)
Phantom power voltage and
Inputs affected (→ P. 96)
Recording format
(During use as an audio interface,
computer or iPad setting shown)
Empty
Clip
indicator
Level meter
(Recording input level)
Page 11
H5 Handy Recorder
→
Playback Screen
MULTI FILE Mode STEREO FILE Mode
Status icon
Playing
Paused
Folder name
Stereo track
Mono track
Level meter
(playback level)
Playback format
Counter (elapsed
or remaining
playback time)
(→ P. 100)
Name of playing
project
Key control
P. 42)
(
Name of input capsule
connected to L/R inputs
Battery charge indicator
Clip
indicator
A-B repeat (→ P. 46)Playback speed (→ P. 44)
Name of playing file
Display overview
11
Page 12
Preparations
Supplying power
Using batteries
1. Turn the power off and then remove the battery
cover.
Supplying power
Push down
and open
2. Install the batteries.
3. Replace the battery cover.
NOTE
Use alkaline batteries or
•
rechargeable NiMH batteries.
If the battery indicator
•
becomes empty, turn the
power off immediately and
install new batteries.
Set the type of battery being
•
used. (→ P. 17)
12
Using an AC adapter
1. Connect a USB cable to the USB port.
2. Plug the adapter into an outlet.
Page 13
H5 Handy Recorder
Loading an SD card
1. Turn the power off and then open the SD card slot
cover.
2. Insert the SD card into the slot.
To eject an SD card:
Push the card fur ther into the slot and then pull it out.
NOTE
Always turn the power off before inserting or remov-
•
ing an SD card. Inserting or removing a card while the
power is on could result in data loss.
When inserting an SD card, be sure to insert the correct
•
end with the top side up as shown.
If an SD card is not loaded, recording and playback are
•
not possible.
See “Formatting SD cards”. (→ P. 106)
•
Preparations
Loading an SD card
13
Page 14
Preparations
Turning the power on and off
Turning the power on
1. Slide to .
Turning the power on and off
NOTE
The first time you turn the power on after purchase, you
•
must set the date/time. (→ P. 16)
If “No SD Card!” appears on the display, confirm that
•
the SD card is inserted properly.
If “Card Protected!” appears on the display, the SD card
•
write-protection is enabled. Slide the lock switch on the
SD card to disable write-protection.
If “Invalid SD Card!” appears on the display, the card is
•
not correctly formatted. Format the card or use a differ-
ent card. See “Formatting SD cards”. (→ P. 106)
Turning the power off
1. Slide to .
NOTE
Keep sliding the switch until "Goodbye See You!" appears.
14
Page 15
H5 Handy Recorder
Using the hold function
The has a hold function that disables the buttons in order to prevent accidental operation during recording.
Preparations
Activating the hold function
1. Slide to HOLD.
NOTE
A remote control can still be used even when the hold
function is active.
Deactivating the hold function
1. Slide to the center.
Turning the power on and off
15
Page 16
Preparations
Setting the date and time
By setting the date and time, the recorder can store the recording date and time in files.
*
1. Press .
2. Use to select
Setting the date and time
“SYSTEM”, and
press
3. Use to select
“DATE/TIME”, and
press
4. Change the setting.
■ Changing settings
.
Move cursor: Move
Change item value: Press
move
.
Confirm change: Press
up and down
, then
up and down
5. Press
This completes setting the date and time.
*The first time you turn it on after purchase, you must set the
date and time.
16
Page 17
H5 Handy Recorder
Setting the type of battery used
Set the type of battery used so that the amount of remaining battery charge can be shown accurately.
1. Press .
2. Use to select
“SYSTEM”, and
press
.
4. Use to select
the type, and
press
.
3. Use to select
“BATTERY TYPE”,
and press
.
Preparations
Setting the type of battery used
17
Page 18
Recording
Recording process
Recording follows the process shown below.
When using the
MULTI FILE mode, recording and playback data is handled in units called projects.
In STEREO FILE mode, this data is handled in file units.
Recording process
18
Connect
• Connect the XY mic.
(→ P. 7)
• Connect mics,
instruments and
other equipment to
INPUTS 1/2. (→ P. 8)
1. Set the recording mode (→ P. 20)
• Select MULTI FILE mode or STEREO FILE mode.
The file types and formats of recordings differ
according to the mode selected.
• You can also make settings for automatic
recording (→ P. 27), pre-recording (→ P. 29),
backup recording (→ P. 32), low cut (→ P. 93),
the compressor/limiter (→ P. 94) and the
metronome (→ P. 80), for example.
Turn power
on (→ P. 14)
Prepare to
record
• Start recording:
• Stop recording:
• You can also
make mark settings.
(→ P. 24)
• Pause recording:
2. Select the recording tracks (→ P. 22)
• Use the track buttons to select tracks. When the
selected track indicator lights red, the input signal
can be monitored.
• In MULTI FILE mode, you can also press both
INPUT 1 and 2 track buttons at the same time to
use them as a stereo track (stereo link).
Record
(→ P. 24)
Playback
and check
(→ P. 38)
• Start playback:
• Stop playback:
• Make settings for marks
(→ P. 39), AB repeat (→ P. 46),
playback speed (→ P. 44),
playback pitch (→ P. 42),
playback mode (→ P. 41), and
the project mixer (→ P. 48) as
desired .
Overdub
and edit
• You can also, for
example, overdub
(→ P. 33), mix
down to a stereo
file (→ P. 54) and
check project/file
information.
3. Adjust input levels
• For each input, use
• Adjust them so that the level meter stays near
−12 dB when the loudest sound is input.
• You can, for example, also adjust the side mic level
(when using an MS capsule) (→ P. 31).
Page 19
H5 Handy Recorder
Recording mode overview
The has two recording modes: MULTI FILE and STEREO FILE.
The file types and formats of recordings differ according to the mode.
MULTI FILE mode
The L/R inputs from the XY mic or other input capsule are
recorded to the L/R tracks, and Inputs 1/2 are recorded to
tracks 1/2 as separate files.
Since the signals from the inputs are recorded to separate
files, you can change their playback volumes and positions,
for example, independently after recording.
Only 44.1/48kHz WAV formats (16/24-bit) can be selected when
recording in MULTI FILE mode.
HINT
By linking Inputs 1 and 2, you can also record them together as
a single stereo file. When Inputs 1 and 2 are linked, two stereo
files will be created. One for the L/R inputs and one for the 1/2
Inputs.
L/R
ZOOM0001_TrLR.WAV
♪
(Stereo)
ZOOM0001_Tr1.WAV
♪
ZOOM0001_Tr2.WAV
♪
21
M
I
X
E
R
STEREO FILE mode
The L/R inputs from the XY mic or other input capsule and
Inputs 1/2 are recorded together as a single stereo file.
In this mode, only two tracks can be recorded, but you can
select the recording format freely according to your purpose. (→ P. 89)
Use this mode when you want the highest audio quality or
you need smaller files.
L/R
Recording
Recording mode overview
ZOOM0001.WAV
♪
(Stereo)
21
Recording format limited to 44.1/48kHz 16/24bit WAV
96kHz 16/24bit WAV and MP3 recording formats also okay
19
Page 20
Recording
Selecting the recording mode
1. Press .
2. Use to select
REC MODE,
Selecting the recording mode
and press
3. Use to select the
recording mode,
.
20
and press
.
Page 21
H5 Handy Recorder
Folder and file structure on the H5
When recording with the , folders and files are created on the SD card in the following manner.
Root
MULTI FILE
mode folder
MULTI
Select FOLDER01-10
as the place to save
STEREO
projects
♪
ZOOM0001.WAV
♪
ZOOM0002.WAV
Project name: ZOOM0002
Backup recording: No
INPUTS 1/2: Mono
Stereo file of signals
recorded from L/R inputs
♪
ZOOM0002_TrLR.WAV
ZOOM0002_Tr1.WAV
ZOOM0002_Tr2.WAV
ZOOM0002.hprj
Stereo file of signals
recorded from L/R inputs
Stereo file of signals
recorded from INPUTS 1/2
♪
♪
Mono file of signal
recorded from INPUT 1
Mono file of signal
recorded from INPUT 2
Project setting file
FOLDER02
FOLDER02 FOLDER10
Project name: DualStereo
Backup recording: Yes
INPUTS 1/2: Stereo
ZOOM0003
ZOOM0003_TrLR.WAV
ZOOM0003_Tr12.WAV
ZOOM0003_TrLR_BU.WAV
DualStereo.hprj ZOOM0006.hprj
♪
ZOOM0001.WAV
♪
ZOOM0001_BU.WAV
♪
ZOOM0002_MN.WAV
Stereo file of signals
recorded from L/R inputs
♪
Stereo file of signals
recorded from stereo-linked
INPUTS 1/2
♪
L/R inputs backup file
♪
The setting file name
is the same as the
project name
Stereo file of signals
recorded from L/R inputs
ZOOM0001.WAV
backup file
Stereo WAV file of mono
mix recording of signals
from INPUTS 1/2
FOLDER03
Project name:
Backup recording: No
Voice memo: Yes
ZOOM0004
♪
ZOOM0004_TrLR.WAV
♪
ZOOM0004_VM.MP3
140531-163015.hprj LongRecording.hprj
♪
140101-120000.MP3
♪
140101-120500.MP3
140531-163015
Stereo file of signals
recorded from L/R inputs
Voice memo recording file
Project
when project
naming is set to “DATE”
MP3 file when file
naming is set to “DATE”
MP3 file when file
naming is set to “DATE”
ZOOM0005
ZOOM0005_TrLR-0001.WAV
ZOOM0005_TrLR-0002.WAV
FOLDER04
Project name:
Backup recording: No
Created if recording exceeds 2 GB
♪
♪
ZOOM0001.WAV
ZOOM0002.WAV
ZOOM0003.WAV
LongRecording
First file when recording
exceeds 2 GB
Second file when recording
exceeds 2 GB
First file when recording
exceeds 2 GB
♪
Second file when recording
exceeds 2 GB
♪
Third file when recording
exceeds 2 GB
♪
STEREO FILE
mode folder
FOLDER01
ZOOM0001 ZOOM0002
A new project is created for
each recording. Folders are
created for each given
project on the SD card and
named ZOOM0001-9999.
FOLDER01
Project name: ZOOM006
Backup recording: No
Additional recording created
ZOOM0006
♪
ZOOM0006_TrLR.WAV
♪
ZOOM0006_Tr12-01.WAV
♪
ZOOM0006_ST001.WAV
First stereo file recorded
to L/R track
Additional stereo file
recorded to 1/2 tracks
Stereo file created by
mix down
FOLDER10
Recording
Folder and file structure on the H5
21
Page 22
Recording
R
2
2
2
Selecting inputs and adjusting levels
Select whether to use the L/R inputs and Inputs 1/2.
In MULTI FILE mode, the L/R inputs will be recorded to the L/R tracks and Inputs 1/2 will be recorded to tracks 1 and 2.
1. Press the buttons of the tracks that you want to
record.
Selecting inputs and adjusting levels
3
3
1,2
HINT
The indicators of the selected track buttons light red, and
you will be able to monitor the signals input on these tracks
through the headphones and line outputs.
NOTE
In STEREO FILE mode, you can select the L/R inputs by
•
pressing the
pressing the
In STEREO FILE mode, the L/R inputs and the Inputs 1/2
•
are selected in pairs. You cannot select just one of either
pair.
When using STEREO FILE mode, skip to step 3.
or R track button and Inputs 1/2 by
L
or 2 track button.
1
22
2. To record Inputs 1/2 as a stereo file in MULTI FILE
mode, press the
holding
To deactivate the stereo link, press the 2 track button
while pressing and holding
1
2
track button while pressing and
.
1
again.
Page 23
H5 Handy Recorder
R
Recording
HINT
If a combo type input capsule is connected to the L/R
inputs, you can enable and disable the stereo link with
these tracks in the same manner by pressing the
button while pressing and holding
.
L
track
R
NOTE

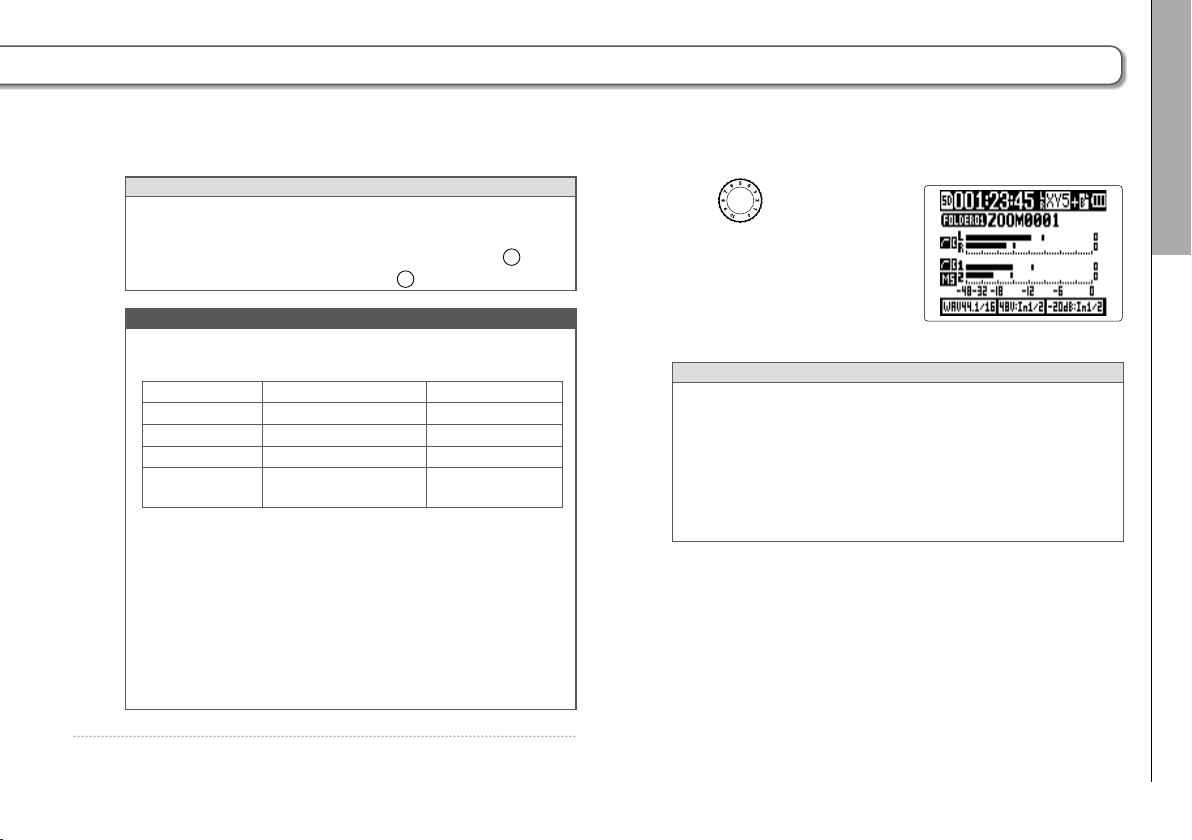

When using MULTI FILE recording mode
Files are created for each selected input as follows.
•
Track recorded
L/R input
Input 1
Input 2
Input 1/2
File name Description
ZOOMnnnn_TrLR.WAV
ZOOMnnnn_Tr1.WAV
ZOOMnnnn_Tr2.WAV
ZOOMnnnn_Tr12.WAV
Stereo file
Mono file
Mono file
Stereo file
(stereo setting)
Note: “nnnn” in the file name is the project number
All the files that are created during the same recording
•
in MULTI FILE mode are managed as a single project
unit.
When using STEREO FILE recording mode
Files are created for each selected input as follows.
•
ZOOMnnnn.WAV/ZOOMnnnn.MP3 (stereo file)
Note: “nnnn” in the file name is the file number
In STEREO FILE mode, this data is managed in file units.
•
3. Tur n for the
selected input to adjust
the input level.
HINT
Adjust so that the peak level stays around −12dB.
•
If the sound distorts even when you lower the input
•
level, try changing mic positions and adjusting the
output levels of connected devices.
The COMP/LIMITER function can be used. (→ P. 94)
•
Noise from wind and other sources can be cut during
•
recording. (→ P. 93)
Selecting inputs and adjusting levels
MULTI FILE mode
23
Page 24

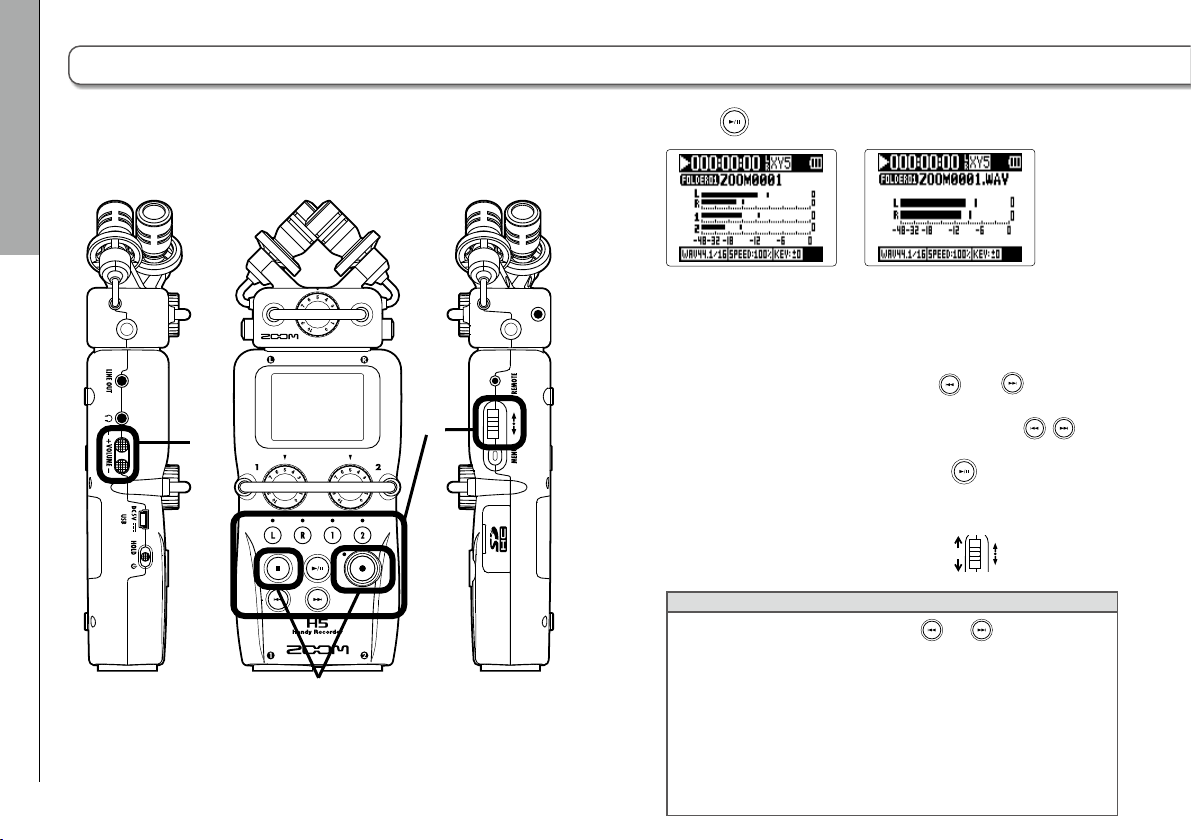

Recording
Recording
1. Press .
Recording
24
3
4
1
2
MULTI FILE mode
This starts recording.
STEREO FILE mode
2. Press to add a mark that can be used as a
reference during playback.
HINT
During playback, you can press
places where marks have been added.
NOTE
Marks can only be added to WAV format files.
•
and to jump to
3. Press to pause.
NOTE
When recording is paused, a mark is added at that point.
•
Press
•
to resume recording.
Page 25
4. Press to stop.
NOTE
In MULTI FILE mode, a maximum of 99 marks can be
•
added to a single project. In STEREO FILE mode, a
maximum of 99 marks can be added to a single file.
If the file size exceeds 2 GB when recording in MULTI
•
FILE mode, a new file will be created automatically in
the same project and recording will continue without
pause. When this happens, numbers will be added to the
ends of the file names: “-0001” for the first file, “-0002”
for the second file and so on.
If the file size exceeds 2 GB when recording in STEREO
•
FILE mode, a new file will be created automatically in
the same folder and recording will continue without
pause.
H5 Handy Recorder
Recording
Recording
25
Page 26
Recording
Setting where projects/files are saved
Choose one of ten folders as the folder where new recorded projects (in MULTI FILE mode) and files (in STEREO FILE
mode) will be saved.
1. Press .
2. Use to select “FOLDER", and press .
Setting where projects/files are saved
MULTI FILE mode
3. Use to select the
folder where you want to
save, and press
26
STEREO FILE mode
.
Page 27
H5 Handy Recorder
Recording automatically
Recording can be started and stopped automatically in response to the input level.
1. Press .
4. Use to select “ON/
OFF", and press
2. Use to select “REC", and press .
5. Use to select “ON",
MULTI FILE mode
STEREO FILE mode
and press
3. Use to select
“AUTO REC", and
press
.
NOTE
Other automatic recording function settings can be
changed. (→ P. 90)
Recording
.
Recording automatically
.
NEXT
27
Page 28
Recording

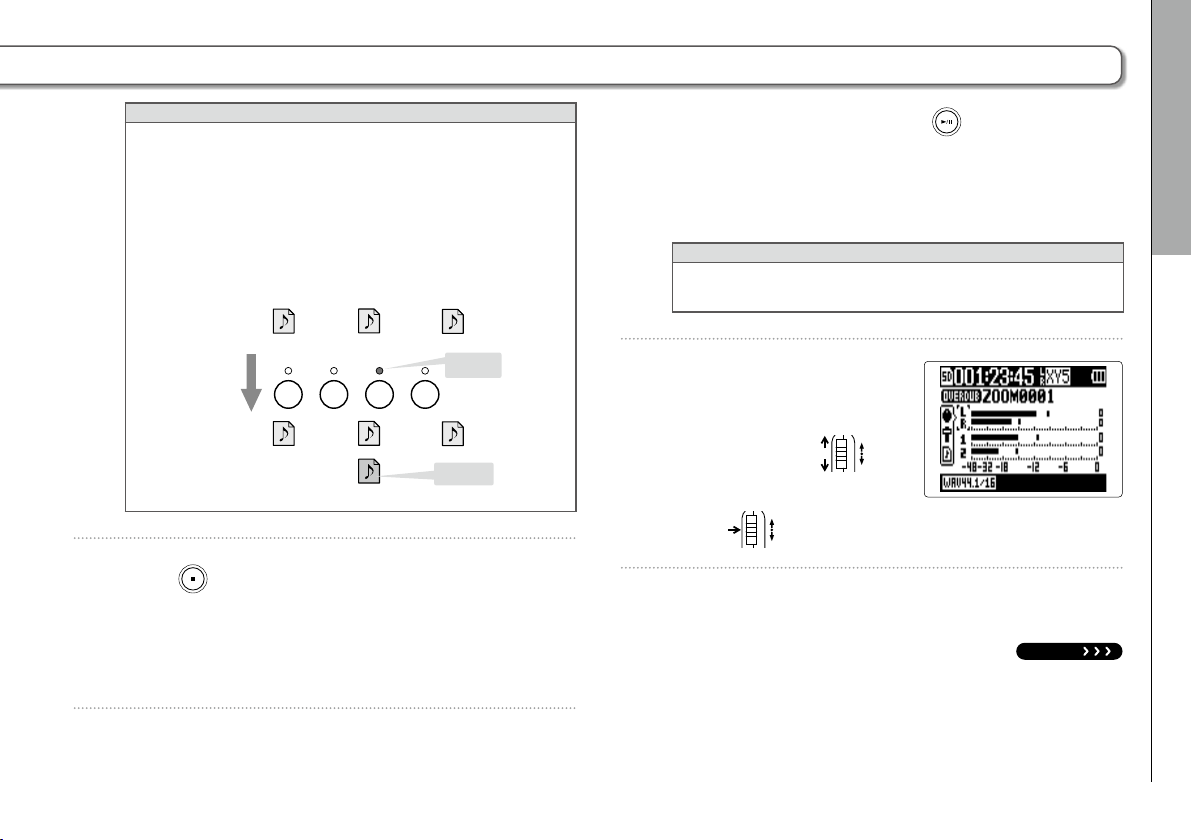

Recording automatically (continued)
6. Return to the Home Screen.
A dotted line appears at the automatic recording
star t level.
HINT
When the input exceeds the set level (shown on the level
meters), recording starts automatically. You can also set
the recording to stop automatically when the input goes
below a set level. (→ P. 91)
Recording automatically
7. Press .
28
MULTI FILE mode
Recording standby starts.
MULTI FILE mode
STEREO FILE mode
STEREO FILE mode
8. Press when you want to end standby
or stop recording.
MULTI FILE mode
NOTE
This cannot be used at the same time as the PRE REC,
METRONOME and PRE COUNT functions. When AUTO
REC is turned ON, these other functions will be disabled.
STEREO FILE mode
Page 29
H5 Handy Recorder
Pre-recording
By setting the recorder to constantly capture the input signal, you can start recording two seconds before pressing the
button. This is useful when, for example, a performance starts suddenly.
1. Press .
4. Use to select “ON",
and press
.
2. Use to select “REC", and press .
NOTE
This cannot be used at the same time as the AUTO REC,
METRONOME and PRE COUNT functions. If any of these
MULTI FILE mode
STEREO FILE mode
are turned ON, PRE REC will be disabled.
3. Use to select “PRE
REC", and press
.
Recording
Pre-recording
29
Page 30
Recording
Counting in before recording
A count in can be set to play before starting recording.
1. Press .
2. Use to select
Counting in before recording
“TOOL", and
press
3. Use to select
“METRONOME", and
press
4. Use to select
“PRE COUNT", and
press
.
.
5. Use to select the
precount number, and
press
.
NOTE
This cannot be used at the same time as the AUTO REC
•
function. When AUTO REC is turned ON, PRE COUNT
will be disabled.
This cannot be used at the same time as the PRE REC
•
function. When PRE COUNT is turned ON, PRE REC will
be disabled.
The count can be set to 1–8 or SPECIAL. Set to SPECIAL,
•
the precount will use the following pattern.
.
30
Page 31
H5 Handy Recorder
Adjusting the side mic level
MS capsule only
When using an input capsule that allows the side mic level (stereo width) to be adjusted, such as an MS capsule, you can
adjust the side mic level before recording.
1. Use to adjust the side mic level
RAW mode
Wide
Icon changes
with the value
Narrow
NOTE
Set to Off, −24 to +6 dB, or MS-RAW mode.
•
When recording in MS-RAW mode, during playback
•
move
However, this format is different from an ordinary stereo file,
•
so you will need to use ZOOM MS Decoder or other software
that can convert it to normal stereo in order to use it with other
equipment.
MS-RAW mode can be selected only when the WAV format is
•
used for recording.
up and down to adjust the side mic level.
Recording
Adjusting the side mic level
31
Page 32
Recording
Backup recording
When using the L/R input, in addition to the recording at the set input level, the recorder can also record a separate file at a
level 12dB below. This backup can be used if the recording level was set too high, causing distortion, for example.
L/R input only
(with 44.1/48kHz WAV only)
1. Press .
Backup recording
2. Use to select “REC", and press .
MULTI FILE mode
STEREO FILE mode
3. Use to select
“In L/R BACKUP", and
press
.
4. Use to select “ON",
and press
NOTE
If the name of the original file is, for example,
•
“ZOOM0001_TrLR.wav”, the name of the backup file will
be “ZOOM0001_TrLR_BU.wav”.
A backup file will not be created if the L/R input is not
•
selected.
The LO CUT and COMP/LIMITER settings will not affect
•
the backup recording.
To play a backup recording file, select and play the file
•
with "_BU" added to the end of the file name. (For MULTI
FILE mode, see step 12 → P. 35. For STEREO FILE
mode, see→ P. 40.)
HINT
Using backup recording will increase the amount of SD
card space used.
.
32
Page 33

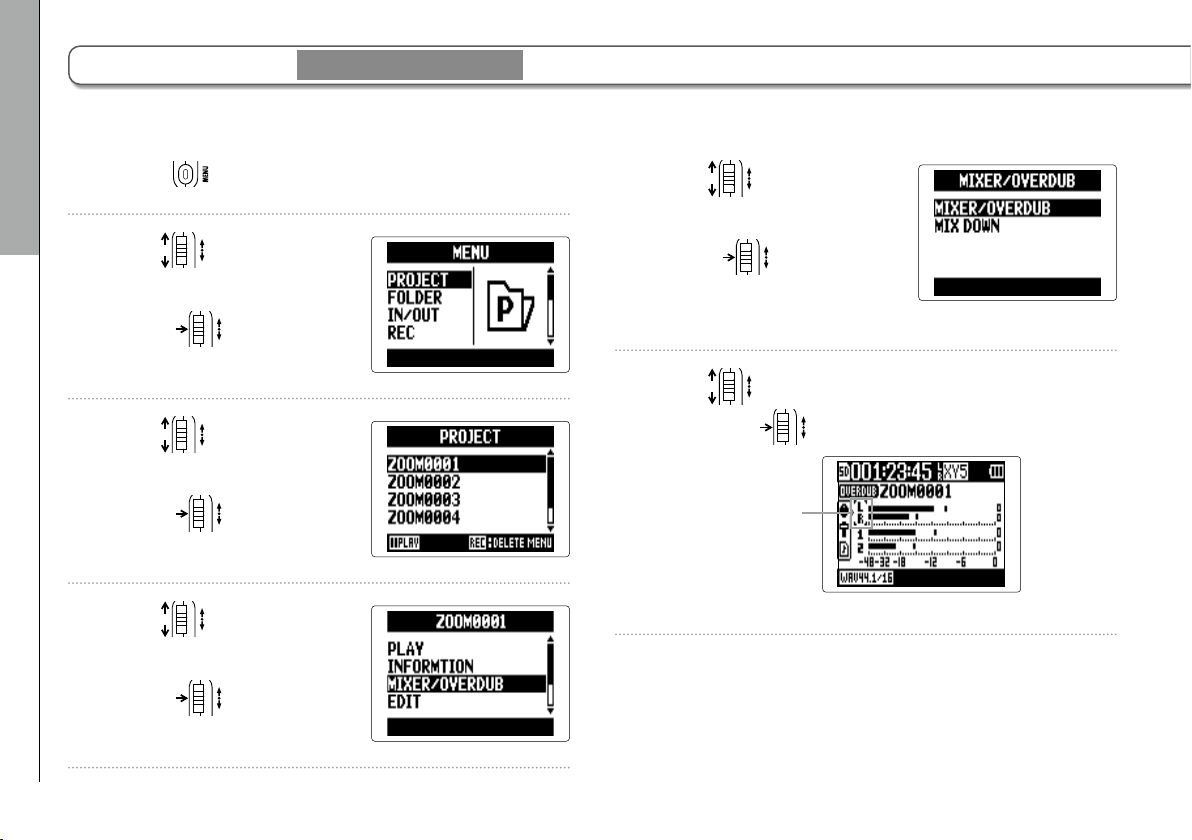

Overdubbing
You can add recordings later to an already recorded project.
MULTI FILE mode only
(with 44.1/48kHz WAV only)
H5 Handy Recorder
Recording
1. Press .
2. Use to select
“PROJECT", and
press
.
3. Use to select
the project you want
to overdub, and
press
HINT
You can only overdub recordings in projects recorded
using MULTI FILE mode.
.
4. Use to select
“MIXER/OVERDUB", and
press
.
5. Use to select
“MIXER/OVERDUB", and
press
The track button indicators light green for already
recorded tracks and are unlit for unrecorded tracks.
.
(selected track)
Shows setting
Cursor
values
Overdubbing
NEXT
33
Page 34
Recording
Overdubbing
MULTI FILE mode only
(continued)
6. Press the track button for the track you want to
overdub. Its indicator will light red.
You will now be able to monitor the input signal for the
Overdubbing
track to be overdubbed.
HINT
You can also change the Input 1/2 stereo link setting.
(→ P. 22)
7. Tu rn to adjust the input level.
8. To play back an already recorded track while over-
dubbing, press that track's button to light the indi-
cator green.
HINT
The indicators change in order: red → green → unlit.
•
In this state, if you press
•
of the selected tracks being played back along with the
input signal of the track selected in step 6. This is useful
for rehearsing and checking the input level.
You can also adjust the volume and panning of the
•
tracks that are playing back.
, you can monitor the sound
9. Press .
Overdubbing of the track selected in step 6 starts.
NOTE
The AUTO REC and PRE REC functions cannot be used
•
with overdubbing.
When using the MIXER/OVERDUB screen, the PLAY-
•
BACK SPEED and KEY CONTROL settings for the project
are disabled.
34
Page 35
HINT
Even if the overdubbed track already had a recorded file,
the original file will not be overwritten. A new file will be
created that can be assigned to any track. The name of the
new recorded file will be the track name with a two-digit
take number added to the end, like "ZOOM0001_TrLR-01.
WAV".
After you are done recording, you can assign any files to
any tracks.
Project folder
ZOOM0002_TrLR.WAV
ZOOM0002_Tr1.WAV
ZOOM0002_Tr2.WAV
Overdub
using track 1
21RL
Project folder
ZOOM0002_TrLR.WAV
ZOOM0002_Tr1.WAV
ZOOM0002_Tr1-01.WAV
ZOOM0002_Tr2.WAV
File added to
project
H5 Handy Recorder
11
. To check the recording, press .
The audio from tracks with indicators that are lit green
will play back.
HINT
By using the MIX DOWN function, you can combine overdubbed recordings into a stereo file. (→ P. 54)
12. To change the track
that the recording file is
assigned to, use
to select the track, and
Recording
Overdubbing
10
. Press to stop.
The track selected for overdubbing in step 6 will no longer
be record ready and its indicator will light green.
press
.
NEXT
35
Page 36
Recording
Overdubbing

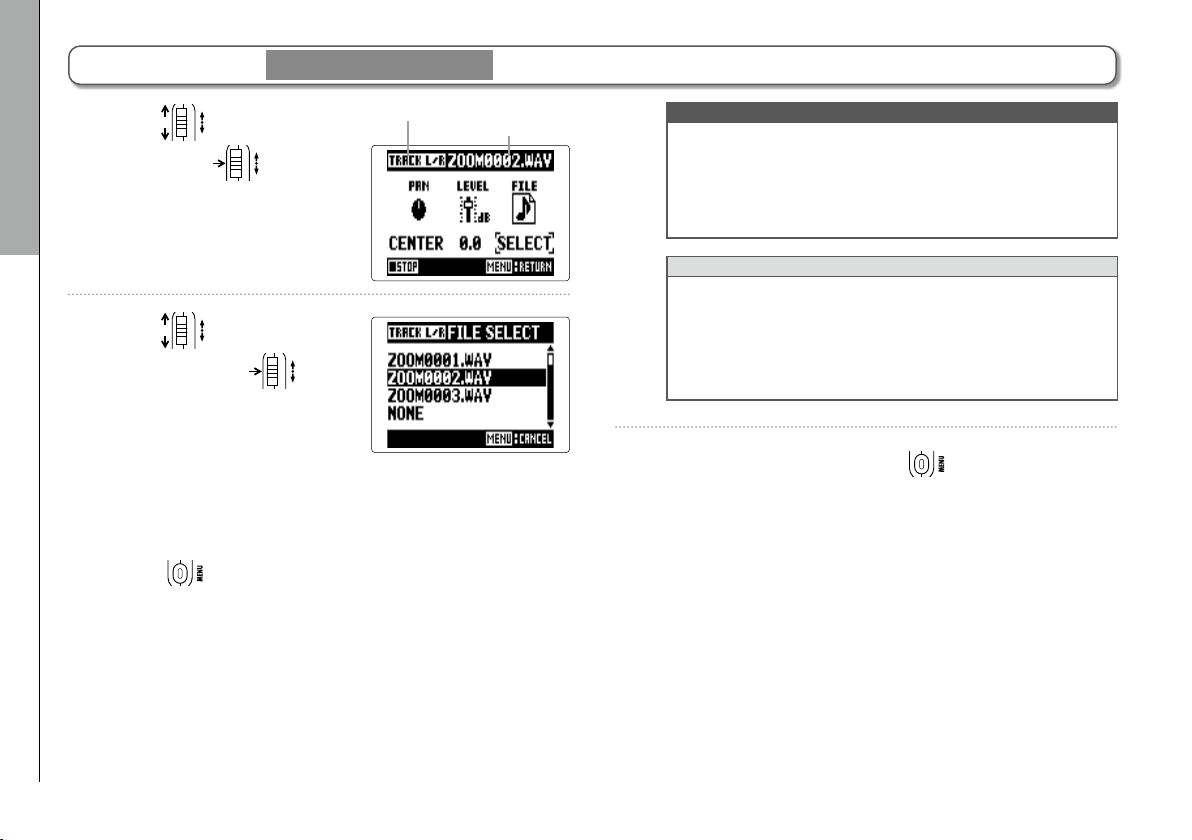

13. Use to select FILE,
and press
MULTI FILE mode only
Track name
.
(continued)
Name of
assigned file
NOTE
If the selected track is stereo, you can only assign a
•
stereo file to it. If it is mono, you can only assign a
mono file.
Files recorded in MS RAW mode cannot be assigned to
•
tracks 1/2.
Overdubbing
14. Use to select the
file, and press
From the same project folder, select the WAV file that you
want to assign to the track.
Press
36
to cancel file assignment.
HINT
By selecting "NONE", you can also remove an assigned
•
file from a track.
By selecting and playing back a mixed down file while
•
.
15
overdubbing new tracks, you can layer recordings
repeatedly. (→ P. 54)
. To end overdubbing, press .
After adding a recording, the audio files assigned to the
tracks will be used when playing back and editing the
project.
Page 37
H5 Handy Recorder
Recording
Overdubbing
37
Page 38
Basic playback
Playback
1. Press .
Basic playback
1
1
2
38
MULTI FILE mode
■ Controls during playback
Selec t playback project/file
or move to a mark: Use
Search forward/backward: Press and hold /
Pause/resume playback: Press
Change side mic level:
(MS-RAW mode only) Move up/down
HINT
The longer you press and hold
•
searching backward/forward becomes.
In MULTI FILE mode, during playback you can press track
•
buttons to unmute (lit green) and mute (unlit) them.
If there is a problem with the selected project /file,
•
"Invalid Project!" or "Invalid File!" will appear on the
display.
If there is not even one project /file that can be played,
•
"No Project!" or "No File!" will appear on the display.
STEREO FILE mode
and
or , the faster
Page 39
■ Add a mark during playback
H5 Handy Recorder
Playback
2. To return to the Home Screen, press or .
Press
where you want to add
a mark.
HINT
A maximum 99 marks can be added.
NOTE
Marks can only be added to WAV format files.
•
■ Adjusting the volume during playback
Press
HINT
You can adjust the volume of the speaker and headphones independently. You can set them from 0–100.
at the point
.
Speaker
Headphones
MULTI FILE mode
STEREO FILE mode
Basic playback
39
Page 40

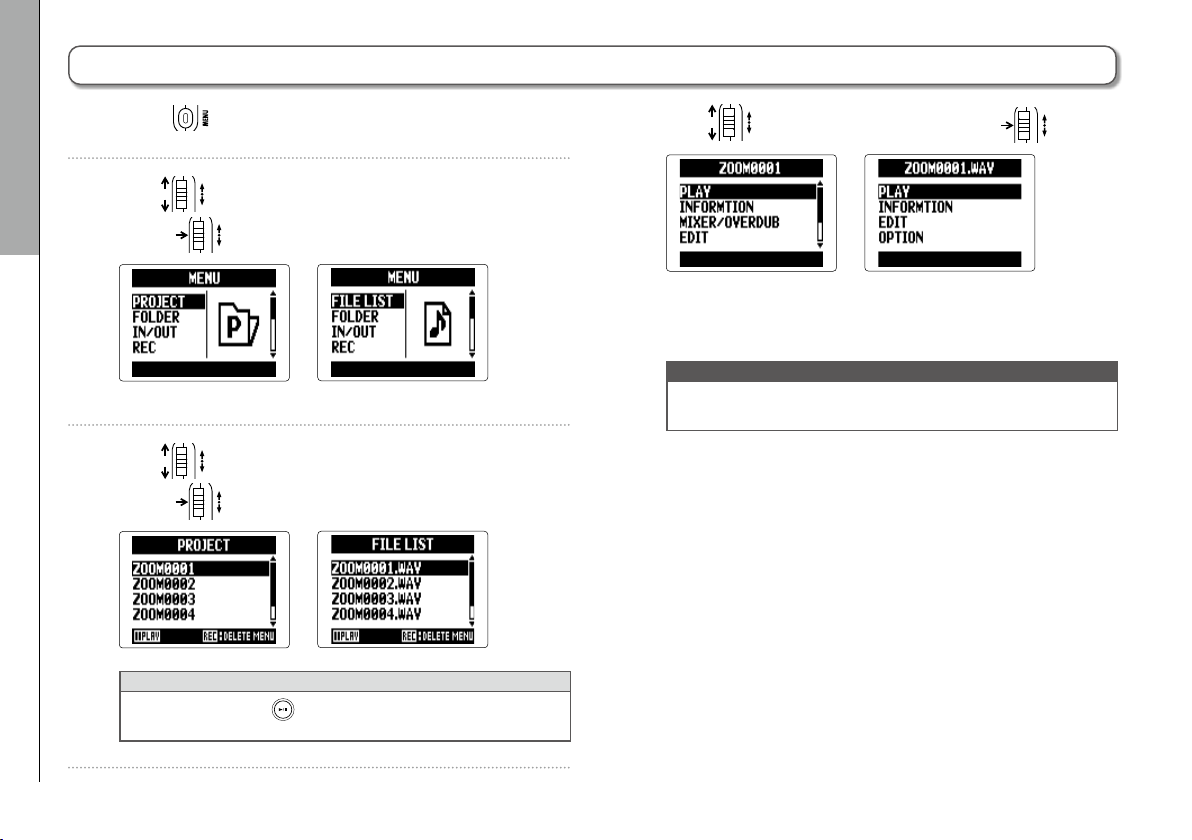

Selecting playback project/files from lists
Playback
1. Press .
2. Use to select “PROJECT"/"FILE LIST", and
4. Use to select “PLAY", and press .
press
Selecting playback project/files from lists
MULTI FILE mode
.
STEREO FILE mode
3. Use to select the project/file to be played, and
press
MULTI FILE mode
HINT
You can also press
project/file.
40
.
STEREO FILE mode
to start playback of the selected
MULTI FILE mode
The selected project will star t playing back.
NOTE
After playback completes, playback might continue
depending on the playback mode. (→ P. 41)
STEREO FILE mode
Page 41
Changing the playback mode
You can set the playback mode.
H5 Handy Recorder
Playback
1. Press .
2. Use to select
“PLAY", and press
3. Use to select
“PLAY MODE", and
press
.
4. Use to select the
playback mode, and
press
.
NOTE
PLAY ONE: Play only the selected project/file.
PLAY ALL: Play from the selected project/file to the
REPEAT ONE: Play the selected project/file repeatedly.
REPEAT ALL: Play all the projects/files in the selected
.
last project/file.
folder repeatedly.
Changing the playback mode
41
Page 42

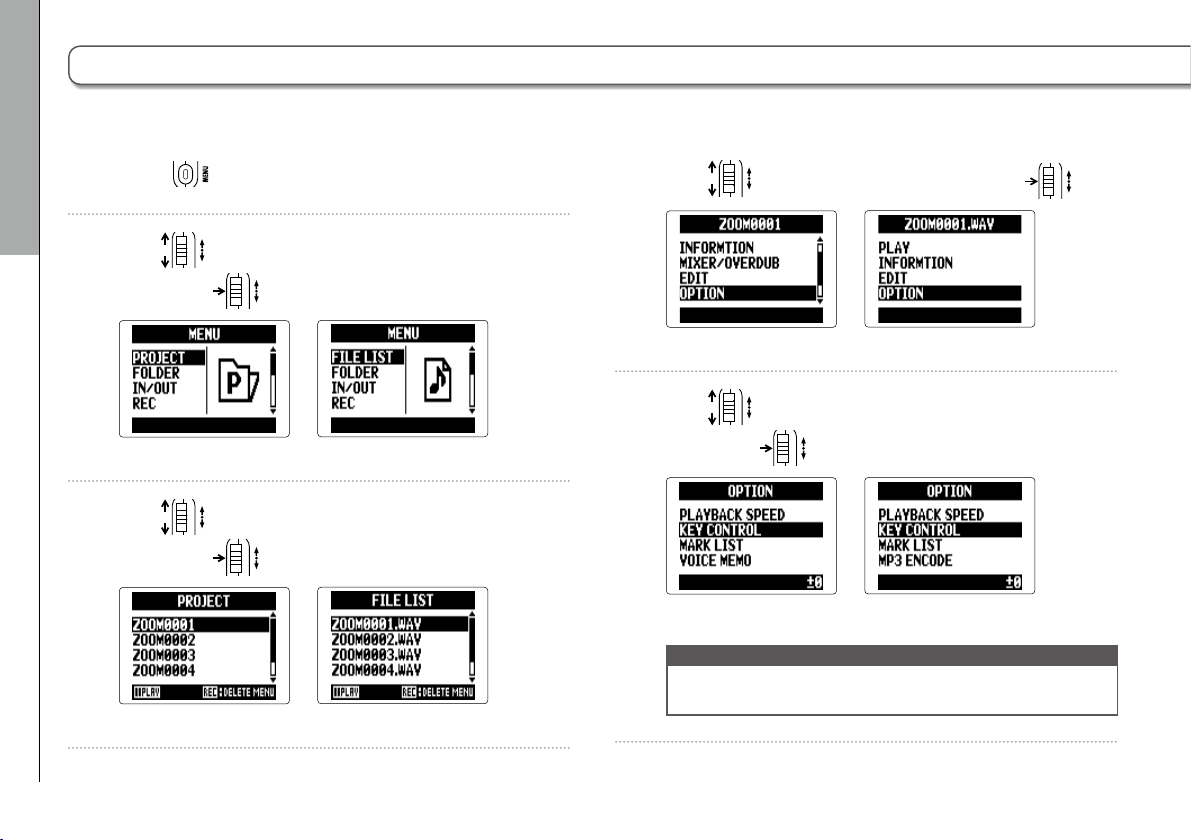

Changing the playback pitch (key)
Playback
The pitch can be changed while keeping the same playback speed.
1. Press .
2. Use to select “PROJECT/FILE LIST",
Changing the playback pitch (key)
and press
MULTI FILE mode
.
STEREO FILE mode
3. Use to select the project /file to adjust,
and press
MULTI FILE mode
.
STEREO FILE mode
4. Use to select “OPTION", and press .
MULTI FILE mode
STEREO FILE mode
5. Use to select “KEY CONTROL",
and press
MULTI FILE mode
NOTE
In MULTI FILE mode, the pitch change will affect the entire
project, and cannot be set for each track independently.
.
STEREO FILE mode
42
Page 43
6. Use to set the playback pitch,
H5 Handy Recorder
Playback
and press
Paused
Playing
Playback will occur with the changed pitch. The pitch can
be changed even during playback.
NOTE
That pitch change can be set between ♭6 and ♯6.
•
In MULTI FILE mode, the changed value is saved sepa-
•
rately for each project.
In STEREO FILE mode, the changed value is saved for
•
the mode.
On the MIXER/OVERDUB screen, KEY CONTROL is
•
disabled.
.
Changing the playback pitch (key)
43
Page 44

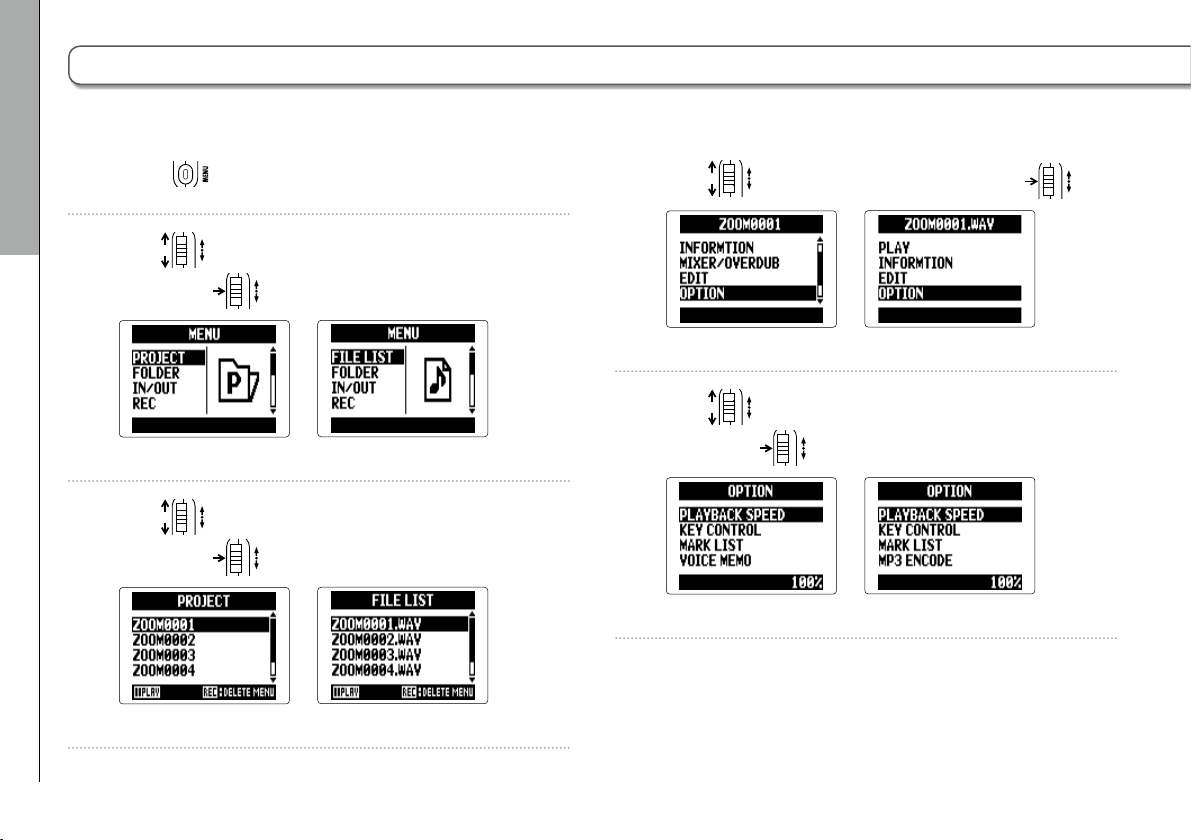

Changing the playback speed
Playback
You can adjust the playback speed in a range from 50% to 150% of normal.
1. Press .
2. Use to select “PROJECT/FILE LIST",
Changing the playback speed
and press
MULTI FILE mode
.
STEREO FILE mode
3. Use to select the project /file to adjust,
and press
MULTI FILE mode
.
STEREO FILE mode
4. Use to select “OPTION", and press .
MULTI FILE mode
STEREO FILE mode
5. Use to select “PLAYBACK SPEED",
and press
MULTI FILE mode
.
STEREO FILE mode
44
Page 45
6. Use to adjust the playback speed,
H5 Handy Recorder
Playback
and press
Paused
Playing
Playback will occur at the adjusted speed. The speed can
be changed even during playback.
NOTE
This speed can be changed to between 50% and 150% of
•
normal.
In MULTI FILE mode, the changed value is saved sepa-
•
rately for each project.
In STEREO FILE mode, the changed value is saved for
•
the mode.
On the MIXER/OVERDUB screen, PLAYBACK SPEED is
•
disabled.
.
Changing the playback speed
45
Page 46
Repeat playback of a set interval (AB repeat)
Playback
You can repeat playback between two set points.
1. Press .
2. Use to select
Repeat playback of a set interval (AB repeat)
“PLAY", and press
3. Use to select “AB
REPEAT", and press
.
4. Use to select the A point icon.
Start point
(selected)
.
Playing
Paused
End point
End point time
Start point time
5. Use and to find
the starting point for
repeat playback.
You can also press
to search while playing
back.
46
Page 47
H5 Handy Recorder
Playback
6. Use to select the
B point icon, and set the
repeat playback ending
point.
7. Press .
MULTI FILE mode
The playback screen will appear, and repeat playback will
star t between the set points.
STEREO FILE mode
NOTE
You can end A-B repeat playback by doing one of the
following during repeat playback.
Press
•
Press
•
or to select a different project /file.
or to stop playback.
Repeat playback of a set interval (AB repeat)
47
Page 48
Mixing projects
Playback
You can adjust the volume and panning of each playback track.
MULTI FILE mode only
1. Press .
2. Use to select
Mixing projects
“PROJECT", and
press
3. Use to select the
project to mix, and
press
4. Use to select
“MIXER/OVERDUB", and
press
5. Use to select
“MIXER/OVERDUB", and
press
.
.
6. Use to select the track to adjust,
and press
.
.
Selected
tracks
.
48
Page 49
H5 Handy Recorder
Playback
7. Change parameter
values.
■ Mixing controls
Move cursor/change value: Move
Selec t parameter to change: Press
Parameter Setting range Explanation
PAN L100 – CENTER – R100
LEVEL Mute, −48.0 – +12dB Adjusts volume
up/down
Adjusts left–right
sound balance
NOTE
Mix settings are saved with each project separately and
applied during playback.
HINT
Do the following to check the
LO CUT, COMP/LIMITER and MS
STEREO MATRIX settings.
Track L or L/R
selected
Track 2 or 1/2
selected
……………
……………
Mixing projects
49
Page 50
Checking/editing projects/files
Checking project/file information
You can check a variety of information about the selected project.
1. Press .
2. Use to select “PROJECT/FILE LIST",
Checking project/file information
and press
MULTI FILE mode
.
STEREO FILE mode
3. Use to select the project /file to check,
and press
MULTI FILE mode
.
STEREO FILE mode
4. Use to select “INFORMATION",
and press
MULTI FILE mode
Project information will be shown.
Use to scroll to see hidden information.
Item Explanation
NAME Project name (MULTI FILE mode only)
PATH Location where project /file is saved
DAT E Project /file creation date and time (Y/M/D H:M:S)
FORMAT Recording format
SIZE Total project /file size
TIME
MS MIC
FILES Information about tracks/files
Project /file length (HHH:MM:SS)
(Maximum is 999:59:59)
MS side level or "RAW"
"—" when an MS capsule not used
.
STEREO FILE mode
50
Page 51
H5 Handy Recorder
Checking/editing projects/files
Checking track marks
WAV format only
A list of the marks in the recorded project/file can be shown.
1. Press .
2. Use to select “PROJECT/FILE LIST",
and press
MULTI FILE mode
.
STEREO FILE mode
3. Use to select the project /file to check,
and press
.
4. Use to select “OPTION", and press .
MULTI FILE mode
STEREO FILE mode
5. Use to select “MARK LIST", and press .
MULTI FILE mode
The MARK LIST will be shown.
STEREO FILE mode
Checking track marks
MULTI FILE mode
STEREO FILE mode
HINT
Press
Mark added by user
Error (E) mark added
when sound skipped
during recording
to start playback from the mark position.
51
Page 52
Checking/editing projects/files
Changing project/file names
1. Press .
2. Use to select “PROJECT/FILE LIST",
and press
Changing project/file names
MULTI FILE mode
.
STEREO FILE mode
3. Use to select the project /file name to change,
and press
MULTI FILE mode
.
STEREO FILE mode
4. Use to select “EDIT", and press .
MULTI FILE mode
STEREO FILE mode
5. Use to select
“RENAME", and
press
.
52
Page 53
6. Change the name.
■ Controls when changing
Checking/editing projects/files
H5 Handy Recorder
Changing project/file names
Move cursor/change character: Move
Selec t character/confirm change: Press
NOTE
The following characters can be used in project/file
•
names.
(SPACE) !#$% &'()+,-0123456789;=@ABCDEFGHIJKLMNOPQRSTU-
VWXYZ[]^_`abcdefghijklmnopqrstuvwxyz{ }~
A project/file name cannot be only spaces.
•
In MULTI FILE mode, file names cannot be changed.
•
7. Press .
up/down
53
Page 54
Checking/editing projects/files
Mixing down a project
You can mix down a project that has been recorded using MULTI FILE mode into a stereo WAV file.
1. Press .
Mixing down a project
2. Use to select
“PROJECT", and
press
.
MULTI FILE mode only
5. Use to select
“MIX DOWN", and
press
.
6. To change where the mix
down file is saved, use
3. Use to select a
project, and press
.
to select “SAVE
TO", and press
7. Use to select
4. Use to select
“MIXER/OVERDUB",
where to save it and
press
.
.
54
and press
.
Page 55
H5 Handy Recorder
Checking/editing projects/files
8. Use to select the project / folder where it will
be saved, and press
MULTI FILE mode
.
STEREO FILE mode
9. To change the file name,
use
“NAME", and
press
HINT
See step 6 of "Changing project/file names" (→ P. 52) for
how to change the file name.
to select
.
10. Use to select “EXE-
CUTE", and press
This will start the mix down.
NOTE
The volume and pan settings (→ P. 49) made using
•
MIXER/OVERDUB (→ P. 48) will affect the sound of the
mix down.
The file created will have the same sampling frequency
•
and bit rate as the project that was mixed down.
.
Mixing down a project
55
Page 56
Checking/editing projects/files
Converting WAV files to MP3 files
STEREO FILE mode WAV files can be converted to (encoded into) MP3 files.
STEREO FILE mode only
1. Press .
2. Use to select “FILE
Converting WAV files to MP3 files
LIST", and press
.
3. Use to select a file,
and press
NOTE
Files recorded using MS-RAW mode cannot be converted
(encoded).
.
4. Use to select
“OPTION", and
press
.
5. Use to select
“MP3 ENCODE", and
press
.
6. To change the format
used for encoding, use
to select “SELECT
56
FORMAT", and
press
.
Page 57
7. Use to select the
Checking/editing projects/files
H5 Handy Recorder
format, and press
8. Use to select
“EXECUTE", and
press
Encoding will start.
NOTE
If the SD card does not have enough open space, the
•
screen shown in step 6 will reappear.
The new encoded file will be created in the same folder.
•
If the name of the encoded file would be the same as
•
an existing file, the file name change screen will appear.
Change the name before encoding.
.
.
Converting WAV files to MP3 files
57
Page 58
Checking/editing projects/files
Normalizing
If the volume of a project recorded using WAV format is too low, you can increase the overall levels of files.
1. Press .
2. Use to select “PROJECT/FILE LIST",
Normalizing
and press
WAV format only
.
4. Use to select “EDIT", and press .
MULTI FILE mode
5. Use to select
MULTI FILE mode
STEREO FILE mode
“NORMALIZE", and
press
.
3. Use to select the project /file to normalize,
and press
.
In STEREO FILE mode, skip to step 7.
STEREO FILE mode
58
MULTI FILE mode
STEREO FILE mode
Page 59
H5 Handy Recorder
Checking/editing projects/files
6. Use to select the
track to normalize, and
press
NOTE
You cannot select a track that has no recorded file.
•
If you select “ALL”, all tracks that have files will be
•
normalized. This normalization will maximize the level
of each individual file.
If there are multiple recordings, including overdubs, the
•
file currently selected for the track will be normalized.
.
7. Use to select “YES", and press .
MULTI FILE mode
NOTE
When normalized, the level of the entire file will be
increased by the same amount so that the peak level is 0
dBFS.
STEREO FILE mode
Normalizing
59
Page 60
Checking/editing projects/files
Dividing projects/files
You can divide a project /file into two at any point.
1. Press .
2. Use to select “PROJECT/FILE LIST",
Dividing projects/files
and press
MULTI FILE mode
.
STEREO FILE mode
3. Use to select the project /file to divide,
and press
MULTI FILE mode
.
STEREO FILE mode
4. Use to select “EDIT", and press .
MULTI FILE mode
STEREO FILE mode
5. Use to select
“DIVIDE", and
press
.
60
Page 61
H5 Handy Recorder
Checking/editing projects/files
6. Set the division point.
Division point
Division point time
Paused
Playing
■ Controls when dividing
Move point: Use
Play/pause: Press
Confirm point: Press
and
7. Use to select
“Y ES",
and press
NOTE
After dividing a project, the part before the division point
•
will be given the same name as the original project with
“A” added to the end. The part after the point will have
“B” added to the end of its name.
If there are multiple recordings, including overdubs,
•
the file currently selected for the track will be divided.
All other files will be saved with the project for the part
before the division point.
.
Dividing projects/files
61
Page 62
Checking/editing projects/files
Trimming project beginnings and ends
You can delete (trim) unnecessary beginnings and endings of recorded projects. To do so, you will set the beginning and
ending points of the part to be kept.
1. Press .
2. Use to select “PROJECT/FILE LIST",
Trimming project beginnings and ends
and press
MULTI FILE mode
.
STEREO FILE mode
3. Use to select the project /file to trim,
and press
MULTI FILE mode
.
STEREO FILE mode
4. Use to select “EDIT", and press .
MULTI FILE mode
STEREO FILE mode
5. Use to select
“TRIM", and press
.
6. Use to select the starting point icon.
Starting point
(selected)
Paused
Playing
Ending point
Starting time
– ending time
62
Page 63
H5 Handy Recorder
Checking/editing projects/files
7. Use and to find
the starting point.
HINT
You can also press
and search while playing back.
8. Use to select the
ending point icon.
Then, set the ending
point in the same
manner.
9. Press .
10. Use to select
“YES", and press
NOTE
If there are multiple recordings, including overdubs, the
file currently selected for the track will be trimmed.
.
Trimming project beginnings and ends
63
Page 64
Checking/editing projects/files
Deleting multiple files
You can delete unneeded files.
1. Press .
2. Use to select “PROJECT/FILE LIST",
Deleting multiple files
and press
MULTI FILE mode
.
STEREO FILE mode
3. In MULTI FILE mode, use to select project,
and press
In STEREO FILE mode, press
MULTI FILE mode
In STEREO FILE mode, skip to step 5.
64
.
.
STEREO FILE mode
4. Use to select “FILE
DELETE", and
press
.
5. Use to select a file
to delete, and
press
Press to cancel file deletion.
NOTE
Press
.
to select/unselect all files.
6. Press .
Page 65
7. Use to select
Checking/editing projects/files
H5 Handy Recorder
“YES", and press
.
Deleting multiple files
65
Page 66
Checking/editing projects/files
Deleting multiple projects
You can delete multiple projects in the selected folder at one time.
MULTI FILE mode only
1. Press .
2. Use to select
Deleting multiple projects
“PROJECT", and
press
.
3. Press .
4. Use to select a
project to delete, and
press
Press to cancel project deletion.
NOTE
Press
.
to select/unselect all projects.
5. Press .
6. Use to select
“YES", and press
.
66
Page 67
H5 Handy Recorder
Checking/editing projects/files
Rebuilding a project
If a project is missing necessary files or is damaged, you can rebuild it.
1. Press .
MULTI FILE mode only
4. Use to select
2. Use to select
“PROJECT", and
press
.
5. Use to select
3. Use to select the
project to rebuild, and
press
.
“REBUILD", and
press
“YES", and press
HINT
A project will not play back if you accidentally disconnect the adapter or remove the SD card while recording
or if you use a computer to delete a setting file that the
project requires. In such cases, rebuilding the project
might repair it.
.
.
Rebuilding a project
67
Page 68
Checking/editing projects/files
Adding voice memos
You can add voice memos to projects.
1. Press .
2. Use to select
Adding voice memos
“PROJECT", and
press
.
3. Use to select a
project to which you
want to add a voice
memo, and press
4. Use to select
MULTI FILE mode only
5. Use to select
“VOICE MEMO", and
press
.
6. Record the memo.
Start recording: Press
Stop recording: Press or
.
Stopped
Playing
Recording
68
“OPTION", and
press
.
Page 69
7. Play the memo.
Start playback: Press
Stop playback: Press
HINT
Checking/editing projects/files
H5 Handy Recorder
Adding voice memos
Every time you press
•
overwritten.
Voice memos are recorded using the stereo mic con-
•
nected to the L/R inputs. They cannot be recorded using
Inputs 1/2.
The file name of the voice memo will be in the format of
•
“ZOOM0001_VM”. The recording format is 128kbps MP3.
the voice memo will be
69
Page 70
USB functions
Data exchange with computers (card reader)
By connecting with a computer, you can check and copy data on the SD card.
1. Press .
2. Use to select
Data exchange with computers (card reader)
“USB", and press
3. Use to select “SD
CARD READER", and
press
4. Connect the to the computer using a USB
cable.
.
NOTE
If you want to power the
•
USB bus, connect the cable while the recorder is off and
then turn it on.
.
using the computer’s
70
Page 71
5. Follow the disconnection procedures for the com-
puter before disconnecting the USB cable.
H5 Handy Recorder
USB functions
Windows:
Use “Safely Remove Hardware” to select the .
Mac:
Drag-and-drop the icon into the trash.
NOTE
Always follow these procedures before disconnecting the
USB cable.
6. Disconnect the cable from the computer
and the
, and then press .
Data exchange with computers (card reader)
71
Page 72
USB functions
Using as an audio interface
You can send signals input through the directly to a computer or iPad as well as output signals from that device
through the
.
1. Follow steps 1–2 in "Data exchange with computers
(card reader)" (
Using as an audio interface
→ P. 7 0 ) .
2. Use to select
“AUDIO INTERFACE",
and press
.
3. Use to select
“STEREO" or "MULTI
TRACK", and
press
.
NOTE
Set to “STEREO” to use it as a 2-in/2-out interface or
•
“MULTI TRACK” to use it as a 4-in/2-out interface.
When using an iPad, select "STEREO". It cannot be used
•
with MULTI TRACK mode.
When using Windows, a driver is necessary to use
•
MULTI TRACK mode. You can download this driver from
the ZOOM website (zoomcorp.com).
4. Use to select the connected device,
and press
STEREO
HINT
If using a computer that does not provide enough power
through its USB bus or using phantom power, select "PC/
Mac (Battery)".
.
MULTI TRACK
72
Page 73
H5 Handy Recorder
USB functions
5. Connect the to the computer or iPad using a
USB cable.
NOTE
An iPad Camera Connection Kit is necessary to connect
an iPad.
HINT
See “Audio interface settings”. (→ P. 74)
STEREO
MULTI TRACK
6. Press to disconnect.
7. Use to select
“EXIT", and press
.
8. Use to select
“YES", and press
.
9. Disconnect the cable from the computer or iPad
and the
.
Using as an audio interface
73
Page 74
USB functions
Audio interface settings
When using the as an audio interface, you can make the following settings. Refer to each section for details.
Input settings LO CUT (→ P. 93)
COMP/LIMITER (→ P. 94)
In1/2 PHANTOM (→ P. 96)
PLUGIN POWER (→ P. 97)
Audio interface settings
Tool TUNER (→ P. 78)
In1/2 PAD(-20dB) (→ P. 98)
1/2 MS STEREO MATRIX (→ P. 86)
L/R MS-RAW MONITOR (→ P. 85)
DIRECT MONITOR (→ P. 74)
MONITOR MIXER
LOOP BACK (→ P. 77) (STEREO only)
In1/2 MONO MIX (→ P. 88)
LINE OUT LEVEL (→ P. 84)
74
(→ P. 75)
(MULTI TRACK only)
(STEREO only)
Making direct monitoring settings
Sound that is input to the can be output directly
before it passes through the connected computer or iPad.
This enables monitoring without latency.
1. Press .
2. Use to select “IN/
OUT", and press
.
3. Use to select “DIRECT MONITOR",
and press
STEREO
For STEREO skip to set 5.
.
MULTI TRACK
Page 75
H5 Handy Recorder
USB functions
4. Use to select
“ON/OFF", and
press
.
MULTI TRACK
5. Use to select “ON", and press .
STEREO
MULTI TRACK
Monitor signal mixing (MULTI TRACK only)
When using direct monitoring you can adjust the balance
of the input signals. This mix does not affect the input signals sent to the computer or iPad.
1. Press .
2. Use to select
“IN/OUT", and
press
.
3. Use to select
“DIRECT MONITOR", and
press
.
Audio interface settings
NEXT
75
Page 76
USB functions
Audio interface settings (continued)
4. Use to select
“MONITOR MIXER", and
Audio interface settings
press
.
5. Use to select track,
and press
6. Use to select the
parameter, and change
the value.
■ Mixing controls
.
Move cursor/change value: Move
Selec t parameter to change: Press
up/down
7. Press to listen to the
project without mixer
adjustments.
Pressing this button turns the mixer on and off.
76
Page 77
H5 Handy Recorder
USB functions
Using Loop Back (STEREO only)
When in STEREO mode, you can mix the sound from the
computer or iPad with the sound input through the
and send it back to the computer or iPad again (loop back).
This can be used, for example, to add narration to a musical backing track playing on a computer, and then record
it using software on the computer or stream it live via the
Internet.
1. Press .
2. Use to select “IN/
OUT", and press
.
3. Use to select
“LOOP BACK", and
press
.
4. Use to select “ON",
and press
.
Audio interface settings
77
Page 78
Using the tuner
Tools
You can use the input signal to tune an instrument.
1. Press .
2. Use to select
Using the tuner
“TOOL", and
press
3. Use to select
“TUNER", and
press
4. Use to select the
type of tuning, and
press
.
.
5. Use to change the
standard pitch.
.
HINT
The standard pitch can be set from 435 Hz to 445Hz.
78
Page 79
H5 Handy Recorder
Tools
6. For all tuner types except chromatic, you can use
and
You can drop the tuning by up to
to change the pitch (drop tuning).
HINT
three semitones.
Flat tuning indicator
7. Press a track button to select the input to use.
8. Using the tuner.
The following tuner types can be selected.
■ Chromatic tuner
The input pitch is detected
automatically and the name of
the nearest note and the pitch
inaccuracy are shown.
Center lights when pitch accurate
Flat Sharp Flat Sharp
Tuner type
Guitar E B G D A E B
Bass G D A E B
Open A E C# A E A E
Open D D A F# D A D
Open E E B G# E B E
Open G D B G D G D
DADGAD D A G D A D
■ Guitar/bass tuner
The number of the string you
are tuning is automatically
detected, allowing you to tune
them one at a time.
Center lights when pitch accurate
String number/note name
1 2 3 4 5 6 7
Detected
string
Note
name
Using the tuner
79
Page 80
Using the metronome
Tools
Use the metronome to count in before recording or as a click track.
1. Press .
2. Use to select
Using the metronome
“TOOL", and
■ Set the "CLICK"
Use to set when the
metronome is active, and
press .
press
3. Use to select
“METRONOME", and
press
4. Use to select
a menu item,
and press
80
.
.
.
HINT
CLICK has the following options.
OFF: Sound off
REC AND PLAY: Sound on during recording/playback
REC ONLY: Sound on during recording only
PLAY ONLY: Sound on during playback only
■ Set the "PRE COUNT" (→ P. 3 0)
■ Set the "TEMPO"
Use
metronome speed, and
press .
HINT
TEMPO can be set from 40.0 to 250.0.
to set the
Page 81
H5 Handy Recorder
Tools
■ Set the "SOUND"
Use to set the
metronome sound, and
press .
HINT
SOUND has the following options.
BELL, CLICK, STICK, COWBELL, HI-Q
■ Set the "PATTERN"
Use
metronome pattern, and
press .
HINT
PATTERN has the following options.
0/4 – 8/4, 6/8
to select the
■ Set the "LEVEL"
Use to adjust the
metronome volume, and
press .
HINT
The LEVEL range is 0 – 10.
NOTE
This cannot be used at the same time as the AUTO REC
•
function. When AUTO REC is turned ON, the metronome
will be disabled.
This cannot be used at the same time as the PRE REC
•
function. When METRONOME is turned ON, PRE REC
will be disabled.
HINT
On any metronome setting screen, press
the current metronome setting.
to listen to
Using the metronome
81
Page 82
Adjusting the input signal monitoring mix
Tools
You can adjust the level and panning of each input signal when monitoring.
MULTI FILE mode only
1. Press .
2. Use to select “IN/
Adjusting the input signal monitoring mix
OUT", and press
3. Use to select
“MONITOR MIXER", and
press
4. Use to select the track to adjust, and
press
.
.
.
Mixer ON/OFF status
Selected
tracks
82
Page 83
H5 Handy Recorder
Tools
5. Change parameter
values.
■ Mixing controls
Move cursor/change value: Move
Selec t parameter to change: Press
Parameter Setting range Explanation
PAN L100 – CENTER – R100
LEVEL Mute, −48.0 – +12dB Adjusts volume
NOTE
These volume and panning settings only affect the monitoring signal. They do not affect recorded data.
up/down
Adjusts left–right
balance
6. Press to listen to the
project without mixer
adjustments.
Pressing this button turns
the mixer on and off.
NOTE
These mix settings are saved with each recorded project
separately. Mix settings can also be changed during playback. (→ P. 48)
Adjusting the input signal monitoring mix
83
Page 84
Lowering the line output level
Tools
You can lower the output level of the LINE OUT jack. Use this when connecting the LINE OUT jack signal to the external mic
input jack on an SLR camera or other jack with a high input gain.
1. Press .
Lowering the line output level
2. Use to select “IN/OUT", and press .
MULTI FILE mode
STEREO FILE mode
3. Use to select “LINE OUT LEVEL",
and press
MULTI FILE mode
.
STEREO FILE mode
4. Use to set the LINE
OUT jack output level,
and press
NOTE
This setting does not affect the level output from the
PHONE jack.
HINT
LINE OUT LEVEL can be set between −30 and 0 dB.
.
84
Page 85
H5 Handy Recorder
Monitoring MS-RAW signals
When recording in MS-RAW mode with an MS capsule, you can monitor the mid mic input through the left channel and the
side mic input through the right channel as is.
1. Press .
MS-RAW mode only
4. Use to select
“RAW", and press
.
2. Use to select “IN/OUT", and press .
NOTE
Select “STEREO” if you want to monitor with an ordinary
stereo mix.
MULTI FILE mode
STEREO FILE mode
3. Use to select
“L/R MS-RAW MONI-
TOR", and press
.
Tools
Monitoring MS-RAW signals
85
Page 86
Converting input MS signals to stereo
Tools
This unit can convert MS stereo mic signal input through Inputs 1/2 into ordinary L/R stereo signals.
Input 1/2 only
1. Press .
2. Use to select “IN/OUT", and press .
Converting input MS signals to stereo
MULTI FILE mode
STEREO FILE mode
3. Use to select
“In1/2 MS MATRIX",
and press
.
4. Use to select an
item, and press
■ Turn "ON/OFF"
Use
and press .
NOTE
When ON, tracks 1/2 will be reconfigured as a stereo
•
track.
This function cannot be used at the same time as the
•
MONO MIX function. When MONO MIX is turned ON,
MS STEREO MATRIX will be disabled.
to select “ON",
.
86
Page 87
H5 Handy Recorder
Tools
■ Set "MID LEVEL"
Use
the mid mic, which captures
the center sound, and
press .
HINT
MID LEVEL can be set to mute or in a range from −48.0 to
+12.0 dB.
■ Set "SIDE LEVEL"
Use
the side mic, which cap-
tures the sound to the left
and right, and press .
HINT
SIDE LEVEL can be set to mute, or in a range from −48.0
to +12.0 dB.
to set the level of
to set the level of
■ Select "INPUT SET TING"
Use
and SIDE inputs to Inputs 1
and 2, and press .
to assign the MID
Converting input MS signals to stereo
87
Page 88
Mixing input signals to mono
Tools
The signals input through Inputs 1/2 can be mixed to a single signal that is sent to both channels.
STEREO FILE mode only Input 1/2 only
1. Press .
2. Use to select
Mixing input signals to mono
“IN/OUT", and
press
3. Use to select
“In1/2 MONO MIX", and
press
4. Use to select “ON",
and press
.
.
NOTE
When MONO MIX is ON, the names of recording files
•
will have "_MN" added to the end of the file name, like
"ZOOM0001_MN.WAV".
This function cannot be used at the same time as the MS
•
STEREO MATRIX function. When MONO MIX is turned
ON, MS STEREO MATRIX will be disabled.
.
88
Page 89
Setting the recording format
Select the format according to the desired audio quality and file size.
1. Press .
2. Use to select “REC", and press .
MULTI FILE mode
STEREO FILE mode
3. Use to select
WAV 48kHz/24bit
WAV 44.1kHz/24bit
WAV 48kHz/16bit
WAV 44.1kHz/16bit
Recording formats that
can be selected when
backup recording is ON
WAV 96kHz/24bit
WAV 96kHz/16bit
WAV 48kHz/24bit
WAV 44.1kHz/24bit
WAV 48kHz/16bit
WAV 44.1kHz/16bit
MP3 320kbps
MP3 256kbps
MP3 224kbps
MP3 192kbps
MP3 160kbps
MP3 128kbps
MP3 112kbps
MP3 96kbps
MP3 80kbps
MP3 64kbps
MP3 56kbps
MP3 48kbps
H5 Handy Recorder
Audio quality File sizeSTEREO FILE modeMULTI FILE mode
High
Large
Low
Small
Tools
Setting the recording format
“REC FORMAT", and
press
.
4. Use to select
recording format, and
press
.
NOTE
Use the WAV format for recording high-quality audio.
•
The MP3 format reduces file size through compression,
•
but this also reduces the audio quality. Use this format
if you need to conserve space or store many recordings
on an SD card, for example.
When using the backup recording function in STEREO
•
FILE mode, some formats cannot be selected.
89
Page 90
Changing automatic recording settings
Tools
You can set the input levels that cause automatic recording to start and stop, as well as the automatic stop time.
Setting the automatic recording start level
1. Press .
Changing automatic recording settings
2. Use to select “REC", and press .
MULTI FILE mode
STEREO FILE mode
3. Use to select
“AUTO REC", and
press
.
4. Use to select “REC
START LEVEL", and
press
.
5. Use to set the start level, and press .
MULTI FILE mode
Recording will start automatically when the input level
exceeds the set level.
HINT
This level can be set between −48 and 0 dB.
STEREO FILE mode
90
Page 91
H5 Handy Recorder
Tools
Setting automatic stopping
1. If you want recording to
stop automatically, press
to select “AUTO
STOP", and press
.
2. Use to select the
stop time, and
press
HINT
This can be set to OFF or from 0 to 5 seconds.
.
3. Set the stop level in the same manner as the
start level.
MULTI FILE mode
When the input level goes below the set level, recording
will stop automatically af ter the amount of time set in
step 2 above.
STEREO FILE mode
Changing automatic recording settings
91
Page 92
Setting how projects/files are named
Tools
You can change the type of name that is automatically given to projects/files.
1. Press .
2. Use to select “REC", and press .
Setting how projects/files are named
MULTI FILE mode
STEREO FILE mode
3. Use to select “PROJECT NAME"/"FILE NAME",
and press
MULTI FILE mode
.
STEREO FILE mode
4. Use to select the type, and press .
MULTI FILE mode
NOTE
Project names are given in the following ways.
•
DEFAULT: ZOOM0001 - ZOOM9999
DATE: YYMMDD-HHMMSS (example: 140331-123016)
File names are given in the following ways.
•
DEFAULT: ZOOM0001.WAV/MP3 - ZOOM9999.WAV/MP3
DATE: YYMMDD-HHMMSS.WAV/MP3
(example: 140331-123016.WAV/MP3)
DATE format uses the starting time of the recording.
•
In MULTI FILE mode, you cannot change how file names
•
are given.
STEREO FILE mode
92
Page 93
H5 Handy Recorder
Reducing noise (low cut filter)
Use the low-cut filter to reduce wind noise and vocal pops, for example.
1. Press .
4. Use to select the track to use it on,
and press
2. Use to select “IN/OUT", and press .
MULTI FILE mode
STEREO FILE mode
3. Use to select “LO
CUT", and press
.
5. Use to select the
cutoff frequency, and
press
.
MULTI FILE mode
HINT
Set this to ALL to use the low-cut filter on all inputs at
once.
.
STEREO FILE mode
Other settings
Reducing noise (low cut filter)
NOTE
The LO CUT filter is not used on backup recordings.
93
Page 94
Other settings
Adjusting the input level (compressor/limiter)
The unit can automatically raise low-level input signals and lower high-level input signals.
1. Press .
2. Use to select “IN/OUT", and press .
Adjusting the input level (compressor/limiter)
MULTI FILE mode
STEREO FILE mode
3. Use to select
“COMP/LIMITER", and
press
.
4. Use to select the Input to adjust,
and press
MULTI FILE mode
HINT
Select ALL to use this on all the inputs at once.
.
STEREO FILE mode
5. Use to select the
COMP/LIMITER type, and
press
NOTE
The COMP/LIMITER is not used on backup recordings.
.
94
Page 95
H5 Handy Recorder
Other settings
Setting Explanation
OFF
COMP
(GENERAL)
COMP
(VOCAL)
COMP
(DRUM)
LIMITER
(GENERAL)
LIMITER
(CONCERT)
LIMITER
(STUDIO)
Compressor/limiter OFF
Standard compressor Compressors reduce
Compressor for vocals
Compressor for drums
and percussion
Standard limiter Limiters reduce the
Limiter for live
performances
Limiter for studio
recording
high levels and raise
low levels.
level when input
signals exceed a set
level.
Threshold
(dB)
- - - - -
-48.7 9:1 +6.0 7. 2 968
-8.4 16:1 0 1.8 8.7
-48.2 7:1 +3.6 12.3 947
-14.4 60:1 0 6.4 528
-13.8 32:1 +1.2 1. 9 8.5
-12.0 8:1 +1.2 6.5 423
Ratio Output
level
(dB)
Attack time
(ms)
Release
time (ms)
Adjusting the input level (compressor/limiter)
95
Page 96
Other settings
Changing the phantom power setting
Input 1/2 can provide phantom power of +12V, +24V or +48V.
1. Press .
2. Use to select “IN/OUT", and press .
Changing the phantom power setting
MULTI FILE mode
STEREO FILE mode
3. Use to select “In1/2
PHANTOM", and
press
.
4. Use to select an
item, and press
96
.
■ Turning "ON/OFF"
Use
input, and press .
HINT
Select ALL to use phantom power on both inputs.
Use
and press .
■ Set the "VOLTAGE"
Use
voltage, and press .
HINT
If a condenser mic can be used with less than +48V, lowering the voltage will reduce the amount of power that the
to select an
to select “ON",
to select the
uses.
Page 97
H5 Handy Recorder
Using plug-in power
When using a mic that uses plug-in power, make the following setting before
connecting it to the MIC/LINE input jack of the XY mic.
1. Press .
4. Use to select “ON",
and press
2. Use to select “IN/OUT", and press .
MULTI FILE mode
STEREO FILE mode
3. Use to select
“PLUGIN POWER", and
press
.
Other settings
.
Using plug-in power
97
Page 98
Other settings
Reducing the input signal level
When connecting a mixer with a standard output level or +4dB, for example, you can set this unit to reduce the input signal
level −20 dB.
Input 1/2 only
1. Press .
2. Use to select “IN/OUT", and press .
Reducing the input signal level
MULTI FILE mode
STEREO FILE mode
3. Use to select “In1/2
PAD (−20dB)", and
press
.
4. Use to select the
input, and press
HINT
Select ALL to use the pad on both inputs.
.
5. Use to select “ON",
and press
.
98
Page 99
H5 Handy Recorder
Setting the counter
Set how time is shown during recording
You can set the counter to show either the elapsed recording time (count up) or
the remaining possible recording time (count down).
1. Press .
2. Use to select “REC", and press .
MULTI FILE mode
STEREO FILE mode
4. Use to select how
the counter appears, and
press
3. Use to select “COUNTER SETUP", and
press
.
Other settings
Setting the counter
.
NEXT
MULTI FILE mode
STEREO FILE mode
99
Page 100
Other settings
Setting the counter (continued)
Set how time is shown during playback
You can set the counter to show either the elapsed playback time (count up) or remaining playback time (count down).
1. Press .
Setting the counter
2. Use to select
“PLAY", and press
3. Use to select
“COUNTER SETUP", and
press
4. Use to select how
the counter appears, and
press
.
.
.
100
