ZKTeco U1000F, U2000E, U1000E, U2000F Installation Manual

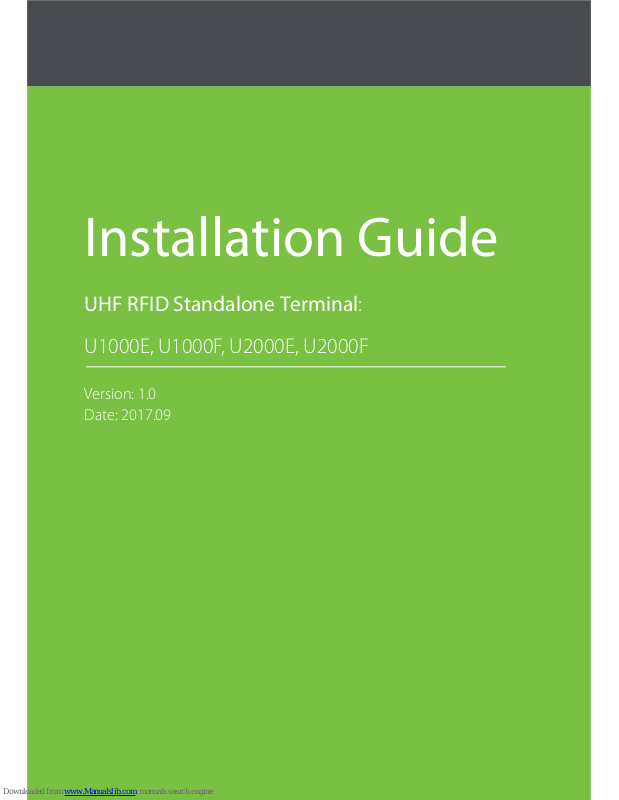

Installation Guide

UHF RFID Standalone Terminal:

U1000E, U1000F, U2000E, U2000F

Version: 1.0
Date: 2017.09

1

1. Overview

Front View

Lateral View and Interface

Cable Definition:

Dimension

250mm*250mm*70mm (U1000E, U1000F)

445mm*445mm*70mm (U2000E, U2000F)

Antenna
Working Frequency:

902MHz 926MHz
865MHz 868MHz

Read Range:

U1000E/F (0-6 meters)

U2000E/F (0-12 meters)

Mounting

Bracket
Cables

RJ45

USB

2PIN

4PIN Green

6PIN Green

Cables

6PIN Green

6PIN Black

4PIN Green

4PIN Black

4PIN Black

6PIN Black

2

2. Install the Integrated Machine

1) Hang Mounting

Please install the integrated machine according to the following chart. The

machine is installed on the fixed column, and the angle and height is adjusted

according to the actual effect of swing card.

Method A:

M

ethod B:

N

ote: To get better reading performance, driving direction of vehicle should

face to the UHF integrated machine.

2) C

eiling Mounting

Please install the integrated machine vertically on the ceiling. We recommend

the installation height from the ground is no more than 4 meters in order to

better identify effect.

3

N

ote:

1

) A

void installing the integrated machine against to another.

2) The integrated machine detection distance may vary depending on rain,

snow or wind.

3) T

he device should be away from strong magnetic field when working.

3. Install the UHF Card

1) Tag1, DF01Card, DF02Card

UHF1-Tag1, DF01Card and DF02 Card are generally used in long distance access

control management and long distance pedestrian crossing control

management.
