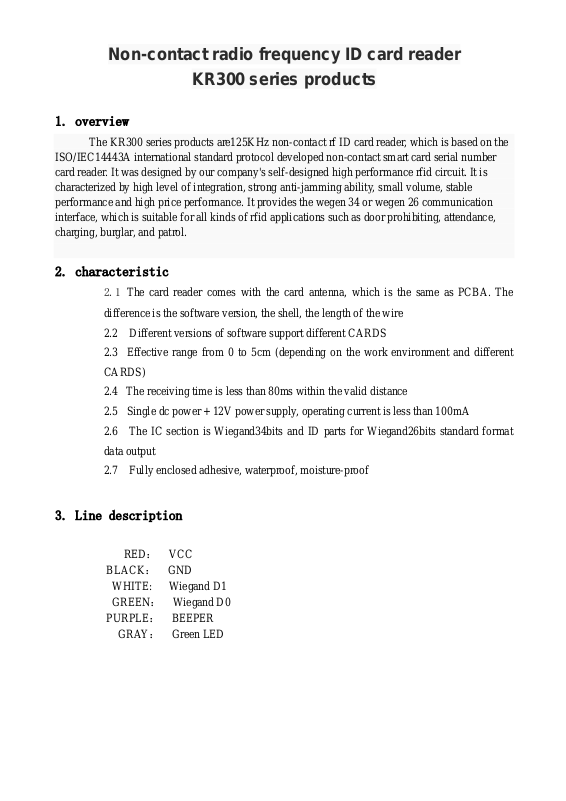

ZKTECO KR300 Users Manual
Non-contact radio frequency ID card reader
KR300 series products
1. overview
The KR300 series products are125KHz non-contact rf ID card reader, which is based on the
ISO/IEC14443A international standard protocol developed non-contact smart card serial number
card reader. It was designed by our company's self-designed high performance rfid circuit. It is
characterized by high level of integration, strong anti-jamming ability, small volume, stable
performance and high price performance. It provides the wegen 34 or wegen 26 communication
interface, which is suitable for all kinds of rfid applications such as door prohibiting, attendance,
charging, burglar, and patrol.
2. characteristic
2.1 The card reader comes with the card antenna, which is the same as PCBA. The
difference is the software version, the shell, the length of the wire
2.2 Different versions of software support different CARDS
2.3 Effective range from 0 to 5cm (depending on the work environment and different
CARDS)
2.4 The receiving time is less than 80ms within the valid distance
2.5 Single dc power + 12V power supply, operating current is less than 100mA

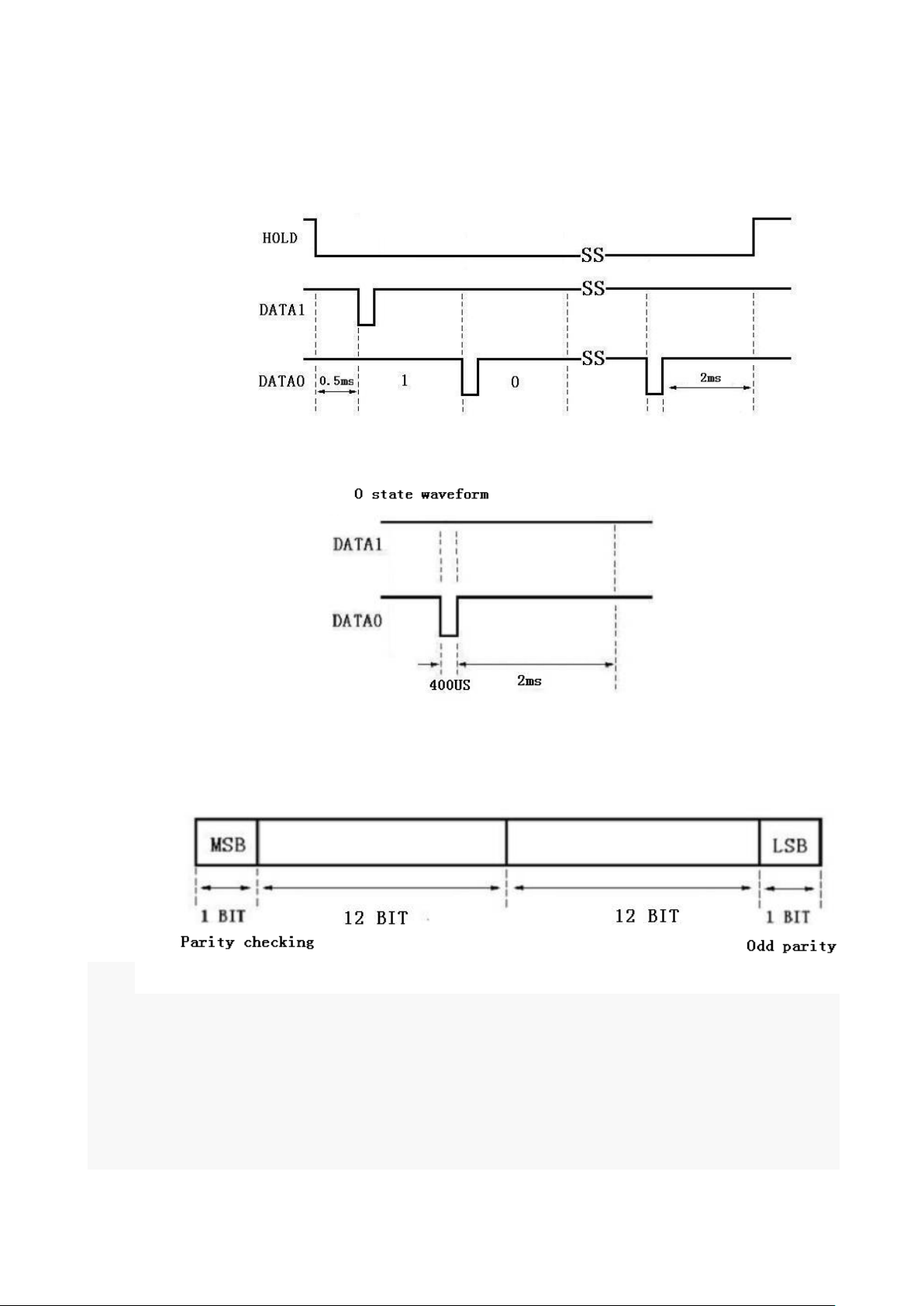

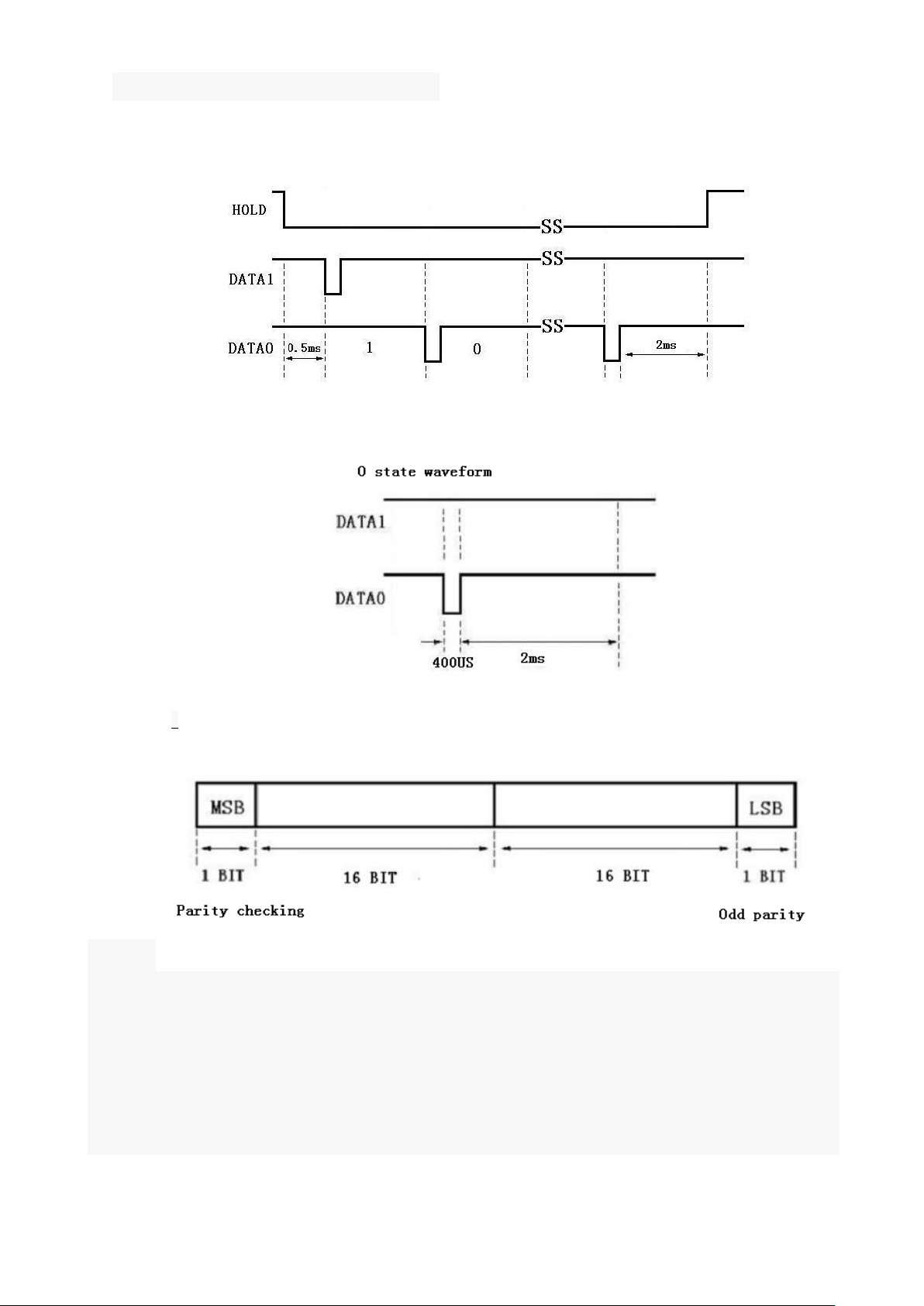

2.6 The IC section is Wiegand34bits and ID parts for Wiegand26bits standard format
data output
2.7 Fully enclosed adhesive, waterproof, moisture-proof

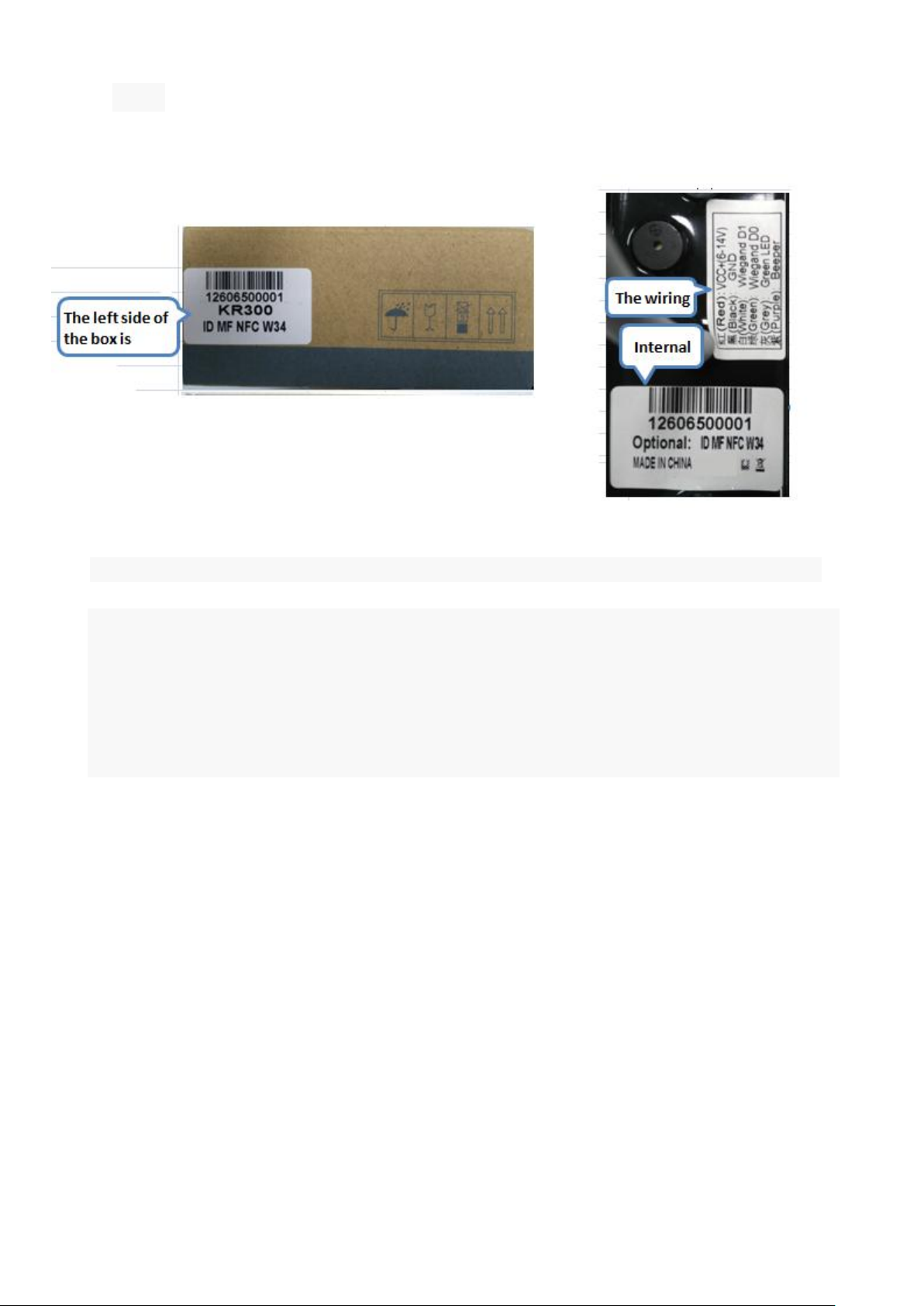

3. Line description
RED： VCC
BLACK： GND
WHITE: Wiegand D1
GREEN： Wiegand D0
PURPLE： BEEPER
GRAY： Green LED
4. Characteristic parameters
project
numerical
unit
+12V,Vcc
12.5
V
Data0,I0/Clock,ICK
25
mA
Data1,I1/Data,ID
25
mA
Hold,IH/Card Present,ICP
25
mA
antenna,IAN
82
mA
Working temperature,TOPR
-1070
C
Storage temperature,TSTR
-55~+125
C
project
minimum
typical
maximum
unit
+12V,Vcc
7
12
14 V Working current,Ic
82
98
mA
ID Working frequency,FRES
124.8
125
125.6
KHz
ID Effective distance,D *
30
40
55
mm
Decoding time,TDEC
65
100
ms
Data0,Data1,Hold/
ata,Clock,Card, The Present end
outputs high potential,VoH
2.4(IoH=80uA), 0.75Vcc(IoH=30uA)
0.9Vcc(IoH=12uA)
V
Data0,Data1,Hold/
ata,Clock,Card, Present end
output is high potential, VoH
0.5
( IoL=20mA,Vcc=5V,IoL=20mA,Vcc=3.3V)
V
The dimensions, L, X, W, X H (not
counting the length of the
wiring)
77.5*42.8*15.2 （error±3mm）
mm
4.1 The limit parameter
4.2 Electrical, mechanical properties (not specify TA = 25 °, Vcc =
5 v)
Effective distance and the power supply voltage, using IC, ID card
and use related to the environment.
