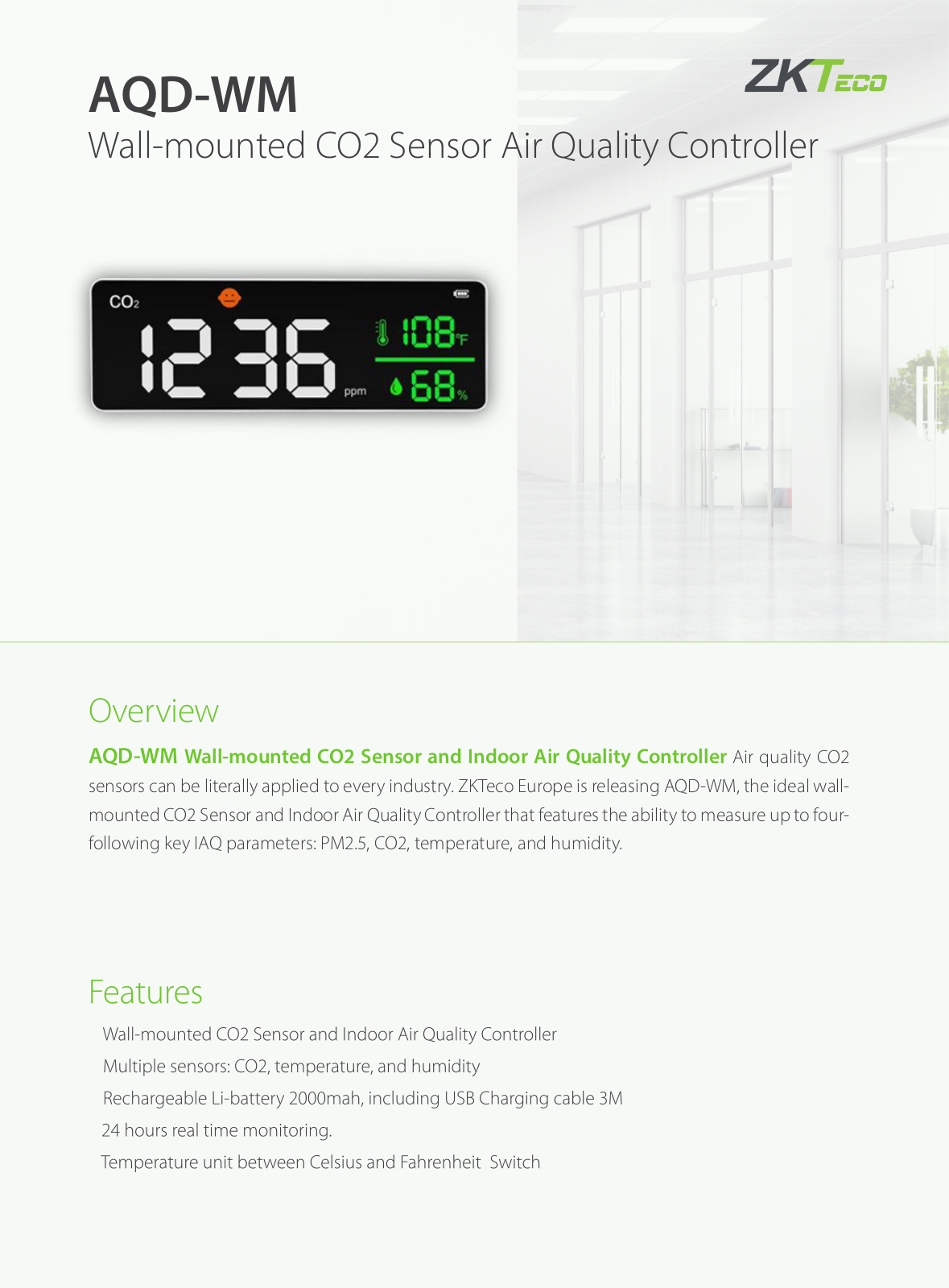

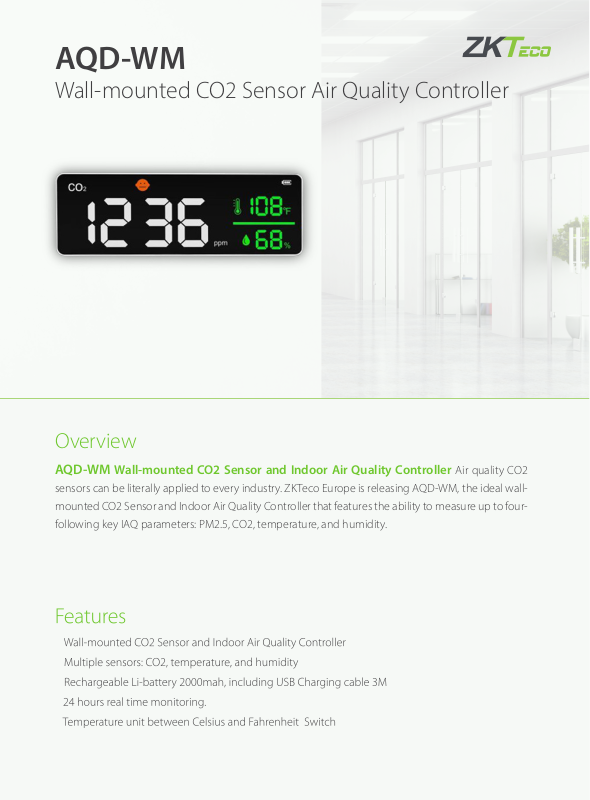

ZKTeco AQD-WM Reference Guide
AQD-WM
Wall-mounted CO2 Sensor Air Quality Controller
Overview
AQD-WM Wall-mounted CO2 Sensor and Indoor Air Quality Controller Air quality CO2
sensors can be literally applied to every industry. ZKTeco Europe is releasing AQD-WM, the ideal wall-
mounted CO2 Sensor and Indoor Air Quality Controller that features the ability to measure up to four-
following key IAQ parameters: PM2.5, CO2, temperature, and humidity.

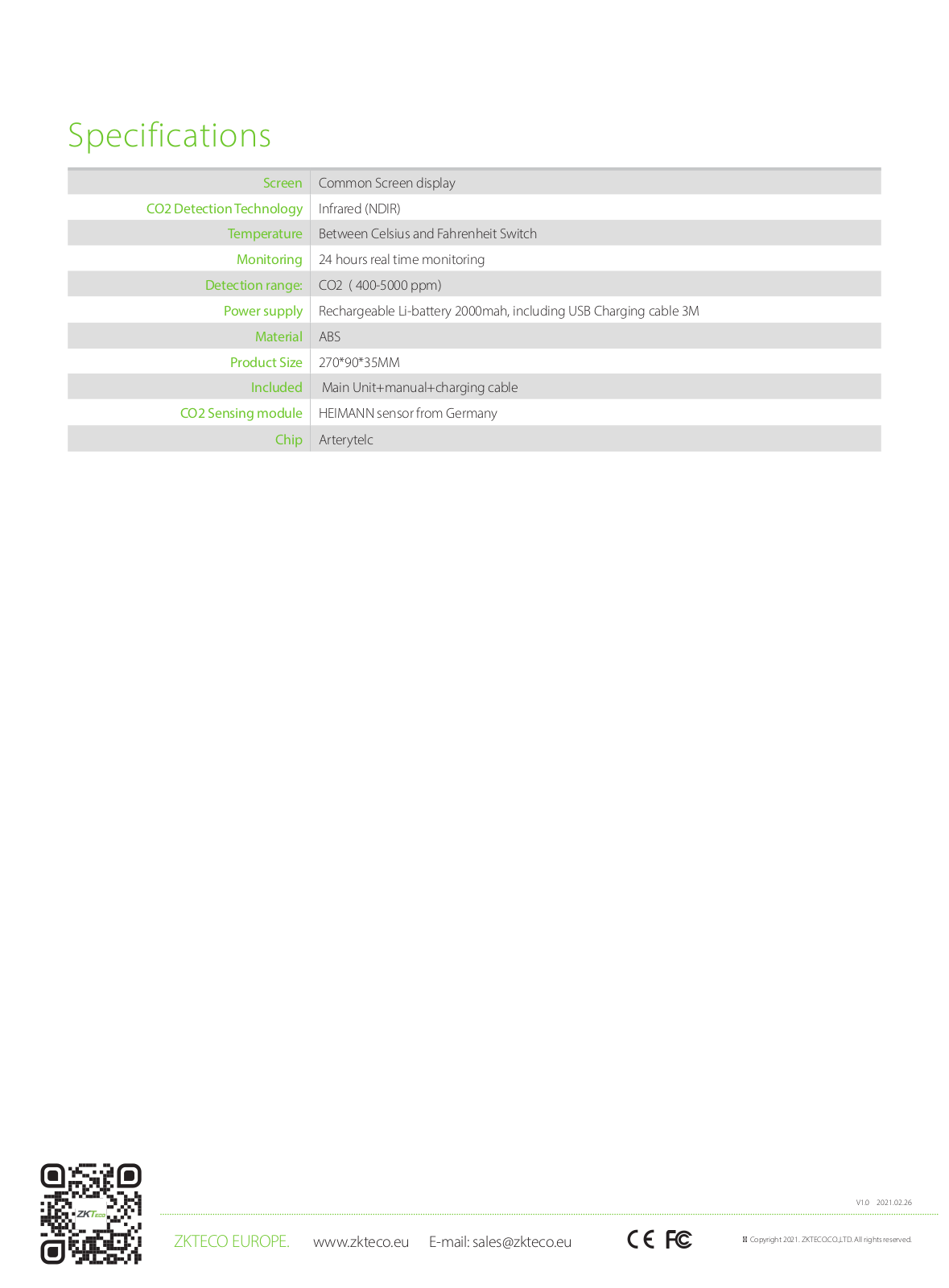

Specifications
CO2 Detection Technology Infrared (NDIR)
Temperature Between Celsius and Fahrenheit Switch
Monitoring 24 hours real time monitoring
Detection range: CO2 ( 400-5000 ppm)
Power supply Rechargeable Li-battery 2000mah, including USB Charging cable 3M
Material ABS
Product Size 270*90*35MM
Included Main Unit+manual+charging cable
CO2 Sensing module HEIMANN sensor from Germany
Screen Common Screen display
Chip Arterytelc
ZKTECO EUROPE. www.zkteco.eu E-mail: sales@zkteco.eu
V1.0 2021.02.26
© Copyright 2021. ZKTECO.CO.,LTD. All rights reserved.
