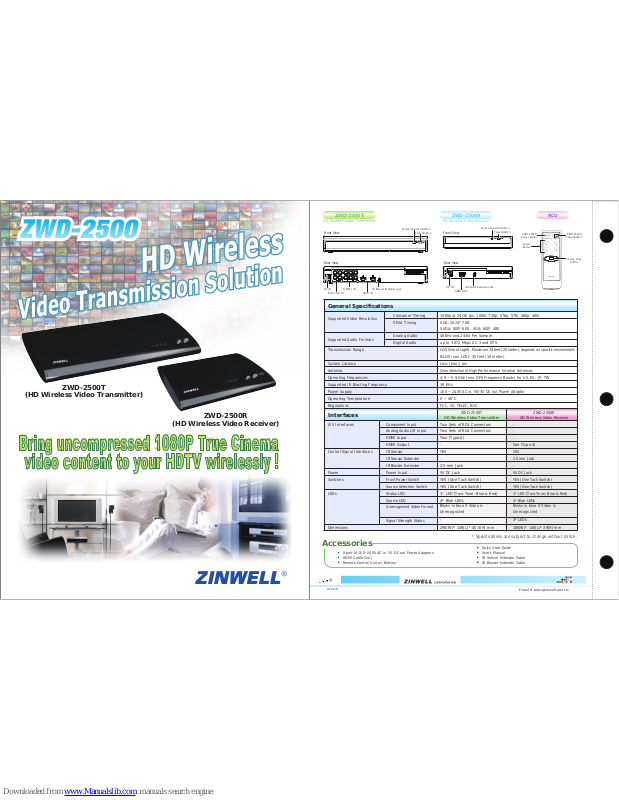

Zinwell ZWD-2500 Specifications
E-mail: d-sales@ zinwell.c om.tw
HD Wireless Video Transmitter
Front View
Rear View
Front View
Rear View
IR Sensor E xtender Jack
IR Blaster Extender Jac k
HDMI OUT
DC IN
DC IN
Audio L/R I N
Y/Pb/Pr IN
HDMI IN
Power Butto n
Source Sele ction Button
Power Butto n
Source Sele ction Button
ZWD-2500T
Power Butto n
ZWD-2500R
Power Butto n
Source Seek
Button
A pair of 100~240V AC in, 5V DC out Power Adaptors
HDMI Cable (1m)
Remote Control Unit w/ Battery
Quick Start Guide
User’s Manual
IR Sensor Extender Cable
IR Blaster Extender Cable
Accessories
2008/12/26
ZWD-2500T
HD Wireless Video Receiver
ZWD-2500R RCU
Source
Button
ZWD-2500T
(HD Wireless Video Transmitter)
ZWD-2500R
(HD Wireless Video Receiver)
Bring uncompressed 1080P True Cinema
video content to your HDTV wirelessly !
General Specifications
Supported Video Resolution
Supported Audio Formats
Transmission Range
System Latency
Antenna
Operating Frequencies
Supported IR Blasting Frequency
Power Supply
Operating Temperature
Regulations
Consumer Timing
VESA Timing
Analog Audio
Digital Audio
Component Input
Analog Audio L/R Input
HDMI Input
HDMI Output
IR Sensor
IR Sensor Extender
IR Blaster Extender
Power Input
Front Power Switch
Source Selection Switch
Status LED
Source LED
Unrecognized Video Format
Signal Strength Status
A/V Interfaces
Control Signal Interfaces
Power
Switches
LEDs
1080p @ 24/30 fps, 1080i, 720p, 576p, 576i, 480p, 480i
XGA: 1024* 768,
SVGA: 800* 600 , VGA: 640* 480
48KHz and 24-bit Per Sample
up to 3.072 Mbps AC-3 and DTS
LOS (line of sight): Maximum 70 feet (20 meter), depends on specific environment.
NLOS (non LOS): 35 feet (10 meter).
Less than 1 ms
Omnidirectional High Performance Internal Antennas
4.9 ~ 5.9 GHz (non-DFS Frequency Bands) for US, EU, JP, TW
38 KHz
100 ~ 240V AC in, 5V/3A DC out Power Adaptor
0 ~ 40°C
FCC, CE, TELEC, NCC
Interfaces
Dimensions
Two Sets of RCA Connectors
Two Sets of RCA Connectors
Two (Type A)
YES
-
2.5 mm Jack
5V DC Jack
YES (One Tack Switch)
YES (One Tack Switch)
1* LED (Two-Tone: Blue & Red)
4* Blue LEDs
Blinks in blue if Video is
Unrecognized
295(W)* 149(L)* 45.5(H) mm
-
-
One (Type A)
YES
2.5 mm Jack
5V DC Jack
YES (One Tack Switch)
YES (One Tack Switch)
1* LED (Two-Tone: Blue & Red)
4* Blue LEDs
Blinks in blue if Video is
Unrecognized
3* LEDs
180(W)* 140(L)* 39(H) mm
ZWD-2500T
HD Wireless Video Transmitter
ZWD-2500R
HD Wireless Video Receiver
* Specifications are subject to change without notice.
Set-top Box
Blu-ray Player
HD Game Console
Media Center PC
PC
Notebook
Audio Cable
HDMI
HDMI
Y/Pb/Pr
ZWD-2500T
HD Wireless Video Transmitter
Suitable for PC to TV application.
Play HD media content from PC on TV wirelessly.
Audio Cable
Y/Pb/Pr
up to 70 feet (20 meter) LOS HD Video Transmission Distance
Application Diagram
Features:
ZWD-2500R
HD Wireless Video Receiver
Connect your High-Definition devices to
the corresponding input jacks on the
ZWD-2500T. ZWD-2500T provides the functionality
as the gateway for up to 4 High Definition video sources.
Connect a HDMI cable between HDMI OUT jack on the
ZWD-2500R and HDMI IN jack on the HDTV set.
Power on respective ZWD-2500T and ZWD-2500R.
Enjoy High Definition video content wirelessly.
Easy Plug & Play:
ZWD-2500R
(HD Wire less Vid eo Receiver)
ZWD-2500T
(HD Wire less Vid eo Trans mitter)
HD Wireless
Video Transmission Solution
1.
2.
3.
Operates on the NON-DFS (Dynamic Frequency Selection)
frequencies with Automatic Frequency Selection, the system
will automatically change frequency in case of interference
with another RF system.
High Performance and Small Form Factor internal antennas are Employed
Omnidirectional Antenna System for Maximum 70 feet (20 meter) LOS HD Video
Transmission Distance
Up to 1080p@24fps/30fps, 1080i@60fps Picture Quality
No Latency for Playing High Definition Video Game Console
256-bit AES Encryption for Securing Video Transmission over Wireless
IR Blasting
Auto Set-up, Plug & Play
EDID/ E-DDC 1.1
Support HDMI 1.3
Support CEC
HDMI Cable
This HD wireless solution
can also be applied to HD Projector
