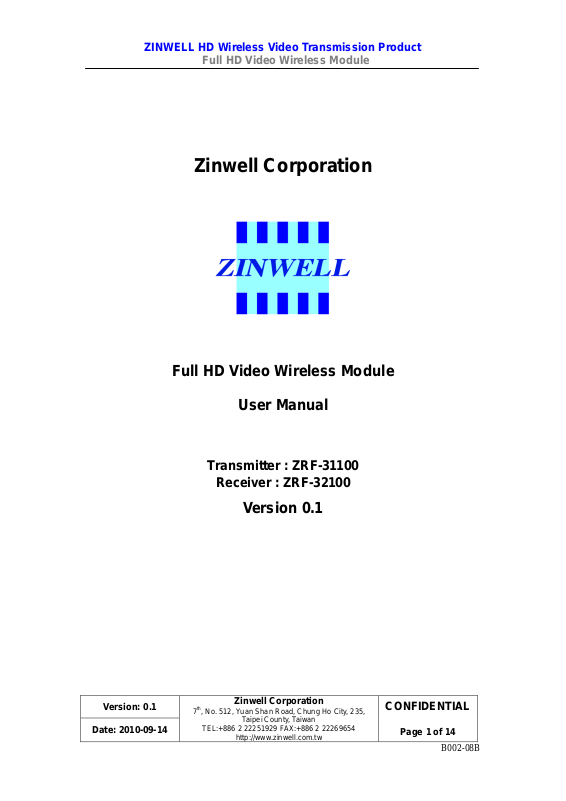

Zinwell ZRF32100 Userman

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 1 of 14

Date: 2010-09-14

Full HD Video Wireless Module

Zinwell Corporation

Full HD Video Wireless Module

User Manual

Transmitter : ZRF-31100

Receiver : ZRF-32100

Version 0.1

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 2 of 14

Date: 2010-09-14

Reversion

Date

Author

Descriptions

0.1

2010-09-14

Paul Chang

Initial Release. Preliminary Document.

Revision History

Full HD Video Wireless Module

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 3 of 14

Date: 2010-09-14

Full HD Video Wireless Module

CAUTION:
Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the equipment.

This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter. End-users and
installers must be provide with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance.

Outdoor operations in the 5150~5250MHz, 5600~5650MHz band is prohibited.

This device has no Ad-hoc capability for 5250~5350MHz and 5470~5725MHz.

Outdoor operations in the 5470~5725MHz band is prohibited. This device
could not be used in the 5600~5650MHz.

The Device not operation in 5600~5650MHz.

Industry Canada regulatory information Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired
operation of the device.

The user is cautioned that this device should be used only as specified within
this manual to meet RF exposure requirements. Use of this device in a manner
inconsistent with this manual could lead to excessive RF exposure conditions.

The following statement must be included with all versions of this document
supplied to an OEM or integrator, but should not be distributed to the end user.

--This device is intended for OEM integrators only.

--Please See the full Grant of Equipment document for other restrictions.

--This device must be operated and used with a locally approved access point.

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 4 of 14

Date: 2010-09-14

Full HD Video Wireless Module

The following regulatory and Safety notices must be published in
documentation supplied to the end user of the product or system incorporating
an adapter in compliance with local regulations, Host system must be labeled
with “Contains FCC ID: XXX-XXXXX”, FCC ID displayed on label.

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 5 of 14

Date: 2010-09-14

Full HD Video Wireless Module

1 Product Features

 WHDI

 Digital video: 24/ 30-bit RGB or YCrCb
 Digital audio: I2S and SPDIF
 Two-Wire serial bus slave interface
 One interrupt line

 Supports any uncompressed video resolutions, including:

 HD: 720p, 1080i, 1080p, 576p, 480p
 PC: VGA (640x480), SVGA (800x600), XGA (1024x768)

 Audio:

 Up to 3Mbps audio stream:
 I2S: Two PCM channels (sampled up to 48 KHz x 24 bit)

 SPDIF: Including AC-3, DTS
 Strong 256-bit AES encryption
 User-defined two-way channel with minimum 10 Kbps for data and control
 Less than 1mSec latency between source and sink
 Small mechanical footprint:

 PCB integrated antennas
 RF characteristics:

 MIMO technology, using 5GHz unlicensed band, 18MHz bandwidth.

 Coexists with 802.11a/n and 5.8GHz cordless devices.

 Support for Automatic Transmission Power Control (ATPC).

 No line of sight needed between transmitter and receiver. It has a range of

over 20 meters (LOS), suitable for almost any room.

 14mW typical transmission power per transmitting channel.

 Maximum 20mW transmission power per transmitting channel.

 Uplink antenna diversity
 Power requirements:

 3.3V (±5%), ~5.3W

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 6 of 14

Date: 2010-09-14

Full HD Video Wireless Module

2 Hardware Specifications

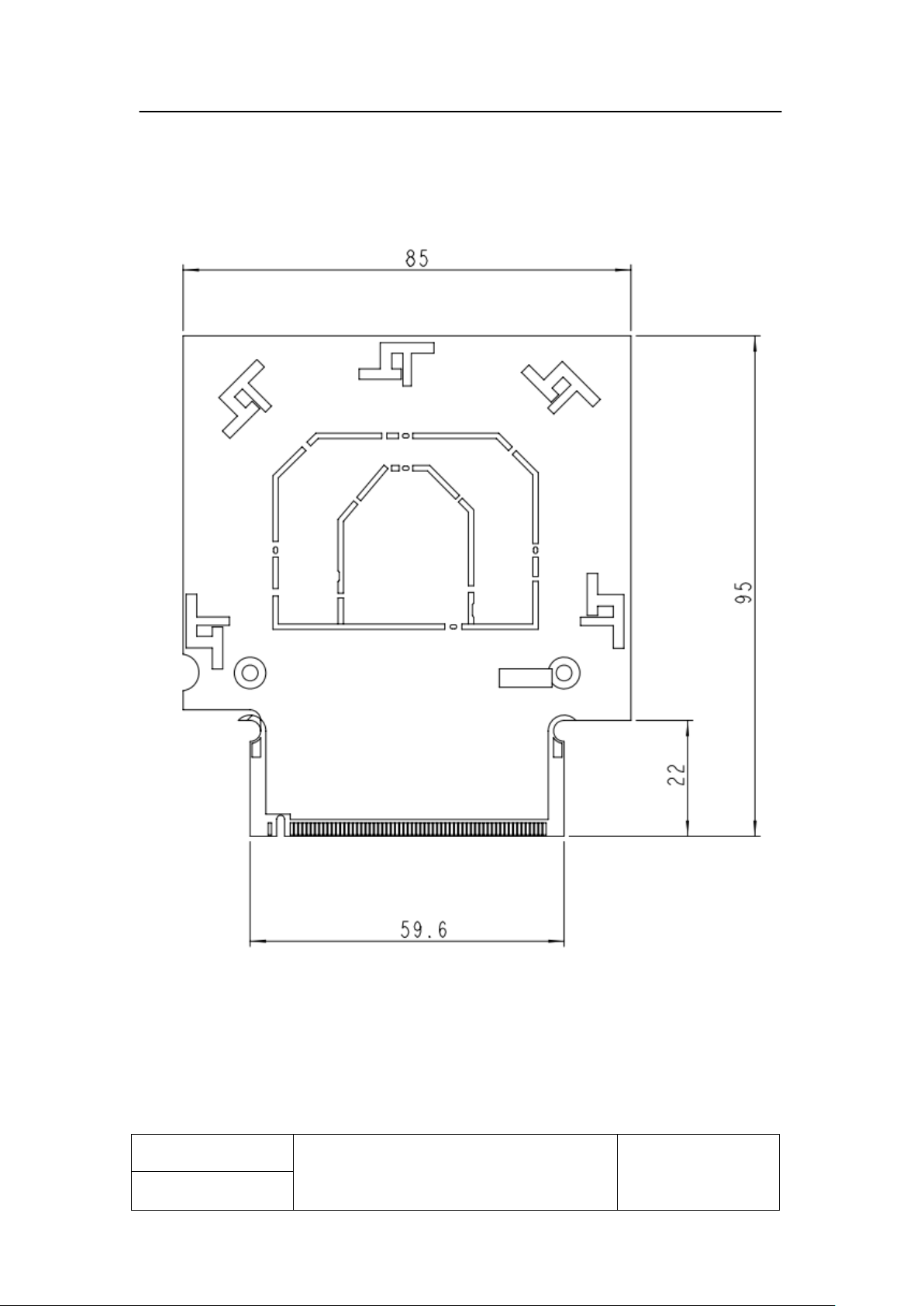

2.1 Dimension

 TX

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 7 of 14

Date: 2010-09-14

Full HD Video Wireless Module

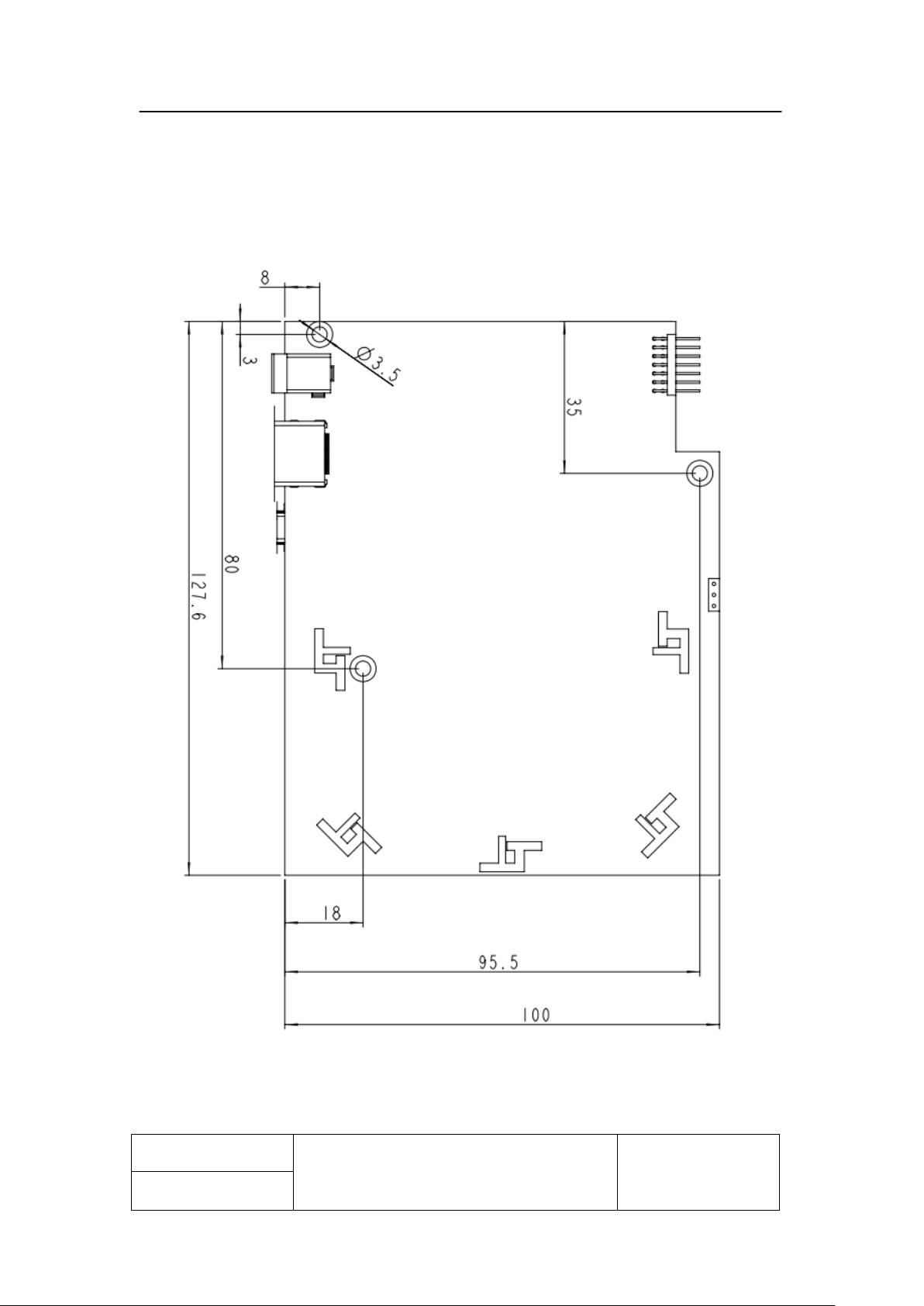

 RX

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 8 of 14

Date: 2010-09-14

Full HD Video Wireless Module

2.2 Pin definitions of connector

 TX :

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 9 of 14

Date: 2010-09-14

Full HD Video Wireless Module

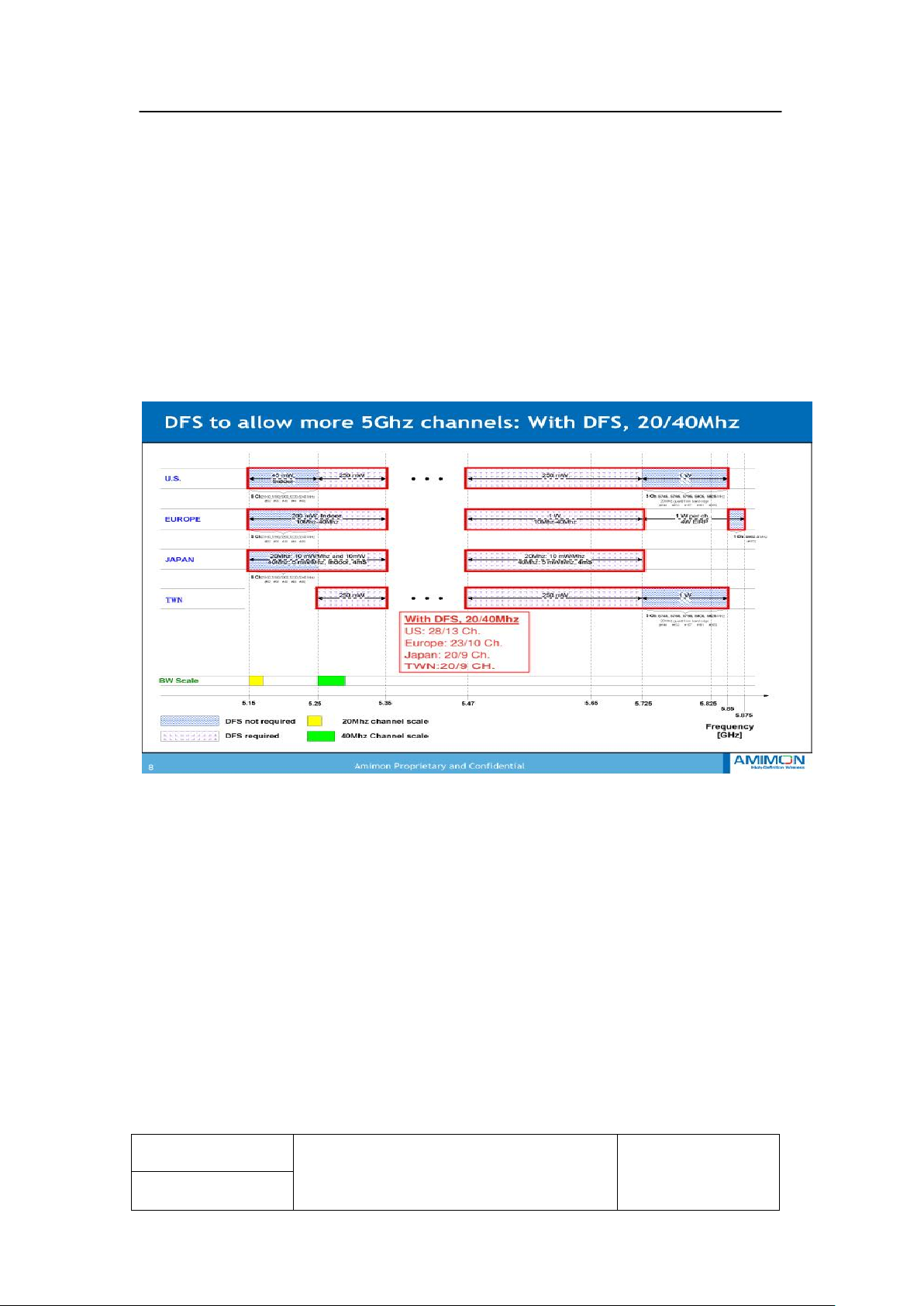

3 Regional Frequency Selection

Transmitter and Receiver Units are able to support regional frequency by different

country’s definition with different software configuration. Support regions: US and EU

by different models’ definitions.

B002-08B

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 10 of 14

Date: 2010-09-14

4 RF test

4.1 PSNR test
Purpose:

This test verifies the PSNR value of TX box to RX box meet AMIMON
Specification.

Instrument

Shield Box: ETS 5240-24
Attenuator: ATM AF085-30
AMIMON patch antenna

Test Methodology

ZINWELL HD Wireless Video Transmission Product

Full HD Video Wireless Module

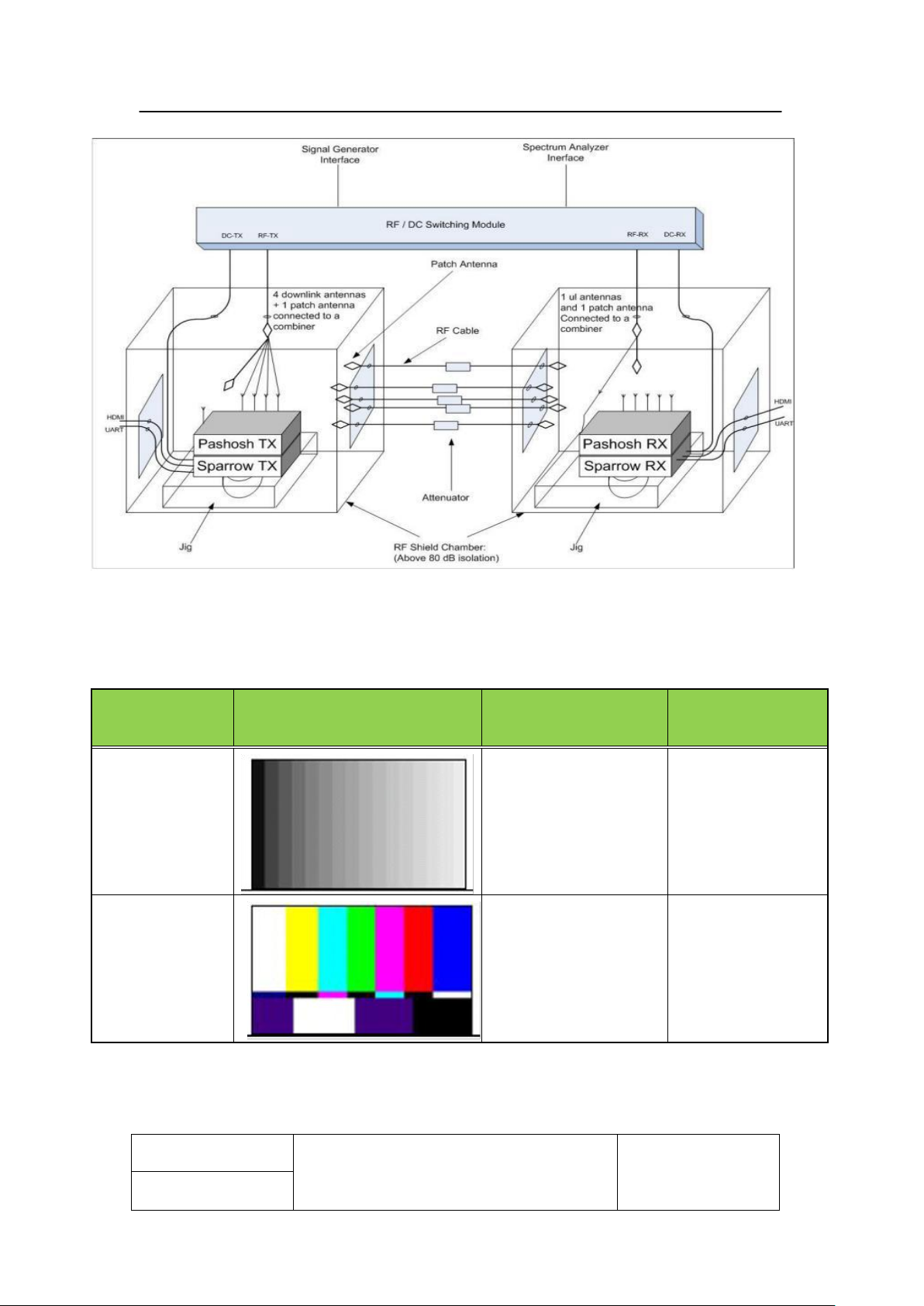

During this test sequence a WHDI link is established (registration +
authentication). The video signal is captured using the DVI capture card.
The attenuated RF cables connecting the two chambers are calibrated to
emulate a 20m link. The following sequence is applied through RX UART
interface.

1) Switch TX power ON

2) Switch RX power ON

3) Sparrow TX – Set VGA level to 60dBm (frequency is selected
automatically through a AFS mechanism)

4) Link registration. Allow 10 seconds for completion.

5) Generate video test pattern through the Laptop’s HDMI port.

6) Capture 30 frames from the video signal using the DVI capture card.

7) Calculate min/max/stdev PSNR for the captured frames with the
MATLAB application, and compare with test limits.

8) Repeat steps 6-8 for every video test pattern (GrayBar,Cyp3)

9) Un-register.

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 11 of 14

Date: 2010-09-14

Pattern Name

Sample Image

Mean TCbCr PSNR

Low Limit YCbCr

PSNR

GrayBar

38.5 dB

38 dB

Cyp3

26.8 dB

26.6 dB

Full HD Video Wireless Module

5

Criteria

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 12 of 14

Date: 2010-09-14

Full HD Video Wireless Module

4.2 BER test

Purpose:

This test verifies the BER value of Transmitter/Receiver UUT meet
Specification.

Instrument

Shield Box: ETS 5240-24
Attenuator: ATM AF085-30
AMIMON patch antenna

Test Methodology

During this test sequence a WHDI link is established (registration +
authentication). The audio signal is analyzing by audio analyzer in
baseband chip. The attenuated RF cables connecting the two chambers
are calibrated to emulate a 20m link. The following sequence is applied
through Sparrow RX UART interface.

1. Switch TX power ON

2. Switch RX power ON

3. TX – Set VGA level to 60dBm (frequency is selected automatically
through a AFS mechanism)

4. Link registration. Allow 10 seconds for completion.

5. Generate audio test pattern through the Laptop’s HDMI port.

6. Hear 30’s audio signal from the TV or speaker.

7. Calculate Bit Error Rate for 30’s audio analyzer, and compare with test
limits.

Criteria

BER ≤ 10

-4

Block Error Rate = 0

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 13 of 14

Date: 2010-09-14

Full HD Video Wireless Module

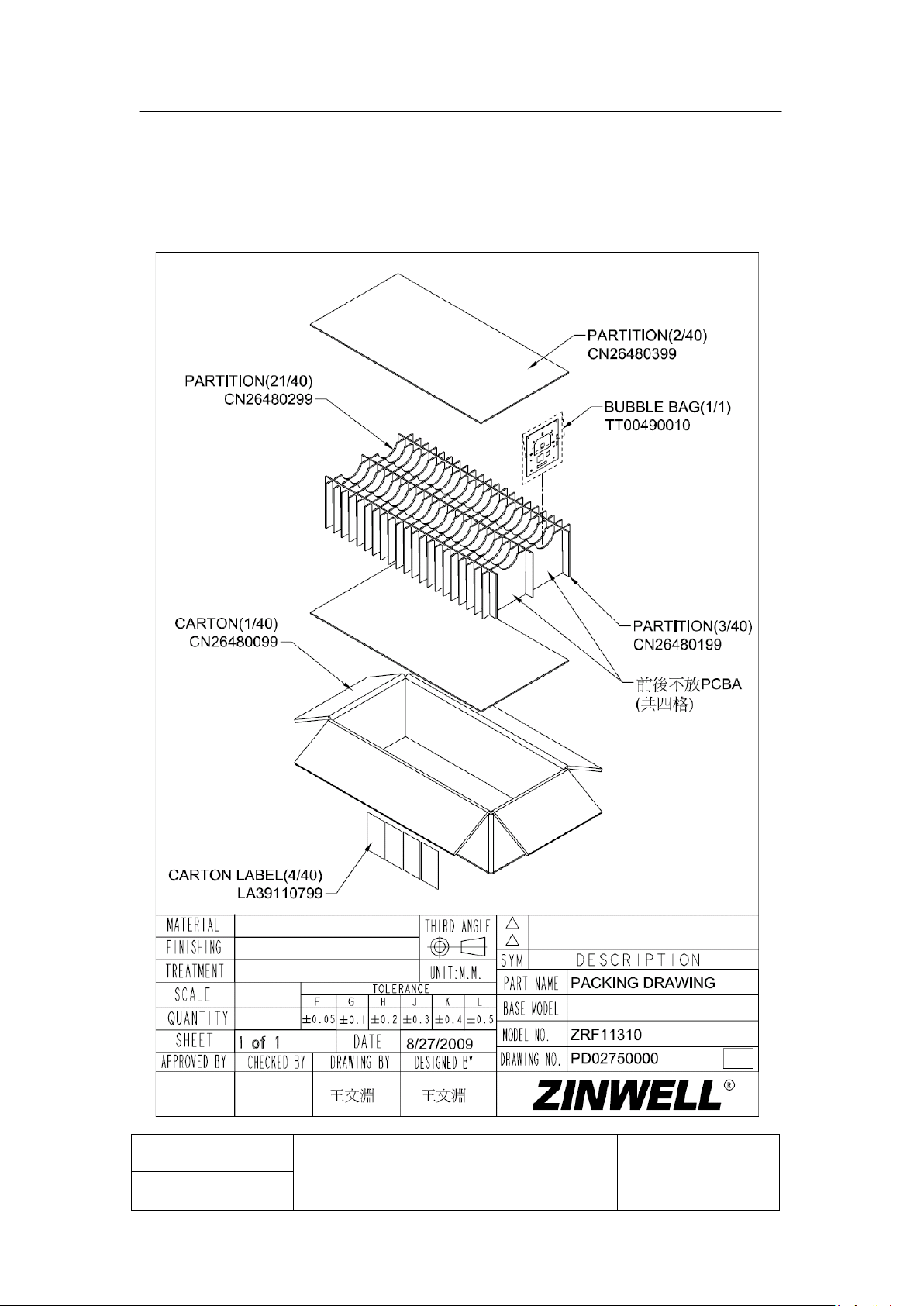

5 Packing

Mass Carton Box Artwork and Dimension

 TX

B002-08B

ZINWELL HD Wireless Video Transmission Product

Version: 0.1

Zinwell Corporation

7th, No. 512, Yuan Shan Road, Chung Ho City, 235,

Taipei County, Taiwan

TEL:[phone] FAX:[phone]

http://www.zinwell.com.tw

CONFIDENTIAL

Page 14 of 14

Date: 2010-09-14

Full HD Video Wireless Module

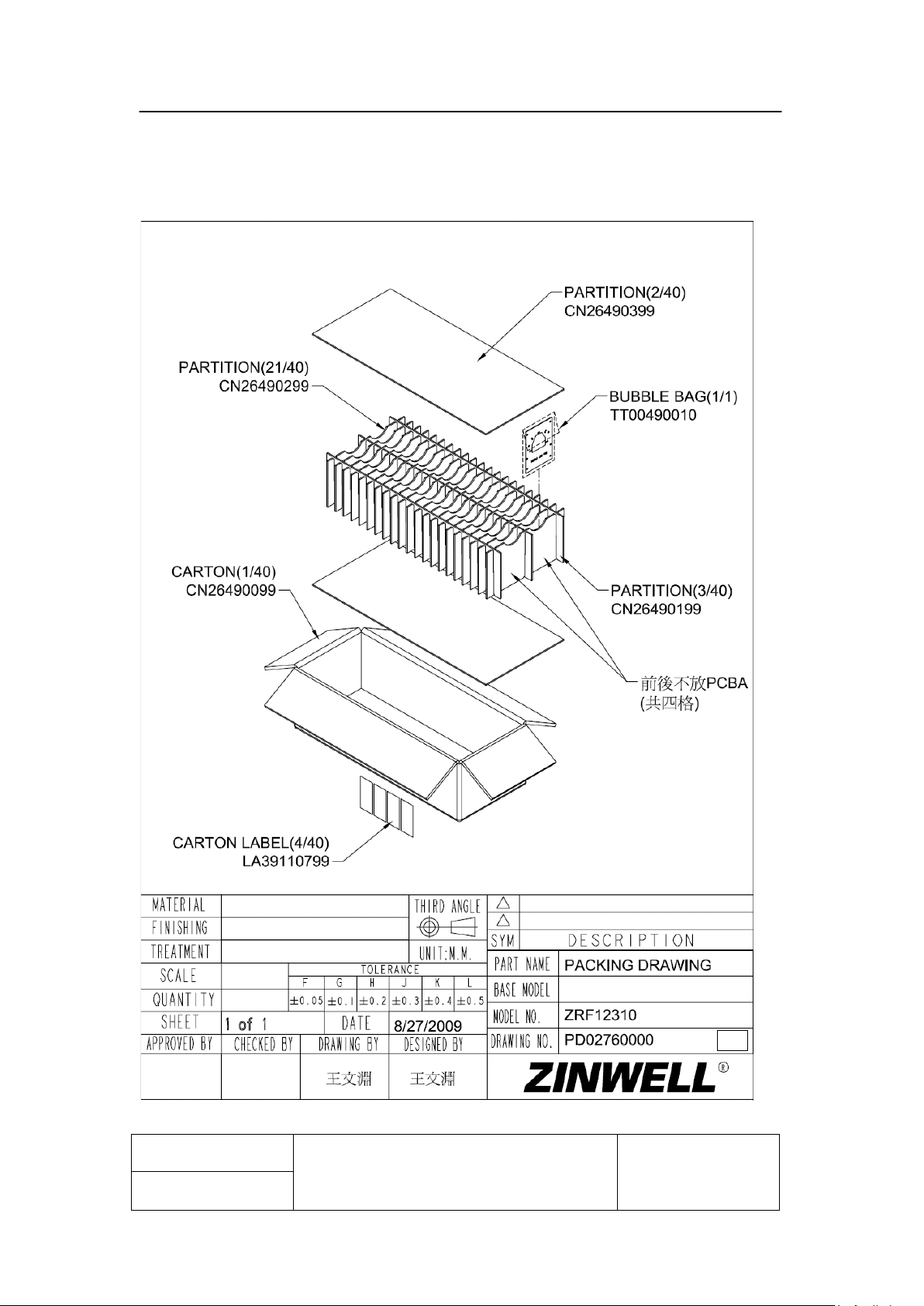

 RX

B002-08B
