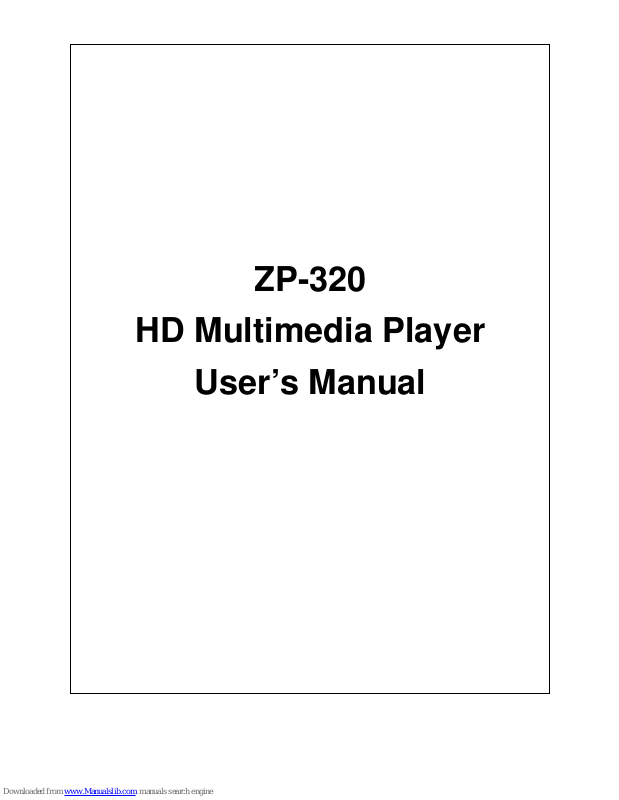

ZP-320
HD Multimedia Player
User’s Manual
2
Index
Introduction ............................................................................................................................................................ 3
Package Contents.................................................................................................................................................... 3
Product Overview................................................................................................................................................... 4
Panel Front side .............................................................................................................................................. 4
Panel Back side............................................................................................................................................... 4
Remote Control .............................................................................................................................................. 5
Connect................................................................................................................................................................... 6
Setup ....................................................................................................................................................................... 6
Initial setup ..................................................................................................................................................... 6
Setup Menu..................................................................................................................................................... 7
Multimedia Jukebox ............................................................................................................................................. 10
Playback the media files............................................................................................................................... 10
Movie.................................................................................................................................................... 10
Music .................................................................................................................................................... 13
Photo..................................................................................................................................................... 14
Slide show with Music ......................................................................................................................... 14
Zoom in and pan the focus ................................................................................................................... 15
Rotating the photo ................................................................................................................................ 15
All................................................................................................................................................................. 15
Edit the media files....................................................................................................................................... 16
Rename ................................................................................................................................................. 16
Delete.................................................................................................................................................... 17
Maintenance ......................................................................................................................................................... 18
Reset the device............................................................................................................................................ 18
Power on/Standby time................................................................................................................................. 18
Battery .......................................................................................................................................................... 18
Black screen.................................................................................................................................................. 18
Connect DVI to HDMI converter................................................................................................................. 18
Video/Audio codec support .......................................................................................................................... 19
Specification ................................................................................................................................................. 20
3
Introduction
ZP-320 is the first media player which truly decodes, playback and outputs High Definition 1080i in
the market. Through the USB 2.0 port and the HDMI interface, ZP-320 playbacks the HD
MPEG2/MPEG4-ASP Xvid / DivX movie or transport stream from the USB flash drive or hard disk
drive to HDTV screen. Not only plays HD movie smoothly, but also be capable to Zoom in, pan the
picture, fast forward, fast reverse and slow-motion. The playback of photo and music is also great for
enjoy the fun of high definition world.
Feature Highlight：：：：
Decode and output High Definition 1080i video and Photo.
Various formats of HD video are supported.
Within the next generation interface—HDMI output.
High performance video playback. Experience fluent playback control like Zoom-in, Pan the
picture, Fast Forward, Fast Reverse, Slow-motion.
Fully supports the subtitle format. Dynamically change the subtitle display by remote control.
Photo playback via HD. Supports Up to 4 mega-pixel photo files, 16X Zoom in, 3-direction
rotation.
Slide show mode with 8 kinds of transition effect. Background music playback is supported.
Rich types of music file. The playback function includes Fast Forward, Fast Reverse, Repeat,
Shuffle and Shuffle Repeat.
Within USB 2.0 port, plug-and-play the USB Flash Drive, USB Mobile Hard Disk Drive and USB
Card Reader.
Supports all most all formats of HDD and has the most interchangeability.
Easy to use and intuitive control. Change to setup menu at any time even in media playing to
provide the fluent control.
Package Contents
Please check the parts in the package. Contact the distributor if something is missing.
1. One ZP-320 HD Media Player 9. One user’s manual
2. One power adapter 10. One warranty
3. One remote control unit
4. Two AAA batteries
4
5. One stand
6. One YPbPr cable
7. One RCA cable
8. One quick installation guide
Product Overview
Panel Front side
LED/button/connector:
(1) POWER STANDBY: Press it to power on the device or put it into standby mode.
(2) POWER indicator: It lights on when the power is plugged in.
(3) USB indicator: It lights when the USB Storage is plugged in and ready. It may take 5 seconds to
get ready when the USB storage is plugged in.
(4) IR sensor: It receives the command from remote control unit. Do not block the port.
(5)USB: It is the USB 2.0 port. Connect the external USB Flash disk or USB Mass Storage into it.
Panel Back side
Video connection: Please select one below to connect the TV set.
HDMI output: Please connect the HDMI cable to the HDMI input of TV set.
YPbPr: They connect the component YPbPr to the input of TV set.
VIDEO (CVBS): It connects the CVBS input of TV set.
AUDIO L/R: They connect the audio L/R to the input of TV set. If the HDMI is connected, then you
don’t need to connect AUDIO L/R.
Reset: Press the button to power off and on the device.
2. 3.
1.
4.
5.
5
DC IN: It connects the DC input of the Power Adapter. The power requirement is 12Vdc, 1.5 A.
Remote Control
MUTE: Mute
POWER: Power on/Suspend
MUSIC: Hotkey to view the music file
PHOTO: Hotkey to view the photo file
MOVIE: Hotkey to view the movie file
RED / GREEN / YELLOW / BLUE: Special function
Function
key
Video
playback/DVD
Menu
File browser
Red Open DVD Menu None
Green Toggle audio track None
Yellow Switch the subtitle None
Blue Change the Angle Go to root directory
: UP
: LEFT
: RIGHT
: DOWN
ENTER: ENTER
PAUSE/STEP: Pause and step in frame by frame
PLAY: Playback
STOP: Stop
RETURN: go up one folder/Exit the current menu
SLOW: Slow motion
PREV: Previous file / section
NEXT: Next file / section
MENU: open System Setup page
REPEAT: 1/ALL repeat
FR: Fast Reverse
FF: Fast Forward
EDIT: Delete, Rename the folders and the files.
AUDIO: Change the audio track for VOB/ISO/IFO playback.
ZOOM +/-: Zoon In/Out
INFO: Display the information during playback
VOLUME +/-: increase/decrease volume
6
Connect
There are three ways shown below to connect this player to your TV set. Please choose one to apply.
Basic connection:
Power Cord: Connect the DC input in the device.
Audio cable output: Connect the cables to TV set.
CVBS video output (480i or 576i): Connect to TV set
Advanced connection:
Power Cord: Connect the DC input in the device.
Audio cable output: connect the cables to TV set.
Component video cable for HD video output (720p, 1080i): connect to TV set.
HDMI connection:
Power Cord: Connect the DC input in the device.
HDMI output (720p, 1080i): connect to HDMI input of TV set. The HDMI port sends digital video and
audio signal through the cable.
Setup
Please check the battery of Remote Control first, and then start the initial setup.
Initial setup
When plugged in the power at the first time, after the booting logo, the setup page should pop up to
start the initial setting. The first item is the menu language. Please setup the menu language for OSD.
Use ▲▼ button to select the language and press “ENTER” to confirm.
