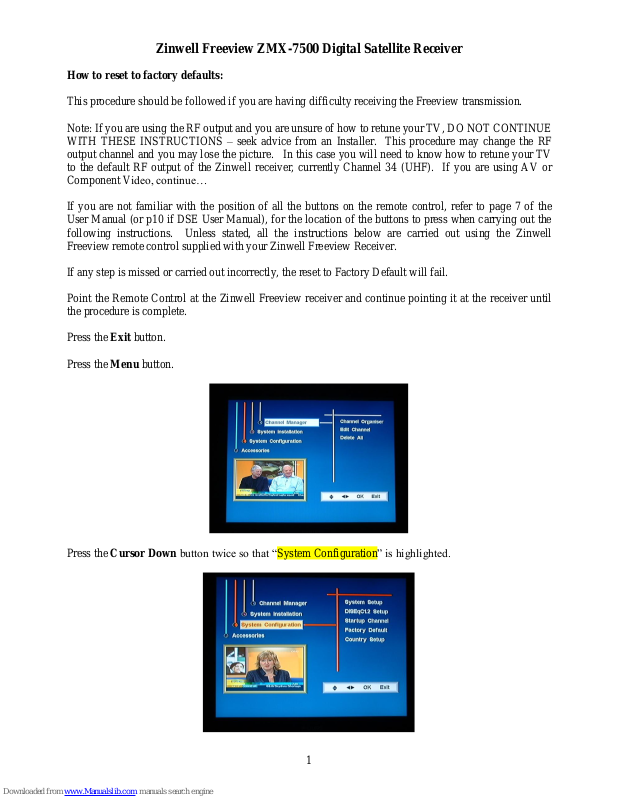

Zinwell Freeview ZMX-7500 Digital Satellite Receiver

How to reset to factory defaults:

This procedure should be followed if you are having difficulty receiving the Freeview transmission.

Note: If you are using the RF output and you are unsure of how to retune your TV, DO NOT CONTINUE
WITH THESE INSTRUCTIONS – seek advice from an Installer. This procedure may change the RF
output channel and you may lose the picture. In this case you will need to know how to retune your TV
to the default RF output of the Zinwell receiver, currently Channel 34 (UHF). If you are using AV or
Component Video, continue…

If you are not familiar with the position of all the buttons on the remote control, refer to page 7 of the
User Manual (or p10 if DSE User Manual), for the location of the buttons to press when carrying out the
following instructions. Unless stated, all the instructions below are carried out using the Zinwell
Freeview remote control supplied with your Zinwell Freeview Receiver.

If any step is missed or carried out incorrectly, the reset to Factory Default will fail.

Point the Remote Control at the Zinwell Freeview receiver and continue pointing it at the receiver until
the procedure is complete.

Press the Exit button.

Press the Menu button.

Press the Cursor Down button twice so that “System Configuration” is highlighted.

2

Press the Cursor Right button once so that “System Setup” is highlighted

Press the Cursor Down button three times so that “Factory Default” is highlighted.

Press the OK button. (You will get a message: “Password Please!”)

Press the 0 (zero) button four times. (You should get a prompt as shown with a box around the “NO”
option.)

(If you get a message saying "Password Mismatch", enter the password: 1 2 6 9).

When the Factory Default reset procedure is complete the password will also be restored to 0000 (four
zeros).
