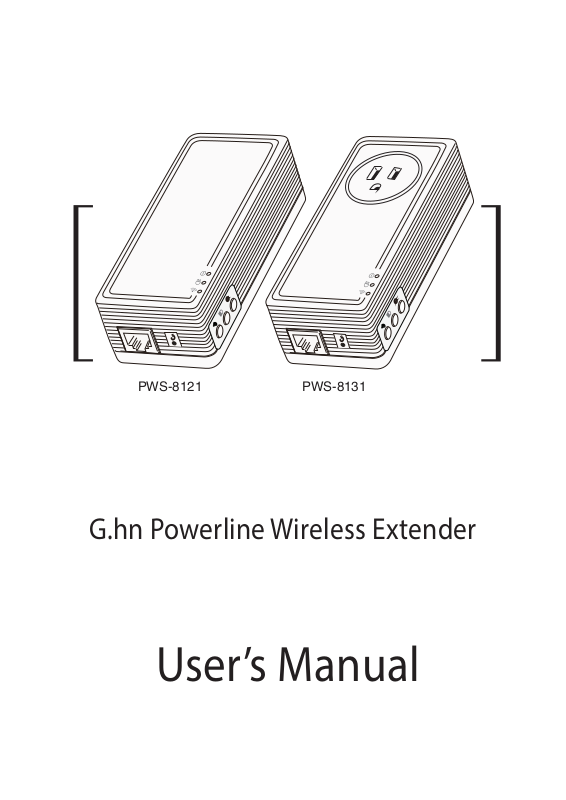

Zinwell PWS812131 Users Manual

PWS-8121 PWS-8131

G.hn Powerline Wireless Extender

User’s Manual

Table of Content

1. IMPORTANT INFORMATION

IMPORTANT SAFETY NOTES

1.1

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

1.2

2. INTRODUCTION

2.1 PACKAGE CONTENT

2.2 PRODUCT OVERVIEW

2.3 BUTTONS AND LEDS

3. HARDWARE INSTALLATION

EAST-SYNC

3.1

3.2

PEWERINE WIRELESS NETWORK

ENCRYPTED PLC NETWORK

CREATE AN ENCRYPTED PLC NETWORK GROUP

4.1

JOIN TO AN ENCRYPTED PLC NETWORK GROUP

4.2

REMOVE DEVICE FROM AN EXISTING NETWORK GROUP

4.3

CREATE ADDITIONAL ENCRYPTED NETWORK

4.4

5. ADVANCED WI-FI SETTINGS VIA WEB BROWER

5.1

6. SPECIFICATIONS

1. IMPORTANT INFORMATION

IMPORTANT SAFETY NOTES

1.1

The Device is intended for connection to the AC power line. For installation instructions, refer to the

Installation section. The following precautions should be taken when using this product.

♦ Please read all instructions before installing and operating this product.

♦ Please keep all instructions for later reference.

♦ Please follow all warnings and instructions marked on the product.

♦ For safety reason, when device is being powered on, this product should NOT be installed in any

electric socket which makes the surface with venting holes on the product to face downward (facing the floor).

♦ Unplug the Powerline device from the wall outlet before cleaning. Use a dry cloth for cleaning. DO

NOT use liquid cleaners or aerosol cleaners.

♦ DO NOT operates this product near water.

♦ This product should never be placed near or over a radiator, or heat register.

♦ This product relies on the building’s electrical installation for short-circuit (over current) protection.

♦ DO NOT allow anything to rest on the product interconnect plug. DO NOT locates this product where

people may walk on the cords.

♦ Because this product sends data over the power line, it is recommended that you plug directly into a

power outlet. Do not plug the Device into a UPS or power strip with surge protection. The product has its own power filter for protection against surges.

♦ Only a qualified technician should service this product. Opening or removing covers may result in

exposure to dangerous voltage points or other risks.

♦ Unplug the product from the wall outlet and refer the product to qualified service personnel for the

following conditions:

▪ When the interconnect cords are damaged or frayed.

▪ If liquid has been spilled into the product.

▪ If the product has been exposed to rain or water.

▪ If the product does not operate normally when the operating instructions are followed.

▪ If the product exhibits a distinct change in performance.

1.2

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

♦ Reorient or relocate the receiving antenna. ♦ Increase the separation between the equipment and receiver. ♦ Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected. ♦ Consult the dealer or an experienced radio/ TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

Labeling Requirements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure Warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the Device.

Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body).

Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement.

Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d'une personne).
