Zenoah EBZ5100, EBZ4800, EBZ5100RH, EBZ5100Q, EBZ5150 Workshop Manual

Instruction

This workshop manual describes the main maintenance items and procedures and troubleshooting for the Husqvarna Zenoah engine blower.

This manual is classified into two categories; one includes important notices concerning disassembly and reassembly including "Cautions for disassembly" and "Cautions for reassembly", the other includes inspection and adjustment items such as "Muffler inspection and maintenance", "Air cleaner inspection" and "Carburetor adjustment". After each item is thoroughly understood, apply the understanding to the actual maintenance tasks.

Frequently asked questions are also included in this manual. However, many cases need rich maintenance experience and informed judgment. Please refer to this manual for maintenance support.

【【【【NOTES】】】】

1. The contents of this manual are based on specifications as of January 2009. The contents may be modified due to performance improvement or some other reason without notice.

2. Use Zenoah brand-name parts when replacing a part during maintenance, etc. The manufacturer does not bear any responsibility if trouble occurs during parts use of other than brand-name parts.

3. Read this manual thoroughly before beginning the maintenance work, understand it, apply the content to the actual maintenance tasks and guide the customer if directions, are needed.

Exported models according to country

This workshop manual applies to all exported engine blower models sold by Hasqvarna Zenoah. Some models are not exported to particular regions of the world. Please check your model by referring the following table.

Table of exported models corresponding to country

Category Handheld Blower Backpack Blower

Displacement 22.5 cm

3

25.4 cm3 29.5 cm3 41.5 cm3 47.9 cm3 50.2 cm3 62.0 cm3 64.9 cm3 71.9 cm3

Engine Type G23L GZ25N GZ30N G4K GZ48N GZ51N G62L GZ65N GZ72N

JAP HB2311EZ EBZ3000 EB4300

★

EBZ4800 EB7001

★

General HB2302 HBZ2601 EBZ3000 EB4300

EB6200 EB7000

EBZ8001

＊

2

EU HB2302 HBZ2601 EBZ3000 EBZ4800 EB7000 EBZ8001

＊

2

Blower Model

USA HBZ2601

EBZ3000RH EBZ3050RH

EBZ5100

★

EBZ5100RH EBZ5100Q

★＊

1

EBZ5150★ EBZ5150RH EBZ5150Q

★＊

1

EBZ7100

★

EBZ7100RH EBZ7150

★

EBZ7150RH

EBZ8001

★

EBZ8001RH EBZ8050

★

EBZ8050RH

★: Left hand throttle lever specifications ＊1: EBZ5100Q has low noise specifications. ＊2: Equipped with frame for the mist kit installation.

Model Notation

The engine type and blower model nomenclature is as follows. The applicable blower models and series names are indicated at right of the maintenance item title. Refer to this nomenclature to confirm engine type and blower model.

●●●● Engine Type

G Z 25 N

Engine series (L/ N/ K)

Displacement (cm3)

Strato charged engine (green engine)

●●●● Blower Model

HB Z 26 01

Minor changed code

Handheld Bower

EB Z 71 00

Backpack (shouldering type) Blower

EB Z 51 00 RH

Right hand throttle lever specification

EB Z 51 00 Q

Low noise specifications

EB Z 51 50

Evaporation tank (fluorine coated) specification (Since January, 2009.)

Contents

1. Special Features

............................................................................................................ 1

2. Specifications and Technical Data

2-1 Blower ........................................................................................................................... 2

2-2 Pipe ............................................................................................................................... 3

2-3 Overall dimensions ........................................................................................................ 4

3. Special Tools

3-1 Rotor Removal .............................................................................................................. 5

3-2 Module Assembly ........................................................................................................ 11

3-3 Recoil Pulley Removal ................................................................................................ 14

3-4 Piston Pin Removal ..................................................................................................... 15

4. Service Guide

4-1 Starter Pulley Removal ............................................................................................... 17

4-2 Air Inlet Net Removal .................................................................................................. 17

4-3 Upper Spring Damper Removal .................................................................................. 18

4-4 Volute Cover Lower Damper Removal ........................................................................ 19

4-5 Flywheel Side Crankshaft Removal ............................................................................ 19

4-6 Crankcase Oil Seal and Bearings Removal ................................................................ 20

4-7 Crankcase Assembling ............................................................................................... 21

4-8 Piston Inserting Direction ............................................................................................ 24

4-9 Piston Pin Snap Ring Assembly ................................................................................ 24

4-10 Positioning of Lead Air Intake Tube .......................................................................... 25

4-11 Reed Valve Assembly ............................................................................................... 25

4-12 Gasket Assembly ...................................................................................................... 26

4-13 Scavenging Duct Cover Assembly ............................................................................ 27

4-14 Muffler Assembly ....................................................................................................... 27

4-15 Switch Cord Assembly .............................................................................................. 28

4-16 Cable Wiring .............................................................................................................. 30

4-17 Fan Assembly ........................................................................................................... 31

4-18 Backpack Pad Air Supply Pipe Assembly ................................................................. 31

4-19 Upper Spring Damper Assembly .............................................................................. 31

4-20 Upper Damper Assembly .......................................................................................... 32

4-21 Lower Damper Assembly .......................................................................................... 32

4-22 Carburetor Assembly ................................................................................................ 33

4-23 Engine Cover Assembly ............................................................................................ 33

4-24 Check of the Gasket Assembly ................................................................................. 34

4-25 Spark Arrester Removal ............................................................................................ 35

4-26 Spark Arrester Cleaning ............................................................................................ 36

4-27 Muffler Cleaning ........................................................................................................ 36

4-28 Air Cleaner Inspection ............................................................................................... 37

4-29 Element Removal ...................................................................................................... 37

4-30 Element Cleaning ...................................................................................................... 39

5. Structure of Right Hand Throttle Lever

............................................................. 40

6. Carburetor

6-1 Specifications .............................................................................................................. 41

6-2 Carburetor Configuration ............................................................................................ 42

6-3 Carburetor Conforms to Exhaust Emissions Regulations .......................................... 43

6-4 Limiter Cap Removal/ Installation ............................................................................... 44

6-5 Idling Speed Adjustment ............................................................................................. 44

6-6 Carburetor Inspection ................................................................................................. 45

6-7 Carburetor Adjustment ................................................................................................ 47

7. Maintenance Standards

7-1 Engine ......................................................................................................................... 51

7-2 Tightening Torques ...................................................................................................... 52

8. Troubleshooting

8-1 Engine does not start .................................................................................................. 53

8-2 Engine stop during operation ...................................................................................... 53

8-3 Engine cannot be stopped .......................................................................................... 53

8-4 Lack of output power or unstable revolution ............................................................... 54

8-5 The amount of the wind is weak ................................................................................. 54

1

1. Special Features

The environmental friendly Strato Charge Engine is installed.

The exhaust gas toxin concentration is greatly reduced without need for a catalyst, to generate reactive heat. High engine cooling performance promotes stable output even during continuous operation in summer. Furthermore, low fuel consumption reduces running costs.

Strato Charged: It means prior air intake and layered scavenging system.

Strato charged engine installed models:

HBZ2601 EBZ3000 EBZ4800 EBZ5100 EBZ5100Q EBZ7100 EBZ8001

The fan is designed to deliver air efficiently and silently. Usually an open type fan is used, whose vanes are bare. Some fans have closed construction whose vane edges are joined to a plate.

The closed vane fan will deliver a larger airflow compared to the same sized conventional open vane fan.

Closed vane fan installed model:

EBZ8001

The backpack blower has air ventilation system between the blower's pad and operator's back to reduce sweating and ensure comfortable operation.

Exhaust Type:

Cools the operator's back by exhausting air between the blower's pad and operator's back.

Exhaust models:

EB4300/ EBZ4800/ EBZ5100 Series EB6200/ EB7000/ EB7001/ EBZ7100

Inhalation Type:

Cools the operator's back by sucking air between the blower's pad and operator's back.

Inhalation models:

EBZ3000 EBZ8001

A large air cleaner, incomparable to other manufacturer's models, is installed. The large air cleaner consist of two stage filters (pre-filter and paper filter). An extended cleaning interval compared to conventional models ensures easier maintenance and trouble-free operation.

●●●● Air cleaner performance: Twice that of conventional models.

●●●● Cleaning interval: Three times longer than any other

manufacturer's blower of the same class.

Large air cleaner employing models:

EB7000 EB7001 EBZ7100 EBZ8001

V

olute Case

Frame

Guard Net

Engine Centrifugal Fan

Guard Net

Open Vane Fan

Closed Vane Fan

Backpack Pad Ventilation

Large Air Cleaner

Nozzle Shapes of the Pipe End Main Purpose

A larger diameter promotes voluminous air blowing.

It is suitable for blowing withering fallen leaves, paper trash and other light material.

A narrower nozzle generates higher air pressure.

It is suitable for blowing trimmed turf, pine needles and other moist or weighty material.

A wide nozzle spreads the blown air.

It is suitable for trimmed turf and fallen leaves that stick to the ground.

Noise Comparison between Models

Pipe End Specifications and Characteristics

Model

Noise dB (A)

15 m (49 ft)

from the

blower

Noise

level

EBZ4800 67 Low

EBZ5100Q 68

HBZ2601 69

EBZ3000 69

HB2302/ 2311 70

HBZ2601CA 72

EBZ5100 71

EB4300 74

EB6200/ 7000/ 7001 75

EBZ7100 77

EBZ8001 77 High

Pre-filter

Air Cleaner Cover

paper Filter

Air Cleaner Body

Fuel/ air mixture and pure air are separately induced durin

g p

iston

Firstly pure air is inhaled, then fuel/ air mixture is inhaled.

A pure air layer forms to push out the burnt gasses resulting in a reduced volume of unburnt exhaust gasses.

V

entilation

φφφφ72 mm (2.84 in.)/ φφφφ66 mm (2.60in.)

φφφφ57 mm (2.24 in.)

B

A

Duckbill Nozzle Dimensions (A x B) Small nozzle: 23x138 mm (0.91x5.43 in.) Large nozzle: 30x180 mm (1.18x7.09 in.)

Pipe End

φφφφ72 mm (2.84 in.)/ φφφφ66 mm (2.60in.)

Pipe End φφφφ57 mm (2.24 in.)

Duckbill Nozzle

Operating area

To prevent leaves, dirt or foreign matter being drawn in, a net is set between the volute cover and the frame. If leaves or dirt block at the net and the air intake, airflow and blower cooling efficiency will be reduced resulting in overheating.

Guard net installed models:

EBZ3000 EBZ4800 EBZ5100 EBZ5100Q EB7000 EB7001 EBZ7100 EBZ8001

15 m (49 ft)

Under ANSI B175.2-2000; (8 points measurement)

15 m (49 ft)

2

2. Specifications and Technical Data

2-1 Blower ★：

★：★：

★：Left hand throttle lever specifications

Item Unit Specifications

Category Handheld Blower Backpack Blower

Engine Type G23L GZ25N GZ30N G4K GZ48N GZ51N G62L GZ65N GZ72N

HB23 Series HBZ26 Series EBZ30 Series －－－－－－－－ EBZ51 Series －－－－ EB70 Series EBZ71 Series EBZ80 Series

EBZ3000 EBZ8001

Blower Model

HB2302 HB2311EZ HBZ2601 HBZ2601

EBZ3000RH/ EBZ3050RH

EB4300 EBZ4800

EBZ5100/

EBZ5100RH/

EBZ5150/

EBZ5150RH

EBZ5100Q/ EBZ5150Q

EB6200 EB7000 EB7001

EBZ7100/

EBZ7100RH/

EBZ7150/

EBZ7150RH/

EBZ8001/

EBZ8001RH/

EBZ8050/

EBZ8050RH

JAP, EU, General

EU, General

Sales Region

(Reference)

EU, General JAP EU, General USA

USA

JAP, General

JAP, EU, General

USA US A Gen eral EU, Genera l JAP U SA

USA

Remarks

Cycle － 2 ← ← ← 2 ← ← ← ← ← ← ← ← ←

Number of Cylinders －

1

← ← ←

1

← ← ← ← ← ← ← ← ←

Valve Type － Piston valve ← ← ← ← ← ← ← ← ← ← ← ← ←

Cylinder Bore

mm (in.) 32 (1. 260)

←

34 (1.339)

←

38 (1.496) 40 (1.575) 43 (1.693) 44 (1.732)

←

47.5 (1.870)

← ← ←

50 (1.969)

Stroke mm (in.) 28 (1.102) ← ← ← 26 (1.024) 33 (1.299) ← ← ← 35 (1.378) ← ← 36.6 (1.441) ←

Displacement

cm3 22.5

←

25.4

←

29.5 41.5 47.9 50.2

←

62

← ←

64.9 71.9

Effective

Compression Ratio

－ 7.7 ← 8 7.4 7.4 8.1 8 7.8 7.3 7.7 ← ← 7.4 7.5

Fuel －

Gasoline/oil mixed fuel

← ← ← ← ← ← ← ← ← ← ← ← ←

Engine lubrication － Fuel-oil mixture ← ← ← ← ← ← ← ← ← ← ← ← ←

Engine lubrication Oil

－

2-cycle oil

← ← ← ← ← ← ← ← ← ← ← ← ←

Mixing Ratio －

Zenoah FC 40:1

Normal FB 25:1

RedMax FD 50:1

← ← ← ← ← ← ← ← ← ← ← ← ←

Type －

Diaphragm type

rotary valve

← ← ← ← ← ← ← ← ← ← ← ← ←

Carburetor

(Walbro)

Model

－

WYJ-110A WYJ-374 WYA-26E WYA-65

USA, EU: WYA-73B

JAP: WYA-82

WYK-67A

EU：WYA-51B

JAP：WYA-42B

WYA-79 WYA-83 WYK-73A WYK-123A

←

WYA-81 W YA -44B

Starting Method － Recoil starter

Recoil starter

(Coil dumper type: EZ)

Recoil starter ←

Recoil starter

(Coil dumper type: EZ)

Recoil starter ← ← ← ← ← ← ← ←

Type

－

Analog controlled

TCI Flywheel Magneto with

advance-angle

←

Analog controlled

CDI Flywheel Magneto with

advance-angle

← ← ← ←

Digital controlled

CDI Flywheel Magneto with

advance-angle

Analog controlled

CDI Flywheel Magneto with

advance-angle

← ← ←

Digital controlled

CDI Flywheel Magneto with

advance-angle

←

Digital control Misfire for excessive speed Maximum speed: 85000 rpm

Ignition System

Model －

UK-08922-01

←

UK-08922-35

←

USA: UK-08958C-31

JAP, EU: UK-08958-31

ZMG-8 ZMG-10G UK-08963-54 ZMG-10G ZMG-8

← ←

ZMG-14CGD ZMG-14GD

Ignition Timing °/ rpm 24/ 6000 ← 35/ 7000 ← 37/ 7500 28/ 7000 35/ 7000 33/ 7000 35/ 7000 28/ 7000 ← ← 34/ 7000 33/ 7000

Type －

RCJ6Y

←

CMR7A CMR7H

←

RJ6C CMR7H

← ←

BPMR7A

← ←

CMR7H

←

Spark Plug

Gap

mm (in.)

0.6～0.7

(0.024～0.028)

← ← ← ← ← ← ← ← ← ← ← ← ←

Type －

Primary coil

short-circuiting

← ← ← ← ← ← ← ← ← ← ← ← ←

LH － No setting Push type No setting Push type Toggle type No setting ← Push type ← ←

Stopping

Method

Switch

RH －

Push type ← ← ←

Slide type ← ← ← ← ← ← No setting Slide type ←

Cooling System －

Forced air cooling

← ← ← ← ← ← ← ← ← ← ← ← ←

Air Cleaner

Element Type

－

Single layer dry

element

← ← ← ←

Single layer

half-wet element

Dual layer

half-wet element

Single layer

half-wet element

← ←

Primary: Dry puff

Secondary: Dry paper

← ← ←

Output Axle Rotation

Direction

－

Counterclockwise

← ← ← ← ← ← ← ← ← ← ← ← ←

View from output axle

Length mm (in.) 325 (12.8) ← 327 (12.9) ← 313 (12.3) 335 (13.2) 352 (13.9) 401 (15.8) ← 336 (13.2) ← 365 (14. 4) 371 (14.6)

380 (15.0)/

USA: 390 (15.4)

Width mm (in.) 225 (8.86) 233 (9.17) 268 (10.55) 269 (10.59) 394 (15.5)

★489 (19.3)

/ 454 (17.9)

452 (17.8)

★483 (19.0)

/ 441 (17.4)

★483 (19.0)

★489 (19.3)

/ 454 (17.9)

449 (17.7) ★485 (19.1)

★487 (19.2) / 467 (18.4)

★540 (21.3)

/ 490 (19.3)

Throttle arm Vertical state

Overall

Dimensions

Height mm (in.) 360 (14.2) ← ← ← 420 (16.5) 495 (19.5) 476 (18.7) 495 (19.5) ← ← ← ← ← 496 (19.5)

Dry Weight

kg (lbs.) 3.7 (8.16)

←

3.9 (8.6) 4 (8.82) 6.1 8.5 8.9 9.4

←

9.1 9.7

←

10.6 11.7/ USA：11.5

Elbow included, Blower pipe excluded

Fuel Tank Capacity L 0.75 ← 0.65 ← 1. 08 1.8 1.9 2.1 ← 2 2.1 ← ← 2.3

Idling Speed

rpm 2300

←

2800 3000 3000 2000 2300 2200

←

2000

← ← ← ←

Operating Speed rpm 7500 ← 7890 7600 6700 6350 6250 6000 5700 7700 7300 ← 7050 6700

Blower Nozzle

Diameter

mm (in.) 66 (2.60)

← ← ← ← ←

66 (2.60)

Option: 55 (2.17)

66 (2.60)

← ← ← ← ←

72 (2.835)

Average air volume at

aimed blowing point

m3/ min 10 ← 10.4 ← 10.6 12 13.2 13.8 12.8 14 15 16.5 16.6 19.4

Maximum air speed at

aimed blowing point (Calculated estimate)

m/ s 55.4

← ← ←

58.7 66.5 73.1 76.4 70.9 77.5 83.1 91.4 91.9 90.3

Maximum Output

kW/ rpm

(PS)

0.86/ 8000 (1.17)

← ←

0.88/ 7500 (1.2)

0.86/ 7500 (1.17)

0.95/ 7500 (1.29)

1.80/ 8000 (2.45)

1.88/ 8000 (2.56)

1.62/ 7500 (2.2)

1.53/ 7500 (2.08)

2.87/ 7500 (3.9)

3.1/ 7000 (4.1)

2.98/ 8000 (4.05)

3.29/ 8000 (4.48)

Fuel Consumption

L/ h 0.8

←

0.59 0.51 0.59 1.7 1.05 1. 1 0.98 1.9

← ←

1.65 1.85

Under actual blower state

Ambient noise at

15 m from the blower

dB (A) 70 ← 69 72 69 74 67 71 68 75 ← ← 77 77 ANSI B175.2-2000

Noise at operator (Reference value)

dB (A) 91

←

95 92 91 99 92 94 92 97 99

←

100 100

Sound Power Level dB (A) 106 ← 106 ← 100 106 104 104 102 110 107 ← 110 112 ISO 11094

3

2. Specifications and Technical Data

2-2 Pipe

Unit: mm (in.)

Part Name Grip Assembly Vacuum Kit Pipe End Straight Pipe＋＋＋＋Duckbill Nozzle

Form

Standard D=φ60 (2.36) D=φ74 (2.91) D=φ80 (3.15) φ73 (2.87)×φ66 (2.60) φ73 (2.87)×φ57 (2.24) φ79 (3.11)×φ66 (2.60) φ79 (3.11)×φ72 (2.84) Forφ73 (2.87) Forφ79 (3. 11)

RedMax Lodo 6811-51220 (Standard) 2756-51220 (Option) 848-L5C-65E1 (S tandard) 848-L58-65E1 (Standard)

Part

Number

Solid Color

3495-51400

(Option)

2750-51501

(Standard)

848-L58-6521

(Standard)

-

(Option)

848-L0L-65E0 (Standard) 848-L38-65E0 (Option) 848-L5K-65E1 (Standard) 848-L5Z-65E 0 (Standard)

6811-51211+6811-51230

(Option)

848-L58-65D0+848-L58-65L0

(Option)

EB430/

EBE440

●

+(2750-51200 Swivel Joint)

HB2302/

HB2311EZ/

HBZ2601

-

● ● ● (Option) ●

EBZ3000

-

● ● (Option)

●

EB4300/ EB6200/ EB7000

● ● ● (Option) ●

EBZ4800

●

● ● (Standard)

●

EBZ5100Q ● ● ● (Option) ● EBZ5100/

EB7001

●

● ● (Option)

●

EBZ7100 ● ● (Standard) ● (Option) ●

Model

EBZ8001

●

● (Option) ● (Standard)

●

Part Name Flexible Pipe Swivel Joint Straight Pipe Silencer Pipe End

Form

Diameter: D φ87 (3.43) φ87 (3.43) φ94 (3.70) φ99.5 (3.92) φ70 (2.76) φ70 (2.76) φ80 (3.15) φ61 (2.40) φ74 (2.91) φ80 (3.15) φ74 (2.91) φ61 (2. 40) φ73 (2.84) φ73 (2.87) φ79 (3.11) φ79 (3.11)

Diameter: D1 φ70 (2.76) φ70 (2.76) φ70 (2.76) φ80.5 (3.17) φ60 (2.36) φ74 (2.91) φ79 (3.11) φ60 (2.36) φ73 (2.87) φ79 (3.11) φ73 (2.87) φ57 (2.24) φ66 (2.60) φ57 (2.24) φ66 (2.60) φ72 (2.84)

Standard

Length: L 420 (16.54) 372 (14.65) 345 (13.58) 345 (13.58) 370 (14.57) 340 (13.39) 365 (14.37) 370 (14.54) 320 (12.60) 365 (14.37) 346 (13.62) 355 (13.98) 340 (13.39) 340 (13.39) 340 (13.39) 340 (13.39)

RedMax Lodo

-

6811-51220 2756-51220 848-L5C-65E1 848-L58-65E1

Part

Number

Solid Color

3495-51110 T4017-51110 T4030-51110 848-L65-65A0 3495-51202 2750-51201 848-L58-6511 3495-51321 6811-51211 848-L58-65D0 T4030-51110

3495-51300 848-L0L-65E0 848-L38-65E0 848-L5K -65E1 848-L5Z-65E0

EB430/

EBE440

●

-

●

HB2302/

HB2311EZ/

HBZ2601

-

●

-

●

EBZ3000

●

-

●

EB4300/ EB6200/ EB7000

● ● ●

-

●

EBZ4800

●

-

●

● ●

EBZ5100Q ● ●

-

● ●

EBZ5100/

EB7001

●

-

●

EBZ7100 ● ● ●

-

●

Model

EBZ8001

●

-

●

Diameter: D

φ66

(2.60)

φ57

(2.24)

φ66

(2.60)

φ72

(2.84)

23 (0.91)

138 (5.43)

D

D1

L

D

D1

L

D

D1

L

D

D1

L

D

D1

L

30 (1.18)

180 (7.19)

4

2. Specifications and Technical Data

2-3 Overall dimensions

Handheld Blower

Backpack Blower

Unit: mm (in.)

Blower Type A B C D

HB2302 325 (12.8) 225 (8.86) 360 (14.2) 610 (24.0)

HB2311EZ 325 (12.8) 233 (9.17) 360 (14.2) 610 (24.0)

HBZ2601 268 (10.55)

HBZ2601 (USA)

327 (12.9)

269 (10.59)

360 (14.2) 610 (24.0)

Unit: mm (in.)

Blower Type A B BB C D

EBZ3000/ 3000RH/ 3050/ 3050RH

313

(12.3)

―

394

(15.5)

420

(16.5)

1222

(48.11)

EB4300

335

(13.2)

489

(19.3)

454

(17.9)

495

(19.5)

1222

(48.11)

EBZ4800

352

(13.9)

―

452

(17.8)

476

(18.7)

1248

(49.13)

EBZ5100/ 5100RH/ 5150/ 5150RH

401

(15.8)

483

(19.0)

441

(17.4)

495

(19.5)

1195

(47.05)

EBZ5100Q/ 5150Q

401

(15.8)

483

(19.0)

―

495

(19.5)

1221

(48.07)

EB6200

336

(13.2)

489

(19.3)

454

(17.9)

495

(19.5)

1222

(48.11)

EB7000

336

(13.2)

―

449

(17.7)

495

(19.5)

1222

(48.11)

EB7001

365

(14.4)

485

(19.1)

―

495

(19.5)

1195

(47.05)

EBZ7100/ 7100RH/ 7150/ 7150RH

371

(14.6)

487

(19.2)

467

(18.4)

495

(19.5)

1185

(46.65)

EBZ8001

380

(15.0)

EBZ8001/ 8001RH/ 8050/ 8050RH: USA

390

(15.4)

540

(21.3)

490

(19.3)

496

(19.5)

1185

(46.65)

RH: Right hand throttle lever specification

5

3. Special Tools

3-1 Rotor Removal

Description

Part Name

Part Number

Model

Stopper

2670-96220

1664-96410

Stopper

3350-96220

Stopper

4810-96220

Puller Assy

2890-96100

Puller Assy

1490-96101

Puller Assy

2750-96100

Wrench (HEX)

3304-97611

Size: 3/4/5 mm

Wrench (TORX)

2850-96410

Size: T20/ T25/ T27

HB23 Series ● ● ●

HBZ26 Series ● ●

EBZ30 Series ● ● ●

EB4300/ 6200 EB70 Series

● ● ●

EBZ4800 EB51/ 71/ 80 Series

● ● ●

Remove the rotor using the puller assy (special tool) while preventing piston movement by setting the stopper (special tool).

Examples of special tool usage and maintenance procedures categorized by type and series are explained below. Each drawing includes information on parts such as mount screws and disassembly cautions.

How to use (Procedure) Handheld Blower: HB23 Series, HBZ26 Series

1. Remove the plug, and detach the main complete parts. Remove the carburetor, recoil starter and fuel tank if necessary.

【【【【Disassembly Flowchart】】】】

Volute Cover Assy.

↓

Engine Cover

↓

Below the procedure

Volute Cover Assy.

Mounting Screw (5)

【【【【HB23 Series】】】】

:

(+): P5×L20 【【【【HBZ26 Series】】】】:

TORX (T27): P5×L20

Mounting Screw (7) (+): P5×L20

Mounting Screw (7) TORX (T27): P5×L20

【【【【HB23 Series】】】】

Mounting Screw (1) (+): M4×L14 (PW)

Mounting Screw (2) TORX (T27): M5×L16

＊Installing with the recoil starter.

Engine Cover

Engine Short Block

Volute Case

【【【【HBZ26 Series】】】】

Construction

6

3. SPECIAL TOOLS

Handheld Blower: HB23 Series, HBZ26 Series

2. Set the stopper (special tool) into the plug hole.

3. Remove the mounting nut using the box wrench then remove the fan.

4. Remove the extension using the wrench.

5. Remove the four mounting screws, separate the volute case and the engine short block.

Stopper

【【【【HB23 Series】】】】【【【【HBZ26 Series】】】】

Stopper

Box Wrench (12 mm)

Mounting Nut (12 mm Hex)

Washer

Fan

Extension

Wrench (17 mm)

Mounting Screw

【【【【HB23 Series】】】】

:

(+): M5×L14 (PW, SW)

【【【【HBZ26 Series】】】】

:

TORX (T27): M5×L14

Engine Short Block

Volute Case

7

3. Special Tools

Handheld Blower: HB23 Series, HBZ26 Series

6. Remove the rotor using the puller assy. Apply 8 mm puller bolts.

How to use (Procedure) Backpack Blower: EBZ30 Series

1. Remove the plug, and detach the main complete parts. Remove the carburetor, recoil starter and fuel tank if necessary.

Rotor

Puller Assy

Puller Bolt (8 mm)

17 mm

【【【【Disassembly Flowchart】】】】

Air Inlet Net

↓

Spring Damper

↓

Frame

↓

Volute Cover Assy

↓

Engine Cover

↓

Below the procedure

Volute Cover Assy.

Mounting Screw (8) TORX (T27): M5×L25

Mounting Screw (3)

Mounting Bolt (1) (+): M5×L16

Mounting Screw (3) TORX (T27): M5×25

Engine Cover

Engine Short Block

Volute Case

Air Inlet Net

Plate

Clip (4)

Frame

Mounting Nut (2) M6

Mounting Screw (2) TORX (T27/ P): M5×L70

Mounting Nut (2) M5

Lower Damper

Refer to “4-2 Air Inlet Net Removal”

Refer to “4-3 Upper Spring Damper Removal”

Refer to “4-4 Volute Cover Lower Damper Removal”

Construction

8

3. SPECIAL TOOLS

Backpack Blower: EBZ30 Series

2. Set the stopper (special tool) into the plug hole.

3. Remove the four mounting screws, then remove the fan.

4. Remove the four mounting screws, separate the volute case and the engine short block.

Stopper

Fan

Mounting Bolt TORX (T27): M6×L30

Mounting Bolt TORX (T27): M5×L20

Engine Short Block

Volute Case

9

3. Special Tools

Backpack Blower: EBZ30 Series

5. Remove the mounting nut using the box wrench.

6. Remove the rotor using the puller assy. Apply 8 mm puller bolts.

How to use (Procedure)

Backpack Blower: EB4300/ 6200, EB70 Series, EBZ4800, EBZ51/ 71/ 80 Series

1. Remove the plug, and detach the main complete parts. Remove the carburetor, recoil starter and fuel tank if necessary.

【【【【Disassembly Flowchart】】】】

Air Inlet Net

↓

Frame

↓

Engine Cover

↓

Below the procedure

Rotor

Puller Assy.

Puller Bolt (8 mm)

Box Wrench (12 mm)

Mounting Nut (12 mm Hex)

Volute Cover Assy.

Mounting Screw (1)

Engine Cover

Engine Short Block

Volute Case

Lower Damper

A

ir Inlet Net

Upper Dumper

Clip (4)

Frame

Mounting Nut (2) M6

Mounting Screw (4)

Refer to “4-2 Air Inlet Net Removal”

Refer to “4-4 Volute Cover Lower Damper Removal”

Refer to “4-20 Upper Damper Assembly”

Exceptions for EB4300/ 6200

Construction

10

3. SPECIAL TOOLS

Backpack Blower: EB4300/ 6200, EB70 Series, EBZ4800, EBZ51/ 71/ 80 Series

2. Set the stopper (special tool) into the plug hole.

3. Remove the four mount screws, then remove the fan. The fan is detached but stays inside the volute cover assembly and the volute case.

4. Remove the six mounting screws then remove the engine short block from the volute case.

5. Remove the mounting nut using the box wrench.

6. Remove the rotor using the puller assy.

Rotor

Puller Assy.

Box Wrench (12 mm)

Mounting Nut (12 mm Hex)

Stopper

Fan

Mounting Bolt

Volute Cover Assy.

Volute Case

Mounting Bolt

Engine Short Block

Volute Case

11

3. Special Tools

3-2 Module Assembly

Description

Part Name

Part Number

Model

Gauge

3350-96240

T=0.4 mm

Gauge

2750-96240

t=0.3 mm

Gauge

848-8W4-0050

t=0.4 mm

Wrench (HEX) 3304-97611

Size: 3/ 4/ 5 mm

Wrench (TORX) 2850-96410

Size: T20/ T25/ T27

HB23 Series HBZ26 Series EBZ30 Series

● ●

EB4300/ 6200 EB70 Series EBZ4800/ 5100Q

● ●

EBZ5100 EBZ71/ 80 Series

● ●

Adjust the air gap between the rotor's magnetic steel and the module using the gauge (special tool).

Module Resistance

Model Engine Type

Primary Side

(Iron Core ⇒Primary Lead)

Secondary Side

(Iron Core ⇒High Tension Lead)

Air Gap

mm (in.)

HB2302/ 2311EZ G23L 0.8 kΩ 4.23 kΩ 0.3～0.4 (0.012～0.016)

HBZ2601 GZ25N ＋Side 8.45 kΩ －Side 2.70 kΩ 2.92 kΩ 0.3～0.4 (0.012～0.016)

EBZ3000 GZ30N ＋Side 30.3 kΩ －Side 37.2 kΩ 2.04 kΩ 0.3～0.4 (0.012～0.016)

EBZ3000RH/ 3050RH GZ30N （USA）＋Side 31.6 kΩ －Side 37.4 kΩ 2.05 kΩ 0.3～0.4 (0.012～0.016)

EB4300 G4K 0.17 kΩ 1.4 kΩ 0.3～0.4 (0.012～0.016)

EBZ4800 GZ48N

EBZ5100Q/ 5150Q GZ51N

0.33 kΩ 2.77 kΩ 0.3～0.4 (0.012～0.016)

EBZ5100/ 5100RH EBZ5150/ 5150RH

GZ51N

＋Side 71.2 kΩ

－Side: cannot be measured

11.0 kΩ 0.35～0.45 (0.014～0.018)

EB6200/ 7000/ 7001 G62L 0.17 kΩ 1.4 kΩ 0.3～0.4 (0.012～0.016)

EBZ7100/ 7100RH EBZ7150/ 7150RH

GZ65N Several MΩ or higher 2.74 kΩ 0.35～0.45 (0.014～0.018)

EBZ8001/ 8001RH EBZ8050/ 8050RH

GZ72N Several MΩ or higher 2.72 kΩ 0.35～0.45 (0.014～0.018)

The resistance values shown above are the reference values for resistance tester measurement. The resistance value is within the normal range shows no internal leakage or any other defect. We supply the measurement equipment (gap tester) that can measure spark energy while the engine is running.

3699-90247

Three-point gap tester

* Connect Negative Side (black) to Iron Core.

REFERENCE

12

3. SPECIAL TOOLS

Examples of the gauge (special tool) usages are shown according to the type of the gauge.

Gauge: 3350-96240 (T=0.4 mm) HB23 Series, HBZ26 Series, EBZ30 Series

1. Remove the obstructive parts in order to see the rotor and the module. (Refer to “3-1 Rotor Removal”.)

2. Insert a gauge (special tool) between the rotor magnet metal and module. Tighten the mounting bolts while pushing the module against the rotor.

【【【【HB23 Series】】】】

Module

Rotor

Wrench

Gauge

Mounting Bolt

【【【【HBZ26 Series】】】】

Module

Rotor

Wrench

Gauge

Mounting Bolt

【【【【EBZ30 Series】】】】

Module

Rotor

Wrench

Gauge

Mounting Bolt

13

3. Special Tools

Gauge: 2750-96240 (T=0.3 mm) EB4300/ 6200, EB70 Series, EBZ4800/ 5100Q

1. Remove the module cover.

2. Insert a gauge (special tool) between the rotor magnet metal and module. Tighten the mounting bolts while pushing the module against the rotor.

Gauge: 848-8W4-0050 (T=0.4 mm) EBZ5100, EBZ71/ 80 Series

1. Remove the module cover.

2. Insert a gauge (special tool) between the rotor magnet metal and module. Tighten the mounting bolts while pushing the module against the rotor.

Module

Rotor

Wrench

Gauge

Mounting Bolt

【【【【EB4300/ 6200, EB70 Series】】】】

【【【【EBZ4800/ 5100Q】】】】

Module

Rotor

Wrench

Gauge

Mounting Bolt

【【【【EBZ5100】】】】

Module

Rotor Wrench

Gauge

Mounting Bolt

【【【【EBZ71/ 80 Series】】】】

Module

Rotor

Wrench

Gauge

Mounting Bolt

14

3. SPECIAL TOOLS

3-3 Recoil Pulley Removal

Description

Part Name

Part Number

Model

Stopper

4810-96220

Puller

4500-96100

Puller

848-8W0-0020

Wrench (HEX) 3304-97611

Size: 3/ 4/ 5 mm

Wrench (TORX) 2850-96410

Size: T20/ T25/ T27

HBZ26 Series

●

EBZ71/ 80 Series

●

Remove the recoil pulley using the puller (special tool) while preventing piston movement by setting the stopper (special tool).

Examples of the puller (special tool) usages are shown according to the type of the puller.

Puller: 4500-96100 HBZ26 Series

1. Remove the recoil starter and the spark plug.

2. Insert the stopper (special tool) to the plug hole (Refer to “3-1 Rotor Removal”).

3. Engage the puller (special tool) to 2 holes on the pulley and pull out the pulley.

Note: Pulley screw is right turn screw.

Puller: 848-8W0-0020 EBZ71/ 80 Series

1. Remove the recoil starter and the spark plug.

2. Insert the stopper (special tool) to the plug hole (Refer to “3-1 Rotor Removal”).

3. Extract the pulley while holding the pulley by the puller's pins (special tool).

Note: Pulley screw is right turn screw.

Puller

Box Wrench

Pulley

Hole

Puller

Box Wrench

Pulley

Puller

Pulley

15

3. Special Tools

3-4 Piston Pin Removal

Description

Part Name

Part Number

Model

Rod Assy

1101-96220

φ

7.5×φ4.7

Rod Assy

3350-96230

φ11×φ

8

Rod Assy

2750-96230

φ11×

35 mm

Wrench (HEX) 3304-97611

Size: 3/ 4/ 5 mm

Wrench (TORX) 2850-96410

Size: T20/ T25/ T27

HB23 Series HBZ26 Series

●

EBZ30 Series EB4300

●

EB6200 EB70 Series

●

EBZ4800 EBZ51 Series

●

EBZ71/ 80 Series

●

(Only a rod is used.)

●

Remove the cylinder, and then the piston pin using the rod assy (special tool).

Examples of the rod assy (special tool) usages are shown according to the type of the rod assy.

Rod Assy: 1101-96220 HB23 Series, HBZ26 Series

1. Remove the engine short block (refer to “3-1 Rotor Removal”) and then remove the cylinder.

2. Remove the snap rings from both sides of the piston pin.

3. Engage the rod assy (special tool) against the piston pin and gently tap with a plastic hammer to push out the pin.

Hard hammering may damage the big end of the connecting rod.

EBZ71/ 80 Series are designed so that the piston assembly can be disassembled without any tool. However, if it is difficult to pull out the piston pin, use the special tool (Rod Assy: 1101-96220) to push out the piston pin.

Rod Assy.

Plastic Hammer

Piston

CAUTION

Rod

Piston Pin

Piston

REFERENCE

16

3. SPECIAL TOOLS

Rod Assy: 3350-96230 EBZ30 Series, EB4300, EBZ4800, EBZ51 Series

1. Remove the engine short block (refer to “3-1 Rotor Removal”) and then remove the cylinder.

2. Remove the snap rings from both sides of the piston pin.

3. Insertion the rod assy (special tool) against the piston pin and gently tap with a plastic hammer to push out the pin.

Hard hammering may damage the big end of the connecting rod.

Rod Assy: 2750-96230 EB6200, EB70 Series

1. Remove the engine short block (refer to “3-1 Rotor Removal”) and then remove the cylinder.

2. Remove the snap ring from starter side of the piston pin.

3. Rest the rod assembly against the end of the piston pin and pull the piston pin out from the piston.

CAUTION

Rod assy.

Piston Pin

Piston

Rod Assy.

Piston Pin

Piston

Piston Pin

Snap Ring (Don’t remove)

Snap Ring (Remove)

Snap Ring

Rod Assy.

17

4. Service Guide

4-1 Starter Pulley Removal

HB23 Series, EBZ30 Series

● Insert the stopper (special tool) into the plug hole

(refer to “3 Special Tool”) to secure the piston.

● Remove the starter pulley using commercially

available pliers. The pulley must be covered with cloth to prevent from damage.

Never remove the starter pulley by hitting with a hammer. Doing so may damage the pulley.

EB4300/ 6200, EB70 Series, EBZ4800, EBZ51 Series

● Insert the stopper (special tool) into the plug hole

(refer to “3 Special Tool”) to secure the piston.

● Remove nut (M10), set a commercially available

puller, then remove the starter pulley.

Never remove the starter pulley by hitting with a hammer. Doing so may damage the pulley.

4-2 Air Inlet Net Removal

EB6200, EB70 Series, EBZ4800, EBZ30/ 51/ 71/ 80 Series

The air inlet net is mounted by four clips. The removal procedure is shown below.

1. Loosen each clip’s resin screw and remove the whole.

Set the Philips screwdriver against the resin screw securely. Insufficient or excessive contact may cause the resin head to break.

2. Insert a screwdriver between free flow net and frame, then wrench the clip open by twisting the screwdriver.

Pay attention not to damage the air inlet net or frame with the screwdriver.

CAUTION

Pliers

Cloth

Starter Pulley

Box Wrench

Nut (M10)

Starter Pulley

Puller

Starter Pulley

CAUTION

Resin Screw

【【【【Clip Position】】】】

Clip

A

ir Inlet Net

Screwdriver

18

4. Service Guide

4-3 Upper Spring Damper Removal

EBZ30 Series

To remove the upper spring damper, follow the procedure below.

1. Remove the three mounting screws.

2. Pull the plate upward from the spring holder’s groove.

3. Press the upper part of the volute to the frame to slacken the strap, and then pull out the plate.

4. Pull the strap out from the volute case.

5. Remove the spring from the volute case, then the spring holder. The spring is easily removed by pressing and turning the tip of the spring along the spring groove with a screwdriver.

Mounting Screw TORX (T27): M5×L25

Spring Holder

Plate

Strap

Plate

Strap

Volute Case

Spring Holder

Spring

Screwdriver

19

4. Service Guide

4-4 Volute Cover Lower Damper Removal

EB6200, EB70 Series, EBZ4800, EBZ30/ 51/ 71 Series

● Remove the volute unit from the frame.

● Remove the all mount mounting screws, separate

volute cover from its case, then remove the lower damper unit.

EBZ80 Series

● Remove the volute unit from the frame.

● Remove the cover by removing the three mounting

screws then remove the lower damper from the volute case’s groove.

4-5 Flywheel Side Crankshaft Removal

EBZ4800, EBZ30/ 51/ 71/ 80 Series

● Be sure to extract the key beforehand.

● The precision fit between crankshaft and main

bearings is very tight. Be sure to use the press to remove the crankshaft.

Never hit the crankshaft to remove it. The crankshaft’s threading may be lost or the shaft axis may deform.

● Secure the crankcase on support and then press

the crankshaft with the press via the guide.

Never press the crankshaft directly with the press. Doing so may damage the shaft’s threading.

CAUTION

Lower Damper

Volute Unit

Cover

Mounting Screw

Key

Press

Crankshaft

Support

Guide

Mounting Screw

Lower Damper

Volute Cover

Volute Case

20

4. Service Guide

4-6 Crankcase Oil Seal and Bearings Removal

All Models

● Disassembly is usually unnecessary. However, if the oil seal’s main lip or dust lip is worn, the shaft will become loose due to bearing wear or if the they have seized, replace the oil seal and bearings with new ones.

● Be sure to use the press to remove the bearings.

Be sure to use the press to press the bearings out during bearing removal. Without jig use to the crankcase may be damaged.

● If the crankcase’s bearings are worn, replace them with new ones.

CAUTION

Bearing

Support

Bearing Guide

【【【【Fan Side】】】】

Crankcase

Bearing

Support

Bearing Guide

【【【【Starter Side】】】】

Crankcase

Press

21

4. Service Guide

4-7 Crankcase Assembling

Bearings, snap ring, oil seal configuration and installation position differ depending on type. Properly install each part and reassemble the crankcase referring to the corresponding type’s drawing. For bearing and oil seal installation, refer to the explanation on page 23.

HB23 Series, HBZ26 Series

EBZ30 Series

EB4300

【【【【Fan Side】】】】

Push the oil seal within 0 to

0.5 mm (0.02 in.) from the crankcase surface.

Oil Seal

【【【【

Starter Side

】】】】

Oil Seal Align the oil seal surface with the crankcase surface.

Bearing Push the bearings until they contact the snap ring.

Bearing Push the bearings until they contact the crankcase.

Snap Ring

Crank Case

Construction

Push the oil seal within 0 to

0.5 mm (0.02 in.) from the crankcase surface.

Oil Seal

【【【【Fan Side】】】】【【【【Starter Side】】】】

Bearing Push the bearings until they contact the crankcase.

Snap Ring Do not cover the lubrication hole with the snap ring.

Lubrication Hole

Snap Ring

Push the oil seal within 3.3 to 3.8 mm (0.13 to 0.15 in.) from the crankcase surface.

Oil Seal

Bearing Push the bearings until they contact the snap ring.

Lubrication Hole

Crank Case

Construction

【【【【Fan Side】】】】

Push the oil seal until its surface comes trim with the crankcase edge surface.

Oil Seal

【【【【Starter Side】】】】

Push the oil seal until its surface comes trim with the crankcase edge surface.

Bearing Push the bearings until they contact the snap ring.

Bearing Push the bearings until they contact the crankcase.

Snap Ring

Oil Seal

Crank Case

Construction

22

4. Service Guide

EBZ4800, EBZ51 Series

EB6200, EB70 Series, EBZ71/ 80 Series

Snap Ring Assembly EB6200, EB70 Series, EBZ4800, EBZ30/ 51/ 71/ 80 Series

A lubrication hole exists to increase lubrication to the main bearing. Do not cover the hole with the snap ring. Set the snap ring’s gap to the piston side.

Lubrication Hole

Snap Ring

【【【【

piston Side

】】】】

Push the oil seal within 0 to

0.5 mm (0.02 in.) from the crankcase surface.

Oil Seal

【【【【Fan Side】】】】

【【【【Starter Side】】】】

Bearing Push the bearings until they contact the crankcase.

Snap Ring Do not cover the lubrication hole with the snap ring.

Lubrication Hole

Push the oil seal within 1.5 to 2.3 mm (0.06 to 0.09 in.) from the crankcase surface.

Oil Seal

Bearing Push the bearings until they contact the snap ring.

Lubrication Hole

Crank Case

Construction

Push the oil seal within 1.3 to 1.7 mm (0.05 to

0.07 in.) from the crankcase surface.

Oil Seal

【【【【Fan Side】】】】

【【【【Starter Side】】】】

Bearing Push the bearings until they contact the crankcase.

Snap Ring Do not cover the lubrication hole with the snap ring.

Lubrication Hole

Push the oil seal within 5.3 to 5.7 mm (0.21 to 0.22 in.) from the crankcase surface.

Oil Seal

Bearing Push the bearings until they contact the snap ring.

Lubrication Hole

Crank Case

Snap Ring

Construction

23

4. Service Guide

Oil Seal Assembly All Models

● Never insert the oil seal obliquely. The oil seal may

be fall out.

● Before the oil seal is pressure-inserted, apply

grease to the oil seal.

● Press the oil seal from the outside of the crankcase

using combined special tools (holder and guide).

● Pay attention because oil seal pressure-insertion

position differs according to rotor, starter and engine type. For the insertion position of particular models, refer to “4-7 Crankcase Assembly”.

Bearing Assembly All Models

● Never insert the oil seal obliquely. Press it securely

until it contacts the snap ring.

● Before the bearing is pressure-inserted, apply

grease to the bearing.

● Face the bearing identification mark (mark is

recessed) toward the inside of the crankcase and then insert it.

● Press the bearings from the outside of the

crankcase using combined special tools (holder and guide).

Crankcase Assembly EB6200, EB70 Series, EBZ4800, EBZ30/ 51/ 71/ 80 Series

● The precision fit between crankshaft and main

bearing is very tight. Be sure to use an insertion jig to remove the crankshaft.

Never hit the crankshaft by hammer or equivalent. The shaft’s threading may be lost or the shaft axis may deform.

● Secure the crankcase on support and then press

the crankshaft with the press via the guide.

Never press the crankshaft directly with the press. Doing so may damage the shaft’s threading.

CAUTION

Press

Guide

Crankshaft

Oil Seal

Support

【【【【

Crankcase Outside

】】】】

Press

Ball Bearing

Snap Ring

【【【【Crankcase Inside】】】】

Support

Press

24

4. Service Guide

4-8 Piston Inserting Direction

All Models

Make sure to point the recessed mark (arrow or triangle) on the piston head to the exhaust (muffler) side.

4-9 Piston Pin Snap Ring Assembly

End Gap Position HB23 Series, HBZ26 Series, EB4300/ 6200, EB70 Series

Fit the snap ring in the piston’s groove firmly and position the end gap of the snap ring below the piston.

・・・・ If the snap ring is poorly inserted or the end

gap of the snap ring is incorrectly positioned, the snap ring may comes off during engine operation resulting in damage to the engine.

・・・・ Never reuse a snap ring. Always insert a

new one.

End Gap Position EBZ4800, EBZ30/ 51/ 71/ 80 Series

Fit the snap ring in the groove firmly and position the end gap of the snap ring opposite the notch.

・・・・ If the snap ring is poorly inserted or the end

gap of the snap ring is incorrectly positioned, the snap ring may comes off during engine operation resulting in damage to the engine.

・・・・ Never reuse a snap ring. Always insert a

new one.

Check After Installation All Models

After the snap ring is installed, check that it fits firmly in the correct direction.

Turn the snap ring using thin tipped tool and check that it moves smoothly in its groove. If the snap ring is improperly installed, it will not move smoothly in its groove.

CAUTION

Notch

End Gap

Snap Ring

Notch

End Gap

Snap Ring

Piston Pin

Groove

Snap Ring

REFERENCE

【【【【Exhaust Side】】】】

Triangle Mark

Arrow Mark

【【【【Exhaust Side】】】】

25

4. Service Guide

4-10 Positioning of Lead Air Intake Tube

HBZ26 Series

The lead air intake tube has cast marking of either “F” or “S”. “S” is for the starter end, and “F” for the fan end. Assembling position shall not be mixed up.

Caution: Oppositely assembled tubes will cause a sealing failure. Before assembling the tubes, check for deterioration or cracks and change will new ones if necessary.

4-11 Reed Valve Assembly

HBZ26 Series

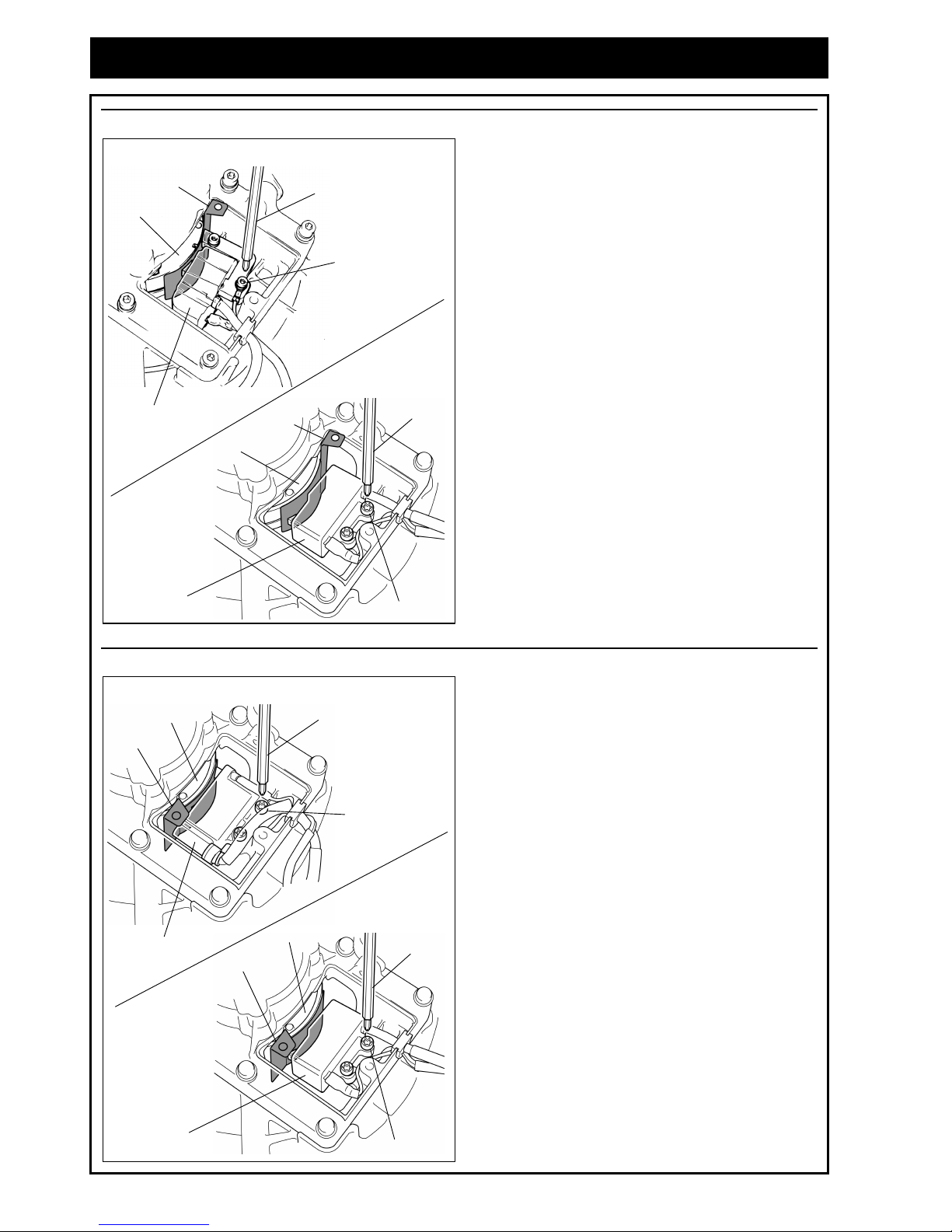

● Check that there is no foreign matter inside the

valve case.

Check the gap between the valve case and the reed valve. Replace with new valve if the gap is larger than 0.2 mm (0.008 in.), or the valve is distorted.

● Screw lock agent shall be applied to the reed valve

and the stopper fixing screw.

● The reed valve case has a marking either “S” or

“F”. “S” is for the starter side, and “F” for the fan side. Assembling position shall not be mixed up.

CAUTION

Marks

Lead Air Intake Tube

Valve Case

Reed Valve and Mounting Screw

Valve Case

Reed Valve

Stopper

Max. 0.2 mm

(0.008 in.)

“S” Mark Valve Case

【【【【Starter Side】】】】

【【【【Fan Side】】】】

“F” Mark Valve Case

IMPORTANT

26

4. Service Guide

4-12 Gasket Assembly

All Models

Each gasket has its installing direction. Pay attention to the direction when the gasket is being installed.

When the engine is overhauled, replace the gaskets with new ones.

Model Gasket Positions Model Gasket Positions

HB23 Series

EBZ4800 EBZ51 Series

HBZ26 Series

EB6200 EB70 Series

EBZ30 Series

EBZ71 Series EBZ80 Series

EB4300

Gasket Positions

【【【【Starter Side】】】】

【【【【Fan Side】】】】

A, Insulator Gasket

C, Muffler Gasket

B, Base Gasket

CAUTION

A

B

C

A

B

C

A

B

C

A

B

C

A

B

C

A

B

C

Aluminum Gasket

A

B

C

27

4. Service Guide

4-13

Scavenging Duct Cover

Assembly

EBZ30/ 71/ 80 Series

The scavenging duct covers have marking either “S” for starter side or and “F” for fan side. They must not be oppositely assembled.

When the engine is overhauled, be sure to replace the gaskets with new ones.

EBZ4800, EBZ51 Series Strato Charged engines have no scavenging duct covers.

4-14 Muffler Assembly

EB4300/ 6200, EB70 Series, EBZ4800, EBZ51/ 71/ 80 Series

Tighten the three muffler mounting bolts to the same pressure.

・・・・ The bracket may be damaged if the two

muffler mounting bolts (long) on the upper side are securely tightened before the mounting bolt (short) on the lower side, is tightened.

・・・・ After the engine is reassembled, run it at full

throttle for more than one minute, then tighten the muffler mount bolts again. To rque: 8 ～～～～12N・・・・m (80～～～～120kgf・・・・cm)

CAUTION

Gasket

“S”

Scavenging Duct Cover

【【【【Starter Side】】】】【【【【Fan Side】】】】

“F”

Scavenging Duct Cover

Gasket

Mounting Bolts (long)

Mounting Bolts (short)

Muffler

Bracket

REFERENCE

28

4. Service Guide

4-15 Switch Cord Assembly

Switch Cord Assembly HB23 Series, HBZ26 Series

● Fit the switch cord connector firmly to the module’s terminal.

● Secure the switch cord terminal with the module mounting bolt.

Switch Cord Assembly EBZ30 Series

● Secure the switch cord terminal (black) with the module mount bolt. Tilt the terminal about 45 degrees rightward.

Ensure the cord is not bent nor interfering with the crankcase.

● Fit the switch cord connector (red) firmly to the module’s terminal.

CAUTION

Connector

Switch Cord

【【【【HB23 Series】】】】

Module

【【【【HBZ26 Series】】】】

Connector

Switch Cord

Module

Te rm i n al

Connector

Switch Cord

Module

Te rm i n al

About 45 Degrees

29

4. Service Guide

Switch Cord Assembly EB4300/ 6200, EB70 Series

● Secure the switch cord terminal with the module

mounting bolt.

Ensure the cord is not bent nor interfering with the crankcase when the module mount bolt is tightened.

● Bends the terminal of the module, fit the switch

cord connector firmly to the module’s terminal.

Bend the module’s terminal until the cord is clear of the crankcase.

Switch Cord Assembly EBZ4800, EBZ51/ 71/ 80 Series

● Secure the switch cord terminal with the module

mounting bolt.

Bring the terminal into contact with the crankcase’s protrusion then tighten it.

● Fit the switch cord connector firmly to the module’s

terminal.

CAUTION

Connector

Switch Cord

Module

Te rm i n al

Module’s terminal

【【【【EBZ5100】】】】

Connector

Switch Cord

Module

Te rm i n al

Connector

Switch Cord

Module

Te rm i n al

【【【【EBZ4800, EBZ5100Q, EBZ71/ 80 Series】】】】

Crankcase’s protrusion

Contact

30

4. Service Guide

4-16 Cable Wiring

Switch Cord Wiring HB23 Series, HBZ26 Series

● Insert the grommet to align with the volute case notch and clamp the cord between the protrusions as shown in the figure at left.

Check that the cord on the module side is not caught between volute case and crankcase.

● Pay attention that the cord is not caught against the engine cover when it is installed.

Switch Cord Wiring EBZ30 Series

● Align the cord along the guide, and insert the grommet to align with the volute case notch.

Check that the cord on the module side is not caught between volute case and crankcase.

● Set the lead cords and clamp them as shown in the figure at left.

Align the cord not to interfere with the clamp mounting screw.

● Pay attention that the cord is not caught against the engine cover when it is installed.

High Tension Cord Wiring EB4300/ 6200, EB70 Series, EBZ4800, EBZ51/ 71/ 80 Series

Insert the grommet to align with the crankcase's notch and align the high tension cord and secure it with the clamp as shown in the figure at left.

Align the high tension cord not to interfere with the crankcase or the clamp mounting screw.

CAUTION

Cords

Grommet

Cords

Grommet

Cord

Clamp

Crankcase

Clamp

Grommet

High Tension Cord

31

4. Service Guide

4-17 Fan Assembly

All Models

● Insert the stopper (special tool) into the plug hole

(refer to “3 Special Tool”).

● Tighten the mounting nut so that the fan securely

meets the rotor without looseness.

If the fan is installed with four mounting bolts, secure them with equal pressure in diagonal order.

4-18 Backpack Pad Air Supply Pipe Assembly

EB4300/ 6200, EB70 Series, EBZ4800, EBZ51/ 71 Series

Firmly insert the tip of the air supply nozzle into the frame air inlet pipe.

4-19 Upper Spring Damper Assembly

EBZ30 Series

Reassembly of the upper spring damper is the reverse procedure of disassembly. Refer to "4-3 Upper Spring Damper Removal".

Check that the each spring edge is firmly mated with the volute cover and spring holder's groove.

CAUTION

Fan

Mounting Nut Torque:

9.8～14.7N・m (100～150kgf・cm)

Mounting Bolt Torque:

7.8～11.8N・m (80～120kgf・cm)

Fan

【【【【HB23/ 26 Series】】】】

1

2

3

4

Frame

Nozzle

Pipe

Volute Cover

Spring Holder

32

4. Service Guide

4-20 Upper Damper Assembly

EB4300/6200, EB70 Series, EBZ4800, EBZ51/ 71/ 80 Series

Assemble the damper and volute cover by mating their protrusions.

Check that the damper is not tilted. Improper installation will result in rapid damage.

4-21 Lower Damper Assembly

EB4300/6200, EB70 Series, EBZ4800, EBZ51/ 71/ 80 Series

Grip the damper's metal flange with the pliers in order not to twist the rubber unit and tighten the mounting nut with a wrench.

CAUTION

Vibration Proof Damper

Pliers

Mounting Nut

Wrench

Damper

Volute Cover

Volute Cover Protrusion

Damper Protrusion

33

4. Service Guide

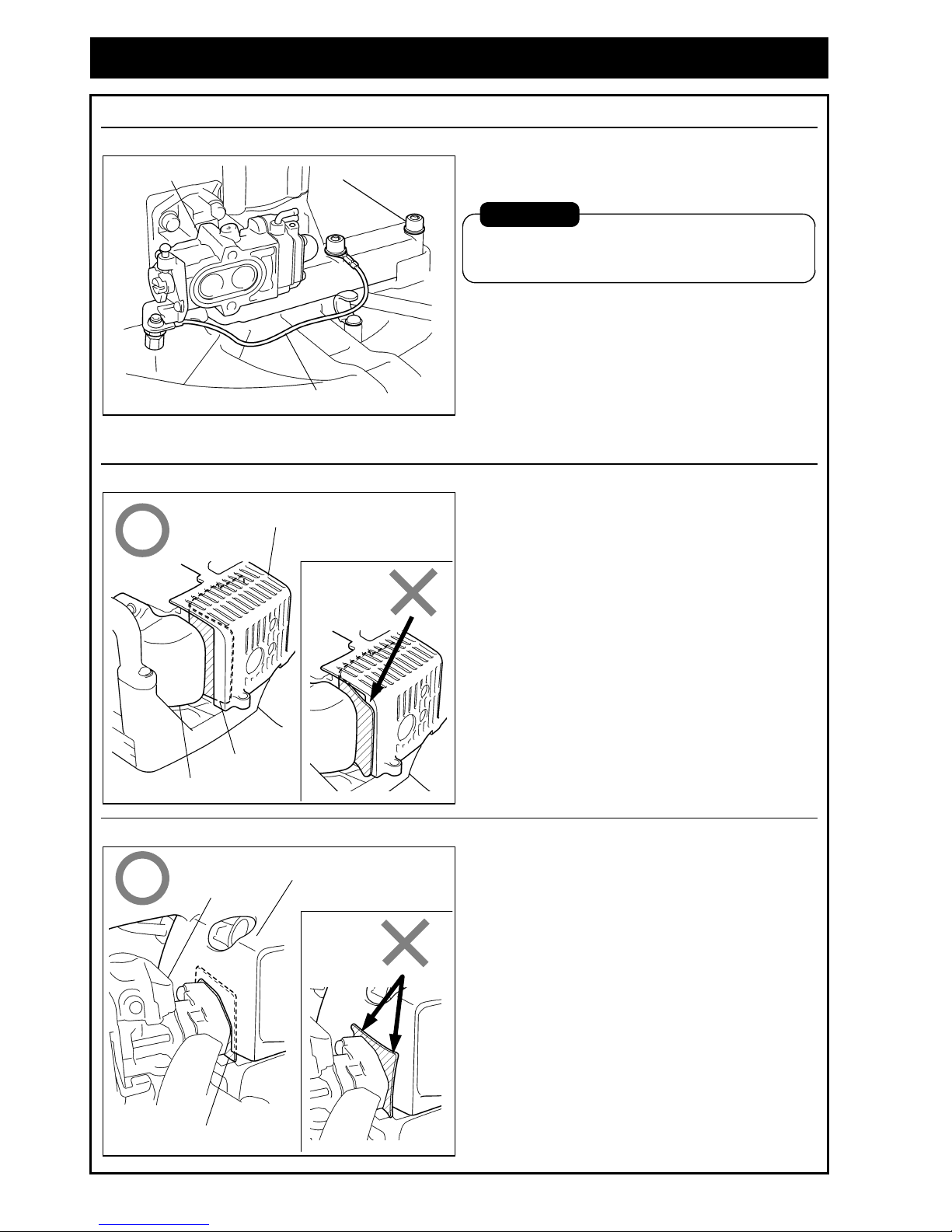

4-22 Carburetor Assembly

EBZ71/ 80 Series

Tighten the screws of the earth cord between the carburetor's adjuster unit and the crankcase.

This cord prevents electrostatic sparks. Do not fail to connect it.

4-23 Engine Cover Assembly

Check of the Gasket Assembly HB23 Series

When the engine cover is installed, pay attention to installing the muffler’s gasket to the inside the cover to protect the fuel tank from heat.

Check of the Gasket Assembly HBZ26 Series

When the engine cover is installed, pay attention to installing the insulator gasket to the inside of the cover to protect the carburetor from heat.

CAUTION

Carburetor

Earth Cord

Engine Cover

Fuel Tank

Muffler Gasket

Engine Cover

Carburetor

Insulator Gasket

34

4. Service Guide

4-24 Check of the Gasket Assembly

EBZ4800, EBZ51/ 71/ 80 Series

Check that the master and insulator gaskets are set inside the cylinder plate before the engine cover is installed.

If the gasket is improperly set, engine cooling performance will be reduced.

EB4300/ 6200, EB70 Series

Check that the master gasket is set outside of the cylinder plate and the insulator gasket is set inside the volute case before the engine cover is installed.

If the gasket is improperly set, engine cooling performance will be reduced.

CAUTION

Cylinder Plate

Insulator Gasket

Muffler Gasket

【【【【Intake Side】】】】【【【【Exhaust Side】】】】

Cylinder Plate

Insulator Gasket

Muffler Gasket

Volute Case

【【【【

Intake Side

】】】】

【【【【

Exhaust Side

】】】】

35

4. Service Guide

Husqvarna Zenoah engine blowers are equipped with spark arresters to prevent spark dispersion.

・・・・ The Spark arrester prevents burnt carbon discharging from the muffler.

Even though the spark arrester can easily clog with carbon, never operate the blower with the spark arrester detached.

・・・・ The EB4300 and EBZ4800 (Japanese specifications) are not equipped with spark arresters.

4-25 Spark Arrester Removal

HB23 Series, HBZ26 Series

1. Remove the engine cover. (Refer to “3. Special Tools”)

2. Remove the two mounting bolts and then remove the muffler.

Torque: HB23 Series: 6.9～9.8N・m (70～100kgf・cm) HBZ26 Series: 6.9～10.8N・m (70～110kgf・cm)

3. Remove the spark arrester.

EBZ30 Series

1. Remove the engine cover. (Refer to “3. Special Tools”)

2. Remove the two mounting bolts and then remove the muffler.

Torque: 6.9～10.8N・m (70～110kgf・cm)

3. Remove the two mounting bolts (torx) and then attach the diffuser (diffusing cover).

Torque: 2～3N・m (20～30kgf・cm)

4. Remove the spark arrester.

EB4300/ 6200, EB70 Series

1. Remove the engine cover. (Refer to “3. Special Tools”)

2. Remove the three mounting bolts and then remove the muffler.

Torque: 7.8～11 .8N・m (80～120kgf・cm)

3. Remove the spark arrester.

CAUTION

Spark Arrester

Mounting Bolt ×2

Muffler

Spark Arrester

Mounting Bolt ×2

Muffler

Mounting Bolt ×2

Diffuser

Spark Arrester

Mounting Bolt (long) ×2

Muffler

Mounting Bolt (short)

36

4. Service Guide

EBZ51/ 71/ 80 Series

1. Remove the engine cover. (Refer to “3. Special Tools”)

2. Remove the three mounting bolts and then remove the muffler.

Torque: 7.8～11 .8N・m (80～120kgf・cm)

3. Remove the four mounting bolts (torx) and then attach the diffuser (diffusing cover) and the spark arrester.

Torque: 2～3N・m (20～30kgf・cm)

4-26 Spark Arrester Cleaning

Exceptions for EB4300, EBZ4800 (Japanese specifications)

Remove any carbon slag adhering to the spark arrester (screen) with a brush, preferably wire-type or equivalent.

Never overheat the spark arrester with a gas torch or other flame. The spark arrester may deform with heat.

4-27 Muffler Cleaning

All Models

Insert a screwdriver into the vent, and wipe away any carbon buildup. Wipe away any carbon buildup on the muffler exhaust vent and cylinder exhaust port at the same time.

CAUTION

Spark Arrester

Mounting Bolt (long) ×2

Muffler

Mounting Bolt ×4

Diffuser

Mounting Bolt (short)

Spark Arrester

Screwdriver

Muffler

37

4. Service Guide

4-28 Air Cleaner Inspection

This device blows fallen leaves to a collection point but at the same time small particles (dust and sand) become airborne. If such dust invades the engine, the engine mechanism will wear quickly. So periodically check and clean the element according to the following table.

・・・・ The power blower operating environment is very dusty so the air cleaner will clog more

quickly than that of other power tools. Neglecting air cleaner check and maintenance will cause rapid engine wear and poor engine performance.

・・・・ The urethane element may deteriorate and crumble if the ambient temperature fluctuates

greatly. If temperature related engine trouble is observed, resolve the trouble cause then replace the filter with a new one.

Inspection Period

Operating Hours

Inspection Item

Daily 25 hours 50 hours 100 hours

Remarks

Element ○△ ☆

Pre-filter ○△ ☆

If this material is damaged, deformed, or aged and crumbling, replace it with a new one. （Annual replacement is recommended.）

Paper Filter ○△ ○△☆

If this filter is cleaned six times or more before the replacement interval arrives, the paper part darkens or water or oil adheres, replace it with a new one. (Annual replacement is recommended)

○: Inspection △: Clean ☆: Replace

4-29 Element Removal

Single layer dry urethane foam HB23 Series

Remove the cover while pressing the clip. Remove the two elements.

Single layer dry urethane foam HBZ26 Series, EBZ30 Series

Loosen the knob then remove the element.

CAUTION

Silencer

Cover

Elements

Screen

Plate

Clip

Cover

Element

Screen

Packing

Knob

38

4. Service Guide

Single layer half-wet urethane foam EB4300/ 6200

Loosen the knob then remove the element.

Dual layer half-wet urethane foam EBZ4800

Loosen the knobs then remove the elements.

Single layer half-wet urethane foam EBZ51 Series

Loosen the knobs then remove the element.

Two stage dry element (Pre-filter + Paper filter) EB70 Series, EBZ71 Series

Loosen the knob bolts then remove the element (pre-filter + paper filter).

Cover

Element

Screen

Screw

Knob

Cover

Elements

Yellow Black

Screen

Knobs

Packing

Cover

Element

Screen

Knobs

Packing

Cover

Pre-filter

Knob Bolts

Paper Filter

39

4. Service Guide

Two stage dry element (Pre-filter + Paper filter) EBZ80 Series

Loosen the knob bolts then remove the element (pre-filter + paper filter).

4-30 Element Cleaning

Element and pre-filter rinsing All Models

● Rinse the element carefully with warm water diluted

detergent or washing oil.

Confirm that no deformity, damage or deterioration (if touched, element will crumble) exists. If necessary replace it with a new one.

● After rinsing it, tighten squeeze the element to

remove moisture.

● For a HB23 series and HBZ26 series element or a

EB70 series and EBZ71/ 80 series pre-filter, dry it after rinsing and then install it.

Caution for element installation EB4300/ 6200, EBZ4800, EBZ51 Series

The half-wet urethane element should be moistened with 2-cycle engine oil, softly squeezed, then installed.

・・・・ Excessive oil adhesion will cause filter

clogging.

・・・・ Never moisten pre-filter (EB70 series and

EBZ71/80 series) with engine oil. If engine oil adheres to the filter, the paper layer will not function.

Two stage dry paper filter cleaning EB70 Series, EBZ71/ 80 Series

Blow compressed air from inside/outside of the filter along the filter element's pleats.

Never beat or hit the filter.

CAUTION

Cover

Pre-filter

Knob Bolts

Case

Paper Filter

Warm water diluted detergent or washing oil

2-cycle engine oil

40

5. Structure of Right Hand Throttle Lever

● The right hand throttle lever specifications (RH) employs a governor mechanism for easy blower operation

with constant wind pressure.

Throttle Lever

Throttle Lock Lever

Light Handle

The throttle lock lever is fixed by plate spring pressure. If the plate spring pressure decreases over its operational life, the throttle lever will lose its locking function. If plate spring pressure decreases, replace it with a new one.

Throttle lever

Throttle Lock Lever

Height: 1.42 to 1.65 mm (0.056 to 0.065 in.)

Snap Ring

Washer

Spring Washer

Washer

Shaft

Thread the switch cord into the handle case slit and set its terminal 90 to 100 mm (3.54 to 3.94 in.) from the end of the slit. ＊ Confirm that the switch cord remains slack when the switch is moved.

90 to 100 mm

(3.54 to 3.94 in.)

Slacken cord.

Switch Cord

It is a mechanism where the throttle lever can be fixed by a throttle lever lock at a chosen position. The suitable engine speed can be set for operating load.

Throttle Lever Functional State

Throttle Lever Locked State

Throttle lever's protrusion

Throttle lock lever's protrusion

Throttle lever functional area

Throttle lever locking area

41

6. Carburetor

6-1 Specifications

Model Carburetor (Walbro) Carburetor Specifications

Seal (L-needle)

Sales Region

Blower

Model

Engine

Type

Name

Part

Number

Part Name Part Number

Adjustment angle

(L-needle return

angle)

Adjustment angle

(H-needle return

angle)

Main Jet

Venturi Bore

(Lead Air)

mm (in.)

Venturi Bore (Mixture Air)

mm (in.)

Choke Bore

mm (in.)

Metering Lever

Height

mm (in.)

Valve Opening

Pressure

kg/ cm

2

(kpa)

Valve Closing

Pressure

kg/ cm

2

(kpa)

EU/ General HB2302 G23L

WYJ-110A 5516-81000 Limiter Cap 848-F40-80D0 Adjustment FIXED # 38

―

9 (0.354) 17 (0.669)

1.5±0.16

(0.059±0.006)

1.3～2.3 0.6～1.6

EU/ General HBZ2601 GZ25N W YA-26E 848-F3C-8102 ↑ ↑ ↑ ↑ # 37.5 8 (0.315) 9 (0.354) 13.2 (0.520) ↑ ↑ ↑

USA HBZ2601

↑↑↑↑ WYA-65 848-F3U-8100 ↑ ↑ ↑ 1 3/4±1/2

―

9 (0.354) 7 (0.276) 13.2 (0.520) ↑ ↑ ↑

USA/ EU/

General

EBZ3000/ RH GZ30N W YA-73B 848-F6B-8101 ↑ ↑ ↑ FIXED # 34 9 (0.354) 7 (0.276) 13.2 (0.520) ↑ ↑ ↑

General EB4300 G4K

WYK-67A 3407-81000 ↑ ↑ ↑ ↑ # 60

―

13.5 17 (0.669) ↑ ↑ ↑

EU/ General EBZ4800 GZ48N WYA-51B 848-L38-8100 ↑ ↑ ↑ ↑ # 45 10.5 (0.413) 10.5 (0.413) 14.5 (0.571) ↑ ↑ ↑

GZ51N3.5

WYA-74A 848-HE0-8100

USA EBZ5100/ RH

GZ51N6

WYA-79 848-HE2-8100

↑ ↑ ↑ ↑ # 44 10.5 (0.413) 10.5 (0.413) 14.5 (0.571) ↑ ↑ ↑

USA EBZ5100Q GZ51N7 WYA-83 848-HE6-8100 ↑ ↑ ↑ ↑ # 41.5 10.5 (0.413) 10.5 (0.413) 14.5 (0.571) ↑ ↑ ↑

General EB6200 G62L

WYK-73A 2750-81000 ↑ ↑ ↑ ↑ # 59

―

15 (0.591) 17 (0.669) ↑ ↑ ↑

EU/ General EB7000 ↑↑↑↑ W YK-123A T4012-81000 ↑ ↑ ↑ ↑ # 53

―

15 (0.591) 17 (0.669) ↑ ↑ ↑

USA EBZ7100/ RH GZ65N

WYA-81 848-H18-8100 ↑ ↑ ↑ ↑ # 57 13.5 (0.532) 12.2 (0.480) 14.5 (0.571) ↑ ↑ ↑

USA/ EU/

General

EBZ8001/ RH GZ72N W YA-44B 848-H00-8100 ↑ ↑ ↑ ↑ # 59 13. 5 (0.532) 12.2 (0.480) 14.5 (0.571) ↑ ↑ ↑

Model

Adjustment Angle for Engine Start

(Loosen then tighten)

Engine Speed (rpm) Standard Engine Speed (rpm)

Sales Region

Blower

Model

Engine

Type

Throttle

Valve Adjust

Screw

L-needle

Adjustmen t

Angle

H-needle

Adjustmen t

Angle

ID Peak Engine

Speed

ID Rich

Down

Set ID

Engine

Speed

H Rich

Down

Set H

Engine

Speed

Idling

Full Throttle

(Standard Pipe)

Remarks Recommended Tools

EU/ General HB2302 G23L

9 13 FIXED 3400±10 1000～1200 2300±100 FIX JET FIX JET 2300±200 7300～7600

EU/ General HBZ2601 GZ25N 8 1/2 12 1/2 ↑ 3700±10 800～1000 2800±100 ↑ ↑ 2800±200 7700～7990

USA HBZ2601

↑↑↑↑ 8 1/2 13 1/2 1 7/8 3900±10 1000～1200 2800±100 50～100 7300 2800±200 7300～7800

USA/ EU/

General

EBZ3000/ RH GZ30N 8 1/2 12 FIXED 3500±10 400～100 3000±100 FIX JET FIX JET 3000±200 6300～6800

General EB4300 G4K

4 1/2 10 1/2 ↑ 2700±10 600～800 2000±100 ↑ ↑ 2000±200 6150～6550

EU/ General EBZ4800 GZ48N 11 1/2 9 ↑ 3400±10 1000～1200 ↑ ↑ ↑ ↑ ↑

GZ51N3.5

9 11 1/2 3000±10 700～900

USA EBZ5100/ RH

GZ51N6

6 10

↑

2900±10 600～800

2200±100 ↑ ↑ 2200±200 5820～6100

Digital magneto controlled misfire

for excessive speed

Maximum speed: 8500 rpm

USA EBZ5100Q GZ51N7 3 1/2 10 ↑ 2900±10 600～800 2200±100 ↑ ↑ 2200±200 5520～5800

General EB6200 G62L

4 10 1/2 ↑ 2500±10 400～600 2000±100 ↑ ↑ 2000±200 7500～7800

EU/ General EB7000 ↑↑↑↑ 7 10 1/2 ↑ 2700±10 600～800 ↑ ↑ ↑ ↑ 7100～7500

USA EBZ7100/ RH GZ65N

7 12 ↑ 2700±10 600～800 2000±100 ↑ ↑ 2000±200 6850～7150

Digital magneto controlled misfire

for excessive speed

Maximum speed: 8500 rpm

USA/ EU/

General

EBZ8001/ RH GZ72N 6 1/2 12 ↑ 2700±10 600～800 2000±100 ↑ ↑ 2000±200 6500～6800

Digital magneto controlled misfire

for excessive speed

Maximum speed: 8500 rpm

① 3699-90345

Carburetor Conditioner

④ 848-8W9-0080

Limiter Cap Tool

② 3699-90211

Leak Tester

③ 3699-90537

Tachometer PET-1000

42

6. Carburetor

6-2 Carburetor Configuration

Inspection and adjustment items

Execute the following check and adjustment if the carburetor does not function normally. (Refer to "6-5 Idling Speed Adjustment " and "6-6 Carburetor Inspection".)

● Fuel adjustment when idling

● Check of the body assembly

● Check of the main check valve

● Check of throttle valve

Readjust the engine rotational speed referring to "6-7 Carburetor Adjustment" if the engine speed is not steady after the above-mentioned adjustment and the checks are executed.

L-needle

Construction

【【【【Type: W Y J 】】】】【【【【Type: W YA】】】】

Main Jet

Main Check Valve

Body Assembly

Inlet Valve

Main Diaphragm

Metering Lever

Screen

L- needle

Main Jet

Main Check Valve

Body Assembly

Inlet Valve

Main Diaphragm

Metering Lever

Screen

H-needle

【【【【

USA/ HBZ2601 only

】】】】

Throttle Valve Assembly

43

6. Carburetor

6-3 Carburetor Conforms to Exhaust Emissions Regulations

The carburetor flow rates of all Hasqvarna Zenoah engine blowers are individually pre-adjusted to pass exhaust emissions regulations. A limiter cap is installed in the idling limiter to prevent an operator carelessly changing the idle setting resulting in non-conformance with exhaust emission regulations. Execute a correct adjustment according to "6-7 Carburetor Adjustment".

A limiter cap closes the L-needle adjustment hole of the throttle valve.

Carburetor adjustments with caps removed must be conducted by Emission Certified Servicing Dealers ONLY. The dealer must supply the unit to the customer in original configuration, using the manufacturer’s

carburetor adjustment procedure, which includes having the limiter caps in place before the unit is put into service. Knowingly removing or rendering inoperative any device, element, or design installed on or in a non-road engine which is in compliance with E. P. A. or C. A. R. B. (USA), STAGEⅢⅢⅢⅢ(EU) regulations is classified as TAMPERING. TAMPERING is a violation of FEDERAL LOW, resulting in significant civil penalties (fines) of up to $25,000 for each violation.

ATTENTION!!! IMPORTANT!!!

L-needle

Limiter Cap

Throttle Valve

44

6. Carburetor

6-4 Limiter Cap Removal/ Installation

Tool

The limiter cap tool (carburetor maintenance tool: 848-8W9-0080) is used for limiter cap installation/removal.

Removal

Insert the limiter cap tool extraction tool's threading (M2 counterclockwise threading) into the idling limiter's hole and screw it counterclockwise while giving pressure. When it is firmly threaded, pull the limiter cap.

If it is difficult to screw in the limiter cap tool, firmly press the tool while screwing. When threads are completely meshed, pull it out in one stroke. If cap is damaged and stays in the hole, use a pick type tool to remove it.

Installation

Insert a new limiter cap in the low speed mixture needle hole. Press the cap deeply into low speed mixture needle hole to prevent tampering.

Be sure to install only a new limiter cap. The limiter cap is a very small part. Pay attention not to lose it.

6-5 Idling Speed Adjustment

Slow and Middle Speeds All Models

Adjust the fuel supply under idling conditions by turning the idling limiter.

1. Remove the limiter cap. (Refer to "6-4 Limiter Cap Removal/ Installation".)

After completion of the adjustment, be sure to install the limiter cap.

2. Turn the screw with a commercially available screw driver (tip width: 2.5mm).

Clockwise (CW): Fuel mixture becomes lean. (Speed increases.) Counterclockwise (CCW): Fuel mixture becomes rich. (Speed decreases.)

CAUTION

Limiter cap insertion side

Limiter cap (new part)

CAUTION

Screw Driver

Increases Decreases

Limiter cap insertion side

Limiter cap tool extraction side Screw unit (M2 counterclockwise threading)

Limiter Cap Tool

Limiter Cap

Limiter cap tool extraction side Press it while turning it counterclockwise.

Pull it out.

Limiter cap is removed.

45

6. Carburetor

High Speed Adjustment 【【【【USA/ HBZ2601 only】】】】

High speed revolutions are adjusted by a H-needle.

Clockwise (CW): Fuel mixture becomes lean. (Speed increases.) Counterclockwise (CCW): Fuel mixture becomes rich. (Speed decreases.)

6-6 Carburetor Inspection

Inlet Valve Leaking Test

Connect a leak tester to the fuel inlet port of the carburetor. After filling the metering chamber with fuel, apply pressure to the inlet valve and read the opening pressure and the reseating pressure.

a. Body assembly normality check

● Measure the metering lever height using a depth

gauge or scale. The appropriate value is 1.5±0.16 mm (0.059±

0.006 in.)

● Check that no wear exists on the metering lever or

diaphragm contacting areas. If wear exists, replace it with a new one.

● Remove the inlet valve and check for dirt, sludge,

rusting and/or step-wear. Replace the inlet valve if a step is found on the rubber tip.

● Check that no alien matter adheres to the valve

sheet part. If any alien matter exists, dip the valve sheet in gasoline for about 10 minutes and remove it, or use the carburetor conditioner (Carburetor Conditioner: 699-90345) to clean it.

● Check that no alien matter has accumulated on the

screen. If screen is clogged with alien matter, remove the screen and clean it.

H-needle

Increases

Decreases

Metering Lever

Inlet Valve

Rubber Tip

1.5±0.16 mm (0.059±0.006 in.)

Body Assembly

Metering Lever

Main Diaphragm

Valve Sheet

Screen

Body Assembly

46

6. Carburetor

b. Judgments of the main check valve

● As illustrated, hold a plastic pipe on the check valve and blow and suck air by your mouth. If the air is stopped by blowing, and open by sucking, the valve has no failure.

● In case of failure, soak the valve into gasoline for about 10 minutes and repeat blowing and sucking several times. If this is not successful, replace the body assembly.

● Make sure to check the valve in case fuel is not supplied though the priming pump is operated.

c. Throttle valve normality check

● Check that no wear exists in the throttle valve slide. Carefully slide a screw driver tip along the plunger's contact surface. If the screw driver tip catches in a groove, replace the carburetor assembly with a new one.

● Check that no wear exists on the jet needle. If there are signs of vertical linear flaws or wear, replace the carburetor assembly with a new one.

Even small damage will increase fuel consumption.

Plunger

Throttle Valve Assembly

Contact Surface

CAUTION

Jet Needle Portion

Damage Wear

Plastic Pipe

Main Check Valve

Body Assembly

47

6. Carburetor

6-7 Carburetor Adjustment

Before performing carburetor adjustment, the following areas must be inspected for good working order.

● Correct spark plug set to specified gap must be installed.

● The air filter and paper filter must be clean and properly installed.

● The muffler spark arrestor screen and exhaust port must be clear of carbon.

● The fuel filter must be clean and properly installed.

● The carburetor and carburetor insulator block screw must be tight.

● The fuel must be fresh (properly mixed at 40:1 ratio with Zenoah or 50:1 ratio with RedMax)

● All standard air tubes (Air Pipes) must be installed.

● No fallen leaf or other matter must be adhered to the air intake.

Required Tools and Parts

● Carburetor adjustment screw driver 2.5mm flat tip

● Electronic digital tachometer

● Limiter cap removal tool

● New Limiter cap

Adjustment when engine activated

1. Start the engine and alternate three times between the idling state (10 seconds) and full throttle state (60 seconds). Then check the engine's condition.

2. If idling is not stable, remove the limiter cap (refer to "6-4 Limiter Cap Removal/ Installation") and adjust the engine according to the following procedure.

● Throttle valve adjust screw

Clockwise (CW) 1&1/2 turn: Increases engine speed.

● L-needle

Counterclockwise (CCW) 1/8 turn: Enriches the fuel mixture. (Reduces engine speed.)

● H-needle 【【【【USA/ HBZ2601 only】】】】

Counterclockwise (CCW) 1/8 turn: Reduces engine speed.

3. Run the warm-up operation (see the above table) and execute the rich down adjustment. (Refer to "Rich Down Adjustment".)

Throttle Valve Adjust Screw

1&1/2 turn

L-needle

1/8 turn

H-needle

【【【【USA/ HBZ2601 only】】】】

1/8 turn

Idling

Full

Throttle

1st Time 2nd Time 3rd Time

48

6. Carburetor

Adjustment if engine does not activate

Set the adjustable parts as specified according to the following procedure.

1. Loosen the throttle valve adjust screw until the throttle valve becomes completely free, then turn the screw clockwise until the regulated angle is attained. (Refer to "6-1 Specifications- Adjustment Angle for Engine Start".)

2. Turn the idling limiter (L-needle) counterclockwise until it becomes free. (When the needle screw completely loosens, a click tone can be heard.) Turn the idling limiter clockwise from this position until the regulated angle is attained. (Refer to "6-1 Specifications- Adjustment Angle for Engine Start- L-needle Adjustment Angle".)

When tightening the L-needle clockwise, never excessively tighten it. Doing so may cause damage to the needle surface resulting in excessive or inconsistent fuel supply.

3. H-needle 【【【【USA/ HBZ2601 only】】】】 Clockwise (CW) completely, then back it off 1&7/8 turns counterclockwise (CCW).

4. Start the engine and execute the rich down adjustment. (Refer to "Rich Down Adjustment".)

If the engine still does not start, problems may exist elsewhere than the carburetor. Check those other causes.

CAUTION

Throttle Valve Adjust Screw

L-needle

H-needle

【【【【USA/ HBZ2601 only】】】】

49

6. Carburetor

Rich Down Adjustment

1. Turn the idling limiter (L-needle) clockwise to the position of maximum engine speed.

2. Turn the throttle valve adjust screw in either direction to match to the regulated ID peak speed. (Refer to "6-1 Specifications- ID Peak Engine Speed".)

3. Turn the L-needle counterclockwise and execute the rich down adjustment. (Refer to "6-1 Specifications- ID Rich Down".)

4. Turn the throttle valve adjust screw in either direction and set the ID speed. (Refer to "6-1 Specifications- Set ID Engine Speed".)

5. Check that rotational speed accelerates normally between idling state and full throttle within the regulated number of revolutions. (Refer to "6-1 Specifications- Standard Engine Speed".)

【【【【USA/ HBZ2601 only】】】】 After the above adjustment is completed, adjust the H-needle.

1. Turn the H-needle clockwise so that the speed reaches its peak (7300 to 7800 rpm).

2. When the speed reaches its peak, turn the H-needle counterclockwise until the speed falls 50 to 100 rpm. (Set H Engine Speed: 7300 rpm)

The HBZ2601 rich down procedure might not optimize the L-needle and H-needle relationship at first try. If so repeat this procedure twice.

Throttle Valve Adjust Screw

L-needle

H-needle

Rich Down:

Adjust the idle needle to a slightly richer mixture in order to maintain a stable idling speed and get a good acceleration.

Peak engine speed

Set engine speed

Peak

Rich Down

Best

Consumption (ℓ/h)

(rpm)

REFERENCE

50

6. Carburetor

Confirmation after adjustment

● After adjustment is completed, be sure to install the

new limiter cap. (Refer to "6-4 Limiter Cap Removal/ Installation".)

● Be sure to reattach the dust cover.

If the engine is run while the throttle valve's dust cover is removed, dust or alien matter may adhere to the throttle valve's rear contoured or the plunger contacting surfaces. If they become worn, the L-needle will fall causing engine start failure.

CAUTION

Dust Cover

Limiter Cap

51

7. Maintenance Standards

7-1 Engine

Maintenance Item Unit Specifications

Category －－－－ Handheld Blower Backpack Blower

Engine Type －－－－ G23L GZ25N GZ30N G4K GZ48N GZ51N G62L GZ65N GZ72N

HB2302 HB2311EZ

HBZ2601

EBZ3000/ 3000RH EBZ3050RH

EB4300 EBZ4800

EBZ5100/ 5100RH/ 5100Q EBZ5150/ 5150RH/ 5150Q

EB6200 EB7000 EB7001

EBZ7100/ 7100RH EBZ7150/ 7150RH

EBZ8001/ 8001RH EBZ8050/ 8050RH

Model

Blower Model －－－－

Standard Limit Standard Limit Standard Limit Standard Limit Standard Limit Standard Limit Standard Limit Standard Limit Standard Limit

Measuring Instrument

Service

Procedure

Cylinder Bore mm (in.)

φ32.00

(1.2598)

φ32.06

(1.2622)

φ34.00

(1.3386)

φ34.06

(1.3409)

φ38.00

(1.4961)

φ38.06

(1.4984)

φ40.00

(1.5748)

φ40.06

(1.5772)

φ43.00

(1.6929)

φ43.06

(1.6953)

φ44.00

(1.7323)

φ44.06

(1.7346)

φ47.50

(1.8701)

φ47.56

(1.8724)

φ47.53

(1.8713)

φ47.59

(1.8736)

φ50.03

(1.9697)

φ50.09

(1.9720)

Cylinder Gauge

Replacement

(Plating Damaged

Replacement)

Piston Diameter (Skirt)

mm (in.)

φ31.945 (1.2577)

～φ31.960

(1.2583)

φ31.86

(1.2543)

φ33.960 (1.3370)

～φ33.975

(1.3376)

φ33.86

(1.3331)

φ37.950

(1.4941)

～φ37.970

(1.4949)

φ37.86

(1.4906)

φ39.960 (1.5732)

～φ39.975

(1.5738)

φ39.87

(1.5697)

φ42.955 (1.6911)

～φ42.970 (1.6917)

φ42.87

(1.6878)

φ43.965 (1.7309)

～φ43.985

(1.7317)

φ43.88

(1.7276)

φ47.455 (1.8683)

～φ47.470

(1.8689)

φ47.37

(1.8650)

φ47.458 (1.8684)

～φ47.478

(1.8692)

φ47.37

(1.8650)

φ49.958 (1.9669)

～φ49.978

(1.9676)

φ49.87

(1.9634)

Micrometer Replacement

Top mm (in.)

1.51

(0.0594)

1.60

(0.0630)

1.03

(0.0406)

1.30

(0.0512)

1.23

(0.0484)

1.30

(0.0512)

1.57

(0.0618)

1.60

(0.0630)

1.25

(0.0492)

1.30

(0.0512)

1.25

(0.0492)

1.30

(0.0512)

1.55

(0.0610)

1.60

(0.0630)

1.25

(0.0492)

1.30

(0.0512)

1.25

(0.0492)

1.30

(0.0512)

Piston Ring Groove Width

2nd mm (in.)

1.51

(0.0594)

1.60

(0.0630)

1.01

(0.0398)

1.30

(0.0512)

1.21

(0.0476)

1.30

(0.0512)

1.57

(0.0618)

1.60

(0.0630)

1.22

(0.0480)

1.30

(0.0512)

1.22

(0.0480)

1.30

(0.0512)

1.53

(0.0602)

1.60

(0.0630)

1.23

(0.0484)

1.30

(0.0512)

1.23

(0.0484)

1.30

(0.0512)

Thickness Gauge Replacement

Piston Pin Hole mm (in.)

φ7.990

(0.3146)

φ8.04

(0.3165)

φ7.995

(0.3148)

φ8.04

(0.3165)

φ8.995

(0.3541)

φ9.04

(0.3559)

φ10.995

(0.4329)

φ11.04

(0.4346)

φ10.995

(0.4329)

φ11.04

(0.4346)

φ10.995

(0.4329)

φ11.04

(0.4346)

φ10.995

(0.4329)

φ11.04

(0.4346)

φ11.995

(0.4722)

φ12.05

(0.4744)

φ11.995

(0.4722)

φ12.05

(0.4744)

Cylinder Gauge Replacement

Clearance Between Piston and Cylinder

mm (in.)

0.040 (0.0016)

～0.080

(0.0031)

0.20

(0.0079)

0.025 (0.0010)

～0.065

(0.0026)

0.20

(0.0079)

0.030 (0.0012)

～0.075

(0.0030)

0.20

(0.0079)

0.025 (0.0010)

～0.065

(0.0026)

0.19

(0.0074)

0.030 (0.0012)

～0.070

(0.0028)

0.19

(0.0075)

0.015 (0.0006)

～0.060

(0.0024)

0.18

(0.0071)

0.030 (0.0012)

～0.065

(0.0026)

0.19

(0.0075)

0.052 (0.0020)

～0.092

(0.0036)

0.22

(0.0087)

0.052 (0.0020)

～0.092

(0.0036)

0.22

(0.0087)

Micrometer,

Cylinder Gauge

Piston

Replacement

Top mm (in.)

0.02 (0.0008)

～0.06

(0.0024)

0.10

(0.0039)

0.04 (0.0016)

～0.08

(0.0031)

0.10

(0.0039)

0.04 (0.0016)

～0.08

(0.0031)

0.10

(0.0039)

0.08 (0.0031)

～0.12

(0.0047)

0.15

(0.0059)

0.06 (0.0024)

～0.10

(0.0039)

0.15

(0.0059)

0.06 (0.0024)

～0.10

(0.0039)

0.15

(0.0059)

0.06 (0.0024)

～0.10

(0.0039)

0.15

(0.0059)

0.06 (0.0024)

～0.10

(0.0039)

0.15

(0.0059)

0.06 (0.0024)

～0.10

(0.0039)

0.15

(0.0059)

Clearance Between Piston Groove and Piston Ring

2nd mm (in.)

0.02 (0.0008)

～0.06

(0.0024)

0.10

(0.0039)

0.02 (0.0008)

～0.06

(0.0024)

0.10

(0.0039)

0.02 (0.0008)

～0.06

(0.0024)

0.10

(0.0039)

0.08 (0.0031)

～0.12

(0.0047)

0.15

(0.0059)

0.03 (0.0012)

～0.07

(0.0028)

0.15

(0.0059)

0.03 (0.0012)

～0.07

(0.0028)

0.15

(0.0059)

0.04 (0.0016)

～0.08

(0.0031)

0.15

(0.0059)

0.04 (0.0016)

～0.08

(0.0031)

0.15

(0.0059)

0.04 (0.0016)

～0.08

(0.0031)

0.15

(0.0059)

Thickness Gauge Replacement

Piston

Fitting Between Piston Pin and Piston Pin Hole

mm (in.)

0.010T (0.00039T)

～0.006L

(0.00024L)

0.06L

(0.00024L)

0.005T (0.00020T)

～0.011L

(0.00043L)

0.06L

(0.00024L)

0.005T (0.00020T)

～0.011L

(0.00043L)

0.06L

(0.00024L)

0.005T (0.00020T)

～0.011L

(0.00043L)

0.06L

(0.00024L)

0.005L (0.00020T)

～0.021L

(0.00083L)

0.06L

(0.00024L)

0.005L (0.00020T)

～0.021L

(0.00083L)

0.06L

(0.00024L)

0.005L (0.00020T)

～0.021L

(0.00083L)

0.06L

(0.00024L)

0.005L (0.00020T)

～0.021L

(0.00083L)

0.07L

(0.0028L)

0.005L (0.00020T)

～0.021L

(0.00083L)

0.07L

(0.0028L)

Micrometer,

Cylinder Gauge

Replacement

End Gap at Cylinder Skirt

mm (in.)

0.10 (0.0039)

～0.30

(0.0118)

0.50

(0.0197)

0.10 (0.0039)

～0.30

(0.0118)

0.50

(0.0197)

0.10 (0.0039)

～0.30

(0.0118)

0.50

(0.0197)

0.10 (0.0039)

～0.30

(0.0118)

0.50

(0.0197)

0.10 (0.0039)

～0.30

(0.0118)

0.50

(0.0197)

0.10 (0.0039)

～0.30

(0.0118)

0.50

(0.0197)

0.15 (0.0059)

～0.35

(0.0138)

0.6

(0.0236)

0.15 (0.0059)

～0.35

(0.0138)

0.6

(0.0236)

0.15 (0.0059)

～0.35

(0.0138)

0.6

(0.0236)

Thickness Gauge Replacement

Piston Ring

Width mm (in.)

1.5

(0.0591)

1.4

(0.0551)

1.0

(0.0394)

0.9

(0.0354)

1.2

(0.0472)

1.1

(0.0433)

1.5

(0.0591)

1.4

(0.0551)

1.2

(0.0472)

1.1

(0.0433)

1.2

(0.0472)

1.1

(0.0433)

1.5

(0.0591)

1.4

(0.0551)

1.2

(0.0472)

1.1

(0.0433)

1.2

(0.0472)

1.1

(0.0433)

Micrometer Replacement

Piston Pin Diameter mm (in.)

φ8.00

(0.3150)

φ7.98

(0.3142)

φ8.00

(0.3150)

φ7.98

(0.3142)

φ9.00

(0.3543)

φ8.98

(0.3535)

φ11.00

(0.4331)

φ10.98

(0.4323)

φ11.00

(0.4331)

φ10.98

(0.4323)

φ11.00

(0.4331)

φ10.98

(0.4323)

φ11.00

(0.4331)

φ10.98

(0.4323)

φ12.00

(0.4724)

φ11.98

(0.4717)

φ12.00

(0.4724)

φ11.98

(0.4717)

Micrometer Replacement

Small End Bore mm (in.)

φ11.00

(0.4331)

φ11.03

(0.4343)

φ11.00

(0.4331)

φ11.03

(0.4343)

φ12.00

(0.4724)

φ12.03

(0.4736)

φ15.00

(0.5906)

φ15.03

(0.5917)

φ15.00

(0.5906)

φ15.03

(0.5917)

φ15.00

(0.5906)

φ15.03

(0.5917)

φ15.00

(0.5906)

φ15.03

(0.5917)

φ16.00

(0.6299)

φ16.03

(0.6311)

φ16.00

(0.6299)

φ16.03

(0.6311)

Cylinder Gauge Replacement

Connecting Rod

Parallelism of Large/ Small End Bores

-

0.15/ 100 - 0.15/ 100 - 0.15/ 100 - 0.15/ 100 - 0.15/ 100 - 0.15/ 100 - 0.15/ 100 - 0.15/ 100 - 0.15/ 100

Mandrel Dial

Gauge

Replacement

Diameter at Main Bearing

mm (in.)

φ12.00

(0.4724)

φ11.97

(0.4713)

φ12.00

(0.4724)

φ11.97

(0.4713)

φ12.00

(0.4724)

φ11.97

(0.4713)

φ15.00

(0.5906)

φ14.95

(0.5886)

φ15.00

(0.5906)

φ14.95

(0.5886)

φ15.00

(0.5906)

φ14.95

(0.5886)

φ15.00

(0.5906)

φ14.95

(0.5886)

φ16.00

(0.6299)

φ15.95

(0.6280)

φ16.00

(0.6299)

φ15.95

(0.6280)

Micrometer Replacement

Crankshaft (Starter Side)

Diameter at Oil Seal mm (in.)

φ12.00

(0.4724)

φ11.90

(0.4685)

φ12.00

(0.4724)

φ11.90

(0.4685)

φ12.00

(0.4724)

φ11.90

(0.4685)

φ15.00

(0.5906)

φ14.90

(0.5866)

φ15.00

(0.5906)

φ14.90

(0.5866)

φ15.00

(0.5906)

φ14.90

(0.5866)

φ15.00

(0.5906)

φ14.90

(0.5866)

φ16.00

(0.6299)

φ15.90

(0.6260)

φ16.00

(0.6299)

φ15.90

(0.6260)

Micrometer Replacement

Diameter at Main Bearing

mm (in.)

φ12.00

(0.4724)

φ11.97

(0.4713)

φ12.00

(0.4724)

φ11.97

(0.4713)

φ12.00

(0.4724)

φ11.97

(0.4713)

φ15.00

(0.5906)

φ14.95

(0.5886)

φ15.00

(0.5906)

φ14.95

(0.5886)

φ15.00

(0.5906)

φ14.95

(0.5886)

φ15.00

(0.5906)

φ14.95

(0.5886)

φ16.00

(0.6299)

φ15.95

(0.6280)

φ16.00

(0.6299)

φ15.95

(0.6280)

Micrometer Replacement

Crankshaft (Fan Side)

Diameter at Oil Seal mm (in.)

φ12.00

(0.4724)

φ11.90

(0.4685)

φ12.00

(0.4724)

φ11.90

(0.4685)

φ12.00

(0.4724)

φ11.90

(0.4685)

φ15.00

(0.5906)

φ14.90

(0.5866)

φ15.00

(0.5906)

φ14.90

(0.5866)

φ15.00

(0.5906)

φ14.90

(0.5866)

φ15.00

(0.5906)

φ14.90

(0.5866)

φ16.00

(0.6299)

φ15.90

(0.6260)

φ16.00

(0.6299)

φ15.90

(0.6260)

Micrometer Replacement

Eccentricity mm (in.)

-

0.07

(0.0028)

-

0.07

(0.0028)

-

0.07

(0.0028)

-

0.07

(0.0028)

-

0.07

(0.0028)

-

0.07

(0.0028)

-

0.07

(0.0028)

-

0.07

(0.0028)

-

0.07

(0.0028)

Dial Gauge,

Center Support

Repair or

Replacement

Width Between Crank Webs

mm (in.)

22.0

(0.8661)

21.9 (0.8622)

～22.1

(0.8701)

22.0

(0.8661)

21.9 (0.8622)

～22.1

(0.8701)

24.0

(0.9449)

23.9 (0.9409)

～24.1

(0.9488)

29.0

(1.1417)

28.9 (1.1378)

～29.1

(1.1457)

29.0

(1.1417)

28.9 (1.1378)

～29.1

(1.1457)

29.0

(1.1417)

28.9 (1.1378)

～29.1

(1.1457)

29.0

(1.1417)

28.9 (1.1378)

～29.1

(1.1457)

29.0

(1.1417)

28.9 (1.1378)

～29.1

(1.1457)

29.0

(1.1417)

28.9 (1.1378)

～29.1

(1.1457)

Micrometer

Repair or

Replacement

Crankshaft Complete

Axial Play mm (in.)

-

0.5

(0.0197)

-

0.5

(0.0197)

-

0.5

(0.0197)

-

0.5

(0.0197)

-

0.5

(0.0197)

-

0.5

(0.0197)

-

0.5

(0.0197)

-

0.5

(0.0197)

-

0.5

(0.0197)

Thickness Gauge Repair (Shim)

Main Bearing (Ball Bearing) －

-

Flutter,

irregular

noise

generated

-

Flutter,

irregular

noise

generated

-

Flutter,

irregular

noise

generated

-

Flutter,

irregular

noise

generated

-

Flutter,

irregular

noise

generated

-

Flutter,

irregular

noise

generated

-

Flutter,

irregular

noise

generated

-

Flutter,

irregular

noise

generated

-

Flutter,

irregular

noise

generated

-

Replacement

52

7. Maintenance Standards

7-2 Tightening Torques

Tightening Item Unit Specifications

Category －－－－ Handheld Blower Backpack Blower

Engine Type －－－－ G23L GZ25N GZ30N G4K GZ48N GZ51N G62L GZ65N GZ72N

Model

Blower Model －－－－

HB2302 HB2311EZ

HBZ2601

EBZ3000/ 3000RH EBZ3050RH

EB4300 EBZ4800

EBZ5100/ 5100RH/ 5100Q EBZ5150/ 5150RH/ 5150Q

EB6200 EB7000 EB7001

EBZ7100/ 7100RH EBZ7150/ 7150RH

EBZ8001/ 8001RH EBZ8050/ 8050RH

Thread size

mm M14x1.25 M10x1.0

←

M14x1.25 M10x1.0

←

M14x1.25 M10x1.0

←

Spark Plug

Torque

kgf・cm

(N・m)

150～220

(14.7～21.6)

100～140

(9.8～13.7)

←

150～220

(14.7～21.6)

90～130

(8.8～12.7)

←

150～220

(14.7～21.6)

90～130

(8.8～12.7)

←

Thread size mm M5x0.8 ← ← M6 x1.0 ← ← ← ← ←

Muffler

Torque

kgf・cm

(N・m)

70～100

(6.9～9.8)

70～110

(6.9～10.8)

←

80～120

(7.8～11.8）

←

Thread size

mm M5 x0.8

← ← ← ← ← ← ← ←

Cylinder

Torque

kgf・cm

(N・m)

60～80

(5.9～7.8)

60～90

(5.9～8.8)

60～80

(5.9～7.8)

50～80

(4.9～7.8)

60～90

(5.9～8.8)

←

50～80

(4.9～7.8)

60～90

(5.9～8.8)

←

Thread size

mm M5x0.8 ←

←

Crank Case

Torque

kgf・cm

(N・m)

35～45

(3.4～4.4)

50～80

(4.9～7.8)

← ← ← ← ← ← ←

Thread size

mm M5 x0.8

← ← ← ← ← ← ← ←

Insulator

Torque

kgf・cm

(N・m)

30～40

(2.9～3.9)

30～50

(2.9～4.9)

50～70

(4.9～6.9)

50～80

(4.9～7.8)

30～50

(2.9～4.9)

40～60

(3.9～5.9)

50～80

(4.9～7.8)

40～60

(3.9～5.9)

←

Thread size

mm M5x0.8 ←

←

Air Cleaner and Carburetor

Torque

kgf・cm

(N・m)

30～40

(2.9～3.9)

30～60

(2.9～5.9)

←

30～45

(2.9～4.4)

← ←

30～45

(2.9～4.4)

Thread size

mm M5xL 50 M5xL60

←

Chalk Cup and Carburetor （（（（Large Air Cleaner））））

Torque

kgf・cm

(N・m)

30～45

(2.9～4.4)

← ←

Thread size mm M4x0.7 M5x0.8 ← ← ← ← ← ← ←

Recoil Starter

Torque

kgf・cm

(N・m)

15～20

(1.5～2.0)

30～60

(2.9～5.9)

←

30～45

(2.9～4.4)

←

30～45

(2.9～4.4)

←

Thread size

mm M8 x1.0 M8x1.25

←

M10x1.0

← ← ←

M10x1.25

←

Starter Pulley

Torque

kgf・cm

(N・m)

120～180

(11.8～17.6)

70～110

(6.9～10.8)

←

180～230

(17.6～22.5)

←

Thread size mm M8x1.0 ← ← M1 0x1.0 ← ← ← ← ←

Rotor

Torque

kgf・cm

(N・m)

100～150

(9.8～14.7)

← ←

200～300

(19.6～29.4)

← ← ←

250～350

(24.5～34.3)

←

Thread size

mm M4 x0.7

←

Engine

Coil

Torque

kgf・cm

(N・m)

25～40

(2.5～3.9)

25～50

(2.5～4.9)

25～40

(2.5～3.9)

← ← ← ← ← ←

Thread size

mm M5x0.8 ←

←

M6x1.0 ←

←

Engine Mount

Torque

kgf・cm

(N・m)

30～40

(2.9～3.9)

←

40～60

(3.9～5.9)

60～80

(5.9～7.8)

← ← ← ← ←

Thread size

mm P5

← ← ← ← ← ← ← ←

Volute Case, Volute Cover, Engine Cover

Torque

kgf・cm

(N・m)

20～25

(2.0～2.5)

←

30～40

(2.9～3.9)

20～30

(2.0～2.9)

25～30

(2.5～2.9)

45～55

(4.4～5.4)

25～35

(2.5～3.4)

30～40

(2.9～3.9)

←

Thread size

mm M8x1.0 ← M6x1.0 ←

←

Fan

Torque

kgf・cm

(N・m)

100～150

(9.8～14.7)

←

80～120

(7.8～11.8)

← ← ← ← ← ←

Thread size

mm M5x0.8

← ←

Large Air Cleaner

Torque

kgf・cm

(N・m)

25～35

(2.5～3.4)

← ←

Thread size mm M4x0.7 ← ← ← ← ← ← ← ←

Torque

kgf・cm

(N・m)

10～15

(1.0～1.5)

← ← ← ← ← ← ← ←

Thread size

mm M5 x0.8

← ← ← ← ← ← ← ←

Torque

kgf・cm

(N・m)

20～35

(2.0～3.4)

← ← ← ← ← ← ← ←

Thread size mm M6x1.0 ← ← ← ← ← ← ← ←

Common Tightening Torque

Torque

kgf・cm

(N・m)

40～60

(3.9～5.9)

← ← ← ← ← ← ← ←

53

8. Troubleshooting

8-1 Engine does not start

Remove the spark plug from the cylinder. Put the spark plug on the outside of the cylinder. Pull the recoil starter knob, and check whether sparks arise in the spark gap or not.

Trouble Probable Cause Countermeasure

No spark in the spark plug.

1. Wet spark plug electrodes Make them dry.

2. Carbon deposited on the electrodes Clean.

3. Insulation failure by insulator damage Replace.

4. Improper spark gap

Adjust to

0.6～0.7 mm (0.023～0.028 in.).

Spark plug

5. Burn out of electrodes Replace.

1. Ignition coil inside failure Replace. Magneto

2. Damaged cable sheath Replace or repair.

1. Switch is OFF ON the switch.

2. Switch is failure Replace.

Switch

3. Primary wiring ground Repair.

Sparks appear in the spark plug.

1. Over sucking of fuel Drain excess fuel.

2. Too rich fuel Adjust carburetor.

3. Overflow Adjust or replace carburetor.

4. Clogging air cleaner Wash with mixed gasoline.

Compression and fueling is normal

5. Incorrect fuel Change with proper fuel.

1. Worn out cylinder, piston, or piston ring Replace. Fueling normal but

poor compression

2. Gas leakage from cylinder and crank case gasket Apply liquid gasket and reassemble.

1. Choked breather air hole Clean.

2. Clogged carburetor Clean.

No fuel supply

3. Clogged fuel filter Replace fuel filter.

8-2 Engine stop during operation

Trouble Probable Cause Countermeasure

1. Switch is OFF ON the switch.

2. Plug cap disconnect Connect properly.

3. Short circuit by carbon deposited on the plug electrodes Clean.

4. Switch cord or high tension cord sheath worn out Replace.

5. Ignition coil inside failure Replace.

Suddenly stopped.

6. Engine seizure Overhaul and replace damaged parts.

1. Lack of fuel Refill.

2. Clogged carburetor Clean.

Gradual speed reduction and stopped.

3. Water mixed to fuel Drain and apply new fuel.

8-3 Engine cannot be stopped

Trouble Probable Cause Countermeasure

1. Lean fuel Adjust carburetor.

2. Cylinder fin clogged with dusts Clean.

3. Improper fuel Change with proper fuel.

4. Carbon deposited inside of combustion chamber Clean.

Overheating

5. Spark plug electrode red hot

Clean thoroughly and adjust spark gap to 0.6～0.7mm (0.023～0.028in.).

1. Faulty switch Replace. Switch

2. Cord failure Repair.

54

8. Troubleshooting

8-4 Lack of output power or unstable revolution

Trouble Probable Cause Countermeasure

1. Air is entering at fuel pipe joints, etc Secure connections.

2. Air is entering at intake tube joint or carburetor joint Replace gasket or tighten screws.

3. Water in fuel Replace with clean fuel.

4. Piston is starting to seize Filing of seized surface with fine files.

Compression is normal and no misfire.

5. Muffler choked with carbon Clean.

1. Fuel too lean Adjust carburetor.

2. Clogging of cylinder fins with dust Clean.

3. Poor fuel quality Replace with clean fuel.

4. Carbon deposited in the combustion chamber Clean.

Overheating

5.Spark plug electrode red hot

Clean thoroughly and adjust spark gap to 0.6～0.7 mm (0.023～0.028 in.).

1. Dirty air cleaner Wash with mixed gasoline. Others

2. Over loading Reduce load.

8-5 The amount of the wind is weak

Trouble Probable Cause Countermeasure

1. The air cleaner element is clogged.

Clean the element.

2. Carbon adheres to the spark arrester.

Clean the spark arrestor.

Good compression but cannot reach the required revolutions at full throttle

3. Carburetor is damaged. Maintenance or replace.



Printed in Japan 0901

SY – 015

                                   

Zenoah EBZ5100, EBZ4800, EBZ5100RH, EBZ5100Q, EBZ5150 Workshop Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
