Zenoah EBZ3000RH User Manual

115 33 79-10 (005)

Original Instruction

OWNER’S MANUAL

BLOWER

EBZ3000RH

G

G
B

B

EBZ3000RH

GB-1

EBZ3000RH

EC DECLARATION OF CONFORMITY

(Applies to Europe only)

The undersigned manufacturer,

Husqvarna Zenoah Co.,Ltd.,
1-9, Minamidai, Kawagoe, Saitama, Japan,

declares under sole responsibility that the following products referred to in this declaration
conform with the requirement of the following COUNCIL’S DIRECTIVE.

The products referred to are :

DESIGNATION : BLOWER (Back-pack garden blower)
MANUFACTURER : Husqvarna Zenoah Co., Ltd.
MODELS : EBZ3000RH
SERIAL NUMBERS DATING : 2010 and onwards

This declaration conform with :

・DIRECTIVE 2006/42/EC of 17 May, 2006
(The following standards have been applied: ISO 12100-1,-2, FprEN 15503)
・DIRECTIVE 2004/108/EC of December 15, 2004
(The following standards have been applied: EN 61000-6-1, EN 55012 (CISPR 12))
・DIRECTIVE 2000/14/EC of 8 May, 2000
conformity assessment procedure followed ANNEX V
(The following standards have been applied: ISO 11094)
・DIRECTIVE 97/68/EC of December 16, 1997

Date :

2002/88/EC of December 9, 2002

29 December 2009

(The year is clearly stated on the rating plate,
followed by the serial number)

Signature :
Kiyoshi Honda

General Manager, Development Center

Authorised representative :

Person authorised to compile the technical file :

Husqvarna AB
SE-561 82 Huskvarna, Sweden

Bo R Jonsson
SE-561 82 Huskvarna, Sweden

EXPLANATION OF SYMBOLS AND SAFETY WARNINGS

WARNING!!!

RISK OF DAMAGING HEARING

Wear head, eye and ear protection.

MODEL

DISPLACEMENT

SOUND LEVEL

2000/14/EC

L

WA

measured guaranteed

EBZ3000RH 29.5 cm

* Specifications are subject to change without notice

1) Noise emissions in the environment measured as sound power (LWA) in conformity with EC directive 2000/14/EC.
Reported soundpower level for the machine has been measured with the original attachment.
The difference between guaranteed and measured sound power is that the guaranteed sound power also includes disper­sion in the measurement result and thevariations between different machines of the same model according to Directive 2000/
14/EC.
Reported data for equivalent sound pressure level (L
sion (standard deviation) of 1 dB (A), and is calculated as the time-weighted energy total for sound pressure levels under
various working conditions with the following time distribution: 1/7 idling and 6/7 max speed.

2) Reported data for equivalent vibration level (a
tion) of 1 m/s2.

3

99.6 dB(A) 100 dB(A) 91 dB(A) 2.4 m/s

pAeq) at the operator’s ear for the machine has a typical statistical disper-

hv,eq) at the control handle has a typical statistical dispersion (standard devia-

1)

ISO 22868

L

pAeq

VIBRATION LEVEL

ISO 22867 (prEN 15503)

ahv, eq

2

2)

GB-2

APPROVAL NUMBER OF CE EXHAUST EMISSION REGULATION (2002/88/EC)

e13*97/68SH2G3*2002/88*0098*04

EBZ3000RH

SAFETY FIRST

Instructions contained in warnings within this manual marked
with a
into consideration to prevent possible serious bodily injury, and
for this reason you are requested to read all such instructions
carefully and follow them without fail.

WARNINGS IN THE MANUAL

This mark indicates instructions, which must be followed in or­der to prevent accidents, which could lead to serious bodily in­jury or death.

This mark indicates instructions, which must be followed, or it
leads to mechanical failure, breakdown, or damage.

This mark indicates hints or directions useful in the use of the
product.

symbol concern critical points which must be taken

WARNING

IMPORTANT

NOTE

1. Parts location

2

18

9

3

4

136

17

19

7

15

12

8

14

16

22

20

21

23

1

5

Contents

1. Parts location .................................................. 3

2. Specifications ................................................. 4

3. Warning labels on the machine ...................... 4

4. Symbols on the machine ................................ 4

5. For safe operation ........................................... 5

6. Set up ............................................................. 9

7. Fuel ............................................................... 10

8. Operation ...................................................... 11

9. Maintenance ................................................. 12

10. Storage ......................................................... 14

11. Disposal ........................................................ 14

12. Troubleshooting guide .................................. 15

10

24

1. Frame

2. Harness

3. Engine cover

4. Volute case

11

5. Net

6. Air cleaner

7. Recoil starter

8. Fuel tank

9. Spark plug cap

10. Shock Absorber (spring)

11. Band (Stopper)

12. Shock Absorber (Rubber)

13. Choke lever

14. Control handle

15. Ignition switch

16. Throttle lever

17. Elbow

18. Clamp (Large)

19. Flexible hose

20. Clamp (Small)

21. Swivel joint

22. Band

23. Straight pipe

24. Pipe end

25. Owner’s manual

26. Plug wrench (Hexagon socket
S16/S19 + Screw driver (Torx T-27)

G
B

26

25

GB-3

EBZ3000RH

2. Specification

Model EBZ3000RH

Dimensions (LxWxH)** mm 313 x 394 x 420
Dry weight* kg 6.7
Fuel tank capacity liter 1.0
Engine Type Air cooled 2-cycle gasoline engine
Displacement cm
Air Filter Dry polyurethane foam
Carburetor Diaphragm, rotary valve type
Ignition system C.D.I.
Spark plug NGK CMR7H (Noise-proof)
Muffler Spark arrester equipped
Operating Engine Speed rpm 3000 to 6500
Fuel Consumption liter/h 0.59
Air Volume* cu.m/min. 10.6
Max. Air Volume** cu.m/min. 13.1
Max. Air Velocity* m/sec. 59

* with standard pipe ** without pipe
Specifications are subject to change without notice.

3

29.5

3. Warning labels on the machine

(1) Read owner’s manual before operating this machine.
(2) Wear head, eye and ear protection.
(3) Handling this machine improperly could result in accidents

causingserious injury or death. Read this manual carefully and
practice using the blower until you are fully acquainted with all
operations and have learned to use it correctly.

(4) Severing of fingers or hand by fan blade

Do not open or remove safety guards or nets while engine is
running.

(5) Thrown or blown object

Stay a safe distance from the machine.

(6) Hot surface

Avoid contact the hot surface during and immediately opera­tion.

Keep all children, bystanders and helpers 15 meters away from the machine.

If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).

4. Symbols on

Never modify your machine.
We won’t warrant the machine, if you use the
remodeled blower or if you don’t observe
proper usage written in the manual.

The port to refuel the “MIX GASOLINE”

Position: FUEL TANK CAP

the

the machine

For safe operation and maintenance, symbols are carved
in relief on the machine. According to these indications,
please be careful not to make a mistake.

GB-4

The direction to close the choke
Position: AIR CLEANER

The direction to open the choke
Position: AIR CLEANER

The direction to stop the engine
Position: CONTROL HANDLE

5. For safe operation

EBZ3000RH

WARNING

1. Read this manual carefully un­til you completely understand
and follow all safety and oper­ating instructions.

2. Keep this manual handy so that
you may refer to it later when­ever any questions arise. Also
note, if you have any questions
which cannot be answered
herein, contact the dealer from
whom you purchased the prod­uct.

3. Always be sure to include this
manual when selling, lending,
or otherwise transferring the
ownership of this product.

4. Do not lend or rent your ma­chine without the owner's
manual.

5. Be sure that anyone using your
unit understands the infomation
contained in this manual.

6. Never let a child under 13 years
old use the machine.

7. Long-term exposure to noise
can result in permanent hear­ing impairment. So always use
approved hearing protection.

8. Under no circumstances may
the design of the machine be
modified without the permission
of the manufacturer. Always use
genuine accessories. Non-au­thorized modifications and/or
accessories can result in seri­ous personal injury or the death
of the operator or others.

9. A blower is a dangerous tool if
used carelessly or incorrectly
and can cause serious, even
fatal injuries. It is extremely im­portant that you read and un­derstand the contents of this
Operator’s manual.

10. Husqvarna Zenoah has a
policy of continuous product
development and therefore re­serves the right to modify the
design and appearance of
products without prior notice.

11. The machine is only designed
for blowing lawns, pathways,
asphalt roads and the like.

WORKING CONDITION

1. Refrain from operating the blower
if you are tired, ill, or upset, or if
you are under the influence of al­cohol, drugs or medication.

2. To reduce the risk of hearing loss
associated with sound level(s),
hearing protection is required.

3. To reduce the risk of injury asso­ciated with thrown objects, al­ways wear eye protection and
foot protection. Eye protection
should meet the requirements of
ANSI Z87.1.

4. To reduce the risk of injury asso­ciated with the inhalation of dust,
use a face filter mask in dusty
conditions.

5. Wear sturdy rubber-soled shoes
or shoes with some other form of
anti-slip protection to help protect
you against falling.

6. To reduce the risk of injury asso­ciated with objects being drawn
into rotating parts, do not wear
loose clothing, scarves, neck
chains, hair longer than shoulder
length, or other loose material.

7. Prolonged use of a blower, expos­ing the operator to vibrations and
cold may produce whitefinger
disease (Raynaud’s phenom­enon), which symptoms are tin­gling and burning sensations fol­lowed by loss of color and numb­ness in the fingers. All factors
which contribute to whitefinger
disease are not known, but cold
weather, smoking diseases or
physical conditions as well as
long periods of exposure to vibra­tion are mentioned as factors. In
order to reduce the risk of
whitefinger disease, the following
precautions are strongly recom­mended;

a) Keep your body warm. Never use

blower during rains.

b) Wear thick anti-vibration gloves.
c) Take more than 5 minutes of break

in warm place frequently.

d) Maintain a firm grip at all times,

but do not squeeze the handles
with constant, excessive pres­sures.

e) If you feel discomfort, redness

and swelling of your fingers or any
other part of your body, see a

G
B

GB-5

EBZ3000RH

5. For safe operation

GB-6

doctor before getting worse.

8. The ignition system of your unit
produces an electromagnetic
field of a very low intensity. This
field may interfere with some
pacemakers. To reduce the risk
of serious or fatal injury, persons
with pacemaker should consult
their physician and the pace­maker manufacturer before oper­ating this tool.

WORKING CIRCUMSTANCE

1. To reduce the risk of injury asso­ciated with exhaust fume inhala­tion, do not operate in
unventilated area. The exhaust
gases contain harmful carbon
monoxide.

2. Avoid using the blower where
stable footing and balance are
not assured.

3. Never operate the machine in
high wind, bad weather, poten­tially explosive atmosphere, when
visibility is poor or in very high or
low temperatures. (Our recom­mended use environment is be­low 40 degrees C (104 degrees
F).)

AVOID NOISE PROBLEM

IMPORTANT

Check and follow the local

regulations as to sound level
and hours of operations for
blower.

1. Operate power equipment only at
reasonable hours-not early in the
morning or late at night when
people might be disturbed. Com­ply with times listed in local ordi­nances.

2. To reduce sound levels, limit the
number of pieces of equipment
used at any one time.

3. Operate power blowers at the
lowest possible throttle speed to
do the job.

4. Check your equipment before op­eration, especially the muffler, air
intakes and air filters.

WORKING PLAN

• When planning your work sched-

ule, allow plenty of time to rest.
Limit the amount of time over
which the product is to be used
continuously to somewhere
around 30 ~ 40 minutes per ses­sion, and take 10 ~ 20 minutes of
rest between work sessions. Also
try to keep the total amount of
work performed in a single day
under 2 hours or less.

FUEL

WARNING

To reduce the risk of fire and burn
injury:

a) Handle fuel with care. It is highly

flammable.
b) Do not smoke while handing fuel.
c) Do not refuel a hot engine.
d) Do not refuel a running engine.
e) Avoid spilling fuel or oil. Always

wipe unit dry before using.
f ) Move at least 10 ft. (3 meters)

away from the fueling point be-

fore starting engine.
g) Always store gasoline in a con-

tainer approved for flammable liq-

uids.
h) Make sure the unit is properly as-

sembled and in good operating

condition.
i ) Do not use the blower near a fire,

as aiming the blower in the direc-

tion of a flame may cause flam-

mable substances to ignite.

BEFORE STARTING THE
ENGINE

• Each time before starting the en-

gine, inspect the entire unit to see

if every part is in good order and

is securely tightened in place. If

any damage is found in the fuel

line, the exhaust line, or the igni-

tion wiring, do not use the blower

until it has been repaired.

IMPORTANT

• Before starting operation, al-

ways make sure to check if any

obstacles are left inside the

volute case and net. The ob-

stacles may cause damage on

fan and volute case and serious

injury.

5. For safe operation

EBZ3000RH

WARNING

• Check to see if the shock-absorb­ing rubber mount has become
cracked or otherwise damaged.

Note that failing to replace this
rubber mount when it has be­come cracked or damaged may
cause the engine to come loose
from its frame during use, thus
resulting in possible serious
bodily injury.

• If cracked, be sure to replace
without delay.

WARNING

• To reduce the risk of injury asso­ciated with contacting rotating
parts, stop the engine before in­stalling or removing attachments.

Do not operate without net in
place. Always disconnect the

spark plug before performing
maintenance or accessing mov­able parts.

USING THE PRODUCT

WARNING

While using the product, if abnor­mal noise or vibration occurs, stop
the engine immediately and con­tact the nearest ZENOAH servic­ing dealer for assistance. Check­ing the fan is very important. If the
rotating fan should break up, it
might lead to serious accidents.

1. This blower is a backpack type,
and is shouldered while operat­ing. It is operated and controlled
with the handle on the tube by
right hand.

2. Check the work area that the
blower will be used in and remove
or cover all valuables that may be
damaged by the air blast or
thrown debris.

3. Make sure you can move and
stand safely. Check the area
around you for possible obstacles
(roots, rocks, branches, ditches,
etc.) in case you have to move
suddenly. Take great care when
working on sloping ground.

4. To reduce the risk of injury asso­ciated with thrown objects.

a) Watch out for children, pets, open

windows or freshly washed cars,
and blow debris safely away.

b) Use the full blower nozzle exten-

sion so the air stream can work
close to the ground.

c) Do not allow bystanders in work

area.

d) Do not point the blower tube in

the direction of people or pets.

e) Always check to be sure that no

debris has been blown onto
someone else’s property.

f) Pay attention to the direction of

the wind, do not work against the
wind.

g) Never point a blower tube toward

an open flame to avoid the possi­bility of igniting the unit, causing
injury to yourself or damage to
surroundings.

5. To minimize blowing time.
a) Use rakes and brooms to loosen

debris before blowing.

b) In dusty conditions, slightly

dampen surfaces or use mister
attachment when water is avail­able.

c) Conserve water by using power

blowers instead of hoses for many
lawn and garden applications,
including areas such as gutters,
screens, patios, grills, porches
and gardens.

6. The blower must not be used
while on a ladder or scaffolding.

7. Never put the machine down with
the engine running unless you
have it in clear sight.

8. Never to touch the spark plug or
plug cord while the engine is in
operation. Doing so may result in
being subjected to an electrical
shock.

9. Never to touch the muffler, spark
plug, or other metallic parts of the
engine or engine cover while the
engine is in operation or immedi­ately after shutting down the en­gine. These metallic parts and en­gine cover reach high tempera­tures during operation and doing
so could result in serious burns.

WARNING

The temperature of the machine

GB-7

G
B

EBZ3000RH

5. For safe operation

GB-8

may increase after stopping the
engine. Especially never forget to
cool down the engine before refu­eling the machine.

10. In an emergency, pull up the
lower portion of both strap buck­les to loosen the straps. Move
yourself away from the unit.

11. After using blowers and other
equipment, CLEAN UP! Dispose
of debris in trash receptacles.

MAINTENANCE

1. In order to maintain your product

in proper working order, perform
the maintenance and checking
operations described in the
manual at regular intervals.

2. Always be sure to turn off the en-

gine and disconnect the spark
plug before performing any main­tenance or checking procedures.

WARNING

The metallic parts and engine
cover reach high temperatures
immediately after stopping the
engine.

3. Examine the blower at intervals

for loose fasteners and rusted or
damaged parts. Use special

care around the fuel line, the
muffler, and the ignition wiring.

4. All engine service except for

those described in this manual
should be performed by compe­tent service personnel. Improper
service to the blower fan and muf­fler could cause a hazardous fail­ure.

5. When replacing the any other

part, or any lubricant, always be
sure to use only ZENOAH prod­ucts or products which have been
certified by ZENOAH for use with
the ZENOAH product.

6. In the event that any part must be

replaced or any maintenance or
repair work not described in this
manual must be performed,
please contact a representative
from the store nearest ZENOAH
authorized servicing dealer for
assistance.

7. Do not use any accessory or at-

tachment other than those bear­ing the ZENOAH mark and rec-

ommended for the unit.

8. Under no circumstances should
you ever take apart the product
or alter it in any way. Doing so
might result in the product be­coming damaged during opera­tion or the product becoming un­able to operate properly.

TRANSPORTATION

• Drain the fuel from the fuel tank
before transporting or storing the
blower.

• Secure the unit carefully to pre­vent movement when it is trans­ported.

•A unit that receives a strong
shock during transport and un­loading may malfunction.

STORAGE

• When storing the blower, choose
a space indoors free from mois­ture and out of the reach of chil­dren.

DISPOSAL

• When you dispose of the ma­chine, do not disassemble the
machine .

• When disposing your machine,
fuel or oil for the machine, be sure
to allow your local regulations

6. Set up

EBZ3000RH

FLEXIBLE HOSE and SWIVEL JOINT

1. Connect the blower and swivel joint with flexible hose.
Clamp both ends of the flexible hose securely with
the hardware supplied with the unit.

(1) Flexible hose
(2) Swivel joint
(3) Clamp (Large)

(2)

(3)

(1)

(4)

NOTE

A light lubricant may be used to ease assembly of

flexible pipe to blower elbow.

CONTROL HANDLE

• Set up the handle holder to the swivel joint and tighten
the screw on the handle holder.

(4) Clamp (Small)

BLOW PIPES

• Connect the swivel joint, straight pipe and pipe end.
Push the pipes together and turn them so they lock in
relation to one another until the connection is locked.

G
B

(1) Handle holder
(2) Swivel joint
(3) Screw

CABLING

1. First, lightly tighten the hose in the middle of it by put­ting the band through the hole (a).

2. Next, lightly tighten the cabling by putting the band
through the hole (b).

(1) Flexible hose
(2) Band
(3) Cabling

GB-9

EBZ3000RH

7. Fuel

■ FUEL

• Gasoline is very flammable. Avoid smoking or bring-

ing any flame or sparks near fuel. Make sure to stop
the engine and allow it cool before refueling the
unit. Select outdoor bare ground for fueling and
move at least 3 m (10 ft) away from the fueling point
before starting the engine.

• The Zenoah engines are lubricated by oil specially for-

mulated for air-cooled 2-cycle gasoline engine use. If
Zenoah oil is not available, use an anti-oxidant added
quality oil expressly labeled for air-cooled 2-cycle en­gine use (JASO FC GRADE OIL or ISO EGC GRADE).

• Do not use BIA or TCW (2-stroke water-cooling

type) mixed oil.

1. Measure out the quantities of gasoline and oil to be
mixed.

2. Put some of the gasoline into a clean, approved fuel
container.

3. Pour in all of the oil and agitate well.

4. Pour in the rest of gasoline and agitate again for at
least one minute. As some oils may be difficult to
agitate depending on oil ingredients, sufficient agita­tion is necessary for the engine to last long. Be care­ful that, if the agitation is insufficient, there is an in­creased danger of early piston seizing due to abnor­mally lean mixture.

5. Indicate the contents on outside of container for easy
identification. To avoid mixing up with gasoline or other
containers.

■ FUELING THE UNIT

1. Untwist and remove the fuel cap. Rest the cap on a
dustless place.

2. Put fuel into the fuel tank to 80% of the full capacity.

3. Fasten the fuel cap securely and wipe up any fuel
spillage around the unit.

1. Select bare ground for fueling.

2. Move at least 10 feet (3 meters) away from the fu­eling point before starting the engine.

3. Stop the engine before refueling the unit. At that
time, be sure to sufficiently agitate the mixed gaso­line in the container.

4. Do not smoke or place hot object near fuel.

■ RECOMMENDED MIXING RATIO
GASOLINE 50 : OIL 1

<when using ZENOAH genuine oil>

• Exhaust emission are controlled by the fundamental

engine parameters and components (eq.,
carburation, ignition timing and port timing) with­out addition of any major hardware or the introduc­tion of an inert material during combustion.

• These engines are certified to operate on un­leaded gasoline.

• Make sure to use gasoline with a minimum oc­tane number of 89RON (USA/Canada: 87AL).

• If you use a gasoline of a lower octane value than
prescribed, there is a danger that the engine tempera­ture may rise and an engine problem such as piston
seizing may consequently occur.

• Unleaded gasoline is recommended to reduce
the contamination of the air for the sake of your health
and the environment.

• Poor quality gasolines or oils may damage seal­ing rings, fuel lines or fuel tank of the engine.

■ HOW TO MIX FUEL

IMPORTANT

• Pay attention to agitation.

■ FOR YOUR ENGINE LIFE, AVOID:

1. FUEL WITH NO OIL (RAW GASOLINE) – It will cause
severe damage to the internal engine parts very
quickly.
GASOHOL – It can cause deterioration of rubber and/

2.
or plastic parts and disruption of engine lubrication.

3. OIL FOR 4-CYCLE ENGINE USE – It can cause spark
plug fouling, exhaust port blocking, or piston ring
sticking.

4. Mixed fuels which have been left unused for a pe-
riod of one month or more may clog the carburetor
and result in the engine failing to operate properly.

5. In the case of storing the product for a long period of
time, clean the fuel tank after rendering it empty. Next,
activate the engine and empty the carburetor of the
composite fuel.

6. In the case of scrapping the used mixed oil container,
scrap it only at an authorized repository site.

• As for details of quality assurance, read the descrip-

tion in the section Limited Warranty carefully. More­over, normal wear and change in product with no
functional influence are not covered by the warranty.
Also, be careful that, if the usage in the instruction
manual is not observed as to the mixed gasoline,
etc. described therein, it may not be covered by the
warranty.

GB-10

8. Operation

EBZ3000RH

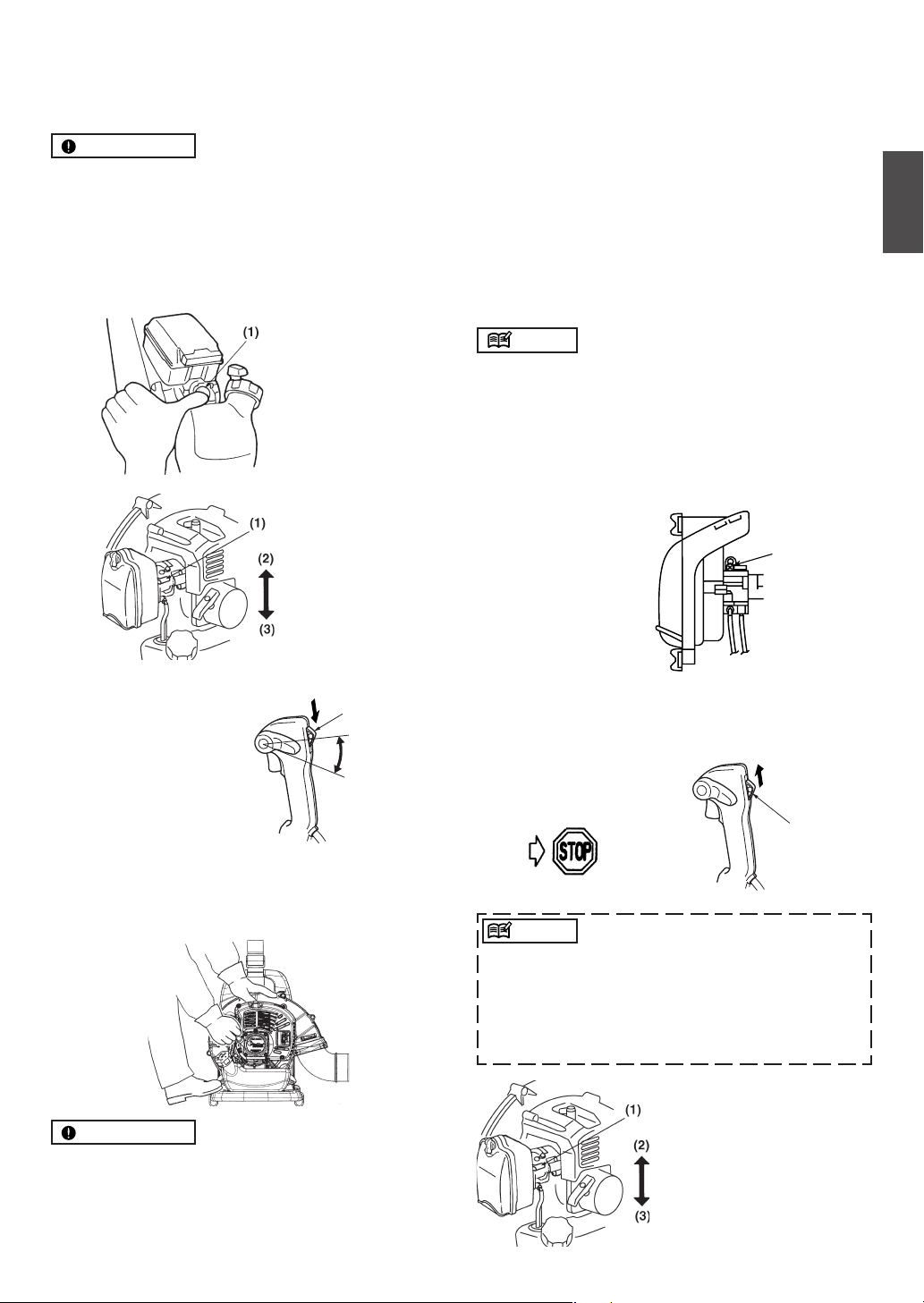

STARTING ENGINE

IMPORTANT

• Avoid operating the blower with the flexible tube

and swivel joint disconnected. That will reduce the
cooling air and the engine could be damaged by
overheating.

1. Push the primer bulb until fuel flows out in the clear
tube.

(1)Primer Bulb

2. When the engine is cool, close the choke.

(1)Choke Lever
(2)CLOSE
(3)OPEN

exhaust port.

• Never touch the muffler, spark plug, other metallic

parts of the engine or engine cover while the en­gine is in operation or immediately after shutting
down the engine. These metallic parts and engine
cover reach high temperatures during operation
and doing so could result in serious burns.

6. Once the engine is running, gradually open the choke
if it was set closed, and let the engine run at idle speed
for a minute to warm it up.

NOTE

When the engine fails to start after several attempts due to
overchoking, open the choke and repeat pulling the rope.

ADJUSTING IDLE SPEED

• The idling speed is set for 3000 rpm at the factory. If it
is necessary to adjust the idle speed, use the adjust­ment screw on the top side of carburetor.

(1)

(1)Idling
Adjustment Screw

G
B

3. Set the ignition switch to the start position.

(3)

(1)Full Throttle
(2)Idling
(3)Ignition Switch

4. Set the throttle lever in idling position.

5. To start, hold the top of the blower firmly with your left
hand. Pull the starter knob slowly until you feel it en­gage and then give it a vigorous strong pull.

IMPORTANT

• Avoid pulling the starter rope out to its full extent
and allowing the starter rope to snap back. This
will prevent premature damage to the starter.

• Do not let a person stand near the blower or the

(1)

(2)

STOPPING ENGINE

• Move the throttle lever to the idling position and set
the ignition switch to the stop position.

(1)Ignition Switch

(1)

NOTE

If the engine won’t stop when setting the ignition switch

to the stop position, close the choke lever and stop
the engine.

In this case, please repair the machine at your nealest

servicing dealer.

(1)Choke Lever
(2)CLOSE
(3)OPEN

GB-11

EBZ3000RH

9. Maintenance

Maintenance, replacement, or repair of the emission control device and systems may be per­formed by any non-road engine repair establishment or individual.

Daily Every Every Every

System / Compronent Procedure or 25 hours 50 hours 100 hours

Before use after after after

Air Filter Inspect / Clean ✔
Fuel Leaks Inspect / Replace ✔
Fuel Filter Inspect / Replace ✔✔
Fuel Line Inspect / Clean ✔
Spark Plug Inspect / Clean ✔
Muffler Inspect / Clean ✔
Muffler Spark Arrester Inspect / Clean ✔
Cooling Systrem Inspect / Clean ✔
Screws / Nuts / Bolts Tighten ✔
Cylinder Exhaust Port Inspect / Clean ✔

WARNING

Make sure that the engine has stopped and is
cool before performing any service to the
blower. Contact with rotating blower fan or hot
muffler may result in a personal injury.

AIR CLEANER

• Check the air cleaner every 25 hours of use or more
frequently if used under dusty conditions. A clogged
air filter may increase fuel consumption while cutting
down the engine power. Never operate the blower
without the air filter or with a deformed filter element
because unfiltered dusty air may quickly ruin the en­gine.

CLEANING AIR FILTER:

1. Remove the air cleaner cover.

2. Use neutral detergent and warm water to clean the
filter element. After cleaning, air dry the element com­pletely.

3. Reinstall the filter. Never forget to attach the screen. If
the screen is not attached, the cleaner will not seal
properly and the dusts come into the cylinder.

(1) Element
(2) Screen

FUEL FILTER

•A clogged fuel filter may cause poor acceleration of
the engine. Check periodically to see if the filter is
clogged with dirt. The filter can be taken out of the
fueling port using a small wire hook. Disconnect the
filter assembly from the fuel pipe and unhook the re­tainer to disassemble it. Clean the components with
gasoline.

(1) Screen (2) Element
(3) Holder (4) Retainer

GB-12

9. Maintenance

SPARK PLUG

• The spark plug may gather carbon deposits on its
firing end with reasonable use. Remove and inspect
the spark plug every 25 hours and clean the elec­trodes as necessary with a wire brush. The spark gap
should be adjusted to .025 in (0.65mm).

•Plug manufacturers recommend replacing the plug
twice a year to avoid unexpected plug failure in a job.

REPLACEMENT PLUG IS NGK CMR7H.

IMPORTANT

• Note that using any spark plugs other than those des­ignated may result in the engine failing to operate
properly or in the engine becoming overheated and
damaged.

•To install the spark plug, first turn the plug until it is
finger tight, then tighten it a quarter turn more with a
socket wrench.

MUFFLER

WARNING

EBZ3000RH

G
B

(1) Bolt
(2) Bolt
(3) Spark Arrester
(4) Diffuser

SPARK ARRESTER

• The muffler is equipped with a spark arrester to pre­vent red hot carbon from flying out of the exhaust out­let. Periodically inspect and clean as necessary with
a wire brush. In the State of California it is required by
law (Section 4442 of the California Pulic Resources
Code) to equip a spark arrester when a gas powered
tool is used in any forest covered, bush covered, or
grass covered unimproved land.

PROCEDURES TO BE PERFORMED AFTER EV­ERY 100 HOURS OF USE

1. Remove the muffler, insert a screwdriver into the vent,
and wipe away any carbon buildup. Wipe away any
carbon buildup on the muffler exhaust vent and cylin­der exhaust port at the same time.

2. Tighten all screws, bolts, and fittings.

• Inspect periodically, the muffler for loose fasteners,
any damage or corrosion. If any sign of exhaust leak­age is found, do not use the blower and have it re­paired immediately.

• Note that failing to do so may result in the engine

catching on fire.

IMPORTANT

• Before starting operation, always make sure to check
if the muffler is properly held by two bolts. (Fastening
To rque : 7 to 11 N·m)

• Also make sure that the spark arrester and the dif­fuser are properly attached with two bolts. (Fastening
To rque : 2 to 3 N·m)

• Even if one of four bolts is loose, it may result in en­gine catching on fire.

GB-13

EBZ3000RH

9. Maintenance

AIR INLET NET

IMPORTANT

• Blowing air is taken in from the air inlet net. When air
flow has dropped down during operation, stop the
engine and inspect the air inlet net for blocking by
obstacles.

• Note that failure to remove any such obstacles may
result in the engine becoming overheated and dam­aged.

(1)Net

WARNING

Never use the blower without the net of the blower.
Before each use, check that the net is attached in
place and is free from any damage.

HARNESS

• If the harness is damaged it may break during use,
thus causing the product to fall and resulting in per­sonal injury. Follow the instructions below to replace
the harness with new one.

1. Hook the upper part of the harness at the notch on
the top of the frame and pass it through the buckle as
shown in the figure, then secure it firmly.

2. Put the hook at the lower part of the harness in the
installing location at the bottom of the frame.

(1)

(2)

(3)

(4)

(1) Buckle (2) Frame
(3) Hook (4) D-ring

GB-14

10. Storage

BEFORE STORING THE BLOWER:

1. Drain a fuel tank and push the primer bulb until it be­comes empty of fuel.

2. Remove the spark plug and drop a spoonful of 2-cycle
oil into the cylider. Crank the engine several times and
install the spark plug.

3. Store unit in a dry, dust free place, out of the reach of
children.

11. Disposal

When you dispose of the machine, do not disassemble
the machine.
When disposing your machine, fuel or oil for the machine,
be sure to allow your local regulations.

12. Troubleshooting guide

Case 1. Starting failure

CHECK PROBABLE CAUSES ACTION

fuel tank → incorrect fuel → drain it and use correct fuel
fuel filter → fuel filter is clogged → clean
carburetor adjustment screw → out of normal range → adjust to normal range
sparking (no spark) → spark plug is fouled/wet → clean/dry

→ plug gap is incorrect → correct (GAP: 0.65 mm)

spark plug → disconnected → retighten

Case 2. Engine starts but does not keep running/hard re-starting

CHECK PROBABLE CAUSES ACTION

fuel tank → incorrect fuel or staled fuel → drain it and use correct fuel
carburetor adjustment screw → out of normal range → adjust to normal range
muffler, cylinder (exhaust port) → carbon is built-up → wipe away
air cleaner → clogged with dust → wash
cylinder fin, fan cover → clogged with dust → clean

When your unit seems to need further service, please consult with our ZENOAH service shop in your area.

EBZ3000RH

G
B

Limited warranty

Should any failure occur on the product under normal oper­ating conditions within the applicable warranty period, the
failed part will be replaced or repaired free of charge by a
ZENOAH authorized dealer.

WARRANTY PERIOD: 1 year (6 months if used profession­ally, and 30 days if used for rental purpose) from the date of
initial purchase.

THE PURCHASER SHALL BEAR COSTS OF TRANS­PORTING THE UNIT TO AND FROM THE ZENOAH DEALER.

THE PURCHASER SHALL NOT BE CHARGED FOR DIAG­NOSTIC LABOR WHICH LEADS TO THE DETERMINATION
THAT A WARRANTED PART IS DEFECTIVE, IF THE DIAG­NOSTIC WORK IS PERFORMED AT THE ZENOAH DEALER.

THE PURCHASER OR OWNER IS RESPONSIBLE FOR THE
PERFORMANCE OF THE REQUIRED MAINTENANCE AS
DEFINED BY THE MANUFACTURER IN THE OWNER/OP­ERATOR MANUAL.

ANY WARRANTED PART WHICH IS NOT SCHEDULED FOR
REPLACEMENT AS REQUIRED MAINTENANCE, OR
WHICH IS SCHEDULED ONLY FOR REGULAR INSPECTION
TO THE EFFECT OF REPAIR OR “REPLACE AS NECES­SARY” SHALL BE WARRANTED FOR THE WARRANTY PE­RIOD. ANY WARRANTED PART WHICH IS SCHEDULED
FOR REPLACEMENT AS REQUIRED MAINTENANCE
SHALL BE WARRANTED FOR THE PERIOD OF TIME UP
TO THE FIRST SCHEDULED REPLACEMENT POINT FOR
THE PART.

NOT REDUCE THE WARRANTY OBLIGATION OF THE
COMPANY.

THE COMPANY IS LIABLE FOR DAMAGES TO OTHER
ENGINE COMPONENTS CAUSED BY THE FAILURE OF A
WARRANTED PART STILL UNDER WARRANTY.

THE WARRANTY DOES NOT APPLY TO THOSE UNITS
WHICH HAVE BEEN DAMAGED BY NEGLIGENCE OF IN­STRUCTION LISTED IN THE OWNER/OPERATOR MANUAL
FOR PROPER USE AND MAINTENANCE OF THE UNITS
ACCIDENT MISHANDLING, ALTERATION, ABUSE, IM­PROPER LUBRICATION, USE OF ANY PARTS OR ACCES­SORIES OTHER THAN THOSE SPECIFIED BY THE COM­PANY, OR OTHER CAUSES BEYOND THE COMPANY’S
CONTROL.

THIS WARRANTY DOES NOT COVER THOSE PARTS RE­PLACED BY NORMAL WEAR OR HARMLESS CHANGES
IN THEIR APPEARANCE.

THERE ARE NO OTHER EXPRESS WARRANTIES.

IMPLIED WARRANTIES INCLUDING THOSE OF MER-

CHANTABILITY AND FITNESS FOR A PARTICULAR PUR­POSE ARE LIMITED TO TWO (2) YEARS OF HOME USE
[ONE (1) YEAR FOR ANY OTHER USE] FROM THE ORIGI­NAL DELIVERY DATE.

LIABILITIES FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGE UNDER ANY AND ALL WARRANTIES ARE
EXCLUDED.

ANY REPLACEMENT PART THAT IS EQUIVALENT IN PER­FORMANCE AND DULABILITY MAY BE USED IN NON­WARRANTY MAINTENANCE OR REPAIRS, AND SHALL

IF YOU NEED TO OBTAIN MORE INFORMATION, PLEASE
CALL YOUR NEAREST SERVICE CENTER, OR CHECK
PLEASE ZENOAH WEB SITE

http://www.zenoah.net

GB-15
