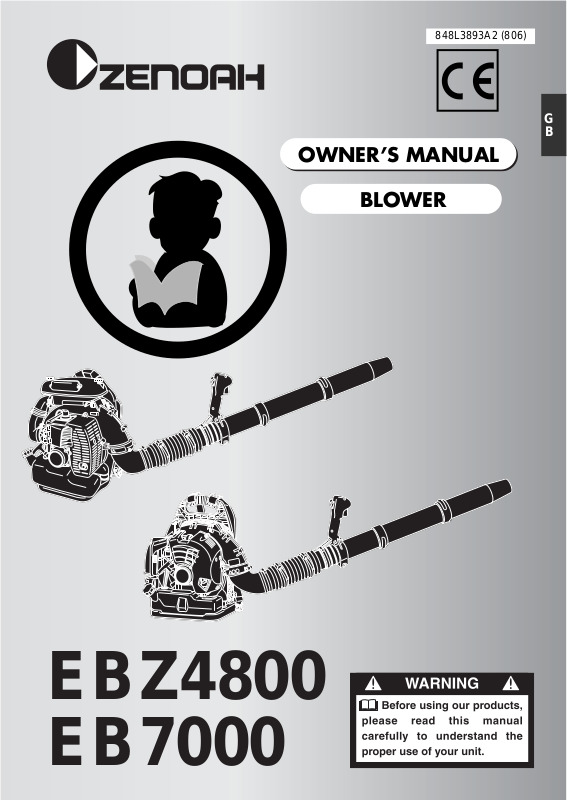

EBZ4800 / EB7000
848L3893A2 (806)
OWNER’S MANUAL
BLOWER
G
G
B
B
EBZ4800
EB7000
GB-1
EBZ4800 / EB7000
EC DECLARATION OF COMFORMITY
We, Husqvarna Zenoah Co., Ltd.
1-9, Minamidai, Kawagoe, Saitama, Japan
declare in sole responsibility that the following products referred to in this
declaration conform with
DIRECTIVE 98/37/EC
2000/14/EC Internal control production.
The products referred to are:
DESIGNATION : BLOWER
MODELS : EBZ4800 EB7000
SERIAL NUMBERS : 71200001 and up
Thecompany named above will keep on file the following technical documentation for any inspection purpose.
• Operation instructions
• Plans and Drawings
• Description of measures designed to ensure conformity
• Other technical documentation :Specification sheet
Inspection standard
Saitama, Japan 1st December 2007
Masahiko GOUDA
General Manager, Quality Assurance Department
EXPLANATION OF SYMBOLS AND SAFETY WARNINGS
EBZ4800
WARNING!!!
RISK OF DAMAGING HEARING
Wear head, eye and ear protection.
EB7000
WARNING!!!
RISK OF DAMAGING HEARING
Wear head, eye and ear protection.
MODEL
EBZ4800 (47.9cm3) 102.39 dB(A) 104 dB(A)
EB7000 (62.0cm3) 106.94 dB(A) 108 dB(A)
SOUND LEVEL
ISO 11094
measured
LwA
guaranteed
GB-2
APPROVAL NUMBER OF CE EXHAUST EMISSION REGULATION (2002/88/EC)
EBZ4800 : e13*97/68SH2G3*2002/88*0096*00
EB7000 : e13*97/68SH3G3*2002/88*0095*02
EBZ4800 / EB7000
SAFETY FIRST
Instructions contained in warnings within this manual marked
with a symbol concern critical points which must be taken
into consideration to prevent possible serious bodily injury, and
for this reason you are requested to read all such instructions
carefully and follow them without fail.
WARNINGS IN THE MANUAL
WARNING
This mark indicates instructions, which must be followed in order to prevent accidents, which could lead to serious bodily injury or death.
IMPORTANT
This mark indicates instructions, which must be followed, or it
leads to mechanical failure, breakdown, or damage.
NOTE
This mark indicates hints or directions useful in the use of the
product.
1. Parts location
Contents
1. Parts location .................................................. 3
2. Specifications ................................................. 4
3. Warning labels on the machine ...................... 4
4. Symbols on the machine ................................ 4
5. For safe operation........................................... 5
6. Set up ............................................................. 8
7. Fuel ................................................................. 9
8. Operation ...................................................... 10
9. Maintenance ................................................. 11
10. Storage ......................................................... 13
11. Disposal ........................................................ 13
12. Troubleshooting guide .................................. 14
G
B
[ EBZ4800 ]
[ EB7000 ]
1.Shoulder strap
2.Air cleaner
3.Ignition switch
4.Throttle lever
5.Frame
6.Volute case
7.Spark plug cap
8.Recoil starter
9.Elbow
10.Fuel tank
11.Net
12.Choke lever
GB-3
EBZ4800 / EB7000
2. Specification
MODEL EBZ4800 EB7000
Dimensions (LxWxH) mm 1352x496x475 520x580x490
Dry Weight kg 8.9 9.6
Fuel Tank Capacity liter (fl.oz) 2.0 (67.6) 2.1 (70.9)
Engine Type Strato-charged air-cooled Air-cooled
2-cycle gasoline engine 2-cycle gasoline engine
Piston Displacement cc (cu.in) 47.9 (2.92) 62 (3.78)
Air Filter Half wet 2 stage filter 2 stage fresh flow filter system
Carburetor Diaphragm, rotary valve type
Ignition System C.D.I.
Spark Plug NGK CMR7H (Noise-proof) Champion RCJ6Y (Noise-proof)
Muffler Spark arrester equipped
Operating Engine Speed
Fuel Consumption
Max. Air Volume (w/std Pipes)
Max. Air Velocity
Specifications are subject to change without notice.
cu.m/min (cfm)
rpm 2000 to 6500 2000 to 7500
liter/h (fl.oz/h)
m/sec (mph)
1.04 (35.2) 2.2 (65)
ø57:11 (387)/ø66:13 (458) 15 (529)
ø57:72 (161)/ø66:63 (140) 90 (200)
3. Warning labels on
the machine
Read owner’ s manual bef ore operating this machine.
Wear head, eye and ear protection.
Warning / Attention
Keep all children, bystanders and helpers 15
meters away from the machine.
If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the required
location(s).
4. Symbols on
the machine
For safe operation and maintenance, symbols are carved
in relief on the machine. According to these indications,
please be careful not to make a mistake.
The port to refuel the “MIX GASOLINE”
Position: FUEL TANK CAP
The direction to close the choke
Position: INTAKE CUP
The direction to open the choke
Position: INTAKE CUP
Never modify your machine.
We won’t warrant the machine, if you use the
remodeled blower or if you don’t observe
proper usage written in the manual.
GB-4
the
5. For safe operation
EBZ4800 / EB7000
1. Read this manual carefully until
you completely understand and
follow all safety and operating
instructions.
2. Keep this manual handy so that
you may refer to it later whenever any questions arise. Also
note, if you have any questions
which cannot be answered
herein, contact the dealer from
whom you purchased the product.
3. Always be sure to include this
manual when selling, lending, or
otherwise transferring the ownership of this product.
4. Do not lend or rent your machine
without the owner's manual.
5. Be sure that anyone using your
unit understands the infomation
contained in this manual.
6. Never let a child under 13 years
old use the machine.
WORKING CONDITION
1. Refrain from operating the
blower if you are tired, ill, or upset, or if you are under the influence of alcohol, drugs or medication.
2. To reduce the risk of hearing
loss associated with sound
level(s), hearing protection is
required.
3. To reduce the risk of injury associated with thrown objects,
always wear eye protection and
foot protection. Eye protection
should meet the requirements of
ANSI Z87.1.
4. To reduce the risk of injury associated with the inhalation of
dust, use a face filter mask in
dusty conditions.
5. Wear sturdy rubber-soled shoes
or shoes with some other form
of anti-slip protection to help
protect you against falling.
6. To reduce the risk of injury associated with objects being
drawn into rotating parts, do not
wear loose clothing, scarves,
neck chains, hair longer than
shoulder length, or other loose
material.
7. Prolonged use of a blower, exposing the operator to vibrations
and cold may produce
whitefinger disease (Raynaud’s
phenomenon), which symptoms
are tingling and burning sensations followed by loss of color
and numbness in the fingers. All
factors which contribute to
whitefinger disease are not
known, but cold weather, smoking diseases or physical conditions as well as long periods of
exposure to vibration are mentioned as factors. In order to reduce the risk of whitefinger disease, the following precautions
are strongly recommended;
a) Keep your body warm. Never
use blower during rains.
b) Wear thick anti-vibration gloves.
c) Take more than 5 minutes of
break in warm place frequently.
d) Maintain a firm grip at all times,
but do not squeeze the handles
with constant, excessive pres-
sures.
e) If you feel discomfort, redness
and swelling of your fingers or
any other part of your body, see
a doctor before getting worse.
8. The ignition system of your unit
produces an electromagnetic
field of a very low intensity. This
field may interfere with some
pacemakers. To reduce the risk
of serious or fatal injury, persons
with pacemaker should consult
their physician and the pace-
maker manufacturer before op-
erating this tool.
WORKING CIRCUMSTANCE
1. To reduce the risk of injury associated with exhaust fume inhalation, do not operate in
unventilated area. The exhaust
gases contain harmful carbon
monoxide.
2. Avoid using the blower where
stable footing and balance are
not assured.
AVOID NOISE PROBLEM
IMPORTANT
Check and follow the local
regulations as to sound level
and hours of operations for
blower .
GB-5
G
B
EBZ4800 / EB7000
5. For safe operation
1. Operate power equipment only at
reasonable hours-not early in the
morning or late at night when
people might be disturbed. Comply with times listed in local ordinances.
2.To reduce sound levels, limit the
number of pieces of equipment
used at any one time.
3. Operate power blowers at the
lowest possible throttle speed to
do the job.
4. Check your equipment before operation, especially the muffler, air
intakes and air filters.
WORKING PLAN
• When planning your work schedule, allow plenty of time to rest.
Limit the amount of time over
which the product is to be used
continuously to somewhere
around 30 ~ 40 minutes per session, and take 10 ~ 20 minutes of
rest between work sessions. Also
try to keep the total amount of
work performed in a single day
under 2 hours or less.
FUEL
WARNING
To reduce the risk of fire and burn
injury:
a) Handle fuel with care. It is highly
flammable.
b) Do not smoke while handing fuel.
c) Do not refuel a hot engine.
d) Do not refuel a running engine.
e) Avoid spilling fuel or oil. Always
wipe unit dry before using.
f) Move at least 10 ft. (3 meters)
away from the fueling point before starting engine.
g) Always store gasoline in a con-
tainer approved for flammable liquids.
h) Make sure the unit is properly as-
sembled and in good operating
condition.
BEFORE STARTING THE
ENGINE
• Each time before starting the engine, inspect the entire unit to see
if every part is in good order and
is securely tightened in place. If
GB-6
any damage is found in the fuel
line, the exhaust line, or the ignition wiring, do not use the blower
until it has been repaired.
IMPORTANT
• Before starting operation, always make sure to check if any
obstacles are left inside the
volute case and net. The obstacles may cause damage on
fan and volute case and serious
injury.
WARNING
• Check to see if the shock-absorbing rubber mount has become
cracked or otherwise damaged.
Note that failing to replace this
rubber mount when it has become cracked or damaged may
cause the engine to come loose
from its frame during use, thus
resulting in possible serious
bodily injury.
• If cracked, be sure to replace
without delay.
WARNING
• To reduce the risk of injury associated with contacting rotating
parts, stop the engine before installing or removing attachments.
Do not operate without net in
place. Always disconnect the
spark plug before performing
maintenance or accessing movable parts.
USING THE PRODUCT
1. Check the work area that the
blower will be used in and remove
or cover all valuables that may be
damaged by the air blast or
thrown debris.
2. To reduce the risk of injury associated with thrown objects.
a) Watch out for children, pets, open
windows or freshly washed cars,
and blow debris safely away.
b) Use the full blower nozzle exten-
sion so the air stream can work
close to the ground.
c) Do not allow bystanders in work
area.
d) Do not point the blower tube in
the direction of people or pets.
e) Always check to be sure that no
debris has been blown onto
someone else’s property.
EBZ4800 / EB7000
5. For safe operation
f) Pay attention to the direction of
the wind, do not work against the
wind.
g) Never point a blower tube toward
an open flame to avoid the possibility of igniting the unit, causing
injury to yourself or damage to
surroundings.
3. To minimize blowing time.
a) Use rakes and brooms to loosen
debris before blowing.
b) In dusty conditions, slightly
dampen surfaces or use mister
attachment when water is available.
c) Conserve water by using power
blowers instead of hoses for many
lawn and garden applications,
including areas such as gutters,
screens, patios, grills, porches
and gardens.
4. Never to touch the spark plug or
plug cord while the engine is in
operation. Doing so may result in
being subjected to an electrical
shock.
5. Never to touch the muffler, spark
plug, or other metallic parts of the
engine or engine cover while the
engine is in operation or immediately after shutting down the engine. These metallic parts and engine cover reach high temperatures during operation and doing
so could result in serious burns.
6. After using blowers and other
equipment, CLEAN UP! Dispose
of debris in trash receptacles.
MAINTENANCE
1. In order to maintain your product
in proper working order, perform
the maintenance and checking
operations described in the
manual at regular intervals.
2. Always be sure to turn off the engine and disconnect the spark
plug before performing any maintenance or checking procedures.
WARNING
The metallic parts and engine
cover reach high temperatures
immediately after stopping the
engine.
3. Examine the blower at intervals
for loose fasteners and rusted or
damaged parts. Use special
care around the fuel line, the
muffler , and the ignition wiring.
4. All engine service except for
those described in this manual
should be performed by competent service personnel. Improper
service to the blower fan and muffler could cause a hazardous failure.
5. When replacing the any other
part, or any lubricant, always be
sure to use only ZENOAH products or products which have been
certified by ZENOAH for use with
the ZENOAH product.
6. In the event that any part must be
replaced or any maintenance or
repair work not described in this
manual must be performed,
please contact a representative
from the store nearest ZENOAH
authorized servicing dealer for
assistance.
7. Do not use any accessory or attachment other than those bearing the ZENOAH mark and recommended for the unit.
8. Under no circumstances should
you ever take apart the product
or alter it in any way. Doing so
might result in the product becoming damaged during operation or the product becoming unable to operate properly.
TRANSPORTATION
• Drain the fuel from the fuel tank
before transporting or storing the
blower.
• Secure the unit carefully to prevent movement when it is transported.
•A unit that receives a strong
shock during transport and unloading may malfunction.
STORAGE
• When storing the blower, choose
a space indoors free from moisture and out of the reach of children.
DISPOSAL
•When disposing your machine,
fuel or oil for the machine, be sure
to allow your local regulations.
G
B
GB-7
EBZ4800 / EB7000
6. Set up
BLOWER TUBES
1. Connect the blower and swivel joint with flexible hose.
Clamp both ends of the flexible hose securely with
the hardware supplied with the unit.
2. Align the protrusion and the groove provided on the
tube ends and twist the tube until connection is locked
up.
NOTE
A light lubricant may be used to ease assembly of
flexible pipe to blower elbow.
THROTTLE LEVER
• Set up the clamp to the swivel and tighten the screw
on the clamp.
(1) Clamp
(2) Swivel
(3) Screw
THROTTLE CABLE
• Use the clamp to fasten the colgate tube containing
the throttle cable and the power cable to the hose.
GB-8
(1) Clamp
(2) Cable
(3) Hose
7. Fuel
EBZ4800 / EB7000
■ FUEL
• Gasoline is very flammable. Avoid smoking or
bringing any flame or sparks near fuel. Make sure
to stop the engine and allow it cool before refueling the unit. Select outdoor bare ground for fueling and move at least 3 m (10 ft) away from the
fueling point before starting the engine.
• The Zenoah engines are lubricated by oil specially
formulated for air-cooled 2-cycle gasoline engine use.
If Zenoah oil is not available, use an anti-oxidant added
quality oil expressly labeled for air-cooled 2-cycle
engine use (JASO FC GRADE OIL or ISO EGC
GRADE).
• Do not use BIA or TCW (2-stroke water-cooling type)
mixed oil.
1. Measure out the quantities of gasoline and oil to be
mixed.
2. Put some of the gasoline into a clean, approved fuel
container.
3. Pour in all of the oil and agitate well.
4. Pour in the rest of gasoline and agitate again for at
least one minute. As some oils may be difficult to
agitate depending on oil ingredients, sufficient agitation is necessary for the engine to last long. Be
careful that, if the agitation is insufficient, there is an
increased danger of early piston seizing due to abnormally lean mixture.
5. Indicate the contents on outside of container for
easy identification. To avoid mixing up with gasoline
or other containers.
■ FUELING THE UNIT
1. Untwist and remove the fuel cap. Rest the cap on a
dustless place.
2. Put fuel into the fuel tank to 80% of the full capacity.
3. Fasten the fuel cap securely and wipe up any fuel
spillage around the unit.
1. Select bare ground for fueling.
2. Move at least 10 feet (3 meters) away from the
fueling point before starting the engine.
3. Stop the engine before refueling the unit. At that
time, be sure to sufficiently agitate the mixed
gasoline in the container.
4. Do not smoke or place hot object near fuel.
G
B
■ RECOMMENDED MIXING RATIO
GASOLINE 50 : OIL 1
<when using ZENOAH genuine oil>
• Exhaust emission are controlled by the fundamental engine parameters and components (eq.,
carburation, ignition timing and port timing) without addition of any major hardware or the introduction of an inert material during combustion.
• These engines are certified to operate on unleaded
gasoline.
• Make sure to use gasoline with a minimum octane
number of 89RON (USA/Canada: 87AL).
• If you use a gasoline of a lower octane value than
prescribed, there is a danger that the engine temperature may rise and an engine problem such as
piston seizing may consequently occur.
• Unleaded gasoline is recommended to reduce the
contamination of the air for the sake of your health
and the environment.
• Poor quality gasolines or oils may damage sealing
rings, fuel lines or fuel tank of the engine.
■ HOW TO MIX FUEL
IMPORTANT
• Pay attention to agitation.
■ FOR YOUR ENGINE LIFE, AVOID:
1. FUEL WITH NO OIL (RAW GASOLINE) – It will cause
severe damage to the internal engine parts very
quickly.
2.
GASOHOL – It can cause deterioration of rubber and/
or plastic parts and disruption of engine lubrication.
3. OIL FOR 4-CYCLE ENGINE USE – It can cause
spark plug fouling, exhaust port blocking, or piston
ring sticking.
4. Mixed fuels which have been left unused for a
period of one month or more may clog the carburetor and result in the engine failing to operate properly.
5. In the case of storing the product for a long period
of time, clean the fuel tank after rendering it empty.
Next, activate the engine and empty the carburetor
of the composite fuel.
6. In the case of scrapping the used mixed oil container, scrap it only at an authorized repository site.
• As for details of quality assurance, read the description in the section Limited Warranty carefully. Moreover, normal wear and change in product with no
functional influence are not covered by the warranty.
Also, be careful that, if the usage in the instruction
manual is not observed as to the mixed gasoline,
etc. described therein, it may not be covered by the
warranty.
GB-9
EBZ4800 / EB7000
8. Operation
STARTING ENGINE
IMPORTANT
• Avoid operating the blower with the flexible tube and
swivel joint disconnected. That will reduce the cooling air and the engine could be damaged by overheating.
1. Push the primer bulb until fuel flows out in the clear
tube.
2. When the engine is cool, close the choke.
(1)Choke Lever (2)Primer Bulb
(3)OPEN (4)CLOSE
3. Set the ignition switch to the start position.
(4)
(1)
6. Once the engine is running, gradually open the choke
if it was set closed, and let the engine run at idle speed
for a minute to warm it up.
NOTE
When the engine fails to start after several attempts due to
overchoking, open the choke and repeat pulling the rope.
ADJUSTING IDLE SPEED
• The idling speed is set for 2000 rpm at the factory. If it
is necessary to adjust the idle speed, use the adjustment screw on the top side of carburetor.
(1)
(1)
[EBZ4800]
[EB7000]
(1)Idling Adjustment Screw
STOPPING ENGINE
• Move the throttle lever to the idling position and set the
ignition switch to the stop position.
(1)Full Throttle
(2)About 1/3 Open
(2)
(3)
(3)Idling
(4)Ignition Switch
4. Set the throttle lever in 1/3 open position.
5. To start, hold the top of the blower firmly with your left
hand. Pull the starter knob slowly until you feel it engage and then give it a vigorous strong pull.
IMPORTANT
• Avoid pulling the starter rope out to its full extent
and allowing the starter rope to snap back. This will
prevent premature damage to the starter.
• Do not let a person stand near the blower or the
exhaust port.
(1)
(1)Ignition Switch
NOTE
If the engine won’t stop when setting the ignition switch
to the stop position, close the choke lever and stop the
engine.
In this case, please repair the machine at your nealest
servicing dealer.
(1)Choke Lever
(2)Primer Bulb
(3)OPEN
(4)CLOSE
GB-10
EBZ4800 / EB7000
9. Maintenance
Maintenance, replacement, or repair of the emission control device and systems may be performed by any non-road engine repair establishment or individual.
Daily Every Every Every
System / Compronent Procedure or 25 hours 50 hours 100 hours
Before use after after after
Air Filter Prefilter Inspect / Clean ✔
Air Filter Paper Filter Inspect / Replace ✔
Fuel Leaks Inspect / Replace ✔
Fuel Filter Inspect / Replace ✔✔
Fuel Line Inspect / Clean ✔
Spark Plug Inspect / Clean ✔
Muffler Inspect / Clean ✔
Muffler Spark Arrester Inspect / Clean ✔
Cooling Systrem Inspect / Clean ✔
Screws / Nuts / Bolts Tighten ✔
Cylinder Exhaust Port Inspect / Clean ✔
WARNING
Make sure that the engine has stopped and
is cool before performing any service to the
blower. Contact with rotating blower fan or
hot muffler may result in a personal injury.
(1) 2 Cycle Motor Oil
G
B
AIR CLEANER
• Never operate the blower without the air filter or with
a deformed filter element because unfiltered dusty
air will quickly ruin the engine.
• Check the air cleaner before use.
A clogged air filter may increase fuel consumption
while cutting down the engine power.
[EB7000]
• Never clean a paper filter by striking it with or against
another object. The filter may be damaged and resultant dust contamination can diminish engine performance.
CLEANING AIR FILTER:
[EBZ4800]
1. Remove the air cleaner cover by pulling the tab on
bottom and take out the filter element.
2. Use neutral deterget and warm water to clean the
filter element. After cleaning, air dry the element completely and moisten with a samll amount of 2 cycle
motor oil.
NOTE
NOTE
Soak the filter element into a 2cycle motor oil. Suqueeze
the element to remove excess oil so that it weighs 2 to 3
times heavier than that of the dry element.
3. Place the filter element into the packing with the yellow side facing to the cover. Set the packing into the
(5)
(3)
(1)Cover Cleaner
(2)Screen
(3)Cleaner Body
(4)Element
(5)Packing
(6)Yellow
(7)Black
(2)
(4)
(1)
(7)
(6)
air cleaner body. Set the cover with 2 fixing screws.
NOTE
• Assure that the screen is securely fitted to the packing. Fit securely if it is loose.
• Insufficient fixing of screws may cause fall off of the
cover and insufficient sealing.
• Care shall be taken to an direction of the filter element. Incorrect direction of the element will result in
poor element performance.
IMPORTANT
• Do not apply 4 cycle motor oils as they may damage
element.
•Do not use mixture gasoline. this type of gasoline
does not contain much of oil so that element becomes
dry after a few hours.
Place the filter element into the packing with the yellow
side facing to the cover. Set the packing into the air
cleaner body. Set the cover with 2 fixing screws.
GB-11
EBZ4800 / EB7000
9. Maintenance
[EB7000]
1. Unscrew 2 knob bolts and remove the air cleaner cover.
Then remove a prefilter mounted inside the air cleaner
cover.
(1) Knob Bolt
(2) Prefilter
(3) Paper Filter
2. Wash the prefilter in fresh, non flammable cleaning solution (ex. warm soapy water) and then dry.
(Clean the air filter once in a week.)
3. Exchange the paper filter element with new one in case it
has been contaminated.
WARNING
• This prefilter is dry type.
• Never wash the prefilter in oleaginous cleaning solu-
tion.
• Do not clean a paper filter by striking it.
FUEL FILTER
•A clogged fuel filter may cause poor acceleration of the
engine. Check periodically to see if the filter is clogged
with dirt. The filter can be taken out of the fueling port using a small wire hook. Disconnect the filter assembly from
the fuel pipe and unhook the retainer to disassemble it.
Clean the components with gasoline.
REPLACEMENT PLUG
EBZ4800: NGK CMR7H / CHAMPION RZ7C
EB7000 : CHAMPION RCJ6Y
IMPORTANT
• Note that using any spark plugs other than those designated may result in the engine failing to operate
properly or in the engine becoming overheated and
damaged.
•To install the spark plug, first turn the plug until it is
finger tight, then tighten it a quarter turn more with a
socket wrench.
MUFFLER
WARNING
• Inspect periodically, the muffler for loose fasteners,
any damage or corrosion. If any sign of exhaust leakage is found, do not use the blower and have it repaired immediately.
• Note that failing to do so may result in the engine
catching on fire.
IMPORTANT
• Before starting operation, always make sure to check
if the muffler is properly held by three bolts to the cylinder and crank case. (Fastening Torque : 8~12 N·m)
•Also make sure that the spark arrester and the diffuser are properly attached with four bolts (Fastening
To rque : 2~3 N·m)
• Even if one of seven bolts is loose, it may result in
engine catching on fire.
(1) Screen (2) Element
(3) Holder (4) Retainer
SPARK PLUG
• The spark plug may gather carbon deposits on its
firing end with reasonable use. Remove and inspect
the spark plug every 25 hours and clean the electrodes as necessary with a wire brush. The spark gap
should be adjusted to .025 in (0.6~0.7mm).
• Plug manufacturers recommend replacing the plug
twice a year to avoid unexpected plug failure in a job.
GB-12
(1) Bolt
(2) Spark Arrester
SPARK ARRESTER
• The muffler is equipped with a spark arrester to prevent red hot carbon from flying out of the exhaust outlet. Periodically inspect and clean as necessary with
a wire brush. In the State of California it is required by
law (Section 4442 of the California Pulic Resources
Code) to equip a spark arrester when a gas powered
tool is used in any forest covered, bush covered, or
grass covered unimproved land.
NOTE
[EBZ4800]
Fit the Spark Arrester on the pipe and tightly fix with the
clip
9. Maintenance
EBZ4800 / EB7000
PROCEDURES TO BE PERFORMED AFTER EVERY 100 HOURS OF USE
1. Remove the muffler, insert a screwdriver into the vent,
and wipe away any carbon buildup. Wipe away any
carbon buildup on the muffler exhaust vent and cylinder exhaust port at the same time.
2. Tighten all screws, bolts, and fittings.
AIR INLET NET
IMPORTANT
•Blowing air is taken in from the air inlet net. When air
flow has dropped down during operation, stop the
engine and inspect the air inlet net for blocking by
obstacles.
• Note that failure to remove any such obstacles may
result in the engine becoming overheated and damaged.
(1)
SHOULDER STRAP
If the shoulder strap is damaged it may break during
use, thus causing the product to fall and resulting in
personal injury. Follow the instructions below to replace
the shoulder strap with new one.
1. Pass the upper end of the strap through the hanger,
marking the FLAPPED SIDE OUTSIDE.
2. Put the end of the strap through the ring on the strap,
and then push the ring toward the hanger as close as
possible.
(1)Ring
(2)Flapped side
WARNING
• The flap on the end of the strap works as a stop-
per. Never install the strap with the flapped side
inside, or the unit may fall from the operation,
which could result in injury to the operator and/or
damage to the unit.
• Do not apply liquid type screw lock glue on screws
or bolts used to fix plastics components. Adherence of this type of glue may cause cracks on plastics and end up with the breakage.
G
B
(1)Net
WARNING
Never use the blower without the net of the blower.
Before each use, check that the net is attached in
place and is free from any damage.
10. Storage
BEFORE STORING THE BLOWER:
1. Drain a fuel tank and push the primer bulb until it becomes empty of fuel.
2. Remove the spark plug and drop a spoonful of 2-cycle
oil into the cylider. Crank the engine several times and
install the spark plug.
3. Store unit in a dry, dust free place, out of the reach of
children.
11. Disposal
When disposing your machine, fuel or oil for the machine,
be sure to allow your local regulations.
GB-13
EBZ4800 / EB7000
12. Troubleshooting guide
Case 1. Starting failure
CHECK PROBABLE CAUSES ACTION
fuel tank → incorrect fuel → drain it and use correct fuel
fuel filter → fuel filter is clogged → clean
carburetor adjustment screw → out of normal range → adjust to normal range
sparking (no spark) → spark plug is fouled/wet → clean/dry
→ plug gap is incorrect → correct (GAP: 0.6 ~ 0.7 mm)
spark plug → disconnected → retighten
Case 2. Engine starts but does not keep running/hard re-starting
CHECK PROBABLE CAUSES ACTION
fuel tank → incorrect fuel or staled fuel → drain it and use correct fuel
carburetor adjustment screw → out of normal range → adjust to normal range
muffler, cylinder (exhaust port) → carbon is built-up → wipe away
air cleaner → clogged with dust → wash
cylinder fin, fan cover → clogged with dust → clean
When your unit seems to need further service, please consult with our ZENOAH service shop in your area.
Limited warranty
Should any failure occur on the product under normal operating conditions within the applicable warranty period, the
failed part will be replaced or repaired free of charge by a
ZENOAH authorized dealer.
WARRANTY PERIOD: 1 year (6 months if used professionally, and 30 days if used for rental purpose) from the date of
initial purchase.
THE PURCHASER SHALL BEAR COSTS OF TRANSPORTING THE UNIT TO AND FROM THE ZENOAH DEALER.
THE PURCHASER SHALL NOT BE CHARGED FOR DIAGNOSTIC LABOR WHICH LEADS TO THE DETERMINATION
THAT A WARRANTED PART IS DEFECTIVE, IF THE DIAGNOSTIC WORK IS PERFORMED AT THE ZENOAH DEALER.
THE PURCHASER OR OWNER IS RESPONSIBLE FOR THE
PERFORMANCE OF THE REQUIRED MAINTENANCE AS
DEFINED BY THE MANUFACTURER IN THE OWNER/OPERATOR MANUAL.
ANY WARRANTED PART WHICH IS NOT SCHEDULED FOR
REPLACEMENT AS REQUIRED MAINTENANCE, OR
WHICH IS SCHEDULED ONLY FOR REGULAR INSPECTION
TO THE EFFECT OF REPAIR OR “REPLACE AS NECESSARY” SHALL BE WARRANTED FOR THE WARRANTY PERIOD. ANY WARRANTED PART WHICH IS SCHEDULED
FOR REPLACEMENT AS REQUIRED MAINTENANCE
SHALL BE WARRANTED FOR THE PERIOD OF TIME UP
TO THE FIRST SCHEDULED REPLACEMENT POINT FOR
THE PART.
ANY REPLACEMENT PART THAT IS EQUIVALENT IN PERFORMANCE AND DULABILITY MAY BE USED IN NON-
WARRANTY MAINTENANCE OR REPAIRS, AND SHALL
NOT REDUCE THE WARRANTY OBLIGATION OF THE
COMPANY.
THE COMPANY IS LIABLE FOR DAMAGES TO OTHER
ENGINE COMPONENTS CAUSED BY THE FAILURE OF A
WARRANTED PART STILL UNDER WARRANTY.
THE WARRANTY DOES NOT APPLY TO THOSE UNITS
WHICH HAVE BEEN DAMAGED BY NEGLIGENCE OF INSTRUCTION LISTED IN THE OWNER/OPERATOR MANUAL
FOR PROPER USE AND MAINTENANCE OF THE UNITS
ACCIDENT MISHANDLING, ALTERATION, ABUSE, IMPROPER LUBRICATION, USE OF ANY PARTS OR ACCESSORIES OTHER THAN THOSE SPECIFIED BY THE COMPANY, OR OTHER CAUSES BEYOND THE COMPANY’S
CONTROL.
THIS WARRANTY DOES NOT COVER THOSE PARTS REPLACED BY NORMAL WEAR OR HARMLESS CHANGES
IN THEIR APPEARANCE.
THERE ARE NO OTHER EXPRESS WARRANTIES.
IMPLIED WARRANTIES INCLUDING THOSE OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO TWO (2) YEARS OF HOME USE
[ONE (1) YEAR FOR ANY OTHER USE] FROM THE ORIGINAL DELIVERY DATE.
LIABILITIES FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGE UNDER ANY AND ALL WARRANTIES ARE
EXCLUDED.
IF YOU NEED TO OBTAIN MORE INFORMATION, PLEASE
CALL YOUR NEAREST SERVICE CENTER, OR CHECK
PLEASE ZENOAH WEB SITE
http://www.zenoah.net
GB-14
Loading...
