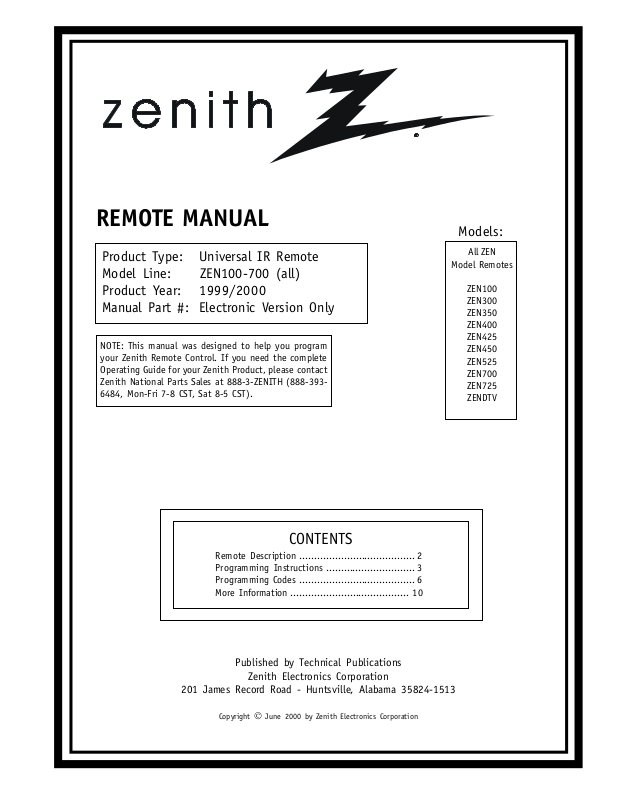

Zenith ZEN725 User Manual

REMOTE MANUAL

Models:

Product Type: Universal IR Remote Model Line: ZEN100-700 (all) Product Year: 1999/2000 Manual Part #: Electronic Version Only

NOTE: This manual was designed to help you program your Zenith Remote Control. If you need the complete Operating Guide for your Zenith Product, please contact Zenith National Parts Sales at 888-3-ZENITH (888-3936484, Mon-Fri 7-8 CST, Sat 8-5 CST).

CONTENTS

Remote Description ....................................... 2

Programming Instructions .............................. 3

Programming Codes ....................................... 6

More Information ........................................ 10

All ZEN

Model Remotes

ZEN100 ZEN300 ZEN350 ZEN400 ZEN425 ZEN450 ZEN525 ZEN700 ZEN725 ZENDTV

Published by Technical Publications

Zenith Electronics Corporation

201 James Record Road - Huntsville, Alabama 35824-1513

REMOTES

ZEN UNIVERSAL REMOTE CONTROL

NOTE: Your ZEN model remote may not look exactly like the one below, but all functions for

the ZEN models are similar. The descriptions below refer to using the remote with Zenith products, non-Zenith products may behave differently.

Lights when buttons are pressed.

INDICATOR LIGHT

CODE SEARCH

Used to program the remote

or to search through codes.

MUTE

Turns sound off and on

while picture remains.

CHANNEL (Up/Down)

Selects next channel in

TV’s memory. Press

and hold to repeat.

NUMBER PAD

Selects channels directly.

ENTER

Shows Channel/Time, enters

channel, or removes any

on-screen menus.

Multifunction Button.

Turns Surf Channel On/Off.

When on, the Channel Up/Down

keys only "Surf" through channels

selected in the Add/Del/Surf Menu.

Displays menus for TV

and other options.

LEFT/RIGHT ARROWS

Chooses and shows the

desired menu option.

Multifunction Button.

Usually turns PIP on/off.

POWER

CBL

VCR

AUX

AUX1

Turns the active component on and off (see mode).

MODE

Sets which audio/video component the remote will control.

PREV CHANNEL

Returns to previous Channel.

VOLUME (Left/Right)

Increases TV’s sound level.

987

ENTER

A B

e n u

REW

RECORD

PLAY

STOP

TV/VCR

F.FWD

PAUSE

i t

TV/VCR SOURCE

Steps through source options.

Multifunction Button.

Usually

PIP Channel. Toggles the channel button operation between PIP screen and full screen.

QUIT

Exits from on-screen display, turns the sound enhancement feature on or off, and freezes the PIP Screen.

UP & DOWN ARROWS

Moves highlighted bar within menu to select an option.

Displays closed caption options menu.

MEDIA CONTROLS

Controls VCR, DVD, CD, TAPE, etc. media functions. These buttons will control the VCR when TV or VCR is the active component.

ZEN UNIVERSAL

REMOTE

ZENITH REMOTE MANUAL 2 ZEN SERIES

ZEN REMOTE PROGRAMMING

BATTERY INSTALLATION

Your Universal Remote requires two AAA alkaline batteries. To install the batteries:

1. On the back of the remote, push down on the tab and lift the cover off.

2. Match the batteries to the + and - marks inside the battery case, then insert the batteries.

3. Press the battery cover back into place.

BATTERY SAVER

Your Zenith remote will automatically “time-out” if the keys are depressed more than two minutes. This will save your batteries should your remote get stuck in a place where the keys remain depressed (e.g., between the sofa cushions).

CODE SAVER

You will have no more than 90 seconds to change the batteries in your remote without losing codes you have programmed. However, do not press any buttons until batteries are secured in the remote. If buttons are pressed without batteries in the remote, all codes will be lost.

GLOW KEYS

Glow Keys must be exposed to light in order for the keys to glow in the dark. The longer the exposure to light, the longer they will glow. Do not place in Direct Sunlight. Natural day light or light from a Filament lamp or fluorescent Lamp is sufficient to recharge the glow material.

BUTTON FUNCTIONS

Some buttons on the remote control might have functions that are referred to by different names on your product. For example, “Prev Ch” may be the same as “RECALL” on your remote. Differences depend on the brand and model of your product. Also, this remote can only operate features that exist on your product. For example, your product must be equipped with “Prev Ch” ability for the “Prev Ch” button to operate this feature.

Note: The REC button must be pressed TWICE to record

from your VCR. For Zenith brand VCRs, press the REC button once, then press it again for three seconds.

PROGRAMMING TVS

NOTE: If your remote deosn’t have a CODE SEARCH button

(ZEN300 for example), use the Remotes With No Code Search instructions at the end of this section.

1. Manually turn on the TV.

2. Press and hold the CODE SEARCH button until the Indicator Light lights, then release the CODE SEARCH button.

3. Press and release the TV button (the Indicator Light will blink and then remain lit).

4. Find the three digit code for your TV in the code list in this booklet and enter it using the Number Buttons. After your code is entered, the Indicator will turn off.

Note: If the LED blinked rapidly when you entered the

code, you may have entered an invalid code. Recheck the code list and try again.

5. Now check to see if the correct code was entered. With your TV on, press some of the buttons. If the TV responds correctly to each of the buttons, no further programming is required.

Note: If some buttons do not operate your equipment, try

one of the other codes or our brand.

6. Write down the code for future reference.

PROGRAMMING VCRS

1. Manually turn on the VCR.

2. Press and hold the CODE SEARCH button until the Indicator Light lights, then release the CODE SEARCH button.

3. Press and release the VCR button (the Indicator Light will blink and then remain lit).

4. Find the three digit code for your VCR in the code list and enter it using the Number Buttons. After your code is entered, the Indicator will turn off.

Note: If the LED blinked rapidly when you entered the

code, you may have entered an invalid code. Recheck the code list and try again.

5. Now check to see if the correct code was entered. With your TV on, press some of the buttons. If the VCR responds correctly to each of the buttons, no further programming is required.

Note: If some buttons do not operate your equipment, try

one of the other codes for your brand.

6. Write down the code for future reference.

Note: The REC button must be pressed TWICE to record

from your VCR. For Zenith brand VCRs, press the REC button once, then press it again for three seconds.

ZENITH REMOTE MANUAL 3 ZEN SERIES
