Zenith PVR5269, PVR4669, PVR6069 Operation Manual & Warranty

Advanced Video Imaging

Projection Color TV

Picture-In-Picture

MTS Stereo Audio

Surround Sound

Return the Product

RegistrationCard,

andyour TV

could be

FREE!

OPERATINGGUIDE& WARRANTY
for models...

PVR4869,PVR5269,PVR6069

ZENITH ELECTRONICS CORPORATION

1000 MILWAUKEE AVENUE

GLENVIEW, ILLINOIS 60025

Part No. 206-2923-01
Pdnted in U.S,A.

EP-EDCBA -

WATCH US.

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a riskof electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with your
product for important safety considerations.

Note to Cable TV System Installer

This reminder is provided to call the cable TV system
installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the

grounding system of the building, as close to the point of
the cable entry as practical.

Power-Cord Polarization

This product is equipped with a polarized alternating-
current line plug (a plug having one blade wider than the

other.) This plug will fit into the power outlet only one

way. This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician to replace

your obsolete outlet. Do not defeat the safety purpose of
the polagized plug.

CAUTION

To prevent electric shock, match wide blade of plug to
wide slot, fully insert.

ATTENTION

Pour _viter les chocs _lectriques, inlroduire la lame laplus
large de la fiche dans la borne correspondante de la prise et

pousser jusqu'au fond.

rvw_m Copyright © Zenith Electronics Corporation 1995

CONTENTS

Part 1. Connections andBasic

Operations

INTRODUCTION

Welcome ............................................ ii

Installation Considerations .............................. ii

Methods of Operation ................................. iii

Model/Features Chart ................................. iii

STANDARD CONNECTIONS FOR YOUR TV

Connection Center, Cable, VCR, S-Video,
Accessory Jacks, Speakers, Audio Amplifier,

and Connections For Using PIP ........................ 1-1

FIRST TIME YOU OPERATE YOUR TV

Control Panel, Power, Source, Auto

Program, Clock, and Other Options ..................... 2-1

PIP OPERATION
Introduction, Selecting Main Picture and PIP Inset

Source, PIP Functions, Operation With Various

Configurations ...................................... 3-1

Part 2. Universal Remote Control

and Menus

UNIVERSAL REMOTE CONTROL
Battery Installation, Operating Mode, TV Operations,

StarSight Operations, Operational Modes, Programming,

Special Features, Auto Find, and Brand Codes ............ 4-1

QUICK REFERENCE TO MENUS

Available Menus, and Basic Operation .................. 5-1

SOURCE MENU
Menu Operation, Source Selection,

and Source Identification ............................. 6-1

SETUP MENU
Auto Program, Ch. Add/Del, Ch. Labels, Source ID,

Clock Set, Timer Setup, Parental Ctl, Caption/

Text, Background, and StarSight ....................... 7-1

AUDIO MENU

Bass, Treble, Balance, Audio, and Enhancement .......... 8-1

VIDEO MENU
Contrast, Brightness, Color, Tint, Sharpness, Color Temp,

Video Filter, Auto Flesh, Picture Pref, and Projo Setup ..... 9-1

PIP MENU
Ch. Guide, Ch. Review, PIP Color, PIP Tint,

and PIP Size, ...................................... 10-1

Part 3. Z-Trek Remote Control

and Menus

Z.TRAK REMOTE CONTROL
Battery Installation, Operating Mode,

Basic Operations and Auto Find ........................ 11-1

QUICK REFERENCE TO MENUS

Available Menus, Accessing the Menu,

Channel Icons and Volume Control .................... 12-1

TV OPTIONS MENU

Timer, Captions, Z-Trak, PIP, Freeze and Move PIP ....... 13-1

SOURCE MENU
Menu Operation, Source Selection,

and Source Identification ............................ 14-1

SETUP MENU
Auto Program, Ch. Add/Del, Ch. Labels, Source ID,

Clock Set, Timer Setup, Parental Ctl, Caption/

Text, Background, and StarSight ...................... 15-1

AUDIO MENU

Bass, Treble, Balance, Audio, and Enhancement ......... 16-1

VIDEO MENU
Contrast, Brightness, Color, Tint, Sharpness, Color Temp,

Video Filter, Auto Flesh, Picture Pref, and Projo Setup .... 17-1

PIP MENU

Ch. Guide, Ch. Review, PIP Color, PIP Tint,

and PIP Size ...................................... 18-1

Part 4. Maintenance, Accessories,

and Warranty

MAINTENANCE AND TROUBLESHOOTING
Caring, Extended Absence, Interference,

BeforeCalling for Service ........................... 19-1

Replacement Product Registration Card
Accessories for Your TV

Your Zenith Warranty

How to use this operating guide

Standard TV installation and operation is given in this portion of the operating guide. Follow the procedures given if you will not
be using StarSight®.

_k Refer to the StarSight® portion of this operating guide for StarSight® installation and operation.

_92_t-o i

INTRODUCTION

WELCOME

Welcome into the family of Zenith Color Television owners.
This guide provides instructions on how to operate your new
'IV. It is supplemented by a booklet containing Safety Tips.
We urge you to read these publications carefully so that you

will receive full enjoyment from your new Zenith "IV for
many years to come.

Your new Zenith projection "IV has been designed and built to
give you the very best in quality, features and performance.

There are many regional Zenith authorized service centers
throughout the U.S., Canada and Mexico who can attend
promptly and effectively to ordinary service needs.

If you should have an unusual performance or service problem
that cannot be satisfactorily resolved by your Zenith authorized

service center, call or write:

Zenith Electronics Corporation
Customer Service Department

1000 Milwaukee Avenue
Glenview, IL 60025
Telephone: [phone]

Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

Send the model number, serial number, and date of purchase
or original installation, with a full explanation of the problem
and the service history. We will welcome the opportunity to
look into your specific question or problem and to be of assis-

tance in resolving it promptly.
The model and serial numbers of your new TV are located on the

back of the TV cabinet. For your future convenience and protec-
tion, we suggest that you record these numbers here:

Model No.

Serial No.

I'11"11 -. I

PRO • LOGIC

Manufactured under license from Dolby Laboratories Licensing Corporation.

Additionally licensed under Canadian patent number 1,037,877. "Dolby",

"Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.

INSTALLATION CONSlDERATIONS

Before you install your TV...
Ventilation m Proper ventilation keeps your TV

running cool. Air circulates through perforations
in the back and bottom of the cabinet. Do not

block these vents oryou will shorten the life of
your TV.

_ Power Source m Your TV is designed to operate

on normal household current, 120 volt 60 Hertz AC.

Do not attempt tooperate it on DC current.

Power Cord _ Yourpower cord has a polarized
plug as required by Underwriters' Laboratories. It

has one regular blade and one wide blade and fits
only one way into a standard electrical outlet. If
the blades will not enter either way, your outlet is

very old and non-standard. A new outlet should be
installed by a qualified electrician.

Please read and observe each safety point in the "Safety
Tips" folder when installing and using your TV.

VIDEO GAMES AND OTHER FIXED
PATTERN DISPLAY CAUTION _ If you use your TV for

video games, teletext or other fixed displays, avoid setting the
BRIGHTNESS control for anexcessively bright picture. A

bright, fixed pattern, if used for long periods of time, can re-
sult in a permanent imprint on the TV picture tube. You can re-

duce this possibility by alternating the use of the fixed pattern
display with normal TV picture viewing, by turning down the

CONTRAST control for sustained fixed pattern use, and by
turning off the fixed pattern display when not in use.

PLUGGING IN YOUR TV -- Be sure to plug your TV into
an "unswitched" AC power source. The "switched" AC out-
lets found on some video equipment will not continue supply-

ing power to the TV once the equipment is turned off. If the
power to the TV is interrupted, you will have to reset the clock

in the TV to the current time.

Safe Operation -- Your TV is manufacturedand
tested with your safety in mind. However, unusual
stress caused by dropping or mishandling, expo-

sure to flood, fire, rain or moisture, or accidental
spilling of liquids into the TV, can result inpoten-

tial electrical shock or fire hazards. If this hap-

pens, have your TV checked by aservice
technician before using it again.

WEU_ODP ii

INTRODUCTION

METHODS OF OPERATION

Your TV is a very sophisticated appliance. Optional features, video picture adjustments and audio sound adjustments are performed
through on-screen menus and displays. Self explanatory ICONS are used throughout. Most features can be selected and adjusted
from the comfort of your favorite chair by using either of the infrared remote controls.

Either of two remote controls can be used to operate the TV. Use the multi-brand programmable remote if you have different brands
and types of equipment in your video system which you need to control remotely. Use the Z-Trak programmable remote if you feel
comfortable using track-ball access similar to that provided by the familiar computer mouse device. Many features can be selected

and adjusted by using the control panel provided on the TV.
StarSight® provides an electronic programming guide which is updated with new scheduling information automatically on a peri-

odic basis. StarSight® allows you to rapidly scan through the programming guide to find a program for viewing or recording. Pro-
grams can be searched and selected by category if desired.

Method of Operation

• Control Panel on "IV.
* Universal Remote Control

• Z-Trak Remote Control

Standard TV

YES
YES
YES

starSight

NO
YES
YES

FEATURES PROVIDED WITH YOUR TV

This operating guide describes a family of TV models. Not all models have all of the features described in this guide. Different
control panels may be used from model to model. Most models include the following features:

MODEL

FEATURE

• StarSight® Electronic Program Guide

• StarSight® Demonstration
* On-Screen Menus Accessed By Remote or TV Controls

• Universal Programmable Remote Control

• Z-Trak Programmable Remote Control

• Picture-In-Picture

• 181 Channel Tuning (STD/HRC/ICC Band Selected Automatically)

• Automatic Channel Programming

• Favorite Channel Add/Delete
* Channel Labels (ABC, TNT, etc.) for Easy Channel Identification

• Multiple Input Sources

• Source Identification (VCR, Cable, etc.)

• Antenns/Cable and Loop Out Jacks

• Audio/Video (A/V) Jacks

• Super-VHS A/V Input Jacks

• Additional A/V Jacks

• Surround Sound System

• MTS Stereo with SEQ (Spatial Equalization)

• Surround Sound Speaker Terminals

• Variable Audio Output Jacks

• Surround Sound Speakers

• Sleep Timer and On/Off Timer

• Closed Caption and Text Modes

• Parental Control

PVR4669, PVR5269, PVR6069

Y
Y
Y

Y

Y
Y
Y
Y

Y
Y

Y
Y
Y
Y
Y
Y

Dolby Pro Logic

Y
Y
Y

Optional

Y
Y
Y

°oo

2923-0143 In

STANDARD CONNECTIONS FOR YOUR TV

LOCATION OF USER ITEMS

/

Built-in
speakers

Control Panel

(On top of "IV)

I

/

/

¢r

Remote Control

(Pointtowardscreen
tooperateTV)

Front View of TV

Place VCR Shelf Here

Additional

A/V Input Jacks

Connection

Center

!

i

Power Cord Entry

Rear View of TV

CONNECTION CENTER

ANTENNA/CABLE 2 LOOP OUT

TO DECODER

Routes the cable-TV input to Antenna/
Cable 2 back to the cable box supplied

by the cable service.

STARSIGHT STARSIGHT

CONTROL PORT

Jack for connection of--

StarSight Remote morn_.r

Emitter cable.

MONITOR OUT

Audio and video output

jacks to route A!V to an --

optional extra monitor or

other A/V component.

Whatever is currently be-

ing watched on your TV is

provided at these jacks.

VIDEO 1 or 2 IN

Jacks for audio and video input from a stereo

VCR or other A/V component. (You must

connect to these jacks in order to hear stereo

sound when playing a stereo tape.)

//

--

AUOIO

(_ RIGHT UEFT

TO EXTERNALAlP

LOOPOUT ANTENNA ANTENNA

TOo,'coo'Ea CABLE CABLE

•O,ITO,orr '_ VtOtOlIN V_OEO,,,_NIIL___J

• nE0 r--AU010_ r- "7 Vi0E0 r--tU010-"a|1I1"_/IIIIM

@®®@®®

_ ,0o,_ i-'wo ' t su.ouNo,n-

VIDEO 1 LOOP OUT
Use these to send the incoming audio

and video (from Video 1In) to another

component, such as a second VCR.

ANTENNA/CABLE 1 or 2

75-ohm antenna or cable-TV connection to your 'IV.

Attach your antenna, cable-TV line or VCR to these jacks.

VARIABLE AUDIO
OUTPUT

Standard phono jack
connectors for output

to an optional stereo

amplifierorto external

speakers.

SURROUND
SPEAKER

TERMINALS

Connections for output to

optional surround sound

speakers.

S-VIDEO I IN

Jacks for audio and video input from
a Super-VHS VCR.

2923-01-O 1 -- 1

STANDARD CONNECTIONS FOR YOUR TV

OTHER JACKS ON TV (Some Models)

S-VIDEO 2 IN

t'f VIDEO 3 tN S-VIDEO2 IN / Jacks for audio and video input from a second Super-VHS VCR.

Jacks for audio and video input from a third stereo VCR or other A/V

X... AUOlOtN_'r .,.] VIOEOiNPUT J component.

BASIC CONNECTION TO TV WITHOUT VCR

Ifa VCR will not be connected to your TV, you have three basic connection options, as shown.

Cable TV Cable TV

Wall Jack Wall Jack

TURN OFF POWER
OR UNPLUG TV BE-
FORE MAKING ANY
CONNECTION.

OR OR

Antenna

,,, I,;,

x \x !

Flat Wire

(300 ohm)

MONITOROUT

VIDEO r--tUOlO---_

®®®

VIDEO R AUOIOL

O AUX CONTROL

VIDEO1IN

F" "--J

I

VIDEO

, ,@

@@

LOOP_T

300/75 ohm i
Adaptor I

Round Wire

(75 ohm)

VIDEOl IN

VIDEO i"- AUOlO--t

@@@

N L ,

|-VIDEO1IN

@®®

l-Win

iUBHT LEFT

TO EXTERNALAMP

i÷

R L SURROUND SPKR|

OPERATING YOUR "iV

With Cable Box

• Select Ant/Cable 1in Source Menu.

• Tune TV to cable box output channel (usually

channel 3 or 4).

• Use cable box to select channels for viewing.

: Without Cable Box

Select Ant/Cable 1 in Source Menu.

Use TV to select channels for viewing.

2923-ot-o 1 -- 2

STANDARD CONNECTIONS FOR YOUR 715

BASIC CONNECTION TO TV WITH VCR

If you are connecting a VCR to your TV, you have three basic connection options, as shown.

Cable TV Cable TV
Wall Jack Wall Jack

OR OR

CableBox :_._...

_IN OUT _ IN

t t

STARSIGHT

@

"'°'" VCR .... "'-..

OUT

STARSIGHT :

tI i _..

LOOP OUT ANTENHA ANTENNA

ToOiECOOEnCABLE CABLE

VARIABLE
AUOm

MONITOROUT

WOEO r-AUOlO-_

_ AUXCONTROL

VIDEO1IN

, ,@

@@

LOOPOUT

VIDEO2 IN

WD[O _.--AUOM--_

@

R L

S-VIDEO1 IN

@®

i.WEo n t

Antenna

,;;,

Flat Wire II

(300 ohm) .

Round Wire

(75 ohm)

RI6HT LEFT

TOEXTERNALAMP

_ L

!

G
H

÷

SURROUNDOPKRS

OPERATING YOUR 13/

i

VCR's TV/VCR* With Cable Box Without Cable Box

Switch Setting

TV • Select Antenna/Cable 1 in Source Menu.

• Use TV to select channels for viewing.

VCR

• Select Antenna/Cable I in Source Menu.

• Tune TV to cable box output channel (usually channel
3 or 4).

• Use the cable box to select channels for viewing.

• Select Antenna/Cable 1 in Source Menu.

• Tune VCR to cable box output channel (usually channel
3 or4).

* Tune TV to VCR output channel (usually channel

3 or 4).

• Use the cable box to select channels for viewing.

• Select Antenna/Cable l in Source Menu.

• Tune "IVto VCR output channel (usually channel
3 or4).

• Use VCR to select channels for viewing.

* May be labeled TV/Video.

2923_1_ 1--3

STANDARD CONNECTIONS FOR YOUR TV

ADDITIONAL CONNECTIONS FOR STEREO VCR

If you have astereo VCR, or other stereo audio/video (MV) component, you must make these additional connections shown below in or-
der to hear stereo sound from the component.

STARSIGHT

@

¢QNTROL PORT

MONITOROUT

VIDEO [--AUDIO--_

®®®

VIDEO D AUDIO L

STARSIGUT

• _, _ VARIABLE

_ '_2 ) AUDIOe}

TOEXTERNALAMP

LOOPOUT ANTEHHA ANTENNA
TODECODER CABLE CABLE

• " L

E

VIDEO1IN VIDEO2 IN F

p .-_ VIDEO r'AUOlO'_ _ T

' VIDEO , R AUDIO'L I P "_,.VIDEOIIN : ' '! _

f ,nnPOUT I ,,, .... ,_ P, L SURROUNDSPKRS

s ! i o

,, , : • ,

_oo °

## i ,,

VIDEO L R

AUDIO

A/V OUTPUT

lrst Stereo VCR

VIDEO L R

AUDIO

AJV OUTPUT

Optional 2nd Stereo VCR

STARSIGHT

STARSIDHT

LOOPOUT ANTENNA ANTENNA

1or,tcooe. CABLE CABLE

VNNUUBLE

AtmlO
OUTPUT

• NONITOROUT

VIDEO s--AUDIO-_

®®®

VlIDEO R AUDIOL

O AUXCONTROL

VIDEO1 IN

p-

®

vIREo

I I

®@

LOOPOUT S-VIDEO

RIGHT LEFT

TOEXTERNALAMP

R L BURROUND|PKRS,

Super-VHS VCR

AIVOUTPUT I

OPERATING YOUR "IV

USING AN JACKS

• Select Video l* in the Source Menu.

• Use VCR (or other component) to select
channels for viewing.

or,

• Watch a tape playing in the VCR.

* Select the Source in the Source Menu that

corresponds to the jacks to which the A/V
component is connected.

_2_0t-o 1_ 4

STANDARD CONNECTIONS FOR YOUR TV

AUDIO/VIDEO (A/V) CONNECTIONS FOR OPTIONAL VIDEO EQUIPMENT

Connections to VIDEO 3 IN or S-VIDEO 2 IN jacks.
(Some TV models only.)

Stereo Camcorder [__

Jxl, ,,RII--I

_\""_"g""--_*', VlOEO| I_1 S-_ | IN

Super-VHS

VCR AUDIOOUT

OPERATING YOUR TV

USING AN JACKS

• Select Video 3* in the Sol]rce Menu.

• Use VCR (or other component) to se-

lect channels for viewing.

or,

• Watch a tape playing in the VCR.

• Select the Source in the Source

Menu that corresponds to the jacks
to which the A/V component is con-

nected.

OPTIONAL AUDIO AMPLIFIER/SURROUND SOUND CONNECTIONS TO TV

If you wish to listen to the TV audio through an external amplifier or stereo system, or listen to surround sound audio, make the connec-
tions to the TV shown in the illustration below.

TURN OFF POWER OR UNPLUG TV BEFORE MAKING ANY CONNECTION.

PUT

L R

8PKROUTPUT

Back of Optional
Stereo Amplifier

8ohm

Surround

Speaker8

°l

L

t SURROUNOSPgM

$a.YER

8 ohm

Surround

Speaker

Amplifier and Dual Surround Speaker Connections

Single Surround Speaker Connection

DIFFERENT WAYS TO LISTEN TO YOUR TV

Surround Sound

TV Speakers

• Use the TV's volume control to raise and

lower the level of sound being heard from

the TV's speakers.

• Set the options in the Audio Menu for your

own personal listening preferences.

External Amplifier Speakers

• You may also listen to yout2TV through the
speakers of your stereo orexternal

amplifier when it is connected as shown in
the illustration. Use the TV's volume

control to raise and lower the level of
sound being heard from the TV's speakers

and the amplifier's speakers.

• Set the options inthe Audio Menu for your
own personal listening preferences.

• Connect surround sound speakers as shown.

The level of surround sound will vary,
depending on the program being viewed.

Note that not all programs have surround
sound audio.

• If you want to connect only one surround

speaker to your TV, connect the speaker
wire to the terminals adjacent to the positive
(+) and negative (-) symbols that are circled.

2923-01-A 1 -- 5

STANDARD CONNECTIONS FOR YOUR TV

CONNECTIONS FOR USING PIP

The illustrations that follow show the most common connections for using Picture-In-Picture (PIP). For furtherinformation on the
actual use of PIP, refer to the "PIP OPERATION" section of this operating guide.

Cable TV ANTENNA
Wall Jack

OR

IIOIITOROUT

VCR mEO r-tUm-_

A/V OUTPUT IN

/JJ_O

L R VIOE0 ANTENNA

PIP Inset Source

Connected to the Video 1 In jacks.

Main Picture Source
Connected to the Antenna/Cable I jack.

Option 1: Antenna or Direct Cable Connection To VCR.

(Cables are not supplied with television.)

Cable TV
Wall Jack

CABLE BOX

STAflII|HT

Main Picture Source

",,,Connected to theAntenna/Cable1 or2 jack.

STARStGHT _

0=1PUT $mlff t.IFT

T0E]ffBtN_UlP

CABLE O_

LOOPOb'T

Connected to the Video 1 Injacks.

Option 2: Cable-TV Decoder Connection via Loop Out To VCR.

(Cables are not supplied with television.)

2923-01-O 1 -- 6

THE FIRST TIME YOU OPERATE YOUR TV

TYPICAL CONTROL PANEL

The control panel on your TV may differ from the one shown but its operation is the same.

SELECT (SEL)
Press during on-screen menu

operations to select a menu

option.

__/_. v

ENTER (ENT)
Press to see the ChannelfFime

display, orto remove any on-
screen display or menu.

..->

\

MENU ENT

I •

VOLUME (VOL) Up/Down
Press to increase or decrease the

sound level.

VOL

V

J

VOL

A

#'_ • J

CH CH OFF

,4k ON

/

OFF-ON
Press to turnTV

power ON or OFF.

/

/

ADJUST (ADJ) Left/Right
Press during on-screen menu op-

eration to see information/status
display for selected option. Press

again to adjust the selected menu
option.

MENU

Press once to see a menu. Press
repeatedly to sequence through

the available menus.

CHANNEL (CH) Up/Down
Press to select channels higher or

lower than the current channel.
To add or delete channels stored

in the scanning sequence, see CH.
ADD/DEL option.

STEP 1. INSTALL THE BA ITERIES INTO THE REMOTE CONTROL

Batteries are provided for each remote, but they must be in-
stalled before using the remote controls. When a remote no

longer function normally, or when it loses memory, replace

the batteries with two high-quality, alkaline, batteries. Match
plus with plus (+ with +), minus with minus (- with -), as
shown in the battery compartment.

Unless your equipment responds to the factory preset codes,
you will need to reprogram the remote control with the codes
of your particular equipment each time you replace batteries.

NOTES:

• Do not place heavy objects on top of the remote control

keys. Prolonged unintentional operation of the remote
shortens battery life.

• Remov_ the batteries if the remote control will not be used

for a month ormore. THEM,_aJFACTORERISNOT RE-,

SPONSIBLE FOR DAMAGE CAUSED BY BATTERY LEAKAGE.

Universal Remote
(Uses 2 size AAA

batteries.)

Z-Trak Remote

(Uses 2 size AA
batteries.)

STEP 2. CONNECT THE POWER

1. Plug your TV into an unswitched AC power source.

2. Turn the TV on by pressing OFF-ON.

] r'_ [_ I'_-_'1

Do not plug TV into switched outlet

on a VCR or cable-TV decoder

2923_1_ 2 m 1

THE FIRST TIME YOU OPERATE YOUR TV

STEP 3. SELECT YOUR MAIN SOURCE & PIP SOURCE

A TV source refers to the equipment connected to the TV that supplies the picture and sound to your TV. You select the viewing
source by using the Source Menu.

MainSeurce

• Press SOURCE on your

remote to view the Source
Menu.

* Press SOURCE repeatedly to

select the source which
corresponds to the jack on the

TV connection panel that is
receiving the input signal.

• Press QUIT to remove the

menu.

PIP Source

Press SOURCE on your
remote to view the Source
Menu.

Press the Left or Right key to
select PIP Source column.

I• Press SOURCE repeatedly to

select the source which
corresponds to the jack that is
receiving the PIP input signal.

• ress QUIT to remove the

menu.

Ant/Cable 1
Ant/Cable 2
Video 1
Video 2
S-Video 1
Video 3
S-Video 2

<1,. Main/PIP

PiP Source

Ant/Cable 1

Video 1

Video 2
S-Video 1
Video 3
S-Video 2

I'4,1"o Select Source I

Source Menuwith Main Sourceset to Ant/Cable 1and PIP
Source set to Video I. Connection must made to the correspond-
ing jacks onthe connection panel.

STEP 4. USE AUTO PROGRAM

Auto Program finds all available channels on the currently se-
lected source and stores them in the memory of the "IV.

To start the Auto Program procedure, press the Left or
Right arrow key. Follow the instructions on the TV.

.Auto Program :

Ch. Add/Del
Ch. Labels
Source ID
Clock Set

"l]merSetup

Parental Ctl
Caption/Text
Background
StarSight

Press ,_ To Program I

Setup Menu with Auto Program Highlighted

Press 1",1,to select either OFF AIR ANTENNA or CABLE TV.

Press <---_ to begin channel search.

Wait a few seconds for the TV screen to clear.

PPESST£ TO_ SELECIION

OFFNRN_NA

I r,_UETV J

PRESS'0, TOB_GIN_G

J

SEARCHING CABLE "IV INPUT TYPE

SF.ARO-IINGC/_BI.EW _AUTO_HAS_ TM

"------b / ___ _FOLI_

CHANf_L __ _ IS 0_") FOUND LPRESSsr_ R)R' DBaONStRAaONOfs'rMsl;

Message appears only ifTV has not been authorized for StarSight.

STEP 5. SET THE CLOCK

Set The Clock

• Press MENU on your remote until the SETUP icon is selected

and the Setup Menu is displayed.

• Press the Up or Down arrow key to select Clock Set.

• Use the numbered buttons on the universal remote control to

enter the correct time. Press TIMER to select AM or PM.
or
Press the Left or Right arrow keys to advance the clock.

• Press QUIT to remove the menu.

STEP 6. USE OTHER OPTIONS

You may want to consider using the following options:.

• Delete undesirable channels or add additional channels: Refer

to the CIL (Channel) Add/Del option for details.

• Apply "labels" to your available channels: Refer to the
Ch. (Channel) Labels option for details.

• Label the input sources with descriptive names such as VCR.
Refer to the Source ID option for details.

• Adjust options in the Audio and Video Menus.

2923et-o 2 -- 2

PIP OPERATION

INTRODUCTION

Your TV must be connected to two separate sources in order to view a different picture in the PIP inset from that which is
showing in the main picture area of the TV. One source (such as an antenna) must be connected to the ANT/CABLE I or 2

jack. The other source (such as aVCR) must be connected to one set of the Video or Super Video jacks.
If you have not already selected the input Sources for your main TV picture and the PIP inset, refer to the instructions below. Make

sure you select those sources that correspond to the jacks on the TV connection panel that are receiving the input signals.

L_lin ,_muroe

Ant/Cablez

Video 1

Video2
S-Video 1
Video 3

S-Video2

41_Main/PIP

PIPSource

Ant/Cable1
Video1

Video2
S-Video1
Video3
S-Video2

'1'4,ToSelect SourceI

Source of main picture
shows here

Source of PIP picture
shows here

SELECTING MAIN PICTURE AND PIP INSET SOURCES

Universal Remote

• Make sure remote is in TV

mode.

• Press SOURCE on your re-

mote to view the Source

Menu.

• Press SOURCE repeatedly to

select the source which
corresponds to the jack on the
TV connection panel that is
receiving the input signal.

• Press QUIT to remove the
menu.

SELECT MAIN SOURCE

Z-Trak Remote

• Make sure remote is in TV
mode.

* Point and press on the

SOURCE icon (at the top of
the screen).

• Point and press on the Main

Source which corresponds to
the jack on the TV connection
panel that is receiving the
input signal.

* Move the pointer off the menu

and press the TrackbaU to
remove the menu.

SELECT PIP SOURCE *

Universal Remote

Make sure remote is in TV mode.

Press SOURCE on your remote

to view the Source Menu.

Press the Left or Right key to

select PIP Source column.
Press SOURCE repeatedly to

select the source which
corresponds tothe jack that is

receiving the PIP input signal.
Press QUIT to remove the menu.

Z-Trak Remote

• Make sure remote is in 'IV mode.'

• Point and press on the SOURCE

icon (at the top of the screen).

• Point and press on the PIP

Source which corresponds tothe

jack on the TV connection panel

that is receiving the input signal.

j• Move the pointer off the menu

and press the Trackball to
remove the menu.

* A PIP inset appears while the Source icon is selected to show the effect of selecting a PIP source.

PICTURE-IN-PICTURE FUNCTIONS

While using the various PIP functions, refer to the illustration below and the instructions on the following pages. Note that the op-
eration of these functions differ, depending which remote control you are using.

Arrow Keys l: _ [ ff_"i

SWAP 11!

PIP

SOURCE [

PIP Functions, Universal Remote Control

Select theseoptions
with the Z-Trakremote

to performthe PIP
functionsdescribed on
the following page.

-I'ir'r_r

Captions

Z-Trak

PIP On
Freeze
MovePIP

Swap

PIP Functions, Z-Trak Remote Control

continued on next page

29234)1-O 3 m 1

PIP OPERATION

• PIP On/Off: Press the PIP key to display the PIP inset. Press it
again to remove the PIP inset.

• SWAP: Press the SWAP key to swap the main picture with the
PIP inset. Press SWAP again to return to the original display.

• FREEZE: Press FREEZE to freeze motion of the picture shown
in the PIP inset. Press FREEZE again to return to a live PIP inset.

• PIP Size: Select PIP Size in the PIP Menu to choose between
seeing a small or large PIP inset.

• Moving the PIP Inset: Use the Left/Right and Up/Down arrow
keys to move the PIP inset to the desired corner of the TV screen.

PIP On/Off: Move pointer to left of TV screen and press on PIP On
to display the PIP inset. Move the PIP inset to desired location on the
screen and press the trackball to set it in place. Press on PIP Off to

remove the PIP inset.

SWAP: Move pointer to left of TV screen and press on Swap to
swap the main picture with the PIP inset. Press on Swap again to

return to the original display.

FREEZE: Move pointer to left of TV screen and press on Freeze to

freeze motion of the picture shown in thePIP inset. Press on Freeze
again toretum to a live PIPinset.

• PIP Size: Select PIP Size in the PIP Menu to choose between
seeing a small or large PIP inset.

• Moving the PIP Inset: Move pointer to left of TV screen and press
on Move PIP and move the PIP inset to desired location on the

screen. Press the trackball to set the inset in place.

OPERATION WITH ANTENNA
OR DIRECT CABLE

This illustration shows the basic connection of your TV to a

stereo VCR. With your equipment setup in this manner, your

television has the following PIP capabilities:

• Simultaneously view a video tape playing in the VCR and
a channel selected by the TV's tuner.

Simultaneously view two different channels; one selected
by the TV's tuner and another using the VCR's tuner.

Swap the main picture and the PIP inset.

Viewing Two Different

Channels

• Set VCR's TV/VCR* switch to
TV.

• Select Ant/Cable 1as the Main
Source in the Source Menu.

• Select Video 1 as the PIP Source
in the Source Menu.

• Select a channel with the TV's
channel selector.

• Turn on PIP.
Select a PIP channel using the

VCR's channelselector.

PIP VIEWING OPTIONS

Viewing a Video Tape

anda TV Channel

Set VCR's TV/VCR* switch
toTV.

Select Ant/Cable 1 as the Main
Source in the Source Menu.

Select Video 1 as the PIP
Source in the Source Menu.

Select a channel with the TV's
channel selector.

Turn on PIP.

Play a tape in the VCR and
view it in the PIP inset.

* May be labeled TVNideo.

Cable TV ANTENNA

Wall Jack

Main Picture Source
Connected to the Antenna/Cable I jack.

OR

VCR

AIV OUTPUT IN

Aumo

L R VIii0 ANTENNA

PIP Inset Source

Connected to the Video 1 In jacks.

STARLIGHT .

mclmt t_m" "_ ! _¢"

LOOPOUT ANTENNA/ ANTENNA

ri K¢0IilI CABLE p_IILE

IIONITINIOUT YIDEO1IN

................... i"

Option 1: Antenna or Direct Cable Connection To VCR.

(Cables are not supplied with television.)

29234)143 3 _ 2

PIP OPERATION

OPERATION WITH CABLE DECODER

With your equipment setup in this manner, your television has
the following PIP capabilities:

• Simultaneously view a video tape playing in the VCR and
abasic cable channel selected by the TV's tuner.

• Simultaneously view two different cable channels; one
cable channel selected by the TV's tuner andanother

cable channel selected by the cable box.

• Swap the main picture and the PIP inset.

NOTE:

• The cable channels you can view depends on the service
you have purchased from your cable company.

PIP VIEWING OPTIONS

Viewing Two Different

Cable Channels

• Select Ant/Cable 2 as the

Main Source in the Source
Menu.

• Select Video 1as the PIP
Source in the Source Menu.

i. Select a channel with the

TV's channel selector.

• Turn on PIP inset.

• Select a PIP channel using the
tuner in the Cable Box.

Viewing a Video Tape

and a Cable Channel

• Select Ant/Cable 2 as the

Main Source in the Source
Menu.

• Select Video 1 as the PIP

Source in the Source Menu.

* Select a channel with the

TV's channel selector.

• Turn on PIP inset.

• Play a tape in the VCR and
view it in the PIP inset.

Out from
Cable-TV
Decoder

Cable "IV
Wall Jack

CABLE BOX

I

VCR

PIP Inset source

Connected to the Video 1 Injacks.

Main Picture Source
Connectedto the Antenna/Cable 2 jack.

LOOPOUT ANTENNA ,*ANTENNA
10li|lltn CABLE /' CABLE

LOOPOIT

Option 2: Cable-TV Decoder Connection via Loop Out To VCR.

(Cables are not supplied with television.)

2_3_t_ 3--3

UNIVERSAL REMOTE CONTROL

INTRODUCTION

This universal remote control operates the common features of most, but not all, models andbrands of IR (infrared)controlled TVs,
VCRs, cable converters, video disc players, and audio equipment. The remote may provide functions that are not available on your

equipment, e.g., menu operations. Some functions of your particular equipment may not be controlled by this remote. In such cases,
use the original remote control for your equipment.

BATTERY INSTALLATION

Batteries are provided, but must be installed before using the
remote control. When it no longer functions normally, or
when it loses memory, replace the batteries with two high-

quality, alkaline, size AAA batteries. Match plus with plus (+
with +), minus with minus (- with -) in the battery compartment.

Unless your equipment responds to the factory preset codes,
i.e.. 101 for TV, 201 for VCR, 353 for CABLE, and 401 for

AUX., you will need to reprogram the remote with the codes
of your particular equipment after you replace the batteries.

NOTES:

• Do not place heavy objects on top of the remote control
keys. Prolonged unintentional operation of the remote short-

ens battery life.

• Remove the batteries if the remote control will not be used
for a month or more. THEMANUFACTURER IS NOT RE-
SPONSIBLE FOR DAMAGECAUSED BY BATrERY LEAKAGE.

Push tab in

CHOOSING OPERATING MODE

To control your TV, VCR, cable box, orauxiliary equipment with this remote, you must first choose the mode of operation. Press
the desired mode key for TV, VCR, CABLE or AUX. Pressing the Jr (Star) key will put the remote into StarSight mode. Press TV
to return to TV mode. Some keys on the remote will always operate a particular product function. For example, VOLUME controls
the TV sound level, and PLAY controls the VCR play function.

INDICATOR LIGHT

Illuminates whenever

remote sends signal.

OPERATING MODE KEYS

Selects equipment to be controlled.

• NUMBER KEY PAD

Initiates menu/equipment programming,

direct channel selection

and other functions.

LOWER ARROW KEY PAD

Keys perform different functions

depending on the operating mode

currently selected. See the following

pages for more details of the

various operating modes.

POWER KEY
Switches power ON or OFF to selected

equipment.

UPPER ARROW KEY PAD
Keys perform different functions
depending on the operating mode

currently selected. See the following

pages for details of each operating mode.

SPECIAL FUNCTION KEYS
Activates special features on some TVs

and VCRs.

StarSight®is a trademark of StarSight Telecast Inc., Fremont, CA 94538.

2923-01-A 4- I

UNIVERSAL REMOTE CONTROL

TV OPERA TIONS

These descriptions apply to functions and operations of your "IV. First, press the TV button on the remote control to select the TV

mode of operation.

FLASHBK (Flashback)

Press to return to the previous TV

channel selected for viewing.

CC (Closed Captioning)

Press to display the closed caption

menu. Press repeatedly to select your

choice. Press ENTER/TUNE to

exit the menu.

CHANNEL/DAY (Up Arrow)

Tunes to the next (higher) channel

programmed into TV memory.

Press and hold to repeat.

DAY/CHANNEL (Down Arrow)

Tunes to the previous (lower) channel

programmed into TV memory.

Press and hold to repeat.

NUMBER KEY PAD

Enter number for direct

channel tuning.

MENU/GUIDE

Displays on-screen menus for "IV

mode of operation. Press repeatedly to

view other on-screen menus.

LEFT/RIGHT ARROW KEYS

Used to respond when an on-screen

menu needs an ADJUST response.

Press to move the highlight bar within

the menu. Also used to move the PIP

inset to new location on the screen.

PIP, SWAP, and FREEZ KEYS

See PIP Operation

• section for more details.
TIMER

Displays the SLEEP TIMER menu.

Press repeatedly to set desired TV

shut-off time. Also used to specify AM

or PM when setting the TV's clock or

programming a timer feature.

See "Getting to Know Your TV."

section for more details.

t

Point Remote at TV.

TV Operations

POWER

Turns TV ON or OFF.

TV

Press to select TV mode of operation.
MUTE

Press to turn offsound while the
picture remains. Press again to restore

the sound.

VOLUME/PAGE (Left Arrow)
Decreases the TV's sound level. Press

and hold to repeat.

VOLUME/PAGE (Right Arrow)

Increases the TV's sound level. Press
and hold to repeat.

ENTER/TUNE

Press to see the Channel/Time display
or enter channel numbers.

QUIT/SEQ
Exits from the current on-screen

display or pop-up and returns to the
current channel. If no display is on,

this is the normal spatial equalization
ON/OFF.

UP/DOWN ARROW KEYS
Used to respond when an on-screen

menu needs a SELECT response.
Press to move the highlight bar within

the menu. Also used to move the PIP
inset to new location on the screen.

* (Star)

Press the * (Star) key to exit the TV

mode and enter the StarSight mode.
See the StarSight section of this

guide for more details.

TV/VCR SOURCE
Displays the menu of TV sources.

Press repeatedly to step through the

source selections.

NOTE:

• Keys dedicated to VCR functions may be used to operate

your VCR while the remote is in TV mode.

29_-ot-o 4-- 2

UNIVERSAL REMOTE CONTROL

OPERATIONAL MODES FOR FACTORY PRESET CODES

Push-button

or Key Label

POWER

CABLE

VCR
AUX

TV
CC
FLASHBK

MUTE

CHANNEL/DAY UP
CHANNEl/DAY DN

VOLUME/PAGE UP
VOLUME/PAGE DN
1
2
3

4

5

6

7
8

9

0

ENTER/TUNE
MENU/GUIDE
THEME
UP ARROW
DOWN ARROW

LElrr ARROW
RIGHT ARROW

QUIT/SEQ

* (Star)

PIP
SWAP
FBEEZ
TO DO
TIMF.R
TV/VCR/SOURCE

RECORD
PAUSE
REWIND
PLAY
STOP
FFWD

NOTES:

TV Mode

Code 101

"IV Power On/Off
Selects Cable Mode

Selects VCR Mode

Selects AUX Mode
Selects TV Mode

TV Closed Captions

TV Flashback

TV Mute
TV Channel Up

TV Channel Dn
TV Volume Up

TV Volume Dn
TV Digit 1

TV Digit 2
TV Digit 3
"IV Digit 4

"IV Digit 5
TV Digit 6
TV Digit 7

"IV Digit 8
TV Digit 9
TV Digit 0

"IV Enter

TV Menu
(No Function)

TV Select Up
TV Select Dn

TV Adjust Left
TV Adjust Right
TV SEQ Sound/Quit

Enters StarSight Mode
TV PIP On/Off

TV PIP Swap

TV PIP Freeze

(NoFunction)

TV Timer

"IV Source

VCR Record
VCR Pause

VCR Rewind
VCR Play

VCR Stop

VCR Fast Forward

StarSight Mode

accessed with *

Star Power On/Off

Selects Cable Mode
Selects VCR Mode
Selects AUX Mode

Selects TV Mode
TV Closed Captions
StarSight Flashback

StarSight Mute
StarSight CH/Day Up

StarSight CH/Day Dn

StarSight Vol/Page Up
StarSight Vol/Page Dn
StarSight Digit 1
StarSight Digit 2

StarSight Digit 3
StarSight Digit 4
StarSight Digit 5
StarSight Digit 6

StarSight Digit 7
StarSight Digit 8
StarSight Digit 9
StarSight Digit 0

StarSight Enter/Tune
StarSight Guides
StarSight Theme
StarSight Select Up

StarSight Select Dn
StarSight Adjust Left

StarSight Adjust Right

StarSight Quit

Enters StarSight Mode
StarSight PIP On/Off

TV PIP Swap
TV PIP Freeze

StarSight To Do
TV Timer
TV Source

StarSight VCR Record
VCR Pause

VCR Rewind
VCR Play
VCR Stop

VCR Fast Forward

1. Can be overwritten with Cable Vol/Mute when 399 is entered.

VCR Mode

Code 201

VCR Power On/Off

Selects Cable Mode
Selects VCR Mode
Selects AUX Mode
Selects TV Mode

VCR AM/PM
VCR Flashback

TV Mute
VCR Channel Up

VCR Channel Dn
TV Volume Up

TV Volume Dn

VCR DigitI
VCR Digit2
VCR Digit3
VCR Digit4
VCR Digit5

VCR Digit6
VCR Digit7

VCR Digit8
VCR Digit9

VCR Digit0

VCR Enter
VCR Menu

(No Function)
VCR Select Up

VCR Select Dn

VCR AdjustLeft
VCR AdjustRight

VCR Quit

Enters StarSight Mode
VCR VCR+

VCR Channel Map
VCR Search

VCR Memory
VCR Timer

VCR TV/VCR Tuner

VCR Record

VCR Pause
VCR Rewind

VCR Play
VCR Stop

VCR Fast Forward

Cable Mode

Code 353

Cable Power On/Off
Selects Cable Mode

Selects VCR Mode
Selects AUX Mode
Selects TV Mode

CABLE FC (Favorite Ch.)
CABLE Flashback

TV Mute (See Note 1)
CABLE Claannel Up
CABLE Channel Dn

TV VolumeUp (SeeNcm I)
TV Vohm_ Dn (SeeNoteI)
CABLE DigitI
CABLE Digit2

CABLE Digit3
CABLE Digit4
CABLE Digit5
CABLE Digit6

CABLE Digit7
CABLE Digit8
CABLE Digit9
CABLE Digit0

CABLE Enter

CABLE Menu

(No Function)
CABLE Up Arrow
CABLE Down Arrow
CABLE Left Arrow

CABLE Right Arrow
CABLE Quit

Enters StarSight Mode
CABLE Day Up

CABLE Day Down
CABLE Pg Up/*

CABLE Pg Dn/#
CABLE Timer

CABLE Info

CABLE Buy
CABLE Guide

VCR Rewind
VCR Play
VCR Stop

VCR Fast Forward

AUX Mode

Code 401

AUX TV/Disc

Selects Cable Mode
Selects VCR Mode

Selects AUX Mode
Selects "IV Mode

AUX Audio
AUX FrameJTime

TV Mute
AUX Skip >>

AUX Skip <<

TV Volume Up
TV Volume Dn

AUX Digit l
AUX Digit 2
AUX Digit 3

AUX Digit 4
AUX Digit 5
AUX Digit 6
AUX Digit 7

AUX Digit 8
AUX Digit 9
AUX Digit 0
AUX Display

AUX Program
(No Function)

AUX Part
AUX Random
AUX x3 FAST <

AUX x3FAST >

AUX Clear
Enters StarSight Mode

AUX Repeat-Side
AUX Repeat-A-B

AUX Repeat-Chap
AUX Memory

AUX Still ><
AUX TV/Disc
AUX Edit
AUX Pause

AUX Scan <<
AUX Play

AUX Stop/Eject
AUX Scan >>

Reference: 124-205-05 and

tiP 221-879-03

2923-01"O 4 _ 3

UNIVERSAL REMOTE CONTROL

PROGRAMMING YOUR REMOTE

If you are using Zenith products, the remote is programmed for
the most commonly used codes. For otherbrands -- or if your

remote fails to control your Zenith products -- you will have

to program the remote.

Follow these steps for each product you are using:

1. Look up the three-digit code for your brand (such as

Zenith) and type of equipment (such as VCR) in the
code table on the following page.

2. Press and hold PRG with a small blunt object until

the indicator lights (about three seconds).

3. Press TV, VCR, CABLE, or AUX to select the prod-

uct you want your remote to control. (Use CABLE
or AUX, to program your remote for a second TV or
VCR or to program your remote for a video disc
player or audio equipment.)

4. Key in the three-digit code for your equipment, then

press ENTER/TUNE. The indicator light should
flash, then turn off to indicate that the code was ac-

cepted. If the indicator stays on, repeat steps 3 and 4
or try using a different code.

5. Write the codes that operate your equipment on the

label inside the battery compartment for future
reference.

To erase all code programming and return to the factory preset
codes, key in code 9-1-1 when programming the remote.

NOTES:

• The remote cannot be programmed while in the StarSight
mode: Choose TV, VCR, CABLE or AUX mode before
pressing PRG.

• If no key on your remote is pressed within 60 seconds, the
programming process will stop, and you will have to start
again.

° You may cancel programming at any time by pressing PRG.

SPECIAL FEATURES

AUX+I, AUX+2, AUX+3 Capability

Your remote can control up to seven electronic components. If
you have programmed the remote for four components using the
TV, VCR, CABLE and AUX keys, you may also program it for
up to three additional components (AUX+I, AUX+2, AUX+3)
by holding the AUX key and pressing the 1, 2 or 3 key during
programming. Once programmed, hold down the AUX key and
press 1,2 or 3, to access the additional AUX +1, 2 or 3 mode.

Cable Box Volume
You may use yourremote to control cable box volume and mut-

ing if availableon your equipment. Firstprogram your remote
with the bragd code for your cable device using the CABLE or

AUX key. Then repeat the progranuning steps, again using the
CABLE or AUX key, butkey incode 3-9--9 instead of a brand

code.
To restore TV volume/mute control to the CABLE or AUX

mode, reprogram your cable code into that mode.

Amplifier Volume Override

You may use your remote to override your TV, VCR or video
disk player's volume functions with your amplifier's volume and

muting.

1. Program your amplifier code into the CABLE mode

or one of the AUX modes.

2. Select the mode on your remote (TV, VCR, etc.)

where you want the amplifier volume control func-

tion to appear. In other words, if you want to oper-
ate the volume and mute of your amplifier while the
remote is in TV mode, press TV for this step.

3. Begin the programming steps as described in "Pro-
gramming Your Remote" and key in code 4-9-9, fol-
lowed by ENTER.

The amplifiervolume and mute features are now available in the
current mode.

To restore normal volume and muting control to your TV,
VCR, cable or laser disc player, reprogram the remote for these

units into each mode (TV, VCR, etc.) to be restored.

NOTE:

• CD and tape devices will automatically select amplifier vol-

ume and mute.

2923-0t-o 4 -- 4

UNIVERSAL REMOTE CONTROL

AUTO FIND OPTION

If you have tried all the codes listed for your brand and type of
product in the code table, and none of those codes operate your
equipment,you can use Auto Find to search for the code you need.

Follow these steps for each product you are using:

1. Turn the product ON and aim the remote toward it.

2. Press and hold PRG with a small blunt object until
the indicator lights (about three seconds).

3. Press the mode key on the remote for the product

you want to control: TV, VCR, CABLE, or AUX.

4. Key in code 0-0-0, then press ENTER within two

seconds. When the indicator light flashes three times
and remains lit, Auto Find is active.

St

,

Press and hold POWER, then release it, repeating

this action about once a second until the product
turns OFF.

Press ENTER immediately to save the code. If your
remote fails to operate the functions you use most

often, you can re-enter Auto Find and search for a
better code.

NOTES:

• The indicator light should flash OFF when you press

POWER and back ON when you release it. If the indicator
light stays on when you press POWER, Auto Find has tried

all available codes. If you finish Auto Find and the product
you want to control has not turned off, your remote cannot

control that product.

• Pressing PRG at any time during the use of Auto Find will

cancel Auto Find, and you will have to start again.

ON

POWER I1_

OFF

Equipment to be

controlled

Typical Remote

Control

_23_1_ 4--5

UNIVERSAL REMOTE CONTROL

OPERA TIN(3 CODES BY BRAND NAME

TVS

Admlml
_vom.n_N_

AOC

Bell & Howell
Broksomc

Candk

Centurion

Cg.tzen

'.on[_

_omnado

_rown

Cunts Mathes

Dnewoo

Daewoo TV/VCR

Daytron

ElekWa

Emerson

Emerson TV/VCR

Hsher

Funa,t TV/VCR
General

Electru:
Goldstar

Goldstar TVNCR
Hitachi
J.C Penney

WC

KMC

KTV

(urazal

Lodgenet

Logtk

LXI

Magnavox

Magnavox TVNCR

w

MaFsUc

Maran_

M_a_n
Memomx

MGN
Ml_ub_ht

Mon_ome_
Ward

NEC
Parla._onlc

Panasonic TV/V(_

Phflco

Phthps

Ihoneer

Portl_d
ProScan

116,121.130,133

154

I04

103.146
104

121
131,136

139

119

121,139

141
103

I03

116,119,121
149,159
148

119

121

103.104.123.124.

131.136.145
158

109.118
154

I06.107.114,
116,117,161

I03,104,119,147
153

102.103,129,163 !

104.I I0.114,

117,119

125. 132,164
103

103. 104, 138

121

121
121

133, 137

103. 112. 113,

117. 119. 127.

128. 139. 165
173

121
104, 120. 155
146

121

104. 119. 120.

130. 140. 155
103, 104. 105.

113, 114. 119,

121. 130. 133

104. 119
1(}6. 107. 160. 166
174
lo3. 104. 112.

113, 139

112. 113
135

1113

116. 157. 162, 167

Quasar

RCA

Realistic

Sampo

Samsung

Sanyo

Scott

_ars

sha_

Signature 2000

Sony
Soundestgn

Sylvania

Sympha_rV/VC_

Tatung
Tckmka

Tele_nt

Toshiba
XRI000

Yorx

Zemth

Zenith TV/VCR

Admiral
Adventura

Alwa
Akai
Audio

Dynanucs

Bell& Howell

Broksomc

Canon
Citizen

Craig
Cures Mathes
Daewoo

Daytron
DBX

Emerson

Fisher

Fumu

General
Elecmc

Goldstar
Go Video

Hitachi

Instant REplay
J C Penney
JVC
Kenwood

Loglk
LXI

106, 107
104,116, 126,157,

161.162,167.168

105. 123, 124
119

103. 119, 134. 141

108.109. I I 8

119.124

103.108.109.110.
IlL 118. 134

103. 105.122. 133.

137. 156.169

103. 104. 105.

113. 114. 119.

121. 130. 133

115. 143. 151. 170
139

112.113. 117.119.

127.128,139

154
106

103, 112, 121.
124, 139

103,121

110. 111, 134,171
121

119
101, 149

153.154. 172

VCRS

208, 261
231
231

223, 238. 241
202, 218

206.247

221.226.250,255
214

2O9

212
214,259

244,246,248,254

236,246

202.218

203. 221. 223.

226. 233. 235.

243.250

21I.212, 213,247

231

214.216. 220

2O9

256.262.263

215.257

214.227

214.215.218.227

202.225.258
202
239

2O9.231

Magnavox
Maramz

Memorcx

Mitsubtshi

MontSonwa'y

Ward
Multi Tech

NEC

)non

Panasomc

Pentax
Phdco

Phdlps

Pmneer

Portland
Pro Scan

Quasar

RCA

Reahstic

Samsung
SanStll

Sanyo

Scott

Sears

sharp

Shimom
Signature 2000

Sony
Sylvama

Symphonic

Tashiko

Tatung
Teac

Tekn_,a
Toshiba

XRI000

Vector Research

Yamaha

Zemth

207.214.231

207.218
209

206. 212. 214. 231

204. 222. 252

208.214. 216.

219. 231. 249
239

202. 218
250

214.251. 259
215

207.214

207. 214. 227

210.215
246

216. 260

214,259

215.216,220.227,

240,242,260
206,208,212.

214,231

220. 230
239

206. 212. 247
204, 205. 233. 243

206. 209.211.

212.215

208.26 I
239

208.214.216.

219. 231. 249

217. 232, 237

207. 214. 227
231

2O9

202

202.231
234

205. 215
239

204.218

202. 218
20l. 224. 225.

229. 237

:ABLE/SATELLITE

Allegro
Allegro/fiB Swttch

Germm

GeneralElecmc
GeneralInsmmaent

Hamlm

lerrold

Ka]€ Vk_lon
Macom

Magnavox
NSC

358.362
361

305. 331.338
367

305.306

302.303.345.

365.366

304.307.308.309.

310.318. 360.363
335

314.321
334

335.339.368.

369.370

Pana._nic

Paragon

Philips

Piolle_r
RCA DSS

Regency
Samsung

Scientific Atlanta
Sprucer
Standard Comp

Temcan

Tocom
Unika

United Satelhtc
Umversal
Vid Tcch

Video Way
Vtcwstar

Zenith
Zenflh Satelhte

311.332. 342

313. 320
333

347. 350. 352.

354. 355

315. 343
373

329
335

316. 323. 336. 364
313

335

339. 356.371

317. 318.346

348. 362
344

358. 362
34O

349

354. 355. 372

301. 353

312. 328. 330. 351

VIDEO DISK

PLAYERS

Paoneet [ 402. 403

Sa, yo 1401

Sony 404
Zemth 401

AUDIO CD

PLAYERS

Akai 409. 424

Crown 410
Denon 411

Fisher 412, 438
Goldstar 460

Harman/Kardon 413
JVC 415

Kenwood 412, 416. 417. 441
Magnavox 421,422, 433,434

Mitsubkdd 423,424
NAD 425. 426,447

4akamichi 427.428

NEC 429

Onkyo 430

P_aasonic 431. 432

Phihps 421,433,434
Pioneer 43 I. 435

Quasar 432
Radio Shack 431. 436. 439. 440.

441

RCA 437
Sanyo 438.439

Scott 440

Sharp 44 I.442

Sony 443. 444. 445

Soundesign 461. 498.501,502

Tedmics 432.459

Toshiba 447

Yamaha 448

7Pnith 460. 461,498.501.

5O2

AUDIO TAPE

DECKS

Demm 455
Hanuan/Kardon 456
WC 457

Kcnwood 450

Onkyo 458

Philips DCC 454

Pionne_ 451.478

Sony 452

Technics 454. 497

Yamaha 453

i

AUDIO TUNERS

AND AMPLIFIERS

Denon 462. 463

Fts_r 464

Goldslar 460

Hannah/ 465

Kardon

IVC 466

I_nwood 468, 469
Marantz 472.503
Onkyo 473
Philips 475,476

Pioneer 477,478.479

Radio Shack 487. 488
Re.alk_c 480
Sanyo 481

Scott 482
Sharp 483

Sherwood 487.488

Sony 489. 490. 491. 492
Soundesign 461. 498. 501. 502
Tcac 494, 495

Techn_ 497

Yamaha 496
Zenith 460, 461. 498. 501,

5O2

Ref: 124-205-05 and
BP 221-879-03

2923-01-O 4 -- 6

QUICK REFERENCE TO MENUS: UNIVERSAL REMOTE

AVAILABLE MENUS

Your TV is icon and menu operated. In other words, an icon is selected at the top of the TV screen and a menu of adjustment
options appears.

Highlighted Icon
The menu for the

selected icon ap-

pears below the
icons.

I

5DUREE

[_ VIDEO] J J

I

i

]

i

i

!

i

I Main Source I

StarSight
Ant/Cable 2

Video 1
Video 2
S-Video 1
Video 3

S-Video 2

I

_. Main/PIP '1',1,To Select Source ]

PIP Source

StarSight

Video 1
Video 2

S-Video 1
Video 3
S-Video 2

PIP Inset

A PIP inset appears while the
Source icon is selected to show

the result of selecting a PIP

source.

BASIC MENU OPERATION

Press MENU

repeatedly to choose

from the available

menus.

Press the Up or

Down arrows

repeatedly until the

desired option is

highlighted.

V

O O(D

_ ....

@®®@

t Press the Left or

, Right arrows to ""_-"_'_l

adjust or change a
selected option.

Press QUIT to
remove menus or
wait a few seconds
and the TV will

return automatically
to normal operation.

Typical Remote Control

2923-01-O 5 -- 1

SOURCE MENU

Video 3 and S-Video 2 are

source options for some TV

models only.

I

Main Source

StarSight
Ant/Cable 2
Video 1
Video 2

S-Video 1

fVideo 3
%S-Video 2

q)* Main/PIP

PIP Source

StarSight

Video 1
Video 2

S-Video1

Video 3 _

S-Video

1'4, To Select Source

1

A PIP inset appears while the
Source icon is selected to show the
effect of choosing a PIP source.

If the PIP Source is changed, the
PIP inset will remain on the screen

after you exit from menu opera-
tions°

MENU OPERA "lION

@

Press SOURCE for direct entry
to the Source Menu, or press
MENU repeatedly until the
Source Menu is selected.

Press SOURCE repeatedly until
the desired source is selected.

Press the Left/Right keys to se-
lect either Main Source column

or PIP Source column.

Press QUIT or wait a few sec-
onds for the TV to return to nor-

mal operation.

SOURCE SELECTION

ANT/CABLE 1 or 2 Routes the antenna or cable-TV source to the TV for viewing. You see program material from

whichever signal source is connected to the ANT/CABLE 1 or 2 jack. (If the signal is from a VCR or
a cable box, tune the TV to either channel 3 or 4.)

VIDEO 1, 2 or 3 Routes the audio and video from an A/V source (such as a VCR or a video disc player) to the TV for

viewing. The source must be connected tOthe corresponding VIDEO 1, 2 or 3 IN jacks.

S-VIDEO I or 2 Routes the audio and video from an auxiliary Super-VHS video source (such as a VCR or a video disc

player) to the "IV for viewing. The source must be connected to the corresponding S-VIDEO 1 or 2 IN

jacks.

Refer to the "Standard Connections for Your "IV" section to make the proper equipment connections to the TV. For information about PIP
sources, refer to the "PIP Operation" section.

SOURCE IDENTIFICATION

Blue White

Auxiliary A/V Jacks (Some TV Models)

Magenta

NOTE:

• The color of the Channel/Time display corresponds to the

color rings around the connectors of the jack panels. For ex-
ample, the Channel/Time display will be Red if you are
watching a program on Ant/Cable 1 source.

Yellow Red

LOOP OUT ANTENNA ANTENNA

10 Mceett CABLE CABLE

lIOliITOAOUT VIOE61IN YIOEOZIll

i--All040--1 lrlmEO r-- AIIMO--I

Connection Center on Back of TV

Lt. Blue

I

2923.1_ 6 -- 1

SETUP MENU

Ch.Add/Del
Ch. Labels
Source ID

ClockSet
TimerSetup

ParentalCtl

Caption/Text

Background
StarSight

Press 4), To Program

ClockSet

TimerSetup

ParentalCtl

Caption/Text

Background

I Press 4).To Label Sources]

While a Video or Super-Video 2 Source is Chose.

MENU OPERATION

@ Press MENU repeatedly until the

SETUP MENU is shown.

Press the Left/Right keys to
adjust the selected option.

Press the Up/Down keys until the
desired option is selected.

Press QUIT or wait a few sec-

onds for the TV to return to

normal operation.

Auto Program Finds all active channels and stores them in the TV's memory for use by CHANNEL up/down. See

"THE FIRST TIME YOU OPERATE YOUR TV" for more details.

Ch. (Channel) Edits the channels found by Auto Program to create your own personal list of favorite channels. See the

Add/Del information following this chart for more details.

Ch. (Channel) Assigns a network/station label, name or call letters to specified channels. For example, if you choose

Labels the label "ABC" for channel 9, then "ABC" will appear in the Channel/Time display whenever channel

9 is selected. See the information following this chart for more details.

Source ID Assigns a descriptive "name" to the input sources. For example, the Video 1 source may be named

VCR. "VCR" will now appearin the Source Menu as a reminder that your VCR is connected to the
Video 1 input jacks.

Clock Set" Sets the clock in the TV to the correct time. Press the Left/Right arrow keys to advance the 24-hour

clock, or use numbered buttons on the remote to enter time. Press ENTER to start the clock.

Timer Setup Sets the TV's Sleep Timer and On/Off Timer features. See the information following this chart for

more details.

Parental Ctl. Use this feature to block viewing of any undesirable channels or an entire input video source. See the
(Control) information following this chart for more details.

Caption/Text Displays closed captioning or informational text when available on the selected channel. Options are:

Off, Caption 1, Caption 2, Caption 3, Caption 4, Text 1, Text 2, Text 3, Or Text 4. See the

information following this chart formore details.

Background Adds or removes a solid-color background behind the on-screen menus.

StarSight Begins the StarSight setup procedure. Refer to the StarSight section of this guide for details.

2923-ol-o 7 -- 1

continued on next page

SETUP MENU

USING CH. (CHANNEL) ADD/DEL

Add Channels to Scan

Press the Up/Down keys to se-
lect Ch. Add/Delete.

Press Left/Right keys to view

the add/delete screen.

Use the Left/Right and Up/

Down keys to move selector
to the channel being added.

Add the channel by pressing
SOURCE until the display
shows Added.

Delete Channels from Scan

• Press the Up/Down keys to

select Ch. Add/Delete.

• Press Left/Right keys to view
the add/delete screen.

• Use the Left/Right and Up/
Down keys to move selector
to the channel being deleted.

* Delete the channel by

pressing SOURCE until the
display shows Deleted.

NOTE:

• Ch. Add/Del can only be used with ANT/CABLE 1or 2 Source.

• The audio of deleted channels is muted.

Selector Highlight Available Channels

o O

13 14 15 16 17 18
19 20 21 22 23 24
25 26 27 28 29 30
31 32 33 34 35 36
37 38 39 40 41 42 Added "_
43 44 45 46 47 48

/

49 50 51 52 53 54 Press
55 56 57 58 59 60 Source |

61 62 63 64 65 66 ToChange I

67 68 69 70 71 72
73 74 75 76 77 78

I..,. C,a..e,.+1

Available channels are:

Broadcast Band -- VHF 2 to 13, UHF 14 to 83
Cable-TV Band -- 1 to 139

Live view of

selected channel.

----" Channel
Status

Instructions

Use Down key to

,.- move selector to

additional numbers
if present.

USING CHANNEL LABELS

i Assi_ Labels I

• Press the Up/Down keys to se- ;
lect Ch. Labels.

• Press Left/Right keys to view
the Channel Label screen.

• Select a channel by pressing

the CHANNEL Up/Down
keys.

• Use the Left/Right and Up/
Down keys to move selector

to the desired label.

Press the Up/Down keys to
select Ch. Labels.

Press Left/Right keys to view
the Channel Label screen.

Select a channel by pressing

the CHANNEL Up/Down
keys.

Use the Left/Right and Up/
Down keys to move selector

to the four dashes or NONE.

NOTE:

• Ch. Labels can only be used with ANT/CABLE I or 2 Source.

• Selecting the fourdashes (- - - -) specifies thatno channel label is as-

signed. Or, in addition to not assigning alabel, NONE blocks the sta-
tion ornetwork labels that are transmitted by some television stations.

Selector Highlight Available Labels

NONE

ADC AMC BCC BET BRAV
CA CBC CBN CBS CMTV
CNBC CNN COM CSPN CSP2
CTN CTV DIS DISC E!
ENC ESPN ESPN2 ET EWTN

FAM FNN FOX F&V FX
GALA HBO HN HSE HSN

IC INSP JCN LIFE MAX
ME/U MMT MTV NBC NICK
NOS PBS PLAY PTL OVC
RDS REQ SC SCFI SHOW
SIN TBS TBN TELE TLC

I MoreLabels 4, t

%

Ch9

[ABC I

Live view of

"'-" selected channel.

-.--- Current Channel

Selected Label

Press Down arrow

"--" for more labels.

USING SOURCE ID

NmesTo rourSou :: !

• In the Setup Menu, press the Up/Down keys to select Source ID. I

• Press the Left/Right keys to view the Source ID screen. I

• Press the Up/Down keys to choose a Source. ]

• Press the Left/Right keys to Label the chosen Source. !

VIDEO GAMES AND OTHER FIXED
PATI'ERN DISPLAY CAUTION

If you use your TV for video games or other fixed displays, avoid set-
ting the BRIGHTNESS control for an excessively bright picture. A
bright, fixed pattern, if used for long periods of time, can result in a
permanent imprint on the TV picture tube. You can reduce this possi-
bility by alternating the use of the fixed pattern display with normal

TV picture viewing, by turning down the CONTRAST control for

sustained fixed pattern use, and by turning off the fixed pattern dis-

play when not in use.

Live view of
selecW_xlSource.

Source I

Ant/Cable I 1

AnVCable 2
Video 1
Video 2
S-Video I

Label

StarSight
Antenna
VCR

Disabled
VideoGame

NOTE:

• "Disabling" a Source prevents it from
appearing in the Source Menu.

Optional names for
ANT/CABLE 1 or 2
Sources are:

.... , Disabled, An-

tenna, Cable, Cable
Box, Satellite, VCR,
StarSight (Ant/Cable

1only). ' -

Optional names for

VIDEO Sources are:

.... , Disabled, VCR,

VCR2, Camcorder,
Video Game, Laser
Disc, Audio Only,
Satellite (some models
only).

2923-01-A 7 -- 2

SETUP MENU

TIMER SETUP: Sleep Timer

The Sleep Timer programs the TV to automatically turn itself off after a period from 15 minutes up to 4 hours.

From Setup Menu

• Make sure the TV's clock is

set.

• Press the Up/Down keys to

select Timer Setup and view
the Timer Menu.

• Press the Up/Down keys to
select Sleep Timer.

• Use the Left/Right keys to set
the period of time the TV will
remain on.

Direct Access

• With no menus showing

on

the TV, press TIMER on your
remote to directly access the
Sleep Timer.

• Press TIMER repeatedly to
set the period of time the TV
will remain on.

• One minute before the TV turns off, the GOOD NIGHT display
appears on the screen. At this time you have a choice of the
following two actions.

,. Do nothing. The GOOD NIGHT display remains on the screen.

The TV will turn off in one minute.

I" Delay the turn-off by resetting the timer with a new time period.

NOTES:

• To cancel the Sleep Timer, turn off the TV or press TIMER repeat-
edly until OFF is showing.

• As the Good Night display counts down.the f'mal 60 seconds, the
audio and video of the TV also "dim" for a soft, discreet turn-off.

Timer Menu ]

On Time
Off Time
On/Off Timer

0:15 }

Timer Set to Turn TV OFF in 15 Minutes

Sleep Timer ]

Good Night 0:58

"Good Night" Display Appears 60 Seconds Before Shut-Off

TIMER SETUP: On/Off Timer

The On/Off Timer programs the TV to automatically turn itself on at a specific time then turn itself off at another time.

• Make sure the TV's clock is set.

• Press the Up/Down keys to select Timer Setup

• Press Up/Down keys to select On Time. and use the numbered
buttons on your remote to enter a time for the "IV to turn itself

ON. Press TIMER on the remote to select AM or PM. (You can
also use the Left/Right keys to advance the time.)

• Press the Up/Down keys to select OffTime and use the

numbered buttons on your remote to enter a time for the TV to

turn itself OFF. Press TIMER on the remote to select AM or PM.
(You can also use the Left/Right keys to advance thetime.)

• Press the Up/Down keys to select On/OffTimer and use the

Left/Right keys to turn the timer ON (or OFF).

NOTE:

• A time must be set for either On Time or Off Time in order to turn

the timer ON.

I

Timer Menu

Timer

I

11:00 AM k]

On/Off Timer Set to Turn TV ON at 11:00 am

2923-01-O 7 w 3

SETUP MENU

USING PARENTAL CONTROL (PC)

Period of time PC [ ]

Parental Control Menu

will be active. _1 t
Blocks entire source. _",,,p

Blocks individual _ Block Hours
channels for Ant/ 1" Block Source

Cable I or 2 sources. _ Block Channels

(Does not appear if
the entire Ant/Cable

source is blocked by I

O FF

Block Source.) t

f

1 2 3 4 S 6
7 8 [] 10 11 12

13 14 15 16 17 18
19 20 21 22 23 24
25 26 27 28 29 30

31 32 33 34 35 36
37 38 39 40 41 42

43 44 45 46 47 48

49 50 51 52 53 54

55 56 57 58 59 60

61 62 63 64 65 66
67 68 69 70 71 72

73 74 75 76 77 78

Unblocked

Press +

Source
To Change

Live view of
selected channel.

Channel

Status

----- Instructions

Block Entire Source Re-enter PC While it is Activated

• Press the Up/Down keys to select Parental
Ctl and press the Left/Right keys to view

the PC Menu.

• Select Block Hours and use Left/Right keys
to set the length of time PC will be active:

OFF, 12, 24, 48 or 72 hours.

• Select Block Source and use Left/Right
keys to"Block" the current input source.

• To block other sources, press the SOURCE
key and set them to "Block."

• Press ENTER to exit and enter any 4-digit
"Parental Access Code" when prompted to
do so. (You will be prompted to verify the
number by entering it a second time.)

Block Individual Channels

(Ant/Cable I or 2 Sources Only)

Press the Up/Down keys to select Parental

Ctl and press the Left/Right keys to view the

PC Menu.

Select Block Hours and use Left/Right keys

to set the length of time PC will be active:
OFF, 12, 24, 48 or 72 hours.

DO NOTHING WITH BLOCK SOURCE.
Select Block Channels.
Use Left/Right and Up/Down keys to select

a channel and press the SOURCE key to set
it to "Block." Repeat this for each channel
you want blocked.

Press ENTER to exit and enter any 4-digit
"Parental Access Code" when prompted to
do so. (You will be prompted to verify the
number by entering it a second time.)

• Press the Up/Down keys to select Parental

Ctl and press the Left/Right keys to view
the PC Menu.

• Enter your access code.

• Make your changes (block more channels,
reset the time period, etc.).

• Press ENTER to exit.

• You will be prompted to change your access
code. Either enter a new 4-digit code or do
nothing to retain the current code.

REMEMBER YOUR CODE! TO RE-ACCESS PARENTAL CONTROL WHILE IT IS ACTIVATED, YOU MUST ENTER THIS
NUMBER. Otherwise, simply allow the specified period of time to elapse.

NOTE:

• Do not unplug the TV in an attempt to deactivate the Parental Control. This only resets Parental Control.

USING CAPTIONS

Activating Captions

(With CC Button)

J

• Press CC button on remote.

• Press CC repeatedly to toggle
through the five choices: Off,
Caption 1, Caption 2, Caption
3 And Caption 4.

Activating Captions/Text

(From Setup Menu)

• Press the Up/Down keys to
select Caption/Text.

• Press Left/Right keys to
toggle through the nine
choices: Off, Caption I,
Caption 2, Caption 3, Caption
4, Text 1,Text 2, Text 3, or
Text 4.

NOTE:

• At present, very few TV programs or video tapes offer text caption-
ing for any option other than Caption 1. Therefore, Caption 1 is the

only recommended choice, unless you know that a specific program is
providing captioning using one of theother selections.

"J_4_IIoIAre you I '_

_ [°utthere? I ._

/

Typical Captions Display
Captions may be shown any-

where on the screen.

m m m m m m m m m m

See special newscast
tonight at 7:00PM bn
channel2.

C )

Typical Text Display

Fixed size text window fills
lower half of screen.

2923_1-o 7 -- 4

AUDIO MENU

I I I

RUDID

:::,Bass

Treble
Balance
Audio

Enhancement

MENU OPERATION

Press MENU repeatedly until the
AUDIO MENU is shown.

Press the Left/Right keys to
adjust the selected option.

Press the Up/Down keys until the
desired option is either high-

lighted or selected.

Press QUIT or wait a few sec-
onds for the TV to return to

normal operation.

Bass

Treble

Balance

Audio
(SAP is not an option

forthe video sources.

Audio signals received
from a video source are
assumed to bemonaural

or stereo. )

Enhancement

Adjusts the BASS (low-frequency) level.
Adjusts the TREBLE (high-frequency) level.
Adjusts the balance of sound between the two speakers.
Allows you to select STEREO, MONO or 2ND AUDIO/SAP operation. See information below this chart

for more details.

STEREO:

MONO:

Directs the sound to the Left and Right speakers as supplied by the program. Stereo is
the recommend choice: The TV switches automatically between the STEREO and
MONO modes depending on the type of signal being-received.

Directs the same sound to both Left and Right speakers, even if the program being
received is in stereo.

2ND AUDIO/
SAP:

Directs the sound for the Second Audio Program (second language) to both the Left
and Right speakers. SAP sound is always monaural. If SAP is selected, you hear the
SAP (usually a second language). When the SAP broadcast ends, the TV switches
automatically (defaults) to the type of signal being received, STEREO or MONO. The

TV switches back to 2ND AUDIO/SAP when the SAP broadcast resumes.

Mono or 2nd
Audio/SAP

Selected:

Stereo Selected:

Provides a list of options for enhancing the TV's audio. The options shown depend on what is selected
for the AUDIO option above.

Your audio Enhancement options are Off and Pseudo Stereo. Off specifies _at no
Enhancement is activated. Pseudo Stereo enhances monaural audio to emulate stereo-

like sound.

Your audio Enhancement options are Off, Concert Hall, Theater, Night Club,
Stadium, Dolby Pro Logic-Normal and Dolhy Pro Logic-Phantom. Off specifies
that no Enhancement is activated. For the other options, see "Stereo Operation," and
"Dolby Pro Logic Operation."

NOTE:

• All adjustments on the Audio Menu are optional. You do not have to adjust these features in order to use your TV.

2923-os-o 8- 1

AUDIO MENU

SPEAKER BALANCE

Stereo Operation

is Select Stereo as the Audio option.

• Select a desired Enhancement: Concert llall, Theater, Night

Club or Stadium, or set Enhancement to Off.
, Adjust Bass and Treble for the most pleasing sound.
, Select Balance and press the Left/Right arrow key to view the

speaker balance screen.
. Press the Up/Down keys to choose the speakers you want to

adjust; either the front speakers (those in the TV) or the optional

surround sound speakers.

• Press the Left/Right keys to adjust the selected speakers.

Dolby Pro Logic-Normal

Select Dolby Pro Logic-

Normal as the Enhancement.

Turn on the external amplifier

and set its volume to

approximately the same

volume as the TV.

Bass and Treble can not be

adjusted for Pro Logic

Normal.

• Select Balance and press the

Left/Right arrow key to view
the Pro Logic balance screen.

* Press the Up/Down keys to

select a speaker (Left, Right

or Surround) to adjust.

• A highlight box and an

audible "hissing" sound will

"bounce" between the

selected speaker and the

Center,Reference.

Press the Left/Right keys to

set the volume of the
"hissing" (for the selected

speaker) to approximately the

same level as the "hissing" of

the Center Reference. Do
this for each speaker.

Dolby Pro Logic.Phantom

• Select Dolby Pro Logic

Phantom as the Enhancement.

• Adjust Bass and Treble for the

most pleasing sound.

• Select Balance and press the

Left/Right arrow key to view
the Pro Logic balance screen.

• Press the Up/Down keys to
select a speaker (Left, Right or
Surround) to adjust.

• A highlight box and an
audible "hissing" sound will

"bounce" between the selected

speaker and the Center
Reference.

Press the Left/Right keys to
set the volume of the

"hissing" (for the selected
speaker) to approximately the

same level as the "hissing" of
the Center Reference. Do

this for each speaker.

NOTES:

• Optional Surround speakers must be connected to hear Surround Sound.

• An external amplifier must be connected to use Dolby Pro Logic-
Normal audio enhancement.

• To fully appreciate the quality of sound provided by the Dolby Pro
Logic audio system, make sure the speakers are balanced as de-

scribed above.

• While Pro Logic-Normal is selected, Bass and Treble adjustments

on the TV are not possible. These must be adjusted using the exter-
nal amplifier.

Press 4, 1' To Change Speaker
Press • • To Change Level

1; Front Speakers R_

IIIIIIIII1(I)1111111111

u,n Surround Speakers Max[

<l i i I I I I I I I(DIII III I II1• I

I SurroundSpeakersRequiredI

Message appears when adjust-
ing Surround Sound.

STEREO SOUND BALANCE
Up/Down arrow keys select the speakers.
Left/Right arrow keys balance sound to left and fight

speakers in television and increase/decrease surround
sound.

Highlight box

"bounces"
between selected
speaker and

Center
Reference.

Press 4,1' To Change Speaker
Press • • To Change Level

4

CenterReferenceSpeake_. I

I I I I I I t I ll_t I I1"11 1It I_

Right Speaker I

I I I I I I I I I I_)1 I I I I I III I_.

Surround Speakers I

I I I I I I I I I Ill_l I I I I I I I•

I ExtemalAmTiflerRequirsd I

Message appears only for Pro

Logic Normal selection.

PRO LOGIC BALANCE
Up/Down arrow keys select the speakers.
Left/Right arrow keys adjusts the level of sound.

2923-o,-o 8 _ 2

VIDEO MENU

|

UIOEO

Brightness
Color

Tint

Sharpness
ColorTemp

VideoFilter
AutoFlesh
PicturePref

ProjoSetup

• O

,I

MENU OPERATION

@ Press MENU repeatedly until the

VIDEO MENU is shown.

Press the Left/Right keys to
adjust the selected option.

Press the Up/Down keys until the
desired option is either high-
lighted or selected.

Press QUIT or wait a few sec-
onds for the TV to return to

normal operation.

Contrast Adjusts the overall contrast and color level of the picture.

Brightuess Adjusts the brightness level of black areas in the picture.

Color Adjusts the intensity of the colors in the picture.

Tint Adjusts the color of the flesh tones to more Green or more Red.
Sharpness Adjusts the clarity of the edges around objects for the clearest picture quality.

Color Temp Changes the "color temperature" or picture white balance between cooler natural whites and warmer
(Temperature) (red) colors.

Video Filter Reduces video "noise" or interference in dark picture areas resulting in clearer overall pictures.
Auto Flesh Automatically maintains natural skin tones under changing scene and video source conditions.
Picture PreT. Lets you decide if you want to use your own CUSTOM video settings, the factory PRESET video

(Preference) settings or the factory preset THEATER video settings. The THEATER settings are preset to provide

optimum visual performance in low light "theater-like" conditions

Projo Setup Lets you verify and adjust, if needed, the dynamic color convergence of the TV picture. See the

information following this chart for more details.

NOTES:

All adjustments on the Video Menu are optional. It is not necessary to adjust these features in orderto operate the TV.
Any adjustments made to the Video Menu settings while Picture Pref. is in PRESET or THEATER mode will automatically

store the current settings as the CUSTOM setting.

continued on next page

_23.1_ 9 N 1

REMOTE CONTROL Z-TRAK

INTRODUCTION

This multi-brand remote control operates the common features of most, but notall, models and brandsof IR (infrared) controlled
VCRs. Some functionsof yourparticularequipmentmay not be controlledby this remote. Insuchcases, use the originalremote controlfor

yourequipment,

BATTERY INSTALLATION

Batteries are provided, but must be installed before using the

remote control. When it no longer functions normally, or if it

loses memory, replace the batteries with two high-quality,
alkaline, size AA batteries. Match plus with plus (+ with +),
minus with minus (- with -) in the battery compartment.

Unless your equipment responds to the factory preset code,
you will need to reprogram the remote after you replace the

batteries.

NOTES:

• Do not place heavy objects on top of the remote control

keys. Prolonged unintentional operation of the remote short-
ens battery life.

• Remove the batteries if the remote control will not be used
for a month or more. THE MANUFACTURER IS NOT
RESPONSIBLE FOR DAMAGE CAUSED BY BAT-
TERY LEAKAGE.

CHOOSING OPERATING MODE

To control your TV or VCR with this remote, you must firstchoose the mode of operation. Press the desired mode key for TV or
VCR. Press TV to return to TV mode.

TV

SetremotetoTVmode

POWER

VCR

Z-Trak Remote

2923.ot_o 11 _ 1

REMOTE CONTROL Z-TRAK

BASIC OPERATIONS

Point Remote at TV or VCR

TV

Set remote to"Iv mode.

VOL Up/_

When operating TV: Increase volume

When operating VCR: Fast forward

VOL Down/'_

When operating TV: Decrease volume

When operating VCR: Rewind

MUTE II

When operating TV: Mute sound

When operating VCR: Pause

RECRD

When operating TV: Begin StarSight

record function

When operating VCR: Begin VCR

record function

POWER

VCR

remote to VCRmode

TRACKBALL

operating TV or VCR: Moves

on-screen pointer to desired TV
menu selection. Press on the

trackball to "choose" the selection.

CHAN Up/_

When operating TV: Go to the next
channel

When operating VCR: Play

CHAN Down/•

When operating TV: Go to the
previous channel

When operating VCR: STOP

ENTER

When operating TV: View
Channel/Time display

When operating VCR: View VCR
display

FLSHBK
When operating TV: Tune TV to

the last channel viewed
When operating VCR: TV./VCR

switch

Z-Trak Remote

2923-01-0 11 -- 2

REMOTE CONTROL Z-TRAK

PROGRAMMING YOUR Z-TRAK REMOTE

Your Z-Trak remote is already programmed to work with most
Zenith VCR's. If you have a non-Zenith VCR, or if your Zenith

VCR does not respond to your Z-Trak remote, you will need to
program your remote as follows:

1. Refer to the table of VCR Codes, in this section of
the guide. Locate the 3-digit number which corre-

sponds to your brand of VCR.

2. Make sure your TV is turned on.

3. While pointing the Z-Trak remote towards your
Zenith TV, simultaneously hold the MUTE and

ENTER keys until the TV displays a VCR "Setup"
screen (about three seconds). The VCR key will also
light upon entering the Programming mode.

4. Notice that the current VCR brand code (initially
"201") is displayed on the TV screen. Roll the track-

ball up or down (or use CHAN Up/Down) to choose
the 3-digit number of your VCR.

5. When the correct 3-digit number is displayed on the
TV screen, use the POWER key to make sure that

your VCR turns on and off properly. If it does not
respond, refer to the VCR Codes table to select a

different 3-digit number.

6. If your VCR turns on and off successfully, press the
trackball (or ENTER) to save the current VCR brand
code. The setup screen will disappear from the TV.

Also, the VCR key will flash 3 times upon exiting
the Programming mode. The remote will be in the

VCR mode.

7. Now try other controls on your VCR, such as Play,
Rewind, etc., to make sure that the correct VCR
brand code number was selected. (If not, repeat

steps 3 to 7.)

8. The MUTE key can be pressed at any time to cancel
Programming mode. The original VCR brand code

will remain unchanged.
NOTE: Only the VCR mode can be programmed.

9. The Z-Trak remote will exit Programming mode
automatically after 60 seconds if no key press or

trackball movement is detected.

AUTO FIND OPTION

If you have tried all 3-digit codes listed for your VCR manufac-
turer, and none of them operate your VCR, you will need to try

"AutoFind" to see if a different code will operate your VCR:

1. Make sure your VCR is turned on.

2. Simultaneously hold the MUTE and ENTER keys un-
til the VCR key lights up (about three seconds).

f

I

TV displays

VCR code

/

Equipment to be

controlled

Z-Trak Remote

Control

2923-o,-0 11 -- 3

REMOTE CONTROL Z-TRAK

3. Point the Z-Trak remote towards your VCR. Press

CHAN UP followed by POWER. If your VCR did
not turn off, keep repeating CHAN UP followed by
POWER until the VCR responds.

4. If your VCR turned off, press ENTER to save the
code. The VCR button will flash three times after

ENTER is pressed.

5. Now try other controls on your VCR, such as Play,
Rewind, etc., to make sure that the correct VCR
brand code number was selected. (If not, repeat
steps 2 to 4.)

6. The MUTE key can be pressed at any time to cancel
AutoFind mode. The original VCR brand code will
remain unchanged.

7, The remote will exit AutoFind mode automatically

after 60 seconds if no key press or trackball move-
ment is detected.

NOTE:

• To view the code that was programmed, perform
Steps 2 and 3 of "Programming Your Z-Trak

Remote."

VCR CODES BY BRAND NAME

Admiral
Adventura
Aiwa
Akai
Audio

Dynamics

Bell & Howell

Broksonic
Canon
Citizen

Craig
Curtis Mathes

Dacwoo
Daytron
DBX
Emerson

Fisher
Funai
General

Electric

Coldatar
Go Video
Hitachi
Instant Replay
J.C. Penney
JVC
Kenwood
Logik
LXI

Magnavox
Maratttz

Marta

,Memorcx

Mitsubishi

VCRS

208, 261

231

231

223. 238, 241
202, 218

206,247

221.226,250,255
214
209

212

214,259
244,246,248,254
236,246

202,218

203.221,223,226,
233,235.243,250

211,212,213,247
231
214,216.220

209

256.262,263
215,257
214,227

214,215,218,227

202,225,258
2O2

239

209, 231

207. 214, 231
207, 218
209

206,212,214,231

204,222,252,264

Montgomery Ward

Multi Tech
NEC
Orion

Panasonic
Pentax

Philco

Philips
Pion_r
Portland

Pro Scan

Quasar

RCA

Realistic
Samstmg
Sansui
Sanyo
Scott

Sears

Shalp
Shintom
Signature2000

Sony

Sylvania
Symphonic
Tashiko
Tatung
Teac
Tcknika
Toshiba
Vector Research
Yamaha
Zenith
XRI000

208, 214, 216, 219,
231,249

239

202. 218
250

214,251,259
215

207.214

207,214,227
210,215
246

2 t6, 260

214. 259

215.216,220,227,240.

242,260

206,208,212.214,231
220,230
239

206,212,247

204,205.233,243
206,209,2-II,212.215

208,261
239

20_,214,216.219,
23I,249

217,232.237
207,214,227
231

12O9

202

202,231
234

205.215
204, 218

202,218

201.224.225,229,237
239

CLEANING THE TRACKBALL

To keep the Z-Trak remote functioning properly, it is necessary to occasionally clean the TRACKBALL device. To do this:

1, Use a solution of mild dish washing detergent and water.

2, Moisten a clean soft cloth with the solution and lay the cloth flat on a table.

3. Turn the Z-Trak remote upside down and gently roll the TRACKBALL on the cloth.

4. Allow the remote to air-dry before using it again.

CAUTION:

• DO NOT USE ALCOHOL OR OTHER CLEANING FLUIDS TO CLEAN THE TRACKBALL AS THESE MAY

DAMAGE THE REMOTE.

2923-01-O 11 -- 4

QUICK REFERENCE TO MENUS: Z-TRAK

AVAILABLE MENUS

Your TV is icon and menu operated. In other words, an icon
is selected at the top of the TV screen and a menu of adjust-
ment options appears.

Ch 11
PBS
3:15
Stereo

Timer
Captions

Z Trak
PiP
Freeze

Ch

All Ch
Flash

J<_[(_!_[_ VOLUME I>J

BASIC MENU OPERATION

1. Make sure that your Z-Trak remote is in the TV mode (rather than
VCR mode), by pressing the TV button on the top.

+

Press the trackball. A small square, known as the pointer, appears
in the middle of the screen. It should be blue, indicating TV mode.
If you have StarSight, the pointer may be red, indicating StarSight
mode. The next step tells you how to switch modes.

Q

The pointer is moved by rolling the trackball up, down, left, and

right. Move the pointer to the left edge of the screen. A column of

TV options appears. The icon at the top indicates which mode is

activ_ -- TV or StarSight (if connected). A TV icon represents TV
mode; a circle with a star represents StarSight mode. You can
switch between the two modes by locating the pointer on the icon
and pressing the trackball. The icon switches and the pointer
changes color.

Set the mode to TV (a blue pointer).

+

The various menus are not all visible on the screen simultane-
ously. Each menu appears when you move the pointer on top of it.

NOTE: Whenever the text reads "point to the option", it
means "position the pointer on the option".

To make the pointer disappear, move it to the center of the screen

and press the trackball.

2923-01-0 12-- 1

QUICK REFERENCE TO MENUS: Z-TRAK

CHANNEL ICONS

Ch 11
PBS
3:15
Stereo

The Channel/Time display accompanies the Channel

Icons Menu.

c. t

Ch
All Ch
Flash

Chan I' and ,_
All Ch

Flash

Channel up or down; equivalent to CHAN Up or Down on the remote. Point to the arrow and press.
Gives you a complete listing of all channels on the screen. Channels currently stored in memory (via Auto

Program) are shown in color. However, you can tune to any channel on the list. Point and press on a channel;
the program on that channel is shown in the PIP, along with the channel label. To tune to that channel, press on
it again.

Tunes the TV to the last channel viewed. The FLSHBK button on the Z-Trak remote performs the same
function.

VOLUME CONTROL

[ <t('-M_-_ VOLUME '_>"

Move the pointer to the bottom of the screen to

view the Volume Control.

Point to the desired volume level on the slider

bar, and press the trackbaU. The volume level

automatically jumps to the new value. Or, press
on the arrows to gradually raise or lower the

volume.

Point and press on MUTE to turn the sound off

completely.

You may also control volume and mute using
the VOL Up/Down and MUTE buttons on the
Z-Trak remote.

2923-01-0 12 -- 2

TV OPTIONS MENU

I

_ ,_---...._._

Timer
Captions

Z Trak

PIP ON
Freeze
Move PIP*

Swap*

The TV icon will only
appear for Ant/Cable 1

Source selection.

*Not always displayed.

See table below

MENU OPERATION

Move the pointer to the left of

the screen to view the TV ,_Options Menu.

Press the trackball to select the
option. See the table below.

Point to the desired option.

(Its status is shown at the
bottom of the screen.)

Move pointer off the menu to
remove it from view.

Timer The sleep timer allows you to program the TV to automatically turn itself off after a period from 15

minutes up to 4 hours. To activate this feature and change the interval, press the trackball while pointing

at Timer.

Captions By pressing on this option, you can select Caption 1, Caption 2, Caption 3, Caption 4 or OFF.
Z-Trak This determines how fast the pointer moves as you roll the trackball. By pressing on this option, you can

set this response speed to Slow, Medium, or Fast, according to your preference.

PIP ON - This turns the PIP (Picture-In-Picture) on or off. When you first turnthe PIP on, the options menu

(or OFF) disappears and the pointer moves into the PIP. You can then move the PIP around the screen, using the

trackball. Pressing the trackball then locks the PIP in place and removes the pointer.

Freeze Pressing on this option "freezes" the action of the picture in the PIP inset. See PIP Operation section for

details.

Move PIP This option only appears when the PIP is on. Pressing on it causes the options list to disappear, and the

pointer appears in the PIP. You can then move the PIP around the screen with the trackball. Pressing again
locks the PIP in its new location and returns the TV to normal viewing.

Swap This option only appears when the PIP is on and the PIP source is different from the main source. This

option "swaps" the main picture with the picture in the PIP inset.

2923-ol-o 13 _ 1

SOURCE MENU

Video3 and S-Video 2 are

source options forsome

TV models only.

[ Main Source

I IPIP Source

StarSight

Ant/Cable2
Video 1
Video2

-Vidnn 1

ideo 3

-Video 2

IEXlT]

StarSight

Video 1
Video 2

R-Vidc_n1
Video 3 )S-Video 2

MENU OPERATION

Move the pointer to the top left of
the screen and point to the

SOURCE icon. Press the trackball.

Point to the desired Main or PIP
source. Press the trackball. Or,
press repeatedly on Main Source

or PIP Source to toggle through
your source options

t

A PIP inset appears while the
Source icon is selected to show

the effect of choosing a PIP

source.

If the PIP Source is changed,
the PIP inset will remain on the

screen after you exit the menu
operations.

Point to "EXIT" and press the
trackball to remove the menu

from view.

SOURCE SELECTION

ANT/CABLE 1 or 2 Routes the antenna or cable-TV source to the TV for viewing. You see program material from

whichever signal source is connected to the ANT/CABLE 1 or 2 jack. (If the signal is from a VCR or a
cable box, tune the TV to either channel 3 or 4.)

VIDEO 1, 2 or 3 Routes the audio and video from an A/V source (such as a VCR or a video disc player) to the TV for

viewing. The source must be connected to the corresponding VIDEO 1, 2 or 3 IN jacks.

S-VIDEO I or 2 Routes the audio and video from an auxiliary Super-VHS video source (such as a VCR or a video disc

player) to the TV for viewing. The source must be connected to the corresponding S-VIDEO 1 or 2 IN

jacks.

Refer to the "Standard Connections for Your TV'" section to make the proper equipment connections to the TV. For information about PIP sources, refer to the
"PIP Operation" section.

SOURt2E IDENTIFICATION

Blue White

DEO 11IN N

MJDIO INPUT VIDEO INPUT

Auxiliary A/V Jacks (Some TV Models)

NOTE:

• The color of the Channel/Time display corresponds to the color

tings around the connectors of the jack panels. For example, the
Channel/Time display will be Red if you am watching a program

on Ant/Cable 1 source.

Magenta

Yellow Red

Iff&nm_n't

©

Id01_tl'Ofl0Ltl

_ Green

Connection Center on Back of TV

Lt. _lue

2923-01-0 14- 1

SETUP MENU

5ETUP

iiiiiii!A_!i!i_iiiiiiiiiiiiiiiiii!iii!iiiiiii_i,liiiiii_i

Ch. Add/Del
Ch. Labels
Source ID
Clock Set

Timer Setup

Parental Ctl
Caption/Text
Background
StarSight

l Press To Program 1

J ource ID

Clock Set
Timer Setup
Parental Ctl
Caption/Text

Background

[ Press To Label Sources I

While Video or Super-Video Source is Chosen

MENU OPERATION

Move the pointer to the top left
of the screen and point to the
SETUP icon. Press the trackball.

Press on the option again to
access it.

fro::1"- Point and press on the desired _\4:_

option to highlight it.

Point and press on EXIT or
move the pointer off the menu
and press the trackball to

remove the menu from view.

Auto Program Finds all active channels and stores them in the TV's memory for use by CHANNEL up/down. Follow

the on-screen directions. Auto Program runs on the currently selected Ant/Cable source.

Ch. (Channel) Edits the channels found by Auto Program to create your own personal list of favorite channels. See the

Add/Del information following this chart for more details.

Ch. (Channel) Assigns a network/station label, name or call letters to specified channels. For example, if you choose
Labels the label "ABC" for channel 9, then "ABC" will appear in the Channel/Time display whenever channel

9 is selected. See the information following this chart for more details.

Source ID Assigns a descriptive "name" to the input sources. For example, the Video 1 source may be named

VCR. "VCR" will now appear in the Source Menu as a reminder that your VCR is connected to the
Video 1 input jacks.

Clock Set Sets the clock in the TV to the correct time. Point and press on the option to highlight it. In the status

° bar at the bottom, point and press on either the hours or minutes to adjust them. Point and press on AM

or PM to toggle them. Move pointer away from menu to remove it from view.

Timer Setup Sets the TV's SLEEP TIMER and ON/OFF TIMER features. See the information following this chart

for more details.

Parental Ctl. Use this feature to block viewing of any undesirable channels or an entire input video source. See the
(Control) information following this chart for more details.

Caption/Text Displays closed captioning or informational text when available on the selected channel. Options are:

OFF, CAPTION 1, CAPTION 2, CAPTION 3, CAPTION 4, TEXT 1, TEXT 2, TEXT 3, or

TEXT 4. See the information following this chart for more details.

Background Adds or removes a solid-color background behind the on-screen menus. Highlight and press on the

option, and then press to toggle the background on and off.

StarSight Begins the StarSight setup procedure. Refer to the StarSight section of this guide for details.

(Ant/Cable 1 Source

selection only)

continued on next page

2923-01-O 15 --1

SETUP MENU

USING CHANNEL ADDADEL

Add Channels to Scan Delete: Cha.elS fr?_iS _

:* Select Ch. Add/Del. • Select Ch. Add/Delete.

• Point to the desired channel. • Point to the desired channel.

!• Press trackball until channel • Press trackball until channel

status shows Added. status shows Deleted.

Press on EXIT to tune to the channel pointed to by the highlight.

NOTE:

• Ch. Add/Del can only be used with ANT/CABLE 1or 2 Source
selection.

• The Audio of deleted channels is muted.

13 14
19 20

25 26
31 32
37 38

43 44

49 50

55 56
61 62

67 68
73 74 75 76 777_.B,- _']

• I Morn_mml. _

Available channels are:

Selector Highlight

I 1 2

7 8 _

4 5 6 I Chg__

10 11 12

15 16 17 18
21 22 23 24

27 28 29 30
33 34 35 36 I Added

39 40 41 42

51 52 53 54
57 58 59 60
63 64 65 66
69 70 71 72

Available Channels

Live view of

"- selected channel.

--- Channel

.... Status

Press here to

_" access additional

numbers if present.

Broadcast Band -- VHF 2 to 13, UHF 14 to 83

Cable-TV Band-- 1 to 139

USING CHANNEL LABELS

• Select Ch. Labels.

i• Select a channel by pointing

and pressing Ch 1` or .[..

• Point and press on the desired
label.

• Press on EXIT to return to
normal viewing.

NOTE:

• Select Ch. Labels.

• Select a channel by pointing

and pressing Ch 1"or ,1,.

• Point and press on the four
dashes or NONE.

• Press onEXIT to returnto

normal viewing.

• Ch. Labels can only be used with ANT/CABLE 1or 2 Source

selection.

• Selecting the four dashes (.... ) specifies no channel label. Or,

selecting NONE blocks the station or network labels that are
transmitted by some television stations.

Selector Highlight

Av.ailable Labels

--- NONE A&E
ADC AMC SCC BET BRAV
CA CBC CBN CBS CMTV

CNBC CNN COB CSPN CSP2
CTN CTV DIS DISC El

ENC ESPN ESPN2 ET EWTN
FAM FNN FOX F&V FX

GALAHBO HN HSE HSN
IC INSP JCN LIFE MAX
ME/UMM'r MTV NBC NICK

NOS PBS PLAY PTL OVC
RDS REO SC SCFI SHOW

Ch 9_

ABC

° I-p

Ch

s,. rss r.. r ts rtc

[ .oret.ab.,,S

_..

. Live view of

selected channel.

Current Channel

,Selected Label

- Channel Selector

- Point and press on
this box for more

labels.

USING SOURCE ID

• Select Source ID.

• Point to the desired "Source/Label" line and press to highlight it.

[

Press repeatedy to scroll through the available labels.
Press on EXIT to return to normal viewing.

VIDEO GAMES AND OTHER FIXED
PATTERN DISPLAY CAUTION

If you use your TV for video games or other fixed displays, avoid set-
ting the BRIGHTNESS control for an excessively bright picture. A

bright, fixed pattern, if used for long periods of time, can result in a ,.

permanent imprint on the TV picture tube. You can reduce this possi-

bility by alternating the use of the fixed pattern display with normal
TV picture viewing, by turning down the CONTRAST control for

sustained fixed pattern use, and by turning off the fixed pattern dis- NOTE:

play when not in use.

Live view of
selected Source.

Source Label

Ant/Cable 1
Ant/Cable 2
Video 1

Video 2
S-Video 1

StarSight I

Antenna
VCR

VCR 2
Video Game

Optional names for
ANT/CABLE 1 or 2
Sources are:

_, Disabed, An-
tenna, Cable, Cable

Box, Satellite, VCR,
StarSight (Ant/Cable

1 only)." -

Optional names for

VIDEO Sources are:

_, Disabled, VCR,

Camcorder, Video
Game, Laser Disc,
Audio Only, VCR2,

Satellite (some

models only).

• Disabling a Source prevents it from appearing in the Source Menu.

29234)1-0 15 -- 2

SETUP MENU

TIMER SETUP: Sleep Timer

The Sleep Timer programs the TV to automatically turn itself off after a period from 15 minutes up to 4 hours.

From Setup Menu

* Make sure the TV's clock is

set.

- Select Timer Setup to view
the Timer Menu.

• Press on Sleep Timer repeat-

edly to set the period of time
the TV will remain on.

Direct Access.

• Move pointer to left of screen

to view the TV Option Menu.

• Point and press on Timer
repeatedly to set the period of

time the TV will remain on.

• Move pointer away from
menu to remove it from view.

• One minute before the TV turns off, the GOOD NIGHT display
appears on the screen. At this time you have a choice of the fol-

lowing two actions.

• Do nothing. The Cd3OD NIGHT display remains on the screen.
The TV will turn off in one minute.

• Delay the turn-off by resetting the timer with a new time period.

I Timer Menu I

On Time I
Off Time /

On/Off Timer l

I o:15 I

Timer Set to Turn TV OFF in 15 Minutes

NOTE:

• To cancel the Sleep Timer, turn off the TV or return to the Timer
feature and set it to OFF.

• As the Good Night display counts down the final 60 seconds, the
audio and video of hte TV also "dim" for a soft, discreet turn-off.

Sleep Timer I

Good Night 0:58

"Good Night" Display Appears 60 Seconds Before Shut-Off

ON/OFF TIMER

The On/Off Timer programs the TV to automatically turn itself on at a specific time, then turn itself off at another time.

,,d

• Make sure clock is set to Timer Setup.

• Select On Time. In the Status barat the bottom, point andpress

on the hours and minutes to adjust them to the time you want the

TV to ttu_nitself ON. Point and press on AM (or PM) to toggle

them.

• Select On Time. In the Statusbar at the bottom, point and press
on the hours and minutes to adjust them to the time you want the
TV to turn itself OFF. Point and press on AM (or PM) to toggle

them. Or, press on the arrows to move time forward or backward.

• Select ON/OFF Timer and press on it to turn thetimer ON (or
OFF).

NOTE:

• A time must be set for either On Time or Off Time in order to turn
the timer ON.

I Timer Menu I

lSleep Timer ! Point and press on

....• ......... .:.: these to adjust

[Off Time ............ I/

I°"/°"+'m°'F

On/Off Timer Set to Turn TV ON at 11:00 am

292r01_ 15 -- 3

SETUP MENU

USING PARENTAL CONTROL (PC)

I Enter Parental Access Code: I

] <0><1><2><3><4><5><6><7><8><9>]

Point and press

I Parental Control Menu I _ on these digits to

enter code.

Block Hours

Block Source

Block Channels

14 OFF

_ eriod of time PC

will be active.
Blocks entire source.

Blocks individual

P] channels for Ant/

Cable 1 or 2 sources.

1 2 3 4 5 6

7 8 [] 10 11 12

13 14 15 16 17 18
19 20 21 22 23 24

25 26 27 28 29 30

31 32 33 34 35 36
37 38 39 40 41 42

43 44 45 46 47 48

49 50 51 52 53 54

55 56 57 58 59 60

61 62 63 64 65 66

67 68 69 70 71 72
73 74 75 76 77 78
l More Channels i

Live view of
selected channel.

I Channel

Status

Block Entire Source Block Individual Channels

• SelectParental Cfl. • SelectParental Ctl.

• Select Block Hours and press on the arrow

to set the length of time PC will be active:
OFF, 12, 24, 48, or 72 hours.

• Set Block Source. Move the pointer to
the status bar at the bottom and press on
"unblocked" to change it to "blocked."

• To block other sources, move the pointer to
the left side of the status bar and press to se-

lect another source. Move the pointer back
to the right side and press to show

"blocked."

• Point and press on Exit and enter any

4-number access code by pressing on the

individual numbers. You will be asked to
verify the code by entering it again.

i• Select Block Hours and press on the arrow

to set the length of time PC will be active:
OFF, 12, 24, 48, or 72 hours.

, DO NOTHING WITH BLOCK SOURCE.

• Select Block Channels.

• For each channel to be blocked, move the

pointer to the number and press the trackball
twice.

• Point and press on Exit twice and enter a

4-number access code by pressing on the
individual numbers.

Re-enter PC While it is Activated

• Select Parental Ctl.

;* Enter your access code when prompted to

do so.

* Makeyour changes (block more channels,

reset the time period, etc.)

• Point and press on Exit.

• You will be prompted to "change code if

desired." Either enter a new 4-number code

or do nothing to retain the current code.

REMEMBER YOUR ACCESS CODE! TO RE-ACCESS PARENTAL CONTROL WHILE IT IS ACTIVATED, YOU MUST
ENTER THIS NUMBER. Otherwise, simply allow the specified period of time to elapse.

NOTE:

• Do not unplug the TV in an attempt to deactivate the Parental Control. This only resets Parental Control.

USlN(; CAPTIONS

: Activating Captions

Highlight and press Caption/Text.

Press the trackball repeatedly to toggle through the nine choices:
Off, Caption 1, Caption 2, Caption 3, Caption 4, Text 1,Text 2,
Text 3, or Text 4.

NOTE:

• At present, very few TV programs or video tapes offer text caption-

ing for any option other than CAPTION 1. Therefore, CAPTION
1 is the only recommended choice, unless you know thata specific
program is providing captioning using one of the other selections.

Typical Captions Display

Captions may be shown
anywhere on the screen.

spedal n

_tonightat 7.'OOPMon I I
_annel 2. )_r

Typical Text Display
Fixed size text window

fills lower half of

screen.

2923-ol-o 15 -- 4

AUDIO MENU

; Treble

'_l_J:_ I ] B_unal_nnCceement

,unlnj

14 t o

MENU OPERATION

Move the pointer to the top left of
the screen and point to the

AUDIO icon. Press the trackball.

Press on the option or on the
slider bar to adjust the option.

Point and press on the desired
option to highlight it.

Move the pointer off the menu
and press the trackball to remove

the menu from view.

Bass

Treble
Balance
Audio

(SAP is notan option

for thevideo sources.
Audio signals received

from a video sourceare
assumed to be monaural

or stereo.)

Enhancement

Adjusts the BASS (low-frequency) level.

Adjusts the TREBLE (high-frequency) level.
Adjusts the balance of sound between the two speakers.
Allows you to select STEREO, MONO or 2ND AUDIOISAP operation. After highlighting the option,

press to toggle through the choices:
STEREO: Directs the sound to the Left and Right speakers as supplied by the program. Stereo is

the recommended choice: The TV switches automatically between the STEREO and

MONO modes depending on the type of signal being received.

MONO: Directs the same sound to both Left and Right speakers, even if the program being

• received is in stereo.

2ND AUDIO/
SAP:

Directs the sound for the Second Audio Program (second language) to both the Left
and Right speakers. SAP sound is always monaural. If SAP is selected, you hear the
SAP (usually a second language). When the SAP broadcast ends, the TV switches
automatically (defaults) to the type of signal being received, STEREO or MONO. The

TV switches back to 2ND AUDIO/SAP when the SAP broadcast resumes.

Mono or 2rid
Audio/SAP
Selected:

Stereo Selected:

Provides a list of options for enhancing the TV's audio. The options shown depend on what is selected
for the AUDIO option above.

Your audio Enhancement options are Off and Pseudo Stereo. Off specifies that no

Enhancement is activated. Pseudo Stereo enhances monaural audio to emulatestereo-

like sound.

Your audio Enhancement options are Off, Concert Hall, Theater, Night Club,
Stadium, Dolby Pro Logic-Normal and Dolby Pro Logic-Phantom. Off specifies

that no Enhancement is activated. For the other options, see "Stereo Operation," and

"Dolby Pro Logic Operation."

NOTE:

• All adjustments on the AUDIO MENU are optional. You do not have to use these features in order to use your TV.

Continued on next page

2923-ol-o 16- 1

AUDIO MENU

SPEAKER BALANCE

• Stereo Operation i

• Select Stereo as theAudio option.

• Select a desired Enhancement: Concert Hall, Theater, Night
Club or Stadium, or set Enhancement to Off.

• Adjust Bass and Treble for the most pleasing sound.

• Select Balance to view thespeaker balance screen.

• Point and press on the speakers you want to adjust; either the
front speakers (those in the TV) or the optional surround sound
speakers.

• Press on the arrows or on a specific point on the slider bar to
adjust the selected speakers.

Dolby Pro IDolbyerol..... L_c,Phanto,:: :......m

• Select Dolby Pro Logic-

Normal as the Enhancement.

• Turn on the external amplifier

and set is volume to approxi-
mately the same volume as the

TV.

• Bass and Treble can not be
adjusted for Pro Logic-Normal

• Select Balance to view the Pro

Logic balance screen.

• Point and press on the speaker

(Left, Right or Surround) you
want to adjust.

A highlight box and an audible
"hissing" sound will "bounce"
between the selected speaker

and the Center Reference.

• Press on the arrows or on a

specific point on the slider bar
to set the volume of the

"hissing" (for the selected
speaker) to approximately the
same level as the "hissing" of

the Center Reference. Do this
for each speaker.

• Select Dolby Pro Logic
Phantom as the Enhancement.

, Adjust the Bass and Treble for

the most pleasing sound.

• Select Balance and press the

Left/Right arrow key to view
the Pro Logic balance screen.

Press the Up/Down keys to
select a speaker (Left, Right or
Surround) to adjust.

• A highlight box and an audible
"hissing" sound will "bounce"
between the selected speaker

and the Center Reference.

Press on the arrows or on a
specific point on the slider bar

to set the volume of the
"hissing" (for the selected

speaker) to approximately the
same level as the "hissing" of

the Center Reference. Do this
for each speaker.

NOTES:

• Optional Surround speakers must be connected to hear Surround
Sound.

• An external amplifier must be connected to use Dolby Pro Logic-
Normal audio enhancment.

• To fully appreciate the quality of sound provided by the Dolby Pro
Logic audio system, make sure the speakers are balanced as de-

scribed above.

• While Pro Logic-Normal is selected, Bass and Treble adjustments
on the TV are not possible. These must be adjusted using the
external amplifier.

[_ FrontSpeakers Rgt

I I I I I I I I I I_11 I I I I I I I I_

MIn Surround Speakers Max[

411 I I I I I I I I_l I I I I I I I I I_

I

• I Surround Speakers Required I

I "

Message appears when adjust-
ing Surround Sound.

STEREO SOUND BALANCE

Point and press on slider bar to adjust balance.

Highlight box

"bounces"

between selected
speaker and

Center Reference.

RightSpeaker I

4111 Illl Ill(I)ll I I I I Ill IDl"

[ SurroundSpeakers I

4111111111 II1_1111 I II1_

External Amplifier Required I

Message appears only for Pro
Logic Normal selection.

PRO LOGIC BALANCE
Point and press on slider bar to adjust balance.

2923-01-O 16 -- 2

VIDEO MENU

1

UInEn

Contrast

Brightness
Color

Tint
Sharpness

Color Temp
Video Filter

Auto Flesh

Picture Pref
Projo Setup

MENU OPERATION

Move the pointer to the top left of the

screen and point to the VIDEO icon.
Press the trackball.

Press on the option or on the slider
bar to adjust the option.

Point and press on the desired option

to highlight it.

LL.ZJ

Move the pointer off the menu and
press the trackball to remove the

menu from view.

Contrast Adjusts the overall contrast and color level of the picture.
Brightness Adjusts the brightness level of black areas in the picture.

Color Adjusts the intensity of the colors in the picture.
Tint Adjusts the color of the flesh tones to more Green or more Red.
Sharpness Adjusts the clarity of the edges around objects for the clearest picture quality.

Color Temp Changes the "color temperature" or picture white balance between cooler natural whites and warmer

(Temperature) (red) colors.
Video Filter Reduces video "noise" or interference in dark picture areas resulting in clearer overall pictures.

Auto Flesh Automatically maintains natural skin tones under changing scene and video source conditions.

Picture Pref. Lets you decide if you want to use your own CUSTOM video settings, the factory PRESET video
(Preference) settings or the factory preset THEATER video settings. The THEATER settings are preset to provide

optimum visual performance in low light "theater-like" conditions

Projo Setup Lets you verify and adjust, if needed, the dynamic color convergence of the TV picture. See the

information following this chart for more details.

NOTES:

• All adjustments on the Video Menu are optional. It is not

necessary to adjust these features in order to operate the
TV.

Any adjustments made to the Video Menu settings while
Picture Pref. is in PRESET or THEATER mode will

automatically store the current settings as the CUSTOM
setting.

continued on next page

2923-01-o 17 -- 1

VIDEO MENU

PROJO SETUP

If you move your TV from its original location, or if after
time, you notice color "fringes" around objects in the picture,

you may want to realign the colors by adjusting the conver-
gence as described in the following steps.

: : i!i__i:i :_i¸

,, ' ....... i

• Press on bar to select Projo Setup.

• Press the Left/Right keys to view the "Converge" lines.

• Press on bar to select either RED or Blue lines to converge.

• Press the Up/Down and Left/Right arrow keys to place the color

lines directly on top of the white lines. (Do this for both colors if
necessary.)

NOTES:

• Any adjustments made to the Video Menu settings while Picture

Pref. is in PRESET mode will automatically store the current set-

tings as the CUSTOM setting.

• Each time the TV is moved to a different location, the convergence
should be checked.

I

nEDtOnBtoO-----I

/xA

<]

t>
t>

Four intersecting WHITE lines indicate properly converged tele-

vision: No adjustment is necessary.

a_a to_8ton)----I _

e_ _.

Four RED (or Blue) lines offset from the WHITE lines indicate
converging is necessary. Follow the steps to align the color lines

with the white lines.

2923-01-O 17 -- 2

PIP MENU

PIP

Ch.Review

PIPColor

PIPTint

PIPSize

Press To View [

Selecting the PIP Menu does not
"activate" PIP. However, a PIP inset
will appear during menu operation to

show the effect of any setting changes.

MENU OPERA TION

Move the pointer to the top left

I_1_-" of the screen and point to the I_"_-_

PIP icon. Press the trackball.

Press on the option or on the
slider bar to adjust the option.

Point and press the desired op-
tion to highlight it.

Move the pointer off the menu
and press the trackball to remove

the menu from view.

Ch. Guide Provides a visual review of all channels in the channel scan memory for the currently selected

ANT/CABLE source. Press on a PIP inset to tune to the channel shown in the inset.

Ch. Review Provides a visual review of the last three (3) channels tuned on the TV. Press on a PIP inset to tune to

the channel shown in the inset.

PIP Color Adjusts the intensity of the colors in the PIP inset. Point and press on the arrows or slider bar.
PIP Tint Adjusts the color of the flesh tones in the PIP inset to more Green or more Red. Point and press on the

arrows or slider bar.

PIP Size Adjusts the size of the PIP inset. Choose between small or large.

l

CH 2

CH 3

CH 5

CH 6

CH7

CH 9

Ch. Guide Screen

Shows 3-second live displays of all channels

saved in the channel scan sequence.

CH 2

l J

CH 3

CH 5

Ch. Review Screen

Shows3-secondlive displaysof the

last3 channelsviewed on the TV.

2923-01-O 18 -- 1

MAINTENANCE AND TROUBLESHOOTING

CARING FOR YOUR PROJECTION TV

Your projection TV will look better, have a longer life and per-
form better if you care for it properly.

_k irst check to see that the TV is off. For added

safety, disconnect AC power to your TV.
NOTE: If you unplug your TV, you will have to

reset the clock to the current time.

Cabinet Care
Non-Wood Cabinet or Cabinet Components Moisten a soft

cloth with a mild soap solution or Ivory dishwashing deter-
gent. Wipe the surface with a damp cloth. Then rinse the cloth
in clean water and wipe the surface again. Allow the TV to air-

dry before turning it on.

Wood Cabinets or Cabinet Components Use any good fur-
niture cleaner and polish. Regular care will help preserve the

finish.

Picture Screen Cleaning
Use a soft cloth moistened with warm water and rublightly in

the soiled areas of the screen. DO NOT USE A TISSUE OR
PAPER TOWEL, AS THESE MAY DAMAGE SURFACE.

Wipe only in the vertical (up/down) direction (along the
grooves). If there is a dirt buildup, a mild solution of warm
water and Ivory dishwashing detergent may be used. Use dry

soft cloth to dry the screen. Care should be taken to avoid
scratches or damage to the screen surface.

NOTE -- The TV screen is easily damaged. Avoid acciden-
tal contact with the screen.

EXTENDED ABSENCE

Before an extended absence (such as a vacation) you may
want to disconnect AC power to your TV. This will protect
the projection TV from possible damage from lightning or
power line surges. If you have an outdoor antenna, you may
also want to disconnect the antenna from the wall plate con-

nection center

NOTE: If you unplug your TV, you will have to reset the
clock to the current time.

PICTURE INTERFERENCE

Your picture may be affected by interference caused by one or
a number of factors. These include:

Speckled or Streaked Picture Can be caused by nearby auto-

mobile ignition, electrical appliances, etc. This is most notice-

able in weak signal areas.
Snow in Picture Caused by insufficient signal. Usually

caused by the TV being located too farfrom the TV station or
by an improper antenna installation.

Ghosts or Reflections Caused by signals being reflected
from surrounding buildings, water tanks, or other high struc-

tures.
Radio Signal Police, amateur or CB radio transmitters may

cause interference.
These interference problems can often be corrected through

the use of a better antenna, signal amplifiers, or various filter
devices. See your TV dealer for additional information, and ac-
cessories available for your projection TV.

TVCARPRO 19 -- 1

MAINTENANCE AND TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

Check these items and see if you can correct the rouble by changing the adjustment of a control or the setting of a switch. By making
these simple checks before calling for service, you may save time and money.

Problem

Picture OK. Poor sound.

Try This

Re-orient antenna. Try another channel -- possible station trouble.
Adjust Audio Menu options. Check for local interference. Is

antenna/cable connection loose?

Sound OK. Poor picture. Re-orient antenna. Try another channel -- possible station trouble.

Adjust Video Menu options. Trouble with cable-TV system? Is
antenna/cable connection loose?

No picture or sound. Is TV on? Is there power in wall outlet? Is TV plugged in? Is antenna

hooked up? Is cable hooked up? Trouble with cable-TV system?
Check auxiliary audio/video equipment. Check channel selection. Is
the channel blocked by Parental Control?

Picture blurred or distorted. Ghost in picture. Check antenna or cable hook up for broken wires. Try another

channel -- possible station trouble. Check for local interference.

No color, or poor color. Is it a color program? Check antenna or cable hook up for broken

wires. Adjust Video Menu options.

No sound. Volume setting may be too low. Check MUTE button operation on

remote control.

Cannot select certain channels. Channels may be skipped in Ch. Add/Del option of Setup Menu. Use

Auto Program a second time.

No closed captions Are captions available? Is Caption 1, Caption 2, Caption 3, Or

Caption 4 selected using the Captions option on the Setup Menu?

Black or blue box covers half of screen. Is text information available? Is Text 1, Text 2, Text 3 Or Text 4

selected in the Captions option of the Setup Menu.

No picture or sound when a video or Is audio/video source hooked up properly? Are all wires connected to
super-video source is selected, the video source input jacks on connection center?

No stereo sound or weak stereo sound Check AUDIO mode. Was stereo sound present before selecting
when using a stereo VCR. the video or super-video source?

PIP inset frame is black or lacks contrast when Adjust Pip Color and Contrast settings in PIP Menu. Are all wires
selecting a video or super-video source for PIP inset, connected to the video source input jacks on connection center?

PIP inset frame is "snowy" when using Ant/ Is TV/VCR switch on the VCR in the TV position?
Cable 1 or'2 for PIP and Video 1 for main picture.

No picture when using a video source for the PIP Is TV/VCR switch on the VCR in the TV position?
inset and Ant/Cable I or 2 for main picture.

Remote control does not work. Are batteries okay? Is TV turned ON? Is remote in TV mode?

Always request that your technician use only genuine Zenith
exact replacement parts for continued Quality and Safety per-
formance. Keep your Zenith ALL Zenith.

NOTES:

If your TV fails to respond to the Picture Pref. selection,
or to any other menu selection, you must reset the TV.

Simply disconnect the AC power cord from the power out-
let. Wait a few minutes, then plug the TV back into the

outlet. You will have to reset the clock to the current time.

• Unplugging the TV does not deactivate the Parental

Control.

2923-o,-0 19 -- 2

REPLACEMENT PRODUCT REGISTRATION CARD

You could win a full refund on your new Zenith product.

Look for the Product Registration Card on your new video

product.

Each month a drawing is held by Zenith from the completed

Product Registration Cards received during the preceding
month. Zenith will reimburse the winner for the full purchase

price of the product purchased.

In order to participate, simply complete and return the Product
Registration Card at once, even if you choose not to complete
the information and interests portion of the questionnaire.

The odds of winning the free drawing described above, de-

pend on the number of participants. Free drawing offer is
void in Canada and other places where restricted or prohib-
ited by law. Offer is void for Hotel/Motel and Institutional
models. Rental models are not eligible.

Product Card lost or misplaced?
The Product Registration Card furnished with your video prod-

uct is pre-printed with its Model and Serial numbers. Please

fill out the card and mail it at your earliest convenience. It is

imperative that Zenith know how to reach you promptly if we
discover a safety problem that would affect you. If the original
card has been lost or misplaced, you may use the replacement

cardprovided below. Either cardwill qualify you for the free

drawing, but you are limited to only one entry in the drawing.

Complete the card, place it in an envelope and mail it to:

Zenith Electronics Corporation

P. O. Box 173257

Denver, CO 80217-3257

Use the replacement Product Registration Card only if the

original card has been misplaced or lost.

|

|
i

|
|
i
=

i
=

i
i
i

PHOTOCOPY AND CUT ALONG DASHED LINE

Zenith Product Registration Card HSZ01-01

(_) Please Print Clearly or Type (_) Area Code Telephone

1. l"-]Mr. 2. D Mrs. 3. _] Ms. 4. [7 Miss l

FirstName Initial Last Name

IIIIIIIIII IIIIIIII

Street

IIIIIIIIIIIIIIIII

City

IIIIIIIIIIIIIIII

State Zip Code

IIIIIIII1-11111

IIIIII1-11111

IIII IIIIII

Apt. No.

IIIIIII

II II

® Date of Purchase

Mo. Day Yr.

IIIIIIIII

CopyNumbers Here
From Label on Set

Pleaserecordthemodelnumber
andserialnumberfromthesticker

onthebackofyourset.

!

i
i

|
|
|

i
=

m
i
i

l

"rvc._dlD3

BROKENORLOSTREMOTECONTROL?

ForanExactReplacementRemoteControl

for your newZenithTelevision,seeyour local

ZenithDealeror orderdirectbycalling

1-800-255-6790.Toassurethecorrect

remotefor your newZenith,please

haveyourtelevision'smodelnumber

ready! ONLYs39.95

OTHERFINEACCESSORIESFORYOURVCR.

WirelessSpeakerSystem:

• Wirelessspeakersreceivesoundfrom IV,
VCR,or Stereothroughwalls,floors,or
outside.

• Createsaninstanthomeentertainmentcenter!

• Speakersareeasyto move--'nocordclutter."
Anattractiveadditionto anyroom.

• Worksup to 150feet! Indoorsand outdoors.

WirelessHeadphoneSystem:

• WirelessHeadphonesreceivesoundfrom IV,
VCRor Stereothroughwalls, floors oroutside.

• Allowsfreedomof activitywhile relaxingor

working aroundyour home.

• Listento yourstereowhileotherswatchIV in
the sameroom.

• Worksupto 150feet! Indoorsandoutdoors.

WirelessInfrared HeadphoneSystem:

• EnjoyyourfavoriteIV show in privacy
without disturbingothers in the sameroom.

• Completelycordless,simpleto use.

• Rich,full sound--virtuallyinterferencefree.

• Greatfor the hearing-impaired.

• Workswith anyIV, VCR,oraudiodevice.

ZHBO0
WIRELESS

SPEAKERSYSTEM

ONLY$249.95 ONLY$119.95 ONLY$69.95

WIRELESS WIRELESS

HEADPHONESYSTEM STEREOHEADPHONES

PHOTOCOPYPAGEANDDETACHHERE

Toorderthese fineaccessories, ITEMNUMBER DESCRIPTION [QUANTITY

PRICEPERITEM PRICE

pleasefill outthis cardand
return aphotocopyto:

Attn: AccessoryOffers

ZenithVideoTechCorporation
1000 MiLwaukeeAvenue

Glenview,lUinois60025-2493

orcall1-800-255-6790

[] Check or moneyorder

(MadepayabletoZenithVideoTechCorp.)

SUBTOTAL

CA73/4%,GA4°/o,IL8 3/4%,KS4.9°/o,k'Y6%,ME8°/o,
PA8%,RI7%,TX7 3/4°/o,VA41/2°/o,WA8.2°/o.

$4.50

[] Visa [] Mastercard

Account#

Illlllllllllllllt

SalesTax:Pleaseaddyourstatesalestaxifyou

liveinoneofthefollowingstates.

ExpirationDate: Signature:

SHIPTO:

Telephone:( )

STATESALESTAX

SHIPPING& HANDLING

TOTALAMOUNTOFORDER

Name:

IMPORTANT:PLEASEBESURETOCOMPLETETHEINFORMATIONBELOW.

"IVModelNumber
(fromstickeronbackofunit)

/ /

TMSerialNumber Mo. Day Yr.
(fromstickeronbackofunit) (Approx.dateofpurchase.)

PLEASEALLOWUPTO3WEEKSFORDELIVERY.THANKYOU!

VCRACCS3

611/95

Address:

Apt#

State

City
ZipCode

NOTE:OrderscanonlybesenttocustomerswitflintheUnitedStates.

YOUR ZENITH WARRANTY

Consumer Protection Plan for Zenith Projection TV

Welcome into the Zenith family! We believe that you will be
pleased with your new Zenith Projection TV. Please read this
Consumer Protection Plan carefully. It is a "ONE YEAR

FULL WARRANTY," plus a limited second year picture tube
warranty, as defined under federal law. This warranty gives
you specific legal rights, and you may also have other rights
that vary from state to state within the U.S.A.

Zenith's Responsibility
Service Labor and Parts -- During a period of one year

from effective warranty date, Zenith will supply new or
remanufactured replacement picture tubes or other parts, and
will pay for service labor by a Zenith authorized service

center, when such parts or service labor are needed to repair

the product as a result of manufacturing defects. Further,

Zenith will supply a new or remanufactured replacement for

any picture tube which fails during the second year after

effective warranty date because of a manufacturing defect.
Replacement parts are warranted for the remaining portion of

the original warranty period. The above service labor warranty
applies only in the U.S.A.

On-Site Service -- Warranty service is provided where the
Projection TV is installed.

Not Covered -- This warranty covers manufacturing defects
and does not cover installation, adjustment of customer
controls in the home, installation or repair of home antenna
systems, cable converters or cable company-supplied
equipment; it also does not cover damage due to misuse,
abuse, negligence, acts of God or other causes beyond the
control of Zenith. Any alteration of the product after
manufacture voids this warranty in its entirety.

Owner's Responsibility
Effective Warranty Date -- Warranty begins on the date of

original consumer installation. For your convenience, keep the
dealers dated bill of sale ordelivery ticket as evidence of the
purchase date.

Operating Guide -- Read your Operating Guide carefully so

that you will understand the operation of your set and how to
adjust the customer controls.

Antenna -- Reception problems caused by inadequate home
antennas or faulty antenna connections are the owner's

responsibility.

Important: Product Registration -- Please fill out and mall
your Owner Registration Card. It is imperative that Zenith
know how to reach you promptly if we should discover a

safety problem that could affect you.
Warranty Service -- For warranty service information,

contact any Zenith authorized service center. Parts and service
labor that are Zenith's responsibility (see above) will be
provided without charge. Other service is at the owner's
expense. If you have any problem in obtaining satisfactory
warranty service, call or write:

Zenith Electronics Corporation
Customer Service Department

1000 Milwaukee Avenue

Glenview, IL 60025

Telephone: [phone]
Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

NOTE: Before you ask for Warranty service, check the
Operating Guide section entitled, "MAINTENANCE
AND TROUBLESHOOTING." It may be possible to

avoid a service call.

_RPRO2

SIGHT ®

STAR StarSight Telecast, Inc.

39650 Liberty Street

s I G H T. Fremont, CA94538

Part No. 206-2923-01

Printed in U.S.A.

EP-EDCBA

WATCH US.

TO BE LICENSED TO USE THE STARSIGHT ® SYSTEM AND STARSIGHT
FEATURES OF THIS EQUIPMENT, YOU MUST BE REGISTERED WITH

STARSIGHT OR AN AUTHORIZED REPRESENTATIVE. LICENSED UNDER

U.S. PATENT NUMBERS 4,706,121 AND 5,151,789. USE RIGHTS RESERVED.

STARSIGHT IS NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE
PROGRAM SCHEDULE INFORMATION PROVIDED BY THE STARSIGHT
SYSTEM. IN NO EVENT SHALL STARSIGHT BE LIABLE FOR ANY
AMOUNTS REPRESENTING LOSS OF PROFITS, OR INDIRECT, SPECIAL, OR

CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR
USE OF ANY INFORMATION, EQUIPMENT, OR SERVICE RELATING TO

THE STARSIGHT SYSTEM.

© 1995 StarSight Telecast Inc.

StarSight is a trademark of StarSight Telecast.

StarSight is a subscription service.

This Operating Guide may not be duplicated,

copied or transferred in any way without prior

written permission of StarSight Telecast, Inc.

Patent Statement
The StarSight Guide system and its use are pro-
tected by one or more of the following U.S. pat-

ents: U.S. Patent No. 4,706,121, U.S. Patent No.
5,151,789; use rights reserved. For licensing and

subscription information, call (800) 643-STAR.

Compliance Statement
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two

conditions: ( 1) this device may not cause harm-
ful interference and (2) this device must accept

any interference received, including interference
that may cause undesired operation.

Trademark Statement
StarSight is a trademark of StarSight Telecast Inc.

INTRODUCTION ....................................... b

Welcome ............................................... b

Cable Box and VCR Requirements ........................... h

INSTALLING STARSIGHT ............................ A-1

STEP 1. Fill out the StarSight Checklist ..................... A-1

STEP 2. Hook-Up Equipment ............................. A-2

STEP 3. Activate StarSight ............................... A-6

STEP 4. Checking Your StarSight Setup .................... A-7

PBS Stations .......................................... A-8

Cable Box Codes ...................................... A-10

VCR Codes .......................................... A-10

USING STARSIGHT WITH THE UNIVERSAL REMOTE . B-I

Basic Operation ........................................ B-1

Finding out more about what you're watching: the STAR button. B-2

What's on when you change channels: Grazing ............... B-3

What's on without changing channels: Browsing .............. B-4

Finding out what's on all channels: Grid Guide ............... B-5

Viweing what's on a single channel: Channel Guide ........... B-6

Choosing programs by category: Theme Guide ............... B-7

R_:ording what you're watching: Current Recording .......... B-8

Scheduling a recording from StarSight guides: Future Recording. B-9

Reviewing your schedule of individual recordings:

Recordings List ................................... B- 10

Reviewing daily or weekly series recordings:

Series Recordings List .............................. B- 11

How to watch one channel while recording another:

Watch and record .................................. B- 12

Selecting and de-selecting channels ....................... B-13

Changing the channel order .............................. B-14

USING STARSIGHT WITH THE Z-TRAK REMOTE ..... (2-1

Quick Reference Guide .................................. C- 1

Getting started with the Z-Trak remote ...................... C-2

Finding out more about what you're watching:

Channel Pop-Ups ................................... C-.4

What's on when you change channels: Grazing ............... C-5

What's on without changing channels: Browsing ............. C-5

Finding out what's on all channels: Grid Guide ............... C-6

Choosing a program: Tuning from a Guide .................. C-7

Viewing what's on a specific channel: Channel Guide ......... C-8

Choosing programs by category: Theme Guide ............... C-9

Recording what you're watching: Current Recording ......... (2-10

Reviewing your schedule of individual recordings:

Recordings List ................................... C-11

Reviewing daily or weekly series recordings:

Series Recordings List .............................. C-12

How to watch one channel while recording another: Watch and

Record .......................................... C- 12

CHANGING YOUR EQUIPMENT SETUP ............... D-I

What you should do when you get a new VCR ............... D-1

What you should do when you change your cable box or

service or when you move ............................ D-2

TROUBLESHOOTING ................................ E-1

Before calling for service ................................ E*I

i i

How to use this operating guide

StarSight ir_stallation and operation is given in this portion of the operating guide. Follow the procedures given if you are
going to use StarSight.

_, Refer to the TV portion of this operating guide for TV installation and operation without StarSight.

Welcome

Welcome to StarSight, an innovative way to locate
programs and manage the many channels that you receive.

With StarSight, you can:

* See an instant description of what's on any channel.

• Select a program from a list that displays your
favorite types of shows by theme (movies, sports,
comedies, etc.).

• Get information about plots, casts, content ratings,
and running times.

• Tune from an on-screen guide right to the program
you selected.

• Program your VCR with the touch of one button.

• Re-arrange the order of your channels to put your

favorites first.

Cable" Box and VCR Requirements.

Be sure to read these requirements carefully. They contain
important information you need to ensure that StarSight
performs properly.

• A VCR is required for recording capability. To take
full advantage of StarSight, your VCR must be

controllable by a wireless infrared remote control.

Otherwise, StarSight can still provide program
information, but will not be able to automatically

tune to or record a specific program on your VCR.

• If your VCR remote control does not have a number

pad with at least 10 digits, StarSight will be unable
to tune the VCR.

• If you have a Cable Box, it must be controllable by a

wireless infrared remote control.

• Your Cable company should be able to provide a

remote-controlled Cable Box, if you do not already
have one.

Your StarSight-equipped television is not designed
to operate with, or control, a satellite dish. For
information on StarSight products specifically
designed for satellite systems, see your local satellite

dealer.

Universal

Remote

Z-Trak
Remote

StarSight grid display shown on direct view TV for reference only.

StarSight must be installed properly for you to enjoy all of its benefits. To ensure proper installation, follow the procedure in
this section in the order they are presented.

STEP 1. Fill out the StarSight Checklist.

STARSlGHT CHECKLIST

Complete sections A and B, and keep this checklist close at hand during subsen'ption,

A PBS Station: Consult the table of PBS Stations, located at the end of this section.

Find the PBS station that is closest to your city. (If you receive two or more stations,

select the one with the clearest picture.) Write the PBS Station letters and channel

number below.

PBS Station Letters:
PBS Station Channel Number:

For Cable Users Only: Check your Cable company's channel line-Up Oryourlocal
newspaper's TV listings to see if the PBS station in yourarea has a different channel
number from the one you wrotedown above. •

If so, write your PBS station's Cable channel number here:

(You will use this channel number during the Setup process.)

S Code Numbers: Consult the table of Cable Box Codes and VCR Codes, located at

the end of this section.

Find the code numbers that apply to your brands of Cable Box and VCR and write

them below.

C

CABLE BOX "

Code 1: :_ Code 2_ Code 3: ...................

Code 4: ,, . Code 5: ..... Code 6: ...............

VCR :-,

Code !: Code 2: . " Code 3:" " Code 4:

.Code 5: Code 6:. ................. Cod_ 7: :C_lo 8"...

Now proceed to "Step 2. Hook-Up Equipment."

During Subscription,.. StarSight will display on-screen your personal STAR numbe r
and I,D. number. When these numbers appear on your TV s_a_n, write them heze.

Star#

i.D.#

,,,,,, ,,,,, , ,, ,,, ,,, ,,, ,

A-I

STEP 2. Hook-Up Equipment.

There are four possible choices for hooking up your
equipment. Only one of these choices will apply to your
particular equipment setup.

Turn to the appropriate Setup and follow the instructions,
then proceed to "STEP 3. Activate StarSight."

If you have... Turn to

TV Only Setup 1
TV and Cable Box Setup 2

TV and VCR Setup 3

TV, VCR and Cable Box Setup 4

Setup 1: TV Only

If you receive your television signal by antenna or basic
Cable TV (no Cable Box):

,t

3_

Attach the cable coming out of the wall • to the
"ANT/CABLE 1"jack on the back of your TV.

Plug your TV into a power outlet not controlled by a
light switch and turn your TV on.

Proceed to "Step 3. Activate StarSight."

CABLE A

A-2

Setup 2: TV and Cable Box
NOTE: DO NOT UNPLUG YOUR CABLE BOX AT

ANYTIME.

le

2.

e

e

Turn off, but do not unplug, your Cable Box.

Attach the cable coming out of the wall O to your
Cable Box's "Input" or "Cable In" jack.

Attach an RF cable O to your Cable Box' s "Output"
or '"IV Set" jack, and the other end of this cable to the

"ANT/CABLE 1"jack on the back of your TV.
Take the Remote Emitter -- it's a wire with a plug at

one end and two plastic bulbs at the other ends -- and
push the plug of the Remote Emitter wire into the
"StarSight Control Port" on the back of the TV. Run

the Remote Emitter wire _ under the Cable Box and
place either one of the plastic bulbs about two inches

in front of the front panel of the Cable Box _. Make
sure that the plastic bulb is facing the front panel of
the Cable Box (see diagram below). Do not adhere the

Remote Emitter at this time. After you have
completed subscribing to StarSight, and you have
confirmed the correct code that operates your Cable
Box, you can peel off the backing of the sticker on the

Remote Emitter and adhere it permanently.

5, Turn on your Cable Box.

6. Plug your TV into a power outlet not controlled by a
light switch.

NOTE: DO NOT PLUG YOUR TV INTO THE

BACK OF YOUR CABLE BOX.

o

So

Tune your Cable Box to the PBS channel listed on
your StarSight Checklist.

Turn on your TV. Using the number pad on your

Universal TV remote control, tune your TV to the
channel that allows you to watch Cable TV, usually
channel 3 or 4. If these channels don't show your

Cable TV service, then try putting your TV on
channel 2, 5, or 6.

9. Proceed to "Step 3. Activate StarSight."

TO FRONT OF

CABLE BOX

CABLE A

©00

I I

Loop OUT

IN

BOX

FRONT

A-3

Setup 3: TV and VCR 4.

3_

Attach the cable coming out of the wall O to the
"VHF In" (FROM ANTENNA) jack of your VCR.

Attach an RF cable O to your VCR's "VHF Out" (TO
TV) jack, and the other end of this cable to the

"ANT/CABLE I" jack on the back of your TV.

Take the Remote Emitter -- it's a wire with a plug at
one end and two plastic bulbs at the other ends -- and

push the plug of the Remote Emitter wire _ into the
"StarSight Control Port" on the back of the TV. Run

the Remote Emitter wire under the VCR and place
either one of the plastic bulbs about two inches in
front of the front panel of the VCR. Make sure that the
plastic bulb is facing the front panel of the VCR O.

Do not adhere the Remote Emitter at this time. After
you have completed activating StarSight, and you

have confirmed the correct code that operates your
VCR you can peel off the backing of the sticker on the
Remote Emitter and adhere it permanently.

Locate the section.on the back of your TV labeled
"Video 1 In." Attach the three Audio/Video cables to

the "Video," "Audio R" and "Audio L" jacks
and attach the other ends of the cables to the

corresponding "Video Out," "Audio R Out" and
"Audio L Out" jacks on the back of your VCR. This is

necessary if...

• You have a VCR without a front panel channel
indicator that uses an on-screen display.

• You have a stereo VCR and would like to take
advantage of the stereo feature.

You would like to take advantage of PIP.

5o Plug your VCR into a power outlet and leave it off.
6° Plug your TV into a power outlet not controlled by.a

light switch and turn your TV on.

7. Proceed to "Step 3. Activate StarSight."

TO FRONT OF VCR

CABLE A

AUDIo L AUOIoR VIDEo

our

_D_01 IN

VHFIN

T

VHF OUT

VCR FRONT

A-4

Setup 4: TV and VCR and Cable Box

NOTE: DO NOT UNPLUG YOUR CABLE BOX AT

ANY TIME.

lo

2.

e

o

.

,

Turn off your Cable Box.

Attach the cable coming out of the wall O to the
"ANT/CABLE 2" jack on the back of your TV.

Attach an RF cable Q to your TV's "LOOP OUT TO
DECODER" jack, and the other end of this cable to

your Cable Box's "Input" or "Cable In" jack.
Attach an RF cable I_ to your Cable Box's "Output"

or "TV Set" jack, and the other end of this cable to the
"VHF In" (FROM ANTENNA) jack of your VCR.

Attach an RF cable _ to your VCR's "VHF Out" (TO
TV) jack, and the other end of this Cable to the
"ANT/CABLE 1"jack on the back of your TV.

Take the Remote Emitter -- it's a wire with a plug at

one end and two plastic bulbs at the other ends -- and
push the plug of the Remote Emitter O wire into the
"StarSight Control Port" on the back of the TV. Run
one Remote Emitter wire under the VCR and place

one of the plastic bulbs about two inches in front of
the front panel of the VCR Q. Make sure that the

plastic bulb is facing the front panel of the VCR. Do

the same for the Cable Box. Do not adhere the Remote
Emitters at this time. After you have completed
activating StarSight, and you have confirmed the

correct codes that operate your VCR and Cable Box,
you can peel off the backing of the stickers on the
Remote Emitters and adhere them permanently.

7. ocate the section on the back of your TV labeled
"Video 1 In." Attach the three Audio/Video cables to

the "Video," "Audio R" and "Audio L" jacks
and attach the other ends of the cables to the

corresponding "Video Out," "Audio R Out" and
"Audio L Out" jacks on the back of your VCR. This is
necessary if...

• You have a VCR without a front panel channel

indicator that uses an on-screen display.

You have a stereo VCR and would like to take

advantage of the stereo feature.

You would like to take advantage of PIP.

8. Plug your VCR into a power outlet and leave it off.

9. Turn on your Cable Box.

10. Plug your TV into a power outlet not controlled by a
light switch.

NOTE: DO NOT PLUG YOUR TV INTO THE

BACK OF YOUR CABLE BOX.

11.

12.

Tune your Cable Box to the PBS channel listed on
your StarSight Checklist.

Turn on your TV. Using the number pad on your
Universal TV remote control, tune your TV to the

channel that allows you to watch Cable TV, usually
channel 3 or 4. If these channels don't show your

Cable TV service, then try putting your TV on

channel 2, 5, or 6.

13. Proceed to Installation "Step 3. Activate StarSight."

TO FRONT OF VCR

AND CABLE BOX

CABLEA

A-5

STEP 3. Activate StarSight

To bring StarSight information into your home, you must
activate StarSight. You start the process directly through
your TV, in a series of easy steps that take only minutes.

How to Activate StarSight:

le

First, you must be sure that you:

• have completed the StarSight Checklist. 2.

• have followed the step-by-step installation
instructions on the preceding pages that apply to
your video equipment

• have your Universal remote control handy. 3.

• have a videotape ready that you can use for a
30-second recording test (if you have a VCR) 4.

• have a telephone nearby to call StarSight's toll-free
activation number: 1-800-643-STAR.

e

e

e

If you have a Cable Box, make sure that it is tuned to

the PBS channel listed on the StarSight Checklist.

If you do not have a Cable Box, be sure that your TV

is tuned to the correct PBS channel. StarSight will

search for schedule information on this channel.

Press STAR on your remote control to get into

StarSight mode.
The StarSight Menu will be displayed with "Activate

StarSight" highlighted.
Press ENTER/TUNE to begin activation. Then follow

the on-screen instructions.

StarSight will ask you about your equipment, search
for schedule information on your PBS station and

display your STAR # and ID #. (Enter these numbers
in paragraph "C" of your StarSight Checklist.) You

will also be asked to call StarSight.
The StarSight representative will ask you for some

subscriber information, and will activate StarSight.
When you have been authorized, you'll see a screen

that says: Congratulations?

Proceed to "Step 4. Checking Your StarSight Setup."

YOU SHOULD ALSO KNOW...

• If no schedule data is found, you may be tuned to the wrong PBS station. Check the PBS station written on your

StarSight Checklist and try again. Or, try tuning to a different PBS station that is listed for your area at the end of
this section. (If no station is listed for your area, call 1-800-628-STAR for further information.)

A-6

Step 4. Checking Your StarSight Setup

If you do not have a VCR or Cable Box, proceed to
number 4.

Now that you' ve activated StarSight, the final step is to
test your equipment setup. Here's how:

le

Press ENTER/TUNE on your remote control when
you see the "Congratulations!" message.

StarSight will now guide you through a series of
on-screen displays. Please follow the instructions
carefully. All you have to do is respond to the
on-screen prompts. If you're using a VCR, you'll be
prompted to insert a videotape that can be used for a
30-second recording test.

e

Find the Cable Box and VCR codes on your
StarSight Checklist.

If you' ve listed more than one code for a given
brand of Cable Box and VCR, don't worry:

StarSight lets you test each code until the correct
one has been found.

Be sure the Remote Emitters you placed previously
are positioned according to the instructions earlier in

this section.

e

e

Follow the on-screen instructions until you see a

screen that says: Congratulations!

If you have any difficulty finding the correct code or
getting your VCR or Cable Box to respond, call the
StarSight Help Desk at (800) 628-STAR.

Your StarSight System is now all set up and ready
to collect program information. You'll begin to
receive StarSight program information whenever

your TV is turned off or turned to your PBS station.

Initially, it will take between 4 and 12 hours to
collect program information, so we recommend that

you simply wait overnight. While your TV is off, it
will gather the information that it needs. Following

this initial process, your system will automatically
be updated with the latest program information any

time your TV is turned off.

YOU SHOULD ALSO KNOW...

It is important that you:

• Always be sure your"IV set is plugged in.

• Always leave your Cable Box ON, otherwise you risklosingyour StarSight program information.

• Be sur_ you leave your VCR OFF when it'snot being used. Ifyou forget to turn off your VCR, a scheduled recording

cannot occur.

• It will normally take from 3 to 5 seconds for Cable Box channels to change. This is the time it takes for the Remote
Emitter's infrared signal to communicate with your Cable Box.

A-7

PBS Stations

City Station Channel

Alabama

Anniston WCIQ

Birmingham WBIQ
Dothan WGIQ
Decatur WHIQ
tluntsville WHIQ
Mobile WEIQ
Montgomery WAIQ

Alaska

Anchorage KAKM
Fairbanks KUAC

Arizona

Phoenix KAET
Tucson KUAT

7

I0
43
25
25
42
26

7
9

8
6

California

Fmreka KEET i 3
Fresno KVPT !8

Los Angeles KCET 28
Monterey KTEH 54
Sacramento KVIE 6

Salinas KTEH 54
San Diego KPBS !5

Santa Barbara KCET 28
San Francisco KQED 9

San Jose KQED 9
Stockton KVIE 6

Redding KIXE 9
Visalia KVPT 18

Colorado

Colorado Springs KTSC

Denver KRMA
Pueblo KTSC

8
6
8

Connecticut

Bridgeport WEDW 49
Hartford WEDH 24

New Haven WEDY 65
Norwich WEDN 53

Delaware

Seaford WDPB
Wilmington WHYY

Dist. of Columbia

Washington, D.C. WETA

Florida

Daytona Beach WMFE

Ft. Lauderdale WPBT
Ft. Myers WSFP

Gainesville WUFT
I acksonville WJCT

Miami WPBT
Naples WSFP

Orlando WMFE

Panama City WFSG
Pensacola WSRE

Tampa WEDU
St. Petersburg WEDU

Tallahassee WFS U
Thomasville WFS U
West Palm Beach WXEL

64

12

26

24

2

30

5
7

2
30
24
56
23

3

3

II
!1

42

City

Georgia

Albany
Atlanta

Augusta

Chatsworth

Columbus
Dawson

Macon

Savannah

Waycross

Hawaii

Honolulu

Waikiki

Idaho

Boise

Idaho Falls
Twin Falls

Illinois

Carbondale
Champaign
Chicago

Moline

Peoria

Quincy
Rock Island

Springfield

Indiana

Elkhart

Evansville

Fort Wayne
Lafayette

Indianapolis
South Bend

Vincennes

Iowa

Ames
Cedar Rapids

Council Bluffs
Davenport

Des Moines
Fort Dodge

Iowa City
Mason City

Red Oak
Sioux City

Waterloo

Kansas

Hutchinson

Lakin

Topeka

'Kentucky

Bowling Green
CapeGirardeau

Lexington
Louisville

Paducah

Tri-Cities

Station

WABW
WGTV
WCES
WCLP
WJSP

WACS
WDCO
WVAN
WXGA

KHET

KMEB

KAID
KISU
KITT

WSIU
WILL
WTTW

WQPT
WTVP

WQEC
WQPT

WILL

WNIT
WNIN
WFWA
WFYI
WFYI
WNIT
WVUT

KDIN
KIIN

KBIN

KQCT

KDIN
KTIN

KIlN

KYIN

KHIN
KSIN

KRIN

KOOD

KSWK

KTWU

WKYU
WSIU
WKLE

WKPC
WSIU

WSBN

A-8

Channel

14

8

20

18

28
25

15

9

8

11

10

4
10
13

8

12
11

24
47

27
24

12

34

9

39
20
20
34
22

11
12

32
36

11

21

12

24
36
27
32

9

3
!1

24

8

46

15

8

47

City

Station Channel

Louisiana

Alexandria KLPA 25
Baton Rouge WLPB 27

El Dorado KLTM 13
Lafayette KLPB 27

Lake Charles KLTL 18

Monroe KLTM 13
New Orleans WYES 12

Shreveport KITS 24

Maine

Bangor WMEB 12

Calais WMED 13

Lewiston WCBB 10
Presque Isle WMEM 10

Maryland

Annapolis WMPT 22
Baltimore WMPB 67

Frederick WFPT 62

Hagerstown WWPB 31

Oakland WGPT 36

Salisbury WCPB 28

Massachusetts

Boston WGBH 2
Springfield WGBY 57

Holyoke WGBY 57

Michigan

Alpena WCML 6
Bad Axe WUCX 35

Bay City WUCM 19
Detroit WTVS 56

Flint WFUM 28

Grand Rapids WGVU 35
Kalamazoo WGVU 35

WGVK 52

Lansing WKAR 23
Marquette WNMU 13

Mount Pleasant WCMU 14
Saginaw WFUM 28

Traverse City WCMW 21

Minnesota

Austin KYIN 24
Duluth WDSE 8

La Crescent WHLA 31

Mason City KYIN 24

Minneapolis-

St. Paul KTCI 17

Superior WDSE 8

Mississippi

Biloxi WMAH 19
Bude WMAU 17

Columbus WMAB 2
Gulfport WMAH 19

Greenville WMAO 23
Greenwood WMAO 23

Jackson WMPN 29
Meridian WMAW 14
Oxford WMAV 18

(Continued on next page)

PBS Stations

City

Station Channel City

Station Channel City

Station Channel

Missouri

Hannibal WQEC 27
Joplin KOZ! 26

Kansas City KCPT 19
Springfield KOZK 21

St. Louis KETC 9

Montana

Bozeman
Butte

KUSM
KUSM

9
9

Nebraska

Bassett KMNE 7
Hastings KUON 12

KHNE 29

Lexington KLNE 3
Lincoln KUON 12

Merdrnan KRNE 12
Norfolk KXNE 19
North Platte KPNE 9
Omaha KYNE 26

Scottsbluff KTNE 13

Nevada

Las Vegas
Reno

New Hampshire

Durham

Keene

Littleton

KLVX 10
KNPB 5

WENH 1I
WNET 13
WEKW 52
WLED 49

WNET 13
WHYY 12

New Jersey

N. New Jersey
S. New Jersey

New Mexico

Albuquerque KNME
Santa Fe KNME

5
5

New York

Albany-

Schenectady WMHT 17

Binghampton WSKG 46
Buffalo WNED 17

New York WNET 13
Norwood WNPI 18

Plattsburgfl WCFE 57
Rochester WXXI 21

Syracuse WCNY 24
Watertown WNPE 16

North Carolina

Asheville WUNF
Charlotte WUNG
Columbia WUND
Greenville WUNK

Greensboro WUNL
Jacksonville WUNM
Linville WUNE

Raleigh-Durham WUNC
Roanoke Rapids WUNP
Wilmington WUNJ

33
58

2
25
26

19
17

4
36
39

North Dakota

Bismarck KBME 3
Drakinson KDSE 9

Ellendale KJRE 19
Fargo KFME 13

Grand Forks KGFE 2

Minor

KBME 3

KSRE 6

Williston KWSE 4

Ohio

Akron WV1Z 25

WEAU 49
Cleveland WV IZ 25
Cincinnati WCET 48
Columbus WOSU 34

Dayton WPTD 16
Lima WBGU 27

Portsmouth WPBO 42
Steubenville WOUC 44
Toledo WGTE 30

Youngstown WNEO 45

Oklahoma

Cheyenne KWET !2
Eufaula KOET 3

Oklahoma City KETA 13
Tulsa KOED 1!

Oregon

Bend KOAB 3
Eugene KEPB 28

Klamath Falls KFFS 22
Medford KSYS 8
Portland KOPB 10

Pennsyvania

Altoona WPSX 3
Erie WQLN 54

Harrisburg WITF 33
Johnstown WPSX 3

Lancaster WITF 33

Philadelphia WHYY 12
Pittsburgh WQED 13

Scranton WVIA 44

Wilkes-Barre WVIA 44

Rhode Island

New Bedford WSBE
Providence WSBE

South Carolina

Allendale WEBA

Beaufort WJWJ
Charleston WITV
Columbia WRLK

Conway WHMC
Florence WJPM

Greenville WNTV
Greenwood WNEH

Huntington WPBY
Rock Hill WNSC

Spartanburg WRET
Sumter WRJA

36
36

14
16

7
35
23
33
29
38
33

3O

49

27

South Dakota

Aberdeen KDSD 16
Brookings KESD 8

Eagle Butte KPSD 13
Lowry • KQSD I l

Martin KZSD 8
Pierre KTS D I0

Rapid City KBHE 9
Vermillion KUSD 2

Tennessee

Chattanooga

WTCI

45

Jackson WLIT i 1

Knoxville WKOP 15
Memphis WKNO 10

Nashville WDCN 8

Texas

Amarillo KACV 2

Austin KLRU 18

Corpus Christi KEDT 16

Dallas KERA 13

El Paso KCOS 13

Ft. Worth KERA 13
Harlingen KMBH 60

Houston KUHT 8
Lubbock KTXT 5
Odessa Midland KOCV 36
San Antonio KLRN 9

Temple KNCT 46
Waco KNCT 46

Utah

Salt Lake City

"Vermont

Burlington

KUED

WCFE 57

Virginia

Arlington WETA 26
Charlottesville WHTJ 41

Harrisonburg WVPT 51
Lynchburg WBRA 15

Norfolk WHRO 15
Norton WSBN 47

Petersburg WCVE 23
Portsmouth WHRO 15

Richmond WCVE 23
Roanoke WB RA 15

Washington

Seattle KCTS 9
Spokane KSPS 7

Tacoma KCTS 9

Yakima KYVE 47

West Virginia

Beckley WSWP 9
Bluefield WSWP 9

Charleston WPBY 33
Clarkbarg WNPB 24

Huntington WPBY 33
Parkersburg WOUB 20

Weston WNPB 24
Wheeling WOUC 44

Wisconsin

Appleton WPNE 38
Eau Clair WHLA 31

Green Bay WPNE 38
La Crosse WHLA 31

Madison WHA 21
Menomonie WHWC 28

Milwaukee WMVS 10
Park Falls WLEF 36

Rhinelander WHRM 20
Wassau WHRM 20

Wyoming

Cheyenne
Evanston

KTNE 13
KUED 7

A-9

Cable Box Codes

Cable Box Brand

Allegro
OE

Gemini

General Instrument

Hamlin

Jerrold

Kale Vision

Macom
Magnavox

Code

62
67

05, 31, 38

04, 05, 06, 07,

08,09, 10, 18,60

02, 45, 65, 66

04,07,08,09,

10, 18, 60

35
21

34

Cable Box Brand

Northcoast
NSC

Oak
Panasonic

Philips
Pioneer

Regency
Samsung

Scientific Atlanta

Signal
Sprucer

Code

75
35, 39, 68, 69, 70

11, 32, 42
13,20

47, 50, 52, 54, 55

15,43

29
35

16, 23, 36, 64
76

13

Cable Box Brand

StandardComponents
Texscan

Tocom
Unika
Universal

Video Way
Vid Tech

Viewstar
Zenith
Zenith HT-2000

Code

35

39, 56, 71
17, 18, 46

48, 62
58, 62

49
40

54, 55, 72
01

19

VCR Codes

VCR Brand
Admiral

Adventura

Aiwa
Akai

AudioDynamics
Bell& Howell

Broksonic
Canon

Cir.izen

Craig

Curtis Mathes

D_ewoo
Daytron

DBX

Emerson

Fisher
Funai
General Electric

Go Video
Goldstar
Hitachi

Instant Replay
JC Penney

Code
08, 61

31
31

23, 38, 41
02,18

06, 47
21, 26, 50, 55
14
09
12

14, 59
46, 48, 54

46
02, 18

03, 21, 23, 26, 33,

35, 43, 50

11, 12, 13, 47
31

14, 16, 20
56, 62, 63

01,09

15, 57
14, 27
14, 15, 18, 27

VCR Brand
Jerrold

JVC

Kenwood

Logik
LXI

Magnavox
Marantz

Marta
Memorex
Mitsubishi

Montgomery Ward

Multi Tech
NEC

Orion

Panasonic
Pentax
Philco

Philips
Pioneer

Portland
Proscan

Quasar

RCA
Realistic

Code

18
02, 25, 58
02
39

09,31
07, 14, 31
07, 18
09

06, 12, 14, 31
04, 22
08, 14, 16, 31, 49
39
02, 18
50

14, 51, 59

15
07, 14

07, 14, 27

lO,15"

46

16, 60

14, 59

15, 16, 20, 27, 60
06, 08, 12, 14, 31

VCR Brand

Samsung
Sansui

Sanyo
Scott

Sears
Sharp

Shintom
Signature 2000
Sony Video8

Sony VHS
Sony
Sony Beta
Sylvania
Symphonic

Tashiko
Tatung

Teac
Teknika

Toshiba

Vector Research
Yamaha

Zenith

Zenith VHS
Zenith Beta

Code

20
39

06,12,47
04,05,33,43
06,09,11.12,15
08,61
39

08,14,16,31,49

17

32

32, 37
37
07, 14, 27
31
09
02

02, 31
09, 34

05, 15
04,18
02, 18

00

01.24, 25
37

A-10

Basic Operation

This section of the guide discusses the use of StarSight with the Universal Remote. The following illustration shows the
Universal Remote and its controls.

VCR_

PressVCRbutton,then_

POWER buttonto tum_

VCR onand off

FLASHBK "

Return to the previously

tuned channel

DAY

Move ahead24hoursfromthe

screentime currentlydisplayed

in StarSight Program Guides

(hold torepeat)

PAGE LEFT

Display the previous page

in StarSight Program

Guides (hold to repeat)

Move back 24 hours from the

screen time currently displayed

in StarSight Program Guides

(hold to repeat)

NUMBER PAD

Enter number for direct

channel tuning', enter

number selections in

StarSight Setup

MENU/GUIDE

Display the Grid Guide or

Channel Guide; access TV

on-ser_cfl _Bus

THEME

Display the Theme

Guide's program categones

Displays Ln-the

Guide for some o

LEFT

Move left one time slot or

column (hold to repeat)

RECORD

Schedule a programfor

recording; confirm or

cancelrecordings

DOWN ARROW

Move down one row or

selection; while viewing
TV, display information

for programs on other

channels (hold to repeat)

RIGHT ARROW

Move right one time slot or

column (hold to repeat)

UP

Go to the nextchannel

RIGHT

Display the next page in
StarSight Program Guides

(holdto repeat)

•.'LDOWN

Go to thepreviouschannel

ENTER/TUNE

channel; enter selections in

StarSight Setup

UP ARROW

Move up onerow orselection;

while viewing TV, display

information for programs on

other channels-(hold to repeat)

QUIT/SEQ

Exit the current screen or

Pop-up, or return to the

currently tuned channel

STAR
Pressto useStarSight;

displayStarSightInformation
Pop-ups; make and confLrm

selections

TO DO
Displaylist of single

recordings, series recordings,

and StarSight Setup Menu

TV/VCR SOURCE

Select different equipment
connected to your TV

(eg. VCR)

B-1

Finding out more about what you're
watching: the STAR button

1. Press the STAR button. You'll see the program title

and time remaining "Pop up" for five seconds.

e

e

Press STAR again. The Pop-up changes to provide
more detailed information. (It goes away in 30

seconds.) Or...

Press STAR again to resume watching TV.

i obert FoPbes Perkins paddles

along the canals and rivers of
England and Scotland.

Stereo (CC)

_ _ _::_ °_ :_ ..... i ...... _:_ _'_

__ C.BL I_

8:08P

II

YOU SHOULD ALSO KNOW...

• If at anytimeyoufindyoucannotactivatethe StarSightfunctions,justpresstheSTAR button.

B-2

What's on when you change channels:
Grazing

1. Press CHANNEL/Day Up or Down to change

channels.The Pop-up for the new program
automatically displays and then disappears in five
seconds.

CBL

2,, Press STAR while the Pop-up is displayed to get even

more information on the program.

i!i!!i!i!Travels

3. Press STAR again to resume watching TV.

8:08

YOU SHOULD ALSO KNOW...

• If you press STAR twice and then change channels, you willget full program descriptionswhile you are channel
surfing. (Does not apply to Cable Box Setups.)

p,_'_

What's on without changing channels:
Browsing

1. Press 1"or ,1,to see what's on other channels. Notice that

you will continue to see your presently tuned program,
but will get a Pop-up for a program on a different

channel.

2. Press 1"or ,[, as many times as you'd like (or hold to

repeat) to see Pop-ups for different programs.

e

Press STAR while the Pop-up is displayed to get even

more information on the program.

4. Press STAR again. The Pop-up disappears.

........A middle-aged couplediscovers

new sides to their relationship

YOU SHOULD ALSO KNOW.,.

• Press ENTER/TUNE to go directlyto the program in the Pop-up.

• Ifthe PIP window is displayed, press the STAR button and then press T or ,1,to browse channels.

• The program title Pop-up appears inyellow for the currently tuned program.

B-4

Finding out what's on all channels:

Grid Guide

Using the StarSight Grid Guide to see:

• *what's on right now

• what's on for the next seven days

• what the programs are about

le

Press MENU/GUIDE to see a full listing of all
programs. (Remember: If the Grid Guide doesn't
appear, you may not be in StarSight mode. Just press
STAR.)

2. Press ,_, •, T, or _ to move the highlight bar around

the Grid Guide.

SEP

7

SEP

7

STARSIGHT

e

ome ALOne

In A Day's Nor

M,a"ior League Baseball (L)

Batman
Zn th'e Be'st ofTimes
CasabLanca
The Prince of Tides

WET_<_:PBS CBL_ 9:00P

S T A R S I G H T

3. Press STAR any time to get information about the

highlighted show.

4. Press PIP to view the currently highlighted show.

5. Press ENTER!TUNE to tune to any currently

highlighted show.

6. • Press QUIT/SEQ to resume watching TV.

Scott and Roll

9:00P

YOU SHOULD ALSO KNOW...

• Press numbers followed by • or • to move to a specific

time inthe guide.

• Press RECORD to record any highlightedshow.

• Press VOLUME/Page Left or Right to see additional channel listings.

• Press CHANNEL/Day Up or Down to see different days for the same time.

- If you have a cable box, the PIP window willonly show your presentlytuned channel.

B-5

Viewing what's on a single channel:

Channel Guide

Do you have a favorite channel? Showtime?
Nickelodeon?

Whatever it is, StarSight can show you a channel's
schedule for an entire week.

1, Press MENU/GUIDE to see the Grid Guide.

2, Press 1"or ,1, to move the highlight bar to the channel

you want to know about.

STARSIGHT

I4 1

Scott and MoLly

Bingo
ALL in a Day's Work

Major League BasebaLL
Batman

Fresh Prince tBlossom

Avonlea
The Prince of Tides

CNN_: _.:_-._. CBL

(L)

7:25P

e

de

e

6.

Press MENU/GUIDE again to see the Channel Guide
for the channel you highlighted.

Press VOLUME/Page Right to see more programs on
the same channel.

Press ENTER/TUNE to tune to a current program.
Press QUIT/SEQ to resume watching TV.

YOU SHOULD ALSO KNOW...

7:00P Moneyline

._"- -_ X _ v w _ .: _ _.e_- _ "

8:00P Primenews

9:00P Larry King Live!

IO:OOP WorLd News
11:00P Sports Tonight

11:30P Moneyline
12:00A Newsnight

12:30A Inside Politics

I:00A Showbiz Today
1:30A Newsnight Update

2:00A Worldwide Update

'92

7:25P

• Press STAR to learn more about a program.

- Press CHANNEL/Day Up or CHANNEL!Day Down to see the Channel Guide for other channels.

• Press MENU/GUIDE to go back and forth between the Channel Guide and Grid Guide.

• Press RECORD to record any highlightedshow.

B--6

Choosing programs by category:
Theme Guide

What's your favorite kind of program?

Sports? Movies? Comedies? StarSight gives you a
selection of categories to help you pick your favorite shows
for the coming week.

1. Press THEME to see the StarSight Themes menu.

2. Press 1"or ,Lto highlight a Theme.

TARSIGHT

CSPAN2 CBL _ 7:41P

3. Press STAR to see the categories for that Theme.

4o Press 1"or ,1,to highlight a category.

Movies

ALL Movies

"_'_c_i_ _1_ dv ent_'_d_ °÷: _'_ _;_"°:_

• _-,;,,,-,. -._ ,'_ ,,,, o:_,:,o.%_ _^" o_,_.,_:_ ? _ _.

i _-o$_dy..,.._...::_ ........._..._._.._._..._.:.........!.................._:: .....::_,..:,.:...... I

Fantasy/Science Fiction

MeStern- : .. ::

Horror

-Rus._cat;/Bance-

HistoricaL/Biographical

,,_¢.eL-Laneb_S; o--,........

Closed Captioned

.CSPANZ CBL _ 7 : 41P

m

°

7.

Press STAR to see the shows for that category. Press
VOLUME/Page Right to see additional show listings.

Press ENTER/TUNE to tune to a current program.

Press QUIT/SEQ repeatedly to resume watching TV.

YOU SHOULD ALSO KNOW...

• Press STAR to learn more about a program.

• Press MENU/GUIDE to go directly to the Grid Guide
from any Theme Guide.

• Press RECORD to record any highlightedshow,

MON 8:00P Who's That 2:00

CED

EE3

MON 8
NON 10
TUE 12
TUE 9

TUE 10

TUE 12

TUE 2

TUE 2:30P

TUE 6:00P

_S'PAN2 CBL

:OOP Rally 'Roun 2
:OOP The Search 2

:30A The Inspect 2
:30P Stop! Or My 2

:OOA National La 1
:OOP Driving Me 1

:OOP The Addam 2

Vice Versa

And You Tho

:00

:00
:O0
:00

:30

:30

:00

1:45

1:35

7:42P

B-7

Recording what you're watching:
Current Recording

IMPORTANT: Your VCR must be turned off when you're

not using it.

Also, be sure you have inserted a blank
videotape in the VCR.

le

Press RECORD to see a Recording Pop-up. Notice
that the yellow highlight bar is on "ONCE."

If you're recording an event that might run over (for
example, a baseball game), press • on the Record-
ing Pop-up to extend the end time of the recording in

5 minute increments.

2. Press RECORD again to confirm your recording.

StarSight will turn on your VCR and begin recording
in a few seconds.

:3. To cancel a recording in progress, press RECORD

again and then press STAR to confirm.

YOU SHOULD ALSO KNOW...

• To turn your VCR on and off with the remote control,
press the VCR button, followed bythe POWER
button. (See "Programming Your Remote" in the TV
section of thisguide.)

• Do not press VCR buttons while a StarSight
recording is in progress.

• "ONCE" records the current program only, "DAILY"
records the same program every day (M-F), and

"WEEKLY" records itonce a week.

8:25P

B-8

Scheduling a recording from StarSight
guides: Future Recording

fMPORTANT: Your VCR must be turned off when you're

not using it.

Also, be sure you have inserted a blank
videotape in the VCR.

1. Press MENU/GUIDE to see the Grid Guide.

2. Press ,_, I_, 1",or ,1,to highlight a current or future

program.

e

4.

5.

Press RECORD to see a Recording Pop-up for the

selected program.

Press T or J, to select ONCE, DAILY or WEEKLY.

Press RECORD again to confirm your recording. Just
before your scheduled recording, StarSight turns on
your VCR and begins recording.

STARSIGHT

Primenews
Mathnet: Desp] Hath ,., Who
Scott and Holly
Bi,og9

ALL In A Day's Work
Majo,r League Basebali '(L)

Batman
Blossom [ in the Best

Avonlea [ Casablanca
The Prince of Tides

_N_::_ _ CBL _ 8:00P

S T A R S I G H T

U.S. Senate Coverage

Larry King Live!

9:00P-10:00P

Press RECORD

DAILY (M-F) again to confirm L
WEEKLY recording _

_NH_-:;_:,-_? CBL _ 8:00P

Use [4IF Ito change end time

REMINDER: Leave VCR off.

6. To cancel a selected recording, highlight the program

on the Grid Guide (it will be shown in red), press
RECORD and then press STAR to confirm.

You can schedule recordings or cancel them from the Grid
Guide, Cl_annel Guide or Theme Guide.

YOU SHOULD ALSO KNOW...

• Selecting ONCE records the selected program.

• Selecting DAILY records a program every day (M-F).

S T A R S I G H T

SEP M0N -

__ .-'._._:-I

[SHOW) Scott and MoL,,L,z

Bingo

ALL In A .Day's Work

Major League Baseball.(L)

Barman

BLossom _ i_ the Best

Avonlea [CasabLanca

The Prince of Tides

CNN :._: CBL _ 8:OOP

• Selecting WEEKLY records a program once a week.

• You can extend the end time of a recording in 5 minute increments by pressing _ on the Recording Pop-up.

• For more informationon recording,see "YOU SHOULD ALSO KNOW... Recording what you're watching: Current

Recording."

B-9

Reviewing your schedule of individual
recordings: Recordings List

StarSight keeps track of up to 25 scheduled recordings,
including the four most recently completed.

1. Press TO DO to review your scheduled recordings.

RECORDINGS

TUE I:00A Showbiz Tod :30

TUE

_ TUE

WED

WED

THU

FeZ

4:00A
6:30A
6:30A
8:00P
6:30A
6:30A

Casablanca
Getting Fit
Getting Fit
Beverly Hil
Getting Fit
Getting Fit

2:00

:30

:30

1:00

:30
:30

2. Press 1"or $ to highlight a recording.

:.SHOg_IRE CBL _ 10:05P

L_t_)

RECORDINGS

MON IO:OOP
MON 11:00P
TUE I:00A
TUE 4:00A
TUE 6:30A
WED 6:30A
WED 8:00P
THU 6:30A

FRI 6:30A

Northern Ex
Gaslight

Showbiz Tod
Casablanca
Getting Fit
Getting Fit
Beverly Hil
Getting Fit
Getting Fit

:05

2:00

:30

2:00

:30
:30

1:00

:30

:30

3. Press STAR to see information about the program.

4. Press QUIT/SEQ to resume watching TV.

YOU SHOULD ALSO KNOW...

• To cancel a recording, simply highlightthe program
and press RECORD, then STAR.

• If you see a question mark symbol on a scheduled

recording, press MENU/GUIDE to see why there is a
recording mismatch.

• Pressing 1"repeatedly displays the last four

completed recordings.

Programs with a white background are scheduled to be
recorded; those with a gray background have already
been recorded.

SHOWTIME CBL _ 10:05P

RECORDINGS

Scott and Molly

FRI 8:00P 2 hours

A middle-aged couple discovers
new sides to their relationship
over a long, holiday weekend.

Todd Blake, Kim Jones.
l
_**(1988,PG-13) Movies: comedy.

Adult Situations, Adult

Language.

_HOUTIRe CBL _ 10:05P

B-10

Reviewing daily or weekly series

recordings: Series Recordings List

StarSight keeps track of up to five daily or weekly series
recordings.

L Press TO DO to review your scheduled recordings.

RECORDINGS

MON

(_ TUE

TUE

_ TUE

WED

WED

THU

(_ FRI

11:00P

I:00A
4:00A
6:30A
6:30A
8:00P
6:30A
6:30A

Gaslight
Showbiz Tod

Casablanca
Getting Fit

Getting Fit
Beverly Hil
Getting Fit
Getting Fit

2:00

:30

2:00

:30

:30

1:00

:30
:30

SHOWTIME CBL _ I0:05P

2. Press TO DO again to see the Series Recordings list.

_.._/;..SERIES TO BE RECORDED _!-:_;:'.:i2_.(

;,o...., _,_,_._-_ -,_- ,,,._:.;7.%_;_=_7:_.:.,.-.-÷;_z_,k,,_._.-,,,.>_-;? _;°_:..-:,,;:_+.,o,

, :.:..:.._.::._..::_',:,.<..Y...._,..I._._?.:.......:.:,...'...:_:L.:/X>.o;!_.L..:.......................:_:._._,'._::_:..,.-:_:;."...:.._............

'(':9:_:_?)':_K°_,' ON_.:._O°_O(O._N__-h"_i_.._:_l.,_:_O!

WK WED 8:00P BeverLy 1:00

MTWThF 6:30A Getting :30

3. Press QUIT/SEQ to resume watching TV.

SHOWTi-ME CBL _ I0:07P

YOU SHOULD ALSO KNOW...

• To cancel a Series Recording, simply highlightthe Series and press RECORD, then STAR. This also automatically
cancels all individual recordings within that Series.

B-ll

How to watch one channel while
recording another: Watch and Record

If you have a Cable Box: __°__-='.. _[ _[_[ :_

1. After recording begins, press TV/VCR SOURCE.

You will see the TV SOURCE menu highlighted.

Ant/CabLe 1 Ant/CabLe 1

e

am

e

Press ,I, to highlight "Ant/Cable 2," then press
QUIT/SEQ. You can now watch any unscrambled

channel.

Use CHANNEL/Day Up or Down to watch other
channels. (Note: you will not be able to use StarSight
functions while on the ANT/CABLE 2 source.)

To resume normal viewing once recording has been
completed (and to resume using StarSight) press
TV/VCR SOURCE to see the source menu. Then

press 1"to highlight "Ant/Cable 1." Press QUIT/SEQ.

Ant/CabLe 1

Ant/CabLe 2

If you DO NOT have a Cable Box:

1. While you're recording a program, simply press
CHANNEL/Day Up or Down to watch a different
program.

2. For more information about the SOURCE menu, refer
to the TV portion of this guide.

B-12

Selecting and deselecting channels

SUtrSight allows you to remove channels that you rarely or
never watch. When a channel is removed, it will no longer
appear in StarSight Guides, nor will it appear when you flip
through channels. To increase the amount of information
for individual programs that you watch, you should
deselect channels that you seldom or never watch.

1, Press TO DO until you see the StarSight Setup menu.

"Select Guide Channels" will be highlighted.

e

3.

Press STAR to display your channel lineup.

Press 41, I_, 1",or $ to highlight the channel you
want to remove, and press STAR. The background

color will change, indicating that the channel is

deselected.

The PIP window shows a view of the highlighted

channel.

4. If you change your mind, just highlight the channel

again and press STAR. The background will return to
green, and the channel will once again be selected.

NOTE: If you later add back a channel, you must wait

4-12 hours to collect program information for

• that channel. That channel now displays at the
top of your channel list in the guides.

5. Press QUIT/SEQ twice to resume watching TV.

Change Channel Order
Change CabLe Box/Service
Change VCR
Re-Activate/Change Address
StarSight Demonstration

Use t¢ then STAR to choose

To exit, press QUIT

_NN -,':__-- CBL _

5:02P

I MORE

B-13

Changing the channel order

You can list your channels on the Grid Guide in any order
you want. Your channels will also be in this order as you

switch from channel to channel.

1o Press TO DO until you see the StarSight Setup menu.

2. Press ,1, to highlight "Change Channel Order," and
press STAR to display your list of channels.

3. Press _I, I_, T, or ,I,to highlight the channel you want

to move, and press STAR. The channel will move

slightly to the left.

e

Press 4, I_, T, or ,1, to move the highlighted channel
to the new location and press STAR to insert the

channel in its new position.

5. Press QUIT/SEQ twice to resume watching TV.

YOU SHOULD ALSO KNOW...

• To reset your channels to the original order, press 1"

to highlightthe RESET box at the top of the Change
Channel Order screen and press STAR.

, To maximize show descriptions, you should place

your most frequently-watched channels at the
beginning of your list.

SeLect Guide ChanneLs

Change Cable Box/Service
Change VCR

Re-Activate/Change Address

StarSight Demonstration

Use t, then STAR to choose

To exit. press QUIT

........ cBL

5:02P

B-14

Quick Reference Guide

This section of the guide discusses the use of StarSight with the Z-Trak trackbaU remote. Operation with the Z-Trak is
different than with conventional remote controls. There are far fewer buttons, because the trackball is used to move an

on-screen pointer through various menus. The following illustration shows the Z-Trak and its controls.

Set remote to operate"IV

VOL Up/l_t_

When operating "IV: lnciease volume

When operating VCR: Fast forward

VOL Down/q_l

When operating TV: Decrease volume

When operating VCR: Rewind

MUTE II

When operating TV: "IV mute

When operating VCR: Pause

RECRD

When operating TV: Schedule a

program for recording; confirm or

cancel recordings

When operating VCR: Sets VCR to record

POWER

TV: TV power On/Off

When operating VCR: VCR power On/Off

Set remote to operate VCR

3ALL

Pressball to activate

CHAN Up/I_

When operating "IV:Go to the next channel
When operating VCR: Play

CHAN Down/•

When operating "IV: Go to the previous channel

When operating VCR: Stop

ENTER

When operating TV: Tune TV to a program
highlighted on the StarSight screen; when
watching TV displays the program title

"FLSHBK

When operating TV: Tune TV to the last
channel viewed

When operating VCR: TV/VCR Switch

In the following sections, you will be exploring the
various screen menus available in StarSight. As you do
so, keep in mind the following guidelines (quite literally,
"rules of thumb") for Z-Trak operation:

• To display the pointer, press the trackball.

• To highlight an option or make a selection, point to

the desired option and press the trackball.

• To close a StarSight screen, point to the QUIT icon
and press the trackball.

To tune a channel, point to a channel icon and press
the trackball. You can also simply highlight a
program and press the ENTER button to tune that
program.

Many StarSight program guides have more than one
screen full (one "page") of information. You can

point to the "P_'" or "P,L" icons and press the
trackball to flip through the pages. You can also
move more slowly by moving the pointer to the top,
bottom, or side edges of the screen and continuing to

roll the ball in that direction.

Be sure that the pointer is red, indicating that you are in
StarSight mode. If the pointer is blue, move the pointer
to the left side of the TV screen, point to the TV icon
and press the trackball.

C-I

Getting started with the Z-Trak remote

]. Press the TV button on the top of the remote. This

sets the remote's buttons for TV control, rather than
VCR control.

e

3.

e

e

Press the trackball. The pointer, a small square,
appears in the middle of the screen.

You can move the pointer by rolling the trackball
up, down, left, and right. Point to the left edge of
the screen, a column of TV options appears. The
icon at the top indicates which mode is active --
StarSight or TV. A circle with a star, the StarSight
logo, represents StarSight mode; a TV icon
represents TV mode. You can switch between the
two modes by locating the pointer on the StarSight
or TV icon and pressing the trackball. The icon

switches, and the pointer changes color. A red
pointer indicates that you are in StarSight mode. A
blue pointer indicates TV mode.

Set the mode to StarSight.

As you move the pointer around the screen, you
will discover various menus. These menus are not

visible on the screen simultaneously. Each Menu
appears when you move the pointer on top of it.

There are 2 different sets of menus---one for the
StarSight mode and one for the TV mode. This

section discusses the StarSight options. For
information on the TV menus, see the TV portion
of this guide.

Move the pointer to the top of the screen. At the top
you'll see your StarSight icons:

SOURCE: When you press on this option, a selection

screen appears which allows you to specify

• the video/audio source for your TV and the
PIP. Simply point to the desired source and

press. To return to normal TV viewing, point
and press on "EXIT". For more information

see the TV portion of the guide.

TO DO:

THEME:

GUIDE:

When you press on this option, a list of
scheduled recordings and series recordings
appears.

When you press on this option, a list of theme
categories appears.

When you press on this option, the Grid

Guide and Channel Guide appear.

C-2

Continued on next page

6. Movethe pointer to the right of the screen. The

channel icons appear:

All Chan: Gives you a complete listing of all channels.

Point to a channel icon and press the trackball
to tune. Or, point to the number pad and press
the trackball to tune by channel number.

Tune:

When browsing (see below), you can tune
immediately to the show being described in the
Pop-up, by pointing to "Tune" and pressing the

trackball.

Browse "_and .1.: Allows you to get information about

shows on different channels without
actually changing to those channels.

Place the pointer on or near an arrow
and press the trackball.

Chan "_and ,!,: Allows you to change channels up or

down. Place the pointer on or near an
arrow and press the trackball.

lnfo: Displays additional program information. Move

the pointer to "Info" and press the trackball.

e

Move the pointer to the bottom of the screen. The
volume control appears. To adjust the volume,

point to the desired volume level on the slider bar
and press the trackball. Point to "MUTE" and press
the trackball to turn the sound off completely.

8, Move the pointer toward the middle of the screen to

make the menu disappear.

9. Press the trackball to make the pointer disappear.

C-3

Finding out more about what you're

watching: Channel Pop-Ups

1. Move the pointer to the right edge of the screen.
You'll see the program title and time remaining

"Pop-up".

8:

e

e

Point to the "Info" box and press the trackball. The

Pop-up changes to provide more detailed

information.

Move the pointer toward the middle of the screen.

The Pop-up disappears.

TraveLs

THU 8:00P hour

C-4

What's on when you change channels:
Grazing

1. Move the pointer to the right edge of the screen.
You'll see the channel display.

2.

Point to the "Chan" box and place it on or near the

1"or ,I,symbol. Press the trackball to change

channels. The Pop-up for the new program
automatically displays.

3. Point to the "Info" box and press the trackball to get

even more information on the program.

4. Move the pointer toward the center of the screen,

and the Pop-up disappears.

YOU SHOULD ALSO KNOW...

• If you press on "lnfo" and then change channels, you'll get full program descriptions while you're channel-surfing.

What's on without changing channels: Browsing

1. Move the pointer to the right edge of the screen.

You'll see the channel display.

e

Point to the "Browse" box and place it on or near
the T or ,I, symbol. Press the trackball to see what's

on other channels. Notice that you will continue to
see your presently-tuned program, but will get a

Pop-up for a program on a different channel.

e

Keep the pointer on "Browse" and press the
trackball as many times as you'd like (or
hold-down the trackball) to see Pop-ups for
different programs.

de

Point to the "Info" box and press the trackball while

the,Pop-up is displayed to get even more

information on the program.

5. Press on "Info" again or continue browsing, and the

Pop-up disappears.

6. Move the pointer toward to the center of the screen

and the channel display disappears.

YOU SHOULD ALSO KNOW...

• To go directly to the program you see in the Pop-up, simply press the ENTER buttonon the remote control. Or,

point to "Tune" and press the trackball.

• The program title Pop-up appears in yellow for the currently tuned program.

C-5

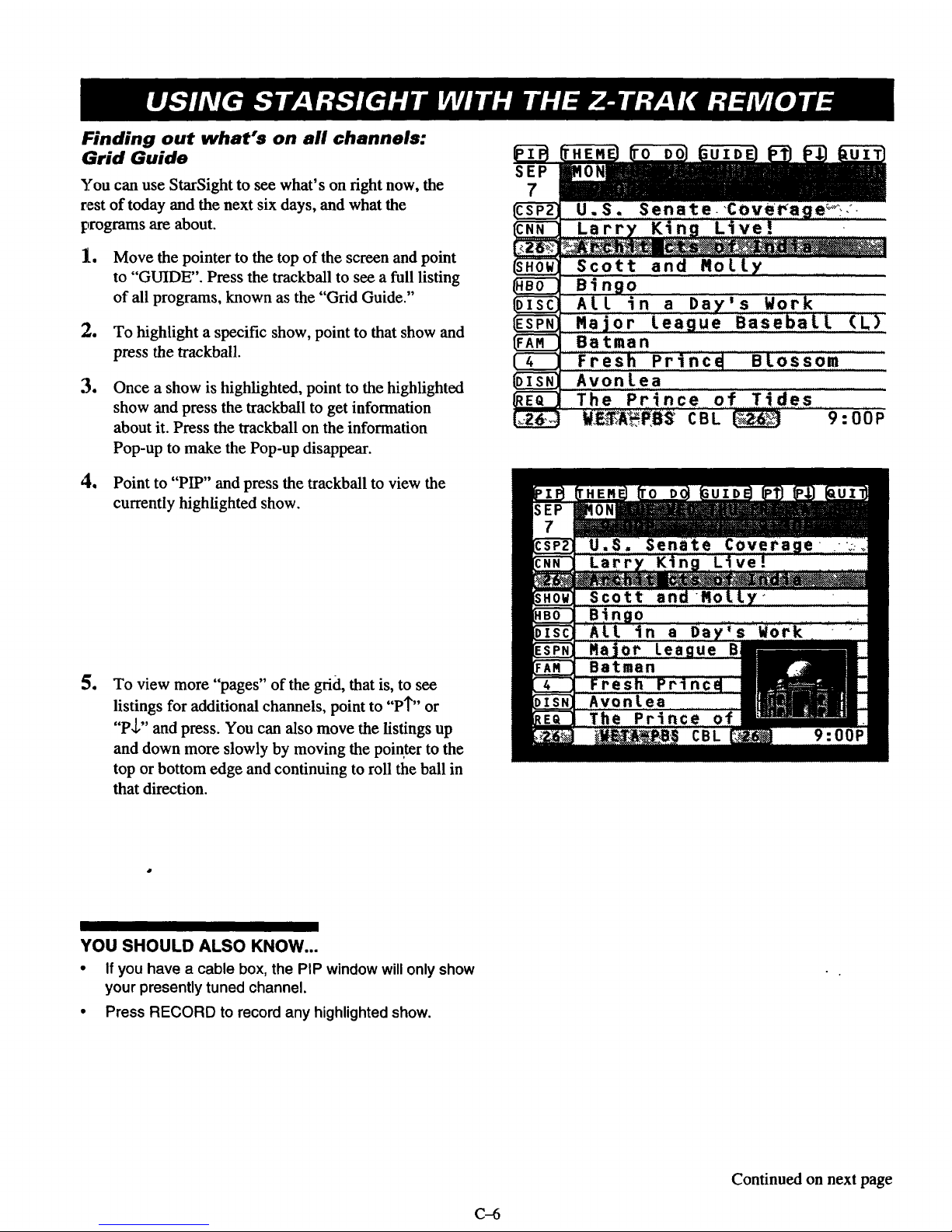

Finding out what's on all channels:
Grid Guide

You can use StarSight to see what' s on fight now, the
rest of today and the next six days, and what the
programs are about.

1. Move the pointer to the top of the screen and point
to "'GUIDE". Press the trackball to see a full listing
of all programs, known as the "Grid Guide."

2. To highlight a specific show, point to that show and
press the trackball.

e

Once a show is highlighted, point to the highlighted
show and press the trackball to get information

about it. Press the trackball on the information
Pop-up to make the Pop-up disappear.

4, Point to "PIP" and press the trackball to view the

currently highlighted show.

e

To view more "pages" of the grid, that is, to see
listings for additional channels, point to "PI" or

"P_." and press. You can also move the listings up
and down more slowly by moving the pointer to the
top or bottom edge and continuing to roll the ball in
that direction.

SEP

7

U.S. Senate. :€overage;_). °-
Larry King L'ive! i

Scott and Ro!.l.y ......

Bingo

Art in a Day's Work

Major League Baseb'a!.l. (L)
Batman

Fresh Princd B!.ossom

AvonLea

The Prince of Tides

W,E_;A._..,P,B$CBL _ 9 : 00P

'he Prince of

YOU SHOULD ALSO KNOW...

• If you have a cable box, the PIP window willonly show

your presently tuned channel.

• Press RECORD to record any highlightedshow.

Continued on next page

C-6

e

e

e

To view listings for a different time slot, point to
one of the time slots shown directly below the day
of the week line, Press the trackball. You will get a

list of the next eleven time slots. Point to one and
press the trackball; the Grid Guide will shift to that

time slot.

NOTE: You can only move forward in time with
this feature.

You can also move forward or back more slowly by
moving the pointer to the right or left edge and

continue to roll the trackball in that direction.

To learn about shows on any of the next six days

point to the desired day ("MON", "TUE", etc.) and

press the trackball.

To exit the Grid Guide, point to "QUIT" at the top of
the screen and press the trackball.

U.S. Senate. C(IO:OOP

Larry* Kin_ Li_ 11:OOP

Scott and Moll I:00A

....B!ngo .............._......... 2:00A

ALL in a Daz',_ 3:OOA

,,Maj,or,le, ague,,r i 4:00A (L)

Batman 5:00A

Fresh Pr'inceJ,,, 6:00A

A.v_nLea ........... 7:00A

The Prince of 8:00A ,

WE'T:_PB_ CBL C_ 9:00e

Choosing a program: Tuning from a Guide

1. Point to "GUIDE" and press the trackbaU to see the

Grid Guide.

e

Q

Point to the desired channel icon (left edge of the
Grid Guide) and press the trackball. StarSight will

tune directly to that channel.

Remember, you can make other channels visible in
the Grid Guide by either using P'I" or P,I., or by
moving the pointer to the top or bottom edge of the
Guide and rolling the trackball.

SEP

7

IESPN}

(4 1

_EQ ]

U,S.._ Senate Coverage o,,,

:_Larry King Live!.

Scott and Molly

..el n.go.

ALL in a Day's Work
Major League Baseball (L)
Barman

Fresh Prince" B'Lossom

AvonLea

The Pr_nce of Tides

W_._ CBL _ 9:00P

YOU SHOULD ALSO KNOW...

• You can also tune directly to a program by highlightingthat program and pressing the ENTER button.

C-7

Viewing what's on a specific channel:
Channel Guide

Do you have a favorite channel? Showtime?
Nickelodeon?

Whatever it is, StarSight can show you a channel's
s_-hedule for an entire week.

le

Move the pointer to the top of the screen and point
to "GUIDE". Press the trackball to see the Grid

Guide. Press the trackbaU again on "GUIDE" to see
the Channel Guide.

2. To highlight a specific show, point to that show and

press the trackball.

e

Once a show is highlighted, point to the highlighted
show and press the trackball to get information
about it. Press the trackball again on the
information Pop-up to make the Pop-up disappear.

e

To view more "pages" of the Channel Guide, point
to "PT" or "P,l." and press the trackbaU. To view
program titles one by one, point to the top or
bottom edge of the Guide, and continue to roll the

trackball in that direction.

tP Honey,: ne" , _ .-

8:00P

9:00P

O:OOP
I:00P
1:30P
2:00A
2:30A

I:00A
1:30A

2:00A Worldwide Update

_N'N_;;:_ ,_ C B L _g 7 : 25 P

1
1
I
1
1

Primenews
Larry King Live!

World News
Sports Tonight

Honeyline
Newsnight

Inside Politics
Showbiz Today

Newsnight Update

8:0OP Primenews

9_

10

11_.

I

1:30A Newsnight Update
2:00A Worldwide Update

_NN;_:_ CBL _ 7:25P

5. To exit the Channel Guide, point to "QUIT" at the

top of the screen and press the trackbaU.

YOU SHOULD ALSO KNOW..

. To see information for another channel, press the CHAN 1"or $ buttonson the Z-Trek remote.

• To tune to the channel in the guide, simply press the ENTER button on the remote, or point to the channel banner

at the bottom of the screen and press the trackball,

• To go back and forth between the Channel Guide and the Grid Guide, point to "GUIDE" and press the trackball.

• Press RECORD to record any highlighted show.

C-8

Choosing programs by category:
Theme Guide

What's your favorite kind of program? Sports?
Movies? Comedies?

StarSight gives you a selection of categories to help you

pick your favorite shows for the coming week.

I. Move the pointer to the top of the screen and point

to "'THEME". Press the trackball to see the

StarSight Themes Menu.

2. Point to your theme selection and press the

trackball to see the categories for that Theme.

e

e

e

e

We

Point to a category and press the trackball to see the
shows for that category.

To highlight a specific show, point to that show and
press the trackball.

Once a show is highlighted, point to the highlighted
show and press the trackball to get information
about it. Press the trackball again on the
Information Pop-up to make the Pop-up disappear.

To see other pages of program information for the

same theme and category, use "PI"" or "P J,". To
view program titles one by one, point to the top or

bottom edge of the Guide and roll the trackball.

To exit the Theme Guide, point to "QUIT" at the
top of the screen and press the trackball.

YOU SHOULD ALSO KNOW...

• To tune to the channel in the guide, pointto a

channel icon or the channel banner at the bottom of
the screen and press the trackball. Or, you can

simply highlightthe desired program and press
ENTER on the remote.

• Press RECORD to record any highlighted show.

Ac t !on'!Ry.St:_._i--y_-Ho. r¢:O,..r:'::?:".::.:.:ii(i '-
a r,ama°IRo_°_'e-_S._:_:iJ;_:?:?:_i:::L:;_.:..'-_::--_:-_'"._,i:-.,

"CSP:AJi2;i_::: CBL {_ 7:41P

ALL Movies

• Act ion_Adventu_ '_-....:_."_"_.: °:_ '. ;":

....... " ;,,,, _'-._,_:,_',K-.-.,',_,;::_'_,'-,'-_.':": ',. , . "':L:.:.::" " .: :°..-,;-: _

:% _" .:

• Drama .:-;.': .._-_:_:'," .... '_ ...........

.... .!_:#_,!.,,': :_'__÷._-:"_,:'.-:-:-_'_---', - _ "_'._'L

Fantasy/Science Fiction

I':_,,, _v-" ::-<. ;:., ,:°::. :, " _-: ,"., -'' . .,.-.""

Horror

Hi stor i ca l,/Biographi ca l

Closed Captioned

CSP,AN2_:-:-_ CBL _ 7 : 41 P

MON 8:00P Who's That 2:00

_ MON 8:00P RaLL_ 'Roun 2:00

MON IO:OOP The Search 2:00
TUE 12:30A The Inspect 2:00
TUE 9:30P Stop! Or My 2:00

TUE IO:OOA National La 1:30
TUE 12:00P Driving Me.. 1:30

TUE 2:00P The Addam 2:00
TUE 2:30P Vice Versa t:45
TUE 6:00P And You Tho I:35

SHO_-_ECBL _ 7:42P

C-9

Recording what you're watching:
Current Recording

IMPORTANT: Your VCR must be turned off when

you're not using it.

Also, be sure you have inserted a blank
videotape in the VCR.

l.e Press the RECORD button on the Z-Trak remote to

see a Recording Pop-up. Notice the yellow
highlight bar is on ONCE; only the current show
will be recorded. Pointing and pressing on

"DAILY" schedules the current show for recording

today and each day at this same time. Pointing and
pressing on "WEEKLY" schedules it for recording
today and once a week at this time.

o

Press the RECORD button, or point to "RECORD"

and press the trackbaU to confirm your recording.

StarSight will turn on your VCR and begin

recording in a few seconds.

e

To cancel a recording in progress, press the

RECORD button. Point to the red area of the
Pop-up and press the trackball to confirm.

YOU SHOULD ALSO KNOW:

• You can watch a program while StarSight is recording a different program. (See the section on 'Watch and Record".)

• If you're recording an event that might runover (for example, a baseball game) point to the I_ and press the

trackball to lengthen the end time of the recording.

Scheduling a recording from StarSight
guides: Future Recording

IMPORTANT: Your VCR must be turned off when

you're not using it.

Also, be sure you have inserted a blank
videotape in the VCR.

le

e

Call up the Grid Guide, Channel Guide, or Theme

Guide as discussed in the previous sections.

Highlight a currentor future program in any of

these Guides.

SEP

..... _:":'i'_ Larry_ King Live! _

__t_'_ :I: _:_ _ _ Press R'_CORD

DAILY (M-F) again to confirm
WEEKLY recording

Use [ < I _ I to change end time

RERINDER: Leave VCR off.

e

e

Press the RECORD button on the Z-Trak remote to

see a Recording Pop-up for the selected program.

Highlight your series option, "ONCE", "DAILY"

or "WEEKLY". "ONCE" schedules just the one

highlighted program for recording. "DAILY"

schedules it to be recorded each day. "WEEKLY"

schedules it for recording once a week.

e

_I_CB 8:05P

Press the RECORD button or point to "RECORD"
and press the trackball to confirm your recording.

SHOULD ALSO KNOW...

• If you're recording an event that might run over (for example, a baseball game) pointto the I_ and press the
trackball to lengthen the end time of the recording.

C-10

Reviewing your schedule of individual
recordings: Recordings List

StarSight keeps track of up to 25 scheduled recordings,
including the four most recently completed.

1. Move the pointer to the top of the screen and point

to "'TO DO". Press the trackball to review your
scheduled recordings.

2. Point to an entry and press the trackball to highlight
a recording.

MON

NON

TUE

TUE 4

TUE 6

WED 6

RECORDINGS

IO:OOP Northern Ex
11:00P Gaslight

I:00A Showbiz Ted

:OOA Casablanca
:30A Getting Fit

:30A Getting Fit

WED 8:00P Beverly Hil
THU 6:30A Getting Fit

:05

2:00

:30

2:00

:30
:30

1:00

:30

FRI 6:30A Getting Fit :30

e

e

e

o

Point to the highlighted recording and press the
trackball to see information about the program.

To cancel a scheduled recording, highlight the
program scheduled for recording and press the
RECORD button on the Z-Trak remote. You will

see a Pop-up asking you to confirm the
cancellation. To confirm, point to the red area and
press the trackball.

To view a list of your last four completed
recordings, press on "PT", or roll the pointer past
the top of the list. Programs with a white
background are scheduled to be recorded. Those
with a gray background have already been recorded.

Point to "QUIT" and press the trackball to resume
watching TV.

S_IO.WI_,]_M,,ECBL _ I0:05P

RECORDINGS
Scott and Molly
FRI 8:00P 2 hours

A middle_aged couple discovers

new sides to their relationship

over a long, holiday weekend.
Todd Blake, Kim Jones.

!

_**(1988,PG-13) Movies: Comedy.
_dult Situations, Adult

Language.

8flOW,-.TIItIL!ECBL _ I0:05P

RECORDINGS

MON IO:OOP Northern Ex :05
MON 11:00P Gaslight 2:00
TUE 1:00A Showbiz Ted :30
TUE 4:00A Casablanca 2:00

Scott and Molly

8:OOP-IO:OOP

FRI 6:30A Getting Fit. :30

YOU SHOULD ALSO KNOW... _ s'HOW_TImE CBL _ 10:05P

• If you see a question mark on a scheduled recording, point to "GUIDE" and pressthe trackball to see why there is a
recording mismatch.

• When you return to the Grid Guide, programs scheduled to be recorded, and their time slots, are designated in red
as a reminder.

C-11

Reviewing daily or weekly series
recordings: Series Recordings List

StarSight keeps track of five daily or weekly series
recordings.

1.

:2.

Call up the Recordings list, as shown in the last
section. Point again to "TO DO" and press the
trackball. You will see the Series Recordings list.

To cancel a Series Recording, simply highlight the
series and press the RECORD button on the Z-Trak
remote. Then point to the red area on the
confirmation Pop-up and press the trackball. This
automatically cancels all individual recordings

within that series.

3, Point to "QUIT" and press the trackball to resume

watching TV.

WK WED 8:01 Beverly 1:00

_ _TWThF 6:30A Getting :30

How to watch one channel while recording another: Watch and Record

If you have a cable box: If you do not have a cable box:

|. After recording begins, move the pointer to the top 1.

of the screen and point to "SOURCE." Press the
trackball. The pointer will now appear in blue.

e

e

e

Point to "Ant/Cable 2" and press the trackbaU.You
can now watch any unscrambled channel.

Move the pointer to the right side of the screen to
change channels. (NOTE: you will not be able to

use S,tarSight functions while on the "Ant/Cable 2"

source.)

To resume normal viewing once the recording has
completed (and to resume using StarSight) point to
the "'SOURCE" symbol at the top of the screen and
press the trackball. Point to "Ant/Cable 1" and
press the trackbaU.

e

While you're recording a program, simply change

channels to watch a different program. You can still

access the StarSight menus while your recording is
in progress. Of course, don't attempt to record
another current program.

For more information about the SOURCE menu,
refer to the TV portion of this guide.

NOTE: If you only see snow, put your TWVCR
switch on the VCR in the TV position.

C-12

What you should do when you get a
new VCR

NOTE: THIS PROCEDURE REQUIRES THE USE

OF THE UNIVERSAL REMOTE.

Make sure your Remote Emitter is positioned 2-3 inches in
front of your new VCR. Find the code(s) for your brand of
new VCR on the "VCR Code" chart and write the code(s)

here.

1. Press TO DO until you see the StarSight Setup menu.

2, Press the ,1,to highlight "Change VCR."

Change Channel Order

Change Cable Box/Service
Change VCR
Re-Activate/Change Address

StarSight Demonstration

Use t¢ then STAR to choose

To exit, press QUIT

cNN( .... CBL _ 5:02P

3. Press STAR and follow the on-screen instructions.

YOU SHOULD ALSO KNOW...

• It is important that your equipment works properly

during each test. For example, make sure your VCR
turr_ on. If the equipment does not respond, you
need to try another VCR code and test your VCR
again.

• Remember to reprogram your remote so it can
operate your new VCR. See the section on
=Universal Remote Control" in the TV portion of
this guide.

• If you have tried all the codes and need assistance,
call the StarSight Help Desk at (800) 62B-STAR.

Select Guide Channels

Change Channel Order
Change Cable Box/Service

Re-Activate/Change Address

StarS_ght Demonstration

Use _ then STAR to choose

To exit, press QUIT

C-I_N-::": - _° CBL

5:02P

What changes are
to your VCR?

you making

1. Add VCR

2. Replace VCR

2. Remove VCR

Enter

To

your selection here:

continue, press ENTER.

D-I

What you should do when you change

your cable box or service or when you

move

NOTE: THIS PROCEDURE REQUIRES THE USE

OF THE UNIVERSAL REMOTE.

If you are changing your cable box, find the code(s) for
your brand of new Cable Box on the "Cable Box Code"
chart and write the code(s) here.

1. Press TO DO until you see the StarSight Setup menu.

_:.___ect._ u] d.e*_h_n _e..[.s.__,_.__,...,I

Change Channel Order
Change Cable Box/Service
Change VCR
Re-Activate/Change Address

StarSight Demonstration

Use t_ then STAR to choose

To exit, press QUIT

CNN :o.-. CBL _ 5:02P

e

Press the J, to highlight "Change Cable Box/Service."

or

Press the ,1,to highlight "Re-Activate!Change Address."

3. Press STAR.

Select Guide Channels
Change Channel Order

.....¢h a_._e._ _:b:{i_..:B._Y.S:e._:_! ._.e..:::....,...l

Change VCR

Re-Activate/Change Address
StarStght Demonstration

Use t_ then STAR to choose

To exit, press QUIT

CNN:X-: _ : CBL _ 5:02P

4. Follow the on-screen instructions.

Before you proceed...

1. Please complete the
StarSight Checklist in your

Installation Guide.

•

Make sure you connect your TV

to any other equipment

according to the diagrams in
your StarSight Installation

Guide.
To continue, press ENTER.

To exit, press QUIT.

01

I)-2

Before calling for service...

1. LEAVE YOUR CABLE BOX ON AT ALL TIMES.

2. LEAVE YOUR VCR OFF WHENEVER YOU ARE NOT WATCHING A VIDEOTAPE.

3. DO NOT PLUG YOUR TV INTO THE POWER PLUG ON THE BACK OF YOUR CABLE BOX.

Installation Problems

Problem

StarSight is not controlling my cable box and
VCR.

My VCR turns off andon, but won't change
channels.

No Picture - "snow."

I do not get any channels above 13.

My TV turned off during Cable Box testing.

I can't r_ake StarSight appear using the Universal
remote control.

I can't make StarSight appear using the Z-Trak
remote control.

Try this

Make sure the Remote Emitter is plugged into the Starsight Control Port on the back

of your TV.
Check the placement of your Remote Emitter(s)---the bulbs should be facing and a

few inches in front of the front panel of your VCR and Cable Box.

Make sure you have completed the equipment test with the proper code for your

brand of equipment. See "Cable Box Codes" and "VCR Codes" charts.
If you have a Cable Box, your VCR does not need to change channels. (The Cable

Box will change channels.)

Try additional VCR codes until you pass the VCR tuning test. See "VCR Codes"
chart. To test the code see "Changing Your Equipment Setup".

Your VCR must be capable of direct tuning, i,e. your VCR's original remote control

must have a 10 digit number pad.
Check the connections between your TV, VCR and/or Cable Box.

Run "Auto Program" for your TV's "Ant/Cable 1" source. If your Setup is #4, then
you should also Auto Program your"Ant/Cable 2" source. (See the TV portion of
the guide.)

If you have a Cable Box, tune your TV to channel 3, or to the cable box output
channel.

Run "Auto Program" for your TV's "Ant/Cable 1" source. If your Setup is #4, then
you should also Auto Program your "Ant/Cable 2" source. (See the TV portion of
the guide.)

Make sure your TV is not plugged into the back of the Cable Box or into a power
outlet that is controlled by a light switch.
NOTE: LEAVE YOUR CABLE BOX ON AT ALL TIMES.

Press STAR to get your remote control to operate StarSight.
Press TV/VCR Source and select "Ant/Cable 1" or StarSight if named.
If you press a button on the remote control and its red light does not appear, then

you need to change your remote control's batteries.
Make sure you have activated StarSight! (See Installation Step 3, "Activate

StarSight".)
Check that the on-screen pointer is red, indicating StarSight mode.
If the pointer is blue, move it to the TV options menu on the left side of the screen.

Point and press on theTV icon. The pointer will turn red and the StarSight logo will
appear indicating StarSight mode.

Refer to the next page for Operation Problems.

E-1

Operation Problems

Problem
I've registered for StarSight but don't have any

program data yet.

The background color for the date and time are
red.

There are some blank spots in StarSight's guides.

StarSight's list of channels does not match those
that appear on my TV.

The entire show did not record.

I have a Cable Box, and want to watch one
program while recording another.

I canceled the recordings of all episodes of a
series, but new episodes for that same series are
still being recorded.

A red question mark appears on a program title in
the Recordings list.

I can't control my VCR with my remote control.

I can't see the videotape when playing back on 1.
the VCR. 2.

The program wasn't recorded.

Try this

1. Make sure your TV is turned offor tuned to PBS in order to receive information.
It may take anywhere from 4-12 hours to initially get the full 7 days of

information. For best results wait overnight. Check the PBS channel for good
picture.

2. If you have a cable box, make sure the cable box automatically tunes to the PBS

channel when TV is turned off.

Your TV lost power momentarily. StarSight will correct the time and date when
your TV is turned off for a few minutes.

StarSight may not have received all the program information. Your TV will collect
program information whenever the TV is turned off.

Call the StarSight Help Desk at 1-800-628-STAR, or fax corrections directly to

1 [phone].

Make sure you have enough tape to record the whole program. StarSight records
programs based upon the scheduled start and stop times. If a program may run
overtime, you should extend the end time of your recording. (See the section
"Current Recording" or "Future Recording".)

While a recording is in progress, change your source to "ANT/CABLE 2" to watch
a different non-scrambled program.

You must cancel the whole series from the Series to be Recorded list. See the
section "Series Recordings List".

My pictureturns to "snow" when recording
begins.

StarSight keeps playing a demonstration, and I
want to stop it.

The program information in the Recordings list does not match the program

information in the Grid Guide. Position the highlight bar on the question mark and
press MENU/GUIDE to see the program that will be recorded. If you don't want to
record this program, press record tocancel the recording.

You need to program your remote control for your particular brand of VCR. (See
the sections on Remote Controls in the TV portion of this guide.)

Check the connections between your TV and VCR.
Make sure your TV is on channel 3 or 4.

3. If you still do not have a picture, try a different videotape that you know has a
good picture.

1. YOUR VCR MUST BE LEFt OFF WHENEVER YOU ARE.NOT
WATCHING A VIDEOTAPE. Otherwise, a recording will not take place. Make
sure you have a videotape with tape remaining.

2. Check the placement of your Remote Emitter. Has it fallen out of place?

3. Make sure you are confirming the recordings when you schedule a program for
recording.

4. Check your Recordings List to see if you actually did schedule a recording for
that specific program.

5. For a current recording, make sure you don't press any buttons until the recording
has begun.

6. If you have changed your VCR, you will probably need to change the VCR code.
To watch TV while recording, wait until recording has begun, then set the

"TV/VCR" switch on your VCR to "TV." Or, on your Universal remote control,
press the "VCR" button and then the "TV/VCR Source" button. (So the VCR is in
"TV" mode.)

If you are running a Quick StarSight Demo, press any key.
If you are running a Continuous Retail Demo (recommended for retailers only), walt
for the message "To cancel this demonstration, press any button now," and press
any button on the remote.

Refer to the previous page for Installation Problems.

E-2
