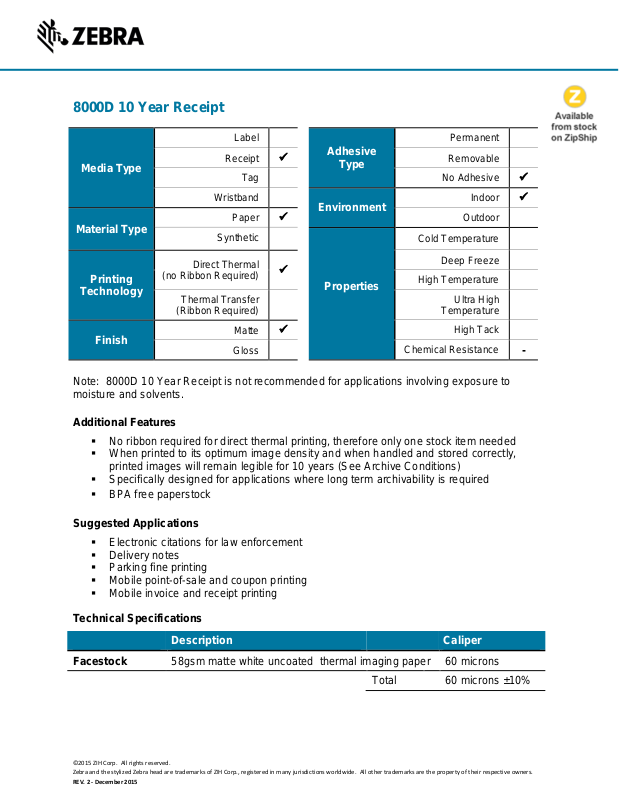

Zebra Z-Perform 8000D 10 User Manual
Media Type
Label
Adhesive
Type
Permanent
Receipt
Removable
Tag
No Adhesive
Wristband
Environment
Indoor
Material Type
Paper
Outdoor
Synthetic
Properties
Cold Temperature
Printing
Technology
Direct Thermal
(no Ribbon Required)
Deep Freeze
High Temperature
Thermal Transfer
(Ribbon Required)
Ultra High
Temperature
Finish
Matte
High Tack
Gloss
Chemical Resistance
-
Description
Caliper
Facestock
58gsm matte white uncoated thermal imaging paper
60 microns
Total
60 microns ±10%
8000D 10 Year Receipt
Note: 8000D 10 Year Receipt is not recommended for applications involving exposure to
moisture and solvents.
Additional Features
No ribbon required for direct thermal printing, therefore only one stock item needed
When printed to its optimum image density and when handled and stored correctly,
printed images will remain legible for 10 years (See Archive Conditions)
Specifically designed for applications where long term archivability is required
BPA free paperstock
Suggested Applications
Electronic citations for law enforcement
Delivery notes
Parking fine printing
Mobile point-of-sale and coupon printing
Mobile invoice and receipt printing
Technical Specifications
©2015 ZIH Corp. All rights reserved.
Zebra and the stylized Zebra head are trademarks of ZIH Corp., registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners.
REV. 2 - December 2015
Recommended Zebra Printers:
Mobile, desktop and mid-range thermal
printers
Minimum Application Temperature:
When the label is applied, the environment
and surface should be above this temperature
N/A
Service Temperature Range:
Following correct application and appropriate
dwell time (usually 24hrs) the media will
withstand this temperature range
-5C to 49C (For use in archive
applications, see Archive Conditions)
Recommended Storage Conditions:
Storage of product before use
6 months duration when stored at 18°C to
28°C at 40% to 60% RH
Expected Life Span in Application:
Following correct application and appropriate
dwell time (usually 24hrs) we expect, but do
not warrant, a life span as indicated
Indoor use, up to 1 year
Indoor archive use, up to 10 years
Archive Conditions
Zebra expects but does not warrant that printed image durability on this product will last for 10
years, when stored according to specific archive conditions.
When printed, the product should be archived at temperatures between 18°C and 24°C, with a
relative humidity of 40% to 60%. Longer term storage at temperatures over 40°C or over 60%
relative humidity can lead to a reduction in contrast.
The product should be archived in the dark, avoiding direct sunlight, fluorescent and similar UV
light sources.
This product should not come into contact with any of the following products, as they can have a
negative effect on the contrast of the printed image:
Carbon and carbonless forms
Chart papers or adhesive containing tributyl phosphates, dibutyl phosphates or other
organic solvents
Envelopes and folders composed of plastics containing plasticizers, such as those
commonly available from office materials suppliers (alternatives are available)
Solvents, including alcohol
Discolouring materials such as polyvinylchloride films containing plasticizers
©2015 ZIH Corp. All rights reserved.
Zebra and the stylized Zebra head are trademarks of ZIH Corp., registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners.
REV. 2 - December 2015
