Page 1 June 8, 2018
Zebra® ZC100 Series / ZC300 Series
Spare Parts Catalog
Page 2 June 8, 2018
ZC100 Series – ZC300 Series Parts Catalog_________________ __ __ ________
Item
Number
Description
Part Number
Kit
Quantity
1
Kit, Printer Side Panels, ZC100 (White)
P1094879-021
1
Kit, Printer Side Panels, ZC300 (Grey)
P1094879-022
1
Kit, Printer Side Panels, ZC350 (Black)
P1094879-023
1
Page 3 June 8, 2018
ZC100 Series – ZC300 Series Parts Catalog_________________ __ _ ________
Item
Number
Description
Part Number
Kit
Quantity
1
Kit, Ribbon Take-Up Drive Assembly
P1094879-034
1
2
Kit, Tri Sensor PCBA
P1094879-036
1
3
Kit, Platen Drive Motor
P1094879-039
1
4
Kit, Platen Rollers
P1094879-043
1
5
Kit, Cam and Gears
P1094879-041
1
Page 4 June 8, 2018
ZC100 Series – ZC300 Series Parts Catalog___________________ __ __________
Item
Number
Description
Part Number
Kit
Quantity
1
Kit, Manual Advance Wheel with Belt
P1094879-033
1
Not Shown
Kit, Drive Belts (Qty 2)
P1094879-032
2
2
Kit, Card Entry Sensor
P1094879-029
1
3
Kit, Card Entry/Exit Module
P1094879-035
1
4
Kit, Main Logic Board ZC100
P1094879-049
1
Kit, Main Logic Board ZC150
P1094879-050
1
Kit, Main Logic Board ZC300
P1094879-051
1
Kit, Main Logic Board ZC350
P1094879-052
1
Page 5 June 8, 2018

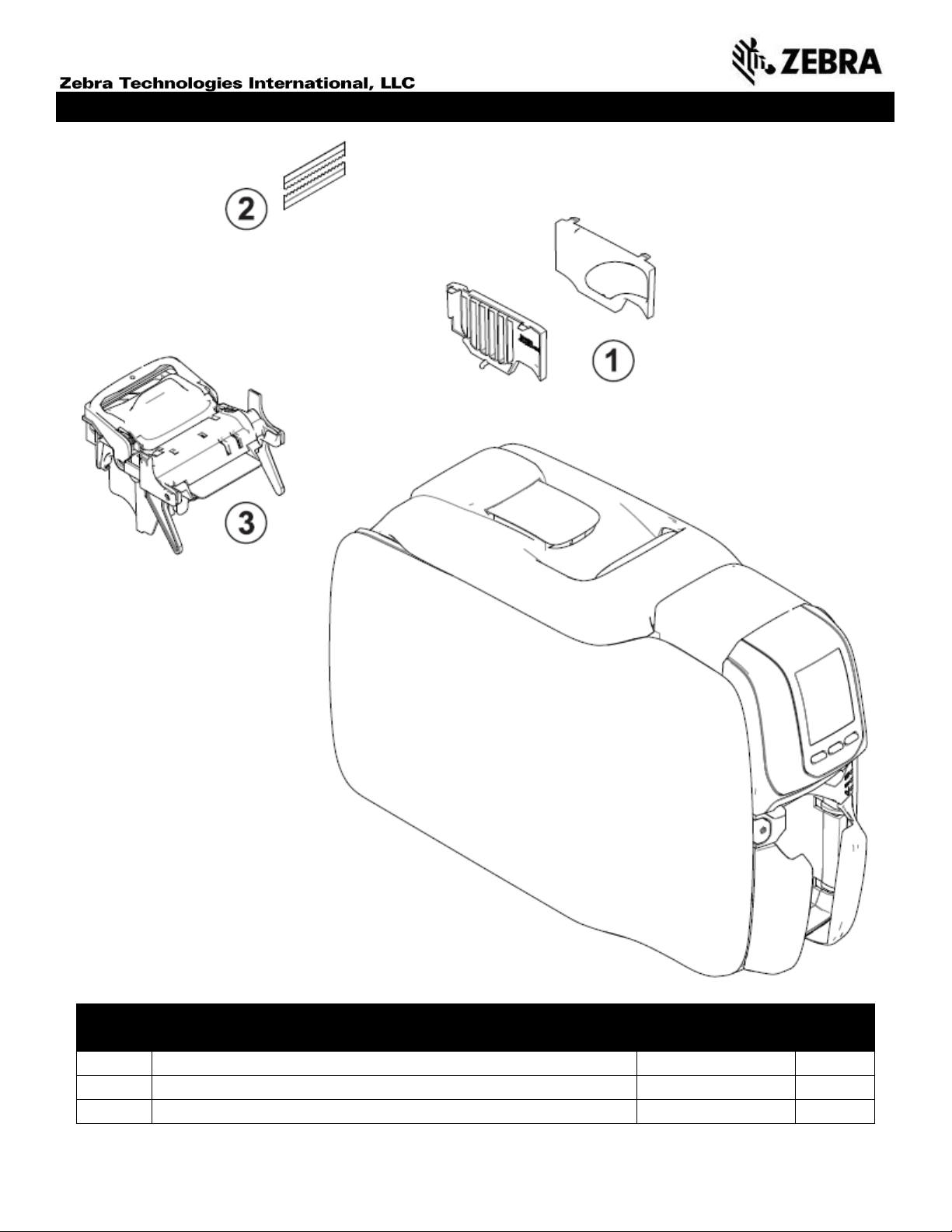

ZC100 Series – ZC300 Series Parts Catalog___________________ _____________
Item
Number
Description
Part Number
Kit
Quantity
1
Kit, Rear Panel, Single Sided
P1094879-060
1
2
Kit, Flipper Assembly
P1094879-025
1
3
Kit, Flipper Enclosures
P1094879-024
1
Page 6 June 8, 2018
ZC100 Series – ZC300 Series Parts Catalog___________________ _____________
Item
Number
Description
Part Number
Kit
Quantity
1
Kit, Top Cover Assembly
P1094879-030
1
2
Kit, Printhead Fan Assembly
P1094879-031
1
3
Kit, Printhead Assembly
P1094879-020
1
4
Kit, Feeder Assembly with LCD
P1094879-053
1
Kit, Feeder Assembly without LCD
P1094879-054
1
5
Kit, LED PCBA
P1094879-055
1
Page 7 June 8, 2018
ZC100 Series – ZC300 Series Parts Catalog___________________ _____________
Item
Number
Description
Part Number
Kit
Quantity
1
Kit, Filler Panels
P1094879-026
1
2
Kit, Static Brush (Qty 10)
P1094879-044
10
3
Kit, Rear Deck Assembly, No Encoders
P1094879-056
1
Page 8 June 8, 2018
ZC100 Series – ZC300 Series Parts Catalog___________________ _____________
Item
Number
Description
Part Number
Kit
Quantity
1
Kit, Ribbon Detect Sensor Assembly
P1094879-057
1
2
Kit, Nip Roller Assembly
P1094879-028
1
3
Kit, Front Deck
P1094879-042
1
4
Kit, Lift Cam Motor
P1094879-038
1
Page 9 June 8, 2018
ZC100 Series – ZC300 Series Parts Catalog___________________ _____________
Item
Number
Description
Part Number
Kit
Quantity
1
Kit, Output Hopper Doors
P1094879-027
1
2
Kit, Feet (Qty 12)
P1094879-059
12
Page 10 June 8, 2018
ZC100 Series – ZC300 Series Parts Catalog___________________ _____________
Item
Number
Description
Part Number
Kit
Quantity
1
Kit, Top Cover Damper (Qty 5)
P1094879-040
5
2
Kit, Cam Position Sensor
P1094879-037
1
Page 11 June 8, 2018
ZC100 Series – ZC300 Series Parts Catalog___________________ _____________
Misc. Items
Item
Number
Description
Part Number
Kit
Quantity
Not Shown
Kit, Power Supply
P1094879-045
1
Not Shown
Kit, Hardware, Fasteners and Screws
P1094879-046
1
Not Shown
Kit, Packaging Standard
P1094879-047
1
Not Shown
Kit, Fabric Packaging Bag (Qty 3)
P1094879-061
3
Not Shown
Kit, Printhead Cable Assembly
P1094879-058
1
Upgrade Kits
Item
Number
Description
Part Number
Kit
Quantity
Not Shown
Kit, Upgrade Mag Encoder
P1094879-002
1
Not Shown
Kit, Upgrade MiFare Contact Encoder
P1094879-003
1
Not Shown
Kit, Upgrade Contact Station
P1094879-004
1
Not Shown
Kit, Upgrade Mifare Prox iClass Contact Encoder
P1094879-009
1
Not Shown
Kit, Upgrade Dual-Sided
P1094879-010
1
Not Shown
Kit, Upgrade ZIP Encoder
P1094879-011
1
Not Shown
Kit, Upgrade Printer Lock
P1094879-012
1
Not Shown
Kit, Upgrade Mag Encoder and MiFare Contact Encoder
P1094879-013
1
Not Shown
Kit, Upgrade Mag Encoder and Contact Station
P1094879-014
1
Not Shown
Kit, Upgrade Mag Encoder and Mifare Prox iClass Contact Encoder
P1094879-015
1
Not Shown
Kit, Upgrade MiFare Contact Encoder (for Printers with Existing Mag)
P1094879-062
1
