Introduction
The VC5090 Vehicle Computer is a vehicle or fixed-mount computer
consisting of two configurations: a full-screen computer with optional
keyboard and a half screen configuration with a integrated keyboard. You
can enter data using the touch screen, the keyboard, an optional bar
code scanner, or a combination of the three. The data is transmitted
wirelessly to a host computer. The vehicle computer features:
• Ergonomic design with color LCD touch screen
• Internal wide-range power supply (10 - 72 VDC) to accommodate
propane, gasoline, and electric-powered forklifts
• Internal antennas with external antenna port
• Interfaces with scanners, printers, audio devices and other
peripherals
• Continuous operation at -30
• Optional touch screen heater for freezer applications
• Pre-loaded with terminal emulation software.
°C (-22 °F)
About This Guide
This guide contains the following:
• Features on page 4
• Unpacking on page 5
• Optional Accessories on page 5
• Installation on page 6
• Powering the VC5090 On/Off on page 21
• Connecting Accessories on page 24
• Maintenance on page 25
• Troubleshooting on page 25
• Regulatory Information on page 27.
For more information including installation instructions, refer to the
VC5090 Product Reference Guide, p/n 72E-76347-xx available at
http://www.zebra.com/support.
4 VC5090 Vehicle Computer
Optional Keyboard
Power LED
Antenna Port for Optional
External Antenna
Display
Built-In Keyboard
Backlight
Control Button
Main Power Switch

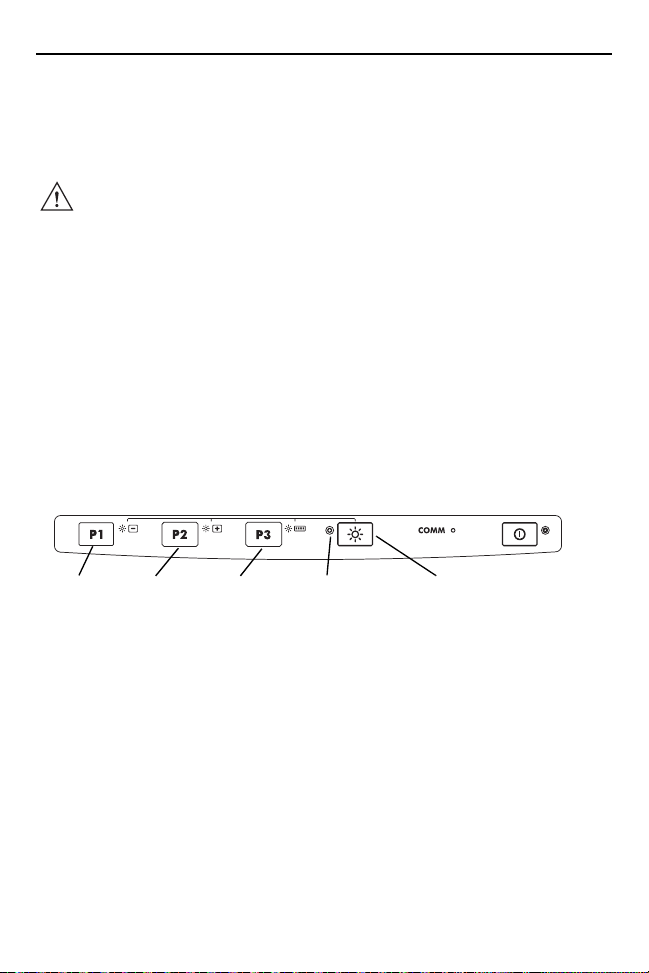

Quick Access
Panel
Power Button
Backlight
Control LED
WLAN COMM LED
Mounting Bracket
Features
Quick Reference Guide 5
Desiccant Door
COM1 Port
Connector
COM2 Port
Connector
USB/ Keyboard
Connector
UPS/Memory Card Door
Audio
Connector
USB Ports
(Client
and Host)
Power
Connector
Unpacking
The following items are contained in the box:
• VC5090 vehicle computer
• mounting bracket with hardware kit
• spare desiccant kit
• power cable with fuse kit
• this guide.
NOTE The hardware kit contains items that might not be used during
installation. Keep the hardware kit in a safe place for future use.
Optional Accessories
• Heated keyboard with bracket assembly
• Scanners and scanner cables
• Headset/Handset
• Vehicle Motion Detector cable
• Printer cables
• Adjustable handles (locking knobs)
• RS-232 and USB ActiveSync cables
• Replacement power cables (straight and right angle)
• AC power supply and power cable
• Uninterruptable power supply (UPS) battery
6 VC5090 Vehicle Computer
Desiccant Bag
Desiccant Door
Desiccant Well
• Replacement desiccant bag kit
• Protective keyboard cover
• Replacement screen protector.
Installation
Installing the Desiccant Door
NOTE Zebra recommends installing the desiccant bag in
environments where extreme temperature changes occur, such
as applications where the device may be continuously moved
between a freezer and a hot/humid area. Temperature changes
would occur more often in the hot/humid months of summer
and less frequently in cold/dry months of winter. If desiccant is
not used, the desiccant door must still be installed and secured.
1. The VC5090 ships with a desiccant bag installed and a replacement
bag in the VC5090 shipping container. The installer may wish to
replace the desiccant in the VC5090 with the new bag prior to
installing the VC5090 on the vehicle, as transit and storage may have
saturated the desiccant.
2. Open the desiccant package and remove the desiccant bag.
3. Fold the four corners of the bag under to form a pillow.
4. Place the desiccant bag in the desiccant well.
5. Ensure that the door seal is in place.
6. Carefully place the desiccant door onto the back housing. Ensure that
the desiccant bag does not interfere with door seal.
CAUTION Be sure to torque the screws to seal the device properly.
Otherwise, sealing can be compromised.
Quick Reference Guide 7
Connector on PCB
UPS
7. Secure the door to the back housing using the four screws. Torque to
9 ± 0.5 kgf.cm (7.8 ± 0.4 in-lbs).
Installing the Optional UPS
NOTE The use of the optional UPS battery is recommended in every
case the power to the VC5090 can be unintentionally
interrupted during operation.
It is strongly recommended when AC power source susceptible
to power failures is used to power the VC5090.
To install the optional UPS:
CAUTION Use ESD precautions when installing the UPS.
1. Place the Main Power switch on top of the vehicle computer to the off
position.
2. Remove and discard the eight screws securing the UPS/Memory Card
door on the back of the vehicle computer.
3. Connect the UPS cable connectors to the connector on the printed
circuit board (PCB) and on the UPS.
4. Place the UPS into the well.
5. Place the UPS/Memory Card door over the UPS and secure using the
eight new screws supplied with the UPS kit.
CAUTION Be sure to torque the screws to seal the device properly.
Otherwise, sealing can be compromised.
8 VC5090 Vehicle Computer
6. Torque the screws to 9 +/- 0.5 kgf.cm (7.8 ± 0.4 in-lbs).
7. Place the Main Power switch to the on position.
It takes four hours to fully charge the UPS.
Installing a Memory Card
A memory card (Secure Digital) provides secondary non-volatile storage.
The card holder is located on the back of the VC5090 under the
UPS/Memory Card door.
To install the memory card:
1. Place the Main Power switch on the top of the vehicle computer to the
off position.
2. Remove and discard the eight screws securing the UPS/Memory Card
door.
3. Lift the card holder retaining door.
4. Position the memory card, with the contacts down, into the card
holder. The memory card corner notch fits into the holder only one
way.
5. Snap the retaining door closed.
6. Replace the UPS/Memory Card door and secure using eight new
screws.
CAUTION Ensure to torque the screws to seal the device properly.
Otherwise, sealing can be compromised.
7. Torque the screws to 9 +/- 0.5 kgf.cm (7.8 ± 0.4 in-lbs).
8. Place the Main Power switch to the on position.
Quick Reference Guide 9
Mounting Bracket
Lock Washer
Flat Washer
Friction Pad
Cap Screw (optional
locking knobs are also
available)
Friction Pad
Mounting Area
Mounting Bracket Installation
NOTE The vehicle computer and bracket must be firmly secured to a
surface that can support the vehicle computer’s weight.
CAUTION Zebra requires that the supplied mounting bracket be used
when mounting the vehicle computer. An alternate RAM
Mount mounting bracket is also available.
Assemble the mounting bracket onto the vehicle computer as shown
below.
Torque cap screws to 276 ± 8.7 kgf.cm (239.6 ± 7.6 in-lbs).
Installing the VC5090 in a Forklift
CAUTION A qualified engineer must perform the installation in a
vehicle. Improper installation can injure the operator or
damage the vehicle and/or VC5090.
Follow the instructions below to properly install the VC5090 in a forklift.
• Determine the best location for mounting the vehicle computer taking
into consideration the driver’s field of view and ease of accessing the
vehicle computer.
10 VC5090 Vehicle Computer
• Install the appropriate mounting hardware. The VC5090 ships with
four cap screws (3/8” - 16 - 2”) for securing the mounting bracket. If
the supplied cap screws are not long enough, use 3/8” - 16 - X
stainless steel cap screws where X represents the length in inches of
the required cap screws.

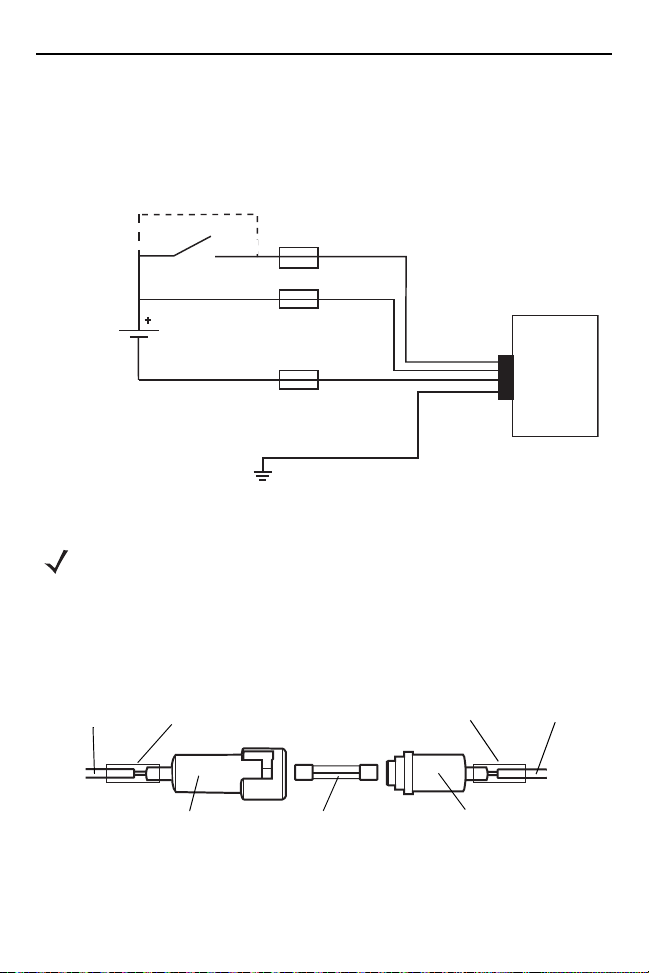

• Connect the vehicle computer to the vehicle’s wiring system.
Positioning the Vehicle Computer
• Position the vehicle computer to ensure proper ventilation around the
device.
• Determine the best position for the vehicle computer and all the
associated components. If a similar vehicle computer was previously
installed, check to see if the position it used is suitable for the
VC5090.
• Test the installation for at least 30 minutes before installing on another
vehicle:
- Check that the position of the
vehicle computer does not
adversely obstruct vehicle
controls.
- Check that the vehicle
computer does not adversely
obstruct the driver's view.
- Check the position of the
vehicle computer for user
comfort over long periods.
- Check positioning to avoid
extreme wrist angles that may
cause injury.
Quick Reference Guide 11
Avoid Extreme Wrist Angles
Optimum Wrist Position
12 VC5090 Vehicle Computer
Mounting the Vehicle Computer
Forklifts tend to generate very large shock and vibration pulses due to the
hydraulics and the lack of suspension coupled with (usually) very hard wheels.
The mounting bracket provided with the VC5090 is designed as an isolator. In
order for it to be effective, the bracket base must be securely mounted to a rigid
and strong structure that fully supports the entire base of the bracket.
Most forklifts have a very rigid and durable chassis and outer body panels but top
facing surfaces may be sheet metal or plastic. These thin sheet metal or plastic
surfaces are not suitable for mounting surfaces due to their non-rigid nature.
Important Fixing Information
CAUTION Any modification to supplied mounting bracket could cause
failure of the unit and/or mountings.
• Mounting surface must be flat and stiff and it must extend evenly for
the entire length of the mounting bracket surface.
• All four mounting holes must be used.
• All nuts and bolts must be checked periodically and tightened if
required.
• When installing the vehicle computer, care must be taken to ensure
that the mounting bracket footprint is fully supported. Additional plates
may be required to achieve this.
Mounting Bracket Template
Refer to the VC5090 Product Reference Guide for mounting template.
Mounting onto an Over-Head Cross-Beam Example
The diagram below illustrates a typical installation where the vehicle
computer is mounted onto a cross-beam.
Quick Reference Guide 13
Nuts
Lock Washers
Cap Screws
Vehicle Cross-Beam
Mounting Bracket
Flat Washers
Flat Washers
Lock Washers
Mounting onto an Over-Head Cage Example
The diagrams below illustrates a typical installation where the vehicle
computer is mounted on an overhead cage. A customer supplied
mounting plate must be used that can withstand the weight of the vehicle
computer under vibration and shock. The plate must be made of
stainless steel or hardened steel with the following dimensions: 3.0 in.
(76.0 mm) wide, 8.66 in. (220.0 mm) long and 0.2 in. (5.0 mm) thick. The
mounting plate must be secured with hardware or to the underside of the
cage by welding.
14 VC5090 Vehicle Computer
Nuts
Lock Washers
Cap Screws
Customer Supplied
Mounting Plate
Mounting Bracket
Flat Washers
Flat Washers
Lock Washers
Nuts
Lock Washers
Cap Screws
Customer Supplied
Mounting Plate
Welded to Beams
Mounting Bracket
Flat Washers
Flat Washers
Lock Washers
Mounting on Flat Overhead Beams
Mounting on Transverse Overhead Beams
Quick Reference Guide 15
Nuts
Lock Washers
Cap Screws
Mounting Bracket
Mounting
Surface
Flat Washers
Flat Washers
Lock Washers
Mounting on a Dashboard or Horizontal Surface Example
The diagram below illustrates a typical installation where the vehicle
computer is mounted on a dashboard or horizontal flat surface.
CAUTION If mounting to a thin surface, a reinforcing plate is required.
Routing Electrical Cables
• Establish a neat route for the cable, staying clear of moving parts or
hot surfaces whenever possible.
• Fix the cable to existing cable runs inside the vehicle using cable ties,
but make sure they are away from any moving or hot surfaces.
• When the cabling must go through a panel, use a suitable gland.
• When fixing the conduit or cable on the outside of a vehicle, use
P-Clips. Either drill and tap the hole or use a nut and bolt to secure the
clip.
• Ensure the cable does not have tight bends. The minimum
recommended radius is 2.5". Do not allow the power cable to bend
against mounting hardware. Use the optional right angled DC power
cable.
• Ensure cables do not swing or chafe on the structure. This often
requires using cable ties approximately every foot, and ensuring the
cables do not flex often, especially where they connect to the VC5090.
However, if you must re-position the VC5090 occasionally, ensure
16 VC5090 Vehicle Computer
VC5090
20A Fuse
1A Fuse
Ignition Switch
20A Fuse
Vehicle
Battery
Power Cable
25-71919-XX
Yel lo w
Red
Green
Black
there is enough slack in the cable to accommodate movement without
putting tension on the cable.
• DO NOT wind a cable in and out of the mesh on a cage.
• On electric vehicles, take the power from as close to the battery as
possible, but not directly from the battery terminals, and not before
any main fuse.
• On gasoline, diesel or propane vehicles, take the power from as close
to the battery terminals as possible, and avoid using existing wiring.
• Ensure that all fuses are as close as possible to the power source.
Gasoline, Diesel, or Propane Forklifts
• All power wiring must use the supplied power cable.
• Fuses:
- two 3AG, 20A, 250V, SLO BLO fuses
- one 3AG, 1A, 250V, SLO BLO fuse.
• Keep the path between the battery and the vehicle computer as short
as possible, and away from any part of the ignition high tension
system.
Electric Forklifts
NOTE This VC5090 is supplied with a power cable and does not
require an external DC power filter. However, it can also be
used with the filtered power cable (25-71919-04R).
Quick Reference Guide 17
VC5090
20A Fuse
1 A Fuse
Switch
20A Fuse
Veh ic le
Battery
Power Cable
25-71919-XX
Yellow
Red
Green
Black
or
Fuse Holder Fuse HolderFuse
Wire
Wire
Shrink Tubing
Shrink Tubing
• All power wiring must use the supplied power cable.
• Fuses:
- two 3AG, 20A, 250V, SLO BLO fuses
- one 3AG, 1A, 250V, SLO BLO fuse.
Connecting the Power Cable
NOTE See the vehicle Owner's Manual for specific wiring
information.
1. Disconnect the vehicle battery.
2. Connect the green wire to the vehicle’s chassis.
3. Place a fuse and fuse holder in-line of the red, black and yellow wires
approximately four inches from the cable end, as shown below.
4. Slide shrink tubing over wires.
5. Strip the wires (0.4 in./10 mm) and insert into the fuse holder. Crimp
fuse holder ends to ensure a proper electrical connection (use
Thomas & Betts WT-11-M crimp tool or equivalent).
18 VC5090 Vehicle Computer
6. Heat shrink tubing.
7. Connect the red wire to the vehicle's positive power source. Connect
the black wire to the vehicle's negative power source.
NOTE The vehicle computer contains an Ignition Sense feature that
detects when the ignition switch is turned off. This allows the
device to draw power for a preset amount of time to allow
proper shutdown of applications then removes power so that it
will not drain the vehicle’s battery.
8. Connect the yellow wire to the vehicle's ignition switch. If you do not
plan on using the Ignition Sense feature, connect the yellow wire to
the vehicle’s positive power source.
9. Ensure the wiring connections created are sufficiently insulated from
each other.
10.Re-connect the vehicle battery.
11. Insert the power cable connector into the vehicle computer's Power
port. Align the keyway on the power connector with the notch on the
vehicle computer’s power port.
Installing the VC5090 on a Desktop
To mount the vehicle computer on a desktop:
CAUTION If mounting to a thin surface such as drywall or plywood, a
reinforcing plate is required.
1. Install the mounting bracket to the desktop using four cap screws,
eight washers and four nuts.
NOTE The VC5090 ships with four cap screws (3/8” - 16 - 2”) for
securing the mounting bracket. If the supplied cap screws
are not long enough, use 3/8” - 16 - X stainless steel cap
screws where X represents the length in inches of the
required cap screws.
Quick Reference Guide 19
Cap
Screws
Wash ers
Nuts
DC Power Cable
(25-71920-01R)
Universal Power Supply
(50-14000-241R)
AC Line Cord (3-wire grounded)
Power Port
2. Insert the DC power cable into the DC connector on the universal
power supply.
3. Plug the other end of the cable into the vehicle computer’s power port.
4. Insert the AC line cord into the AC connector on the universal power
supply.
NOTE When using the optional AC power supply, the vehicle
computer operating temperature range is 50°F to 104°F (10°C
to 40°C).
5. Plug the other end of the AC power cable into a wall outlet.
20 VC5090 Vehicle Computer
Locking Knob
Left Hand
Bracket
Cap Screws with
Captive Washers
Lock Washer
Flat Washer
Installing the Optional Keyboard
NOTE The optional keyboard is only available for the full-screen
configuration.
The keyboard kit contains the following items:
• keyboard
• two keyboard brackets
• four caps screws with captive washers
• two locking knobs, two flat washers and two lock washers.
1. Attach the keyboard brackets to both sides of the VC5090, using the
cap screws with captive washers. Only tighten the cap screws three
turns.
2. Insert the keyboard locking knobs through the washers and brackets
and screw into the keyboard. Tighten fully to lock into place.
3. Torque the bracket cap screws to 230 kgf/cm (200 in-lbs).
4. To adjust keyboard position, loosen the right and left locking knobs
two full turns and rotate the keyboard to the desired position. The
keyboard snaps into possible positions as it is rotated.
Quick Reference Guide 21
5. Tighten the keyboard locking knobs to secure the keyboard into
position.
6. Plug the keyboard cable into the USB/Keyboard connector and
carefully screw the locking barrel until hand tight. Ensure that you do
not cross-thread the barrel.
Powering the VC5090 On/Off
NOTE Only use the Main Power switch when removing power
completely from the VC5090. All data stored in RAM is lost.
To power on, place the Main Power switch on the top of the VC5090 to
the on ( | ) position.
To power off, place the Main Power switch on the top of the VC5090 to
the off ( O ) position.
22 VC5090 Vehicle Computer
Main Power Switch
Power Button
Use the Power button on the Quick Access Panel to place the VC5090
into Suspend mode or wake the VC5090 from Suspend mode.
This is usually enough to conserve battery power while the VC5090 is
idle during off time in normal operation.
Switch off the Main Power switch after the VC5090 is already in Suspend
mode only when removing power completely from the VC5090. All data
stored in RAM is lost.
NOTE Always place the VC5090 in Suspend mode prior to switching
off the Main Power switch and removing power from the
VC5090.
Charging the Internal Backup Battery
After installing the VC5090, leave it powered on for 24 hours to fully
charge the internal backup battery. Note that the VC5090 can charge the
backup battery while in Suspend mode, but not if power is removed.
The internal battery maintains the RAM memory for 72 hours when fully
charged. The data in the Flash memory or Flash file system is not
affected by the state of charge.
Quick Reference Guide 23
Backlight
Control LED
P2 ButtonP1 Button
P3 Button
Backlight Control
Button
Calibrating the Touch Screen
The VC5090 prompts you to calibrate the touch screen when you first
power on the VC5090 or after a cold-boot.
CAUTION Do not use sharp objects when touching the screen. Use
your finger tip or a stylus when touching the screen.
1. Carefully touch and hold the center of each target. Repeat as the
target moves around the screen.
2. Tap the screen to accept the settings when the calibration is complete.
Controlling Screen Brightness
There are five levels of screen brightness. To adjust the brightness of the
screen, press the Backlight Control button on the Quick Access Panel.
The amber Backlight Control LED lights indicating that the VC5090 is in
the backlight control mode. Press the P1 button to decrease the
brightness or the P2 button to increase the brightness. Press the
Backlight Control button to exit this mode (or after five seconds of
inactivity the VC5090 automatically returns to normal operation).
Controlling Keyboard Backlight
To toggle the keyboard backlight on and off, press the Backlight Control
button on the Quick Access Panel. The amber Backlight Control LED
lights indicating that the VC5090 is in the backlight control mode. Press
the P3 button to toggle the keyboard backlit. Press the Backlight Control
button to exit this mode (or after five seconds of inactivity the VC5090
automatically returns to normal operation).
Resetting the Vehicle Computer
If the vehicle computer stops responding to inputs, perform a warm boot
or cold boot.
24 VC5090 Vehicle Computer
Performing a Warm Boot
A warm boot restarts the vehicle computer and saves all stored records
and entries.
NOTE Files that remain open during a warm boot may not be retained.
To perform a warm boot, press the Power button and the P2 button
simultaneously and release.
Performing a Cold Boot
A cold boot restarts the vehicle computer, but erases all stored records
and entries in RAM. Data saved in flash memory or a memory card is not
lost. In addition it returns formats, preferences and other settings to the
factory default settings. There are two ways to perform a cold boot:
• Simultaneously press and hold the Power, P1 and P3 buttons.
• Turn off the Main Power switch on the top of the vehicle computer,
press the Power, P1 and P3 buttons simultaneously then turn the
Main Power switch to the on position.
Programmable Keys
The programmable keys on the Quick Access Panel (P1, P2, P3) can be
set to perform certain functions, such as switching between applications
or emulator sessions.
To set a programmable key:
1. From the Start menu, select Settings > Control Panel.
2. Select the Programmable Keys icon.
3. In the Key: drop-down list, select the key to program.
4. In the Action drop-down list, select the function to assign to the key to
perform.
5. Tap OK.
Connecting Accessories
Connect an optional scanner, ActiveSync serial or USB cable, audio or
USB device using the appropriate connector on the bottom of the
VC5090. Cables are available from Zebra.
Quick Reference Guide 25
You may also use the USB port for ActiveSync connection, if the serial
ports are used for another purpose. This cable is also available from
Zebra. Refer to the VC5090 Product Reference Guide for information
about additional accessories.
Maintenance
The vehicle computer is factory-sealed (except for the desiccant door
and UPS/Memory Card door) and contains no user-serviceable parts.
Only qualified Service Centers should service the vehicle computer.
Use the protective caps that came with the vehicle computer to protect
unused connectors.
• Clean the casing, keyboard, and display window by wiping with a soft
cloth. Use a damp cloth if necessary.
• Never use solvents or abrasive cleaners. You may damage the
display or keyboard.
Desiccant Bag Replacement
Optional desiccant bags can be used in environments where extreme
temperature changes occur. See Installing the Desiccant Door on page 6
for installing the desiccant bags. Discard the original screws and replace
the door using the screws that come with the new desiccant kit.
Troubleshooting
Problem Cause Solution
VC5090 does
not power on
or shuts off
suddenly.
Main Power switch on top of
vehicle computer is in the off
position.
Power cable not connected or
unplugged.
If VC5090 is powered by a
vehicle battery, the vehicle
battery is depleted.
The power cable ignition
sense wire (yellow) is not
connected properly.
Turn the Main Power switch to the on
position.
Connect power cable to power cable
port on bottom of the vehicle
computer. Press the Power button to
wake up the VC5090.
Replace or charge the vehicle battery.
Verify that the power cable is
connected properly. See
Electrical Cables on page 15
Routing
.
26 VC5090 Vehicle Computer
Problem Cause Solution
Cannot see
characters on
display.
Application
does not
respond.
Optional
scanner does
not operate.
VC5090 not powered on. Check that the Main Power switch on
Screen is too bright or too
dark.
VC5090 is in Suspend mode
(green Power LED is off)
VC5090 is not communicating
with the AP (Communication
LED is off).
Scanner is not properly
connected to the VC5090.
SerialWedge application is not
enabled or set to the correct
COM Port.
the top of the VC5090 is in the on
position.
Press the Power button.
Adjust the brightness; see
Screen Brightness on page 23
Press the Power button to wake up the
VC5090.
Bring the VC5090 closer to the AP. If
problem continues, contact your
System Administrator.
Connect the scanner to the COM1 port
and power up the vehicle computer. If
the problem continues, refer to the
scanner Product Reference Guide or
see your System Administrator.
Ensure that the SerialWedge
application is enabled and set to the
correct port. See VC5090 Product
Reference Guide for more information.
Controlling
.
Quick Reference Guide 27
Regulatory Information
All Zebra devices are designed to be compliant with rules and regulations in
locations they are sold and will be labeled as required.
This guide applies to model number: VC5090.
Regulatory Information is available in French, Italian, German, Spanish (Spain),
Portuguese, Japanese, Korean, Russian, Simplified Chinese and Traditional
Chinese. Please see following web site: http://www.zebra.com/support and look
for your specific product.
Any changes or modifications to Zebra equipment, not expressly approved by
Zebra, could void the user's authority to operate the equipment.
Antennas: Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could cause damage and
may violate regulations.
CAUTION
Products Equipped with Bluetooth
Technology
This product contains Bluetooth Complimentary Subsystems:
• BT ID:B01825
• BT ID:B02413
Country Approvals
Regulatory markings are applied to the device signifying the radio(s) are approved
for use in the following countries: United States, Canada, Australia, Japan, China
and Europe
Please refer to the Zebra Declaration of Conformity (DoC) for details of other
country markings. This is available at http://www.zebra.com/doc.
Note 1: For 2.4GHz Products: Europe includes, Austria, Belgium, Czech Republic,
Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden,
Switzerland and the United Kingdom.
Only use Zebra approved and UL Listed accessories,
battery packs and battery chargers.
Do NOT attempt to charge damp/wet mobile computers or
batteries. All components must be dry before connecting to
an external power source.
®
Wireless
1, 2
.
28 VC5090 Vehicle Computer
Note 2: The use of 5GHz RLAN's has varying restrictions of use; please refer to
the Zebra Declaration of Conformity (DoC) for details.
CAUTION
Operation of the device without regulatory approval is
illegal.
Health and Safety Recommendations
Ergonomic Recommendations
CAUTION In order to avoid or minimize the potential risk of ergonomic
injury follow the recommendations below. Consult with your
local Health & Safety Manager to ensure that you are
adhering to your company's safety programs to prevent
employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Warnings for Use of Wireless Devices
Please observe all warning notices with regard to the usage of wireless devices.
Potentially Hazardous Atmospheres
You are reminded of the need to observe restrictions on the use of radio devices
in fuel depots, chemical plants etc. and areas where the air contains chemicals or
particles (such as grain, dust, or metal powders) and any other area where you
would normally be advised to turn off your vehicle engine.
Quick Reference Guide 29
Hearing Aids
The wireless device may interfere with some hearing aids. In the event of
interference you may want to consult your hearing aid supplier to discuss
solutions.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device, to
determine if the operation of your wireless product may interfere with the medical
device.
FCC / EU RF Exposure Guidelines
Safety Information
The device complies with Internationally recognized standards covering Specific
Absorption Rate (SAR) related to human exposure to electromagnetic fields from
radio devices.
Reducing RF Exposure - Use Properly
It is advisable to use the device only in the normal operating position.
Remote and Standalone Antenna Configurations
To comply with FCC RF exposure requirements, antennas that are mounted
externally at remote locations or operating near users at stand-alone desktop of
similar configurations must operate with a minimum separation distance of 20 cm
from all persons.
To satisfy FCC RF exposure requirements, a mobile transmitting device must
operate with a minimum separation distance of 20 cm or more from a person's
body.
Power Supply
Use only an approved power supply 50-14000-241R output rated 12 VDC and
minimum 9 A. The power supply is certified to EN60950-1 with SELV outputs. Use
of alternative power supply will invalidate any approval given to this device and
may be dangerous.
Batteries
Please follow the local regulations when disposing of re-chargeable batteries.
30 VC5090 Vehicle Computer
Tested to comply
with FCC Standards
FOR HOME OR OFFICE USE
Taiwan - Recycling
EPA (Environmental Protection Administration) requires dry
battery producing or importing firms in accordance with
Article 15 of the Waste Disposal Act are required to indicate
the recycling marks on the batteries used in sales, giveaway
or promotion. Contact a qualified Taiwanese recycler for
proper battery disposal.
Wireless Devices - Countries
Country Roaming
This device incorporates the International Roaming feature (IEEE802.11d) which
will ensure the product operates on the correct channels for the particular country
of use.
Ad-Hoc Operation
Ad-Hoc operation is limited to Channels 36-48 (5150-5250 MHz). Use of this band
is restricted to Indoor Use Only, any other use will make the operation of this
device illegal.
Radio Frequency Interference Requirements
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Quick Reference Guide 31
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil
numérique de la classe B est conforme à la norme NMB-003 du Canada.
Radio Transmitters
This device complies with RSS 210 of Industry & Science Canada. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Label Marking: The Term “IC:” before the radio certification only signifies that
Industry Canada technical specifications were met.
Marking and European Economic Area (EEA)
The use of 2.4 GHz RLAN's, have the following restrictions:
• Maximum radiated transmit power of 100 mW EIRP in the frequency range
2.400 -2.4835 GHz
The use of 5GHz RLAN's has varying restrictions for use within the EEA; please
refer to the Zebra Declaration of Conformity (DoC) for details at
http://www.zebra.com/doc
Bluetooth
restrictions:
• Maximum radiated transmit power of 100mW EIRP in the frequency range
®
Wireless Technology for use through the EEA has the following
2.400 -2.4835 GHz
Statement of Compliance
Zebra, hereby, declares that this device is in compliance with the essential
requirements and other relevant provisions of Directives 1999/5/EC and
2011/65/EU. Declaration of Conformities may be obtained from
http://www.zebra.com/doc
Other Countries
2.4GHz Radio Devices:
32 VC5090 Vehicle Computer
Mexico- Restrict Frequency Range to: 2.450 - 2.4835 GHz.
Sri Lanka-Restrict Frequency Range to: 2.400 - 2.430 GHz.
Battery Information
Zebra rechargeable battery packs are designed and constructed to the highest
standards within the industry. However, there are limitations to how long a battery
can operate or be stored before needing replacement. Many factors affect the life
of a battery pack such as heat, cold, customer usage profiles, age, and severe
drops.
When batteries are stored over a year, battery cell manufacturers advise that
some irreversible deterioration in overall battery quality may occur. To minimize
this loss, they recommend storing batteries half charged in a dry, cool place
between 41° and 77°F (5° and 25°C), the cooler the better) and removed from the
equipment to prevent the loss of capacity. Batteries should be charged to half
capacity at least once a year. If an electrolyte leakage is observed, avoid any
contact with the affected area and properly dispose of the battery.
Replace the battery when a significant loss of run time is detected. Batteries must
be charged within the 32° to 104°F (0° to 40°C) temperature range.
The standard warranty period for all Zebra batteries is one year, regardless if the
battery was purchased separately or included as part of the mobile computer. For
more information on Zebra batteries, please visit
http://www.zebra.com/batterybasics.
Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end of their life must be returned
to Zebra for recycling. For information on how to return product, please go to:
http://www.zebra.com/weee.
Français: Clients de l'Union Européenne: Tous les produits en fin de cycle de vie
doivent être retournés à Zebra pour recyclage. Pour de plus amples informations
sur le retour de produits, consultez : http://www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán
entregarse a Zebra al final de su ciclo de vida para que sean reciclados. Si desea
más información sobre cómo devolver un producto, visite:
http://www.zebra.com/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer
Lebensdauer zum Recycling an Zebra zurückgesandt werden. Informationen zur
Rücksendung von Produkten finden Sie unter http://www.zebra.com/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo
ciclo di vita devono essere restituiti a Zebra al fine di consentirne il riciclaggio. Per
Quick Reference Guide 33
informazioni sulle modalità di restituzione, visitare il seguente sito Web:
http://www.zebra.com/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser
devolvidos à Zebra para reciclagem. Para obter informações sobre como
devolver o produto, visite: http://www.zebra.com/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun
levensduur naar Zebra te worden teruggezonden voor recycling. Raadpleeg
http://www.zebra.com/weee voor meer informatie over het terugzenden van
producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji
nale¿y zwróciæ do firmy Zebra w celu ich utylizacji. Informacje na temat zwrotu
produktów znajduj¹ siê na stronie internetowej http://www.zebra.com/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich
životnosti vrátit spoleènosti Zebra k recyklaci. Informace o zpùsobu vrácení
produktu najdete na webové stránce: http://www.zebra.com/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada
taaskasutamise eesmärgil Zebra'ile. Lisainformatsiooni saamiseks toote
tagastamise kohta külastage palun aadressi: http://www.zebra.com/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra
vállalathoz kell eljuttatni újrahasznosítás céljából. A termék visszajuttatásának
módjával kapcsolatos tudnivalókért látogasson el a http://www.zebra.com/weee
weboldalra.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti
podjetju Zebra za reciklažo. Za informacije o vraèilu izdelka obišèite:
http://www.zebra.com/weee.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste
returneras till Zebra för återvinning. Information om hur du returnerar produkten
finns på http://www.zebra.com/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava
kierrätettäväksi Zebra-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen
palauttamisesta on osoitteessa http://www.zebra.com/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når
de er udtjent. Læs oplysningerne om returnering af produkter på:
http://www.zebra.com/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής
τους, πρέπει να επιστρέφονται στην Zebra για ανακύκλωση. Για περισσότερες
πληροφορίες σχετικά με την επιστροφή ενός προϊόντος, επισκεφθείτε τη
διεύθυνση http://www.zebra.com/weee στο Διαδίκτυο.
34 VC5090 Vehicle Computer
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu
tagħhom, iridu jiġu rritornati għand Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif
għandek tirritorna l-prodott, jekk jogħġbok żur: http://www.zebra.com/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti
podjetju Zebra za reciklažo. Za informacije o vračilu izdelka obiščite:
http://www.zebra.com/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí
doby ich životnosti vrátené spoločnosti Zebra na recykláciu. Bližšie informácie o
vrátení výrobkov nájdete na: http://www.zebra.com/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti
grąžinti utilizuoti į kompaniją „Zebra“. Daugiau informacijos, kaip grąžinti gaminį,
rasite: http://www.zebra.com/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā
atpakaļ Zebra otrreizējai pārstrādei. Lai iegūtu informāciju par produktu
nogādāšanu Zebra, lūdzu, skatiet: http://www.zebra.com/weee.
Software Support
Zebra wants to ensure that customers have the latest release of entitled software
at the time of product purchase.
To confirm that your Zebra device shipped with the latest release of entitled
software, visit: www.zebra.com/support. Check for the latest software from
Software Downloads > Product Line/Product > Go.
If your device does not have the latest entitled software release as of your product
purchase date, please e-mail a request to Zebra at:
entitlementservices@zebra.com.
You must include the following essential device information with your request:
• Model number
• Serial number
• Proof of purchase
• Title of the software download you are requesting.
If it is determined by Zebra that your device is entitled to the latest software
release, you will receive an e-mail containing a link directing you to a Zebra Web
site to download the appropriate software.
Quick Reference Guide 35
Zebra Technologies Corporation
Lincolnshire, IL U.S.A.
http://www.zebra.com
Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The Symbol logo is a
registered trademark of Symbol Technologies, Inc., a Zebra Technologies company.
© 2015 Symbol Technologies, Inc.
72-76346-06 Revision A - March 2015
Service Information
If you have a problem using the equipment, contact your facility’s Technical or
Systems Support. If there is a problem with the equipment, they will contact the
Zebra Support at: http:www.
For the latest version of this guide go to:
http:www.zebra.com/support
zebra.com/support.
.
Loading...
