Zebra® TTPM3

Kiosk Ticket Printer

Installation and

Programming Manual

P1003642-001

therein are owned by ZIH Corp. Unauthorized reproduction of this manual or the software and/or firmware in the printer may result in imprisonment of up to one year and fines of up to $10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability.

This product may contain ZPL

, ZPL II®, and ZebraLink™ programs; Element Energy Equalizer® Circuit; E3®; and

ZebraLink and all product names and numbers are trademarks, and Zebra, the Zebra logo, ZPL, ZPL II, Element Energy Equalizer Circuit, and E

All other brand names, product names, or trademarks belong to their respective holders. For additional trademark information, please see “Trademarks” on the product CD.

Proprietary Statement This manual contains proprietary information of Zebra Technologies Corporation and its

subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies.

Product Improvements Continuous improvement of products is a policy of Zebra Technologies. All

specifications and designs are subject to change without notice.

Liability Disclaimer Zebra Technologies takes steps to ensure that its published Engineering specifications and

manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

Limitation of Liability In no event shall Zebra Technologies or anyone else involved in the creation, production,

or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Contents

1 • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Document Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Magnetic Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Document Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2 • Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installing a Desktop Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Network Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing an OEM Printer Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3 • Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Operator Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Paper Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Loading Through Rear Document Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Paper Stock Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Loading Through Front Document Entry (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Paper Jam Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Tickets Stuck in Output Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Self Test Mode/Ticket Repeat Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Repeat Fixed Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Error Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

TTPM3 Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Power Failure Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Start-up Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Contents

Single-ticket Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Previously Encoded Tickets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Inserting a Single Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Read and Decode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Encode and Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Ejecting the Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4 • Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Carriage Return and Line Feed end Each Command . . . . . . . . . . . . . . . . . . . . . . . . 31

Initialization After Power OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Printing and Encoding Capability Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Magnetic Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Positioning Data on the Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Triggering a Printout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Command Acknowledgment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Additional Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Ticket Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

How the Commands are Described . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Summary of Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Document Entry Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Print-data Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Magnetic Encoding/Decoding Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Storage Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Command Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

System Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Document-Entry Related Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Print Related Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Text Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Graphics Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Printing Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Canceling a Ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Magnetic Encoding- and Decoding-related Commands . . . . . . . . . . . . . . . . . . . . . . 56

Additional Encoding Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Storage Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Font Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Logotypes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Erasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Contents

Ticket Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Text Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Printing Bold Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Reversed Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

5 • Default Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

How The Parameters Are Described . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Summary of Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Restore Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Parameter Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

6 • Error Codes and Status Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Security Additions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Extended acknowledgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

7 • Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Fault Finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Cleaning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

8 • Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Interface Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Setup Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Communications Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Communications Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Document Stock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Ticket Base Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Coating and Preprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Thermal-print to Preprint Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Magnetic Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Ticket Dimensions and Perforation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Tickets with 45° Cut Corners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Firmware Versio ns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Firmware History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Contents

Notes • ___________________________________________________________________

__________________________________________________________________________

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Introduction

This document describes installation and operation of TTPM3 Ticket Printer/Encoder, which creates credit-card-wide tickets with magnetic encoding and thermal printing.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Introduction

Document Printing

TTPM3 uses the direct thermal printing technique and can print the entire surface of the ticket

with text, bar codes, or graphics, or any combination hereof. Text block position and orientation is software programmable as is the character size.

The data sent to the printer is converted to a ticket image which is stored in the unit until an “All Clear” software command is sent, or the power is turned off/on.

Magnetic Encoding

Three magnetic tracks can be encoded: Either with standard low coercivity recording, or optional “household-magnet proof” high coercivity recording.

ISO track version ISO track 1 at 210 BPI

ISO track 2 at 75 BPI (Bits-Per-Inch)

ISO track 3 at 210 BPI

Center track version 7 mm wide center track at 75 or 210 BPI

Note • Encoding in ISO standard format, or in hexadecimal format (bit-by-bit), is software

selectable.

The TTPM3 can be used for encoding on one, two, or three tracks simultaneously.

Read-after-write is automatically performed.

You can also enter an already encoded ticket into the TTPM3 and read the magnetic stripe and output the data to the host computer.

See also Magnetic Encoding/Decoding Commands on page 38.

Document Handling

TTPM3 printer has two rear inputs for ticket stock. Both can take continuous ticket stock like fanfold or roll ticket material. You can configure the printer so that one is used for continuous stock and the other is used for handfed tickets.

There is an optional front load mechanism that makes it possible to load single tickets through the ticket exit. This replaces the upper ticket entry at the rear of the printer. In addition to this, the front load has a wastebasket function for redirecting used or invalid tickets to a wastebasket, thus preventing useless tickets being presented to the customer.

You can select to partially eject the ticket so that the customer takes it from the frontload mechanism, or fully eject the ticket so that it falls into a tray. You can also select that a ticket should be redirected to a wastebasket as described above.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Contacts

Technical Support via the Internet is available 24 hours per day, 365 days per year.

Web Site: www.zebra.com E-mail Back Technical Library:

E-mail address: emb@zebra.com Subject line: Emaillist

Self Service Knowledge Base: www.zebra.com/knowledgebase Online Case Registration: www.zebra.com/techrequest

Introduction

Contacts

Which Department

Do You Need?

Regional Headquarters

Technical Support

For questions on the operation of Zebra equipment and software, please call your distributor. For additional assistance, contact us.

Please have your model and serial numbers available.

Repair Service Department

For back-to-base service and repair.

Technical Tr aining Department

For Zebra product training courses.

Inquiry Department

For product literature and distributor and dealer information.

Customer Service Department (US) Internal Sales Department (UK)

For printers, parts, media, and ribbon, please call your distributor or contact us.

Key:

T: Telephone F: Facsimile E: E-mail

The Americas

Zebra Technologies International, LLC 333 Corporate Woods Parkway Vernon Hills, IL 60061-3109 U.S.A.

T: +1 847 793 2600 Toll-free +1 800 423 0422 F: +1 847 913 8766

T: +1 877 ASK ZEBRA (275 9327) F: +1 847 913 2578

Hardware: ts1@zebra.com Software: ts3@zebra.com

Kiosk printers:

T: +1 866 322 5202 E: kiosksupport@zebra.com

T: +1 877 ASK ZEBRA (275 9327) F: +1 847 821 1797

E: repair@zebra.com

To request a repair in the U.S., go to www.zebra.com/repair

T: +1 847 793 6868 T: +1 847 793 6864 F: +1 847 913 2578

E: ttamerica@zebra.com

T: +1 877 ASK ZEBRA (275 9327)

E: inquiry4@zebra.com

T: +1 877 ASK ZEBRA (275 9327)

E: clientcare@zebra.com

Europe, Africa,

Middle East, India

Zebra Technologies Europe Limited Dukes Meadow Millboard Road Bourne End Buckinghamshire, SL8 5XF United Kingdom

T: +44 (0) 1628 556000 F: +44 (0) 1628 556001

T: +44 (0) 1628 556039 F: +44 (0) 1628 556003

E: tseurope@zebra.com

T: +44 (0) 1772 693069 F: +44 (0) 1772 693046

New requests: ukrma@zebra.com Status updates:

repairupdate@zebra.com

T: +44 (0) 1628 556000 F: +44 (0) 1628 556001

E: eurtraining@zebra.com

T: +44 (0) 1628 556037 F: +44 (0) 1628 556005

E: mseurope@zebra.com

T: +44 (0) 1628 556032 F: +44 (0) 1628 556001

E: cseurope@zebra.com

Asia Pacific

Zebra Technologies Asia Pacific Pte. Ltd. 120 Robinson Road #06-01 Parakou Building Singapore 068913

T: + 65 6858 0722 F: +65 6885 0838

T: +65 6858 0722 F: +65 6885 0838

E: China: tschina@zebra.com

All other areas:

tsasiapacific@zebra.com

T: +65 6858 0722 F: +65 6885 0838

E: China: tschina@zebra.com

All other areas:

tsasiapacific@zebra.com

T: + 65 6858 0722 F: +65 6885 0838

E: China: tschina@zebra.com

All other areas:

tsasiapacific@zebra.com

E: China: GCmarketing@zebra.com

All other areas:

APACChannelmarketing@zebra.com

T: +65 6858 0722 F: +65 6885 0836

E: China: order-csr@zebra.com

All other areas:

csasiapacific@zebra.com

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Introduction

Contacts

Notes • ___________________________________________________________________

__________________________________________________________________________

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Installation

The TTPM3 comes as desktop printer, or as an OEM printer mechanism for kiosk applications.

Figure 1 • Desktop Printer

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Control panel

Input 1 (lower)

Input 2 (upper)

Interface connector

Ticket output

Printhead-open lever

Power inlet (24V)

Control panel

Input 1 (lower)

Input 2 (upper)

Interface connector

Ticket output

Printhead-open lever

Power inlet (24V)

Installation

Figure 2 • OEM Printer Mechanism

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Installing a Desktop Printer

1. Connect the cable from the power supply to the connector at the back of the printer.

2. Connect the power supply to a line outlet with safety ground. The ground potential should

be the same as for the host computer. If ground potentials differ, use a short distance modem between the computer and the printer.

3. Connect a serial cable between the COM port of the host computer and the serial input of

the TTPM3 printer. For pin assignment, see Communications Cable on page 98.

4. Turn on the printer. The blue and green indicators should light up.

5. Press the front button. The green indicator starts flashing and the yellow indicator lights

up, indicating “Out of Paper”.

6. Turn the tickets so that the magnetic stripe is on the left side facing downwards, as seen

from the front of the printer.

7. Insert tickets in the lower document entry. The printer feeds the tickets forward and cuts

and ejects one ticket.

Installation

Installing a Desktop Printer

The printer is ready for use.

Network Option

If the printer is equipped with a network card only network interface should be used.

1. Open the cover

2. Insert the network cable in the hole at the rear of the cover.

3. Connect the cable to the TCP/IP connector at the rear of the network card.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Installation

Installing a Desktop Printer

4. Take out the configuration ticket that sits in the holster on the side of the network card.

5. Start a web browser and enter the IP address printed on the configuration card, for

example http://192.168.0.52

Now the server in the TTPM shows. Here you can set new address and print a new configuration card:

If you have problem finding the TTPM from your PC, please check that the PC uses the same

third digit in the IP number as the printer does, for example: 192.168.0.52. If this digit differs,

please temporarily change it to the same third digit as on the configuration card. Then connect to the printer and give the printer a new IP address that works in your network environment.

Note • The serial connector on the back of the printer is used by the network card, so you

cannot run both interfaces at once.

Testing

If you want to test the printer through the network you can use the SWC Socket Terminal utility program that allows you to send command scripts and binary files to the printer.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Output Tray or Nozzle?

The output nozzle is used if the operator only prints one ticket at a time and should take the ticket from the printer.

The output tray collects the printed and coded tickets in a neat stack. Use the tray if you intend to print many tickets at a time.

If an output nozzle is fitted:

1. Press it out from behind and remove it

2. Loosen the two screws in the front a couple of turns

3. Hook the tray onto the screws and tighten them

4. Press tray downwards so it is securely fastened

Figure 3 • Installing an Output Tray or Nozzle

Installation

Installing a Desktop Printer

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Installation

Installing an OEM Printer Mechanism

The TTPM3 OEM printer mechanism should be installed in some kind of enclosure such as a self-service kiosk.

Preventing ESD and earth currents from affecting the printer operation requires proper connection of the printer chassis to protective earth through a mounting platform or through a separate earth conductor.

Trouble free printer operation also requires the printer’s optical sensors to be shielded from ambient light.

Additional space is required for paper stock and handling. Consider mounting the printer on a movable platform so that the printer can be maintained outside the printer enclosure.

Figure 4 • Dimension Drawing for Printer Mechanism.

All Measurements are in mm.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Installation

GND

+24 V

GND

+24 V

Installing an OEM Printer Mechanism

With Zebra power supplies, just connect the cable from the power supply to J5.

If you use another type of power supply unit, 24 V cables are available from Zebra, order No. 01370-000.

Should you make cables of your own, connect the voltages according to the following

illustration. Note that protective ground and minus output should not be interconnected in the

power supply. At the printer end of the cable, use an AMP Mate-N-Lok connector housing and two contact-sockets:

Figure 5 • Power Connection

Housing: AMP No. 350777-1

Table 1 • Current Consumption

Mode

Idle 150 mA

Standard text printing 2 A average

Peak current 6 A

Important • The 24 V ground, as well as the chassis of the printer, must be connected to

ground potential (safety ground).

Socket: AMP No. 350689-1

After fastening the printer, proceed with Installing a Desktop Printer on page 12.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Installation

Notes • ___________________________________________________________________

__________________________________________________________________________

Installing an OEM Printer Mechanism

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Operation

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Operation

Operator Controls

Figure 6 • Indicators and Pushbuttons

Blue indicator

Lights when

power is ON

Red indicator

Error, turn OFF

and ON the printer

to clear.

Yellow Indicator

Fixed: Out of paper.

Fixed: Out of paper. Blinking:

Blinking:

Print command

received, but out

of paper.

Green indicator

Fixed:

Printer ready.

Fixed:

Printer ready.

Blinking:

Flickering:

Temporarily OFF:

Temporarily OF F :

Insert ticket.

Receiving data.

Power ON/OFF button

Switches on or off the

TTPM3

On/Off

Error

Out of

Out of Tickets

Tickets

Ready

Commands are executed.

Clear pushbutton

Press and hold at power ON

to turn on paper jam clearing

mode. Press front button to

advance ticket forward and

middle button to retract ticket

backwards. T urn printer OFF

backwards. Turn printer OFF

and ON to exit paper jam

clearing mode.

Clear

Jam

Eject

Ticket

Feed

Ticket

Feed pushbutton

1.Cuts and ejects a ticket .

1.Cuts and ejects a ticket.

2. Press and hold at power ON to enter

self test mode. Press again to encode

test mode. Press again to encode

self

and print one ticket. The printout shows

current firmware version. Turn printer

OFF

and ON to exit self t

OFF

and ON to ex

Eject pushbutton

1.Ejects any document in

the selected ticket track.

the selected ticket track. (Same as when an !E

(Same as when an !E

command is received.)

2.Press and hold at power

ON to run cleaning card

through printer.

est mode.

it self test mode.

Keyboard

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Paper Loading

Upper document entry

SW97113R2

Lower document entry

Magnetic stripe

The yellow indicator indicates paper out.

Press the center button to eject remaining tickets if you want to replace paper stock before paper is out.

Loading Through Rear Document Entries

1. Insert the ticket stock into the desired document entry.

When the ticket is detected by the input sensor it will be pulled into the active position. Consecutive ticket stock is usually loaded in the lower document entry, and single tickets in the upper document entry.

If the printer is configured for two consecutive entries, you may also use fanfold tickets in the upper document entry.

Figure 7 • Position of the Magnetic Stripe when Loading Paper

Operation

Paper Loading

Paper Stock Positioning

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

The ticket stock should be oriented with the magnetic stripe down to the left as seen from the front of the TTPM3. It is good practice to place the pile of fanfold tickets at a distance of at least one ticket length behind, and straight out from the printer.

SW97116R2

90°

SW97116R2

90°

Magnetic stripe

Operation

Paper Loading

Figure 8 • Positioning the Ticket Stock

Loading Through Front Document Entry (Optional)

An !L3 command must be sent to the printer to prepare it for front loading. When this command has been received and the input sensor detects a ticket being inserted into the document exit, it will be pulled into the active position of the upper rear document entry. For the magnetic stripe to be readable, the ticket must be inserted with the stripe facing down to the left, as seen from the front of the printer.

Figure 9 • Position of the Magnetic Stripe at Front Load

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Paper Jam Removal

Open the cover to locate and remove the ticket that is stuck in the mechanism. Use the following procedure:

1. Select paper jam clearing mode

2. Power OFF.

3. Push and hold the “Clear Jam” pushbutton while turning ON the power.

The red indicator shows a steady light to indicate paper jam clearing mode.

Tickets Stuck in Input Module

1. Press and hold the “Eject Ticket” push button to feed the ticket towards the rear of the

unit.

Tickets Stuck in Output Module

Operation

Paper Jam Removal

1. Press and hold the “Feed Ticket” push button to feed the ticket towards the front of the

unit.

2. Exit paper jam clearing mode

3. Power OFF and back ON again.

The TTPM2 is operational but any ticket information previously sent to the unit is lost.

Note • You can also power OFF the printer and turn the feed rolls manually to remove the

blocking ticket.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Operation

Self Test Mode/Ticket Repeat Mode

Self Test

1. Press and hold the front pushbutton at power ON to enter self-test mode.

2. Press again to encode and print one ticket.

The printout shows current firmware version.

3. Turn printer OFF and ON to exit self-test mode.

Repeat Fixed Print

1. Start self-test mode as described above.

2. Download the ticket data to the printer, and print one ticket.

The data must only contain fixed text, fixed encoding data, and graphics.

3. Press the front button once.

An exact copy of the first ticket will be printed. This will be repeated each time that the front button is pressed.

4. Turn printer OFF and ON to return to normal operation.

Note • Do not hold the front button depressed! Doing so will result in erroneously cut tickets

often resulting in paper jam.

Note • Repeating fixed print only works on printers where the auto clear function is OFF. Auto

clear is enabled / disabled with a parameter setting.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Error Handling

The blue and green indicators lights up at power ON. If they fail to light up, switch the TTPM3 OFF and ON again. If the indicators are still OFF, check your power connection both in the TTPM3 and in the wall outlet. Also check your main power supply fuse.

TTPM3 Start-up

The TTPM3 has Flash memory where the firmware and parameter settings are stored. All print field definitions are stored in RAM and disappears when the printer power is switched OFF.

Power Failure Cleanup

If “Clear ticket path at startup” is enabled (parameter 8), TTPM3 tries to find out if a ticket is in the ticket path at any other location than at the top of form position at power ON. If it finds a ticket, it destroys the magnetic encoding, prints VOID on it and outputs the ticket. If the printer is equipped with a front load 3 unit, the ticket is redirected to the waste bin.

Operation

Error Handling

Start-up Synchronization

To enable the TTPM3 to synchronize itself to the incoming data after power up, either after a usual power ON, or after a power failure, the printer has to receive either a !C command that it will execute, or a !P command that it will ignore.

Using the !C command to initiate the TTPM3 clears all data that has previously been stored. To avoid having data cleared, the !P command can be used, for example, to retain document data stored in the TTPM3 prior to a power failure or power OFF.

Note • Please remember that the TTPM3 has to receive either the !C or !P command, after

power up. All other commands and data will be ignored until !C or !P has been received.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Operation

Error Handling

Normal Operation

Different error types can show up during processing. The most common is that the TTPM3 is out of paper. All errors encountered by the printer, and requiring operator assistance, are indicated with a signal from an indicator on top of the printer. The operator then has to follow a specific procedure depending on the type of error that caused the stop. The procedures are as follows:

Yellow indicator lights up Indicates “No paper” in the selected paper entry. Insert

new paper supply or new single ticket. The document will be automatically loaded to active position.

Yellow indicator ON and green indicator ON or flashing

No paper in the selected paper entry. Data string and print command have been received. Insert paper into the selected paper entry.

Red indicator lights up Indicates unsuccessful read-after-write. The TTPM3

makes a second attempt to encode and read the ticket. During that attempt the red indicator will go out. For each unsuccessful attempt, the red indicator lights up again. If a single-ticket operation is in progress, the red indicator stays ON until a new ticket is inserted and successfully processed. Also refer to the previously described procedures regarding the yellow and green indicators.

Red indicator is ON If the Red indicator stays ON, even though ticket stock is

present in the selected entry station, this indicates that the paper path in the TTPM3 has been blocked. Follow the description on the next page to remove blockage.

Note • No data is lost in the process of detecting and acting on errors as long as the printer is

not switched OFF.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Single-ticket Handling

Active position, upper track

Standby position, upper track

Active position, lower track

Input module

Standby position, lower track

Write headRead headWaste bin ticket exit

Magnetic encoder/decoder

Printer

Front load ticket entry/exit

Cutter

SW97104A

REAR

FRONT

Overview

The TTPM3 comes with one of two different single-ticket handling systems: upper rear entry load (standard), and front load (optional). In both cases, the upper document entry of the printer is used for the single-tickets. This means that single-ticket processing restricts the use of fanfold ticket stock to the lower entry.

Figure 10 • Active and Standby Ticket Position

Operation

Single-ticket Handling

Previously Encoded Tickets

One use of the single ticket handling is to process a ticket several times. For example, if you issue a return train ticket (Stockholm to Oslo and back to Stockholm) you can add print, and re-encode the magnetic stripe when the first part of the journey is made.

Use the applicable decode-command to read the previously encoded ticket information.

The data is transmitted to the host computer, and the ticket is positioned in the active position of the upper entry, ready for a new encoding and printing.

Printing and encoding is affected using the same commands as for processing a ticket from a fan-fold ticket stock, and the ticket is ejected to the customer.

Note • To avoid printing on top of the existing print of a previously used ticket:

1. Include information in the magnetically encoded string, about which area of the ticket has

2. Read the magnetic stripe and let the host computer position new text on free spaces of the

3. Update the magnetic stripe with correct information about used areas if the ticket should

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

already been used for printing.

ticket.

be used further.

Operation

Single-ticket Handling

Inserting a Single Ticket

Read and Decode

In the standard TTPM3, inserting a single-ticket into the upper rear document entry, will trigger the single ticket loading process.

In front load printers, the application program must issue the command !L3 to trigger the single ticket loading. The yellow indicator on the printer will blink to indicate that the application program wants the operator to insert a single ticket. When a ticket is inserted, the loading process starts. To speed up ticket handling, the magnetic code of track two is read and placed in memory when loading the ticket from the front load option. !D will read track two data from memory without having to move the ticket.

The single ticket loading process will retract the fanfold ticket stock in the lower document entry to a standby position, and position the single ticket in the active position of the upper entry.

The subsequent command string automatically processes the operation on the single-ticket form.

The following read (and decode) commands apply for the single ticket in active position:

!DA Reads and decodes all three tracks and sends the data separated by CR LF.

!D1

!D2

!D3

!O1

!O2

!O3

After reading the stripe, the ticket is automatically returned to active position waiting for either an eject-command for a command sequence for printing or encoding (or both) followed by for processing of that command string.

Read and decode the track indicated by the digit. With front load option, track 2 (or center track) is read and the data stored in memory when the ticket is entered through the front entry. !D2 only reads the data from memory without moving the ticket.

The read string is decoded and scanned for an end character (?). If found, the string is sent to the host computer in ASCII format. The start character is not included, but the stop character (?) and the checksum are transmitted. If no number is found, or if it does not comply with the ISO standard, a NAK+A is transmitted.

Read data from track 2 (or center track) and transmit data to host.

No decoding takes place in the TTPM3.

A one is transmitted as ASCII 1, and a zero as ASCII 0.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Encode and Print

Encode a new or modified string on the magnetic stripe. Use any of the magnetic encoding commands

what encoding you want. See Magnetic Encoding/Decoding Commands on page 38. Format the new print using the command !F T on page 49.

!I, !J, !M, or !K #, !N, !K depending on what tracks are available in your printer, and

Operation

Single-ticket Handling

Encode and print the ticket with the

The ticket will be ejected to the operator when correctly encoded and printed. In case of unsuccessful encoding, the single ticket is cancelled and a new single-ticket form has to be inserted into the applicable document entry. A blinking yellow indicator prompts this.

Note • The number of encoding retries, as well as the text to be printed on cancelled tickets,

can be set with the !F M command. See Paper Loading on page 20. Cancelled tickets can be

redirected to the optional front load waste bin by inserting an } or @ character in the string to

be encoded on the stripe, see Paper Loading on page 20.

Ejecting the Ticket

If you want to eject the ticket without modifying the encoding or adding new print after reading the magnetic stripe, use an applicable eject command:

!E Ejects the ticket through the upper rear document entry.

!L4 Ejects the ticket through the front entry.

!L5 Ejects the ticket to the waste bin of the TTPM3 Front Load 3.

!P command.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Operation

Notes • ___________________________________________________________________

__________________________________________________________________________

Single-ticket Handling

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Programming

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command identifier Command (1 to 3 characters)

Sub command Formatting commands

separated by spaces

Data enclosed in

quotation marks

Space cha ra c te r (ASCII 32 or HEX 20)

Only used with some commands Graphical data starts directly without any quotation mark

and ends after the specified number of bytes

New line = CR LF

(ASCII 13 10

or HEX 0D 0A)

SW97119

Command identifi er Command (1 to 3 characters)

Sub command Formatting commands

separated by sp aces

Data enclosed in

quotation marks

Space character (ASCII 32 or HEX 20)

Only used with some commands Graphical data starts directly without any quotation mark

and ends after the specified number of bytes

New line = CR LF

(ASCII 13 10

or HEX 0D 0A)

SW97119

Syntax

A command string always starts with an exclamation mark (ASCII 33 or HEX 21) serving as command identifier. The exclamation mark must be at the first position of the line, that is, directly after a CR LF. Otherwise it will not be recognizes as command identifier.

The characters immediately following the “!” (21H) form the actual command to the printer. The command consists of 1–3 characters and is followed, when applicable, by a sub command, formatting commands, and data separated by space characters.

Carriage Return and Line Feed end Each Command

Figure 11 • Command Syntax

Initialization After Power OFF

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

To initialize the printer after power ON you just send a clear command (!C) and the printer is ready for use.

Note • If no clear command has been received, the first !P after power ON initializes the

printer. No ticket is produced from the data sent before this !P.

Printing and Encoding Capability Overview

Text

Programming

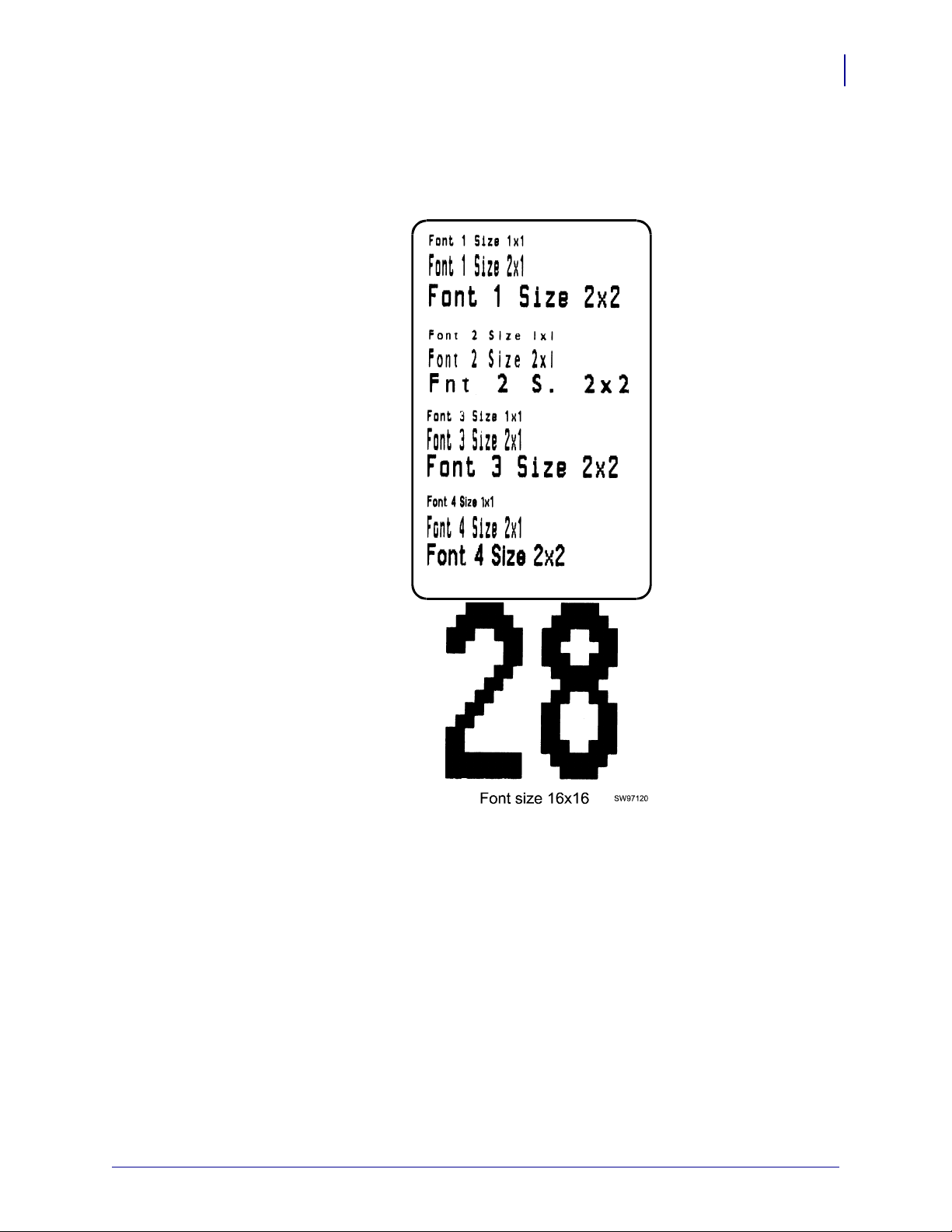

It is possible to print text in four fonts, in four orientations, and in 16 different sizes.

Graphics

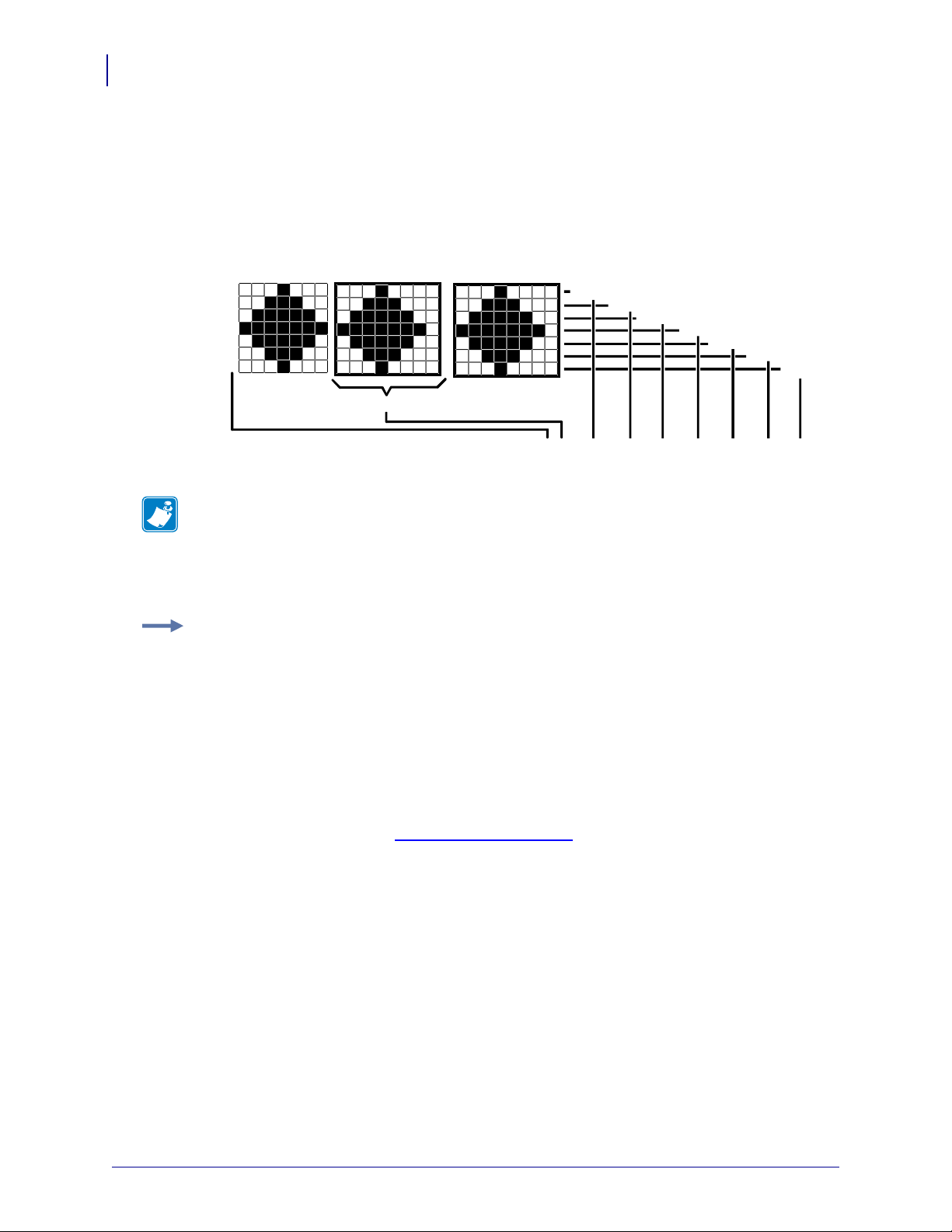

Bitmap graphics, such as logotypes, prints in the size and orientation in which they where downloaded. Graphics print on all following tickets until a “Clear all” command is received, so you only have to download graphics once.

Remember, when creating graphics for the TTPM3 printer, that the pixels are not square, but has a height/width ratio of 1.32:1 in normal mode and 0.88:1 in high resolution mode.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

SW95026A

FEED

DIRECTION

X384

86 mm:Y500 (Y700 in high res mode)

110 mm: Y650 (Y900 in high res mode)

Printable width 51.07mm

North orientation at X=1, Y=1

East oriented text at X=384, Y=1

Frame

Printing and Encoding Capability Overview

Bar Codes

Bar code data fed to the printer are converted to an EAN13, EAN 128, Code39, Code 128, and code 2-of-5 interleaved bar code. The bar code prints on all subsequent tickets until a “Clear all” command is received, or until new bar code data with the same coordinates and type is received.

Magnetic Codes

Messages can be magnetically encoded on a stripe at the back of the ticket. The message can be between 37 and 107 characters long depending on the coding standard and density you select.

Positioning Data on the Ticket

Items to be printed are positioned by defining the X and Y coordinate of the upper left corner, and the orientation.

Print can overlap other print. You can for instance print text on top of graphics.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Triggering a Printout

Putting text, graphics, bar and magnetic codes on the ticket as described above only builds an image of the ticket in the printer memory. To actually print something on a ticket, you must send a print command:

!P↵

Every received ”!P CR LF” prints one ticket. (If the printer is configured for dual consecutive

entries, you must also send a select document entry command, see Syntax on page 31.)

Command Acknowledgment

Ticket issuing is automatically acknowledged by the TTPM3 by sending an ACK (06h) to the host computer after a successful read-after-write of the encoded magnetic information.

If no encoding command and data are sent to the TTPM3, the ACK is still sent (read-afterwrite verifies that no data is encoded).

Some other commands are also acknowledged; Error Codes and Status Report ing on page 86.

Programming

Printing and Encoding Capability Overview

Note • ACK/NAK must be enabled through parameter n5, see parameter 5 on page 79.

Additional Commands

In addition to the command that specifies the print, there are a number of other commands used for functions such as:

• Clearing of the TTPM3 buffer

• Selection of document entry

• Decoding of documents

• Generation of status requests

All applicable commands are listed in the following pages. Detailed descriptions of the software commands are given with syntax explanations as well as commented examples.

Ticket Memory

The TTPM3 printer has 128k of RAM. This memory is used as input buffer and storage for the ticket image before being printed out. The memory is cleared at power off.

In normal resolution mode, the ticket image is 384x512 pixels for an 86 mm ticket, and 384x656 pixels for a 110mm ticket. In high resolution mode, the ticket image is 384x727 pixels for an 86 mm ticket, and 384x935 pixels for a 110mm ticket.

Note • Make sure not to print data outside this area when you use the !F command.

If you do, you write in parts of the memory that are used for other functions in the printer, and the result is totally unpredictable.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

!B 1

21 42 20 31 Hex

Dec

Encode Binary Data on Tr ack 1

Mnemonic

Hex representation of command

De cim al r epr e sentat ion of com man d

P urp os e of co m man d

How the Commands are Described

Mnemonic

Mnemonic is the popular command name that should be easy to remember.

Hex

Give the command in hex representation

Decimal

Give the command in decimal representation

Values

n1, n2, etc. represents values that you set with the commands. What you should enter here depends on what you want the command to do.

Examples

Command examples are formatted in Courier and typed in the same way as used in the Zebra TTP editor:

!P<CR><LF>

Where than and greater-than characters, for example <001><019>, means 1 and 19 decimal. When the numbers indicate a hex value, h is appended to the number (<01h><13h>).

Example • <065>, <65d>, <41h> and A are four different ways of expressing the

character A.

<CR> means the carriage return character 13 decimal (hex D). Numbers between less-

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Summary of Commands

System Commands

!C Clear all page 39

!C 1 Clear retract counter

!C A Clear all and enable extended acknowledgement

Syntax Feed- acceleration and speed page 31

!P Encode and print document page 39

!P @ Encode and print document, and eject it in wastebasket (FL3

printers)

!P E Encode and print document, and eject it to tray (for FL3 printers)

!U Firmware version query page 41

!S Status request page 40

!S L Status request, paper low

Programming

Summary of Commands

!S R Power has been off? page 41

ENQ Status request immediate page 43

CAN General reset, equivalent to power OFF/ON (takes 20 s to execute)

!Q Writes a transaction string to non-volatile memory page 40

!V Reads the transaction string written by

!W Reads thermal print progress indicator page 41

!X Set resolution page 42

!Y Read ticket counter page 42

!Y 1 Read retract counter page 42

!Z Burn time page 43

!Q page 41

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Summary of Commands

Document Entry Commands

!A Sets ticket length for roll ticket without black marks or gaps page 45

!E Ejects document through the upper rear document entry (for

example after decoding)

!L 1 Selects lower rear document entry, and waits if paper is out (for units

with dual consecutive entries)

!L 2 Selects upper rear document entry , and waits if paper is out (for

units with dual consecutive entries)

!L 3 Loads document through front entry page 46

!L 4 Ejects document through front entry page 46

!L 5 Transports document to waste bin (only for printers with front load 2

and 3)

!L 6 Reads a ticket from frontload and immediately ejects ticket page 47

!L 17 Selects lower rear document entry and signals if paper is out page 47

!L 18 Selects upper rear document entry and signals if paper is out page 47

!T Sets timeout for retract function page 47

Note • !L1, !L2, !L17 or !L18 must be selected when configured for dual document entries

page 45

page 46

Print-data Commands

Note • For additiona information, see Syntax on page 31.

!F T Print text page 49

!F G Print graphics page 50

!F C Print bar code page 52

!F M Specifies No. of retries + cancellation text to be printed if encoding

fails

!F L Print logotype

Note • !F L is obsolete, or not yet implemented (firmware version 5.12).

page 54

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Magnetic Encoding/Decoding Commands

!B 1 Encode data in Hex format on track 1 page 56

!B 2 Encode data in Hex format on track 2 (or center track) page 56

!B 3 Encode data in Hex format on track 3 page 56

!N Same as !B 2, for compatibility with TTPM2

!N+ Same as !N but reverses the bit order

!K Same as !B 3, for compatibility with TTPM2

!K+ Same as !K but reverses the bit order

!O 1 Reads data in Hex format from track 1 (or center track) page 57

!O 2 Reads data in Hex format from track 2 (or center track) page 57

!O 3 Reads data in Hex format from track 3 (or center track) page 57

!J Encode data in ISO format on track 1 page 57

!M Encode data in ISO format on track 2 (or center track) page 57

Programming

Summary of Commands

!I Encode data in ISO format on track 3 page 57

!D A Reads and decodes data in ISO format from track 1, 2, and 3 page 57

!D 1 Reads and decodes data in ISO format from track 1 page 57

!D 2 Reads and decodes data in ISO format from track 2 (or center track) page 57

!D 3 Reads and decodes data in ISO format from track 3 page 57

!D Same as !D 2, for compatibility with TTPM2

Note • !N, !N+, !K, !K+ are obsolete, or not yet implemented (firmware version 5.12).

Storage Commands

!H P n1 n2 Set parameter value page 64

!H S Store current parameter values page 64

!S P n1 n2 Parameter value enquiry page 64

!H F Load Firmware page 65

!H C Load Font page 66

!H C E Erase all Fonts page 66

!H L Load Logotype

!H L E Erase all Logotypes

Note • !H L and !H L E are obsolete, or not yet implemented (firmware version 5.12).

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command Reference

The commands in this section are grouped after what they do, and these groups are sorted in a theoretical usage sequence. It starts with commands for setting up the printer — through document entry commands — text-and-graphics commands — encoding / reading commands. Then we end with storage commands that handle the flash memory of the printer.

System Commands

21 43 n1 Hex

33 67 n1 decimal

21 50 Hex 33 80 Decimal

Clear all

This command takes no parameter. All definitions are cleared. Stored layout is erased. Subsequent

!C command is also used to initialize TTPM3 after a power ON.

The

Auto-clear can be used to clear the memory between tickets instead of using executes faster than

!C’s are ignored.

!C. Auto-clear

!C. When auto-clear is enabled any !C commands in the received data will

be ignored, apart from when initiating the printer. Use parameter 57 to enable/disable autoclear.

!CA, adding an A to the !C command enables extended acknowledgement. !C1, adding the digit 1 to the !C command clears the wastebasket counter. See !Y1.

This command triggers both the encoding, printing, cutting and ejecting of a ticket.

Printing follows a successful encoding. The magnetic code and print information, as well as cut and eject behavior, must first be defined using the applicable commands.

!P is received before a clear all command after power ON, the !P will initiate the printer

If without printing a ticket. This means that all data received prior to the

!P will be discarded.

If !P is received and the printer is out of paper, it will give error code NAK P and discard the received data.

• Eject to Waste Basket

Adding an @ character (

!P@) makes the printer eject the completed ticket into

wastebasket (FL3 printers). One use for this can be to make status printouts that are not intended for the customer.

• Encoding Retries

Adding a single digit after the encoding retries for one ticket. The number given is the number of additional tries i.e.

!P makes it possible to set the maximum number of

!P 1

means one normal attempt plus one retry. Default is 1, which is the value used if no digit is present.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Programming

Command Reference

• Eject Fully

Adding an E (!PE) makes the printer eject the ticket fully so that it can fall down into a tray (for FL3 printers)

Digits and @, or digits and E can be mixed on the same line, for example !P5@ makes five encoding retries, and ejects the ticket into the wastebasket.

21 51 n1...n15 Hex

33 81 n1...n15 Decimal

21 53 Hex 33 83 Decimal

Write transaction string

!Q writes a string with up to 15 ASCII characters to a non-volatile buffer memory in the printer.

Example • !Q asdfgh <CR><LF>

After the ticket has been correctly encoded / printed, the string is copied to a non-volatile buffer. This buffer can be read by the !V-command.

The transaction string is committed at the precise point where a useable ticket has been produced. The only way to reset a transaction string is to successfully print another useable ticket that was initiated with !Q.

Status request

The TTPM3 responds by sending two bytes to the host computer. Byte 1 indicates the status of the various TTPM3 sensors according to the following table. Byte 2 reports the temperature of the thermal print head and is only used internally in the TTPM3.

Bit Function Sensor Value ”1” Value ”0”

0 Lower rear document entry J6 Paper present No paper

1 Upper rear document entry J7 Paper present No paper

2 Top-of-form J8 Paper present No paper

3 Cutter position J9 Paper present No paper

4 After cutter position J10 Paper present No paper

5 Cutter J21 Cutter home Cutter not home

On CD200 versions with “card level low” sensor, this bit indicates low card level. (printer version 02441-002, 5600-A0015)

6 Print head – OK Error

7 Front Load Sensor J11 Paper present No paper

Document-Entry Related Commands

21 41 Hex 33 65 Decimal

21 45 Hex 33 69 Decimal

!L 1

21 4C 31 Hex 33 76 49 Decimal

Set ticket length for roll paper

This command sets the ticket length if paper without gaps or black marks is used. One step is

0.67mm.

!A 127 sets up a credit car sized ticket length.

!A 0 turns off the function and reverts to gapped ticket stock. This is the default setting.

The mechanics of TTPM3 works with ticket lengths between 54 and 120 mm.

Eject through rear document entry

This command ejects, through the rear document entry, any document positioned in the active

position for encoding (or after decoding). See Syntax on page 31 for definition of active/

standby ticket position.

Select lower rear document entry

Selects lower rear document-entry and feed the leading document, in the consecutive supply entry, to active position. If, in the preceding operation, the upper rear document entry has been engaged, the document in that entry is retracted from the active position.

!L 2

21 4C 32 Hex 33 76 50 Decimal

Note • When set up as a dual document entry printer, a “select rear entry” command (!L1,

!L2, !L17 or !L18) must precede the print command (!P). An ACK character is returned if the command was successful.

If no paper is present, the yellow indicator lights up and the printer waits until the operator insert new paper stock.

Note • ACK/NAK signaling must be enabled (DIP switch no. 6).

See alternative command !L 17 on page 47.

Select upper rear document entry

Same function as !L1, but selects upper rear document entry.

See alternative command !L 18 on page 47.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Programming

Command Reference

!L 3

21 4C 33 Hex 33 76 51 Decimal

Load document from front entry (front load printers only)

This command lifts the print head for a specified time, to permit document insertion through the TTPM3 front document entry/exit. At the same time, any document in active position is retracted. The document inserted in the front document input/exit is loaded into placed in active position in the upper entry, see

Syntax on page 31

for entry definition.

the printer and

To speed up ticket handling, the magnetic code is read and placed in memory when loading the ticket.

!D1, !D2, and !D3 will read data from memory without having to move the ticket.

Issuing a second read command will move the tickets over the read head and back to make a new read from the ticket.

On error, the TTPM3 sends the following error codes to the host computer:

Error code Error

NAK+B No document is inserted within 60 seconds. Command !L3 is abandoned. NAK+C A document is inserted and immediately retracted. NAK+D A document is inserted, but the TTPM3 is blocked (paper jam) NAK+E Paper jam in the input feeder during an !L3 command.

A front loaded document resting in active position can be processed using one of the following alternatives:

• Using the appropriate decode command

!D1, !D2, !D3 or !O1, !O2, !O3.

!L 4

21 4C 34 Hex 33 76 52 Decimal

!L 5

21 4C 35 Hex 33 76 53 Decimal

• Using print parameter format command !F and applicable encoding command !I, !J, !K, !M or !N, followed by print command !P.

• Document related commands !E, !L4 and !L5.

Eject document through front document entry (only already cut ticket)

A document positioned in the active position is ejected through the front document entry, without encoding or printing.

Compare with the !E command that ejects the document through the upper rear document entry.

Eject document into waste bin (only printers w. waste bin)

Only for printers with front load 3 (with waste bin): This command transports the ticket from

active position to the waste bin. The same function can be obtained for cancelled tickets if character ”@” or a “}” is inserted into the string of data to be encoded.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command Reference

!L 6

21 4C 36 Hex 33 76 54 Decimal

!L 17

21 4C 31 37 Hex

33 76 49 55 Decimal

!L 18

21 4C 31 38 Hex

33 76 49 56 Decimal

Read ticket from front load

Only for printers with fr ont load: Reads the ticket from the front load and immediately ejects it

back out without transporting the ticket to the active position. This command can be used to read tickets in a printer that is configured for two consecutive tracks (where the normal !L3 command would push out the ticket from the upper entry to make place for the ticket from the frontload).

Select lower rear document entry and signal if paper is out

(only dual entry printers)

Same function as !L1, but when ticket loading fails the printer sends an error code (NAK + '1') instead of waiting for paper to be loaded. It is then up to the system to determine if paper should be loaded from the upper document entry instead.

Select upper rear document entry and signal if paper is out

(only dual entry printers)

Same function as

!L2, but when ticket loading fails the printer sends an error code (NAK + '1').

It is then up to the system to determine if paper should be loaded from the lower document entry instead.

21 54 n1...n2 Hex 33 84 n1...n2 Decimal

Sets timeout for retract funct ion (only printers w. waste bin)

!T@nn

nn is the delay in seconds

When a ticket is left in the output of the front load after the timeout nn has expired, NAK F is sent to the host controller to indicate that the ticket hasn't been picked up.

If the customer takes the ticket before the timeout elapses, the printer sends a Bel (07H) character.

@ Expands the signaling: If you have a Front load with waste basket function, the printer retracts the uncollected ticket and ejects it into the wastebasket exit.

Note •

• The !T command should be sent after the !P (print) command.

• DIP-switch 6 must be ON for status replies to be sent.

Example •

!T @20

Retracts the ticket and sends NAK F if it has not been taken within 20 seconds

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Print Related Commands

Introduction

!F is the general command for formatting the ticket print.

!F<type> <data>

The parameters are used as follows:

!F Indicates that this is the start of a print field definition

<type> Specifies the type of the field

T = Text G = Graphics M = Magnetic encoding failure, ticket cancellation (See Syntax on page 31) C = Bar Code

<data> Depends on the type of field specified. See the following pages.

Programming

Command Reference

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command Reference

Text Printing

!F T

21 46 20 54 20 n1...n8 Hex 33 70 32 84 32 n1...n8 Decimal

Format text for printing

!F T <orientation> <xpos> <ypos> 1 <height> <width> <font> <"text">

The parameters are used as follows:

!F Indicates that this is the start of a print field definition

T Indicates text mode

<orientation> Specifies the way in which the text is to be oriented. This can be either

N(orth), E(ast), S(outh) or W(est). This terminology is described in detail in the examples given in this document. Specific fonts may be limited to one orientation only, see <font> below.

<xpos> <ypos> Specifies starting position for the text on the ticket. That is, the distance

in pixels from the upper left corner of the printable area to the upper lefthand pixel of the bounding box of the first character to be printed. Note that the resolution is 7.52 pixels/mm on the X-axis and 5.7 pixels/mm on the Y-axis.

<fixed pitch> No. of pixels from the start of one character to the start of the next.

Range 6 to 16. A value below 6 sets the default pitch.

Note • Only used for font 1. Must be set to 1 for all other fonts.

Specifies the height and width expansion of characters to be printed. The height range is 1–16 times the default value. The width range is 1–16 for

fonts 1 and 4, and 1–3 for fonts 2 and 3. See font samples under Syntax

on page 31.

<font> Selects the font (text appearance). Fonts 1, 2, 3, and 4 apply. Font 2 and

3 can only be North oriented. Fonts 1 and 4 can be set to any orientation.

Font 4 is a proportional character font. See font samples under Syntax

on page 31. Font appearance may differ from the font samples if you

have custom firmware in your printer.

Note • The space to the following character is included in the

matrix of the character, and that the pixels are not square at normal resolution.

<"text"> Text to be printed enclosed in quotes (" ").

Example • Example of a command for text:

!F T N 150 150 1 1 1 1 "Text"↵

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Graphics Printing

Programming

Command Reference

!F G

21 46 20 47 20 n1...n8 Hex 33 70 32 71 32 n1...n8 Decimal

Format graphics for printing

TTPM3 can print bit map graphics. Graphic images are stored in the fixed memory area and will therefore be repeated on every ticket until the next !C command is received.

Remember, when creating graphics for the TTPM3 printer, that the pixels are not square but have a height/width ratio of 1.32:1 or 0.88:1 depending on resolution setting.

Syntax for defining and downloading graphics data is as follows:

!F G <orientation> <xpos> <ypos> 1 <height> <width> 1_<Graphic_data>

!F Command to load print-parameter information.

G Indicates graphics mode.

<orientation> Print orientation. This is ignored in graphics mode. Orientation is always

North (N). The printer requires the N to be inserted.

xpos Horisontal starting position in pixels for the upper left-hand corner of the

graphics block. Position will automatically be rounded off to be divisible by 8 as a graphic block has to start at the first bit in a byte.

ypos Vertical starting position in pixels for the upper left corner of the graphics

block.

1 Not used for graphics printing. Must be set to 1.

height Height in pixel lines of the graphic block. The length of the ticket

determines maximum height. For an 86 mm ticket the maximum height is approximately 500 pixel-lines.

width Width in bytes of the graphic block. Maximum width is 48 bytes.

1 Not used for graphics printing. Must be set to 1.

space One space has to follow the "1" before the graphics data.

Graphic_data This is a block of bit mapped graphics data. The block is stored in the

printer starting at <xpos>, <ypos>. The numbers of bytes specified by <width> are stored in one pixel line. The <ypos> is then incremented and the next line is stored. This is repeated <height> number of times. It is up to the user to send the correct number of bytes to the printer, that is, <height> × <width>, as the printer will scan the input character stream for the correct number of bytes.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

000 00001

0011000

0 11 11001

111 1110

0 11 1100

0011000

000 00001

1122335566778

Create

pixel

graphics

Add empty

vertical lines

to get full bytes

Convert pixels

to bits

Black pixel=1

White pixel=0

Covert bits

to byte s

SW97123

1286432 842

1 byte

!F G N 140 140 1 1 7 1 10H 38H 7CH FEH 7CH 38H 10H

10 H

38 H

7C H

FE H

Command Reference

Figure 12 • Converting Graphics to TTPM3 Format.

Note • The appearance on your screen depends on the editor you use to write your program.

A file for downloading and printing the above graphics will look like this, in Windows Notepad:

Example •

!C !C !F G N 140 140 1 7 1 1 8|þ|8 !C !C !L1 !P

A utility program called TTPM editor can help you convert Windows bitmap images (BMPfiles) to TTPM graphics format. You can download the TTPM editor free of charge from the Zebra Internet web site at

http://www.zebra .com.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Printing Bar Codes

Programming

Command Reference

!F C

21 46 20 43 20 n1...n8 Hex 33 70 32 67 32 n1...n8 Decimal

Format bar code for printing

Bar code printing can be used as ticket data carrier instead of, or in addition to, magnetic encoding.

Note • To produce sharp code bars, the TTPM3 printer automatically reduces the print speed

by approx. 50% when printing tickets with east and west oriented bar codes. This speed reduction is only valid for bar widths 1 and 2. Wider bar codes are printed at full speed.

Bar code data is treated as fixed data. You can however replace a bar code by overlaying the previous data with new bar code data on the same X- and Y-coordinates. This way you avoid deleting the complete ticket with a reset (!C) when you want to update the bar code.

The syntax for defining and downloading of bar code data is as follows:

!F C <orientation> <xpos> <ypos> <bar 1> <height> <bar 2> <type>_ <”bar code data”>

!F Command to load print parameter information

C Indicates bar code mode

<orientation> Indicates print orientation. Can be north (N), east (E), south (S), or west

(W).

xpos Starting position (pixel) for the upper, left-hand corner of the first code bar

in the string. Automatically rounded off to be divisible by 8, (first bit in a byte).

ypos Starting position (pixel) for the upper, left-hand corner of the first code bar

Bar 1 Width in pixels of both black and white bars, range 1–16. For EAN13 and

EAN/Code 128 the value must be set to 1. For Code 39 and Code 2-of-5

this sets the wide bars.

Height Code bar height in pixels

Value 1= 16 pixels= 2.7 mm

2= 32 pixels= 5.3 mm

3= 48 pixels= etc.

4= 64 pixels=

5= 80 pixels=

...

16= 256 pixels= 42.7 mm

Bar 2 Width in pixels of both black and white bars, range 1–16. For EAN13 and

EAN/Code 128 the wide/narrow ration is fixed and this sets the width of

the entire code. For Code 39 and Code 2-of-5 this sets the narrow bars.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

SW97103A

FAST

SLOWER

but more

reliable

Feed

direction

If dots are missing the bar code will still be readable

Command Reference

Type Selects type of bar code. The following types are available:

Value 1= EAN13 (partly implemented, no check sum)

2= Code 2-of-5 interleaved

8= EAN 128

9= Code 128

11= Code 39

space A space (blank) has to be inserted between the type parameter and the data

string.

bar code data This is a block of data to be converted by the TTPM3 and printed in bar

code form in accordance with the parameters identified. For available characters and data string formats, please refer to the specific type of bar code.

Example 1 • The following command string produces the ticket illustrated below:

!C !L1 !F C N 12 102 1 4 3 1 "1234567890128" !P

Figure 13 • EAN13 Bar Code.

Use east or west oriented bar codes wherever possible, to guarantee

readability.

Example 2 • Code 39 example

!F C N 100 230 6 2 2 11 "12345"

Example 3 • Code 128 example

!F C N 100 320 1 5 2 9 "abc123"

Example 4 • Code 2-of-5 example

!F C N 100 410 5 2 2 2 "123456"

Note • Code 2-of-5 must have an even number of digits.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Canceling a Ticket

Programming

Command Reference

!F M

21 46 20 4D 20 n1...n8 Hex

33 70 32 77 32 n1...n8 Decimal

Format print on cancelled ticket

The TTPM3 can cancel a ticket after an unsuccessful magnetic encoding. The feature relates to the read-after-write function. When the <message> has been encoded, the TTPM3 reads and compares the magnetically encoded message with the original <message> string. If the comparison is negative, a second attempt to encode/read the same ticket is done. If also this attempt is negative, the ticket is cancelled. The magnetic stripe is erased and stripes are printed across the ticket (see figure below).

Note • Inserting an asterisk (*) in the data string to be encoded disables the read after write

feature, see Syntax on page 31.

By default the TTPM3 attempts to encode three tickets. The desired number of attempts, as well as the text used to indicate the cancellation, is programmable through a subcommand to the !F command as follows:

!F M <orientation> <xpos> <ypos> <attempts> <height> <width> <font> <”text”>

All parameters must be specified.

The syntax is identical to !F T with the exception of the parameters <”text”> and <attempts>.

Text must be a text string. Attempts are the number of tickets the TTPM3 should attempt to encode. If <attempts> is set to

1, the TTPM3 will make only one attempt (plus the automatic second attempt on the same ticket) to encode the ticket. If this fails, <text> will be superimposed on the ticket that is now being printed.

Setting <attempts> = 2 results is one striped ticket (first unsuccessful attempt) and the superimposed text for the second unsuccessfully attempted ticket and so on.

Ir is also possible to set how many times the printer should try to verify each ticket by adding a single digit after the !P command. This is described in the !P command description.

All parameters in this command are stored in memory and remain in effect until overwritten or the power is interrupted.

Example • The following command string produces the tickets illustrated below at 2

unsuccessful encoding attempts:

!F M N 20 200 2 8 8 1 "VOID"

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command Reference

Figure 14 • Indication of 1st and 2nd Unsuccessful Read-after-write

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Magnetic Encoding- and Decoding-related Commands

Track number and type of encoding (ISO standard or hexadecimal bit-by-bit) is determined by the encoding command used as specified below:

Encoding

Syntax <command><message>↵

!M 12345↵ Encodes 12345 on track 2

Track Encoding Method Encoding Commands Reading Characters

Programming

Command Reference

21 42 Hex 33 66 Decimal

Track 1 210 bpi

Track 2 75 bpi

Track 3 210 bpi

Note • With HiCo encoding, only one track at a time can be used for encoding or reading. In

ISO !J !D 1 79 ASCII alpha

Binary !B 1 !O 1 480 bits (120 hex)

ISO !M !D 2 37 ASCII digits

Binary !B 2 !O 2 200 bits (50 hex)

ISO !I !D 3 117 ASCII digits

Binary !B 3 !O 3 480 bits (120 hex)

this case, code first track with | or $ in the magnetic string to return the ticket to active position after coding, then reset the printer with !C, and code the other track and print the ticket.

Encode Binary data

Encodes binary data to the specified track.

The bit order specified with parameters 19 to 21.

When using binary data you are in total control over the encoded data. Data is sent to the printer as hex nibbles. You have to specify leading synchronization zeroes, start sentinel and stop sentinel yourself.

Leading zeroes are used by the readers to determine swiping speed. The first 7 mm of the tickets should contain leading zeroes. The start sentinel identifies the beginning of data. The stop sentinel identifies the end of data. Trailing zeroes are used as leading zeroes if the ticket is

swiped backwards. These are added automatically by the printer, so do not add those to the

string.

Example • In this example we have 15 leading zeroes, FF as a start sentinel and 99 as stop

sentinel. 15 leading zero nibbles give 15 x 4 bits = 60 bits at 210 bits/inch = 7.2 mm. FF as start sentinel encode 11111111 which is easy to detect. 99 as stop sentinel encode 10011001, equally easy to detect.

!B 1 000000000000000FF1234567890ABCDEF99<CR><LF>

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command Reference

21 4A Hex

33 74 Decimal

21 4D Hex

33 77 Decimal

21 49 Hex 33 73 Decimal

21 44 Hex 33 68 Decimal

Encode ISO data, track 1

This command encodes upper case ASCII text and digits to track 1 of the ticket.

Note • The space character is a valid encode on track 1, so remember that if you insert a

space character after !J, it will be encoded on the stripe.

See What Can You Encode? on page 60 for a list of the characters that can be encoded.

Encode ISO data, track 2

This command encodes ASCII digits to track 2 of the ticket.

Encode ISO data, track 3

This command encodes ASCII digits to track 3 of the ticket.

Reads and decodes ISO data

21 4F Hex 33 79 Decimal

!D 1 Reads and decodes ISO track 1 and transmits the data to the host computer.

!D 2 Same as !D1 but reads and decodes ISO track 2 (or center track)

!D 3 Same as !D1 but reads and decodes ISO track 3

!D A Reads and decodes all three ISO tracks

The ticket is taken from active position, and after reading, the ticket returns to active position.

Reads binary data

The ticket is taken from active position, and after reading, the ticket returns to active position.

!O 1 Reads and transmits bit-by-bit data, from ISO track position 1, to the host computer.

No decoding takes place in the TTPM3. A one is transmitted as ASCII 1, and a zero as ASCII 0.

!O 2 Same as !O1 but reads and decodes ISO track 2 (or center track)

!O 3 Same as !O1 but reads and decodes ISO track 3 (or center track)

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Additional Encoding Information

Checksum

To ensure correct reception of the message to be magnetically encoded, a checksum can be appended to the data by the host computer. This checksum will then be compared by the TTPM3 before encoding which guarantees that the magnetic code data is correctly received.

Calculate the checksum as the modulo 2 sum (consecutive XOR) of the ASCII data bytes sent in the !M command. The checksum must have bit 7 set to 1 to distinguish it from ordinary data.

Append the checksum at the end of the !M data string when encoding ISO data at track 2 (or center track).

When the message has been received, the TTPM3 calculates the checksum and compares it to the checksum appended to the message. If they are identical, an ACK is returned, otherwise a NAK followed by the checksum calculated by the TTPM3 will be returned.

The checksum is never encoded on the magnetic stripe; it is only intended to secure data transmission. The ISO format itself automatically adds a check digit to the magnetic code.

Programming

Command Reference

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command Reference

Reading and Decoding

Magnetic Encoding Attributes

The magnetic encoding data strings can be given attributes that govern versions of the standard encode/read-after-write routines and cancellation functions.

The following attributes, inserted anywhere in the applicable data strings, will cause the following functional deviations from default standards:

Note • The attributes in parenthesis only work for the !M command.

{ (or *) Cancels the read-after-write function. The ticket is encoded and directly

transported forwards for separation (if applicable) and subsequent printing according to the !F command data without prior read-after-write.

| (or $) Encodes the ticket, performs read-after-write, but does not transport the ticket for

printing. Instead, the ticket is backed into the active position without being cut, waiting for the command to proceed, for instance, for a decode operation.

} (or @) Expands the read-after-write operation. If this is successful, the ticket is

processed in accordance with standard routines, that is, it is separated and printed. If the read-after-write operation is unsuccessful in the programmed number of attempts, the ticket is transported forwards, and the waste bin of the front load mechanism is activated (only printers with front load & waste bin option). The ticket is dropped into a waste bin.

|} ($@) Combining the characters | and } results in normal behavior if the encoding was

successful. If an error occurs then the ticket is transported back to the start position and NAK + ‘E’ is sent.

~ Encodes the ticket, performs read-after-write, and cuts the ticket. The ticket stops

after the cutter (where the after cutter sensor still can see the ticket). Here it waits for print data and !P command before proceeding to be printed and ejected to the customer. Apart from print data and !P, only the following commands are allowed. !L3, !L4, and !L5. !L5 "Eject document into waste bin" will throw away the ticket from the waiting position into the waste bin without erasing the data to avoid that the ticket material in the upper track is being pushed out.

— (minus sign) Disables encoding on magnetic retries. If magnetic retries occur it is

almost certain that it is the read-after-write fails due to interference. If encoding is disabled on the retry, the interference level is drastically reduced and the possibility of a successful reading increases. This is especially useful for HiCo tickets.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Programming

Command Reference

Magnetic Encoding Retries

Note • The | character in the string makes the ticket return to active position after encoding

this track.

Encoding two tracks on a HiCo ticket:

!C↵

!M 1234567890123456789012345678901234567 |↵

!P↵

!C↵

!J ON TRACK 1 YOU CAN ENCODE UP TO 79 ASCII ALPHANUMERICAL CHARACTERS AND DIGITS↵

F T N 50 140 1 1 1 3 "HiCo Test"↵

!P↵

What Can You Encode?

ASCII Character Parity Magcode

32 Space 1 000000

33 ! 0 000001 Character not defined in Standards

34 " 0 000010 Character not defined in Standards

35 # 1 000011

36 $ 0 000100

37 % 1 000101 Start Character (Start Sentinel)

38 & 1 000110 Character not defined in Standards

39 ' 0 000111 Character not defined in Standards

40 ( 0 001000

41 ) 1 001001

42 * 1 001010 Character not defined in Standards

43 + 0 001011 Character not defined in Standards

44 , 1 001100 Character not defined in Standards

Table 2 • Track 1 ISO Encoding

45 - 0 001101

46 . 0 001110

47 / 1 001111

48 0 0 010000

49 1 1 010001

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command Reference

Table 2 • Track 1 ISO Encoding (Continued)

ASCII Character Parity Magcode

50 2 1 010010

51 3 0 010011

52 4 1 010100

53 5 0 010101

54 6 0 010110

55 7 1 010111

56 8 1 011000

57 9 0 011001

58 : 0 011010 Character not defined in Standards

59 ; 1 011011 Character not defined in Standards

60 < 0 011100 Character not defined in Standards

61 = 1 011101

62 > 1 011110 Character not defined in Standards

63 ? 0 011111 Stop Character (End Sentinel)

64 @ 0 100000 Character not defined in Standards

65 A 1 100001

66 B 1 100010

67 C 0 100011

68 D 1 100100

69 E 0 100101

70 F 0 100110

71 G 1 100111

72 H 1 101000

73 I 0 101001

74 J 0 101010

75 K 1 101011

76 L 0 101100

77 M 1 101101

78 N 1 101110

79 O 0 101111

80 P 1 110000

81 Q 0 110001

82 R 0 110010

83 S 1 110011

84 T 0 110100

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Programming

Command Reference

Table 2 • Track 1 ISO Encoding (Continued)

ASCII Character Parity Magcode

85 U 1 110101

86 V 1 110110

87 W 0 110111

88 X 0 111000

89 Y 1 111001

90 Z 1 111010

91 [ 0 111011 Character not defined in Standards

92 \ 1 111100 Character not defined in Standards

93 ] 0 111101 Character not defined in Standards

94 ^ 0 111110 Field Separator

95 _ 1 111111 Character not defined in Standards

Mag Code = the six LSB of (ASCII value - 32), parity bit is added by printer.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command Reference

Table 3 • Track 2&3 ISO Encoding

ASCII Character Parity Magcode Notes

48 0 1 0000

49 1 0 0001

50 2 0 0010

51 3 1 0011

52 4 0 0100

53 5 1 0101

54 6 1 0110

55 7 0 0111

56 8 0 1000

57 9 1 1001

58 : 1 1010 Account Separator (Track 3 only)

59 ; 0 1011 Start Character (Start Sentinel)

60 < 1 1100

61 = 0 1101 Field Separator

62 > 0 1110

63 ? 1 1111 Stop Character (End Sentinel)

Mag Code = the four LSB of (ASCII value - 48), parity bit is added by printer.

Sending !M 12345 to the printer results in encoding of 00000;12345?000000

This results in:

0000000000000000000000001011000100100011010001011111

on the stripe.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Storage Commands

Programming

Command Reference

!H P n1 n2

21 48 20 50 20 n1...n2 hex 33 72 32 80 32 n1...n2 decimal

Set Parameter Value

A number of bytes in the flash PROM hold various parameter values called default parameters. One or several of them can be overridden temporarily with this command.

n1 Parameter number as decimal digit(s)

n2 Parameter value

A space must separate the parameter number and the parameter value

See Default Parameter Settings on page 74.

The permanently stored parameters will be used again after a printer-reset command or at power ON.

The temporary values can, however, be stored in the flash PROM as permanent values with command !H S.

Example • This example sets parameter 1 (baudrate) to 115200 bps.

!H P 1 11<CR><LF>

!H S

21 48 20 53 Hex 33 72 32 83 decimal

!S P n1 n2

21 53 20 50 20 n1 Hex 33 83 32 80 32 n1 Decimal

Store current Parameter Values

Stores the current setting of all parameter values in the setting memory. These parameters are then used as default parameters. Storing takes approximately 4 seconds. The printer activates the cutter to indicate that storing is complete.

Parameter-setting data Enquiry

This command requests information about the setting of parameter n1. The reply is the parameter value stored in flash PROM or any parameter value temporarily set by other commands.

n1 Parameter number to start from, as decimal digit(s)

n2 Number of parameters to read out

The parameter names under Summary of Parameter Settings on page 76.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Command Reference

Example 1 • Recalls the setting of parameter 1 (baudrate).

!S P 1 1<CR><LF>

Example 2 • Recalls the setting of parameter 1 to 4.

!S P 1 4<CR><LF>

Example 3 • Recalls the setting of all parameters.

!S P<CR><LF>

Example 4 • Parameter number 0 reflects the No. of parameters stored in the printer. So If

you send !S P 0 1 to the printer and get a 14 as reply you know that there are 14 parameters that you can read out.

!S P 0 1<CR><LF>

Parameter number 255 contains a checksum calculated as the sum of all parameters from parameter 1 to the parameter number given by parameter 0.

!H F

21 48 20 53 Hex 33 72 32 83 decimal

Load firmware

A utility program for loading firmware is available on the Zebra web site (The TTP Editor). If you want to make remote upgrading of firmware possible though your ticketing system you should implement the !H F command.

Example 1 • Prepares the printer for incoming data.

!C<CR><LF>

Example 2 • Tells the printer that the binary to come is a firmware file.

!H F<CR><LF>

Example 3 • Here you should have a delay of 100 ms before sending the firmware file to the

printer port.

Delay 100 ms

Example 4 • Firmware file with the version you intend to upgrade to.

Binary file

After burning the new firmware into the Flash PROM, the printer will make a reset.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Programming

Command Reference

!H C

21 48 20 43 Hex 33 72 32 67 decimal

Load character set (font)

Loads and stores an SWF-font into the flash prom of the TTPM3. A character set loaded gets the next free character set number. So character sets must be loaded in the order that you want them.

A utility program for loading character sets is available on the Zebra web site (the TTP Editor). If you want to make remote upgrading of fonts possible though your ticketing system you should implement the !H C command.

Example 1 • Prepares the printer for incoming data.

!C<CR><LF>

Example 2 • Tells the printer that the binary to come is a character set file.

!H C<CR><LF>

Example 3 • Here you should have a delay of 100 ms before sending the font file to the

printer port.

Delay 100 ms

Example 4 • SWF font file with the font you intend to load.

Binary file

!H C E

21 48 20 43 Hex 33 72 32 67 decimal

After burning the new character set into the Flash PROM, the printer will make a reset.

Erase all character sets (fonts)

You cannot delete a single font from the printer but must delete all fonts and then load the fonts you want again.

The Zebra TTP Editor can be used to erase fonts. If you want to make remote deleting of fonts possible though your ticketing system you should implement the !H C E command.

Example • Prepares the printer for incoming data.

!C<CR><LF>

Example • Erases all character set from the printer.

!H C E<CR><LF>

After erasing the character sets, the printer will make a reset.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Font Loading

The printer can store fonts in its flash PROM. The fonts are given font numbers when they are loaded into the printer. The first font is assigned number 0 and the next font 1 etc. up to font 3.

The memory available for font storage is printed on the self test ticket. The number of fonts that fit depends on the size of the font files.

You cannot erase a single font, but must erase all four fonts with !H C E, then reload the fonts you wanted to keep.

Utility software for generation of SWF-font files and loading/erasing fonts is available on the Zebra web site. If you need to load fonts in a non-Windows environment, use the !H C command.

The time required for processing the font data that is loaded is typically 15–20 seconds per font, excluding transfer time. During this time, any data sent to the printer will be lost.

Note • NOTE! — The font processing ends with a reset.

Caution • Loading to the flash PROM will erase the RAM completely since the RAM is

used during the loading process. Any print data residing in RAM will thus be lost.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Logotypes

Logotypes can be stored in the flash PROM of the printer and printed on demand. The memory available for logotype storage is printed on the self test ticket. The number of logotypes that fit depends on the size of the font files.

Yo u position and print a logotype with the command !F L.

Loading

Windows software that converts black and white BMP bitmap files to logotypes and load them into the printer is available on the Zebra web site. If you need to load logotypes in a nonWindows environment, use the !H L command.

The time required by the printer to process logotype data, excluding transfer time from the PC, is typically 15 to 20 seconds, per logotype. During this time, any data sent to the printer will be lost.

Erasing

Programming

Logotypes

All logotypes are erased with the !H L E command.

Caution • Loading to the flash PROM will erase the RAM completely since the RAM is

used during the loading process. Any print data residing in RAM will thus be lost.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Ticket Examples

The command language will be explained in detail with the following examples.

Note • These examples work with a TTPM3 set up for single-entry. If your printer is set up

for dual entries you must insert an entry selection command, before the

Assume that you want to print a document with the following layout and the number 123456789 to be encoded on ISO track 2 (or center track).

!P command.

Figure 15 • Printout example

!L1 or !L2, on a separate line

To achieve this, the following data have to be sent to the printer:

!C !C !F T N 150 20 1 2 2 1 "TTPM" !F T N 110 70 1 1 1 1 "Printer/Encoder" !M 123456789 !P

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

This command sequence will now be fully explained:

!C Clears all previously sent definitions.

Programming

Ticket Examples

!F T N 150 20 1 2 2 1 "TTPM"

Defines a print field starting at X coordinate 150, (pixel pos. 150), Y coordinate 20 (pixel pos. 20), with characters of double height and double width, font 1. X-axis resolution is 7.52 pixels/mm (0.133 mm/pixel), Y-axis resolution is 5.7 pixels/mm (0.175 mm/pixel).

!F T N 110 70 1 1 1 1 "Printer/Encoder"

Defines a print field at X pos. 110, Y pos. 70 with standard size characters, font 1.

!M 123456789 Defines data to be encoded in ISO defined format on

ISO track 2 (or center track) magnetic stripe as "123456789". Reads the encoded string, compares with the input (read-after-write).

Note • For ISO encoding, start, stop and check

digits, as well as synchronization zeroes are automatically added by the TTPM3.

!P Encodes and prints the document. The "!F" definitions

are now stored in the printer. If another document with the same text and layout shall be printed but with another magnetic data string then only the following commands need be sent to the printer:

!M 987654321 !P

This sequence will encode a ticket with a different number on the magnetic stripe but will produce a print picture with the same text and layout as the previous one.

Note • If data shall be encoded on track 1 or 3, use the applicable command !J or !K to

precede the data. The same Encoding/Read-after-Write routine applies as for track 2 (or center track) encoding. Multiple tracks can be encoded in the same operation unless the printer uses HiCo tickets. !J <message> and !K <message> for encoding track 1 or 3 shall precede the !M <message> and !N<message> for simultaneous encoding/read-after-write of message data on tracks 2 and 1/3.

Note • X position range is 0–380 (at North orientation) Y position range is 0–470 for 86 mm

tickets (at North orientation).

We have so far been printing text oriented in the North direction. The printer is capable of printing in four directions.

Note • Fonts 2 and 3 can only be printed in North orientation.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Ticket Examples

The following example prints text oriented in all four directions:

!F T N 120 190 1 1 1 1 "Prints" N = North

!F T E 190 250 1 1 1 1 ”In" E = East

!F T S 170 350 1 1 1 1 "Four" S = South

!F T W 120 330 1 1 1 1 "Directions" W = West

Figure 16 • Printout Example

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Text Attributes

TTPM3 does not handle word processor-like text attributes. You can reverse text, and you can make bold text according to the procedure described below. Bold and reversed cannot be combined.

Printing Bold Text

Bold text is created by repeating the text you want bold, but with new coordinates:

!C !C !F T E 370 087 10 02 01 1 "This text is normal" !F T E 309 087 10 02 01 1 "This text is bold" !F T E 309 088 10 02 01 1 "This text is bold" !P

You can increase the "boldness" by changing the coordinates more than one pixel, or by repeating the text more times with a shift also in the vertical direction.

Programming

Text Attributes

Reversed Text

If an R character is appended to the font selection digit (no space between), the text is reversed.

!C !C !F T E 100 110 1 02 02 1R "Reversed text" !F T E 200 110 1 02 02 1 "Normal text" !P

Note • Only print single words in reverse. Reversing a complete line may reset the printer

due to the high current consumption when printing all black.

Note • Reversed text work with fonts 1, 2, and 4.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Programming

Notes • ___________________________________________________________________

__________________________________________________________________________

Text Attributes

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Default Parameter Settings

Some of the printer settings can be stored in non volatile memory so that they will be used also after power OFF.

Each parameter has a parameter number (n) used when setting the parameter with the command !H P n v.

Most parameter settings must be stored before being effective. Do this by setting them up and then send !H S to store all settings in the non volatile memory.

Note • If you try to set a parameter to an invalid value, the parameter will be set to the

nearest valid value below, except for the baud rate value which will return to the default value 115200 bps.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Default Parameter Settings

20 Default

16 Min

31 Max

Burn Time

Parameter number

Default value

Range

Description

SW 02001B

How The Parameters Are Described

Default Value

The default values indicated are "factory default settings" you get by following the procedure on the next page. These are not necessarily the settings that your printer was originally delivered with because many printers have customized settings when delivered.

Examples

Command examples are formatted in Courier and typed in the same way as used in the Zebra TTP editor:

!H P 1 11<CR><LF>

<CR> means the carriage return character 12 decimal (hex 0C). Numbers between

Where less-than and greater-than characters, for example <001><015>, means 1 and 15 decimal (hex 1 and 13).

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Default Parameter Settings

Summary of Parameter Settings

Parameter Description Default Page

1 Baud rate 11 (115200 Baud) page 78

2 Flow control 2 (Hardware) page 78

3 Printer type 2 (Two Consecutive) page 79

4 Network Enable 0 (disabled) page 79

5 Burn time 20 page 79

6 ACK/NAK + error code 1 (enabled) page 79

7 Clear memory after print 0 (disabled) page 80

8 Clear ticket path at startup 1 (enabled) page 80

9 Mag-stripe verification read. 0 (Verify all) page 80

10 Encode start speed 30 page 81

11 Encode full speed 450 page 81

12 Print start speed 100 page 81

13 Print full speed 380 page 82

14 Print Resolution 0 (Normal = 5.7dots/mm) page 82

15 Encoding retries 3 page 82

16 Encoding attempts, No. of tickets 3 page 83

17 Beak feed length 50 mm page 83

18 Feed to cut 22 page 83

19 Bit order for !B 1 command 1 page 83

20 Bit order for !B 2 command 1 page 83

21 Bit order for !B 3 command 1 page 83

31 Character sent after print 0 (disabled) page 84

32 Long ticket length 94 page 84

33 Top margin short ticket 10 page 84

34 Fix ticket length 123 page 84

35 Feed after black mark in black mark mode 196 page 84

36 Character pitch for font 1 12 page 84

37 Paper out behaviour 1 (keep data) page 85

38 Steps after which the print motor is started for long

tickets

39 Feed to cut long tickets 27 page 85

40 Top Margin Long Ticket page 85

Note • When the printer is set up the way you like it to be, you send !H S, and all settings

will be stored.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

280 page 85

Default Parameter Settings

Summary of Parameter Settings

Restore Factory Default

Manually

Remote

1. Switch off the power

2. Hold the three front pushbuttons pressed while switching on the power

3. When the printer has started, release the buttons

4. Press and hold the Clear Jam button for 3 seconds

5. Now the printer will return to default settings above, or if the printer is customized, the

settings agreed on with that customer.

The printer returns to factory default settings if you send:

!H P 0 0<CR><LF>

!H S<CR><LF>

Power OFF/ON

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Parameter Reference

96 Default 11 Min

96 Max

Stores the communication speed on the serial interface.

!H P 1 12 1200 bps !H P 1 24 2400 bps !H P 1 48 4800 bps !H P 1 96 9600 bps !H P 1 19 19200 bps !H P 1 38 38400 bps !H P 1 57 57600 bps !H P 1 11 115200 bps

Baud rate

Default Parameter Settings

Parameter Reference

Note • If you set an invalid value, the baud rate will return to 115200 bps.

Note • The new baud rate will not be valid until after the parameters are stored with the !H S

command.

Important • NEVER change this setting if you have a TTPM3 with Network option.

2Default 1 Min 2Max

Select what handshaking to use on the serial interface.

!H P 1 23 230400 bps, not recommended !H P 1 46 460800 bps, not recommended

Flow-control

!H P 2 1 Xon / Xoff

Important • DO NOT USE. If you send any type of binary data

like graphics data, status requests etc. Xon / Xoff only work

when plain text is sent unidirectional to

status replies may well contain the Xon (11h) and Xoff (13h) characters and will obstruct the communication.

the printer. Graphics and

!H P 2 2 Hardware

Important • NEVER change this setting if you have a TTPM3 with Network option.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Default Parameter Settings

Parameter Reference

2Default 1 Min

2Max

0Default 0 Min

1Max

Printer type

Select what handshaking to use on the serial interface.

!H P 3 1 Standard (One consecutive [lower entry] + handfed-tickets [upper

entry])

!H P 3 2 DCT (Dual Consecutive entries) !H P 3 3 Card dispenser !H P 3 4 Fixed length, see parameter 34 !H P 3 5 Black mark mode, see parameter 36

Note • Must not be set to DCT when front loading is used!

Network enable

20 Default 16 Min 31 Max

1Default 0 Min 1Max

Enables / Disables extra handshaking used by TCP/IP option

!H P 4 0 Network disabled !H P 4 1 Network enabled

Burn time

A long burn time gives darker print. On insensitive paper types you may have to increase the burn time to get an acceptable print quality.

!H P 5 27 Sets burn time 27

Caution • A longer burn time put more load on the printhead, so do not use a longer burn

time than required for a clearly legible print. Settings over 27 are not recommended.

ACK/NAK + error code

For the host computer to get status back from the printer, ACK/NAK must be enabled.

!H P 6 0 Silent !H P 6 1

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Enabled

0Default 0 Min 1Max

When enabled the memory is cleared after each print so that no extra copies of a printout can be made.

1Default 0 Min 1Max

When enabled the printer looks for tickets in the printer at power on and voids any ticket found.

0Default 0 Min 1Max

Clear memory after print

!H P 7 1 Enables auto clear after print

Clear ticket path at startup

!H P 8 1 Enables auto clear at startup

Verify encoding

Default Parameter Settings

Parameter Reference

When enabled the data encoded to the selected tracks are verified by the printer before the ticket is issued.

Tracks: 123 You enable verification of a track by setting the bit for that track to 1.

!H P 9 111 !H P 9 110 !H P 9 011 !H P 9 010 !H P 9 000

Enables Verification of tracks 1, 2, and 3

Enables Verification of tracks 1 and 2

Enables Verification of tracks 2 and 3

Enables Verification of track 2

Disables verification of all tracks

Note • Always disable verification on the tracks not covered by the magnetic stripe on the

tickets used in the application. For example if you only use track 2, set P9 to 010. This controls the self test of the printer. If erroneously set, all self test tickets may be voided.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Default Parameter Settings

Parameter Reference

30 Default

0 Min

999 Max

Encoding start speed

Sets the speed at which the stepper motor starts to accelerate. Normally you never have to change this setting.

10=100 steps/s … 30=300 steps/second

300 steps/s gives 30 mm/s

450 Default

1 Min

999 Max

!H P 10 40

Sets 400 steps/second

Note • Some settings result in printer chassis resonance causing increased noise and

deteriorated print quality.

Encoding full speed

1=1000 steps/s … 450=4500 steps/second

1000 steps/s gives 100 mm/s

!H P 11 400

Sets 4000 steps/second

Note • Some settings result in printer chassis resonance causing increased noise and

deteriorated print quality.

Note • When long tickets are used the encoding speed must be reduced to 350.

100 Default

0 Min

999 Max

Print start speed

Sets the speed at which the stepper motor starts to accelerate. Normally you never have to change this setting.

10=100 steps/s … 160=1600 steps/second

With normal resolution, 1000 steps/s gives 50 mm/s

!H P 12 100

Sets 1000 steps/second

Note • Some settings result in printer chassis resonance causing increased noise and

deteriorated print quality.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

380 Default

0 Min

999 Max

Default Parameter Settings

Parameter Reference

Print full speed

The print speed together with burn time is used to set print quality. Experiment with these settings to get the most readable bar-codes and text on your ticket material.

1=1000 half-steps/s … 16=1600 half-steps/second

With normal resolution, 2000 half-steps/s gives 100 mm/s

400 Default

0 Min

999 Max

3Default 0 Min

10 Max

!H P 13 300

Sets 3000 half-steps/second

Note • Some settings result in printer chassis resonance causing increased noise and

deteriorated print quality.

Note • When long tickets are used the encoding speed must be reduced to 300.

Print resolution

This command sets the resolution of the print. This only affects the resolution in the transport direction of the ticket.

!H P 14 0 normal resolution, (5.7dots/mm). !H P 14 1

high resolution (8.5 dots/mm).

Encoding retries

Sets how many times a ticket should be encoded/verified before being erased and voided when the verification fails.

!H P 15 5 Makes five encoding attempts per ticket before giving up and erasing

and voiding the ticket.

Note • See also !P.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Default Parameter Settings

Parameter Reference

3Default 0 Min

10 Max

50 Default

1 Min

250 Max

22 Default

1 Min

50 Max

Encoding attemps, No. of tickets

Attempts are the number of tickets the TTPM3 should attempt to encode when verification

fails. If set to 1, one ticket is encoded and if verification fails the stripe is erased, VOID printer on the ticket and an error code sent to the system.

!H P 16 2 Two tickets will be used before giving up.

Note • See also !F M.

Beak feed length

Determines how far the ticket should be fed out after the last pixel line is printed.

Cut position (Short tickets)

Determines how far the ticket should be fed from when the sensor before the cutter sees the trailing edge, and the ticket is being cut. One step is 0.4 mm.

1Default 0 Min 1Max

1 means normal bit order, and 0 means reversed bit order for binary encoding of track 1 using the !B 1 command.

Normal means that a hex nibble 01h is encoded as 0001 (seen from the edge of the ticket that enters first when feeding in a ticket from the rear entries). Reversed means that the same nibble is encoded as 1000.

1Default 0 Min 1Max

1 means normal bit order, and 0 means reversed bit order for binary encoding of track 2 using the !B 2 command.

1Default 0 Min 1Max

Bit order for !B 1

!H P 19 0 Reverses the bit order on track 1.

Bit order for !B 2

Bit order for !B 3

1 means normal bit order, and 0 means reversed bit order for binary encoding of track 3 using the !B 3 command.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

0Default

32 Min

255 Max

94 Default

0 Min

255 Max

10 Default

0 Min

255 Max

Default Parameter Settings

Parameter Reference

Character sent after print

An ASCII character can be returned to the host after a completed ticket generation.

!H P 31 3 The character 03h (ETX) will be sent by TTPM when the last pixel line

of the ticket has been printed.

Long ticket length

This parameter adjusts the transition between short and long ticket.

Caution • Do not change unless you are told by Zebra Technical Support to do so.

Top Margin, short ticket

123 Default

32 Min

255 Max

196 Default

32 Min

255 Max

12 Default

1 Min

16 Max

The start of print is measured from the rear edge of the ticket and this parameter can be used to adjust the start of print.

Fixed ticket length

Length of ticket in fixed length mode. Fix length means that there is no gaps or black marks to control cut. The printer counts steps from the leading edge of the ticket and cuts when fed to the setting of this parameter.

Feed after black mark in black mark mode

The printer counts steps from the middle of the black mark, and cuts when fed to the setting of this parameter.

Character pitch for font 1

This parameter is used if the width parameter in the !F command is set to 1.

Note • See also !F T on page 49.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Default Parameter Settings

Parameter Reference

1Default 0 Min

1Max

Paper out behaviour

The printer sends NAK P when a !P is received and the printer is out of paper. This parameter decides what the printer should do with ticket data when out of paper.

!H P 37 0 The printer discards all data until paper is loaded.

280 Default

0 Min

400 Max

27 Default

0 Min

100 Max

10 Default

0 Min

255 Max

!H P 37 1

The printer waits for paper to be loaded and then print the ticket from

memory.

Steps after which the print motor is started for long tickets

If long tickets are used, the print motor must start before the ticket is cut.

This parameter sets when to start the print motor. One step is 0.4 mm.

Cut position (Long tickets)

Determines how far the ticket should be fed from when the TOF sensor sees the trailing edge, and the ticket is being cut. One step is 0.4 mm.

Top Margin, long ticket

The start of print is measured from the rear edge of the ticket and this parameter can be used to adjust the start of print.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Error Codes and Status

Reporting

The host computer uses the TTPM3 status reporting to determine if the print cycle has been completed or not. If not, error codes help determine what went wrong.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Error Codes and Status Reporting

Status

When executing the print command !P, the printer confirms that the magnetic code is has been written and verified by sending an ” almost ready and should just pass the printhead and be outputted to the customer. You can extend the acknowledge procedure to send acknowledge for other things than magnetic encoding. See command

If you select a character by setting parameter 31, that character will be sent when the when the print cycle is completed, which is when the ticket leaves the printhead. At this stage you can be reasonably certain that the ticket has been correctly issued, and you can proceed with the next ticket.

You can at any time

See ENQ on page 43.

ACK” (06H) to the host. This indicates that the ticket in

!C A.

read the sensors in the printer with the “ENQ” (05H), and !S commands.

1. After a power off, the printer must first receive a !C or !P before answering status queries.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Security Additions

61.25

384

23520

5.7

490

Status reporting is used as a security measure to ensure that no manipulation has occurred that makes it possible to issue more tickets than intended.

Error Codes and Status Reporting

Security Additions

If “Auto Clear at Startup” is enabled (parameter 8) the printer it looks for any unfinished ticket, voids it, and then issues an

NAK G error code to inform about this.

If “Character sent after print” is selected (parameter 31) the printer issues that character, for example

A transaction string can be appended to the ticket data using the stored in nonvolatile memory when the 03H is issued. This string can be read by the

ETX (03H), to tell that the print cycle has been completed.

!Q command. The string is

command, but there is no way to change the string other than issuing a new ticket.

During printing, a byte-counter is incremented and stored in the RAM. The counter starts at zero, and when the ticket is ready the counter has reached 5BE0h, which is 23520.

Dividing the byte counter value by the number of pixels on a line (384) gives the current pixel line. When the ticket is completed, we have printed bytes of pixel lines in the y-direction.

61.25 x 8 = 490 pixel lines. You have 5.7 pixel lines/mm. mm which is one ticket length.

Should a power failure occur, before the counter reaches the full value (5BE0h) you can analyze the counter value to see if the ticket was as ready enough to pass as a usable ticket. In such case you should not issue a new ticket unless you get the

NAK G that shows that the

almost ready ticket has been voided.

A critical error status message informs the host computer if something happens in the printer that requires the operator to power it off.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Error Codes and Status Reporting

Errors

TTPM3 reports error conditions in the form of error codes. An error condition is reported as a

NAK (15H) followed by a one-character error code. The error codes have been defined,

starting with ASCII character "1" (31H) according to the following table:

"1" No paper in the entry path selected with

"2" Paper jam when executing

!L1, !L2, !L17, or !L18.

"3" Reserved.

"4" Cutter error. No full cut performed. Cutter blade returned to home position by

reversing the cutter motor.

"5" Cutter error. Cutter blade not returned to home position.

"6" Cutter error. Cutter blade not moving. If this error code is received immediately

after power ON, it indicates that something is wrong with the +24V supply.

"7" Paper jam when executing the !P command.

"8" Magnetic encoding on track 2 (or center track) failed.

"9" Magnetic encoding on track 1 or 3 failed.

"A" Not possible to read magnetic information with

”B” No document inserted within time limit following an

!D, !D1, !D2, or !D3 commands.

!L3 command (front load).

”C” Document inserted (front load) but immediately retracted.

”D” Document inserted through front load is blocked.

”E” Document blocked in the front load input feeder during an

!L3 command. Also

used when combining the characters | and } in a hex magnetic string to get normal behavior if the encoding was successful. If an error occurs then the ticket is transported back to the start position and

NAK E is sent.

“G” Document found in the ticket path during power on has been erased, VOID-

printed and ejected.

“P” If !P is sent to the printer and paper is out, it replies with NAK P and discards data.

"X" Critical error. This is issued when the printer must be turned off, error condition

cleared, then turned off again.

Note • For TTPM3 to send ACK, or NAK + error codes, the DIP-switch 6 on the TTPM3

control board must be set to ON. Position OFF places the unit in a silent mode preventing these codes from being transmitted to the host computer.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Extended acknowledgement

It is possible to extend the acknowledgement procedure so that most commands are acknowledged by the printer.

To enable the function you have to the send the command:

!CA

A ticket should therefore always start with the commands:

!CA

The extended acknowledgement is a command number appended to the ACK. The command number is a 1 byte hexadecimal number according to the following table.

Acknowledgement

Command

Normal Extended

Error Codes and Status Reporting

Extended acknowledgement

When?

!P 06h 06h 80h

06h 02h

After a successful magnetic encoding. After printing.

!C 06h 04h After clear memory

!F 06h 05h After formatting data in memory

!L 06h 08h After successful track load / eject operation

!L 17 06h 06h 08h When the lower input contains ticket stock

!L 18 06h 06h 08h When the upper input contains ticket stock

!L 3 06h 06h 08h When a ticket has successfully been loaded from

the front to the upper input track.

!L 4 06h 06h 08h When successful eject through front entry

!E 06h 09h After successful eject through rear entry

!Q 06h 14h After transaction string is written in memory

!Z 06h 18h After burn time is changed

!X 06h 19h After changed resolution

The following is a simple example:

Sent to printer Acknowledgement

!C 06h 04h

!C A 06h 04h

!F T E 309 014 10 03 02 1 "TEST TICKET WITH FULL" 06h 05h

!F T E 259 024 10 03 02 1 "75 BPI TRACK 2 STRING" 06h 05h

!M 1234567890123456789012345678901234567 06h 80h

!P 06h 02h

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Error Codes and Status Reporting

Notes • ___________________________________________________________________

__________________________________________________________________________

Extended acknowledgement

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Maintenance

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Maintenance

Fault Finding

In connection with service of the printer it is good practice to remove paper dust and lint from the paper path, cutter and sensor areas. Paper dust, when accumulated, may interfere with printer functions such as optical sensors.

To avoid smudging the paper, do not apply oil on the cutting knife.

Table 4 • Faultfinding

Symptom Suggested actions

Nothing is printed when you press the feed button in self-test mode, but the document is transported, cut and ejected.

Paper jam

Printer does not work at all

Self-test prints OK, but the printer works strangely in normal operation.

No cutting

Bad cutting (uneven top and bottom document edges).

Inconsistent cutter operation

Paper is fed straight through the printer. Paper does not loop.

• Check that the paper roll is turned the correct way

with thermal sensitive layer facing up.

• Check that the paper used meets the paper

• Check that the printhead cable is fully inserted into

the connectors at each end.

• Check cutter-home sensor.

• Check that the printhead is closed.

• Check that power is supplied to the printer.

• Check the function of the paper-out sensor.

• Check that both ends of the interface cable are

properly connected.

• Application program might be incorrect. Contact

system manager.

• Check that the connector for the cutting motor is

fully seated on the control board.

• Switch OFF printer and remove any obstructing

paper particles in cutter and presenter modules.

• Check/clean cutter-home sensor.

• Check/clean presenter sensor.

• Check setting of parameter p9.

Missing print or irregular spots.

• Paper may be too humid. Let it adapt to ambient

temperature and humidity for approximately 24 hours before use.

• The paper used might not meet the paper

specification.

White longitudinal lines in the

• Faulty print head, replace.

printout.

Faint print.

• The paper used might not meet the paper

specification.

• Clean print head with ethyl or isopropyl alcohol.

• Adjust print contrast.

Strange characters or graphics printed, or any kind of strange

• Might be caused by erroneous data sent from the

host. Check validity of transferred data.

printer behavior.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Cleaning the Print Head

The print head can be cleaned without removal.

Caution • Tur n o ff (O) the printer and disconnect it from the power source before

performing the following procedure.

Open the printhead.

3. Clean the heat elements.

Note • Use the Preventive Maintenance Kit (part number 47362). In place of the

Preventive Maintenance Kit, you may use a clean swab dipped in a solution of isopropyl alcohol (minimum 90%) and deionized water (maximum 10%).

For 600 dpi printers, use Save-a-Printhead cleaning film. This specially coated material

removes contamination buildup without damaging the printhead. Call your authorized reseller or distributor for more information.

Maintenance

Cleaning the Print Head

Firmware

Loading

The firmware is stored in flash-PROM on the control board. A replacement control board may not contain the same firmware version that you are currently using, so if you replace control board for some reason, upgrade it to the firmware version you want to use.

Caution • Observe proper electrostatic safety precautions when handling any

static-sensitive components such as circuit boards and printheads.

Firmware is loaded through the serial port of the TTPM3.

1. Download the firmware from the Zebra web site (http://www.zebra.com).

There you will also find the TTP Editor (Windows™ software) that you use for loading the firmware into the printer.

2. Start the TTP Editor and select settings, Printer type TTPM3, and set the Comm settings to

the port etc. that you use.

3. Select Settings, Debug Window, and click on “Text”.

4. Move the debug window so it does not cover the TTP editor. (The debug window will

show status during program loading and must be open)

5. Select Advanced TTP features, and Boot&Firmware load, and follow the instructions on

the screen.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Maintenance

Firmware

Note • The connector that must be short circuited with a jumper during program loading is

located close to the power connector. If you have a desktop version of the TTPM3, a hole in the bottom of the cover gives access for the jumper.

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Specifications

Note • Specification subject to changes without notice.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Specifications

Interface Description

The TTPM3 communicates through an RS232 serial interface.

Setup Options

Baud: 2 400, 4 800, 9 600, 19 200, 38 400, 57 600, and 115 200 bits/s Flow control: None, Xon / Xoff, or Hardware

Data bits: 8 (fixed)

Stop bits: 1 (fixed)

Parity: None, Odd, or Even

Default settings: 115200 bits/s, 8-bits, No parity, 1 stop bit, and hardware flow control.

See also: Default Parameter Settings on page 74.

Communications Protocol

The protocol is 8 data bits, 1 stop bit, and no parity. Handshaking is DIP-switch-selectable, either or RTS/CTS or XON/XOFF (parameter n4).

Note • Use RTS/CTS hardware handshake (parameter n4=2) and ACK/NAK + error code

enabled (parameter n5=0).

P1003642-001 TTPM3 Installation and Programming Manual 01/06/2009

Communications Cable

Printer

Female

594837261

Female

594837261

RxD

TxD

9RIRI9

DSR

CTS

DTR

RTS

DCD

GND

Serial Cable 10825-000

Caution • Using a non-approved cable with the printer may void the FCC and other EMC

approvals of the printer.

Use a 9-pin serial cable to connect the TTPM3 printer to the host computer.

Such a cable is available from Zebra. Part number 10825-000. The cable is 1.5 m long with 9pole D-sub connectors at both ends (PC and TTPM3).

Figure 17 • Serial Connector Pin Assignment

Specifications

Interface Description

Note • This cable is not connected as a standard null-modem cable. So we recommend you to

use the original cable from Zebra or manufacture a cable according to the above drawing. If you use a null-modem cable, you will lose data in the transfer to the printer.

01/06/2009 TTPM3 Installation and Programming Manual P1003642-001

Specifications

Document Stock

Ticket Base Material

The TTPM3 printers are produced and calibrated for, and tested with the customer’s ticket stock. To ensure accurate ticket issuing, we do require 100 tickets of the customer ticket stock for each ordered printer.

Type of paper Ricoh 150UT 240µ, Mitsubishi TF 2475, and Tyco Sharkskin are

recommended. See

http://www.zebra.com for current

recommendation.

Material Paper, 100 % chemical pulp, no ground wood permitted

Triplex* laminate**

Plastic (polypropylene Sharkskin

)

Stiffness 18–36 g/cm (in grain direction)

Thickness Paper and laminate: 0.18–0.40*** mm, 170–210 g/m²

Plastic (polypropylene Sharkskin

): 0.18–0.25 mm

Factory setting: Set to the customer’s tickets. A minimum of 100 tickets per printer ordered must be sent to Zebra when ordering printers.

Curl Deviation from flatness < 0.6 mm across the length, width, or

diagonal of the ticket

*. Triplex is manufactured from three paper stocks. The middle is usually recycled paper, and the top and bottom are

different papers.

**. Laminate with plastic core may destroy the printhead and prematurely wear out the cutter blades! DO NOT

USE.

The perforation of the tickets may leave parts of the plastic core protruding through the surface of the ticket.
