Introduction
The TC5X and TC7X Workstation Cradle is an enhanced single-slot charging cradle with additional ports
for HDMI, Ethernet, and four USB ports that enable a TC5X or TC7X device to be used as a workstation
computer when connected to a HDMI monitor, keyboard and mouse. The TC5X cradle supports TC52, and
TC57 devices. The TC7X cradle supportsTC72, and TC77 devices.
The workstation cradle provide:
• 5 VDC power for operating the device.
• Three 0.5 mA USB ports for USB devices (keyboard, mouse, USB scanner, etc.).
• One 1.5 mA USB port for a USB device or for charging a personal mobile device.
• One HDMI port for connection to a monitor.
NOTE: If the user also wants audio support, they need to use a monitor that has speakers (audio through
the HDMI connection).
If the user also wants to support a touch monitor, they need to use a monitor that supports touch inputs
and connect the feature to one of the USB ports of the cradle.
• One Ethernet port for connection to a wired Ethernet network.
In the Box
The kit contains:
• workstation cradle
• power supply
• DC cable
• regulatory guide.
Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global Customer
Support center immediately.
2
Features

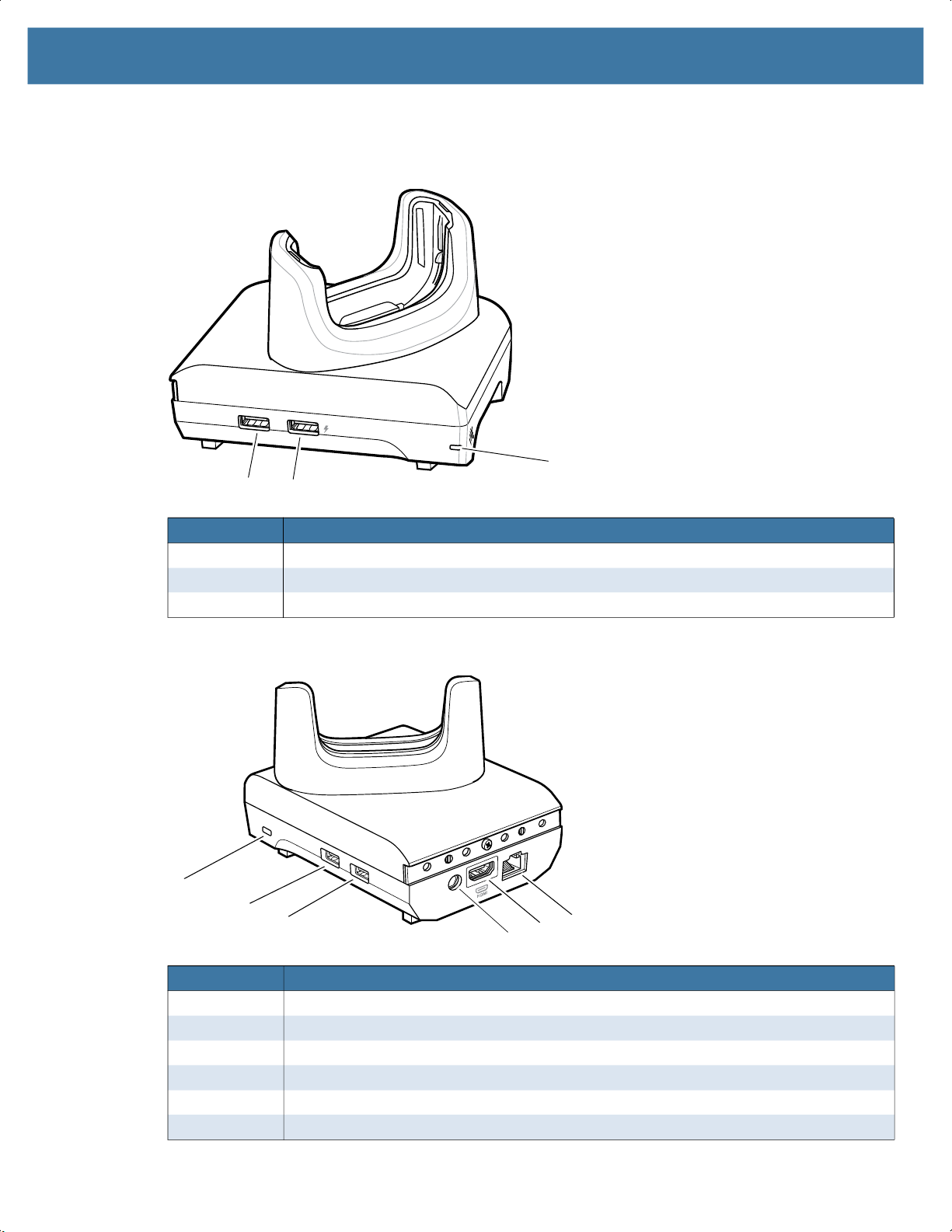

Figure 1 Left Side View (TC5X Cradle Shown)
1
23
Item Description
1 LED - Indicates that power is applied to the cradle.
2 1.5 mA USB Port - USB Type A port for mouse or keyboard, or personal mobile device.
3 0.5 mA USB Port - USB Type A port for mouse or keyboard.
Figure 2 Rear/Right Side View (TC5X Cradle Shown)
9
8
7
6
Item Description
4 Ethernet Port - Connects to an Ethernet network.
5 HDMI Port - Connects to monitor.
6 Power Port - Provides power to the cradle.
7 USB Type A Port - Connection for mouse or keyboard.
8 USB Type A Port - Connection for mouse or keyboard.
9 Kensington Slot - Connecting point for Kensington locking system to secure cradle.
4
5
3
