Zebra TC75 integrator Guide

Download

TC75

MN-002901-03

Touch Computer

Integrator Guide for Version 5.1.1

TC75 Integrator Guide

for Version 5.1.1

MN-002901-03

Rev A

April 2018

ii TC75 Integrator Guide

No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from Zebra. This includes electronic or mechanical means, such as photo copying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice.

The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. Zebra grants to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program) . Except as n oted below, such licen se may not b e assigned, sublicensed, or otherwise tran sfe rr e d by th e user without prior written consent of Zebra. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify , merge, or incorporate any for m or portion of a licensed program with other pro gram material, create a derivative work from a licensed program , or us e a li censed program in a network without written permission from Zebra. The user agrees to maintain Zebra’s copyright notice on the licensed programs delivered hereunder , and to include the same on any au thorized copies it m akes, in whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed program delivered to the user or any portion thereof.

Zebra reserves the right to make changes to any software or product to improve reliability, function, or design. Zebra does not assume any product liability arising out of, or in connection with, the application or use of any

product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any Zebra Technologies

Corporation, intellectual property rights. An implied license only exists for equipment, circuits, and su bsystems contained in Zebra products.

Revision History

Changes to the original manual are listed below:

Change Date Description

Rev A 8/2016 Initial release.

-02 Rev. A 11/2017 Remove Import/Export Button Remapping configuration. It is not supported in Lollipop.

-03 Rev. A 4/2018 Update approved cleanser active ingredients.

iii

iv TC75 Integrator Guide

Revision History................................................................................................................................. iii

Table of Contents

About This Guide

Introduction...................................................................................................................................... xiii

Documentation Set .......................................................................................................................... xiii

Configurations.................................................................................................................................. xiii

Software Versions............................................................................................................................ xiv

Chapter Descriptions ....................................................................................................................... xiv

Notational Conventions.................................................................................................................... xv

Icon Conventions............................................................................................................................. xv

Related Documents ......................................................................................................................... xvi

Service Information.......................................................................................................................... xvi

Chapter 1: Getting Started

Introduction .................................................................................................................................... 1-1

Setup .............................................................................................................................................. 1-1

Installing the SIM Card ............................................................................................................. 1-1

Installing the SAM Card ........................................................................................................... 1-3

Installing a microSD Card ........................................................................................................ 1-3

Installing the Hand Strap and Battery ............................................................................................ 1-4

Installing the Battery ...................................................................................................................... 1-6

Charging the Battery ................................................................................................................ 1-6

Charging Indicators ............................................................................................................ 1-7

Replacing the Battery ..................................................................................................................... 1-7

Replacing the microSD Card ......................................................................................................... 1-9

Resetting the TC75 ...................................................................................................................... 1-10

Performing a Soft Reset ......................................................................................................... 1-11

Performing a Hard Reset ....................................................................................................... 1-11

Performing an Enterprise Reset ............................................................................................. 1-11

vi TC75 Integrator Guide

Performing a Factory Reset ................................................................................................... 1-12

Chapter 2: Accessories

Introduction .................................................................................................................................... 2-1

Accessories .................................................................................................................................... 2-1

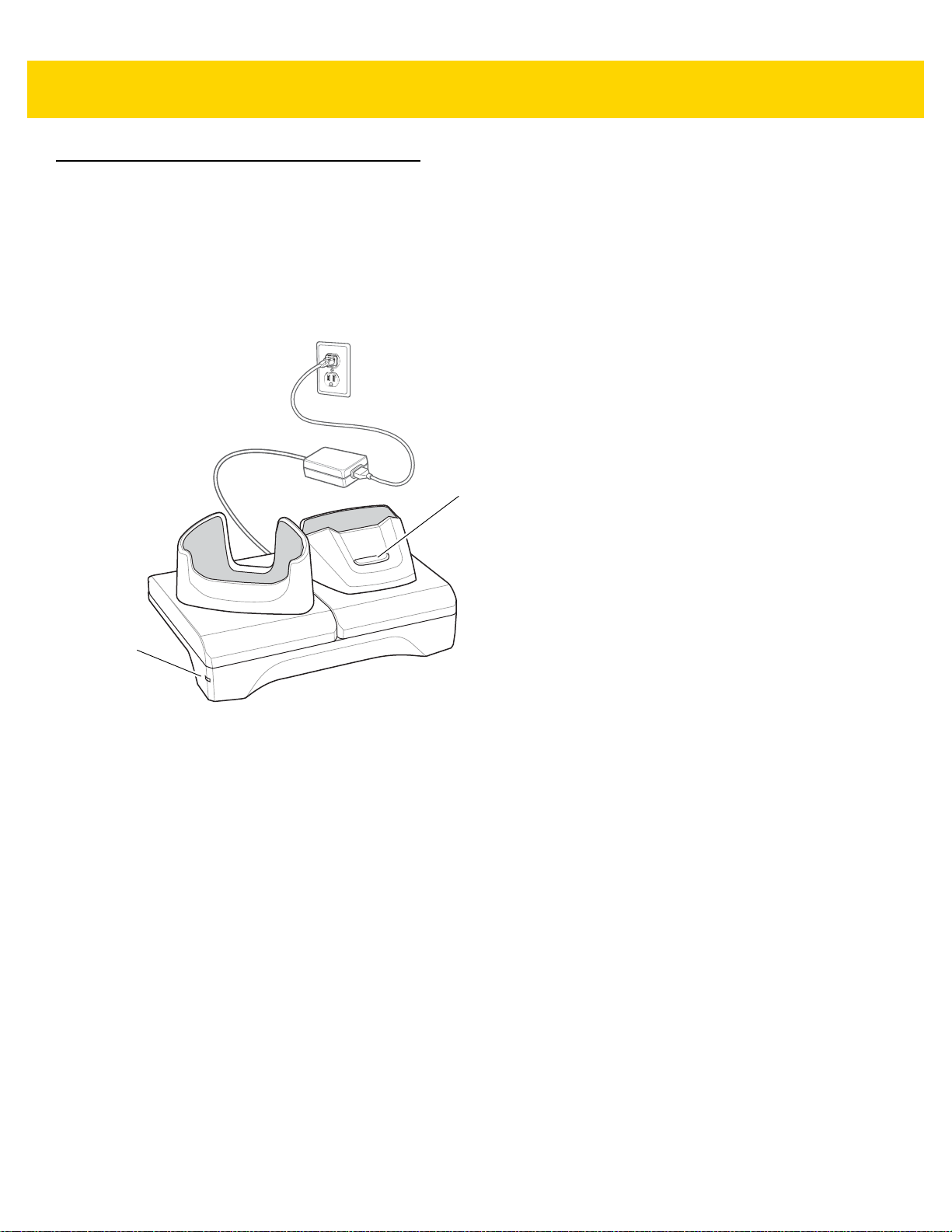

2-Slot Charge Only Cradle ............................................................................................................. 2-5

Setup ........................................................................................................................................ 2-6

Charging the Device ................................................................................................................. 2-6

Charging the Spare Battery ...................................................................................................... 2-7

Battery Charging ...................................................................................................................... 2-8

Main Battery Charging ....................................................................................................... 2-8

Spare Battery Charging ...................................................................................................... 2-8

Charging Temperature ............................................................................................................. 2-8

2-Slot USB/Ethernet Cradle ........................................................................................................... 2-9

Setup ...................................................................................................................................... 2-10

Charging the Device ............................................................................................................... 2-10

Charging the Spare Battery .................................................................................................... 2-11

Battery Charging .................................................................................................................... 2-12

Main Battery Charging ..................................................................................................... 2-12

Spare Battery Charging .................................................................................................... 2-12

Charging Temperature ........................................................................................................... 2-13

USB/Ethernet Communication ............................................................................................... 2-13

Ethernet LED Indicators ................................................................................................... 2-13

Ethernet Settings .............................................................................................................. 2-14

Configuring Ethernet Proxy Settings ................................................................................ 2-14

Configuring Ethernet Static IP Address ............................................................................ 2-15

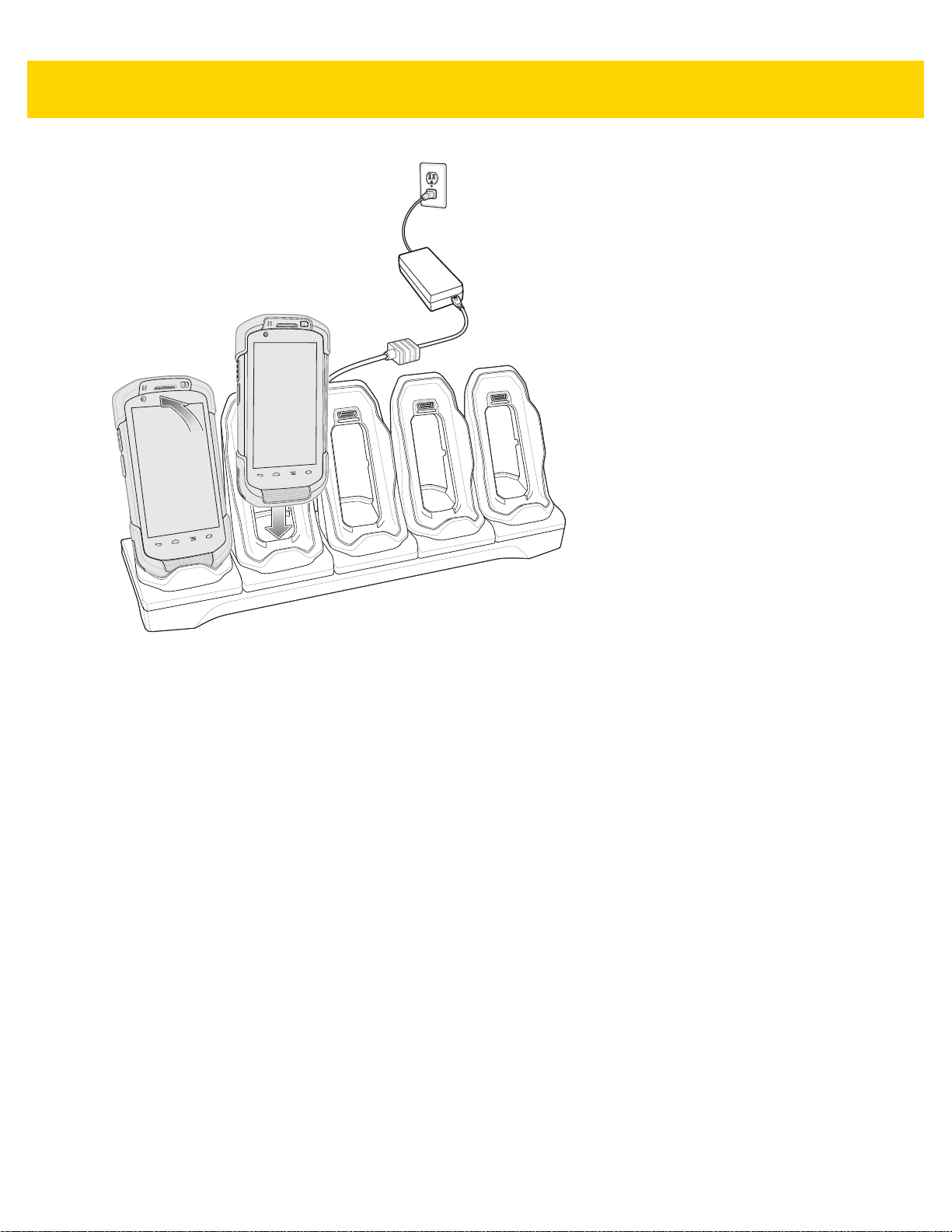

5-Slot Charge Only Cradle ........................................................................................................... 2-16

Setup ...................................................................................................................................... 2-17

Charging the TC75 ................................................................................................................. 2-17

Battery Charging .................................................................................................................... 2-18

Main Battery Charging ..................................................................................................... 2-18

Charging Temperature ........................................................................................................... 2-18

Installing the Four Slot Battery Charger ................................................................................. 2-19

Removing the 4-Slot Battery Charger .................................................................................... 2-23

5-Slot Ethernet Cradle ................................................................................................................. 2-24

Setup ...................................................................................................................................... 2-25

Daisy-chaining Ethernet Cradles ............................................................................................ 2-25

Ethernet Settings .............................................................................................................. 2-26

Configuring Ethernet Proxy Settings ................................................................................ 2-26

Configuring Ethernet Static IP Address ............................................................................ 2-27

LED Indicators ........................................................................................................................ 2-28

Charging the TC75 ................................................................................................................. 2-28

Battery Charging .................................................................................................................... 2-30

Main Battery Charging ..................................................................................................... 2-30

Spare Battery Charging .................................................................................................... 2-30

Charging Temperature ........................................................................................................... 2-31

Establishing Ethernet Connection .......................................................................................... 2-31

Installing the 4-Slot Battery Charger ...................................................................................... 2-31

Removing the 4-Slot Battery Charger .................................................................................... 2-36

Table of Contents vii

4-Slot Battery Charger ................................................................................................................. 2-37

Setup ...................................................................................................................................... 2-37

Charging Spare Batteries ....................................................................................................... 2-37

Battery Charging .................................................................................................................... 2-38

Spare Battery Charging .................................................................................................... 2-38

Charging Temperature ........................................................................................................... 2-39

Magnetic Stripe Reader ............................................................................................................... 2-40

Attaching the MSR ................................................................................................................. 2-40

Removing the MSR ................................................................................................................ 2-40

Reading Magnetic Stripe Cards ............................................................................................. 2-41

Magnetic Stripe Reader Notification ....................................................................................... 2-42

MSR Provisioning ................................................................................................................... 2-42

Changing the Password ............................................................................ ........... .......... ........ 2-43

Trigger Handle ............................................................................................................................. 2-44

Installing the Trigger Handle Plate ......................................................................................... 2-44

Inserting the Device into the Trigger Handle .......................................................................... 2-45

Removing the Device from the Trigger Handle ...................................................................... 2-46

Hand Strap Replacement ............................................................................................................. 2-47

Chapter 3: USB Communication

Introduction .................................................................................................................................... 3-1

Connecting to a Host Computer via USB ....................................................................................... 3-1

Connecting to the TC75 as a Media Device ............................................................................. 3-1

Connecting to the TC75 as a Camera ...................................................................................... 3-2

Disconnect from the Host Computer ........................................................................................ 3-2

Chapter 4: DataWedge

Introduction .................................................................................................................................... 4-1

Basic Scanning .............................................................................................................................. 4-1

Profiles ........................................................................................................................................... 4-2

Profile0 ..................................................................................................................................... 4-2

Plug-ins .......................................................................................................................................... 4-3

Input Plug-ins ........................................................................................................................... 4-3

Process Plug-ins ...................................................................................................................... 4-3

Output Plug-ins ......................................................................................... ........... .......... .......... 4-3

Profiles Screen ............................................................................................................................... 4-4

Profile Context Menu ................................................................................................................ 4-4

Options Menu ........................................................................................................................... 4-5

Disabling DataWedge .............................................................................................................. 4-5

Creating a New Profile ................................................................................................................... 4-5

Profile Configuration ...................................................................................................................... 4-6

Associating Applications .......................................................................................................... 4-7

Data Capture Plus .................................................................................................................... 4-9

Bar Code Input ....................................................................................................................... 4-12

Enabled ............................................................................................................................ 4-12

Scanner Selection ............................................................................................................ 4-12

Decoders ................................................................................................................................ 4-12

Decoder Params .................................................................................................................... 4-13

viii TC75 Integrator Guide

Codabar ........................................................................................................................... 4-13

Code 11 .................................................................................................................................... ........................ 4-14

Code128 ........................................................................................................................... 4-14

Code39 ............................................................................................................................. 4-15

Code93 ............................................................................................................................. 4-15

Composite AB .................................................................................................................. 4-16

Discrete 2 of 5 .................................................................................................................. 4-16

GS1 DataBar Limited ....................................................................................................... 4-16

HAN XIN ........................................................................................................................... 4-16

Interleaved 2 of 5 ............................................................................................................. 4-16

Matrix 2 of 5 ..................................................................................................................... 4-17

MSI ................................................................................................................................... 4-17

Trioptic 39 ........................................................................................................................ 4-17

UK Postal (RS507) ........................................................................................................... 4-17

UPCA ............................................................................................................................... 4-18

UPCE0 ............................................................................................................................. 4-18

UPCE1 ............................................................................................................................. 4-18

US Planet ......................................................................................................................... 4-18

Decode Lengths ............................................................................................................... 4-19

UPC EAN Params .................................................................................................................. 4-19

Reader Params ...................................................................................................................... 4-21

Scan Params .......................................................................................................................... 4-22

SimulScan Input ..................................................................................................................... 4-23

MSR Input .............................................................................................................................. 4-24

Keystroke Output ................................................................................................................... 4-24

Intent Output .......................................................................................................................... 4-25

Intent Overview ...................................................................................................................... 4-26

IP Output ................................................................................................................................ 4-28

Usage ..................................................................................................................................... 4-28

Using IP Output with IPWedge ............................................................................................... 4-29

Using IP Output without IPWedge .......................................................................................... 4-30

Generating Advanced Data Formatting Rules ............................................................................. 4-31

Configuring ADF Plug-in ........................................................................................................ 4-31

Creating a Rule ................................................................................................................ 4-32

Defining a Rule ................................................................................................................. 4-32

Defining Criteria ............................................................................................................... 4-34

Defining an Action .................................................................................................................. 4-35

Deleting a Rule ....................................................................................................................... 4-36

Order Rules List ..................................................................................................................... 4-36

Deleting an Action .................................................................................................................. 4-37

ADF Example ......................................................................................................................... 4-38

DataWedge Settings .............................................................................................................. 4-40

Importing a Configuration File ................................................................................................ 4-41

Exporting a Configuration File ................................................................................................ 4-42

Importing a Profile File ........................................................................................................... 4-42

Exporting a Profile .................................................................................................................. 4-42

Restoring DataWedge ............................................................................................................ 4-42

Configuration and Profile File Management ................................................................................. 4-43

Enterprise Folder .................................................................................................................... 4-43

Auto Import ............................................................................................................................. 4-43

Table of Contents ix

Programming Notes ..................................................................................................................... 4-43

Overriding Trigger Key in an Application ................................................................................ 4-43

Capture Data and Taking a Photo in the Same Application ................................................... 4-44

Disable DataWedge on Device and Mass Deploy ................................................................. 4-44

Soft Scan Feature .................................................................................................................. 4-44

Sample ................................................................................................................................... 4-44

Chapter 5: Administrator Utilities

Introduction .................................................................................................................................... 5-1

Required Software ......................................................................................................................... 5-1

On-device Application Installation .................................................................................................. 5-1

Multi-user/AppLock Configuration .................................................................................................. 5-2

Enterprise Administrator Application .............................................................................................. 5-2

Creating Users ......................................................................................................................... 5-2

Adding Packages ..................................................................................................................... 5-3

Creating Groups ....................................................................................................................... 5-4

Creating Remote Authentication .............................................................................................. 5-5

Save Data ................................................................................................................................ 5-5

Exporting File ........................................................................................................................... 5-5

Importing User List ................................................................................................................... 5-6

Importing Group List ................................................................................................................. 5-6

Importing Package List ............................................................................................................. 5-6

Editing a User ........................................................................................................................... 5-6

Deleting a User ........................................................................................................................ 5-6

Editing a Group ........................................................................................................................ 5-6

Deleting a Group ...................................................................................................................... 5-7

Editing a Package .................................................................................................................... 5-7

Deleting a Package .................................................................................................................. 5-7

MultiUser Administrator .................................................................................................................. 5-8

Importing a Password .............................................................................................................. 5-8

Disabling the Multi-user Feature .............................................................................................. 5-9

Enabling Remote Authentication .............................................................................................. 5-9

Disabling Remote Authentication ........................................................................................... 5-10

Enabling Data Separation ...................................................................................................... 5-10

Disabling Data Separation ..................................................................................................... 5-10

Delete User Data .................................................................................................................... 5-10

Capturing a Log File ............................................................................................................... 5-11

AppLock Administrator ................................................................................................................. 5-12

Enabling Application Lock ...................................................................................................... 5-12

Disabling Application Lock ..................................................................................................... 5-12

Manual File Configuration ............................................................................................................ 5-12

Groups File ............................................................................................................................. 5-12

White List File ......................................................................................................................... 5-13

Package List File .................................................................................................................... 5-14

Groups File ............................................................................................................................. 5-14

White List File ......................................................................................................................... 5-14

Determining Applications Installed on the Device .................................................................. 5-15

Package List File .................................................................................................................... 5-15

x TC75 Integrator Guide

Chapter 6: Settings

Introduction .................................................................................................................................... 6-1

WWAN Configuration ..................................................................................................................... 6-1

Default SIM Slot Configuration ................................................................................................. 6-1

Preferred Network Selection .................................................................................................... 6-2

Band Preferences .................................................................................................................... 6-3

Screen Unlock Settings .................................................................................................................. 6-4

Single User Mode .......................................................................................................................... 6-4

Set Screen Unlock Using PIN .................................................................................................. 6-4

Set Screen Unlock Using Password ........................................................................................ 6-5

Set Screen Unlock Using Pattern ............................................................................................. 6-6

Multiple User Mode ........................................................................................................................ 6-8

Passwords ..................................................................................................................................... 6-8

Button Remapping ......................................................................................................................... 6-9

Remapping a Button ................................................................................................................ 6-9

Accounts ...................................................................................................................................... 6-10

Language Usage .......................................................................................................................... 6-10

Changing the Language Setting ............................................................................................. 6-11

Adding Words to the Dictionary .............................................................................................. 6-11

Keyboard Settings ........................................................................................................................ 6-11

PTT Express Configuration .......................................................................................................... 6-11

About Phone ................................................................................................................................ 6-11

Chapter 7: Application Deployment

Introduction .................................................................................................................................... 7-1

Security .......................................................................................................................................... 7-1

Secure Certificates ......................................................................................................................... 7-1

Installing a Secure Certificate ........................................................................................................ 7-1

Configuring Credential Storage Settings .................................................................................. 7-2

Development Tools ............................................................................................................. ........... 7-2

ADB USB Setup ............................................................................................................................. 7-3

Enabling USB Debugging ........................................................................................................ 7-3

Application Installation ................................................................................................................... 7-4

Installing Applications Using the USB Connection ......................................................................... 7-4

Installing Applications Using the Android Debug Bridge ................................................................ 7-5

Installing Applications Using a microSD Card .......................................................................... 7-6

Uninstalling an Application ............................................................................................................. 7-6

System Update .............................................................................................................................. 7-7

Storage .......................................................................................................................................... 7-8

Random Access Memory ......................................................................................................... 7-8

External Storage ...................................................................................................................... 7-9

Internal Storage ...................................................................................................................... 7-10

Enterprise Folder .................................................................................................................... 7-11

Application Management ............................................................................................................. 7-11

Viewing Application Details .................................................................................................... 7-12

Stopping an Application ............................................................................................................... 7-13

Changing Application Location ................................................................................................. ... 7-14

Managing Downloads .................................................................................................................. 7-14

RxLogger ..................................................................................................................................... 7-15

Table of Contents xi

RxLogger Configuration ......................................................................................................... 7-15

Main Log Plug-in .............................................................................................................. 7-16

Snapshot Plug-in .............................................................................................................. 7-17

Logcat Plug-in .................................................................................................................. 7-17

PushPullClient Plug-in ...................................................................................................... 7-18

TCPDump Plug-in ............................................................................................................ 7-19

ANR Plugin ....................................................................................................................... 7-19

Kernal Plug-in ................................................................................................................... 7-19

Configuration File ................................................................................................................... 7-20

Enabling Logging ................................................................................................................... 7-20

Disabling Logging ................................................................................................................... 7-20

Extracting Log Files ................................................................................................................ 7-20

Chapter 8: Maintenance and Troubleshooting

Introduction .................................................................................................................................... 8-1

Maintaining the TC75 ..................................................................................................................... 8-1

Battery Safety Guidelines .............................................................................................................. 8-1

Cleaning Instructions ..................................................................................................................... 8-2

Approved Cleanser Active Ingredients ..................................................................................... 8-2

Harmful Ingredients .................................................................................................................. 8-3

Cleaning Instructions ................................................................................................................ 8-3

Special Cleaning Notes ............................................................................................................ 8-3

Cleaning Materials Required .................................................................................................... 8-3

Cleaning Frequency ................................................................................................................. 8-3

Cleaning the TC75 ......................................................................................................................... 8-4

Housing .................................................................................................................................... 8-4

Display ..................................................................................................................................... 8-4

Camera and Exit Window ......................................................................................................... 8-4

Connector Cleaning .................................................................................. ........... .......... .......... 8-5

Cleaning Cradle Connectors .................................................................................................... 8-5

Troubleshooting ............................................................................................................................. 8-5

TC75 ........................................................................................................................................ 8-6

2-Slot Charge Only Cradle ....................................................................................................... 8-9

2-Slot USB/Ethernet Cradle ................................................................................................... 8-10

5-Slot Charge Only Cradle Troubleshooting .......................................................................... 8-11

5-Slot Ethernet Cradle Troubleshooting ................................................................................. 8-12

4-Slot Battery Charger Troubleshooting ................................................................................. 8-12

Magnetic Stripe Reader MSR-TC7X-SNP1-01 ...................................................................... 8-13

Introduction ................................................................................................................................... A-1

TC75 ............................................................................................................................................. A-1

SE4750-SR Decode Distances ............................................................................................... A-4

I/O Connector Pin-Outs ........................................................................................................... A-5

2-Slot Charge Only Cradle Technical Specifications .............................................................. A-6

2-Slot USB/Ethernet Cradle Technical Specifications ............................................................. A-6

5-Slot Charge Only Cradle Technical Specifications .............................................................. A-7

5-Slot Ethernet Cradle Technical Specifications ..................................................................... A-8

4-Slot Battery Charger Technical Specifications ..................................................................... A-8

Charge Only Vehicle Cradle Technical Specifications ............................................................ A-9

Magnetic Stripe Reader Technical Specifications ................................................................... A-9

xii TC75 Integrator Guide

Trigger Handle Technical Specifications ............................................................................... A-10

Charging Cable Cup Technical Specifications ...................................................................... A-11

Snap-On USB Cable Technical Specifications ..................................................................... A-11

Snap-On Serial Cable Technical Specifications .................................................................... A-11

DEX Cable Technical Specifications ..................................................................................... A-12

.............................................................................................................................................. A-12

Keypad Remap Strings ................................................................................................................. B-1

ABOUT THIS GUIDE

Introduction

This guide provides information about using the TC75 touch computer and accessories.

NOTE Screens and windows pictured in this guide are samples and can differ from actual screens.

Documentation Set

The documentation set for the TC75 provides information for specific user needs, and includes:

•

TC75 Quick Start Guide - describes how to get the TC75 up and running.

•

TC75 User Guide - describes how to use the TC75.

•

TC75 Integrator Guide - describes how to set up the TC75 and accessories.

Configurations

This guide covers the following configurations:

xiv TC75 Integrator Guide

Configuration Radios Display Memory

TC75AH Professional (without Google Mobile Services (GMS))

TC75BH Professional (without Google Mobile Services (GMS))

TC75AH Standard (with GMS)

TC75BH Standard (with GMS)

WWAN: LTE WLAN: 802.11 a/b/g/n/d/h/i/k/r WP AN: Bluetooth v4.0 Low Energy

WWAN: HSPA+ WLAN: 802.11 a/b/g/n/d/h/i/k/r WP AN: Bluetooth v4.0 Low Energy

WWAN: LTE WLAN: 802.11 a/b/g/n/d/h/i/k/r WP AN: Bluetooth v4.0 Low Energy

WWAN: HSPA+ WLAN: 802.11 a/b/g/n/d/h/i/k/r WP AN: Bluetooth v4.0 Low Energy

4.7” High Definition (1280 x

720) LCD

4.7” High Definition (1280 x

720) LCD

4.7” High Definition (1280 x

720) LCD

4.7” High Definition (1280 x

720) LCD

1 GB RAM / 8 GB Flash (SLC High Reliability Flash)

Data Capture

Options

2D imager and integrated NFC

Operating

System

Android-based, Android Open-Source Project 5.1.1.

Android-based, Android Open-Source Project 5.1.1 with GMS.

Software Versions

To determine the current software versions touch > About phone.

•

Model number- Displays the model number.

•

Android version - Displays the operating system version.

•

Kernel version - Displays the kernel version number.

•

Build number - Displays the software build number.

To determine the device serial number touch > About phone > Status.

•

Serial number - Displays the serial number.

Chapter Descriptions

Topics covered in this guide are as follows:

•

Chapter 1, Getting Started provides information on get tin g th e T C 75 up an d ru n nin g fo r the fi rst time .

•

Chapter 2, Accessories describes the available accessories and how to use them with the TC75.

•

Chapter 3, USB Communication describes how to connect the TC75 to a host computer using USB.

•

Chapter 4, DataWedge describes how to use and configure the DataWedge application.

•

Chapter 5, Administrator Utilities provides information for using the suite of administrative tools for

configuring the TC75.

•

Chapter 6, Settings provides the settings for configuring the TC75.

•

Chapter 7, Application Deployment provides information for developing and managing applications.

•

Chapter 8, Maintenance and Troubleshooting includes instructions on cleaning and storing the TC75, and

provides troubleshooting solutions for potential problems during TC75 operation.

•

Appendix A, Technical Specifications provides the technical specifications for the TC75.

Notational Conventions

The following conventions are used in this document:

•

Italics are used to highlight the following:

• Chapters and sections in this and related documents

• Icons on a screen.

•

Bold text is used to highlight the following:

• Dialog box, window, and screen names

• Drop-down list and list box names

• Check box and radio button names

• Button names on a screen.

About This Guide xv

•

Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily seq ue nt ial

•

Sequential lists (for example, lists that describe step-by-step procedures) appear as numbered lists.

Icon Conventions

The documentation set is designed to give the reader more visual clues. The following graphic icons are used throughout the documentation set. These icons and their associated meanings are described below.

NOTE NOTE contains information more important than the surrounding text, such as exceptions or

preconditions. They also refer the reader elsewhere for additional information, remind the reader how to complete an action (when it is not part of the current procedure, for instance), or tell the reader where something is located on the screen. There is no warning level associated with a note.

CAUTION The word CAUTION with the associated safety icon implies information that, if disregarded, may result

in minor or moderate injury, or serious product damage.

WARNING! The word WARNING with the associated safety icon implies information that, if disregarded,

could result in death or serious injury, or serious product damage.

xvi TC75 Integrator Guide

Service Information

If you have a problem with the equipment, contact Customer Support in the region. Co ntact information is available at: http://www.zebra.com/support

When contacting support, please have the following information available:

•

Serial number of the unit (found on manufacturing label)

•

Model number or product name (found on manufacturing label)

•

Software type and version number

•

IMEI number

Customer Support responds to calls by email or telephone within the time limits set forth in support agreements. If the problem cannot be solved by Customer Support, the user may need to return the equipment for servicing and

will be given specific directions. We are not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty. Remove the SIM card and/or microSD card from the device before shipping for service.

If the device was purchased from a business partner, contact that business partner for support.

CHAPTER 1 GETTING STARTED

Introduction

This chapter provides information for getting the device up and running for the first time.

Setup

Perform this procedure to start using the TC75 for the fir st time.

1. Install a SIM card.

2. Install a micro secure digital (SD) card (optional).

3. Install hand strap (optional).

4. Install the battery.

5. Charge the TC75.

6. Power on the TC75.

Installing the SIM Card

CAUTION For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD

precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.

NOTE The TC75 may contain one mini SIM slot and two nano SIM slots. If using a micro SIM card, a third-party

SIM adapter is required. By default, use a nano SIM card in slot 1.

1. Remove access cover.

1 - 2 TC75 Integrator Guide

321

Figure 1-1 SIM Slot Locations

1 mini SIM/SAM Slot 2 nano SIM Slot 1 (default) 3 nano SIM Slot 2

2. Insert a SIM card into the SIM slot with the cut edge toward the middle of the device and the contacts facing

down.

Figure 1-2 nano SIM Card Installation

Figure 1-3 Mini SIM Card Installation

3. Ensure that the SIM card is seated properly.

Getting Started 1 - 3

Installing the SAM Card

CAUTION For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD

precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.

NOTE The TC75 contains one slot for a mini SAM card. If using a micro SAM card, a third-party adapter is

required. When using a SAM card, only a nano SIM card can be used.

1. Remove access cover.

2. Insert a SAM card into the SAM slot with the cut edge toward the middle of the device and the contacts facing

down.

Figure 1-4 SAM Card Installation

3. Ensure that the SAM card is seated properly.

Installing a microSD Card

The microSD card slot provides secondary non-volatile storage. The slot is locate d under the batte ry pack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recommendations for use.

CAUTION For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD

precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.

1. Remove the hand strap, if installed.

2. Lift the access door.

Figure 1-5 Lift Access Door

1 - 4 TC75 Integrator Guide

3. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each

side of the door.

Figure 1-6 Insert microSD Card in Holder

4. Re-install the access door.

Installing the Hand Strap and Battery

To install the hand strap and battery:

NOTE Installation of the hand strap is optional. Skip this section if not installing the hand strap.

1. Remove the hand strap filler from the hand strap slot. Store the hand strap filler in a safe place for future

replacement.

Figure 1-7 Remove Filler

2. Insert the hand strap plate into the hand strap slot.

Figure 1-8 Insert Hand Strap

3. Insert the battery, bottom first, into the battery compartment in the back of the TC75.

Getting Started 1 - 5

Figure 1-9 Insert Bottom of Battery into Battery Compartment

4. Press the battery down into the battery compartment until the battery release latches snap into place.

Figure 1-10 Press Down on Battery

5. Place hand strap clip into hand strap mounting slot and pull down until it snaps into place.

1 - 6 TC75 Integrator Guide

Figure 1-11 Secure Hand Strap Clip

Installing the Battery

To install the battery:

1. Insert the battery, bottom first, into the battery compartment in the back of the TC75.

Figure 1-12 Insert Bottom of Battery into Battery Compartment

2. Press the battery down into the battery compartment until the battery release latches snap into place.

Figure 1-13 Press Down on Battery

Charging the Battery

Before using the TC75 for the first time, charge the main battery until the g reen Cha rging /Notifica tion lig ht emitting diode (LED) remains lit. To charge the TC75, use a cable or a cradle with the appropriate power supply. For information about the accessories available for the TC75, see Chapter 2, Accessories for more information.

• Snap-On USB Cable

• Charging Cable Cup

• 2-Slot Charge Only Cradle

• 2-Slot USB/Ethernet Cradle

• 5-Slot Charge Only Cradle

• 5-Slot Ethernet Cradle

• Charge Only Vehicle Cradle

Getting Started 1 - 7

• Auto Charging Cable Cup.

• Serial Cable Cup

The 4,620 mAh battery fully charges in less than six hours at room temperature. Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The TC75 or accessory always performs

battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the TC75 or accessory may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The TC75 or accessory indicates when charging is disabled due to abnormal temperatures via its LED.

1. To charge the main battery, connect the charging accessory to the appropriate power source.

2. Insert the TC75 into a cradle or attach to a cable. The TC75 turns on and begins charging. The

Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.

Charging Indicators

Table 1-1 Charging/Notification LED Charging Indicators

State Indication

Off TC75 is not charging. TC75 is not inserted correctly in the cradle or connected to

Slow Blinking Amber (1 blink every 2 seconds)

Solid Green Charging complete. Fast Blinking Amber (2

blinks/second)

Slow Blinking Red (1 blink every 2 seconds)

Solid Red Charging complete but the battery is at end of useful life. Fast Blinking Red (2

blinks/second)

Replacing the Battery

a power source. Charger/cradle is not powered. TC75 is charging.

Charging error, e.g.:

• Temperature is too low or too high.

• Charging has gone on too long without completion (typically eight hours).

TC75 is charging but the battery is at end of useful life.

Charging error but the battery is at end of useful life., e.g.:

• Temperature is too low or too high.

• Charging has gone on too long without completion (typically eight hours).

CAUTION Do not add or remove SIM, SAM or microSD card during battery replacement.

1. Remove any accessory attached to the device.

2. Press the Power button until the menu appears.

3. Touch Battery Swap.

4. Follow the on-screen instructions.

5. Wait for the LED to turn off.

1 - 8 TC75 Integrator Guide

6. If hand strap is attached, slide the hand strap clip up toward the top of the TC75 and then lift.

Figure 1-14 Remove Hand Strap Clip

7. Press the two battery latches in.

Figure 1-15 Press Battery Latches

8. Lift the battery from the TC75.

Getting Started 1 - 9

Figure 1-16 Lift the Battery

CAUTION Replace the battery within two minutes. After two minutes the device reboots and data may be lost.

9. Insert the replacement battery, bottom first, into the battery compartment in the back of the TC75.

10. Press the battery down until the battery release latch snaps into place.

11. Replace the hand strap, if required.

12. Press and hold the Power button to turn on the TC75.

Replacing the microSD Card

To replace the microSD card:

1. Press the Power button until the menu appears.

2. Touch Power off.

3. Touch OK.

4. If hand strap is attached, slide the hand strap clip up toward the top of the TC75 and then lift.

1 - 10 TC75 Integrator Guide

Figure 1-17 Remove Hand Strap Clip

5. Press the two battery latches in.

6. Lift the battery from the TC75.

7. Lift the access door.

Figure 1-18 Remove Access Door

8. Remove microSD card from holder.

9. Press the access door down and ensure that it is properly seated.

10. Insert the replacement microSD card.

11. Replace the access door.

Figure 1-19 Replace Access Door

12. Insert the battery, bottom first, into the battery compartment in the back of the TC75.

13. Press the battery down until the battery release latch snaps into place.

14. Replace the hand strap, if required.

15. Press and hold the Power button to turn on the TC75.

Resetting the TC75

There are four reset functions:

• Soft reset

• Hard reset

• Enterprise reset

• Factory reset.

Performing a Soft Reset

Perform a soft reset if applications stop responding.

1. Press and hold the Power button until the menu appears.

2. Touch Reset.

3. The device reboots.

Performing a Hard Reset

CAUTION Performing a hard reset with a SD card installed in the TC75 may cause damage or data corruption to

the SD card.

Getting Started 1 - 11

Perform a hard reset if the TC75 stops responding.

1. Simultaneously press the Power, Scan and Volume Up buttons for at least four seconds.

2. When the screen turns off, release the buttons.

3. The TC75 reboots.

Performing an Enterprise Reset

An Enterprise Reset erases all data in the /cache and /data partitions and clears all device settings, except those in the

/enterprise partition.

Before performing an Enterprise Reset, copy all applications and the key remap configuration file that you want to persist after the reset into the

1. Download the Enterprise Reset file from the Support Central web site.

2. Copy the Enterprise Reset zip file to the root of the microSD card or the root of the Internal Storage. See

Chapter 3, USB Communication.

3. Press and hold the Power button until the menu appears.

4. Touch Reset.

5. Touch OK. The device resets.

6. Press and hold the PTT button until the device vibrates. The System Recovery screen appears.

/enterprise/usr/persist folder.

1 - 12 TC75 Integrator Guide

Figure 1-20 System Recovery Screen

7. Press the Up and Down Volume buttons to navigate to the apply update from sdcard or apply from Internal

SD card option.

8. Press the PTT button.

9. Press the Up and Down Volume buttons to navigate to the Enterprise Reset zip file.

10. Press the PTT button. The Enterprise Reset occurs and then the device resets.

Performing a Factory Reset

A Factory Reset erases all data in the /cache, /data and /enterprise partitions in internal storage and clears all device settings. A Factory Reset returns the device to the last installed operating system image. To revert to a previous operating system version, re-install that operating system image. See System Update on page 7-7 for more information.

1. Download the Factory Reset file from the Support Central web site.

2. Copy the Factory Reset zip file to the root of the microSD card or the root of Internal Storage. See Chapter 3,

USB Communication.

3. Press and hold the Power button until the menu appears.

4. Touch Reset.

5. Touch OK. The device resets.

6. Press and hold the PTT button until the device vibrates. The System Recovery screen appears.

Getting Started 1 - 13

Figure 1-21 System Recovery Screen

7. Press the Up and Down volume buttons to navigate to the ap ply updat e f rom s dca rd or apply from Intern al

SD card option.

8. Press the PTT button.

9. Press the Up and Down Volume buttons to navigate to the Factory Reset zip file.

10. Press the PTT button. The Factory Reset occurs and then the device resets.

1 - 14 TC75 Integrator Guide

CHAPTER 2 ACCESSORIES

Introduction

This chapter provides information for using the accessories for the device.

Accessories

This table lists the accessories available for the TC75.

Table 2-1 Accessories

Accessory Part Number Description

Cradles

2-Slot Charge Only Cradle

2-Slot USB/Ethernet Cradle

5-Slot Charge Only Cradle

5-Slot Ethernet Cradle CRD-TC7X-SE5EU1–01 Provides device charging and provides Ethernet

Cradle Mount BRKT-SCRD-SMRK-01 Mounts the 5-Slot Charge Only Cradle, 5-Slot Ethernet

CRD-TC7X-SEC2U1–01 Provides device and spare battery charging. Use with

power supply, p/n PWRS-14000-148R.

CRD-TC7X-SE2EU1–01 Provides device and spare battery charging and USB

communication with a host computer and Ethernet communication with a network. Use with power supply, p/n PWRS-14000-148R.

CRD-TC7X-SE5C1-01 Charges up to five devices. Use with power supply, p/n

PWRS-14000-241R and DC line cord, p/n 50-16002-029R. Can accommodate one 4-Slot Battery Charger using the Battery Adapter Cup.

communication for up to five devices. Use with power supply, p/n PWRS-14000-241R and DC line cord, p/n

50-16002-029R. Can accommodate one 4-Slot Battery Charger using the Battery Adapter Cup.

Cradle, and 4-Slot Battery Charger to a wall or rack.

2 - 2 TC75 Integrator Guide

Table 2-1 Accessories (Continued)

Accessory Part Number Description

Batteries and Chargers

4,620 mAh PowerPrecision

battery 4-Slot Spare Battery

Charger Battery Charger Adapter

Cup

Payment

Magnetic Stripe Reader MSR-TC7X-SNP1-01 Captures data from magnetic stripe cards.

Vehicle Solutions

Charging Cable Cup CHG-TC7X-CLA1-01 Provides power to the device from a cigarette lighter

Charge Only Vehicle Cradle

BTRY-TC7X-46MA2-01 BTRY-TC7X-46MA2-10

SAC-TC7X-4BTYC1-01 Charges up to four battery packs. Use with power

CUP-SE-BTYADP1-01 Allows for one 4-Slot Battery Charger to be charged

CRD-TC7X-CVCD1-01 Charges and securely holds the device. Requires

Replacement battery (single pack). Replacement battery (10–pack).

supply, p/n PWRS-14000-148R.

and docked on the left most slot of the 5-Slot cradles

(maximum one per cradle).

socket.

power cable CHG-AUTO-CLA1-01 or CHG-AUTOHWIRE101, sold separately.

Cigarette Light Adapter Auto Charge Cable

Hard-wire Auto Charge Cable

RAM Mount RAM-B-166U Provides window mounting option for the Vehicle

RAM Mount Base RAM-B-238U RAM 2.43" x 1.31" Diamond Ball base with 1" ball.

Charge and Communication Cables

Charging Cable Cup CHG-TC7X-CBL1-01 Provides power to the device. Use with power supply,

Snap-On USB Cable CBL-TC7X-CBL1-01 Provides power to the device and USB communication

CHG-AUTO-CLA1-01 Provides power to the Vehicle Cradle from a cigarette

lighter socket.

CHG-AUTO-HWIRE1-01 Provides power to the Vehicle Cradle from the vehicle's

power panel.

Cradle. RAM Twist Lock Suction Cup with Double Socket Arm and Diamond Base Adapter. Overall Length:

6.75”.

p/n PWRS-14000-249R, sold separately.

with a host computer. Use with power supply, p/n PWRS-14000-249R, sold separately.

Accessories 2 - 3

Table 2-1 Accessories (Continued)

Accessory Part Number Description

Snap-On Serial Cable CBL-TC7X-SERL1-01 Provides power and serial communication with a host

computer. Use with power supply, p/n PWRS-14000-249R, sold separately.

Snap-On DEX Cable CBL-TC7X-DEX1-01 Provides electronic data exchange with devices such

as vending machines.

Audio Accessories

Premium Headset RCH51 Premium Rugged headset.

3.5 mm Audio Adapter ADP-TC7X-AUD35-01 Snaps onto the device and provides audio to a wired headset with 3.5 mm plug.

3.5 mm Headset HDST-35MM-PTVP-01 Use for PTT and VoIP calls.

3.5 mm Quick

Disconnect Adapter Cable

Scanning

Trigger Handle TRG-TC7X-SNP1-01 Adds gun-style handle with a scanner trigger for

Carrying Solutions

Soft Holster SG-TC7X-HLSTR1-01 TC7X soft holster. Rigid Holster SG-TC7X-RHLSTR1-01 TC7X rigid holster. Hand Strap SG-TC7X-HSTRP1-03 Replacement hand strap with hand strap mounting clip

Stylus and Coiled Tether SG-TC7X-STYLUS-03 TC7X stylus with coiled tether (3-pack).

Power Supplies

Power Supply PWRS-14000-249R Provides power to the device using the Snap-On USB

Power Supply PWRS-14000-148R Provides power to the 2–Slot cradles and 4-Slot Spare

ADP-35M-QDCBL1-01 Provides connection to the 3.5 mm Headset.

comfortable and productive scanning.

(3–pack).

Cable, Snap-on Serial Cable or Charging Cable Cup. Requires AC line cord.

Battery Charger. Requires AC line cord.

2 - 4 TC75 Integrator Guide

Table 2-1 Accessories (Continued)

Accessory Part Number Description

Power Supply PWRS-14000-241R Provides power to the 5-Slot Charge Only cradle and

DC Line Cord 50-16002-029R Provides power from the power supply to the 5-Slot

the 5-Slot Ethernet Cradle. Requires DC Line Cord, p/n

50– 16002–029R and country specific three wire grounded AC line cord sold separately.

Charge Only Cradle and 5-Slot Ethernet Cradle .

2-Slot Charge Only Cradle

The 2-Slot Charge Only Cradle:

• Provides 5 VDC power for operating the device.

• Charges the device’s battery.

• Charges a spare battery.

Accessories 2 - 5

Figure 2-1 2–Slot Charge Only Cradle

1 Power LED – Lights green indicating that the cradle is receiving power. 2 Spare battery Charging LED

2 - 6 TC75 Integrator Guide

Setup

Figure 2-2 2–Slot Charge Only Cradle

Charging the Device

1. Insert the device into the slot to begin charging.

Accessories 2 - 7

Figure 2-3 Battery Charging

2. Ensure the device is seated properly.

Charging the Spare Battery

1. Insert the battery into the right slot to begin charging.

Figure 2-4 Spare Battery Charging

2. Ensure the battery is seated properly.

2 - 8 TC75 Integrator Guide

Battery Charging

Main Battery Charging

The device’s Charging/Notification LED indicates the status of the battery charging in the device. The 4,620 mAh battery fully charges in less than six hours at room temperature.

Spare Battery Charging

The Spare battery Charging LED on the cup indicates the status of the spar e battery charging. The 4,620 mAh battery fully charges in less than six hours at room temperature.

Table 2-2 Spare Battery Charging LED Indicators

Slow Blinking Amber Spare battery is charging. Solid Green Charging complete.

LED Indication

Fast Blinking Amber Error in charging; check placement of spare battery. Slow Blinking Red Spare battery is charging and battery is at the end of

useful life.

Solid Red Charging complete and battery is at the end of useful

life.

Fast Blinking Red Error in charging; check placement of spare battery and

battery is at the end of useful life.

Off No spare battery in slot; spare battery not placed

correctly; cradle is not powered.

Charging Temperature

Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The device or cradle always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the device or cradle may for small periods of time alternately enable and disable battery charging to keep the batter y at acceptable temperatures. The device and cradle indicates when charging is disabled due to abnormal temperatures via its LED.

2-Slot USB/Ethernet Cradle

The 2-Slot USB/Ethernet Cradle:

• Provides 5.0 VDC power for operating the device.

• Charges the device’s battery.

• Charges a spare battery.

• Connects the device to an Ethernet network.

• Provides communication to a host computer using a USB cable.

NOTE Remove all attachments on the device, except the hand strap, before place onto the cradle.

Accessories 2 - 9

Figure 2-5 2-Slot USB/Ethernet Cradle

1 Power LED – Lights green indicating that the cradle is receiving power. 2 Spare Battery Charging LED

2 - 10 TC75 Integrator Guide

Setup

Figure 2-6 2–Slot USB/Ethernet Cradle

Charging the Device

1. Place the bottom of the device into the base.

Accessories 2 - 11

Figure 2-7 Battery Charging

2. Rotate the top of the device until the connector on the back of the device mates with the connector on the

cradle.

3. Ensure the device is connected properly . The charging Charging/Notification LED on the device begins blinking

amber indicating that the device is charging.

Charging the Spare Battery

1. Insert the battery into the right slot to begin charging.

2 - 12 TC75 Integrator Guide

Figure 2-8 Spare Battery Charging

2. Ensure the battery is seated properly.

Battery Charging

Main Battery Charging

The device’s Charging/Notification LED indicates the status of the battery charging in the device. The 4,620 mAh battery fully charges in less than six hours at room temperature.

Spare Battery Charging

The Spare battery Charging LED on the cup indicates the status of the spar e battery charging. The 4,620 mAh battery fully charges in less than six hours at room temperature.

Table 2-3 Spare Battery Charging LED Indicators

LED Indication

Slow Blinking Amber Spare battery is charging. Solid Green Charging complete. Fast Blinking Amber Error in charging; check placement of spare battery. Slow Blinking Red Spare battery is charging and battery is at the end of

useful life.

Solid Red Charging complete and battery is at the end of useful

life.

Accessories 2 - 13

Table 2-3 Spare Battery Charging LED Indicators (Continued)

LED Indication

Fast Blinking Red Error in charging; check placement of spare battery and

battery is at the end of useful life.

Off No spare battery in slot; spare battery not placed

correctly; cradle is not powered.

Charging Temperature

USB/Ethernet Communication

The 2–Slot USB/Ethernet Cradle provides both Ethernet communication with a network and USB communication with a host computer. Prior to using the cradle for Ethernet or USB communication. Ensure that the switch on the USB/Ethernet module is set properly.

Turn the cradle over to view the module.

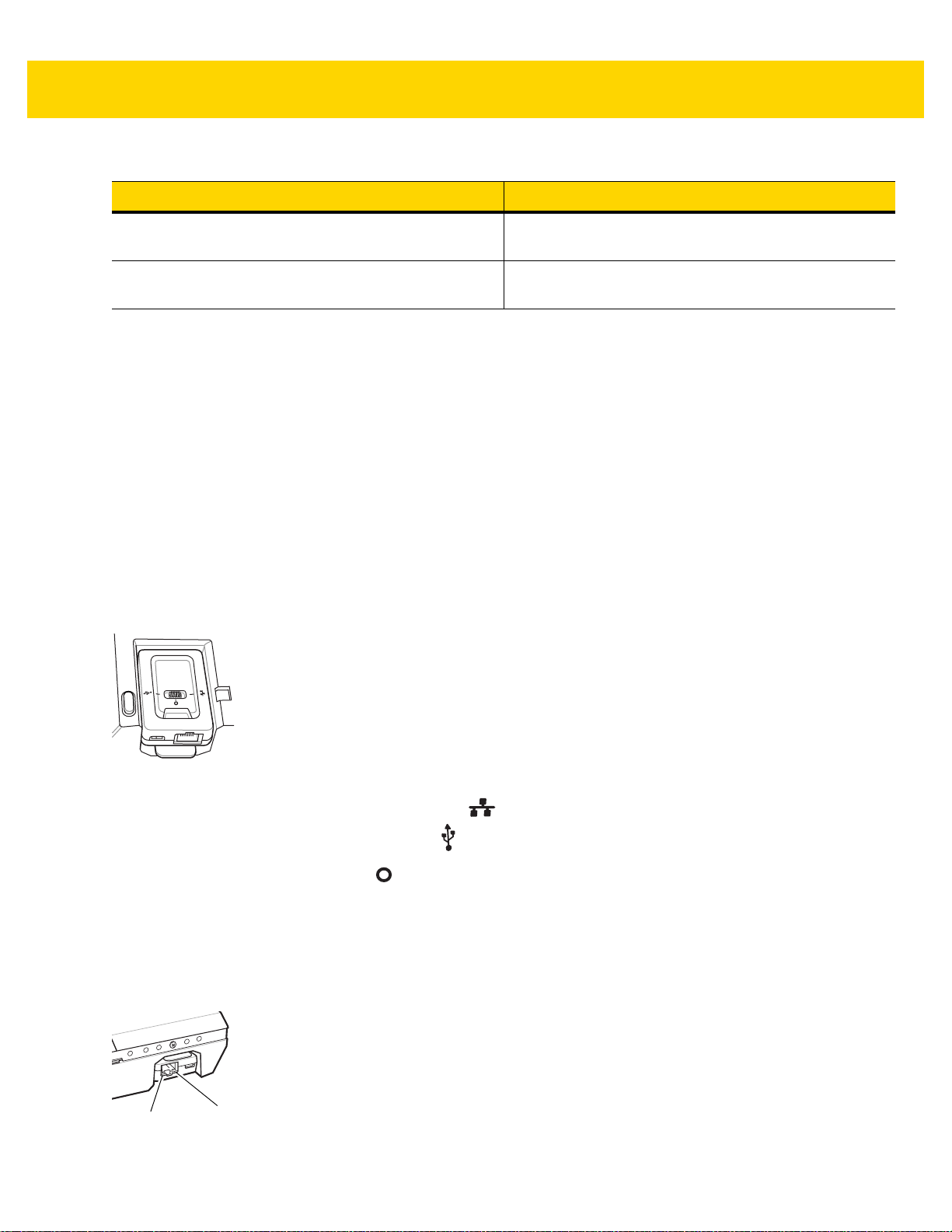

Figure 2-9 2–Slot USB/Ethernet Cradle Module Switch

For Ethernet communication, slide the switch to the position. For USB communication, slide the switch to the position. Place the switch in the center position to disable communications.

Ethernet LED Indicators

There are two LEDs on the USB/Ethernet Module RJ-45 connector. The green LED lights to indicate that the transfer rate is 100 Mbps. When the LED is not lit the transfer rate is 10 Mbps. The yellow LED blinks to indicate activity, or stays lit to indicate that a link is established. When it is not lit it indicates that there is no link.

Figure 2-10 LED Indicators

2 - 14 TC75 Integrator Guide

Table 2-4 USB/Ethernet Module LED Data Rate Indicators

Data Rate (1) Amber LED (2) Green LED

100 Mbps On/Blink On 10 Mbps On/Blink Off

Ethernet Settings

The following settings can be configured when using Ethernet communication:

• Proxy Settings

• Static IP.

Configuring Ethernet Proxy Settings

The TC75 includes Ethernet cradle drivers. After inserting the TC75, configure the Ethernet connection:

1. Touch > .

2. Touch Ethernet.

3. Place the TC75 into the Ethernet cradle slot.

4. Slide the switch to the ON position.

5. Touch .

6. Touch Advanced.

Figure 2-11 Ethernet Proxy Settings

7. Touch the Enable Http Proxy checkbox to enable proxy settings.

8. In the Proxy hostname field, enter the proxy server address.

9. In the Proxy port field, enter the proxy server port number.

NOTE When entering proxy addresses in the Bypass proxy for field, do not use spaces or carriage returns

between addresses.

Accessories 2 - 15

10. In the Bypass proxy for text box, enter addresses for web sites that do not require to go through the proxy

server. Use the separator “|” between addresses.

11. Touch Save.

12. Touch .

Configuring Ethernet Static IP Address

The TC75 includes Ethernet cradle drivers. After inserting the TC75, configure the Ethernet connection:

1. Touch > .

2. Touch Ethernet.

3. Place the TC75 into the Ethernet cradle slot.

4. Slide the switch to the ON position.

5. Touch .

6. Touch Config.

Figure 2-12 Static IP Settings

7. Under Connection Type, touch the Static IP radio button.

8. In the IP adress field, enter the proxy server address.

9. If required, in the Netmask field, enter the network mask address

10. If required, in the Gateway address text bo x, en te r a ga te wa y addr es s for the de vic e.

11. If required, in the DNS addess text box, enter a Domain Name System (DNS) address.

12. Touch SAVE.

13. Touch .

2 - 16 TC75 Integrator Guide

5-Slot Charge Only Cradle

The 5-Slot Charge Only Cradle:

• Provides 5 VDC power for operating the TC75.

• Simultaneously charges up to five TC75s and up to four TC75s and on 4-Slot Battery Charger using the

Battery Charger Adapter. See the TC75 Integrator Guid e for information on installing the 4-Slot Battery Charger onto the cradle.

• Consists of a cradle base and cups that can be configured for various charging requirements.

Figure 2-13 5-Slot Charge Only Cradle

1 Power LED – Lights green when power is applied to cradle.

Setup

Figure 2-14 5-Slot Charge Only Cradle

Charging the TC75

1. Insert the TC75 into a slot to begin charging.

Accessories 2 - 17

Figure 2-15 TC75 Battery Charging

2 - 18 TC75 Integrator Guide

Figure 2-16 5-Slot Charge Only Cradle with Four Slot Battery Charger

2. Ensure the TC75 is seated properly.

Battery Charging

Main Battery Charging

The device’s Charging/Notification LED indicates the status of the battery charging in the device. The 4,620 mAh battery fully charges in less than six hours at room temperature.

Charging Temperature

Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The device always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the device may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device indicates when charging is disabled due to abnormal temperatures via its LED.

Installing the Four Slot Battery Charger

NOTE The Battery Charger must be installed in the first slot only.

1. Remove power from the cradle.

Accessories 2 - 19

Figure 2-17 Remove Power from Cradle

2. Using a Phillips screwdriver, remove the screw securing the cup to the cradle base.

Figure 2-18 Remove Screw

3. Slide the cup to the front of the cradle.

2 - 20 TC75 Integrator Guide

Figure 2-19 Remove Cup

4. Carefully lift the cup up to expose the cup power cable.

5. Disconnect the cup power cable.

Figure 2-20 Disconnect Cup Power Cable

NOTE Place power cable into adapter to avoid pinching cable.

6. Connect the Battery Adapter power cable to the connector on the cradle.

Figure 2-21 Connect Adapter Power Cable

7. Place adapter onto cradle base and slide toward rear of cradle.

Accessories 2 - 21

Figure 2-22 Install Adapter

8. Using a Phillips screwdriver, secure adapter to cradle base with screw.

2 - 22 TC75 Integrator Guide

Figure 2-23 Secure adapter to Cradle

9. Align mounting holes on the bottom of the Four Slot Battery Charger with the stubs on the Battery Adapter.

Figure 2-24 Install Four Slot Battery Charger

10. Slide the Four Slot battery Charger down toward the front of the cradle.

11. Connect the output power plug into the power port on the Four Slot Battery Charger.

Figure 2-25 Connect Adapter Power Cable

Removing the 4-Slot Battery Charger

Accessories 2 - 23

1. Disconnect the output power plug from the 4-Slot Battery Charger.

2. At the back of the cup, press down on the release latch.

Figure 2-26 Press Release Latch

3. Slide the 4-Slot Battery Charger toward the front of the cradle.

4. Lift the 4-Slot off the cradle cup.

2 - 24 TC75 Integrator Guide

5-Slot Ethernet Cradle

CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page

8-1.

The 5-Slot Ethernet Cradle:

• Provides 5.0 VDC power for operating the device.

• Connects the device (up to five) to an Ethernet network.

• Simultaneously charges up to five TC75s or up to four TC75s and one 4-Slot Battery Charger using the

Battery Charger Adapter.

Figure 2-27 5-Slot Ethernet Cradle

Item Description

1 1000 LED – Indicates 1 Gbps data rate. 2 100/10 LED – Indicates 100 Mbps or 10 Mbps data rate.

Setup

Connect the 5-Slot Ethernet cradle to a power source.

Accessories 2 - 25

Figure 2-28 5-Slot Ethernet Cradle Setup

Daisy-chaining Ethernet Cradles

Daisy-chain up to ten 5-Slot Ethernet cradles to connect several cradles to an Ethernet network. Use either a straight or crossover cable. Daisy-chaining should not be attempted when the main Ethernet con nection to the first cradle is 10 Mbps as throughput issues will almost certainly result.

To daisy-chain 5-Slot Ethernet cradles:

1. Connect power to each 5-Slot Ethernet cradle.

2. Connect an Ethernet cable to the one of the ports on the back of the first cradle and to the Ethernet switch.

3. Connect the other end of the Ethernet cable to one of the ports of the back of the second 5-Slot Ethernet

cradle.

2 - 26 TC75 Integrator Guide

To Switch To Power Supply

To Power SupplyTo Next

Cradle

Figure 2-29 Daisy-chaining 5-Slot Ethernet Cradles

4. Connect additional cradles as described in step 2 and 3.

Ethernet Settings

The following settings can be configured when using Ethernet communication:

• Proxy Settings

• Static IP.

Configuring Ethernet Proxy Settings

The TC75 includes Ethernet cradle drivers. After inserting the TC75, configure the Ethernet connection:

1. Touch > .

2. Touch Ethernet.

3. Place the TC75 into the Ethernet cradle slot.

4. Slide the switch to the ON position.

5. Touch .

6. Touch Advanced.

Figure 2-30 Ethernet Proxy Settings

7. Touch the Enable Http Proxy checkbox to enable proxy settings.

8. In the Proxy hostname field, enter the proxy server address.

9. In the Proxy port field, enter the proxy server port number.

Accessories 2 - 27

NOTE When entering proxy addresses in the Bypass proxy for field, do not use spaces or carriage returns

between addresses.

10. In the Bypass proxy for text box, enter addresses for web sites that do not require to go through the proxy

server. Use the separator “|” between addresses.

11. Touch SAVE.

12. Touch .

Configuring Ethernet Static IP Address

The TC75 includes Ethernet cradle drivers. After inserting the TC75, configure the Ethernet connection:

1. Touch > .

2. Touch Ethernet.

3. Place the TC75 into the Ethernet cradle slot.

4. Slide the switch to the ON position.

5. Touch .

6. Touch Config.

2 - 28 TC75 Integrator Guide

Figure 2-31 Static IP Settings

7. Under Connection Type, touch the Static IP radio button.

8. In the IP adress field, enter the proxy server address.

9. If required, in the Netmask field, enter the network mask address

10. If required, in the Gateway address text bo x, en te r a ga te wa y addr es s for the de vic e.

11. If required, in the DNS addess text box, enter a Domain Name System (DNS) address.

12. Touch SAVE.

13. Touch .

LED Indicators

There are two green LEDs on the side of the crad le. These green LEDs light and blink to indi cate the d ata transfer rate.

Table 2-5 LED Data Rate Indicators

Data Rate 1000 LED 100/10 LED

1 Gbps On/Blink Off 100 Mbps Off On/Blink 10 Mbps Off On/Blink

Charging the TC75

1. Insert the TC75 into a slot to begin charging.

Accessories 2 - 29

Figure 2-32 TC75 Battery Charging

2. Ensure the TC75 is seated properly.

2 - 30 TC75 Integrator Guide

Figure 2-33 5-Slot Ethernet Cradle with 4-Slot Battery Charger

Battery Charging

Main Battery Charging

The device’s Charging/Notification LED indicates the status of the battery charging in the device. The 4,620 mAh battery fully charges in less than six hours at room temperature.

Spare Battery Charging

The Spare battery Charging LED on the cup indicates the status of the spar e battery charging. The 4,620 mAh battery fully charges in less than six hours at room temperature.

Table 2-6 Spare Battery Charging LED Indicators

LED Indication

useful life.

Accessories 2 - 31

Table 2-6 Spare Battery Charging LED Indicators (Continued)

LED Indication

Solid Red Charging complete and battery is at the end of useful

life.

Fast Blinking Red Error in charging; check placement of spare battery

and battery is at the end of useful life.

Off No spare battery in slot; spare battery not placed

correctly; cradle is not powered.

Charging Temperature

Establishing Ethernet Connection

1. Touch > .

2. Touch Ethernet.

3. Insert the device into a slot.

4. Slide the Ethernet switch to the ON position.

The icon appears in the Status bar.

5. Touch Eth0 to view Ethernet connection details.

Installing the 4-Slot Battery Charger

NOTE The Battery Charger must be installed in the first slot only.

1. Remove power from the cradle.

2 - 32 TC75 Integrator Guide

Figure 2-34 Remove Power from Cradle

2. Using a Phillips screwdriver, remove the screw securing the cup to the cradle base.

Figure 2-35 Remove Screw

3. Slide the cup to the front of the cradle.

Figure 2-36 Remove Cup

Accessories 2 - 33

4. Carefully lift the cup up to expose the cup power cable.

5. Disconnect the cup power cable and USB cable.

Figure 2-37 Disconnect Cup Cables

NOTE Place power cable into adapter to avoid pinching cable.

6. Connect the Battery Adapter power cable to the connector on the cradle.

2 - 34 TC75 Integrator Guide

Figure 2-38 Connect Adapter Power Cable

7. Place adapter onto cradle base and slide toward rear of cradle.

Figure 2-39 Install Adapter

8. Using a Phillips screwdriver, secure adapter to cradle base with screw.

Accessories 2 - 35

Figure 2-40 Secure adapter to Cradle

9. Align mounting holes on the bottom of the 4-Slot Battery Charger with the stubs on the Battery Adapter.

Figure 2-41 Install 4-Slot Battery Charger

10. Slide the 4-Slot battery Charger down toward the front of the cradle.

2 - 36 TC75 Integrator Guide

11. Connect the output power plug into the power port on the 4-Slot Battery Charger.

Figure 2-42 Connect Adapter Power Cable

Removing the 4-Slot Battery Charger

1. Disconnect the output power plug from the 4-Slot Battery Charger.

2. At the back of the cup, press down on the release latch.

Figure 2-43 Press Release Latch

3. Slide the 4-Slot Battery Charger toward the front of the cradle.

4. Lift the 4-Slot off the cradle cup.

4-Slot Battery Charger

This section describes how to use the 4-Slot Battery Charger to charge up to four TC75 batteries.

Setup

Accessories 2 - 37

Figure 2-44 Four Slot Battery Charger Power Setup

Charging Spare Batteries

1. Connect the charger to a power source.

2. Insert the battery into a battery charging well and gently press down on the battery to ensure proper contact.

2 - 38 TC75 Integrator Guide

TC75 Battery

Battery Charge LED

Battery Slot

Figure 2-45 Four Slot Battery Charger

Battery Charging

Spare Battery Charging

Each Battery Charging LED indicates the status of the battery charging in each slot. The table below describes the Battery Charging LED status.

The 4,620 mAh battery fully charges in less than six hours at room temperature.

Table 2-7 Battery LED Charging Indicators

LED Indication

useful life.

Solid Red Charging complete and battery is at the end of useful

life.

Fast Blinking Red Error in charging; check placement of spare battery

and battery is at the end of useful life.

Off No spare battery in slot; spare battery not placed

correctly; cradle is not powered.

Accessories 2 - 39

Charging Temperature

Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The battery cha rger always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the battery charger may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The battery charger indicates when charging is disabled due to abnormal temperatures via its LED.

2 - 40 TC75 Integrator Guide

Magnetic Stripe Reader

The MSR snaps on to the back of the TC75 and removes easily when not in use. When attached to th e TC75, the MSR allows the TC75 to capture data from magnetic stripe cards.

For battery optimization, remove when not in use.

Attaching the MSR

1. Align the top mounting points on the MSR with the mounting slots on the TC75.

Figure 2-46 MSR Installation

2. Rotate the MSR down and press down until it snaps into position.

3. Using a flat end plastic tool, slide the lock switch down to lock the MSR.

Figure 2-47 Lock MSR

Removing the MSR

1. Using a flat end plastic tool, slide the lock switch up to unlock the MSR.

Figure 2-48 Unlock MSR

2. Press the two release buttons.

Accessories 2 - 41

Figure 2-49 Remove MSR

3. Rotate the MSR away from the TC75 and lift.

Reading Magnetic Stripe Cards

Use the integrated MSR to read magnetic stripe card.

1. Ensure that MSR input is enabled in DataWedge and the cursor is in a text field.

2. Grip TC75 firmly in one hand.

3. Hold magnetic stripe card firmly in the other hand.

4. Align the magnetic stripe on the card away from the display and swipe the car d smoothly in either direction.

2 - 42 TC75 Integrator Guide

Figure 2-50 Swiping a Magnetic Stripe Card

5. Depending upon the application, the captured data appears.

Magnetic Stripe Reader Notification

PCI DSS compliance is required only for removable MSR used for payment.

MSR Notification (MSRN) application satisfies a PCI DSS requirement for a removable MSR device available as an accessory for the TC75. It provides the means to verify authenticity of the paired the MSR and to provision the associated MSR.

MSR Provisioning

In order to use an MSR with the TC75, and work properly with the MSRN, the MSR must be provisioned prior to first use. After provisioning, a message displays whenever the attaching o r removing the MSR. Up to 10 MSRs can be provisioned to a single TC75. If an already provision ed MSR is damaged and must be replaced, the replacement MSR must be provisioned prior to first use.

1. Attach the MSR to the TC75.

2. Touch > .

If this is the first time or after Factory/Enterprise reset, the change password screen displays. First time password update is applicable only with default password. After an update, the application returns to the MSR provisioning screen.

3. In the Password field, enter the password.

• If the MSR not connected, Press to pair MSR button is disabled.

Accessories 2 - 43

• If the MSR connected, Press to pair MSR button is enabled.

4. Touch Press to pair MSR. While in progress, the following displays: MSR programming is in process,

please do not remove MSR.

• If the password incorrect, the dialog displays (o k bu tto n) , pa ssword field cleared.

• If the MSR serial number could not be retrieved, MSR communication error displays.

5. On successful completi on, MSR has been programmed displays.

Changing the Password

NOTE Contact your system administrator or Zebra Technologies Support Center for default password.

Default password will show activity to change password (old password, new and new password fields and OK button).

To reset the password, reinstall the device operating system. This will delete the internal file. The default password is then reset.

1. Touch > > > MSRN Password Update.

2. In the Old Password field, enter the default or previous password.

3. In the New Password field, enter the new password.

4. In the Confirm Password field, reenter the new password.

5. Touch OK. Error message appears if:

• The old password is incorrect.

• The new password fields are mismatch.

• The password is not compliant with the password rules. Password must be at least eight characters in

length, must contain letters and numbers and must have at least one letter and one number.

6. On successful password change, the dialog box Password changed successfully displays.

2 - 44 TC75 Integrator Guide

Trigger

Trigger Handle Plate

Latch

Release Button

Trigger Handle

The Trigg er Ha nd le ad ds a gun- style h an dle with a scan nin g trig ger to the device. It in crea se s comfo rt when using the device in scan-intensive applications for extended periods of time.

Figure 2-51 Trigger Handle

Installing the Trigger Handle Plate

1. Press and hold the Power button until the menu appears.

2. Touch Power off.

3. Touch OK.

4. Press in the two battery latches.

5. Lift the battery from the device.

6. Remove the hand strap filler plate from the hand strap slot. Store the hand strap filler plate in a safe place for

future replacement.

Figure 2-52 Remove Hand Strap Plate

7. Insert the replacement hand strap plate into the hand strap slot.

Figure 2-53 Insert Trigger Handle Plate

Accessories 2 - 45

8. Insert the battery, bottom first, into the battery compartment in the back of the device.

9. Rotate the top of the battery into the battery compartment.

10. Press the battery down into the battery compartment until the battery release latches snap into place.

Inserting the Device into the Trigger Handle

1. Align the back of the Trigger handle with the Trigger Mounting Plate.

Figure 2-54 Connect Device to Trigger Handle

2. Press the two release latches.

3. Rotate the device down and press down until it snaps into place.

Figure 2-55 Rotate Device onto Trigger Handle

2 - 46 TC75 Integrator Guide

Removing the Device from the Trigger Handle

1. Press both Trigger Handle release latches.

Figure 2-56 Press Release Latches

2. Rotate the device up and remove from the Trigger handle.

3. Rotate the device down and press down until it snaps into place.

Figure 2-57 Rotate Device onto Trigger Handle

Hand Strap Replacement

CAUTION Close all running applications prior to replaci ng the hand strap.

1. Press and hold the Power button until the menu appears.

2. Touch Power Off.

3. Touch OK.

4. Remove the hand strap clip from the hand strap mounting slot.

Figure 2-58 Remove Hand Strap Clip

Accessories 2 - 47

5. Press the two battery latches in.

Figure 2-59 Press Battery Latches

6. Lift the battery from the TC75.

2 - 48 TC75 Integrator Guide

Figure 2-60 Lift the Battery

7. Remove the battery.

8. Remove the hand strap plate from the hand strap slot.

9. Insert the replacement hand strap plate into the hand strap slot.

Figure 2-61 Insert Hand Strap

10. Insert the battery, bottom first, into the battery compartment.

Accessories 2 - 49

Figure 2-62 Insert Bottom of Battery into Battery Compartment

11. Rotate the top of the battery into the battery compartment.

12. Press the battery down into the battery compartment until the battery release latches snap into place.

Figure 2-63 Press Down on Battery

13. Place hand strap clip into hand strap mounting slot and pull down until it snaps into place.

Figure 2-64 Secure Hand Strap Clip

2 - 50 TC75 Integrator Guide

CHAPTER 3 USB COMMUNICATION

Introduction

This chapter provides information for transferring files between the device and a host computer.

Connecting to a Host Computer via USB

Connect the TC75 to a host computer using the USB Charging cable to transfer files between the TC75 and the host computer.

When connecting the TC75 to a host computer, follow the host computer’s instructions for connecting and disconnecting USB devices, to avoid damaging or corrupting files.

Connecting to the TC75 as a Media Device

NOTE Using Media Device, you can copy files to either the microSD card or internal memory.

1. Connect the USB Charge cable to the TC75 and then to the host computer.

Connected as a media device, Connected as an installer or Connected as a camera appears on the

Status bar.

2. If Connected as an installe r or Connected as a camera appears, pull down the Notification shade and touch

Connected as an installer or Connected as a camera and then touch Media device (MTP).

3. On the host computer, open a file explorer application.

4. Locate the TC75 as a portable device.

5. Open the SD card or the Internal storage folder.

6. Copy or delete files as required.

3 - 2 TC75 Integrator Guide

Connecting to the TC75 as a Camera

NOTE Using Camera, you can copy files to either the microSD card or internal memory.

1. Connect the USB Charge cable to the TC75 and then to the host computer.

Connected as a media device, Connected as an installer or Connected as a camera appears on the

Status bar.

2. If Connected as an installer or Connected as a media device appears, pull down the Notification shade and

touch Connected as an installer or Connected as a media device and then touch Camera (PTP).

3. On the host computer, open a file explorer application.

4. Locate the TC75 as a portable device.

5. Open the SD card or the Internal storage folder.

6. Copy or delete photos as required.

Disconnect from the Host Computer

CAUTION Carefully follow the host computer’s instructions to unmount the microSD card and disconnect USB

devices correctly to avoid losing information.

1. On the host computer, unmount the device.

2. Remove the USB Charging cable from the device.

CHAPTER 4 DATAWEDGE

Introduction

This chapter applies to DataWedge on Android devices. DataWedge is an application that reads data, processes the data and sends the data to an application.

Basic Scanning

To capture bar code data:

1. Ensure that an application is open on the TC75 and a text field is in focu s (tex t cur so r in tex t field ).

2. Aim the exit window at a bar code.

3. Press and hold the a Scan button. The red laser aiming patte rn turns on to assist in aiming. Ensur e that the bar

code is within the area formed by the aiming pattern. The Data Capture LED lights red to indicate that data capture is in process.

Figure 4-1 TC75 Data Capture

4. The Data Capture LED lights green, a beep sounds and theTC75 vibrates, by default, to indicate the bar code

was decoded successfully. The captured data appears in the text field.

4 - 2 TC75 Integrator Guide

Profiles

DataWedge is based on profiles and plug-ins. A profile contains information on how DataWedge should behave with different applications.

Profile information consists of:

• Associated application

• Input plug-in configurations

• Output plug-in configurations

• Process plug-in configurations.

Using profiles, each application can have a specific DataWedge configuration. Fo r ex amp le, ea ch user ap plication can have a profile which outputs scanned data in the required format when that application comes to the foreground. DataWedge can be configured to process the same set of captured data differently based on the requirements of each application.

DataWedge includes the following visible and hidden pre-configured profiles which support specific built-in applications:

• Visible profiles:

•Profile0 - created automatically the first time DataWedge runs. Generic profile used when there are no

user created profiles associated with an application.

• Launcher - enables scanning when the Launcher is in foreground. Note: to save battery power, disable this profile when not required.

•DWDemo - provides support for the DWDemo application.

• Hidden profiles (not shown to the device):

• RD Client - provides support for MSP.

•MSP Agent - provides support for MSP.

• MspUserAttribute - provides support for MSP.

•Camera - disables scanning when the default camera application is in foreground.

• RhoElements - disables scanning when RhoElements is in foreground.

•StageNow - provides support for the StageNow application.

Profile0

Profile0 can be edited but cannot be associated with an application. That is, DataWedge allows manipulation of plug-in settings for Profile0 but it does not allow assignment of a foreground application. This configuration allows DataWedge to send output data to any foreground application ot her than applications associated with user-defined profiles when Profile0 is enabled.

Profile0 can be disabled to allow DataWedge to only send output data to those applications which are associated

in user-defined profiles. For example, create a profile associating a specific application, disable Profile0 and then scan. DataWedge only sends data to the application specified in the user-created profile. This adds additional security to DataWedge enabling the sending of data only to specified applications.

Plug-ins

A plug-in is a software module utilized in DataWedge to extend its functionality to encompass technologies such as bar code scanning. The plug-ins can be categorized into three types based on their operations:

• Input Plug-ins

• Output Plug-ins

• Process Plug-ins.

Input Plug-ins

An Input Plug-in supports an input device, such as a bar code scanner contained in, or attached to the device.

DataWedge contains base plug-ins for these input devices.

• Bar Code Scanner Input Plug-in – The Bar Code Scanner Inpu t Plug-in is responsible for reading data from

• MSR Input Plug-in – The Magnetic Stripe Reader (MSR) Input Plug-in is responsible for reading data from

DataWedge 4 - 3

the integrated bar code scanner and supports diff erent types of bar code reade rs including laser, imager and internal camera. Raw data read from the bar code scanner can be processed or formatted using Process Plug-ins as required. DataWedge has built-in feedback functionality for the bar code scanner to issue user alerts. The feedback settings can be configured according to user requirement.

an MSR. Raw data read from the MSR can be processed or formatted using Process Plug-ins as required. DataWedge has built-in feedback functionality for the MSR to issue user alerts. The feedback settings can be configured according to user requirement.

Process Plug-ins

Process Plug-ins are used in DataWedge to manipulate the received data according to the requirement, befo r e sending to the foreground application via the Output Plug-in.

• Basic Data Formatting Process Plug-in– The Basic Data Formatting Plug-in allows DataWedge to add a prefix and/or a suffix to the captured data before passing it to an Output Plug-in.

• Advanced Data Formatting Process Plug-in– The Advanced Data Formatting Plug-in allows DataWedge to apply rules (actions to be performed based on defined criteria) to the data received via an input plug-in before passing it to an Output Plug-in.

Output Plug-ins

Output Plug-ins are responsible for sending the data from Input Plug-ins to a foreground application on the device.

• Keystroke Output Plug-in – The Keystroke Output Plug-in collects and sends data received from the Input Plug-in to the foreground applications by emulating keystrokes.

• Intent Output Plug-in – The Intent Ou tput Plug-in collects and sends data received from the Input Plug-ins to foreground applications using the Android Intent mechanism.

• IP Output Plug-in – The IP Output Plug-in collects and sends d ata received from the Inp ut Plug-ins to a host computer via a network connection. Captured data can be sent over an IP network to a specified IP address and port using either TCP or UDP transport protocols.

4 - 4 TC75 Integrator Guide

Profiles Screen

To launch DataWedge, touch > . By default, three profiles appear:

•Profile0

• Launcher

•DWDemo.

Profile0 is the default profile and is used when no other profile can be applied.

Figure 4-2 DataWedge Profiles Screen

Profile names are color coded. Enabled profiles are white and disabled profiles are gray. To configure a profile touch the profile name.

Profile Context Menu

Touch and hold a pro file to ope n a context menu that allows additional actions to be performed on the selected profile.

DataWedge 4 - 5

Figure 4-3 Profile Context Menu

The profile context menu allows the profile to be edited (same as just tapping on a profile), renamed or deleted.

Options Menu

Figure 4-4 DataWedge Options Menu

The menu provides options to create a new profiles, access to general DataWedge settings and DataWedge version information.

Disabling DataWedge

1. Touch > .

2. Touch .

3. Touch Settings.

4. Touch DataWedge enabled.

The blue check disappears from the checkbox indicating that DataWedge is disabled.

Creating a New Profile

5. Touch > .

6. Touch .

7. Touch New profile.

8. In the New profile dialog box, enter a name for the new profile. It is recommended that profile names be

unique and made up of only alpha-numeric characters (A-Z, a-z, 0-9) .

4 - 6 TC75 Integrator Guide

Figure 4-5 New Profile Name Dialog Box

9. Touch OK.

The new profile name appears in the DataWedge profile screen.

Profile Configuration

To configure the Profile0 or a user-created profile, touch the profile name.

Figure 4-6 Profile Configuration Screen

The configuration screen lists the following sections:

• Profile enabled

• Applications

• Data Capture panel (DCP)

• Barcode Input

DataWedge 4 - 7

• MSR Input

• Keystroke output

• Intent Output

• IP Output.

Associating Applications

Use Applications option to associate applications with this profile. User created profiles should be associated with one or more applications and its activities.

1. Touch Ass o ciated apps. A list of applications/activities associated with the profile displays. Initially the list

does not contain any applications/activities.

Figure 4-7 Associated Apps Screen

2. Touch .

3. Touch New app/activity.

4 - 8 TC75 Integrator Guide

Figure 4-8 Select Application Menu

4. In the Select application screen, select the desired application from the list.

5. In the Select activity menu, selecting the activity adds that application/activity combination to the associated

application list for that profile. Selecting * as the activity results in all activities within that application being associated to the profile. During opera tion , Da ta Wedge tries to match the specific application/activity combinations with the foreground application/activity before trying to match the general application/* combinations.

6. Touch .

DataWedge 4 - 9

Figure 4-9 Selected Application/Activity

Data Capture Plus

Data Capture Plus (DCP) is a DataWedge feature that enables the user to initiate data capture by touching a designated part of the screen. A variable screen overlay acts like a scan button.

4 - 10 TC75 Integrator Guide

DCP Tab

Figure 4-10 Minimized Data Capture Panel

The DataWedge profile configuration screen allows the user to configure how the DCP appears on the screen once the particular profile is enabled. The DCP is hidden by default. Enabling DCP option displays seven additional configuration parameters.

DataWedge 4 - 11

Figure 4-11 Data Capture Panel Settings

• Enable - Select to enable Data Capture Plus (default - disabled).

• Dock button on - Select position of the button.

• Left or right - Allo ws user to place the button on either the right or left edge of the screen.

• Left only - Places the button on left edge of the screen.

• Right only - Places the button on the right edge of the screen.

•Start in - Select the initial DCP state.

• Fullscreen mode - DCP covers the whole screen.

• Button mode - DCP displays as a circular button on the screen and can be switched to fullscreen mode.

• Button only mode - DCP displays as a circular button on the screen and cannot be switched to fullscreen

mode.

• Button highest position - Select the top of the range the user is allowed to move the DCP, given as a percent of the screen height (default - 0).

• Button lowest position - Select the bottom of the range the user is allowed to move the DCP, given as a percent of the screen height (default - 100).

• Drag detect time - Select the time in milliseconds that the scanner waits before activating scanner. This allows the user to drag the button without initiating scanner (default - 100 ms, maximum 1000 ms).

NOTE The DCP does not appear if the scanner is disabled in the profile even though the Enabled option is set.

In Button mode, the user can place DCP in full screen mode by dragging the button over Fullscreen mode. The overlay covers the screen.

4 - 12 TC75 Integrator Guide

Figure 4-12 Maximized DCP

Swipe down to return to button mode.

Bar Code Input

Use the Bar Code Input options to configure the Bar Code Scanner Input Plug-in for the profile.

Enabled

Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled.

Scanner Selection

Configures which scanning device to use for bar code data capture when the profile is active.

•Auto - The software automatically determines the best scanning device.

• Camera Scanner - Scanning is performed with the rear-facing camera.

• 2D Barcode Imager - Scanning is performed using the 2D Imager.

• Bluetooth Scanner - Scanning is performed using the option Bluetooth scanner.

Decoders

Configures which bar code decoders are en ab le d or disa ble d. For bes t perfo rm a nc e dis ab l e all un ne cessary decoders.

DataWedge 4 - 13

Touch Decoders. The Barcode input screen appears. A check in the checkbox indicates that the decoder is enabled. By default the most commonly used decoders are enabled (sho wn below with an asterisk). The supported decoders are:

NOTE DataWedge supports the decoders listed below but not all are validated on this device.

UPC-A* UPC-E0* EAN-13* EAN-8* Code 128* Code 39* Interleaved 2 of 5 GS1 DataBar* GS1 DataBar Limited GS1 DataBar Expanded* Datamatrix* QR Code* PDF417* Composite AB Composite C MicroQR Aztec* Maxicode* MicroPDF US Postnet US Planet UK Postal Japanese Postal Australian Postal Canadian Postal Dutch Postal US4state US4state FICS Codabar* MSI Code 93 Trioptic 39 Discrete 2 of 5 Chinese 2 of 5 Korean 3 of 5 Code 11 TLC 39 MAIL MARK HAN XIN Matrix 2 of 5 UPC-E1

Touch to return to the previous screen.

Decoder Params

Use Decode Params to configure individual decoder parameters.

Codabar

• CLSI Editing - Enable this parameter to strip the start and stop characters and insert a space after the

first, fifth, and tenth characters of a 14-character Codabar symbol. Enable this feature if the host system requires this data format (default - disabled).

• Length1 - Use to set decode lengths (default - 6). See Decode Lengths on page 4-19 for more

information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-19 for more

information.

• NOTIS Editing - Enable this parameter to strip the start and stop characters from a decoded Codabar

symbol. Enable this feature if the host system requires this data format (default - disabled).

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled).

4 - 14 TC75 Integrator Guide

Code 11

• Length1 - Use to set decode lengths (default - 4). See Decode Lengths on page 4-19 for more information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-19 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled).

• Report Check Digit - Transmit Code 11 data with or without the check digit. A check in the checkbox indicates to send Code 11 data with check digit (default - disabled).

• Verify Check Digit - Check the integrity of all Code 11 symbols to verify that the data complies with the specified check digit algorithm. This selects the check digit mechanism for the decoded Code 11 bar code.

• No Check Digit - Do not verify check digit.

• 1 Check Digit - Bar code contains one check digit (default).

• 2 Check Digits - Bar code contains two check digits.

Code128

• Code128 Reduced Quiet Zone - Enables decoding of margin-less Code 128 bar codes.

• Ignore Code128 FCN4 - When enabled, and a Code 128 bar code has an embedded FNC4 character , it will

be removed from the data and the following characters will not be changed. When the feature is disabled, the FNC4 character will not be transmitted but the following character will have 128 added to it.

• Check ISBT Table - The ISBT specification includes a table that lists several types of ISBT bar codes that are commonly used in pairs. If ISBT128 Concat Mode is set, enable Check ISBT Table to concatenate only those pairs found in this table. Other types of ISBT codes are not concatenated. A check in the checkbox indicates that redundancy is enabled (default - disabled).

• Enable GS1-128 - Set the GS1 128 subtype. A check in the checkbox indicates that the option is enabled (default - enabled).

• Enable ISBT128 - Set the ISBT128 subtype. A check in the checkbox indicates that the option is enabled (default - enabled).

• ISBT128 Concatenation Mode - Select an option for concatenating pairs of ISBT code types:

• Concat Mode Never - Do not concatenate pairs of ISBT codes encountered (default).

• Concat Mode Always - There must be two ISBT codes in order to decode and perform concatenation.

Does not decode single ISBT symbols.

• Concat Mode Auto - Decodes and concatenates pairs of ISBT codes immediately. If only a single ISBT

symbol is present, the device must decode the symbol the number of times set via DataWedge Configuration 4 - 11 Redundancy - Code128 before transmitting its data to confirm that there is no additional ISBT symbol.

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-19 for more information.

• Length2- Use to set decode lengths (default - 55). See Decode Lengths on page 4-19 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - disabled).

DataWedge 4 - 15

• Security Level - The scanner of fers four levels of decode security for Cod e 128 bar codes. Select increasin g levels of security for decreasing levels of bar code quality. There is an inverse relationship between security and scanner aggressiveness, so choose only that level of security necessary for any given application.

• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while providing

sufficient security in decoding most “in-spec” bar codes.

• Security Level 1 - This setting eliminates most misdecodes (default).

• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.

• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level. Be

advised, selecting this option is an extreme measure against mis-decoding severely out of spec bar codes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is needed, try to improve the quality of the bar codes.

Code39

• Code39 Reduced Quiet Zone - Enables decoding of margin-less Code 39 bar codes.

• Convert Code39 To Code32 - Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry.

Scan the appropriate bar code below to enable or disable conver ting Code 39 to Code 32 (defau lt - disabled).

• Full ASCII- Code 39 Full ASCII is a variant of Code 39 that pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII (default - disabled),

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-19 for more information.

• Length2 - Use to set decode lengths 4 (default - 55). See Decode Lengths on page 4-19 for more

information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - disabled).

• Report Check Digit - Transmit Code 39 data with or without the check digit. A check in the checkbox indicates to send Code 39 data with check digit (default - disabled).

• Report Code32 Prefix - Scan the appropriate bar code to enable or disable adding the prefix character “A” to all Code 32 bar codes (default - disabled).

• Security Level - Options: Security level 0, Security Level 1, Security Level 2 and Security Level 3 (default - Security level 1).

• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while providing

sufficient security in decoding most “in-spec” bar codes.

• Security Level 1 - This setting eliminates most misdecodes (default).

• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.

• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level. Be

• Verify Check Digit - Enable this feature to check the integrity of all Code 39 symbols to verify that the data complies with a specified check digit algorithm. The digital scanne r de co d es only th ose C ode 39 sym bo ls that include a modulo 43 check digit. Enable this feature only if the Code 39 symbols contain a modulo 43 check digit (default - disabled).

Code93

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-19 for more information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-19 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - disabled).

4 - 16 TC75 Integrator Guide

Composite AB

• UCC Link Mode

• Link Flag ignored - 1D component is transm i tted re ga r dle ss of whet he r a 2D component is detected.

• Always Linked - 1D and the 2D components are transmitted. If 2D is not present, the 1D component is

not transmitted.

• Auto Discriminate - the digital scanner determines if there is a 2D portion , then transmits the 1D

component, as well as the 2D portion if present. (default).

Discrete 2 of 5

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-19 for more information.

• Length2 - Use to set decode lengths (default - 14). See Decode Lengths on page 4-19 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled).

GS1 DataBar Limited

• GS1 Limited Security Level -

• GS1 Security Level 1 - This setting allows the scanner to operate in its most aggressive state, while

providing sufficient security in decoding most “in-spec” bar codes.

• GS1 Security Level 2 - This setting eliminates most misdecodes (default).

• GS1 Security Level 3 - Select this option if Security level 2 fails to eliminate misdecodes.

•GS1 Security Level 4 - If Security Level 3 is selected and misdecodes still occur, select this security level.

Be advised, selecting this option is an extreme measure against mis-decoding severely out of spec bar codes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is needed, try to improve the quality of the bar codes.

HAN XIN

• HAN XIN Inverse

• Disable - Disables decoding of HAN XIN inverse bar codes (default).

• Enable - Enables decoding of HAN XIN inverse bar codes.

•Auto - Decodes both HAN XIN regular and inverse bar codes.

Interleaved 2 of 5

• Check Digit

• No Check Digit - A check digit is not used. (default)

• USS Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data

complies with either the Uniform Symbology Specification (USS) check digit algorithm.

• OPCC Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data

complies with either the Optical Product Code Council (OPCC) check digit algorithm.

• Length1 - Use to set decode lengths (default - 14). See Decode Lengths on page 4-19 for more information.

• Length2 - Use to set decode lengths (default - 10). See Decode Lengths on page 4-19 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled).

• Report Check Digit - Transmit Interleaved 2 of 5 data with or without the check digit. A check in the checkbox indicates to send Interleaved 2 of 5 data with check digit (default - disabled).
