Zebra TC70 User Guide

Download

TC70

MN-002890-02

Touch Computer

User Guide

for Version 5.1.1

TC70

USER GUIDE

MN-002890-02

Rev . A

March 2018

ii TC70 User Guide

Revision History

Changes to the original guide are listed below:

Change Date Description

-01 Rev. A 7/2016 Initial release.

-02 Rev. A 3/2018 Update approved cleanser active ingredients.

iii

iv TC70 User Guide

Revision History................................................................................................................................. iii

About This Guide

Introduction...................................................................................................................................... xiii

Documentation Set .......................................................................................................................... xiii

Configurations.................................................................................................................................. xiii

Software Versions............................................................................................................................ xiv

Chapter Descriptions ....................................................................................................................... xiv

Notational Conventions.................................................................................................................... xiv

Icon Conventions............................................................................................................................. xv

Related Documents ......................................................................................................................... xv

Service Information.......................................................................................................................... xv

Chapter 1: Getting Started

Introduction .................................................................................................................................... 1-1

Unpacking ...................................................................................................................................... 1-1

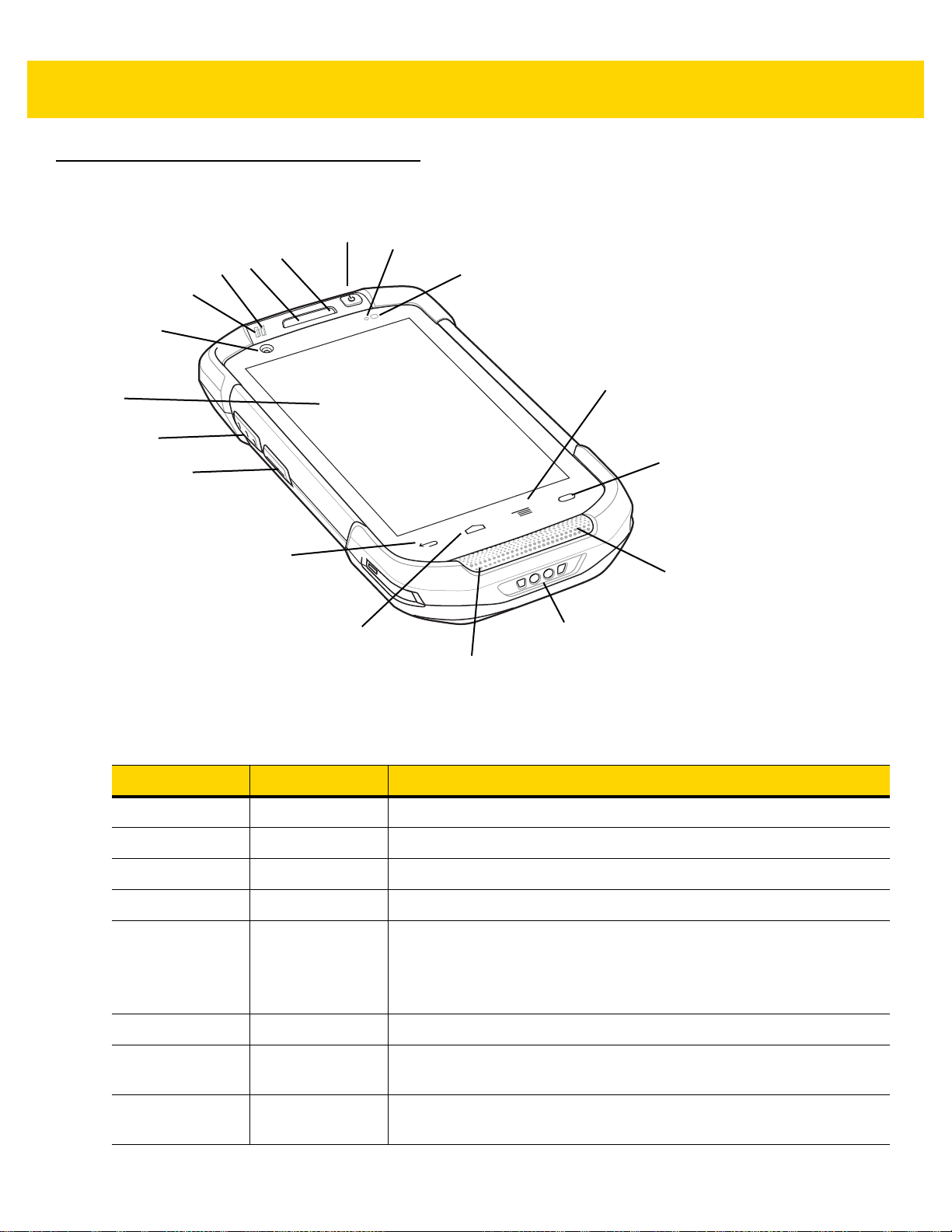

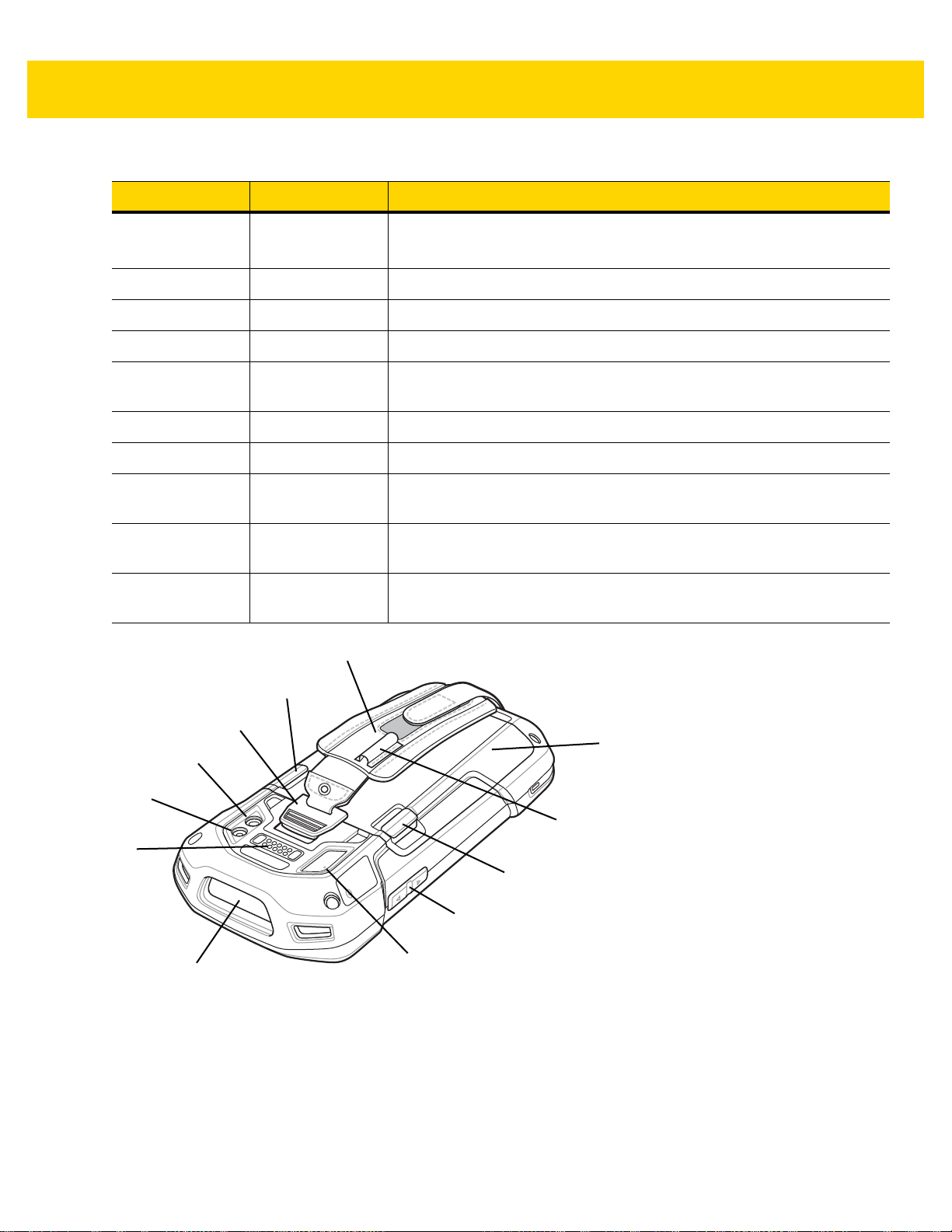

Features ......................................................................................................................................... 1-2

Setup .............................................................................................................................................. 1-4

Installing a microSD Card ........................................................................................................ 1-4

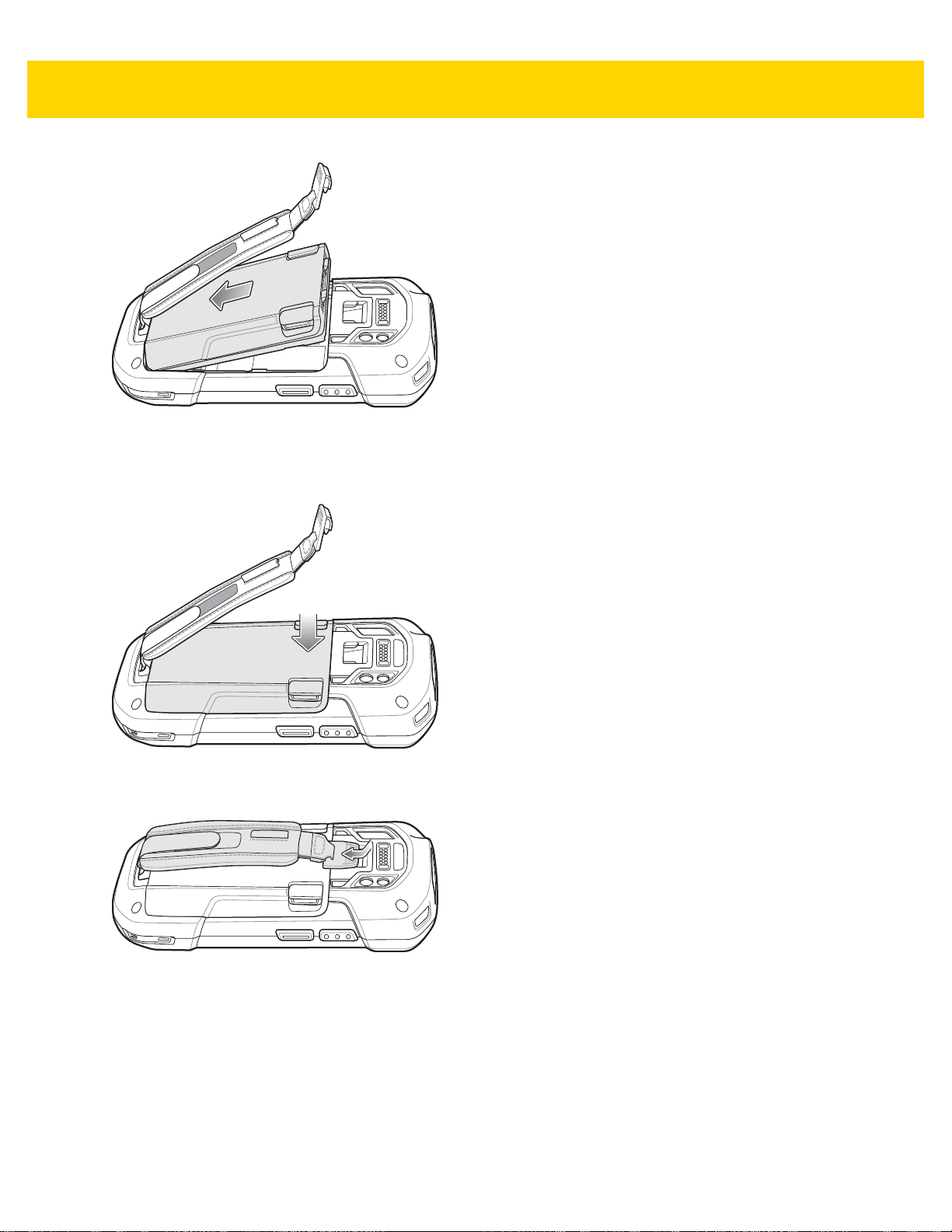

Installing the Hand Strap and Battery ...................................................................................... 1-5

Installing the Battery ................................................................................................................. 1-6

Charging the Battery ................................................................................................................ 1-7

Charging Indicators .................................................................................................................. 1-8

Google Account Setup ............................................................................................................. 1-8

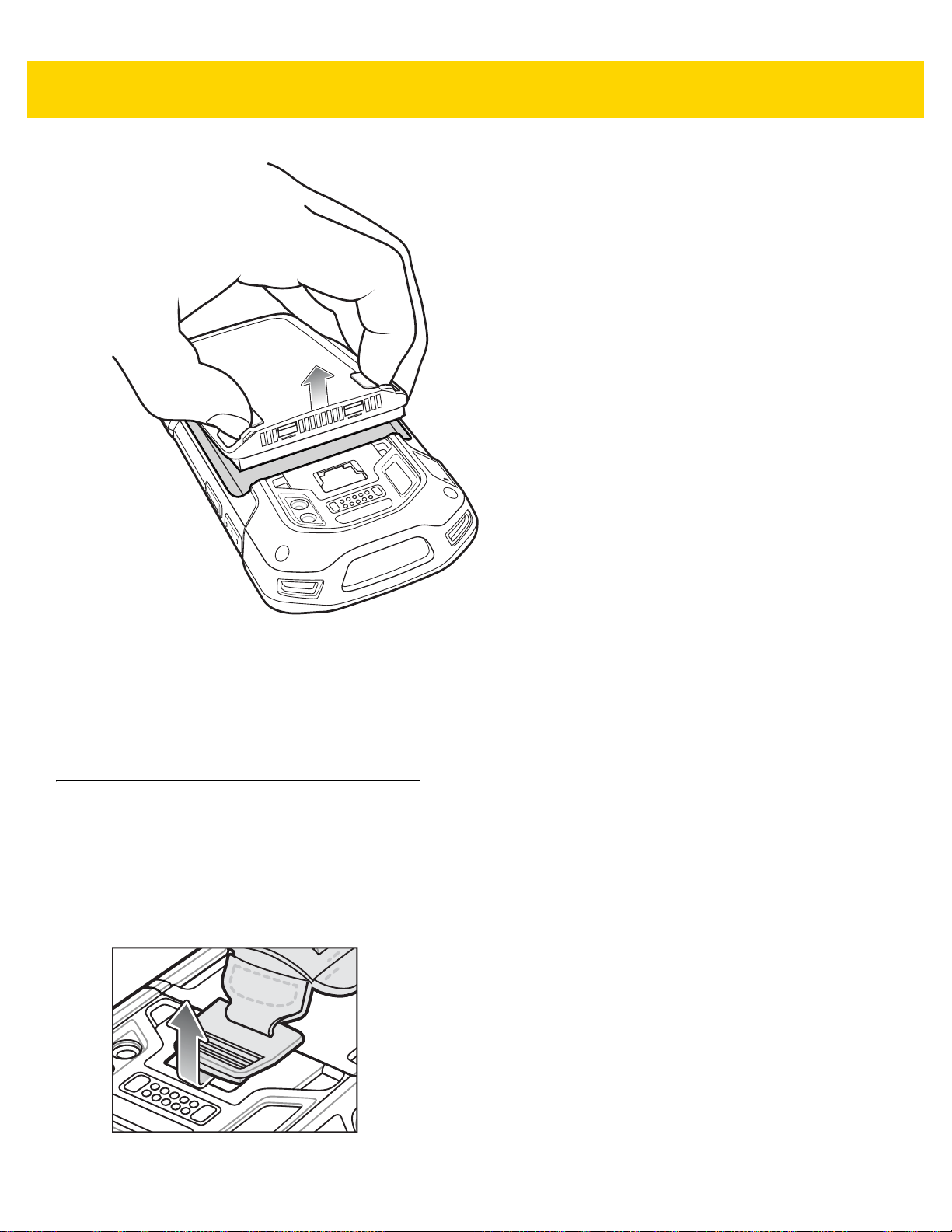

Replacing the Battery ..................................................................................................................... 1-8

Replacing the microSD Card ....................................................................................................... 1-10

Battery Management .................................................................................................................... 1-11

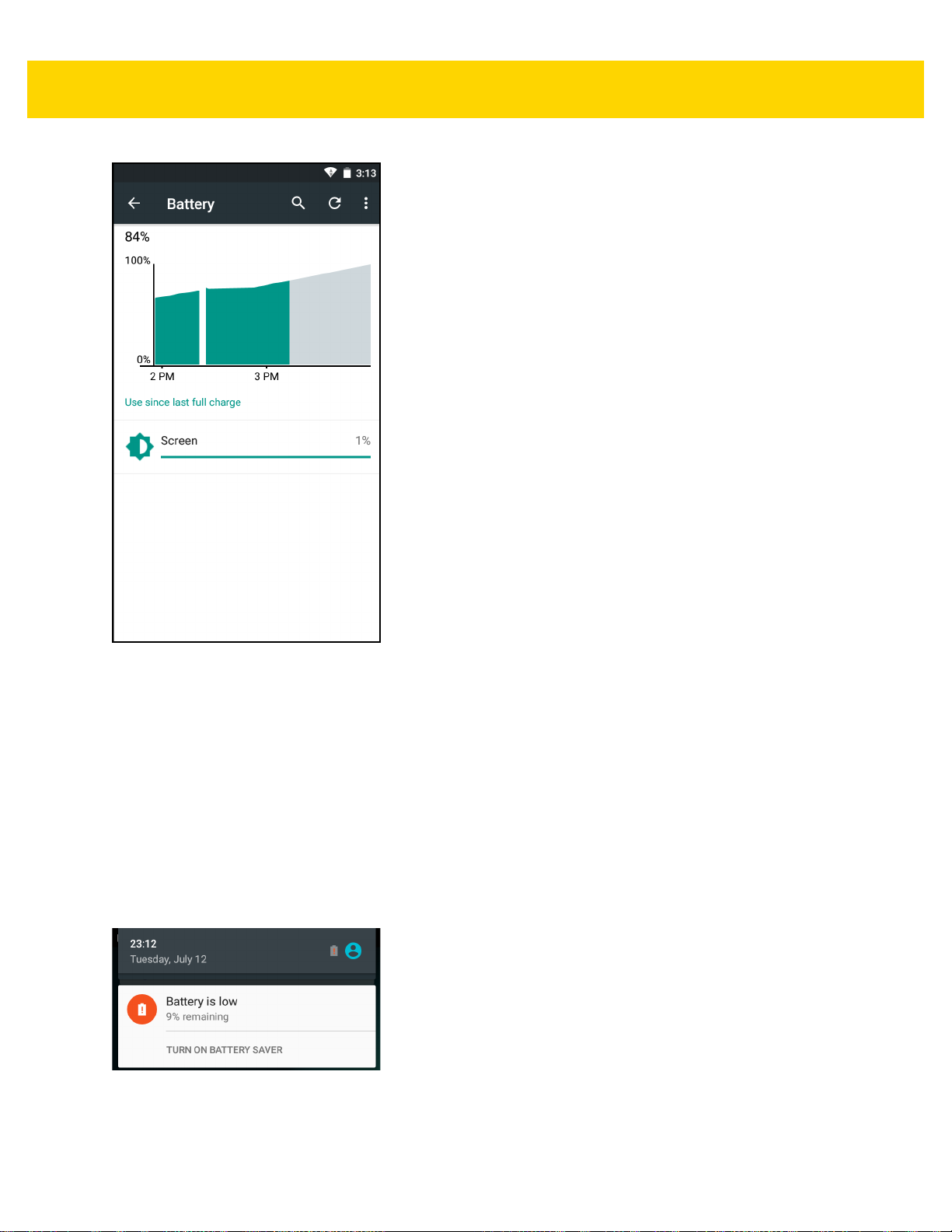

Monitor Battery Usage ........................................................................................................... 1-11

Low Battery Notification ......................................................................................................... 1-12

Battery Optimization ............................................................................................................... 1-13

Turning Off the Radios ..................................................................................................... 1-13

Setting the Date and Time ........................................................................................................... 1-13

vi TC70 User Guide

Display Setting ............................................................................................................................. 1-14

Setting the Screen Brightness ................................................................................................ 1-14

Setting Screen Rotation ......................................................................................................... 1-14

Setting Screen Timeout Setting ............................................................................................. 1-14

Setting Font Size .................................................................................................................... 1-15

Setting Touch Key Light ......................................................................................................... 1-15

Touch Mode ........................................................................................................................... 1-16

General Sound Setting ................................................................................................................. 1-17

Sound .................................................................................................................................... 1-18

Notification ............................................................................................................................. 1-19

Wake-Up Sources ........................................................................................................................ 1-20

Chapter 2: Using the TC70

Introduction .................................................................................................................................... 2-1

Google Mobile Services ................................................................................................................. 2-1

Home Screen ................................................................................................................................. 2-2

Status Bar ................................................................................................................................ 2-3

Status Icons ....................................................................................................................... 2-3

Notification Icons ................................................................................................................ 2-4

Managing Notifications ............................................................................................................. 2-5

Quick Settings .......................................................................................................................... 2-6

Application Shortcuts and Widgets .......................................................................................... 2-7

Adding an Application or Widget to the Home Screen ....................................................... 2-7

Moving Items on the Home Screen .................................................................................... 2-8

Removing an App or Widget from the Home Screen ......................................................... 2-8

Folders ..................................................................................................................................... 2-8

Creating a Folder ............................................................................................................... 2-8

Naming Folders .................................................................................................................. 2-8

Removing a Folder ............................................................................................................. 2-9

Home Screen Wallpaper .......................................................................................................... 2-9

Changing the Home Screen Wallpaper .............................................................................. 2-9

Using the Touchscreen .................................................................................................................. 2-9

Using the On-screen Keyboard .................................................................................................... 2-10

Editing Text ............................................................................................................................ 2-10

Entering Numbers, Symbols and Special Characters ............................................................ 2-10

Applications .................................................................................................................................. 2-10

Accessing Applications .......................................................................................................... 2-14

Switching Between Recent Applications ................................................................................ 2-16

Un-Locking the Screen ................................................................................................................ 2-16

Single User Mode ................................................................................................................... 2-16

MultiUser Mode ...................................................................................................................... 2-20

MultiUser Login ................................................................................................................ 2-20

MultiUser Logout .............................................................................................................. 2-21

Resetting the Device .................................................................................................................... 2-21

Performing a Soft Reset ......................................................................................................... 2-21

Performing a Hard Reset ....................................................................................................... 2-22

Suspend Mode ............................................................................................................................. 2-22

Table of Contents vii

Chapter 3: Applications

Introduction .................................................................................................................................... 3-1

Battery Manager ............................................................................................................................ 3-1

File Browser ................................................................................................................................... 3-3

Contacts ......................................................................................................................................... 3-4

Adding Contacts ....................................................................................................................... 3-4

Editing Contacts ....................................................................................................................... 3-4

Deleting Contacts ..................................................................................................................... 3-4

Camera .......................................................................................................................................... 3-4

Taking Photos .......................................................................................................................... 3-5

Taking a Panoramic Photo ....................................................................................................... 3-7

Recording Videos ..................................................................................................................... 3-8

Photo Settings ........................................................................................................................ 3-10

Rear Camera .................................................................................................................... 3-10

Front Camera ................................................................................................................... 3-12

Video Settings ........................................................................................................................ 3-12

Rear Camera .................................................................................................................... 3-12

Front Camera ................................................................................................................... 3-13

Gallery .......................................................................................................................................... 3-14

Working with Albums .............................................................................................................. 3-15

Share an Album ............................................................................................................... 3-15

Get Album Information ..................................................................................................... 3-15

Deleting an Album ............................................................................................................ 3-16

Working with Photos .............................................................................................................. 3-16

Viewing and Browsing Photos .......................................................................................... 3-16

Cropping a Photo ............................................................................................................. 3-17

Setting a Photo as a Contact Icon .................................................................................... 3-18

Share a Photo .................................................................................................................. 3-18

Deleting a Photo ............................................................................................................... 3-19

Working with Videos ............................................................................................................... 3-19

Watching Videos .............................................................................................................. 3-19

Sharing a Video ................................................................................................................ 3-20

Deleting a Video ............................................................................................................... 3-20

DataWedge Demonstration .......................................................................................................... 3-21

Sound Recorder ........................................................................................................................... 3-22

PTT Express Voice Client ............................................................................................................ 3-24

PTT Audible Indicators ........................................................................................................... 3-24

Notification Icons .................................................................................................................... 3-25

Enabling PTT Communication ............................................................................................... 3-25

Selecting a Talk Group ........................................................................................................... 3-26

PTT Communication .............................................................................................................. 3-26

Creating a Group Call ...................................................................................................... 3-27

Disabling PTT Express Voice Client Communication ............................................................ 3-27

MLog Manager ............................................................................................................................. 3-27

SimulScan Demo ......................................................................................................................... 3-28

Exporting Sample Forms ........................................................................................................ 3-28

Postal, Transportation and Logistics Example ....................................................................... 3-29

Manufacturing Example ......................................................................................................... 3-31

Settings .................................................................................................................................. 3-33

Demo Customization .............................................................................................................. 3-33

viii TC70 User Guide

RxLogger ..................................................................................................................................... 3-34

Elemez ......................................................................................................................................... 3-36

Disabling Elemez Data Collection .......................................................................................... 3-36

Enabling Elemez Data Collection ........................................................................................... 3-37

Chapter 4: Data Capture

Introduction .................................................................................................................................... 4-1

Imaging .......................................................................................................................................... 4-1

Operational Modes ................................................................................................................... 4-1

RS507 Hands-Free Imager ............................................................................................................ 4-2

Scanning Considerations ............................................................................................................... 4-2

Imager Scanning ............................................................................................................................ 4-3

Bar Code Capture with RS507 Hands-Free Imager ...................................................................... 4-4

Pairing the RS507 Hands-Fee Imager Using SSI .................................................................... 4-5

Pairing the RS507 Hands-Free Imager Bluetooth HID ............................................................ 4-6

DataWedge .................................................................................................................................... 4-7

Enabling DataWedge ............................................................................................................... 4-7

Disabling DataWedge .............................................................................................................. 4-7

Chapter 5: Wireless

Introduction .................................................................................................................................... 5-1

Wireless Local Area Networks ....................................................................................................... 5-1

Scan and Connect to a Wi-Fi Network ..................................................................................... 5-2

Configuring a Wi-Fi Network .................................................................................................... 5-3

Manually Adding a Wi-Fi Network ............................................................................................ 5-5

Configuring for a Proxy Server ................................................................................................. 5-6

Configuring the Device to Use a Static IP Address .................................................................. 5-6

Advanced Wi-Fi Settings .......................................................................................................... 5-7

Additional Settings ................................................................................................................... 5-8

Remove a Wi-Fi Network ....................................................................................................... 5-10

Bluetooth ...................................................................................................................................... 5-11

Adaptive Frequency Hopping ................................................................................................. 5-11

Security .................................................................................................................................. 5-11

Bluetooth Profiles ................................................................................................................... 5-12

Bluetooth Power States .......................................................................................................... 5-12

Bluetooth Radio Power .......................................................................................................... 5-12

Enabling Bluetooth ........................................................................................................... 5-13

Disabling Bluetooth .......................................................................................................... 5-13

Discovering Bluetooth Device(s) ............................................................................................ 5-13

Changing the Bluetooth Name ............................................................................................... 5-14

Connecting to a Bluetooth Device .......................................................................................... 5-14

Selecting Profiles on the Bluetooth Device ............................................................................ 5-14

Unpairing a Bluetooth Device ................................................................................................. 5-14

Near Field Communications ......................................................................................................... 5-15

Enabling NFC ......................................................................................................................... 5-16

Disabling NFC ........................................................................................................................ 5-16

Reading NFC Cards ............................................................................................................... 5-16

Sharing Information Using NFC ............................................................................................. 5-17

Table of Contents ix

Enterprise NFC Settings ........................................................................................................ 5-17

Reader Mode ................................................................................................................... 5-18

Data Usage .................................................................................................................................. 5-19

Set Auto-Sync ........................................................................................................................ 5-20

Chapter 6: Accessories

Introduction .................................................................................................................................... 6-1

Accessories .................................................................................................................................... 6-1

2-Slot Charge Only Cradle ............................................................................................................. 6-4

Charging the Device ................................................................................................................. 6-4

Charging the Spare Battery ...................................................................................................... 6-5

Battery Charging ...................................................................................................................... 6-6

Main Battery Charging ....................................................................................................... 6-6

Spare Battery Charging ...................................................................................................... 6-6

Charging Temperature ....................................................................................................... 6-6

2-Slot USB/Ethernet Cradle ........................................................................................................... 6-7

Charging the Device ................................................................................................................. 6-7

Charging the Spare Battery ...................................................................................................... 6-9

Battery Charging ...................................................................................................................... 6-9

Main Battery Charging ....................................................................................................... 6-9

Spare Battery Charging ...................................................................................................... 6-9

Charging Temperature ..................................................................................................... 6-10

USB/Ethernet Communication ............................................................................................... 6-10

Ethernet LED Indicators ................................................................................................... 6-10

Establishing Ethernet Connection .......................................................................................... 6-11

5-Slot Charge Only Cradle ........................................................................................................... 6-12

Charging the TC70 ................................................................................................................. 6-12

Battery Charging .................................................................................................................... 6-14

Main Battery Charging ..................................................................................................... 6-14

Spare Battery Charging .................................................................................................... 6-14

Charging Temperature ..................................................................................................... 6-14

5-Slot Ethernet Cradle ................................................................................................................. 6-15

Charging the TC70 ................................................................................................................. 6-16

Battery Charging .................................................................................................................... 6-18

Main Battery Charging ..................................................................................................... 6-18

Spare Battery Charging .................................................................................................... 6-18

Charging Temperature ..................................................................................................... 6-19

Establishing Ethernet Connection .......................................................................................... 6-19

LED Indicators ........................................................................................................................ 6-19

4-Slot Battery Charger ................................................................................................................. 6-20

Charging Spare Batteries ....................................................................................................... 6-20

Battery Charging .................................................................................................................... 6-20

Spare Battery Charging .................................................................................................... 6-20

Charging Temperature ..................................................................................................... 6-21

Magnetic Stripe Reader ............................................................................................................... 6-22

Attaching the MSR ................................................................................................................. 6-22

Removing the MSR ................................................................................................................ 6-22

Reading Magnetic Stripe Cards ............................................................................................. 6-23

2.5 mm Audio Adapter ................................................................................................................. 6-25

x TC70 User Guide

Attaching the 2.5 mm Audio Adapter ..................................................................................... 6-25

Connecting a Headset to the Audio Adapter .......................................................................... 6-25

Device with Audio Adapter in Holster ..................................................................................... 6-26

Removing the 2.5 mm Audio Adapter .................................................................................... 6-27

3.5 mm Audio Adapter ................................................................................................................. 6-28

Attaching the 3.5 mm Audio Adapter ..................................................................................... 6-28

Connecting a Headset to the 3.5 mm Audio Adapter ............................................................. 6-28

Device with 3.5 mm Audio Adapter in Holster ........................................................................ 6-29

Removing the 3.5 mm Audio Adapter .................................................................................... 6-30

Snap-On USB Cable .................................................................................................................... 6-31

Connecting to TC70 ............................................................................................................... 6-31

USB Communication .............................................................................................................. 6-31

Charging the TC70 ................................................................................................................. 6-32

Disconnecting from TC70 ....................................................................................................... 6-32

Battery Charging .................................................................................................................... 6-33

Main Battery Charging ..................................................................................................... 6-33

Charging Temperature ..................................................................................................... 6-33

Charging Cable Cup .................................................................................................................... 6-34

Charging the TC70 ................................................................................................................. 6-34

Battery Charging .................................................................................................................... 6-35

Main Battery Charging ..................................................................................................... 6-35

Charging Temperature ..................................................................................................... 6-35

Snap-On DEX Cable .................................................................................................................... 6-36

Connecting to TC70 ............................................................................................................... 6-36

DEX Communication .............................................................................................................. 6-36

Disconnecting from TC70 ....................................................................................................... 6-37

Trigger Handle ............................................................................................................................. 6-38

Installing the Trigger Handle Plate ......................................................................................... 6-38

Inserting the Device into the Trigger Handle .......................................................................... 6-39

Removing the Device from the Trigger Handle ...................................................................... 6-40

Chapter 7: Maintenance and Troubleshooting

Introduction .................................................................................................................................... 7-1

Maintaining the TC70 ..................................................................................................................... 7-1

Battery Safety Guidelines .............................................................................................................. 7-1

Cleaning Instructions ..................................................................................................................... 7-2

Approved Cleanser Active Ingredients ..................................................................................... 7-2

Harmful Ingredients .................................................................................................................. 7-3

Cleaning Instructions ................................................................................................................ 7-3

Special Cleaning Notes ............................................................................................................ 7-3

Cleaning Materials Required .................................................................................................... 7-3

Cleaning Frequency ................................................................................................................. 7-3

Cleaning the TC70 ................................................................................................................... 7-4

Housing .............................................................................................................................. 7-4

Display ............................................................................................................................... 7-4

Camera and Exit Window ................................................................................................... 7-4

Connector Cleaning ........................................................................................................... 7-4

Cleaning Cradle Connectors .............................................................................................. 7-4

Troubleshooting ............................................................................................................................. 7-6

Table of Contents xi

TC70 ........................................................................................................................................ 7-6

Appendix A: Technical Specifications

Introduction ................................................................................................................................... A-1

TC70 ............................................................................................................................................. A-1

Index

xii TC70 User Guide

ABOUT THIS GUIDE

Introduction

This guide provides information about us ing the TC70 mobile com p ut er and acce ss or ies.

NOTE Screens and windows pictured in this guide are samples and can differ from actual screens.

Documentation Set

The documentation set for the TC70 provides information for specific user needs, and includes:

•

TC70 Quick Start Guide - describes how to get the TC70 up and running.

•

TC70 User Guide - describes how to use the TC70.

•

TC70 Integrator Guide - describes how to set up the TC70 and accessories.

Configurations

This guide covers the following configurations:

Configuration Radios Display Memory

TC70 Professional (without Google Mobile Services (GMS))

TC70 Standard (with GMS)

WLAN: 802.11 a/b/g/n/d/h/i/k/r WP AN: Bluetooth v4.0 Low Energy

4.7” High Definition (1280 x

720) LCD

4.7” High Definition (1280 x

720) LCD

1 GB RAM / 8 GB Flash (SLC High Reliability Flash)

Data Capture

Options

2D imager and integrated NFC

Operating

System

Android-based, Android Open-Source Project 5.1.1.

Android-based, Android Open-Source Project 5.1.1 with GMS.

xiv TC70 User Guide

Software Versions

To determine the current software versions touch > About phone.

•

Model number- Displays the model number.

•

Android version - Displays the operating system version.

•

Kernel version - Displays the kernel version number.

•

Build number - Displays the software build number.

To determine the device serial number touch > About phone > Status.

•

Serial number - Displays the serial number.

Chapter Descriptions

Topics covered in this guide are as follows:

•

Chapter 1, Getting Started provides information on get tin g th e TC70 up and run nin g fo r the first time .

•

Chapter 2, Using the TC70 provides information for operating the TC70.

•

Chapter 3, Applications provides information on using applications installed on the TC70.

•

Chapter 4, Data Capture provides information for capturing bar code data using the imager.

•

Chapter 5, Wireless provides information on the various wireless options.

•

Chapter 6, Accessories provides information for using the accessories for the TC70.

•

Chapter 7, Maintenance and T roubl eshooting includes instructions on cleaning and provide s troublesh ooting

solutions for potential problems during TC70 operation.

•

Appendix A, Technical Specifications provides the technical specifications for the TC70.

Notational Conventions

The following conventions are used in this document:

•

Italics are used to highlight the following:

• Chapters and sections in this and related documents

• Icons on a screen.

•

Bold text is used to highlight the following:

• Dialog box, window, and screen names

• Drop-down list and list box names

• Check box and radio button names

• Button names on a screen.

•

Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily seq ue nt ial

•

Sequential lists (for example, lists that describe step-by-step procedures) appear as numbered lists.

Icon Conventions

The documentation set is designed to give the reader more visual clues. The following graphic icons are used throughout the documentation set. These icons and their associated meanings are described below.

WARNING! The word WARNING with the associated safety icon implies information that, if disregarded, could

result in death or serious injury, or serious product damage.

CAUTION The word CAUTION with the associated safety icon implies information that, if disregarded, may result

in minor or moderate injury, or serious product damage.

About This Guide xv

NOTE NOTE contains information more important than the surrounding text, such as exceptions or

preconditions. They also refer the reader elsewhere for additional information, remind the reader how to complete an action (when it is not part of the current procedure, for instance), or tell the reader where something is located on the screen. There is no warning level associated with a note.

Service Information

If you have a problem with the equipment, contact Customer Support in the region. Co ntact information is available at: http://www.zebra.com/support

When contacting support, please have the following information available:

•

Serial number of the unit (found on manufacturing label)

•

Model number or product name (found on manufacturing label)

•

Software type and version number

xvi TC70 User Guide

Customer Support responds to calls by email or telephone within the time limits set forth in support agreements. If the problem cannot be solved by Customer Support, the user may need to return the equipment for servicing and

will be given specific directions. We are not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possib ly void the wa rran ty. Remove the microSD card from the device before shipping for service.

If the device was purchased from a business partner, contact that business partner for support.

CHAPTER 1 GETTING STARTED

Introduction

This chapter provides information for getting the device up and running for the first time.

Unpacking

1. Carefully remove all protective material from the TC70 and save the shipping contai ner for later storage and

shipping.

2. Verify that the following were received:

• TC70 mobile computer

• 4,620 mAh Lithium-ion battery

• Hand strap

• Regulatory Guide

• Quick Start Guide.

3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global Customer

Support center immediately.

4. Prior to using the TC70 for the first time, remove the protective shipping film that covers the scan window,

display and camera window.

1 - 2 TC70 User Guide

Features

Figure 1-1 TC70 Front View

Table 1-1 Front View Features

Number Item Function

1 Touch Screen Displays all information needed to operate the TC70. 2 PTT Button Initiates push-to-talk communications (programmable). 3 Scan Button Initiates data capture (programmable). 4 Back Button Displays the previous screen. 5 Home Button Displays the Home screen with a single press. Displays Search

applications when held for a short period of time. On TC70 with GMS, opens the Google Now screen when held for a

short period of time. 6 Microphone Use for communications in Handset mode. 7 Charging

Contacts

8 Speaker Provides audio output for video and music playback. Provides audio in

Provides power to the device from cables and cradles.

speakerphone mode.

Getting Started 1 - 3

Table 1-1 Front View Features (Continued)

Number Item Function

9 Search Button Opens the search application (programmable).

On TC70 with GMS, opens the Recent App screen. 10 Menu Button Opens a menu with items that affect the current screen or application. 11 Light Sensor Determines ambient light for controlling display backlight intensity. 12 Proximity Sensor Determines proximity for turning off display when in handset mode. 13 Power Button Turns the display on and off. Press and hold to reset the device or

power off. 14 Microphone Use for communications in Speakerphone mode. 15 Receiver Use for audio playback in Handset mode. 16 Charging/Notifica

tion LED

17 Data Capture

LED

18 Front Facing

Camera

Indicates battery charging status while charging and application

generated notifications..

Indicates data capture status.

Use to take photos and videos.

Figure 1-2 TC70 Rear View

1 - 4 TC70 User Guide

Table 1-2 Back View Features

Number Item Function

19 Interface

Connector

Provides USB host and client communications, audio and device

charging via cables and accessories. 20 Exit Window Provides data capture using the imager. 21 Microphone Use during video recording and for noise cancellation. 22 V olume Up/Down

Increase and decrease audio volume (programmable).

Button

23 Battery Release

Press to remove the battery.

Latches 24 Elastic Sleeve Use to hold optional stylus. 25 Battery Provides power to the device. 26 Hand strap Use to securely hold the device in your hand. 27 Hand strap

Provides latching point for the hand strap.

Mounting Point 28 Camera Takes photos and videos. 29 Camera Flash Provides illumination for the camera.

Setup

Perform this procedure to start using the TC70 for the first time.

1. Install a micro secure digital (SD) card (optional).

2. Install hand strap (optional).

3. Install the battery.

4. Charge the TC70.

5. Power on the TC70.

Installing a microSD Card

The microSD card slot provides secondary non-volatile storage. The slot is locate d under the batte ry pack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recommendations for use.

CAUTION Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper

ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.

1. Remove the hand strap, if installed.

2. Lift the access door.

Getting Started 1 - 5

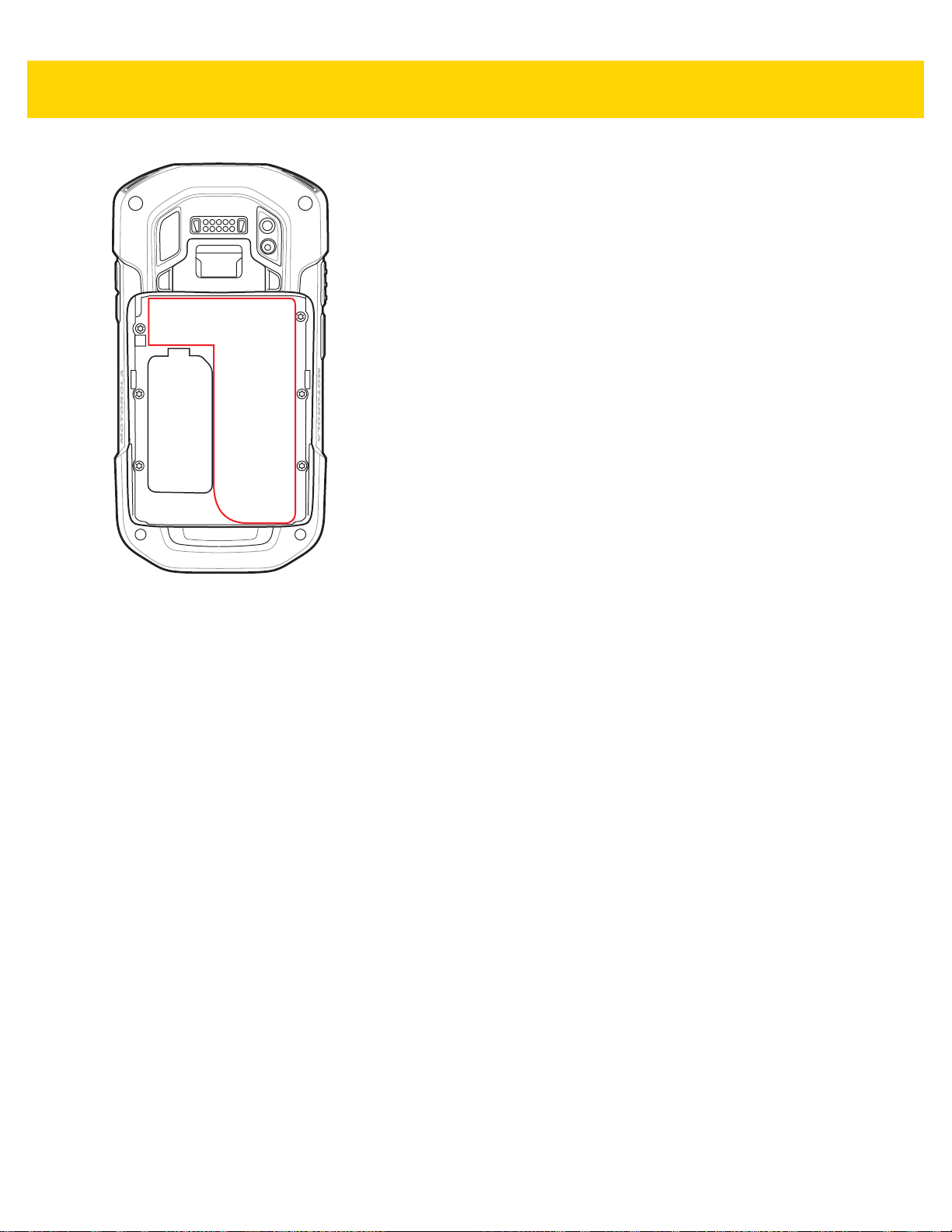

Figure 1-3 Lift Access Door

3. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each

side of the door.

4. Re-install the access door.

Installing the Hand Strap and Battery

NOTE Installation of the hand strap is optional. Skip this section if not installing the hand strap.

1. Remove the hand strap filler from the hand strap slot. Store the hand strap filler in a safe place for future

replacement.

Figure 1-4 Remove Filler

2. Insert the hand strap plate into the hand strap slot.

Figure 1-5 Insert Hand Strap

3. Insert the battery, bottom first, into the battery compartment in the back of the TC70.

1 - 6 TC70 User Guide

Figure 1-6 Insert Bottom of Battery into Battery Compartment

4. Rotate the top of the battery into the battery compartment.

5. Press the battery down into the battery compartment until the battery release latches snap into place.

Figure 1-7 Press Down on Battery

6. Place hand strap clip into hand strap mounting slot and pull down until it snaps into place.

Figure 1-8 Secure Hand Strap Clip

Installing the Battery

1. Insert the battery, bottom first, into the battery compartment in the back of the TC70.

Getting Started 1 - 7

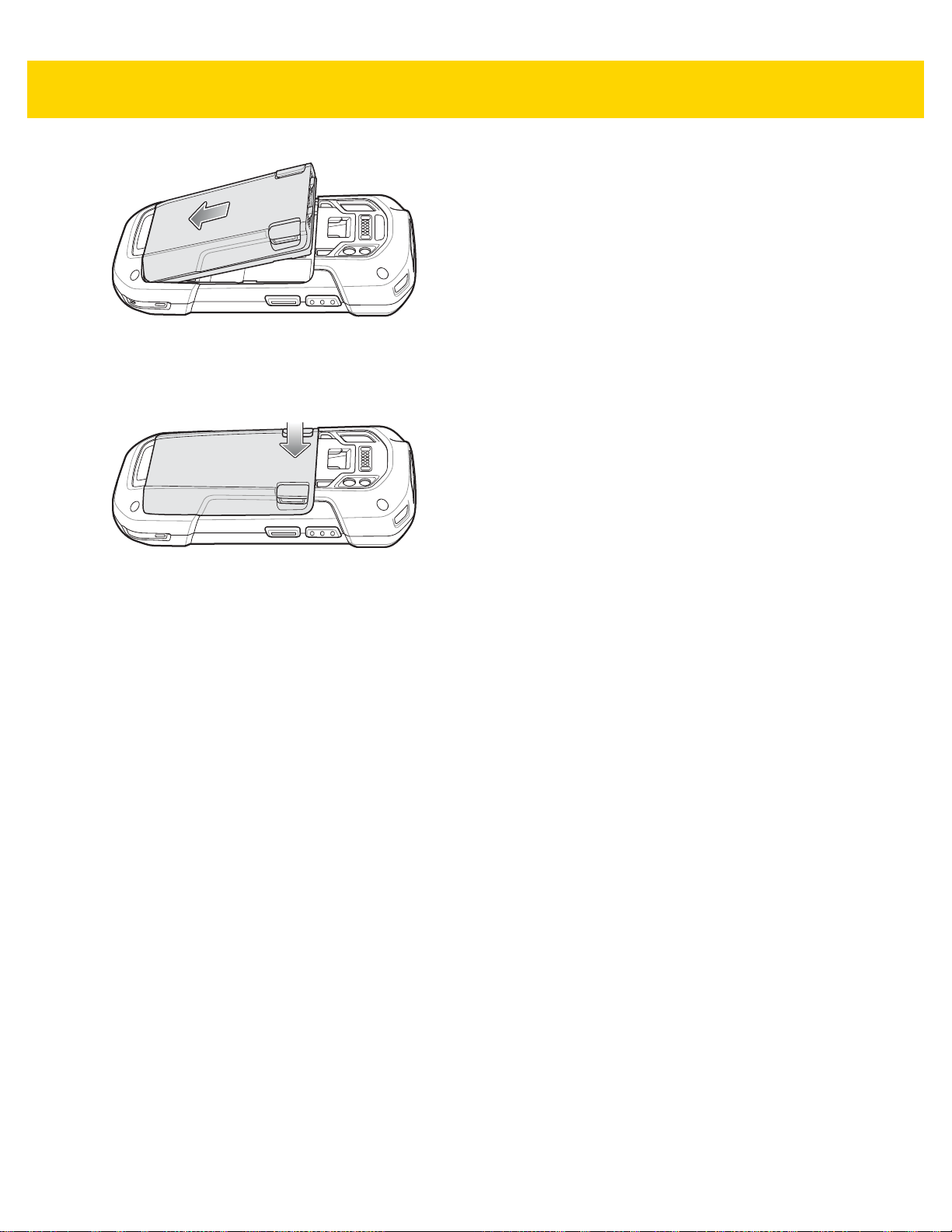

Figure 1-9 Insert Bottom of Battery into Battery Compartment

2. Rotate the top of the battery into the battery compartment.

3. Press the battery down into the battery compartment until the battery release latches snap into place.

Figure 1-10 Press Down on Battery

Charging the Battery

Before using the TC70 for the first time, charge the main battery until the green Charging/Notification light emitting diode (LED) remains lit. To charge the TC70, use a cable or a cradle with the appropriate power supply. For information about the accessories available for the TC70, see Chapter 6, Accessories for more information.

• Snap-On USB Cable

• Charging Cable Cup

• 2-Slot Charge Only Cradle

• 2-Slot USB/Ethernet Cradle

• 5-Slot Charge Only Cradle

• 5-Slot Ethernet Cradle

The 4,620 mAh battery fully charges in approximately six h ours at room temperature. Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The TC70 or accessory always performs

battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the TC70 or accessory may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The TC70 or accessory indicates when charging is disabled due to abnormal temperatures via its LED.

1. To charge the main battery, connect the charging accessory to the appropriate power source.

2. Insert the TC70 into a cradle or attach to a cable. The TC70 turns on and begins charging. The

Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.

1 - 8 TC70 User Guide

Charging Indicators

Table 1-3 Charging/Notification LED Charging Indicators

State Indication

Off TC70 is not charging. TC70 is not inserted correctly in the cradle or connected to

a power source. Charger/cradle is not powered.

Slow Blinking Amber (1 blink

TC70 is charging.

every 2 seconds) Solid Green Charging complete. Fast Blinking Amber (2

blinks/second)

Charging error, e.g.: Temperature is too low or too high. Charging has gone on too long without completion (typically eight hours).

Slow Blinking Red (1 blink

TC70 is charging but the battery is at end of useful life.

every 2 seconds) Solid Red Charging complete but the battery is at end of useful life. Fast Blinking Red (2

blinks/second)

Charging error but the battery is at end of useful life., e.g.: Temperature is too low or too high. Charging has gone on too long without completion (typically eight hours).

Google Account Setup

NOTE The TC70 has to be connected to the internet, through Wi-Fi, in-order to set up a Google account.

The first time the TC70 starts, the Setup Wizard displays. Follow the on-screen instructions to set up a Google account, configure Google Wallet for purchasin g items from the Play Store, entering your personal information, and enabling backup/restore featur es .

Replacing the Battery

CAUTION Do not add or remove SIM, SAM or microSD card during battery replacement.

1. Remove any accessory attached to the device.

2. Press the Power button until the menu appears.

3. Touch Power off.

4. If hand strap is attached, slide the hand strap clip up toward the top of the TC70 and then lift.

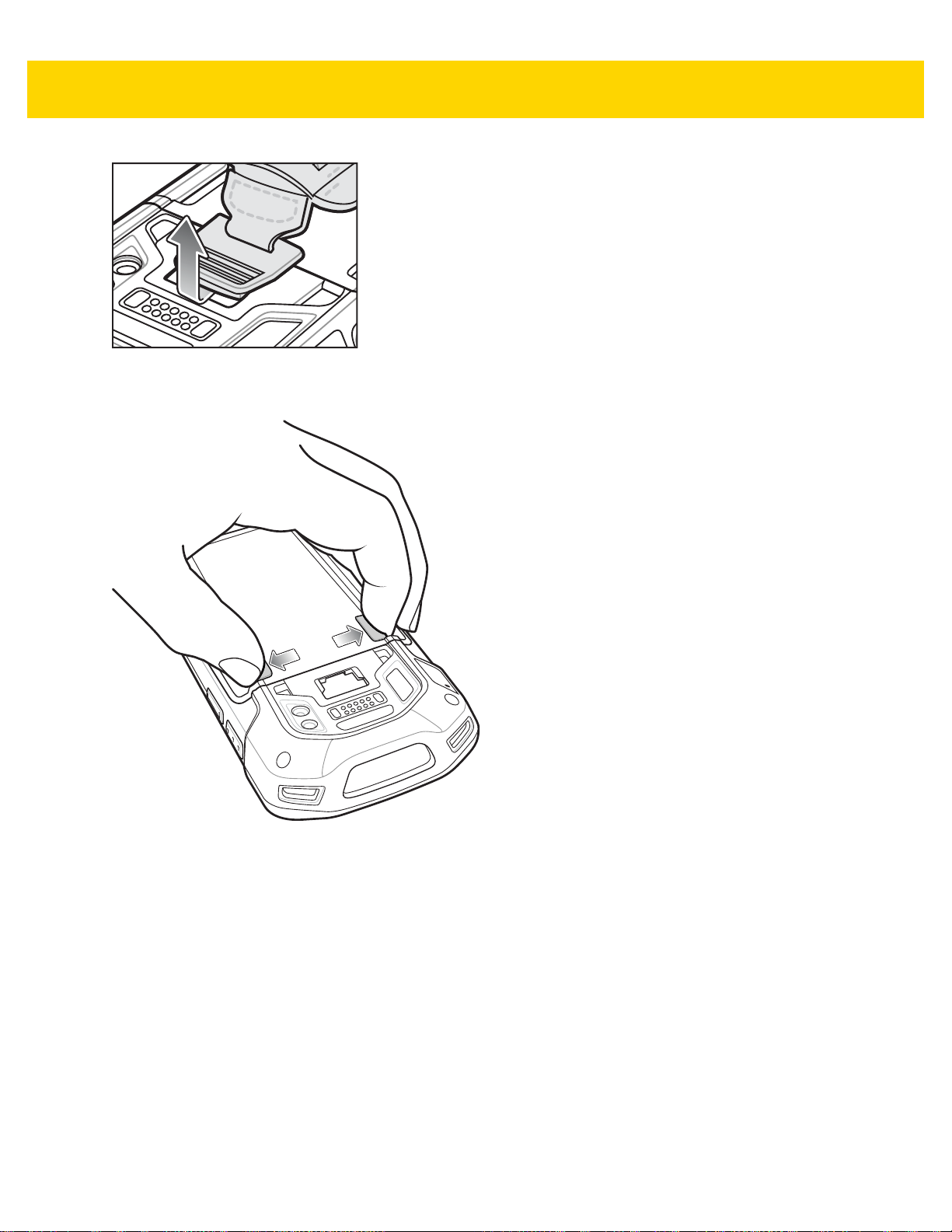

Figure 1-11 Remove Hand Strap Clip

5. Press the two battery latches in.

Getting Started 1 - 9

Figure 1-12 Press Battery Latches

6. Lift the battery from the TC70.

1 - 10 TC70 User Guide

Figure 1-13 Lift the Battery

7. Insert the replacement battery, bottom first, into the battery compartment in the back of the TC70.

8. Press the battery down until the battery release latch snaps into place.

9. Replace the hand strap, if required.

10. Press and hold the Power button to turn on the TC70.

Replacing the microSD Card

To replace the microSD card:

1. Press the Power button until the menu appears.

2. Touch Power off.

3. If hand strap is attached, slide the hand strap clip up toward the top of the TC70 and then lift.

Figure 1-14 Remove Hand Strap Clip

4. Press the two battery latches in.

5. Lift the battery from the TC70.

6. Lift the access door.

Figure 1-15 Remove Access Door

7. Remove microSD card from holder.

8. Press the access door down and ensure that it is properly seated.

9. Insert the replacement microSD card.

10. Replace the access door.

Getting Started 1 - 11

Figure 1-16 Replace Access Door

11. Insert the battery, bottom first, into the battery compartment in the back of the TC70.

12. Press the battery down until the battery release latch snaps into place.

13. Replace the hand strap, if required.

14. Press and hold the Power button to turn on the TC70.

Battery Management

NOTE Prior to checking the battery charge level, remove the TC70 from any AC power source (cradle or cable).

To check the charge status o f the main battery, on the Home screen touch > > About phone > Battery Information.

Battery status indicates that the battery is discharging and Battery level lists the battery charge (as a percentage

of fully charged).

Monitor Battery Usage

The Battery screen lists which applications consume the most battery power. Also use it to turn off applications that were downloaded if they are consuming too much power.

Touch > >

Battery.

1 - 12 TC70 User Guide

Figure 1-17 Battery Screen

The Battery screen lists the applications using the battery. The discharge graph at the top of the screen shows the rate of the battery discharge since last charged (short periods of time when connected to a charger are shown as thin green lines at the bottom of the chart), and how long it has been running on battery powe r.

Touch an application in the Battery screen to display details about its power consumption. Different applications display different information. Some applications inclu d e buttons that open screens with settings to adjust power use.

Low Battery Notification

When the battery charge level drops below 18%, the TC70 displays a notice to connect the TC70 to power.The user should charge the battery using one of the charging accessories.

Figure 1-18 Low Battery Notification

When the battery charge drops below 10%, the TC70 displays a notice to connect the TC70 to power. The user must charge the battery using one of the charging accessories.

When the battery charge drops below 4%, the TC70 turns off. The user must charge the TC70 using one of the charging accessories.

Battery Optimization

Observe the following battery saving tips:

• Set the screen to turn off after a short period of non-use. See Setting the Screen Brightness on page 1-14.

• Reduce screen brightness. See Setting the Screen Brightness on page 1-14.

• Turn off all wireless radios when not in use. Note that the global positioning system (GPS) receiver is only

turned on when a GPS application is using the GPS radio.

• Turn of f automatic syncing for Email, Calendar, Contacts and other applications.

• Minimize use of applications that keep the TC70 from suspending, for example, music and video

applications.

Turning Off the Radios

To turn off all the radios:

Getting Started 1 - 13

1. Swipe down from the top of the screen with two fingers or twice with one finger.

2. Touch Airplane mode. The airplane icon appears in the Status bar indicating that all the radios are off.

Setting the Date and Time

The user is only required to set the time zone or set the date and time when the wireless LAN does not support Network Time Protocol (NTP).

1. On the Home screen, touch .

2. Touch .

3. Touch Date & time.

4. Touch Automatic date & time to disable automatic date and time synchronization.

5. Touch Set date.

6. Scroll up and down to select the month, date and year.

7. Touch OK.

8. Touch Set time.

9. Select the hour, minutes and part of the day.

10. Touch OK.

11. Touch Select time zone.

12. Select the current time zone from the list.

13. Touch .

1 - 14 TC70 User Guide

Display Setting

Use Display settings to change the screen brightness, change the background image, enable screen rotation,set sleep time and change font size.

Setting the Screen Brightness

To set the screen brightness:

1. Touch .

2. Touch .

3. Touch Display.

4. Adaptive brightness sets the TC70 to automatically adjust the brightness using the built-in ligh t sensor . Touch

to disable adaptive brightness and set the brightness manually.

5. Touch Brightness level.

Figure 1-19 Brightness Dialog Box

6. Touch .

Setting Screen Rotation

By default, screen rotation is disabled. To enable screen rotation:

1. On the Home screen, touch .

2. Touch .

3. Touch Display.

4. Touch When device is rotated.

• Rotate the contents of the screen - sets the TC70 to automatically switch orientation when the TC70 is

rotated.

• Stay in current orientation - sets the TC70 to stay in the current orientation when the TC70 is rotated.

NOTE The Home screen does not rotate.

5. Touch .

Setting Screen Timeout Setting

To set the screen sleep time:

1. On the Home screen, touch .

2. Touch .

3. Touch Display.

4. Touch Sleep.

5. Select one of the sleep values.

• 15 seconds

• 30 seconds

• 1 minute (default)

• 2 minutes

• 5 minutes

•10 minutes

•30 minutes

6. Touch .

Setting Font Size

Getting Started 1 - 15

To set the size of the font is system applications:

1. Touch .

2. Touch .

3. Touch Display.

4. Touch Font size.

5. Select one of the font size values.

•Small

• Normal (default)

•Large

• Huge

6. Touch .

Setting Touch Key Light

The four touch keys under the screen are backlit. Configure the touch key light to save battery power.

1. Touch .

2. Touch .

3. Touch Display.

4. Touch Touch key light.

5. Select one of the options.

• Always off - The touch key light is off.

• 6 seconds - The touch key light stays on for six seconds and then turns off (default).

1 - 16 TC70 User Guide

• 10 seconds - The touch key light stays on for 10 seconds and then turns off.

• 15 seconds - The touch key light stays on for 15 seconds and then turns off.

• 30 seconds - The touch key light stays on for 30 seconds and then turns off.

• 1 minute - The touch key light stays on for one minute and then turns off.

• Always on - The touch key light is on when the screen is on.

Figure 1-20 Touch Key Light Dialog Box

6. Touch .

Touch Mode

The TC70 display is able to detect touches using a finger, a conductive-tip stylus or gloved finger.

NOTE A glove can be made of medical latex, leather, cotton or wool.

For optimal performance use Zebra certi fi e d styl u s.

1. Touch .

2. Touch .

3. Touch Display.

4. Touch Touch Mode.

Figure 1-21 Touch Mode Dialog Box

5. Touch Stylus and Finger (default) to use a finger or a stylus on the screen or touch Glove and Finger to use

a finger or a gloved finger on the screen.

6. Touch .

General Sound Setting

Getting Started 1 - 17

Use the Sound & notification settings to configure notification and call options and volume. On the Home screen, touch > > Sound & notification.

Figure 1-22 Sound & Notification Screen

1 - 18 TC70 User Guide

Sound

Use the sound settings to change the volume of media, ringtones, notifications and alarms.

• Media Volume - Controls the music and media volume.

• Alarm Volume - Controls the alarm clock volume.

• Ring Volume - Controls the ringtone volume.

• Also vibrate for calls - Touch to set the phone to ring even when the ring volume is up (default - enabled).

Figure 1-23 Interruptions Screen

• Interruptions

• When calls and notifications arrive - Touch to select when calls and notifications arrive.

• Priority Interruptions

• Events and reminders - Touch to allow events and reminders notifications to come through.

• Calls - Touch to silence all calls.

• Messages - Touch to allow message notifications to come through.

• Calls/messages from - Touch to choose which types of contacts can come through.

• Downtime

Getting Started 1 - 19

• Days - Touch to cho ose which days priority interruption settings are enab le d.

• Start time - Touch to choose a start time when priority interruption settings are enabled.

• End time - Touch to choose an end time when priority interruption settings are disabled.

• Interruptions allowed - Touch to choose if priority interruptions are allow or no interruptions are allowed.

• Audio profile – Touch to set audio profile. On the Audio profile screen, touch Audio profile.

• General – Standard audio settings (default).

• Increased clarity – Increased volume on higher frequencies.

Figure 1-24 Audio Profile Dialog Box

• Phone ringtone - Touch to select a ringtone to sound when an incoming call is received.

• Default notification ringtone- Touch to select a sound to play for all system notifications.

• Other sounds

• Dial pad touch tones - Check to play a sound when a phone key is touched (default – enabled).

• Touch sounds - Check to play a sound when making screen selections (default – enabled).

• Screen lock sounds- Check to play a sound when locking and unlocking the screen (default – disabled).

• Vibrate on touch - Check to have the device vibrate when touching soft keys and on certain screen

interactions (default – enabled).

Notification

Use the notification settings to configure how notifications arrive and which notifications arrive. On the Home screen, touch > > Sound & notification.

• Pulse notification light

The Charging/Notification LED lights blue when an application, such as email and VoIP, generates a programmable notification or to indicate when the TC70 is connected to a Bluetooth device. By default, LED notifications are enabled. To change the notification setting:

Touch Pulse notification light to toggle the notification on or off.

• When device is locked - Manage whether notifications can be seen when the TC70 is locked.

• App notifications - Modify the notification settings individually for an application. The setting under When device is locked always takes precedence over the setting for an individual application.

• Notification access - Displays which applications can access notifications.

When a notification arrives, its icon appears at the top of the screen. Icons for pending notifica tions appear on the left, and system icons on the right.

1 - 20 TC70 User Guide

Wake-Up Sources

By default the TC70 wakes from suspend mode when the user presses the power button. The TC70 can be configured to wake when the user presses the PTT or Scan buttons on the left side of the device.

1. Touch .

2. Touch Wake-Up Sources.

3. Touch Keypad checkbox. A blue check appears in the checkbox.

Figure 1-25 Wake-Up Sources Dialog Box

4. Touch .

CHAPTER 2 USING THE TC70

Introduction

This chapter explains the buttons, status icons, and controls on the TC70, and provides basic instructions for using the TC70, including resetting the TC70 and entering data.

Google Mobile Services

NOTE This section only applies to TC70 configurations with Google Mobile Services (GMS).

The TC70 with GMS contains applications and services that provide additional functionality to the TC70. GMS includes:

• Applications - GMS adds a variety of Google applications and associated widgets includ ing Chrome, Gmail, Drive and Maps.

• Services:

• Speech to Text - Allows for free format speech to text, in many languages for both connected and

disconnected network. Launch by touching the microphone icon on the keyboard.

• TalkBack Service - Provides spoken feedback on various parts of the user interface. To enable, go to

Settings > Accessibility.

• Network Location Provider - Adds a location pro vider which uses mobile ne twork tower infor mation a nd

Wi-Fi access point information to provide a location without using GPS. To enable, touch Settings >

Location.

• Widevine DRM - Enables the digital rights management so that protected content can be pl ayed. Enable

via DRM Info from the Play Store.

• Google Cloud Messaging - Allows the sending of data from yo ur server to your TC70 and also to r eceive

messages from devices on the same connection.

• Backup and Restore - Allows the users setting s and applications to be backed up to a Google server and

subsequently restored from that server after a factory reset.

2 - 2 TC70 User Guide

• Google accounts - Create and use a Google account to synchronize mail, files, music, photos, contacts and calendar events.

Home Screen

The Home screen displays when the TC70 turns on. Depending upon the configuration, the Home screen might appear different. Contact your system administrator for more information.

After a suspend or screen time-out, the Home screen displays with the lock sliders. Slide up to unlock the screen. For screen locking information see Un-Locking the Screen on page 2-16.

Figure 2-1 Home Screen Examples

Table 2-1 Home Screen Items

Item Description

1 — Status Bar Displays the time, status icons (right side), and notification icons (left

2 — Browser Icons Opens browser application. 3 — All Apps Icon Opens the APPS window.

side). For more information see Status Icons and Managing Notifications.

Using the TC70 2 - 3

Notification Icons Status Icons

Table 2-1 Home Screen Items (Continued)

Item Description

4 — Shortcut Icons Opens applications installed on the TC70. See Application Shortcuts

and Widgets on page 2-7 for more information.

5 — Widgets Launches stand-alone applications that run on the Home screen. See

Application Shortcuts and Widgets on page 2-7 for more information.

The Home screen provides four additional screen s for placem ent of widgets and shortcuts. Swipe the screen left or right to view the additional screens.

Status Bar

The Status bar displays the time, notification icons (left side ) and stat us ico ns (right sid e) .

Figure 2-2 Notification and Status Icons

If there are more notifications than can fit in the Status bar, displays indicating that more notifications exist. Open the Notifications panel to view all notifications and status.

Status Icons

Table 2-2 Status Icons

Icon Description

Indicates that the Alarm is active.

Indicates that all sounds except media and alarms are silenced and vibrate mode is active.

Indicates that all sounds except media and alarms are silenced.

Indicates that the battery is fully charged.

Indicates that the battery is partially drained.

Indicates that the battery charge is low.

Indicates that the battery charge is very low.

2 - 4 TC70 User Guide

Table 2-2 Status Icons (Continued)

Icon Description

Indicates that the battery is charging.

Indicates that the Airplane Mode is active. All radios are turned off.

Indicates that Bluetooth is on.

Connected to a Wi-Fi network.

No Wi-Fi signal.

Connected to an Ethernet network.

Headset audio cable is connected to the WT6000.

Notification Icons

Table 2-3 Notification Icons

Icon Description

Indicates that more notifications are available for viewing.

Indicates that data is syncing.

Indicates an upcoming event.

Indicates that an open Wi-Fi network is available.

Indicates that a song is playing.

Indicates that a problem with sign-in or sync has occurred.

Indicates that the TC70 is uploading data.

Table 2-3 Notification Icons (Continued)

Icon Description

Indicates that the TC70 is downloading data when animated and download is comp lete when static.

Indicates that the TC70 is connected via USB cable.

Indicates that the TC70 is connected to or disconnected from virtual private network (VPN).

Preparing SD card.

Indicates that USB debugging is enabled on the TC70.

Indicates that the MultiUser feature is enabled. Appears only when MultiUser Admini strator application is installed.

Using the TC70 2 - 5

Indicates that a new user is logging in. Appea rs only when MultiUser Administrator application is installed.

Indicates the status of the PTT Express Voice Client. See Notification Icons for complete list of PTT Express notification icons.

Indicates that DataWedge application is running on the device.

Managing Notifications

Notification icons report the arrival of new messages, calendar events, and alarms, as well as ongoing events. When a notification occurs, an icon appears in the Status bar with a brief description. See Notification Icons on page 2-4 for a list of possible notification icons and their description. Open the Notifications panel to view a list of all the notifications.

To open the Notification panel drag the Status bar down from the top of the screen.

2 - 6 TC70 User Guide

Figure 2-3 Notification Panel

To respond to a notification, open the Notifications Panel and then touch a notification. The Notifications Panel closes and the subsequent activity is dependent on the notification.

To clear all notifications, open the Notifications Panel and then touch . All event-based notifications are removed. Ongoing notifications remain in the list.

To close the Notification Panel, swipe the Notifications Panel up or touch .

Quick Settings

Use Quick Settings to get to frequently used settings, like turning on airplane mode . To open Quick Settings, swipe down from the top of the screen with two fingers or twice with one finger.

Using the TC70 2 - 7

Figure 2-4 Quick Settings

To change a setting, just touch the icon:

• Display brightness: Slide to lower or increase the brightness of the screen.

• Wi-Fi network: Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.

• Bluetooth settings: Turn Bluetooth on or off. To open Bluetooth settings, touch the Bluetooth.

• Airplane mode: Turn airplane mode on or off. A irplane mode means device will not connect to Wi-Fi or

Bluetooth.

• Auto-rotate: Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.

• Flashlight: Turn the camera LED flash on or off.

• Location: Turn location services on or off. To open location settings, touch > Location.

• Cast screen: Share phone content on Chromecast or a television with Google Cast built-in. Touch cast

screen to display a list of devices, then touch a device to begin casting.

To close the Quick Settings Panel, swipe the Quick Settings Panel up or touch .

Application Shortcuts and Widgets

Application shortcuts placed on the Home screen allow quick and easy access to applications. Widgets are self-contained applications placed on the Home screen to access frequently used features.

Adding an Application or Widget to the Home Screen

1. Go to the desired Home screen.

2 - 8 TC70 User Guide

2. Touch .

3. Swipe right, if necessary, to find the application icon or widget.

4. Touch and hold the icon or widget until the Home screen appears.

5. Position the icon on the screen and then release.

Moving Items on the Home Screen

1. Touch and hold the item until it floats on the screen.

2. Drag the item to a new location. Pause at the edge of the screen to drag the item onto an adjacent Home

screen.

3. Lift finger to place the item on the Home screen.

Removing an App or Widget from the Home Screen

1. Go to the desired Home screen.

2. Touch and hold the application shortcut or widget icon until it floats on the screen.

3. Drag the icon to on the top of the screen and then release.

Folders

Use Folders to organize similar applications together. Tap the folder to open and display items in the folder.

Creating a Folder

To create a folder, there must be at least two app icons on the Home screen.

1. Go to the desired Home screen.

2. Touch and hold on one application icon.

3. Drag the icon and stack on top of another icon.

4. Release the icon. A folder is created containing both icons.

Naming Folders

1. Touch the folder.

Figure 2-5 Open Folder

2. Touch the title area and enter a folder name using the keyboard.

3. Touch Done on the keyboard.

4. Touch anywhere on the Home screen to close the folder. The folder name appears under the folder.

Figure 2-6 Renamed Folder

Removing a Folder

1. Touch and hold the folder icon until it enlarges.

2. Drag the icon to and release.

Home Screen Wallpaper

NOTE Use of Live Wallpaper may reduce battery life.

Changing the Home Screen Wallpaper

1. Touch .

2. Touch Wallpaper.

3. From the Choose wallpaper from menu, touch Gallery, Live wallpapers or Wallpapers.

Using the TC70 2 - 9

•Gallery - Select to use an image stored on the device.

• Live wallpapers - Select to use an animated wallpaper image.

• Wallpapers - Select to use a wallpaper image.

4. Touch Set wallpaper.

Using the Touchscreen

Use the multi-tap sensitive screen to operate the device.

•Tap - Tap to:

• select items on the screen

• type letters and symbols using the on-screen keyboard

• press on-screen buttons.

• Tap and Hold - Tap and hold :

• an item on the Home screen to move it to a new location or to the trash.

• an item in Apps to cr eate a shortcut on the Home screen.

• the Home screen to open a menu for customizing the Home screen.

• an empty area on the Home screen until the menu appears.

•Drag - Tap and hold an item for a moment and then move finger on the screen until reaching the new

position.

2 - 10 TC70 User Guide

?123

=\<

•Swipe - Move finger up and down or left and right on the screen to:

• unlock the screen

• view additional Home screens

• view additional application icons in the Launcher window

• view more information on an application’s screen.

• Double-tap - Tap twice on a web page, map, or other screen to zoom in and out.

•Pinch - In some applications, zoom in and out by placing two fingers on the screen and pinching them

together (to zoom out) or spreading them apart (to zoom in).

Using the On-screen Keyboard

Use the on-screen keyboard to enter text in a text field. To configure the keyboard settings, touch and hold (comma) or (forward slash) > and then select Android keyboard settings.

Editing Text

Edit entered text and use menu commands to cut, copy, and paste text within or across applications. Some applications do not support editing some or all of the text they display; others may offer their own way to select text.

Entering Numbers, Symbols and Special Characters

To enter numbers and symbols:

• Touch and hold one of the top-row keys until a menu appears then select a number. Keys with alternate characters display an ellipsis ( ... ) below the character.

• Touch and hold the Shift key with one finger, touch one or more capital letters or symbols to enter them, and then lift both fingers to return to the lowercase keyboa rd .

• Touch to switch to the numbers and symbols keyboard.

• Touch the key on the numbers and symbols keyboard to view additional symbols.

To enter special characters, touch and hold a number or symbol key to open a menu of additional symbols.

• A larger version of the key displays briefly over the keyboard.

• Keys with alternate characters display an ellipsis ( ... ) below the character.

Applications

The APPS screen displays icons for all installed applications. The table below lists the applications installed on the TC70. Refer to the TC70 Integrator Guide for information on installing and uninstalling application.

Table 2-4 Applications

Icon Description

Using the TC70 2 - 11

AppGallery - Provides links to utilities and demonstration applications that can be installed on the TC70.

Battery Manager

wear level.

Bluetooth Pairing Utility – Use to pair the RS507 Hans-free Imager with the TC70 by scanning a bar code.

Browser - Use to access the Internet or intranet. TC70 Professional (without GMS) only.

Calculator - Provides the basic and scientific arithmetic functions.

Calendar - Use to manage events and appointments.

Camera - Take photos or record videos.For more information see Camera (KitKat).

Chrome - Use to access the Internet or intranet. TC70 Standard (with GMS) only.

Clock - Use to schedule alarms for appointments or as a wake-up.

- Displays battery information, including charge level, status, health and

Contacts - Use to manage contact information.

DataWedge - Enables data capture using the imager.

Downloads - lists all downloads files.

Drive - Upload photos, videos, documents, and other files to personal storage site. TC70

Professional (with GMS) only.

DWDemo - Provides a way to demonstrate the data capture features using the imager. See DataWedge Demonstration on page 3-21 for more information.

2 - 12 TC70 User Guide

Table 2-4 Applications (Continued)

Icon Description

elemez — Use to provide diagnostic information. See Elemez on page 3-36 for more

information.

Email - Use to send and receive email.

File Browser - Organize and manage files on the TC70. See File Browser on page 3-3 for

more information.

Gallery - Use to view photos stored on the microSD card. For more information, see Gallery on page 3-14 for more information.

Gmail - Use to send and receive email using a Google email account. TC70 Standard (with GMS) only.

Google - Launches Google search application. TC70 Standard (with GMS) only.

Google Settings - Use to connect applications to Google account, setup Google Plus

account, set location settings, set search features and configure Android Device Manager. TC70 Standard (with GMS) only.

Hangouts - Use to communicate with friends using text messages and photos. TC70 Standard (with GMS) only.

IST - Use to configure sensor related features and view available sensors on the device, sensor information, and versions of each component in sensor subsystem.

Maps - Use to see you location on a map (with public transit, traffic or satellite overlays). Search for any business or place of interest. Provides turn-by-turn navigation with voice guidance and traffic-avoidance an d alternate rou tes, for drivers, cyclist, walkers and users of public transportation. TC70 Standard (with GMS) only.

MLog Manager - Use to capture log files for diagnostics. See MLog Manager on page 3-27 for more information.

MobiControl Stage – Opens the MobiControl Stage application to stage the device.

MSP Agent - Enables management of the TC70 from an MSP server. Requires the

purchase of an appropriate MSP client license per device to suit the level of manageme nt functionality required.

MSRN - Use verify authenticity of the paired Snap-on MSR and to provision the Snap-on MSR. See the TC70 Integrator Guide for more information.

Table 2-4 Applications (Continued)

Icon Description

Music - Play music stored on the microSD card. TC70 Professional (without GMS) only.

Phone - Use to dial a phone number when used with some Voice over IP (VoIP) clients

(VoIP telephony ready only).

Photos - Use to sync photos with Google account. TC70 Standard (with GMS) only.

Play Movies & TV - View movies and video on your device. TC70 Standard (with GMS)

only.

Play Music - Use to listen to music. TC70 Standard (with GMS) only.

Play Store - Download music, movies, books, and Android a pps and games from the

Google Play Store. TC70 Standard (with GMS) only.

Using the TC70 2 - 13

PTT Express - Use to launch PTT Express client for VoIP communication.

Rapid Deployment- Allows the TC70 to stage a device for initial use by initiating the

deployment of settings, firmware and software. Requires the purchase of an MSP client license per device.

RxLogger - Use to diagnose device and application issues. See the TC70 Integrator Guide for more information.

Search - Use the Google search engine to search the Internet and the TC70. TC70 Professional (without GMS) only.

Settings - Use to configure the TC70.

SimulScan Demo - Use to demonstrate the document capture feature of the TC70.

Sound Recorder - Use to record audio. TC70 Professional (without GM S) only.

StageNow - Allows the TC70 to stage a device for initial use by initiating the deployment

of settings, firmware and software.

TechDocs - Opens the on-device User Guide for the TC70.

2 - 14 TC70 User Guide

Table 2-4 Applications (Continued)

Icon Description

V oice Search - Use to perform sear ches by asking questions. TC70 Standard (with GMS)

only.

YouTube - Use to view videos on the YouTube web site. TC70 Standard (with GMS) only.

AppLock Administrator - Use to configure the Application Lock feature. This icon

appears after the optional application is installed.

MultiUser Administrator - Use to configure the MultiUser feature. This icon appears after the optional application is installed.

Secure Storage Administrator - Use to configure the Secure Storage feature. This icon appears after the optional application is installed.

Accessing Applications

All applications installed on the device are accessed using the APPS window.

1. On the Home screen, touch .

Figure 2-7 APPS Window Example

Using the TC70 2 - 15

2. Slide the APPS window left or right to view more application icons. Touch an icon to open the application.

NOTE See Application Shortcuts and Widgets on page 2-7 for information on creating a shortcut on the Home

screen.

2 - 16 TC70 User Guide

Switching Between Recent Applications

1. Touch and hold (non-GMS devices) or touch (GMS devices). A window appears on the screen with

icons of recently used applications.

Figure 2-8 Recently Used Applications

2. Slide the window up and down to view all recently used applications.

3. Swipe left or right to remove application from the list and force close the application.

4. Touch an icon to open it or touch to return to the current screen.

Un-Locking the Screen

Use the Lock screen to protect access to data on the TC70. Some email accounts requ ire locking the screen. Refer to the TC70 Integrator Guide for information on setting up the locking feature. The Locking feature functions differently in Single User mode or Multiple User mode.

Single User Mode

When locked, a pattern, PIN or password is required to unlock the device. Press the Power button to lock the screen. The device also locks after a pre-defined time-out.

Press and release the Power button to wake the device.

The Lock screen displays. Slide up to unlock the screen.

Using the TC70 2 - 17

If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen. If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the screen.

Figure 2-9 Lock Screen

2 - 18 TC70 User Guide

Figure 2-10 PIN Screen

Using the TC70 2 - 19

Figure 2-11 Pattern Screen

2 - 20 TC70 User Guide

Figure 2-12 Password Screen

MultiUser Mode

With MultiUser login, multiple users can log on to the device with each user having access to various applications and features. When enabled, the Login screen appears after powerin g on, rese tting or after the device wakes from suspend mode.

MultiUser Login

1. In the Login text field, enter the username.

Using the TC70 2 - 21

Figure 2-13 Multiple User Log In Screen

2. In the Password text field, enter the password.

3. Touch OK. After a resume from suspend, the user must enter the password.

MultiUser Logout

1. Drag the Status Bar down from the top of the screen.

2. Touch MultiUser is active.

3. Touch Logout.

4. The Login screen appears.

Resetting the Device

There are two reset functions, soft reset and hard reset.

Performing a Soft Reset

Perform a soft reset if applications stop responding.

1. Press and hold the Power button until the menu appears.

2. Touch Reset.

3. The device reboots.

2 - 22 TC70 User Guide

Performing a Hard Reset

CAUTION Performing a hard reset with a SD card installed in the TC70 may cause damage or data corruption to

the SD card.

Perform a hard reset if the TC70 stops responding.

1. Simultaneously press the Power, PTT and Volume Up buttons for at least four seconds.

Figure 2-14 Three Button Reset

2. When the screen turns off, release the buttons.

3. The TC70 reboots.

Suspend Mode

The TC70 goes into suspend mode when the user presses the Power button or after a period of inactivity (set in the Display settings window).

To wake the TC70 from Suspend mode, press the Power button.Alternately, press the Scan or Programmable button to wake the device.

The Lock screen displays. Slide up to unlock the screen. If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen. See Un-Locking the Screen on page 2-16.

NOTE If the user enters the PIN, password or pattern incorrectly five times, they must wait 30 seconds before

trying again. If the user forgets the PIN, password or pattern contact the system administrator.

Using the TC70 2 - 23

Figure 2-15 Lock Screen

2 - 24 TC70 User Guide

CHAPTER 3 APPLICATIONS

Introduction

This section describes the applications installed on the device.

Battery Manager

The Battery Manager provides detailed information about the battery.

Figure 3-1 Battery Manager Screen

3 - 2 TC70 User Guide

Battery level - Indicate the current battery charge level. Time until empty - Indicates the amount of time before the battery is depleted. Displays when the WT6000 is not

on AC power. Time until full - Indicates the amount of time until the battery is fully ch arged. Displays when the WT600 0 is on AC

power.

• Battery status

• Not charging - Indicates that the WT6000 is not connected to AC power.

• Charging over AC - Indicates that the WT6000 is connected to AC power and charging.

• Battery health - Indicates the health of the battery.

• Wear level - Indicates the health of the battery in graphical form.

• Advanced info - Tap to view additional battery information.

File Browser

1 25

Use the File Browser application to view and mange files on the device. To open File Browser, touch > .

Applications 3 - 3

Figure 3-2 File Browser Screen

The address bar (1) indicates the current folder path. Touch the current folder path to manually enter a path and folder name.

Use (2) to select multiple files/folder. Use (3) to view the internal storage root folder. Use (4) to view the microSD card On Device Storage root folder. Use (5) to view the previous folder or to exit the application. Touch and hold an item to perform an operation on that item. Select one of the options from the Fil e Operations

menu:

• Information - View detailed information about the file or folder.

•Move- Move the file or folder to a new location.

• Copy - Copy the select file.

• Delete - Delete the selected file.

• Rename - Rename the select file.

• Open as - Open the selected file as a specific file type.

•Share- Share the file with other devices.

3 - 4 TC70 User Guide

Contacts

Use the Contacts application to manage contacts. From a Home or Apps screen, touch . Contacts opens to the main list of contacts. View contacts in three ways

at the top of the screen: All Contacts and Favori tes. Touch the tabs to change how to view the contacts. Swipe up or down to scroll through the lists.

Adding Contacts

1. In the Contacts application, touch .

2. If there are more than one account with contacts, touch the one to use.

3. Type the contact’s name and other information. Touch a field to start typing, and swipe down to view all

categories.

4. To add more than one entry for a category – for example, to add a work address after typing a personal

address – touch Add new for that field. To open a menu with preset labels, such as Home or W ork for a n email address, touch the label to the right of the item of contact information. Or , to create your own label, scroll to the bottom of the contact page and touch Add Another Field.

5. Touch Done.

Editing Contacts

1. In the Contacts application, touch a contact to edit.

2. Touch .

3. Edit the contact information.

4. Touch .

Deleting Contacts

1. In the Contacts application, touch a person to edit.

2. Touch .

3. Touch Delete.

4. Touch OK to confirm.

Camera

This section provides information for taking photos and recording videos using the integrated digital cameras.

NOTE If a microSD card is installed, The TC70 saves photos and videos on the microSD card. If a microSD card

is not installed, the TC70 saves photos and videos on the internal storage.

Applications 3 - 5

1 23

Figure 3-3 Camera Photo Screen

1 Camera Options — Touch to select Camera, Video or Panorama mode. 2 Shutter button - Touch to take a photo, a panoramic photo or to record a video. 3 Photo Settings – Touch to select camera settings.

Taking Photos

NOTE Camera settings are described in Photo Settings on page 3-10.

1. Touch .

2. Touch .

3 - 6 TC70 User Guide

Figure 3-4 Camera Mode

3. If necessary, touch the camera options icon and touch .

4. To switch between the rear camera and front camera, touch and then or .

5. Frame the subject on the screen.

6. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls appear on

the screen.

Applications 3 - 7

Figure 3-5 Camera Zoom

7. Touch an area on the screen to focus. The focus circle appears on the screen. The two horizontal bars turn

green when in focus.

8. Touch .

The camera takes a photo and a shutter sound plays. Alternately, touch and hold to focus first, before taking a photo; then release to take a focused photo.

The photo momentarily displays as a thumbnail in the upper right corner.

Taking a Panoramic Photo

Panorama mode lets the user create a single wide image by panning slowly across a scene.

1. Touch .

2. Touch .

3 - 8 TC70 User Guide

Figure 3-6 Panoramic Mode

3. Touch the options bar and touch .

4. Frame one side of the scene to capture.

5. Touch and slowly start panning across the area to capture. A small white square appears inside the button

indicating the capture is in progress. If panning too quickly, the message Too fast appears.

6. Touch to end the shot. The panorama appears immediately and a progress indica tor displays while it saves

the image.

Recording Videos

To record a video:

1. Touch .

2. Touch .

Applications 3 - 9

Figure 3-7 Video Mode

3. Touch the options bar and touch .

4. To switch between the rear camera and front camera, touch and then or .

5. Point the camera and frame the scene.

6. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls appear on

the screen.

3 - 10 TC70 User Guide

Figure 3-8 Camera Zoom

7. Touch to start recording.

The device starts recording the video. The video time remaining appears in the top left of the screen.

8. Touch to end recording.

The video momentarily displays as a thumbnail in the upper right corner.

Photo Settings

When in Photo mode, photo settings are displayed on screen. Touch to display the photo settings options.

Rear Camera

Touch to display the photo setting options.

Figure 3-9 Rear Photo Setting Options

• HDR – Touch to enable High Dynamic Range (HDR) imaging. HDR adds more dynamic range to

photographs (the ratio of light to dark). HDR uses three photos, taken at different exposures to create the photo (default - disabled).

Applications 3 - 11

• :

• Scene mode - Touch to select a preset combination of camera settings designed for specific scenes.

Options: Auto (default), Night, Portrait, Landscape, Steady Photo, Sports or Document capture.

• Picture size - Touch to set the size (in pixels) of the photo. Options: 8M pixels (default), 5M pixels, 3M

pixels, HD 1080p, 2M pixels, HD 720p, 1M pixels, WVGA, VGA or QVGA.

• Picture quality - Touch to select picture quality setting. Options: Super fine (default), Fine or Normal.

•ZSL - Set the camera to immediately take a pict ur e when the button is pressed (default – disabled)

• Countdown timer - Options: Off (default), 1 second , 2 seconds, 3 seconds, 4 seconds, 5 seconds, 10

seconds, 15 seconds, 20 seconds, 30 seconds or 60 seconds.

• Beep during countdown - Select to play a beep tone during countdown (default – enabled).

•Storage Position - Touch to select the storage location. Options: Phone or SD Card (default).

• Auto HDR (default - disabled).

• :

• Face detection - Select to enable face detection (default – enabled).

• Touch AF/AEC - Select to enable auto focus (default – enabled).

• Sharpness - Touch to select a sharpness level. Options: Level 0, Level 1

Level 4, Level 5 or Level 6.

• Select Auto Exposure - Touch to select auto exposure setting. Options: Frame A verage (default),

Center Weighted or Spot Metering.

, Level 2, Level 3 (default),

• :

• Anti Banding - Options: Off, 50 Hz, 60 Hz or Auto (default).

•Select ISO - Set how sensitive the camera is to light. Options: Auto (default), ISO Auto (HJR), ISO100,

ISO200, ISO400, ISO800 or ISO1600.

• Exposure - Touch to adjust the exposure settings. Options: +2, +1, 0(default), -1 or -2.

• White balance - Touch to select how Camera adjusts colors in different kinds of light, to achieve the most

natural-looking colors.

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the wh ite balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the wh ite balance for daylight.

• Cloudy - Adjust the white balan ce for a cloudy environment.

• Flash mode - Touch to set whether Rear-facing Camera relies on its light meter to decide whether a flash

is necessary, or to turn it on or off for all shots.

• Off - Disable flash.

• Auto - Camera adjusts flash automatically depending upon light meter (default).

• On - Enable flash upon taking a photo.

3 - 12 TC70 User Guide

• Torch - Turn flash on continuously.

• Focus Mode - Touch to select the camera focus setting. Options: Auto (default), Infinity, Macro or CAF

(Continuous Auto Focus).

• AE-Bracket - Touch to set Automatic Exposure Bracketing (default – disabled).

• – Touch to switch to the front camera.

Front Camera

Touch to display the photo setting options.

Figure 3-10 Front Photo Setting Options

• :

• Picture size - Touch to set the size (in pixels) of the photo. Options: HD 720p (default), 1M pixels,

WVGA, VGA or QVGA.

• Picture quality - Touch to select picture quality setting. Options: Super fine (default), Fine or Normal.

• Countdown timer - Options: Off (default), 1 second , 2 seconds, 3 seconds, 4 seconds, 5 seconds, 10

seconds, 15 seconds, 20 seconds, 30 seconds or 60 seconds.

• Beep during countdown - Select to play a beep tone during countdown (default – enabled).

•Storage Position - Touch to select the storage location. Options: Phone or SD Card (default).

• Auto HDR (default - disabled).

• :

• Face detection - Select to enable face detection (default – enabled).

• – Touch to switch to the rear camera.

Video Settings

When in Video mode, video settings are displayed on screen. Touch to display the video settings options.

Rear Camera

Touch to display the photo setting options.

Figure 3-11 Rear Video Setting Options

• First

•Time lapse - Touch to select a time interval to set the fr ame rate fo r time lapse pho to graph y. Options: Off

(default), Slide switch to ON and then set time interval.

• Video quality - Touch to select video quality. Options

• HD 1080p - High definition 1080p (default).

• HD 720p - High definition 720p.

Applications 3 - 13

• SD 480p - Standard definition 480p.

• Store Position – Touch to select the storage location. Options: Phone or SD Card (default).

• Second

• White balance - Touch to select how Camera adjusts colors in different kinds of light, to achieve the most

natural-looking colors.

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the wh ite balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the wh ite balance for daylight.

• Cloudy - Adjust the white balan ce for a cloudy environment.

• Flash mode - Select to turn on flash (default – disabled).

• – Touch to switch to the front camera.

Front Camera

Touch to display the photo setting options.

Figure 3-12 Front Video Setting Options

•

•Time lapse - Touch to select a time interval to set the fr ame rate fo r time lapse pho to graph y. Options: Off

(default), Slide switch to ON and then set time interval.

• Video quality - Touch to select video quality:

HD 720p - High definition 720p (default). SD 480p - Standard definition 480p.

•Storage Position - Touch to select the storage location. Options: Phone or SD Card (default).

• – Touch to switch to the rear camera.

3 - 14 TC70 User Guide

Gallery

NOTE The device supports the following image formats: jpeg, gif, png and bmp.

The device supports the following video formats: H.263, H.264 and MPEG4 Simple Profile.

Use Gallery to:

• view photos

• play videos

• perform basic editing of photos

• set photos as wallpaper

• set photos as a contact photo

• share photos and videos.

To open the Gallery application, touch > or in the camera application touch the thumbnail image at the top right.

Gallery presents all photos and videos stored on the microSD card and internal memory.

Figure 3-13 Gallery — Albums

• Touch an album to open it and view its contents. The photos and videos in the album are displayed in

chronological order.

• Touch a photo or video in an album to view it.

• Touch to return to the main Gallery screen.

Applications 3 - 15

Working with Albums

Albums are groups of images and videos in folders. Touch an album to open it. The photos and videos are listed in a chronologically ordered grid. The name of the album displa ys at the top of th e scr ee n .

Figure 3-14 Photos Inside an Album

Swipe left or right to scroll images across the screen.

Share an Album

1. Touch .

2. Touch .

3. Touch and hold an album until it highlights.

4. Touch other albums as required.

5. Touch . The Share menu opens. Touch the application to use to share the selected albums.

6. Follow the instructions within the selected application.

Get Album Information

1. Touch .

2. Touch .

3. Touch and hold an album until it highlights.

4. Touch > Details.

3 - 16 TC70 User Guide

Deleting an Album

To delete an album and its contents:

1. Touch .

2. Touch .

3. Touch and hold an album until it highlights.

4. Check other albums to delete. Ensure that other albums are selected.

5. Touch Delete.

6. In the Delete selected item? menu, touch OK to delete the album.

Working with Photos

Use Gallery to view photos on the microSD card and edit and share photos.

Viewing and Browsing Photos

To view a photo:

1. Touch .

2. Touch .

3. Touch an album to open it.

4. Touch a photo.

Applications 3 - 17

Figure 3-15 Photo Example

5. Swipe left or right to view the next or previous photo in the album.

6. Turn the device to view the photo in upright (portrait) or sideways (landscape) orientation. The photo is

displayed (but not saved) in the new orientation.

7. Touch the photo to view the controls.

8. Double-tap the screen to zoom in or pinch two fingers together or spread them apart to zoom in or out.

9. Drag the photo to view parts that are not in view.

Cropping a Photo

1. In Gallery, touch a photo to view the controls.

2. Touch .

3. Touch Crop. The cropping tool appears.

4. Use the cropping tool to select the portion of the photo to crop.

• Drag from the inside of the cropping tool to move it.

• Drag an edge of the cropping tool to resize it to any proportion.

• Drag a corner of the cropping tool to resize it with fixed proportions.

3 - 18 TC70 User Guide

Figure 3-16 Cropping Tool

5. Touch Save to save a copy of the cropped photo. The original version is retained.

Setting a Photo as a Contact Icon

1. Touch .

2. Touch .

3. Touch an album to open it.

4. Touch the photo to open it.

5. Touch .

6. Touch Set picture as.

7. Touch Contact photo.

8. In the Contacts application, touch a contact.

9. Crop the photo accordingly.

10. Touch SAVE.

Share a Photo

1. Touch .

2. Touch .

3. Touch an album to open it.

Applications 3 - 19

4. Touch a photo to open it.

5. Touch .

6. Touch the application to use to share the selected photo. The application selected opens with the photo

attached to a new message.

Deleting a Photo

1. Touch .

2. Touch .

3. Touch an album to open it.

4. Touch a photo to open it.

5. Touch .

6. Touch Delete.

7. In the Delete selected item? menu, touch OK to delete the album.

Working with Videos

Use Gallery to view videos and share videos.

Watching Videos

1. Touch .

2. Touch .

3. Touch an album to open it.

4. Touch a video.

3 - 20 TC70 User Guide

Figure 3-17 Video Example

5. Touch . The video begins to play.

6. Touch the screen to view the playback controls.

Sharing a Video

1. Touch .

2. Touch .

3. Touch an album to open it.

4. Touch a video to open it.

5. Touch . The Share menu appears.

6. Touch the application to use to share the selected video. The application selected opens with the video

attached to a new message.

Deleting a Video

1. Touch .

2. Touch .

3. Touch an album to open it.

4. Touch a video to open it.

5. Touch .

6. Touch Delete.

7. Touch OK.

DataWedge Demonstration

Use DataWedge Demonstration to demonstrate data capture functionality.

Applications 3 - 21

Figure 3-18 DataWedge Demonstration Window

Table 3-1 DataWedge Demonstration Icons

Icon Description

Select to disable imager illumination

Select to enable imager illumination

Indicates that the data capture function is through the camera.

Indicates that the data capture function is through the imager.

3 - 22 TC70 User Guide

Table 3-1 DataWedge Demonstration Icons (Continued)

Icon Description

Indicates that a Bluetooth imager is connected to the TC70.

Select to enable picklist mode

Select to enable normal scan mode

Opens a menu to view the application information or to set the application DataWedge profile.

NOTE See the TC70 Integrator Guide for information on DataWedge configuration.

Either press the programmable button or touch the yellow scan button to enable data capture. The captured data appears in the text field below the yellow button.

Sound Recorder

Use Sound Recorder to record audio messages. Recordings are saved on the microSD card (if installed) or the Internal Storage and available in the Music

application playlist titled "My Recordings."

Applications 3 - 23

Figure 3-19 Sound Recorder Application

3 - 24 TC70 User Guide

Notification Icon

Service Notification

Talk Groups

Settings Enable/Disable

Switch

PTT Express Voice Client

NOTE PTT Express Voice Client creates Push-To-Talk (PTT) communication capability between disparate

enterprise devices. Leveraging existing Wireless Local Area Network (WLAN) infrastructure, PTT Express delivers simple PTT communication without the need of a voice communication server.

• Group Call: Press and hold the PTT (Talk) button to start communicating with other voice client users.

PTT Audible Indicators

The following tones provide helpful cues when using the voice client.

• T alk Tone: Double chirp. Plays when the T alk(or Private) butt on is depressed. This is a pro mpt for the user to start talking.

• Access Tone: Single beep. Plays when anoth er user just fin i sh ed a br oa dcast or resp onse . The user is now able to initiate a Group Broadcast or Private Response.

•Busy Tone: Continuous tone. Plays when the Talk(or Private) button is depressed and another user is already communicating on the same talkgroup. Plays after the maximum allowed talk time is reached (60 seconds).

•Network Tone:

• Three increasing pitch beeps. Plays when PTT Express has acquired the WLAN connection and the

service is enabled.

• Three decreasing pitch beeps. Plays when PTT Express has lost the WLAN connection or the service is

disabled.

Figure 3-20 PTT Express Default User Interface (Enabled)

Applications 3 - 25

Table 3-2 PTT Express Default User Interface Descriptions

Item Description

Notification Icon Indicates the current state of the PTT Express client. Service Indication Indicates the status of the PTT Express client. Options: Service Enabled, Service

Disabled or Service Unavailable. Talk Groups Lists all 32 Talk Groups available for PTT communication. Settings Opens the PTT Express Settings screen. Enable/Disable

Switch

Turns the PTT service on and off.

Notification Icons

Indicates the current state of the PTT Express Voice client.

Table 3-3 PTT Express Default User Interface Descriptions

Status Icon Description

Indicates that PTT Express Voice client is disabled.

Indicates that PTT Express Voice client is enabled but not connected to a WLAN.

Indicates that PTT Express Voice client is enabled, connected to a WLAN and listening on the Talk Group indicated by the number next to the icon.

Indicates that PTT Express Voice client is enabled, connected to a WLAN and communicating on the Talk Group indicated by the number next to the icon.

Indicates that PTT Express Voice client is enabled, connected to a WLAN and in a private response.

Indicates that PTT Express Voice client is enabled and muted.

Indicates that the PTT Express Voice client is enabled but it is not able to communicate due to a VoIP telephony call is in progress.

Enabling PTT Communication

1. Touch > .

2. Slide the Enable/Disable Switch to the ON position. The button changes to an ON button.

3 - 26 TC70 User Guide

PTT Button

Talk Button

Selecting a Talk Group

One of 32 Talk Groups can be selected by PTT Express users. However, only one talk group may be enabled at a time on the device. Touch one of the 32 Talk Groups. The selected Talk Group is highlighted.

PTT Communication

NOTE This section describes the default PTT Express client configuration. See the PTT Express V1.2 User

Guide for detailed information on using the client.

PTT communication may be established as a Group Call. When PTT Express is enabled, th e PTT button on the left side of the device is assigned for PTT communication.When the Wired Headset is used, Group Calls can also be initiated using the headset Talk button.

Figure 3-21 PTT Buttons

Figure 3-22 Wired Headset

Creating a Group Call

1. Press and hold the PTT button (or the Talk button on the headset) and listen for the talk tone to play.

If a busy tone is heard, release the button and wait a mome nt before making another attempt. Ensur e that PTT Express and the WLAN are enabled.

2. Start talking after the talk tone is heard.

If the user holds the button for more than 60 seconds (default), the call is dropped allowing others to make Group calls. The user should release the button when finished talking to allow others to make calls.

3. Release the button when finished talking.

Disabling PTT Express Voice Client Communication

1. Touch > .

2. Slide the Enable/Diable Switch to the OFF position. The button changes to OFF.

3. Touch .

MLog Manager

Applications 3 - 27

Use MLog Manager to capture log files for diagnostics. See the TC70 Integrator Guide for detailed information on configuring the application.

Figure 3-23 MLog Manager

3 - 28 TC70 User Guide

SimulScan Demo

The SimulScan application is an out of the box demonstration application included on the device that support SimulScan. The application enables pre-sales personnel to showcase the various features of SimulScan to customers by employing use-cases in the two most popular verticals, Postal/Transportation and Logistics and Manufacturing. The Transp ortation and Logistics example showcases the OCR and OMR features. The Manufacturing example showcases the MultiCode 20 feature. SimulScan also allows customers to create templates using the Template Builder and then testing on the device.

Figure 3-24 SimulScan Demo Home Screen

Exporting Sample Forms

In order to perform the Postal, Transportation & Logistics or Manufacturing demonstrations, print the example forms stored on the device.

1. Launch SimulScan Demo application.

2. On the SimulScan Demo home screen, touch HOW TO USE THIS DEMO.

3. Scroll down and touch Export sample forms button. The device copies the forms to the \simulscan\samples

folder in Internal Storage.

4. Connect the device to a computer using the USB Charging cable.

5. Copy the files from the \simulscan\samples folder in Internal Storage to the computer.

6. Print the forms.

Postal, Transportation and Logistics Example

The Postal, Transportation and Logistics example uses the following form:.

Applications 3 - 29

Figure 3-25 Postal, Transportation and Logistics Form

1. Place the form on a flat surface.

2. On the device, launch SimulScan Demo application.

3. Touch the Menu icon in the top right corner of the screen.

4. Touch Postal, Transportation & Logistics.

5. Touch Start SimulScan.

6. Use the image control at the bottom of the screen to control the flash, audio and zoom level.

3 - 30 TC70 User Guide

Figure 3-26 Image Controls

7. Position the camera over the form. Ensure that the complete border of the form is visible on the screen.

8. Hold the device steady.

9. Once the device detects the form Tap Screen to Scan appears on the screen.

10. Tap the screen to start the data capture. When completed, the device beeps and the data from the form

displays.

Applications 3 - 31

Figure 3-27 Postal Data Screen

11. Touch the text boxes to correct any errors. Note: if there are too many errors, touch Rescan to perform the

capture again.

12. Touch Accept to confirm the data is correct. The Results summary screen appears.

13. Touch OK.

Manufacturing Example

The Postal, Transportation and Logistics example uses the following form:.

3 - 32 TC70 User Guide

Figure 3-28 Manufacturing Form

1. Copy the sample form from the device to a computer. See Exporting Sample Forms on page 3-28

2. Print this form.

3. Place the form on a flat surface.

4. On the device, launch SimulScan Demo application.

5. Touch the Menu icon in the top right corner of the screen.

6. Touch Manufacturing.

7. Touch Start SimulScan.

8. Point the top of the device at the document and center the target on the document.

9. Hold the device steady.

10. The device starts the data capture. When completed, the device beeps and the data from the document

displays.

Figure 3-29 Manufacturing Data

Applications 3 - 33

11. Touch the text boxes to correct any errors. If there ar e too many errors, touch Rescan to perform the capture

again.

12. Touch Accept to confirm the data is correct. The Results summary screen appears.

13. Touch OK.

Settings

To set the settings for the SimulScan Demo application touch Menu icon > Settings.

Figure 3-30 Settings Screen

• Volume - Toggle switch to turn audible notification on and off.

•Haptic - Toggle switch to turn vibration notification on and off.

• Debug mode - Toggle switch to enable or disable debug mode.

• Template server login credentials - enter credentials for accessing the template server.

Demo Customization

Before creating a customized demo, first:

• Create a template using the Template Builder tool.

• Copy a company logo and image to the device storage location.

1. Touch Menu icon.

2. Touch Setup Custom Demo.

3 - 34 TC70 User Guide

Figure 3-31 Custom Demo Setup Screen

3. In the Name text box, enter a name for the custom demo. This name appe a rs in th e dr op -d o wn me n u. .

4. In the Custom Demo Setup text box, enter a title for the demo. This appears in the demo screen title box.

5. Touch the Image field to select an image from the SD card.

6. Touch the Logo field to select the logo image from the SD card.

7. In the Introduction text box, enter text that will appear on the demo screen.

8. In the Header color text box, enter the hex color value for the header.

9. In the Icon color text box, enter the hex color value for Menu icon and button text.

10. In the Key Features text box, enter text that will appear under the Key Feature heading. This text appears in

bullet format.

11. Touch one of the SimulScan Document Capture Template fields to select a template a. Browse external storage - select a template loaded on the device. b. Defa u lt te mpla te s - select one of the default templates. c. Select from server - select a template from the SimulScan server.

12. Touch Done. The customized example appears on the screen.

13. Touch Start SimulScan to begin the demonstration.

RxLogger

RxLogger is a comprehensive diagnostic tool that provides application and system metrics. It allows for custom plug-ins to be created and work seamlessly with this tool. RxLogger is used to diagnose device and application

Applications 3 - 35

issues. Its information tracking includes the following: CPU load, memory load, memory snapshots, battery consumption, power states, wireless logging, cellular logging, TCP dumps, Blueto oth logging, GPS logging, logcat, FTP push/pull, ANR dumps, etc. All logs and files generated are saved onto flash storage on the device (internal or external).

Figure 3-32 RxLogger

3 - 36 TC70 User Guide

Elemez

NOTE Elemez collects specific device information in the background and sends this information to us to help

improve product functionality. This feature can be disabled. See Disabling Elemez Data Collection on page 3-36.

Use Elemez to provide diagnostics information to Zebra. Touch Submit Diagnostics button to send the data.

Figure 3-33 Elemez Application

Disabling Elemez Data Collection

The user can disable the Elemez application from collecting specific data in the background and sending it to Zebra Technologies.

1. From the Home screen, touch .

2. Touch Manage Apps.

3. Swipe left or right until the ALL tab displays.

4. Scroll through the list and touch Elemez.

5. In the App info screen, touch Uninstall updates.

6. In the Uninstall updates dialog box, touch OK.

7. Touch OK.

8. After uninstall is complete, touch OK.

9. In the All tab, scroll through the list and touch Elemez.

10. Touch Disable.

Applications 3 - 37

11. In the Disable built-in app? dialog box, touch OK.

12. Touch .

Enabling Elemez Data Collection

The user can re-enable the Elemez application for collection specific data in the background and sending it to Zebra Technologies.

1. From the Home screen, touch .

2. Touch Manage Apps.

3. Swipe left or right until the ALL tab displays.

4. Scroll through the list and touch Elemez.

5. In the App info screen, touch Enable.

6. Touch .

7. Touch .

8. Touch .

9. Touch Enable Elemez.

3 - 38 TC70 User Guide
