TC57
Touch Computer
Quick Start Guide
MN-003234-03 Rev. A
Copyright
ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many
jurisdictions worldwide. All other trademarks are the property of their respective owners. ©2019 Zebra
Technologies Corporation and/or its affiliates. All rights reserved.
COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to
www.zebra.com/copyright
TC57 Quick Start Guide
.
WARRANTY: For complete warranty information, go to www.zebra.com/warranty
END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula
Terms of Use
Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra
Technologies”). It is intended solely for the information and use of parties operating and maintaining the
equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any
other parties for any other purpose without the express, written permission of Zebra Technologies.
Product Improvements
Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are
subject to change without notice.
Liability Disclaimer
Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are
correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and
disclaims liability resulting therefrom.
.
.
Limitation of Liability
In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any damages whatsoever (including,
without limitation, consequential damages including loss of business profits, business interruption, or loss of
business information) arising out of the use of, the results of use of, or inability to use such product, even if
Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
Provide Documentation Feedback
If you have comments, questions, or suggestions about this guide, send an email to
EVM-Techdocs@zebra.com
.
2
Features
PTT Button
Scan Button
Microphone
Interface Connector
Speaker
Touch Screen
Light Sensor
Charging/Notification LED
Proximity Sensor
Microphone
Data Capture LED
Receiver
Front Camera
ActiveEdge Touch Zone
ActiveEdge Touch Zone
Programmable
Button
Battery Release Latch
Battery Release Latch
Volume Up/Down Button
NFC Antenna
Camera Flash
Exit Window
Scan Button
Rear Camera
Power Button
Headphone Jack
Battery
Microphone
TC57 Quick Start Guide
3
Installing a microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack.
Refer to the documentation provided with the card for more information, and follow the manufacturer’s
recommendations for use.
CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper ESD
precautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.
Lift the access door.
1.
TC57 Quick Start Guide
2. Slide the microSD card holder door to the Open position.
3. Lift the microSD card holder door.
4. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each
side of the door.
4
TC57 Quick Start Guide
5. Close the microSD card holder door.
6. Slide the microSD card holder door to the Lock position.
CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.
Re-install the access door.
7.
5
Installing the SIM Card
NOTE: Only use a nano SIM card. Not applicable to TC57JO.
CAUTION: For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD precautions
include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.
Remove access cover.
1.
Figure 1 Remove Access Door
TC57 Quick Start Guide
2. Slide the SIM card holder to the unlock position.
Figure 2 Unlock SIM Card Holder
6
TC57 Quick Start Guide
3. Lift the SIM card holder door.
Figure 3 Lift the SIM Card Holder
4. Place the nano SIM card into the card holder with contacts facing down.
Figure 4 Place SIM Card in Holder
5. Close the SIM card holder door.
Figure 5 Close SIM Card Holder Door
7
TC57 Quick Start Guide
6. Slide to SIM card holder door to the lock position.
Figure 6 Lock SIM Card Holder Door
CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.
7. Re-install the access door.
Figure 7 Replace Access Door
8
Installing the Battery
NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings, stickers, etc.,
may compromise the intended performance of the device or accessories. Performance levels such as sealing (Ingress
Protection (IP)), impact performance (drop and tumble), functionality, temperature resistance, etc. could be effected. DO
NOT put any labels, asset tags, engravings, stickers, etc. in the battery well.
1. Insert the battery, bottom first, into the battery compartment in the back of the device.
Figure 8 Insert Bottom of Battery into Battery Compartment
TC57 Quick Start Guide
2. Press the battery down into the battery compartment until the battery release latches snap into place.
Charging the Device
Use one of the following accessories to charge the device and/or spare battery.
Table 1 Charging and Communication
Description Part Number
1-Slot USB/Charge Only
Cradle Kit
5-Slot Charge Only Cradle Kit CRD-TC51-5SCHG-01 Yes No No No
4-Slot Charge Only Cradle
with Battery Charger Kit
5-Slot Ethernet Cradle Kit CRD-TC51-5SETH-01 Yes No No Yes
4-Slot Battery Charger Kit SAC-TC51-4SCHG-01 No Yes No No
Rugged Charge/USB Cable CBL-TC51-USB1-01 Yes No Yes No
Charging Communication
Battery
(In Device)
CRD-TC51-1SCU-01 Yes No Yes With Optional
CRD-TC51-5SC4B-01 Yes Yes No No
Spare
Battery
USB Ethernet
Module
9
Charging the Device
NOTE: Ensure that you follow the guidelines for battery safety described in the TC57 User Guide.
Battery: >15.48 Watt hours (typical) / > 4,150 mAh PowerPrecision+ Lithium-ion battery
1. To charge the main battery, connect the charging accessory to the appropriate power source.
2. Insert the device into a cradle or attach to a cable. The device turns on and begins charging. The
Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.
The battery charges from fully depleted to 90% in approximately 2.5 hours and from fully depleted to 100% in
approximately three hours. In many cases the 90% charge provides plenty of charge for daily use. A full 100%
charge lasts for approximately 14 hours of use. To achieve the best charging results use only Zebra charging
accessories and batteries. Charge batteries at room temperature with the device in sleep mode.
Charging the Spare Battery
1. Insert a spare battery into the spare battery slot.
2. Ensure the battery is seated properly.
The Spare Battery Charging LED blinks indicating charging. See Table 2 for charging indicators.
TC57 Quick Start Guide
The battery charges from fully depleted to 90% in approximately 2.3 hours and from fully depleted to 100% in
approximately three hours. In many cases the 90% charge provides plenty of charge for daily use. A full 100%
charge lasts for approximately 14 hours of use. To achieve the best charging results use only Zebra charging
accessories and batteries.
Table 2 Charging/Notification LED Charging Indicators
State LED Indication
Off Device is not charging. Device is not inserted correctly
in the cradle or connected to a power source.
Charger/cradle is not powered.
Slow Blinking Amber (1 blink every 4
seconds)
Slow Blinking Red (1 blink every 4
seconds)
Solid Green Charging complete.
Device is charging.
Device is charging but the battery is at end of useful
life.
10
TC57 Quick Start Guide
Power LED
Table 2 Charging/Notification LED Charging Indicators (continued)
State LED Indication
Solid Red Charging complete but the battery is at end of useful
life.
Fast Blinking Amber (2 blinks/second) Charging error, e.g.:
• Temperature is too low or too high.
• Charging has gone on too long without completion
(typically eight hours).
Fast Blinking Red (2 blinks/second) Charging error but the battery is at end of useful life.,
e.g.:
• Temperature is too low or too high.
• Charging has gone on too long without completion
(typically eight hours).
Charge batteries in temperatures from 5°C to 40°C (41°F to 104°F). The device or cradle always performs
battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F))
the device or cradle may for small periods of time alternately enable and disable battery charging to keep the
battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to
abnormal temperatures via its LED.
1-Slot USB Charging Cradle
11
5-Slot Charge Only Cradle
Power LED
Device Charging Slot
TC57 Quick Start Guide
12
TC57 Quick Start Guide
Spare Battery
Charging LED
Power LED
Spare Battery Slot
Device Charging Slot

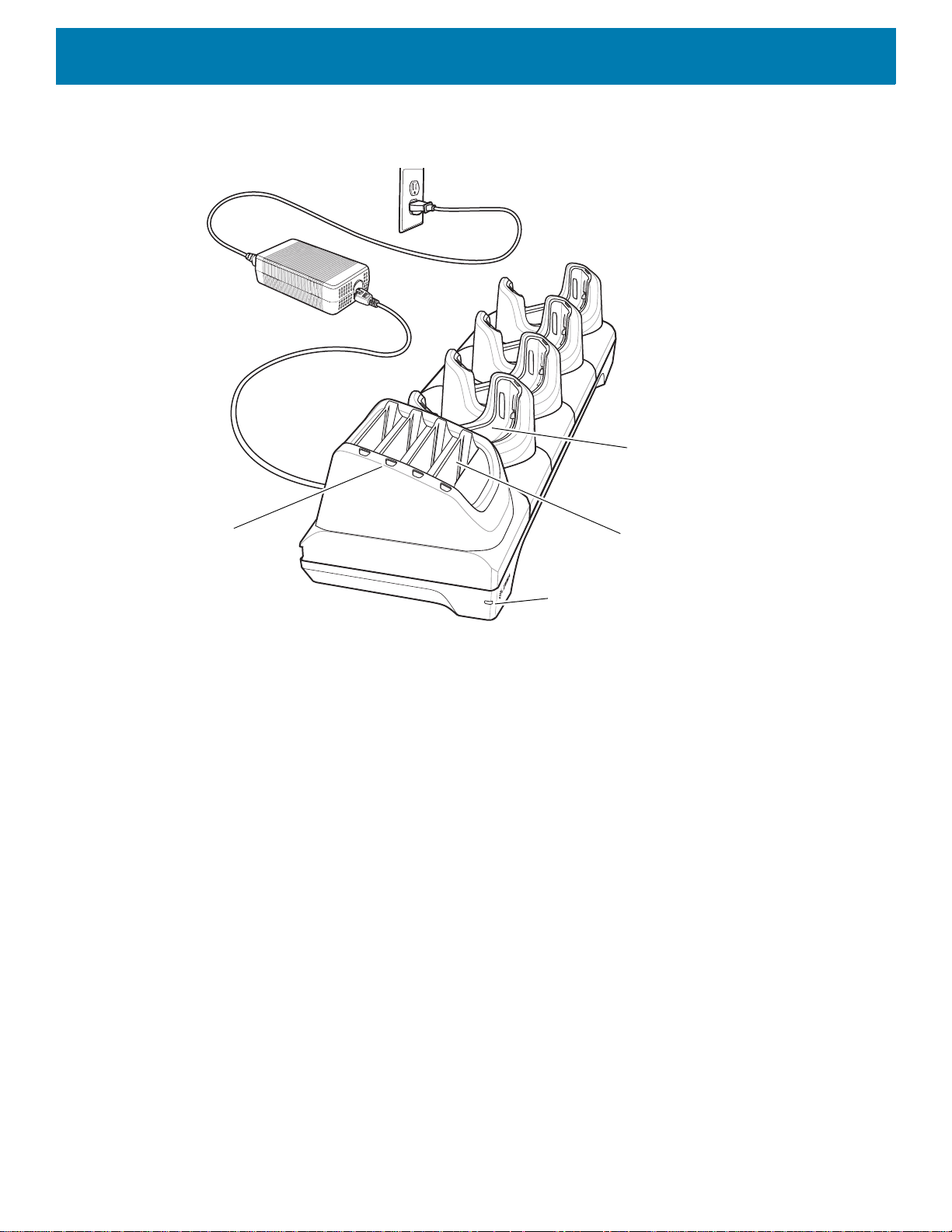

4-Slot Charge Only Cradle with Battery Charger
13
5-Slot Ethernet Cradle
1000 LED
Device Charging Slot
100/100 LED
Spare Battery Charging
LEDs (4)
Power LED
Spare Battery Slot
TC57 Quick Start Guide
4-Slot Battery Charger
14
Rugged Charge/USB Cable
TC57 Quick Start Guide
15
Scanning
Aiming Pattern
To read a bar code, a scan-enabled application is required. The device contains the DataWedge application
that allows the user to enable the imager, decode the bar code data and display the bar code content.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the exit window on the top of the device at a bar code.
TC57 Quick Start Guide
3. Press and hold the scan button.
The red laser aiming pattern turns on to assist in aiming.
NOTE: When the device is in Picklist mode, the imager does not decode the barcode until the crosshair or aiming dot touches
the barcode.
4. Ensure the barcode is within the area formed by the cross-hairs in the aiming pattern. The aiming dot is
used for increased visibility in bright lighting conditions.
16
TC57 Quick Start Guide
Pick List Mode with Multiple Barcodes in Aiming Pattern
AVOID EXTREME
WRIST ANGLES
5. The Data Capture LED lights green and a beep sounds, by default, to indicate the barcode was decoded
successfully.
6. Release the scan button.
NOTE: Imager decoding usually occurs instantaneously. The device repeats the steps required to take a digital picture
(image) of a poor or difficult barcode as long as the scan button remains pressed.
The barcode content data displays in the text field.
7.
Ergonomic Considerations
17
TC57 Quick Start Guide
