Zebra TC52x, TC57x, TC52x-HC Reference Guide

Download

TC52x, TC57x, TC52x-HC

Touch Computer

Product Reference Guide

for Android™ 10

MN-003871-03EN Rev. A

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC. All other trademarks are the property of their respective owners. ©2020 Zebra Technologies Corporation and/or its affiliates. All rights reserved.

COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to

zebra.com/copyright

WARRANTY: For complete warranty information, go to zebra.com/warranty

END USER LICENSE AGREEMENT: For complete EULA information, go to zebra.com/eula

Terms of Use

• Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies.

• Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice.

• Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

• Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Revision History

Changes to the original guide are listed below:

Change Date Description

-01EN Rev A 7/2020 Initial release.

-02EN Rev A 9/2020 Add TC57x information.

-03EN 11/2020 Add TC52x-HC information.

Table of Contents

Terms of Use................................................................................................................... 2

Revision History .............................................................................................................. 2

About This Guide.............................................................................................................................. 13

Configurations............................................................................................................... 13

Notational Conventions................................................................................................. 14

Icon Conventions .......................................................................................................... 14

Service Information ....................................................................................................... 15

Determining Software Versions..................................................................................... 15

Determining the Serial Number..................................................................................... 15

Getting Started.................................................................................................................................. 17

Introduction ................................................................................................................... 17

Unpacking ..................................................................................................................... 17

Features........................................................................................................................ 18

Setting Up the Device ................................................................................................... 20

Installing the SIM Card ........................................................................................... 21

Installing a microSD Card....................................................................................... 23

Installing the Battery ............................................................................................... 24

Charging the Battery............................................................................................... 25

Charging Indicators ................................................................................................ 26

Replacing the TC52x/TC57x Battery............................................................................. 26

Replacing the TC52x-HC Battery.................................................................................. 27

Replacing the microSD Card......................................................................................... 28

Replacing the SIM Card ......................................................................................... 29

Using the Device............................................................................................................................... 32

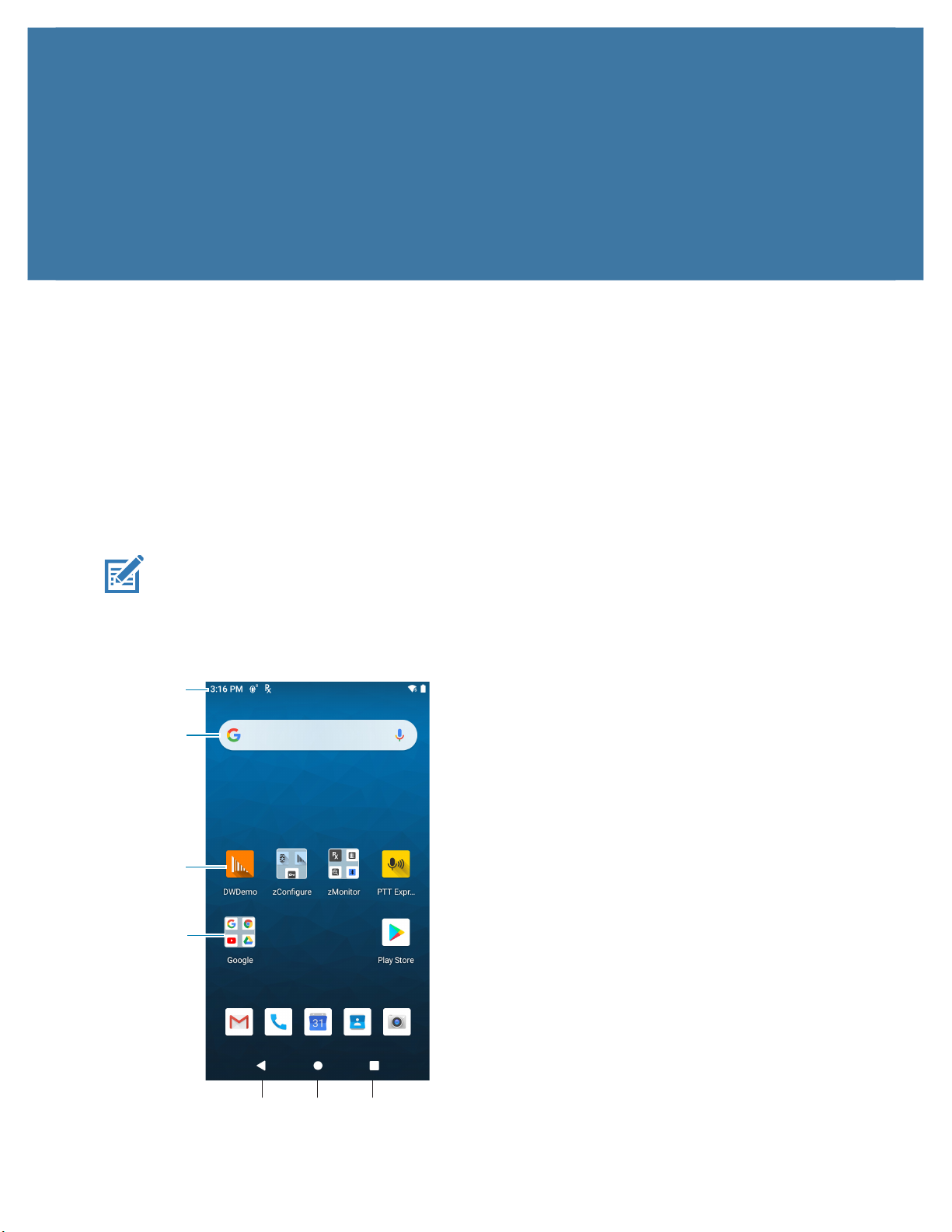

Home Screen ................................................................................................................ 32

Setting Home Screen Rotation ............................................................................... 33

Table of Contents

Status Bar............................................................................................................... 33

Notification Icons.............................................................................................. 34

Status Icons ..................................................................................................... 35

Managing Notifications ........................................................................................... 35

Opening the Quick Access Panel ........................................................................... 36

Quick Access Panel Icons................................................................................ 37

Editing Icons on the Quick Settings Bar ................................................................. 38

Battery Management..................................................................................................... 38

Checking Battery Status ......................................................................................... 38

Monitoring Battery Usage ....................................................................................... 38

Low Battery Notification.......................................................................................... 39

Interactive Sensor Technology...................................................................................... 39

Waking the Device ........................................................................................................ 39

USB Communication..................................................................................................... 40

Transferring Files.................................................................................................... 40

Transferring Photos ................................................................................................ 40

Disconnect from the Host Computer ...................................................................... 41

Settings.............................................................................................................................................. 42

Accessing Settings........................................................................................................ 42

Display Settings ............................................................................................................ 42

Setting the Screen Brightness Manually................................................................. 42

Setting the Screen Brightness Automatically.......................................................... 42

Setting Night Light .................................................................................................. 42

Setting Screen Rotation.......................................................................................... 43

Setting Screen Timeout .......................................................................................... 43

Lock Screen Display............................................................................................... 43

Setting Font Size .................................................................................................... 44

Notification LED Brightness Level .......................................................................... 44

Touch Panel Mode ................................................................................................. 44

Setting the Date and Time ............................................................................................ 45

General Sound Setting.................................................................................................. 45

Sound Options........................................................................................................ 45

Setting Wake-Up Sources............................................................................................. 46

Remapping a Button ..................................................................................................... 47

Remappable Keys......................................................................................................... 47

Alert Button ................................................................................................................... 48

Configuring the Alert Button ................................................................................... 48

Alert Accessibility Service....................................................................................... 48

Using an Alert Button.............................................................................................. 48

Keyboards..................................................................................................................... 48

Table of Contents

Keyboard Configuration.......................................................................................... 49

Enabling Keyboards ......................................................................................... 49

Switching Between Keyboards......................................................................... 49

Using the Android and Gboard Keyboards............................................................. 49

Edit Text ........................................................................................................... 49

Entering Numbers, Symbols, and Special Characters ..................................... 49

Using the Enterprise Keyboard............................................................................... 49

Numeric Tab..................................................................................................... 50

Alpha Tab......................................................................................................... 50

Additional Character Tab ................................................................................. 50

Scan Tab.......................................................................................................... 50

Language Usage........................................................................................................... 50

Changing the Language Setting ............................................................................. 50

Adding Words to the Dictionary .............................................................................. 50

Notifications................................................................................................................... 51

Setting App Notifications ........................................................................................ 51

Viewing Notification Settings for All Apps ........................................................ 51

Controlling Lock Screen Notifications .............................................................. 51

Blink Light......................................................................................................... 52

Applications ...................................................................................................................................... 53

Accessing Apps............................................................................................................. 56

Switching Between Recent Apps............................................................................ 56

Battery Manager............................................................................................................ 57

Opening Battery Manager ...................................................................................... 57

Battery Manager Information Tab........................................................................... 57

Battery Manager Swap Tab.................................................................................... 59

Camera ......................................................................................................................... 60

Taking Photos......................................................................................................... 60

Taking a Panoramic Photo ..................................................................................... 61

Recording Videos ................................................................................................... 61

Photo Settings ........................................................................................................ 62

Camera Settings..................................................................................................... 62

Rear Camera Photo Settings ........................................................................... 63

Front Camera Photo Settings........................................................................... 64

Video Settings ........................................................................................................ 64

Rear Camera Video Settings ........................................................................... 64

Front Camera Video Settings........................................................................... 64

DataWedge Demonstration........................................................................................... 64

Scanner Selection .................................................................................................. 65

PTT Express Voice Client ............................................................................................. 66

PTT Express User Interface ................................................................................... 66

PTT Audible Indicators ........................................................................................... 67

Table of Contents

PTT Notification Icons ............................................................................................ 67

Enabling PTT Communication................................................................................ 67

Selecting a Talk Group ........................................................................................... 68

PTT Communication............................................................................................... 68

Creating a Group Call ...................................................................................... 68

Responding with a Private Response .............................................................. 69

Disabling PTT Communication ............................................................................... 69

RxLogger....................................................................................................................... 70

RxLogger Configuration.......................................................................................... 70

Configuration File ................................................................................................... 70

Enabling Logging.................................................................................................... 70

Disabling Logging ................................................................................................... 70

Extracting Log Files ................................................................................................ 70

Backing Up ............................................................................................................. 70

RxLogger Utility ...................................................................................................... 71

Initiating the Main Chat Head........................................................................... 71

Removing the Main Chat Head ........................................................................ 71

Viewing Logs.................................................................................................... 71

Removing a Sub Chat Head Icon..................................................................... 71

Backing Up In Overlay View............................................................................. 71

Sound Recorder............................................................................................................ 71

Wireless............................................................................................................................................. 73

Wireless Wide Area Networks....................................................................................... 73

Sharing the Mobile Data Connection...................................................................... 73

Enabling USB Tethering................................................................................... 73

Enabling Bluetooth Tethering........................................................................... 74

Enabling Wi-Fi Hotspot .................................................................................... 74

Configuring the Wi-Fi Hotspot .......................................................................... 74

Data Usage............................................................................................................. 75

Setting Data Usage Warning............................................................................ 75

Setting Data Limit............................................................................................. 75

Cellular Network Settings ....................................................................................... 76

Data When Roaming........................................................................................ 76

Setting Preferred Network................................................................................ 76

Using Search for MicroCell .............................................................................. 76

Configuring the Access Point Name ................................................................ 76

Locking the SIM Card....................................................................................... 77

Wireless Local Area Networks ...................................................................................... 77

Connecting to a Wi-Fi Network............................................................................... 78

Removing a Wi-Fi Network..................................................................................... 78

WLAN Configuration ..................................................................................................... 78

Configuring a Secure Wi-Fi Network ...................................................................... 78

Table of Contents

Manually Adding a Wi-Fi Network .......................................................................... 79

Configuring for a Proxy Server ............................................................................... 81

Configuring the Device to Use a Static IP Address ................................................ 81

Wi-Fi Preferences................................................................................................... 82

Additional Wi-Fi Settings ........................................................................................ 82

Wi-Fi Direct............................................................................................................. 82

Bluetooth....................................................................................................................... 83

Adaptive Frequency Hopping ................................................................................. 83

Security................................................................................................................... 84

Bluetooth Profiles ................................................................................................... 84

Bluetooth Power States .......................................................................................... 85

Bluetooth Radio Power........................................................................................... 85

Enabling Bluetooth ........................................................................................... 85

Disabling Bluetooth .......................................................................................... 85

Discovering Bluetooth Device(s) ............................................................................ 86

Changing the Bluetooth Name ............................................................................... 86

Connecting to a Bluetooth Device .......................................................................... 86

Selecting Profiles on the Bluetooth Device............................................................. 86

Unpairing a Bluetooth Device ................................................................................. 87

Cast............................................................................................................................... 87

Near Field Communications.......................................................................................... 87

Reading NFC Cards ............................................................................................... 88

Enterprise NFC Settings......................................................................................... 89

Data Capture ..................................................................................................................................... 90

Imaging ......................................................................................................................... 90

Digital Camera .............................................................................................................. 90

Linear Imager................................................................................................................ 91

Operational Modes ................................................................................................. 91

RS507/RS507X Hands-Free Imager............................................................................. 92

RS5100 Ring Scanner .................................................................................................. 92

RS6000 Bluetooth Ring Scanner .................................................................................. 92

DS3678 Digital Scanner................................................................................................ 93

LI3678 Linear Scanner.................................................................................................. 93

DS2278 Digital Scanner................................................................................................ 94

DS8178 Scanner........................................................................................................... 94

Scanning Considerations .............................................................................................. 94

Scanning with Internal Imager....................................................................................... 95

Scanning with Internal Camera..................................................................................... 97

Scanning with RS507/RS507X Hands-Free Imager ..................................................... 98

Scanning with RS6000 Bluetooth Ring Scanner........................................................... 99

Table of Contents

Scanning with RS5100 Ring Scanner......................................................................... 100

Scanning with the DS3678 Bluetooth Scanner ........................................................... 101

Scanning with LI3678 Linear Imager........................................................................... 102

Scanning with DS2278 Digital Scanner ...................................................................... 103

Scanning with DS8178 Digital Scanner ...................................................................... 104

Pairing the Bluetooth Ring Scanner............................................................................ 105

Pairing Using Near Field Communication ................................................................... 105

Pairing in HID Mode Using Near Field Communication........................................ 106

Pairing Using Simple Serial Interface ................................................................... 107

Pairing Using Bluetooth Human Interface Device ................................................ 108

Pairing a Bluetooth Scanner ....................................................................................... 109

Pairing Using Simple Serial Interface ................................................................... 109

Pairing Using Bluetooth Human Interface Device ................................................ 109

DataWedge ................................................................................................................. 110

Enabling DataWedge............................................................................................ 110

Disabling DataWedge........................................................................................... 110

Supported Decoders............................................................................................. 111

Calls ................................................................................................................................................. 114

Emergency Calling...................................................................................................... 114

Audio Modes ............................................................................................................... 114

Bluetooth Headset....................................................................................................... 114

Wired Headset ............................................................................................................ 115

Adjusting Audio Volume.............................................................................................. 115

Making a Call Using the Dialer.................................................................................... 115

Accessing Dialing Options.................................................................................... 116

Making a Call Using Contacts..................................................................................... 116

Using the Dialer .................................................................................................... 116

Using the Contacts App........................................................................................ 116

Making a Call Using Call History................................................................................. 116

Using the Call History List .................................................................................... 117

Making a Conference Call on GSM............................................................................. 117

Making a Call Using a Bluetooth Headset................................................................... 117

Answering Calls .......................................................................................................... 118

Call Settings................................................................................................................ 118

Accessories..................................................................................................................................... 120

Battery Charging ......................................................................................................... 123

Main Battery Charging.......................................................................................... 123

Spare Battery Charging ........................................................................................ 123

Table of Contents

Charging Temperature ......................................................................................... 124

1-Slot USB Charge Cradle.......................................................................................... 125

Setup .................................................................................................................... 126

Charging the Device ............................................................................................. 126

Inserting a Device with Rugged Boot into Cradle ................................................. 127

1-Slot Workstation Docking Cradle ............................................................................. 128

Setup .................................................................................................................... 130

Ethernet Setup...................................................................................................... 131

Scanner Setup...................................................................................................... 131

Security................................................................................................................. 131

Using the Workstation Cradle............................................................................... 132

Changing Monitor Resolution ............................................................................... 132

Charging the Device ............................................................................................. 132

Inserting a TC5X with Rugged Boot into Cradle ......................................................... 132

2-Slot USB/Ethernet Cradle ........................................................................................ 134

Setup .................................................................................................................... 135

Ethernet Settings............................................................................................ 135

Configuring Ethernet Proxy Settings .............................................................. 135

Configuring Ethernet Static IP Address.......................................................... 136

4-Slot Charge Only Cradle with Battery Charger ........................................................ 140

Setup .................................................................................................................... 141

Charging the Device ............................................................................................. 141

Inserting a TC5X with Rugged Boot into Cradle................................................... 142

Charging the Spare Battery .................................................................................. 142

5-Slot Charge Only Cradle.......................................................................................... 144

Setup .................................................................................................................... 145

Charging the Device ............................................................................................. 145

Inserting a Device with Rugged Boot into Cradle ................................................. 146

5-Slot Ethernet Cradle................................................................................................. 147

Setup .................................................................................................................... 148

Daisy-chaining Ethernet Cradles .......................................................................... 148

Ethernet Settings .................................................................................................. 149

Configuring Ethernet Proxy Settings .............................................................. 149

Configuring Ethernet Static IP Address.......................................................... 150

Charging the Device ............................................................................................. 150

Inserting a TC5X with Rugged Boot into Cradle................................................... 151

Establishing Ethernet Connection .................................................................. 151

LED Indicators ...................................................................................................... 152

4-Slot Battery Charger ................................................................................................ 153

Setup .................................................................................................................... 153

Single Charger Setup..................................................................................... 153

Two Charger Setup ........................................................................................ 154

Table of Contents

Charging Spare Batteries ..................................................................................... 155

Rugged Boot ............................................................................................................... 157

Installation ............................................................................................................ 157

Installing Plastic Stylus ......................................................................................... 158

Charging with Cradles .......................................................................................... 159

Basic Hand Strap Kit................................................................................................... 161

Installation ............................................................................................................ 161

Removal ............................................................................................................... 162

2.5 mm Audio Adapter ................................................................................................ 164

3.5 mm Audio Adapter ................................................................................................ 165

Rugged Charge/USB Cable........................................................................................ 166

Connecting Rugged Charge/USB Cable to Device .............................................. 166

Connecting to TC5X with Rugged Boot................................................................ 167

USB Communication ............................................................................................ 168

Charging the Device ............................................................................................. 168

Disconnecting the Rugged Charge/USB Cable.................................................... 169

Trigger Handle ............................................................................................................ 170

Installing the Rugged Boot ................................................................................... 170

Installing the Optional Lanyard ............................................................................. 172

Inserting the Device into the Trigger Handle ........................................................ 173

Removing the Device from the Trigger Handle .................................................... 173

Power Supply.............................................................................................................. 175

5-Slot Cradle Rack Installation.................................................................................... 176

4-Slot Battery Chargers Rack Installation ................................................................... 179

Rack Mount Installation............................................................................................... 182

Wall Installation........................................................................................................... 185

Bottom Tray Assembly ......................................................................................... 185

Bracket Wall Mounting.......................................................................................... 185

Application Deployment................................................................................................................. 187

Security ....................................................................................................................... 187

Secure Certificates...................................................................................................... 187

Installing a Secure Certificate ..................................................................................... 187

Configuring Credential Storage Settings .............................................................. 188

Development Tools ..................................................................................................... 188

Android Application Development ........................................................................ 188

Development Workstation .............................................................................. 188

Enabling Developer Options .......................................................................... 188

EMDK for Android................................................................................................. 189

StageNow ............................................................................................................. 189

GMS Restricted........................................................................................................... 189

Table of Contents

ADB USB Setup.......................................................................................................... 189

Enabling USB Debugging..................................................................................... 189

Application Installation ................................................................................................ 190

Installing Applications Using the USB Connection ............................................... 190

Installing Applications Using the Android Debug Bridge ...................................... 191

Installing Applications Using a microSD Card ...................................................... 191

Uninstalling an Application ................................................................................... 192

Performing a System Update...................................................................................... 192

Downloading the System Update Package .......................................................... 193

Performing a System Update Using microSD Card.............................................. 193

Performing a System Update Using ADB............................................................. 193

Verifying System Update Installation.................................................................... 194

Enterprise Reset ......................................................................................................... 194

Performing an Enterprise Reset From Device Settings........................................ 194

Downloading the Enterprise Reset Package ........................................................ 195

Performing an Enterprise Reset Using microSD Card ......................................... 195

Performing an Enterprise Reset Using ADB......................................................... 195

Performing a Factory Reset ........................................................................................ 196

Downloading the Factory Reset Package ............................................................ 196

Performing a Factory Reset Using microSD Card................................................ 196

Performing a Factory Reset Using ADB ............................................................... 197

Storage........................................................................................................................ 198

Random Access Memory ..................................................................................... 198

Viewing Memory............................................................................................. 198

Internal Storage .................................................................................................... 198

Viewing Internal Storage ................................................................................ 198

External Storage................................................................................................... 198

Viewing External Storage............................................................................... 199

Formatting a microSD Card ........................................................................... 199

Formatting a microSD Card as Internal Memory............................................ 199

Enterprise Folder .................................................................................................. 199

Managing Apps ........................................................................................................... 199

App Details ........................................................................................................... 200

Managing Downloads.................................................................................................. 200

Maintenance and Troubleshooting ............................................................................................... 201

Introduction ................................................................................................................. 201

Maintaining the Device................................................................................................ 201

Display Best Practices ................................................................................................ 201

Image Retention ................................................................................................... 201

Best Practices for Enterprise Mobile Computing Devices Operating in

Hot Environments and Direct Sunlight ........................................................................ 202

Table of Contents

Battery Safety Guidelines ..................................................................................... 202

Cleaning Instructions................................................................................................... 203

Cleaning and Disinfecting Guidelines................................................................... 203

Approved Cleaning and Disinfectant Agents ........................................................ 203

Approved Cleaning and Disinfectant Agents for TC52x-HC................................. 204

Special Cleaning Notes ........................................................................................ 204

Cleaning Frequency ............................................................................................. 204

Cleaning the Device.................................................................................................... 204

Housing ................................................................................................................ 204

Display.................................................................................................................. 204

Camera and Exit Window ..................................................................................... 204

Battery Guide Slots............................................................................................... 204

Battery Connector and Locating Magnet Cleaning............................................... 205

Cleaning Cradle Connectors....................................................................................... 205

Troubleshooting .......................................................................................................... 207

Resetting the Device ............................................................................................ 207

Performing a Soft Reset................................................................................. 207

Performing a Hard Reset ............................................................................... 207

TC52x/TC57x ....................................................................................................... 207

1-Slot Charge Only Cradle ................................................................................... 210

1-Slot Workstation Docking Cradle....................................................................... 210

2-Slot USB/Ethernet Cradle.................................................................................. 211

4-Slot Charge Only Cradle with Battery Charger Troubleshooting....................... 212

5-Slot Charge Only Cradle Troubleshooting......................................................... 212

5-Slot Ethernet Cradle Troubleshooting ............................................................... 213

4-Slot Battery Charger Troubleshooting ............................................................... 213

Technical Specifications................................................................................................................ 215

Decode Distances ................................................................................................ 215

Interface Connector Pin-Outs ............................................................................... 216

1-Slot Charge Only Cradle Technical Specifications............................................ 217

1-Slot Workstation Docking Cradle Technical Specifications ............................... 217

2-Slot USB/Ethernet Cradle Technical Specifications .......................................... 218

4-Slot Charge Only Cradle with Battery Charger Technical Specifications .......... 218

5-Slot Charge Only Cradle Technical Specifications............................................ 219

5-Slot Ethernet Cradle Technical Specifications .................................................. 219

4-Slot Battery Charger Technical Specifications .................................................. 220

Trigger Handle Technical Specifications .............................................................. 220

Rugged Charge/USB Cable Technical Specifications.......................................... 221

About This Guide

This guide provides information about setting up and using the TC52x/TC57x touch computer. Some screens shown in this guide may differ from the actual screens shown on the device.

Configurations

This guide covers the following configurations:

Table 1 Configurations

Configuration Radios Display Memory

TC520K-1 WLAN: 802.11

a/b/g/n//ac/d/h/i/r/k/v3/w

WPAN: Bluetooth v5.0 Low Energy

TC520K-1 WLAN: 802.11

a/b/g/n//ac/d/h/i/r/k/v3/w

WPAN: Bluetooth v5.0 Low Energy

TC57HO-1 WLAN: 802.11

a/b/g/n/ac/d/h/i/r/k/v

WPAN: Bluetooth v5.0 Low Energy

WWAN: HSPA+/ LTE/CDMA

5.0” Full High Definition (1080 x

1920) LCD

5.0” Full High Definition (1080 x

1920) LCD

5.0” Full High Definition (1080 x

1920) LCD

4 GB RAM / 32 GB UFS Flash

Data Capture

Options

2D imager (SE-4720) and integrated NFC

Operating System

Android-based, Google ™ Mobile Services (GMS) 10

Android-based, AOSP 10 (China only)

Google ™ Mobile Services (GMS)

10.

Table 1 Configurations (Continued)

About This Guide

Configuration Radios Display Memory

TC57HO-2 WLAN: 802.11

a/b/g/n/ac/d/h/i/r/k/v

WPAN: Bluetooth v5.0 Low Energy

WWAN: HSPA+/ LTE

TC57JO-1 WLAN: 802.11

a/b/g/n/ac/d/h/i/r/k/v

WPAN: Bluetooth v5.0 Low Energy

WWAN: HSPA+/ LTE (Data only)

5.0” Full High Definition (1080 x

1920) LCD

5.0” Full High Definition (1080 x

1920) LCD

4 GB RAM / 32 GB UFS Flash

Notational Conventions

Notational conventions are used to highlight important information.

• Bold text is used to highlight the following:

• Dialog box, window and screen names

Data Capture

Options

2D imager (SE-4720) and integrated NFC

Operating System

Android Open Source Project (AOSP) 10 (China only).

Google ™ Mobile Services (GMS)

10. (Turkey only).

• Drop-down list and list box names

• Check box and radio button names

• Icons on a screen

• Key names on a keypad

• Button names on a screen.

• Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential.

• Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.

Icon Conventions

The following icons are used throughout the document. The icons and their associated meanings are described below.

NOTE: The text here indicates information that is supplemental for the user to know and that is not required to complete a task.

IMPORTANT: The text here indicates information that is important for the user to know.

CAUTION: If the precaution is not heeded, the user could receive minor or moderate injury.

WARNING: If danger is not avoided, the user CAN be seriously injured or killed.

DANGER: If danger is not avoided, the user WILL be seriously injured or killed.

Service Information

If you have a problem with your equipment, contact Customer Support for your region. Contact information is available at: zebra.com/support

When contacting support, please have the following information available:

• Serial number of the unit (found on manufacturing label)

• Model number or product name (found on manufacturing label)

• Software type and version number

• IMEI number

Customer Support responds to calls by email or telephone within the time limits set forth in support agreements.

About This Guide

If the problem cannot be solved by Customer Support, the user may need to return the equipment for servicing and will be given specific directions. We are not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty. Remove the SIM card and/or microSD card from the device before shipping for service.

If the device was purchased from a business partner, contact that business partner for support.

Determining Software Versions

Before contacting Customer Support, determine the current software version on your device.

1. Swipe down from the Status bar with two fingers to open the Quick Access panel, and then touch .

2. Touch Aboutphone.

3. Scroll to view the following information:

• Battery information

• SW components

• Legal information

• Model & hardware

• Android version

• Android security patch level

• Kernel version

• Build number

Determining the Serial Number

Before contacting Customer Support, determine the serial number of your device.

Touch About phone > Model & hardware > Serial number.

About This Guide

Getting Started

Introduction

This section provides information for getting the device up and running for the first time.

Unpacking

1. Carefully remove all protective material from the device and save the shipping container for later

storage and shipping.

2. Verify that the following were received:

• Touch computer

• >

15.48 Watt hours (typical) / > 4,150 mAh PowerPrecision+ Lithium-ion battery

• Regulatory Guide.

3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global

Customer Support center immediately.

4. Before using the device for the first time, remove the protective shipping film that covers the scan

window, display and camera window.

Features

NOTE: All features are available on both the TC52x (Standard) and TC52x-HC (Healthcare) configurations,

except where noted.

CAUTION: The 7-pin interface connector at the bottom of the device is not removable. Trying to remove the connector will cause damage to the device and can void warranty.

Figure 1 Front View

Getting Started

Number Item Function

1 13 MP Front camera Takes photos and videos.

2 Receiver Use for audio playback in Handset mode.

3 Data capture LED Indicates data capture status.

4 Microphone Use for communications in Speakerphone mode.

5 Proximity sensor Determines proximity for turning off display when in handset mode.

6 Light sensor Determines ambient light for controlling display backlight intensity.

7 Charging/Notification LED Indicates battery charging status while charging and application

generated notifications.

8 Touch screen Displays all information needed to operate the device.

9 Speaker Provides audio output for video and music playback. Provides

audio in speakerphone mode.

10 Interface connector Provides USB host and client communications, audio and device

charging via cables and accessories.

Note 1: Pakistan, Qatar

Getting Started

Number Item Function

11 Microphone Use for communications in Handset mode.

12 Scan button Initiates data capture (programmable).

13 Programmable button Typically used for PTT communications. Where regulatory

restrictions exist applications.

Note 1: Pakistan, Qatar

Figure 2 TC52x Rear View

, button is configurable for use with other

Number Item Function

1 Battery PowerPrecision+ Lithium-ion battery.

2 Basic hand strap mount Provides mounting point for Basic Hand Strap accessory.

3 Scan button Initiates data capture (programmable).

4 Battery release latches Press to remove the battery.

5 Volume up/down button Increase and decrease audio volume (programmable).

6 5 MP rear camera Takes photos and videos.

7 Camera flash Provides illumination for the camera.

8 Power button Turns the display on and off. Press and hold to reset the device,

power off or swap battery.

9 Microphone Use for noise cancellation.

10 Exit window Provides data capture using the imager.

11 NFC antenna Provides communication with other NFC-enabled devices.

12 Headset jack For audio output to headset.

13 Trigger handle mount Provide mounting support for the optional Trigger Handle.

Figure 3 TC52x-HC Rear View

Getting Started

Number Item Function

1 Battery >

15.48 Watt hours (typical) / > 4,150 mAh PowerPrecision+

Lithium-ion battery.

2 NFC Antenna Provides communication with other NFC-enabled devices.

3 Scan Button Initiates data capture (programmable).

4 Battery Release Latches Press to remove the battery.

5 Volume Up/Down Button Increase and decrease audio volume (programmable).

6 13 MP Rear Camera Takes photos and videos.

7 Camera Flash Provides illumination for the camera.

8 Power Button Turns the display on and off. Press and hold to reset the

device, power off or swap battery.

9 Microphone Use for noise cancellation.

10 Exit Window Provides data capture using the imager.

11 Red Alert Button Programmable button for use with applications.

Setting Up the Device

To start using the device for the first time:

1. Install a nano SIM card (TC57x only)

2. Install a micro secure digital (SD) card (optional).

3. Install hand strap (optional).

4. Install the battery.

5. Charge the device.

6. Power on the device.

Installing the SIM Card

NOTE: TC57x only.

NOTE: Only use a nano SIM card.

CAUTION: For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD

precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.

1. Remove access cover.

Getting Started

2. Slide the SIM card holder to the unlock position.

3. Lift the SIM card holder door.

4. Place the nano SIM card into the card holder with contacts facing down.

Close the SIM card holder door.

Getting Started

6. Slide to SIM card holder door to the lock position.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

Re-install the access door.

Installing a microSD Card

The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recommendations for use.

CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.

Getting Started

1. Lift the access door.

2. Slide the microSD card holder to the unlock position.

3. Lift the microSD card holder.

Getting Started

Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each

side of the door.

5. Close the microSD card holder and slide into the lock position.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

6. Re-install the access door.

Installing the Battery

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings,

stickers, etc., may compromise the intended performance of the device or accessories. Performance levels such as sealing (Ingress Protection (IP)), impact performance (drop and tumble), functionality, temperature resistance, etc. could be effected. DO NOT put any labels, asset tags, engravings, stickers, etc. in the battery well.

Insert the battery, bottom first, into the battery compartment in the back of the device.

2. Press the battery down into the battery compartment until the battery release latches snap into place.

Charging the Battery

Before using the device for the first time, charge the main battery until the green Charging/Notification light emitting diode (LED) remains lit. To charge the device use a cable or a cradle with the appropriate power supply. For information about the accessories available for the device, see Accessories for more information.

Getting Started

The battery charges from fully depleted to 90% in approximately 2.5 hours, and from fully depleted to 100% in approximately three hours.

NOTE: In many cases the 90% charge provides plenty of charge for daily use. A full 100% charge lasts for approximately 14 hours of use. To achieve the best fast charging results use only Zebra charging accessories and batteries. Charge batteries at room temperature with the device in sleep mode.

Charge batteries in temperatures from 5°C to 40°C (41°F to 104°F). The device or accessory always performs battery charging in a safe and intelligent manner. At higher temperatures (for example: approximately +37°C (+98°F)) the device or accessory may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device or accessory indicates when charging is disabled due to abnormal temperatures via its LED and a notification appears on the display.

To charge the main battery:

1. Connect the charging accessory to the appropriate power source.

2. Insert the device into a cradle or attach to a cable. The device turns on and begins charging. The

Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.

Charging Indicators

Table 2 Charging/Notification LED Charging Indicators

State LED Indication

Off Device is not charging. Device is not inserted correctly in the

Slow Blinking Amber (1 blink every 4 seconds)

Slow Blinking Red (1 blink every 4 seconds)

Solid Green Charging complete.

Solid Red Charging complete but the battery is at end of useful life.

Getting Started

cradle or connected to a power source. Charger/cradle is not powered.

Device is charging.

Device is charging but the battery is at end of useful life.

Fast Blinking Amber (2 blinks/second)

Fast Blinking Red (2 blinks/second)

Replacing the TC52x/TC57x Battery

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings,

CAUTION: Do not add or remove microSD card during battery replacement.

Charging error, for example:

• Temperature is too low or too high.

• Charging has gone on too long without completion

(typically eight hours).

Charging error but the battery is at end of useful life, for example:

• Temperature is too low or too high.

• Charging has gone on too long without completion

(typically eight hours).

To replace the battery:

1. Press the Power button until the menu appears.

2. Touch Battery Swap.

3. Follow the on-screen instructions.

WARNING: Do not remove the battery until after the red LED completely turns off. Loss of data may result.

4. Wait for the red LED to completely turn off.

5. If hand strap is attached, remove hand strap.

Press the two battery latches in.

7. Lift the battery from the device.

Getting Started

CAUTION: Replace the battery within 75 seconds. After 75 seconds the device reboots and data may be lost.

8. Insert the replacement battery, bottom first, into the battery compartment in the back of the device.

9. Press the battery down until the battery release latches snap into place.

10. Replace the hand strap, if required.

11. Press the Power button to turn on the device.

Replacing the TC52x-HC Battery

The TC52x-HC device supports battery hot swap. The user can replace the battery by removing the battery and replacing a new battery within 30 seconds maintaining Wi-Fi and memory. After 30 seconds, Wi-Fi disconnects but the user still has another 60 seconds to replace the battery.

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings, stickers, etc., may compromise the intended performance of the device or accessories. Performance levels such as sealing (Ingress Protection (IP)), impact performance (drop and tumble), functionality, temperature resistance, etc. could be effected. DO NOT put any labels, asset tags, engravings, stickers, etc. in the battery well.

CAUTION: Do not add or remove microSD card during battery replacement.

Getting Started

To replace the battery:

1. Press the two battery latches in.

2. Lift the battery from the device. The display turns off.

CAUTION: Replace the battery within 30 seconds to maintain Wi-Fi connection.

3. Insert the replacement battery, bottom first, into the battery compartment in the back of the device.

4. Press the battery down until the battery release latches snap into place.

5. The display turns on.

Replacing the microSD Card

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings,

To replace the microSD card:

1. Press the Power button until the menu appears.

2. Touch Power off.

3. Touch OK.

4. If hand strap is attached, slide the hand strap clip up toward the top of the device and then lift.

Getting Started

Press the two battery latches in.

6. Lift the battery from the device.

7. Lift the access door.

8. Remove microSD card from holder.

9. Insert the replacement microSD card.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

10. Replace the access door.

11. Insert the battery, bottom first, into the battery compartment in the back of the device.

12. Press the battery down until the battery release latches snap into place.

13. Replace the hand strap, if required.

14. Press and hold the Power button to turn on the device.

Replacing the SIM Card

NOTE: TC57x only.

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings,

To replace the SIM card:

1. Press the Power button until the menu appears.

2. Touch Power off.

Getting Started

Touch OK.

4. If hand strap is attached, slide the hand strap clip up toward the top of the device and then lift.

5. Press the two battery latches in.

6. Lift the battery from the device.

7. Lift the access door.

8. Slide the SIM card door to the unlock position.

9. Lift the SIM card holder door.

10. Remove the SIM card.

11. Place the new SIM card into the card holder with contacts facing down.

Getting Started

Close the SIM card holder.

12.

13. Slide the SIM card holder door to the lock position.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

14. Replace the access door.

15. Insert the battery, bottom first, into the battery compartment in the back of the device.

16. Press the battery down until the battery release latch snaps into place.

17. Replace the hand strap, if required.

18. Press and hold the Power button to turn on the device.

Using the Device











Home Screen

Turn on the device to display the Home screen. Depending on how your system administrator configured your device, your Home screen may appear differently than the graphics in this section.

After a suspend or screen time-out, the Home screen displays with the lock slider. Touch the screen and slide up to unlock.

The Home screen provides four additional screens to place widgets and shortcuts. Swipe the screen left or right to view the additional screens.

NOTE: By default, AOSP devices do not have the same icons on the Home screen as GMS devices. Icons are shown below for example only.

Home screen icons can be configured by the user and may look different than shown.

Figure 4 Home Screen

1 Status Bar Displays the time, status icons (right side), and notification icons (left side).

For more information see Notification Icons on page 34 and Managing

Notifications on page 35.

2 Widgets Launches stand-alone apps that run on the Home screen.

3 Shortcut Icons Opens apps installed on the device.

4 Folder Contains apps.

5 Back Displays the previous screen.

6 Home Displays the Home screen.

7 Recent Displays recently used applications.

Setting Home Screen Rotation

By default, the Home screen rotation is disabled.

1. Touch and hold anywhere on the Home screen until the options appear.

2. Touch Home settings.

3. Touch the Allow Home screen rotation switch.

Using the Device

4. Touch the Home button.

5. Rotate the device.

Status Bar

The Status bar displays the time, notification icons (left side), and status icons (right side).

If there are more notifications than can fit in the Status bar, a dot displays indicating that more notifications exist. Swipe down from the Status bar to open the Notification panel and view all notifications and status.

Figure 5 Notification and Status Icons

1 Notification Icons. See Notification Icons on page 34.

2 Status Icons. See Status Icons on page 35.

Notification Icons

Notification icons indicate app events and messages.

Table 3 Notification Icons

Icon Description

Main battery is low.

More notifications are available for viewing.

Data is syncing.

Indicates an upcoming event. AOSP devices only.

Indicates an upcoming event. GMS devices only.

Open Wi-Fi network is available.

Audio is playing.

Using the Device

Problem with sign-in or sync has occurred.

Device is uploading data.

Animated: the device is downloading data. Static: the download is complete.

Device is connected to or disconnected from a virtual private network (VPN).

Preparing internal storage by checking it for errors.

USB debugging is enabled on the device.

Call is in progress.

The mailbox contains one or more voice message.

Call is on hold.

Call was missed.

Wired headset with a boom module is connected to the device.

Wired headset without a boom module is connected to the device.

PTT Express Voice client status. See the PTT Express PTT Notification Icons for a complete list.

Indicates the RxLogger app is running.

Indicates the Bluetooth scanner is connected to the device.

Indicates the ring scanner is connected to the device in HID mode.

Status Icons

Status icons display system information for the device.

Table 4 Status Icons

Icon Description

Using the Device

Alarm is active.

Main battery is fully charged.

Main battery is partially drained.

Main battery charge is low.

Main battery charge is very low.

Main battery is charging.

All sounds, except media and alarms, are muted. Vibrate mode is active.

Do Not Disturb mode active.

Airplane Mode is active. All radios are turned off.

Bluetooth is on.

The device is connected to a Bluetooth device.

Connected to a Wi-Fi network. Indicates the Wi-Fi version number.

Not connected to a Wi-Fi network or no Wi-Fi signal.

Connected to an Ethernet network.

Speakerphone enabled.

Managing Notifications

Notification icons report the arrival of new messages, calendar events, alarms, and ongoing events. When a notification occurs, an icon appears in the Status bar with a brief description. See Notification Icons on

page 34 for a list of possible notification icons and their description.

• To view a list of all notifications, open the Notification panel by dragging the Status bar down from the

top of the screen.

Figure 6 Notification Panel

Using the Device

Quick Settings Bar

• To respond to a notification, open the Notification panel and then touch a notification. The Notification

panel closes and the corresponding app opens.

• To manage recent or frequently used notifications, open the Notification panel and then touch Manage

notifications. Touch the toggle switch next to an app to turn off all notifications, or touch an app for

more notification options.

• To clear all notifications, open the Notification panel and then touch CLEAR ALL. All event-based

notifications are removed. Ongoing notifications remain in the list.

• To close the Notification panel, swipe the Notification panel up.

Opening the Quick Access Panel

Use the Quick Access panel to access frequently used settings (for example, Airplane mode). To get to the Quick Access Panel:

• If the device is locked, swipe down once.

• If the device is unlocked, swipe down once with two fingers, or twice with one finger.

• If the Notification panel is open, swipe down from the Quick Settings bar.

Figure 7 Quick Access Panel

Using the Device

NOTE: Not all icons are pictured. Icons may vary.

Quick Access Panel Icons

• Display brightness - Use the slider to decrease or increase the brightness of the screen.

• Wi-Fi network - Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.

• Bluetooth settings - Turn Bluetooth on or off. To open Bluetooth settings, touch Bluetooth.

• Battery saver - Turn Battery saver mode on or off. When Battery saver mode is on the performance of

the device is reduced to preserve battery power.

• Invert colors - Invert the display colors.

• Do not disturb - Control how and when to receive notifications.

• Mobile data - Turns cellular radio on or off. To open Mobile data settings, touch and hold (WWAN only).

• Airplane mode - Turn Airplane mode on or off. When Airplane mode is on the device does not connect

to Wi-Fi or Bluetooth.

• Auto-rotate - Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.

• Flashlight - Turn flashlight on or off. Turn camera flash on or off.

• Location - Enable or disable locationing feature.

• Hotspot - Turn on to share the device’s mobile data connection with other devices.

• Data Saver - Turn on to prevent some apps from sending or receiving data in the background.

• Night Light - Tint the screen amber to make it easier to look at the screen in dim light. Set Night Light to

turn on automatically from sunset to sunrise, or at other times.

• Screen Cast - Share phone content on Chromecast or a television with Google Cast built-in. Touch cast

screen to display a list of devices, then touch a device to begin casting.

Using the Device

• Dark Theme - Toggles dark theme on and off. Dark themes reduce the luminance emitted by the

screen, while meeting minimum color contrast ratios. It helps improve visual ergonomics by reducing eye strain, adjusting brightness to current lighting conditions, and facilitating screen use in dark environments, while conserving battery power.

• Focus mode - Turn on to pause distracting apps. To open Focus mode settings, touch and hold.

• Bedtime mode - Turn grayscale on and off. Grayscale turns the screen black and white, reducing phone

distractions and improving battery life.

Editing Icons on the Quick Settings Bar

The first several setting tiles from the Quick Access panel become the Quick Settings bar.

Open the Quick Access panel and touch to edit, add, or remove settings tiles.

Battery Management

Observe the recommended battery optimization tips for your device.

• Set the screen to turn off after a short period of non-use.

• Reduce screen brightness.

• Turn off all wireless radios when not in use.

• Turn off automatic syncing for Email, Calendar, Contacts, and other apps.

• Minimize use of apps that keep the device from suspending, for example, music and video apps.

NOTE: Before checking the battery charge level, remove the device from any AC power source (cradle or

cable).

Checking Battery Status

• Open Settings and touch About phone > Battery Information.

Or, swipe up from the bottom of the screen and touch to open the Battery Manager app. See

Battery Manager on page 57.

• Battery present status indicates if the battery is present.

• Battery level lists the battery charge (as a percentage of fully charged).

• Swipe down with two fingers from the status bar to open the quick access panel.

• Battery percentage is displayed next to the battery icon.

Monitoring Battery Usage

The Battery screen provides battery charge details and power management options to extend battery life.

1. Go to Settings.

2. Touch Battery.

Display battery information and power management options for a specific app.

1. Go to Settings.

2. Touch Apps & notifications.

Using the Device

Touch an app.

4. Touch Advanced > Battery.

Different apps display different information. Some apps include buttons that open screens with settings to adjust power use. Use the DISABLE or FORCE STOP buttons to turn off apps that consume too much power.

Low Battery Notification

When the battery charge level drops below 18%, the device displays a notice to connect the device to power. The user should charge the battery using one of the charging accessories.

When the battery charge drops below 10%, the device displays a notice to connect the device to power. The user must charge the battery using one of the charging accessories.

When the battery charge drops below 4%, the device turns off. The user must charge the battery using one of the charging accessories.

Interactive Sensor Technology

The device contains sensors that monitor movement, orientation and ambient light.

• Gyroscope - Measures angular rotational velocity to detect rotation of the device.

• Accelerometer - Measures the linear acceleration of movement to detect the orientation of the device.

• Digital Compass - The digital compass or magnetometer provides simple orientation in relation to the

Earth's magnetic field. As a result, the device always knows which way is North so it can auto rotate digital maps depending on the physical orientation of the device.

• Light Sensor - Detects ambient light and adjusts the screen brightness.

• Proximity Sensor - Detects the presence of nearby objects without physical contact. The sensor detects

when the device close to your face during a call and turns off the screen, preventing unintentional screen touches.

• Pressure Sensor - Detects pressure on the touch screen.

In order to take advantage of these sensors, applications use API commands. Refer to the Google Android Sensor APIs for more information. For information on the Zebra Android EMDK, go to:

techdocs.zebra.com

Waking the Device

The device goes into Suspend mode when you press the Power button or after a period of inactivity (set in the Display settings window).

1. To wake the device from Suspend mode, press the Power button.

The Lock screen displays.

2. Swipe the screen up to unlock.

• If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock

screen.

• If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the screen.

NOTE: If you enter the PIN, password, or pattern incorrectly five times, you must wait 30 seconds before trying again.

If you forget the PIN, password, or pattern contact your system administrator.

USB Communication

Connect the device to a host computer to transfer files between the device and the host computer.

When connecting the device to a host computer, follow the host computer’s instructions for connecting and disconnecting USB devices, to avoid damaging or corrupting files. For information on USB communication accessories available for this device, see Accessories.

Transferring Files

Use Transfer files to copy files between the device and the host computer.

1. Connect the device to a host computer using a USB accessory.

2. On the device, pull down the Notification panel and touch Charging this device via USB.

By default, No data transfer is selected.

Using the Device

3. Touch File Transfer.

NOTE: After changing the setting to File Transfer, and then disconnect the USB cable, the setting reverts back to No data transfer. If the USB cable is reconnected, select File Transfer again.

4. On the host computer, open a file explorer application.

5. Locate the device as a portable device.

6. Open the SD card or the Internal storage folder.

7. Copy files to and from the device or delete files as required.

Transferring Photos

Use PTP to copy photos from the device to the host computer.

1. Connect the device to a host computer using a USB accessory.

2. On the device, pull down the Notification panel and touch Charging this device via USB.

3. Touch PTP.

4. On the host computer, open a file explorer application.

5. Open the SD card or the Internal storage folder.

6. Copy or delete photos as required.

Using the Device

Disconnect from the Host Computer

CAUTION: Carefully follow the host computer’s instructions to unmount the microSD card and disconnect

USB devices correctly to avoid losing information.

To disconnect the device from the host computer:

1. On the host computer, unmount the device.

2. Remove the device from the USB accessory.

Settings

Accessing Settings

There are multiple ways to access settings on a device.

• Swipe down with two fingers from the top of the Home screen to open the Quick Access panel and touch .

• Double-swipe down from the top of the Home screen to open the Quick Access panel and touch .

• Swipe up from the bottom of the Home screen to open APPS and touch Settings.

Display Settings

Use Display settings to change the screen brightness, enable night light, change the background image, enable screen rotation, set sleep time, and change font size.

Setting the Screen Brightness Manually

Manually set the screen brightness using the touchscreen.

1. Swipe down with two fingers from the Status bar to open the Quick Access panel.

2. Slide the icon to adjust the screen brightness level.

Setting the Screen Brightness Automatically

Automatically adjust the screen brightness using the built-in light sensor.

1. Go to Settings.

2. Touch Display.

3. If disabled, touch Adaptive brightness to automatically adjust the brightness.

By default, Adaptive brightness is enabled. Toggle the switch to disable.

4. Touch the Home button.

Setting Night Light

The Night Light setting tints the screen amber, making the screen easier to look at in low light.

1. Go to Settings.

2. Touch Display.

Touch Night Light.

4. Touch Schedule.

5. Select one of the schedule values:

• None (default)

• Turns on at custom time

• Turns on from sunset to sunrise.

6. By default, Night Light is disabled. Touch TURN ON NOW to enable.

7. Adjust the tint using the Intensity slider.

8. Touch the Home button.

Setting Screen Rotation

By default, screen rotation is enabled.

1. Go to Settings.

2. Touch Display > Advanced.

Settings

3. Touch Auto-rotate screen.

NOTE: To change the Home screen rotation, see Setting Home Screen Rotation on page 33.

4. Touch the Home button.

Setting Screen Timeout

Set the screen sleep time.

1. Go to Settings.

2. Touch Display > Advanced > Screen timeout.

3. Select one of the sleep values.

• 15 seconds

• 30 seconds

• 1 minute (default)

• 2 minutes

• 5 minutes

• 10 minutes

• 30 minutes

4. Touch the Home button.

Lock Screen Display

The lock screen display setting wakes the screen when notifications are received.

1. Go to Settings.

2. Touch Display > Advanced.

Touch Lock screen display.

4. In the When to show section, enable or disable an option using the switch.

5. Touch the Home button.

Setting Font Size

Set the size of the font in system apps.

1. Go to Settings.

2. Touch Display > Advanced.

3. Touch Font size.

4. Select one of the font size values.

• Small

• Default

• Large

• Largest.

Settings

5. Touch the Home button.

Notification LED Brightness Level

Set the brightness of the Notification LED.

1. Go to Settings.

2. Touch Display > Advanced.

3. Touch Notification LED Brightness Level.

4. Use the slider to set the brightness value (default: 15).

5. Touch the Home button.

Touch Panel Mode

The device display is able to detect touches using a finger, a conductive-tip stylus, or gloved finger.

NOTE: A glove can be made of medical latex, leather, cotton, or wool. For optimal performance use a Zebra certified stylus.

1. Go to Settings.

2. Touch Display > Advanced.

3. Touch Touch panel mode.

4. Select:

• Glove and Finger (Screen Protector off) to use a finger or a gloved finger on the screen without a

screen protector.

• Stylus and Finger (Screen Protector off) to use a finger or a stylus on the screen without a screen protector.

• Finger Only to use a finger on the screen (default).

• Glove and Finger (Screen Protector on) to use a finger or a gloved finger on the screen with a screen protector.

• Stylus and Finger (Screen Protector on) to use a finger or a stylus on the screen with a screen protector.

• Finger and Stylus to use a finger or a stylus on the screen.

• Finger and Glove to use a finger or a gloved finger on the screen.

5. Touch the Home button.

Setting the Date and Time

The date and time is automatically synchronized using an NITZ server when the device is connected to a cellular network. You are only required to set the time zone or set the date and time if the wireless LAN does not support Network Time Protocol (NTP) or when not connected to a cellular network.

1. Go to Settings.

2. Touch System > Date & time.

3. Touch Use network-provided time zone to disable automatic time zone synchronization.

4. Touch Date.

Settings

5. In the calendar, set today’s date.

6. Touch OK.

7. Touch Time.

8. Touch the green circle, drag to the current hour and then release.

9. Touch the green circle, drag to the current minute and then release.

10. Touch AM or PM.

11. Touch OK.

12. Touch Time zone.

13. Select the current time zone from the list.

14. Touch Use 24-hour format.

15. Touch the Home button.

General Sound Setting

Use the Sound settings to configure media and alarm volumes.

1. Go to Settings.

2. Touch Sound.

3. Touch an option to set sounds.

Sound Options

• Zebra volume controls

• Ring volume - Controls the ringtone volume.

• Media volume - Controls the music, games, and media volume.

Settings

• Alarm volume - Controls the alarm clock volume.

• Notifications volume - Controls the notification volume.

• In call volume - Controls the volume during a call.

• Scanner volume - Controls the scanner volume.

• Volume presets

• - Mutes the ring, notifications, and scanner so that the device does not make sounds or vibrate.

• - All sounds except media and alarms are silenced and vibrate mode is active.

• - Enables all sounds at the user defined levels.

• Vibrate for calls - Switch on or off.

• Do Not Disturb - Mutes some or all sounds and vibrations.

• Shortcut to prevent ringing - Select how the shortcut method prevents ringing.

• Phone ringtone - Select a sound to play when the phone rings.

• Default notification sound - Select a sound to play for all system notifications.

• Default alarm sound - Select a sound to play for alarms.

• Other sounds and vibrations

• Dial pad tones - Play a sound when pressing keys on dial pad (default - disabled).

• Screen locking sounds - Play a sound when locking and unlocking the screen (default – enabled).

• Charging sounds and vibration - Plays a sound and vibrates when power is applied to the device

(default - enabled).

• Touch sounds - Play a sound when making screen selections (default – enabled).

• Touch vibration - Vibrate the device when making screen selections (default – disabled).

• Wireless Emergency alerts - Touch to configure emergency broadcast settings and notifications.

Setting Wake-Up Sources

By default the device wakes from suspend mode when the user presses the Power button. The device can be configured to wake when the user presses the PTT or Scan buttons on the left side of the device.

1. Go to Settings.

2. Touch Wake-Up Sources.

• LEFT_TRIGGER_2 - PTT button.

• REAR_BUTTON - Optional Trigger Handle scan button.

• RIGHT_TRIGGER_1 - Right scan button.

• SCAN - Left scan button.

3. Touch a checkbox. A check appears in the checkbox.

4. Touch the Home button.

Remapping a Button

Buttons on the device can be programmed to perform different functions or as shortcuts to installed apps. For a list of key names and descriptions, refer to: techdocs.zebra.com

NOTE: It is not recommended to remap the scan button.

1. Go to Settings.

2. Touch Key Programmer. A list of programmable buttons displays.

3. Select the button to remap.

4. Touch the BUTTON REMAPPING tab or the SHORTCUT tab that lists the available functions and

applications.

5. Touch a function or application shortcut to map to the button.

NOTE: If you select an application shortcut, the application icon appears next to the button on the Key

Programmer screen.

6. Touch the Home button.

Settings

Remappable Keys

Figure 8 Key Positions

BUTTON_L2

SCAN

TC52x/TC57x TC52x-HC

BUTTON_L1

BUTTON_R1

VOLUME_DOWN

BUTTON_L1

BUTTON_R1

VOLUME_DOWN

VOLUME_UP

• BUTTON_L2 - PTT button.

• BUTTON_L1 - Optional Trigger Handle scan button (TC52x and TC57x). Alert button (TC52x-HC).

• BUTTON_R1 - Right scan button.

• SCAN - Left scan button.

• VOLUME_DOWN - Volume down button.

• VOLUME_UP - Volume up button.

Alert Button

Configure any remappable key on the device as an alert button using StageNow. Use an Alert button to launch an app and a command, or call a specified phone number.

Configuring the Alert Button

This section provides basic configuration. For detailed information on configuring the Alert button, refer to

zebra.techdocs.com/stagenow

Configure the Alert button through StageNow using the following Configuration Service Providers (CSPs).

• PowerMgr - Set All Wake-Up Sources to Turn on. This wakes the device if it is in suspend mode.

• Intent - Create a new setting.

• Mode - Set to Schedule sending of Intent on key presses.

• Keep Device Awake - Enable this option to keep the device awake after the short key press.

• Key Identifier - Select a remappable key. For example, Rear Button.

Settings

• Android Action Name - Enter the action name. For example, to initiate a call, enter

android.intent.action.CALL.

• URI - Enter the URI. For example, to place a call to a phone number, enter

• KeyMappingMgr - Modify the default behavior of the button. It is recommended to set this to None.

Otherwise the button performs its default behavior in addition to sending an alert.

Alert Accessibility Service

After the Alert button is configured using StageNow, the Alert Accessibility Service is available on the device. Go to Settings > Accessibility > Alert Accessibility service to enable or disable the alert button.

When the device reboots, Alert Accessibility Service is automatically enabled.

Using an Alert Button

Activate the Alert button using a long-press of at least one second to prevent accidental alerts.

• If the device is in Suspend mode, perform a short-press on the Alert button, followed by a long-press.

• If the device is awake, perform a long-press on the Alert button.

Keyboards

tel:123456789.

The device provides multiple keyboard options.

• Android Keyboard - AOSP devices only

• Gboard - GMS devices only

• Enterprise Keyboard

NOTE: By default the Enterprise and Virtual Keyboards are disabled.

Settings

Keyboard Configuration

Enabling Keyboards

1. Go to Settings.

2. Touch System > Languages & input > Virtual keyboard > Manage keyboards.

3. Touch a keyboard to enable.

Switching Between Keyboards

• To switch between keyboards, touch in a text box to display the current keyboard.

• On the Gboard keyboard, touch and hold (GMS devices only).

• On the Android keyboard, touch and hold (AOSP devices only).

• On the Enterprise keyboard, touch . Only available with Mobility DNA Enterprise License.Not

pre-installed on the device. Contact Zebra Support for more information.

Using the Android and Gboard Keyboards

Use the Android or Gboard keyboards to enter text in a text field.

To configure the keyboard settings, touch and hold

, (comma) and then select Android keyboard settings.

Edit Text

Edit entered text and use menu commands to cut, copy, and paste text within or across apps. Some apps do not support editing some or all of the text they display; others may offer their own way to select text.

Entering Numbers, Symbols, and Special Characters

1. Enter numbers and symbols.

• Touch and hold one of the top-row keys until a menu appears then select a number or special character.

• Touch the Shift key once for a single capital letter. Touch the Shift key twice to lock in uppercase. Touch

the Shift key a third time to unlock Capslock.

• Touch

• Touch the

2. Enter special characters.

• Touch and hold a number or symbol key to open a menu of additional symbols. A larger version of the

key displays briefly over the keyboard.

?123 to switch to the numbers and symbols keyboard.

=\< key on the numbers and symbols keyboard to view additional symbols.

Using the Enterprise Keyboard

The Enterprise Keyboard contains multiple keyboard types.

• Numeric

• Alpha

• Special characters

• Data capture.

Numeric Tab

The numeric keyboard is labeled 123. The keys displayed vary on the app being used. For example, an arrow displays in Contacts, however Done displays in Email account setup.

Alpha Tab

The alpha keyboard is labeled using the language code. For English, the alpha keyboard is labeled EN.

Additional Character Tab

The additional characters keyboard is labeled #*/.

Touch to enter emoji icons in a text message.

Touch ABC to return to the Symbols keyboard.

Scan Tab

The Scan tab provides an easy data capture feature for scanning barcodes.

Language Usage

Settings

Use the Language & input settings to change the device’s language, including words added to the dictionary.

Changing the Language Setting

1. Go to Settings.

2. Touch System > Languages & input.

3. Touch Languages. A list of available languages displays.

4. If the desired language is not listed, touch Add a language and select a language from the list.

5. Touch and hold to the right of the desired language, then drag it to the top of the list.

6. The operating system text changes to the selected language.

Adding Words to the Dictionary

1. Go to Settings.

2. Touch System > Languages & input > Advanced > Personal dictionary.

3. If prompted, select the language where this word or phase is stored.

4. Touch + to add a new word or phrase to the dictionary.

5. Enter the word or phrase.

6. In the Shortcut text box, enter a shortcut for the word or phrase.

7. Touch the Home button.

Notifications

Setting App Notifications

To set notification settings for a specific app:

1. Go to Settings.

2. Touch Apps & notifications > SEE ALL XX APPS. The App info screen displays.

3. Select an app.

4. Touch Notifications.

Options vary depending on the app selected.

5. Select an available option:

Show notifications - Select to turn all notifications from this app on (default) or off.

Touch a notification category to display additional options.

• Alerting - Allow notifications from this app to make sound or vibrate the device.

• Pop on screen - Allow notifications from this app to pop notifications on the screen.

Settings

• Silent - Do not allow notifications from this app to make sound or vibrate.

• Minimize - In the Notification panel, collapse notifications to one line.

• Advanced - Touch for additional options.

• Sound - Select a sound to play for notifications from this app.

• Vibrate - Allow notifications from this app to vibrate the device.

• Blink light - Allow notifications from this app the light the Notification LED blue.

• Show notification dot - Allow notifications from this app to add a notification dot to the app icon.

• Override Do Not Disturb - Allow these notifications to interrupt when Do Not Disturb is enabled.

Advanced

• Allow notification dot - Do not allow this app to add a notification dot to the app icon.

• Additional settings in the app - Open the app settings.

Viewing Notification Settings for All Apps

To view the notification settings for all apps:

1. Go to Settings.

2. Touch Apps & Notifications.

3. Scroll down to Notifications to view how many apps have notifications turned off.

4. To set or view notifications settings for a specific app, see Setting App Notifications on page 51.

Controlling Lock Screen Notifications

To control whether notifications can be seen when the device is locked:

1. Go to Settings.

2. Touch Apps & notifications > Notifications.

Settings

Touch Notifications on lockscreen and select one of the following:

• Show alerting and silent notifications (default)

• Show alerting notifications only

• Don’t show notifications.

Blink Light

The Notification LED lights blue when an app, such as email and VoIP, generates a programmable notification or to indicate when the device is connected to a Bluetooth device. By default, LED notifications are enabled.

To change the notification setting:

1. Go to Settings.

2. Touch Apps & notifications > Notifications > Advanced.

3. Touch Blink light to toggle the notification on or off.

Applications

The APPS screen displays icons for all installed apps. See Application Deployment for information on installing and uninstalling apps. For information on standard Android apps, go to the Google Play Apps

store.

The following table describes the apps installed on the device.

Table 5 Apps

Icon Description

Battery Manager - Displays battery information, including charge level, status, health and

wear level, and use to place device in Battery Swap mode when replacing the battery.

Bluetooth Pairing Utility – Use to pair a Zebra Bluetooth scanner with the device by scanning a barcode.

Calculator - Provides the basic and scientific arithmetic functions.

Calendar - Use to manage events and appointments. GMS/GMS-Restricted only.

Calendar - Use to manage events and appointments. AOSP only.

Camera - Take photos or record videos. For more information, see Camera on page 60.

Chrome - Use to access the Internet or intranet. GMS/GMS-Restricted only.

Chromium - Use to access the Internet or intranet. AOSP only.

Clock - Use to schedule alarms for appointments or as a wake-up.

Applications

Table 5 Apps (Continued)

Icon Description

Contacts - Use to manage contact information.

DataWedge - Enables data capture using the imager. For more information, see DataWedge

Demonstration on page 64.

DisplayLink Presenter - Use to present the device screen onto a connected monitor.

Drive - Upload photos, videos, documents, and other files to personal storage site.

GMS/GMS-Restricted only.

Duo - A one-to-one video calling app. GMS/GMS-Restricted only.

DWDemo - Provides a way to demonstrate the data capture features using the imager. For

more information, see DataWedge Demonstration on page 64.

Email - Use to send and receive email. AOSP only.

Files - Organize and manage files on the device.

Gallery - Use to view photos stored on the microSD card. AOSP only.

Gmail - Use to send and receive email using a Google email account. GMS/GMS-Restricted

only.

Google - Launches Google ™ search app. GMS/GMS-Restricted only.

Keep Notes - Use to create, edit, and share notes. GMS/GMS-Restricted only.

License Manager - Use to manage software licenses on the device.

Maps - Use to see your location on a map (with public transit, traffic, or satellite overlays).

Search for any business or place of interest. Provides turn-by-turn navigation with voice guidance, traffic-avoidance, and alternate routes, for drivers, cyclists, walkers, and users of public transportation. GMS/GMS-Restricted only.

Applications

Table 5 Apps (Continued)

Icon Description

Messages - Send SMS and MMS messages. WAN devices only. GMS/GMS-Restricted

only.

Messaging - Send SMS and MMS messages. WAN devices only.

Music - Play music stored on the microSD card or internal storage. AOSP only.

Phone - Use to dial a phone number when used with some Voice over IP (VoIP) clients

(VoIP telephony ready only).

Photos - Use to sync photos with Google account. GMS/GMS-Restricted only.

Play Movies & TV - View movies and video on your device. GMS/GMS-Restricted only.

Play Store - Download music, movies, books, and Android apps and games from the

Google Play Store. GMS/GMS-Restricted only.

PTT Express - Use to launch PTT Express client for VoIP communication.

RxLogger - Use to diagnose device and app issues. For more information, see RxLogger on

page 70.

Search - Use to search the Web. Requires an Internet connection. AOSP only.

Settings - Use to configure the device.

Sound Recorder - Use to record audio. For more information, see Sound Recorder on

page 71.

StageNow - Allows the device to stage a device for initial use by initiating the deployment of settings, firmware, and software.

Applications

Table 5 Apps (Continued)

Icon Description

UDI Demo - Use to demonstrate scanning UDI barcodes.

Videos - Use to view videos on the device. AOSP only.

VoD - The Video on Device basic app provides a how-to video for proper device cleaning.

For Video on Device licensing information, go to learning.zebra.com

Voice Search - Use to perform searches by asking questions. GMS/GMS-Restricted only.

Worry Free Wifi Analyzer - A diagnostic intelligent app. Use to diagnose surrounding area

and display network stats, such as coverage hole detection, or AP in vicinity. Refer to the Worry Free Wi-Fi Analyzer Administrator Guide for Android.

Accessing Apps

All apps installed on the device are accessed using the APPS window.

1. On the Home screen, swipe up from the bottom of the screen.

2. Slide the APPS window up or down to view more app icons.

3. Touch an icon to open the app.

YouTube - Use to view videos on the YouTube

YT Music - Use to listen to music. GMS/GMS-Restricted only.

Zebra Bluetooth Settings - Use to configure Bluetooth logging.

Zebra Data Services - Use to enable or disable Zebra Data Services. Some options are set

by the system administrator.

™ web site. GMS/GMS-Restricted only.

Switching Between Recent Apps

Use the Recent button to switch between recently used apps.

1. Touch Recent button.

A window appears on the screen with icons of recently used apps.

2. Slide the apps displayed up and down to view all recently used apps.

3. Swipe left or right to remove app from the list and force close the app.

Touch an icon to open an app or touch Back button to return to the current screen.

Battery Manager

The Battery Manager provides detailed information about the battery and battery swap procedures on supported devices.

Opening Battery Manager

To open the Battery Manager app, swipe up from the bottom of the Home screen, and then touch .

Battery Manager Information Tab

The Battery Manager displays detailed information about battery charging, health, and status.

Table 6 Battery Icon Description

Battery Icon Description

Applications

Battery charge level is between 85% and 100%.

Battery charge level is between 19% and 84%.

Battery charge level is between 0% and 18%.

• Level - The current battery charge level as a percentage. Displays -% when level is unknown.

• Wear - The health of the battery in graphical form. When the wear level exceeds 80%, the bar color

changes to red.

• Health - The health of the battery. If a critical error occurs, appears. Touch to view the error description.

• Decommission - The battery is past its useful life and should be replaced. See system

administrator.

• Good - The battery is good.

• Charge error - An error occurred while charging. See system administrator.

• Over Current - An over-current condition occurred. See system administrator.

• Dead - The battery has no charge. Replace the battery.

• Over Voltage - An over-voltage condition occurred. See system administrator.

• Below Temperature - The battery temperature is below the operating temperature. See system

administrator.

• Failure Detected - A failure has been detected in the battery. See system administrator.

• Unknown - See system administrator.

• Charge Status

Applications

• Not charging - The device is not connected to AC power.

• Charging-AC - The device is connected to AC power and charging.

• Charging-USB - The device is connected to a host computer with a USB cable and charging.

• Discharging - The battery is discharging.

• Full - That the battery is fully charged.

• Unknown - The battery status is unknown.

• Time until Full - The amount of time until the battery is fully charged.

• Time since charging - The amount of time since the device began charging.

• Time until empty - The amount of time until the battery is empty.

• Advanced info - Touch to view additional battery information.

• Battery present status - Indicates that the battery is present.

• Battery level - The battery charge level as a percentage of scale.

• Battery scale - The battery scale level used to determine battery level (100).

• Battery voltage - The current battery voltage in millivolts.

• Battery temperature - The current battery temperature in degrees Centigrade.

• Battery technology - The type of battery.

• Battery current - The average current into or out of the battery over the last second in mAh.

• Battery manufacture date - The date of manufacture.

• Battery serial number - The battery serial number. The number matches the serial number printed

on the battery label.

• Battery part number - The battery part number.

• Battery decommission status - Indicates if the battery is past its life span.

• Battery Good - The battery is in good health.

• Decommissioned Battery - The battery is past its useful life and should be replaced.

• Base cumulative charge - Cumulative charge using Zebra charging equipment only.

• Battery present capacity - Maximum amount of charge that could be pulled from the battery under

the present discharge conditions if the battery were fully charged.

• Battery health percentage - With a range from 0 to 100, this is the ratio of “present_capacity” to

“design_capacity” at a discharge rate of “design_capacity”.

• % decommission threshold - The default % decommission threshold for a gifted battery as 80%.

• Battery present charge - Amount of usable charge remaining in the battery at present under the

current discharge conditions.

• Battery total cumulative charge - The total accumulated charge in all chargers.

• Battery time since first use - The time passed since the battery was placed in a Zebra terminal for

the first time.

• Battery error status - The error status of the battery.

• Battery usage number - The health of the battery as a result of charging and discharging. A high

number indicates low battery health.

• Usage decommission threshold - When the Battery usage number is greater than or equal to the

Usage decommission threshold, the battery is past its useful life and should be replaced.

• App version - The application version number.

Battery Manager Swap Tab

NOTE: The Swap tab also appears when the user presses the Power button and selects Battery Swap.

Use to place the device in Battery Swap mode when replacing the battery. Follow the instructions on the screen. Touch Proceed with battery swap button.

Applications

Camera

Taking Photos

Applications

NOTE: The device saves photos and videos on the microSD card, if installed and the storage path is changed manually. By default, or if a microSD card is not installed, the device saves photos and videos on the internal storage.

This section provides information for taking photos and recording videos using the integrated digital cameras.

NOTE: See Photo Settings on page 62 for camera setting descriptions.

1. Swipe up from the bottom of the Home screen and touch Camera.

Camera Switch (Available on devices

Filters

Scene Mode and Settings

with a rear camera and front camera) Flash

Gallery

Camera Shutter Button

2. If necessary, touch the Camera Mode icon and touch .

3. To switch between the rear camera and front camera (if available), touch .

4. Frame the subject on the screen.

5. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls

Video Recording Button

appear on the screen.

Touch an area on the screen to focus. The focus circle appears. The two bars turn green when in focus.

7. Touch .

The camera takes a photo and a shutter sound plays.

The photo momentarily displays as a thumbnail in the lower left corner.

Taking a Panoramic Photo

Panorama mode creates a single wide image by panning slowly across a scene.

1. Swipe up from the bottom of the Home screen and touch Camera.

Applications

2. Touch the Camera Mode icon and touch .

3. Frame one side of the scene to capture.

4. Touch and slowly pan across the area to capture. A small white square appears inside the button

indicating the capture is in progress.

If you are panning too quickly, the message Too fast appears.

5. Touch to end the shot. The panorama appears immediately and a progress indicator displays while

it saves the image.

Recording Videos

1. Swipe up from the bottom of the Home screen and touch Camera.

2. Touch the camera mode menu and touch .

Applications

Audio

Flash

Take Photo

Gallery

To switch between the rear camera and front camera (if available), touch .

4. Point the camera and frame the scene.

5. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls

appear on the screen.

6. Touch to start recording.

The video time remaining appears in the top left of the screen.

7. Touch to end the recording.

The video momentarily displays as a thumbnail in the lower left corner.

Photo Settings

Stop Recording

Pause Recording

Shutter Button

In Photo mode, photo settings appear on screen. Touch to display the photo settings options.

Camera Settings

In Photo mode, photo settings appear on screen. Touch ••• > to display the photo settings options.

• General - These settings apply to both the still camera and video camera.

• GPS location - Turn On or Off (default).

• Storage – Set the location to store the photo to: Phone or SD Card.

Applications

• Still Camera - These settings apply only to the still camera.

• Countdown timer - Select Off (default), 2 seconds, 5 seconds or 10 seconds.

• Continuous Shot - Select to take a series of photos quickly while holding the capture button. Off

(default) or On.

• Picture size - The size (in pixels) of the photo to: 13M pixels (default), 8M pixels, 5M pixels, 3M

pixels, HD1080, 2M pixels, HD720, 1M pixels, or WVGA.

• Picture quality - Set the picture quality setting to: Low, Standard, or High (default).

• Redeye reduction - Helps eliminate redeye effect. Options: Disabled (default), or Enable.

• Exposure - Set the exposure settings to: -2, -1.5, -1, -0.5, 0 (default), +0.5, +1, +1.5, +2.

• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most

natural-looking colors:

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the white balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the white balance for daylight.

• Cloudy - Adjust the white balance for a cloudy environment.

• Shutter Sound - Select to play a shutter sound when taking a photo. Options: Disable or Enable

(default).

• Picture Format - All still images are saved in JPEG format.

• Video Camera - These settings apply only to the video camera.

• Video quality - Set video quality to: 4k UHD, HD 1080p (default), HD 720p, SD 480p, VGA, CIF, or

QVGA.

• Video duration - Set to: 30 seconds (MMS), 10 minutes, 30 minutes (default), or no limit.

• Image Stabilization - Set to reduce blurry videos due to device movement. Options: On or Off

(default).

• Noise Reduction - Off (default), Fast, High Quality

• Video Encoder - Set the video encoder to: MPEG4, H264 (default), H265.

• Audio Encoder - Set the audio encoder to: AMRNB, or AAC (default).

• Video Rotation - Set the rotation of the video to: 0 (default), 90, 180, or 270.

• Time Lapse - Set the time lapse interval to: Off (default), or a time between 0.5 seconds and 24

hours.

• System

• Restore default - Select to restore all settings to the default values.

• Version Info - Displays the software version of the camera app.

Rear Camera Photo Settings

• Flash - Select whether the camera relies on its light meter to decide whether a flash is necessary, or to

turn it on or off for all shots.

• Off - Disable flash.

Applications

• Auto - Adjust flash automatically depending upon light meter (default).

• On - Enable flash upon taking a photo.

• Picture quality - Set the picture quality setting to: Low, Standard or High.

• Countdown timer - Select Off (default), 2 seconds, 5 seconds or 10 seconds.

• Storage – Set the location to store the photo to: Phone or SD Card.

• ISO - Set camera sensitivity to light to: Auto (default), ISO Auto (HJR), ISO100, ISO200, ISO400, ISO800 or ISO1600.

• Exposure - Set the exposure settings to: +2, +1, 0(default), -1 or -2.

• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most

natural-looking colors:

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the white balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the white balance for daylight.

• Cloudy - Adjust the white balance for a cloudy environment.

Front Camera Photo Settings

• Picture size - Set the size (in pixels) of the photo to: M pixels (default), HD720, 1M pixels, WVGA, VGA, or QVGA.

• Picture quality - Set the picture quality setting to: Low, Standard or High.

• Countdown timer - Set to: Off (default), 2 seconds, 5 seconds or 10 seconds.

• Storage – Set location to store the photo to: Phone.

• Face Detection - Select to turn face detection Off (default) or On.

Video Settings

In Video mode, video settings appear on screen. Touch to display the video settings options.

Rear Camera Video Settings

Front Camera Video Settings

DataWedge Demonstration

Use DataWedge Demonstration to demonstrate data capture functionality. To configure DataWedge, refer to techdocs.zebra.com/datawedge/

NOTE: DataWedge is disabled on the Home screen. To enable this feature, go to the DataWedge settings and enable Barcode input option.

Applications

Table 7 DataWedge Demonstration Icons

Icon Description

Illumination Imager illumination is on. Touch to turn illumination off.

Imager illumination is off. Touch to turn illumination on.

Data Capture The data capture function is through the internal imager.

A Bluetooth scanner is connected.

A Bluetooth scanner is not connected.

The data capture function is through the rear camera.

Scan Mode Imager is in picklist mode. Touch to change to normal scan mode.

Menu Opens a menu to view the application information or to set the

Scanner Selection

To select a scanner, touch > Settings > Scanner selection.

See the Data Capture section for more information.

Press the programmable button or touch the yellow scan button to capture data. The data appears in the text field below the yellow button.

Imager is in normal scan mode. Touch to change to picklist mode.

application DataWedge profile.

PTT Express Voice Client

NOTE: Requires a PTT Express License. Not available in all countries.

PTT Express Voice Client enables Push-To-Talk (PTT) communication between disparate enterprise devices. Leveraging existing Wireless Local Area Network (WLAN) infrastructure, PTT Express delivers simple PTT communication without requiring a voice communication server.

• Group Call: Press and hold the PTT (Talk) button to start communicating with other voice client users.

• Private Response: Double-press the PTT button to respond to the originator of the last broadcast or to

make a Private Response.

PTT Express User Interface

Figure 9 PTT Express Default User Interface

Notification Icon

Applications

Settings

Service Indication

Talk Group

Table 8 PTT Express Default User Interface Descriptions

Item Description

Notification Icon Indicates the current state of the PTT Express client.

Service Indication Indicates the status of the PTT Express client. Options: Service Enabled,

Service Disabled or Service Unavailable.

Talk Groups Lists all 32 Talk Groups available for PTT communication.

Settings Opens the PTT Express Settings screen.

Enable/Disable Switch

Turns the PTT service on and off.

Enable/Disable Switch

PTT Audible Indicators

The following tones provide helpful cues when using the voice client.

• Talk Tone: Double chirp. Plays when the Talk button is depressed. This is a prompt for you to start talking.

• Access Tone: Single beep. Plays when another user just finished a broadcast or response. You can now initiate a Group Broadcast or Private Response.

• Busy Tone: Continuous tone. Plays when the Talk button is depressed and another user is already communicating on the same talkgroup. Plays after the maximum allowed talk time is reached (60 seconds).

• Network Tone:

• Three increasing pitch beeps. Plays when PTT Express acquires the WLAN connection and the

service is enabled.

• Three decreasing pitch beeps. Plays when PTT Express loses the WLAN connection or the service

is disabled.

PTT Notification Icons

Applications

Notification icons indicate the current state of the PTT Express Voice client.

Table 9 PTT Express Icon Descriptions

Status Icon Description

The PTT Express Voice client is disabled.

The PTT Express Voice client is enabled but not connected to a WLAN.

The PTT Express Voice client is enabled, connected to a WLAN, and listening on the Talk Group indicated by the number next to the icon.

The PTT Express Voice client is enabled, connected to a WLAN, and communicating on the Talk Group indicated by the number next to the icon.

The PTT Express Voice client is enabled, connected to a WLAN, and in a private response.

The PTT Express Voice client is enabled and muted.

The PTT Express Voice client is enabled but it is not able to communicate due to a VoIP telephony call in progress.

Enabling PTT Communication

1. Swipe up from the bottom of the Home screen and touch .

2. Slide the Enable/Disable Switch to the ON position. The button changes to ON.

Selecting a Talk Group

One of 32 Talk Groups can be selected by PTT Express users. However, only one talk group may be enabled at a time on the device. Touch one of the 32 Talk Groups. The selected Talk Group is highlighted.

PTT Communication

NOTE: This section describes the default PTT Express client configuration. Refer to the PTT Express V1.2

User Guide for detailed information on using the client.

PTT communication may be established as a Group Call. When PTT Express is enabled, the PTT button on the left side of the device is assigned for PTT communication. When the Wired Headset is used, Group Calls can also be initiated using the headset Talk button.

NOTE: When using a wired headset, use only Zebra wired headsets with a PTT button.

Figure 10 PTT Button

Applications

1 PTT button

Creating a Group Call

NOTE: When using a wired headset, use only Zebra wired headsets with a PTT button.

1. Press and hold the PTT button (or the Talk button on the headset) and listen for the talk tone.

If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure that PTT Express and the WLAN are enabled.

2. Start talking after hearing the talk tone.

NOTE: Holding the button for more than 60 seconds (default) drops the call, allowing others to make

Group calls. Release the button when finished talking to allow others to make calls.

Responding with a Private Response

The Private Response can only be initiated once a Group Call has been established. The initial Private Response is made to the originator of the Group Call.

1. Wait for an access tone.

2. Within 10 seconds, double-press the PTT button, and listen for the talk tone.

3. If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure

that PTT Express and the WLAN are enabled.

4. Start talking after the talk tone plays.

5. Release the button when finished talking.

Disabling PTT Communication

1. Swipe up from the bottom of the Home screen and touch .

2. Slide the Enable/Disable Switch to the OFF position. The button changes to OFF.

3. Touch the Home button.

Applications

RxLogger

RxLogger is a comprehensive diagnostic tool that provides application and system metrics, and diagnoses device and application issues. RxLogger logs the following information: CPU load, memory load, memory snapshots, battery consumption, power states, wireless logging, cellular logging, TCP dumps, Bluetooth logging, GPS logging, logcat, FTP push/pull, ANR dumps, etc. All generated logs and files are saved onto flash storage on the device (internal or external).

RxLogger Configuration

RxLogger is built with an extensible plug-in architecture and comes packaged with a number of plug-ins already built-in. For information on configuring RxLogger, refer to techdocs.zebra.com/rxlogger/

To open the configuration screen, from the RxLogger home screen touch Settings.

Configuration File

RxLogger configuration can be set using an XML file. The config.xml configuration file is located on the microSD card in the connection. Edit the configuration file and then replace the XML file on the device. There is no need to stop

and restart the RxLogger service since the file change is automatically detected.

Applications

RxLogger\config folder. Copy the file from the device to a host computer using a USB

Enabling Logging

To enable logging:

1. Swipe the screen up and select .

2. Touch Start.

3. Touch the Home button.

Disabling Logging

To disable logging:

1. Swipe the screen up and select .

2. Touch Stop.

3. Touch the Home button.

Extracting Log Files

1. Connect the device to a host computer using an USB connection.

2. Using a file explorer, navigate to the RxLogger folder.

3. Copy the file from the device to the host computer.

4. Disconnect the device from the host computer.

Backing Up

RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default contains all the RxLogger logs stored in the device.

To save the backup data, touch > BackupNow.

RxLogger Utility

RxLogger Utility is a data monitoring application for viewing logs in the device while RxLogger is running. Logs and RxLogger Utility features are accessed using Main Chat Head.

Initiating the Main Chat Head

To initiate the Main Chat Head:

1. Open RxLogger.

2. Touch > Toggle Chat Head. The Main Chat Head icon appears on the screen.

3. Touch and drag the Main Chat head icon to move it around the screen.

Removing the Main Chat Head

To remove the Main Chat Head icon:

1. Touch and drag the icon. A circle with an X appears.

Applications

2. Move the icon over the circle and then release.

Viewing Logs

To view logs:

1. Touch the Main Chat Head icon. The RxLogger Utility screen appears.

2. Touch a log to open it. The user can open many logs with each displaying a new sub Chat Head.

3. If necessary, scroll left or right to view additional Sub Chat Head icons.

4. Touch a Sub Chat Head to display the log contents.

Removing a Sub Chat Head Icon

To remove a sub chat Head icon, press and hold the icon until it disappears.

Backing Up In Overlay View

RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default contains all the RxLogger logs stored in the device.

The Backup icon is always available in Overlay View.

1. Touch . The Backup dialog box appears.

2. Touch Yes to create the back up.

Sound Recorder

Use Sound Recorder to record audio messages.

Recordings are saved on the microSD card (if installed) or the internal storage, and are available in the Music application (AOSP devices) or the Play Music application (GMS devices).

Touch to open options menu.

Applications

• File type - Select the file type for the recording file.

• AMR

• 3GPP

• AAC

• WAV

• AMR-WB

• AMR-WB-3GPP.

• Storage location - Select the location for the recording file.

• Phone storage

• SD card

Wireless

This section provides information on the following wireless features:

• Wireless Wide Area Network (WWAN)

• Wireless Local Area Network (WLAN)

• Bluetooth

• Cast

• Near Field Communications (NFC)

Wireless Wide Area Networks

NOTE: TC57x only.

Use Wireless wide area networks (WWANs) to access data over a cellular network. This section provides information on:

• Sharing a data connection

• Monitoring data usage

• Changing Cellular Network settings

Sharing the Mobile Data Connection

The Tethering & Portable Hotspot settings allows sharing the mobile data connection with a single computer via USB tethering or Bluetooth tethering. Share the data connection with up to eight devices at once, by turning it into a portable Wi-Fi hotspot. While the device is sharing its data connection, an icon displays at the top of the screen and a corresponding message appears in the notification list.

Enabling USB Tethering

NOTE: USB tethering is not supported on computers running Mac OS. If the computer is running

Windows or a recent version of Linux (such as Ubuntu), follow these instructions without any special preparation. If running a version of Windows that precedes Windows 7, or some other operating system, you may need to prepare the computer to establish a network connection via USB.

1. Connect the device to a host computer with the USB cable.

2. The notification Charging this device via USB appears in the Notifications panel.

3. Go to Settings.

Wireless

4. Touch Network & Internet.

5. Touch Hotspot & tethering.

6. Touch the USB tethering switch to enable.

The host computer is now sharing the device’s data connection.

To stop sharing the data connection, touch the USB tethering switch again or disconnect the USB cable.

Enabling Bluetooth Tethering

Use Bluetooth tethering to share the data connection with a host computer.

Configure the host computer to obtain its network connection using Bluetooth. For more information, see the host computer’s documentation.

1. Pair the device with the host computer.

2. Go to Settings.

3. Touch Networking & Internet.

4. Touch Hotspot & tethering.

5. Touch the Bluetooth tethering switch to enable.

The host computer is now sharing the device’s data connection.

To stop sharing the data connection, touch the Bluetooth tethering switch again.

Enabling Wi-Fi Hotspot

To enable the Wi-Fi Hotspot:

1. Go to Settings.

2. Touch Network & Internet.

3. Touch Hotspot & tethering.

4. Touch Wi-Fi hotspot.

5. Toggle the switch to enable.

After a moment, the device starts broadcasting its Wi-Fi network name (SSID). Connect to it with up to eight computers or other devices. The Hotspot icon appears in the Status bar.

To stop sharing the data connection, touch the toggle switch again.

Configuring the Wi-Fi Hotspot

1. Go to Settings.

2. Touch Network & Internet.

3. Touch Hotspot & tethering.

4. Touch Wi-Fi hotspot.

5. In the Hotspot name text field, edit the name for the hotspot.

6. Touch Security and select a security method from the drop-down list.

• WPA2-Personal

a. Touch Hotspot password.

b. Enter a password.

c. Touch OK.

• None - If None is selected in the Security option, a password is not required.

7. Touch Advanced.

8. If desired, touch Turn off hotspot automatically to turn off Wi-Fi Hotspot when no devices are connected.

9. In the AP Band drop-down list, select 2.4 GHz Band or 5.0 GHz Band.

Data Usage

Data usage refers to the amount of data uploaded or downloaded by the device during a given period. Depending on the wireless plan, you may be charged additional fees when your data usage exceeds your plan's limit.

To monitor your data usage:

1. Go to Settings.

2. Touch Network & internet > Mobile network > Data usage.

CAUTION: The usage displayed on the data usage settings screen is measured by your device. Your carrier's

data usage accounting may differ. Usage in excess of your carrier plan's data limits can result in steep overage charges. The feature described here can help you track your usage, but is not guaranteed to prevent additional charges.

Wireless

Data usage settings allow:

• Enable Data Saver.

• Set the data usage warning level.

• Set a data usage limit.

• View or restrict data usage by app.

• Identify mobile hotspots and restrict background downloads that may result in extra charges.

By default, the data usage settings screen displays the mobile data settings. That is, the data network or networks provided by your carrier.

Setting Data Usage Warning

To set a warning alert when the device has used a certain amount of mobile data:

1. Go to Settings.

2. Touch Network & internet > Mobile network > Data usage > .

3. If necessary, touch Set data warning to enable it.

4. Touch Data warning.

5. Enter a number. To switch between megabytes (MB) and gigabytes (GB), touch the down arrow.

6. Touch SET.

When the usage reaches the set level, a notification appears.

Setting Data Limit

1. Go to Settings.

2. Touch Network & internet > Mobile network > Data usage > .

3. Touch Set data limit.

4. Touch OK.

5. Touch Data limit.

6. Enter a number. To switch between megabytes (MB) and gigabytes (GB), touch the down arrow.

7. Touch Set.

When the limit is reached, data automatically turns off and a notification appears.

Cellular Network Settings

Cellular network settings applies to WWAN devices only.

Data When Roaming

Roaming is disabled by default to prevent the device from transmitting data over other carriers’ mobile networks when leaving an area that is covered by the carrier’s networks. This is useful for controlling expenses if the service plan does not include data roaming.

Enabling Data on GSM Devices

Wireless

1. Go to Settings.

2. Touch Network & Internet > Mobile network.

3. Touch Roaming.

The switch moves to the on position.

Setting Preferred Network

Change the network operating mode.

1. Go to Settings.

2. Touch Network & Internet > Mobile network > Advanced.

3. Touch Automatically select network.

4. Touch Network.

5. In the Available network list, select a carrier network.

Using Search for MicroCell

A MicroCell acts like a mini cell tower in a building or residence and connects to an existing broadband Internet service. It improves cell signal performance for voice calls, texts, and cellular data applications like picture messaging and Web surfing.

1. Go to Settings.

2. Touch Network & Internet > Mobile network.

3. Touch Search for MicroCell.

Configuring the Access Point Name

NOTE: Many service provider Access Point Name (APN) data are pre-configured in the device. The APN

information for all other service provides must be obtained from the wireless service provider.

To use the data on a network, configure the APN information.

Wireless

1. Go to Settings.

2. Touch Network & Internet > Mobile network > Advanced.

3. Touch Access Point Names.

4. Touch an APN name in the list to edit an existing APN or touch to create a new APN.

5. Touch each APN setting and enter the appropriate data obtained from the wireless service provider.

6. When finished, touch > Save.

7. Touch the radio button next to the APN name to start using it.

8. Touch the Home button.

Locking the SIM Card

Locking the SIM card requires the user to enter a PIN every time the device is turned on. If the correct PIN is not entered, only emergency calls can be made.

1. Go to Settings.

2. Touch Security > SIM card lock.

3. Touch Lock SIM card.

4. Enter the PIN associated with the card. Touch OK.

5. Reset the device.

Wireless Local Area Networks

Wireless local area networks (WLANs) allow the device to communicate wirelessly inside a building. Before using the device on a WLAN, the facility must be set up with the required hardware to run the WLAN (sometimes known as infrastructure). The infrastructure and the device must both be properly configured to enable this communication.

Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches, Radius servers, etc.) for instructions on how to set up the infrastructure.

Once the infrastructure is set up to enforce the chosen WLAN security scheme, use the Wireless & networks settings configure the device to match the security scheme.

The device supports the following WLAN security options:

• Open

• Wireless Equivalent Privacy (WEP)

• Wi-Fi Protected Access (WPA)/WPA2 Personal (PSK)

• WPA3-Personal

• WPA/WPA2/WPA3 Enterprise (EAP)

• Protected Extensible Authentication Protocol (PEAP) - with MSCHAPV2 and GTC authentication.

• Transport Layer Security (TLS)

• Tunneled Transport Layer Security (TTLS) - with Password Authentication Protocol (PAP), MSCHAP

and MSCHAPv2 authentication

• Password (PWD)

• Lightweight Extensible Authentication Protocol (LEAP).

• WPA3-Enterprise 192-bit

The Status bar displays icons that indicate Wi-Fi network availability and Wi-Fi status.

NOTE: To extend the life of the battery, turn off Wi-Fi when not in use.

Connecting to a Wi-Fi Network

To connect to a Wi-Fi network:

1. Go to Settings.

2. Touch Wi-Fi to open the Wi-Fi screen. The device searches for WLANs in the area and lists them.

3. Scroll through the list and select the desired WLAN network.

4. For open networks, touch profile once or press and hold and then select Connect or for secure networks

enter the required password or other credentials then touch Connect. See the system administrator for more information.

The device obtains a network address and other required information from the network using the dynamic host configuration protocol (DHCP) protocol. To configure the device with a fixed internet protocol (IP) address, see Configuring the Device to Use a Static IP Address on page 81.

Wireless

5. In the Wi-Fi setting field, Connected appears indicating that the device is connected to the WLAN.

Removing a Wi-Fi Network

To remove a remembered or connected network:

1. Go to Settings.

2. Touch Network & Internet > W-Fi.

3. Scroll down to the bottom of the list and touch Saved networks.

4. Touch the name of the network.

5. Touch FORGET.

6. Touch the Home button.

WLAN Configuration

This section provides information on configuring Wi-Fi settings.

Configuring a Secure Wi-Fi Network

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the switch to the ON position.

4. The device searches for WLANs in the area and lists them on the screen.

5. Scroll through the list and select the desired WLAN network.

6. Touch the desired network. If the network security is Open, the device automatically connects to the

network. For all other network security a dialog box appears.

Wireless

7. If the network security is WPA/WPA2-Personal, WPA3-Personal, or WEP, enter the required password and then touch Connect.

8. If the network security is WPA/WPA2/WPA3 Enterprise:

• Touch the EAP method drop-down list and select one of the following:

• PEAP

• TLS

• TTLS

• PWD

• LEAP.

• Touch the Phase 2 authentication drop-down list and select an authentication method.

• If required, touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates

are installed using the Security settings.

• If required, touch User certificate and select a user certificate. Note: User certificates are installed

using the Security settings.

• If required, in the Identity text box, enter the username credentials.

• If desired, in the Anonymous identity text box, enter an anonymous identity username.

• If required, in the Password text box, enter the password for then given identity.

9. If the network security is WPA3-Enterprise 192-bit:

• Touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are installed

using the Security settings.

• Touch User certificate and select a user certificate. Note: User certificates are installed using the

Security settings.

• In the Identity text box, enter the username credentials.

NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring for a

Proxy Server for setting connection to a proxy server and see Configuring the Device to Use a Static IP Address for setting the device to use a static IP address.

10.Touch Connect.

11.Touch the Home button.

Manually Adding a Wi-Fi Network

Manually add a Wi-Fi network if the network does not broadcast its name (SSID) or to add a Wi-Fi network when out of range.

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the Wi-Fi switch to the On position.

4. Scroll to the bottom of the list and select Add network.

5. In the Network name text box, enter the name of the Wi-Fi network.

6. In the Security drop-down list, set the type of security to:

• None

Wireless

• Enhanced Open

• WEP

• WPA/WPA2-Personal

• WPA3-Personal

• WPA/WPA2/WPA3-Enterprise

• WPA3-Enterprise 192-bit

7. If the network security is None , touch Save.

8. If the network security is WEP, WPA3-Personal, or WPA/WPA2-Personal, enter the required password and then touch Save.

9. If the network security is WPA/WPA2/WPA3-Enterprise:

• Touch the EAP method drop-down list and select one of the following:

• PEAP

• TLS

• TTLS

• PWD

• LEAP.

• Touch the Phase 2 authentication drop-down list and select an authentication method.

• If required, touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates

are installed using the Security settings.

• If required, touch User certificate and select a user certificate. Note: User certificates are installed

using the Security settings.

• If required, in the Identity text box, enter the username credentials.

• If desired, in the Anonymous identity text box, enter an anonymous identity username.

• If required, in the Password text box, enter the password for the given identity.

10.If the network security is WPA3-Enterprise 192-bit:

• Touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are installed

using the Security settings.

• Touch User certificate and select a user certificate. Note: User certificates are installed using the

Security settings.

• In the Identity text box, enter the username credentials.

NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring for a

Proxy Server on page 81 for setting connection to a proxy server and see Configuring the Device to Use a Static IP Address on page 81 for setting the device to use a static IP address.

11.Touch Save. To connect to the saved network, touch and hold on the saved network and select Connect to network.

12.Touch the Home button.

Configuring for a Proxy Server

A proxy server is a server that acts as an intermediary for requests from clients seeking resources from other servers. A client connects to the proxy server and requests some service, such as a file, connection, web page, or other resource, available from a different server. The proxy server evaluates the request according to its filtering rules. For example, it may filter traffic by IP address or protocol. If the request is validated by the filter, the proxy provides the resource by connecting to the relevant server and requesting the service on behalf of the client.

It is important for enterprise customers to be able to set up secure computing environments within their companies, making proxy configuration essential. Proxy configuration acts as a security barrier ensuring that the proxy server monitors all traffic between the Internet and the intranet. This is normally an integral part of security enforcement in corporate firewalls within intranets.

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the Wi-Fi switch to the On position.

4. In the network dialog box, select and touch a network.

5. Touch Advanced options.

6. Touch Proxy and select Manual.

Wireless

7. In the Proxy hostname text box, enter the address of the proxy server.

8. In the Proxy port text box, enter the port number for the proxy server.

9. In the Bypass proxy for text box, enter addresses for web sites that are not required to go through the

proxy server. Use a comma “,” between addresses. Do not use spaces or carriage returns between addresses.

10.Touch Connect.

11.Touch the Home button.

Configuring the Device to Use a Static IP Address

By default, the device is configured to use Dynamic Host Configuration Protocol (DHCP) to assign an Internet protocol (IP) address when connecting to a wireless network.

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the Wi-Fi switch to the On position.

4. In the network dialog box, select and touch a network.

5. Touch Advanced options.

6. Touch IP settings and select Static.

7. In the IP address text box, enter an IP address for the device.

8. If required, in the Gateway text box, enter a gateway address for the device.

9. If required, in the Network prefix length text box, enter the prefix length.

10.If required, in the DNS 1 text box, enter a Domain Name System (DNS) address.

11.If required, in the DNS 2 text box, enter a DNS address.

12.Touch Connect.

13.Touch the Home button.

Wi-Fi Preferences

Use the Wi-Fi preferences to configure advanced Wi-Fi settings. From the Wi-Fi screen scroll down to the bottom of the screen and touch Wi-Fi preferences.

• Turn on Wi-Fi automatically - When enabled, Wi-Fi automatically turns back on when near high quality saved networks.

• Open network notification - When enabled, notifies the user when an open network is available.

• Advanced - Touch to expand options.

• Additional settings - See Additional Settings.

• Install Certificates – Touch to install certificates.

• Network rating provider - Disabled (AOSP devices). To help determine what constitutes a good Wi-Fi

network, Android supports external Network rating providers that provide information about the quality of open Wi-Fi networks. Select one of the providers listed or None. If none are available or selected, the Connect to open networks feature is disabled.

• MAC address - Displays the Media Access Control (MAC) address of the device when connecting to

Wi-Fi networks.

Wireless

• IP address - Displays the IP address of the device when connecting to Wi-Fi networks.

Additional Wi-Fi Settings

NOTE: Additional Wi-Fi settings are for the device, not for a specific wireless network.

Use the Additional Settings to configure additional Wi-Fi settings. To view the additional Wi-Fi settings, scroll to the bottom of the Wi-Fi screen and touch Wi-Fi Preferences > Advanced > Additional settings.

• Regulatory

• Country Selection - Displays the acquired country code if 802.11d is enabled, else it displays the

currently selected country code.

• Region code - Displays the current region code.

• Band and Channel Selection

• Wi-Fi frequency band - Set the frequency band to: Auto (default), 5 GHz only or 2.4 GHz only.

• Logging

• Advanced Logging – Touch to enable advanced logging or change the log directory.

• About

• Version - Displays the current Fusion information.

Wi-Fi Direct

Wi-Fi Direct devices can connect to each other without having to go through an access point. Wi-Fi Direct devices establish their own ad-hoc network when required, letting you see which devices are available and choose which one you want to connect to.

1. Go to Settings.

2. Touch Wi-Fi > Wi-Fi preferences > Advanced > Wi-Fi Direct. The device begins searching for another

3. Under Peer devices, touch the other device name.

4. On the other device, select Accept.

Connected appears on the device. On both devices, in their respective Wi-Fi Direct screens, the other device

name appears in the list.

Bluetooth

Bluetooth devices can communicate without wires, using frequency-hopping spread spectrum (FHSS) radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band (802.15.1). Bluetooth wireless technology is specifically designed for short-range (10 m (32.8 ft)) communication and low power consumption.

Devices with Bluetooth capabilities can exchange information (for example, files, appointments, and tasks) with other Bluetooth enabled devices such as printers, access points, and other mobile devices.

The device supports Bluetooth Low Energy. Bluetooth Low Energy is targeted at applications in the healthcare, fitness, security, and home entertainment industries. It provides reduced power consumption and cost while maintaining standard Bluetooth range.

Wireless

Wi-Fi Direct device.

Adaptive Frequency Hopping

Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH to work. There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries during critical 802.11b communications. AFH for Bluetooth consists of four main sections:

• Channel Classification - A method of detecting an interference on a channel-by-channel basis, or pre-defined channel mask.

• Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth network.

• Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping channels.

• Channel Maintenance - A method for periodically re-evaluating the channels.

When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate channels. AFH coexistence allows enterprise devices to operate in any infrastructure.

The Bluetooth radio in this device operates as a Class 2 device power class. The maximum output power is 2.5 mW and the expected range is 10 m (32.8 ft). A definition of ranges based on power class is difficult to obtain due to power and device differences, and whether in open space or closed office space.

NOTE: It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b operation is required.

Security

The current Bluetooth specification defines security at the link level. Application-level security is not specified. This allows application developers to define security mechanisms tailored to their specific need. Link-level security occurs between devices, not users, while application-level security can be implemented on a per-user basis. The Bluetooth specification defines security algorithms and procedures required to authenticate devices, and if needed, encrypt the data flowing on the link between the devices. Device authentication is a mandatory feature of Bluetooth while link encryption is optional.

Pairing of Bluetooth devices is accomplished by creating an initialization key used to authenticate the devices and create a link key for them. Entering a common personal identification number (PIN) in the devices being paired generates the initialization key. The PIN is never sent over the air. By default, the Bluetooth stack responds with no key when a key is requested (it is up to user to respond to the key request event). Authentication of Bluetooth devices is based-upon a challenge-response transaction. Bluetooth allows for a PIN or passkey used to create other 128-bit keys used for security and encryption. The encryption key is derived from the link key used to authenticate the pairing devices. Also worthy of note is the limited range and fast frequency hopping of the Bluetooth radios that makes long-distance eavesdropping difficult.

Recommendations are:

• Perform pairing in a secure environment

• Keep PIN codes private and do not store the PIN codes in the device

Wireless

• Implement application-level security.

Bluetooth Profiles

The device supports the Bluetooth services listed.

Table 10 Bluetooth Profiles

Profile Description

Service Discovery Protocol (SDP)

Serial Port Profile (SPP) Allows use of RFCOMM protocol to emulate serial cable

Object Push Profile (OPP) Allows the device to push and pull objects to and from a push

Advanced Audio Distribution Profile (A2DP)

Audio/Video Remote Control Profile (AVRCP)

Personal Area Network (PAN) Allows the use of Bluetooth Network Encapsulation Protocol to

Human Interface Device Profile (HID)

Headset Profile (HSP) Allows a hands-free device, such as a Bluetooth headset, to place

Hands-Free Profile (HFP) Allows car hands-free kits to communicate with the device in the

Handles the search for known and specific services as well as general services.

connection between two Bluetooth peer devices. For example, connecting the device to a printer.

server.

Allows the device to stream stereo-quality audio to a wireless headset or wireless stereo speakers.

Allows the device to control A/V equipment to which a user has access. It may be used in concert with A2DP.

provide L3 networking capabilities over a Bluetooth link. Only PANU role is supported.

Allows Bluetooth keyboards, pointing devices, gaming devices and remote monitoring devices to connect to the device.

and receive calls on the device.

car.

Wireless

Table 10 Bluetooth Profiles (Continued)

Profile Description

Phone Book Access Profile (PBAP)

Out of Band (OOB) Allows exchange of information used in the pairing process. Pairing

Symbol Serial Interface (SSI) Allows for communication with Bluetooth Imager.

Generic Attribute Profile (GATT) Provides profile discovery and description services for Bluetooth

Dial Up Networking (DUN) Provides a standard to access the Internet and other dial-up

Generic Access Profile (GAP) Use for device discovery and authentication.

OBject EXchange (OBEX) Facilitates the exchange of binary objects between devices.

Allows exchange of Phone Book Objects between a car kit and a mobile device to allow the car kit to display the name of the incoming caller; allow the car kit to download the phone book so you can initiate a call from the car display.

is completed using the Bluetooth radio, but requires information from the OOB mechanism. Using OOB with NFC enables pairing when devices simply get close, rather than requiring a lengthy discovery process.

Low Energy protocol. It defines how attributes are grouped together into sets to form services.

services over Bluetooth.

Bluetooth Power States

The Bluetooth radio is off by default.

• Suspend - When the device goes into suspend mode, the Bluetooth radio stays on.

• Airplane Mode - When the device is placed in Airplane Mode, the Bluetooth radio turns off. When Airplane

mode is disabled, the Bluetooth radio returns to the prior state. When in Airplane Mode, the Bluetooth radio can be turned back on if desired.

Bluetooth Radio Power

Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (for example, an airplane). When the radio is off, other Bluetooth devices cannot see or connect to the device. Turn on the Bluetooth radio to exchange information with other Bluetooth devices (within range). Communicate only with Bluetooth radios in close proximity.

NOTE: To achieve the best battery life, turn off radios when not in use.

Enabling Bluetooth

1. Swipe down from the Status bar to open the Notification panel.

2. Touch to turn Bluetooth on.

3. Touch the Home button.

Disabling Bluetooth

1. Swipe down from the Status bar to open the Notification panel.

2. Touch to turn Bluetooth off.

3. Touch the Home button.

Discovering Bluetooth Device(s)

The device can receive information from discovered devices without pairing. However, once paired, the device and a paired device exchange information automatically when the Bluetooth radio is on.

1. Ensure that Bluetooth is enabled on both devices.

2. Ensure that the Bluetooth device to discover is in discoverable mode.

3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.

4. Swipe down from the Status bar to open the Quick Access panel.

5. Touch and hold Bluetooth.

6. Touch Pair new device. The device begins searching for discoverable Bluetooth devices in the area and displays them under Available devices.

7. Scroll through the list and select a device. The Bluetooth pairing request dialog box appears.

8. Touch Pair on both devices.

9. The Bluetooth device is added to the Paired devices list and a trusted (“paired”) connection is established.

Wireless

Changing the Bluetooth Name

By default, the device has a generic Bluetooth name that is visible to other devices when connected.

1. Go to Settings.

2. Touch Connected devices > Connection preferences > Bluetooth.

3. If Bluetooth is not on, move the switch to turn Bluetooth on.

4. Touch Device name.

5. Enter a name and touch RENAME.

6. Touch the Home button.

Connecting to a Bluetooth Device

Once paired, connect to a Bluetooth device.

1. Go to Settings.

2. Touch Connected devices > Connection preferences > Bluetooth.

3. In the list, touch the unconnected Bluetooth device.

When connected, Connected appears below the device name.

Selecting Profiles on the Bluetooth Device

Some Bluetooth devices have multiple profiles.

1. Go to Settings.

2. Touch Connected devices > Connection preferences > Bluetooth.

3. In the Paired Devices list, touch next to the device name.

4. Turn on or off a profile to allow the device to use that profile.

5. Touch the Home button.

Unpairing a Bluetooth Device

Unpairing a Bluetooth device erases all pairing information.

1. Go to Settings.

2. Touch Connected devices > Connection preferences > Bluetooth.

3. In the Paired Devices list, touch next to the device name.

4. Touch FORGET.

5. Touch the Home button.

Cast

Use Cast to mirror the device screen on a Miracast enabled wireless display.

1. Go to Settings.

2. Touch Connected devices > Connection preferences > Cast.

Wireless

3. Touch > Enable wireless display.

The device searches for nearby Miracast devices and lists them.

4. Touch a device to begin casting.

5. Touch the Home button.

Near Field Communications

NFC/HF RFID is a short-range wireless connectivity technology standard that enables secure transaction between a reader and a contactless smartcard. The technology is based on ISO/IEC 14443 type A and B (proximity), and ISO/IEC 15693 (vicinity), and FeliCa standards, using the HF 13.56 MHz unlicensed band.

The device supports the following operating modes:

• Reader mode

• Peer-to-Peer communication

• Card Emulation mode.

Using NFC, the device can:

• Read contactless cards such as contactless tickets, ID cards and ePassport.

• Read and write information to contactless cards such as SmartPosters and tickets, as well as devices with

NFC interface such as vending machines.

• Read information from supported medical sensors.

• Pair with supported Bluetooth devices such as printers , ring scanners (ex. RS6000), and headsets (ex.

HS3100).

• Exchange data with another NFC device.

• Emulate contactless card such as or ticket.

The device NFC antenna is positioned to read NFC cards from the top of the device while the device is being held.

Reading NFC Cards

Read contactless cards using NFC.

Figure 11 Reading Cards

Wireless

TC52x-HC

TC52x/TC57x

1. Launch an NFC enabled application.

2. Hold device as shown.

3. Move the device close to the NFC card until it detects the card.

4. Hold the card steadily until the transaction is complete (usually indicated by the application).

Enterprise NFC Settings

Improve NFC performance or increase battery life by selecting which NFC features to use on the device.

Wireless

• Card Detection Mode - Select a card detection mode.

• Low - Increases battery life by lowering the NFC detection speed.

• Hybrid - Provides a balance between NFC detection speed and battery life (default).

• Standard - Provides the best NFC detection speed, but reduces battery life.

• Supported Card Technology - Select an option to detect only one NFC tag type, increasing battery life,

but reducing detection speed.

• All (Default) - Detects all NFC tag types. This provides the best detection speed, but reduces battery

life.

• ISO 14443 Type A/B

• FeliCa

• ISO15693

• Other NFC settings available with Zebra administrator tools (CSP) - Allows configuration of additional

Enterprise NFC Settings through staging tools and Mobile Device Management (MDM) solutions with an MX version that supports the Enterprise NFC Settings Configuration Service Provider (CSP). For more information on using the Enterprise NFC Settings CSP, refer to: techdocs.zebra.com

Data Capture

The device supports data capture using:

• Integrated SE4720 imager

• Integrated camera

• RS507/RS507x Bluetooth Ring Scanner

• RS5100 Bluetooth Ring Scanner

• RS6000 Bluetooth Ring Scanner

• DS3678 Digital Scanner

• LI3678 Linear Scanner

• DS2278 Digital Scanner

• DS8178 Digital Scanner.

Imaging

The imager uses imaging technology to take a picture of a bar code, stores the resulting image in its memory, and executes state-of-the-art software decoding algorithms to extract the bar code data from the image. With a 2D imager, the device has the following features:

• Omnidirectional reading of a variety of bar code symbologies, including the most popular linear, postal, PDF417, and 2D matrix code types.

• Advanced intuitive laser aiming cross-hair and dot aiming for easy point-and-shoot operation.

Digital Camera

The device with an integrated camera based barcode scanning solution has the following features:

• Omnidirectional reading of a variety of barcode symbologies, including the most popular linear, postal, QR, PDF417, and 2D matrix code types.

• Cross-hair reticle for easy point-and-shoot operation.

• Picklist mode to decode a particular barcode from many in the field of view.

The solution uses the advanced camera technology to take a digital picture of a barcode, and executes state-of-the-art software decoding algorithms to extract the data from the image.

Linear Imager

The device with an integrated linear imager has the following features:

• Reading a variety of bar code symbologies, including the most popular 1-D code types.

• Intuitive aiming for easy point-and-shoot operation.

Operational Modes

The device with an integrated imager supports two modes of operation, listed below. Activate each mode by pressing the Scan button.

• Decode Mode: In this mode, the device attempts to locate and decode enabled barcodes within its field of view. The imager remains in this mode as long as the user holds the scan button, or until it decodes a barcode.

NOTE: To enable Pick List Mode, configure in DataWedge or set in an application using a API command.

Data Capture

• Pick List Mode: This mode allows the user to selectively decode a barcode when more than one barcode is in the device’s field of view. To accomplish this, move the aiming crosshair or dot over the required barcode to decode only this barcode. This feature is ideal for pick lists containing multiple barcodes and manufacturing or transport labels containing more than one barcode type (either 1D or 2D).

NOTE: To enable MultiBarcode Mode, configure in DataWedge or set in an application using a API command.

• MultiBarcode Mode: In this mode, the device attempts to locate and decode a specific number of unique

barcodes within its field of view. The device remains in this mode as long as the user holds the scan button, or until it decodes all the barcodes.

• The device attempts to scan the programmed number of unique barcodes (from 2 through 100).

• If there are duplicate barcodes (same symbology type and data), only one of the duplicate barcodes is

decoded and the remainder are ignored. If the label has two duplicate barcodes plus another two different barcodes, a maximum of three barcodes will be decoded from that label; one will be ignored as a duplicate.

• Barcodes can be of multiple symbology types and still be acquired together. For example, if the

specified quantity for a MultiBarcode scan is four, two barcodes can be symbology type Code 128 and the other two can be symbology type Code 39.

• If the specified number of unique barcodes is not initially in view of the device, the device will not decode

any data until the device is moved to capture the additional barcode(s) or time out occurs. If the device field of view contains a number of barcodes greater than the specified quantity, the device randomly decodes barcode(s) until the specified number of unique barcodes is reached. For example, if the count is set to two and eight barcodes are in the field of view, the device decodes the first two unique barcodes it sees, returning the data in random order.

• MultiBarcode Mode does not support concatenated barcodes.

Data Capture

RS507/RS507X Hands-Free Imager

The RS507/RS507X Hands-free Imager is a wearable barcode scan solution for both 1D and 2D barcode symbologies.

Figure 12 RS507/RS507X Hands-Free Imager

Refer to the RS507/RS507X Hands-free Imager Product Reference Guide for more information.

RS5100 Ring Scanner

The RS5100 Ring Scanner is a wearable barcode scan solution for both 1D and 2D bar code symbologies.

Figure 13 RS5100 Ring Scanner

Refer to the RS5100 Ring Scanner Product Reference Guide for more information.

RS6000 Bluetooth Ring Scanner

The RS6000 Bluetooth Ring Scanner is a wearable bar code scan solution for both 1D and 2D bar code symbologies.

Figure 14 RS6000 Bluetooth Ring Scanner

Refer to the RS6000 Bluetooth Ring Scanner Product Reference Guide for more information.

DS3678 Digital Scanner

The cordless DS3678 combines superior 1D and 2D omnidirectional bar code scanning performance and advanced ergonomics in a lightweight design.

Figure 15 DS3678 Digital Scanner

Data Capture

Refer to the DS36X8 Digital Scanner Product Reference Guide for more information.

LI3678 Linear Scanner

The cordless LI3678 combines excellent scanning performance and advanced ergonomics to provide the best value in a lightweight scanner, ensuring comfort and ease of use for extended periods of time.

Figure 16 LI3678 Linear Scanner

Refer to the LI36X8 Linear Scanner Product Reference Guide for more information.

DS2278 Digital Scanner

The DS2278 digital imager scanner scans both 1D and 2D bar codes and does not compromise performance or features.

Figure 17 DS2278 Digital Scanner

Data Capture

Refer to the DS2278 Digital Scanner Product Reference Guide for more information.

DS8178 Scanner

The DS8178 digital imager scanner scans both 1D and 2D bar codes and does not compromise performance or features.

Figure 18 DS8178 Digital Scanner

Refer to the DS8178 Digital Scanner Product Reference Guide for more information.

Scanning Considerations

Typically, scanning is a simple matter of aim, scan, and decode, with a few quick trial efforts to master it. However, consider the following to optimize scanning performance:

• Range: Scanners decode best over a particular working range — minimum and maximum distances from the barcode. This range varies according to barcode density and scanning device optics. Scan within range for quick and constant decodes; scanning too close or too far away prevents decodes. Move the scanner closer and further away to find the right working range for the barcodes being scanned.

• Angle: Scanning angle is important for quick decodes. When the illumination/flash reflects directly back into the imager, the specular reflection can blind/saturate the imager. To avoid this, scan the barcode so that the beam does not bounce directly back. Do not scan at too sharp an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode. Practice quickly shows what tolerances to work within.

• Hold the device farther away for larger symbols.

• Move the device closer for symbols with bars that are close together.

NOTE: Scanning procedures depend on the app and device configuration. An app may use different scanning

procedures from the one listed above.

Scanning with Internal Imager

To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows the user to enable the imager, decode the barcode data, and display the barcode content.

Data Capture

To scan with the internal imager:

1. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

2. Point the exit window on the top of the device at a barcode.

3. Press and hold the scan button.

On the TC52x/TC57x, the red laser aiming pattern with red aiming dot turns on to assist in aiming.

On the TC52x-HC, the white laser aiming pattern with green aiming dot turns on to assist in aiming.

Figure 19 TC52x/TC57x Imager Scanning

Data Capture

Figure 20 TC52x-HC Imager Scanning

NOTE: When the device is in Picklist mode, the imager does not decode the barcode until the crosshair or

aiming dot touches the barcode.

4. Ensure the barcode is within the area formed by the crosshairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.

Figure 21 Aiming Pattern

Figure 22 Pick List Mode with Multiple Barcodes

5. The Data Capture LED lights green and a beep sounds, by default, to indicate the barcode was decoded

successfully.

6. Release the scan button.

NOTE: Imager decoding usually occurs instantaneously. The device repeats the steps required to take a digital

picture (image) of a poor or difficult barcode as long as the scan button remains pressed.

7. The barcode content data displays in the text field.

Scanning with Internal Camera

To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows the user to enable the imager, decode the barcode data, and display the barcode content.

To scan with the internal camera:

NOTE: When capturing barcode data in poor lighting, turn on Illumination mode in the DataWedge application.

1. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

2. Point the camera exit window on the back of the device at a barcode.

Figure 23 Camera Scanning

Data Capture

3. Press and hold the scan button. By default, a preview window appears on the screen.

NOTE: When Picklist mode is enabled, move the device until the bar code is centered under the red target on

the screen.

4. Move the device until the barcode is visible on the screen.

5. The Decode LED lights green, a beep sounds and the device vibrates, by default, to indicate the bar code

was decoded successfully.

6. The captured data appears in the text field.

Data Capture

Scanning with RS507/RS507X Hands-Free Imager

To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows you to enable the scanner to decode barcode data and display the barcode content.

To scan with the RS507/RS507X:

1. Pair the RS507/RS507X with the device. See Pairing the Bluetooth Ring Scanner on page 105 information.

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the RS507/RS507X at a barcode.

4. Press and hold the trigger.

The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by the cross-hairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.

for more

The RS507/RS507X LEDs light green and a beep sounds to indicate the barcode was decoded successfully. When the RS507/RS507X is in Pick List mode, the RS507/RS507X does not decode the barcode until the center of the crosshair touches the barcode.

Figure 24 RS507/RS507X Aiming Pattern

Data Capture

Figure 25 RS507/RS507X Pick List Mode with Multiple Barcodes in Aiming Pattern

5. The captured data appears in the text field.

Scanning with RS6000 Bluetooth Ring Scanner

To read a barcode, a scan-enabled app is required. Devices that contain the Zebra DataWedge app allows you to enable the scanner to decode barcode data and display the barcode content.

To scan with the RS6000:

1. Pair the RS6000 with the device. See Pairing Using Bluetooth Human Interface Device for more information.

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the RS6000 at a barcode.

4. Press and hold the trigger.

The RS6000 LEDs light green and a beep sounds to indicate the barcode was decoded successfully. When the RS6000 is in Pick List mode, the RS6000 does not decode the barcode until the center of the crosshair touches the barcode.

Data Capture

Figure 26 RS6000 Aiming Pattern

Figure 27 RS6000 Pick List Mode with Multiple Barcodes in Aiming Pattern

5. The captured data appears in the text field.

Scanning with RS5100 Ring Scanner

To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows you to enable the scanner to decode barcode data and display the barcode content.

To scan with the RS5100:

1. Pair the RS5100 with the device. See Pairing Using Simple Serial Interface or Human Interface Device

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the RS5100 at a barcode.

for more information.

Pairing Using Bluetooth

100
