Zebra TC51 and TC51-HC Touch Computer TC51 Touch Computer User Guide for Android™ 8.1.0 Oreo (en)
TC51
Touch Computer
User Guide
for Android ™ 8.1 Oreo
MN-003274-02
Copyright
ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many
jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC; Oreo is
a trademark of Mondelez International, Inc. group. All other trademarks are the property of their respective
owners. ©2019 Zebra Technologies Corporation and/or its affiliates. All rights reserved.
COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to
www.zebra.com/copyright
.
WARRANTY: For complete warranty information, go to www.zebra.com/warranty
END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula
Terms of Use
• Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries
(“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining
the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to
any other parties for any other purpose without the express, written permission of Zebra Technologies.
• Product Improvements
Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are
subject to change without notice.
• Liability Disclaimer
Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are
correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and
disclaims liability resulting therefrom.
• Limitation of Liability
In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any damages whatsoever (including,
without limitation, consequential damages including loss of business profits, business interruption, or loss of
business information) arising out of the use of, the results of use of, or inability to use such product, even if
Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.
.
.
Revision History
Changes to the original guide are listed below:
Change Date Description
-01 Rev A 10/2018 Initial release.
-02 Rev A 12/2019 Updated battery details in Charging the Battery section.
2
Table of Contents
Copyright - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Terms of Use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2
Revision History - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2
Table of Contents .......................................................................................................... 3
About This Guide ........................................................................................................ 11
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Documentation Set - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Configurations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Software Versions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
Chapter Descriptions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
Notational Conventions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
Related Documents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
Service Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
Provide Documentation Feedback - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14
Getting Started ............................................................................................................ 15
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
Unpacking - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
Installing a microSD Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
Installing the Battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
Charging the Battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
Charging Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
Google Account Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
Zebra Visibility Services - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
Replacing the Battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
Replacing the microSD Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
Battery Management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
Monitoring Battery Usage - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
3
Table of Contents

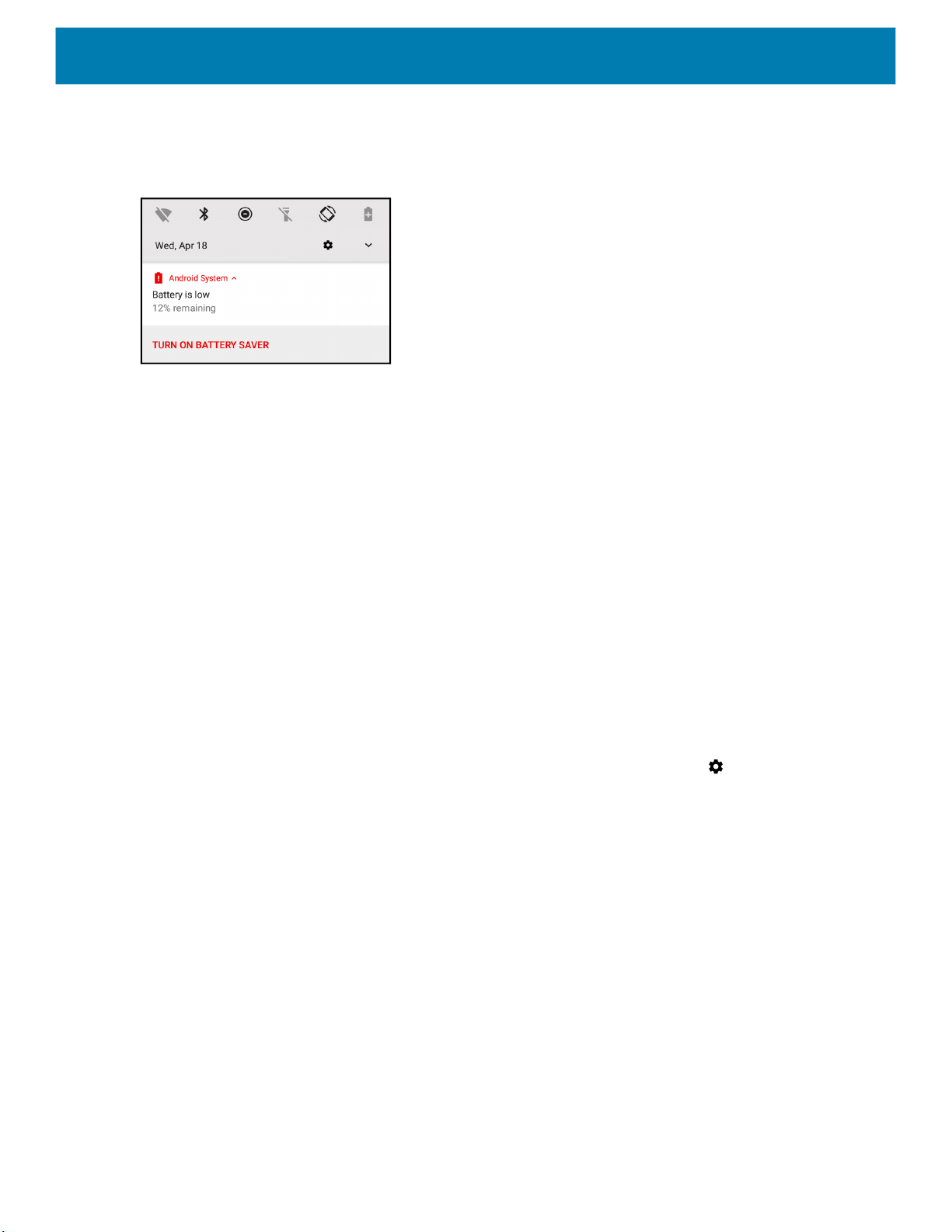

Low Battery Notification - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
Battery Optimization - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
Setting the Date and Time - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
Display Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Setting the Screen Brightness - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Setting Screen Rotation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Setting Home Screen Rotation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Setting Screen Timeout - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
Setting Font Size - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
Ambient Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29

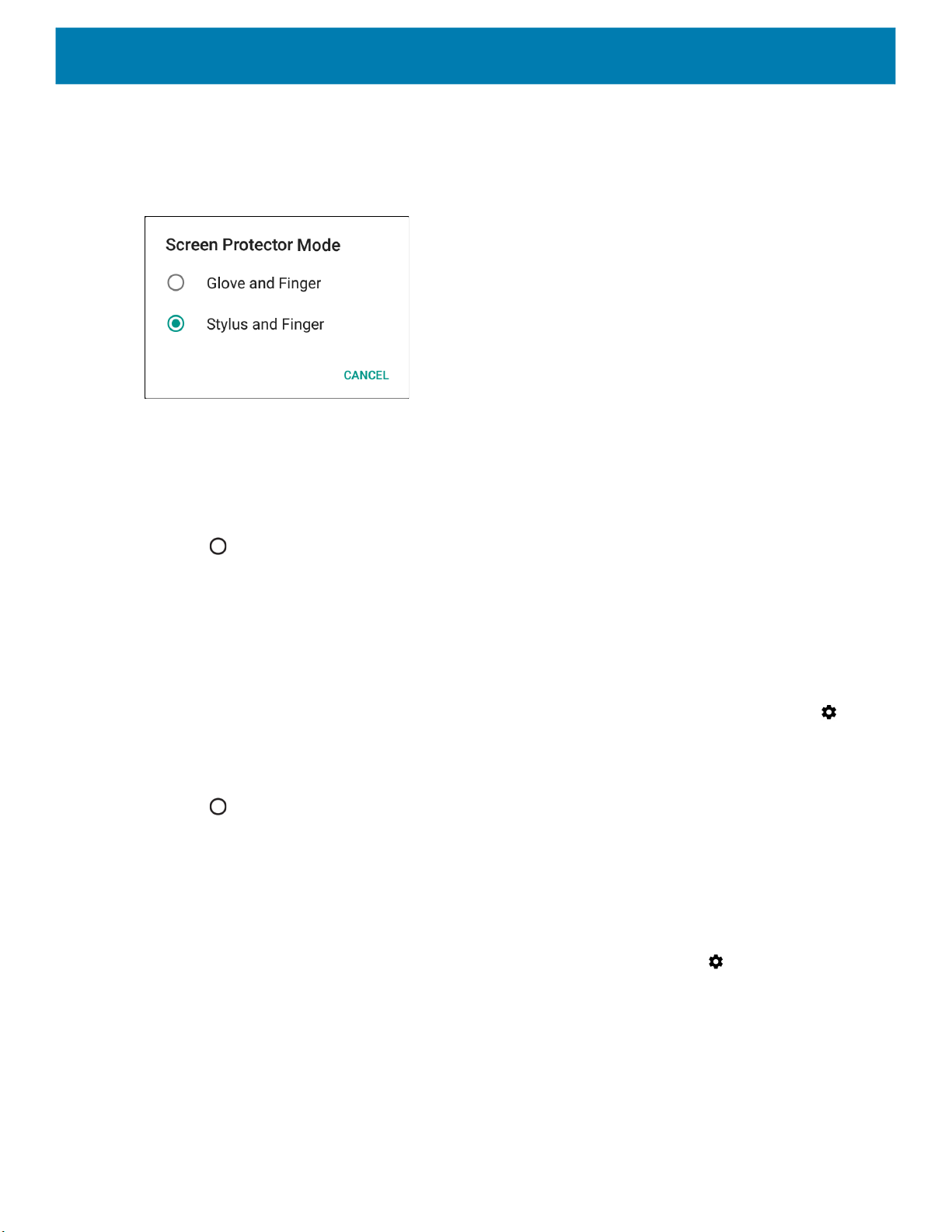

Touch Panel Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29
Setting Notification LED - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30
General Sound Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30
Wake-Up Sources - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 32
Using the Device ......................................................................................................... 34
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34
Google Mobile Services - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34
Home Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34
Status Bar - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 36
Status Icons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 36
Notification Icons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 37
Managing Notifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 38
Setting App Notifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 39
Viewing Notification Settings for All Apps - - - - - - - - - - - - - - - - - - - - - - - - - - 40
Controlling Lock Screen Notifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40
Quick Access Panel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40
Editing Icons on Quick Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 41
App Shortcuts and Widgets - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 42
Adding an App Shortcut to the Home Screen - - - - - - - - - - - - - - - - - - - - - - - 42
Adding a Widget to the Home Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - 42
Moving Items on the Home Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43
Removing an App Shortcut or Widget from the Home Screen - - - - - - - - - - - 43
Folders - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43
Creating a Folder - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43
Naming Folders - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43
Removing a Folder - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 44
Home Screen Wallpaper - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 44
Using the Touchscreen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 44
Keyboards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45
Editing Text - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45
Entering Numbers, Symbols, and Special Characters - - - - - - - - - - - - - - - - - 45
Keyboard Configuration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45
Enabling Keyboards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45
Switching Between Keyboards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45
Do Not Disturb Feature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46
4
Table of Contents
Limit Sounds and Vibrations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46
Total Silence - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46
Alarms Only - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46
Automatically Block Sounds and Vibrations - - - - - - - - - - - - - - - - - - - - - - - - 47
Silence Sounds During Certain Times - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 47
Silence Sounds During Events and Meetings - - - - - - - - - - - - - - - - - - - - - - - - - - 47
Turn Sounds Back On - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48
Override Do Not Disturb for Specific Apps - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48
Apps - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48
Accessing Apps - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 52
Switching Between Recent Apps - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 52
Un-Locking the Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 53
Resetting the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 55
Performing a Soft Reset - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56
Performing a Hard Reset - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56
Suspend Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56
Transferring Files with a Host Computer via USB - - - - - - - - - - - - - - - - - - - - - - - - - - 56
Transferring Files - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56
Transferring Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 57
Disconnect from the Host Computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 57
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 58
Applications ................................................................................................................ 59
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 59
ActiveEdge Touch Zone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 59
Configuring ActiveEdge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 59
Selecting Apps for a Drawer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 60
Using ActiveEdge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 63
Battery Manager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 64
Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 69
Taking Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 69
Taking a Panoramic Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 70
Recording Videos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 71
Photo Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 72
Front Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 72
Rear Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 72
Video Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73
Front Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73
Rear Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73
Contacts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73
Adding a Contact - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73
Editing Contacts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 74
Deleting Contacts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 74
Device Central - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 75
Device Central Tabs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 76
Paging an RS6000 Ring Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 77
5
Table of Contents
DataWedge Demonstration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 78
Scanner Selection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 80
Diagnostic Tool - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 81
Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 84
Battery Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 84
GPS Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85
System Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85
WLAN Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85
WWAN Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85
Bluetooth Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85
Files - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 86
Gallery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 88
Working with Albums - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 89
Sharing an Album - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91
Getting Album Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91
Deleting an Album - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91
Working with Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91
Viewing and Browsing Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91
Cropping a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 92
Setting a Photo as a Contact Icon - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 93
Sharing a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 93
Deleting a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94
Working with Videos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94
Watching Videos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94
Sharing a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94
Deleting a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94
Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 95
Working with Albums - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 96
Sharing an Album - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 97
Deleting an Album - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 97
Working with Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 98
Viewing and Browsing Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 98
Cropping a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 98
Setting a Photo as a Contact Icon - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 99
Sharing a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 99
Deleting a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100
Working with Videos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100
Watching a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100
Sharing a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100
Deleting a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100
PTT Express Voice Client - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 101
PTT Audible Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 101
PTT Notification Icons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 101
Enabling PTT Communication - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 103
Selecting a Talk Group - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 103
PTT Communication - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 103
Creating a Group Call - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 103
6
Table of Contents
Responding with a Private Response - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 104
Disabling PTT Communication - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 104
RxLogger - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 105
RxLogger Utility - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 106
SimulScan Demo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 107
Printing the Sample Forms - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 108
Using the Postal, Transportation and Logistics Example - - - - - - - - - - - - - - - - - 109
Using the Manufacturing Example - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 111
Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 112
Advanced Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 113
Creating a Demo Customization - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 113
Default Templates - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 115
Sound Recorder - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 115
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 118
Data Capture .............................................................................................................. 119
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 119
Imaging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 119
Digital Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 119
Linear Imager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 119
Operational Modes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 120
RS507 Hands-Free Imager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 120
RS6000 Bluetooth Ring Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 121
DS3678 Digital Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 121
LI3678 Linear Imager Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 122
Scanning Considerations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 122
Scanning with Internal Imager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 123
Scanning with Internal Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 124
Scanning with RS6000 Bluetooth Ring Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - 125
Scanning with RS507/RS507X Hands-Free Imager - - - - - - - - - - - - - - - - - - - - - - - 127
Scanning with the DS3608 USB Scanner or DS3678 Bluetooth Scanner - - - - - - - - 128
Scanning with LI3678 Linear Imager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 129
Pairing the RS507/RS6000 Hands-Free Imager - - - - - - - - - - - - - - - - - - - - - - - - - - 130
Pairing in SSI Mode Using Near Field Communication - - - - - - - - - - - - - - - - - - 130
Pairing in HID Mode Using Near Field Communication - - - - - - - - - - - - - - - - - - 131
Pairing Using Simple Serial Interface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 132
Pairing Using Bluetooth Human Interface Device - - - - - - - - - - - - - - - - - - - - - - 133
Pairing a Bluetooth Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 134
Pairing Using Simple Serial Interface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 134
Pairing Using Bluetooth Human Interface Device - - - - - - - - - - - - - - - - - - - - - - 136
DataWedge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 137
Enabling DataWedge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 137
Disabling DataWedge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 137
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 137
7
Table of Contents
Wireless ..................................................................................................................... 138
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 138
Wireless Local Area Networks - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 138
Connecting to a Wi-Fi Network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 138
Removing a Wi-Fi Network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 140
Bluetooth - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 140
Adaptive Frequency Hopping - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 140
Security - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 141
Bluetooth Profiles - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 141
Bluetooth Power States - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 142
Bluetooth Radio Power - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 142
Enabling Bluetooth - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 142
Disabling Bluetooth - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 143
Discovering Bluetooth Device(s) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 143
Changing the Bluetooth Name - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 143
Connecting to a Bluetooth Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 143
Unpairing a Bluetooth Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 144
Near Field Communications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 144
Reading NFC Cards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 144
Sharing Information Using NFC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 145
Cast - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 146
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 146
Accessories ............................................................................................................... 147
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 147
Accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 147
1-Slot USB Charge Cradle - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 150
Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 150
Inserting a Device with Rugged Boot into Cradle - - - - - - - - - - - - - - - - - - - - - - 151
Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 152
Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 152
4-Slot Charge Only Cradle with Battery Charger - - - - - - - - - - - - - - - - - - - - - - - - - - 152
Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 153
Inserting a Device with Rugged Boot into Cradle - - - - - - - - - - - - - - - - - - - - - - 155
Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 155
Main Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 155
Spare Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 155
Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 156
5-Slot Charge Only Cradle - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 156
Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 157
Inserting a Device with Rugged Boot into Cradle - - - - - - - - - - - - - - - - - - - - - - 158
Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 159
Main Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 159
Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 159
5-Slot Ethernet Cradle - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 159
Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 160
8
Table of Contents
Inserting a TC51 with Rugged Boot into Cradle - - - - - - - - - - - - - - - - - - - - - - - 161
Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162
Main Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162
Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162
Establishing Ethernet Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162
LED Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162
4-Slot Battery Charger - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 163
Charging Spare Batteries - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 163
Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164
Spare Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164
Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164
Rugged Boot - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164
Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164
Installing Stylus - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 166
Charging with Cradles - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 167
Basic Hand Strap Kit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 168
Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 169
Removal - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 170
2.5 mm Audio Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 172
3.5 mm Audio Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 173
Rugged Charge/USB Cable - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 175
Connecting to TC51 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 175
Connecting to TC51 with Rugged Boot - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 176
USB Communication - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 177
Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 177
Disconnecting the Rugged Charge/USB Cable - - - - - - - - - - - - - - - - - - - - - - - - 178
Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 179
Main Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 179
Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 180
Trigger Handle - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 181
Installing the Rugged Boot - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 181
Installing the Optional Lanyard - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 183
Inserting the Device into the Trigger Handle - - - - - - - - - - - - - - - - - - - - - - - - - - 184
Removing the Device from the Trigger Handle - - - - - - - - - - - - - - - - - - - - - - - - 185
Power Supply - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 187
Maintenance and Troubleshooting ......................................................................... 188
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 188
Maintaining the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 188
Display Best Practices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 188
Image Retention - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 188
Battery Safety Guidelines - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 189
Cleaning Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 189
Approved Cleanser Active Ingredients - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 190
Approved Disinfectant Cleaners for TC51-Healthcare - - - - - - - - - - - - - - - - - - - 190
Harmful Ingredients - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 190
9
Table of Contents
Device Cleaning Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191
Special Cleaning Notes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191
Recommended Cleaning Materials - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191
Standard and Healthcare Devices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191
Healthcare Only Devices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191
Cleaning Frequency - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191
Cleaning the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192
Housing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192
Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192
Camera and Exit Window - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192
Battery Guide Slots - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192
Battery Connector and Locating Magnet Cleaning - - - - - - - - - - - - - - - - - - - - - - - - 192
Cleaning Cradle Connectors - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 193
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 194
TC51 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 194
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 197
TC51 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 197
Index ........................................................................................................................... 201
10
About This Guide
Introduction
This guide provides information about using the TC51 touch computer and accessories. The TC51
refers to both the TC51 (Standard) and TC51-HC (Healthcare) configurations, except where noted.
NOTE: Screens and windows pictured in this guide are samples and can differ from actual screens.
Documentation Set
The documentation set provides information for specific user needs, and includes:
• TC51 Touch Computer Quick Start Guide - describes how to get the device up and running.
• TC51 Touch Computer User Guide for Android 8.1 Oreo - describes how to use the device.
• TC51 Touch Computer Integrator Guide for Android 8.1 Oreo - describes how to set up the device
and accessories.
Configurations
This guide covers the following configurations:
Configuration Radios Display Memory
TC510K-1 WLAN: 802.11
a/b/g/n/d/h/i/k/r
WPAN:
Bluetooth v4.1
Low Energy
TC510K-2 WLAN: 802.11
a/b/g/n/d/h/i/k/r
WPAN:
Bluetooth v4.1
Low Energy
5.0” High
Definition (1280
x 720) LCD
5.0” High
Definition (1280
x 720) LCD
2 GB RAM / 16
GB Flash or 4
GB RAM / 32
GB Flash
2 GB RAM / 16
GB Flash or 4
GB RAM / 32
GB Flash
Data Capture
Options
2D imager
(SE-4710) and
integrated NFC
2D imager
(SE-4710) and
integrated NFC
Operating
System
Android-based,
Google ™
Mobile Services
(GMS) 8.1.
Android-based,
Android
Open-Source
Project 8.1.
11
Software Versions
To determine the current software versions:
1. Swipe down from the Status bar to open the Quick Settings bar.
2. Touch > System.
3. Touch About phonetablet.
4. Scroll to view the following information:
• Model
• Android version
• Android security patch version
• Baseband version
• Kernel version
• Build number.
To determine the device serial number, touch About phone > Status.
• Serial number
Chapter Descriptions
Topics covered in this guide are as follows:
• Getting Started provides information on getting the device up and running for the first time.
• Using the Device provides information for operating the device.
• Applications provides information on using applications installed on the device.
• Data Capture provides information for capturing bar code data using the imager.
• Wireless provides information on the various wireless options.
• Accessories provides information for using the accessories for the device.
• Maintenance and Troubleshooting includes instructions on cleaning and provides troubleshooting solutions
for potential problems during device operation.
• Technical Specifications provides the technical specifications for the device.
Notational Conventions
The following conventions are used in this document:
• Tablet refers to the Zebra ET51 or ET56 tablet.
• Bold text is used to highlight the following:
• Dialog box, window and screen names
• Drop-down list and list box names
• Check box and radio button names
• Icons on a screen
• Key names on a keypad
• Button names on a screen.
12
• Bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential.
• Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.
Related Documents
• TC51 Touch Computer Quick Start Guide, p/n MN-003215-xx.
• TC51 Touch Computer Regulatory Guide, p/n MN003216-xx.
• TC51 Touch Computer Integrator Guide for Android 8.1 Oreo, p/n MN-003147-xx.
• RS507 Hands-free Imager Product Reference Guide, p/n 72E-12082-xx.
• DS36X8 Product Reference Guide, p/n MN-002689-xx.
• RS6000 User Guide, MN-002704-xx.
For the latest version of this guide and all guides, go to: zebra.com/support
Service Information
If you have a problem with your equipment, contact Customer Support for your region. Contact information is
available at: www.zebra.com/support
When contacting support, please have the following information available:
• Serial number of the unit (found on manufacturing label)
• Model number or product name (found on manufacturing label)
• Software type and version number
Customer Support responds to calls by email or telephone within the time limits set forth in support
agreements.
If the problem cannot be solved by Customer Support, you may need to return the equipment for servicing and
will be given specific directions. We are not responsible for any damages incurred during shipment if the
approved shipping container is not used. Shipping the units improperly can possibly void the warranty.
Remove the microSD card from the device before shipping for service.
If the device was purchased from a business partner, contact that business partner for support.
.
.
13
Provide Documentation Feedback
If you have comments, questions, or suggestions about this guide, send an email to
EVM-Techdocs@zebra.com
.
14
Getting Started
Introduction
This chapter provides information for getting the device up and running for the first time.
Unpacking
1. Carefully remove all protective material from the device and save the shipping container for later
storage and shipping.
2. Verify that the following were received:
• device
• >
15.48 Watt hours (typical) / > 4,150 mAh PowerPrecision+ Lithium-ion battery
• Regulatory Guide.
3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global
Customer Support center immediately.
4. Prior to using the device for the first time, remove the protective shipping film that covers the scan
Features
NOTE: All features are available on both the TC51 (Standard) and TC51-HC (Healthcare) configurations, except
where noted.
window, display and camera window.
15
Figure 1 Front View
2
1
14
13
8
5
4
3
6
7
8
9
10
12
11
Table 1 Front View Features
Number Item Function
1 Front Camera Takes photos and videos (optional).
2 Receiver Use for audio playback in Handset mode.
3 Data Capture LED Indicates data capture status.
4 Microphone Use for communications in Speakerphone mode.
5 Proximity Sensor Determines proximity for turning off display when in handset mode.
6 Light Sensor Determines ambient light for controlling display backlight intensity.
7 Charging/Notification LED Indicates battery charging status while charging and application
generated notifications.
8 ActiveEdge Touch Zone Programmable dynamic soft key positioned near the perimeter of
the display for one-touch access to a frequently used application or
function.
9 Touch Screen Displays all information needed to operate the device.
10 Speaker Provides audio output for video and music playback. Provides
audio in speakerphone mode.
11 Interface Connector Provides USB host and client communications, audio and device
charging via cables and accessories.
CAUTION: Do not remove the interface connector to ensure proper
device sealing.
16
Table 1 Front View Features (Continued)
Number Item Function
12 Microphone Use for communications in Handset mode.
13 Scan Button Initiates data capture (programmable).
14 PTT Button Initiates push-to-talk communications (programmable).
Figure 2 Rear View
15
16
19
17
26
18
19
25
20
24
23
22
21
Table 2 Back View Features
Number Item Function
15 Battery Provides power to the device.
16 Basic Hand Strap Mount Provides mounting point for Basic Hand Strap accessory. (TC51
Standard)
17 NFC Antenna Provides communication with other NFC-enabled devices.
18 Scan Button Initiates data capture (programmable).
19 Battery Release Latches Press to remove the battery.
20 Volume Up/Down Button Increase and decrease audio volume (programmable).
21 Rear Camera Takes photos and videos.
22 Camera Flash Provides illumination for the camera.
23 Power Button Turns the display on and off. Press and hold to reset the device,
power off or swap battery.
24 Exit Window Provides data capture using the imager.
25 Headset Jack For audio output to headset. (TC51 Standard)
26 Programmable Button Programmable.
17
Setup
Perform this procedure to start using the device for the first time.
1. Install a micro secure digital (SD) card (optional).
2. Install hand strap (optional).
3. Install the battery.
4. Charge the device.
5. Power on the device.
Installing a microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack.
Refer to the documentation provided with the card for more information, and follow the manufacturer’s
recommendations for use.
CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper ESD pre-
cautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.
1. Lift the access door.
Figure 3 Lift Access Door
2. Slide the microSD card holder to the unlock position.
Figure 4 Unlock microSD Card Holder
3. Lift the microSD card holder.
18
Figure 5 Lift the microSD Card Holder
4. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each
side of the door.
Figure 6 Insert microSD Card in Holder
5. Close the microSD card holder and slide into the lock position.
Figure 7 Re-install Access Door
CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.
6. Re-install the access door.
19
Figure 8 Replace Access Door
Installing the Battery
1. Insert the battery, bottom first, into the battery compartment in the back of the device.
Figure 9 Insert Bottom of Battery into Battery Compartment
2. Press the battery down into the battery compartment until the battery release latches snap into place.
Charging the Battery
Before using the device for the first time, charge the main battery until the green Charging/Notification light
emitting diode (LED) remains lit. To charge the device use a cable or a cradle with the appropriate power
supply. For information about the accessories available for the device see Accessories for more information.
The >
15.48 Watt hours (typical) / > 4,150 mAh battery charges from fully depleted to 90% in approximately 2.5
hours and from fully depleted to 100% in approximately three hours.
NOTE: In many cases the 90% charge provides plenty of charge for daily use. A full 100% charge lasts for approximately
14 hours of use.
To achieve the best fast charging results use only Zebra charging accessories and batteries. Charge batteries at room temperature with the device in sleep mode.
20
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or accessory always performs
battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F))
the device or accessory may for small periods of time alternately enable and disable battery charging to keep
the battery at acceptable temperatures. The device or accessory indicates when charging is disabled due to
abnormal temperatures via its LED and a notification appears on the display.
To charge the main battery:
1. Connect the charging accessory to the appropriate power source.
2. Insert the device into a cradle or attach to a cable. The device turns on and begins charging. The
Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.
Charging Indicators
Table 3 Charging/Notification LED Charging Indicators
State LED Indication
Off Device is not charging. Device is not inserted correctly in the
cradle or connected to a power source. Charger/cradle is not
powered.
Slow Blinking Amber (1 blink
every 4 seconds)
Slow Blinking Red (1 blink every
4 seconds)
Solid Green Charging complete.
Solid Red Charging complete but the battery is at end of useful life.
Fast Blinking Amber (2
blinks/second)
Fast Blinking Red (2
blinks/second)
Google Account Setup
Device is charging.
Device is charging but the battery is at end of useful life.
Charging error, e.g.:
• Temperature is too low or too high.
• Charging has gone on too long without completion
(typically eight hours).
Charging error but the battery is at end of useful life., e.g.:
• Temperature is too low or too high.
• Charging has gone on too long without completion
(typically eight hours).
NOTE: You must connect the device to the internet in order to set up a Google™ account.
A Google account is only required on devices with GMS software.
The first time the device starts, the Setup Wizard displays. Follow the on-screen instructions to set up a Google
account, configure Google Pay
information, and enable backup or restore features.
™ for purchasing items from the Google Play ™ store, to enter your personal
21
Zebra Visibility Services
The device captures and provides device analytics to a system administrator. The first time the device boots
(or after a Factory reset), the Zebra Services agreement screen displays.
Figure 10 Zebra Services
1. Touch the Device Data switch to disable the device from sending analytics data.
2. Touch OK.
Replacing the Battery
CAUTION: Do not add or remove microSD card during battery replacement.
1. Press the Power button until the menu appears.
2. Touch Battery Swap.
3. Follow the on-screen instructions.
WARNING: Do not remove the battery until after the red LED completely turns off. Loss of data may result.
4. Wait for the red LED to completely turn off.
5. If hand strap is attached, remove hand strap.
6. Press the two battery latches in.
22
Figure 11 Press Battery Latches
7. Lift the battery from the device.
Figure 12 Lift the Battery
CAUTION: Replace the battery within 90 seconds. After 90 seconds the device reboots and data may be lost.
8. Insert the replacement battery, bottom first, into the battery compartment in the back of the device.
9. Press the battery down until the battery release latches snap into place.
10.Replace the hand strap, if required.
11.Press the Power button to turn on the device.
Replacing the microSD Card
To replace the microSD card:
1. Press the Power button until the menu appears.
2. Touch Power off.
3. Touch OK.
4. If hand strap is attached, slide the hand strap clip up toward the top of the device and then lift.
5. Press the two battery latches in.
23
6. Lift the battery from the device.
7. Lift the access door.
Figure 13 Remove Access Door
8. Remove microSD card from holder.
9. Insert the replacement microSD card.
CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.
10.Replace the access door.
Figure 14 Replace Access Door
11.Insert the battery, bottom first, into the battery compartment in the back of the device.
12.Press the battery down until the battery release latches snap into place.
13.Replace the hand strap, if required.
14.Press and hold the Power button to turn on the device.
Battery Management
NOTE: Prior to checking the battery charge level, remove the device from any AC power source (cradle or cable).
24
To check the charge status of the main battery, open Settings and touch System > About phone > Battery
Information.
Battery present status indicates if the battery is present and Battery level lists the battery charge (as a
percentage of fully charged). The battery percentage can also be viewed next to the battery icon in the quick
access panel. Swipe down with two fingers from the status bar to open the quick access panel.
Monitoring Battery Usage
The Battery screen provides battery charge details, power management options, and a list of apps that
consume the most battery power.
Use the power management options to extend battery life, or touch an app to display details about its power
consumption. Different apps display different information. Some apps include buttons that open screens with
settings to adjust power use. Use the DISABLE or FORCE CLOSE buttons to turn off apps that consume too
much power.
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Battery.
Figure 15 Battery Screen
Low Battery Notification
When the battery charge level drops below 18%, the device displays a notice to connect the device to power.
The user should charge the battery using one of the charging accessories.
When the battery charge drops below 10%, the device displays a notice to connect the device to power. The
user must charge the battery using one of the charging accessories.
25
When the battery charge drops below 4%, the device turns off. The user must charge the battery using one of
the charging accessories.
Figure 16 Low Battery Notification
Battery Optimization
Observe the following battery saving tips:
• Set the screen to turn off after a short period of non-use.
• Reduce screen brightness.
• Turn off all wireless radios when not in use.
• Turn off automatic syncing for Email, Calendar, Contacts, and other apps.
• Minimize use of apps that keep the device from suspending, for example, music and video apps.
Setting the Date and Time
You are only required to set the time zone or set the date and time if the wireless LAN does not support
Network Time Protocol (NTP).
To set the date and time:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch System > Date & time.
3. Touch Automatic date & time to disable automatic date and time synchronization.
4. Touch Set date.
5. In the calendar, set today’s date.
6. Touch OK.
7. Touch Set time.
8. Touch the green circle, drag to the current hour and then release.
9. Touch the green circle, drag to the current minute and then release.
10.Touch AM or PM.
11.Touch OK.
12.Touch Use 24-hour format.
26
13.Touch .
Display Setting
Use Display settings to change the screen brightness, change the background image, enable screen rotation,
set sleep time and change font size.
Setting the Screen Brightness
To manually set the screen brightness using the touchscreen:
1. Swipe down with two fingers from the Status bar to open the Quick Access panel.
2. Slide the icon to adjust the screen brightness level.
Figure 17 Brightness Slider
To let the device automatically adjust the screen brightness using the built-in light sensor:
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Display.
3. If disabled, touch Adaptive brightness to automatically adjust the brightness.
By default, Adaptive brightness is enabled. Toggle the switch to disable.
4. Touch .
Setting Screen Rotation
By default, screen rotation is enabled.
To disable screen rotation:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Display > Advanced.
3. Touch Auto-rotate screen.
NOTE: To change the Home screen rotation, see Setting Home Screen Rotation.
4. Touch .
Setting Home Screen Rotation
By default the Home screen rotation is disabled. To enable Home screen rotation:
1. Touch and hold anywhere on the Home screen until the options appear.
2. Touch .
27
3. Touch Allow rotation.
4. Touch .
5. Rotate the device.
Figure 18 Rotated Home Screen
Setting Screen Timeout
To set the screen sleep time:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Display > Advanced > Sleep.
3. Select one of the sleep values.
• 15 seconds
• 30 seconds
• 1 minute (default)
• 2 minutes
• 5 minutes
• 10 minutes
• 30 minutes (default).
4. Touch .
Setting Font Size
To set the size of the font in system apps:
1. Swipe down from the Status bar to open the Quick Settings panel and then touch .
2. Touch Display > Advanced.
3. Touch Font size.
28
Figure 19 Font Settings
4. Select one of the font size values.
• Small
• Default
• Large
• Largest.
5. Touch .
Ambient Display
The Ambient display setting wakes the screen when notifications are received. To disable ambient display:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Display.
3. Touch Ambient display to disable.
4. Touch .
Touch Panel Mode
The device display is able to detect touches using a finger, a conductive-tip stylus, or gloved finger.
NOTE: A glove can be made of medical latex, leather, cotton, or wool.
For optimal performance use a Zebra certified stylus.
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Display > Advanced.
29
3. Touch Touch panel mode.
Figure 20 Screen Protector Mode Dialog Box
4. Select:
a. Glove and Finger (Screen Protector off) to use a finger or a gloved finger on the screen without a
screen protector.
b. Stylus and Finger (Screen Protector off) to use a finger or a stylus on the screen without a screen
protector.
5. Touch .
Setting Notification LED
The Charging/Notification LED lights blue when an application, such as email and VoIP, generates a
programmable notification or to indicate when the device is connected to a Bluetooth device. By default, LED
notifications are enabled. To change the notification setting:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Apps & notifications > Notifications.
3. Touch Blink light to toggle the notification on or off.
4. Touch .
General Sound Setting
Use the Sound settings to configure media and alarm volumes.
To access sound settings:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Sound.
3. Touch an option to set sounds.
