Zebra TC51 User Guide

Download

TC51

Touch Computer

User Guide

for Android ™ 8.1 Oreo

MN-003274-02

Copyright

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC; Oreo is a trademark of Mondelez International, Inc. group. All other trademarks are the property of their respective owners. ©2019 Zebra Technologies Corporation and/or its affiliates. All rights reserved.

COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to

www.zebra.com/copyright

WARRANTY: For complete warranty information, go to www.zebra.com/warranty

END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula

Terms of Use

• Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies.

• Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice.

• Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

• Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Revision History

Changes to the original guide are listed below:

Change Date Description

-01 Rev A 10/2018 Initial release.

-02 Rev A 12/2019 Updated battery details in Charging the Battery section.

Copyright - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 Terms of Use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2 Revision History - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2

Table of Contents .......................................................................................................... 3

About This Guide ........................................................................................................ 11

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Documentation Set - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Configurations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Software Versions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12 Chapter Descriptions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12 Notational Conventions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12 Related Documents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13 Service Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13 Provide Documentation Feedback - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14

Getting Started ............................................................................................................ 15

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 Unpacking - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18

Installing a microSD Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18 Installing the Battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20 Charging the Battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20 Charging Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21 Google Account Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21

Zebra Visibility Services - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22

Replacing the Battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22

Replacing the microSD Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23

Battery Management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24 Monitoring Battery Usage - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25

Table of Contents

Low Battery Notification - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25 Battery Optimization - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26

Setting the Date and Time - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26

Display Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 Setting the Screen Brightness - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 Setting Screen Rotation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 Setting Home Screen Rotation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 Setting Screen Timeout - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28 Setting Font Size - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28 Ambient Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29 Touch Panel Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29

Setting Notification LED - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30 General Sound Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30 Wake-Up Sources - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 32

Using the Device ......................................................................................................... 34

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34 Google Mobile Services - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34 Home Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34

Status Bar - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 36

Status Icons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 36 Notification Icons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 37

Managing Notifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 38

Setting App Notifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 39 Viewing Notification Settings for All Apps - - - - - - - - - - - - - - - - - - - - - - - - - - 40

Controlling Lock Screen Notifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40 Quick Access Panel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40 Editing Icons on Quick Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 41 App Shortcuts and Widgets - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 42

Adding an App Shortcut to the Home Screen - - - - - - - - - - - - - - - - - - - - - - - 42

Adding a Widget to the Home Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - 42

Moving Items on the Home Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43

Removing an App Shortcut or Widget from the Home Screen - - - - - - - - - - - 43 Folders - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43

Creating a Folder - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43

Naming Folders - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43

Removing a Folder - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 44 Home Screen Wallpaper - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 44

Using the Touchscreen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 44

Keyboards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45 Editing Text - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45

Entering Numbers, Symbols, and Special Characters - - - - - - - - - - - - - - - - - 45 Keyboard Configuration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45

Enabling Keyboards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45

Switching Between Keyboards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45 Do Not Disturb Feature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46

Table of Contents

Limit Sounds and Vibrations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46

Total Silence - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46

Alarms Only - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46

Automatically Block Sounds and Vibrations - - - - - - - - - - - - - - - - - - - - - - - - 47 Silence Sounds During Certain Times - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 47 Silence Sounds During Events and Meetings - - - - - - - - - - - - - - - - - - - - - - - - - - 47

Turn Sounds Back On - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48

Override Do Not Disturb for Specific Apps - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48

Apps - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48 Accessing Apps - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 52

Switching Between Recent Apps - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 52

Un-Locking the Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 53 Resetting the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 55

Performing a Soft Reset - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56 Performing a Hard Reset - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56

Suspend Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56 Transferring Files with a Host Computer via USB - - - - - - - - - - - - - - - - - - - - - - - - - - 56

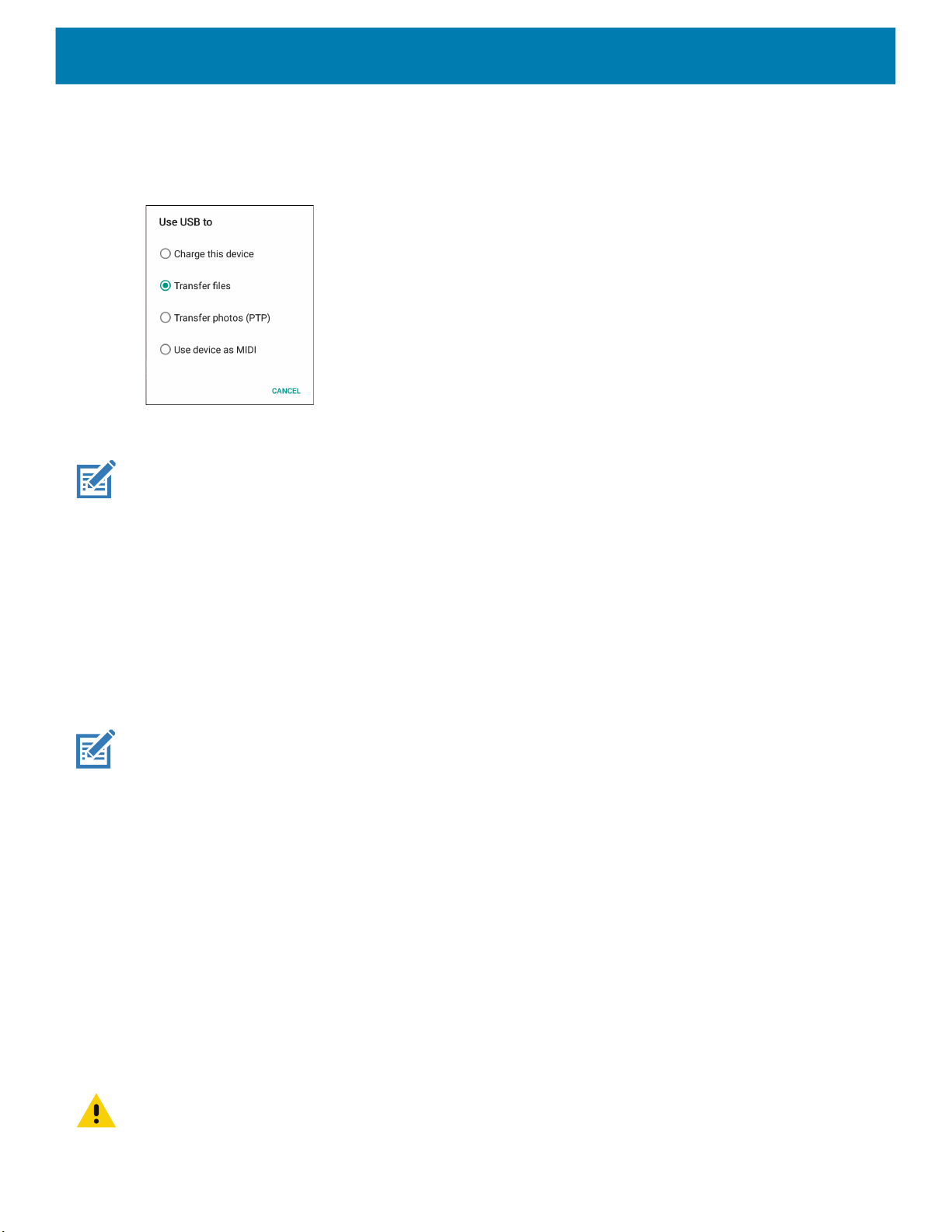

Transferring Files - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56 Transferring Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 57 Disconnect from the Host Computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 57

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 58

Applications ................................................................................................................ 59

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 59 ActiveEdge Touch Zone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 59

Configuring ActiveEdge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 59 Selecting Apps for a Drawer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 60 Using ActiveEdge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 63

Battery Manager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 64 Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 69

Taking Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 69 Taking a Panoramic Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 70 Recording Videos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 71

Photo Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 72

Front Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 72

Rear Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 72

Video Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73

Front Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73

Rear Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73

Contacts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73 Adding a Contact - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 73 Editing Contacts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 74 Deleting Contacts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 74

Device Central - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 75

Device Central Tabs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 76

Paging an RS6000 Ring Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 77

Table of Contents

DataWedge Demonstration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 78 Scanner Selection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 80

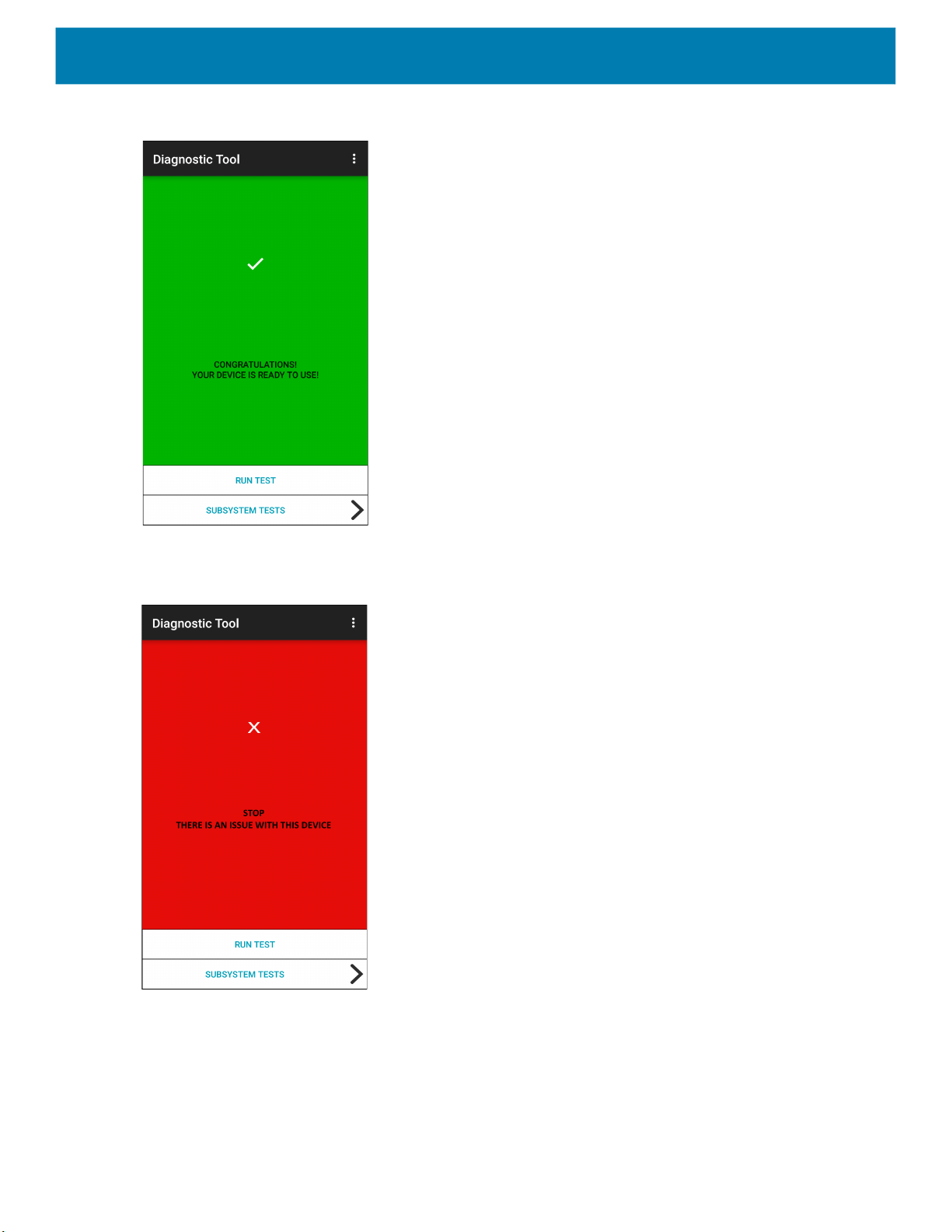

Diagnostic Tool - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 81

Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 84 Battery Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 84 GPS Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85 System Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85 WLAN Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85 WWAN Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85 Bluetooth Test Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 85

Files - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 86 Gallery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 88

Working with Albums - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 89

Sharing an Album - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91

Getting Album Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91

Deleting an Album - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91 Working with Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91

Viewing and Browsing Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 91

Cropping a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 92

Setting a Photo as a Contact Icon - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 93

Sharing a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 93

Deleting a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94 Working with Videos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94

Watching Videos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94

Sharing a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94

Deleting a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 94

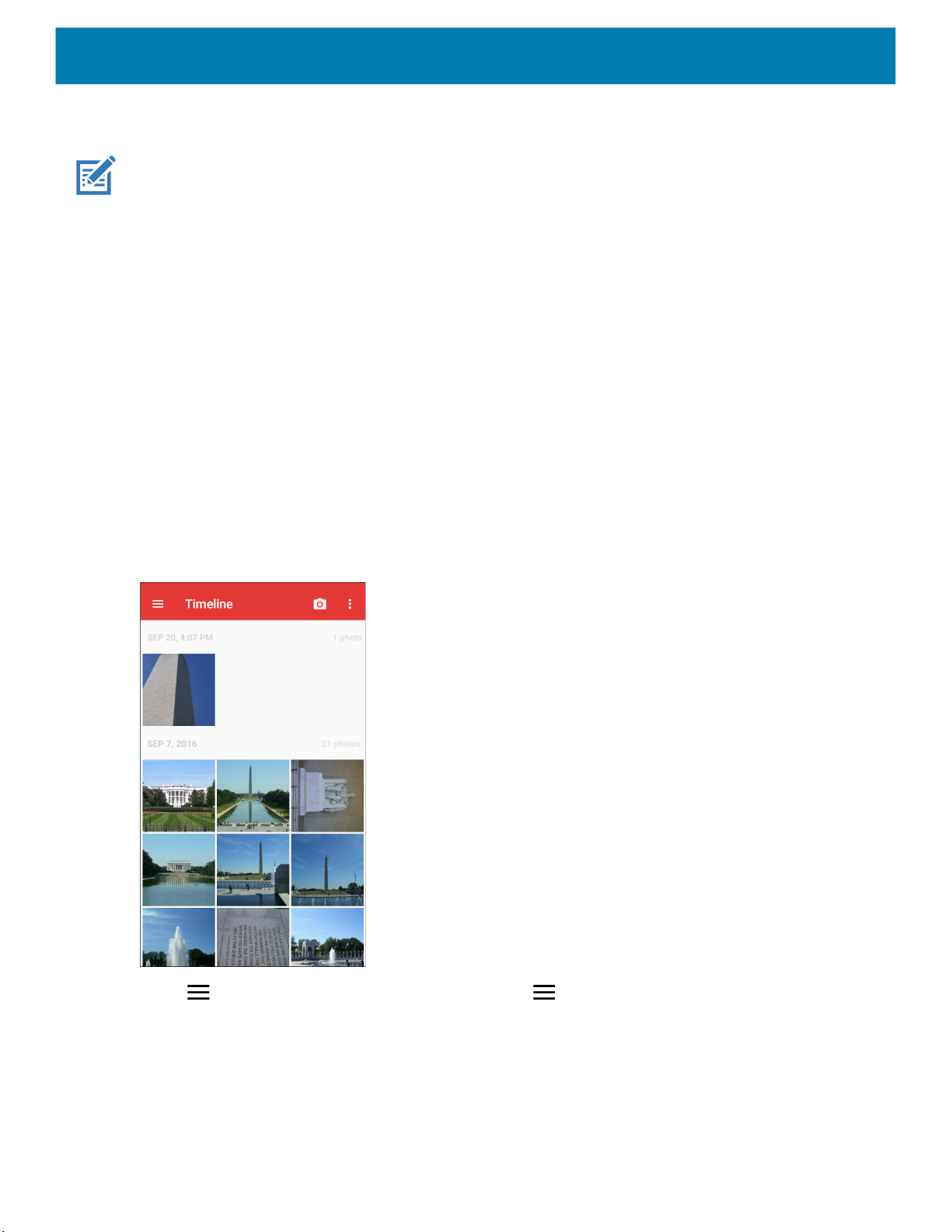

Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 95

Working with Albums - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 96

Sharing an Album - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 97

Deleting an Album - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 97 Working with Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 98

Viewing and Browsing Photos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 98

Cropping a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 98

Setting a Photo as a Contact Icon - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 99

Sharing a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 99

Deleting a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100 Working with Videos - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100

Watching a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100

Sharing a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100

Deleting a Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 100

PTT Express Voice Client - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 101

PTT Audible Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 101 PTT Notification Icons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 101

Enabling PTT Communication - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 103

Selecting a Talk Group - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 103 PTT Communication - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 103

Creating a Group Call - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 103

Table of Contents

Responding with a Private Response - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 104 Disabling PTT Communication - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 104

RxLogger - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 105 RxLogger Utility - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 106 SimulScan Demo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 107 Printing the Sample Forms - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 108

Using the Postal, Transportation and Logistics Example - - - - - - - - - - - - - - - - - 109 Using the Manufacturing Example - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 111 Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 112 Advanced Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 113 Creating a Demo Customization - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 113 Default Templates - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 115

Sound Recorder - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 115

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 118

Data Capture .............................................................................................................. 119

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 119 Imaging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 119 Digital Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 119 Linear Imager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 119

Operational Modes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 120 RS507 Hands-Free Imager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 120

RS6000 Bluetooth Ring Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 121 DS3678 Digital Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 121 LI3678 Linear Imager Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 122 Scanning Considerations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 122 Scanning with Internal Imager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 123 Scanning with Internal Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 124 Scanning with RS6000 Bluetooth Ring Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - 125 Scanning with RS507/RS507X Hands-Free Imager - - - - - - - - - - - - - - - - - - - - - - - 127 Scanning with the DS3608 USB Scanner or DS3678 Bluetooth Scanner - - - - - - - - 128 Scanning with LI3678 Linear Imager - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 129 Pairing the RS507/RS6000 Hands-Free Imager - - - - - - - - - - - - - - - - - - - - - - - - - - 130

Pairing in SSI Mode Using Near Field Communication - - - - - - - - - - - - - - - - - - 130 Pairing in HID Mode Using Near Field Communication - - - - - - - - - - - - - - - - - - 131 Pairing Using Simple Serial Interface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 132 Pairing Using Bluetooth Human Interface Device - - - - - - - - - - - - - - - - - - - - - - 133

Pairing a Bluetooth Scanner - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 134

Pairing Using Simple Serial Interface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 134 Pairing Using Bluetooth Human Interface Device - - - - - - - - - - - - - - - - - - - - - - 136 DataWedge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 137 Enabling DataWedge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 137 Disabling DataWedge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 137

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 137

Table of Contents

Wireless ..................................................................................................................... 138

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 138 Wireless Local Area Networks - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 138 Connecting to a Wi-Fi Network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 138

Removing a Wi-Fi Network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 140

Bluetooth - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 140 Adaptive Frequency Hopping - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 140

Security - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 141 Bluetooth Profiles - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 141 Bluetooth Power States - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 142 Bluetooth Radio Power - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 142

Enabling Bluetooth - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 142

Disabling Bluetooth - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 143 Discovering Bluetooth Device(s) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 143 Changing the Bluetooth Name - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 143 Connecting to a Bluetooth Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 143 Unpairing a Bluetooth Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 144 Near Field Communications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 144 Reading NFC Cards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 144 Sharing Information Using NFC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 145

Cast - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 146

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 146

Accessories ............................................................................................................... 147

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 147 Accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 147 1-Slot USB Charge Cradle - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 150

Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 150 Inserting a Device with Rugged Boot into Cradle - - - - - - - - - - - - - - - - - - - - - - 151 Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 152

Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 152

4-Slot Charge Only Cradle with Battery Charger - - - - - - - - - - - - - - - - - - - - - - - - - - 152

Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 153 Inserting a Device with Rugged Boot into Cradle - - - - - - - - - - - - - - - - - - - - - - 155 Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 155

Main Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 155

Spare Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 155

Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 156

5-Slot Charge Only Cradle - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 156 Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 157 Inserting a Device with Rugged Boot into Cradle - - - - - - - - - - - - - - - - - - - - - - 158 Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 159

Main Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 159

Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 159

5-Slot Ethernet Cradle - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 159 Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 160

Table of Contents

Inserting a TC51 with Rugged Boot into Cradle - - - - - - - - - - - - - - - - - - - - - - - 161 Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162

Main Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162

Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162

Establishing Ethernet Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162 LED Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162

4-Slot Battery Charger - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 163

Charging Spare Batteries - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 163 Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164

Spare Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164

Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164

Rugged Boot - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164 Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 164 Installing Stylus - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 166 Charging with Cradles - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 167

Basic Hand Strap Kit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 168

Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 169 Removal - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 170

2.5 mm Audio Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 172

3.5 mm Audio Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 173 Rugged Charge/USB Cable - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 175

Connecting to TC51 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 175 Connecting to TC51 with Rugged Boot - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 176 USB Communication - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 177 Charging the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 177 Disconnecting the Rugged Charge/USB Cable - - - - - - - - - - - - - - - - - - - - - - - - 178 Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 179

Main Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 179

Charging Temperature - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 180

Trigger Handle - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 181

Installing the Rugged Boot - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 181 Installing the Optional Lanyard - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 183 Inserting the Device into the Trigger Handle - - - - - - - - - - - - - - - - - - - - - - - - - - 184 Removing the Device from the Trigger Handle - - - - - - - - - - - - - - - - - - - - - - - - 185

Power Supply - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 187

Maintenance and Troubleshooting ......................................................................... 188

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 188 Maintaining the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 188 Display Best Practices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 188

Image Retention - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 188 Battery Safety Guidelines - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 189

Cleaning Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 189

Approved Cleanser Active Ingredients - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 190 Approved Disinfectant Cleaners for TC51-Healthcare - - - - - - - - - - - - - - - - - - - 190 Harmful Ingredients - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 190

Table of Contents

Device Cleaning Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191

Special Cleaning Notes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191

Recommended Cleaning Materials - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191

Standard and Healthcare Devices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191

Healthcare Only Devices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191 Cleaning Frequency - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 191

Cleaning the Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192

Housing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192 Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192 Camera and Exit Window - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192 Battery Guide Slots - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 192

Battery Connector and Locating Magnet Cleaning - - - - - - - - - - - - - - - - - - - - - - - - 192 Cleaning Cradle Connectors - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 193 Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 194

TC51 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 194

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 197 TC51 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 197

Index ........................................................................................................................... 201

About This Guide

Introduction

This guide provides information about using the TC51 touch computer and accessories. The TC51 refers to both the TC51 (Standard) and TC51-HC (Healthcare) configurations, except where noted.

NOTE: Screens and windows pictured in this guide are samples and can differ from actual screens.

Documentation Set

The documentation set provides information for specific user needs, and includes:

• TC51 Touch Computer Quick Start Guide - describes how to get the device up and running.

• TC51 Touch Computer User Guide for Android 8.1 Oreo - describes how to use the device.

• TC51 Touch Computer Integrator Guide for Android 8.1 Oreo - describes how to set up the device and accessories.

Configurations

This guide covers the following configurations:

Configuration Radios Display Memory

TC510K-1 WLAN: 802.11

a/b/g/n/d/h/i/k/r WPAN:

Bluetooth v4.1 Low Energy

TC510K-2 WLAN: 802.11

a/b/g/n/d/h/i/k/r WPAN:

Bluetooth v4.1 Low Energy

5.0” High Definition (1280 x 720) LCD

2 GB RAM / 16 GB Flash or 4 GB RAM / 32 GB Flash

Data Capture

Options

2D imager (SE-4710) and integrated NFC

Operating

System

Android-based, Google ™ Mobile Services (GMS) 8.1.

Android-based, Android Open-Source Project 8.1.

Software Versions

To determine the current software versions:

1. Swipe down from the Status bar to open the Quick Settings bar.

2. Touch > System.

3. Touch About phonetablet.

4. Scroll to view the following information:

• Model

• Android version

• Android security patch version

• Baseband version

• Kernel version

• Build number.

To determine the device serial number, touch About phone > Status.

• Serial number

Chapter Descriptions

Topics covered in this guide are as follows:

• Getting Started provides information on getting the device up and running for the first time.

• Using the Device provides information for operating the device.

• Applications provides information on using applications installed on the device.

• Data Capture provides information for capturing bar code data using the imager.

• Wireless provides information on the various wireless options.

• Accessories provides information for using the accessories for the device.

• Maintenance and Troubleshooting includes instructions on cleaning and provides troubleshooting solutions for potential problems during device operation.

• Technical Specifications provides the technical specifications for the device.

Notational Conventions

The following conventions are used in this document:

• Tablet refers to the Zebra ET51 or ET56 tablet.

• Bold text is used to highlight the following:

• Dialog box, window and screen names

• Drop-down list and list box names

• Check box and radio button names

• Icons on a screen

• Key names on a keypad

• Button names on a screen.

• Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential.

• Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.

Service Information

If you have a problem with your equipment, contact Customer Support for your region. Contact information is available at: www.zebra.com/support

When contacting support, please have the following information available:

• Serial number of the unit (found on manufacturing label)

• Model number or product name (found on manufacturing label)

• Software type and version number

Customer Support responds to calls by email or telephone within the time limits set forth in support agreements.

If the problem cannot be solved by Customer Support, you may need to return the equipment for servicing and will be given specific directions. We are not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty. Remove the microSD card from the device before shipping for service.

If the device was purchased from a business partner, contact that business partner for support.

Provide Documentation Feedback

If you have comments, questions, or suggestions about this guide, send an email to

EVM-Techdocs@zebra.com

Getting Started

Introduction

This chapter provides information for getting the device up and running for the first time.

Unpacking

1. Carefully remove all protective material from the device and save the shipping container for later storage and shipping.

2. Verify that the following were received:

• device

• >

15.48 Watt hours (typical) / > 4,150 mAh PowerPrecision+ Lithium-ion battery

• Regulatory Guide.

3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global Customer Support center immediately.

4. Prior to using the device for the first time, remove the protective shipping film that covers the scan

Features

NOTE: All features are available on both the TC51 (Standard) and TC51-HC (Healthcare) configurations, except

where noted.

window, display and camera window.

Figure 1 Front View

Table 1 Front View Features

Number Item Function

1 Front Camera Takes photos and videos (optional).

2 Receiver Use for audio playback in Handset mode.

3 Data Capture LED Indicates data capture status.

4 Microphone Use for communications in Speakerphone mode.

5 Proximity Sensor Determines proximity for turning off display when in handset mode.

6 Light Sensor Determines ambient light for controlling display backlight intensity.

7 Charging/Notification LED Indicates battery charging status while charging and application

generated notifications.

8 ActiveEdge Touch Zone Programmable dynamic soft key positioned near the perimeter of

the display for one-touch access to a frequently used application or function.

9 Touch Screen Displays all information needed to operate the device.

10 Speaker Provides audio output for video and music playback. Provides

audio in speakerphone mode.

11 Interface Connector Provides USB host and client communications, audio and device

charging via cables and accessories. CAUTION: Do not remove the interface connector to ensure proper

device sealing.

Table 1 Front View Features (Continued)

Number Item Function

12 Microphone Use for communications in Handset mode.

13 Scan Button Initiates data capture (programmable).

14 PTT Button Initiates push-to-talk communications (programmable).

Figure 2 Rear View

Table 2 Back View Features

Number Item Function

15 Battery Provides power to the device.

16 Basic Hand Strap Mount Provides mounting point for Basic Hand Strap accessory. (TC51

Standard)

17 NFC Antenna Provides communication with other NFC-enabled devices.

18 Scan Button Initiates data capture (programmable).

19 Battery Release Latches Press to remove the battery.

20 Volume Up/Down Button Increase and decrease audio volume (programmable).

21 Rear Camera Takes photos and videos.

22 Camera Flash Provides illumination for the camera.

23 Power Button Turns the display on and off. Press and hold to reset the device,

power off or swap battery.

24 Exit Window Provides data capture using the imager.

25 Headset Jack For audio output to headset. (TC51 Standard)

26 Programmable Button Programmable.

Setup

Perform this procedure to start using the device for the first time.

1. Install a micro secure digital (SD) card (optional).

2. Install hand strap (optional).

3. Install the battery.

4. Charge the device.

5. Power on the device.

Installing a microSD Card

The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recommendations for use.

CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper ESD pre-

cautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.

1. Lift the access door.

Figure 3 Lift Access Door

2. Slide the microSD card holder to the unlock position.

Figure 4 Unlock microSD Card Holder

3. Lift the microSD card holder.

Figure 5 Lift the microSD Card Holder

4. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each side of the door.

Figure 6 Insert microSD Card in Holder

5. Close the microSD card holder and slide into the lock position.

Figure 7 Re-install Access Door

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

6. Re-install the access door.

Figure 8 Replace Access Door

Installing the Battery

1. Insert the battery, bottom first, into the battery compartment in the back of the device.

Figure 9 Insert Bottom of Battery into Battery Compartment

2. Press the battery down into the battery compartment until the battery release latches snap into place.

Charging the Battery

Before using the device for the first time, charge the main battery until the green Charging/Notification light emitting diode (LED) remains lit. To charge the device use a cable or a cradle with the appropriate power supply. For information about the accessories available for the device see Accessories for more information.

The >

15.48 Watt hours (typical) / > 4,150 mAh battery charges from fully depleted to 90% in approximately 2.5

hours and from fully depleted to 100% in approximately three hours.

NOTE: In many cases the 90% charge provides plenty of charge for daily use. A full 100% charge lasts for approximately

14 hours of use. To achieve the best fast charging results use only Zebra charging accessories and batteries. Charge batteries at room temperature with the device in sleep mode.

Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or accessory always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the device or accessory may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device or accessory indicates when charging is disabled due to abnormal temperatures via its LED and a notification appears on the display.

To charge the main battery:

1. Connect the charging accessory to the appropriate power source.

2. Insert the device into a cradle or attach to a cable. The device turns on and begins charging. The Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.

Charging Indicators

Table 3 Charging/Notification LED Charging Indicators

State LED Indication

Off Device is not charging. Device is not inserted correctly in the

cradle or connected to a power source. Charger/cradle is not powered.

Slow Blinking Amber (1 blink every 4 seconds)

Slow Blinking Red (1 blink every 4 seconds)

Solid Green Charging complete.

Solid Red Charging complete but the battery is at end of useful life.

Fast Blinking Amber (2 blinks/second)

Fast Blinking Red (2 blinks/second)

Google Account Setup

Device is charging.

Device is charging but the battery is at end of useful life.

Charging error, e.g.:

• Temperature is too low or too high.

• Charging has gone on too long without completion (typically eight hours).

Charging error but the battery is at end of useful life., e.g.:

• Temperature is too low or too high.

• Charging has gone on too long without completion (typically eight hours).

NOTE: You must connect the device to the internet in order to set up a Google™ account.

A Google account is only required on devices with GMS software.

The first time the device starts, the Setup Wizard displays. Follow the on-screen instructions to set up a Google account, configure Google Pay information, and enable backup or restore features.

™ for purchasing items from the Google Play ™ store, to enter your personal

Zebra Visibility Services

The device captures and provides device analytics to a system administrator. The first time the device boots (or after a Factory reset), the Zebra Services agreement screen displays.

Figure 10 Zebra Services

1. Touch the Device Data switch to disable the device from sending analytics data.

2. Touch OK.

Replacing the Battery

CAUTION: Do not add or remove microSD card during battery replacement.

1. Press the Power button until the menu appears.

2. Touch Battery Swap.

3. Follow the on-screen instructions.

WARNING: Do not remove the battery until after the red LED completely turns off. Loss of data may result.

4. Wait for the red LED to completely turn off.

5. If hand strap is attached, remove hand strap.

6. Press the two battery latches in.

Figure 11 Press Battery Latches

7. Lift the battery from the device.

Figure 12 Lift the Battery

CAUTION: Replace the battery within 90 seconds. After 90 seconds the device reboots and data may be lost.

8. Insert the replacement battery, bottom first, into the battery compartment in the back of the device.

9. Press the battery down until the battery release latches snap into place.

10.Replace the hand strap, if required.

11.Press the Power button to turn on the device.

Replacing the microSD Card

To replace the microSD card:

1. Press the Power button until the menu appears.

2. Touch Power off.

3. Touch OK.

4. If hand strap is attached, slide the hand strap clip up toward the top of the device and then lift.

5. Press the two battery latches in.

6. Lift the battery from the device.

7. Lift the access door.

Figure 13 Remove Access Door

8. Remove microSD card from holder.

9. Insert the replacement microSD card.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

10.Replace the access door.

Figure 14 Replace Access Door

11.Insert the battery, bottom first, into the battery compartment in the back of the device.

12.Press the battery down until the battery release latches snap into place.

13.Replace the hand strap, if required.

14.Press and hold the Power button to turn on the device.

Battery Management

NOTE: Prior to checking the battery charge level, remove the device from any AC power source (cradle or cable).

To check the charge status of the main battery, open Settings and touch System > About phone > Battery

Information.

Battery present status indicates if the battery is present and Battery level lists the battery charge (as a

percentage of fully charged). The battery percentage can also be viewed next to the battery icon in the quick access panel. Swipe down with two fingers from the status bar to open the quick access panel.

Monitoring Battery Usage

The Battery screen provides battery charge details, power management options, and a list of apps that consume the most battery power.

Use the power management options to extend battery life, or touch an app to display details about its power consumption. Different apps display different information. Some apps include buttons that open screens with settings to adjust power use. Use the DISABLE or FORCE CLOSE buttons to turn off apps that consume too much power.

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Battery.

Figure 15 Battery Screen

Low Battery Notification

When the battery charge level drops below 18%, the device displays a notice to connect the device to power. The user should charge the battery using one of the charging accessories.

When the battery charge drops below 10%, the device displays a notice to connect the device to power. The user must charge the battery using one of the charging accessories.

When the battery charge drops below 4%, the device turns off. The user must charge the battery using one of the charging accessories.

Figure 16 Low Battery Notification

Battery Optimization

Observe the following battery saving tips:

• Set the screen to turn off after a short period of non-use.

• Reduce screen brightness.

• Turn off all wireless radios when not in use.

• Turn off automatic syncing for Email, Calendar, Contacts, and other apps.

• Minimize use of apps that keep the device from suspending, for example, music and video apps.

Setting the Date and Time

You are only required to set the time zone or set the date and time if the wireless LAN does not support Network Time Protocol (NTP).

To set the date and time:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch System > Date & time.

3. Touch Automatic date & time to disable automatic date and time synchronization.

4. Touch Set date.

5. In the calendar, set today’s date.

6. Touch OK.

7. Touch Set time.

8. Touch the green circle, drag to the current hour and then release.

9. Touch the green circle, drag to the current minute and then release.

10.Touch AM or PM.

11.Touch OK.

12.Touch Use 24-hour format.

13.Touch .

Display Setting

Use Display settings to change the screen brightness, change the background image, enable screen rotation, set sleep time and change font size.

Setting the Screen Brightness

To manually set the screen brightness using the touchscreen:

1. Swipe down with two fingers from the Status bar to open the Quick Access panel.

2. Slide the icon to adjust the screen brightness level.

Figure 17 Brightness Slider

To let the device automatically adjust the screen brightness using the built-in light sensor:

1. Swipe down from the status bar to open the quick settings bar and then touch .

2. Touch Display.

3. If disabled, touch Adaptive brightness to automatically adjust the brightness.

By default, Adaptive brightness is enabled. Toggle the switch to disable.

4. Touch .

Setting Screen Rotation

By default, screen rotation is enabled.

To disable screen rotation:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Display > Advanced.

3. Touch Auto-rotate screen.

NOTE: To change the Home screen rotation, see Setting Home Screen Rotation.

4. Touch .

Setting Home Screen Rotation

By default the Home screen rotation is disabled. To enable Home screen rotation:

1. Touch and hold anywhere on the Home screen until the options appear.

2. Touch .

3. Touch Allow rotation.

4. Touch .

5. Rotate the device.

Figure 18 Rotated Home Screen

Setting Screen Timeout

To set the screen sleep time:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Display > Advanced > Sleep.

3. Select one of the sleep values.

• 15 seconds

• 30 seconds

• 1 minute (default)

• 2 minutes

• 5 minutes

• 10 minutes

• 30 minutes (default).

4. Touch .

Setting Font Size

To set the size of the font in system apps:

1. Swipe down from the Status bar to open the Quick Settings panel and then touch .

2. Touch Display > Advanced.

3. Touch Font size.

Figure 19 Font Settings

4. Select one of the font size values.

• Small

• Default

• Large

• Largest.

5. Touch .

Ambient Display

The Ambient display setting wakes the screen when notifications are received. To disable ambient display:

1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .

2. Touch Display.

3. Touch Ambient display to disable.

4. Touch .

Touch Panel Mode

The device display is able to detect touches using a finger, a conductive-tip stylus, or gloved finger.

NOTE: A glove can be made of medical latex, leather, cotton, or wool.

For optimal performance use a Zebra certified stylus.

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Display > Advanced.

3. Touch Touch panel mode.

Figure 20 Screen Protector Mode Dialog Box

4. Select:

a. Glove and Finger (Screen Protector off) to use a finger or a gloved finger on the screen without a

screen protector.

b. Stylus and Finger (Screen Protector off) to use a finger or a stylus on the screen without a screen

protector.

5. Touch .

Setting Notification LED

The Charging/Notification LED lights blue when an application, such as email and VoIP, generates a programmable notification or to indicate when the device is connected to a Bluetooth device. By default, LED notifications are enabled. To change the notification setting:

1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .

2. Touch Apps & notifications > Notifications.

3. Touch Blink light to toggle the notification on or off.

4. Touch .

General Sound Setting

Use the Sound settings to configure media and alarm volumes.

To access sound settings:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Sound.

3. Touch an option to set sounds.

Figure 21 Sound Screen

• Zebra volume controls

• Ring volume - Controls the ringtone volume.

• Media volume - Controls the music, games, and media volume.

• Alarm volume - Controls the alarm clock volume.

• Notifications volume - Controls the notification volume.

• Scanner volume - Controls the scanner volume.

• Volume presets

• - Mutes the ring, notifications, and scanner so that the device does not make sounds or vibrate.

• - All sounds except media and alarms are silenced and vibrate mode is active.

• - Enables all sounds at the user defined levels.

• Also vibrate for calls - Switch on or off.

• Do Not Disturb preferences - Mutes some or all sounds and vibrations.

• Priority only allows - Use to set the priorities for the following:

• Reminders - Switch on or off.

• Events - Switch on or off.

• Alarms - This is always enabled.

• Messages - Choose to allow messages from anyone, starred contacts, any contact, or none. To star contacts, use the Contacts app.

• Calls - Choose to allow calls from anyone, starred contacts, any contact, or none. To star contacts, use the Contacts app.

• Repeat callers - Choose whether or not the phone rings if the same person calls again within 15 minutes.

• Block visual disturbances

• Block when screen is on - This option prevents notifications from displaying over the screen (peeking) while you are actively using the device.

• Block when screen is off - This option prevents notifications from turning on the screen or pulsing the LED light when a new notification is received while you are not using the device.

• Automatic rules - Choose when to automatically silence the device. Touch a default rule, such as Weekend or Weeknight, or create your own rule. To create your own rule, tap Add more and then Time rule.

• Phone ringtone - Touch to select a sound to play when the phone rings.

• Advanced - Touch to display advanced sound options.

• Default notification sound - Touch to select a sound to play for all system notifications.

• Default alarm sound - Touch to select a sound to play for alarms.

• Other sounds and vibrations

• Dial pad tones - Play a sound when pressing keys on dial pad (default - disabled).

• Screen locking sounds - Play a sound when locking and unlocking the screen (default – enabled).

• Charging sounds - Not applicable.

• Touch sounds - Play a sound when making screen selections (default – enabledenabled).

• Vibrate on tap - Vibrate the device when making screen selections (default – disabled).

•

• Emergency alerts - Touch to configure emergency broadcast settings and notifications.

Wake-Up Sources

By default the device wakes from suspend mode when the user presses the power button. The device can be configured to wake when the user presses the PTT or Scan buttons on the left side of the device.

1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .

2. Touch Wake-Up Sources.

3. Touch one or more of the options:

• Touch SCAN checkbox to enable the left scan button. A check appears in the checkbox.

• Touch RIGHT_TRIGGER_2 checkbox to enable the right scan button. A check appears in the checkbox.

• Touch LEFT_TRIGGER_2 checkbox to enable the PTT button. A check appears in the checkbox.

• Touch REAR_BUTTON checkbox rear programmable button. A check appears in the checkbox.

Figure 22 Wake-Up Sources

4. Touch .

Using the Device

Introduction

This chapter explains the buttons, status icons, and controls on the device, and provides basic instructions for using the device including resetting the device and entering data.

Google Mobile Services

NOTE: This section applies to Google Mobile Services (GMS) devices only.

Devices with GMS contain apps and services that provide additional functionality.

GMS includes:

• Apps - GMS adds a variety of Google apps and associated widgets including Chrome, Gmail, Drive, and Maps.

• Services:

• Speech to Text - Allows for free format speech to text in many languages for both connected

and disconnected network. Launch by touching the microphone icon on the keyboard.

• TalkBack Service - Provides spoken feedback on various parts of the user interface. To enable,

go to Settings > Accessibility.

• Network Location Provider - Adds a location provider which uses mobile network tower

information and Wi-Fi access point information to provide a location without using GPS. To enable, go to Settings > Security & location > Location.

• Widevine DRM - Enables Digital Rights Management (DRM) so that protected streaming video

content can be played. Enable DRM Info from the Google Play

• Google Cloud Messaging - Allows the device to receive data from the server and other devices

on the same connection.

• Backup and Restore - Allows the users settings and apps to be backed up to a Google server

and subsequently restored from that server after a factory reset.

• Google Accounts - Create and use a Google account to synchronize mail, files, music, photos, contacts and calendar events.

™ store.

Home Screen

The Home screen displays when the device turns on. Depending upon the configuration, the Home screen might appear different. Contact your system administrator for more information.

After a suspend or screen time-out, the Home screen displays with the lock sliders. Touch the screen and slide up to unlock. For screen locking information see Un-Locking the Screen on page 53.

Figure 23 Home Screen

123

Non-GMS GMS

123

Table 4 Home Screen Items

Item Description

1 — Recent Button Displays recently used applications.

2 — Home Displays the Home screen.

3 — Back Displays the previous screen.

4 — Shortcut Icons Opens applications installed on the device. See Application

Shortcuts and Widgets on page 41 for more information.

5 — Widgets Launches stand-alone applications that run on the Home screen.

See Application Shortcuts and Widgets on page 41 for more information.

6 — Status Bar Displays the time, status icons (right side), and notification icons

(left side). For more information see Status Bar on page 36 and

Managing Notifications on page 38.

The Home screen provides four additional screens for placement of widgets and shortcuts. When available, swipe the screen left or right to view the additional screens. The additional screens are not viewable by default.

Status Bar

The Status bar displays the time, notification icons (left side), and status icons (right side).

NOTE: Some Status icons may not appear in the Status bar if there are too many icons to display.

Figure 24 Notification and Status Icons

Notification Icons

If there are more notifications than can fit in the Status bar, two dots display indicating that more notifications exist. Swipe down from the Status bar to open the Notification panel and view all notifications and status.

Status Icons

Table 5 Status Icons

Icon Description

Alarm is active.

Main battery is fully charged.

Main battery is partially drained.

Main battery charge is low.

Main battery charge is very low.

Main battery is charging.

Indicates that the optional Power Pack is fully charged.

Indicates that the optional Power Pack is partially drained.

Indicates that the optional Power Pack charge is low.

Indicates that the optional Power Pack charge is very low.

Indicates that the optional Power Pack is charging when in charging cradle.

All sounds, except media and alarms, are silenced and vibrate mode is active.

Do Not Disturb mode active.

Airplane Mode is active. All radios are turned off.

Cellular network icon that appears is dependent upon the carrier/network.

Table 5 Status Icons (Continued)

Icon Description

Bluetooth is on.

The device is connected to a Bluetooth device.

Connected to a Wi-Fi network.

Not connected to a Wi-Fi network or no Wi-Fi signal.

Connected to an Ethernet network.

Speakerphone enabled.

Portable Wi-Fi hotspot is active (WWAN only).

Connected to a 4G LTE/LTE-CA network (WWAN only)

Connected to a DC-HSPA, HSDPA, HSPA+, HSUPA, LTE/LTE-CA or WCMDMA network

(WWAN only)

Connected to a 1x-RTT (Sprint), EGDGE, EVDO, EVDV or WCDMA network (WWAN only)

Connected to a DC - HSPA, HSDPA, HSPA+ or HSUPA network (WWAN only)1.

Connected to an EDGE network (WWAN only)

Connected to a GPRS network (WWAN only)

Roaming from a network (WWAN only).

No SIM card installed (WWAN only).

Cellular network icon that appears is dependent upon the carrier/network.

Notification Icons

Table 6 Notification Icons

Icon Description

Main battery is low.

More notifications are available for viewing.

Data is syncing.

Indicates an upcoming event. Non-GMS devices only.

Indicates an upcoming event. GMS devices only.

Table 6 Notification Icons (Continued)

Icon Description

Open Wi-Fi network is available.

Song is playing.

Problem with sign-in or sync has occurred.

Device is uploading data.

Device is downloading data when animated and download is complete when static.

Device is connected via USB cable.

Device is connected to or disconnected from virtual private network (VPN).

Preparing internal storage by checking it for errors.

USB debugging is enabled on the device.

Headset is connected to the device.

PTT Express Voice client status. See the PTT Express PTT Notification Icons for a complete list.

Indicates that RxLogger app is running.

Indicates the Bluetooth scanner is connected to the device.

Indicates the RS507/RS507X or RS6000 is connected to the device in HID mode.

Managing Notifications

Notification icons report the arrival of new messages, calendar events, alarms, and ongoing events. When a notification occurs, an icon appears in the Status bar with a brief description. See Notification Icons for a list of possible notification icons and their description. Open the Notification panel to view a list of all the notifications.

To open the Notification panel, drag the Status bar down from the top of the screen.

Figure 25 Notification Panel

To respond to a notification, open the Notification panel and then touch a notification. The Notification panel closes and the corresponding app opens.

To clear all notifications, open the Notification panel and then touch CLEAR ALL. All event-based notifications are removed. Ongoing notifications remain in the list.

To close the Notification panel, swipe the Notification panel up.

Setting App Notifications

To set notification settings for a specific app:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Apps & notifications > Notifications > App notifications.

3. Select an app.

4. Select an available option:

• On / Off - Select to turn all notifications from this app On (default) or Off.

• Allow notification dot - Do not allow this app to add a notification dot to the app icon.

• Allow interruptions - Do not allow notifications from this app to make sound, vibrate, or pop notifications on the screen.

• Override Do Not Disturb - Allow these notifications to interrupt when Do Not Disturb is set to Priority Only.

• Categories - Do not allow specific types of notifications from this app.

• Additional settings in the app - Open the app settings.

NOTE: To change the notification settings for an app, slide the notification slightly left or right and touch .

Viewing Notification Settings for All Apps

To view the notification settings for all apps:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Apps & Notifications.

3. Scroll down to Notifications to view how many apps have notifications turned off.

4. To set or view notifications settings for a specific app, see Setting App Notifications.

Controlling Lock Screen Notifications

To control whether notifications can be seen when the device is locked:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Apps & notifications > Notifications.

3. Touch On the lock screen and select one of the following:

• Show all notification content (default)

• Don’t show notifications at all.

Quick Access Panel

Use the Quick Access panel to access frequently used settings (for example, Airplane mode).

Figure 26 Quick Settings Bar

To see the full Quick Access panel:

• If the device is locked, swipe down once.

• If the device is unlocked, swipe down once with two fingers, or twice with one finger.

• If the Quick Settings bar is open, touch the Down arrow.

Figure 27 Quick Access Panel

NOTE: Not all icons are pictured. Icons may vary.

To change a setting, touch the icon:

• Display brightness - Use the slider to decrease or increase the brightness of the screen.

• Wi-Fi network - Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.

• Bluetooth settings - Turn Bluetooth on or off. To open Bluetooth settings, touch Bluetooth.

• Battery saver - Turn Battery saver mode on or off. When Battery saver mode is on the performance of the device is reduced to preserve battery power.

• Invert colors - Invert the display colors.

• Do not disturb - Control how and when to receive notifications.

• Airplane mode - Turn Airplane mode on or off. When Airplane mode is on the device does not connect to Wi-Fi or Bluetooth.

• Auto-rotate - Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.

• Flashlight - Turn flashlight on or off. Turn camera flash on or off.

• Location - Enable or disable locationing feature.

• Hotspot - Turn on to share the device’s mobile data connection with other devices.

• Night Light - Tint the screen amber to make it easier to look at the screen in dim light. Set Night Light to turn on automatically from sunset to sunrise, or at other times.

• Nearby - Helps find and interact with services and devices close to the device.

• Cast - Share phone content on Chromecast or a television with Google Cast built-in. Touch cast screen to display a list of devices, then touch a device to begin casting.

Editing Icons on Quick Settings

The first several setting tiles from the Quick Access panel become the Quick Settings bar.

To move a setting tile:

1. Open the Quick Access panel.

2. Touch .

3. Touch and drag a setting tile to another location.

4. Release the tile.

5. Touch to save tiles and return to the Quick Access panel.

To add a setting tile:

1. Open the Quick Access panel.

2. Touch .

3. Slide the Quick Settings panel up to reveal additional tiles.

4. Touch and drag a setting tile from the Drag to add tiles area to the main area.

5. Release the tile.

6. Touch to save tiles and return to Quick Access panel.

To remove a setting tile:

1. Open the Quick Access panel.

2. Touch .

3. Touch and drag a setting tile to the Drag here to remove area.

4. Release the tile.

5. Touch to save tiles and return to Quick Access panel.

App Shortcuts and Widgets

App shortcuts placed on the Home screen allow quick and easy access to apps. Widgets are self-contained apps placed on the Home screen to access frequently used features.

Adding an App Shortcut to the Home Screen

To add an app shortcut to the Home screen:

1. Go to the desired Home screen.

2. Swipe up from the bottom of the screen.

3. Scroll through the list to find the app icon.

4. Touch and hold the icon until the Home screen appears.

5. Position the icon on the screen and then release.

Adding a Widget to the Home Screen

To add a widget to the Home screen:

1. Go to the desired Home screen.

2. Touch and hold until the menu appears.

3. Touch WIDGETS.

4. Scroll through the list to find the widget.

5. Touch and hold the widget until the Home screen appears.

6. Position the widget on the screen and then release.

Moving Items on the Home Screen

To move app shortcuts or widgets on the Home screen:

1. Touch and hold the item until it floats on the screen.

2. Drag the item to a new location. Pause at the edge of the screen to drag the item onto an adjacent Home screen.

3. Lift finger to place the item on the Home screen.

Removing an App Shortcut or Widget from the Home Screen

To remove an app shortcut or widget from the Home screen:

1. Go to the desired Home screen.

2. Touch and hold the app shortcut or widget icon until it floats on the screen.

3. Drag the icon to X Remove at the top of the screen and then release.

Folders

Use Folders to organize similar applications together. Tap the folder to open and display items in the folder.

Creating a Folder

There must be at least two app icons on the Home screen.

To create a folder:

1. Go to the desired Home screen.

2. Touch and hold one app icon.

3. Drag the icon and stack on top of another icon.

4. Lift and release.

Naming Folders

To name a folder:

1. Touch the folder.

Figure 28 Open Folder

Title Area

2. Touch the title area and enter a folder name using the keyboard.

3. Touch on the keyboard.

4. Touch anywhere on the Home screen to close the folder. The folder name appears under the folder.

Removing a Folder

To remove a folder:

1. Touch and hold the folder icon until it enlarges.

2. Drag the folder to X Remove and release.

Home Screen Wallpaper

To change the Home screen wallpaper:

1. Touch and hold the screen until the menu appears.

2. Touch WALLPAPERS.

3. Touch Photos or Gallery to select a photo or select one of the pre-installed wallpapers.

4. Touch Set wallpaper.

Using the Touchscreen

Use the multi-tap sensitive screen to operate the device.

• Tap - Tap to:

• Select items on the screen.

• Type letters and symbols using the on-screen keyboard.

• Press on-screen buttons.

• Tap and Hold - Tap and hold:

• An item on the Home screen to move it to a new location or to the trash.

• An item in Apps to create a shortcut on the Home screen.

• The Home screen to open a menu for customizing the Home screen.

• An empty area on the Home screen until the menu appears.

• Drag - Tap and hold an item for a moment and then move finger on the screen until reaching the new position.

• Swipe - Move finger up and down or left and right on the screen to:

• Unlock the screen.

• View additional Home screens.

• View additional app icons in the Launcher window.

• View more information on an app’s screen.

• Double-tap - Tap twice on a web page, map, or other screen to zoom in and out.

• Pinch - In some apps, zoom in and out by placing two fingers on the screen and pinching them together (to zoom out) or spreading them apart (to zoom in).

Keyboards

Use the on-screen keyboard to enter text in a text field.

Editing Text

Edit entered text and use menu commands to cut, copy, and paste text within or across applications. Some applications do not support editing some or all of the text they display; others may offer their own way to select text.

Entering Numbers, Symbols, and Special Characters

To enter numbers and symbols:

• Touch and hold one of the top-row keys until a menu appears then select a number or special character.

• Touch the Shift key once for a single capital letter. Touch the Shift key twice to lock in uppercase. Touch the Shift key a third time to unlock Capslock.

• Touch

• Touch the

To enter special characters, touch and hold a number or symbol key to open a menu of additional symbols. A larger version of the key displays briefly over the keyboard.

?123 to switch to the numbers and symbols keyboard.

=\< key on the numbers and symbols keyboard to view additional symbols.

Keyboard Configuration

Enabling Keyboards

To enable keyboards:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch System > Languages & input > Virtual keyboard > Manage keyboards.

3. Touch a keyboard to enable.

Switching Between Keyboards

To switch between keyboards, touch in a text box to display the current keyboard.

• On the Android or Gboard keyboards, touch and hold .

• On the Enterprise keyboard, touch .

Do Not Disturb Feature

This mode mutes the device so that it does not make sounds or vibrate.

For example, use Do Not Disturb to:

• Automatically limit sounds at night or during events

• Mute interruptions other than alarms

• Get alerted to messages only from favorite contacts.

Limit Sounds and Vibrations

Mute the device completely, or let through the important alarms or important calls.

Total Silence

To completely mute the device so that it does not make a sound or vibrate, choose Total silence.

In Total silence mode:

• Alarms do not make noise.

• Device does not vibrate or make sounds when receiving a message, or notification.

• Sounds from music, videos, games, and other media are muted.

NOTE: All alarms are silenced in Total silence mode.

1. Swipe down with two fingers from the Status bar to open the Quick Access panel.

2. Touch Do not disturb > Total silence.

3. Choose Until you turn it off or select a time period.

4. Touch Done.

When Total Silence is on, appears in the quick access panel and the Status bar.

To turn off Total Silence, open quick access panel and touch Total silence.

Alarms Only

To mute the device so that you hear alarms, choose Alarms only. This option does not mute sounds from music, videos, games, or other media.

1. Swipe down with two fingers from the status bar to open the quick access panel.

2. Touch Do not disturb > Alarms only.

3. Choose Until you turn it off or select a time period.

4. Touch Done.

When Alarms Only is on, appears in the quick access panel and the Status Bar.

To turn off Alarms Only, open the Quick Access panel and touch Alarms only.

NOTE: To quickly turn on Alarms Only, with the screen on, press and hold the Volume Down button until the volume is all

the way down. Then, press Volume Down again to turn on Alarms Only.

To turn off Alarms Only, press either the Volume Up or Volume Down button and the touch END NOW in the alert message.

Automatically Block Sounds and Vibrations

Automatically silence the device during certain times or events, turn sounds back on, and override Do Not Disturb mode.

Silence Sounds During Certain Times

To automatically silence the device during certain times, like at night or on weekends:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Sound > Do Not Disturb preferences.

3. Touch a default Weekend or Weeknight. Or, to make a new rule, touch Add more > Time rule.

4. Enter a rule name.

5. Touch OK.

6. Edit the new rule:

• Rule name - Rename the rule.

• Days, Start time, and End time - Set the rule's schedule.

• Do Not Disturb preferences - Choose whether the rule uses Alarms only, Priority only, or Total

silence.

• Alarm can override end time - Allow the alarm to continue to make sound until the next alarm begins.

7. Touch the On/Off switch at the top to turn on the rule.

Silence Sounds During Events and Meetings

To automatically silence the device during events or meetings, set an event rules.

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Sound > Do Not Disturb preferences.

3. To edit the default rule, touch Event. Or, to create a new rule, touch Add rule > Event rule.

4. Edit the rule settings.

• Rule name - Rename the rule.

• During events for - Select which Google Calendar events the rule uses.

• Where reply is - Set to: Yes, Maybe, or Not replied, Yes or Maybe, or Yes.

• Do Not Disturb preferences - Choose whether the rule uses Priority only, Alarms only, or Total

silence.

5. Touch the On/Off switch at the top to turn on the rule.

Turn Sounds Back On

When the device is in Do Not Disturb mode, Alarms only or Priority only display as , or Total silence displays as .

To turn off Do Not Disturb, either:

• In the Quick Access panel, touch Alarms only, Priority only, or Total silence.

• Press the Volume Down button and touch End Now.

Override Do Not Disturb for Specific Apps

To let through notifications from specific apps:

1. Swipe down from the Status bar to open the Quick Settings bar and then touch .

2. Touch Apps & notifications > Notifications > App notifications.

3. Touch an app.

4. Touch Override Do Not Disturb.

Apps

The APPS screen displays icons for all installed apps. The table below lists the apps installed on the device. Refer to the device Integrator Guide for Android Version 8.1 for information on installing and uninstalling apps.

Table 7 Apps

Icon Description

ActiveEdge Touch Zone - Provides quick and convenient on-touch access to key features or

applications while users are in the middle of other workflow applications or tasks.

Battery Manager - Displays battery information, including charge level, status, health and wear level.

Battery Swap – Use to place device in Battery Swap mode when replacing the battery.

Bluetooth Pairing Utility – Use to pair the RS507 Hands-free Imager with the device by

scanning a barcode.

Calculator - Provides the basic and scientific arithmetic functions.

Calendar - Use to manage events and appointments. GMS devices only

Table 7 Apps (Continued)

Icon Description

Calendar - Use to manage events and appointments. Non-GMS devices only.

Camera - Take photos or record videos. For more information see Camera.

Chrome - Use to access the Internet or intranet. GMS devices only

Chromium - Use to access the Internet or intranet. Non-GMS devices only.

Clock - Use to schedule alarms for appointments or as a wake-up.

Contacts - Use to manage contact information. See Contacts for more information.

DataWedge - Enables data capture using the imager.

Device Central - Use to display detailed information about the device and connected

peripherals. See Device Central for more information.

Diagnostic Tool - Use to diagnose the device.

Drive - Upload photos, videos, documents, and other files to personal storage site. GMS

devices only

Duo - A one-to-one video calling app (WWAN only).

DWDemo - Provides a way to demonstrate the data capture features using the imager. See

DataWedge Demonstration for more information.

Email - Use to send and receive email. Non-GMS devices only.

Files - Organize and manage files on the device. See Files for more information.

Table 7 Apps (Continued)

Icon Description

Gallery - Use to view photos stored on the microSD card. For more information, see Gallery for

more information. Non-GMS devices only.

Gmail - Use to send and receive email using a Google email account. GMS devices only

Google - Launches Google ™ search app. GMS devices only

Hangouts - Use to communicate with friends using text messages and photos. GMS devices

only

Keep- Use to create, edit, and share notes. GMS devices only

License Manager - Use to manage software licenses on the device.

Maps - Use to see your location on a map (with public transit, traffic, or satellite overlays).

Search for any business or place of interest. Provides turn-by-turn navigation with voice guidance, traffic-avoidance, and alternate routes, for drivers, cyclists, walkers, and users of public transportation. GMS devices only

Messaging - Send SMS and MMS messages. See Messaging for more information. WAN devices only.

MSRN - Use to verify authenticity of the paired Snap-on MSR and to provision the Snap-on MSR. See device Touch Computer Integrator Guide for Android Version 8.1 for more information.

Music - Play music stored on the microSD card or internal storage. Non-GMS devices only.

Notes - Use to take and save notes.Non-GMS devices only

Phone - Use to dial a phone number when used with some Voice over IP (VoIP) clients (VoIP

telephony ready only).

Photos - Use to sync photos with Google account. For more information, see Photo Settings. GMS devices only

Play Movies & TV - View movies and video on your device. GMS devices only

Table 7 Apps (Continued)

Icon Description

Play Music - Use to listen to music. GMS devices only

Play Store - Download music, movies, books, and Android apps and games from the Google

Play Store. GMS devices only

PTT Express - Use to launch PTT Express client for VoIP communication.

RxLogger - Use to diagnose device and app issues. See the device Integrator Guide for

Android Version 8.1 for more information.

RxLogger Utility - Use to view, backup, and archive RxLogger data.

Settings - Use to configure the device.

SimulScan Demo - Use to demonstrate the document capture feature of the device.

SMARTMU - A diagnostic intelligent app. Use to diagnose surrounding area and display

network stats, such as coverage hole detection, or AP in vicinity.

Sound Recorder - Use to record audio.

StageNow - Allows the device to stage a device for initial use by initiating the deployment of

settings, firmware, and software.

TC51 User Guide - Opens the on-device User Guide for the device.

UDI Demo - Use to demonstrate scanning UDI barcodes.

Table 7 Apps (Continued)

Icon Description

Worry Free Wifi Analyzer - A diagnostic intelligent app. Use to diagnose surrounding area and

display network stats, such as coverage hole detection, or AP in vicinity. Refer to the Worry Free Wi-Fi Analyzer Administrator Guide for Android.

YouTube - Use to view videos on the YouTube

Zebra Bluetooth - Use to configure Bluetooth logging.

Accessing Apps

All apps installed on the device are accessed using the APPS window.

1. On the Home screen, swipe up from the bottom of the screen.

Figure 29 APPS Window Example

™ web site. GMS devices only

Slide the APPS window up or down to view more app icons. Touch an icon to open the app.

Switching Between Recent Apps

To switch between recent apps:

1. Touch . A window appears on the screen with icons of recently used apps.

Figure 30 Recently Used Apps

2. Slide the apps displayed up and down to view all recently used apps.

3. Swipe left or right to remove app from the list and force close the app.

4. Touch an icon to open an app or touch to return to the current screen.

Un-Locking the Screen

Use the Lock screen to protect access to data on the device. Some email accounts require locking the screen. Refer to the device Integrator Guide for information on setting up the locking feature.

When locked, a pattern, PIN, or password is required to unlock the device. Press the Power button to lock the screen. The device also locks after a pre-defined time-out.

Press and release the Power button to wake the device. The Lock screen displays. Swipe the screen up to unlock. If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen. If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the screen.

Figure 31 Lock Screen

Figure 32 PIN Screen

Figure 33 Pattern Screen

Figure 34 Password Screen

Resetting the Device

There are two reset functions, soft reset and hard reset.

Performing a Soft Reset

Perform a soft reset if applications stop responding.

1. Press and hold the Power button until the menu appears.

2. Touch Reset.

3. The device reboots.

Performing a Hard Reset

CAUTION: Performing a hard reset with a microSD card installed in the device may cause damage or data corruption to the

microSD card. All un-saved data is lost after performing a hard reset.

Perform a hard reset if the device stops responding.

1. Simultaneously press and hold the Power button, the PTT button, and the Volume Up button for at least four seconds.

2. When the screen turns off, release the buttons.

The device reboots.

Suspend Mode

The device goes into suspend mode when you press the Power buttonor after a period of inactivity (set in the Display settings window).

To wake the device from Suspend mode, press the Power button. The Lock screen displays. Swipe the screen up to unlock. If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen. If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the screen. See Un-Locking the Screen.

NOTE: If you enter the PIN, password, or pattern incorrectly five times, you must wait 30 seconds before trying again.

If you forget the PIN, password, or pattern contact your system administrator.

Transferring Files with a Host Computer via USB

Connect the device to a host computer using a USB cable or a USB cradle to transfer files between the device and the host computer.

When connecting the device to a host computer, follow the host computer’s instructions for connecting and disconnecting USB devices, to avoid damaging or corrupting files.

Transferring Files

NOTE: Use Transfer files to copy files between the device (internal memory or microSD card) and the host computer.

1. Connect a USB cable between the device and a host computerto the device or place the device into a USB cradle.

2. Pull down the Notification panel and touch USB charging this device.

By default, Charge this device is selected.

Figure 35 Use USB to Dialog Box

3. Touch Transfer files.

NOTE: After you change the setting to Transfer files, and then disconnect the USB cable, the setting reverts back to Charge

this device. If the USB cable is reconnected, select Transfer files again.

4. On the host computer, open a file explorer application.

5. Locate the device as a portable device.

6. Open the SD card or the Internal storage folder.

7. Copy files to and from the device or delete files as required.

Transferring Photos

To transfer photos using Photo Transfer Protocol:

NOTE: Use Photo Transfer Protocol (PTP) to copy photos from either the microSD card or internal memory to the host com-

puter.

1. Connect USB cable to the device or place the device into a USB cradle. See Accessories for setup information.

2. Pull down the Notification panel and touch USB charging this device.

3. Touch Transfer photos (PTP).

4. On the host computer, open a file explorer application.

5. Open the SD card or the Internal storage folder.

6. Copy or delete photos as required.

Disconnect from the Host Computer

To disconnect the device from the host computer:

CAUTION: Carefully follow the host computer’s instructions to unmount the microSD card and disconnect USB devices cor-

rectly to avoid losing information.

1. On the host computer, unmount the device.

2. Remove the USB from the device or remove the device from the cradle.

Applications

Introduction

This section describes the applications installed on the device.

ActiveEdge Touch Zone

The ActiveEdge Touch Zone app provides configurable settings which enable quick and convenient one-touch access to key features or apps while using other apps.

NOTE: The ActiveEdge Touch Zone is only available when the display is set to Portrait mode.

Configuring ActiveEdge

Figure 36 ActiveEdge App Settings

To configure ActiveEdge, swipe up from the bottom of the Home screen and touch .

• Start or Stop ActiveEdge Service - Touch to start/stop the ActiveEdge service to enable/disable the ActiveEdge Zone.

• Start ActiveEdge Service on Boot Up - Automatically start the ActiveEdge service when the device boots up. The service is always running and available.

• Left ActiveEdge Zone - Configure the left ActiveEdge Zone to Scanner, Drawer, or None.

• Right ActiveEdge Zone - Configure the right ActiveEdge Zone to Scanner, Drawer, or None.

Figure 37 Left and Right ActiveEdge Zones

• Select Apps for Drawer - Select up to three apps to appear in the drawer. See Selecting Apps for a

Drawer on page 81.

• Restore - Restore the settings to the factory defaults.

• About ActiveEdge - Open the About ActiveEdge window to display the version number. Select >

About.

Selecting Apps for a Drawer

When the Left ActiveEdge Zone or the Right ActiveEdge Zone is set to Drawer, select up to three apps to display in the drawer.

To select which apps display in the drawer:

1. Touch Select Apps for Drawer.

Figure 38 Select Apps for Drawer

2. Touch > Select Apps.

Figure 39 Select Apps for Drawer

3. Choose up to three apps to appear in the Drawer.

NOTE: Configure the Left ActiveEdge Zone and the Right ActiveEdge Zone to any combination of Scanner,

Drawer, or None, except that both zones cannot be set to Drawer.

Figure 40 Select Apps for Drawer

4. Touch .

Using ActiveEdge

Once configured, soft keys near the perimeter of the display provide access to those frequently used apps or tasks.

Figure 41 ActiveEdge Touch Zone Soft Key

ActiveEdge Touch

Zone Soft Key

When a soft key is set to Scanner, touch and hold the soft key to scan a barcode.

Figure 42 Left ActiveEdge Zone set to Scanner

ActiveEdge Touch

Zone Soft Key

When a soft key is set to Drawer, touch the soft key to open the drawer and then select an app.

Figure 43 Right ActiveEdge Zone set to Drawer

When the app is selected, the drawer automatically closes.

Battery Manager

The Battery Manager provides detailed information about the battery.

To open Battery Manager, swipe up from the bottom of the Home screen and touch .

Figure 44 Battery Manager Screen

Table 8 Battery Icon Description

Battery

Icon

Battery charge level.

Battery charging.

Battery charge level is below 20%.

• Battery level - The current battery charge level as a percentage. Displays -% when level is unknown.

• Time until full - The amount of time until the battery is fully charged.

• Time since charging - The amount of time since the device began charging.

• Time until empty - The amount of time until the battery is empty.

• Battery status

• Not charging - The device is not connected to AC power.

• Charging over AC - The device is connected to AC power and charging.

• Charging over USB - The device is connected to a host computer with a USB cable and charging.

• Discharging - That the battery is discharging.

• Full - That the battery is fully charged.

• Unknown - The battery status is unknown.

Description

• Battery health - The health of the battery. If a critical error occurs, appears. Touch to view the error description.

• Decommission - The battery is past its useful life and should be replaced. See system administrator.

• Good - The battery is good.

• Charge error - An error occurred while charging. See system administrator.

• Over Current - An over-current condition occurred. See system administrator.

• Dead - The battery has no charge. Replace the battery.

• Over Voltage - An over-voltage condition occurred. See system administrator.

• Below Temperature - The battery temperature is below the operating temperature. See system

administrator.

• Failure Detected - A failure has been detected in the battery. See system administrator.

• Unknown - See system administrator.

• Wear level - The health of the battery in graphical form. When the wear level exceeds 80%, the bar color changes to red.

• Advanced info - Touch to view additional battery information.

• Battery present status - Indicates that the battery is present.

• Battery level - The battery charge level as a percentage of scale.

• Battery scale - The battery scale level used to determine battery level (100).

• Battery voltage - The current battery voltage in millivolts.

• Battery temperature - The current battery temperature in degrees Centigrade.

• Battery technology - The type of battery.

• Battery current - The average current into or out of the battery over the last second in mAh.

• Battery manufacture date - The date of manufacture.

• Battery serial number - The battery serial number. The number matches the serial number printed on

the battery label.

• Battery part number - The battery part number.

• Battery rated capacity - Lists the rated capacity of the backup battery in mAh.

• Battery decommission status - Indicates if the battery is past its life span.

• Battery Good - The battery is in good health.

• Decommissioned Battery - The battery is past its useful life and should be replaced.

• Base cumulative charge - Cumulative charge using Zebra charging equipment only.

• Battery present capacity - Maximum amount of charge that could be pulled from the battery under the

present discharge conditions if the battery were fully charged.

• Battery health percentage - With a range from 0 to 100, this is the ratio of “present_capacity” to

“design_capacity” at a discharge rate of “design_capacity”.

• % decommission threshold - The default % decommission threshold for a gifted battery as 80%.

• Battery present charge - Amount of usable charge remaining in the battery at present under the

current discharge conditions.

• Battery total cumulative charge - The total accumulated charge in all chargers.

• Battery time since first use - The time passed since the battery was placed in a Zebra terminal for the

first time.

• Battery error status - The error status of the battery.

• App version - The application version number.

Camera

This section provides information for taking photos and recording videos using the integrated digital cameras.

NOTE: The device saves photos and videos on the microSD card, if installed and the storage path is changed manually. By

default, or if a microSD card is not installed, the device saves photos and videos on the internal storage.

NOTE: Front camera is optional.

Taking Photos

NOTE: See Photo Settings for camera setting descriptions.

1. Swipe up from the bottom of the Home screen and touch Camera.

Figure 45 Camera Mode

Camera Switch (Available on devices with a rear camera and front camera) High Dynamic Range

Scene Mode

Gallery

Settings

Camera Mode

Shutter Button

2. If necessary, touch the Camera Mode icon and touch .

3. To switch between the rear camera and front camera (if available), touch .

4. Frame the subject on the screen.

5. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls appear on the screen.

6. Touch an area on the screen to focus. The focus circle appears. The two bars turn green when in focus.

7. Touch .

The camera takes a photo and a shutter sound plays.

The photo momentarily displays as a thumbnail in the lower left corner.

Taking a Panoramic Photo

Panorama mode creates a single wide image by panning slowly across a scene.

1. Swipe up from the bottom of the Home screen and touch Camera.

Figure 46 Panoramic Mode

2. Touch the Camera Mode icon and touch .

3. Frame one side of the scene to capture.

4. Touch and slowly pan across the area to capture. A small white square appears inside the button indicating the capture is in progress.

If you are panning too quickly, the message Too fast appears.

5. Touch to end the shot. The panorama appears immediately and a progress indicator displays while it saves the image.

Recording Videos

1. Swipe up from the bottom of the Home screen and touch Camera.

2. Touch the camera mode menu and touch .

Figure 47 Video Mode

Camera Switch (Available on devices with a rear camera and front camera)

Audio

Settings

Gallery

Shutter Button

Camera Mode

3. To switch between the rear camera and front camera (if available), touch .

4. Point the camera and frame the scene.

5. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls appear on the screen.

6. Touch to start recording.

The video time remaining appears in the top left of the screen.

7. Touch to the end recording.

The video momentarily displays as a thumbnail in the lower left corner.

Photo Settings

In Photo mode, photo settings appear on screen. Touch to display the photo settings options.

Front Camera

• GPS location - Add GPS location information to the photo meta-data. Options: On or Off (default).

• Picture size - Set the size (in pixels) of the photo to: 1.3M pixels (default), HD720, 1M pixels, WVGA, VGA, or QVGA.

• Picture quality - Set picture quality setting to: Low, Standard (default) or High.

• Countdown timer - Set to: Off (default), 2 seconds, 5 seconds or 10 seconds.

• Storage – Set location to store the photo to: Phone or SD Card.

• Face Detection - Select to turn face detection Off (default) or On.

Rear Camera

• Flash - Select whether the camera relies on its light meter to decide whether a flash is necessary, or to turn it on or off for all shots.

• Off - Disable flash.

• Auto - Adjust flash automatically depending upon light meter (default).

• On - Enable flash upon taking a photo.

• Torch - Turn flash on continuously.

• GPS location - Turn On or Off (default).

• Picture size - The size (in pixels) of the photo to: 13M pixels (default), 8M pixels, 5M pixels, 3M pixels, HD 1080, 2M pixels, 1.3M pixels, HD720, 1M pixels, WVGA, VGA, or QVGA.

• Picture quality - Set the picture quality setting to: Low, Standard (default) or High.

• Countdown timer - Select Off (default), 2 seconds, 5 seconds or 10 seconds.

• Storage – Set the location to store the photo to: Phone or SD Card.

• Face Detection - Select to turn face detection Off (default) or On.

• ISO - Set camera sensitivity to light to: Auto (default), ISO Auto (HJR), ISO100, ISO200, ISO400, ISO800 or ISO1600.

• Exposure - Set the exposure settings to: +2, +1, 0(default), -1 or -2.

• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most natural-looking colors:

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the white balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the white balance for daylight.

• Cloudy - Adjust the white balance for a cloudy environment.

• Focus mode - Touch to select the camera focus setting. Options: Auto, Infinity, Macro or CAF (Continuous Auto Focus) (default). ZSL option must be set to Off.

• ZSL - Set the camera to immediately take a picture when the button is pressed (default – enabled).

Video Settings

In Video mode, video settings appear on screen. Touch to display the video settings options.

Front Camera

• Video quality - Set video quality to: HD 720p (default), or SD 480p.

• Video duration - Set to: 30 seconds (MMS) or 30 minutes (default).

• GPS location - Turn On or Off (default).

• Storage – Set the location to store the photo to: Phone (default) or SD Card.

Rear Camera

• Flash - Select whether Rear-facing Camera relies on its light meter to decide whether a flash is necessary, or to turn it on or off for all shots.

• Off - Disable flash (default).

• Torch - Turn flash on continuously.

• Video quality - Set video quality to: HD 1080p (default), HD 720p, SD 480p.

• Video duration - Set to: 30 seconds (MMS), or 30 minutes (default).

• Storage – Set the location to store the photo to: Phone (default) or SD Card.

• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most natural-looking colors.

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the white balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the white balance for daylight.

• Cloudy - Adjust the white balance for a cloudy environment.

Contacts

Use the Contacts app to manage contacts.

From a Home or Apps screen, touch Contacts to open to the main list of contacts. Contacts are listed in alphabetical order. Swipe up or down to scroll through the list.

Adding a Contact

1. In the Contacts app, touch .

2. If there is more than one account with contacts, touch the one you want to use.

3. Type the contact’s name and other information. Touch a field to start typing, and swipe down to view all categories.

4. To open a menu with preset labels, such as Home or Work for an email address, touch the label to the right of the item of contact information. Or, to create your own label, touch Custom in the menu.

5. Touch the check mark next to Add New Contact.

Editing Contacts

1. In the Contacts app, touch a contact name to edit.

2. Touch .

3. Edit the contact information.

4. Touch SAVE.

Deleting Contacts

1. In the Contacts app, touch a contact name to delete.

2. Touch .

3. Touch Delete.

4. Touch DELETE to confirm.

Device Central

Device Central displays detailed information about the device and connected peripherals and supports the

following Zebra devices:

• RS507/RS507X Hands-free Imager

• RS6000 Bluetooth Ring Scanner

• RS5000 Corded Ring Scanner

• HS3100 Bluetooth Headset

• DS3678 Digital Scanner.

Device Central features include:

• Discovering and pairing with supported peripherals via Bluetooth or corded connection.

• Paging a connected RS6000 Ring Scanner.

• Updating the firmware of supported ring scanners. Refer to the RS5000 Quick Start Guide or RS6000 User Guide for more information.

• Displaying the connection status of peripherals.

• Displaying information for a connected peripheral in the notification bar.

Figure 48 Device Central Screen

Device Central Tabs

• Peripherals Tab - displays all currently connected and previously connected peripherals. Connected peripherals display the length of time (in minutes) that they have been connected. When an RS6000 is connected the Page button displays. See Paging an RS6000 Ring Scanner.

Touch the peripheral information to display the Device Details screen.

• Device Details - displays detailed device information for the selected peripheral.

• My Device Tab - displays information about the device and the current version of Device Central.

• Device Details - displays the Phone status screen.

• Device Battery Details - displays the Battery screen.

Figure 49 Peripherals Tab

Paging an RS6000 Ring Scanner

Use Page button to easily locate the currently connected RS6000 Ring Scanner:

1. With the RS6000 Ring Scanner connected, swipe up from the bottom of the Home screen, and touch .

NOTE: The RS6000 Ring Scanner must be within 10 m (32 ft) of the device.

2. Under the RS6000 peripheral information, touch Page to page the RS6000. The paged RS6000 beeps and vibrates.

Figure 50 Page RS6000

To stop paging, press the scan trigger of the RS6000. On a triggerless RS6000, reset the RS6000 to stop paging. Refer to the RS6000 User Guide.

DataWedge Demonstration

NOTE: DataWedge is disabled enabled on the Home screen.To enable disable this feature, go to the DataWedge settings

and enable Barcode input optiondisable the Launcher profile.

Use DataWedge Demonstration to demonstrate data capture functionality.

Figure 51 DataWedge Demonstration Window

Table 9 DataWedge Demonstration Icons

Icon Description

Illumination Imager illumination is on. Touch to turn illumination off.

Imager illumination is off. Touch to turn illumination on.

Data Capture The data capture function is through the internal imager.

Table 9 DataWedge Demonstration Icons (Continued)

Icon Description

Data Capture Indicates a USB scanner is connected to the device.

Indicates a USB scanner is not connected to the device.

An RS507 or RS6000 Bluetooth imager is connected.

An RS507 or RS6000 Bluetooth imager is not connected.

The data capture function is through the rear camera.

Scan Mode Imager is in picklist mode. Touch to change to normal scan mode.

Imager is in normal scan mode. Touch to change to picklist mode.

Opens a menu to view the application information or to set the application DataWedge profile.

NOTE: See the device Integrator Guide for Android Version 8.1 for information on DataWedge configuration.See Da-

taWedge on page 150

Scanner Selection

To select a scanner, touch > Settings > Scanner selection.

See Data Capture for more information.

Either press the programmable button or touch the yellow scan button to capture data. The data appears in the text field below the yellow button.Press the scanner trigger button or touch the on-screen yellow scan button to capture data. The data appears in the text field below the yellow button.

for more information.

Diagnostic Tool

The Diagnostic Tool is a utility that determines the health of the device. Use the Diagnostic Tool to troubleshoot the device.

1. Swipe up from the bottom of the Home screen and touch .

Figure 52 Diagnostic Tool

2. Touch RUN TEST. The app tests all enabled subsystems (by default, only the Battery and System tests). See Settings to enable subsystem tests.

Figure 53 Test Passed Screen

Figure 54 Test Failed Screen

3. To view each subsystem test, touch Subsystem Tests.

Figure 55 Subsystem Screen

4. Touch one of the subsystems to view details.

Table 10 Subsystem Test Result Indicators

Status Icon Description

Test passed.

Test failed.

Test not supported or not enabled.

Figure 56 Battery Subsystem Details

Settings

By default only the Battery and System tests are enabled. To enable other tests:

1. Touch > Settings.

2. Touch to the left of the test name. A green box with a checkmark appears.

3. Touch SAVE.

4. Touch Yes to confirm.

5. Touch .

Battery Test Information

The Battery Test obtains the following information:

• Battery Level - Current battery charge level

• Battery Voltage - Current battery voltage

• Status - Whether the battery is charging (on AC power) or discharging (on battery power)

• Power Source - Whether the device is receiving power from the battery or from an external source

• Temperature - Current battery temperature

• Health Percentage - Indicates the ratio of present capacity to design capacity at a discharge rate of design capacity.

• Backup Battery Voltage - Backup battery voltage.

• Manufacture Date - Manufacture date of the battery.

GPS Test Information

Not supported on this device.

System Test Information

Use the System Test to determine if the CPU or memory loads are too high, there are too many processes running on the device, or storage on the device is almost full.

The System Test obtains the following information:

• CPU Load - Amount of CPU being used

• Free Physical Memory - Amount of RAM available

• Free Storage - Amount of internal Flash memory available

• Process Count - Number of processes currently running.

WLAN Test Information

If the WiFi radio is not present or disabled, skip this test. This test determines if the device’s WLAN configuration is correct or whether there is any connection with an access point or network.

The WLAN test obtains the following information:

• WLAN Enabled - WLAN radio is enabled or disabled

• WLAN Status - Current status of association with the access point

• ESSID - Name of the wireless network

• BSSID - MAC address of the connected access point

• MAC Address - Device’s MAC address

• Signal - Strength of the Wi-Fi signal (in dBm)

• IP Address - IP address of the device.

WWAN Test Information

Not supported on this device.

Bluetooth Test Information

The Bluetooth Test obtains the following information:

• Enabled - Whether the Bluetooth radio is enabled or disabled

• Status - Whether the device is paired to another Bluetooth device

• Connectable/Discoverable - Whether the device is discoverable or able to connect

• Address - Bluetooth radio MAC address

• Name - Bluetooth name for the device.

Files

Use the Files app to view and manage files on the device.

To open Files, swipe up from the bottom of the screen and touch .

Figure 57 Files Screen

Sort

• Touch and hold an item to open the File Operations menu. Select an option:

• - Share the file with other devices.

• - Delete the file.

• - View additional options.

• Open with - Select which app is used to open the file.

• Select all - Select all folders and files.

• Copy to... - Copy the file.

• Move to... - Move the file or folder to a new location.

• Compress - Compress the selected file(s) into a ZIP file.

• Rename - Rename the file.

• Touch the Sort drop-down to sort files by name, type, size, or date.

• - View all file locations.

• - Search for a specific file on the device.

• / - Change the folder to display items as a list / grid.

• - Open the options menu.

• New Window - Create a new Files window.

• New Folder - Create a new folder.

• Select all - Select all folders and files.

• Show/Hide internal storage - Show or hide internal storage.

Gallery

NOTE: The device supports the following image formats: jpeg, gif, png and bmp.

The device supports the following video formats: H.263, H.264 and MPEG4 Simple Profile.

Available on device with AOSP only.

Use Gallery to:

• View photos

• Play videos

• Perform basic editing of photos

• Set photos as wallpaper

• Set photos as a contact photo

• Share photos and videos.

Gallery presents all photos and videos stored on the microSD card and internal memory.

To open Gallery, swipe up from the bottom of the Home screen and touch Gallery, or in the camera app touch the thumbnail image at the bottom left.

By default, Gallery opens to the Timeline view.

Figure 58 Gallery - Timeline View

Touch > Albums to view photos sorted by albums or > Videos to view only videos.

Figure 59 Gallery — Albums View

• Touch an album to open it and view its contents. The photos and videos in the album are displayed in chronological order.

• Touch a photo or video in an album to view it.

• Touch > Timeline to return to the default Gallery screen.

Working with Albums

Albums are groups of images and videos in folders. Touch an album to open it. The photos and videos are listed in a chronologically ordered grid. The name of the album displays at the top of the screen.

Figure 60 Photos Inside an Album

Swipe up or down to scroll through the images.

Sharing an Album

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch and hold an album to highlight it.

3. Touch other albums as required.

4. Touch . The Share menu opens.

5. Touch the app to use to share the selected albums.

6. Follow the instructions within the selected app.

Getting Album Information

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch and hold an album to highlight it.

3. Touch .

4. Touch Details.

Deleting an Album

To delete an album and its contents:

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch and hold an album to highlight it.

3. Check other albums to delete.

4. Touch .

5. In the Delete selected item? menu, touch OK to delete the album.

Working with Photos

Use Gallery to view photos on the device and edit and share photos.

Viewing and Browsing Photos

To view a photo:

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch an album to open it.

3. Touch a photo.

Figure 61 Photo Example

4. Swipe left or right to view the next or previous photo in the album.

5. Turn the device to view the photo in upright (portrait) or sideways (landscape) orientation. The photo is displayed (but not saved) in the new orientation.

6. Touch the photo to view the controls.

7. Double-tap the screen to zoom in or pinch two fingers together or spread them apart to zoom in or out.

8. Drag the photo to view parts that are not in view.

Cropping a Photo

1. In Gallery, touch a photo to view the controls.

2. Touch > > . The cropping tool appears.

3. Use the cropping tool to select the portion of the photo to crop.

• Drag from the inside of the cropping tool to move it.

• Drag an edge of the cropping tool to resize it to any proportion.

Figure 62 Cropping Tool

4. Touch > SAVE to save a copy of the cropped photo. The original version is retained.

Setting a Photo as a Contact Icon

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch an album to open it.

3. Touch a photo to open it.

4. Touch .

5. Touch Set picture as.

6. Touch Contact photo.

7. In Contacts, touch a contact.

8. Touch the white box and crop the photo accordingly.

9. Touch SAVE.

Sharing a Photo

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch an album to open it.

3. Touch a photo to open it.

4. Touch .

5. Touch the app to use to share the selected photo.

6. Follow the instructions within the selected app.

Deleting a Photo

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch an album to open it.

3. Touch a photo to open it.

4. Touch .

5. Touch OK to delete the photo.

Working with Videos

Use Gallery to view and share videos.

Watching Videos

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch an album to open it.

3. Touch a video.

4. Touch to play.

5. Touch the screen to view the playback controls.

Sharing a Video

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch an album to open it.

3. Touch a video to open it.

4. Touch . The Share menu appears.

5. Touch the app to use to share the selected video.

6. Follow the instructions within the selected app.

Deleting a Video

1. Swipe up from the bottom of the Home screen and touch Gallery.

2. Touch an album to open it.

3. Touch a video to open it.

4. Touch .

5. Touch OK.

Photos

NOTE: The device supports the following image formats: jpeg, gif, png, and bmp.

The device supports the following video formats: H.263, H.264, and MPEG4 Simple Profile.

Available on device with GMS only.

Use Photos to:

• View photos

• Play videos

• Perform basic editing of photos

• Set photos as wallpaper

• Set photos as a contact photo

• Share photos and videos.

Photos presents all photos and videos stored on the microSD card and internal memory.

To open Photos, swipe up from the bottom of the Home screen and touch Photos.

By default, Photos opens to the photos view.

Figure 63 Photos View

Touch Albums to view photos sorted by albums.

Figure 64 Albums View

• Touch an album to view its contents. The photos and videos in the album appear in chronological order.

• Touch a photo or video in an album to view it.

• Touch to return to the main screen.

Working with Albums

Figure 65 Photos Inside an Album

Swipe up to scroll through the images.

Sharing an Album

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch Albums.

3. Touch an album.

4. Touch > Select.

5. Select all photos in the album.

6. Touch . The Share menu opens.

7. Touch an app to share the selected albums.

8. Follow the instructions within the selected app.

Deleting an Album

To delete an album and its contents:

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch Albums.

3. Touch an album.

4. Touch > Select.

5. Select all photos in the album.

6. Touch .

7. Touch Move to trash to delete the album.

Working with Photos

Use Photos to view photos on the internal memory and the microSD card.

Viewing and Browsing Photos

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch a photo.

Figure 66 Photo Example

3. Swipe left or right to view the next or previous photo in the album.

4. Turn the device to view the photo in upright (portrait) or sideways (landscape) orientation. The photo is displayed (but not saved) in the new orientation.

5. Touch the photo to view the controls.

6. Double-tap the screen to zoom in, or pinch two fingers together or spread them apart to zoom in or out.

7. Drag the photo to view parts that are not in view.

Cropping a Photo

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch a photo to view the controls.

3. Touch > . The cropping tool appears.

Figure 67 Cropping Tool

4. Use the cropping tool to select the portion of the photo to crop.

• Drag from the inside of the cropping area to move it.

• Drag an edge of the cropping area to resize it to any proportion.

5. Touch DONE.

6. Touch SAVE to save a copy of the cropped photo. The original version is retained.

Setting a Photo as a Contact Icon

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch the photo to open it.

3. Touch > Use as.

4. Touch Contact photo.

5. In the Contacts app, touch a contact.

6. Touch the white box and crop the photo accordingly.

7. Touch Done.

Sharing a Photo

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch an album to open it.

3. Touch a photo to open it.

4. Touch .

5. Touch the app to use to share the selected photo.

6. Follow the instructions within the selected app.

Deleting a Photo

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch a photo to open it.

3. Touch .

4. Touch MOVE TO TRASH.

Working with Videos

Use Photos to view and share videos.

Watching a Video

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch a video to play.

3. Touch the screen to view the playback controls.

Sharing a Video

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch a video to open it.

3. Touch . The Share menu appears.

4. Touch the app to use to share the selected video.

5. Follow the instructions within the selected app.

Deleting a Video

1. Swipe up from the bottom of the Home screen and touch Photos.

2. Touch a video to open it.

3. Touch .

4. Touch MOVE TO TRASH to delete the video.
