Installation Instruction for ST6052 Forklift Holster for Rubber Boot
WARNING: Failure to install the mount correctly or modifications to the mount may result in serious injury or
damage to property. Contact Psion Technical Support or your Psion representative if you have problems installing
this mount. To ensure operator safety, you must use a calibrated torque wrench and the supplied mounting
hardware when fastening the cradle and mount. Use of this mount in vehicles driven on public roads or highways is
prohibited. Contact Psion for further details.
The following restrictions must be strictly enforced:
Do not use the forklift holster as a hand-hold. Using the holster in this manner may cause the person to fall
and/or dislodge the handheld terminal.
Do not add weight or attach any other items to the forklift holster. Additional elements may fall causing injury
or may increase chance of failure and/or damage in mounting hardware and/or mounts.
Forklift holsters used in industrial or vibration generating environments may be subjected to fatigue, stress and/or
part wear. A periodic inspection of the mounting hardware and strap should be performed to ensure parts are
retightened as needed, free of fractures, excessive wear and/or other environmental damage. Any forklift holsters
found to be unsafe should be removed and the replaced immediately.
Page 1 of 2 Part Number 1005730 Revision A
Page 2 of 2 Part Number 1005730 Revision A
Installation

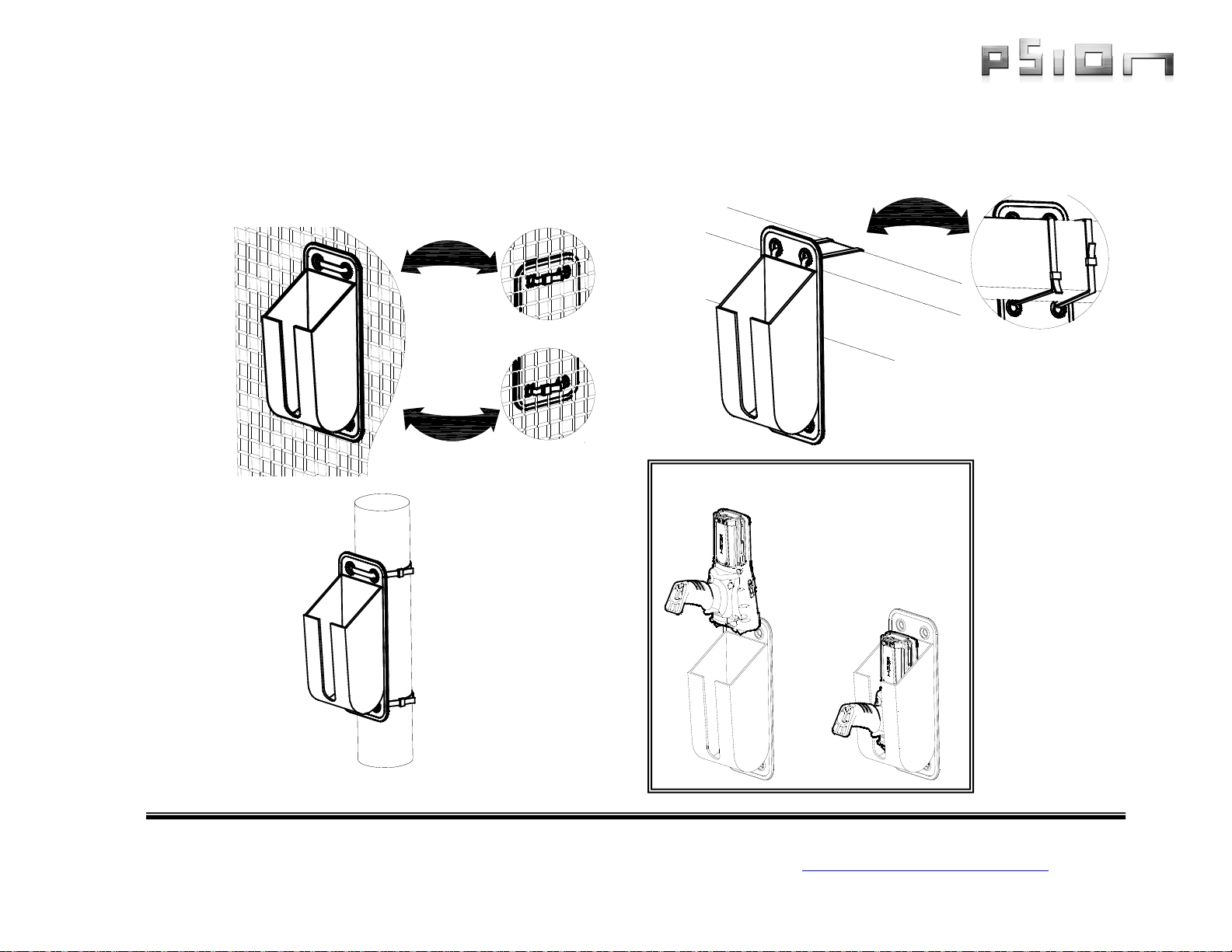

1. The forklift holster can be installed in a variety of orientations (See Figures A, B and C). Select the best orientation for
your specific application.
Fig. A. Cable ties can be used for quick and
simple mounting.
Back View
Fig. B. For Horizontal
mounting use top and
middle eyelets.
2.
Fig. C. For Vertical
mounting use top
and bottom
eyelets.
Appendix A: Support Services
For technical support, please visit the Support section of our community Ingenuity Working: http://community.psion.com/support
Fig. D. Insert the
handheld terminal
scanner end down in
the forklift holster to
ensure the most secure
carrying position.
Back View
