Installation Instruction for ST6040 Wrist Strap

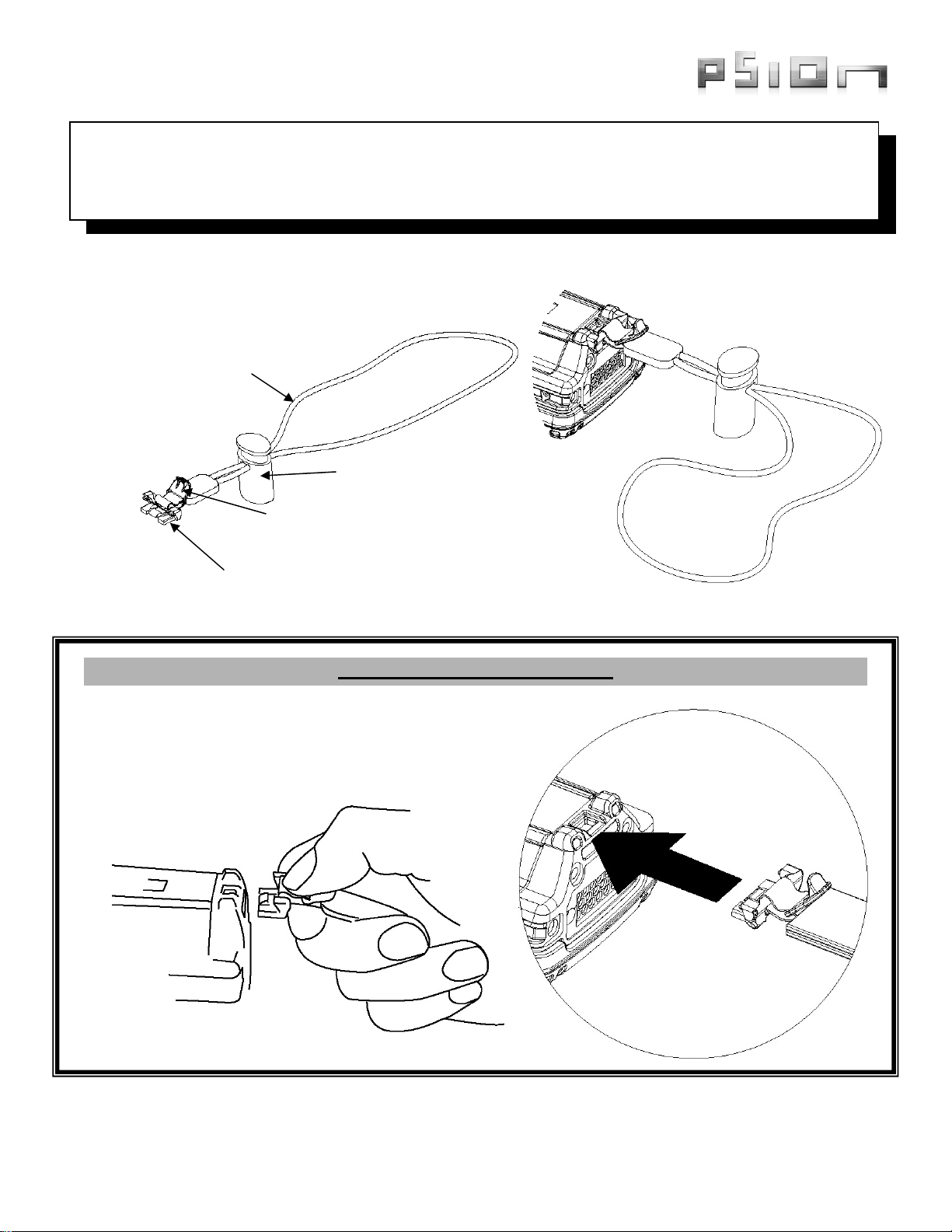

1. Installation of the Wrist Strap
NYLON CORD
SPRING LATCH
UNLOCKING CLIP
RESTAINING CLIP
TO LOCK THE WRIST STRAP IN PLACE, INSERT
THE RETAINING CLIP IN THE SLOT AT THE
BOTTOM OF THE OMNII HANDHELD.
WRIST STRAP INSTALLATION
Page 1 of 2 Part No. 1005723 Revision B
WRIST STRAP REMOVAL
WITH YOUR THUMB, PLACE
THE UNLOCKING CLIP TAB IN
THE TOP SLOT ON THE OMNII.
UNLOCKING
CLIP TAB
TOP SLOT
IN OMNII
STEP 1.
PUSH DOWN ON UNLOCKING
CLIP, RELEASING RETAING CLIP
STEP 2.
HOLDING BOTH THE UNLOCKING AND THE
RETAINING CLIPS PULL BOTH AWAY FROM
OMNII TO REMOVE WRIST STRAP
