Zebra R110PAX4, 110PAX4 User's Guide

110PAX4™/R110PAX4™

Print Engine

User Guide

© 2005 ZIH Corp. The copyrights in this manual and the software and/or firmware in the label print engine described therein are owned by ZIH Corp. Unauthorized reproduction of this manual or the software and/or firmware in the label print engine may result in imprisonment of up to one year and fines of up to $10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability.

This product may contain ZPL

, ZPL II®, and ZebraLink™ programs; Element Energy Equalizer® Circuit;

ZebraLink and all product names and numbers are trademarks, and Zebra, the Zebra logo, ZPL, ZPL II, Element Energy Equalizer Circuit, and E3 Circuit are registered trademarks of ZIH Corp. All rights reserved worldwide.

All other brand names, product names, or trademarks belong to their respective holders.

Proprietary Statement This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies.

Product Improvements Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice.

Liability Disclaimer Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

Limitation of Liability In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Declaration of Incorporation

DECLARATION OF INCORPORATION

ZEBRA TECHNOLOGIES CORPORATION

Declares that the following Information Technology Equipment

Zebra PAX4 Series

complies with the following applicable directives and standards for the

ITE: Heavy Industry environment

Applicable Directives and Supporting Standards:

89/336/EEC EMC Directive, EN55022:1998 Class A, EN61000-6-2,

EN61000-3-2, EN61000-3-3 W/Amendment 12

73/23/EEC LVD Directive, EN60950-1:03, CB Scheme

iii

FCC Part 15, Subpart B, Class A, ICES-003

Manufactured By: Zebra Technologies Corporation

The equipment specified conforms to all Directives and Standards listed above effective as of the date below.

________________________ January 4, 2005

Charles A. Derrow Manager, Compliance Eng Zebra Technologies Corporation 333 Corporate Woods Parkway Vernon Hills, IL 60061 USA

NOM 019-SCFI-1998

C-TICK, VCCI

333 Corporate Woods Parkway Vernon Hills, IL 60061 USA

________________________ January 27, 2005

Rod Rodericks Managing Director Zebra Technologies Europe Limited Zebra House, The Valley Center, Gordon Road High Wycombe, Buckinghamshire HP13 6EQ UK

Effective Date: 1 Jan 2005

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Compliance Information

FCC Compliance Statement

This device complies with Part 15 rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for Class A Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the product manuals, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

The user is cautioned that any changes or modifications not expressly approved by Zebra Technologies could void the user’s authority to operate the equipment. To ensure compliance, this print engine must be used with Shielded Communication Cables.

FCC Radiation Exposure Statement (for print engines with RFID encoders)

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Canadian DOC Compliance Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

About This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Who Should Use This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

How This Document Is Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

The Americas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Europe, Africa, Middle East, and India . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Asia Pacific . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Document Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1 • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Print Engine Exterior View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control Panel Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control Panel Indicator Lights (LEDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Power On/Off Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2 • Print Engine Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Handling the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Unpack and Inspect the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Store the Print Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Ship the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Recycle the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Contents

Print Engine Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Dimensions and Clearance Needs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Install the Print Engine in an Applicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connect the Print Engine to a Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

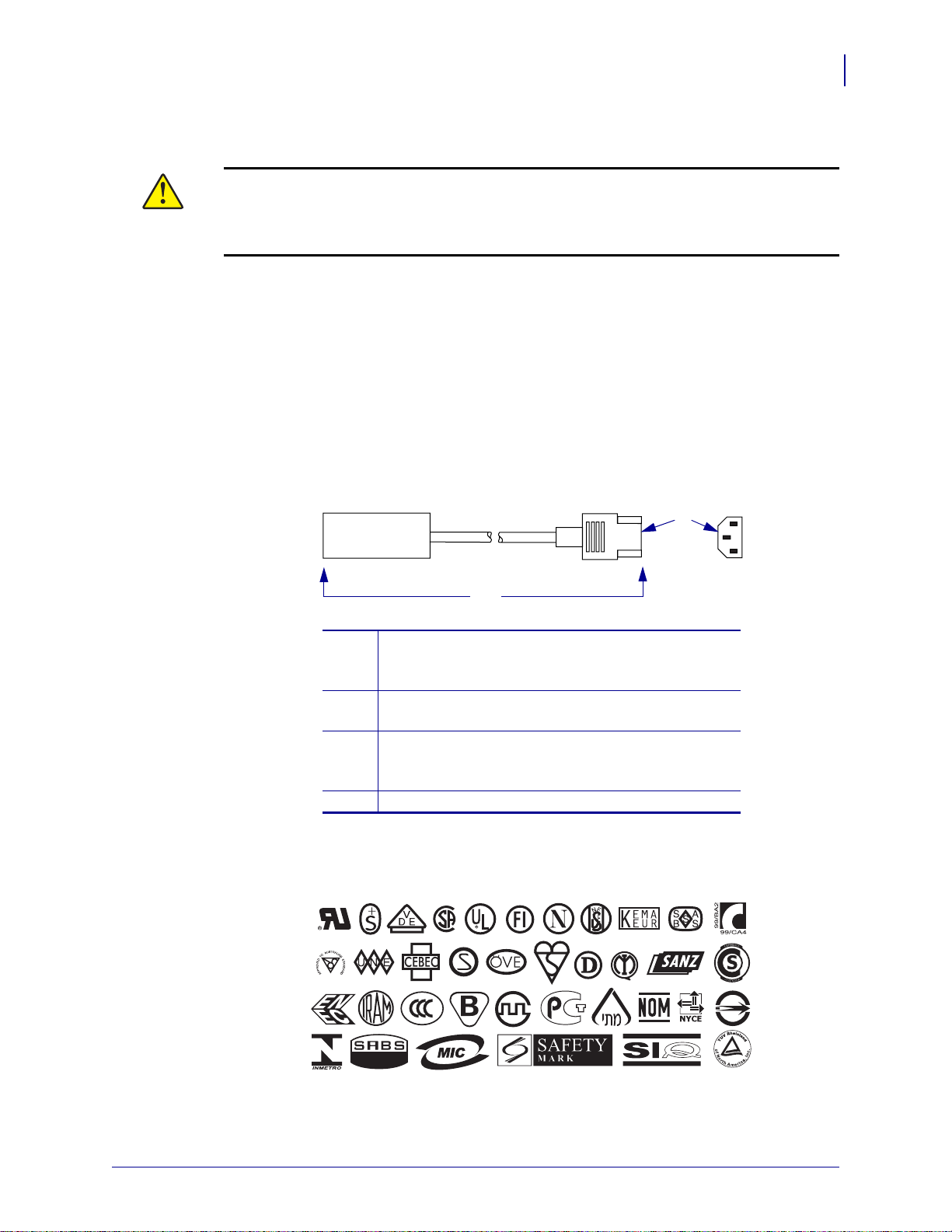

Power Cord Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Select a Communication Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Connector Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Types of Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Data Cable Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Types of Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Ribbon Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

When to Use Ribbon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

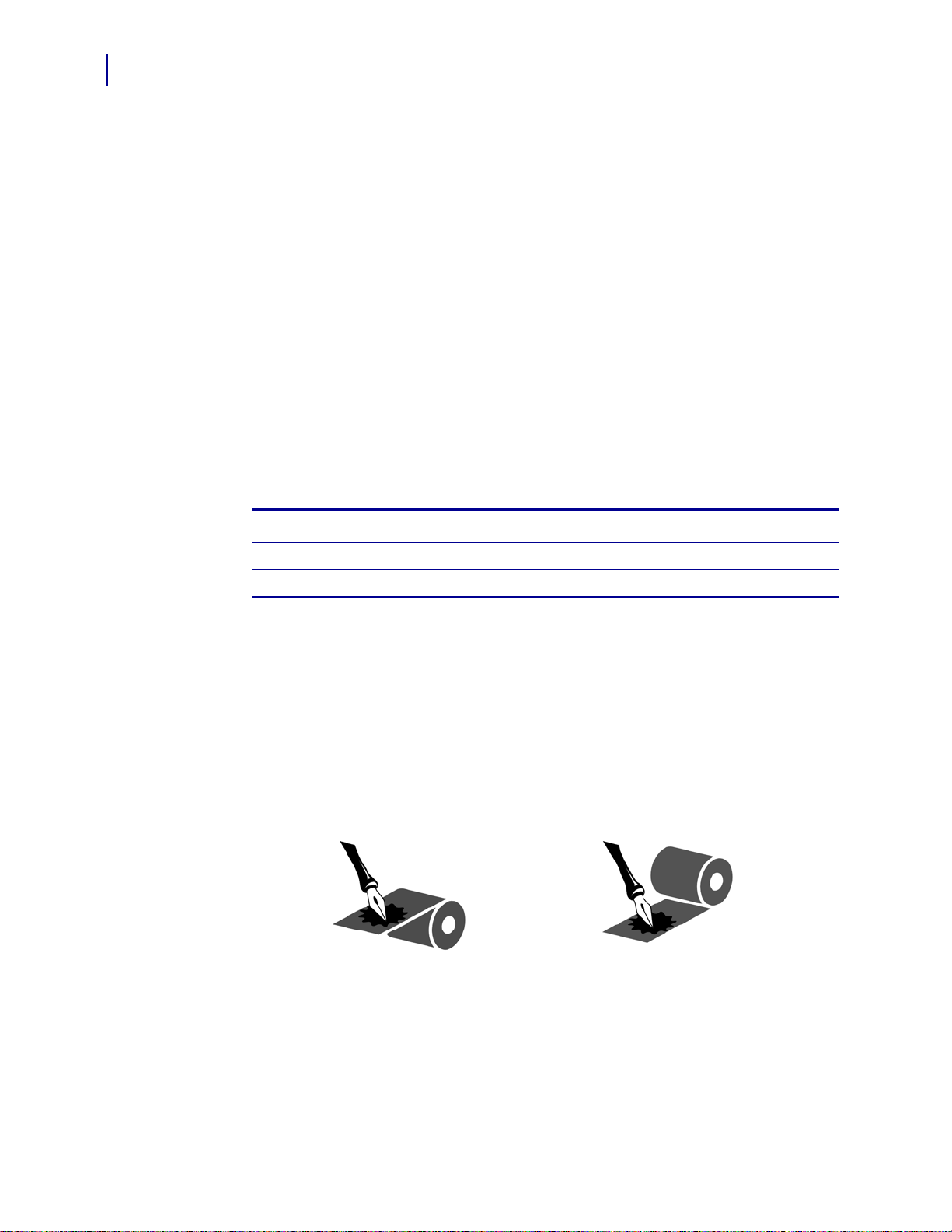

Coated Side of Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3 • Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

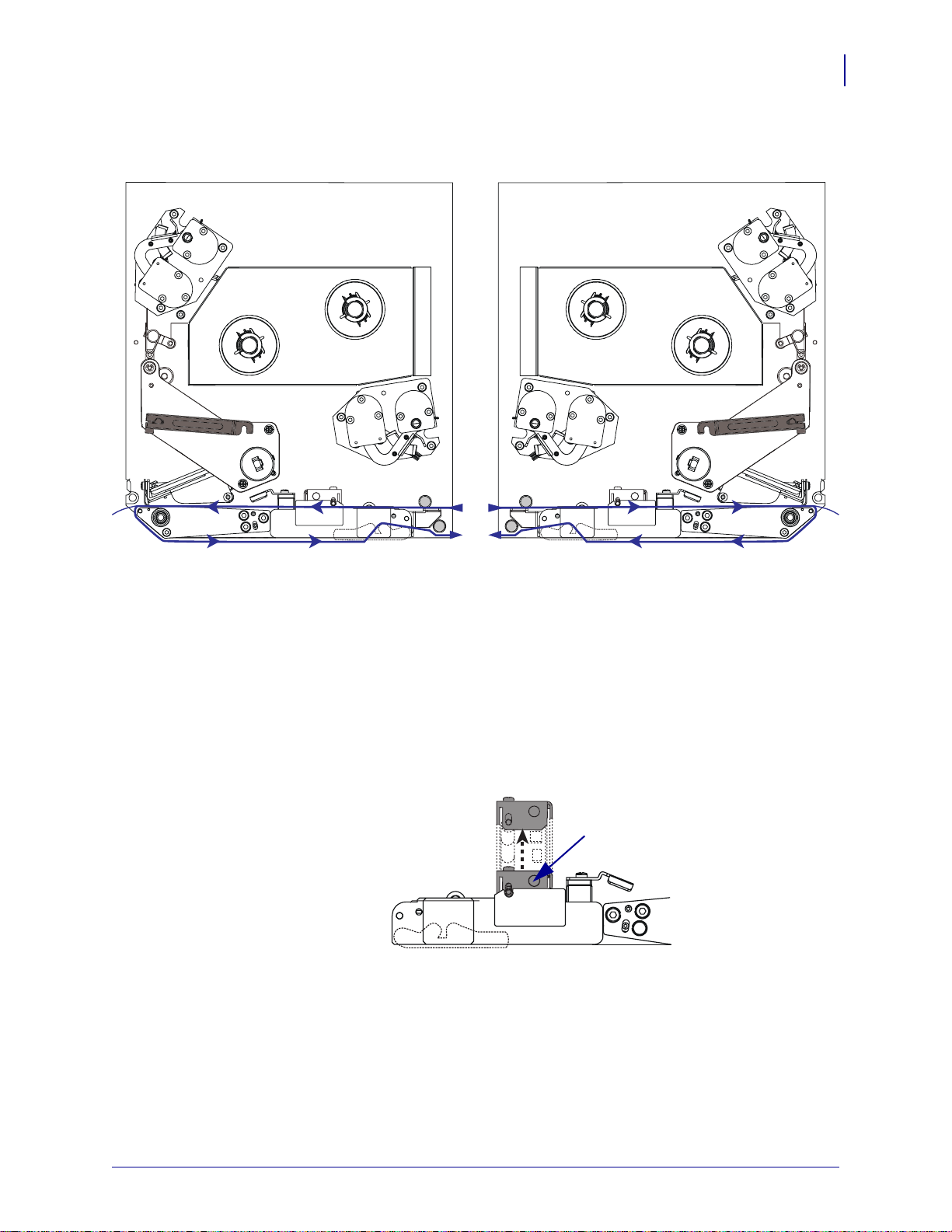

Load Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Load Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Remove Used Ribbon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Calibrate the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Adjust Ribbon and Media Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Ribbon Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Reflective Media Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Transmissive Media Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4 • Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Setup Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Enter Setup Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Exit Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Change Password-Protected Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Default Password Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Disable the Password Protection Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Print a Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Print a Network Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Control Panel LCD Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Print Server LCD Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

RFID LCD Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Contents

5 • Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Cleaning Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Clean the Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Clean the Media Compartment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Clean the Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Clean the Printhead and Platen Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Toggle Positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Printhead Pressure Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Power Fuse Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

6 • Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Troubleshooting Checklists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

LCD Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Memory Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Print Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Communications Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

RFID Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Miscellaneous Print Engine Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Print Engine Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Power-On Self Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

CANCEL Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

PAUSE Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

FEED Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

FEED and PAUSE Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Communications Diagnostics Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

vii

7 • Data Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Parallel Data Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Parallel Cabling Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Parallel Port Interconnections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Serial Data Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Hardware Control Signal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

RS-232 Interface Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Applicator Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Applicator Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Applicator Interface Connector Pin Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Jumper Configurations and Pinouts for +5 V I/O Operation . . . . . . . . . . . . . . . . . . . 139

Pinouts for +24-28 V I/O Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Fuse and Jumper Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Contents

viii

8 • Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Environmental Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Communications Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Other Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Additional Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Agency Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

110PAX 4 Non-RFID or RFID-Ready without RFID Reader Installed . . . . . . . . . . . . 147

R110PAX4 or 110PAX4 with RFID Reader Installed. . . . . . . . . . . . . . . . . . . . . . . . . 147

Media Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Ribbon Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Printing Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Zebra Programming Language (ZPL II) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

About This Document

This section provides you with contact information, document structure and organization, and additional reference documents.

Contents

Who Should Use This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

How This Document Is Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

About This Document

Who Should Use This Document

This User Guide is intended for use by any person who needs to operate or troubleshoot problems with the print engine.

How This Document Is Organized

The User Guide is set up as follows:

Section Description

Introduction on page 7 This chapter shows the operational controls and

Print Engine Setup on page 13 This section provides the tasks that you must

Operations on page 33 If you have completed the tasks and resolved the

Configuration on page 51 This section describes the control panel parameters

Routine Maintenance on page 91 This chapter provides routine cleaning and

Troubleshooting on page 101 This section provides information about errors that

Data Ports on page 127 This section describes the standard communication

Specifications on page 143 This chapter provides routine cleaning and

location of major components used when loading media and ribbon.

complete and the issues that you must consider before you load and configure your print engine.

issues in Print Engine Setup on page 13, follow the instructions in this chapter to load and calibrate your print engine.

that are used to configure the print engine for operation.

maintenance procedures.

you might need to troubleshoot. Assorted diagnostic tests are included.

ports available to connect the print engine to your computer or network.

maintenance procedures.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Contacts

Web Site

The Americas

About This Document

Contacts

You can contact Zebra Technologies at the following.

http://www.zebra.com

Technical Support via the Internet is available 24 hours per day, 365 days per year. Go to

http://www.zebra.com/support.

Regional Headquarters Technical Support Customer Service Dept.

Zebra Technologies International, LLC 333 Corporate Woods Parkway Vernon Hills, Illinois 60061.3109 U.S.A T: +1 847 793 2600 Toll-free +1 800 423 0422 F: +1 847 913 8766

T: +1 847 913 2259 F: +1 847 913 2578

Hardware: hwtsamerica@zebra.com Software: swtsamerica@zebra.com

For printers, parts, media, and ribbon, please call your distributor, or contact us.

T: +1 866 230 9494 E: VHCustServ@zebra.com

Europe, Africa, Middle East, and India

Regional Headquarters Technical Support Internal Sales Dept.

Zebra Technologies Europe Limited Zebra House The Valley Centre, Gordon Road High Wycombe Buckinghamshire HP13 6EQ, UK

T: +44 (0)1494 472872 F: +44 (0) 1494 450103

T: +44 (0) 1494 768298 F: +44 (0) 1494 768210 Germany: Tsgermany@zebra.com France: Tsfrance@zebra.com Spain/Portugal: Tsspain@zebra.com All other areas: Tseurope@zebra.com

Asia Pacific

Regional Headquarters Technical Support Customer Service

Zebra Technologies Asia Pacific, LLC 16 New Industrial Road #05-03 Hudson TechnoCentre Singapore 536204

T: +65 6858 0722 F: +65 6885 0838

T: +65 6858 0722 F: +65 6885 0838 E: tsasiapacific@zebra.com

For printers, parts, media, and ribbon, please call your distributor, or contact us.

T: +44 (0) 1494 768316 F: +44 (0) 1494 768244 E: mseurope@zebra.com

For printers, parts, media, and ribbon, please call your distributor, or contact us.

T: +65 6858 0722 F: +65 6885 0837

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

About This Document

Document Conventions

The following conventions are used throughout this document to convey certain information.

Alternate Color (online only) Cross-references contain hot links to other sections in this guide. If you are viewing this guide online in .pdf format, you can click the cross-reference (blue text) to jump directly to its location.

LCD Display Examples Text from a print engine’s Liquid Crystal Display (LCD) appears

Bubbledot ICG font.

Command Line Examples Command line examples appear in Courier New font. For example, type

Files and Directories File names and directories appear in Courier New font. For example, the

Icons Used

ZTools to get to the Post-Install scripts in the bin directory.

Zebra<version number>.tar file and the /root directory.

Caution • Warns you of the potential for electrostatic discharge.

Caution • Warns you of a potential electric shock situation.

Caution • Warns you of a situation where excessive heat could cause a burn.

Caution • Advises you that failure to take or avoid a specific action could result in physical

harm to you.

Caution • (No icon) Advises you that failure to take or avoid a specific action could result in

physical harm to the hardware.

Important • Advises you of information that is essential to complete a task.

Note • Indicates neutral or positive information that emphasizes or supplements important

points of the main text.

Example • Provides an example, often a scenario, to better clarify a section of text.

Tools • Tells you what tools you need to complete a given task.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

About This Document

Document Conventions

Illustration Callouts Callouts are used when an illustration contains information that needs to be labeled and described. A table that contains the labels and descriptions follows the graphic. Figure 1 provides an example.

Figure 1 • Sample Figure with Callouts

2 1 31

Buttons

Liquid Crystal Display (LCD)

Lights/LEDs

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

About This Document

Document Conventions

Notes • ___________________________________________________________________

__________________________________________________________________________

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Introduction

This chapter shows the operational controls and location of major components used when loading media and ribbon.

Contents

Print Engine Exterior View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control Panel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control Panel Indicator Lights (LEDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Power On/Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Introduction

Print Engine Exterior View

Print engines are available in a right-hand configuration (media moves from left to right,

Figure 2) and a left-hand configuration (media moves from right to left, Figure 3).

Figure 2 • Right-Hand (RH) Print Engine

Figure 3 • Left-Hand (LH) Print Engine

Power on/off switch

Control panel

Media door

Electronics cover

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Control Panel

All controls and indicators for the print engine are located on the control panel (Figure 4). The Liquid Crystal Display (LCD) shows print engine operating status and feature parameters. The buttons are used to control the print engine operations and change parameters. The lights (LEDs) indicate the print engine’s status.

Figure 4 • Control Panel (Right-Hand)

2 1 31

Introduction

Control Panel

Buttons

LCD

Lights/LEDs

Control Panel Buttons

The control panel buttons are described in Table 1.

Table 1 • Control Panel Buttons

Button

LEFT and RIGHT OVAL

PREVIOUS Scrolls the LCD to the previous parameter.

NEXT Scrolls the LCD to the next parameter.

SETUP/EXIT Enters and exits configuration mode.

PAUS E Stops and restarts the printing process or removes error messages and clears the LCD.

Description/Function

The left and right ovals are used to change parameter values for a parameter being displayed on the LCD. Common uses include increasing or decreasing a value, answering yes or no, indicating ON or OFF, and scrolling through choices.

If a label is printing, it is completed before the printing process stops. When the print engine is paused, the PAUSE light is ON.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Introduction

Control Panel

Table 1 • Control Panel Buttons (Continued)

Button

CANCEL

Description/Function

CANCEL functions only in Pause mode. Pressing CANCEL has these effects:

• Cancels the label format that is currently printing.

• If no label format is printing, the next one to be printed is canceled.

• If no label formats are waiting to be printed,

To clear the print engine’s entire label format memory, press and hold the DATA light turns off.

FEED Feeds a blank label.

• If the print engine is idle or paused, the label is fed immediately.

• If the print engine is printing, the label is fed after the current batch prints.

CALIBRATE

CALIBRATE functions only in Pause mode. Press CALIBRATE to recalibrate for

proper media length, to set media type (continuous/non-continuous), and to set print method (direct thermal/thermal transfer).

Control Panel Indicator Lights (LEDs)

The control panel lights are described in Table 2.

Table 2 • Control Panel Lights

CANCEL is ignored.

CANCEL until

LED OFF Indicates ON Indicates FLASHING Indicates

POWER

(Green)

The print engine is OFF, or no power

Power switch is ON, and power is being supplied to the print engine.

—

to print engine.

PAUS E

(Yellow)

Normal operation. One of the following:

• The print engine is paused because

—

of an error condition (printhead, ribbon, or paper error). Usually occurs in conjunction with another LED.

• PAUSE was pressed.

• A pause was requested from the Applicator Port.

• A pause was received as part of the label format.

DATA

(Green)

MEDIA

(Yellow)

No data being received or processed.

Normal operation. Media properly loaded.

Data is processing or printing is taking place. No data is being received.

Out of media. (print engine is paused, LCD displays error message, and PAUSE light is ON).

The print engine is receiving data from or sending status information to the host computer.

—

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 2 • Control Panel Lights (Continued)

Introduction

Control Panel

LED

RIBBON

(Yellow)

ERROR

(Orange)

OFF Indicates ON Indicates FLASHING Indicates

Normal operation. Ribbon properly loaded.

Ribbon in while print engine is in direct thermal mode, or no ribbon loaded while the print engine is in

—

thermal transfer mode. The print engine is paused, LCD displays error message, and PAUSE light is ON.

No print engine errors.

— A print engine error exists. Check

the LCD for status.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Introduction

Power On/Off Switch

The print engine power switch is located to the side of the control panel, as shown in Figure 5. When this switch is placed in the ON ( print engine automatically performs a Power-On Self Test (POST). For more information, see

Power-On Self Test on page 117.

I) position, the POWER light turns on, and the

Figure 5 • Power Switch Location (Right-Hand)

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Print Engine Setup

This section provides the tasks that you must complete and the issues that you must consider before you load and configure your print engine.

Contents

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Handling the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Unpack and Inspect the Print Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Store the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Ship the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Recycle the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Print Engine Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Dimensions and Clearance Needs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Install the Print Engine in an Applicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connect the Print Engine to a Power Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Power Cord Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Select a Communication Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Types of Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Data Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Types of Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Ribbon Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

When to Use Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Coated Side of Ribbon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Before You Begin

Review this checklist, and resolve any issues before you set up or use your print engine.

 Unpack and Inspect the Print Engine Have you unpacked the print engine and

 print engineInstall the Print Engine Have you considered what factors will affect how

 Attach a Power Cord Do you have the correct power cord for your print engine? If

 Connect to a Data Source Have you determined how the print engine will connect to

inspected it for damage? If you have not, see Unpack and Inspect the Print Engine

on page 15.

the print engine is installed into an applicator? Is the print engine mounted in an applicator? For information, see Print Engine Installation on page 16.

you are unsure, see Power Cord Specifications on page 23. To attach the power cord and connect the print engine to a power source, see Connect the Print Engine to a Power

Source on page 22.

a data source (usually a computer)? For more information, see Select a Communication

Interface on page 24.

 Select Media Do you have the correct media for your application? If you are unsure,

see Types of Media on page 28.

 Select Ribbon Do you need to use ribbon, and is the appropriate ribbon available, if

needed? If you are unsure, see Ribbon Overview on page 30.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Handling the Print Engine

This section describes how to handle your print engine.

Unpack and Inspect the Print Engine

When you receive the print engine, immediately unpack it and inspect for shipping damage.

• Save all packing materials.

• Check all exterior surfaces for damage.

• Raise the media door, and inspect the media compartment for damage to components.

If you discover shipping damage upon inspection:

• Immediately notify the shipping company and file a damage report.

• Keep all packaging material for shipping company inspection.

• Notify your authorized Zebra reseller.

Important • Zebra Technologies is not responsible for any damage incurred during the

shipment of the equipment and will not repair this damage under warranty.

Print Engine Setup

Handling the Print Engine

Store the Print Engine

If you are not placing the print engine into immediate operation, repackage it using the original packing materials. You may store the print engine under the following conditions:

• Temperature: –40° to 160°F (–40° to 71°C)

• Relative humidity: 5% to 95% non-condensing

Ship the Print Engine

If you must ship the print engine:

• Remove any media or ribbon from the print engine to avoid damaging the print engine.

• Carefully pack the print engine into the original container or a suitable alternate container to avoid damage during transit. A shipping container can be purchased from Zebra if the original packaging has been lost or destroyed.

Recycle the Print Engine

This print engine is recyclable. If you must dispose of the print engine, do not do so in unsorted municipal waste. Please recycle according to your local standards. For more information, see http://www.zebra.com/recycle.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Print Engine Installation

This section provides basic information for mounting the print engine into an applicator. The illustrations in this section show the print engine from different angles and include dimensions and clearance needs.

Requirements

Stability When the print engine is mounted, the complete assembly must be physically

stable. When the print engine is loaded with ribbon and media, the equipment must not become physically unstable.

Ventilation and Temperature Provide ventilation for the print engine mounting enclosure to remove heat and ensure uninterrupted, trouble-free operation of the print engine. Ambient air temperature surrounding the print engine must not exceed the following:

• Temperature: 32° to 105°F (0° to 41°C)

• Relative humidity: 20% to 95% non-condensing

Power Requirements Consider the current rating of the print engine during installation. When power is applied to the print engine and the enclosing equipment, an overload condition must not be created.

Grounding Requirements Maintain reliable grounding of the print engine. Pay particular attention to the AC power supply connections so that earth ground is maintained through the AC power input connector.

Clearance for Cables and Connectors Allow ample space at the rear of the print engine for electronic connectors and dressing of the following cables: IEC power cord, serial and/or parallel host communication cable, optional host communication cable (Ethernet), and the discrete signal (applicator) interface cable.

Power Cord Requirements The IEC power cord does not have a strain relief on the print engine. If the operating characteristics of the applicator include vibration or strain on the power cord, provide an appropriate clamping mechanism to avoid unintentional disconnection of the power cord from the print engine.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Dimensions and Clearance Needs

Figure 6 • Front View of Right-Hand Print Engine

5 mounting screws

- 0.218 in. (5.5 mm) through

- counterbore 0.350 in. x 0.197 in. (8.9 x 5 mm) deep

- socket head cap screw (M5 or 10-3)

Print Engine Setup

Print Engine Installation

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Print Engine Installation

Figure 7 • Right Side View of Right-Hand Print Engine

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Print Engine Installation

Figure 8 • Rear View of Right-Hand Print Engine

Print Engine Setup

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Print Engine Installation

Figure 9 • Top View of Right-Hand Print Engine

Install the Print Engine in an Applicator

This section provides the basic instructions for installing the print engine into an applicator.

Caution • If the print engine is installed improperly, it could fall out of the applicator and

cause injury. The center mounting bolt and four mounting screws must be installed and secured. See Figure 10 for the location of the bolt and screws.

To install the print engine into an applicator, complete these steps:

1. See Figure 10. Install the center mounting bolt into the center hole on the applicator.

2. Carefully place the keyhole on the center mounting bolt.

Note • The keyhole and the center mounting bolt are designed to support the print engine

and assist in installing and removing the four mounting screws.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Print Engine Setup

Print Engine Installation

3. Install the four corner mounting screws to secure the print engine to the applicator.

Figure 10 • Front View of Print Engine in Applicator

Mounting screws (four total)

Keyhole

Center mounting bolt (shown inside hole on applicator)

Applicator

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Connect the Print Engine to a Power Source

The power supply in the print engine automatically detects the applied line voltage and works in the 90 to 264 VAC, 47 to 63 Hz range.

The AC power cord must have a three-prong female connector on one end that plugs into the mating AC power connector at the rear of the print engine. If a power cable was not included with your print engine, refer to Power Cord Specifications on page 23.

Caution • For personnel and equipment safety, always use an approved three-conductor

power cord specific to the region or country intended for installation. This cord must use an IEC 320 female connector and the appropriate region-specific three-conductor grounded plug configuration.

To connect the print engine to a power source, complete these steps:

1. Turn the print engine power switch to the Off (O) position.

2. Refer to Figure 11. Plug the power cord into the AC power connector on the rear of the

print engine.

3. Plug the other end of the power cord into a power outlet near the print engine.

Figure 11 • Power Connection

Left-Hand Right-Hand

AC power connector

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Power Cord Specifications

Caution • For personnel and equipment safety, always use an approved three-conductor

power cord specific to the region or country intended for installation. This cord must use an IEC 320 female connector and the appropriate region-specific, three-conductor grounded plug configuration.

Depending on how your print engine was ordered, a power cord may or may not be included. If one is not included or if the one included is not suitable for your requirements, refer to the following guidelines:

• The overall cord length must be less than 9.8 ft. (3.0 m).

• The cord must be rated for at least 10 A, 250 V.

• The chassis ground (earth) must be connected to ensure safety and reduce electromagnetic interference. The third wire in the power cord grounds the connection (Figure 12).

Figure 12 • Power Cord Specifications

Print Engine Setup

Connect the Print Engine to a Power Source

AC power plug for your country—This should bear

the certification mark of at least one of the known international safety organizations (Figure 13).

3-conductor HAR cable or other cable approved for

your country. IEC 320 connector—This should bear the

certification mark of at least one of the known international safety organizations (Figure 13).

Length ≤ 9.8 ft. (3 m). Rating 10 Amp, 250 VAC.

Figure 13 • International Safety Organization Certifications

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Select a Communication Interface

The way that you connect your print engine to a data source depends on the communication options installed in the print engine. You may use any available connection to send commands and label formats from a host computer to the print engine.

Caution • Connecting a data communications cable while the power is ON may damage

the print engine.

Note • You must supply all interface cables for your application. Refer to Data Cable

Requirements on page 27 for specific cable requirements.

Connector Locations

Refer to Figure 14. The print engine comes standard with both an Electronics Industries Association (EIA) RS-232 serial interface (DB-9 connector) and an IEEE 1284 bidirectional parallel interface. You may use either of these interface methods to send commands and label formats from a host to the print engine.

Figure 14 • Cable Connections

Left-Hand Right-Hand

DB-15 applicator interface port

Parallel interface connector

DB-9 serial interface connector

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Types of Connections

The method of connecting the print engine to a data source depends on the communication options installed in the print engine and the host. This section provides basic information about common interfaces.

When communicating via the serial data port (RS-232), the baud rate, number of data and stop bits, the parity, and the XON/XOFF or DTR control should be set to match those of the host computer. See Table 6, Print Engine Parameters on page 57 to configure these parameters. When communicating via the parallel port, the previously mentioned parameters do not apply.

RS-232 Serial A serial communication method consisting of data and control signals; available as a standard feature on most PCs and other hosts.

• Advantages: Cables and connectors are readily available from computer equipment stores and suppliers; easy to connect; two-way communication between the host and the print engine.

• Disadvantages: Slower than the parallel connection; limited to 50 feet (15.24 m) of cable.

Figure 15 • Communicating Using a Serial Data Port

Print Engine Setup

Select a Communication Interface

Printer Computer

Null modem adaptor (if using a standard modem cable)

50 ft. (15 m) maximum

Null-modem adaptor (if using a standard modem cable)

9-pin male connector, connected to print engine or null-modem

Male

adaptor 25-pin female connector, connected to computer

9-pin female connector, connected to computer

Maximum cable length = 50 ft. (15 m)

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Select a Communication Interface

IEEE 1284 Bidirectional Parallel A common communication method available on most PCs and other hosts.

• Advantages: Fastest of the communication interfaces; cables and connectors are readily available from computer equipment stores and suppliers; two-way communication between the host and the print engine; easy to connect.

• Disadvantages: Shorter recommended cable length of 6 feet (1.83 m) with a maximum of length 10 ft (3 m); many computers are equipped with only one parallel port, allowing only one IEEE 1284 bidirectional device to be connected at a time.

Figure 16 • Communicating Using a Parallel Port

Printer Computer

36-pin male

25-pin male

10 ft. (3 m) maximum

36-pin male connector, attaching to

print engine 25-pin male connector, attaching to computer

Maximum cable length = 10 ft. (3 m)

DB-15 Applicator Interface Connector This connection provides communication between the print engine and the associated applicator hardware. In some applications, control signal timing may be a critical element in the performance of the print engine. See Applicator

Interface Connector on page 134.

Optional Print Servers Ethernet-based print servers also are available to connect your print engine to a data source. Both wired and wireless options are available.

• With the ZebraNet Wireless Print Server board installed, a wireless PCMCIA card can be used to communicate with a network. For more information on this option, see the ZebraNet Wireless Print Server User Guide.

• ZebraNet 10/100 Print Server (10/100 PS). For more information on 10/100 PS, see the ZebraNet 10/100 Print Server User and Reference Guide.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Data Cable Requirements

Data cables must be fully shielded and fitted with metal or metallized connector shells. Shielded cables and connectors are required to prevent radiation and reception of electrical noise.

To minimize electrical noise pickup in the cable:

• Keep data cables as short as possible.

• Do not bundle the data cables tightly with the power cords.

• Do not tie the data cables to power wire conduits.

Note • Zebra print engines comply with FCC Rules and Regulations, Part 15, Subpart J, for

Class A equipment, using fully-shielded 6-foot (2-meter) data cables. Use of longer cables or unshielded cables may increase radiated emissions above the Class A limits.

Print Engine Setup

Select a Communication Interface

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Types of Media

The print engine can use various types of media (Tab le 3). Zebra strongly recommends the use of Zebra-brand supplies for continuous high-quality printing. A wide range of paper, polypropylene, polyester, and vinyl stock has been specifically engineered to enhance the printing capabilities of the print engine and to ensure against premature printhead wear.

Table 3 • Types of Media

Media Type How It Looks Description

Non-Continuous Roll Media

Roll media is wound on a 3-in. (76-mm) core. Labels have adhesive backing that sticks them to a liner, and they are separated by gaps, holes, notches, or black marks. Tags are separated by perforations.

Figure 17 • Non-Continuous Web Media

Figure 18 • Black Mark Media

Figure 19 • Tag Stock

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 3 • Types of Media (Continued)

Media Type How It Looks Description

Print Engine Setup

Types of Media

Non-Continuous Fanfold Media

Continuous Roll Media

RFID “Smart” Media (for use only with print engines that have an RFID reader/encoder installed)

Fanfold media is folded in a zigzag pattern. Fanfold media can have the same label divisions as noncontinuous roll media. The divisions would fall on or near the folds.

Continuous media is wound on a core and is without gaps, holes, notches, or black marks. This allows the image to be printed anywhere on the label. With continuous media, use the transmissive sensor so the print engine can detect when the media runs out.

Radio frequency identification (RFID) “smart” labels are made from the same materials and adhesives as non-RFID labels. Each label has an RFID transponder, made of a chip and an antenna, embedded between the label and the liner (sometimes called an “inlay”). The shape of the transponder varies by manufacturer and is visible through the label.

All “smart” labels have memory that can be read, and many have memory that can be encoded.

Important • Transponder placement within a

label depends on the transponder type and the printer model. Make sure that you are using the correct “smart” media for your printer.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Ribbon Overview

Ribbon is a thin film that is coated on one side with wax, resin, or wax resin, which is transferred to the media during the thermal transfer process. The media determines whether you need to use ribbon and how wide the ribbon must be.

When ribbon is used, it must be as wide as or wider than the media being used. If the ribbon is narrower than the media, areas of the printhead are unprotected and subject to premature wear.

When to Use Ribbon

Thermal transfer media requires ribbon for printing while direct thermal media does not. To determine if ribbon must be used with a particular media, perform a media scratch test.

To perform a label scratch test, complete these steps:

1. Scratch the print surface of the media rapidly with your fingernail.

2. Did a black mark appear on the media?

If a black mark... Then the media is...

Does not appear on the media Thermal transfer. A ribbon is required.

Appears on the media Direct thermal. No ribbon is required.

Coated Side of Ribbon

Ribbon can be wound with the coated side on the inside or outside (Figure 20). This print engine can only use ribbon that is coated on the outside. If you are unsure which side of a particular roll of ribbon is coated, perform an adhesive test or a ribbon scratch test to determine which side is coated.

Figure 20 • Ribbon Coated on Outside or Inside

Outside Inside

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Adhesive Test

If you have labels available, perform the adhesive test to determine which side of a ribbon is coated. This method works well for ribbon that is already installed.

To perform an adhesive test, complete these steps:

1. Peel a label from its liner.

2. Press a corner of the sticky side of the label to the outer surface of the roll of ribbon.

3. Peel the label off of the ribbon.

4. Observe the results. Did flakes or particles of ink from the ribbon adhere to the label?

Print Engine Setup

Ribbon Overview

If ink from the ribbon...

Then...

Adhered to the label The ribbon is coated on the outer surface.

Did not adhere to the label

The ribbon is coated on the inner surface and cannot be used in this print engine. To verify this, repeat the test on the other surface of the roll of ribbon.

Ribbon Scratch Test

Perform the ribbon scratch test when labels are unavailable.

To perform a ribbon scratch test, complete these steps:

1. Unroll a short length of ribbon.

2. Place the unrolled section of ribbon on a piece of paper with the outer surface of the

ribbon in contact with the paper.

3. Scratch the inner surface of the unrolled ribbon with your fingernail.

4. Lift the ribbon from the paper.

5. Observe the results. Did the ribbon leave a mark on the paper?

If the ribbon... Then...

Left a mark on the paper The ribbon is coated on the outer surface.

Did not leave a mark on the paper

The ribbon is coated on the inner surface and cannot be used in this print engine. To verify this, repeat the test on the other surface of the roll of ribbon.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Print Engine Setup

Ribbon Overview

Notes • ___________________________________________________________________

__________________________________________________________________________

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Operations

If you have completed the tasks and resolved the issues in Print Engine Setup on page 13, follow the instructions in this chapter to load and calibrate your print engine.

Contents

Load Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Load Ribbon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Remove Used Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Calibrate the Print Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Adjust Ribbon and Media Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Ribbon Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Reflective Media Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Transmissive Media Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Operations

Load Media

Important • If the print engine power is Off (O), rollers in the print engine can turn if you pull

on the media. This could cause loaded ribbon to become slack and possibly wrap around the auxiliary roller. If you load or unload media with the power off, inspect the auxiliary roller to make sure that no ribbon is wrapped around it before turning On (

I) the power.

Figure 21 identifies the media-handling components. Figure 22 on page 35 shows the print

engine with media loaded.

Figure 21 • Components for Media Loading

Auxiliary roller

Printhead latch

Printhead assembly

Peel bar

Media liner roller

Printhead locking pin

Outer media guide

67910 8

Pinch roller release button

Pinch roller assembly

Peel roller assembly

Peel roller latch

Lower guide post

Upper guide post

3 4

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Figure 22 • Loaded Media

Left-Hand Right-Hand

Operations

Load Media

To load media, complete these steps:

1. Load media on the media supply reel of the applicator (refer to the applicator’s user

guide).

2. Open the media door.

3. Press the release button (1) on the pinch roller assembly, and allow the assembly to

pivot up.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Operations

Load Media

4. Slide the outer media guide (1) all the way out.

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Open the printhead assembly by unlatching the printhead latch (1) from the

locking pin (

2).

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Operations

Load Media

6. See Figure 23. Thread the media under the upper guide post (1), below the pinch roller

assembly (

7. See Figure 23. Extend approximately 30 in. (75 cm) of media past the peel bar (4).

Remove and discard the labels from this exposed media (

2), and under the printhead assembly (3).

5).

Figure 23 • Threading the Media

1 2

8. See Figure 24. Position the media (1) so that it is aligned with and just touching the inner

media guide (

9. See Figure 24. Position the outer media guide (3) so that it just touches the outer edge of

the media (

2).

1).

Figure 24 • Aligning Media with the Media Guides

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Operations

Load Media

10. Press down on the pinch roller assembly (1) until it locks closed.

11. Close the printhead assembly by rotating the printhead latch (1) until it latches onto the

locking pin (

2).

12. Raise the peel roller latch (1) so that the peel roller assembly (2) pivots down.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Operations

Load Media

13. Thread the media liner around the peel bar (1), under the media liner roller (2), and

through the peel roller assembly (

3).

Note • If the applicator has an air tube, route the media liner between the air tube and the

peel bar. Do not thread the media liner over the air tube.

3 2

14. Rotate the peel roller assembly (1) up until it locks into the closed position.

15. Thread the media liner around the take-up spindle of the applicator (refer to the

applicator’s user guide).

16. Close the media door.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Operations

Load Ribbon

Use ribbon with thermal transfer media. The ribbon must be coated on the outside and wider than the media. If the ribbon is narrower than the media, areas of the printhead are unprotected and subject to premature wear.

Figure 25 identifies the ribbon system components inside the media compartment of a

right-hand print engine. Figure 26 on page 41 shows the print engine with ribbon loaded.

Figure 25 • Components for Ribbon Loading

1 2

Ribbon supply spindle

Ribbon take-up spindle

Upper dancer assembly

Idler roller

Auxiliary roller

Printhead latch

10 8

7 8

9 10 11

Printhead assembly Locking pin Ribbon sensor Ribbon sensor reflector Lower dancer assembly

4 5

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Figure 26 • Loaded Ribbon

Left-Hand Right-Hand

Operations

Load Ribbon

To load ribbon, complete these steps:

1. Place a full ribbon roll (1) onto the ribbon supply spindle (2) so that the ribbon rotates as

shown, and then push the roll toward the print engine frame until it is fully seated.

Left-Hand Right-Hand

21 2 1

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Operations

Load Ribbon

2. See Figure 27. On the lower dancer assembly, squeeze the opening tabs (1) to pivot open

the dancer arm (

3. See Figure 27. Carefully thread the ribbon (3) through the lower dancer assembly, and

then slowly release the dancer arm (

2).

Figure 27 • Opening a Dancer Assembly

4. Thread the ribbon between the ribbon sensor (1) and the ribbon sensor reflector (2).

5. Open the printhead assembly by unlatching the printhead latch (1) from the

locking pin (

2).

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Thread the ribbon under the printhead assembly (1) and then up toward the auxiliary

2).

roller (

Operations

Load Ribbon

Thread the ribbon over the auxiliary roller (1), around the idler roller (2), and then up

toward the upper dancer assembly.

2 1

8. See Figure 27 on page 42. On the upper dancer assembly, squeeze the opening tabs to

pivot open the dancer arm.

9. See Figure 27 on page 42. Carefully thread the ribbon through the upper dancer assembly,

and then slowly release the dancer arm.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Operations

Load Ribbon

10. Place an empty ribbon core (1) onto the ribbon take-up spindle (2). Push the core toward

the print engine frame until it is fully seated.

Left-Hand Right-Hand

11. Attach the end of the ribbon to the empty ribbon core with adhesive tape or a label, and

wind for several turns in the direction shown (

1). Ensure that the ribbon winds evenly on

2 1

the spindle.

Left-Hand Right-Hand

1 1

12. Close the printhead assembly by rotating the printhead latch (1) until it latches onto the

locking pin (

2).

13. Close the media door.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Remove Used Ribbon

To remove used ribbon, complete these steps:

1. Open the media door.

2. Examine the ribbon. Did the ribbon run out?

If... Then...

Ye s a. Remove the empty core from the ribbon supply spindle. Save the core

b. Remove the used ribbon and core from the ribbon take-up spindle. c. Install new ribbon following the instructions in Load Ribbon

No a. Cut the ribbon near the ribbon take-up spindle.

b. Remove the used ribbon and core from the ribbon take-up spindle. c. Locate an empty ribbon core. If necessary, remove and discard the

d. Place the empty ribbon core onto the ribbon take-up spindle, and push

e. Thread the remaining ribbon on the ribbon supply spindle following

Remove Used Ribbon

to use on the ribbon take-up spindle when you load ribbon.

on page 40.

used ribbon from the core removed in the previous step.

the core toward the print engine frame until it is fully seated.

the instructions in Load Ribbon on page 40.

Operations

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Operations

Calibrate the Print Engine

Calibrate the print engine when it is first put into service. Calibration allows the print engine to establish the proper settings for the specific media and ribbon used in your application. You may calibrate the print engine at other times as needed. Tab le 4 shows the different methods for calibration.

Table 4 • Types of Calibration

Type of Calibration Description When/How It Occurs

Auto-calibration The print engine automatically sets

the value it detects for the spaces between labels.

Long (Standard) Calibration

The print engine does the following:

• feeds media and ribbon

• sets the values it detects for media length, media type (continuous or non-continuous), and print mode (thermal transfer or direct thermal)

• updates the sensor values

Occurs at the following times:

• When the print engine is first turned on if CALIBRATION is selected for MEDIA POWER UP (see Select Media Power-Up

Option on page 75)

• When the print engine feeds media after the printhead is closed if CALIBRATION is selected for HEAD CLOSE (see Select Head

Close Option on page 75).

• As part of both the sensor profile and media and ribbon sensor calibration procedures.

To perform a long calibration, do one of the following:

• Press

PAUSE on the control panel

to pause the print engine, and then

CALIBRATE.

press

• Select CALIBRATION for the MEDIA POWER UP or HEAD CLOSE parameter (see Select

Media Power-Up Option on page 75 or Select Head Close Option on page 75).

Short Calibration The print engine calibrates using the

current sensor values rather than detecting the spaces between labels and resetting the sensors. This calibration sequence uses fewer labels than the long calibration sequence, but

Select SHORT CAL for the MEDIA POWER UP or HEAD CLOSE parameter (see Select Media

Power-Up Option on page 75 or Select Head Close Option

on page 75).

it is less reliable because the values that are stored in the sensors could be incorrect.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Calibrate the Print Engine

Table 4 • Types of Calibration (Continued)

Type of Calibration Description When/How It Occurs

Operations

Sensor Profile Calibration

Media and Ribbon Sensor Sensitivity Calibration

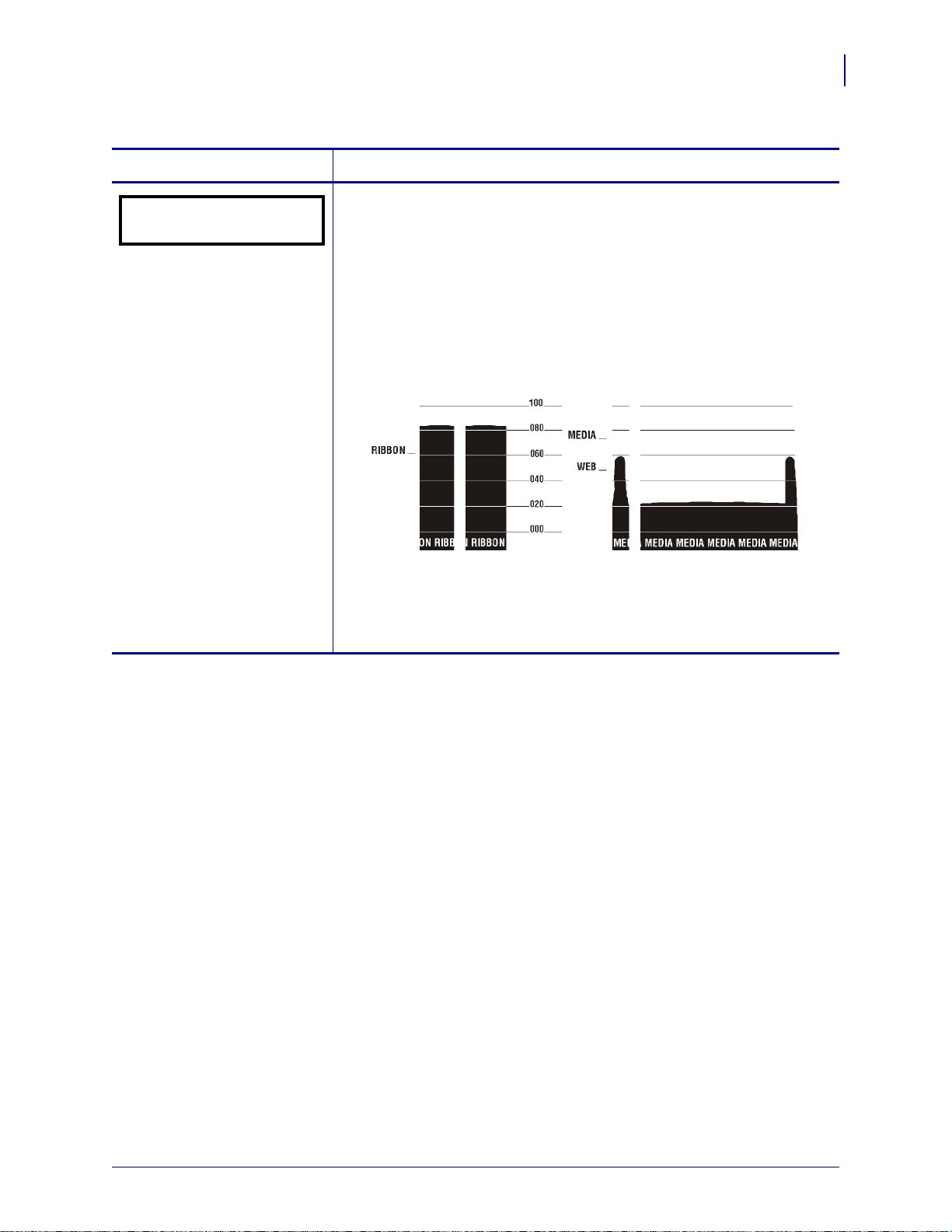

The print engine auto-calibrates and prints a media sensor profile.

One of the most common adjustments to print engine settings. The print engine resets the sensitivity of the sensors to detect correctly the media and ribbon that you are using. If you change the type of ribbon and/or media, you might need to reset the sensitivity of the media and ribbon sensors. When the sensors are at their new sensitivity, the print engine performs an auto-calibration.

Select the SENSOR PROFILE option

on the control panel. See Print Sensor

Profile on page 69 for instructions.

Select the MEDIA AND RIBBON

CALIBRATE option on the control

panel. See Calibrate Media and

Ribbon Sensor Sensitivity on page 70

for instructions.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Operations

Adjust Ribbon and Media Sensors

This section describes how to adjust the sensors.

Ribbon Sensor

The ribbon sensor (Figure 28) is mounted in a fixed position, and no adjustment is required.

Figure 28 • Ribbon Sensor Location

Reflective Media Sensor

Some types of media have black marks printed on the underside of the media liner, which act as “start of label” indicators. The reflective media sensor senses these black marks. The position of this sensor is not adjustable. If you use this type of media, refer to Media

Specifications on page 149 for information about black mark requirements.

Transmissive Media Sensor

The transmissive media sensor finds “start of label” indicators, such as notches or holes in the media or interlabel gaps. This sensor consists of a light source (positioned below the media) and a light sensor (positioned above the media).

To position the sensor, complete these steps:

1. Refer to Figure 29. Turn the adjustment knob on the media guide shelf assembly to move

the media sensor.

Ribbon sensor reflector

Ribbon sensor

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

2. How does the current media indicate the start of labels?

If the media... Then...

Operations

Adjust Ribbon and Media Sensors

Has notches or holes

Align the sensor with the notch or hole in the media.

between labels

Uses interlabel gaps Position the sensor approximately at the center of the media

width.

Figure 29 • Media Sensor Adjustment (Right-Hand Unit Shown)

Sensor position indicator

Pinch roller assembly

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Operations

Adjust Ribbon and Media Sensors

Notes • ___________________________________________________________________

__________________________________________________________________________

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Configuration

This section describes the control panel parameters that are used to configure the print engine for operation.

Contents

Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Enter Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Exit Setup Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Change Password-Protected Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Default Password Value. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Disable the Password Protection Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Print a Configuration Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Print a Network Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Control Panel LCD Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Print Server LCD Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

RFID LCD Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Setup Mode

After you have installed the media and ribbon and the Power-On Self Test (POST) is complete, the control panel displays your application using the control panel display and the buttons directly below it. If it becomes necessary to restore the initial print engine defaults, see PAU S E S e l f Te s t on page 119 and

FEED Self Test on page 120.

Important • Certain printing conditions may require that you adjust printing parameters,

such as print speed, darkness, or print mode. These conditions include (but are not limited to):

• printing at high speeds

• peeling the media

• the use of extremely thin, small, synthetic, or coated labels

Because these and other factors affect print quality, run tests to determine the best combination of print engine settings and media for your application. A poor match may limit print quality or print rate, or the print engine may not function properly in the desired print mode.

PRINTER READY. You may now set print engine parameters for

Note • If the print engine is operating on an IP network, you can change the print engine’s

parameters in these additional ways:

• with ZebraLink™ WebView (ZebraNet Server required). For information, see the appropriate print server user guide.

• with the SetWLAN configuration utility (ZebraNet Wireless Print Server required). For information, see the ZebraNet Wireless Print Server User Guide.

Enter Setup Mode

To enter Setup Mode, complete these steps:

1. Press SETUP/EXIT.

2. Press NEXT or PREVIOUS to scroll through the parameters.

10/100 PrintServer or ZebraNet Wireless Print

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Exit Setup Mode

To leave Setup mode, complete these steps:

1. Press SETUP/EXIT.

The LCD displays

2. Press the left or right oval to display the save options (Tab le 5).

LCD Description

SAVE CHANGES.

Table 5 • Save Options When Leaving Setup Mode

Configuration

Setup Mode

PERMANENT

TEMPORARY

CANCEL

LOAD DEFAULTS

LOAD LAST SAVE

DEFAULT NET

3. Press NEXT to select the displayed choice.

When the configuration and calibration sequence is done,

Stores values in the print engine even when power is turned off.

Saves the changes until power is turned off.

Cancels all changes made since you entered Setup mode, except for changes made to the darkness and tear-off settings, which go into effect as soon as they are made.

Restores all parameters other than the network settings back to the factory defaults. Use care when loading defaults because you will need to reload all settings that you changed manually.

Note • Loading factory defaults causes the print engine

to auto-calibrate.

Loads values from the last permanent save.

Restores the wired and wireless network settings back to factory defaults.

PRINTER READY displays.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Change Password-Protected Parameters

Certain parameters, including the communication parameters, are password-protected by factory default.

Caution • Do not change password-protected parameters unless you have a complete

understanding of the parameters’ functions. If the parameters are set incorrectly, the print engine may function unpredictably.

The first time that you attempt to change a password-protected parameter, the print engine displays four-digit numeric password. After you have entered the password correctly, you do not have to enter it again unless you leave Setup mode by pressing the print engine.

To enter a password for a password-protected parameter, complete these steps:

1. At the password prompt, use the left oval to change the selected digit position.

ENTER PASSWORD. Before you can change the parameter, you must enter the

SETUP/EXIT or by turning Off (O)

2. When you have selected the digit that you wish to change, use the right oval to increase

the selected digit value. Repeat these two steps for each digit of the password.

3. After entering the password, press NEXT.

The parameter you selected to change is displayed. If the password was entered correctly, you can change the value.

Default Password Value

The default password value is 1234. The password can be changed using the ^KP (Define Password) ZPL II instruction or through ZebraLink 10/100 Print Server, or Wireless Print Server required).

Disable the Password Protection Feature

You can disable the password protection feature so that it no longer prompts you for a password by setting the password to 0000 via the password-protection feature, send the ZPL/ZPL II command number from 1 to 9999.

^KP ZPL/ZPL II command. To re-enable the

™

WebView (Ze b raNet®PrintServer II,

^KPx, where x can be any

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Print a Configuration Label

A configuration label lists the print engine settings that are stored in configuration memory. After you load the media and ribbon (if necessary), print a configuration label as a record of your print engine’s current settings. Keep the label to use when troubleshooting printing problems.

To print a configuration label, complete these steps:

1. On the control panel, press SETUP/EXIT.

2. Press NEXT or PREVIOUS to scroll through the parameters until you reach

LIST SETUP.

3. Press the right oval to confirm printing.

A configuration label prints (Figure 30).

Figure 30 • Configuration Label

Configuration

Print a Configuration Label

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Print a Network Configuration Label

If you are using a print server, you can print a network configuration label after the print engine is connected to the network.

To print a network configuration label, complete these steps:

1. On the control panel, press SETUP/EXIT.

2. Press NEXT or PREVIOUS to scroll through the parameters until you reach

LIST NETWORK.

3. Press the right oval to confirm printing.

A network configuration label prints (Figure 31). An asterisk designates whether the wired or wireless print server is active. If no wireless print server is installed, the wireless portion of the label does not print.

Figure 31 • Network Configuration Label (With a Wireless Print Server Installed)

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Control Panel LCD Displays

Use the LCD display on the control panel to adjust print engine settings. Table 6 shows parameters in the order in which they are displayed when you press mode. Table 7 on page 82 shows the additional parameters that appear when a wired or wireless print server is installed in the print engine. Table 8 on page 86 shows the additional parameters that appear when a Radio Frequency Identification (RFID) reader is installed.

Configuration

Control Panel LCD Displays

NEXT after entering Setup

While viewing parameters, press to return to the previous parameter in the cycle. When a parameter is changed, an asterisk (*) appears in the upper left corner of the display to indicate that the value is different from the one currently active in the print engine.

Table 6 • Print Engine Parameters (Page 1 of 25)

Parameter

DARKNESS +04.0

- +

NEXT to continue to the next parameter, or press PREVIOUS

Action/Explanation

Adjust Print Darkness

Darkness (burn duration) settings depend on a variety of factors, including ribbon type, media type, and the condition of the printhead. You may adjust the darkness for consistent high-quality printing.

Important • Set the darkness to the lowest setting that provides

good print quality. If the darkness is set too high, the ink may smear, the ribbon may burn through, or the printhead may wear prematurely.

If printing is too light or if there are voids in printed areas, increase the darkness. If printing is too dark or if there is spreading or bleeding of printed areas, decrease the darkness.

The FEED Self Test on page 120 can be used to determine the best darkness setting. You may want to adjust darkness while performing the PA U SE S el f

Test on page 119. Because the darkness setting takes effect immediately,

you can see the results on labels that are currently printing. Darkness settings also may be changed by the driver or software settings.

Default: +04.0

Range: 00.0 to +30.0

To change the value shown:

1. Press the right oval to increase darkness.

2. Press the left oval to decrease darkness.

PRINT SPEED 2 IPS +

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Adjust Print Speed

Adjusts the speed for printing a label (given in inches per second). Slower print speeds typically yield better print quality. Print speed changes take effect upon exiting Setup mode.

Default: 2 IPS

Range: 2 to 12 IPS for 203 dpi, 2 to 8 IPS for 300 dpi

To change the value shown:

1. Press the right oval to increase the value.

2. Press the left oval to decrease the value.

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 2 of 25)

Parameter

SLEW SPEED 6 IPS +

BACKFEED SPEED 2 IPS +

Action/Explanation

Adjust Slew Speed

Adjusts the speed for feeding a blank label (given in inches per second).

Default: 6 IPS

Range: 1 to 12 IPS

To change the value shown:

1. Press the right oval to increase the value.

2. Press the left oval to decrease the value.

Adjust Backfeed Speed

If backfeed is on, adjusts the speed at which the label backs up before printing (given in inches per second).

Default: 2 IPS

Range: 1 to 12 IPS

To change the value shown:

1. Press the right oval to increase the value.

2. Press the left oval to decrease the value.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 3 of 25)

Configuration

Control Panel LCD Displays

Parameter

TEAR OFF +000

- +

Action/Explanation

Adjust the Tear-Off Position

This parameter establishes the position of the media over the tear-off/peel-off bar after printing.

See Figure 32. Higher numbers move the media out (the tear line moves closer to the leading edge of the next label), and lower numbers move the media in (the tear line moves closer to the edge of the label just printed).

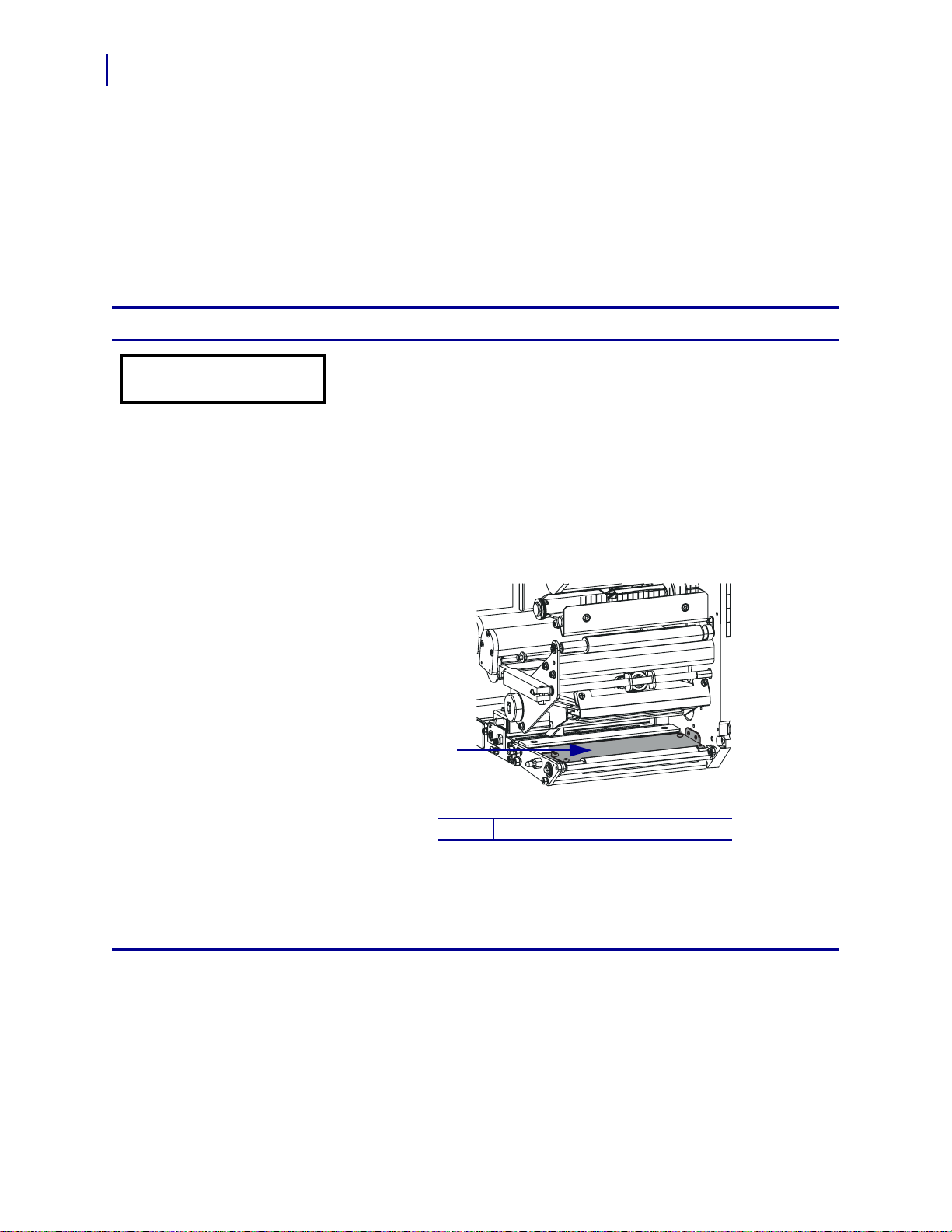

Figure 32 • Tear-Off Position Adjustment

Media direction

Factory-set tear line location at position 00

PRINT MODE

-APPLICATOR +

Default: +0

Range: –120 to +120

To change the value shown:

1. Press the right oval to increase the value. Each press adjusts the tear-off position by four dot rows.

2. Press the left oval to decrease the value. Each press adjusts the tear-off position by four dot rows.

Select Print Mode

Print mode settings tell the print engine the method of media delivery that you wish to use. Make sure that your print engine can support the selected option.

Default: APPLICATOR

Selections: TEAR-OFF, REWIND, APPLICATOR

To change the value shown:

1. Press the left or right oval to scroll through the options.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 4 of 25)

Parameter

MEDIA TYPE

-NON-CONTINUOUS +

PRINT METHOD

-THERMAL-TRANS. +

Action/Explanation

Set Media Type

This parameter tells the print engine the type of media that you are using (see Types of Media on page 28 for more information). Selecting continuous media requires that you include a label length instruction in your label format (

^LLxxxx if you are using ZPL or ZPL II).

When non-continuous media is selected, the print engine feeds media to calculate label length (the distance between two recognized registration points of the inter-label gap, webbing, or alignment notch or hole).

Default: NON-CONTINUOUS

Selections: CONTINUOUS, NON-CONTINUOUS

To change the value shown:

1. Press the left or right oval to toggle between the options.

Select Print Method

The print method parameter tells the print engine the method of printing that you wish to use: direct thermal (no ribbon) or thermal transfer (using thermal transfer media and ribbon).

Default: THERMAL TRANSFER

Selections: THERMAL TRANSFER, DIRECT THERMAL

Note • Selecting direct thermal when using thermal transfer media

and ribbon creates an error condition, but printing continues.

PRINT WIDTH

- 168 0/8 MM +

To change the value shown:

1. Press the left or right oval to toggle between the options.

Set Print Width

Determines the printable area across the width of the label given the resolution of the print engine.

Default: 168 0/8 MM for 203 dpi print engines; 168 0/12 MM for 300 dpi print engines

Note • Setting the width too narrow can result in portions of the

label not being printed on the media. Setting the width too wide wastes formatting memory and can cause printing off the label and on the platen roller. This setting can affect the horizontal position of the label format if the image was inverted using the ^POI ZPL II command.

To change the value shown:

1. Press the left oval to move the cursor.

2. Press the right oval to increase the value of the digit.

To change the unit of measurement:

1. Press the left oval until the unit of measurement is active.

2. Press the right oval to toggle to a different unit of measure (mm, inches, or dots).

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 5 of 25)

Configuration

Control Panel LCD Displays

Parameter

MAXIMUM LENGTH

-39.0 IN 988 MM

Action/Explanation

Set Maximum Label Length

This parameter is used during the media portion of the calibration process.

Always set maximum label length to a value that is at least 1.0 in. (25.4 mm) greater than the actual label length (Figure 33). If the value is set to a smaller value than the label length, the print engine assumes that continuous media is loaded, and the print engine cannot calibrate.

For example, if the label length is 5.0 inches (126 mm) including the interlabel gap, set the parameter for 6.0 inches (152 mm). If the label length is 7.5 inches (190 mm), set the parameter for 9.0 inches (229 mm).

Figure 33 • Label Length

}

Label length (including interlabel gap)

Interlabel gap

Set maximum label length to approximately

this value

Default: 39.0 inches (988 mm).

Range: Values are adjustable in one-inch (25.4 mm) increments.

To change the value shown:

1. Press the right oval to increase the value.

2. Press the left oval to decrease the value.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 6 of 25)

Parameter

EARLY WARNING MEDIA DISABLED

Action/Explanation

Set Early Warning System

When this parameter is enabled, the print engine provides warnings when labels are running low.

Note • Update the number of labels per roll when beginning use of

the Early Warning System. The print engine does not make any adjustments when power is turned off and on.

Default: MEDIA DISABLED

Selections: MEDIA DISABLED, MEDIA ENABLED

To change the Early Warning settings:

1. When the LCD displays EARLY WARNING MEDIA, press the left or right oval to toggle between prompted for a password, enter your password using the instructions in

Change Password-Protected Parameters on page 54.)

2. If you enable the Early Warning System, do the following:

a. Exit Setup mode and save changes to enable additional parameters. b. Enter Setup mode again. The media and ribbon parameters

LABELS PER ROLL, MEDIA REPLACED, RIBBON

(

LENGTH

c. Adjust the settings as necessary (descriptions of each of these

parameters follows).

, and RIBBON REPLACED) appear.

ENABLED and DISABLED. (If you are

LABELS PER ROLL

- 0900 +

Set Number of Labels Per Roll for Early Warning

This parameter appears only when Early Warning is enabled for media. This value should correspond to the number of labels per roll of the media that you are using.

Default: 0900

Range: 100 to 9999

To change the value shown:

1. Press the left oval to move the cursor.

2. Press the right oval to increase the value of the digit. Based on the number entered, when the print engine detects that less

than 15% of the labels remain, the LCD. If the alert function is enabled, an alert is also sent. When the printhead is opened and then closed after a media warning is received, the LCD prompts with

3. If you replaced the media, press the right oval to select the warning and reset the label counter. If you did not replace the media, press the left oval to select

MEDIA REPLACED?.

WARNING MEDIA LOW appears on

YES to clear

NO.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 7 of 25)

Configuration

Control Panel LCD Displays

Parameter

MEDIA REPLACED? NO YES

RIBBON LENGTH

- 450M 1476 FT +

Action/Explanation

Reset Media Counter for Early Warning

This parameter appears only when Early Warning is enabled for media.

To reset the media counter:

1. Did you replace the media?

a. If you replaced the media, press the right oval to select YES. b. If you did not replace the media, press the left oval to select NO.

Set Ribbon Length for Early Warning

This parameter appears only when Early Warning is enabled for media and the print engine is set for Thermal Transfer operation.

Default: 450 M/1476 FT

Range: 100 M/328 FT to 450 M/1476 FT in 50 M increments

To change the value shown:

1. Press the left or right oval to set the value to match the length of the ribbon that you are using.

Based on the number entered, when the print engine detects that less than 15% of the ribbon remains,

WARNING RIBBON LOW appears

on the LCD. If the alert function is enabled, an alert is also sent. When the printhead is opened and then closed after a ribbon warning is received, the LCD prompts with

RIBBON REPLACED?.

RIBBON REPLACED? NO YES

Reset Ribbon Counter for Early Warning

This parameter appears only when Early Warning is enabled for media and the print engine is set for Thermal Transfer operation.

To reset the ribbon counter:

1. Did you replace the ribbon?

a. If you replaced the ribbon, press the right oval to select YES. b. If you did not replace the ribbon, press the left oval to select NO.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 8 of 25)

Parameter

EARLY WARNING MAINT. OFF

HEAD CLEANING

- 450M 1476 FT +

Action/Explanation

Set Early Warning for Maintenance

When this parameter is enabled, the print engine provides warnings when the printhead needs to be cleaned.

Note • Update the number of labels per roll when beginning use of

the Early Warning System. Also, the print engine does not make any adjustments when power is turned off and on.

Default: MAINT. OFF

Selections: MAINT. OFF, MAINTENANCE ON

To change the Early Warning settings:

1. When the LCD displays EARLY WARNING MAINTENANCE, press the left or right oval to toggle between prompted for a password, enter your password using the instructions in

Change Password-Protected Parameters on page 54.)

2. Exit Setup mode and save changes to enable additional parameters related to the early warning system.

3. Enter Setup mode again and go to the following parameters to enter the printhead cleaning interval and the printhead life.

Set Printhead Cleaning Interval for Early Warning

This parameter appears only when Early Warning is enabled for maintenance. This value should correspond to the length of the media or ribbon roll that you are using.

Default: 450 M/1476 FT

Range: 100 M/328 FT to 450 M/1476 FT in 50 M increments

OFF and ON. (If you are

HEAD CLEANED? NO YES

To change the value shown:

1. Press the left or right oval to set the printhead cleaning interval to the desired number of inches of media or ribbon.

When the printhead reaches the set length,

PRINTHEAD

alert is also sent. When the printhead is opened and then closed after a printhead cleaning warning is received, the LCD prompts with

CLEANED?

Reset Printhead Cleaning Counter for Early Warning

This parameter appears only when Early Warning is enabled for maintenance.

To reset the printhead cleaning counter:

1. Did you clean the printhead?

a. If you cleaned the printhead, press the right oval to select YES. b. If you did not clean the printhead, press the left oval to select NO.

appears on the LCD. If the alert function is enabled, an

WARNING CLEAN

HEAD

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 9 of 25)

Configuration

Control Panel LCD Displays

Parameter

HEAD LIFE

- 1000000 IN +

NEW PRINTHEAD? NO YES

Action/Explanation

Set Printhead Life for Early Warning

This parameter appears only when Early Warning is enabled for maintenance. Set this value to the number of inches of media that the printhead is expected to print.

Default: 1,000,000 inches

Range: 100 to 1,000,000 inches

To change the value shown:

1. Press the left oval to move the cursor.

2. Press the right oval to increase the value of the digit. When the printhead reaches the set length,

HEAD

appears on the LCD. If the alert function is enabled, an alert is also sent. When the printhead is opened and then closed after a printhead life warning is received, the LCD prompts with

PRINTHEAD?

3. If you replaced the printhead, press the right oval to select the warning and reset the printhead life counter. If you did not replace the printhead, press the left oval to select

Reset Printhead Life Counter for Early Warning

This parameter appears only when Early Warning is enabled for maintenance.

WARNING REPLACE

NEW

YES to clear

NO.

LIST FONTS PRINT

LIST BAR CODES PRINT

To reset the printhead life counter:

1. Did you replace the printhead?

a. If you replaced the printhead, press the right oval to select YES. b. If you did not replace the printhead, press the left oval to select

NO.

List Fonts

This option prints a label that lists the available fonts in the print engine, including standard print engine fonts plus any optional fonts. Fonts may be stored in RAM, Flash memory, optional PCMCIA font cards, or Compact Flash cards.

To print a list of the available fonts:

1. Press the right oval to select PRINT.

List Bar Codes

This option prints a label that lists the available bar codes in the print engine. Bar codes may be stored in RAM, Flash memory, optional PCMCIA cards, or Compact Flash cards.

To print a list of the available bar codes:

1. Press the right oval to select PRINT.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 10 of 25)

Parameter

LIST IMAGES PRINT

LIST FORMATS PRINT

LIST SETUP PRINT

LIST NETWORK PRINT

Action/Explanation

List Images

This option prints a label that lists the available images stored in the print engine’s RAM, Flash memory, optional memory card, PCMCIA cards, or Compact Flash cards.

To print a list of the available images:

1. Press the right oval to select PRINT.

List Formats

This option prints a label that lists the available formats stored in the print engine’s RAM, Flash memory, or optional memory card.

To print a list of the available formats:

1. Press the right oval to select PRINT.

List Setup

This option prints a configuration label (see Figure 30 on page 55), which lists the current print engine configuration.

To print a configuration label:

1. Press the right oval to select PRINT.

List Network Settings

This option prints a network configuration label (see Figure 31

on page 56), which lists the settings for any print server that is installed.

LIST ALL PRINT

To print a network configuration label:

1. Press the right oval to select PRINT.

List All

This option prints labels that list the available fonts, bar codes, images, formats, and the current print engine and network configurations.

To print labels for all settings:

1. Press the right oval to select PRINT.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 11 of 25)

Configuration

Control Panel LCD Displays

Parameter

FORMAT CARD: A: B:

Action/Explanation

Format Memory Card

This option erases all previously stored information from the optional PCMCIA card or Compact Flash card.

Caution • This option completely erases the selected card.

To format a memory card:

1. Press the left oval to select A: or the right oval to select B:.

If your print engine is set to require a password, you are prompted to enter the password.

2. Enter the password. For instructions, see Change Password-Protected

Parameters on page 54.

3. Press the appropriate button again to select the desired card.

The display shows

4. Do you wish to continue?

• Press the left oval to select

ARE YOU SURE?.

NO to cancel the request and return to

FORMAT CARD prompt.

• Press the right oval to select YES and begin initialization.

When initialization is complete, the print engine automatically exits Setup mode, and the control panel displays you exit Setup mode while initialization is still in process, the control panel display flashes between the phrases

PRINTER IDLE.

and

Note • Depending on the amount of memory in the memory card,

initialization may take up to 5 minutes to complete.

PRINTER READY. If

CHECKING B: MEMORY

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 12 of 25)

Parameter

INIT FLASH MEM. YES

Action/Explanation

Initialize Flash Memory

This option erases all previously stored information from Flash memory.

Caution • This option completely erases the Flash memory.

To initialize Flash memory:

1. Press the right oval to select YES.

If your print engine is set to require a password, you are prompted to enter the password.

2. Enter the password. For instructions, see Change Password-Protected

Parameters on page 54.

The display shows INITIALIZE FLASH?

3. Press the right oval to select YES.

The display shows

4. Do you wish to continue?

• Press the left oval to select

ARE YOU SURE?.

NO to cancel the request and return to the

INITIALIZE FLASH prompt.

• Press the right oval to select When initialization is complete, the print engine automatically exits Setup mode, and the control panel displays you exit Setup mode while initialization is still in process, the control panel display flashes between the phrases

PRINTER IDLE.

and

Note • Depending on the amount of free FLASH memory,

initialization may take up to 1 minute to complete.

YES and begin initialization.

PRINTER READY. If

CHECKING E: MEMORY

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 13 of 25)

Configuration

Control Panel LCD Displays

Parameter

SENSOR PROFILE PRINT

Action/Explanation

Print Sensor Profile

The sensor profile may be used to troubleshoot registration problems that may be caused when the media sensor detects preprinted areas on the media or if it experiences difficulty in determining web location.

Figure 34 shows a sensor profile. If the sensitivity of the media and/or

ribbon sensors must be adjusted, use Calibrate Media and Ribbon Sensor

Sensitivity on page 70 to adjust sensor sensitivity.

Figure 34 • Sensor Profile

To print a sensor profile:

1. Press the right oval to start this standard calibration procedure and print a media sensor profile.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 14 of 25)

Parameter

MEDIA AND RIBBON CALIBRATE

Action/Explanation

Calibrate Media and Ribbon Sensor Sensitivity

Use this procedure to adjust sensitivity of media and ribbon sensors.

Important • Follow this procedure exactly as presented. All of the

steps must be performed even if only one of the sensors requires adjustment. You may press the left oval at any step in this procedure to cancel the process.

To perform a media and ribbon sensor calibration:

1. Press the right oval to start the calibration procedure.

LOAD BACKING prompt displays.

The

2. Open the printhead.

3. Remove approximately 8 in. (203 mm) of labels from the backing, and pull the media into the print engine so that only the backing is between the media sensors.

4. Leave the printhead open.

5. Press the right oval to continue.

REMOVE RIBBON prompt displays.

The

6. Remove the ribbon (if used).

7. Close the printhead.

8. Press the right oval to continue. The message

CALIBRATING PLEASE WAIT displays.

The print engine adjusts the scale (gain) of the signals that it receives from the media and ribbon sensors based on the specific media and ribbon combination being used. On the sensor profile, this essentially corresponds to moving the peak of the graph up or down to optimize the readings for your application.

When calibration is complete,

RELOAD ALL displays.

9. Open the printhead and pull the media forward until a label is positioned under the media sensor.

10. Reload the ribbon (if used).

11. Close the printhead.

12. Press the right oval to continue. The print engine performs an auto-calibration. During this process, the

print engine checks the readings for the media and ribbon based on the new scale established, determines the label length, and determines the print mode. To see the new readings on the new scale, print a sensor profile.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 15 of 25)

Configuration

Control Panel LCD Displays

Parameter

PARALLEL COMM.

-BIDIRECTIONAL +

SERIAL COMM

-RS232 +

BAUD

-9600 +

Action/Explanation

Set Parallel Communications

Select the communications port that matches the one being used by the host computer.

Default: BIDIRECTIONAL

Selections: BIDIRECTIONAL, UNIDIRECTIONAL

To change the value shown:

1. Press the left or right oval to scroll through the options.

Set Serial Communications

Select the communications port that matches the one being used by the host computer.

Important • Do not change this parameter from the default. The

print engine supports only RS-232. This parameter will be eliminated in a future version of the firmware.

Default: RS232

Selections: RS232, RS422/485, RS485 MULTIDROP

To change the value shown:

1. Press the left or right oval to scroll through the options.

Set Baud

The baud setting of the print engine must match the baud setting of the host computer for accurate communications to take place. Select the value that matches the one being used by the host computer.

Default: 9600

Selections: 110, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800,

38400, 57600, 115200

To change the value shown:

1. Press the left or right oval to scroll through the options.

Set Data Bits

DATA BITS

- 8 BITS

The data bits of the print engine must match the data bits of the host computer for accurate communications to take place. Set the data bits to match the setting being used by the host computer.

Note • Code Page 850 requires the data bits to be set to 8 bits. See

the ZPL II Programming Guide for more information.

Default: 8BITS

Selections: 7BITS, 8BITS

To change the value shown:

1. Press the left or right oval to toggle between the options.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 16 of 25)

Parameter

PARITY

- NONE +

HOST HANDSHAKE

- XON/XOFF +

PROTOCOL

- NONE +

Action/Explanation

Set Parity

The parity of the print engine must match the parity of the host computer for accurate communications to take place. Select the parity that matches the one being used by the host computer.

Default: NONE

Selections: EVEN, ODD, NONE

To change the value shown:

1. Press the left or right oval to scroll through the options.

Set Host Handshake

The handshake protocol of the print engine must match the handshake protocol of the host computer for communication to take place. Select the handshake protocol that matches the one being used by the host computer.

Default: XON/XOFF

Selections: XON/XOFF, DTR/DSR, RTS/CTS

To change the value shown:

1. Press the left or right oval to scroll through the options.

Set Protocol

Protocol is a type of error checking system. Depending on the selection, an indicator may be sent from the print engine to the host computer signifying that data has been received. Select the protocol that is requested by the host computer. Further details on protocol can be found in the ZPL II Programming Guide.

Default: NONE

Selections: NONE, ZEBRA, ACK_NAK

Note • ZEBRA is the same as ACK_NAK, except that ZEBRA

response messages are sequenced. If print engine must use

DTR/DSR for host handshake protocol.

ZEBRA is selected, the

To change the value shown:

1. Press the left or right oval to scroll through the options.

NETWORK ID

- 000 +

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Set Network ID

Network ID is used to assign a unique number to a print engine. This gives the host computer the means to address a specific print engine. This does not affect TCP/IP or IPX networks.

Default: 000

Range: 000 to 999

To change the value shown:

1. Press the left oval to move to the next digit position.

2. Press the right oval to increase the value of the digit.

Table 6 • Print Engine Parameters (Page 17 of 25)

Configuration

Control Panel LCD Displays

Parameter

COMMUNICATIONS

- NORMAL MODE +

Action/Explanation

Set Communications Mode

The communication diagnostics mode is a troubleshooting tool for checking the interconnection between the print engine and the host computer. When

DIAGNOSTICS is selected, all data sent from the host

computer to the print engine prints as straight ASCII characters, with the hex value below the ASCII text. The print engine prints all characters received, including control codes, like CR (carriage return). A sample printout is shown in Communications Diagnostics Test on page 126.

Notes on diagnostic printouts are defined as follows:

• FE indicates a framing error.

• OE indicates an overrun error.

• PE indicates a parity error.

• NE indicates noise.

Default: NORMAL MODE

Selections: NORMAL MODE, DIAGNOSTICS

To change the value shown:

1. Press the left or right oval to toggle between the options.

2. For any errors, check that your communication parameters are correct.

3. Set the print width equal to or less than the label width used for the test. See Set Print Width on page 60 for more information.

CONTROL PREFIX

- < >7EH +

Set Control Prefix Character

The print engine looks for this two-digit hex character to indicate the start of a ZPL/ZPL II control instruction. The “H” that is displayed indicates Hexadecimal and is not part of the value.

Note • Do not use the same hex value for the control, format, and

delimiter character. The print engine must see different characters to work properly.

Default: 7E (tilde—displayed as a black square)

Range: 00 to FF

To change the value shown:

1. Press the left oval to move to the next digit position.

2. Press the right oval to increase the value of the digit.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 18 of 25)

Parameter

FORMAT PREFIX

- <^>5EH +

DELIMITER CHAR

- <,>2CH +

Action/Explanation

Set Format Prefix Character

The format prefix is a two-digit hex value used as a parameter place marker in ZPL/ZPL II format instructions. The “H” that is displayed indicates Hexadecimal and is not part of the value. The print engine looks for this hex character to indicate the start of a ZPL/ZPL II format instruction. See the ZPL II Programming Guide Volume I for more information.

Note • Do not use the same hex value for the control, format, and

delimiter character. The print engine must see different characters to work properly.

Default: 5E (caret)

Range: 00 to FF

To change the value shown:

1. Press the left oval to move to the next digit position.

2. Press the right oval to increase the value of the digit.

Set Delimiter Character

The delimiter character is a two-digit hex value used as a parameter place marker in ZPL/ZPL II format instructions. See the ZPL II Programming Guide Volume I for more information.

Note • Do not use the same hex value for the control, format, and

delimiter character. The print engine must see different characters to work properly.

Default: 2C (comma)

Range: 00 to FF

ZPL MODE

- ZPL II +

To change the value shown:

1. Press the left oval to move to the next digit position.

2. Press the right oval to increase the value of the digit.

Select ZPL Mode

The print engine remains in the selected mode until it is changed by this parameter or by using a ZPL/ZPL II command. The print engine accepts label formats written in either ZPL or ZPL II, eliminating the need to rewrite any ZPL formats that already exist. See the ZPL II Programming Guide for more information on the differences between ZPL and ZPL II.

Default: ZPL II

Selections: ZPL II, ZPL

To change the value shown:

1. Press the left or right oval to toggle between the options.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 19 of 25)

Configuration

Control Panel LCD Displays

Parameter

MEDIA POWER UP

- CALIBRATION +

HEAD CLOSE

- CALIBRATION +

Action/Explanation

Select Media Power-Up Option

This parameter sets the action of the media when you turn on the print engine.

Default: CALIBRATION

Selections: FEED, CALIBRATION, LENGTH, SHORT CAL, and NO

MOTION

• Feed—feeds the labels to the first registration point.

• Calibration—determines the length of the label and adjusts the sensor settings.

• Length—In continuous mode, feeds the last stored label length. In noncontinuous mode, calibrates based on the maximum label length setting (see Set Maximum Label Length on page 61).

• Short Cal—calibrates label length using the current sensor settings.

• No Motion—the media does not move. You must press

FEED to

cause the print engine to resynch to the start of the next label.

To change the value shown:

1. Press the left or right oval to scroll through the options.

Select Head Close Option

This parameter sets the action of the media when you close the printhead.

Default: CALIBRATION

Selections: FEED, CALIBRATION, LENGTH, SHORT CAL, and NO

MOTION

• Feed—feeds the labels to the first registration point.

• Calibration—determines the length of the label and adjusts the sensor settings.

• Length—In continuous mode, feeds the last stored label length. In noncontinuous mode, calibrates based on the maximum label length setting (see Set Maximum Label Length on page 61).

• Short Cal—calibrates label length using the current sensor settings.

• No Motion—the media does not move. You must press

FEED to

cause the print engine to resynch to the start of the next label.

To change the value shown:

1. Press the left or right oval to scroll through the options.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 20 of 25)

Parameter

BACKFEED

- BEFORE +

LABEL TOP +000

- +

Action/Explanation

Select Backfeed Sequence

This parameter establishes when label backfeed occurs after a label is removed in applicator mode. It has no effect in Rewind mode. This setting is superseded by

~JS when received as part of a label format (see ZPL II

Programming Guide Volume I).

Default: BEFORE for non-RFID print engine, AFTER for print engine with RFID reader installed

Selections: DEFAULT, AFTER, BEFORE, OFF

To change the value shown:

1. Press the left or right oval to scroll through the options.

Adjust Label Top Position

This parameter adjusts the print position vertically on the label. Positive numbers adjust the label top position farther down the label (away from the printhead); negative numbers adjust the position up the label (toward the printhead). The displayed value represents dots.

Default: +000

Range: –120 to +120 dots

To change the value shown:

1. Press the right oval to increase the value.

2. Press the left oval to decrease the value.

LEFT POSITION

- ±0000 +

Adjust Left Position

This parameter establishes how far from the left edge of a label the format begins to print by adjusting horizontal positioning on the label. Positive numbers adjust the printing away from the main frame by the number of dots selected; negative numbers shift printing toward the main frame. The displayed value represents dots.

Default: 0000

Range: –9999 to +9999 dots

To change the value shown:

1. Press the left oval to move the cursor.

2. Press the right oval to change between +/- and to increase the value of the digit.

3. For a negative value, enter the value before changing to the minus sign.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 21 of 25)

Configuration

Control Panel LCD Displays

Parameter

HEAD RESISTOR

- 0500 OHMS +

APPLICATOR PORT

- OFF +

Action/Explanation

Set the Printhead Resistor Value

Caution • This parameter should be changed only by qualified service

personnel. Do not set the value higher than that shown on the printhead. Setting a higher value may damage the printhead.

This value is preset at the factory to match the resistance value of the printhead. It does not need to be changed unless the printhead or the main logic board is replaced.

Initial Value: Factory-set to match the printhead shipped with your print engine.

Default Value: 0500

Range: 0500 to 2000

To set the printhead resistor value:

1. Before replacing the printhead, look for the label that shows the resistance value (

Ω value) of the new printhead. Make note of this

setting before installing the new printhead.

2. Press the left oval to move to the next digit position.

3. Press the right oval to increase the value of the digit.

Set Applicator Port Mode

Determines the action of the applicator port.

Note • Set this value as suggested by the applicator manufacturer.

Default: OFF

Selections: OFF, MODE 1, MODE 2, MODE 3, MODE 4

• OFF: The applicator port is off.

• MODE 1: Asserts the ~END_PRINT signal low while the print engine is moving the label forward.

• MODE 2: Asserts the ~END_PRINT signal high while the print engine is moving the label forward.

• MODE 3: Asserts the ~END_PRINT signal low for 20 milliseconds when a label has been completed and positioned. Not asserted during continuous printing modes.

• MODE 4: Asserts the ~END_PRINT signal high for 20 milliseconds when a label has been completed and positioned. Not asserted during continuous printing modes.

To change the value shown:

1. Press the left or right oval to scroll through the options.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 22 of 25)

Parameter

ERROR ON PAUSE

- ENABLED +

START PRINT SIG

- PULSE MODE +

Action/Explanation

Set Applicator Error Signal When Print Engine Pauses

When this option is enabled and the print engine is paused, the print engine sets the applicator error state.

Default: ENABLED

Selections: ENABLED, DISABLED

To change the value shown:

1. Press the left or right oval to toggle between the options.

Select Start Print Signal

This parameter determines how the print engine reacts to the Start Print Signal input on pin 3 of the applicator interface connector at the rear of the print engine.

Caution • Start Print Signal is set by the applicator manufacturer and

should not be changed unless the factory defaults have been reloaded. Please make a note of it. While other choices are valid, the print engine must be returned to its designated setting for it to work properly.

Default: PULSE MODE

Selections: PULSE MODE, LEVEL MODE

• PULSE MODE—Labels print when the signal transitions from HIGH to LOW.

• LEVEL MODE—Labels print as long as the signal is asserted LOW.

RESYNCH MODE

- FEED MODE +

To change the value shown:

1. Press the left or right oval to toggle between the options.

Select Resynch Mode

This parameter determines how the print engine reacts if the label synchronization is lost and the label top is not where expected.

Default: FEED MODE

Selections: FEED MODE, ERROR MODE

• FEED MODE—If the label top is not where expected, the print engine feeds a blank label to find the label top position.

• ERROR MODE—If the label top is not where expected, the print engine stops, enters Pause mode, displays the message

Condition Feed Label

, flashes the ERROR light, and asserts the

Error

Service Required signal (pin 10 on the Applicator Interface Connector).

To resynch the media to the top of the label in Error mode, press

PAU SE to exit Pause mode. The ERROR light stops flashing, and the

Service Required signal is deactivated. The action of the print engine is determined by the

Head Close configuration selection (see Select

Head Close Option on page 75).

To change the value shown:

1. Press the left or right oval to toggle between the options.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 23 of 25)

Configuration

Control Panel LCD Displays

Parameter

RIBBON LOW MODE

- 25M +

RIB LOW OUTPUT

- ACTIVE HIGH +

Action/Explanation

Set Ribbon Low Mode

When the Ribbon Low feature is off, the output signal (Pin 9) does not function, the LOW RIBBON warning is not displayed, and the print engine continues to print until it runs out of ribbon.

When the Ribbon Low feature is set to any of the lengths, output signal (Pin 9) on the applicator port is functional. When the amount of ribbon on the supply spindle reaches the specific length, the output signal asserts to provide a

LOW OUTPUT

For print engines without this parameter, the signal asserts HIGH.

Default: 25M

Selections: OFF, 25M, 50M, 75M, 100M

To change the value shown:

1. Press the left or right oval to scroll through the options.

Set Ribbon Low Output

When the Ribbon Low feature is on, this parameter determines if the output signal on Pin 9 is HIGH or LOW.

Default: ACTIVE HIGH

Selections: ACTIVE HIGH, ACTIVE LOW

RIBBON LOW warning. For print engines with the RIBBON

parameter, set the output signal to assert HIGH or LOW.

Note • This parameter is not available on older 110PAX4 firmware

and will be added to a future release of the R110PAX4. Check for the latest firmware at http://www.zebra.com/firmware.

REPRINT MODE

- DISABLED +

Set Reprint Mode

When the Reprint feature is enabled, the reprint input signal (Pin 6) on the applicator port is functional. When the input signal is asserted, the last label printed is printed again. (This includes non-printing labels.) When the Reprint feature is disabled, the reprint input signal is ignored.

Note • The ^SP ZPL command is ignored when the Reprint feature

is enabled. When the Reprint feature is disabled, the can be used. In addition, when a received label format is canceled prior to printing, the reprint function for the previous label is also canceled. Refer to the ZPL II Programming Guide for additional information.

Default: DISABLED

Range: ENABLED, DISABLED

To change the value shown:

1. Press the left or right oval to toggle between the options.

^SP command

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 6 • Print Engine Parameters (Page 24 of 25)

Parameter

WEB S. 073

- +

MEDIA S. 075

- +

RIBBON S. 071

- +

MARK S. 000

- +

MARK MED S. 000

- +

MEDIA LED 082

- +

RIBBON LED 008

- +

MARK LED 005

- +

Action/Explanation

These parameters are automatically set during the calibration procedure and should be changed only by a qualified service technician. Refer to the ZPL II Programming Guide for information on these parameters.

To skip these parameters:

1. Press NEXT/SAVE repeatedly.

LCD ADJUST +10

- +

FORMAT CONVERT

- NONE +

RTS TAKEUP ARM XXX

Adjust LCD Display

This parameter allows you to adjust the brightness of your LCD if it is difficult to read.

Default: 10

Range: 00 to 19

To change the value shown:

1. Press the right oval to increase the value (increase brightness).

2. Press the left oval to decrease the value (reduce brightness).

Select Format Convert

Selects the bitmap scaling factor. The first number is the original dots per inch (dpi) value; the second, the dpi to which you would like to scale.

Default: NONE

Selections:

To change the value shown:

1. Press the left or right oval to scroll through the options.

Set RTS Take-Up Dancer Arm Calibration Value

This parameter is used as a diagnostic tool to monitor the voltage supplied to the Ribbon Tensioning System Take-Up Dancer Arm. Refer to the Maintenance Manual for information.

NONE, 150 → 300, 150 → 600, 200 → 600, 300 → 600

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 6 • Print Engine Parameters (Page 25 of 25)

Configuration

Control Panel LCD Displays

Parameter

RTS SUPPLY ARM XXX

IDLE DISPLAY

- FW VERSION +

RTC DATE

- 01/31/01 +

Action/Explanation

Set RTS Supply Dancer Arm Calibration Value

This parameter is used as a diagnostic tool to monitor the voltage supplied to the Ribbon Tensioning System Supply Dancer Arm. Refer to the Maintenance Manual for information.

Select Idle Display

This parameter selects the LCD options for the real-time clock.

Note • If the default value is not selected, pressing the left or right

oval briefly displays the firmware version of the print engine.

Default: FIRMWARE VERSION

Selections: MM/DD/YY (24 HOUR), MM/DD/YY (12 HOUR),

DD/MM/YY (24 HOUR), DD/MM/YY (12 HOUR), FW VERSION

To change the value shown:

1. Press the left or right oval to scroll through the options.

Set RTC Date

This parameter allows you to set the date following the convention selected

IDLE DISPLAY.

To change the value shown:

1. Press the left oval to move to the next digit position.

2. Press the right oval to change the value of the digit.

RTC TIME

- 14:55 +

LANGUAGE

ENGLISH

Set RTC Time

This parameter allows you to set the time following the convention selected

IDLE DISPLAY.

To change the value shown:

1. Press the left oval to move to the next digit position.

2. Press the right oval to change the value of the digit.

Select the Display Language

This parameter changes the language displayed on the LCD.

Default: ENGLISH

Selections: ENGLISH, SPANISH, FRENCH, GERMAN, ITALIAN,

NORWEGIAN, PORTUGUESE, SWEDISH, DANISH, SPANISH 2, DUTCH, FINNISH, JAPAN

To change the value shown:

1. Press the left or right oval to scroll through the options.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Print Server LCD Displays

The menu options shown in Table 7 display only if you have a print server installed.

Table 7 • Print Server Parameters (Page 1 of 4)

Parameter Action/Explanation

Load LAN Source

LOAD LAN FROM? PRINTER

This parameter, which serves the same function as the ^NP ZPL command, specifies whether to use the print engine’s or the print server’s IP settings at bootup.

Default: PRINTER

Selections: PRINTER, PRINTSERVER

To change the value shown:

1. Press the left or right oval to toggle between the options.

WIRED PS CHECK? NO

IP PROTOCOL ALL

Check for Wired PrintServer

This parameter, which serves the same function as the ^NB ZPL command, tells the print engine whether to search for a wired print server at bootup.

Default: NO

Selections: YES, NO

To change the value shown:

1. Press the left or right oval to toggle between the options.

Specify IP Protocol

Allows either the user (permanent) or the server (dynamic) to select the IP address. If a dynamic option is chosen, this selection determines the method(s) by which the print server (wired or wireless) receives the IP address from the server.

Default: ALL

Selections: ALL, GLEANING ONLY, RARP, BOOTP, DHCP,

DHCP AND BOOTP, PERMANENT

Note • Use of GLEANING ONLY is not recommended when the

Wireless Print Server is installed.

To change the value shown:

1. Press the left or right oval to scroll through the options.

1 Appears only when the ZebraNet Wireless Print Server is installed.

2 These parameters appear after the system recognizes the existence of a ZebraNet print server (wired or wireless). After the

print server is recognized, all zeroes (000.000.000.000) will display until the print engine obtains an IP address or defaults to address 192.168.254.254.

3 If a wireless password is set, you must enter the wireless password (not the print engine password) to access this parameter.

4 This parameter appears 1) when no wireless card is inserted or 2) when the wireless card is associated to the WLAN and the

card supports LEAP.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 7 • Print Server Parameters (Page 2 of 4)

Parameter Action/Explanation

Specify IP Address

IP ADDRESS

000.000.000.000

This parameter allows you to select the IP address if PERMANENT was chosen in IP PROTOCOL. (If a dynamic option was chosen, the user cannot select the address.)

To change the value shown:

1. Press the left oval to move the cursor.

2. Press the right oval to increase the value of the digit.

Configuration

Control Panel LCD Displays

SUBNET MASK

000.000.000.000

DEFAULT GATEWAY

000.000.000.000

MAC ADDRESS 000000000000

ESSID 125

AUTH. TYPE OPEN

Specify Subnet Mask

This parameter selects the part of the IP address that is considered to be part of the local network. It can be reached without going through the default gateway.

To change the value shown:

1. Press the left oval to move the cursor.

2. Press the right oval to increase the value of the digit.

Specify Default Gateway

This parameter allows you to select the IP address that the network traffic is routed through if the destination address is not part of the local network.

To change the value shown:

1. Press the left oval to move the cursor.

2. Press the right oval to increase the value of the digit.

View MAC Address

1,3

Displays the MAC address of the wireless card. This parameter cannot be changed through the control panel.

View ESSID

1,3

This parameter cannot be changed through the control panel. Use the ^WS ZPL command to change the value. For more information, see the Wireless Print Server User Guide.

Select Authentication Type

1,3

If encryption is on, specify whether to use open or shared authentication.

Default: OPEN

Selections: OPEN, SHARED

To change the value shown:

1. Press the left or right oval to toggle between the options.

1 Appears only when the ZebraNet Wireless Print Server is installed.

2 These parameters appear after the system recognizes the existence of a ZebraNet print server (wired or wireless). After the

print server is recognized, all zeroes (000.000.000.000) will display until the print engine obtains an IP address or defaults to address 192.168.254.254.

3 If a wireless password is set, you must enter the wireless password (not the print engine password) to access this parameter.

4 This parameter appears 1) when no wireless card is inserted or 2) when the wireless card is associated to the WLAN and the

card supports LEAP.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 7 • Print Server Parameters (Page 3 of 4)

Parameter Action/Explanation

Enable LEAP Mode

LEAP MODE OFF

LEAP is an encryption method that is available with some wireless cards. Set the LEAP user name and password through the print engine web pages.

Default: OFF

Selections: ON, OFF

To change the value shown:

1. Press the left or right oval to toggle between the options.

3,4

ENCRYPTION MODE OFF

ENCRYPT. INDEX 1

Select Encryption Mode

1,3

Select whether to use 40-bit encryption, 128-bit encryption, or no encryption.

Important • If using encryption, use the ^WE ZPL command to set

the value for the active encryption key. Failure to do so can disable the wireless system. For more information, see the Wireless Print Server User Guide.

Default: OFF

Selections: OFF, 40-BIT, 128-BIT

To change the value shown:

1. Press the left or right oval to scroll through the options.

Select Encryption Index

1,3

Use this parameter to tell the print engine which encryption key to use.

Important • Use the ^WE ZPL command to set the value for the

active encryption key. Failure to do so can disable the wireless system. For more information, see the Wireless Print Server User Guide.

Default: 1

Selections: 1, 2, 3, 4

To change the value shown:

1. Press the left or right oval to scroll through the options.

1 Appears only when the ZebraNet Wireless Print Server is installed.

2 These parameters appear after the system recognizes the existence of a ZebraNet print server (wired or wireless). After the

print server is recognized, all zeroes (000.000.000.000) will display until the print engine obtains an IP address or defaults to address 192.168.254.254.

3 If a wireless password is set, you must enter the wireless password (not the print engine password) to access this parameter.

4 This parameter appears 1) when no wireless card is inserted or 2) when the wireless card is associated to the WLAN and the

card supports LEAP.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Configuration

Control Panel LCD Displays

Table 7 • Print Server Parameters (Page 4 of 4)

Parameter Action/Explanation

2,3

RESET NETWORK YES

Reset Network

This option resets the wireless card and the print server when the wireless option is running. Selecting this option has no effect when the wireless option is not running, when there is no card inserted, or when the wireless password is anything other than the default (zero).

1. Press the right oval to select

The LCD prompts

ARE YOU SURE?.

• Press the left oval to select

YES.

NO and cancel the request.

• Press the right oval to select YES and reset the network.

1 Appears only when the ZebraNet Wireless Print Server is installed.

2 These parameters appear after the system recognizes the existence of a ZebraNet print server (wired or wireless). After the

print server is recognized, all zeroes (000.000.000.000) will display until the print engine obtains an IP address or defaults to address 192.168.254.254.

3 If a wireless password is set, you must enter the wireless password (not the print engine password) to access this parameter.

4 This parameter appears 1) when no wireless card is inserted or 2) when the wireless card is associated to the WLAN and the

card supports LEAP.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

RFID LCD Displays

This section shows the Radio Frequency Identification (RFID) control panel parameters. The parameters shown in Table 8 display only if you have an RFID reader installed.

When you enter Setup mode, press scroll through all of the other parameters.

Table 8 • RFID Parameters (Page 1 of 4)

Parameter Action/Explanation

Perform RFID Test

RFID TEST QUICK SLOW

In both versions of this test, the print engine attempts to read and write to a transponder. In the slow test, the print engine also checks the reader version number. If the print engine fails the test, the control panel displays an error message. No label movement occurs with this test.

To perform the RFID test:

1. See Figure 35. Position an RFID label so that the transponder is over

the RFID antenna.

PREVIOUS to access these parameters without having to

Figure 35 • Label Position for RFID Test

RFID antenna location

2. Press the left oval to select

OR Press the right oval to select

3. If necessary, press the right oval to select

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

QUICK.

SLOW.

CONTINUE.

Table 8 • RFID Parameters (Page 2 of 4)

Parameter Action/Explanation

Calibrate RFID Tag

RFID TAG CALIB RESTORE RUN

Important • Do not perform transponder calibration for RFID

media that meets the transponder placement specifications for your print engine. Doing so will slow the print engine’s throughput unnecessarily. RFID tag calibration is necessary only if the transponder is not in the ideal location for programming at the

print engine’s default position.

Note • When you select RESTORE, no label movement or

changes to the control panel occur.

• RUN—If the media being used does not conform to transponder

placement requirements for your print engine, use the have the print engine determine the optimum programming position for the non-standard labels. The print engine feeds an RFID label one dot-row at a time while taking readings (via the READ TAG command and the WRITE TAG commands) to profile the RFID transponder. Based on the results, the print engine determines the optimum programming position for the media and saves the position to nonvolatile memory (the value is saved even if the power is turned off). The calibrated value is used as the programming position for the command unless the command specifies a different value.

Tag calibration takes into account the print mode, backfeed mode, and tear off position. The calibration and returns a results table to the host. An auto-calibration occurs after the tag calibration to realign the media to its proper rest position and to update the media tracking values in the print engine.

Configuration

Control Panel LCD Displays

RUN option to

^HR ZPL command performs the same

^RS

RFID READ PWR HI

To restore the programming position to the default:

1. Press the left oval to select RESTORE.

To calibrate an RFID tag:

1. Load the print engine with RFID media.

2. Close the printhead.

3. Press the right oval to select

RUN.

View or Change RFID Read Power

This parameter displays the current value for RFID read power.

Default: HI

Selections: HI, MED, LOW

To change the value shown:

1. Press the left or right oval to scroll through the options.

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Table 8 • RFID Parameters (Page 3 of 4)

Parameter Action/Explanation

View or Change RFID Write Power

RFID WRITE PWR HI

This parameter displays the current value for RFID write power.

Default: HI

Selections: HI, MED, LOW

To change the value shown:

1. Press the left or right oval to scroll through the options.

RFID Error Status

RFID ERR STATUS

During an error condition, an error message shows on the second line of the display. This field cannot be modified.

Specify RFID Tag Type

RFID TAG TYPE

Select the RFID tag type that you are using. If the tag type is not listed, you may not be able to use the labels with your print engine.

Selections:

• CLASS 1 64-BIT

• CLASS 1 96-BIT

• ISO18000A

• ISO18000B

• NONE

•CLASS 0

•CLASS 0+

•GEN2

To change the value shown:

1. Press the left or right oval to scroll through the options.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Table 8 • RFID Parameters (Page 4 of 4)

Parameter Action/Explanation

Read and Display RFID Tag Data

RFID TAG DATA

When this option is selected, the reader attempts to read a tag over the RFID antenna, even if the printhead is open. Results are displayed in hexadecimal format. The print engine rereads the tag every 2 seconds, so if the tag changes, data is displayed for the current tag over the antenna.

To read RFID tag data:

1. Place an RFID label over the antenna (no movement occurs with the

test).

• If no tag data can be read, the text bottom line of the LCD display.

• If a tag is present, the data for that tag appears on the bottom line of the display in hexadecimal format. If there is more data than can fit on the bottom line (such as for 96-bit tags), the bottom line will cycle from the first 8 bytes (most significant) to the next 4 bytes (least significant) approximately every 2 seconds. Whatever hexadecimal data that can fit on two screens is displayed and cycled through.

For example, if the tag contains the data

0x112233445566778899001122, when this option is selected,

the bottom line of the display shows: seconds followed by cycles through these indefinitely.

Configuration

Control Panel LCD Displays

NO DATA appears on the

1122334455667788 for 2

99001122 for 2 seconds. The print engine

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Configuration

Control Panel LCD Displays

Notes • ___________________________________________________________________

__________________________________________________________________________

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05

Routine Maintenance

This chapter provides routine cleaning and maintenance procedures.

Contents

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Cleaning Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Clean the Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Clean the Media Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Clean the Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Clean the Printhead and Platen Roller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Toggle Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Printhead Pressure Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Power Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

12/14/05 110PAX4/R110PAX 4 User Guide 57512L-002 Rev. A

Routine Maintenance

Lubrication

Caution • This print engine does not require lubrication. Applying lubricants may damage

your print engine’s finish and decrease the performance of its electromechanical parts.

Cleaning Schedule

Cleaning your print engine regularly maintains print quality and may extend the life of the print engine. The recommended cleaning schedule is shown in Table 9. See the following pages for specific procedures.

Caution • Use only the cleaning agents indicated. Zebra is not responsible for damage

caused by any other fluids being used on this print engine.

Table 9 • Recommended Print Engine Cleaning Schedule

Area Method Interval

Printhead Solvent* Perform these procedures at the following times:

Platen roller Solvent*

Transmissive media sensor Air blow

Reflective media sensor Air blow

Media path Solvent*

Ribbon sensor Air blow

Door-open sensors Air blow Monthly and as needed

Tear-off/peel-off bar Solvent*

Clear plastic antenna cover (RFID print engines)

* Use Preventative Maintenance kit (part number 47362) or a solution of 90% isopropyl alcohol and 10% deionized water.

Air blow

•When

• Direct Thermal Print Mode: After every roll of labels

• Thermal Transfer Print Mode: After every roll

CLEAN HEAD NOW appears.

or 500 ft (150 m) of fanfold labels.

(1500 ft or 450 m) of ribbon.

Clean the Exterior

Clean the outside surfaces of the print engine with a lint-free cloth. Use a mild detergent solution or desktop cleaner sparingly, as needed.

Caution • Do not use harsh or abrasive cleaning agents or solvents.

57512L-002 Rev. A 110PAX4/R110PAX 4 User Guide 12/14/05
