Quick Reference
Introduction

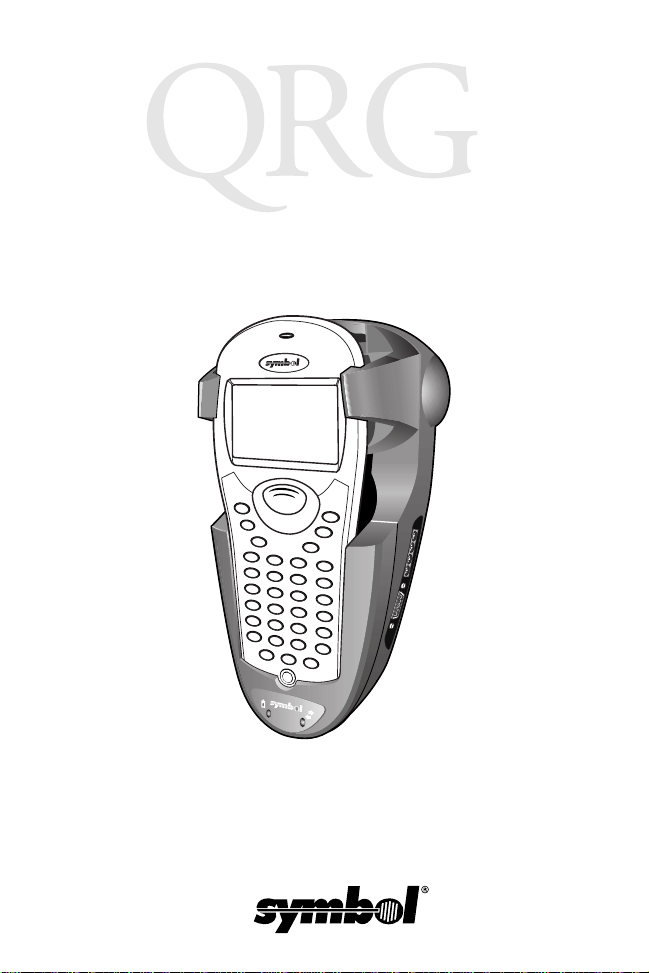

This guide present s inf orm atio n on the installation and use of the
VCD 7500 vehicle cradle, used with Symbol’s PDT 7500
terminals.
The VCD 7500 supports floor or dash ins t all ati on in a truc k . Eac h
cradle includes a vehicle power supply capable of power
conditioning in an operating range of 10 - 48 volts.
About This Guide
This guide provides information on the following:
• Parts of the VCD 7500 on page 2
• Setting Up the VCD 7500 on page 3
• Cradle Self Test on page 4
• Inserting the Terminal in the Cradle on page 5
• Battery Charging on page 6
• Charging A Spare Battery on page 7
• Data Communications on page 8
• LED Indications on page 9
• Troubleshooting on page 10.
1
VCD 7500
Parts of the VCD 7500
Terminal Capture/Release Hooks
Spare Battery
Charging Slot
Power
Contacts
IrDA Port
Charge
LED
Power Port
Serial Port
Communications
LED
2
Quick Reference
Setting Up the VCD 7500
To install the vehicle cradle:
1. Prepare the mounting surface to accept four #8-32 studs in
the pattern shown below.

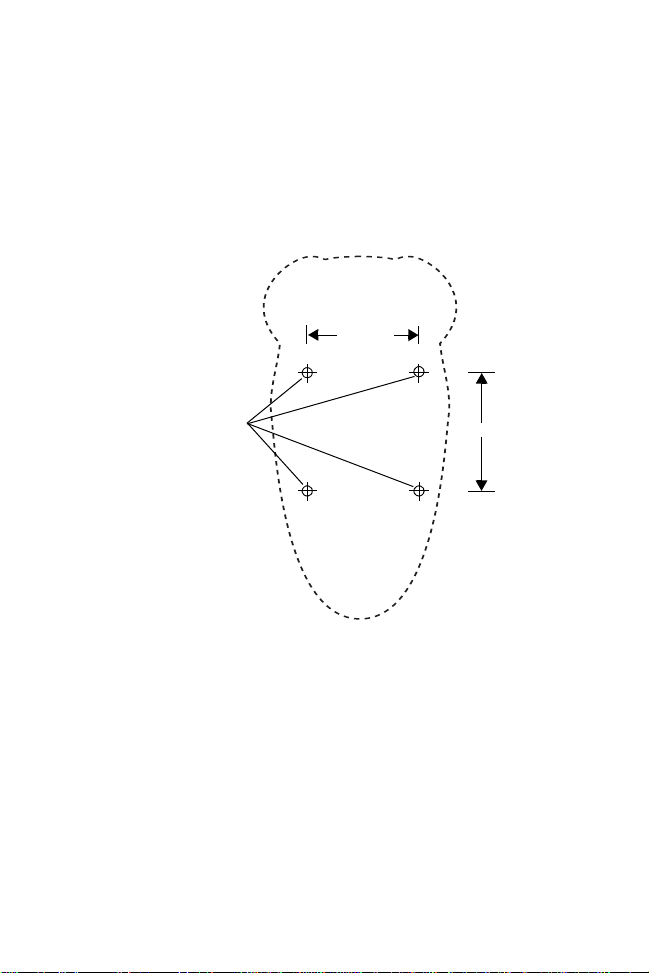

1.188”
min. 0.1660 in. diameter
(min. 4.25 mm diameter)
Holes for studs
1.500”
2. Install the cradle on the mounting surface.
a. Position the cradle on the mounting surface.
b. Fasten using the hardware supplied.
3. Connect the red and black power sup ply input leads to a fuse
panel. A qualified installer must perform the installation.
3
