Zebra P370 Product Reference Guide

Download

P470/P370 RF Scanner

Product Reference Guide

P470/P370 RF Scanner

Product Reference Guide

72-38495-04

Revision A

December 2003

mechanical means, without permission in writing from Symbol. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice.

The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. Symbol grants to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Symbol. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from Symbol. The user agrees to maintain Symbol’s copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed program delivered to the user or any portion thereof.

Symbol reserves the right to make changes to any software or product to improve reliability, function, or design.

Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under any Symbol Technologies, Inc., intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in Symbol products.

Symbol, Spectrum One, and Spectrum24 are registered trademarks of Symbol Technologies, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.

Symbol Technologies, Inc. One Symbol Pl aza Holtsville, New York 11742-1300

http://www.symbol.com

About This Manual

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix

Chapter Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix

Notational Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix

Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Symbol Support Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Chapter 1. The P470/P370 RF Scanner

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Rechargeable Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

The Cradle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Quick Startup Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Commonly Used P470/P370 Programming Bar Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Chapter 2. Set Up

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Setting Up the Cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Connecting to a Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Wall Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Pairing the Scanner with the Cradle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Optimizing RF Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Coexistence in Spectrum24 Environments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Phaser-to-Phaser Co-Existence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Using the Cradle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Using the UBC 2000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

iii

P470/370 RF Scanner Product Reference Guide

Battery Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9

Charge Status LED Indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10

Changing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10

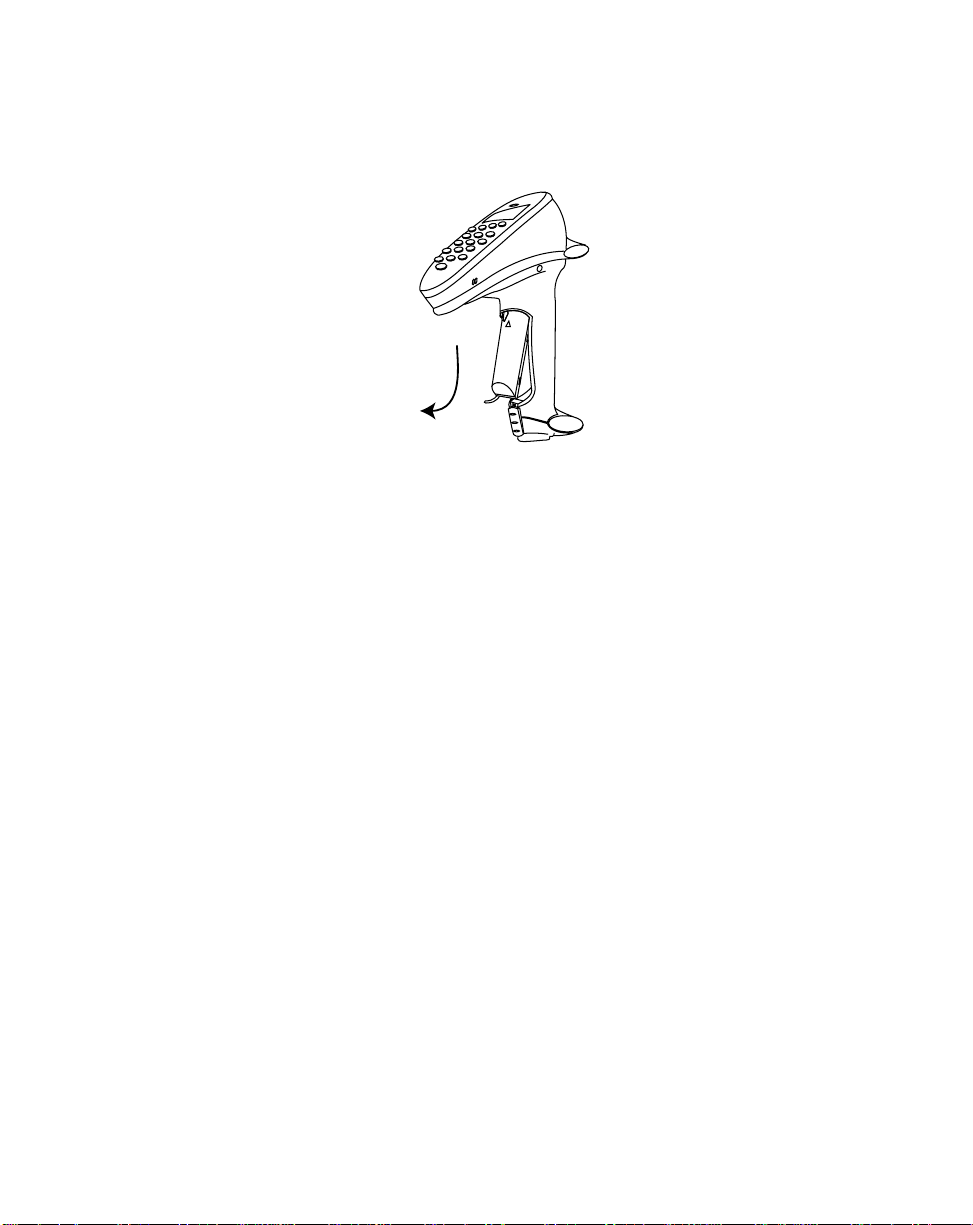

Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11

Chapter 3. Operation

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Default Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Initial Powerup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Scan and Transmit Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Eliminating Repetitive Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Communication Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

RF Communication Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

Host / Cradle Communication Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

System Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7

123Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Suffix Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-18

Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-22

Scan the Entire Symbol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-22

Hold at an Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-23

Decode Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-24

Keypad Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-26

Chapter 4. Maintenance And Specifi ca tions

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5

Cradle Pin-outs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7

Beeper Indications / Default Application Error Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8

Chapter 5. Parameter Menus

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Operational Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Set Default Parameter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7

Communication Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8

Scan & Transmit Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8

Host Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9

RS-232C Host Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9

Host Response Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-12

Contents

RF Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

RF Retries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

Sleep Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

Decimal Separator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16

Key Click . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17

Beeper Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18

Beeper Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19

Power Detect Beep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20

Beep After Good Decode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-21

Laser On Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22

Transmit “No Read” Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-23

Linear Code Type Security Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24

Linear Security Level 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24

Linear Security Level 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24

Linear Security Level 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25

Linear Security Level 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25

Bi-directional Redundancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-26

Autodiscriminate Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-27

Enable/Disable UPC-E/UPC-A/UPC-E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-28

Enable/Disable EAN-8/EAN-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-29

Enable/Disable Bookland EAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-30

Decode UPC/EAN Supplementals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31

Decode UPC/EAN Supplemental Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-32

Transmit UPC-A/UPC-E/UPC-E1 Check Digit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-33

UPC-A Preamble. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-34

UPC-E Preamble. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-35

UPC-E1 Preamble. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-36

Convert UPC-E to UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-37

Convert UPC-E1 to UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-38

EAN-8 Zero Extend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-39

Convert EAN-8 to EAN-13 Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40

UPC/EAN Security Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-41

UPC/EAN Security Level 0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-41

UPC/EAN Security Level 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-41

UPC/EAN Security Level 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42

UPC/EAN Security Level 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42

UPC/EAN Coupon Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43

Enable/Disable Code 128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-44

Enable/Disable UCC/EAN-128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-45

Lengths for Code 128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-46

Enable/Disable ISBT 128. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-47

Enable/Disable Code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-48

Enable/Disable Trioptic Code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-49

Set Lengths for Code 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-50

P470/370 RF Scanner Product Reference Guide

Code 39 Check Digit Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-52

Transmit Code 39 Check Digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-53

Enable/Disable Code 39 Full ASCII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-54

Convert Code 39 to Code 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-55

Code 32 Prefix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-56

Enable/Disable Code 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-57

Set Lengths for Code 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-58

Enable/Disable Interleaved 2 of 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-60

Set Lengths for Interleaved 2 of 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-61

I 2 of 5 Check Digit Verification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-63

Transmit I 2 of 5 Check Digit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-64

Convert I 2 of 5 to EAN-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-65

Enable/Disable Discrete 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-66

Set Lengths for Discrete 2 of 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-67

Enable/Disable Codabar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-69

Set Lengths for Codabar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-70

CLSI Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-72

NOTIS Editing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-73

Enable/Disable MSI Plessey. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-74

Set Lengths for MSI Plessey. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-75

MSI Plessey Check Digits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-77

Transmit MSI Plessey Check Digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-78

MSI Plessey Check Digit Algorithm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-79

Transmit Code ID Character. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-80

Symbol Code ID Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-80

Pause Duration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-82

RS-232C Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-83

Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-83

Parity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-85

Check Receive Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-87

Hardware Handshaking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-88

Software Handshaking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-91

Host Serial Response Time-out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-94

RTS Line State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-94

Stop Bit Select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-95

ASCII Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-96

Intercharacter Delay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-96

MCL-Net Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-97

MCL-Net Baud Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-97

MCL-Net Hex Addressing Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-99

Scanner Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-100

MCL-Net Transmit Retries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100

MCL-Net Frame Timeout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100

Scanner Decode Beep Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-101

Contents

Long Range Scanning Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-102

Aim Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-102

Aim Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-103

Numeric Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-104

Cancel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-106

Appendix A. Bar Code Information

UCC/EAN-128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

AIM Code Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Appendix B. Automatic Project Download Appendix C. Radio Channels

Cordless Phaser RF Channels Per Country . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Appendix D. Messages and Error Codes

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1

Communication Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2

Scanning Transmission Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2

Index Feedback

vii

P470/370 RF Scanner Product Reference Guide

viii

About This Manual

Introduction

The P470/P370 RF Scanners Product Reference Guide provides general instructions for setup, operation, troubleshooting, maintenance, and programming the P370 (industrial) and P470 (retail) cordless RF scanners.

Chapter Descriptions

• Chapter 1, The P470/P370 RF Scanner, describes the scanner and quick startup instructions.

• Chapter 2, Set Up, explains how to set up the scanner.

• Chapter 3, Operation, explains how to operate the scanner.

• Chapter 4, Maintenance And Specifications, talks about the maintenance and the specifications of the scanner and the cradle.

• Chapter 5, Parameter Menus, has all the optional parameter bar codes for personalizing your scan ner.

• Appendix A, Bar Code Information, has information about bar codes.

• Appendix B, Autom ati c Proj ect Downlo ad, describes the AutoLoad feature.

• Appendix C, Radio Channels, lists the available RF channels per Country .

• Appendix D, Messages and Error Codes, describes possible error codes displayed on the scanner.

Notational Conventions

The following conventions are used in this document:

P470/370 RF Scanner Product Reference Guide

• Italics are used to highlight specific items in the general text, and to identify chapters and sections in this and related documents.

• Bullets (•) indicate:

• action items

• lists of alternatives

• lists of required steps that are not necessarily sequential

• Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.

Related Publications

• P470/P370 RF Scanner Quick Reference Guide, p/n 72-38493-xx

• PL 370/470 Cradle Quick Reference Guide, p/n 72-38494-xx

• MCL Designer for Phaser Series User’s Guide, p/n 70-37689-xx.

Service Information

If you have a problem with your equipment, contact the Symbol Support Center for your region. See page xi for contact information. Before calling, have the model number, serial number, and several of your bar code symbols at hand.

Call the Support Center from a phone near the scanning equipment so that the service person can try to talk you through your problem. If the equipment is found to be working properly and the problem is symbol readability, the Support Center will request samples of your bar codes for analysis at our plant.

If your problem cannot be solved over the phone, you may need to return your equipment for servicing. If that is necessary, you will be given specific directions.

Note:Symbol Technologies is not responsible for any damages incurred

during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty. If the original shipping container was not kept, contact Symbol to have another sent to you.

About This Guide

Symbol Support Center

For service information, warranty information or technical assistance contact or call the Symbol Support Center in:

United States

Symbol Technologies, Inc. One Symbol Plaza Holtsville, New York 11742-1300

Tel: 1-800-653-5350

United Kingdom

Symbol Technologies Symbol Place Winnersh Triangle, Berkshire RG41 5TP United Kingdom

Tel: 0800 328 2424 (Inside UK) Tel: +44 118 945 7529 (Outside UK)

Australia

Symbol Technologies Pty. Ltd. 432 St. Kilda Road Melbourne, Victoria 3004 Tel: 1-800-672-906 (Inside Australia) Tel: +61-3-9866-6044 (Outside Australia)

Denmark/Danmark

Symbol Technologies AS Dr. Neergaardsvej 3 2970 Hørsholm

Tel: 7020-1718 (Inside Denmark) Tel: +45-7020-1718 (Outside Denmark)

Finland/Suomi

Oy Symbol Technologies Kaupintie 8 A 6 FIN-00440 Helsinki , Finland

Tel: 9 5407 580 (Inside Finland) Tel: +358 9 5407 580 (Outside Finland)

Canada

Symbol Technologies Canada, Inc. 2540 Matheson Boulevard East Mississauga, Ontario, Canada L4W 4Z2

Tel: 905-629-7226

Asia/Pacific

Symbol Technologies Asi a, Inc (Sing apo re Branch) 230 Victoria Street #05-07/09 Bugis Junction Office Tower Singapore 188024

Tel: +65-6796-9600 Fax: +65-6337-6488

Austria/Österreich

Symbol Technologies Aus tria GmbH Prinz-Eugen Strasse 70 / 2.Haus 1040 Vienna, Austria

Tel: 01-5055794-0 (Inside Austria) Tel: +43-1-5055794-0 (Outside Austria)

Europe/Mid-East Distributor Operations

Contact your local distributor or call: Tel: +44 118 945 7360

France

Symbol Technologies Fran ce Centre d'Affaire d'Antony 3 Rue de la Renaissance 92184 Antony Cedex, France

Tel: 01-40-96-52-21 (Inside France) Tel: +33-1-40-96-52-50 (Outside France)

P470/370 RF Scanner Product Reference Guide

Germany/Deutchland

Symbol Technologies GmbH Waldstrasse 66 D-63128 Dietzenbach, Germany

Tel: 6074-49020 (Inside Germany) Tel: +49-6074-49020 (Outside Germany)

Latin America Sales Support

2730 University Dr. Coral Sp ring s, FL 3306 5 USA

Tel: 1-800-347-0178 (Inside United States) Tel: +1-954-255-2610 (Outside United States) Fax: 954-340-9454

Netherlands/Nederland

Symbol Technologies Kerkplein 2, 7051 CX Postbus 24 7050 AA Varsseveld, Netherlands

Tel: 315-271700 (Inside Netherlands) Tel: +31-315-271700 (Outside Netherlands)

Italy/Italia

Symbol Technologies It al ia S.R .L. Via Cristoforo Columbo, 49 20090 Trezzano S/N Navigilo Milano, Italy

Tel: 2-484441 (Inside Italy) Tel: +39-02-484441 (Outside Italy)

Mexico/México

Symbol Technologies Mexico Ltd. Torre Picasso Boulevard Manuel Avila Camacho No 88 Lomas de Chapultepec CP 11000 Mexico City, DF, Mexico

Tel: 5-520-1835 (Inside Mexico) Tel: +52-5-520-1835 (Outside Mexico)

Norway/Norge

Symbol’s registered and mailing address:

Symbol Technologies Norway Hoybratenveien 35 C N-1055 OSLO, Norway

Symbol’s repair depot and shipping address:

Symbol Technologies Norway Enebakkveien 123 N-0680 OSLO, Norway

Tel: +47 2232 4375

South Africa

Symbol Technologies Africa Inc. Block B2 Rutherford Estate 1 Scott Street Waverly 2090 Johannesburg Republic of South Africa

Tel: 1 1-8 09 5311 (Inside South Africa) Tel: +27-11-809 5311 (Outside South Africa)

xii

Spain/España

Symbol Technologies S.L. Avenida de Bruselas, 22 Edificio Sauce Alcobendas, Madrid 28108 Spain

Tel: 91 324 40 00 (Inside Spain) Tel: +34 91 324 40 00 (Outside Spain) Fax: +34.91.324.4010

About This Guide

Sweden/Sverige

“Letter” address:

Symbol Technologies AB Box 1354 S-171 26 SOLNA Sweden

Visit/shipping add res s:

Symbol Technologies AB Solna Strandväg 78 S-171 54 SOLNA Sweden

Tel: Switchboard: 08 445 29 00 (domestic) Tel: Call Center: +46 8 445 29 29 (international)

Support E-Mail: Sweden.Support@se.symbol.com

If you purchased your Symbol product from a Symbol Business Partner, contact that Business Partner for service.

For the latest version of this guide go to:http://www.symbol.com/manuals.

xiii

P470/370 RF Scanner Product Reference Guide

xiv

Chapter 1

The P470/P370 RF Scanner

Introduction

The P470/P370 cordless RF scanners bring new flexibility and economy to data capture and data management in both industrial and retail operations. The scanner communicates with your host computer through radio transmission instead of through a cable. With the RF scanner, you are free to scan and transmit without a physical cable, from as far away as 100 feet (30.5 meters) even without a direct line of sight. This lets you take the scanner to where the work is, whether on the loading dock, the plant floor, the warehouse, or the POS checkout area. There are several versions available:

• P470: cordless retail scanner

• P370: cordless industrial scanner

• P370 ALR: cordless industrial ALR scanner

Unless otherwise noted, the term Phaser refers to all versions of the scanner.

1-1

P470/370 RF Scanner Product Reference Guide

Rechargeable Battery

In the handle of the scanner, there is a rechargeable lithium-ion battery. This provides all power to the scanner during cordless operation. It provides 10 hours of use in a typical application. When fully depleted, the battery can be recharged to full charge in about 3-1/2 hours.

The Cradle

The PL 370/470 Cradle acts as a:

•stand

• 2-way RF transmitter

• communication interface with the host

• battery charger for the cordless scanner.

The cradle can sit on a desktop or be wall-mounted, whichever is more convenient. The cradle receives data from the scanner via the antenna on the side of the cradle. The cradle then transmits that data to the host device via an attached cable. It also acts as a holder for the scanner.

The cradle also provides power for charging the scanner’s battery (in the scanner). The cradle has a charge status indicator light that shows the status of the battery charging (Refer to Table 2-1 on

page 2-10).

There are two versions of the cradle:

• PL 470 Cradle: cordless retail version

• PL 370 Cradle: cordless industrial version.

Unless otherwise noted, the term Cradle refers to both versions of the cradle.

1-2

Charge Status Indicator Light

Figure 1-1. Scanner and Cradle

The P470/P370 RF Scanner

Quick Startup Instructions

Below is an index of Quick Startup Instructions to help get you up and going quickly. These instructions are also on the back cover of this guide for easy reference. The index is listed in a step by step order beginning with step 1, Setting up the System.

Mandatory steps are designated by an asterisk (*). If an item has multiple pages referenced, the most important reference is in bold.

PRG Page

1. Setting Up the System

• Connecting the cradle to a host * 2-1

- RS-232 connection 2-2

- Synapse connection (keyboard wedge, USB, etc.) 2-3

• Charging the battery * 1-2, 2-8

• Pairing the scanner with the cradle * 2-6

- RF channel 3-8, 5-13, C-1

- Coexisting in Spectrum24 environments 2-7

2. Using the Default Applications

• Overview of Scan and Transmit application* 3-2

• Keypad operation 3-2, 3-3, 3-26

• Eliminating repetitive scanning 3-4

• Selecting the host communication protocol 3-2, 3-8, 5-8

- RS-232 baud rate 5-83

3. Programming an Advanced Data Formatting Rule Using 123Scan 3-17

• Suffix values (appending Enter key and Tab) 3-18

4. Troubl e s hooting Problems

• Troubleshooting table 4-2

• Communication errors 3-5, D-2

• Beeper indications and default application error codes 4-8

• Cradle LED indications 2-10

1-3

P470/370 RF Scanner Product Reference Guide

Commonly Used P470/P370 Programming Bar Code

Below are commonly used programming bar codes. Y ou can cut this page out of the guide, or make a copy of the bar codes using a high quality copying machine.

Enter System Menu Bar Code

Load New MCL-Designer Application

Scanner Firmware Version

1-4

Cradle Firmware Version

Load 123Scan File

Reset Default Application

(Clears previously programm ed ADF rules

and/or MCL-Designer applications)

Chapter 2

Set Up

Introduction

This chapter covers the procedures for setting up the RF scanner and its accessories.

Unpacking

Remove the scanner from its packing and inspect it for damage. If the scanner was damaged in transit, call one of the telephone numbers listed in the section Symbol Support

Center on page xi. KEEP THE PACKING. It is the approved shipping container and should

be used if you ever need to return your equipment for servicing.

Setting Up the Cradle

The basic steps to set up the cradle are listed below and described in more detail in the following sections.

• connecting the cradle to a host

• mounting the cradle, if desired

• pairing the scanner to the cradle.

Connecting to a Host

With some host types, the scanner is unable to answer host terminal polls if the appropriate host type is not selected. This may result in an error message generated by the host. To correct this situation, select the proper parameter set and initialize the host terminal. See

Chapter 5, Parameter Menus for more information.

2-1

P470/370 RF Scanner Product Reference Guide

There are two basic host communications options available:

• using an RS-232 cable

• using a Synapse cable.

RS-232 Connection

1. Make sure all host devices are powered down.

2. Plug the connector at the end of the cradle’s cable into the appropriate RS-232 receiving port on the host device.

3. Plug the other end of the cable into the COM1 connector on the cradle.

COM1

Power port

Figure 2-1. Ports on the Cradle

4. Connect the power connector of the power supply into the Power port on the cradle.

5. Connect the appropriate line cord to the power supply and into an AC receptacle.

6. The indicator light on the cradle blinks, signifying successful power-up.

Figure 2-2. Power Supply Port

2-2

7. Rotate the antenna to the vertical position.

Using A Synapse Cable

1. Make sure all host devices are powered down.

IMPORTANT

Before power is provided to the cradle (step 6), the following steps must be completed. The Synapse cable must be connected to the cradle (step 2) AND flying power lead plugged in (step 4). If the cables are not connected in this sequence, the Synapse Interface Adapter will not operate properly.

2. Connect the Synapse cable to the cradle (see Figure 2-1 on page 2-2).

3. Connect the other end of the Synapse cable to the Synapse Interface adapter.

4. The Synapse cable has a flying power lead. Connect this lead to the receptacle in

the Synapse Interface adapter, as shown in Figure 2-3. See the Synapse guide for details.

Set Up

the

To Host

Flying Power Lead

Synapse Interface Adapter (Module)

Synapse Cable

To Cradle

Figure 2-3. Synapse and Adapter Cable

5. Connect the Synapse Interface adapter to the host.

6. Connect the power supply to the cradle (see Figure 2-2).

2-3

P470/370 RF Scanner Product Reference Guide

7. Connect the appropriate line cord to the power supply and into an AC receptacle.

8. The indicator light on the cradle blinks, signifying successful power-up.

9. Scan the appropriate Synapse bar codes to set up the Synapse cable for your specifications.

10. Rotate the antenna to the vertical position.

Wand Emulation, OCIA, OCR, Keyboard Wedges

See the appropriate Synapse cable instructions. An adapter cable is required.

Wall Mounting

Before wall-mounting the cradle, the scanner support tab must be changed from the deskmount position to the wall-mount position.

1. Lift the scanner support tab out of the top part of the cradle and replace it in the wall-mount position.

Desk Mount

Wall Mount

Figure 2-4. Scanner Support Tab

2. Seat the cables from the bottom of the cradle in the grooves along the length of it so that the bottom of the cradle is smooth.

Cable Grooves

Figure 2-5. Placement of Cables

2-4

Set Up

3. Fasten the two screws provided into the wall where the cradle will hang, leaving

about 1/8” (0.3 cm) of the screw outside the wall for the cradle’s wall mounting sockets (A template is provided for you in the PL 370/470 Quick Reference Guide p/n 72-38494-xx).

4. Place the cradle over the screw heads and slide down until it fits into place. Slight

pressure upwards should not move the cradle.

Figure 2-6. Securing Cradle to Wall

5. Position the antenna vertically (pointing toward the ceiling).

6. Place the scanner in the cradle.

2-5

P470/370 RF Scanner Product Reference Guide

Pairing the Scanner with the Cradle

The scanner and cradle must be paired for communication to occur.

Note:If the cradle is attached to a new host, re-scan the pairing bar code.

To pair the scanner with the cradle:

1. Scan the pairing bar code on the top of the cradle. To pair a long range scanner (P370 ALR) to a regular P370 cradle, attach the

“spare pairing bar code” label to the cradle. This 15 mil bar code, packaged with the cradle, can be scanned by the P370 ALR at a distance of approximately two feet from the cradle.

2. The scanner may briefly display the “pairing search for channel” message while the scanner searches for the base. Once the base is detecte d, info rm ation is exchanged (addressing, RF channels, etc.) between the scanner and the cradle.

Note:It may take up to 30 seconds for the scanner to search for the base

during over-the-air pairing. To reduce the pairing time, place the scanner in the cradle.

3. After the exchange is complete, the scanner and cradle are paired. Successful pairing is indicated by a warble beep and the base’s LED will flash.

If pairing is unsuccessful, the scanner emits a Lo/Hi beep and displays the following message:

Pairing Unsuccessful Push ENTER & Try Again

The pairing of a scanner to a cradle is one-to-one. Only one scanner can be paired to a cradle at any point in time. If you pair a second scanner to an in use cradle, the cradle’s connection to the first scanner will be broken and the connection re-established with the second scanner.

To pair a scanner to a different cradle, scan its pairing bar code located on the top of the cradle.

2-6

Set Up

Optimizing RF Performance

Mounting

The RF scanner and cradle are equipped with a 2.4 GHz point-to-point radio that has an RF transmission range of 100 feet (30.5 meters) even without a direct line of sight.

In addition to being a 2-way RF transmitter, the cradle is a battery charger and should be mounted in an accessible location like on a table or desktop. For optimum RF performance, especially in difficult environments, mount the cradle on a wall as high as possible.

Coexistence in Spectrum24 Environments

If you operate your scanner or cradle in close proximity to a Spectrum24 device, maintain a buffer of 3 feet or greater between the transmitters. A Spectrum24 device includes but is not limited to a terminal with a Spectrum24 radio, PC with a Spectrum24 card, or a Spectrum24 Access Point. If a scanner or cradle is less than 3 ft. from a 2.4 GHz Spectrum24 transmitter (antenna), especially an Access Point, your communication performance may degrade.

Select a Channel Outside the Spectrum24 band

In the unlikely event that Spectrum24 radio traffic causes interference between the scanner and the cradle, you can change the scanner’s RF channel to one that minimizes or eliminates the interference.

Phaser cordless scanners have three channels that are not within the Spectrum24 band, 81, 82, and 83*. As a rule of thumb, the Cordless systems operated closest to Spectrum24 devices should use these channels. For instructions on how to change the scanner’s RF channel, see System Setup Options on page 3-8.

In applications with low scanning/data transmission duty cycles, you may assign the same channel to more than one cordless scanner.

After channels 81, 82 and 83, the next best channels to use are 60 through 80; the higher the channel the better. See Appendix C, Radio Channels for a list of available radio channels per country.

* Not available in some countries.

2-7

P470/370 RF Scanner Product Reference Guide

Phaser-to-Phaser Co-Existence

Up to three P470/370 scanners within listening range (100 feet) of each other can be operated on the same channel with little or no interference, assuming average scanning rates.

For higher than average scanning rates, P470/370 scanners within listening range (100 feet) of each other should be operated on different channels, set apart by at least one channel (for example, 2, 4, 6, etc.). Cordless Phaser scanners support up to 82 communication channels. Not all channels are available in all countries. Refer to Appendix

C, Radio Channels for more information.

Increase the number of RF Retries

If the scanner’s transmission is not received by the cradle or the base’s acknowledgment response is not received by the scanner (see Communication Errors on page 3-5), the scanner retransmits the lost or corrupted data. The scanner attempts 4 RF Retries (default) but can be programmed to attempt up to 8.

Depending on your particular RF environment, additional retries may cause your scanner transaction time to increase in the presence of heavy Spectrum24 traffic.

Charging the Battery

Before its first use, the scanner’s battery must be charged. It can be charged:

• Using the cradle

• Using the UBC 2000.

2-8

Using the Cradle

1. Set up the cradle as described in Setting Up the Cradle on page 2-1..

Figure 2-7. Placing the Scanner into the Cradle

2. Insert the scanner into the cradle so that the nose of the scanner and tip of the

handle seat into the receptacles. The scanner displays “UNIT CRADLED” when properly inserted in the cradle.

3. The battery charges automatically. A full charge of a depleted battery takes

approximately 3-1/2 hours.

Set Up

Note:For additional information on charging, see Table 2-1 on page 2-10.

The cradle recharges batteries in the scanner only when the scanner is in the cradle. A scanner with a depleted battery starts charging immediately upon insertion into the cradle, whereas a scanner with a partially charged battery begins charging after approximately 15 minutes. Note that the scanner can be removed from the cradle at any time.

Using the UBC 2000

The battery can be charged using the Universal Battery Charger UBC 2000. The UBC adapter for the P470/P370 scanner battery is required. Refer to the UBC 2000 guide for information on recharging the battery using the UBC 2000.

Battery Charge

When the battery’s charge is almost depleted, the scanner emits 4 high tone beeps, when the trigger is pulled, indicating that it must be recharged.

2-9

P470/370 RF Scanner Product Reference Guide

Charge Status LED Indications

The LED indicator on the cradle uses flashing patterns to display the charger status, as shown in the table below.

Table 2-1. Cradle LED Indications

LED Status

Off The scanner is not in the cradle or has not been

properly inserted into the cradle.

Blinking Slowly The scanner is properly seated in the cradle and

charging will begin shortly.

Blinking Rapidly The battery is actively charging. On Battery charging is complete.

Changing the Battery

Once a battery is fully charged, it will generally last up to 10 hours without being returned to the cradle. By returning it to the cradle during the day, you extend this time.

Removing the Battery

1. Slide the release latch down using center indent and remove the cover.

Battery Compartment Cover

Figure 2-8. Removing the Battery Compartment Cover

2-10

Battery Release Latch

2. Slide the battery toward the bottom of the scanner and then pull the bottom of the

battery back and out of the scanner.

Figure 2-9. Pulling the Battery Out

Replacing the Battery

1. Place the top portion of the battery (curved side up, contacts toward top) into the

scanner and then slide it up the handle.

2. Replace the battery compartment cover.

3. Slide the release latch up to secure the cover in place.

Set Up

2-11

P470/370 RF Scanner Product Reference Guide

2-12

Chapter 3 Operation

Introduction

This chapter covers how to use the cordless Phaser scanner.

Default Application

The cordless scanner is shipped from the factory with a default scan and transmit application.

This application allows users to scan and view data, enter quantities, and manually enter alphanumeric data.

When the unit is powered up, it displays the system start-up banner. Alternatively, the scanner can be reset manually by pressing the <FUNC> key, then the <*> key. When the scanner is powered up or reset, the system banner appears as follows:

Symbol Technologies

Phaser RF

3-1

P470/370 RF Scanner Product Reference Guide

Initial Powerup

After a few seconds, the System Banner is replaced by the system initialization screen.

Symbol Technologies Initializing...

After initialization, the scanner enters the Scan & Transmit application. The default communication protocol is RS232/Synapse.

If a Synapse cable is attached, the scanner automatically overrides the default settings.

Scan and Transmit Application

The scan and transmit application allows you to:

• Display and simultaneously transmit data to a host

• Eliminate repetitive scanning with a quantity entry feature

• Manually enter alphanumeric data if no bar code is present.

If the scanner powers down, pull the trigger or press the <ENTER> key to wake it up. The scan and transmit screen appears as follows:

SKU: _____________________

In this mode, scanned bar codes are automatically transmitted to the cradle and then the host in real time.

Numeric Data Entry

The default application also allows you to manually enter data if no bar code is present. By default, this feature is enabled. To disable alphanumeric data entry via the keypad, go

to the symbologies tab inside 123Scan and remove the “X” from the check box next to “Keypad”. (This does not disable the quantity entry feature discussed in Eliminating Repetitive Scanning on page 3-4.)

3-2

Operation

With keypad entry enabled (default setting out of the box), press the <ENTER> key after keying in data. During data entry, the <BK> key corrects keying errors digit by digit, and the <FUNC> then <BK> combination clears the screen so you can start over. If your entry exceeds 34 characters, the characters will scroll off the visible portion of the screen, but are retained for storage.

Alpha Data Entry

To enter alpha characters via the keypad (with keypad enabled, page 3-26), press the <Mode> key once to put the scanner in Alpha Mode.

Numeric buttons 1 through 9 are associated with the alpha characters. For example, the letters A, B and C are located on numeric button 7. Press the button with the letter you desire - once for the letter A, twice for the letter B, or three times for the letter C. You can continue entering alpha characters or switch to numerics. Press <ENTER> to send the data.

To return to numeric entry mode after entering alpha characters, press the <Mode> key again. For example, to manually enter 17ABF5, do the following steps:

Data Action

1 Press numeric button 1. 7 Press numeric button 7. A Press <MODE> button once, then numeric

button 7 once. W ait fo r one sec ond (you wi ll hear a low pitched beep).

B Press numeric button 7 t wice. F Press numeric button 8 three times. 5 Press <MODE> button once, then numeric

button 5 once, then <ENTER>.

For more information, refer to Keypad Operation on page 3-26.

3-3

P470/370 RF Scanner Product Reference Guide

Eliminating Repetitive Scanning

T o eliminate repetitive scanning of identical items, you can enter a quantity prior to scanning a bar code. This quantity entry feature can also be used when manually entering bar code data.

To enter a quantity, press the * key. The following screen with a default value of “1” will appear:

Quantity: 1

_____________

To enter the value you desire, key in the quantity followed by the <ENTER> key. Next, the bar code data entry screen reappears. Scan the item’s bar code. The scanner sends the bar code data to the host the keyed-in amount of times. For instance, if you type in a quantity of 6 then scan a bar code, the scanner sends that bar code data to the host six times as if the bar code had been scanned six times.

If you have accidentally entered this screen, it will automatically be exited after 5 seconds or by pressing the <ENTER> key without entering a quantity.

3-4

Operation

Communication Errors

A communication error occurs when the scanner, cradle or host fails to properly communicate. When a communication error occurs using the default application, the scanner emits 4 beeps (LO HI LO HI) and displays a "Failed Communication" error message, like the one shown below. The three-digit error code on the scanner screen indicates what type of communication problem occurred. Error code 015 generally indicates the scanner is out of RF range, not properly paired to the base, or the base may have lost power. For a detailed list of all the error codes see Appendix D, Messages and

Error Codes and Beeper Indications / Default Application Error Codes on page 4-8.

Failed Communication Error 015 Push ENTER

To return to the application, press <ENTER>. Three types of communication errors can occur:

1. The RF transmitted data was NOT received by the cradle.

2. The cradle received the RF transmitted data, but the scanner did NOT receive a

cradle's acknowledgment.

3. The host and cradle are not communicating properly.

RF Communication Errors

1. If the RF transmitted data was NOT received by the cradle, move the scanner

closer to the cradle to reestablish communication, then re-scan the bar code. If the communication has been reestablished, the scanner will sound a good decode beep and no error beeps. Resume normal scanning.

2. If the cradle received the RF transmitted data, but the scanner did NOT receive a

cradle's acknowledgment, move the scanner closer to the cradle to reestablish communication, then re-scan the bar code. If the communication has been reestablished, the scanner will sound a good decode beep and no error beeps. In this scenario data may have been transmitted to the host. If the cradle had previously sent data to the host, it will NOT pass this re-scanned data to the host. Resume normal scanning.

For additional information see Optimi zi ng RF Perf or man ce on page 2-7.

3-5

P470/370 RF Scanner Product Reference Guide

Host / Cradle Communication Errors

3. If the host and cradle are not communicating properly, insure the cabling is properly connected, baud rate is properly set, and correct COM port has been selected.

3-6

Operation

System Menu

The system menu allows the user to set up the operation of the scanner, such as loading a new application, set the scanner’s RF channel, setting the scanner ID, etc.

Enter the System Menu by scanning the bar code below or by entering a keypad sequence.

Note:Commonly used System Menu programming bar codes have been

consolidated on page 1-4.

Enter System Menu Bar Code

To access the System Menu using the keypad sequence, press the <FUNC>, then the <*> key, followed by the <FUNC> key, then the <BK> key.

When you enter the system menu, the following screen appears:

Phaser Setup

0. System Setup

Below is the list of available options. Press the Up and Down arrow keys to scroll through them. Press <ENTER> to select a menu option. Y ou can also select a menu option directly by typing the associated menu option number and then pressing <ENTER>.

0. System Setup

1. App. Control

2. Parameter Control

3. System Status

4. Version

9. Return to App.

The system menu options are described below.

3-7

P470/370 RF Scanner Product Reference Guide

System Setup Options

System Setup allows you to configure the scanner’s basic settings such as setting an RF channel.

Option Description

0. Set Com Protocol

-RS232/Synapse

-MCL NET

-Back to Com Protocol

1. Set RF Channel Allows the user to set/change the RF channel used for

2. Set Contrast Sets the display contrast. The scanner displays the current

Sets the communic ation protocol used by the defa ult application . The options are MCL-Ne t or RS232/Synap se. If RS232/Syna pse is selected, the scanner automatically identifies whether an RS232 or Synapse interface is required. To cancel the change, press the <FUNC> then <BK> keys, and to accept the change, press the <ENTER> key.

communication between the scanner and cradle. The cordless Phaser scanner operates on a single,

programmable channel (frequency) between 2.402 GHz (channel 02) and 2.483 GHz (channel 83).

A maximum of 81 channels are available. Not all channels are available in all countries. If a channel is not legal to use in your country, an error beep will be heard instead of a successful warble. For a list of Channel Availability by Country, see

Appendix C, Radio Chan nel s.

Channel: 54 New Channel: _ _

To cancel the change, press the <FUNC> then <BK> keys, and to accept the change, press the <ENTER> key.

contrast setting. Use the up an d dow n arrow ke ys to c hange th e contrast. The default con trast is 7, and the range is from 0 to 15, with 0 being the lig htest and 15 being the d arkest. To cancel the change, press the <FUNC> then <BK> keys, and to accept the change, press the <ENTER> key.

3. Set Scanner ID Sets the scanner ID . The scann er displays it s current I D, and the user may key in a new value between 1 and 254. The default is

001. T o cancel the change, press the <FUNC> then <BK> keys, and to accept the change, press the <ENTER> key.

9. Back to Main Returns the user to the system menu.

3-8

Operation

App. Control

App. Control allows you to control your application, specifically, load new applications on your scanner, reset your default applications, etc.

Y ou can load a new application or system code by either scanning the appropriate bar code or entering the appropriate keypad value as indicated on the display.

Option Description

0. Load App Puts the scanner into a mode to receive MCL-Designer

application downloads and MCL-Link commands from the host. To enter this mode using the key pad, select this option on the

system menu. The following screen displays:

Load New App. <ENTER>=YES

OR To enter this mode from an application without entering the

system menu or entering key strokes, scan the bar code below.

<BK>=NO

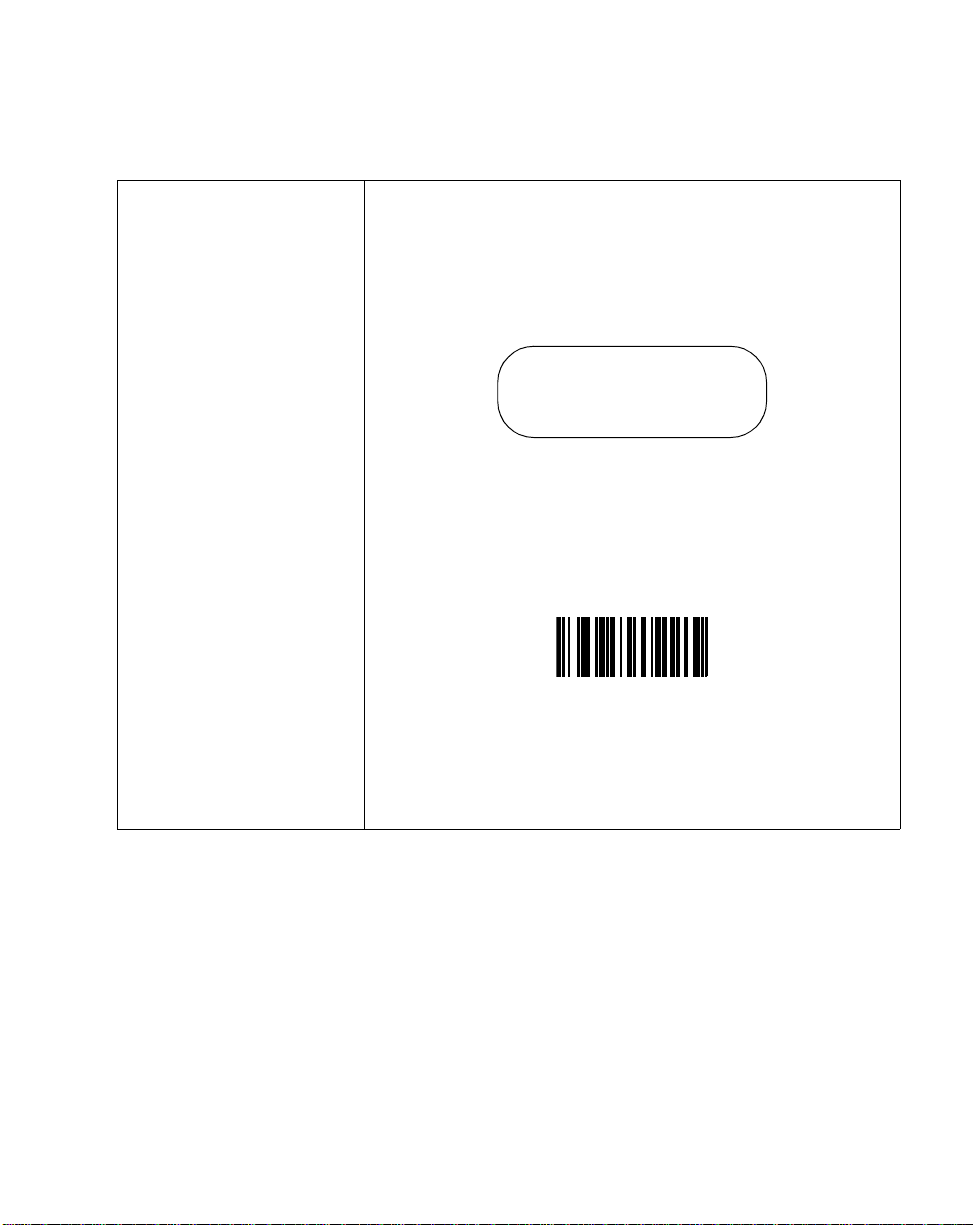

Load New MCL-Designer Application

Scanner ready, on PC start download

When this screen displays, the scanner is ready to accept the download. On the PC Utility, initiate the download.

After downloading is complete, the system menu is exited and the application initiated.

T o e xit this mo de and preve nt the down load of a new applicat ion, press the <FUNC> then <BK> keys.

3-9

P470/370 RF Scanner Product Reference Guide

Option Description

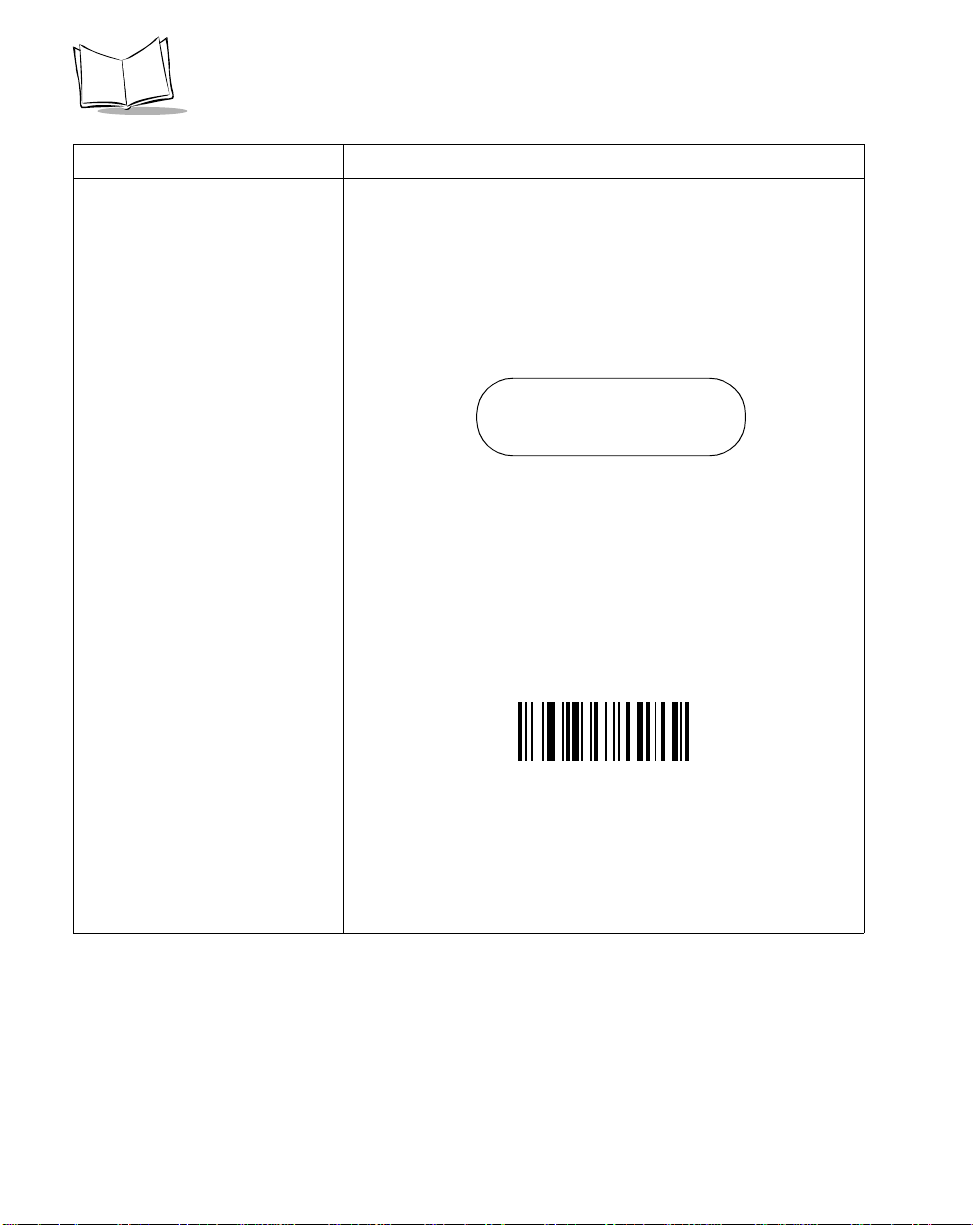

1. Set Default App Reinstalls the default application and returns all parameters to

their factory settings (values listed in Table 5-1). The default application over writes any MCL-Designe r application and/or AD F rules. This option may be used to restore functionality to a scanner which has been loaded with a defective application.

To enter this mode using the key pad, select this option on the system menu. Prior to resetting the default application, the user is prompted to confirm this operation:

Reset Default App? <ENTER>=YES

Press the <ENTER> key to confirm the choice (Y es) or the <BK> key to cancel the choice (No).

If you entered “Set Default App” from the System Menu, upon resetting the default application, you will return to the System Menu.

OR To enter this mode from an application without entering the system menu or entering key strokes, scan the bar code below.

<BK>=NO

3-10

Reset Default Application

(Clears previously programmed ADF rules and/or

MCL-Designer applications)

If you entered the “Set Default App” mode using the bar code above, the default application will automatically be reset, the System Menu exited, and the application re-initiated.

Option Description

Operation

2. Enable AutoLoad AutoLoad App.

-Enable

-Disable

Enables the automatic application download feature in the default application. This allows the user to remove the scanner from the box, pair it with the cradle, place the scanner in the cradle and automatically download a new application to the scanner.

In order for this feature to operate properly, the cradle must be connected to a host running MCL-Link, and the user’s host must be configured properly with specific files in specific locations (See Appendix A). If the user does not set up the host in the required manner, the scanner reverts to normal charging mode. This feature is e nabled by d efault, but may be disable d by us e of this System Menu item.

Selecting Enable will enable th is feature ; Disable will disable this feature. To exit without changing this setting, press <FUNC> then <BK>.

Note that “Enable AutoLoad” ONLY works with the default application and does not work with any MCL Des igner generated applications.

3-11

P470/370 RF Scanner Product Reference Guide

Option Description

3. System Co de Updates the scanner o peratin g sys tem (Firmw are). To enter this

mode using the ke y pad, select this option on the system menu.

Load New System Code <ENTER>=YES

Press the <ENTER> key to confirm the choice (Y es) or the <BK> key to cancel the choice (No).

OR To enter this mode from an application without entering the

system menu or entering key strokes, scan the bar code below.

System Code

<BK>=NO

3-12

Place unit in cradle on PC start download

Place the scanner in th e cradle before initiating the dow nload from the PC Utility.

After the download is complete, the system menu is exited and the application initiates.

To exit this mode and prevent the download of new firmware, press and hold the <ENTER> key for 30 seconds. In addition, power to the cradle mu st be c ycled (p owere d of f then on) befo re it will communicate with the scanner again.

Operation

Option Description

4. Base Statio n Code Updates the cradle’s operati ng syst e m (Fir mwa r e). To enter this

mode using the ke y pad, select this option on the system menu.

Load New Base Code <ENTER>=YES

Press the <ENTER> key to confirm the choice (Y es) or the <BK> key to cancel the choice (No).

To enter this mode from an application without entering the system menu or entering key strokes, scan the bar code below.

Base Station Code

<BK>=NO

Base Station ready, on PC start download

To start the download to th e cradle, pres s the st art button on the PC Utility.

Note: You will automatically exit this message after 15 seconds and return to the application, even if the PC download is NOT initiated.

To exit this mode and pr event the download of new f irmware or i f the PC download is not initiated, the power to the cra dle must be cycled (powered of f the n on) before it will communicate with the scanner again. No action is required on the scanner side.

9. Back to Main Returns the user to the system menu.

3-13

P470/370 RF Scanner Product Reference Guide

Parameter Control

Parameter Control allows you to control the scanner parameters such as Scan Parameters and Set Default Params.

Option Description

0. Scan Parameters This feature only works when used with an application generated

with MCL-Designer and allows you to program your scanner by scanning the bar codes in Chapter 5, Parameter Menus. Parameters already set in your MCL-Designer generated application can not be overridden by scanning bar codes.

When you see the following screen, you can begin scanning parameter bar codes:

Scan Parameters <FUNC> <BK> to quit

After scanning the d esired bar codes, press <FUNC> the n <BK> to exit this mode.

1. Set Default Param Restores the default parameters in the scanner. The default parameters overwrite any scanned parameters. Prior to resetting the default parameters, you are prompted to confirm your choice.

9. Back to Main Returns the user to the system menu.

System Status

System Status allows you to perform system checks such as Battery Check.

Option Description

0. Battery Check Checks the battery charge level.

Good indicates the battery does not require recharging. Low/Recharge indicates the scanner requires a recharge. When the battery is close to complete discharge, the following

message displays:

Recharge Battery

9. Back to Main Returns the user to the system menu.

3-14

Operation

Version

0. Scanner Version This option displa ys the ve rsion of fi rmware (op erating system ) run

by the scanner. For example, the firmware version shown on the display below is NBR VRAAG , also called Revision “G” (w hich is the last letter of the firmware’s full name NBRVRAAG).

To enter this mode using the keypad, select this option on the System Menu. The following screen displays.

Scanner: NBRVRAAG MCL: 4.1

If you entered “Scanner Version” from the System Menu, after 15 seconds or by pressing <ENTER>, you will return to the System Menu.

OR T o enter this mode from an application outside of the System Menu, scan the bar code below.

Scanner Firmware Version

If you entered “Scanner Version” using the bar code above, after 15 seconds o r by pressing <ENTER>, you will automatically exit the System Menu and re-enter the application.

3-15

P470/370 RF Scanner Product Reference Guide

1. Cradle Version This option displa ys the ve rsion of fi rmware (op erating system ) run by the cordless scanner’s cradle. For example, th e firmware version shown on the display below is NBRVCAAF, also called Revision “F” (which is the last letter of the firmware’s full name NBRVCAAF).

To enter this mode using the keypad, select this option on the System Menu. The following screen displays.

Cradle: NBRVCAAF

If you entered “Cradle Version” from the System Menu, after 15 seconds or by pressing <ENTER>, you will return to the System Menu.

OR T o enter this mode from an application outside of the Sys tem Menu, scan the bar code below.

Cradle Firmware Version

If you entered “Cradl e Version” using t he bar code above, afte r 15 seconds or by pressing <ENTER>, you will automatically exit the System Menu and re-enter the application.

9. Back to Main Returns the user to the system menu.

Return to App

Return to App. Return to App exits the system menu and returns to the appli cation.

To do this, press <9> then <ENTER>.

3-16

Operation

123Scan

123Scan is an intuitive Windows based utility that allows you to customize your scanner setup and generate Advanced Data Formatting (ADF) rules. An Advanced Data Formatting rule gives you the ability to modify the bar code data before sending it to the host such as appending a carriage return, or some other prefix/suffix value, to the bar code data. This enhances capability between bar code data and your host software, allowing you to program the scanner rather than modifying your host application. The cordless scanner can be programmed via a cordless (RF) download or by scanning 123Scan generated programming bar codes. Scanner programming is saved in a setup file which can be distributed electronically (Web site, floppy disk, E-mail, or fax).

A copy of 123Scan is on the CD included with your scanner. It is also available on the Symbol Web site http://www.symbol.com. Use the web site’s search tool to find “123Scan” and select the P470/370 product line.

Note:Advanced data formatting rules created with 123Scan are for use

with the default application only and will not work with applications created with MCL-Designer.

To download a 123Scan generated ADF rule, scan the bar code below, then initiate the download on the PC utility.

Load 123Scan File

To remove previously programmed ADF rules from the scanner, scan the bar code below.

Reset Default Application

(Clears previously programmed ADF rules)

3-17

P470/370 RF Scanner Product Reference Guide

Suffix Values

123Scan generated programming bar codes for two commonly used suffixes (Enter and Tab) have been included in this Product Reference Guide.

To append an En te r ke y

codes and then the Reset Scanner bar code, in that order.

* to the transmitted bar code data, scan all nine (9) ADF rule bar

* ASCII value 7013

Note:You will get a successful decode beep after each barcode you scan.

If you get an error beep (three beeps - Lo Hi Lo or two beeps - Lo Hi), you must start scanning from the first barcode.

ADF Rules

1/9

2/9

3-18

3/9

4/9

5/9

6/9

7/9

Operation

8/9

9/9

RESET SCANNER

3-19

P470/370 RF Scanner Product Reference Guide

To append a Tab* to the transmitted bar code data, scan all nine (9) ADF rule bar codes

and then the Reset Scanner bar code, in that order.

*ASCII value 7009

Note:You will get a successful decode beep after each barcode you scan.

If you get an error beep (three beeps - Lo Hi Lo or two beeps - Lo Hi), you must start scanning from the first barcode.

ADF Rules

1/9

2/9

3-20

3/9

4/9

5/9

6/9

7/9

8/9

Operation

9/9

RESET SCANNER

3-21

P470/370 RF Scanner Product Reference Guide

Scanning

The scanner ships with the default application and default parameters and is ready-to-use right out of the box. If this is not what you need for your application, refer to the MCL Designer Manual for programming instructions and Chapter 5, Parameter Menus for scanning and communications parameters. If you need assistance, contact your local supplier or Symbol Support C ente r.

1. Make sure the bar code is in the correct scanning range. Aim and press the trigger. The scanner has read the symbol when:

• You hear a beep.

• The LED above the screen turns green.

• The red laser turns off.

Figure 3-1. Scanning a Bar Code

Scan the Entire Symbol

• Your scan beam must cross every bar and space on the symbol.

• The larger the symbol, the farther away you should hold the scanner.

• Hold the scanner closer for symbols with bars that are close together.

• A short, high tone beep indicates a good decode.

3-22

Operation

Right Wrong

Hold at an Angle

Do not hold the scanner directly over the bar code. Laser light reflecting directly back into the scanner from the bar code is known as specular reflection. This strong light can “blind” the scanner and make decoding difficult. The area where specular reflection occurs is known as a “dead zone.”

You can tilt the scanner up to 65° forward or back and still achieve a successful decode. Simple practice quickly shows what tolerances to work within.

Shaded area represents

dead zone ( 2 ) Scan Beam

Bar Code Bar Code

Figure 3-2. Maximum Tilt Angles and Dead Zone

Bar Code

Scan Beam

3-23

P470/370 RF Scanner Product Reference Guide

Decode Zone

5 mil

7.5 mil

10 mil

100% UPC

15.6 in.

39.6 cm

10 in.

25.4 cm

5 in.

12.7 cm

0 in. 0 cm

5 in.

12.7 cm

10 in.

25.4 cm

15.6 in.

39.6 cm

Width

Field

3-24

0 in. 0 cm

15 mil

20 mil

40 mil

55 mil

5 in.

12.7 cm

10 in.

25.4 cm

15 in.

38.1 cm

20 in.

50.8 cm

25 in.

63.5 cm

30 in.

76.2 cm

35 in.

88.9 cm

40 in.

101.6 cm

Distance From Front Of Scanner

Figure 3-3. P470/P370 1D Scanner - Decode Zone

45 in.

114.3 cm

0 in. 0 cm

100% UPC

15 Mil

35 in.

88.9 cm

40 Mil

55 Mil

70 in.

177.8 cm

105 in.

266.7 cm

70 Mil Reflective

100 Mil Reflective

140 in.

175 in.

444.5 cm

210 in.

533.4 cm

355.6 cm

Distance From Front Of Scanner

245 in.

622.3 cm

280 in.

711.2 cm

315 in.

800.1 cm

350 in.

889.0 cm

Operation

20.0 in.

50.4 cm

15.0 in.

38.1 cm

10 in.

25.4 cm

5 in.

12.7 cm

0 in. 0 cm

5 in.

12.7 cm

10 in.

25.4 cm

15.0 in.

38.1 cm

20.0 in.

50.8 cm

385 in.

977.9 cm

Width

Field

Figure 3-4. P370 ALR Scanner - Decode Zone

3-25

P470/370 RF Scanner Product Reference Guide

Keypad Operation

Instead of scanning a bar code, you can enter the bar code data using the keypad on the top of the scanner. By default, this feature is enabled. To disable alphanumeric data entry via the keypad, go to the symbologies tab inside 123Scan and remove the “X” from the check box next to “Keypad”. (This does not disable the quantity entry feature discussed in Eliminating Repetitive Scanning on page 3-4.)

For additional information on 123Scan, see 123Scan on page 3-17. To enter numeric data, type the numeric value desired and press <ENTER>. A beep lets

you know that the entry was accepted. See Figure 3-5 on page 3-27. To enter alpha characters, press the <Mode> key once to put the scanner in Alpha Mode. Numeric buttons 1 through 9 are associated with the alpha characters. For example, the

letters A, B and C are located on numeric button 7. Press the button with the letter you desire - once for the letter A, twice for the letter B, or three times for the letter C. You can continue entering alpha characters or switch to numerics. Press <ENTER> to save or send the data.

To return to numeric entry mode after entering alpha characters, press the <Mode> key again. For example, to manually enter 17ABF5, do the following steps:

Data Action

1 Press numeric button 1. 7 Press numeric button 7. A Press <MODE> button once, then numeric

button 7 once. W ait fo r one sec ond (you wi ll hear a low pitched beep).

B Press numeric button 7 t wice. F Press numeric button 8 three times. 5 Press <MODE> button once, then numeric

button 5 once, then <ENTER>.

Every time you press the button with the letter you desire, you hear a low-pitched beep to let you know that the entry was registered. Although the entry is registered, it has not been

3-26

Operation

transferred to the host yet. A high-pitched beep lets you know that the entry has been transferred to the host.

To return to numeric mode, press the Mode key again. Pressing the Enter key save s the data.

To put a decimal point (.) into numeric data, type in the numbers before the decimal point, then press the mode key, press the decimal, and press the mode key again. Now resume typing in the values to the right of the decimal.

To enter a dash (-), press the mode key once, then the zero (0) key twice. To enter a blank space ( ), press the mode key once, then the zero (0) key three times. The Function key in combination with a numeric key can be programmed to launch an

operation. For more information on how to program these keys for additional tasks and operations, refer to the MCL Designer User’s Guide p/n 70-37689-XX.

Figure 3-5. Scanner Keypad

3-27

P470/370 RF Scanner Product Reference Guide

3-28

Chapter 4

Maintenance And Spe cific atio n s

Introduction

This chapter explains how to maintain your scanner and the specifications for it.

Maintenance

• Do not allow any abrasive material to touch the scanner window.

• Remove any dirt particles with a damp cloth.

• Wipe the scanner window using a damp cloth, and if necessary, a non-ammonia based detergent.

• Do not spray water or other cleaning liquids directly into the scanner window.

• If the contacts between the scanner and cradle become dirty, clean them with either a pencil eraser or a cotton swab dampened with alcohol.

• If a significant decrease in battery life is noticed and does not correspond to increased usage, consider replacing the battery.

4-1

P470/370 RF Scanner Product Reference Guide

Troubleshooting

Refer to Appendix D, Messages and Error Codes for additional troubleshooting information.

Table 4-1. Troubleshooting Table

Problem Possible Causes Possible Solutions

Scanner won’t power up.

LED on base i s a lw ay s on.

Battery not charged. Charge or replace the battery in the scanner Battery not installed

properly. Base is locked up Cycle power (power off then on) to the base.

Ensure the battery is installed properly. See Changing the Battery on page 2-10.

Nothing happens w hen you follow the operating instructions, or the scanner display s erratic behavior (laser does not come on, scanner emits frequent beeps).

No laser beam when trigger is pressed.

Laser comes on but the symbol does not decode.

Symbol decodes but data is not transmitted to the host.

No power to the scanner.

Interface/power cabl es are loose.

Failed to download firmware.

Scanner is locked up. Reset the scanner (hold down t he ENTER key for

Scanner is not programmed for the correct bar code type.

Bar code symbol is unreadable.

Distance between scanner and bar code is incorrect.

Scanner is not programmed for the correct host type.

Check the system power. Ensure the power supply is connected, if your configuration requires a power supply.

Check for loose cable con ne cti ons at the crad le, AC power supply, or host device.

Reset the scanner (hold down the EN TER key for about 30 seconds) and try scanning again.

about 30 seconds) and try scanning again. Ensure the scanner is programmed to read the

type of barcode you are scanning.

Check the symbol to ensure it is not d efaced. T r y scanning test sy mbols of th e same bar code type.

Move the scanner closer to or further away from the bar code.

Scan the appropriate host type bar code.

4-2

Maintenance And Specifica tions

Table 4-1. Troubleshooting Table (Continued)

Problem Possible Causes Possible Solutions

Scanned data is incorrectly displaye d on the host.

Scanner is not programmed to work with the host.

Ensure the proper host type is selected. Check the scanner host type parameters or

editing op tions:

• For RS-232, ensure the scanner’s communication parameters match t he host’s settings.

The scanner emits error beeps after decoding a bar code.

Received a communication error beep while using a Synapse cable.

The scanner does not scan the programming bar codes in this guide.

Cradle is not powered up or cable connections are not secure.

Scanner and cradle are not successfully paired.

Scanner is too far from the base for proper transmission.

Previously scanned data not transmitted to host.

The cables connected to the cradle were not connected in the correct sequence.

Bar code symbol is unreadable.

Distance between scanner and bar code is incorrect.

Check that the cradle is powered up and that its cable connections are secure. See Setting Up the Cradle on page 2-1.

Check that the scanner is successfully paired with the cradle. See Pairin g the Scanne r with the Cradle on page 2-6.

Move closer to the base and retransmit.

Ensure you are within the p roper RF transmission range.

Before power is applied to the cradle, the Synapse cabl e must be conn ected to the cradle

the flying power l ead plugg ed in . See Using

AND A Synapse Cable on page 2-3 for more information

Check the symbol to ensure it is not d efaced. T r y scanning test sy mbols of th e same bar code type.

Move the scanner closer to or further away from the bar code.

4-3

P470/370 RF Scanner Product Reference Guide

Table 4-1. Troubleshooting Table (Continued)

Problem Possible Causes Possible Solutions

The PC cannot download an application to the scanner.

Incorrect cable connection.

Scanner and cradle are not successfully paired.

Check to ensure you are using an R S-232 cabl e. The application cannot be downloaded to a scanner using a Synapse cable.

Ensure the scanner and cradle are successfully paired.

The P370 ALR scanner will not pair with a PL370 cradle.

The Scanner will not load my ADF rule.

No power to the scanner.

Incorrect set up for pairing scanner with the cradle.

Unsuccessful pa iring of scanner with cradle or incorrect cable connection.

The scanner is running an MCL-Designer generated application.

Check to ensure the power supply is co nne cted to the base.

If the problem continu es, cycle po wer to the b ase (power off then on).

To pair a long range P370 ALR scanner with a PL370 cradle, attach the spare pairing bar code label to the cradle and scan the bar code. For additional information, see Pairing the Scanner with the Cradle on page 2-6.

Software download to the scanner while the scanner is running the default application.

• Check that the scanner is successfully paired with the cradle ( s ee page 2-6).

• Check that the cradle and PC are connected using an RS-232 cable.

Software download or scanning a b ar code shee t while the scanner is running an MCL-Designer generated application

• Erase the MCL-Designer application from the scanner’s memory by scanning the “Reset Default App lication” bar code on page 3-17.

• The default application is now reinstalled and an ADF rule can be loaded.

Note:If after performing these checks the symbol still does not scan,

contact your distributor or call the Symbol Support Center. See

Symbol Support Center on page page xi for the telephone number.

4-4

Maintenance And Specifica tions

Technical Specifications

Table 4-2. Technical Specifications

Item Description

Decode Capability The RF scanner can be programmed to decode the following

code types: UPC/EAN, Bookland EAN, Code 11, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 93, Codabar, Interleaved 2 of 5, Code 12 8, E AN 1 28, Discrete 2 of 5, MSI Plessey, and Coupon Code. The RF scanner ca n auto- discriminat e betwe en all of the abov e code types except for Code 39 and Code 39 Full ASCII.

Scanner Beeper Operation User-selectable: Enabled, Disabled. Scan Repetition Rate 35 (± 5) scans/sec (bidirectional) Roll (Skew) Tolerance ± 30° from normal Pitch ± 65° from normal Yaw ± 60° from normal Decode Depth of Field See Decode Zone on page 3-24. Print Contrast Minimum 20% absolute dark/light differential, measured at the wavelength

of the laser diode.

Ambient Light Immunity

Artificial Lighting 450 ft. candles 4844 lux Sunlight 10,000 ft. candles 107,640 lux

Operating Temperature

P370 (Industrial) P470 (Retail)

Storage Temperature -40° to 140°F -40° to 60°C Sealing P370: All components sealed to IP 54 specification against

Humidity 5% to 95% (non-condensing) Durability (Scanner)

P370 (Industrial) P470 (Retail)

-4° to 122°F -20° to 50°C 32° to 104°F 0° to 40°C

wind blown dust and rain.

P370: 6-ft. (1.8 m) P470: 5-ft. (1.5 m)

Drops to concrete over entire temperature range

4-5

P470/370 RF Scanner Product Reference Guide

Table 4-2. Technical Specifications (Continued)

Item Description

Dimensions

Height 7.0 in. (17.8 cm) Width 9.2 in. (13.5 cm) Depth 3.5 in. (9.8 cm)

Laser Classifications CDRH Class II, IEC Class 1, IEC Class 2

4-6

Maintenance And Specifica tions

Cradle Pin-outs

The following table shows the pin-outs for COM1 on the cradle.

Table 4-3. Pin-outs

Pin Cradle

1 Reserved 2 VCC (Out) 3Ground 4Synapse Data 5 Synapse Clock 6 RXD IN 7TXD OUT 8DTR (Tied HI) 9 CTS - IN

Pin 1

10 RTS - OUT

4-7

P470/370 RF Scanner Product Reference Guide

Beeper Indications / Default Application Error Codes

Table 4-4 list beep sequence and their meanings for standard beeps programmed into the

scanner. Other applications written for the scanner can have their own beep sequences and therefore are not listed in this table. See your System Administrator for beep sequences and their meanings.

For additional information on Error Codes, see Communication Errors on page 3-5.

Table 4-4. Beeper Indications

Beeper Sequence Indication Default Application

Error Codes

Standard Use

Short high tone A bar code symbol was decoded (if

decode beeper is enabled).

4 Beeps - long low A host transmission error occurred. Dat a

was not successfully sent to the host device. This occurs if a unit is not properly configured. Check option settings.

5 Beeps - low tone Convert or format error. Error code 002

Hi/Hi/Hi/Lo tone RS-232 receive error. Error code 005 4 Beeps - short Hi Battery requires recharging. Low Battery 4 Beeps - Lo/Hi/Lo/Hi An RF transmission error has occurred.

Move closer to the cradle and re-scan the bar code.

Parameter Menu Scanning

Short high tone Correct entry scanned or correct menu

sequence performed.

N/A

Error code 003 Error code 009 Error code 018 Error code 247 Error code 249 Error code 253

Error code 008

Error code 015 Error code 016 Error code 017 Error code 024

N/A

4-8

Maintenance And Specifica tions

Table 4-4. Beeper Indications (Continued)

Beeper Sequence Indication Default Application

Error Codes

Long Lo/Long Hi tone Input error, incorrect bar code or

“Cancel” scanned, wrong entry, incorrect bar cod e pr og ra mmin g sequence; remain in program mode.

Hi/Lo tone Keyboard parameter selected. Enter

value using bar code keypad.

Hi/Lo/Hi/Lo tone Successful program exit with chang e in

the parameter setting.

4 Beeps - Lo/Hi/Lo/Hi followed by 2 Beeps - Lo/Hi

Correct entry scanned or correct menu sequence performed in the scanner but communication error with cradle has occurred.

N/A

4-9

P470/370 RF Scanner Product Reference Guide

4-10

Chapter 5

Parameter Menus

Introduction

This chapter has the optional parameter bar codes necessary to program the RF scanner.

Operational Parameters

The RF scanner is shipped with the settings shown in Table 5-1. These default values are stored in non-volatile memory and are preserved even when the scanner is powered down. Y ou can change these default values by scanning the appropriate bar codes included in this manual. These new values replace the standard default values in memory. The default parameter values can be recalled by scanning the bar code in the section Set Default Parameter on page 5-7.

The scanner automatically detects which cable it is attached to, either an RS-232 or a Synapse cable. If it is attached to an RS-232 cable and has either an ICL, Nixdorf, or Fujitsu host interface, then scan the appropriate bar code from page 5-10 after power up. Any other RS-232 host interface works with the default setting.

If it is attached to a Synapse cable, plug everything together as described on page 2-3 and then follow the directions that come with the Synapse cable for setting up the host interface.

5-1

P470/370 RF Scanner Product Reference Guide

The following table lists the defaults for all parameters. If you wish to change any option, scan the appropriate bar code(s). An asterisk (*) next to a bar code indicates the default.

Table 5-1. Default Table

Parameter Default Page Number

Set Default Parameter All Defaults 5-7

Communication Protocol

Scan & Transmit Application RS232/Synapse 5-8 RS-232 Host Type Standard 5-9 Host Response Timeout 5 seconds 5-12 RF Channel No Default Setting 5-13 RF Retries 4 5-13 Sleep Time 10 seconds 5-15 Decimal Separator Decimal Point (.) 5-16 Key Click Enabled 5-17

Beeper Options

Beeper Tone High Frequency 5-18

Beeper Volume High 5-19

Power Detect Beep Enabled 5-20

Beep After Good Decode Enabled 5-21 Laser On Time 3.0 seconds 5-22

Decode Options

Transmit “No Read” Message Disabled 5-23 Linear Code Type Security Levels 1 5-24 Bi-directional Redundancy Disabled 5-26 Autodiscriminate Response Time 1.0 second 5-27

5-2

Table 5-1. Default Table (Continue d)

Parameter Default Page Number

UPC/EAN

UPC-A Enabled 5-28 UPC-E Enabled 5-28 UPC-E1 Disabled 5-28 EAN-8 Enabled 5-29 EAN-13 Enabled 5-29 Bookland EAN Disabled 5-30 Decode UPC/EAN Supplementals Ignore 5-31

Parameter Menus

Decode UPC/EAN Supplemental Redundancy

Transmit UPC- A Chec k Di gi t Enabled 5-33 Transmit UPC-E C hec k Digi t Enabled 5-33 Transmit UPC-E1 Check Digit Enabled 5-33 UPC-A Preamble System Character 5-34 UPC-E Preamble System Character 5-35 UPC-E1 Preamble System Character 5-36 Convert UPC-E to A Disabled 5-37 Convert UPC-E1 to A Disabled 5-38 EAN-8 Zero Extend Disabled 5-39 Convert EAN-8 to EAN-13 Type Type is EAN-13 5-40 UPC/EAN Security Levels 0 5-41 UPC/EAN Coupon Code Disabled 5-43

7 5-32

5-3

P470/370 RF Scanner Product Reference Guide

Table 5-1. Default Table (Continue d)

Parameter Default Page Number

Code 128

Code 128 Enabled 5-44 UCC/EAN-128 Enabled 5-45 ISBT-128 Enabled 5-47

Code 39

Code 39 Enabled 5-48 Trioptic Code 39 Disabled 5-49 Set Length(s) for Code 39 2 to 55 5-51 Code 39 Check Digit Verification Disabled 5-52 Transmit Co de 39 Chec k Di git Disabled 5-53 Code 39 Full ASCII Conversion Disabled 5-54 Convert Code 39 to Code 32 Disabled 5-55 Code 32 Prefix Disabled 5-56

Code 93

Code 93 Disabled 5-57 Set Lengt h(s) for Code 93 4-55 5-58

Interleaved 2 of 5

Interleaved 2 of 5 Enabled 5-60 Set Length(s) for I 2 of 5 14 5-61 I 2 of 5 Check D igit Verification Disabled 5-63 Transmit I 2 of 5 Check Digit Disabled 5-64

5-4

Table 5-1. Default Table (Continue d)

Parameter Default Page Number

Convert I 2 of 5 to EAN 13 Disabled 5-65

Discrete 2 of 5

Discrete 2 of 5 Disabled 5-66 Set Length(s) for D 2 of 5 12 5-67

Codabar

Codabar Disabled 5-69 Set Lengths for Codabar 5-55 5-71 CLSI Editing Disabled 5-72 NOTIS Editing Disabled 5-73

MSI Plessey

Parameter Menus

MSI Plessey Disabled 5-74 Set Length(s) for MSI Plessey Any Length 5-76 MSI Plessey Ch eck Digits One 5-77 Transmit MSI Plessey Check Digit Disabled 5-78 MSI Plessey Check Digit Algorithm Mod 10/Mod 10 5-79

Data Options

Transmit Code ID Character None 5-81

5-5

P470/370 RF Scanner Product Reference Guide

Table 5-1. Default Table (Continue d)

Parameter Default Page Number

RS-232C

RS-232 Parameters Standard 5-83 Baud Rate 9600 5-84 Parity None 5-85 Check Receive Error s Disabled 5-87 Hardware Handshaking None 5-89 Software Handshaking None 5-91 Host Serial Response Time-out 2 Sec. 5-94 RTS Line State (cable use only) Low 5-94 Stop Bit Select 1 5-95 ASCII Format 8-Bit 5-96 Intercharacter Delay 0 5-96

MCL-Net

MCL-Net Baud Rate 38400 5-97 MCL-Net Hex Addressing Mode Disabled 5-99 Scanner Address 001 5-100 MCL-Net Transmit Retries 3 5-100

MCL-Net Frame Timeout 500 ms 5-100 Scanner Decode Beep Type 1 5-101 Long Range Scanning Bar Codes

Aim Mode Sequential trigger/Aim 5-102

Aim Duration 0.8 Sec 5-103

5-6

Parameter Menus

Set Default Parameter

Scanning this bar code returns all parameters to the values listed in Table 5-1 (factory settings), but does not erase any programmed ADF rules.

SET ALL DEFAULTS

5-7

P470/370 RF Scanner Product Reference Guide

Communication Protocol

The bar codes below set the communication protocol used by the Scan & Transmit default application.

The communication options are RS232/Synapse or MCL-Net. If you select RS232/ Synapse, the scanner automatically identifies whether an RS232 or Synapse interface is required. MCL-Net allows the scanner to communicate with a host running MCL-Link or MCL-Link Lite.

Scan & Transmit Application

This communication protocol is used for the real time scanning and transmission of data to a host when a cable is attached to the cradle.

*RS232/SYNAPSE

MCL-NET

Note:These communication protocol parameters only work with the

default applications and will not work with applications created with MCL-Designer

5-8

Parameter Menus

Host Type

RS-232C Host Types

Most RS-232C hosts work fine with the default settings, however, three RS-232C hosts are set up with their own parameter default settings. Selecting the ICL, Fujitsu or Nixdorf RS232C host interface sets the defaults listed below. These defaults take precedence over Standard RS-232 defaults. So, if you select the Fujitsu RS-232C first, and then select the Standard RS-232 defaults, the Fujitsu defaults still take precedence. To return to the factory set defaults, scan the SET ALL DEFAULTS bar code on page 5-7.

T a ble 5-2. Terminal Specific RS-232C

NIXDORF

Mode A/

Parameter Standard ICL FUJITSU

Transmit Code ID No Yes Yes Yes Data Transmission Format Data as is Data/Suffix Data/Suffix Data/Suffix Suffix CR/LF CR CR CR Baud Rate 9600 9600 9600 9600 Parity None Even None Odd

Mode B

Hardware Handshaking None RTS/CTS

Option 3

Software Handshaking None None None None Serial Response Time-out 2 Sec. 9.9 Sec. 2 Sec. 9.9 Sec. Stop Bit Select One One One One ASCII Format 8-Bit 8-Bit 8-Bit 8-Bit Beep On <BEL> Disabled Disabled Disabled Disabled RTS Line State Low High Low *Low = No

*In the Nixdorf Mo de B, if C TS is Low, transmission of scan data is disabled. When CT S is High, bar code data is transmitted to the host.

**If Nixdorf Mode B i s scan ned w ithou t the scann er co nnecte d to the prope r host , it m ay a ppear unable to scan. If this happens, scan a different RS-232 host type within 5 seconds of cycling power to the scanner.

None RTS/CTS

Option 3

data to send

5-9

P470/370 RF Scanner Product Reference Guide

Scan the appropriate bar code below to select an RS-232C Host Interface.

*STANDARD RS-232C

ICL RS-232C

NIXDORF RS-232C Mode A

5-10

NIXDORF RS-232C Mode B

FUJITSU RS-232C

OPOS

Parameter Menus

Code ID Characters for RS232C Host Types

Selecting the ICL, Fujitsu, or Nixdorf RS-232C host interface enables the transmission of Code ID Characters as listed below. These Code ID Characters are not programmable and are separate from the Transmit Code ID feature. The Transmit Code ID feature should not be enabled for these hosts.

Table 5-3. Terminal Specific Code ID Characters

ICL FUJITSU NIXDORF

UPC-A “A” “A” “A” UPC-E “E” “E” “C0” EAN-8 “FF” “FF” “B” EAN-13 “F” “F” “A” Code 39 “C” <len> None “M” Codabar “N” <len> None “N” Code 128 “L” <len> None “K” I 2 of 5 “I” <len> None “I” Code 93 None None “L” D 2 of 5 “H” <len> None “H” UCC/EAN 128 “L” <len> None “P” MSI/Plessey None None “O” Bookland EAN “F” “F” “A” Unlisted Code Types None None None

5-11

P470/370 RF Scanner Product Reference Guide

Host Response Timeout

This parameter indicates how long the scanner will wait for a response from the cradle, after the cradle has sent its data to the attached host device. The timeout ranges from 5 seconds to 64 seconds, in 1 second increments. The default is 5 seconds.To change the timeout value, scan the bar code below, then scan two bar codes using the Numeric Bar Codes on page 5-104.

HOST RESPONSE TIMEOUT (RANGE OF 5 TO 64 SECONDS)

5-12

Parameter Menus

RF Channel

Selects the RF channel used for radio transmissions and reception. The channel ranges are nation dependent (see Appendix C, Radio Channels for a list of Channel Availability by Country). T o enter a range, scan the bar code below followed by 2 digits from the numeric bar code section (starting on page 5-104) to set the desired channel. If the channel is not legal for your country, an error beep will be heard instead of a successful warble. It is recommended that each scanner/cradle pair be set to a different channel than neighboring scanner/cradle pairs.

RF Channel

RF Retries

On a transm ission, th e radio wil l try to sen d the dat a a certai n number of times prio r to giving up if the receiving cradle is not responding. The following parameter allows the user to select how many retries should be tried. For additional information, see Increase the number of RF Retries on page 2-8.

3 RETRIES

*4 RETRIES

5-13

P470/370 RF Scanner Product Reference Guide

5 RETRIES

6 RETRIES

7 RETRIES

5-14

8 RETRIES

Parameter Menus

Sleep Time

Scan the bar code below to select how long the scanner will “stay awake” (not power down) in seconds after a trigger pull or a key press. First scan this bar code, then enter a range from 05 to 32, using the Numeric Bar Codes on page 5-104. It can stay awake from 5 seconds to 32 seconds.

Note:Allowing the scanner to stay awake longer than originally

programmed may affect the battery life time for that session before needing a charge.

SLEEP TIME (RANGE OF 5 TO 32 SECONDS)

5-15

P470/370 RF Scanner Product Reference Guide

Decimal Separator

Scan the appropriate bar code below to select what separator to display when you hit the decimal point key on the keypad. Choose DECIMAL POINT (.) or COMMA (,).

*DECIMAL POINT (.)

5-16

COMMA (,)

Parameter Menus

Key Click

Scan the appropriate bar code below to select whether the keypad click is enabled or not. Choose ENABLE or DISABLE.

*ENABLE

DISABLE

5-17

P470/370 RF Scanner Product Reference Guide

Beeper Tone

Scan the appropriate bar code below to select a decode beep frequency (tone). Choose LOW FREQUENCY, MEDIUM FREQUENCY, or HIGH FREQUENCY.

LOW FREQUENCY

5-18

MEDIUM FREQUENCY

*HIGH FR E Q U E NC Y

Parameter Menus

Beeper Volume

Scan the appropriate bar code below to select a beeper volume. Choose LOW VOLUME, MEDIUM VOLUME, or HIGH VOLUME.

LOW VOLUME

MEDIUM VOLUME

*HIGH VOLUME

5-19

P470/370 RF Scanner Product Reference Guide

Power Detect Beep

Scan the appropriate barcode below to enable or disable the Power Detection Beep.

POWER DETECT BEEP DISABLED

5-20

*POWER DETECT BEEP ENABLED

Parameter Menus

Beep After Good Decode

Scan the appropriate bar code below to select whether or not the scanner beeps after a good decode. If DO NOT BEEP is selected, the beeper still operates during parameter menu scanning and indicates error conditions.

*BEEP AFTER GOOD DECODE

DO NOT BEEP AFTER GOOD DECODE

5-21

P470/370 RF Scanner Product Reference Guide

Laser On Time

This parameter sets the maximum time decode processing continues during a scan attempt. It is programmable in 0.1 second increments from 0.5 to 9.9 seconds.

Scan the bar code below to set a Laser On Time. Next scan two numeric bar codes beginni ng on page 5-104 that correspond to the desired time. Time less than 1.0 second must have a leading zero. For example, to set a Time On of 0.5 seconds, scan the bar code below, then scan the “0” and “5” bar codes. If you make an error, or wish to change your selection, scan CANCEL on page 5-106.

Note:Allowing the scanner to stay on longer than originally programmed

may affect the battery life time for that session before needing a charge.

5-22

LASER ON TIME

Parameter Menus

Transmit “No Read” Message

Scan the appropriate bar code below to select whether or not a “No Read” message is transmitted. When enabled, if a symbol does not decode, “NR” is transmitted. When disabled, if a symbol does not read, nothing is sent to the host.

ENABLE NO READ

*DISABLE NO READ

5-23

P470/370 RF Scanner Product Reference Guide

Linear Code Type Security Level

The scanner offers four levels of decode security for linear code types (e.g., Code 39, Interleaved 2 of 5). Higher security levels are selected for decreasing levels of bar code quality. As security levels increase, the scanner’s aggressiveness decreases.

Select the security level appropriate for your bar code quality.

Note:Does not apply to Code 128.

Linear Security Level 1

The following code types must be successfully read twice before being decoded:

Code Type Length

Codabar All MSI Plessey 4 or less D 2 of 5 8 or less I 2 of 5 8 or less

*LINEAR SECURITY LEVEL 1

Linear Security Level 2

All code types must be successfully read twice before being decoded.

LINEAR SECURITY LEVEL 2

5-24

Parameter Menus

Linear Code Type Security Level (Continued)

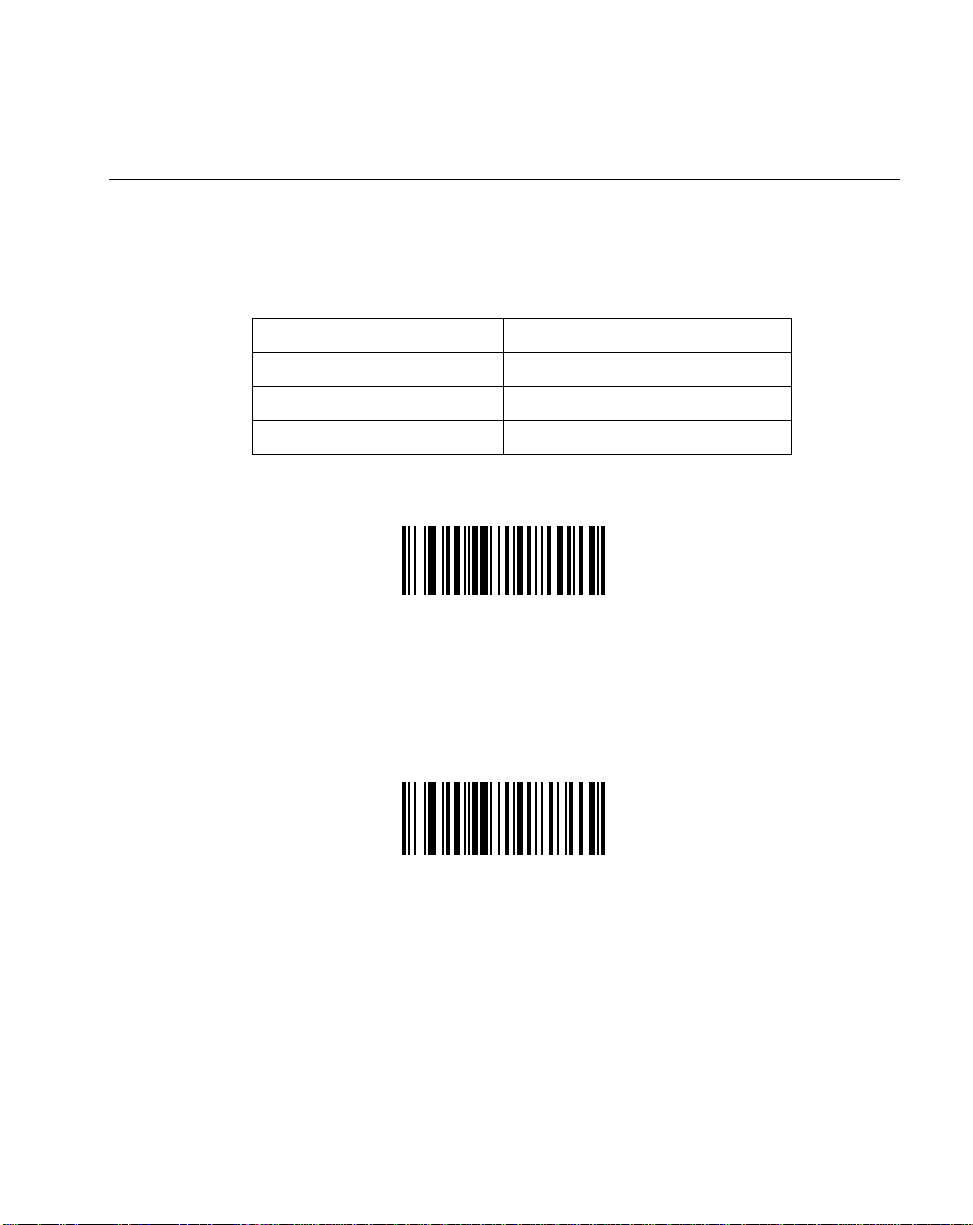

Linear Security Level 3

Code types other than the following must be successfully read twice before being decoded. The following codes must be read three times:

Code Type Length

MSI Plessey 4 or less D 2 of 5 8 or less I 2 of 5 8 or less

LINEAR SECURITY LEVEL 3

Linear Security Level 4

All code types must be successfully read three times before being decoded.

LINEAR SECURITY LEVEL 4

5-25

P470/370 RF Scanner Product Reference Guide

Bi-directional Redundancy

This parameter is only valid when a Linear Code Type Secur ity Le vel (see page 5-24) is enabled. When this parameter is enabled, a bar code must be successfully scanned in both directions (forward and reverse) before being decoded.

ENABLE BI-DIRECTIONAL REDUNDANCY

5-26

*DISABLE BI-DIRECTIONAL REDUNDANCY

Parameter Menus

Autodiscriminate Response Time

This parameter extends the length of time during which the scanner tries to detect which host it is connected to on power up.

Note:When connected to an LS 5700/5800 scanner, the 5 second option

must be use d.

*1 second

5 seconds

5-27

P470/370 RF Scanner Product Reference Guide

Enable/Disable UPC-E/UPC-A/UPC-E1

Scan the appropriate bar code below to enable or disable UPC-E or UPC-A.

*ENABLE UPC-E

DISABLE UPC-E

*ENABLE UPC-A

5-28

DISABLE UPC-A

ENABLE UPC-E1

DISABLE UPC-E

Parameter Menus

Enable/Disable EAN-8/EAN-13

Scan the appropriate bar code below to enable or disable EAN-8 or EAN-13.

*ENABLE EAN-8

DISABLE EAN-8

*ENABLE EAN-13

DISABLE EAN-13

5-29

P470/370 RF Scanner Product Reference Guide

Enable/Disable Bookland EAN

Scan the appropriate bar code below to enable or disable Bookland EAN.

ENABLE BOOKLAND EAN

5-30

*DISABLE BOOKLAND EAN
