Revision History
Changes to the original guide are listed below:
ChangeDateDescription
-01 Rev A10/2020Initial release.
-02 Rev A10/2021Updated GMS Restricted topic.
2
Contents
About This Guide.............................................................................................................................. 12
USB Charge/Com Snap-on Cup Technical Specifications ................................... 206
11
About This Guide
This guide provides information about setting up and using the MC93XX mobile computer. Some screens
shown in this guide may differ from the actual screens shown on the device.
Configurations
MC93XX used in this guide refers to all configurations, except where noted. MC93XX refers to the Trigger
configuration.
This guide covers the following configurations:
Table 1 Configurations
ConfigurationRadiosDisplayMemory
MC93XX–G BaseWLAN: IEEE 802.11
a/b/g/n/ac/d/h/i/r/w
WPAN: Bluetooth v5.0
Low Energy
Package 1
MC93XX–G Base +
NFC (Tap to Pair) +
Vibrator Motor
Package 2
Package 1 +
Front and Rear
Facing Cameras
MC93XX-G Freezer +
NFC (Tap to Pair) +
Vibrator Motor
WLAN: IEEE 802.11
a/b/g/n/ac/d/h/i/r/w
WPAN: Bluetooth v5.0
Low Energy
WLAN: IEEE 802.11
a/b/g/n/ac/d/h/i/r/w
WPAN: Bluetooth v5.0
Low Energy
WLAN: IEEE 802.11
a/b/g/n/ac/d/h/i/r/w
WPAN: Bluetooth v5.0
Low Energy
4.3" WVGA (800
x 480) LCD
4.3" WVGA (800
x 480) LCD
4.3" WVGA (800
x 480) LCD
4.3" WVGA (800
x 480) LCD.
Optically Bonded
to the Touch
Panel.
4 GB RAM/
32 GB Flash
4 GB RAM /
32 GB Flash
4 GB RAM /
32 GB Flash
4 GB RAM /
32 GB Flash
Data Capture
Options
SE965 1D,
SE4750-SR 2D,
SE4850-ER 2D
SE4750DPM
SE4750DPW
SE4770 2D
SE965 1D,
SE4750-SR 2D,
SE4850-ER 2D
SE4750DPM
SE4750DPW
SE4770 2D
SE965 1D,
SE4750-SR 2D,
SE4850-ER 2D
SE4770 2D
SE965 1D,
SE4750-SR 2D,
SE4850-ER 2D
SE4770 2D
Operating
System
Android-based,
Google ™
Mobile
Services
(GMS) 10
Android-based,
Google ™
Mobile
Services
(GMS) 10
Android-based,
Google ™
Mobile
Services
(GMS) 10
Android-based,
Google ™
Mobile
Services
(GMS) 10
12
Notational Conventions
Notationalconventions are used to highlight important information.
•Bold text is used to highlight the following:
•Dialog box, window and screen names
•Drop-down list and list box names
•Check box and radio button names
•Icons on a screen
•Key names on a keypad
•Button names on a screen.
•Bullets (•) indicate:
•Action items
•Lists of alternatives
•Lists of required steps that are not necessarily sequential.
•Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.
Icon Conventions
The following icons are used throughout the document. The icons and their associated meanings are
described below.
NOTE: The text here indicates information that is supplemental for the user to know and that is not
required to complete a task.
IMPORTANT: The text here indicates information that is important for the user to know.
CAUTION: If the precaution is not heeded, the user could receive minor or moderate injury.
WARNING: If danger is not avoided, the user CAN be seriously injured or killed.
DANGER: If danger is not avoided, the user WILL be seriously injured or killed.
Service Information
If you have a problem with your equipment, contact Customer Support for your region. Contact information
is available at: zebra.com/support
When contacting support, please have the following information available:
.
•Serial number of the unit (found on manufacturing label)
•Model number or product name (found on manufacturing label)
•Software type and version number
13
Customer Support responds to calls by email or telephone within the time limits set forth in support
agreements.
If the problem cannot be solved by Customer Support, the user may need to return the equipment for
servicing and will be given specific directions. We are not responsible for any damages incurred during
shipment if the approved shipping container is not used. Shipping the units improperly can possibly void
the warranty. Remove the microSD card from the device before shipping for service.
If the device was purchased from a business partner, contact that business partner for support.
Determining Software Versions
Before contacting Customer Support, determine the current software version on your device.
1. Swipe down from the Status bar with two fingers to open the Quick Access panel, and then touch .
2. Touch About phone.
3. Scroll to view the following information:
•Status
•Battery information
•SW components
•Legal information
•Model & hardware
•Android version
•Android security patch level
•Build Fingerprint
Determining the Serial Number
Before contacting Customer Support, determine the serial number of your device.
Touch About phone > Model & hardware > Serial number.
14
If the manufacturing label is worn or missing, use an NFC enabled device to read the NFC tag under the
battery compartment. You can download the NFC Reader application for free from the Google Play store.
Manufacturing Label
NFC Tag (Inside the battery compartment.)
NFC Symbol
15
Getting Started
This section provides information to get the device up and running for the first time.
Unpacking
To unpack the device:
1. Carefully remove all protective material from the device and save the shipping container for later
storage and shipping.
2. Verify the following items are in the box:
•Mobile computer
•Lithium-ion battery
•Regulatory Guide.
3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global
Customer Support Center immediately.
4. Before using the device for the first time, remove the protective shipping film that covers the scan
window, display, and camera window.
16
Device Features
Figure 1 Device Front View
1
2
Getting Started
13
12
11
10
3
4
5
6
7
NumberItemFunction
1Ambient light
Controls display and keyboard backlight.
sensor
2Front facing
Use to take photos and videos.
camera
The front camera is available only on the premium configurations.
3DisplayDisplays all information needed to operate the device.
4Speaker side portProvides audio output for video and music playback.
5TriggerInitiates data capture when a scan application is enabled.
To release the battery, simultaneously press the battery release
latches on both the sides of the device.
8BatteryProvides power for operating the device.
9MicrophoneUse for communications in Handset mode.
10KeypadUse to enter data and navigate on screen functions.
9
8
17
Getting Started
NumberItemFunction
11Power buttonPress and hold to turn on the device. Press to turn on or off the
screen. Press and hold to select one of these options:
Power off - Turn off the device.
Restart - Restart the device when software stops responding.
12Center scan
button
13Charger/Decode
status LED
Figure 2 Device Rear View
14
Initiates data capture when a scan application is enabled.
Indicates battery charging status while charging, app generated
notifications, and data capture status.
15
16
20
19
18
17
NumberItemFunction
14
Passive NFC tag
(Inside the battery
compartment.)
15Battery release
Provides secondary product label information (configuration, serial
number and manufacture data code) in the event that the readable
product label is worn or missing.
Releases the battery from the device.
latch
16Side speaker portProvides audio output for video and music playback.
17Scanner exit
Provides data capture using the scanner/imager.
window
18
NumberItemFunction
18Camera flashProvides illumination for the camera.
19NFC antennaProvides communication with other NFC-enabled devices.
20Rear cameraTakes photos and videos.
Setting Up the Device
To start using the device for the first time:
1. Install a microSD card (optional)
2. Install the battery
3. Charge the device
Getting Started
Camera is available only on some configurations.
NFC antenna is available only on the premium configurations.
The rear camera is available only on the premium configurations.
4. Power on the device.
Installing a microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the keypad
module. For more information, refer to the documentation provided with the card, and follow the
manufacturer’s recommendations for use. It is strongly recommended that prior to use, you must format
the microSD card on the device.
NOTE: The following microSD cards were tested and are validated for use with the MC93XX:
•SanDisk 16GB (SDSDQ-016G-A11M)
•SanDisk 32GB (SDSDQ-032G-A11M)
•SanDisk 64GB (SDSDQUA-064G-U46A)
•SanDisk 128GB (SDSDQUI-128G-A46)
•SanDisk 200GB (SDSDQUAN-200G-A4A)
CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card.
Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the
operator is properly grounded.
1. Power off the device.
2. Remove the battery.
19
Getting Started
Using a Torx T8 screwdriver with a large grip, remove the two keypad latch screws from inside the
3.
battery slot.
1
1Keypad latch screws
4. Slide the keypad latches toward the bottom of the device.
1
2
1Screwdriver
Keypad latches
NOTE: If the keypad latches are hard to move, use a screwdriver to gently slide them towards the bottom
of the device.
5. Turn the device over so that the keypad is visible.
20
Getting Started
Using a Torx T8 screwdriver with a large grip, remove the two keypad assembly screws from the top of
6.
the keypad.
1
2
3
1Keypad screws
2Keypad
3microSD card holder
7. Lift the keypad from the device.
8. Slide the microSD card holder to the Open position.
9. Lift the microSD card holder.
21
Getting Started
10.
Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on
each side of the door.
11. Close the microSD card holder door and slide the door to the Lock position.
22
Getting Started
Align the keypad along the bottom ridge of the device, and then lay it flat.
12.
13. Using a Torx T8 screwdriver with a large grip and a long shaft, secure the keypad to the device using
the two screws. Torque screws to 5.8 kgf-cm or 5.0 lbf-in.
1
1Keypad screws
14. Turn the device over so that the keypad latches are visible.
23
Getting Started
Slide both the keypad latches toward the top of the device.
15.
1
1Keypad latches
16. Using a Torx T8 screwdriver, replace the two keypad latch screws inside the battery slot and torque to
5.8 kgf-cm or 5.0 lbf-in.
1
1Keypad latch screws
17. Insert the battery.
18. Press and hold the Power key to power on the device.
24
Installing the Battery
1. Align the battery with the battery slot.
2. Push the battery into the battery slot.
3. Press battery firmly into the battery well.
Ensure that both the battery release buttons on the sides of the device return to the home position. An
audible click sound indicates that both the battery release buttons on the sides of the device have
returned to the home position locking the battery in place.
Getting Started
4. Press the Power button to turn on the device.
Charging the Battery
To charge the main battery:
1. Ensure that the cradle is connected to power.
2. Slide the mobile computer into the slot in the cradle. The mobile computer Charge LED Indicator,
indicates the mobile computer battery charging status.
3. Gently press down on the device to ensure proper contact.
4. When charging is complete, remove the mobile computer from the cradle slot.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or cradle always performs
battery charging in a safe and intelligent manner. At higher temperatures, for example at approximately
+37°C (+98°F), the device or cradle may for small periods of time alternately enable and disable battery
charging to keep the battery at acceptable temperatures. The device and cradle indicates when charging is
disabled due to abnormal temperatures via its LED.
25
Charging Indicators
The Charge LED Indicator indicates the charge status. See the table below for charging indications.
Table 2 LED Charge Indicators
StatusIndications
Off•The battery is not charging.
Slow Blinking Amber
Every 3 seconds
Solid Amber•Battery is charging.
Solid Green•Battery charging is complete.
Fast Blinking Red
2 blinks/second
Getting Started
•The device is not inserted correctly in the cradle or connected to a
power source.
•Cradle is not powered.
•Battery is charging, but the battery is fully depleted and does not yet
have sufficient charge to power the device.
•After battery removal, indicates that the device is in hot swap mode
with connectivity persistence.
The SuperCap requires a minimum of 15 minutes to fully charge in
order to provide adequate connectivity and memory session
persistence.
Charging error. For example:
•Temperature is too low or too high.
Solid Red•Battery is charging and battery is at the end of useful life.
Backup Power
The device is equipped with a super-capacitor (supercap) to provide backup power to the device when the
main battery is removed. The supercap will retain random access memory (RAM) data in memory for
approximately five minutes after the main battery is removed during Hot Swap.
The supercap is automatically charged from the main battery and requires approximately fifteen minutes to
fully charge.
Zebra Visibility Services
The device captures and provides device analytics to a system administrator. The first time the device
boots (or after a Factory reset), the Zebra Services agreement screen displays.
1. Leave Device Data enabled if you want the device to send analytics data. Zebra recommends keeping
this option enabled.
•Charging has gone on too long without completion (typically eight
hours).
•Charging complete and battery is at the end of useful life.
2. Touch the Device Data switch to disable the device from sending analytics data.
3. Touch OK to confirm selection.
26
Replacing the Battery
1. Push in the two primary Battery Release buttons.
The battery ejects slightly. With Hot Swap mode, when you remove the battery, the display turns off and
the device enters a low power state. The device retains RAM data for approximately five minutes.
Replace the battery within five minutes to preserve memory persistence.
2. Push in the secondary battery release buttons on the sides of the battery.
Getting Started
3. Remove the battery from the battery slot.
4. Align the battery with the battery slot.
5. Push the battery into the battery slot.
27
Getting Started
Press battery firmly into the battery well.
6.
Ensure that both the battery release buttons on the sides of the device return to the home position. You
will hear an audible click sound indicating that both the battery release buttons on the sides of the
device have returned to the home position locking the battery in place.
7. Press Power to turn on the device.
28
Using the Device
Home Screen
Turn on the device to display the Home screen. Depending on how your system administrator configured
your device, your Home screen may appear differently than the graphics in this section.
After a suspend or screen time-out, the Home screen displays with the lock slider. Touch the screen and
slide up to unlock.
The Home screen provides four additional screens to place widgets and shortcuts. Swipe the screen left or
right to view the additional screens.
Figure 3 Home Screen
1Status BarDisplays the time, status icons (right side), and notification icons (left side).
For more information see Notification Icons on page 30 and Managing
2WidgetsLaunches stand-alone apps that run on the Home screen.
3Shortcut IconsOpens apps installed on the device.
4FolderContains apps.
Notifications on page 32.
29
Setting Home Screen Rotation
By default, the Home screen rotation is disabled.
1. Touch and hold anywhere on the Home screen until the options appear.
2. Touch Home settings.
3. Touch the Allow Home screen rotation switch.
4. Touch the Home button.
5. Rotate the device.
Status Bar
The Status bar displays the time, notification icons (left side), and status icons (right side).
If there are more notifications than can fit in the Status bar, a dot displays indicating that more notifications
exist. Swipe down from the Status bar to open the Notification panel and view all notifications and status.
Figure 4 Notification and Status Icons
Using the Device
1Notification Icons. See Notification Icons on page 30.
2Status Icons. See Status Icons on page 31.
Notification Icons
Notification icons indicate app events and messages.
Table 3 Notification Icons
IconDescription
Main battery is low.
More notifications are available for viewing.
Data is syncing.
Indicates an upcoming event. GMS devices only.
Open Wi-Fi network is available.
Audio is playing.
1
2
Problem with sign-in or sync has occurred.
Device is uploading data.
Animated: the device is downloading data. Static: the download is complete.
30
Table 3 Notification Icons (Continued)
IconDescription
Status Icons
Status icons display system information for the device.
Table 4 Status Icons
Using the Device
Device is connected to or disconnected from a virtual private network (VPN).
Preparing internal storage by checking it for errors.
USB debugging is enabled on the device.
Indicates the RxLogger app is running.
Indicates the Bluetooth scanner is connected to the device.
Indicates the ring scanner is connected to the device in HID mode.
IconDescription
Alarm is active.
Main battery is fully charged.
Main battery is partially drained.
Main battery charge is low.
Main battery charge is very low.
Main battery is charging.
All sounds, except media and alarms, are muted. Vibrate mode is active.
Do Not Disturb mode active.
Airplane Mode is active. All radios are turned off.
Bluetooth is on.
The device is connected to a Bluetooth device.
Connected to a Wi-Fi network. Indicates the Wi-Fi version number.
Not connected to a Wi-Fi network or no Wi-Fi signal.
Connected to an Ethernet network.
Speakerphone enabled.
31
Using the Device
Table 4 Status Icons (Continued)
IconDescription
Indicates that the Orange key is locked.
Indicates that the Blue key is pressed.
Indicates that the Blue key is locked.
Indicates that the ALT key is pressed.
Indicates that the CTRL key is pressed.
Indicates that the Shift key is pressed.
Indicates that the Shift key is locked.
Indicates that the Large Key Indicator is selected.
To enable the large key indicator, go to Settings > Accessibility > Display > Large Key Indicator.
Indicates that the Blue Key and SHIFT key are pressed enabling CAPSLOCK.
Managing Notifications
Notification icons report the arrival of new messages, calendar events, alarms, and ongoing events. When
a notification occurs, an icon appears in the Status bar with a brief description. See Notification Icons on
page 30 for a list of possible notification icons and their description.
•To view a list of all notifications, open the Notification panel by dragging the Status bar down from the
top of the screen.
Quick Settings Bar
32
Using the Device
•To respond to a notification, open the Notification panel and then touch a notification. The Notification
panel closes and the corresponding app opens.
•To manage recent or frequently used notifications, open the Notification panel and then touch Manage
notifications. Touch the toggle switch next to an app to turn off all notifications, or touch an app for
more notification options.
•To clear all notifications, open the Notification panel and then touch CLEAR ALL. All event-based
notifications are removed. Ongoing notifications remain in the list.
•To close the Notification panel, swipe the Notification panel up.
Opening the Quick Access Panel
Use the Quick Access panel to access frequently used settings (for example, Airplane mode). To get to the
Quick Access Panel:
•If the device is locked, swipe down once.
•If the device is unlocked, swipe down once with two fingers, or twice with one finger.
•If the Notification panel is open, swipe down from the Quick Settings bar.
NOTE: Not all icons are pictured. Icons may vary.
Quick Access Panel Icons
•Display brightness - Use the slider to decrease or increase the brightness of the screen.
•Wi-Fi network - Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.
•Bluetooth settings - Turn Bluetooth on or off. To open Bluetooth settings, touch Bluetooth.
•Do not disturb - Control how and when to receive notifications.
•Airplane mode - Turn Airplane mode on or off. When Airplane mode is on the device does not connect
to Wi-Fi or Bluetooth.
•Auto-rotate - Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.
•Flashlight - Turn flashlight on or off. Turn camera flash on or off.
The thermal protection safety feature for the camera provides the following behavior if the temperature
range is 40°C or above:
33
Using the Device
•If the flashlight is kept on for a certain period of time, it is automatically turned off and cannot be
turned back on for a period of time until it has cooled off.
•During the cooling off period, the camera cannot be turned on. If you attempt to use the camera, a
message displays indicating to try again after a period of time.
•Screen Cast - Share phone content on Chromecast or a television with Google Cast built-in. Touch cast
screen to display a list of devices, then touch a device to begin casting.
Editing Icons on the Quick Settings Bar
The first several setting tiles from the Quick Access panel become the Quick Settings bar.
Open the Quick Access panel and touch to edit, add, or remove settings tiles.
Battery Management
Observe the recommended battery optimization tips for your device.
•Set the screen to turn off after a short period of non-use.
•Reduce screen brightness.
•Turn off all wireless radios when not in use.
•Turn off automatic syncing for Email, Calendar, Contacts, and other apps.
•Minimize use of apps that keep the device from suspending, for example, music and video apps.
NOTE: Before checking the battery charge level, remove the device from any AC power source (cradle or
cable).
Checking Battery Status
•Open Settings and touch About phone > Battery Information.
Or, swipe up from the bottom of the screen and touch to open the Battery Manager app. See
Battery Manager on page 49.
•Battery present status indicates if the battery is present.
•Battery level lists the battery charge (as a percentage of fully charged).
•Swipe down with two fingers from the status bar to open the quick access panel.
•Battery percentage is displayed next to the battery icon.
Monitoring Battery Usage
The Battery screen provides battery charge details and power management options to extend battery life.
1. Go to Settings.
2. Touch Battery.
Display battery information and power management options for a specific app.
1. Go to Settings.
2. Touch Apps & notifications.
3. Touch an app.
34
Using the Device
Touch Advanced > Battery.
4.
Different apps display different information. Some apps include buttons that open screens with settings to
adjust power use. Use the DISABLE or FORCE CLOSE buttons to turn off apps that consume too much
power.
Low Battery Notification
When the battery charge level drops below 15% on the standard battery and 30% on the freezer battery,
the device displays a notice to connect the device to power. The user should charge the battery using one
of the charging accessories.
When the battery charge drops below 9% on the standard battery and 20% on the freezer battery, the
device displays a notice to connect the device to power. The user must charge the battery using one of the
charging accessories.
When the battery charge drops below 6% on the standard and freezer batteries, the device goes into a
critical suspend mode to retain data, and the device turns off. The user must charge the battery using one
of the charging accessories.
Interactive Sensor Technology
The device contains sensors that monitor movement, orientation and ambient light.
•Gyroscope - Measures angular rotational velocity to detect rotation of the device.
•Accelerometer - Measures the linear acceleration of movement to detect the orientation of the device.
•Light Sensor - Detects ambient light and adjusts the screen brightness.
In order to take advantage of these sensors, applications use API commands. Refer to the Google Android
Sensor APIs for more information. For information on the Zebra Android EMDK, go to:
techdocs.zebra.com
Waking the Device
The device goes into Suspend mode when you press the Power button or after a period of inactivity (set in
the Display settings window).
1. To wake the device from Suspend mode, press the Power button or the configured wake-up sources.
The Lock screen displays.
2. Swipe the screen up to unlock.
•If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock
screen.
•If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking
the screen.
.
NOTE: If you enter the PIN, password, or pattern incorrectly five times, you must wait 30 seconds before
trying again.
If you forget the PIN, password, or pattern contact your system administrator.
The device will wake on the detection of AC/DC power if it is either in suspend mode or powered off.
35
USB Communication
Connect the device to a host computer to transfer files between the device and the host computer.
When connecting the device to a host computer, follow the host computer’s instructions for connecting and
disconnecting USB devices, to avoid damaging or corrupting files. For information on USB communication
accessories available for this device, see Accessories.
Transferring Files
Use Transfer files to copy files between the device and the host computer.
1. Connect the device to a host computer using a USB accessory.
2. On the device, pull down the Notification panel and touch Charging this device via USB.
By default, No data transfer is selected.
3. Touch File Transfer.
4. On the host computer, open a file explorer application.
5. Locate the device as a portable device.
Using the Device
6. Open the Internal storage folder.
7. Copy files to and from the device or delete files as required.
Transferring Photos
Use PTP to copy photos from the device to the host computer.
1. Connect the device to a host computer using a USB accessory.
2. On the device, pull down the Notification panel and touch Charging this device via USB.
3. Touch PTP.
4. On the host computer, open a file explorer application.
5. Open the Internal storage folder.
6. Copy or delete photos as required.
Disconnect from the Host Computer
Carefully follow the host computer’s instructions to disconnect USB devices correctly to avoid losing
information.
To disconnect the device from the host computer:
1. On the host computer, unmount the device.
2. Remove the device from the USB accessory.
36
Settings
Accessing Settings
There are multiple ways to access settings on a device.
•Swipe down with two fingers from the top of the Home screen to open the Quick Access panel and
touch .
•Double-swipe down from the top of the Home screen to open the Quick Access panel and touch .
•Swipe up from the bottom of the Home screen to open APPS and touch Settings.
Display Settings
Use Display settings to change the screen brightness, enable night light, change the background
image, enable screen rotation, control the keyboard backlight, set sleep time, and change font size.
Setting the Screen Brightness Manually
Manually set the screen brightness using the touchscreen.
1. Swipe down with two fingers from the Status bar to open the Quick Access panel.
2. Slide the icon to adjust the screen brightness level.
To manually set the screen brightness using the keypad see Keypad Special Functions.
Setting the Screen Brightness Automatically
Automatically adjust the screen brightness using the built-in light sensor.
1. Go to Settings.
2. Touch Display.
3. If disabled, touch Adaptive brightness to automatically adjust the brightness.
By default, Adaptive brightness is enabled. Toggle the switch to disable.
4. Touch the Home button.
Setting Night Light
The Night Light setting tints the screen amber, making the screen easier to look at in low light.
1. Go to Settings.
37
Touch Display.
2.
3. Touch Night Light.
4. Touch Schedule.
5. Select one of the schedule values:
•None (default)
•Turns on at custom time
•Turns on from sunset to sunrise.
6. By default, Night Light is disabled. Touch TURN ON NOW to enable.
7. Adjust the tint using the Intensity slider.
8. Touch the Home button.
Setting Screen Rotation
By default, screen rotation is disabled.
1. Go to Settings.
Settings
2. Touch Display > Advanced.
3. Touch Auto-rotate screen.
NOTE: To change the Home screen rotation, see Setting Home Screen Rotation on page 30.
4. Touch the Home button.
Setting Screen Timeout
Set the screen sleep time.
1. Go to Settings.
2. Touch Display > Screen timeout.
3. Select one of the sleep values.
•15 seconds
•30 seconds
•1 minute
•2 minutes
•5 minutes
•10 minutes
•30 minutes (default)
•Never
4. Touch the Home button.
Lock Screen Display
The lock screen display setting wakes the screen when notifications are received.
38
Go to Settings.
1.
2. Touch Display > Advanced.
3. Touch Lock screen display.
4. In the When to show section, enable or disable an option using the switch.
5. Touch the Home button.
Setting Font Size
Set the size of the font in system apps.
1. Go to Settings.
2. Touch Display > Advanced.
3. Touch Font size.
4. Select one of the font size values.
•Small
•Default
Settings
•Large
•Largest.
5. Touch the Home button.
Touch Panel Mode
The device display is able to detect touches using a finger, a conductive-tip stylus, or gloved finger.
NOTE: A glove can be made of medical latex, leather, cotton, or wool.
For optimal performance use a Zebra certified stylus.
1. Go to Settings.
2. Touch Display > Advanced.
3. Touch Touch panel mode.
4. Select:
•Glove and Finger (Screen Protector off) to use a finger or a gloved finger on the screen without a
screen protector.
•Stylus and Finger (Screen Protector off) to use a finger or a stylus on the screen without a screen
protector.
•Finger Only to use a finger on the screen.
•Glove and Finger (Screen Protector on) to use a finger or a gloved finger on the screen with a screen
protector.
•Stylus and Finger (Screen Protector on) to use a finger or a stylus on the screen with a screen
protector.
•Finger and Stylus to use a finger or a stylus on the screen.
•Finger and Glove to use a finger or a gloved finger on the screen.
5. Touch the Home button.
39
Setting the Date and Time
You are only required to set the time zone or set the date and time if the wireless LAN does not support
Network Time Protocol (NTP).
1. Go to Settings.
2. Touch System > Date & time.
3. Touch Update Interval.
4. Select the interval time to synchronize your device time from the network.
5. Touch Date.
6. In the calendar, set today’s date.
7. Touch OK.
8. Touch Time.
9. Touch the green circle, drag to the current hour and then release.
10. Touch the green circle, drag to the current minute and then release.
11. Touch AM or PM.
Settings
12. Touch OK.
13. Touch Time zone.
14. Select the current time zone from the list.
15. Touch Use 24-hour format.
16. Touch the Home button.
General Sound Setting
Use the Sound settings to configure media and alarm volumes.
1. Go to Settings.
2. Touch Sound.
3. Touch an option to set sounds.
Sound Options
•Zebra volume controls
•Ring volume - Controls the ringtone volume.
•Media volume - Controls the music, games, and media volume.
•Alarm volume - Controls the alarm clock volume.
•Notifications volume - Controls the notification volume.
•In call volume - Controls the volume during a call.
•Scanner volume - Controls the scanner volume.
40
Settings
NOTE: In the DataWedge Settings > Configure scanner settings > Scanner params menu, if Decode Audio
Feedback is set to Optimized-beep, then the scanner volume slider has no effect, and the volume defaults to
the highest volume. If you want to adjust the volume of the scanner beep, then you must select the
Decode-short option under Decode Audio Feedback.
•Volume presets
• - Mutes the ring, notifications, and scanner so that the device does not make sounds or vibrate.
• - All sounds except media and alarms are silenced and vibrate mode is active.
• - Enables all sounds at the user defined levels.
•Do Not Disturb - Mutes some or all sounds and vibrations.
•Shortcut to prevent ringing - Select how the shortcut method prevents ringing.
•Default notification sound - Select a sound to play for all system notifications.
•Default alarm sound - Select a sound to play for alarms.
•Other sounds and vibrations
•Screen locking sounds - Play a sound when locking and unlocking the screen (default – enabled).
•Charging sounds and vibration - Plays a sound and vibrates when power is applied to the device
(default - enabled).
•Touch sounds - Play a sound when making screen selections (default – enabled).
•Touch vibration - Vibrate the device when making screen selections (default – disabled).
•Wireless Emergency alerts - Touch to configure emergency broadcast settings and notifications.
Setting Wake-Up Sources
By default the device wakes from suspend mode when the user presses the Power button. The device can be
configured to wake when the user presses the PTT or Scan buttons on the left side of the device.
1. Go to Settings.
2. Touch Wake-Up Sources.
•P1
•SCAN
•GRIP_TRIGGER
3. Touch a checkbox. A check appears in the checkbox.
4. Touch the Home button.
Remapping a Button
Buttons on the device can be programmed to perform different functions or as shortcuts to installed apps. For
a list of key names and descriptions, refer to: techdocs.zebra.com
.
NOTE: It is not recommended to remap the scan button.
1. Go to Settings.
2. Touch Key Programmer. A list of programmable buttons displays.
41
Select the button to remap.
3.
4. Touch the BUTTON REMAPPING tab or the SHORTCUT tab that lists the available functions and
applications.
5. Touch a function or application shortcut to map to the button.
NOTE: If you select an application shortcut, the application icon appears next to the button on the Key
Programmer screen.
6. Touch the Home button.
Keyboards
The device provides multiple keyboard options.
•Gboard - GMS devices only
•Physical Keyboard
•Enterprise Keyboard
NOTE: By default the Enterprise and Virtual Keyboards are disabled.
Settings
Keyboard Configuration
Enabling Keyboards
1. Go to Settings.
2. Touch System > Languages & input > Virtual keyboard > Manage keyboards.
3. Touch a keyboard to enable.
Enabling Virtual Keyboards
To enable a virtual keyboard like Gboard or Enterprise keyboard:
1. Go to Settings.
2. Touch System > Languages & input > KEYBOARDS > Physical keyboard.
3. In the KEYBOARD ASSISTANCE area, enable Show virtual keyboard.
Switching Between Keyboards
•To switch between keyboards, touch in a text box to display the current keyboard.
•On the Gboard keyboard, touch and hold (GMS devices only).
•On the Enterprise keyboard, touch . Only available with Mobility DNA Enterprise License.Not
pre-installed on the device. Contact Zebra Support for more information.
Using the Android and Gboard Keyboards
Use the Android or Gboard keyboards to enter text in a text field.
To configure the keyboard settings, touch and hold
, (comma) and then select Android keyboard settings.
42
Settings
Edit Text
Edit entered text and use menu commands to cut, copy, and paste text within or across apps. Some apps do
not support editing some or all of the text they display; others may offer their own way to select text.
Entering Numbers, Symbols, and Special Characters
1. Enter numbers and symbols.
•Touch and hold one of the top-row keys until a menu appears then select a number or special character.
•Touch the Shift key once for a single capital letter. Touch the Shift key twice to lock in uppercase. Touch
the Shift key a third time to unlock Capslock.
•Touch
•Touch the
2. Enter special characters.
•Touch and hold a number or symbol key to open a menu of additional symbols. A larger version of the
key displays briefly over the keyboard.
?123 to switch to the numbers and symbols keyboard.
=\< key on the numbers and symbols keyboard to view additional symbols.
Using the Enterprise Keyboard
The Enterprise Keyboard contains multiple keyboard types.
•Numeric
•Alpha
•Special characters
•Data capture.
Numeric Tab
The numeric keyboard is labeled 123. The keys displayed vary on the app being used. For example, an arrow
displays in Contacts, however Done displays in Email account setup.
Alpha Tab
The alpha keyboard is labeled using the language code. For English, the alpha keyboard is labeled EN.
Additional Character Tab
The additional characters keyboard is labeled #*/.
Touch to enter emoji icons in a text message.
Touch ABC to return to the Symbols keyboard.
Scan Tab
The Scan tab provides an easy data capture feature for scanning barcodes.
Language Usage
Use the Language & input settings to change the device’s language, including words added to the dictionary.
43
Changing the Language Setting
1. Go to Settings.
2. Touch System > Languages & input.
3. Touch Languages. A list of available languages displays.
4. If the desired language is not listed, touch Add a language and select a language from the list.
5. Touch and hold to the right of the desired language, then drag it to the top of the list.
6. The operating system text changes to the selected language.
Adding Words to the Dictionary
1. Go to Settings.
2. Touch System > Languages & input > Advanced > Personal dictionary.
3. If prompted, select the language where this word or phase is stored.
4. Touch + to add a new word or phrase to the dictionary.
5. Enter the word or phrase.
Settings
6. In the Shortcut text box, enter a shortcut for the word or phrase.
7. Touch the Home button.
Notifications
Setting App Notifications
To set notification settings for a specific app:
1. Go to Settings.
2. Touch Apps & notifications > SEE ALL XX APPS. The App info screen displays.
3. Select an app.
4. Touch Notifications.
Options vary depending on the app selected.
5. Select an available option:
Show notifications - Select to turn all notifications from this app on (default) or off.
Touch a notification category to display additional options.
•Alerting - Allow notifications from this app to make sound or vibrate the device.
•Pop on screen - Allow notifications from this app to pop notifications on the screen.
•Silent - Do not allow notifications from this app to make sound or vibrate.
•Minimize - In the Notification panel, collapse notifications to one line.
•Advanced - Touch for additional options.
•Sound - Select a sound to play for notifications from this app.
•Vibrate - Allow notifications from this app to vibrate the device.
•Blink light - Allow notifications from this app the light the Notification LED blue.
44
Settings
•Show notification dot - Allow notifications from this app to add a notification dot to the app icon.
•Override Do Not Disturb - Allow these notifications to interrupt when Do Not Disturb is enabled.
Advanced
•Allow notification dot - Do not allow this app to add a notification dot to the app icon.
•Additional settings in the app - Open the app settings.
Viewing Notification Settings for All Apps
To view the notification settings for all apps:
1. Touch Apps & Notifications.
2. Scroll down to Notifications to view how many apps have notifications turned off.
3. To set or view notifications settings for a specific app, see Setting App Notifications on page 44.
Controlling Lock Screen Notifications
To control whether notifications can be seen when the device is locked:
1. Touch Apps & notifications > Notifications.
2. Touch Notifications on lockscreen and select one of the following:
•Show alerting and silent notifications (default)
•Show alerting notifications only
•Don’t show notifications.
Blink Light
The Notification LED lights blue when an app, such as email and VoIP, generates a programmable notification
or to indicate when the device is connected to a Bluetooth device. By default, LED notifications are enabled.
2. Touch Blink light to toggle the notification on or off.
45
Applications
The APPS screen displays icons for all installed apps. See Application Deployment for information on
installing and uninstalling apps. For information on standard Android apps, go to the Google Play Apps
store.
The following table describes the apps installed on the device.
Table 1 Apps
IconDescription
Battery Manager - Displays battery information, including charge level, status, health and
wear level.

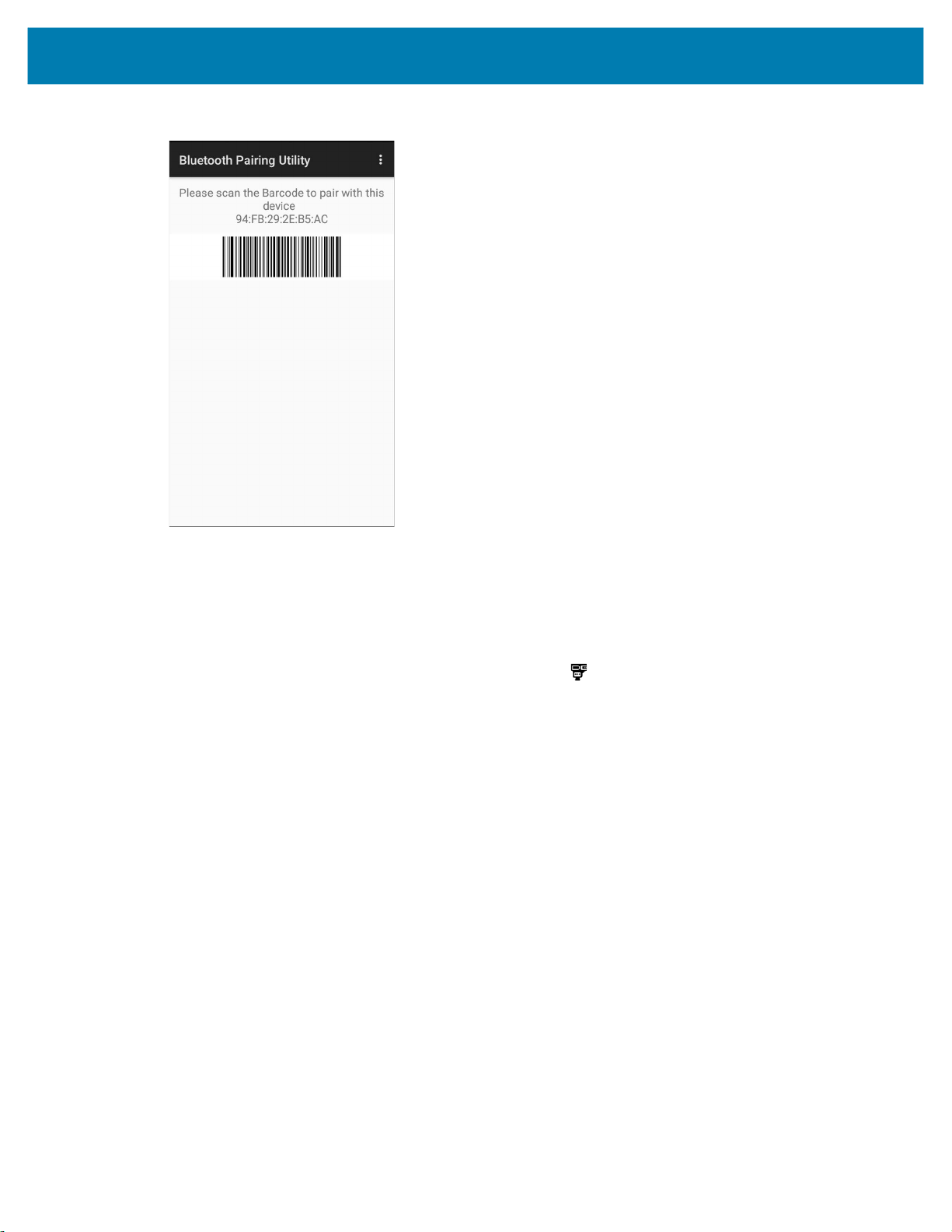

Bluetooth Pairing Utility – Use to pair a Zebra Bluetooth scanner with the device by
scanning a barcode.
Calculator - Provides the basic and scientific arithmetic functions.
Calendar - Use to manage events and appointments.
Camera - Take photos or record videos. For more information, see Camera on page 53.
Chrome - Use to access the Internet or intranet.
Clock - Use to schedule alarms for appointments or as a wake-up.
Contacts - Use to manage contact information.
DataWedge - Enables data capture using the imager. For more information, see DataWedge
Demonstration on page 58.
46
Applications
Table 1 Apps (Continued)
IconDescription
Diagnostic Tool - Use to diagnose the device. For more information, see Diagnostic Tool on
page 87.
Drive - Upload photos, videos, documents, and other files to personal storage site.
Duo - A one-to-one video calling app (WWAN only).
DWDemo - Provides a way to demonstrate the data capture features using the imager. For
more information, see DataWedge Demonstration on page 58.
Email - Use to send and receive email.
Files - Organize and manage files on the device.
Gmail - Use to send and receive email using a Google email account.
Google - Launches Google ™ search app.
Hangouts - Use to communicate with friends using text messages and photos.
Heater Control - Use to check the status on the heater and sensors when using the device
in cold environments. See Heater Control on page 51.
Keep - Use to create, edit, and share notes.
License Manager - Use to manage software licenses on the device.
Maps - Use to see your location on a map (with public transit, traffic, or satellite overlays).
Search for any business or place of interest. Provides turn-by-turn navigation with voice
guidance, traffic-avoidance, and alternate routes, for drivers, cyclists, walkers, and users of
public transportation.
Photos - Use to sync photos with Google account.
47
Applications
Table 1 Apps (Continued)
IconDescription
Play Movies & TV - View movies and video on your device.
Play Music - Use to listen to music.
Play Store - Download music, movies, books, and Android apps and games from the
Google Play Store.
PTT Express - Use to launch PTT Express client for VoIP communication.
RxLogger - Use to diagnose device and app issues. For more information, see RxLogger on
page 64.
RxLogger Utility - Use to view, backup, and archive RxLogger data.
Settings - Use to configure the device.
Sound Recorder - Use to record audio. For more information, see Sound Recorder on
page 65.
StageNow - Allows the device to stage a device for initial use by initiating the deployment of
settings, firmware, and software.
Velocity - Opens the Ivanti (formerly Wavelink) terminal emulation app.
VoD - The Video on Device basic app provides a how-to video for proper device cleaning.
For Video on Device licensing information, go to learning.zebra.com
Voice Search - Use to perform searches by asking questions.
.
48
Applications
Table 1 Apps (Continued)
IconDescription
Worry Free Wifi Analyzer - A diagnostic intelligent app. Use to diagnose surrounding area
and display network stats, such as coverage hole detection, or AP in vicinity. Refer to the
Worry Free Wi-Fi Analyzer Administrator Guide for Android.
YouTube - Use to view videos on the YouTube
Zebra Bluetooth Settings - Use to configure Bluetooth logging.
Accessing Apps
All apps installed on the device are accessed using the APPS window.
1. On the Home screen, swipe up from the bottom of the screen.
2. Slide the APPS window up or down to view more app icons.
3. Touch an icon to open the app.
Switching Between Recent Apps
Use the Recent button to switch between recently used apps.
1. Touch Recent button.
A window appears on the screen with icons of recently used apps.
™ web site.
2. Slide the apps displayed up and down to view all recently used apps.
3. Swipe left or right to remove app from the list and force close the app.
4. Touch an icon to open an app or touch Back button to return to the current screen.
Battery Manager
The Battery Manager provides detailed information about the battery and battery swap procedures on
supported devices.
Opening Battery Manager
To open the Battery Manager app, swipe up from the bottom of the Home screen, and then touch .
Battery Manager Information Tab
The Battery Manager displays detailed information about battery charging, health, and status.
49
Applications
Table 2 Battery Icon Description
Battery IconDescription
Battery charge level is between 85% and 100%.
Battery charge level is between 19% and 84%.
Battery charge level is between 0% and 18%.
•Level - The current battery charge level as a percentage. Displays -% when level is unknown.
•Wear - The health of the battery in graphical form. When the wear level exceeds 80%, the bar color
changes to red.
•Health - The health of the battery. If a critical error occurs, appears. Touch to view the error
description.
•Decommission - The battery is past its useful life and should be replaced. See system
administrator.
•Good - The battery is good.
•Charge error - An error occurred while charging. See system administrator.
•Over Current - An over-current condition occurred. See system administrator.
•Dead - The battery has no charge. Replace the battery.
•Over Voltage - An over-voltage condition occurred. See system administrator.
•Below Temperature - The battery temperature is below the operating temperature. See system
administrator.
•Failure Detected - A failure has been detected in the battery. See system administrator.
•Unknown - See system administrator.
•Charge Status
•Not charging - The device is not charging.
•Charging-AC - The device is connected to AC power and charging.
•Charging-USB - The device is connected to a host computer with a USB cable and charging.
•Discharging - The battery is discharging.
•Full - That the battery is fully charged.
•Unknown - The battery status is unknown.
•Time until Full - The amount of time until the battery is fully charged.
•Time since charging - The amount of time since the device began charging.
•Time until empty - The amount of time until the battery is empty.
•Advanced info - Touch to view additional battery information.
•Battery present status - Indicates that the battery is present.
50
Applications
•Battery level - The battery charge level as a percentage of scale.
•Battery scale - The battery scale level used to determine battery level (100).
•Battery voltage - The current battery voltage in millivolts.
•Battery temperature - The current battery temperature in degrees Centigrade.
•Battery technology - The type of battery.
•Battery current - The average current into or out of the battery over the last second in mAh.
•Battery manufacture date - The date of manufacture.
•Battery serial number - The battery serial number. The number matches the serial number printed
on the battery label.
•Battery part number - The battery part number.
•Battery rated capacity - Lists the rated capacity of the backup battery in mAh.
•Battery decommission status - Indicates if the battery is past its life span.
•Battery Good - The battery is in good health.
•Decommissioned Battery - The battery is past its useful life and should be replaced.
•Battery present capacity - Maximum amount of charge that could be pulled from the battery under
the present discharge conditions if the battery were fully charged.
•Battery health percentage - With a range from 0 to 100, this is the ratio of “present_capacity” to
“design_capacity” at a discharge rate of “design_capacity”.
•% decommission threshold - The default % decommission threshold for a gifted battery as 80%.
•Battery present charge - Amount of usable charge remaining in the battery at present under the
current discharge conditions.
•Battery total cumulative charge - The total accumulated charge in all chargers.
•Battery time since first use - The time passed since the battery was placed in a Zebra terminal for
the first time.
•Battery error status - The error status of the battery.
•Battery usage number - The health of the battery as a result of charging and discharging. A high
number indicates low battery health.
•Usage decommission threshold - When the Battery usage number is greater than or equal to the
Usage decommission threshold, the battery is past its useful life and should be replaced.
•App version - The application version number.
Heater Control
The Heater Control application provides information about the sensors and heater applicable to the freezer
device. To open the Heater Control, swipe up from the bottom of the Home screen and touch .
IMPORTANT: Heater Control app is only applicable to freezer configurations.
The scanner exit window heater ensures optimum scanner performance in freezer applications.
51
Status
Applications
The Status tab displays the following details:
•Temperature
•Display
•MLB
•Scanner
•Vent
•Scanner Window
•Scanner Bay.
•Humidity
•Scanner
•Vent
•Heater
•Scanner Window (default - enabled). This option should always be enabled for the heater to function
properly. Disable this option only if you are performing debugging activities on the heater system.
Advanced
The Advanced tab displays the following details:
•In the Heater area, tap to disable Scanner Window Heater. (default - enabled).
•In the Advanced area, tap to enable Logging. Logging allows you to log data for the heating system
•Click TEST HEATER to perform a diagnostic test on the heating system.
NOTE: Heater tests must be performed in an ambient environment with temperature of less than +30° C.
Once the tests are complete the results screen displays.
(heaters and sensors). The data resides in the
device.
/sdcard/HeaterLogs location in a .csv file on the
52
Camera
Taking Photos
Applications
NOTE: The device saves photos and videos on the microSD card, if installed and the storage path is
changed manually. By default, or if a microSD card is not installed, the device saves photos and videos on
the internal storage.
On SDM660 platform-based products, you can use the imager and camera simultaneously. By default,
third-party camera applications are associated with the Datawedge Profile0 where scanning is enabled. In
these applications the Scan button initiates the scan session. If you do not want scanning to be enabled in
the application, you must associate a new Datawedge profile with the application and disable scanning.
NOTE: The native Google camera application is associated with a hidden DataWedge profile. The
scanning functionality is temporarily disabled when the Google camera application is being used. If a
third-party camera application is utilized the scanning functionality will not be disabled allowing the
simultaneous use of the scanner and the camera. This will have a direct impact on the image quality. It is
strongly recommended that you use the native Google camera application.
This section provides information for taking photos and recording videos using the integrated digital
cameras.
NOTE: See Photo Settings for camera setting descriptions.
1. Swipe up from the bottom of the Home screen and touch Camera.
53
Applications
Filters
Scene Mode
Camera Switch
HDR
Settings
Gallery
If necessary, touch the Camera Mode icon and touch .
2.
3. To switch between the rear camera and front camera (if available), touch .
4. Frame the subject on the screen.
5. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls
appear on the screen.
6. Touch an area on the screen to focus. The focus circle appears. The two bars turn green when in focus.
7. Touch .
The camera takes a photo and a shutter sound plays.
The photo momentarily displays as a thumbnail in the lower left corner.
Taking a Panoramic Photo
Panorama mode creates a single wide image by panning slowly across a scene.
Camera Mode
Shutter Button
54
Applications
Swipe up from the bottom of the Home screen and touch Camera.
1.
2. Touch the Camera Mode icon and touch .
3. Frame one side of the scene to capture.
4. Touch and slowly pan across the area to capture. A small white square appears inside the button
indicating the capture is in progress.
If you are panning too quickly, the message Too fast appears.
5. Touch to end the shot. The panorama appears immediately and a progress indicator displays while
it saves the image.
Recording Videos
1. Swipe up from the bottom of the Home screen and touch Camera.
2. Touch the camera mode menu and touch .
55
Color Effect
Applications
Camera Switch
Audio
Settings
Gallery
To switch between the rear camera and front camera (if available), touch .
3.
4. Point the camera and frame the scene.
5. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls
appear on the screen.
6. Touch to start recording.
The video time remaining appears in the top left of the screen.
7. Touch to end the recording.
The video momentarily displays as a thumbnail in the lower left corner.
Photo Settings
In Photo mode, photo settings appear on screen. Touch to display the photo settings options.
Rear Camera Photo Settings
•Flash - Select whether the camera relies on its light meter to decide whether a flash is necessary, or to
turn it on or off for all shots.
Camera Mode
Shutter Button
• Off - Disable flash.
• Auto - Adjust flash automatically depending upon light meter (default).
• On - Enable flash upon taking a photo.
56
Applications
•Picture size - The size (in pixels) of the photo to: 13M pixels (default), 8M pixels, 5M pixels, 3M
pixels, HD 1080, 2M pixels, HD720, 1M pixels, WVGA, VGA, or QVGA.
•Picture quality - Set the picture quality setting to: Low, Standard (default) or High.
•Countdown timer - Select Off (default), 2 seconds, 5 seconds or 10 seconds.
•Storage – Set the location to store the photo to: Phone or SD Card.
•ISO - Set camera sensitivity to light to: Auto (default), ISO Auto (HJR), ISO100, ISO200, ISO400,
ISO800 or ISO1600.
•Exposure - Set the exposure settings to: +2, +1, 0(default), -1 or -2.
•White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most
natural-looking colors:
• Incandescent - Adjust the white balance for incandescent lighting.
• Fluorescent - Adjust the white balance for florescent lighting.
• Auto - Adjust the white balance automatically (default).
• Daylight - Adjust the white balance for daylight.
• Cloudy - Adjust the white balance for a cloudy environment.
•Chroma Flash - Sets the camera to take two pictures, one with flash and one without flash. The two
images are combined to produce a final image with the sharpness and clarity and bright color tones
from a picture with the flash, coupled with the natural colors of a picture without a flash. Options: Off
(default) or On.
•ZSL - Set the camera to immediately take a picture when the button is pressed (default – enabled).
•Anti Banding - Allows the camera to avoid problems caused by artificial light sources that are not
constant. These sources cycle (flicker) fast enough to go unnoticed to the human eye, appearing
continuous. The camera’s eye (its sensor) can still see this flicker. Options: Auto (default), 60 Hz, 50
Hz, or Off.
Front Camera Photo Settings
•Picture size - Set the size (in pixels) of the photo to: M pixels (default), HD720, 1M pixels, WVGA,
VGA, or QVGA.
•Picture quality - Set the picture quality setting to: Low, Standard (default) or High.
•Countdown timer - Set to: Off (default), 2 seconds, 5 seconds or 10 seconds.
•Storage – Set location to store the photo to: Phone.
•Face Detection - Select to turn face detection Off (default) or On.
Video Settings
In Video mode, video settings appear on screen. Touch to display the video settings options.
Rear Camera Video Settings
•Flash - Select whether Rear-facing Camera relies on its light meter to decide whether a flash is
necessary, or to turn it on or off for all shots.
57
Applications
• Off - Disable flash (default).
• Torch - Turn flash on continuously.
•Video quality - Set video quality to: HD 1080p (default), HD 720p, SD 480p, .
•Video duration - Set to: 30 seconds (MMS), or 30 minutes (default).
•Storage – Set the location to store the photo to: Phone (default) or SD Card.
•White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most
natural-looking colors.
• Incandescent - Adjust the white balance for incandescent lighting.
• Fluorescent - Adjust the white balance for florescent lighting.
• Auto - Adjust the white balance automatically (default).
• Daylight - Adjust the white balance for daylight.
• Cloudy - Adjust the white balance for a cloudy environment.
•Image Stabilization - Set to reduce blurry videos due to device movement. Options: On or Off
(default).
Front Camera Video Settings
•Video quality - Set video quality to: HD1080 (default), HD 720p (default), HD720, or SD 480p, VGA,
CIF, or QVGA.
•Video duration - Set to: 30 seconds (MMS), or 30 minutes (default).
•Storage – Set the location to store the photo to: Phone (default) or SD Card.
•White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most
natural-looking colors.
• Incandescent - Adjust the white balance for incandescent lighting.
• Fluorescent - Adjust the white balance for florescent lighting.
• Auto - Adjust the white balance automatically (default).
• Daylight - Adjust the white balance for daylight.
• Cloudy - Adjust the white balance for a cloudy environment.
•Image Stabilization - Set to reduce blurry videos due to device movement. Options: On or Off
(default).
DataWedge Demonstration
Use DataWedge Demonstration to demonstrate data capture functionality. To configure DataWedge,
refer to techdocs.zebra.com/datawedge/
NOTE: DataWedge is enabled on the Home screen. To disable this feature, go to the DataWedge settings
and disable the Launcher profile.
.
58
Applications
Table 3 DataWedge Demonstration Icons
IconDescription
IlluminationImager illumination is on. Touch to turn illumination off.
Imager illumination is off. Touch to turn illumination on.
Data CaptureThe data capture function is through the internal imager.
A Bluetooth scanner is connected.
A Bluetooth scanner is not connected.
The data capture function is through the rear camera.
Scan ModeImager is in picklist mode. Touch to change to normal scan mode.
MenuOpens a menu to view the application information or to set the
Scanner Selection
To select a scanner, touch > Settings > Scanner selection.
See the Data Capture section for more information.
Press the programmable button or touch the yellow scan button to capture data. The data appears in the
text field below the yellow button.
Imager is in normal scan mode. Touch to change to picklist mode.
application DataWedge profile.
59
PTT Express Voice Client
NOTE: Requires a PTT Express License. Not available in all countries.
PTT Express Voice Client enables Push-To-Talk (PTT) communication between disparate enterprise
devices. Leveraging existing Wireless Local Area Network (WLAN) infrastructure, PTT Express delivers
simple PTT communication without requiring a voice communication server.
•Group Call: Press and hold the PTT (Talk) button to start communicating with other voice client users.
•Private Response: Double-press the PTT button to respond to the originator of the last broadcast or to
make a Private Response.
PTT Express User Interface
Figure 1 PTT Express Default User Interface
Notification Icon
Applications
Settings
Service Indication
Talk Group
Table 4 PTT Express Default User Interface Descriptions
ItemDescription
Notification IconIndicates the current state of the PTT Express client.
Service IndicationIndicates the status of the PTT Express client. Options: Service Enabled,
Service Disabled or Service Unavailable.
Talk GroupsLists all 32 Talk Groups available for PTT communication.
SettingsOpens the PTT Express Settings screen.
Enable/Disable
Switch
Turns the PTT service on and off.
Enable/Disable Switch
60
PTT Audible Indicators
The following tones provide helpful cues when using the voice client.
•Talk Tone: Double chirp. Plays when the Talk button is depressed. This is a prompt for you to start
talking.
•Access Tone: Single beep. Plays when another user just finished a broadcast or response. You can
now initiate a Group Broadcast or Private Response.
•Busy Tone: Continuous tone. Plays when the Talk button is depressed and another user is already
communicating on the same talkgroup. Plays after the maximum allowed talk time is reached (60
seconds).
•Network Tone:
•Three increasing pitch beeps. Plays when PTT Express acquires the WLAN connection and the
service is enabled.
•Three decreasing pitch beeps. Plays when PTT Express loses the WLAN connection or the service
is disabled.
PTT Notification Icons
Applications
Notification icons indicate the current state of the PTT Express Voice client.
Table 5 PTT Express Icon Descriptions
Status IconDescription
The PTT Express Voice client is disabled.
The PTT Express Voice client is enabled but not connected to a WLAN.
The PTT Express Voice client is enabled, connected to a WLAN, and listening on the
Talk Group indicated by the number next to the icon.
The PTT Express Voice client is enabled, connected to a WLAN, and communicating on
the Talk Group indicated by the number next to the icon.
The PTT Express Voice client is enabled, connected to a WLAN, and in a private
response.
The PTT Express Voice client is enabled and muted.
The PTT Express Voice client is enabled but it is not able to communicate due to a VoIP
telephony call in progress.
Enabling PTT Communication
1. Swipe up from the bottom of the Home screen and touch .
2. Slide the Enable/Disable Switch to the ON position. The button changes to ON.
61
Selecting a Talk Group
One of 32 Talk Groups can be selected by PTT Express users. However, only one talk group may be
enabled at a time on the device. Touch one of the 32 Talk Groups. The selected Talk Group is highlighted.
PTT Communication
NOTE: This section describes the default PTT Express client configuration. Refer to the PTT Express V1.2
User Guide for detailed information on using the client.
Figure 2 PTT Button
Applications
Creating a Group Call
1. Press and hold the PTT button (or the Talk button on the headset) and listen for the talk tone.
If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure
that PTT Express and the WLAN are enabled.
2. Start talking after hearing the talk tone.
NOTE: Holding the button for more than 60 seconds (default) drops the call, allowing others to make
Group calls. Release the button when finished talking to allow others to make calls.
Responding with a Private Response
The Private Response can only be initiated once a Group Call has been established. The initial Private
Response is made to the originator of the Group Call.
1. Wait for an access tone.
P1 - Dedicated PTT Key
2. Within 10 seconds, double-press the PTT button, and listen for the talk tone.
3. If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure
that PTT Express and the WLAN are enabled.
4. Start talking after the talk tone plays.
5. Release the button when finished talking.
62
Disabling PTT Communication
1. Swipe up from the bottom of the Home screen and touch .
2. Slide the Enable/Disable Switch to the OFF position. The button changes to OFF.
3. Touch the Home button.
Applications
63
RxLogger
RxLogger is a comprehensive diagnostic tool that provides application and system metrics, and diagnoses
device and application issues. RxLogger logs the following information: CPU load, memory load, memory
snapshots, battery consumption, power states, wireless logging, cellular logging, TCP dumps, Bluetooth
logging, GPS logging, logcat, FTP push/pull, ANR dumps, etc. All generated logs and files are saved onto
flash storage on the device (internal or external).
RxLogger Configuration
RxLogger is built with an extensible plug-in architecture and comes packaged with a number of plug-ins
already built-in. For information on configuring RxLogger, refer to techdocs.zebra.com/rxlogger/
To open the configuration screen, from the RxLogger home screen touch Settings.
Configuration File
RxLogger configuration can be set using an XML file. The config.xml configuration file is located in the
RxLogger\config folder. Copy the file from the device to a host computer using a USB connection. Edit the
configuration file and then replace the XML file on the device. There is no need to stop and restart the
RxLogger service since the file change is automatically detected.
Applications
.
Enabling Logging
To enable logging:
1. Swipe the screen up and select .
2. Touch Start.
3. Touch the Home button.
Disabling Logging
To disable logging:
1. Swipe the screen up and select .
2. Touch Stop.
3. Touch the Home button.
Extracting Log Files
1. Connect the device to a host computer using an USB connection.
2. Using a file explorer, navigate to the RxLogger folder.
3. Copy the file from the device to the host computer.
4. Disconnect the device from the host computer.
Backing Up
RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default
contains all the RxLogger logs stored in the device.
64
To save the backup data, touch > BackupNow.
RxLogger Utility
RxLogger Utility is a data monitoring application for viewing logs in the device while RxLogger is running.
Logs and RxLogger Utility features are accessed using Main Chat Head.
Initiating the Main Chat Head
To initiate the Main Chat Head:
1. Open RxLogger.
2. Touch > Toggle Chat Head. The Main Chat Head icon appears on the screen.
3. Touch and drag the Main Chat head icon to move it around the screen.
Removing the Main Chat Head
To remove the Main Chat Head icon:
1. Touch and drag the icon. A circle with an X appears.
Applications
2. Move the icon over the circle and then release.
Viewing Logs
To view logs:
1. Touch the Main Chat Head icon. The RxLogger Utility screen appears.
2. Touch a log to open it. The user can open many logs with each displaying a new sub Chat Head.
3. If necessary, scroll left or right to view additional Sub Chat Head icons.
4. Touch a Sub Chat Head to display the log contents.
Removing a Sub Chat Head Icon
To remove a sub chat Head icon, press and hold the icon until it disappears.
Backing Up In Overlay View
RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default
contains all the RxLogger logs stored in the device.
The Backup icon is always available in Overlay View.
1. Touch . The Backup dialog box appears.
2. Touch Yes to create the back up.
Sound Recorder
Use Sound Recorder to record audio messages.
Recordings are saved on the microSD card (if installed) or the internal storage, and are available in the
Play Music application (GMS devices).
65
Data Capture
Introduction
This chapter provides information for capturing barcode data using the internal camera and optional scan
modules and Bluetooth scanner.
The device offers the following data capture options:
•Imager (SE4750-SR 2D, SE4850-ER 2D, SE4770 2D, SE4750DPM, and SE4750DPW).
•Laser Scanner (SE965 1D).
•Bluetooth (RS507/RS507X Hands-free imager, RS6000 Bluetooth Ring Scanner, and DS3678 Digital
Barcode Scanner).
NOTE: DataWedge is installed and enabled on the device by default.
By default, the good decode beep is set to system volume (Notifications). The good decode beep can be
set to another sound (Music and Media), and the volume can be independently controlled.
Integrated Imager
The device with an integrated 2D imager has the following features:
•Omnidirectional reading of a variety of barcode symbologies, including the most popular linear, postal,
PDF417, Digimarc, and 2D matrix code types.
•Advanced intuitive laser aiming cross-hair and dot aiming for easy point-and-shoot operation.
The imager uses imaging technology to take a picture of a barcode, and executes state-of-the-art software
decoding algorithms to extract the barcode data from the image.
Operational Modes
The device with an integrated imager supports two modes of operation, listed below. Activate each mode
by pressing the Scan button.
•Decode mode - The device attempts to locate and decode enabled barcodes within its field of view. The
imager remains in this mode as long as you hold the scan button, or until it decodes a barcode.
NOTE: To enable Pick List Mode, configure in DataWedge or set in an application using a API command.
66
Data Capture
•Pick List mode - Selectively decode a barcode when more than one barcode is in the device’s field of
view by moving the aiming crosshair or dot over the required barcode. Use this feature for pick lists
containing multiple barcodes and manufacturing or transport labels containing more than one barcode
type (either 1D or 2D).
Laser Scanner
The device with a laser scanner has the following features:
•Reading of a variety of barcode symbologies, including the most popular linear, and 1D code types.
•Intuitive laser aiming for easy point-and-shoot operation.
RS507/RS507X Hands-Free Imager
The RS507/RS507X Hands-free Imager is a wearable barcode scan solution for both 1D and 2D barcode
symbologies.
Figure 3 RS507/RS507X Hands-Free Imager
Refer to the RS507/RS507X Hands-free Imager Product Reference Guide for more information.
67
Data Capture
RS5100 Ring Scanner
The RS5100 Ring Scanner is a wearable barcode scan solution for both 1D and 2D bar code symbologies.
Figure 4 RS5100 Ring Scanner
Refer to the RS5100 Ring Scanner Product Reference Guide for more information.
RS6000 Bluetooth Ring Scanner
The RS6000 Bluetooth Ring Scanner is a wearable barcode scan solution for both 1D and 2D barcode
symbologies.
Figure 5 RS6000 Bluetooth Ring Scanner
Refer to the RS6000 Bluetooth Ring Scanner Product Reference Guide for more information.
DS3678 Digital Scanner
The cordless DS3678 combines superior 1D and 2D omnidirectional barcode scanning performance and
advanced ergonomics in a lightweight design. See the DS36X8 Product Reference Guide for more
information.
68
Figure 6 DS3678 Digital Scanner
Data Capture
Scanning Considerations
Typically, scanning is a simple matter of aim, scan, and decode, with a few quick trial efforts to master it.
However, consider the following to optimize scanning performance:
•Range: Scanners decode best over a particular working range — minimum and maximum distances
from the barcode. This range varies according to barcode density and scanning device optics. Scan
within range for quick and constant decodes; scanning too close or too far away prevents decodes.
Move the scanner closer and further away to find the right working range for the barcodes being
scanned.
•Angle: Scanning angle is important for quick decodes. When the illumination/flash reflects directly back
into the imager, the specular reflection can blind/saturate the imager. To avoid this, scan the barcode
so that the beam does not bounce directly back. Do not scan at too sharp an angle; the scanner needs
to collect scattered reflections from the scan to make a successful decode. Practice quickly shows what
tolerances to work within.
•Hold the device farther away for larger symbols.
•Move the device closer for symbols with bars that are close together.
NOTE: Scanning procedures depend on the app and device configuration. An app may use different
scanning procedures from the one listed above.
Barcode Capture with Imager
To capture barcode data:
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the top of the device at a barcode.
69
Data Capture
Figure 7 Barcode Scanning – MC93XX
3. Press and hold the Scan button or Trigger.
The red laser aiming pattern turns on to assist in aiming.
4. Ensure the barcode is within the area formed by the cross-hairs in the aiming pattern. The aiming dot is
used for increased visibility in bright lighting conditions.
The Scan LEDs light green and a beep sounds, by default, to indicate the barcode was decoded
successfully. Note that when the device is in Pick List Mode, the device does not decode the barcode
until the center of the crosshair touches the barcode.
Figure 8 Aiming Pattern: Standard and Extended Range
Figure 9 Pick List Mode with Multiple Barcodes in Aiming Pattern: Standard and Extended Range
5. Release the scan button or Trigger.
6. The barcode content data appears in the text field.
Barcode Capture with Laser Scanner
To capture barcode data:
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the top of the device at a barcode.
70
Data Capture
Point the scan exit window at a barcode.
3.

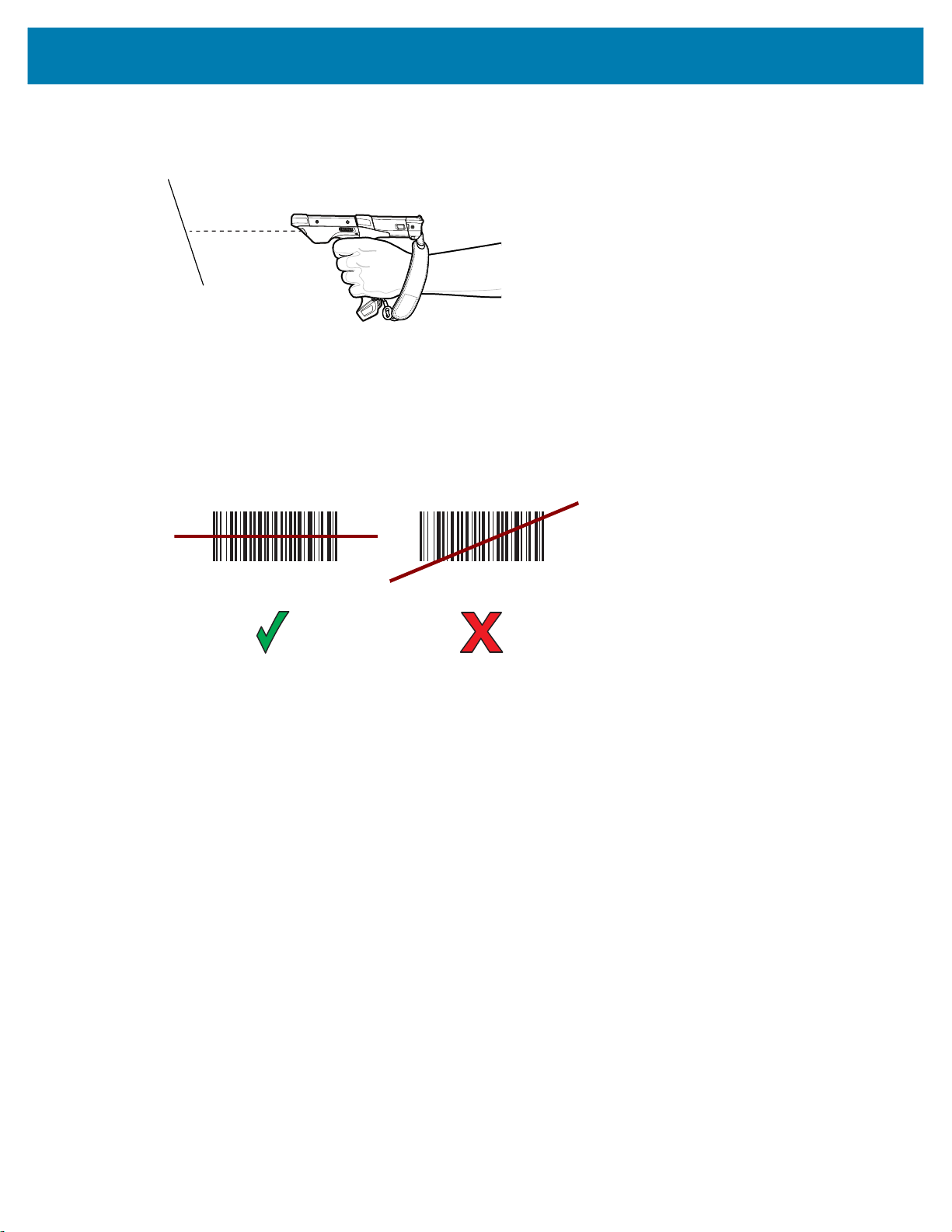

Figure 10 Barcode Scanning – MC93XX
4. Press and hold the Scan button.
The red scan line turns on to assist in aiming. Ensure that the scan line crosses every bar and space of
the barcode.
The Scan LEDs light green and a beep sounds, by default, to indicate the barcode was decoded
successfully.
Figure 11 Linear Scanner Aiming Pattern
5. Release the scan button.
6. The captured data appears in the text field.
Scanning with RS507/RS507X Hands-Free Imager
To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows
you to enable the scanner to decode barcode data and display the barcode content.
To scan with the RS507/RS507X:
1. Pair the RS507/RS507X with the device. See Pairing Bluetooth Scanners or Pairing Using Bluetooth
Human Interface Device for more information.
2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).
3. Point the RS507/RS507X at a barcode.
71
Data Capture
Figure 12 Barcode Scanning with RS507/RS507X
4. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed
by the cross-hairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.
The RS507/RS507X LEDs light green and a beep sounds to indicate the barcode was decoded
successfully. When the RS507/RS507X is in Pick List mode, the RS507/RS507X does not decode the
barcode until the center of the crosshair touches the barcode.
Figure 13 RS507/RS507X Aiming Pattern
Figure 14 RS507/RS507X Pick List Mode with Multiple Barcodes in Aiming Pattern
5. The captured data appears in the text field.
72
Data Capture
Scanning with RS6000 Bluetooth Ring Scanner
To read a barcode, a scan-enabled app is required. Devices that contain the Zebra DataWedge app allows
you to enable the scanner to decode barcode data and display the barcode content.
To scan with the RS6000:
1. Pair the RS6000 with the device. See Pairing Using Bluetooth Human Interface Device for more
information.
2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).
3. Point the RS6000 at a barcode.
Figure 15 Barcode Scanning with RS6000
4. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed
by the cross-hairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.
The RS6000 LEDs light green and a beep sounds to indicate the barcode was decoded successfully.
When the RS6000 is in Pick List mode, the RS6000 does not decode the barcode until the center of the
crosshair touches the barcode.
Figure 16 RS6000 Aiming Pattern
73
Data Capture
Figure 17 RS6000 Pick List Mode with Multiple Barcodes in Aiming Pattern
5. The captured data appears in the text field.
Scanning with the DS3608 USB Scanner or DS3678 Bluetooth Scanner
To scan with the DS3608 or DS3678:
1. Pair the scanner with the device. For more information, see Connecting a USB Scanner for the DS3608
or Pairing Bluetooth Scanners for the DS3678.
2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).
3. Point the scanner at a barcode.
Figure 18 Barcode Scanning (DS3678 shown)
4. Press and hold the trigger.
Ensure the barcode is within the area formed by the aiming pattern. The aiming dot increases visibility
in bright lighting conditions.
Figure 19 DS3608/DS3678 Aiming Pattern
74
Data Capture
Figure 20 DS3608/DS3678 Pick List Mode with Multiple Barcodes in Aiming Pattern
5. The captured data appears in the text field.
Pairing the RS507/RS507X/RS6000 Hands-Free Imager
To connect the RS507/RS507X or RS6000 imager to the device, use one of the following methods:
•Near Field Communication (NFC) (RS6000 only)
•Simple Serial Interface (SSI)
•Bluetooth Human Interface Device (HID) Mode.
Pairing Using Near Field Communication
NOTE: NFC is supported on the premium configurations of the device.
The MC93XX provides the ability to pair the RS6000 using NFC.
1. Ensure that NFC is enabled on the MC93XX.
2. Align the NFC icon on the RS6000 with the NFC icon on the back of the MC93XX.
The Status LED blinks blue indicating that the RS6000 is attempting to establish connection with the
MC93XX. When connection is established, the Status LED turns off and the RS6000 emits a single
string of low/high beeps.
A notification appears on the MC93XX screen.
The icon appears in the Status bar.
75
Data Capture

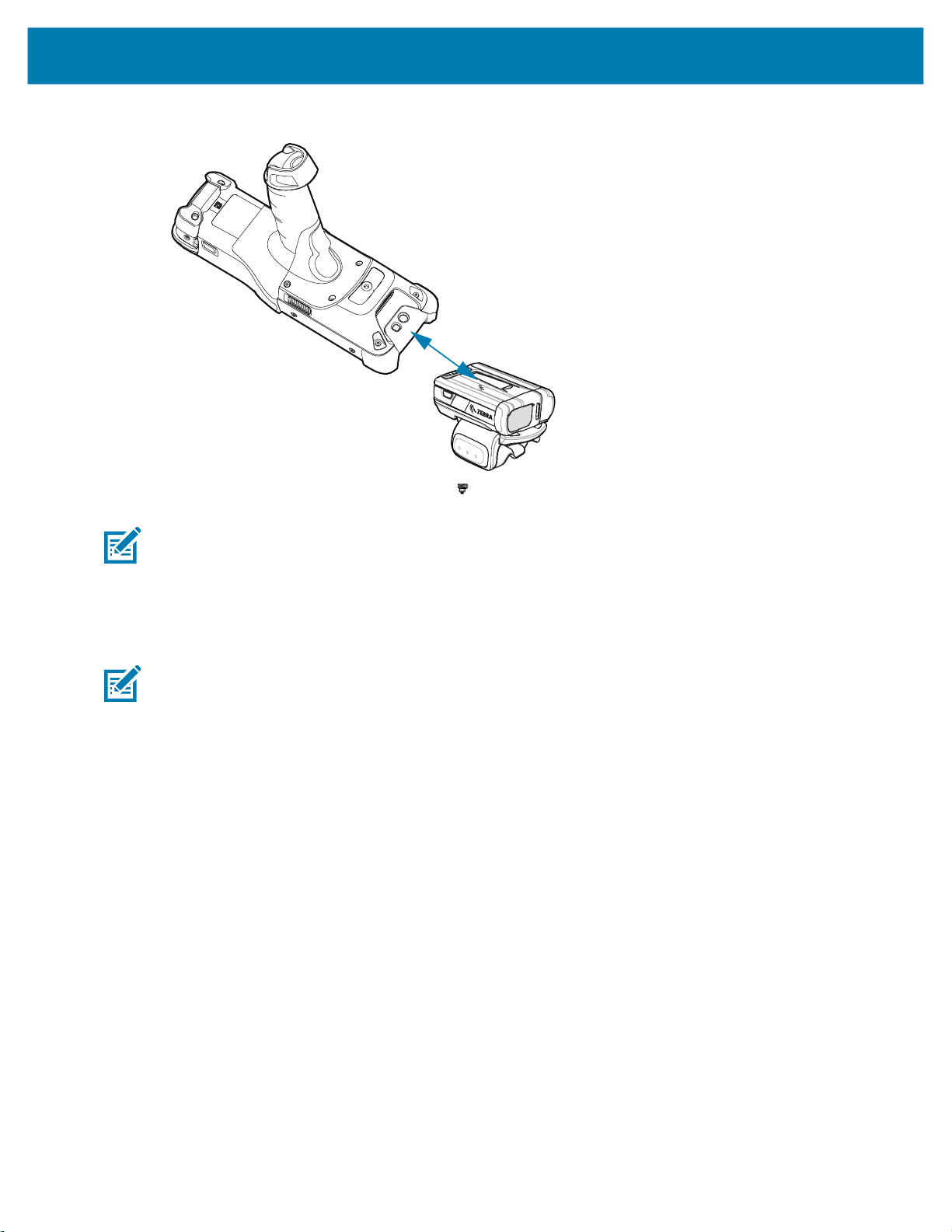

Figure 21 Align NFC Antennas
The MC93XX pairs with the RS6000 and appears in the Status bar.
NOTE: Not all Zebra devices support NFC readers and the Tap-to-Pair feature.
Pairing in HID Mode Using Near Field Communication
The MC93XX provides the ability to pair the RS6000 in HID Mode using NFC.
NOTE: NFC is supported on the premium and premium + configurations of the device and only with the
RS6000.
1. Ensure that NFC is enabled on the MC93XX.
2. Ensure that Bluetooth is enabled on both devices.
3. Ensure that the Bluetooth device to discover is in discoverable mode.
4. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
5. Place the RS6000 in Human Interface Device (HID) mode. If the RS6000 is already in HID mode, skip
to step 6.
a. Remove the battery from the RS6000.
b. Press and hold the Restore key.
c. Install the battery onto the RS6000.
d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash
green.
e. Scan the barcode below to place the RS6000 in HID mode.
76
Data Capture
Figure 22 Bluetooth HID Barcode
6. Remove the battery from the RS6000.
7. Re-install the battery into the RS6000.
8. Align the NFC icon on the RS6000 with the NFC icon on the MC93XX.
The Status LED blinks blue indicating that the RS6000 is attempting to establish connection with the
MC93XX. When connection is established, the Status LED turns off and the RS6000 emits a single
string of low/high beeps.
A notification appears on the MC93XX screen.
The icon appears in the Status bar.
Figure 23 Align NFC Antennas
The MC93XX pairs with the RS6000 and appears in the Status bar.
NOTE: Not all Zebra devices support NFC readers and the Tap-to-Pair feature.
Pairing Using Simple Serial Interface (SSI)
To pair the RS507/RS507X or RS6000 with the device using SSI.
1. Swipe up from the bottom of the Home screen and touch .
77
Figure 24 Bluetooth Pairing Utility
Data Capture
2. Using the RS507/RS507X or RS6000, scan the barcode on the screen.
The RS507/RS507X or RS6000 emits a string of high/low/high/low beeps. The Scan LED flashes green
indicating that the RS507/RS507X or RS6000 is attempting to establish connection with the device.
When connection is established, the Scan LED turns off and the RS507/RS507X or RS6000 emits one
string of low/high beeps.
A notification appears on the Notification panel and the icon appears in the Status bar.
Pairing Using Bluetooth Human Interface Device
To pair the RS507/RS507X or RS6000 with the device using Human Interface Device (HID):
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Place the RS507/RS507X or RS6000 in HID mode. If the RS507/RS507X or RS6000 is already in HID
mode, skip to step 5.
a. Remove the battery from the RS507/RS507X or RS6000.
b. Press and hold the Restore key.
c. Install the battery onto the RS507/RS507X or RS6000.
d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash
green.
e. Scan the barcode below to place the RS507/RS507X or RS6000 in HID mode.
78
Data Capture
Figure 25 RS507 Bluetooth HID Barcode
Figure 26 RS6000 Bluetooth HID Barcode
5. Remove the battery from the RS507/RS507X or RS6000.
6. Re-install the battery into the RS507/RS507X or RS6000.
7. Swipe down from the Status bar to open the Quick Access panel and then touch .
8. Touch Bluetooth.
9. Touch Pair new device. The device begins searching for discoverable Bluetooth devices in the area
and displays them under Available devices.
10. Scroll through the list and select RS507/RS507X or RS6000.
The device connects to the RS507/RS507X or RS6000 and Connected appears below the device
name. The Bluetooth device is added to the Paired devices list and a trusted (“paired”) connection is
established.
A notification appears on Notification panel and the icon appears in the Status bar.
Pairing a Bluetooth Scanner
Connect the scanner to the device using one of the following methods:
•Simple Serial Interface (SSI) mode
•Bluetooth Human Interface Device (HID) mode.
Pairing Using Bluetooth Human Interface Device
To pair the scanner with the device using HID:
1. Remove the battery from the scanner.
2. Replace the battery.
3. After the scanner reboots, scan the barcode below to place the scanner in HID mode.
Figure 27 Bluetooth HID Classic Barcode
4. On the device, swipe down from the Status bar to open the Quick Access panel and then touch .
5. Touch Bluetooth.
79
6.
7. Scroll through the list and select XXXXX xxxxxx, where XXXXX is the scanner and xxxxxx is the serial
DataWedge
DataWedge is a utility that adds advanced barcode scanning capability to any application without writing
code. It runs in the background and handles the interface to built-in barcode scanners. The captured
barcode data is converted to keystrokes and sent to the target application as if it was typed on the
keypad.DataWedge allows any app on the device to get data from input sources such as a barcode
scanner, MSR, RFID, voice, or serial port and manipulate the data based on options or rules.
Configure DataWedge to:
•Provide data capture services from any app.
•Use a particular scanner, reader or other peripheral device.
Data Capture
Touch Pair new device. The device begins searching for discoverable Bluetooth devices in the area
and displays them under Available devices.
number.
The device connects to the scanner, the scanner beeps once and Connected appears below the
device name. The Bluetooth device is added to the Paired devices list and a trusted (“paired”)
connection is established.
•Properly format and transmit data to a specific app.
To configure DataWedge refer to techdocs.zebra.com/datawedge/
Enabling DataWedge
1. Swipe up from the bottom of the Home screen and touch .
2. Touch > Settings.
3. Touch the DataWedge enabled checkbox. A blue checkmark appears in the checkbox indicating that
DataWedge is enabled.
4. Touch the Home button.
Disabling DataWedge
1. Touch .
2. Touch Settings.
3. Touch DataWedge enabled.
The blue check disappears from the checkbox indicating that DataWedge is disabled.
Supported Decoders
.
NOTE: DataWedge supports the decoders listed below but not all are validated on this device.
80
Table 6 Supported Decoders
Decoders
Camera
SE965
Internal Imager
Data Capture
SE4770
Internal Imager
RS5100
RS6000
DS2278
RS507/RS507X
DS3678
LI3678
DS8178
Internal Laser Scanner
Australian PostalO--OOOOOOO--O
AztecX--XXXXXXX--X
Canadian PostalO--OOOO----------
Chinese 2 of 5OOOOOOOOOOO
CodabarXXXXXXXXXXX
Code 11OOOOOOOOOOO
Code 128XXXXXXXXXXX
Code 39XXXXXXXXXXX
Code 93OOOOOOOOOOO
Composite ABO--OOOOOOO--O
Composite CO--OOOOOOO--O
Discrete 2 of 5OOOOOOOOOOO
DatamatrixX--XXXXXXX--X
Dutch PostalO--OOOOOOO--O
DotCodeXOXOOOOOOOO
EAN13XXXXXXXXXXX
EAN8XXXXXXXXXXX
Grid MatrixOOOOOOOOOOO
GS1 DataBarXXXXXXXXXXX
GS1 DataBar
Expanded
GS1 DataBar LimitedOOOOOOOOOOO
GS1 DatamatrixO--OOOO--OO--O
GS1 QRCodeO--OOOO--OO--O
HAN XINO--OOOO----OO--
Interleaved 2 of 5OOOOOOOOOOO
XXXXXXXXXXX
SE4750-SR & SE4850-ER
81
Table 6 Supported Decoders (Continued)
Decoders
Camera
SE965
Internal Imager
Data Capture
SE4770
Internal Imager
RS5100
RS6000
DS2278
RS507/RS507X
DS3678
LI3678
DS8178
Internal Laser Scanner
Japanese PostalO--OOOOOOO--O
Korean 3 of 5OOOOOOOOOOO
MAIL MARKX--XXXX--XX--X
Matrix 2 of 5OOOOOOOOOOO
MaxicodeX--XXXXXXX--X
MicroPDFO--OOOOOOO--O
MicroQRO--OOOOOOO--O
MSIOOOOOOOOOOO
PDF417X--XXXXXXX--X
QR CodeX--XXXXXXX--X
Decoder SignatureO--OOOOOO------
TLC 39OOOOOOOOOOO
Trioptic 39OOOOOOOOOOO
UK PostalO--OOOOOOO--O
UPCAXXXXXXXXXXX
UPCE0XXXXXXXXXXX
UPCE1OOOOOOOOOOO
US4stateO--OOOOOOO--O
US4state FICSO--OOOOOOO--O
US PlanetO--OOOOOOO--O
US PostnetO--OOOOOOO--O
SE4750-SR & SE4850-ER
Key
X = Enabled
O = Disabled
-- = Not Supported
Touch the Back button to return to the previous screen.
82
Wireless
This section provides information on the following wireless features:
•Wireless Local Area Network (WLAN)
•Bluetooth
Wireless Local Area Networks
Wireless local area networks (WLANs) allow the device to communicate wirelessly inside a building.
Before using the device on a WLAN, the facility must be set up with the required hardware to run the
WLAN (sometimes known as infrastructure). The infrastructure and the device must both be properly
configured to enable this communication.
Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches,
Radius servers, etc.) for instructions on how to set up the infrastructure.
Once the infrastructure is set up to enforce the chosen WLAN security scheme, use the Wireless & networks settings configure the device to match the security scheme.
The device supports the following WLAN security options:
•None
•Enhanced Open
•Wireless Equivalent Privacy (WEP)
•Wi-Fi Protected Access (WPA)/WPA2 Personal (PSK)
•WPA3-Personal
•WPA/WPA2/WPA3 Enterprise (EAP)
•Protected Extensible Authentication Protocol (PEAP) - with MSCHAPV2 and GTC authentication.
•Transport Layer Security (TLS)
•Tunneled Transport Layer Security (TTLS) - with Password Authentication Protocol (PAP),
The Status bar displays icons that indicate Wi-Fi network availability and Wi-Fi status.
NOTE: To extend the life of the battery, turn off Wi-Fi when not in use.
83
Connecting to a Wi-Fi Network
To connect to a Wi-Fi network:
1. Go to Settings.
2. Touch Wi-Fi to open the Wi-Fi screen. The device searches for WLANs in the area and lists them.
3. Scroll through the list and select the desired WLAN network.
4. For open networks, touch profile once or press and hold and then select Connect or for secure
networks enter the required password or other credentials then touch Connect. See the system
administrator for more information.
The device obtains a network address and other required information from the network using the
dynamic host configuration protocol (DHCP) protocol. To configure the device with a fixed internet
protocol (IP) address, see Configuring the Device to Use a Static IP Address on page 87.
5. In the Wi-Fi setting field, Connected appears indicating that the device is connected to the WLAN.
Removing a Wi-Fi Network
To remove a remembered or connected network:
Wireless
1. Go to Settings.
2. Touch Network & Internet > W-Fi.
3. Scroll down to the bottom of the list and touch Saved networks.
4. Touch the name of the network.
5. Touch FORGET.
6. Touch the Home button.
WLAN Configuration
This section provides information on configuring Wi-Fi settings.
Configuring a Secure Wi-Fi Network
1. Go to Settings.
2. Touch Network & Internet > Wi-Fi.
3. Slide the switch to the ON position.
4. The device searches for WLANs in the area and lists them on the screen.
5. Scroll through the list and select the desired WLAN network.
6. Touch the desired network. If the network security is Open, the device automatically connects to the
network. For all other network security a dialog box appears.
7. If the network security is WPA/WPA2-Personal, WPA3-Personal, or WEP, enter the required password
and then touch Connect.
8. If the network security is WPA/WPA2/WPA3 Enterprise:
•Touch the EAP method drop-down list and select one of the following:
•PEAP
84
Wireless
•TLS
•TTLS
•PWD
•LEAP.
•Touch the Phase 2 authentication drop-down list and select an authentication method.
•If required, touch CA certificate and select a Certification Authority (CA) certificate. Note:
Certificates are installed using the Security settings.
•If required, touch User certificate and select a user certificate. Note: User certificates are installed
using the Security settings.
•If required, in the Identity text box, enter the username credentials.
•If desired, in the Anonymous identity text box, enter an anonymous identity username.
•If required, in the Password text box, enter the password for then given identity.
9. If the network security is WPA3-Enterprise 192-bit:
•Touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are
installed using the Security settings.
•Touch User certificate and select a user certificate. Note: User certificates are installed using the
Security settings.
•In the Identity text box, enter the username credentials.
NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring
for a Proxy Server for setting connection to a proxy server and see Configuring the Device to Use a Static
IP Address for setting the device to use a static IP address.
10. Touch Connect.
11. Touch the Home button.
Manually Adding a Wi-Fi Network
Manually add a Wi-Fi network if the network does not broadcast its name (SSID) or to add a Wi-Fi network
when out of range.
1. Go to Settings.
2. Touch Network & Internet > Wi-Fi.
3. Slide the Wi-Fi switch to the On position.
4. Scroll to the bottom of the list and select Add network.
5. In the Network name text box, enter the name of the Wi-Fi network.
6. In the Security drop-down list, set the type of security to:
•None
•Enhanced Open
•WEP
•WPA/WPA2-Personal
•WPA3-Personal
•WPA/WPA2/WPA3-Enterprise
85
Wireless
•WPA3-Enterprise 192-bit
7. If the network security is None , touch Save.
8. If the network security is WEP, WPA3-Personal, or WPA/WPA2-Personal, enter the required
password and then touch Save.
9. If the network security is WPA/WPA2/WPA3-Enterprise:
•Touch the EAP method drop-down list and select one of the following:
•PEAP
•TLS
•TTLS
•PWD
•LEAP.
•Touch the Phase 2 authentication drop-down list and select an authentication method.
•If required, touch CA certificate and select a Certification Authority (CA) certificate. Note:
Certificates are installed using the Security settings.
•If required, touch User certificate and select a user certificate. Note: User certificates are installed
using the Security settings.
•If required, in the Identity text box, enter the username credentials.
•If desired, in the Anonymous identity text box, enter an anonymous identity username.
•If required, in the Password text box, enter the password for the given identity.
10. If the network security is WPA3-Enterprise 192-bit:
•Touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are
installed using the Security settings.
•Touch User certificate and select a user certificate. Note: User certificates are installed using the
Security settings.
•In the Identity text box, enter the username credentials.
NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring
for a Proxy Server on page 86 for setting connection to a proxy server and see Configuring the Device to
Use a Static IP Address on page 87 for setting the device to use a static IP address.
11. Touch Save. To connect to the saved network, touch and hold on the saved network and select
Connect to network.
12. Touch the Home button.
Configuring for a Proxy Server
A proxy server is a server that acts as an intermediary for requests from clients seeking resources from
other servers. A client connects to the proxy server and requests some service, such as a file, connection,
web page, or other resource, available from a different server. The proxy server evaluates the request
according to its filtering rules. For example, it may filter traffic by IP address or protocol. If the request is
validated by the filter, the proxy provides the resource by connecting to the relevant server and requesting
the service on behalf of the client.
86
Wireless
It is important for enterprise customers to be able to set up secure computing environments within their
companies, making proxy configuration essential. Proxy configuration acts as a security barrier ensuring
that the proxy server monitors all traffic between the Internet and the intranet. This is normally an integral
part of security enforcement in corporate firewalls within intranets.
1. Go to Settings.
2. Touch Network & Internet > Wi-Fi.
3. Slide the Wi-Fi switch to the On position.
4. In the network dialog box, select and touch a network.
5. Touch Advanced options.
6. Touch Proxy and select Manual.
7. In the Proxy hostname text box, enter the address of the proxy server.
8. In the Proxy port text box, enter the port number for the proxy server.
9. In the Bypass proxy for text box, enter addresses for web sites that are not required to go through the
proxy server. Use a comma “,” between addresses. Do not use spaces or carriage returns between
addresses.
10. Touch Connect.
11. Touch the Home button.
Configuring the Device to Use a Static IP Address
By default, the device is configured to use Dynamic Host Configuration Protocol (DHCP) to assign an
Internet protocol (IP) address when connecting to a wireless network.
1. Go to Settings.
2. Touch Network & Internet > Wi-Fi.
3. Slide the Wi-Fi switch to the On position.
4. In the network dialog box, select and touch a network.
5. Touch Advanced options.
6. Touch IP settings and select Static.
7. In the IP address text box, enter an IP address for the device.
8. If required, in the Gateway text box, enter a gateway address for the device.
9. If required, in the Network prefix length text box, enter the prefix length.
10. If required, in the DNS 1 text box, enter a Domain Name System (DNS) address.
11. If required, in the DNS 2 text box, enter a DNS address.
12. Touch Connect.
13. Touch the Home button.
Wi-Fi Preferences
Use the Wi-Fi preferences to configure advanced Wi-Fi settings. From the Wi-Fi screen scroll down to the
bottom of the screen and touch Wi-Fi preferences.
•Turn on Wi-Fi automatically - When enabled, Wi-Fi automatically turns back on when near high
quality saved networks.
87
•Open network notification - When enabled, notifies the user when an open network is available.
•Advanced - Touch to expand options.
•Additional settings - See Additional Settings.
•Install Certificates – Touch to install certificates.
•Network rating provider - Disabled (AOSP devices). To help determine what constitutes a good
Wi-Fi network, Android supports external Network rating providers that provide information about
the quality of open Wi-Fi networks. Select one of the providers listed or None. If none are available
or selected, the Connect to open networks feature is disabled.
•MAC address - Displays the Media Access Control (MAC) address of the device when connecting
to Wi-Fi networks.
•IP address - Displays the IP address of the device when connecting to Wi-Fi networks.
Additional Wi-Fi Settings
NOTE: Additional Wi-Fi settings are for the device, not for a specific wireless network.
Use the AdditionalSettings to configure additional Wi-Fi settings. To view the additional Wi-Fi settings,
scroll to the bottom of the Wi-Fi screen and touch Wi-Fi Preferences > Advanced > Additional settings.
Wireless
•Regulatory
•Country Selection - Displays the acquired country code if 802.11d is enabled, else it displays the
currently selected country code.
•Region code - Displays the current region code.
•Band and Channel Selection
•Wi-Fi frequency band - Set the frequency band to: Auto (default), 5 GHz only or 2.4 GHz only.
•Available channels (2.4 GHz) - Touch to display the Available channels menu. Select specific
channels and touch OK.
•Available channels (5 GHz) - Touch to display the Available channels menu. Select specific
channels and touch OK.
•Logging
•Advanced Logging – Touch to enable advanced logging or change the log directory.
•Wireless logs - Use to capture Wi-Fi log files.
•Fusion Logger - Touch to open the Fusion Logger application. This application maintains a
history of high level WLAN events which helps to understand the status of connectivity.
•Fusion Status - Touch to display live status of WLAN state. Also provides information about the
device and connected profile.
•About
•Version - Displays the current Fusion information.
Wi-Fi Direct
Wi-Fi Direct devices can connect to each other without having to go through an access point. Wi-Fi Direct
devices establish their own ad-hoc network when required, letting you see which devices are available and
choose which one you want to connect to.
88
Bluetooth
Wireless
Go to Settings.
1.
2. Touch Wi-Fi > Wi-Fi preferences > Advanced > Wi-Fi Direct. The device begins searching for
another Wi-Fi Direct device.
3. Under Peer devices, touch the other device name.
4. On the other device, select Accept.
Connected appears on the device. On both devices, in their respective Wi-Fi Direct screens, the other
device name appears in the list.
Bluetooth devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM)
band (802.15.1). Bluetooth wireless technology is specifically designed for short-range (10 m (32.8 ft))
communication and low power consumption.
Devices with Bluetooth capabilities can exchange information (for example, files, appointments, and tasks)
with other Bluetooth enabled devices such as printers, access points, and other mobile devices.
The device supports Bluetooth Low Energy. Bluetooth Low Energy is targeted at applications in the
healthcare, fitness, security, and home entertainment industries. It provides reduced power consumption
and cost while maintaining standard Bluetooth range.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used
with Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH
to work. There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections
and discoveries during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
•Channel Classification - A method of detecting an interference on a channel-by-channel basis, or
pre-defined channel mask.
•Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth
network.
•Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping
channels.
•Channel Maintenance - A method for periodically re-evaluating the channels.
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate
channels. AFH coexistence allows enterprise devices to operate in any infrastructure.
The Bluetooth radio in this device operates as a Class 2 device power class. The maximum output power
is 2.5 mW and the expected range is 10 m (32.8 ft). A definition of ranges based on power class is difficult
to obtain due to power and device differences, and whether in open space or closed office space.
NOTE: It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b
operation is required.
89
Security
Wireless
The current Bluetooth specification defines security at the link level. Application-level security is not
specified. This allows application developers to define security mechanisms tailored to their specific need.
Link-level security occurs between devices, not users, while application-level security can be implemented
on a per-user basis. The Bluetooth specification defines security algorithms and procedures required to
authenticate devices, and if needed, encrypt the data flowing on the link between the devices. Device
authentication is a mandatory feature of Bluetooth while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key used to authenticate the
devices and create a link key for them. Entering a common personal identification number (PIN) in the
devices being paired generates the initialization key. The PIN is never sent over the air. By default, the
Bluetooth stack responds with no key when a key is requested (it is up to user to respond to the key
request event). Authentication of Bluetooth devices is based-upon a challenge-response transaction.
Bluetooth allows for a PIN or passkey used to create other 128-bit keys used for security and encryption.
The encryption key is derived from the link key used to authenticate the pairing devices. Also worthy of
note is the limited range and fast frequency hopping of the Bluetooth radios that makes long-distance
eavesdropping difficult.
Recommendations are:
•Perform pairing in a secure environment
•Keep PIN codes private and do not store the PIN codes in the device
•Implement application-level security.
Bluetooth Profiles
The device supports the Bluetooth services listed.
Table 7 Bluetooth Profiles
Service Discovery Protocol
(SDP)
Serial Port Profile (SPP)Allows use of RFCOMM protocol to emulate serial cable
Object Push Profile (OPP)Allows the device to push and pull objects to and from a push
Advanced Audio Distribution
Profile (A2DP)
Audio/Video Remote Control
Profile (AVRCP)
Personal Area Network (PAN)Allows the use of Bluetooth Network Encapsulation Protocol to
Human Interface Device Profile
(HID)
Headset Profile (HSP)Allows a hands-free device, such as a Bluetooth headset, to place
ProfileDescription
Handles the search for known and specific services as well as
general services.
connection between two Bluetooth peer devices. For example,
connecting the device to a printer.
server.
Allows the device to stream stereo-quality audio to a wireless
headset or wireless stereo speakers.
Allows the device to control A/V equipment to which a user has
access. It may be used in concert with A2DP.
provide L3 networking capabilities over a Bluetooth link. Only
PANU role is supported.
Allows Bluetooth keyboards, pointing devices, gaming devices and
remote monitoring devices to connect to the device.
and receive calls on the device.
90
Wireless
Table 7 Bluetooth Profiles (Continued)
ProfileDescription
Hands-Free Profile (HFP)Allows car hands-free kits to communicate with the device in the
car.
Phone Book Access Profile
(PBAP)
Out of Band (OOB)Allows exchange of information used in the pairing process. Pairing
Symbol Serial Interface (SSI)Allows for communication with Bluetooth Imager.
Generic Attribute Profile (GATT)Provides profile discovery and description services for Bluetooth
Dial Up Networking (DUN)Provides a standard to access the Internet and other dial-up
Generic Access Profile (GAP)Use for device discovery and authentication.
OBject EXchange (OBEX)Facilitates the exchange of binary objects between devices.
Allows exchange of Phone Book Objects between a car kit and a
mobile device to allow the car kit to display the name of the
incoming caller; allow the car kit to download the phone book so
you can initiate a call from the car display.
is completed using the Bluetooth radio, but requires information
from the OOB mechanism. Using OOB with NFC enables pairing
when devices simply get close, rather than requiring a lengthy
discovery process.
Low Energy protocol. It defines how attributes are grouped
together into sets to form services.
services over Bluetooth.
Bluetooth Power States
The Bluetooth radio is off by default.
•Suspend - When the device goes into suspend mode, the Bluetooth radio stays on.
•Airplane Mode - When the device is placed in Airplane Mode, the Bluetooth radio turns off. When
Airplane mode is disabled, the Bluetooth radio returns to the prior state. When in Airplane Mode, the
Bluetooth radio can be turned back on if desired.
Bluetooth Radio Power
Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (for example, an
airplane). When the radio is off, other Bluetooth devices cannot see or connect to the device. Turn on the
Bluetooth radio to exchange information with other Bluetooth devices (within range). Communicate only
with Bluetooth radios in close proximity.
NOTE: To achieve the best battery life, turn off radios when not in use.
Enabling Bluetooth
1. Swipe down from the Status bar to open the Notification panel.
2. Touch to turn Bluetooth on.
3. Touch the Home button.
91
Disabling Bluetooth
1. Swipe down from the Status bar to open the Notification panel.
2. Touch to turn Bluetooth off.
3. Touch the Home button.
Discovering Bluetooth Device(s)
The device can receive information from discovered devices without pairing. However, once paired, the
device and a paired device exchange information automatically when the Bluetooth radio is on.
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Swipe down from the Status bar to open the Quick Access panel.
5. Touch and hold Bluetooth.
6. Touch Pair new device. The device begins searching for discoverable Bluetooth devices in the area
and displays them under Available devices.
Wireless
7. Scroll through the list and select a device. The Bluetooth pairing request dialog box appears.
8. Touch Pair on both devices.
9. The Bluetooth device is added to the Paired devices list and a trusted (“paired”) connection is
established.
Changing the Bluetooth Name
By default, the device has a generic Bluetooth name that is visible to other devices when connected.
The device searches for nearby Miracast devices and lists them.
4. Touch a device to begin casting.
5. Touch the Home button.
Near Field Communications
NFC/HF RFID is a short-range wireless connectivity technology standard that enables secure transaction
between a reader and a contactless smartcard. The technology is based on ISO/IEC 14443 type A and B
(proximity), ISO/IEC 15693 (vicinity), and FeliCa standards, using the HF 13.56 MHz unlicensed band.
The device supports the following operating modes:
•Reader mode
•Peer-to-Peer communication
•Card Emulation mode.
Using NFC, the device can:
•Read contactless cards such as contactless tickets, ID cards and ePassport.
•Read and write information to contactless cards such as SmartPosters and tickets, as well as devices
with NFC interface such as vending machines.
•Read information from supported medical sensors.
93
•Pair with supported Bluetooth devices such as printers (ex. ZQ5x, ZD5x), ring scanners (ex. RS6000),
and headsets (ex. HS3100).
•Exchange data with another NFC device.
•Emulate contactless card such as ticket, or SmartPoster.
The device NFC antenna is positioned to read NFC cards from the top of the device while the device is
being held.
Reading NFC Cards
Read contactless cards using NFC.
Figure 28 Reading Cards
Wireless
1. Launch an NFC enabled application.
2. Hold device as shown.
3. Move the device close to the NFC card until it detects the card.
4. Hold the card steadily until the transaction is complete (usually indicated by the application).
Sharing Information Using NFC
You can beam content like a web page, contact cards, pictures, YouTube links or location information from
your screen to another device by bringing the devices together back to back.
Make sure both devices are unlocked, support NFC, and have both NFC and Android Beam turned on.
1. Open a screen that contains a web page, video, photo or contact.
94
Move the back of the device toward the back of the other device.
2.
3. Align the NFC logo on the device with the NFC antenna on the other device.
4. Move the front of the device toward the front of the other device.
When the devices connect, a sound emits, the image on the screen reduces in size, the message
Touch to beam displays.
5. Touch anywhere on the screen.
The transfer begins.
Enterprise NFC Settings
Improve NFC performance or increase battery life by selecting which NFC features to use on the device.
Wireless
•Card Detection Mode - Select a card detection mode.
•Low - Increases battery life by lowering the NFC detection speed.
•Hybrid - Provides a balance between NFC detection speed and battery life (default).
•Standard - Provides the best NFC detection speed, but reduces battery life.
•Supported Card Technology - Select an option to detect only one NFC tag type, increasing battery
life, but reducing detection speed.
•All (Default) - Detects all NFC tag types. This provides the best detection speed, but reduces
battery life.
•ISO 14443 Type A/B
•FeliCa
•ISO15693
•Other NFC settings available with Zebra administrator tools (CSP) - Allows configuration of
additional Enterprise NFC Settings through staging tools and Mobile Device Management (MDM)
solutions with an MX version that supports the Enterprise NFC Settings Configuration Service Provider
(CSP). For more information on using the Enterprise NFC Settings CSP, refer to: techdocs.zebra.com
.
95
Accessories
This section provides information for using the accessories for the device. The table below lists the
accessories available for the device.
Table 8 MC93XX Accessories
AccessoryPart NumberDescription
Cradles
1-Slot USB Charge Cradle with Spare
Battery Charger
4-Slot Charge Only ShareCradleCRD-MC93-4SCHG-01Charges up to four MC93XXs. Requires power
CRD-MC93-2SUCHG-01Charges the MC93XX main battery and a spare
battery, and synchronizes the MC93XX with a
host computer through a USB connection.
Requires power supply
(PWR-BGA12V50W0WW), DC line cord
(CBL-DC-388A1-01) and a country specific
grounded AC line cord.
supply (PWR-BGA12V108W0WW), DC line cord
(CBL-DC-381A1-01) and a country specific
grounded AC line cord.
4-Slot Ethernet ShareCradleCRD-MC93-4SETH-01 Charges up to four MC93XXs through the main
battery and synchronizes the devices with a host
computer through an Ethernet connection.
Requires power supply
(PWR-BGA12V108W0WW), DC line cord
(CBL-DC-381A1-01) and a country specific
grounded AC line cord.
Chargers
4-Slot Spare Battery ChargerSAC-MC93-4SCHG-01Charges up to four MC93XX spare batteries.
Requires power supply
(PWR-BGA12V50W0WW), DC line cord
(CBL-DC-388A1-01) and a country specific
grounded AC line cord.
16-Slot Spare Battery ChargerSAC-MC93-16SCHG-01Charges up to 16 MC93XX spare batteries.
Requires power supply
(PWR-BGA12V108W0WW), DC line cord
(CBL-DC-381A1-01) and a country specific
grounded AC line cord.
96
Accessories
Table 8 MC93XX Accessories (Continued)
AccessoryPart NumberDescription
Power SupplyPWR-BGA12V50W0WWProvides 12 VDC, 4.16A power to the 1-Slot USB
Charge Cradle and the 4-Slot Spare Battery
Charger. Requires a DC line cord
(CBL-DC-388A1-01) and a country specific
grounded AC line cord.
Power SupplyPWR-BGA12V108W0WWProvides 12 VDC, 9A power to the 4-Slot Charge
Cradle with 4-Slot Battery Charger, and 16-Slot
Battery Charger. Requires a DC line cord
(CBL-DC-381A1-01) and a country specific
grounded AC line cord.
Power SupplyPWR-WUA5V12W0USProvides 5 VDC, 2.5A power to the USB Charge
Cable. Includes plug adapter for use in the United
States.
Power SupplyPWR-WUA5V12W0GBProvides 5 VDC, 2.5A power to the USB Charge
Cable. Includes plug adapter for use in the
European Union.
Power SupplyPWR-WUA5V12W0EUProvides 5 VDC, 2.5A power to the USB Charge
Cable. Includes plug adapter for use in the United
Kingdom.
Power SupplyPWR-WUA5V12W0AUProvides 5 VDC, 2.5A power to the USB Charge
Cable. Includes plug adapter for use in Australia.
Power SupplyPWR-WUA5V12W0CNProvides 5 VDC, 2.5A power to the USB Charge
Cable. Includes plug adapter for use in China.
Power SupplyPWR-WUA5V12W0INProvides 5 VDC, 2.5A power to the USB Charge
Cable. Includes plug adapter for use in India.
US AC Line Cord23844-00-00RProvides power to 3–wire power supplies
PWR-BGA12V50W0WW and
PWR-BGA12V108W0WW.
DC Line CordCBL-DC-381A1-01Provides power from the power supply
(PWR-BGA12V108W0WW) to the 4-Slot
Charge Only Cradle, 4-Slot Ethernet Cradle,
and 16-Slot Battery Charger.
DC Line CordCBL-DC-388A1-01Provides power from the power supply
(PWR-BGA12V150W0WW) to the 1-Slot USB
Charge Cradle and 4-Slot Battery Charger.
97
Accessories
Table 8 MC93XX Accessories (Continued)
AccessoryPart NumberDescription
Cables
USB Charge/Com Snap-On Cup
A separate USB cable and power
supply is required to support fast
charging. USB (Type-C) Cable is
required to allow communication from
the snap-on to the PC/laptop.
1-Slot Cradle USB CableCBL-TC2X-USBC-01Provides USB communication through the 1-Slot
Miscellaneous
Cradle AdapterADP-MC93-CRDCUP-01MC93XX Charge Only Adapter for backwards
7000mAh PowerPrecision+ standard
battery
CBL-MC93-USBCHG-01Provides power and/or communication over USB
to the device. Requires wall adapter/power supply
PWR-WUA5V12W0xx.
USB cradle to the host computer.
compatibility with MC9XX cradles. Works with
MC9XX 1-Slot USB Cradle, and 4-Slot Charge
Only Cradle.
BTRY-MC93-STN-01
Replacement standard battery.
BTRY-MC93-STN-10
BTRY-MC93-STN-IN
5000mAh PowerPrecision+ freezer
battery
7000mAh PowerPrecision+
non-incendive battery
MC93XX Hand StrapSG-MC93-HDSTPG-01Replacement hand strap for the MC93XX Hand
MC93 Soft Holster for GunSG-MC9X-SHLSTG-01Provides a soft, clip on holster and a shoulder
MC93 Rubber Boot for GunSG-MC93-RBTG-01Provides additional protection for wear and tear of
Screen ProtectorMISC-MC93-SCRN-01Provides additional protection for display (5-pack).
Stylus and TetherSG-TC7X-STYLUS-03Conductive carbon-filled stylus for capacitive
Un-powered Forklift MountMNT-MC93-FLCH-01Un-powered forklift mount. Allows installing the
BTRY-MC93-FRZ-01
BTRY-MC93-FRZ-10
BTRY-MC93-NI-01
BTRY-MC93-NI-10
Replacement standard battery (10–pack).
Replacement standard battery (India).
Replacement freezer battery.
Replacement freezer battery (10–pack).
Replacement non-incendive battery.
Replacement non-incendive battery (10–pack).
strap loop holds an optional stylus
(SG-TC7X-STYLUS-03).
strap for the MC93XX.
the MC93XX.
touch panel; includes coiled tether (3-pack).
device on a roll bar or square surface of a forklift.
Includes:
Forklift holder (MNT-MC93-FLCH-01), RAM
double socket arm for 1” ball (MNT-RAM-B201U),
and RAM forklift clamp 2.5” max width square rail
base with 1” ball (MNT-RAM-B247U25).
